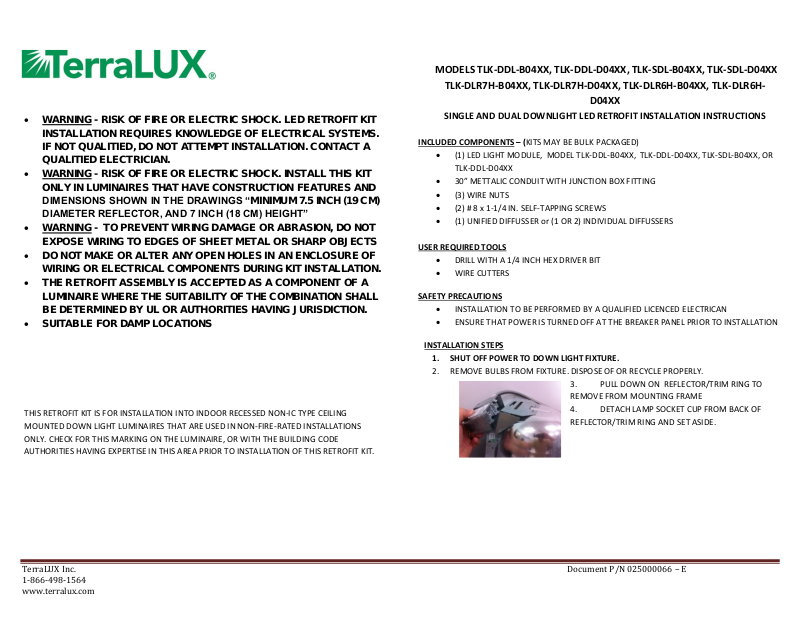

Page 1
MODELS TLK-DDL-B04XX, TLK-DDL-D04XX, TLK-SDL-B04XX, TLK-SDL-D04XX
WARNING - RISK OF FIRE OR ELECTRIC SHOCK. LED RETROFIT KIT
INSTALLATION REQUIRES KNOWLEDGE OF ELECTRICAL SYSTEMS.
IF NOT QUALITIED, DO NOT ATTEMPT INSTALLATION. CONTACT A
QUALITIED ELECTRICIAN.
WARNING - RISK OF FIRE OR ELECTRIC SHOCK. INSTALL THIS KIT
ONLY IN LUMINAIRES THAT HAVE CONSTRUCTION FEATURES AND
DIMENSIONS SHOWN IN THE DRAWINGS “MINIMUM 7.5 INCH (19 CM)
DIAMETER REFLECTOR, AND 7 INCH (18 CM) HEIGHT”
WARNING - TO PREVENT WIRING DAMAGE OR ABRASION, DO NOT
EXPOSE WIRING TO EDGES OF SHEET METAL OR SHARP OBJECTS
DO NOT MAKE OR ALTER ANY OPEN HOLES IN AN ENCLOSURE OF
WIRING OR ELECTRICAL COMPONENTS DURING KIT INSTALLATION.
THE RETROFIT ASSEMBLY IS ACCEPTED AS A COMPONENT OF A
LUMINAIRE WHERE THE SUITABILITY OF THE COMBINATION SHALL
BE DETERMINED BY UL OR AUTHORITIES HAVING JURISDICTION.
SUITABLE FOR DAMP LOCATIONS
THIS RETROFIT KIT IS FOR INSTALLATION INTO INDOOR RECESSED NON-IC TYPE CEILING
MOUNTED DOWN LIGHT LUMINAIRES THAT ARE USED IN NON-FIRE-RATED INSTALLATIONS
ONLY. CHECK FOR THIS MARKING ON THE LUMINAIRE, OR WITH THE BUILDING CODE
AUTHORITIES HAVING EXPERTISE IN THIS AREA PRIOR TO INSTALLATION OF THIS RETROFIT KIT.
TerraLUX Inc. Document P/N 025000066 – E
1-866-498-1564
www.terralux.com
TLK-DLR7H-B04XX, TLK-DLR7H-D04XX, TLK-DLR6H-B04XX, TLK-DLR6H-
D04XX
SINGLE AND DUAL DOWNLIGHT LED RETROFIT INSTALLATION INSTRUCTIONS
INCLUDED COMPONENTS – (KITS MAY BE BULK PACKAGED)
(1) LED LIGHT MODULE, MODEL TLK-DDL-B04XX, TLK-DDL-D04XX, TLK-SDL-B04XX, OR
TLK-DDL-D04XX
30” METTALIC CONDUIT WITH JUNCTION BOX FITTING
(3) WIRE NUTS
(2) # 8 x 1-1/4 IN. SELF-TAPPING SCREWS
(1) UNIFIED DIFFUSSER or (1 OR 2) INDIVIDUAL DIFFUSSERS
USER REQUIRED TOOLS
DRILL WITH A 1/4 INCH HEX DRIVER BIT
WIRE CUTTERS
SAFETY PRECAUTIONS
INSTALLATION TO BE PERFORMED BY A QUALIFIED LICENCED ELECTRICAN
ENSURE THAT POWER IS TURNED OFF AT THE BREAKER PANEL PRIOR TO INSTALLATION
INSTALLATION STEPS
1. SHUT OFF POWER TO DOWN LIGHT FIXTURE.
2. REMOVE BULBS FROM FIXTURE. DISPOSE OF OR RECYCLE PROPERLY.

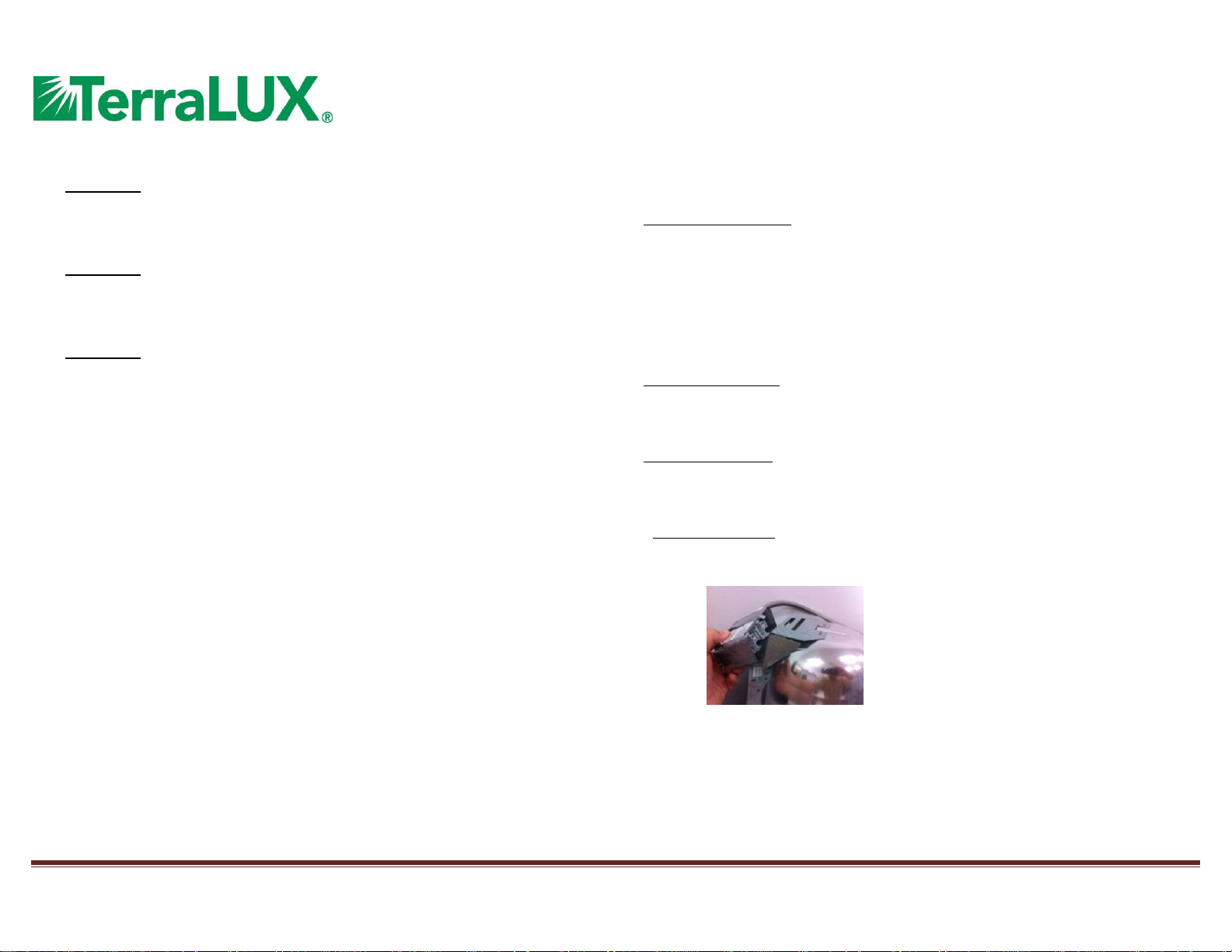

3. PULL DOWN ON REFLECTOR/TRIM RING TO
REMOVE FROM MOUNTING FRAME
4. DETACH LAMP SOCKET CUP FROM BACK OF
REFLECTOR/TRIM RING AND SET ASIDE.
Page 2
5. OPEN FIXTURES J-BOX COVER AND DISCONNECT MAINS WIRING TO BALLAST. CUT ALL
BALLAST WIRES AT J-BOX AND SET BALLAST WITH J-BOX COVER ASIDE FOR REASSEMBLY.
NOTE: THE FOLLOWING STEPS ILLUSTRATE THE DUAL DOWNLIGHT RETROFIT MODULE
(MODELS TLK-DDL-B/D04XX AND TLK-DRL7H-B/D04XX). THE INSTALLATION STEPS ARE
IDENTICAL FOR THE SINGLE DOWNLIGHT RETROFIT
MODULE (MODELS TLK-SDL-B/D04XX AND TLK-DLR6HB/D04XX), EXCEPT THAT ONLY ONE LED LIGHT MODULE IS
PROVIDED.

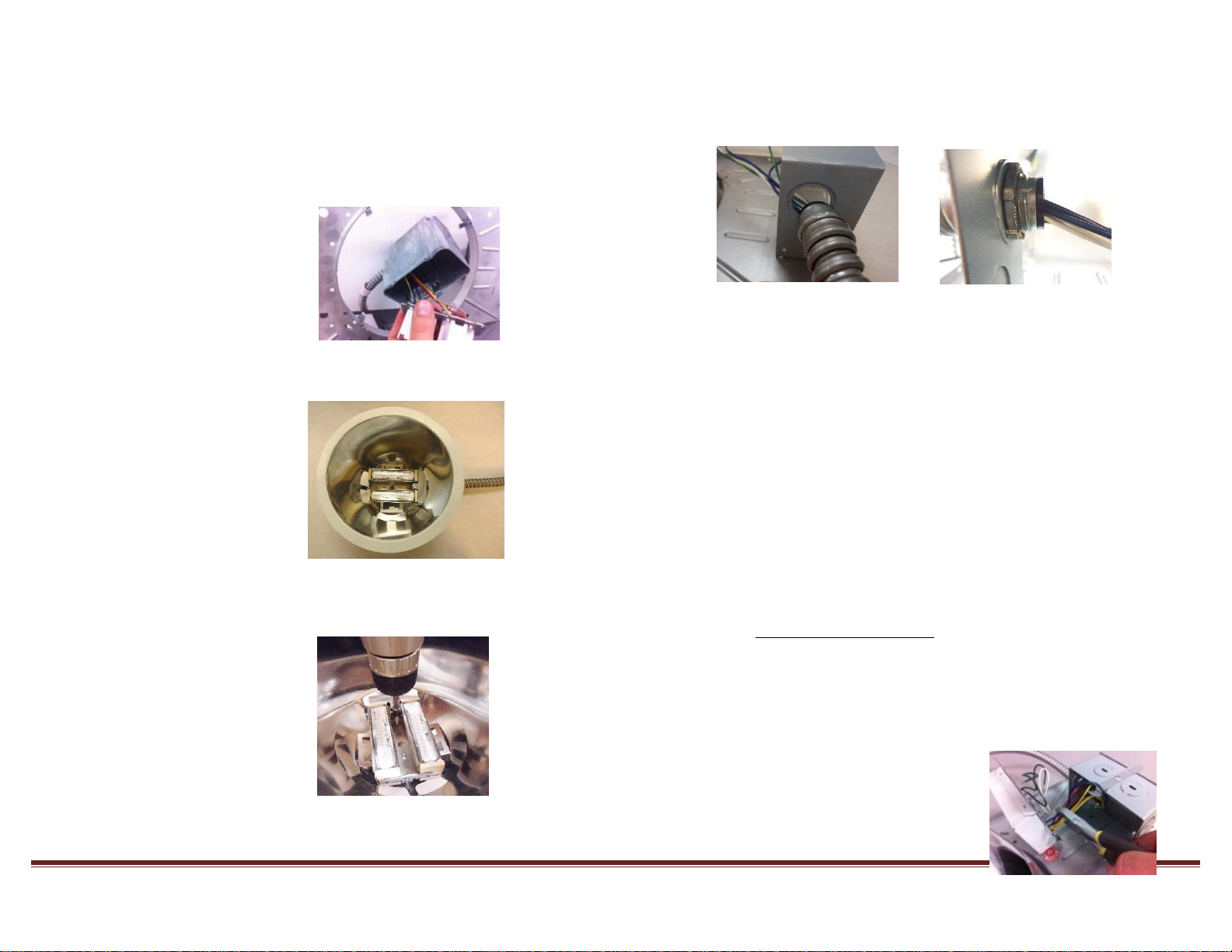

6. REMOVE BALLAST WIRES FROM CONDUIT BY
PULLING SOCKETS AND PLATE. DISCARD
SOCKETS, SOCKET WIRES AND PLATE.
7. ROUTE LED RETROFIT CONDUIT THROUGH
SOCKET CUP OPENING ON SIDE OF
REFLECTOR/TRIM RING.
8. USE INCLUDED SCREWS TO MOUNT THE LED LIGHT
MODULE INTO THE REFLECTOR/TRIM RING.
9. ROUTE
LED
RETROFIT
CONDUIT
THROUGH TRIM RING OPENING IN FIXTURE.
10. REMOVE A ½” KNOCK-OUT COVER FROM FIXURES’ J-BOX IN. THREAD LED RETROFIT
WIRES AND THREADED END OF CONDUIT INTO KNOCKOUT OPENING. SECURE THE
CONDUIT TO THE J-BOX USING THE CONDUIT NUT.
11. CONNECT LED RETROFIT MODULE WIRES TO MAINS/LINE WIRING INSIDE J-BOX USING
PROVIDED WIRE NUTS.
WIRING CONNECTION DETAILS
a. GREEN/YELLOW WIRE TO GROUND WIRE (BARE OR GREEN)
b. BLUE WIRES TO LINE CONDUCTOR (BLACK)
c. WHITE WIRES TO NEUTRAL CONDUCTOR (WHITE)
12. *NOTE: IF THE LED MODULE HAS TWO ADDITIONAL WIRES (GREY AND VIOLET), THEN IT
SUPPORTS OPTIONAL 0-10 VOLT DIMMING. IF
THIS OPTION IS REQUIRED IN THE INSTALLATION,
CONNECT THE VIOLET WIRE TO THE POSITIVE (+),
AND THE GREY WIRE TO THE NEGATIVE (-)
DIMMER WIRE LEADS. DIMMER OUTPUT MUST
BE CLASS 2.
TerraLUX Inc. Document P/N 025000066 – E
1-866-498-1564
www.terralux.com
Page 3
13. TRIM EXCESS BALLAST WIRES FLUSH AND REATTACH J-BOX COVER.

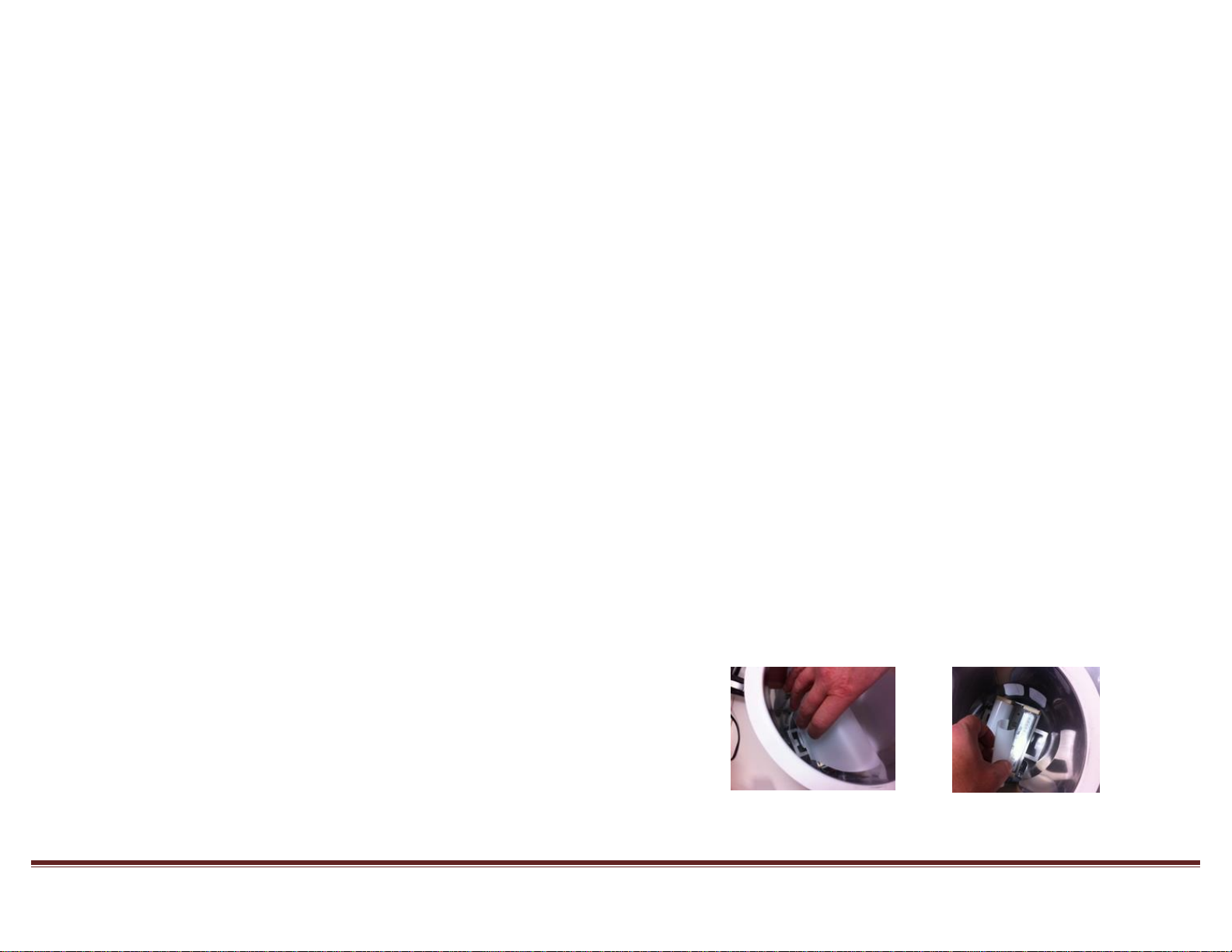

14. FEED REFLECTOR/TRIM RING CUP BACK INTO FIXTURE MOUNTING FRAME, AND PRESS
FIRMLY TO LOCK IN PLACE. ATTACH UNIFIED DIFFUSER, OR INDIVIDUAL MODULE
DIFFUSOR(S), IN PLACE.
15. TURN POWER BACK ON AT THE BREAKER PANEL AND VERIFY FIXTURE OPERATION
TerraLUX Inc. Document P/N 025000066 – E
1-866-498-1564
www.terralux.com
