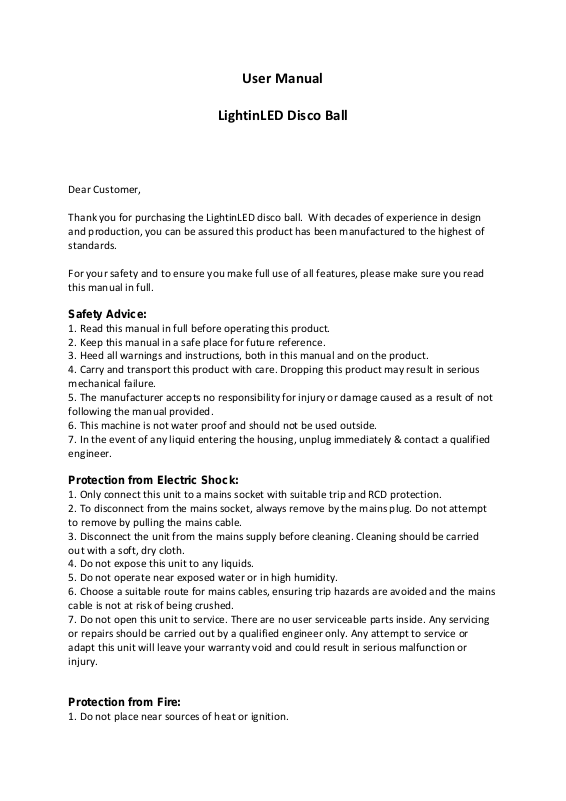

User Manual

LightinLED Disco Ball

Dear Customer,

Thank you for purchasing the LightinLED disco ball. With decades of experience in design
and production, you can be assured this product has been manufactured to the highest of
standards.

For your safety and to ensure you make full use of all features, please make sure you read
this manual in full.

Safety Advice:

1. Read this manual in full before operating this product.

2. Keep this manual in a safe place for future reference.

3. Heed all warnings and instructions, both in this manual and on the product.

4. Carry and transport this product with care. Dropping this product may result in serious
mechanical failure.

5. The manufacturer accepts no responsibility for injury or damage caused as a result of not
following the manual provided.

6. This machine is not water proof and should not be used outside.

7. In the event of any liquid entering the housing, unplug immediately & contact a qualified
engineer.

Protection from Electric Shock:

1. Only connect this unit to a mains socket with suitable trip and RCD protection.

2. To disconnect from the mains socket, always remove by the mains plug. Do not attempt
to remove by pulling the mains cable.

3. Disconnect the unit from the mains supply before cleaning. Cleaning should be carried
out with a soft, dry cloth.

4. Do not expose this unit to any liquids.

5. Do not operate near exposed water or in high humidity.

6. Choose a suitable route for mains cables, ensuring trip hazards are avoided and the mains
cable is not at risk of being crushed.

7. Do not open this unit to service. There are no user serviceable parts inside. Any servicing
or repairs should be carried out by a qualified engineer only. Any attempt to service or
adapt this unit will leave your warranty void and could result in serious malfunction or
injury.

Protection from Fire:

1. Do not place near sources of heat or ignition.

2. Do not cover or block any ventilation holes.

3. Check your AC wall socket will take the power you are applying to avoid overloading the
mains supply.

Protection from Injury and Damage:

1. Do not attempt to modify this unit.

2. Always install the unit in a suitable location where vibrations to the unit are avoided.

3. Check this unit matches the mains voltage and frequency before plugging it in to your
mains socket.

4. In the event that any object or liquid enters the machine, switch off immediately, remove
from mains and consult a qualified engineer.

5. Should you experience ant malfunction or damage to the mains cable, disconnect from
the mains supply immediately and consult a qualified engineer.

6. All parts should be replaced with genuine spare parts and carried out by a qualified
engineer.

7. Always use the power supply that is supplied with the unit.

Contents & Unpacking:

Before beginning your initial setup check the unit has not been damaged in transit. In the
event there is damage to the housing, cable or internal components contact your dealer
immediately.

Specifications:

Name: Discoball MP3
Code: LILMP3
Mains input: 240Vac 50Hz
Power Consumption: 15W
LED: RGBA
Dimensions: 195 x 195 x 170mm
Weight: 1Kg

Features:

An LED disco ball with red, green, blue and amber LEDs. MP3 files can be played via SD card
(supplied) or USB stick. The internal amplifier and speakers will play MP3 files. When no
sound is detected the unit will run in auto mode.

Operation:

1. Remove the light from the packaging.

2. Plug the unit into a suitable mains socket.

3. Put desired MP3 files on supplied SD card or a USB stick, do not put the files into folders.

4. The light will automatically play the files stored. You may need to adjust the volume.
