Tern Market User Manual

Market™ Basket

ern Bicycles

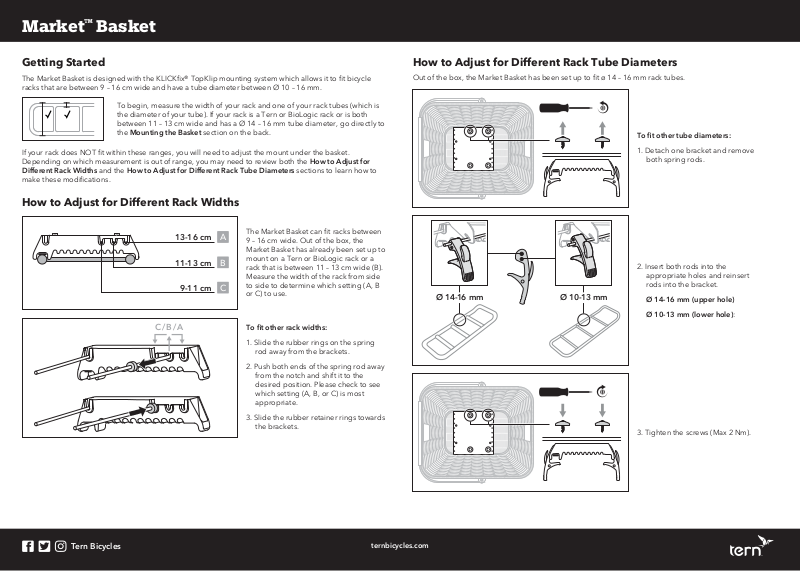

Getting Started

The Market Basket is designed with the KLICKfix® TopKlip mounting system which allows it to fit bicycle
racks that are between 9 – 16 cm wide and have a tube diameter between Ø 10 – 16 mm.

To begin, measure the width of your rack and one of your rack tubes (which is
the diameter of your tube). If your rack is a Tern or BioLogic rack or is both
between 11 – 13 cm wide and has a Ø 14 – 16 mm tube diameter, go directly to
the Mounting the Basket section on the back.

If your rack does NOT fit within these ranges, you will need to adjust the mount under the basket.
Depending on which measurement is out of range, you may need to review both the How to Adjust for
Different Rack Widths and the How to Adjust for Different Rack Tube Diameters sections to learn how to
make these modifications.

How to Adjust for Different Rack Widths

13-16 cm

11-13 cm

9-11 cm

C/B/A

The Market Basket can fit racks between

A

9 – 16 cm wide. Out of the box, the
Market Basket has already been set up to
mount on a Tern or BioLogic rack or a

B

rack that is between 11 – 13 cm wide (B).
Measure the width of the rack from side
to side to determine which setting (A, B

C

or C) to use.

To fit other rack widths:

1. Slide the rubber rings on the spring
rod away from the brackets.

2. Push both ends of the spring rod away
from the notch and shift it to the
desired position. Please check to see
which setting (A, B, or C) is most
appropriate.

3. Slide the rubber retainer rings towards
the brackets.

How to Adjust for Different Rack Tube Diameters

Out of the box, the Market Basket has been set up to fit ø 14 – 16 mm rack tubes.

To fit other tube diameters:

1. Detach one bracket and remove
both spring rods.

2. Insert both rods into the
appropriate holes and reinsert
rods into the bracket.

Ø 14-16 mm

Ø 10-13 mm

Ø 14-16 mm (upper hole)

Ø 10-13 mm (lower hole):

3. Tighten the screws (Max 2 Nm).

T

ternbicycles.com

Mounting the Basket

CLICK! CLICK!

Changing Mounting Orientation

1. Please take note that the basket has
red indicators only on one side of the
basket. Rest the side with the red
indicators on the rack.

2. Set the basket down and check if the
levers can close. If not, change the
position of the levers anywhere along
the spring rod and test again.

Ensure that no objects, such as strap
holder, prevent the levers from
closing completely.

3. Close the levers and make sure the
levers click inwards. Please note that
the rack tube may sit at different
locations on the TopKlip on the
non-red side of the basket.

Make sure that the basket is securely
mounted before riding.

3. Place one bracket in the mounting
holes in the desired mounting
orientation.

Note the location of the red
indicators relative to the edge of
the mounting plate. Incorrect
orientation will result in basket
being off-center.

4. Reinsert the rods into the bracket.

Check the diagrams on the front to
determine which position to set the
rods in the brackets and levers.

5. Tighten the screws (Max 2 Nm).

6. Install the other bracket.

7. Tighten the screws (Max 2 Nm).

1. Loosen screws of brackets with
Cross-Head Screwdriver.

2. Remove spring rods and levers.

7. Slide the rubber retainer rings
against the brackets.

Load Capacity

Maximum load capacity: 10 kg (22 lb)

LIMITED PRODUCT WARRANTY INFORMATION: This Product comes with a ONE (1) YEAR Limited Warranty from the date of retail
purchase by the original end-user. If a material or workmanship defect arises and a valid claim is received within the Warranty Period, this
Product will be replaced. Mobility Holdings cannot be held liable for damages to personal property due to misuse or improper care and
maintenance. This Product Warranty does not, under any circumstance, cover the replacement or cost of any third party product used with
or connected to the Product.
