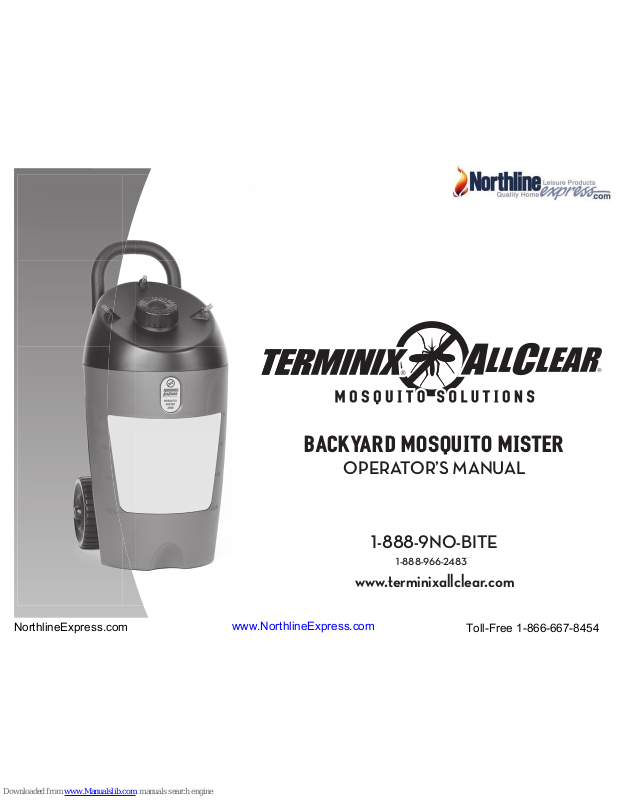

BACKYA RD MOSQUITO MISTER
OPERATOR’S MANUAL
1-888-9NO-BITE
1-888-966-24837
www.terminixallclear.com
Toll-Free 1-866-667-8454
NorthlineExpress.com
www.NorthlineExpress.com
Page 2
READ AND SAVE THESE INSTRUCTIONS
QUESTIONS OR COMMENTS
Please contact Universal Pest Solutions if you have
any questions about your TERMINIX® ALLCLEAR®
Backyard Mosquito Mister at:
1-888-9NO-BITE or www.terminixallclear.com
Universal Pest Solutions, LP
5950 Berkshire Lane, Suite 400
Dallas, TX 75225
Toll-Free 1-866-667-8454
NorthlineExpress.com
www.NorthlineExpress.com
Page 3
3
TABLE OF CONTENTS
Safety Information and Instructions .................................. 4
Product Registration ........................................................... 4
Repair and Service ............................................................. 4
Mister Description .............................................................. 5
Mister Set-Up ..................................................................... 6
Operation ......................................................................... 7-9
Positioning the Mister ............................................ 7
Activating Mist Cycle ........................................ 8 & 9
Storage and Winterization ................................................. 9
Frequently Asked Questions ............................................. 10
Troubleshooting ................................................................ 11
Warranty ........................................................................... 11
INTRODUCTION
Congratulations on your purchase of the TERMINIX® ALLCLEAR®
Backyard Mosquito Mister. This patented mosquito mister, when
used with ALLCLEAR Concentrates, delivers immediate and
reliable control of mosquitoes and other small biting insects*
in your yard, on your patio and anywhere you need protection.
The Backyard Mister protects with a 4-minute ultrane mist that
creates a barrier of biting insect protection – up to 2,000 sq. ft.
for as long as 6 hours.**
Together, the TERMINIX ALLCLEAR Mosquito Mister and
ALLCLEAR Concentrates quickly kill and repel mosquitoes and
other biting insects, giving you and your family the freedom
and condence to enjoy hours of outdoor activities without the
annoyance of biting insects.
Incorporate the TERMINIX ALLCLEAR products into your
complete mosquito management program. Enjoy and use
responsibly.
* Other insects include: ticks, gnats, horse ies, stable ies, deer ies, face ies and others.
** When used with ALLCLEAR PLUS Concentrate. Results may vary based on environmental factors such as rain, wind, sunlight, temperature, and humidity.
Toll-Free 1-866-667-8454
NorthlineExpress.com
www.NorthlineExpress.com
Page 4
4
PLEASE READ ENTIRE OPERATOR’S MANUAL AND ALLCLEAR CONCENTRATE LABEL BEFORE
PLACING AND OPERATING YOUR TERMINIX ALLCLEAR BACKYARD MOSQUITO MISTER.
When using electrical equipment it is important to follow basic safety precautions to reduce the
risk of re, electrical shock and injury to persons including:
GENERAL
• TERMINIX ALLCLEAR Mosquito Mister is designed for use ONLY with ALLCLEAR
Mosquito Mister Concentrates. (Not Included. Sold Separately.)
• Important: read and follow ALLCLEAR Mosquito Mister Concentrate label completely
before use.
• For outdoor use only.
OPERATIONAL
• Operate Mister when needed and when mosquitoes are most active – typically dawn
and dusk.
• For optimal results, avoid using the Mister during high winds (>10 mph), heavy rainfall,
fog, or when outside air temperatures fall below 50 degrees Fahrenheit.
• Always plug unit into an approved household voltage that matches the unit’s
specications.
• Always be sure unit is unplugged before lling with water and/or ALLCLEAR concentrate.
• Always unplug unit when nished using and store indoors.
• To avoid re hazard, never run cord under rugs or near open ame, heaters, stoves or
radiators.
• Do not try to move unit if plugged into outlet.
• Do not plug unit in if hands are wet.
• Use caution not to trip over cord.
• Do not operate unit if cord is damaged in any way.
• Use proper outdoor extension cord if needed.
• Be a good neighbor — some individuals may have sensitivities to insecticides or object
to them drifting onto their property.
Universal Pest Solutions is committed to excellent quality and
service. If you have any questions about your TERMINIX ALLCLEAR
Mosquito Mister or require replacement parts, please contact us at:
1-888-9NO-BITE or 1-888-966-2483 or visit our Web site at:
www.terminxallclear.com
Please have serial number ready when calling customer service.
Serial number is located on the bottom of the unit.
Record Serial Number here: _____________________________
Go online and register your TERMINIX ALLCLEAR
Mosquito Mister today!
Why Register?
• Activate Mister warranty
• Provide valuable product feedback
• Choose to receive special offers and tips
• Chance to win free product!
To register go to www.terminixallclear.com.
Toll-Free 1-866-667-8454
NorthlineExpress.com
www.NorthlineExpress.com
Page 5
5
R
R
Tank Cap
Power/Mist Button
Naturals™
Concentrate
Synergized PLUS
Concentrate
Mister designed for use ONLY with ALLCLEAR
Concentrates. For more information about
concentrates or where to purchase, visit:
www.terminixallclear.com
Telescoping Handle
Remote Receiver
Power Cord Plug
Power
Cord
Toll-Free 1-866-667-8454
NorthlineExpress.com
www.NorthlineExpress.com
Page 6
6
IMPORTANT TIPS
• The TERMINIX ALLCLEAR Mosquito
Mister is designed for use ONLY
with ALLCLEAR Mosquito Mister
Concentrates. Not Included.
Sold Separately.
• Rell Mister only when Tank is
completely empty and/or when
solution level is below Rell indicator
on front of tank. This prevents
incorrect solution mix which could
affect operation.
TRANSPORTING MISTER IN A
VEHICLE
The Mister can be transported in a car
or other vehicle. When possible, empty
Tank. To transport:
1. Securely fasten Tank Cap.
2. Position Mister upright in vehicle
to prevent leaking of solution from
Tank Cap if tank is not empty.
3. Secure Mister to prevent
movement when vehicle is in
motion.
FILLING THE TANK*
1. Remove Tank Cap from the top of the unit by pushing down and turning Cap
counterclockwise.
NOTE: Beneath Tank Cap is a Filter. Leave in place when lling Tank. As needed, remove lter and
rinse clean with water. After rinsing, replace lter in tank opening.
2. Slowly ll Tank with water to the ‘1/2’ full indicator (see Mister front panel). For
best results use a garden hose or watering can.
3. Slowly add one entire bottle of ALLCLEAR Concentrate. (Before adding
Concentrate, read Concentrate instructions carefully.)
4. Slowly nish lling Tank with water until solution level reaches bottom of lter.
Be sure to ll Tank slowly to avoid foaming of solution.
5. Replace Tank Cap.
*IMPORTANT:
• When lling for the rst time, users may want to test with water. It is
important to ll the Mister to at least the 3/4 mark on the front so as not to
damage the unit.
• Do NOT plug in unit until ready to mist.
Toll-Free 1-866-667-8454
NorthlineExpress.com
www.NorthlineExpress.com
Page 7
7
IMPORTANT TIPS
• Mister performs best if positioned
and activated inside of or near
desired coverage area.
• For optimal control, users may
need to mist an area more than
once and/or move the Mister to
another part of the treatment area
in the following situations:
• Areas of very heavy
mosquito populations
• Areas planned for large
gatherings (more people
bring increased mosquito
activity)
• Areas where wind is idle
since solution may not
be carried as far into
treatment area
• Operate Mister daily for optimal
results.
POSITIONING THE MISTER
Proper placement of the Mister is
important for optimal insect control.
In certain situations, users may
need to mist more than once and/or
move the Mister to another location
to achieve optimal results (see
Important Tips).
1. Determine area to be protected.
2. Pull up on Mister Handle and
roll into desired coverage area.
3. Establish direction of prevailing
wind and position Mister
according to wind conditions
(see illustrations).
EXAMPLE:
Treating a patio area. Determine
prevailing wind. Depending on
wind direction, place Mister on
either side of, in the center of, or
a few feet beyond center of patio
so that prevailing winds will carry
mist solution directly over patio and
surrounding areas.
Position Mister at edge
of desired coverage
area with Mister nozzles
facing mist area so that
prevailing wind will carry
mist solution over target
area.
Position Mister in the
center of desired coverage
area so that the wind will
carry mist solution equally
throughout desired
coverage area.
Position Mister in
the center of desired
coverage area or a few
feet beyond center of
coverage area.
SINGLE DIRECTIONAL WIND
YOUR DESIRED
COVERAGE AREA
MULTI-DIRECTIONAL WIND
YOUR DESIRED COVERAGE AREA
IDLE WIND
YOUR DESIRED COVERAGE AREA
Toll-Free 1-866-667-8454
NorthlineExpress.com
www.NorthlineExpress.com
Page 8
8
IMPORTANT TIPS
• Operate Mister daily for optimal
results.
• Mister will enter Sleep Mode 60
minutes after being Powered ON.
• Users will experience immediate
relief from biting insects. Best
results are realized 10-15 minutes
after misting.
• In areas of high mosquito
populations or in situations where
many people are inside coverage
area, additional mist applications
may be necessary.
• Avoid using Mister during
high winds (>10 mph), heavy
rainfall, fog, or when outside
air temperatures fall below 50
degrees Fahrenheit or other times
when insects are typically not
active.
• Do not use or leave Mister outside
and plugged in if raining.
ACTIVATING MIST CYCLE
WHEN TO ACTIVATE:
The TERMINIX ALLCLEAR Mosquito Mister can be used any time of day or night to provide immediate and reliable
control of mosquitoes, gnats, ticks, and other biting insects for up to 6 hours in an area of up to 2,000 sq. ft.* It
is recommended that users activate Mist Cycle 10 to 15 minutes before spending time outdoors to allow for mist
solution to take maximum effect (especially when mosquitoes are most active). See ALLCLEAR Concentrate label
and/or go to www.terminixallclear.com for additional application instructions.
WHAT TO EXPECT:
The TERMINIX ALLCLEAR Mosquito Mister mists an ultra-ne solution of water and ALLCLEAR Mosquito Mister
Concentrate. The mist solution is atomized out from Mister and carried by the wind into desired coverage area.
During the 4-minute Mist Cycle, the mist appears like a light fog and is visible for the rst 5-10 feet from the
machine. Even when no longer visible, the mist continues to move throughout the coverage area creating an
invisible barrier of protection from biting insects for hours.
Depending on weather and wind conditions, the mist may swirl high and low around Mister and/or it may move
directly out from unit or drift behind Mister during Mist Cycle. This is normal operation. If mist moves toward an
undesired area, stop Mist Cycle with Remote Control, allow the mist to dissipate, and reposition Mister so mist is
carried by wind into desired area. (See page 7 for ‘Positioning the Mister’ instructions.)
* When used with ALLCLEAR PLUS Concentrate.
Other insects include: ticks, gnats, horse ies,
stable ies, deer ies, face ies and others.
ACTIVATING WITH REMOTE CONTROL
1. Plug unit into an appropriate outdoor outlet.
2. Press green Power/Mist Button on back of Mister once to turn unit ON. Green power
light will illuminate indicating unit power is ON.
NOTE: Mister will enter sleep mode 60 minutes after being powered ON. Unit will NOT mist if
asleep. To wake unit up, press WAKE UP button on Remote Control.
3. Point Remote Control to back of the unit and press Mist Now button.
NOTE: Remote must be pointed toward back of unit and no more than 15 ft. away.
4. Mister begins a 12 second audible countdown before 4-minute Mist Cycle begins.
5. Watch mist movement to ensure mist moves into desired area.
NOTE: If mist moves into undesired area, stop Mist Cycle by pressing Stop Mist button on
Remote Control.
6. Mist Cycle automatically ends after 4 minutes.
7. If desired, move or reposition Mister and mist again (see page 7).
8. Unplug Mister, when nished using.
CAUTION: Store Remote Control device in an area inaccessible to children.
Toll-Free 1-866-667-8454
NorthlineExpress.com
www.NorthlineExpress.com
Page 9
9
During months when outdoor temperatures fall
below 40°F, store Mister in a sheltered location
away from outdoor elements and in an area with
temperatures above freezing (32°F, 0°C). When
storing Mister for extended periods of time, store
with an empty Tank.
• To empty Tank, use all misting solution as
per recommended operating instructions.
• Roll and store Mister in a sheltered
location with temperatures above freezing
(32°F, 0°C).
ACTIVATING DIRECTLY FROM MISTER
1. Plug unit into an appropriate outdoor outlet.
2. Press green Power/Mist Button on back of Mister once to turn unit ON.
Green power light will illuminate indicating unit power is ON.
NOTE: Mister will enter sleep mode 60 minutes after being powered ON. Unit will
NOT mist if asleep. To wake unit up, press WAKE UP button on Remote
Control.
3. Press and HOLD green Power/Mist Button for 3 seconds until mister begins to beep.
NOTE: 3-second ‘Press and HOLD’ feature is intended to prevent accidental activation from unauthorized users.
4. Follow steps 4-8 on page 8.
TO STOP MIST CYCLE
Option 1: Use Remote Control device to stop mist before or during Mist Cycle by pushing the Stop Mist button once
on the Remote Control device.
Option 2: Before misting begins, push green Power/Mist Button on Mister once to stop Mist Cycle.
NOTE: If Mister is stopped mid-mist cycle, it will reset to original settings. The next time Mister is activated it will
begin a new 4-minute Mist Cycle with a 12 second delay and audible warning beep.
SLEEP MODE
Mister will enter Sleep Mode 60 minutes after main power is turned ON. You will know the mister is in
Sleep Mode
because:
a.) the power light on the rear of the unit will blink slowly, and
b.) the unit will not mist with Remote Control
WAKE UP
To Wake Up the Mister, press the Wake Up button on the Remote Control or press the green Power/Mist
button on the back of the Mister.
SLEEP MODE
To put the Mister to sleep press the Sleep Mode button on the Remote Control. This will prevent
accidental activation by unintended users.
Toll-Free 1-866-667-8454
NorthlineExpress.com
www.NorthlineExpress.com
Page 10
10
What is the TERMINIX ALLCLEAR Backyard
Mosquito Mister?
The TERMINIX ALLCLEAR Backyard Mosquito Mister
is the fastest way to clear a yard of mosquitoes and
other biting insects. In just 4 minutes, mosquitoes are
reduced by more than 90% for as long as six hours.*
How large of an area will the Mister protect?
The Backyard Mister has been proven to protect up to
2,000 sq. ft. for as long as six hours*. The Mister can
be easily repositioned or moved to another area of the
yard for additional mosquito control. The number of
people in the area and other environmental factors
such as wind can affect the level of protection. It
may be necessary to mist more often or reposition the
Mister according to outdoor conditions.
How does the TERMINIX ALLCLEAR Mister work?
It works by atomizing an ultra-ne mist solution of
water and ALLCLEAR Mosquito Mister Concentrate.
The mist controls mosquitoes immediately and then
creates and invisible barrier of protection that repels
biting insects for hours.
What kind of insecticide does the TERMINIX
ALLCLEAR Mister use?
There are two concentrates to choose from to best
meet your insect control needs.
•100% NATURALS: 100% plant-based formula
that protects with the power of the lemongrass
plant. It is SAFE to use around kids, pets, food.
Environmentally friendly, biodegradable.
•Synergized PLUS: synthetic formula based on
botanical extract from the Chrysanthemum
ower. EPA registered, low in toxicity, effective
for up to 6 hours.
Are the concentrates OK to use in yards with
children and animals?
Yes. Our 100% NATURALS formula is safe to use
around kids, pets, and food. It contains a botanical
extract of the lemongrass plant. Our EPA-registered
PLUS formula is a highly effective solution that is
considered low toxicity and is intended for use in
yards with children and pets.
Can I use my TERMINIX ALLCLEAR Mister to
protect the area around my pool?
Yes. The Mister is very effective at treating areas
where you and your family spend time outdoors,
including the area around your pool.
What kinds of insects does the TERMINIX
ALLCLEAR Mister eliminate?
The TERMINIX ALLCLEAR Mister and ALLCLEAR
Concentrates kill and repel mosquitoes, gnats, stable
ies, horse ies, face ies, and deer ies.
Will it kill insects like bees and butteries?
It’s important to mist when mosquitoes are most
active – dusk and dawn – typically the time when
benecial insects are NOT active. The mist has been
carefully calibrated to control small ying biting
insects, but can be harmful to larger insects if they
come in direct contact with the mist application. Try
to mist away from ower gardens and other areas that
are known to attract benecial insects.
Where should I place my TERMINIX ALLCLEAR
Mister?
Simply place the Mister in the outdoor living area you
want to protect and activate. Winds carry the mist
throughout the desired coverage area (up to 2,000
sq. ft.), killing mosquitoes on contact and repelling
others for up to 6 hours.* The Mister can be easily
repositioned or moved to treat other areas of the yard.
* When used with ALLCLEAR PLUS Concentrate. Other insects include:
ticks, gnats, horse ies, stable ies, deer ies, face ies and others.
Toll-Free 1-866-667-8454
NorthlineExpress.com
www.NorthlineExpress.com
Page 11
11
PROBLEM
Mister is not misting after
pushing green Power/Mist
button
1. Not pressing and holding the green Power/Mist button for 3 seconds
3. Mister Tank empty
4. None of the above
1. Press and Hold Power/Mist button for 3 seconds
3. Check solution level on front of Tank. Fill Tank if empty.
4. Contact Customer Service at 1-888-9NO-BITE
Remote Control device will
not operate Mister
1. Mister is not powered ON
2. Remote Control not communicating with Mister
3. Remote Control batteries are low
4. 'Possible Cause' 3 in above section
5. Mister is in Sleep Mode
6. None of the above
1. Press Power/Mist button once to power ON
2. Point Remote Control toward the back of Mister
3. Replace Remote Control batteries (CR2032 or equivalent)
4. Try step 3 in above section
5. Press ‘WAKE UP’ button on Remote Control
6. Contact Customer Service at 1-888-9NO-BITE
Mister is not controlling
mosquitoes/other biting insects
1. Mister is not positioned properly
2. Tank is empty/solution low
3. Solution has been in tank for several months
4. Concentrate and water dilution is incorrect
5. None of the above
1. See page 7 for 'Positioning the Mister'
2. Check solution level on front of Tank. Fill if empty.
3. Gently rock Mister back and forth for 10 seconds
4. See page 6 for proper filling instructions
5. Contact Customer Service at 1-888-9NO-BITE
Only 1 or 2 nozzles are misting
1. Nozzles may be loose
2. Clogged nozzles
1. Hand-tighten nozzles
2. Contact Customer Service at 1-888-9NO-BITE
POSSIBLE CAUSE SOLUTION
UNIVERSAL PEST SOLUTIONS, LP
LIMITED WARRANTY: TERMINIX® ALLCLEAR® Backyard Mosquito Mister
What Is Covered: With respect to the TERMINIX ALLCLEAR Backyard
Mosquito Mister (“Mister”), this warranty covers any defects in parts,
materials, or workmanship, subject to the exclusions set forth below.
How Long Coverage Lasts: The warranty period is 12 months or 1 year
from the date of the rst consumer purchase of the Mister.
Condition of Coverage: This warranty applies only when the Mister is
used for personal, family, or household purposes.
What is not Covered: This warranty does not cover the following: (a)
damage caused by use with unauthorized or non-Universal Pest Solutions
parts; (b) damage caused by accident, misuse, abuse, ood, re, or external
causes; (c) damage caused by use in a manner inconsistent with the
permitted or intended uses described in the Operator’s Manual; (d) damage
caused by service performed by anyone other than a representative of
Universal Pest Solutions, LP; (e) a Mister that is modied to signicantly alter
its functionality or capability, without the prior written consent of Universal
Pest Solutions; (f) consumable parts, including batteries used in the remote
control, unless damage to a consumable part occurs due to a defect in Mister
parts, materials, or workmanship; (g) a Mister that is rented, leased, or used
for any other commercial purpose; and (h) a Mister whose Universal Pest
Solutions serial number is removed or defaced.
NO PERSON, AGENT, DEALER, OR DISTRIBUTOR IS AUTHORIZED OR
EMPOWERED TO GIVE ANY OTHER WARRANTY OR TO ASSUME ANY OTHER
LIABILITY ON BEHALF OF UNIVERSAL PEST SOLUTIONS.
UNIVERSAL PEST SOLUTIONS, LP SHALL NOT BE LIABLE FOR
CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF
WARRANTY OR CONDITION. BECAUSE SOME STATES DO NOT ALLOW
THE EXCLUSION OR LIMITATIONS OF CONSEQUENTIAL DAMAGES, THE
FOREGOING LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
What Universal Pest Solutions Will Do: During the warranty period,
Universal Pest Solutions, LP will have the option to repair, replace, or refund
in full the original purchase price of any Mister that is defective in parts,
materials, or workmanship. When appropriate, repair may include or consist
of replacing defective parts.
How to Get Service: If you believe that your Mister contains a defect in
parts, materials, or workmanship, please do the following:
Telephone Universal Pest Solutions at 1-888-9NO-BITE (1-888-966-2483).
Please state the nature of your problem and have your proof of purchase
(e.g., sales receipt) on hand. Also have your Serial Number ready which is
located on the bottom of the Mister.
Universal Pest Solutions, LP is committed to excellent quality and service.
If you have any questions or comments about your Mister, please contact
Universal Pest Solutions, LP at the following address:
Universal Pest Solutions, LP
5950 Berkshire Lane, Suite 400
Dallas, Texas 75225
1-888-9NO-BITE (1-888-966-2483)
www.terminixallclear.com
This warranty gives you specic legal rights, and you may have additional
legal rights that vary from State to State.
Toll-Free 1-866-667-8454
NorthlineExpress.com
www.NorthlineExpress.com
Page 12
1-888-9NO-BITE or www.terminixallclear.com
Universal Pest Solutions, LP
5950 Berkshire Lane, Suite 400
Dallas, TX 75225
ACM3240
v4: 11-12
Toll-Free 1-866-667-8454
NorthlineExpress.com
www.NorthlineExpress.com
Loading...
