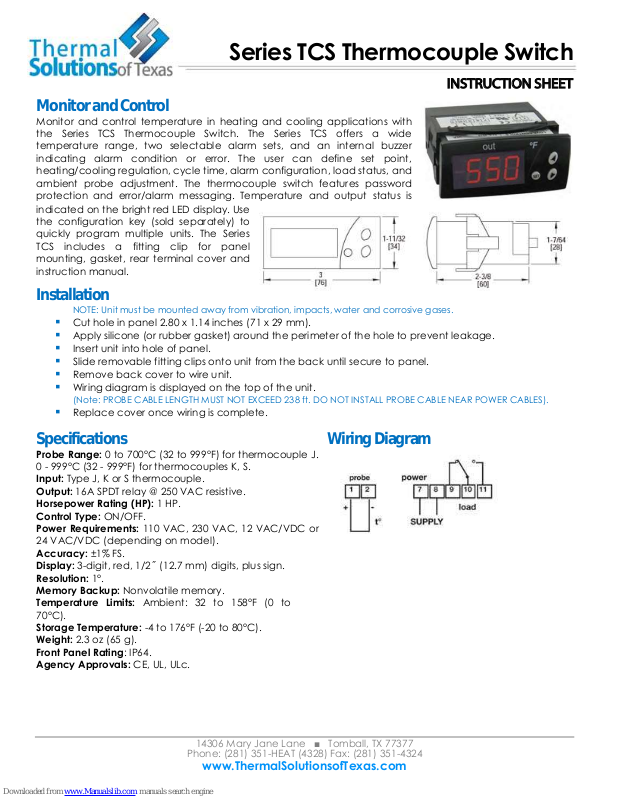

Termal TCS Series Instruction Sheet

Series TCS Thermocouple Switch

Monitor and Control

Monitor and control temperature in heating and cooling applications with
the Series TCS Thermocouple Switch. The Series TCS offers a wide
temperature range, two selectable alarm sets, and an internal buzzer
indicating alarm condition or error. The user can define set point,
heating/cooling regulation, cycle time, alarm configuration, load status, and
ambient probe adjustment. The thermocouple switch features password
protection and error/alarm messaging. Temperature and output status is

indicated on the bright red LED display. Use
the configuration key (sold separately) to
quickly program multiple units. The Series
TCS includes a fitting clip for panel
mounting, gasket, rear terminal cover and

instruction manual.

Installation

NOTE: Unit must be mounted away from vibration, impacts, water and corrosive gases.

 Cut hole in panel 2.80 x 1.14 inches (71 x 29 mm).
 Apply silicone (or rubber gasket) around the perimeter of the hole to prevent leakage.
 Insert unit into hole of panel.
 Slide removable fitting clips onto unit from the back until secure to panel.
 Remove back cover to wire unit.
 Wiring diagram is displayed on the top of the unit.

(Note: PROBE CABLE LENGTH MUST NOT EXCEED 238 ft. DO NOT INSTALL PROBE CABLE NEAR POWER CABLES).

 Replace cover once wiring is complete.

Specifications Wiring Diagram

Probe Range: 0 to 700°C (32 to 999°F) for thermocouple J.
0 - 999°C (32 - 999°F) for thermocouples K, S.

Input: Type J, K or S thermocouple.
Output: 16A SPDT relay @ 250 VAC resistive.
Horsepower Rating (HP): 1 HP.
Control Type: ON/OFF.
Power Requirements: 110 VAC, 230 VAC, 12 VAC/VDC or

24 VAC/VDC (depending on model).

Accuracy: ±1% FS.
Display: 3-digit, red, 1/2˝ (12.7 mm) digits, plus sign.
Resolution: 1°.
Memory Backup: Nonvolatile memory.
Temperature Limits: Ambient: 32 to 158°F (0 to

70°C).

Storage Temperature: -4 to 176°F (-20 to 80°C).
Weight: 2.3 oz (65 g).
Front Panel Rating: IP64.
Agency Approvals: CE, UL, ULc.

INSTRUCTION SHEET

14306 Mary Jane Lane ■ Tomball, TX 77377

Phone: (281) 351-HEAT (4328) Fax: [phone]

www.ThermalSolutionsofTexas.com

Series TCS Thermocouple Switch

Parameters

Parameter Descriptions

SP= Set Point- Desired Regulation Temperature
r0= Differential or Hysteresis
r1= Lower Set Point Limit
r2= Higher Set Point Limit
d0= Heating or Cooling Control-Regulation cycles only

c0= Minimum Time Between Start to Stop.
c2= Load Status During Probe Error. In the event of an

P1= Ambient Probe Calibration. Offset degrees to adjust

P5= Ambient Probe Type. Select J, K, or S Thermocouple.
H5= Access to Probe Parameters. (Code is set to 0.)
A0= Alarm 1 Hysteresis. The differential associated with

A1= Alarm 1 Threshold. Number of degrees to the

A2= Alarm 1 Exclusion Time. The amount of time the

A3= Alarm 1 Configuration. Determines the alarm type:

performed, neither defrosting nor continuous cycles
exist. Heating: To choose Heating Control: Set d0=Ht

(The output is active when TS1 (temperature of
ambient probe) is less than or equal to Set
Point.)TS1<=SP. It then disconnects when TS1>=SP-r0.
Cooling: To choose Cooling Control: Set d0=Co
(Output is activated when TS1>=SP+r0.) The display
will switch off when TS1<=SP.

open or short circuited probe, the unit will connect
or disconnect the load as defined by this parameter.

ambient probe. If the probe is not placed in the
exact point that is to be measured, use a standard
thermometer and adjust the difference with
parameter.

A1 parameter.

working set point that initiates an alarm condition.

alarm is disabled from instrument activation.

A3=0 alarm is disabled; A3=1 alarm is activated if the
ambient temperature >=SP+A1 and deactivated if
<+SP+A1-A0; A3=2 alarm is activated if the ambient

INSTRUCTION SHEET

temperature <=SP+A1 and deactivated if >+SP+A1­A0.

A4= Alarm 2 Hysteresis. The differential associated with

A5 parameter.

A5= Alarm 2 Threshold. Number of degrees to the

working set point that initiates an alarm condition.

A6= Alarm 2 Exclusion Time. The amount of time the

alarm is disabled from instrument activation.

A7= Alarm 2 Configuration. Determines the alarm type:

A7=0 alarm is disabled; A7=1 alarm is activated if
the ambient temperature >=SP+A5 and
deactivated if <+SP+A5-A4; A7=2 alarm is activated
if the ambient temperature <=SP+A5 and
deactivated if >+SP+A5-A4.

Parameter Programming

Set Point (SP) is the only parameter the user can
access without code protection.

 Press SET. SP text will appear on the display.
 Press SET again. The real value is shown on the

display.

 The value can be modified with the UP and

DOWN arrows.

 Press SET to enter any new values.
 Press SET and DOWN at the same time to quit

programming or wait one minute and the display
will automatically exit programming mode.

*The keyboard code can be reset to ZERO by
turning off the controller and turning it on again
while keeping the SET key depressed.

Access to all code protected parameters.

 Press SET for 8 seconds. The access code value

00 is shown on the display. (Unit comes with
code set at 00 from factory).

 With the UP and DOWN arrows, code can be set

to user needs.

 Press SET to enter the code. If code is correct, the

first parameter label is shown on the display (SP).

 Move to the desired parameter with the UP and

DOWN keys.

 Press SET to view the value on the display.
 The value can be modified with the UP and

DOWN arrows.

 Press SET to enter value and exit to text

parameter.

 Repeat until all necessary parameters are

modified.

 Press SET and DOWN at the same time to quit

programming or wait one minute and the display
will automatically exit programming mode.

14306 Mary Jane Lane ■ Tomball, TX 77377

Phone: (281) 351-HEAT (4328) Fax: [phone]

www.ThermalSolutionsofTexas.com

Series TCS Thermocouple Switch

Buzzer

In the event of alarm or error condition, the internal
buzzer is activated. To silence the buzzer, press and
hold the SET and Down keys.

LED Indications

OUT This indicates the load is connected. The system
waits for the programmed minimum stop time of the
load.

Display Messages

In normal operation, the probe temperature will be
shown on the display. In case of alarm or error, the
following messages will be shown:

 Er = Memory Error
 -- = Short-Circuit Probe Error (output

determined by c2).

 oo = Open Probe Error (output

determined by c2).

INSTRUCTION SHEET

Maintenance/Repair

After final installation of the TCS Series Digital
Thermocouple Switch, no routine maintenance is
required. A periodic check of system calibration is
recommended. The devices are not field repairable
and should be returned to the factory if recalibration
or other service is required. After first obtaining a
Returned Goods Authorization (RGA) number, send
the material, freight prepaid, to the following address.
Please include a clear description of the problem plus
any application information available.

Thermal Solutions of Texas
Attn: RMA#
14306 Mary Jane Lane
Tomball, TX 77377
