TERK Technologies TV-4 Quick Manual

TV4

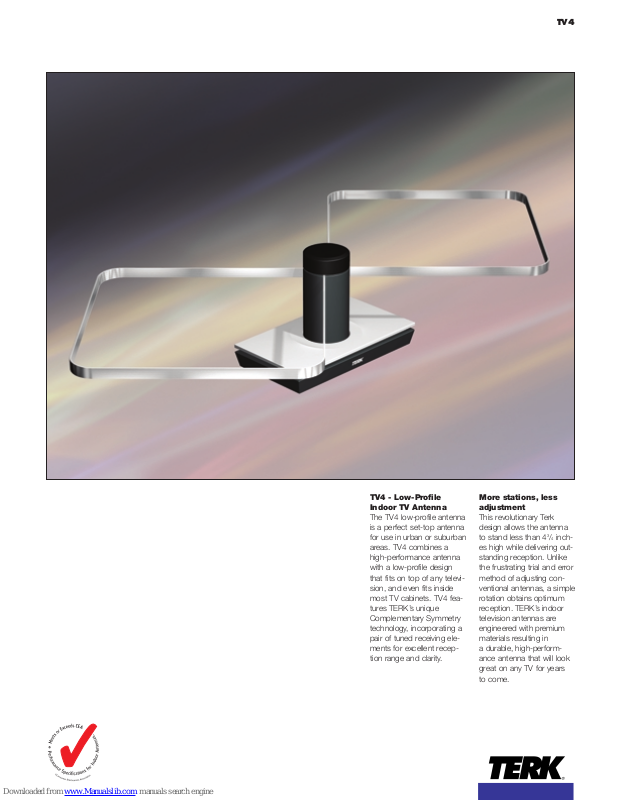

TV4 - Low-Profile
Indoor TV Antenna

The TV4 low-profile antenna
is a perfect set-top antenna
for use in urban or suburban
areas. TV4 combines a
high-performance antenna
with a low-profile design
that fits on top of any televi­sion, and even fits inside
most TV cabinets. TV4 fea­tures TERK’s unique
Complementary Symmetry
technology, incorporating a
pair of tuned receiving ele­ments for excellent recep­tion range and clarity.

More stations, less
adjustment

This revolutionary Terk
design allows the antenna
to stand less than 43/4inch­es high while delivering out­standing reception. Unlike
the frustrating trial and error
method of adjusting con­ventional antennas, a simple
rotation obtains optimum
reception. TERK’s indoor
television antennas are
engineered with premium
materials resulting in
a durable, high-perform­ance antenna that will look
great on any TV for years
to come.

TERK TECHNOLOGIES CORPORATION 63 MALL DRIVE, COMMACK, NY 11725 TEL: [phone] FAX: [phone] www.terk.com

©2001 TERK TECHNOLOGIES CORP. DS-AM-ADV-07/01

TV4

MODEL: TV-4

Technical Information:

Operating Bandwidth:
VHF: 54 MHz-216 MHz (Channels 2-13)
UHF: 470 MHz-806 MHz (Channels 14-69)
AUX: 54 MHz-1000 MHz
Output Impedance: 75 Ohms (75-300 Ohm matching
transformer supplied)
Dimensions (with elements): 4-3/4"H x 25"W x 11-1/2"D

At TERK Technologies we strive to offer the highest quality products to
our consumers. The specifications are subject to change without notice.

Features & Benefits:

• Perfect set-top antenna in urban or suburban areas

• Low-profile design stands just 4-3/4" high and fits inside
most television cabinets

• Ultra-small footprint allows antenna to rotate freely atop
most televisions

• Includes both VHF and UHF capability for reception
of channels 2 through 69

• Includes VHF/UHF band separator and 75-300 Ohm
matching transformer for easy hook-up to any
television set

• 6 ft. long 75 Ohm cable allows the antenna to be
installed on even the largest rear projection televisions

• Non-skid silicon base ensures maximum stability on
any set-top

Accessories included:

1- TV4 antenna base
2- Tuned receiving elements
1- 75-300 Ohm matching transformer
1- VHF/UHF Band Separator
1- Instruction manual
