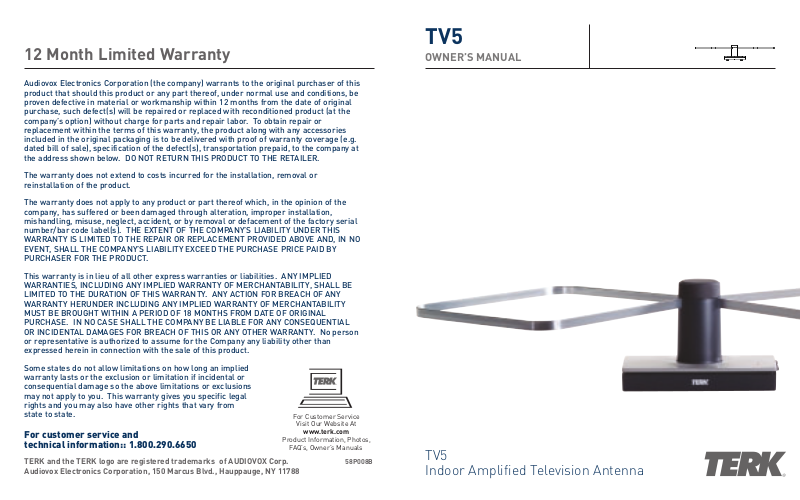

Terk TV5 User Manual
12 Month Limited Warranty
For Customer Service
Visit Our Website At
www.terk.com
Product Information, Photos,
FAQ’s, Owner’s Manuals
Audiovox Electronics Corporation (the company) warrants to the original purchaser of this
product that should this product or any part thereof, under normal use and conditions, be
proven defective in material or workmanship within 12 months from the date of original
purchase, such defect(s) will be repaired or replaced with reconditioned product (at the
company’s option) without charge for parts and repair labor. To obtain repair or
replacement within the terms of this warranty, the product along with any accessories
included in the original packaging is to be delivered with proof of warranty coverage (e.g.
dated bill of sale), specification of the defect(s), transportation prepaid, to the company at
the address shown below. DO NOT RETURN THIS PRODUCT TO THE RETAILER.
The warranty does not extend to costs incurred for the installation, removal or
reinstallation of the product.
The warranty does not apply to any product or part thereof which, in the opinion of the
company, has suffered or been damaged through alteration, improper installation,
mishandling, misuse, neglect, accident, or by removal or defacement of the factory serial
number/bar code label(s). THE EXTENT OF THE COMPANY’S LIABILITY UNDER THIS
WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT PROVIDED ABOVE AND, IN NO
EVENT, SHALL THE COMPANY’S LIABILITY EXCEED THE PURCHASE PRICE PAID BY
PURCHASER FOR THE PRODUCT.
This warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED
WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY, SHALL BE
LIMITED TO THE DURATION OF THIS WARRANTY. ANY ACTION FOR BREACH OF ANY
WARRANTY HERUNDER INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY
MUST BE BROUGHT WITHIN A PERIOD OF 18 MONTHS FROM DATE OF ORIGINAL
PURCHASE. IN NO CASE SHALL THE COMPANY BE LIABLE FOR ANY CONSEQUENTIAL
OR INCIDENTAL DAMAGES FOR BREACH OF THIS OR ANY OTHER WARRANTY. No person
or representative is authorized to assume for the Company any liability other than
expressed herein in connection with the sale of this product.
Some states do not allow limitations on how long an implied
warranty lasts or the exclusion or limitation if incidental or
consequential damage so the above limitations or exclusions
may not apply to you. This warranty gives you specific legal
rights and you may also have other rights that vary from
state to state.
For customer service and
technical information:: 1.800.290.6650
TERK and the TERK l
Audiovox Electronics Corporation, 150 Marcus Blvd., Hauppauge, NY 11788
ogo are registered trademarks of AUDIOVOX Corp.
58P008B
TV5
OWNER’S MANUAL
TV5
Indoor Amplified Television Antenna
TV5
media
a
nt
e
nn
a
o
n
m
e
d
i
a
a
n
t
e
n
n
a
o
n
me
d
ia
a
n
te
n
n
a
o
n
VHF/UHF
VHF
UHF
About Your TERK TV5
Thank you for choosing the TERK TV5. TERK antennas are
designed to help deliver sharp, clear video reception. Our
engineering department is dedicated to designing
antennas that enhance both the latest technology and the
aesthetics of any viewing environment. The TV5 installs in
minutes, is easy to use and simple to adjust. Before using
your antenna, please remove all parts from the box and
read the owner’s manual carefully.
TV5
Assembly And Installing Your TV5
1
2
3
4
5
67 8
9 10
1
Amplified Indoor Antenna:
The TV5 features a fully adjustable, low-noise amplifier,
that is designed to optimize signal strength for any
location. TERK’s patented amplifier bypass allows
stronger local stations to bypass the amplifier entirely,
preventing overmodulation and ensuring successful
reception of the maximum number of available channels.
Built-In Video Selector Switch:
The TV5 offers the added convenience of a built-in video
selector switch, creating a one cable solution for a video
game, DVD player, VCR or other video component. With
just a push of a button, you can now switch between TV
1. Receiving Elements
2. Center Cap
3. Coaxial Cable
4. Center Control Arm
5. Antenna/Video
Power Indicators
Assembly:
Assembly of your TV5 is easy. Simply insert the receiving
elements into the center control arm and hand-screw
the center cap, making sure you have a snug fit.
See Fig 1.
6. Amplifier On/Off
Switch
7. Video Selector Switch
8. Amplifier Adjust
9. DC Power Input
10. Video Input
and another video source without having to disconnect
and reconnect any wires.
NOTE: Some video sources may require additional equipment due to incompatible outputs. One of TERK’s Modulators
will allow these components (DVDs, video games, etc.)
that have RCA outputs, to be connected to your TV5.
2
Fig. 1
Fig. 2
Fig. 3
Band
Separator
