Test report no. 16010604 Page 1 of 2
EUT: MLx Handle 13.56 MHz
FCC ID: QLXHFHANDLE
FCC Title 47 CFR Part 15
Date of issue: 2016-11-15
Date: 2016-08-19
Created: P9 Controlled: P4 Released: P1
Vers. no. 2.16
m. dudde hochfrequenz-technik
Rottland 5a
D-51429 Bergisch Gladbach/ Germany
Tel: +49 2207-96890
Fax +49 2207-968920

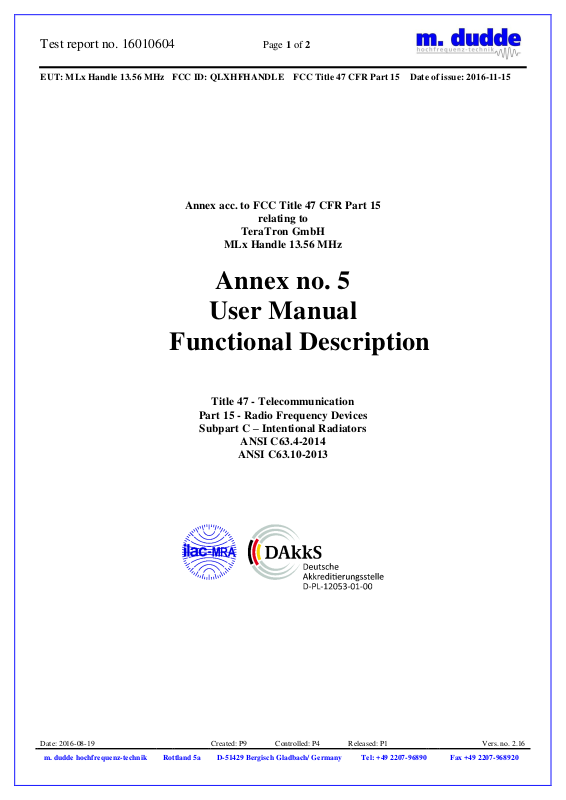

Annex acc. to FCC Title 47 CFR Part 15
relating to
TeraTron GmbH
MLx Handle 13.56 MHz
Annex no. 5
User Manual
Functional Description
Title 47 - Telecommunication
Part 15 - Radio Frequency Devices
Subpart C – Intentional Radiators
ANSI C63.4-2014
ANSI C63.10-2013
Test report no. 16010604 Page 2 of 2
EUT: MLx Handle 13.56 MHz
FCC ID: QLXHFHANDLE
FCC Title 47 CFR Part 15
Date of issue: 2016-11-15
Date: 2016-08-19
Created: P9 Controlled: P4 Released: P1
Vers. no. 2.16
m. dudde hochfrequenz-technik
Rottland 5a
D-51429 Bergisch Gladbach/ Germany
Tel: +49 2207-96890
Fax +49 2207-968920
User Manual / Functional Description of the test equipment (EUT)
MLx Handle 125kHz User Manual
MLx Handle 13,56MHz User Manual
Document no. MLx LF Handle 125kHz / MLx HF Handle 13,56MHz User Manual
Project MLx Handle 125kHz / MLx Handle 13,56MHz
Document for FCC and IC Creation date: 11.11.2016
Functional Description of the MLx 125kHz Handle and MLx 13,56MHz
Handle
The MLx 125kHz (LF) and MLx (HF) 13,56MHz Handles offer a general RFID reader
functionality, powered by an external 5V DC voltage source. The MLX Handles are used in
combination with the MLx Readers (e.g. MLx2000, MLx3000 and MLx5000), that control
the Handles RFID transponder reading functionality via a 2-wire data bus. The Handles
RFID functionality includes reading of several types of 125kHz (e.g. HITAG) or 13,56MHz
ISO transponder (e.g. ISO15693, ISO14443) types.
The µP of the MLx Handles is clocked by a 16MHz-Resonator. The active components are
powered by 5V from an external linear LDO regulator (located on the MLx Readers). The
125kHz-Reader IC (P4097) drives the 125kHz coil antenna. The 13,56MHz Reader IC
(CLRC663) drives a 13,56MHz coil antenna respectively.
When reading a valid transponder, the data is sent via the data bus. The external MLx
Reader identifies and returns a signal on the data bus to unlock the actuator of the handle.
If a handle has an actuator, the MLx handle then controls the actuator and unlocks.
This actuator is usually a 12V permanent magnet motor, which unlocks the handle, so the
user can get access to a door, or compartment, e.g.
In case the Handle has a Keypad, the user can enter a digit code to get access on a 12digit keyboard located in the handle front side. However the keypad functionality is
optional, it does not affect the RFID functionality. The status of the Handle is shown to the
user by RGB LEDs.
Revision
1.0
All LF and HF handles share the same RFID reader functionality.
Generate Approved Confidentiality Page Document
MSC RHE
Strictly
confidential
1 of 3 MLx LF/HF Handle User Manual
MLx Handle 125kHz User Manual
MLx Handle 13,56MHz User Manual
Document no. MLx LF Handle 125kHz / MLx HF Handle 13,56MHz User Manual
Project MLx Handle 125kHz / MLx Handle 13,56MHz
Document for FCC and IC Creation date: 11.11.2016
Functional Block Diagram
Key with implemented RFID technology
MLx
Handle
MLx Reader
MLx Handles: 125kHz (LF) or 13,56MHz (HF) Handles
MLx Readers: MLx2000 or MLx3000 or MLx5000
Revision
1.0
Generate Approved Confidentiality Page Document
MSC RHE
Strictly
confidential
2 of 3 MLx LF/HF Handle User Manual
MLx Handle 125kHz User Manual
MLx Handle 13,56MHz User Manual
Document no. MLx LF Handle 125kHz / MLx HF Handle 13,56MHz User Manual
Project MLx Handle 125kHz / MLx Handle 13,56MHz
Document for FCC and IC Creation date: 11.11.2016
Compliance Statements
Compliance Statements FCC
The title “CAUTION TO USERS” or “FCC/IC WARNING NOTE” or relevant title and “Changes or
modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.”
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
Compliance Statements IC
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2)
this device must accept any interference, including interference that may cause undesired
operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1)
l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter
tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement.
Revision
1.0
Generate Approved Confidentiality Page Document
MSC RHE
Strictly
confidential
3 of 3 MLx LF/HF Handle User Manual
