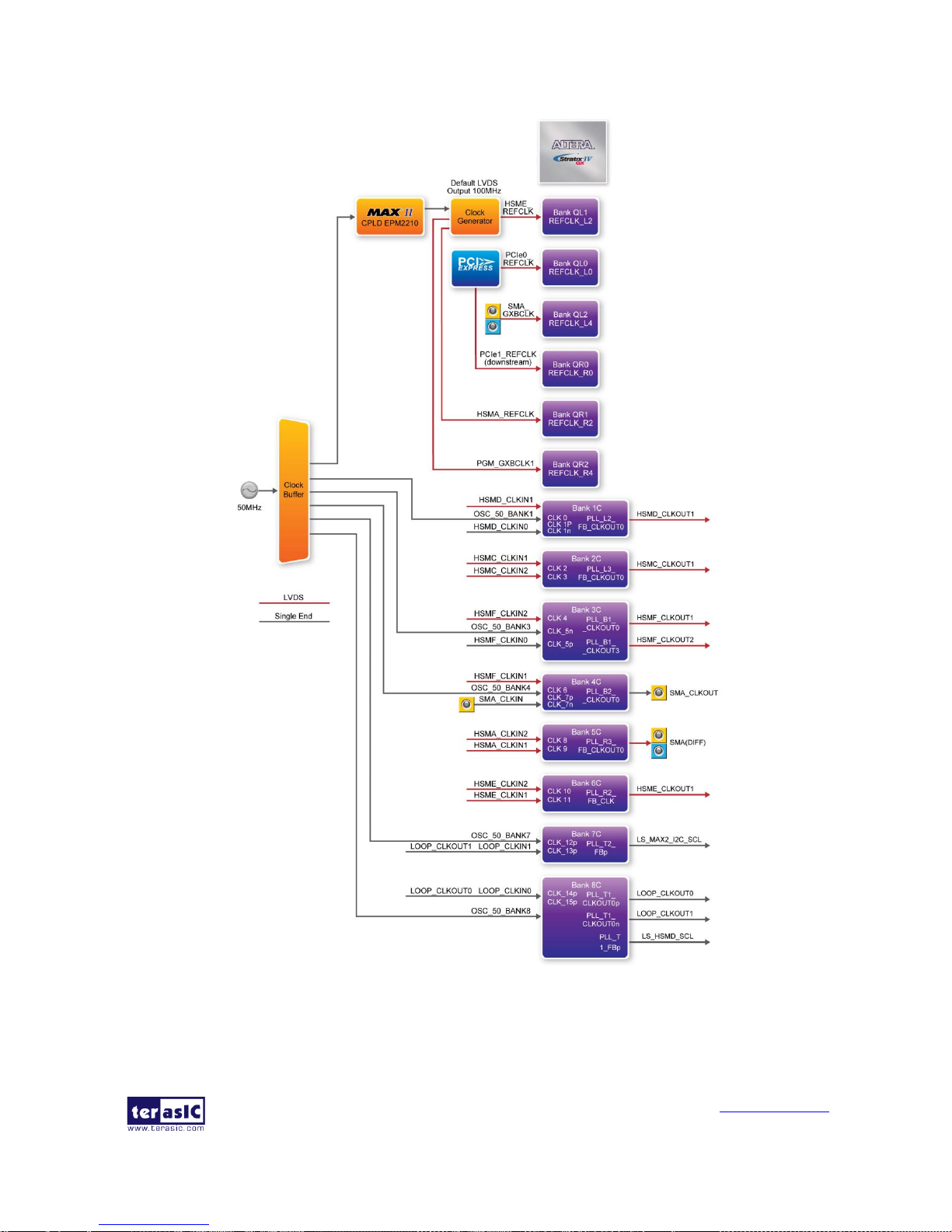

2.8 CLOCK CIRCUITRY .................................................................................................................................................. 40
2.9 PCI EXPRESS .......................................................................................................................................................... 45

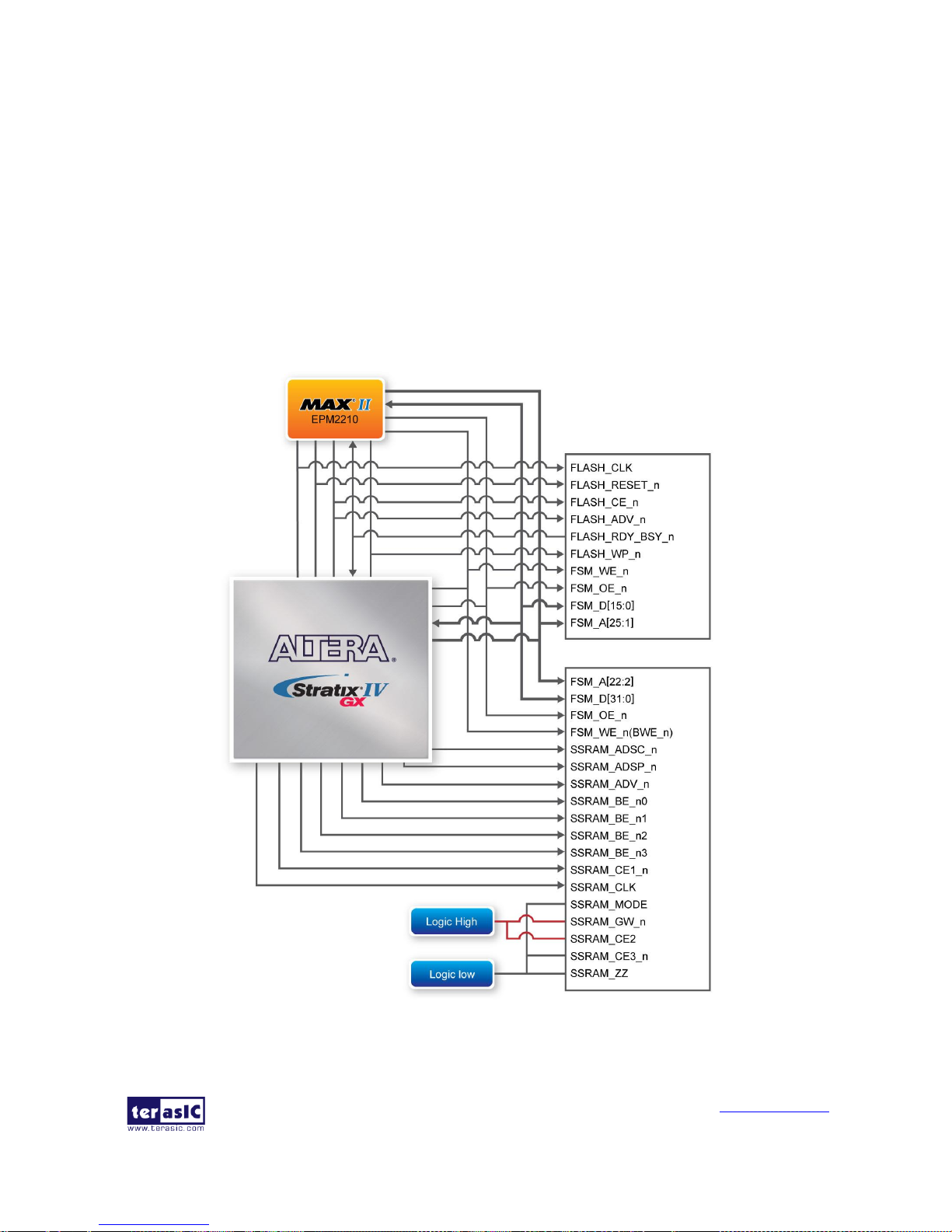

2.10 FLASH MEMORY ................................................................................................................................................... 48
2.11 SSRAM MEMORY ................................................................................................................................................. 51
2.12 TEMPERATURE SENSOR AND FAN .......................................................................................................................... 53
2.13 POWER .................................................................................................................................................................. 53
2.14 SECURITY .............................................................................................................................................................. 54
2.15 USING EXTERNAL BLASTER .................................................................................................................................. 54
CHAPTER 3

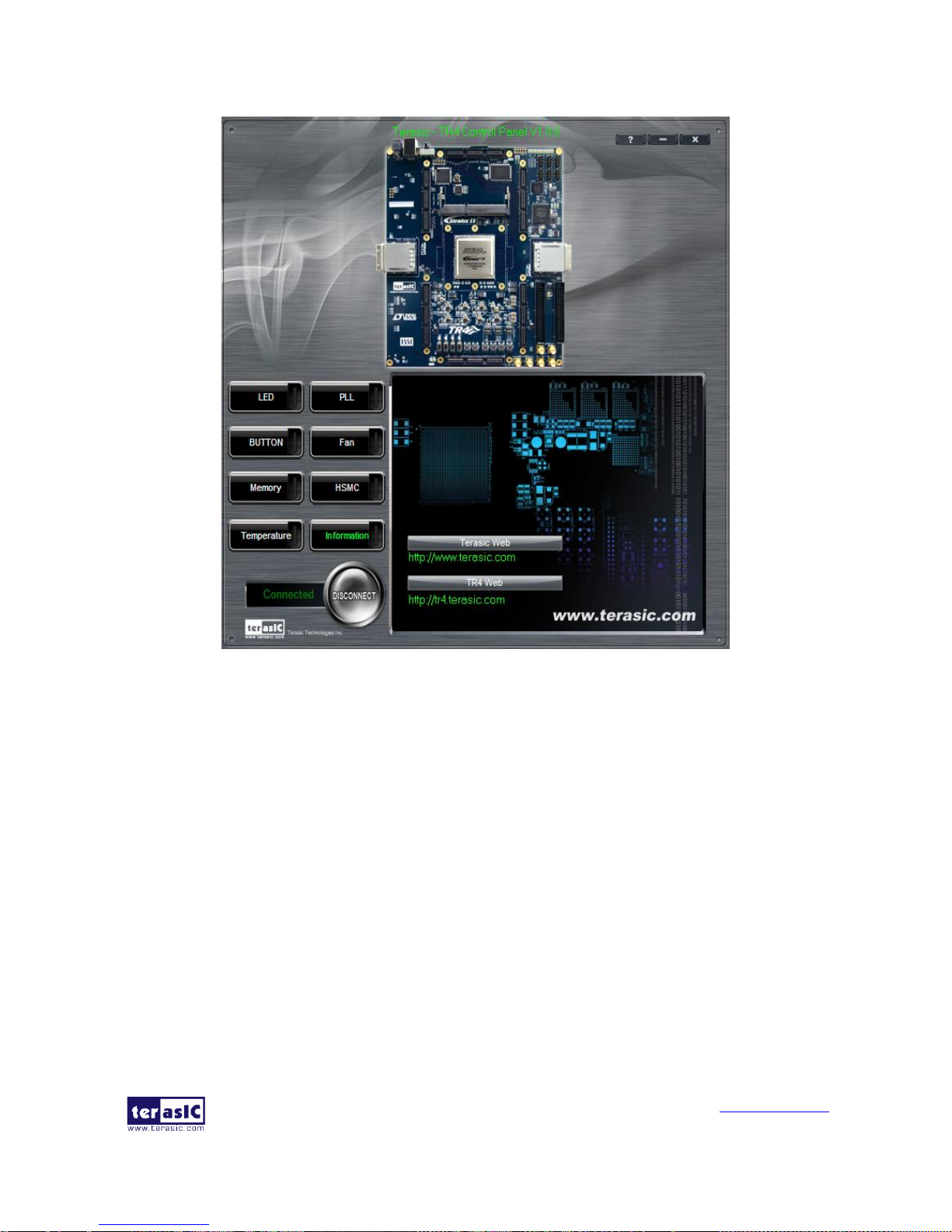

CONTROL PANEL
.......................................................................................................................... 56
3.1 CONTROL PANEL SETUP .......................................................................................................................................... 56

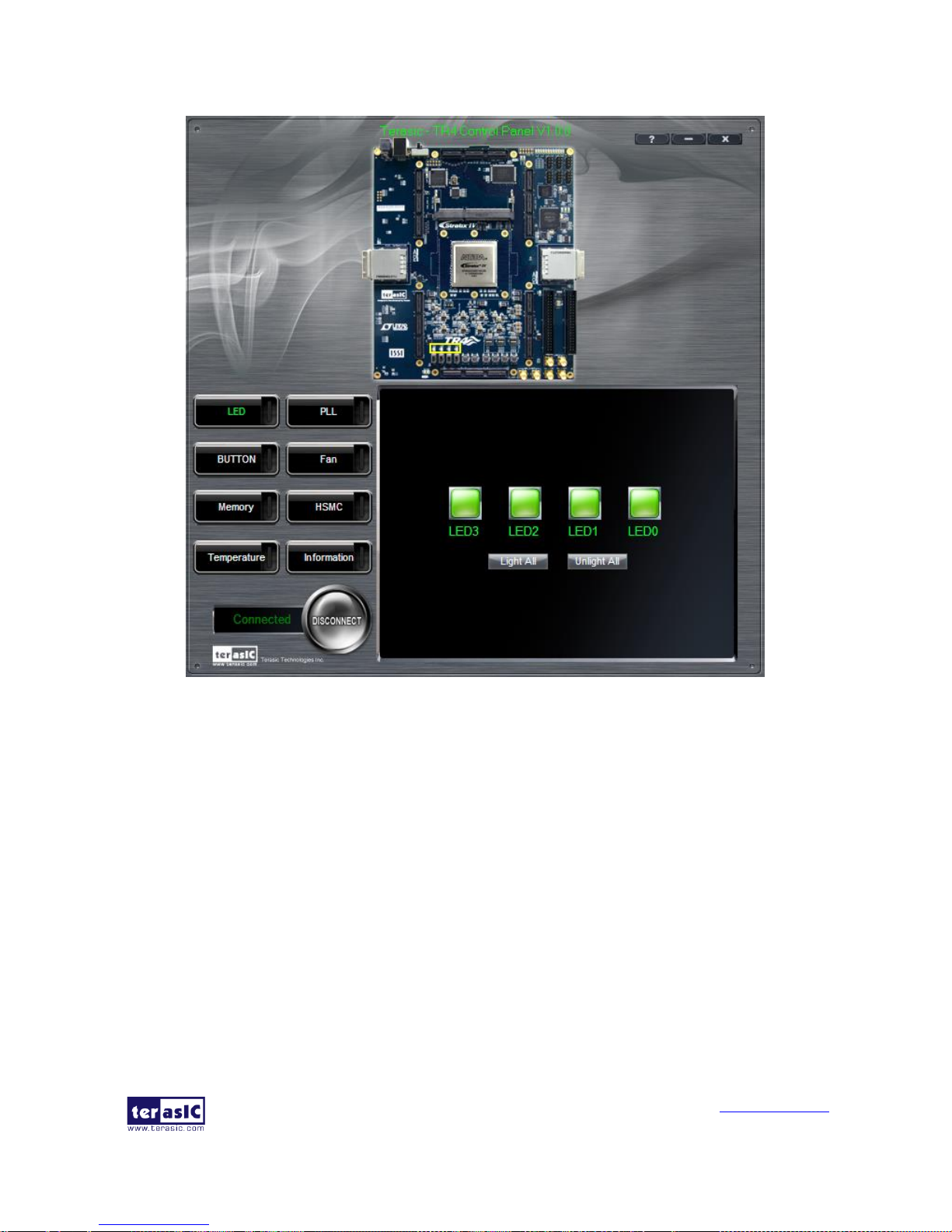

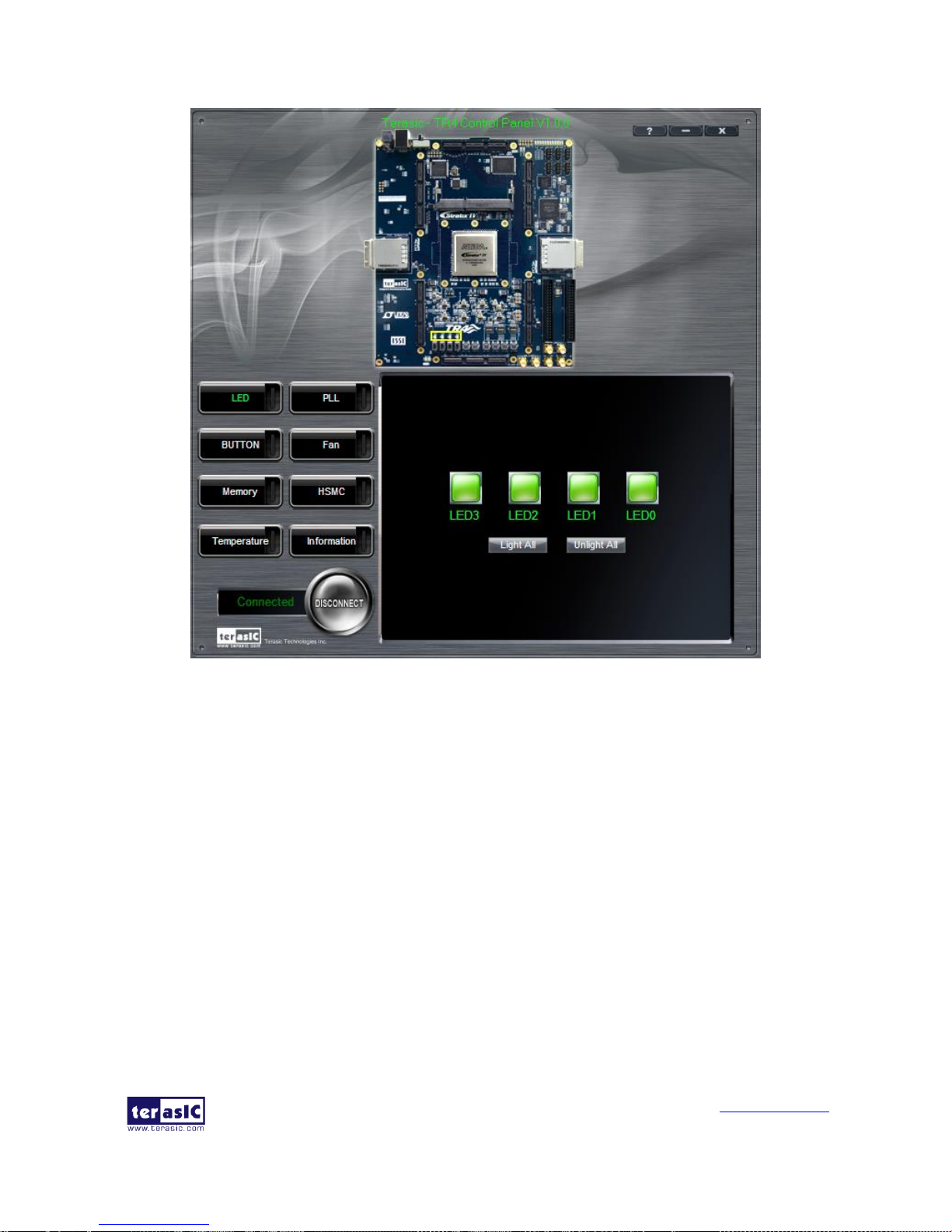

3.2 CONTROLLING THE LEDS ....................................................................................................................................... 60

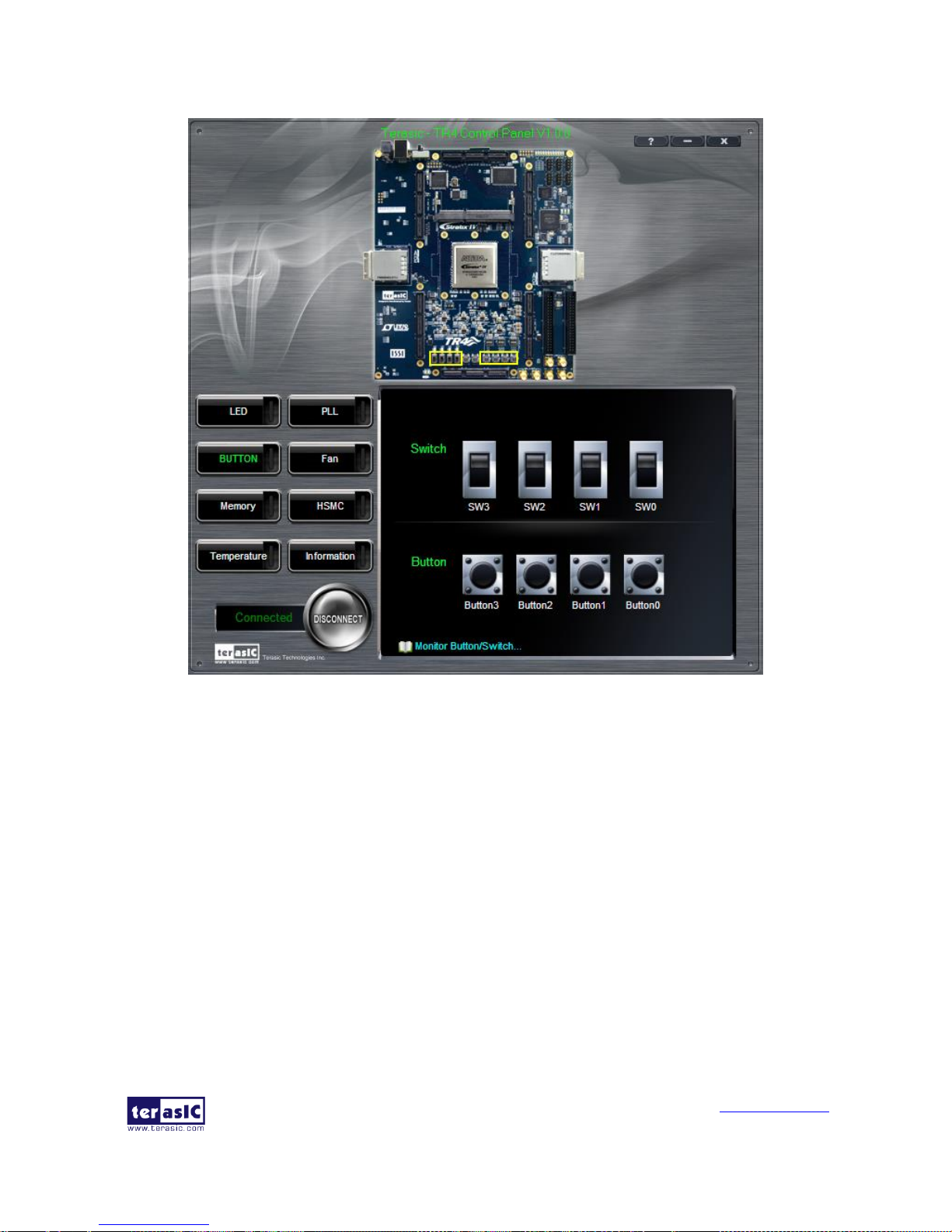

3.3 SWITCHES AND PUSH-BUTTONS .............................................................................................................................. 61

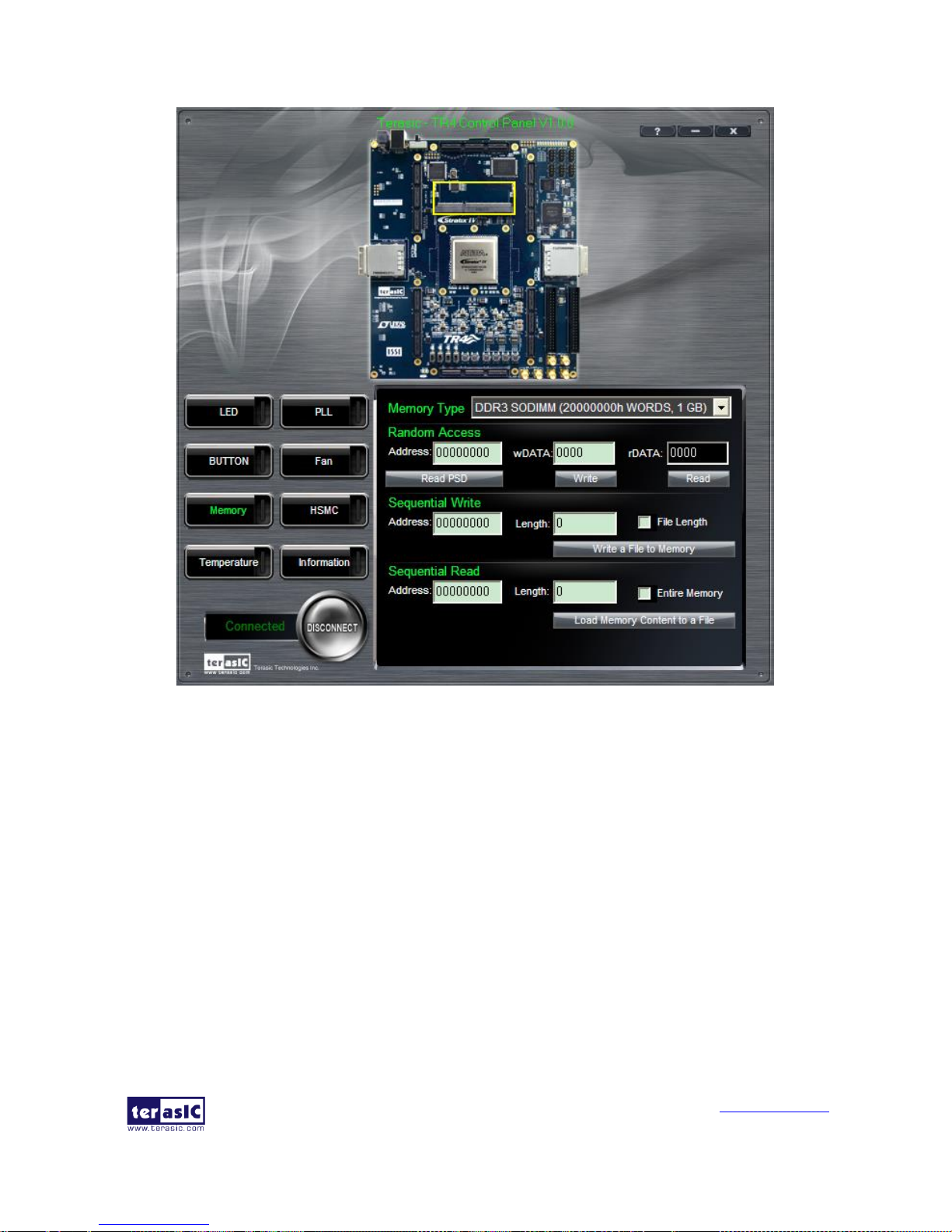

3.4 MEMORY CONTROLLER........................................................................................................................................... 62
3.5 TEMPERATURE MONITOR ........................................................................................................................................ 65
3.6 PLL ........................................................................................................................................................................ 66

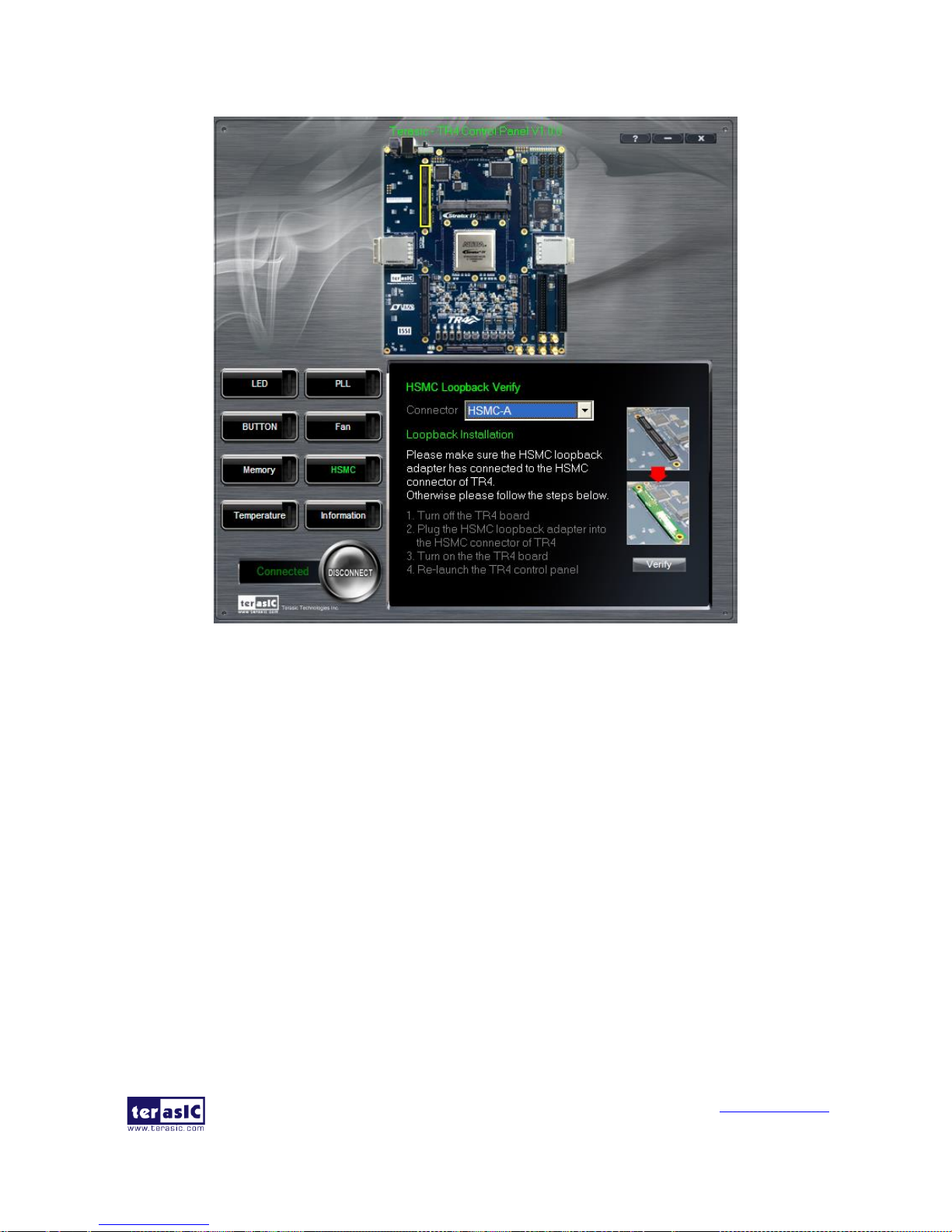

3.7 HSMC .................................................................................................................................................................... 67
3.8 FAN ......................................................................................................................................................................... 68
TR4 User Manual
II
www.terasic.com
March 30, 2017
3.9 INFORMATION ......................................................................................................................................................... 69
CHAPTER 4
TR4 SYSTEM BUILDER
................................................................................................................ 71
4.1 INTRODUCTION ....................................................................................................................................................... 71

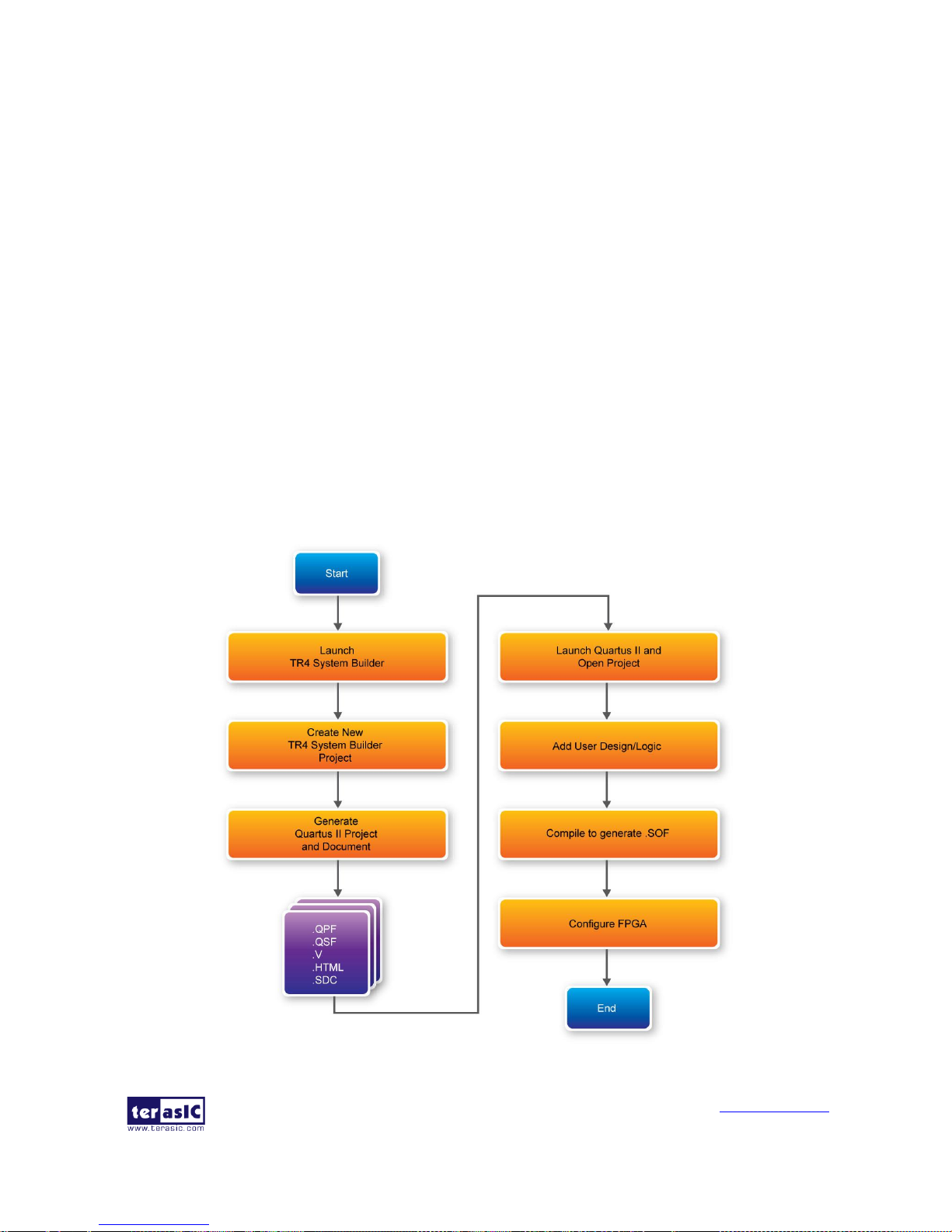

4.2 GENERAL DESIGN FLOW ......................................................................................................................................... 72

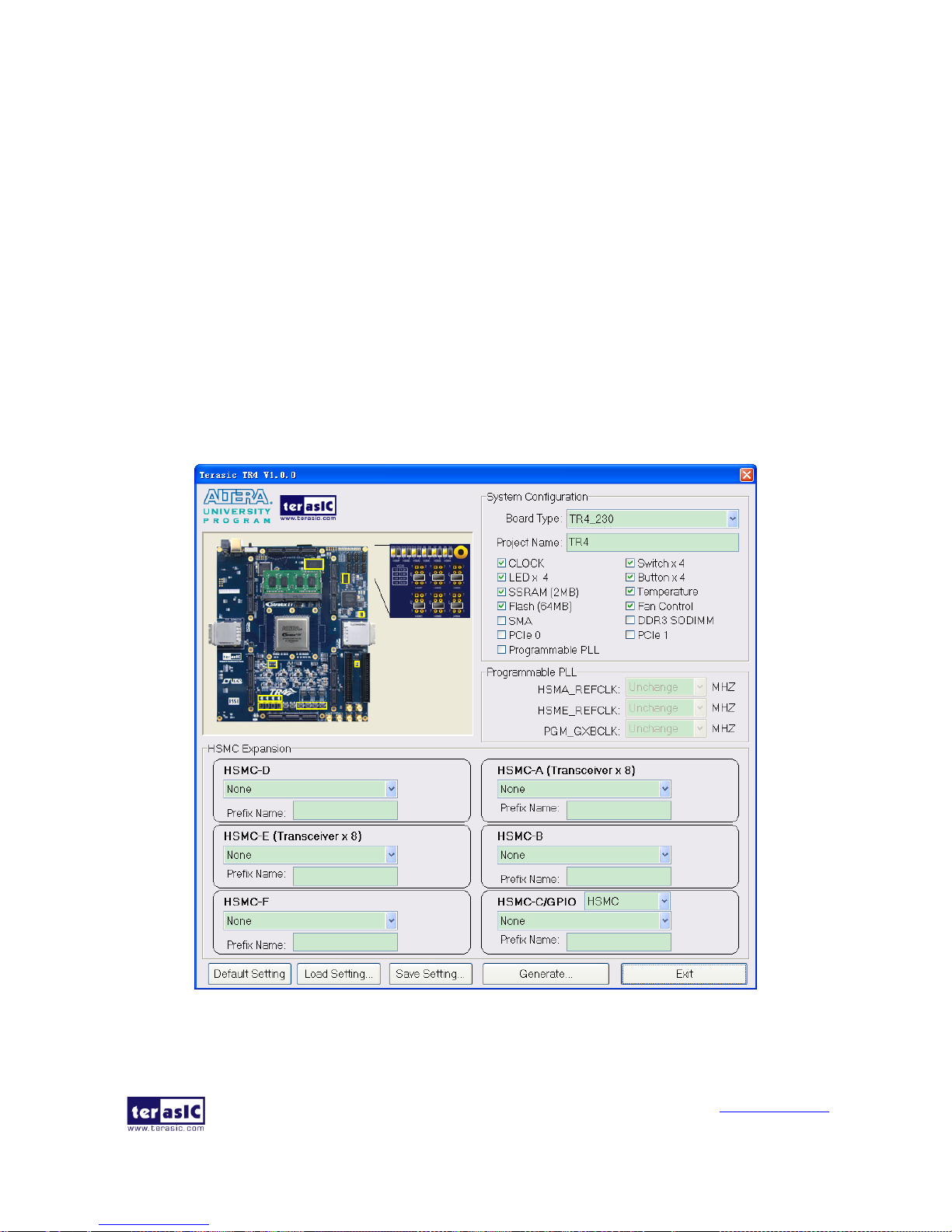

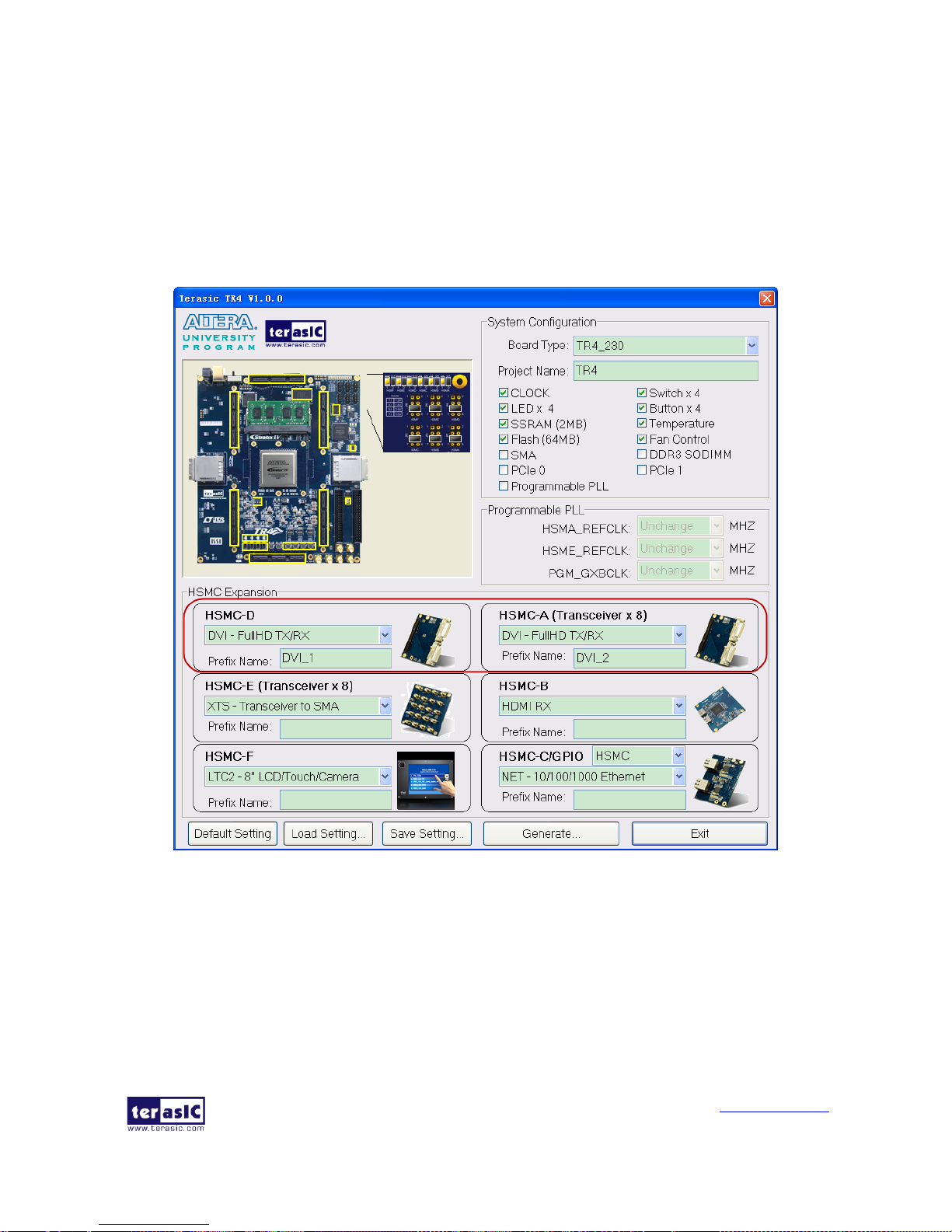

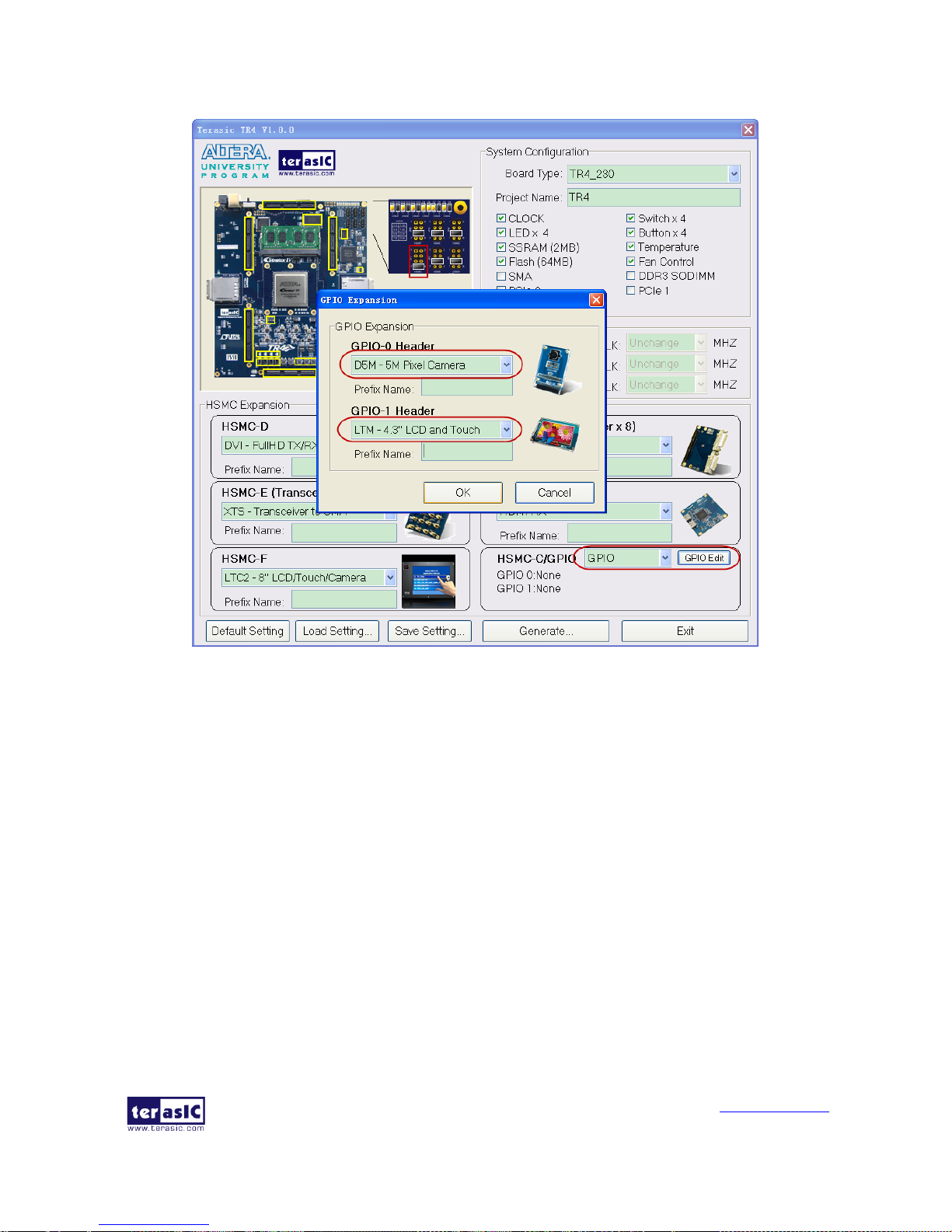

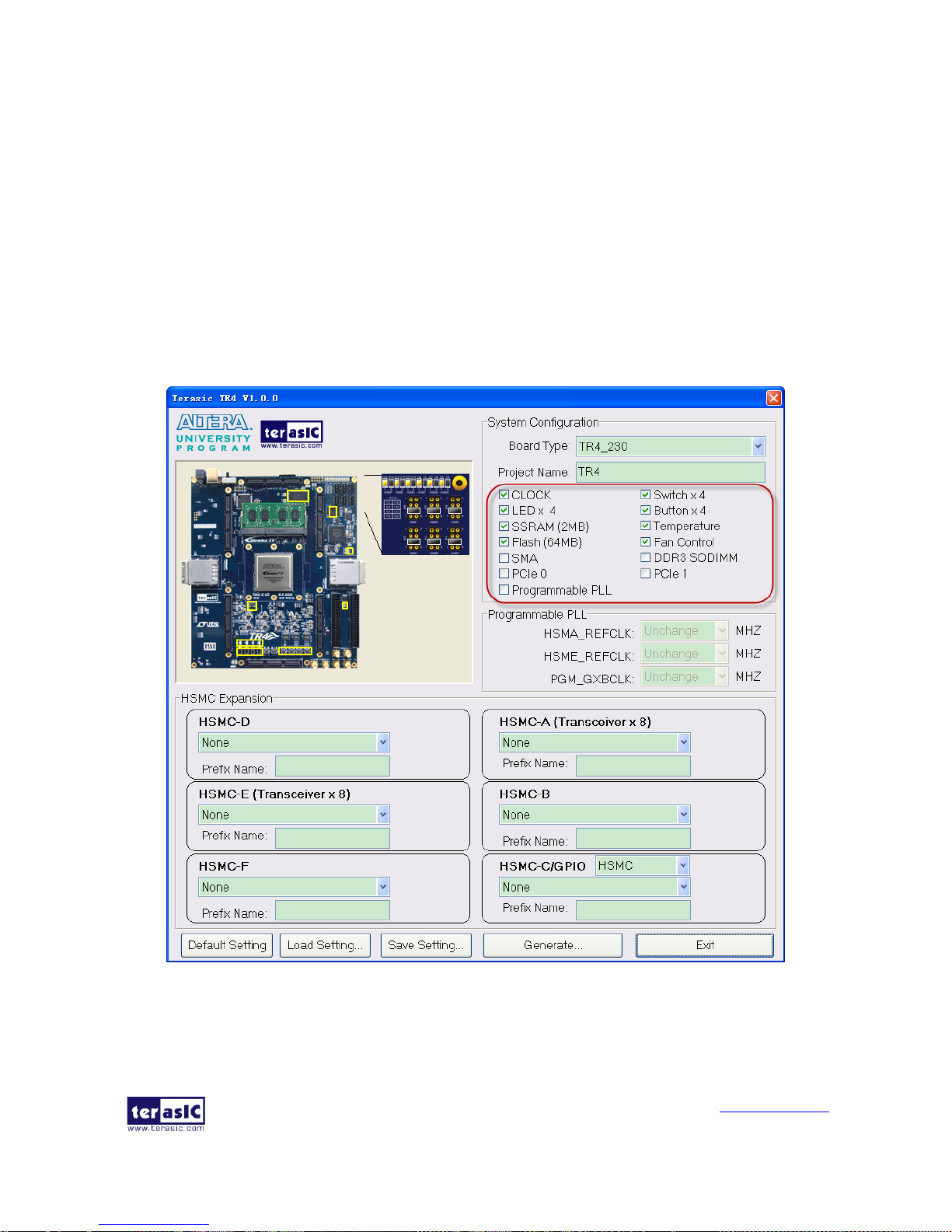

4.3 USING TR4 SYSTEM BUILDER ................................................................................................................................. 73
CHAPTER 5
EXAMPLES OF ADVANCED DEMONSTRATION
.................................................................... 83
5.1 BREATHING LEDS ................................................................ ................................................................ ................... 83

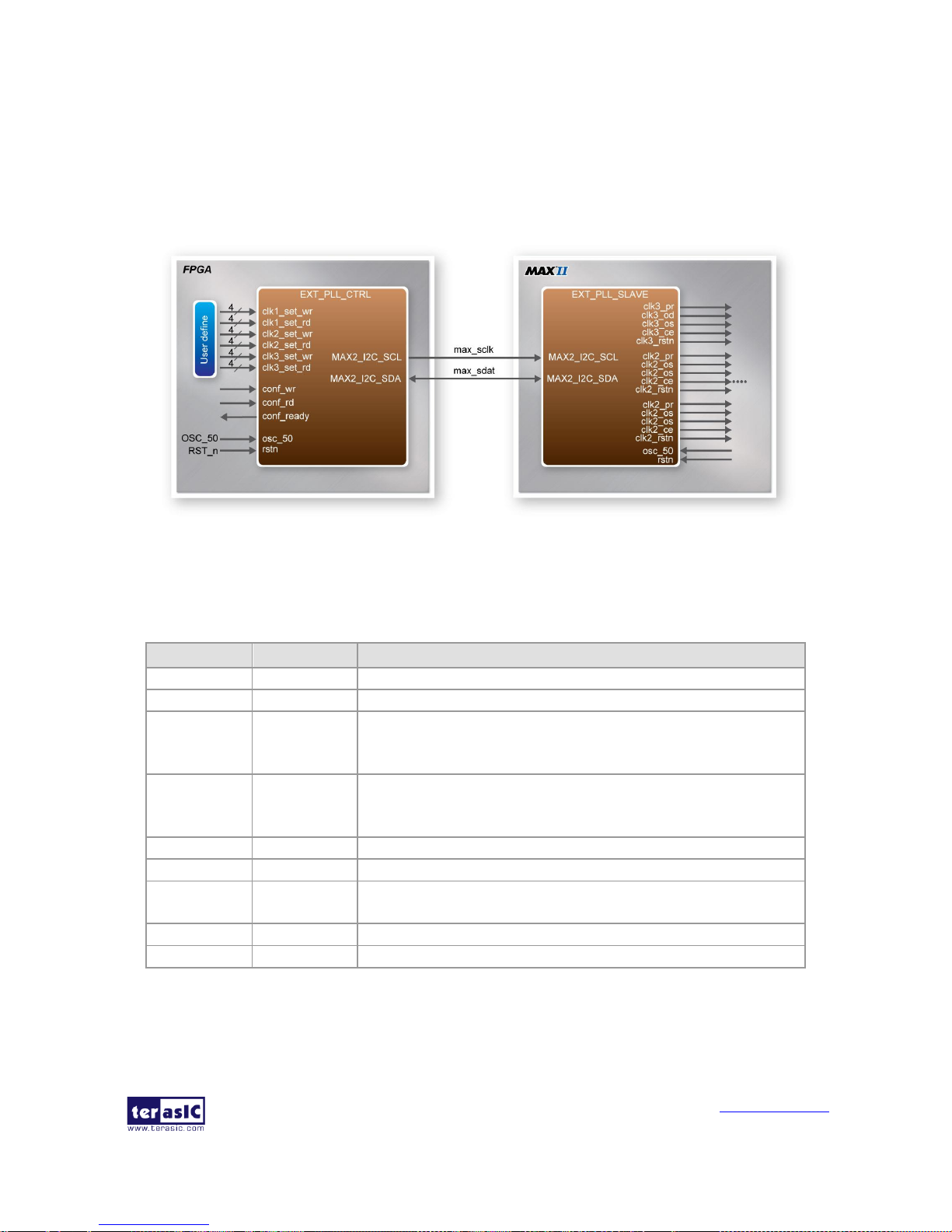

5.2 EXTERNAL CLOCK GENERATOR .............................................................................................................................. 84
5.3 HIGH SPEED MEZZANINE CARD (HSMC) ............................................................................................................... 90
5.4 DDR3 SDRAM (1GB) ........................................................................................................................................... 92
5.5 DDR3 SDRAM (4GB) ........................................................................................................................................... 96
ADDITIONAL INFORMATION
................................................................................................................................... 100
TR4 User Manual
1
www.terasic.com
March 30, 2017
Chapter 1
Overview
This chapter provides an overview of the TR4 Development Board and details the components and
features of the board.
11..1
1
GGeenneerraall DDeessccrriippttiioonn
The TR4 Development Board provides the ideal hardware platform for system designs that demand
high-performance, serial connectivity, and advanced memory interfacing. Developed specifically to
address the rapidly evolving requirements in many end markets for greater bandwidth, improved
jitter performance, and lower power consumption, the TR4 is powered by the Stratix® IV GX
device and supported by industry-standard peripherals, connectors and interfaces that offer a rich set
of features that is suitable for a wide range of compute-intensive applications.
The advantages of the Stratix® IV GX FPGA platform with integrated transceivers have allowed
the TR4 to be fully compliant with version 2.0 of the PCI Express standard. This will accelerate
mainstream development of PCI Express-based applications and enable customers to deploy
designs for a broad range of high-speed connectivity applications.
The TR4 is supported by multiple reference designs and six High-Speed Mezzanine Card (HSMC)
connectors that allow scaling and customization with mezzanine daughter cards. For large-scale

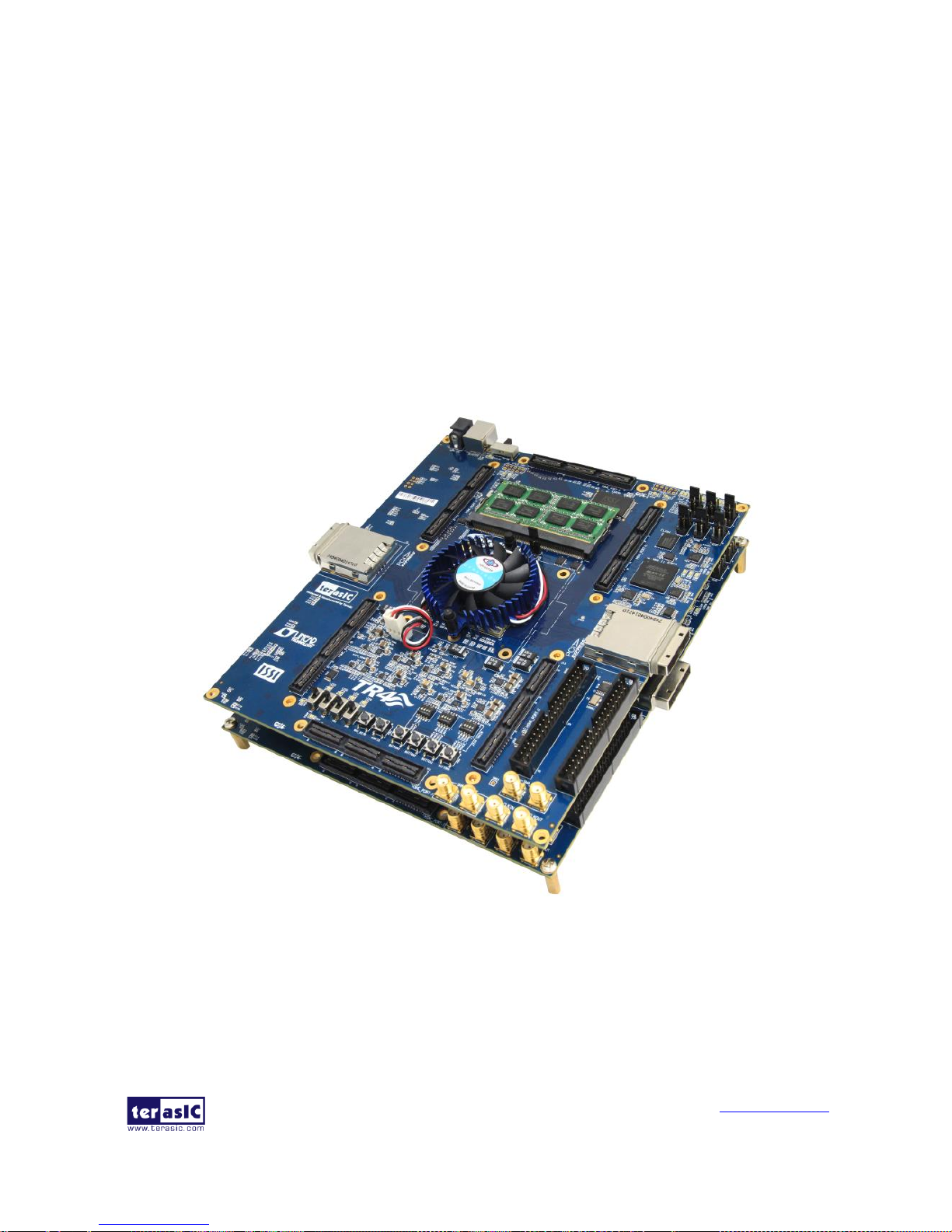

ASIC prototype development, multiple TR4s can be stacked together to create an
easily-customizable multi-FPGA system.
TR4 User Manual
2
www.terasic.com
March 30, 2017
11..2
2
KKeeyy FFeeaattuurreess
Featured Device
Altera Stratix® IV GX FPGA (EP4SGX230C2/EP4SGX530C2)
Configuration and Set-up Elements
Built-in USB Blaster circuit for programming
Fast passive parallel (FPP) configuration via MAX II CPLD and FLASH
Components and Interfaces
Six HSMC connectors (two with transceiver support)
Two 40-pin GPIO expansion headers (shares pins with HSMC Port C)
Two external PCI Express 2.0 (x4 lane) connectors
Memory
DDR3 SO-DIMM socket (4GB Max)
64MB FLASH
2MB SSRAM
General User Input/Output:
Four LEDs
Four push-buttons
Four slide switches
Clock system
On-board 50MHz oscillator
Three on-board programmable PLL timing chips
SMA connector pair for differential clock input
SMA connector pair for differential clock output
SMA connector for external clock input
SMA connector for clock output
TR4 User Manual
3
www.terasic.com
March 30, 2017
Other
Temperature sensor
FPGA cooling fan
11..3
3
BBooaarrdd OOvveerrvviieeww
Figure 1-1 and Figure 1-2 show the top and bottom view of the TR4 board. It depicts the layout of
the board and indicates the location of the connectors and key components. Users can refer to these
figures for relative location when the connectors and key components are introduced in the
following chapters.
Figure 1-1 TR4 Board View (Top)
TR4 User Manual
4
www.terasic.com
March 30, 2017
Figure 1-2 TR4 Board View (Bottom)
11..4
4
BBlloocckk DDiiaaggrraamm
Figure 1-3 shows the block diagram of the TR4 board. To provide maximum flexibility for the
users, all key components are connected with the Stratix IV GX FPGA device, allowing the users to
implement any system design.
TR4 User Manual
5
www.terasic.com
March 30, 2017
Figure 1-3 TR4 Block Diagram
Below is more detailed information regarding the blocks in Figure 1-3.
Stratix IV GX FPGA
EP4SGX230C2
228,000 logic elements (LEs)
17,133 total memory Kb
1,288 18x18-bit multipliers blocks
2 PCI Express hard IP blocks
TR4 User Manual
6
www.terasic.com
March 30, 2017
744 user I/Os
8 phase locked loops (PLLs)
EP4SGX530C2
531,200 logic elements (LEs)
27,376K total memory Kb
1,024 18x18-bit multipliers blocks
4 PCI Express hard IP blocks
744 user I/Os
8 phase locked loops (PLLs)
Configuration Device and USB Blaster Circuit
MAXII CPLD EPM2210 System Controller and Fast Passive Parallel (FPP)
configuration
On-board USB Blaster for use with the Quartus II Programmer
Programmable PLL timing chip configured via MAX II CPLD
Supports JTAG mode
Memory Devices
64MB Flash (32M x16) with a 16-bit data bus
2MB SSRAM (512K x 32)
DDR3 SO-DIMM Socket
Up to 4GB capacity
Maximum memory clock rate at 533MHz
Theoretical bandwidth up to 68Gbps
LEDs
4 user-controllable LEDs
Active-low|
TR4 User Manual
7
www.terasic.com
March 30, 2017
Push-buttons
4 user-defined inputs
Active-low
Slide Switches
4 slide switches for user-defined inputs
Logic low for DOWN position; Logic high for UP position
On-Board Clocking Circuitry
50MHz oscillator
SMA connector pair for differential clock inputs
SMA connector pair for differential clock outputs
SMA connector for external clock input
SMA connector for clock output
Two PCI Express x4 Edge Connectors
Support connection speed of Gen1 at 2.5Gbps/lane to Gen2 at 5.0Gbps/lane
Support downstream mode
Six High Speed Mezzanine Card (HSMC) Connectors
Two HSMC ports include 16 pairs of CDR-based transceivers at data rates of up to 6.5Gbps
Among HSMC Port A to D, there are 55 true LVDS TX channels to 1.6Gbps and 17
emulated LVDS TX channels up to 1.1Gbps whereas there are 9 additional TX channels from
HSMC Port E.
Configurable I/O standards - 1.5V, 1.8V, 2.5V, 3.0V

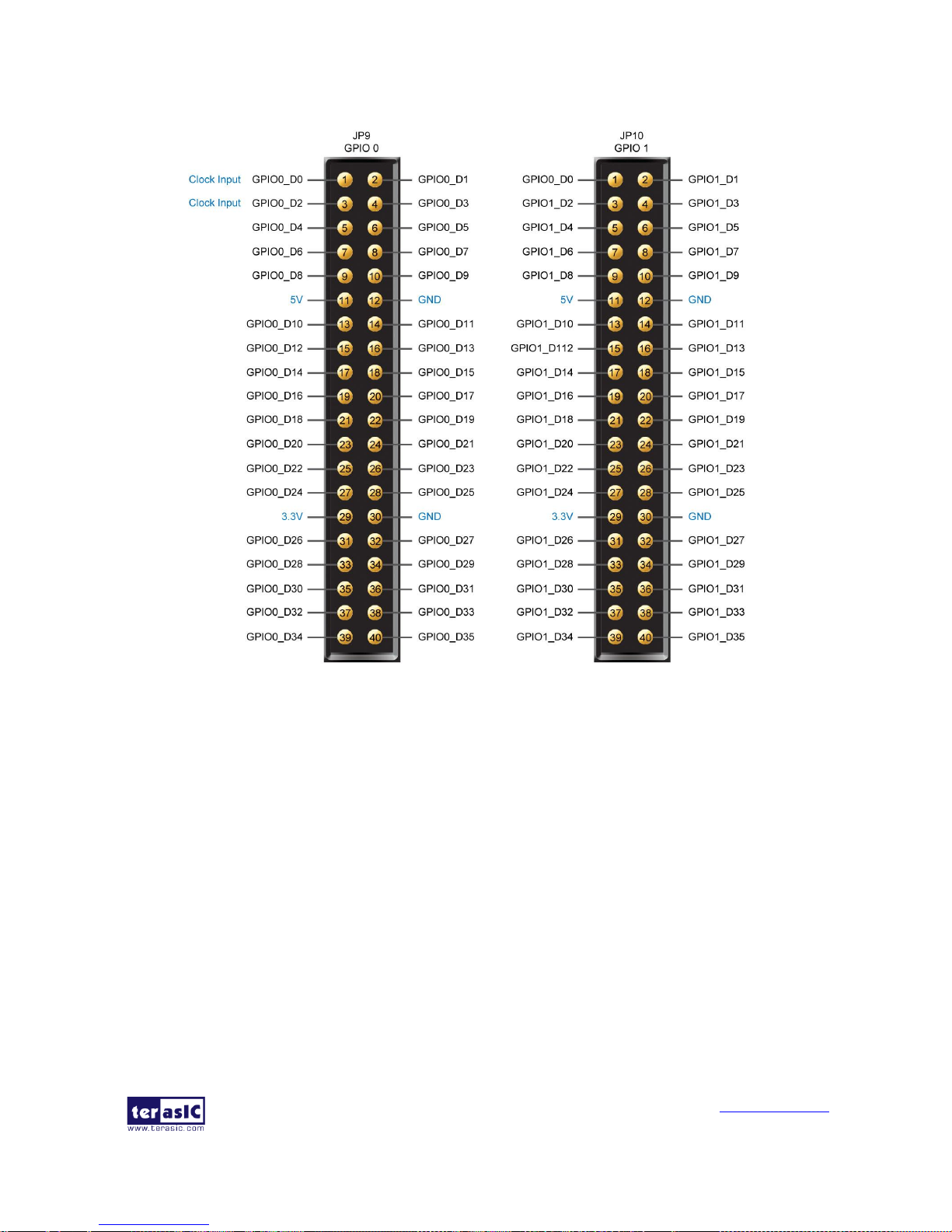

Two 40-pin GPIO Expansion Headers
TR4 User Manual
8
www.terasic.com
March 30, 2017
72 FPGA I/O pins; 4 power and ground lines
Shares pins with HSMC Port C
Configurable I/O standards: 1.5V, 1.8V, 2.5V, 3.0V
Power
Standalone DC 19V input
Other
Temperature Sensor
Cooling Fan
11..5
5
AAsssseemmbbllyy
Attach the included rubber (silicon) foot stands, as shown in Figure 1-4, to each of the four copper
stands on the TR4 board.
Figure 1-4 Mount Silicon Foot Stands
TR4 User Manual
9
www.terasic.com
March 30, 2017
Chapter 2
Using the TR4 Board
This chapter gives instructions for using the TR4 board and its components.
It is strongly recommended that users read the TR4 Getting Started Guide.pdf before operating the
TR4 board. The document is located in the Usermanual folder on the TR4 System CD. The contents
of the document include the following:
Introduction to the TR4 Development Board
TR4 Development Kit Contents
Key Features
Before You Begin
Software Installation
Development Board Setup
Programming the Stratix IV GX Device
Programming through Flash
22..1
1
CCoonnffiigguurraattiioonn OOppttiioonnss
JTAG FPGA Programming with USB-Blaster
The USB-blaster is implemented on the TR4 board to provide a JTAG configuration through the
on-board USB-to-JTAG configuration logic through the type-B USB connector, an FTDI USB 2.0
PHY device, and an Altera MAX II CPLD. For this programming mode, configuration data will be
lost when the power is turned off.
To download a configuration bit stream into the Stratix IV GX FPGA, perform the following steps:
TR4 User Manual
10
www.terasic.com
March 30, 2017
Make sure that power is provided to the TR4 board.
Open JP7 to bypass the JTAG interface of the HSMC if it won’t be used.
Connect the USB cable supplied directly to the USB Blaster port of the TR4 board (see
Figure 2-1).
The FPGA can now be programmed in the Quartus II Programmer by selecting a
configuration bit stream file with the .sof filename extension.
If users need to use the JTAG interface on HSMC, please refer to Section 2.2 for detailed
HSMC JTAG switch settings.

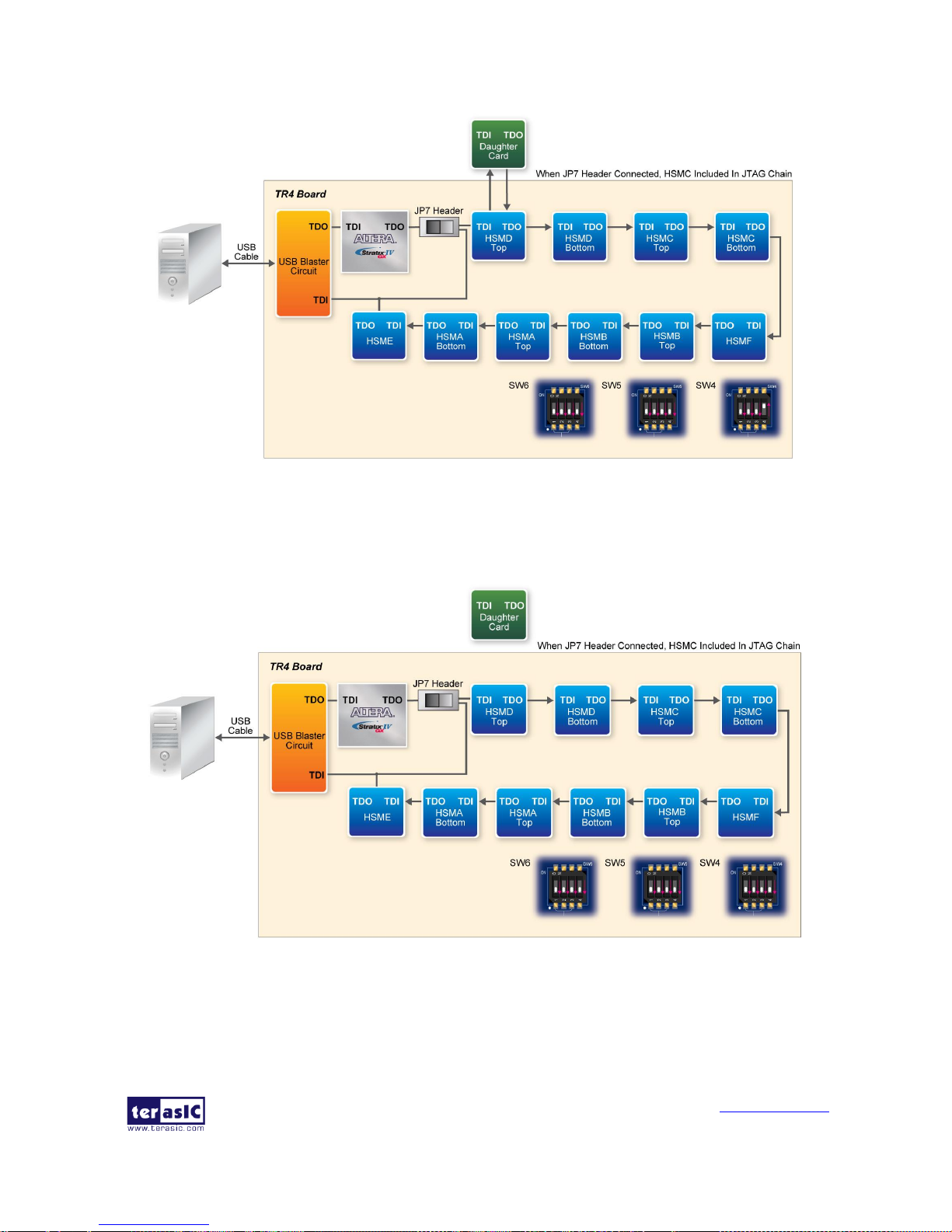

Figure 2-1 JTAG Configuration Scheme
JTAG FPGA Programming with External Blaster

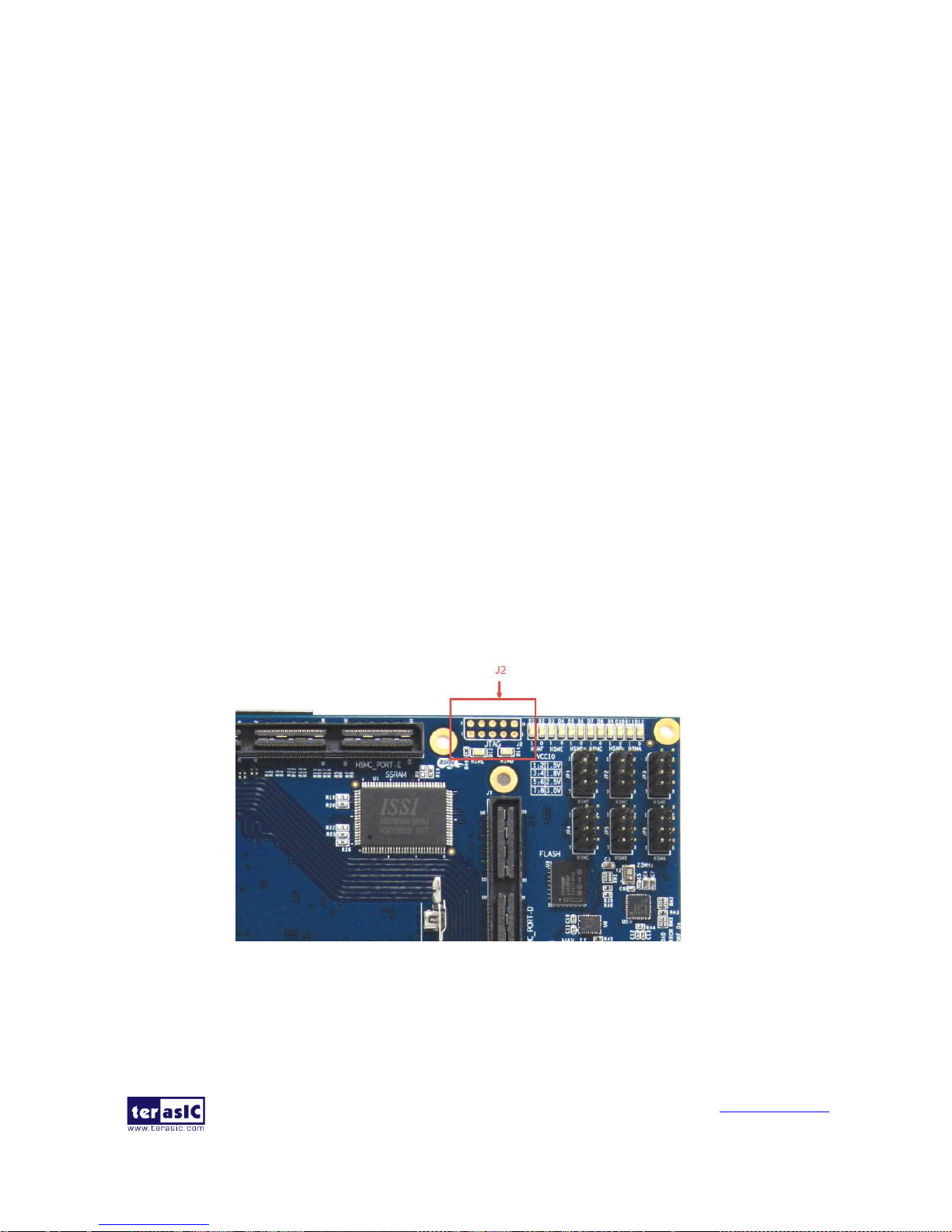

The TR4 board supports JTAG programming over external blaster via J2. To use this interface,
users need to solder a 2x5 pin connector (2.54mm pitch) to J2. Make sure JP7 is open to bypass the
JTAG interface of HSMC.
Flash Programming
The TR4 development board contains a common Flash interface (CFI) memory to meet the
demands for larger FPGA configurations. The Parallel Flash Loader (PFL) feature in MAX II
devices provides an efficient method to program CFI flash memory devices through the JTAG
interface and the logic to control configuration from the flash memory device to the Stratix IV GX
FPGA. Figure 2-2 depicts the connection setup between the CFI flash memory, Max II CPLD, and
Stratix IV GX.
TR4 User Manual
11
www.terasic.com
March 30, 2017
Figure 2-2 Flash Programming Scheme
Programming Flash Memory using Batch File
The TR4 provides a batch file (program_Flash.bat) to limit the steps that are taken when users
program the flash memory on the TR4.
Software Requirements:
Quartus II 11.1 or later
Nios II IDE 11.1 or later
Program_Flash folder contents:
Program_Flash.bat
Program_Flash.pl
Program_Flash.sh
tr4_default_flash_loader.sof
boot_loader_cfi.srec
Before you use the program_Flash.bat batch file to program the flash memory, make sure the TR4 is
TR4 User Manual
12
www.terasic.com
March 30, 2017
turned on and USB cable is connected to the USB blaster port (J4). In addition, place the .sof
and .elf file you wish to program/convert in the Program_Flash directory.
Programming Flash Memory with .sof using Program_Flash.bat
1. Launch the program_Flash.bat batch file from the directory (\demonstrations\TR4_<Stratix
device>\ TR4_Default_Flash_Loaderr\Program_Flash) of the TR4 system CD-ROM.
2. The Flash program tool shows the menu options.
Figure 2-3 Flash Program Tools
3. Select option 2.
TR4 User Manual
13
www.terasic.com
March 30, 2017
Figure 2-4 Option 2
4. Enter the .sof file name to be programmed onto the flash memory.
Figure 2-5 Enter .sof Name to Program
TR4 User Manual
14
www.terasic.com
March 30, 2017
5. The following lines will appear during Flash programming: ‘Extracting Option bits SREC’,
‘Extracting FPGA Image SREC’, and ‘Deleting intermediate files’. If these lines don’t appear on
the windows command, programming on the flash memory is not successfully set up. Please make
sure Quartus II 11.1 and Nios II 11.1 IDE or later is used.
Figure 2-6 Loading .sof File
6. Erasing Flash.
TR4 User Manual
15
www.terasic.com
March 30, 2017
Figure 2-7 Erasing Flash
7. Programming Flash.
Figure 2-8 Programming Flash
8. Programming complete.
TR4 User Manual
16
www.terasic.com
March 30, 2017
Figure 2-9 Programming Flash complete
22..22 SSeettuupp EElleemmeennttss
JTAG Control DIP Switch

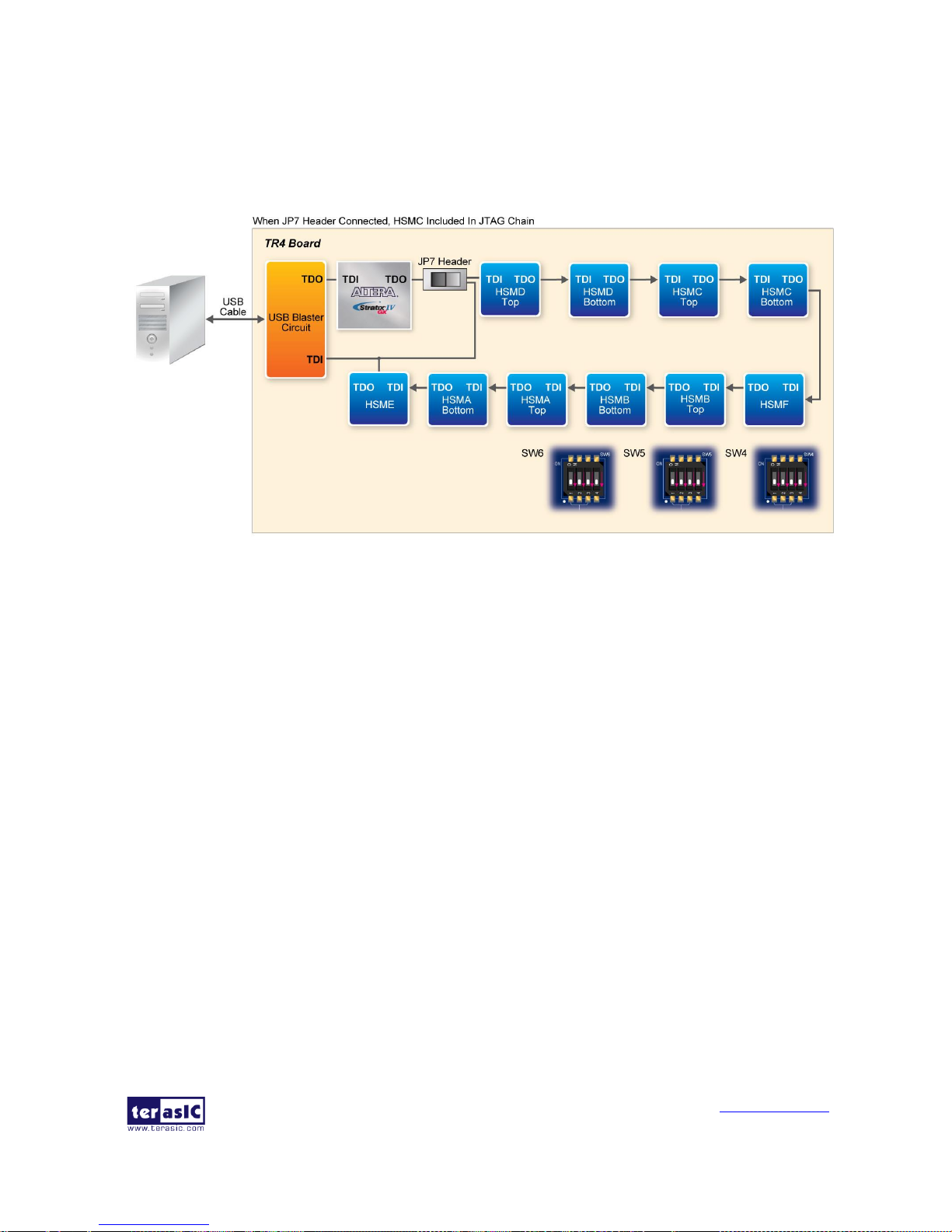

The TR4 supports individual JTAG interfaces on each HSMC connector. This feature allows users
to extend the JTAG chain to daughter cards or additional TR4s. Before using this interface, JP7
needs to be shorted to enable the JTAG interface on all the HSMC connectors.
The JTAG signals on each HSMC connector can be removed or included in the active JTAG chain
via DIP switches. Table 2-1 lists the position of the DIP switches and their associated interfaces.
Note that if the JTAG interface on HSMC connector is enabled, make sure that the active JTAG
chain must be a closed loop or the FPGA may not be detected. Section 2.5 will give an example on
how to extend the JTAG interface to a daughter card. Also, a document named
Using_Mult-TR4_system.pdf in TR4 system CD shows how to connect the JTAG interface on two
stacked TR4 boards.
TR4 User Manual
17
www.terasic.com
March 30, 2017
Table 2-1 JTAG Control
Components
Name
Description
Default
SW4
position 1
HSMCA_TOP
ON: HSMA TOP in-chain OFF: Bypass HSMA TOP
OFF
position 2
HSMCB_TOP
ON: HSMB TOP in-chain OFF: Bypass HSMB TOP
OFF
position 3
HSMCC_TOP
ON: HSMC TOP in-chain OFF: Bypass HSMC TOP
OFF
position 4
HSMCD_TOP
ON: HSMD TOP in-chain OFF: Bypass HSMD TOP
OFF
SW5
position 1
HSMCA_BOT
ON: HSMA BOT in-chain OFF: Bypass HSMA BOT
OFF
position 2
HSMCB_BOT
ON: HSMB BOT in-chain OFF: Bypass HSMB BOT
OFF
position 3
HSMCC_BOT
ON: HSMC BOT in-chain OFF: Bypass HSMC BOT
OFF
position 4
HSMCD_BOT
ON: HSMD BOT in-chain OFF: Bypass HSMD BOT
OFF
SW6
position 1
HSMCE_TOP
ON: HSME TOP in-chain OFF: Bypass HSME TOP
OFF
position 2
HSMCF_TOP
ON: HSMF TOP in-chain OFF: Bypass HSMF TOP
OFF
22..33 SSttaattuuss EElleemmeennttss
The TR4 includes status LEDs. Please refer Table 2-2 for the status of the LED indicator.
Table 2-2 LED Indicators
Board
Reference
LED name
Description
D13
HSMC Port E present
These LEDs are lit when HSMC Port A/B/C/D/E/F have a
board or cable plugged-in such that pin 160 becomes
grounded.
D14
HSMC Port D present
D15
HSMC Port A present
D20
HSMC Port C Present
D27
HSMC Port B Present
D28
HSMC Port F Present
D16
USB Blaster Circuit
This LED is lit when the USB blaster circuit transmits or
receives data.
D17
MAX_LOAD
This LED is lit when the FPGA is being actively configured.
TR4 User Manual
18
www.terasic.com
March 30, 2017
D18
MAX_ERROR
This LED is lit when the MAX II CPLD EPM2210 System
Controller fails to configure the FPGA.
D19
MAX_CONF_DONEn
This LED is lit when the FPGA is successfully configured.
D33
19V POWER
This LED is lit after the 19V adapter is plugged in
D1~D12
HSMC VCCIO_LED
These LEDs indicate the I/O standard of the HSMC ports (see
Table 2-12)
22..4
4
GGeenneerraall UUsseerr IInnppuutt//OOuuttppuutt
Push-buttons
The TR4 includes six push-buttons that allow you to interact with the Stratix IV GX FPGA. Each of
these buttons is debounced using a Schmitt Trigger circuit, as indicated in Figure 2-10. Each
push-button provides a high logic level or a low logic level when it is not pressed or pressed,
respectively (active-low).Table 2-3 lists the board references, signal names and their corresponding
Stratix IV GX device pin numbers.
Figure 2-10 Push-button Debouncing
Table 2-3 Push-button Pin Assignments, Schematic Signal Names, and Functions
Name
Locate
Description
I/O Standard
Stratix IV GX Pin Number
PB3
BUTTON3
Low when pushed
(Active-low)
1.5V
PIN_P20
PB4
BUTTON2
1.5V
PIN_A19
PB5
BUTTON1
1.5V
PIN_M19
PB6
BUTTON0
1.5V
PIN_L19
TR4 User Manual
19
www.terasic.com
March 30, 2017
The MAX_RSTN push-button is used to reset the MAX II EPM2210 CPLD. The Config
push-button can configure default code to FPGA. Table 2-4 lists the board references, signal names
and their corresponding Stratix IV GX device pin numbers.
Table 2-4 Push-button Pin Assignments, Schematic Signal Names, and Functions
Name
Locate
Description
I/O
Standard
EPM2210 Pin Number
PB1
MAX_RSTn
MAX II reset
3.3V-VTTL
PIN_M9
PB2
CONFIG
FPGA reconfig
3.3V-VTTL
PIN_D12
Slide Switches
There are four slide switches on the TR4 to provide additional FPGA input control. Each switch is
connected directly to a pin of the Stratix IV GX FPGA. When a slide switch is in the DOWN
position or the UP position, it provides a low logic level or a high logic level (VCCIO_HSMF or
VCCIO_HSMA) to the FPGA, respectively. Table 2-5 lists the board references, signal names and
their corresponding Stratix IV GX device pin numbers.
Table 2-5 Slide Switches Pin Assignments, Schematic Signal Names, and Functions
Name
Locate
Description
I/O Standard
Stratix IV GX Pin Number
SW0
SLIDE SW
Provides high
logic level
when in the UP
position
VCCIO_HSMF
PIN_AH18
SW1
SLIDE SW
VCCIO_HSMF
PIN_AH19
SW2
SLIDE SW
VCCIO_HSMA
PIN_D6
SW3
SLIDE SW
VCCIO_HSMA
PIN_C6
LEDs
The TR4 consists of 4 user-controllable LEDs to allow status and debugging signals to be driven to
the LEDs from the designs loaded into the Stratix IV GX device. Each LED is driven directly by the
Stratix IV GX FPGA. The LED is turned on or off when the associated pins are driven to a low or
high logic level, respectively (active-low). A list of the pin names on the FPGA that are connected
to the LEDs is given in Table 2-6.
Table 2-6 User LEDs Pin Assignments, Schematic Signal Names, and Functions
Name
Description
Description
I/O Standard
Stratix IV GX Pin
Number
TR4 User Manual
20
www.terasic.com
March 30, 2017
D27
LED0
LEDs turn on when
output is logic low
(Active-low)
1.5V
PIN_B19
D28
LED1
1.5V
PIN_A18
D29
LED2
1.5V
PIN_D19
D30
LED3
1.5V
PIN_C19
22..5
5
HHiigghh--SSppeeeedd MMeezzzzaanniinnee CCaarrddss
The High Speed Mezzanine Card (HSMC) interface provides a mechanism to extend the
peripheral-set of an FPGA host board by means of add-on daughter cards, which can address
today’s high speed signaling requirements as well as low-speed device interface support. The
HSMC interfaces support JTAG, clock outputs and inputs, high-speed serial I/O (transceivers), and
single-ended or differential signaling. The detailed specifications of the HSMC connectors are
described below:
6 HSMC Connector Groups
There are ten HSMC connectors on the TR4 board are divided into 6 groups: HSMC A, HSMC B,
HSMC C, HSMC D, HSMC E, and HSMC F. Each group has a male and female HSMC port on the
top and bottom side of the TR4 board except HSMC E and HSMC F. In addition, both the male
and female HSMC connector share the same I/O pins besides JTAG interface and high-speed serial
I/O (transceivers).
Caution: DO NOT connect HSMC daughter cards to the backside HSMC (male) connectors. Doing
so will permanently damage the on-board FPGA.
I/O Distribution
The HSMC connector on the TR4 includes a total of 172 pins, including 121 signal pins (120 signal
pins +1 PSNTn pin), 39 power pins, and 12 ground pins. Figure 2-11 shows the signal bank
diagram of HSMC connector. Bank 1 also has dedicated JTAG, I2C bus, and clock signals. The
main CMOS/LVDS interface signals, including LVDS/CMOS clocks, are found in banks 2 and 3.
Both 12V and 3.3V power pins are also found in banks 2 and 3.
TR4 User Manual
21
www.terasic.com
March 30, 2017
Figure 2-11 HSMC Signal Bank Diagram
Due to the limitation of FPGA bank I/O distribution and dedicated clock in/out pin numbers, there
are some differences between individual HSMC connectors, listed below:
LVDS Interface
On the TR4 board, only HSMC ports A, B, C and D support LVDS. Each HSMC port provides 18(1)
LVDS channel transceivers.
For LVDS transmitters, HSMC ports A and D support 18 true LVDS channels which can run up to
1.6Gbps. The LVDS transmitter on HSMC Port B and C contain true and emulated LVDS channels.
The emulated LVDS channels use two single-ended output buffers and external resistors as shown
in Figure 2-12. The associated I/O standard of these differential FPGA I/O pins in the Quartus II
project should be set to LVDS_E_3R. Emulated LVDS I/O data rates can reach speeds up to
1.1Gbps. The factory default setting for the Rs resistor will be 0 ohm and the Rp resistor will not be
assembled for single-ended I/O standard applications. For emulated LVDS transmitters, please solder
120 and 170 ohm resistors onto the Rs and Rp positions, respectively.
TR4 User Manual
22
www.terasic.com
March 30, 2017
For the LVDS receivers, HSMC Port A/B/D support true LVDS receivers which can run at 1.6Gbps.
Unlike HSMC ports A/D, not all the LVDS receivers in HSMC ports B/C support On-Chip
termination (OCT). To use these I/Os as LVDS receivers, the user needs to solder a 100 ohm
resistor for input termination as show in Figure 2-12.
Table 2-7 gives the detailed numbers of true and emulated LVDS interfaces of each HSMC port.
Also, it lists the numbers of LVDS receivers needed to assemble external input termination resistors
on each HSMC ports.
Table 2-8 shows all the external input differential resistors for LVDS receivers on HSMC Port B
and C. The factory default setting is not installed.
Finally, because HSMC Port C shares FPGA I/O pins with GPIO headers, so the LVDS
performance can only support a data rate of up to 500Mbps.
(1) Although the specifications of the HSMC connector defines signals D0~D3 as single-ended
I/Os, D0 and D2 can be used as LVDS transmitters and D1 and D3 can be used as LVDS
receivers on the TR4.
Figure 2-12 Emulated LVDS Resistor Network between FPGA and HSMC Port
TR4 User Manual
23
www.terasic.com
March 30, 2017
Figure 2-13 External On-Board Termination between FPGA and HSMC Port
Table 2-7 LVDS Breakdown
HSMA
HSMB
HSMC
HSMD
HSME
HSMF
True LVDS Transmitters
18
10 9 18 9 NA
Emulated LVDS Transmitters
0 8 9 0 NA
NA
Supported with OCT
18
11 9 18 9 NA
Needed External Input
Termination Resistors.
0 7 9 0 NA
NA
Table 2-8 Distribution of the Differential Termination Resistors for HSMC Connector
HSMC Differential Net
Reference name of the
differential termination resistor
HSMB_RX_p[11]
R333
HSMB_RX_p[12]
R318
HSMB_RX_p[13]
R312
HSMB_RX_p[14]
R311
HSMB_RX_p[15]
R303
HSMB_RX_p[16]
R315
HSMB_D[1]
R332
HSMC_RX_p[0]
R314
HSMC_RX_p[1]
R316
HSMC_RX_p[2]
R330
HSMC_RX_p[3]
R341
HSMC_RX_p[4]
R329
HSMC_RX_p[5]
R328
HSMC_RX_p[6]
R309
TR4 User Manual
24
www.terasic.com
March 30, 2017
HSMC_RX_p[7]
R306
HSMC_D[1]
R310
High-speed Serial I/O (transceiver) Interface
There are 8 CDR transceiver channels located on the top side of HSMC ports A and E, respectively.
Each CDR transceiver can run up to 6.5Gbps.
Clock Interface
Due to the limitation of the FPGA clock input pin numbers, not all the HSMC ports have same
clock interface. Table 2-9 shows the FPGA clock input pin placement on each HSMC port.
In addition, since FPGA dedicated clock input pins (CLK[1,3,8,10]), or corner PLL clocks don’t
support On-Chip differential termination, please solder input termination resistors on R299 and
R300, respectively, when using HSMC_CLKIN_p2/n2 and HSMA_CLKIN_p2/n2 as LVDS
signals.
Table 2-9 HSMC clock interface distribution
HSMC Clock in/out pin
name
FPGA Clock Input Pin Placement
HSMA
HSMB
HSMC
HSMD
HSME
HSMF
CLKIN0
I/O
I/O
I/O
CLK1n
I/O
CLK5p
CLKIN_p1
CLK9p
I/O
CLK2p
CLK0p
CLK11p
CLK6p
CLKIN_n1
CLK9n
I/O
CLK2n
CLK0n
CLK11n
CLK6n
CLKIN_p2
CLK8p
I/O
CLK3p
I/O
CLK10p
CLK4p
CLKIN_n2
CLK8n
I/O
CLK3n
I/O
CLK10n
CLK4n
I2C Interface
The I2C bus on the HSMC connectors is separated into two groups. HSMC Port A, B, and C share
the same I2C interface. HSMC ports D, E, and F share the other I2C bus. Table 2-10 lists the
detailed distribution.
Table 2-10 HSMC I2C Group
TR4 User Manual
25
www.terasic.com
March 30, 2017
HSMC A/B/C I2C
Schematic Signal
Name
Description
I/O Standard
Stratix IV GX
Pin Number
HSMB_SCL
HSMC A/B/C I2C
clock signal
2.5 V (1)
AE16
HSMB_SDA
HSMC A/B/C I2C
data signal
2.5 V(1)
AF16
HSMC D/E/F I2C
Schematic Signal
Name
Description
I/O Standard
Stratix IV GX
Pin Number
HSMD_SCL
HSMC D/E/F I2C
clock signal
1.5V(1)
G21
HSMD_SDA
HSMC D/E/F I2C
data signal
1.5V(1)
F21
(1) The I2C I/O on the TR4 HSMC connector is defined with 3.3V.
There is a level translator between FPGA and HSMC connector to translate FPGA 2.5V or 1.5V
I/O to 3.3V. The signals above are also connected to the level translator. When these signals are
used as general purpose I/O, the maximum data rate is 60Mbps.
I/O through the Level Translator
There is a pin named HSMD_OUT0 on HSMC Port D which is connected to an FPGA 1.5V I/O
standard bank. To meet the I/O standard of adjustable specification, a level translator is used
between the FPGA and HSMC Port D on this net. Thus, the maximum data rate of this pin is
60Mbps due to the limitations of the level translator.
HSMC Port C Shared Bus with GPIO
The HSMC Port C shares the same FPGA I/O pins with the GPIO expansion headers (JP9, JP10).
Hence none of the combinations above are allowed to be used simultaneously.
Power Supply
The TR4 board provides 12V DC and 3.3V DC power through HSMC ports. Table 2-11 indicates
the maximum power consumption for all HSMC ports. Please note that this table shows the total
max current limit for all six ports, not just for one.
TR4 User Manual
26
www.terasic.com
March 30, 2017
Also, the 12V DC and 3.3V DC power supplies from the HSMC ports have fuses for protection.
Users who don’t need the power from the HSMC can remove these fuses to cut the power on
connector.
CAUTION. Before powering on the TR4 board with a daughter card, please check to see if there is
a short circuit between the power pins and FPGA I/O.
Table 2-11 Power Supply of the HSMC
Supplied Voltage
Max. Current Limit
12V
2A
3.3V
3A
Adjustable I/O Standards
The FPGA I/O standards of the HSMC ports can be adjusted by configuring the header position.
Each port can be individually adjusted to 1.5V, 1.8V, 2.5V or 3.0V via jumpers on the top-right
corner of TR4 board. Figure 2-14 depicts the position of the jumpers and their associated I/O
standards. Users can use 2-pin jumpers to configure the I/O standard by choosing the associated
positions on the header.
Finally, there are LEDs on the top-right corner of TR4 board to indicate the I/O standard of each
HSMC port, as shown in Table 2-12. For example, LEDs D11 and D12 will be turned on and off,
respectively, when the I/O Standard of HSMC Port A is set to 2.5V.
Figure 2-14 HSMC I/O Configuration Header
TR4 User Manual
27
www.terasic.com
March 30, 2017
Table 2-12 HSMC IO Standard Indicators
HSMA
HSMB
HSMC
HSMD
HSME
HSMF
D11
D12
D9
D10
D7
D8
D5
D6
D3
D4
D1
D2
1.5V
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
1.8V
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
2.5V
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
3.0V
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
ON
(1) Users who connect a daughter card onto the HSMC ports need to pay close attention to the
I/O standard between TR4 HSMC connector pins and daughter card system. For example, if
the I/O standard of HSMC pins on TR4 board is set to 1.8V, a daughter card with 3.3V or
2.5V I/O standard may not work properly on TR4 board due to I/O standard mismatch. When
using custom or third-party HSMC daughter cards, make sure that all the pin locations are
aligned to prevent shorts.

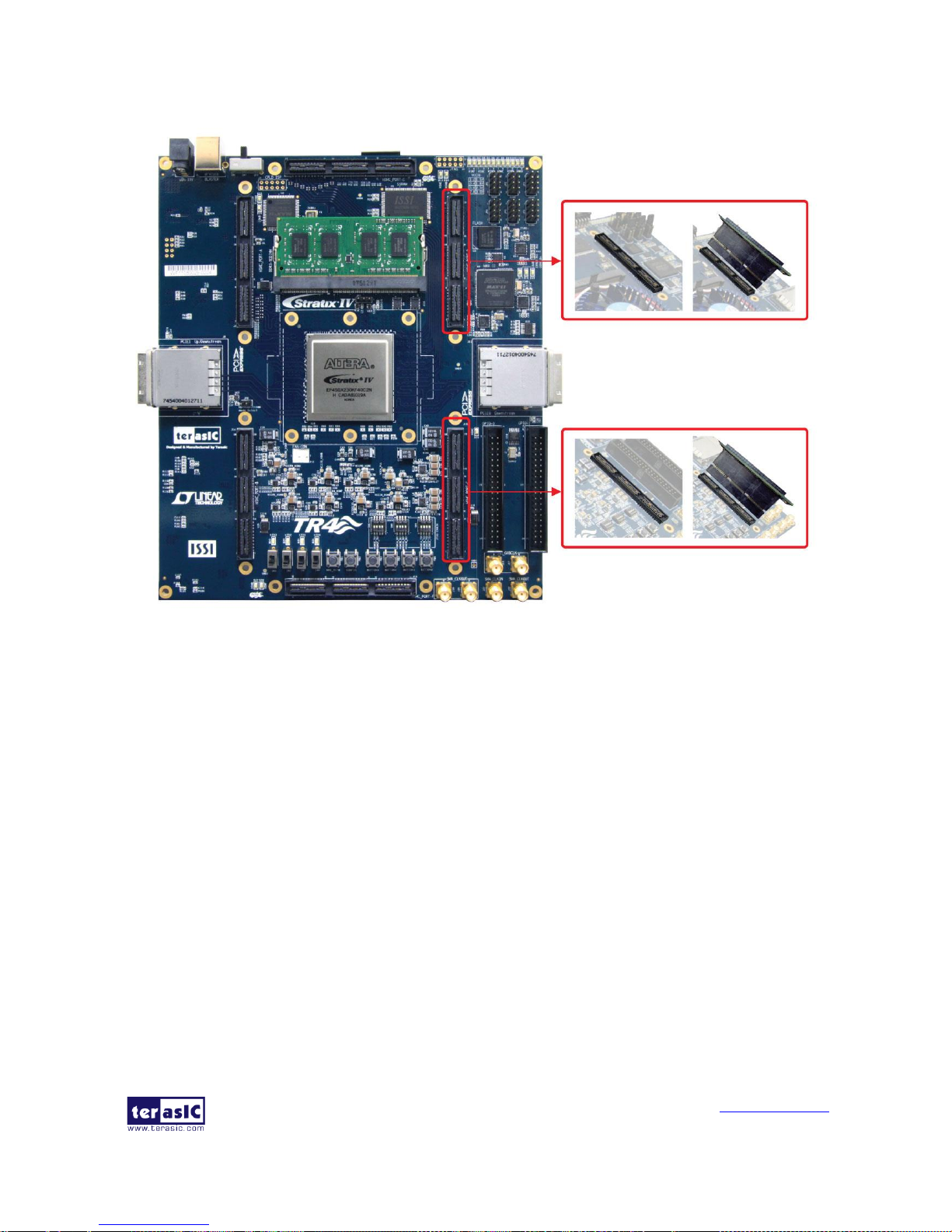

Using THCB-HMF2 Adapter Card
The purpose of the HSMC Height Extension Male to Female card (THCB-HMF2) included in the
TR4 kit package is to increase the height of the HSMC (Port C and D) connector to avoid any
obstruction that might take place as a HSMC daughter card is connected. The THCB-HMF2 adapter
card can be connected to either ports of the HSMC connector shown in Figure 2-15. There are
numerous adapter cards that are supported by the TR4, such as loopback and differential
transmission adapters. For more detailed information about these adapter cards, please refer to
HSMC_adapter_card.pdf which can be found in TR4 system CD.
TR4 User Manual
28
www.terasic.com
March 30, 2017

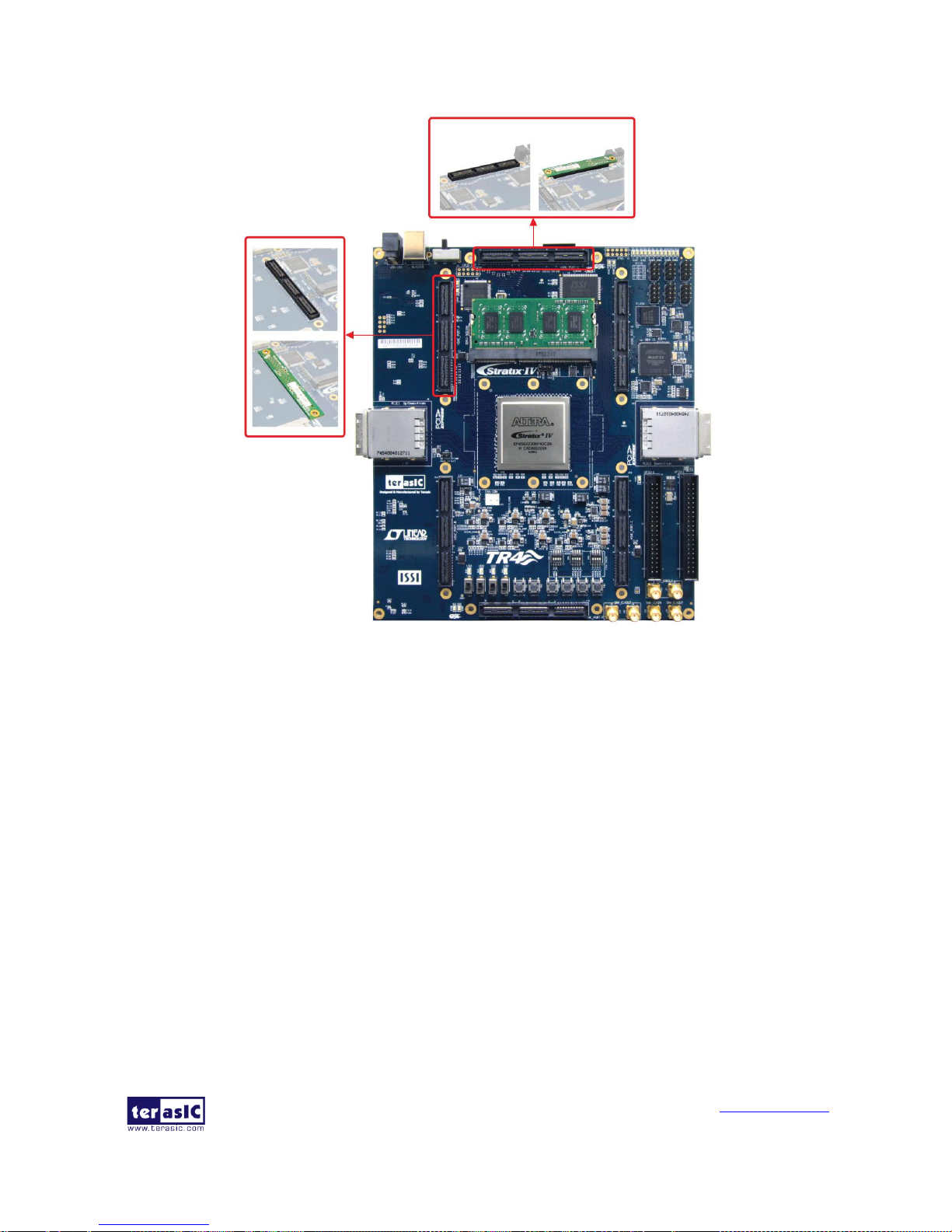

Figure 2-15 Connection between HMF2 Adapter Card and HSMC
JTAG Chain on HSMC
The JTAG chain on the HSMC can be activated through the three 4-position DIP switches (SW4,
SW5, and SW6). Table 2-1 in section 2.2 gives a detailed description of the positions of the DIP
switches and their associated interfaces. The HSMC connectors on the top side of TR4 board are
controlled by SW4 and SW6. SW5 is used to control the HSMC JTAG chain on the bottom-side of
the TR4. Only when multiple TR4s are stacked should the boards use this switch. A document titled
Using_Multi-TR4_system.pdf in the TR4 system CD will give an example to demonstrate how to set
SW5 to connect JTAG chains together for multiple TR4 boards. Finally, before using the JTAG
interface on HSMC connector, please short JP7 in order to enable the HSMC JTAG interface.
The following will describe how to configure the JTAG interface of HSMC connector on the
top-side of the TR4.
TR4 User Manual
29
www.terasic.com
March 30, 2017
If there is no connection established on the HSMC connectors, the 4-position DIP switch (SW4 or
SW6) should be set to ‘Off’, so the JTAG signals on the HSMC connectors are bypassed illustrated
in Figure 2-16.
Figure 2-16 JTAG Chain for a Standalone TR4
If the HSMC-based daughter card connected to the HSMC connector uses the JTAG interface, the
4-position DIP switch (SW4 or SW6) should be set to ‘On’ according to the HSMC port used. In
this case, from Figure 2-17 HSMC Port D is used so position 4 of the SW4 switch is set to ‘On’.
Similarly, if the JTAG interface isn’t used on the HSMC-based daughter card, position 4 of SW4 is
set to ‘Off’, thus bypassing the JTAG signals as shown in Figure 2-18.
TR4 User Manual
30
www.terasic.com
March 30, 2017
Figure 2-17 JTAG Chain for a Daughter Card (JTAG is used) Connected to HSMC Port D of the TR4
Figure 2-18 JTAG chain for a Daughter Card (JTAG not used) Connected to HSMC Port D of the TR4
TR4 User Manual
31
www.terasic.com
March 30, 2017
Multi-FPGA High-Capacity Platforms through HSMC
The TR4 offers a selection of two Stratix IV GX devices, EP4SGX230 and EPSGX530, which offer
logic elements (LEs) up to 228,000 and 531,200, respectively, to provide the flexibility for users to
select a suitable device. In situations where users’ design exceeds the capacity of the FPGA, the
HSMC interface can be used to connect to other FPGA system boards creating a multi-FPGA
scalable system. Users can stack two TR4s as shown in Figure 2-19. Another option is to use a
Samtec high-speed cable to connect two TR4 boards (See Figure 2-20) to expand your system. For
more information on how to use multi-TR4 systems, please refer to Using_Mult-TR4_system.pdf,
which can be found on the TR4 System CD.
Figure 2-19 Two Stacked TR4 Boards
TR4 User Manual
32
www.terasic.com
March 30, 2017
Figure 2-20 Two TR4 Boards Connected via HSMC Cable
22..6
6
GGPPIIOO EExxppaannssiioonn HHeeaaddeerrss
The TR4 consists of two 40-pin expansion headers as shown in Figure 2-21. Each header has 36
I/O pins connected to the Stratix IV GX FPGA, with the other 4 pins providing 5V (VCC5) DC,
3.3V (VCC33) DC, and two GND pins.
GPIO 0 and GPIO 1 share pins with HSMC Port C. The I/O standards of the GPIO headers are the
same as HSMC Port C, which can be configured between 1.5, 1.8, 2.5 and 3.0V.
TR4 User Manual
33
www.terasic.com
March 30, 2017
Figure 2-21 Pin Distribution of the GPIO Expansion Headers
Finally, Figure 2-22 shows the connections between the GPIO expansion headers and Stratix IV
GX.
TR4 User Manual
34
www.terasic.com
March 30, 2017

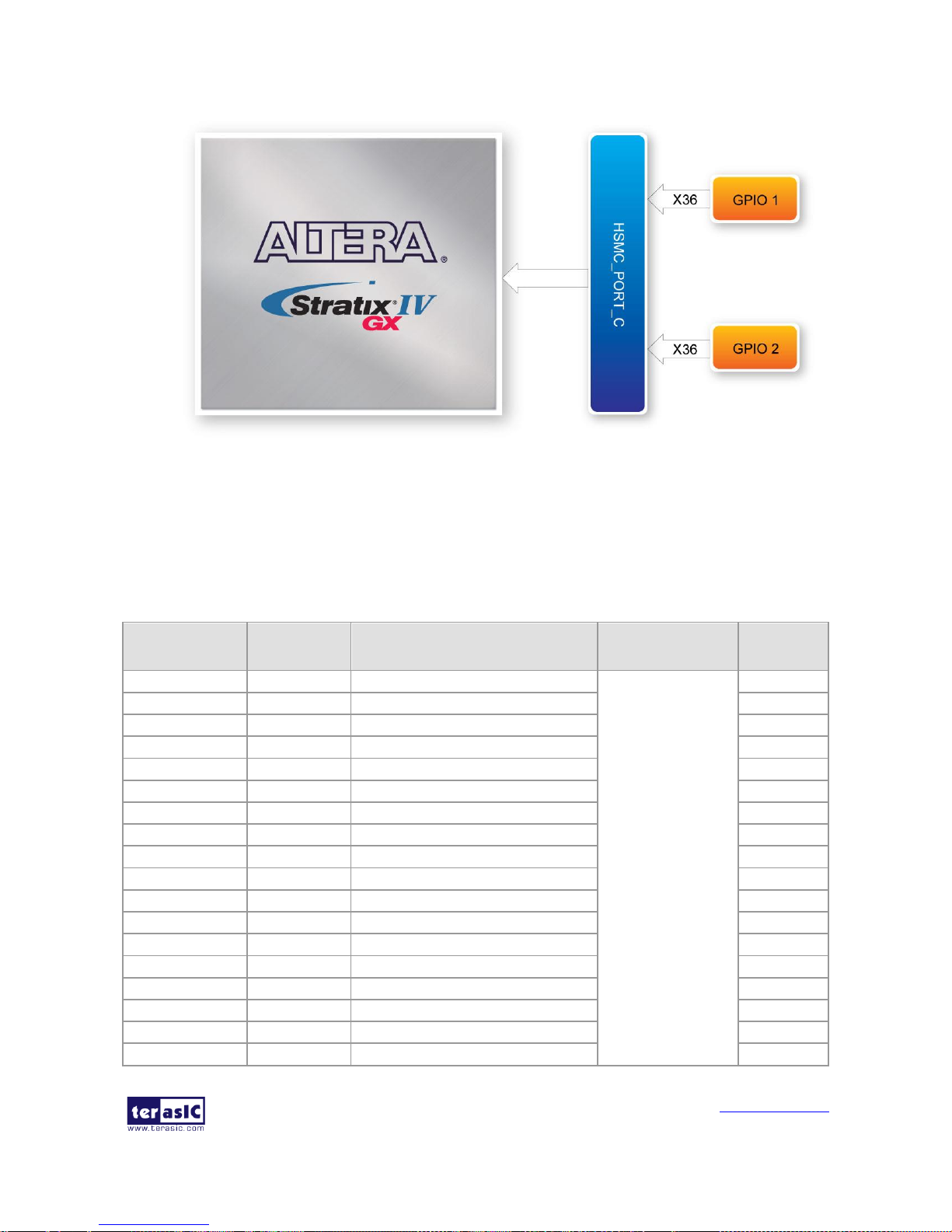

Figure 2-22 Connection between the GPIO Expansion Headers and Stratix IV GX
The information about mapping of the FPGA pin assignments to the GPIO0 and GPIO1 connectors,
please refer Table 2-13 and Table 2-14.
Table 2-13 GPIO Expansion Header (JP9) Pin Assignments, Schematic Signal Names, and
Functions
Board Reference
(JP9)
Schematic
Signal Name
Description
I/O Standard
Stratix IV GX
Pin Number
1
GPIO0_D0
GPIO Expansion 0 IO[0](Clock In)
Depends on I/O
Standard of HSMC
Port C
PIN_AF34
2
GPIO0_D1
GPIO Expansion 0 IO[1]
PIN_AG34
3
GPIO0_D2
GPIO Expansion 0 IO[2](Clock In)
PIN_AE35
4
GPIO0_D3
GPIO Expansion 0 IO[3]
PIN_AG35
5
GPIO0_D4
GPIO Expansion 0 IO[4]
PIN_AC31
6
GPIO0_D5
GPIO Expansion 0 IO[5]
PIN_AH32
7
GPIO0_D6
GPIO Expansion 0 IO[6]
PIN_AC32
8
GPIO0_D7
GPIO Expansion 0 IO[7]
PIN_AH33
9
GPIO0_D8
GPIO Expansion 0 IO[8]
PIN_AH34
10
GPIO0_D9
GPIO Expansion 0 IO[9]
PIN_AJ34
13
GPIO0_D10
GPIO Expansion 0 IO[10]
PIN_AH35
14
GPIO0_D11
GPIO Expansion 0 IO[11]
PIN_AJ35
15
GPIO0_D12
GPIO Expansion 0 IO[12]
PIN_AK34
16
GPIO0_D13
GPIO Expansion 0 IO[13]
PIN_AL34
17
GPIO0_D14
GPIO Expansion 0 IO[14]
PIN_AK35
18
GPIO0_D15
GPIO Expansion 0 IO[15]
PIN_AL35
19
GPIO0_D16
GPIO Expansion 0 IO[16]
PIN_AM34
20
GPIO0_D17
GPIO Expansion 0 IO[17]
PIN_AN34
TR4 User Manual
35
www.terasic.com
March 30, 2017
21
GPIO0_D18
GPIO Expansion 0 IO[18]
PIN_AM35
22
GPIO0_D19
GPIO Expansion 0 IO[19]
Depends on I/O
Standard of HSMC
Port C
PIN_AN35
23
GPIO0_D20
GPIO Expansion 0 IO[20]
PIN_AJ32
24
GPIO0_D21
GPIO Expansion 0 IO[21]
PIN_AJ26
25
GPIO0_D22
GPIO Expansion 0 IO[22]
PIN_AK33
26
GPIO0_D23
GPIO Expansion 0 IO[23]
PIN_AK26
27
GPIO0_D24
GPIO Expansion 0 IO[24]
PIN_AF25
28
GPIO0_D25
GPIO Expansion 0 IO[25]
PIN_AV29
31
GPIO0_D26
GPIO Expansion 0 IO[26]
PIN_AG25
32
GPIO0_D27
GPIO Expansion 0 IO[27]
PIN_AW30
33
GPIO0_D28
GPIO Expansion 0 IO[28]
PIN_AV32
34
GPIO0_D29
GPIO Expansion 0 IO[29]
PIN_AT28
35
GPIO0_D30
GPIO Expansion 0 IO[30]
PIN_AW32
36
GPIO0_D31
GPIO Expansion 0 IO[31]
PIN_AU28
37
GPIO0_D32
GPIO Expansion 0 IO[32]
PIN_AV28
38
GPIO0_D33
GPIO Expansion 0 IO[33]
PIN_AP28
39
GPIO0_D34
GPIO Expansion 0 IO[34]
PIN_AW29
40
GPIO0_D35
GPIO Expansion 0 IO[35]
PIN_AR28
Table 2-14 GPIO Expansion Header (JP10) Pin Assignments, Schematic Signal Names, and
Functions
Board Reference
(JP10)
Schematic
Signal Name
Description
I/O Standard
Stratix IV GX
Pin Number
1
GPIO1_D0
GPIO Expansion 1 IO[0]
Depends on I/O
Standard of HSMC
Port C
PIN_AB27
2
GPIO1_D1
GPIO Expansion 1 IO[1]
PIN_AE25
3
GPIO1_D2
GPIO Expansion 1 IO[2]
PIN_AB28
4
GPIO1_D3
GPIO Expansion 1 IO[3]
PIN_AD25
5
GPIO1_D4
GPIO Expansion 1 IO[4]
PIN_AP27
6
GPIO1_D5
GPIO Expansion 1 IO[5]
PIN_AU29
7
GPIO1_D6
GPIO Expansion 1 IO[6]
PIN_AN27
8
GPIO1_D7
GPIO Expansion 1 IO[7]
PIN_AT29
9
GPIO1_D8
GPIO Expansion 1 IO[8]
PIN_AL25
10
GPIO1_D9
GPIO Expansion 1 IO[9]
PIN_AW33
13
GPIO1_D10
GPIO Expansion 1 IO[10]
PIN_AP26
14
GPIO1_D11
GPIO Expansion 1 IO[11]
PIN_AW34
15
GPIO1_D12
GPIO Expansion 1 IO[12]
PIN_AW31
16
GPIO1_D13
GPIO Expansion 1 IO[13]
PIN_AH24
17
GPIO1_D14
GPIO Expansion 1 IO[14]
PIN_AV31
18
GPIO1_D15
GPIO Expansion 1 IO[15]
PIN_AG24
19
GPIO1_D16
GPIO Expansion 1 IO[16]
PIN_AL27
20
GPIO1_D17
GPIO Expansion 1 IO[17]
PIN_AW27
21
GPIO1_D18
GPIO Expansion 1 IO[18]
PIN_AH26
22
GPIO1_D19
GPIO Expansion 1 IO[19]
PIN_AW28
TR4 User Manual
36
www.terasic.com
March 30, 2017
23
GPIO1_D20
GPIO Expansion 1 IO[20]
PIN_AK27
24
GPIO1_D21
GPIO Expansion 1 IO[21]
Depends on I/O
Standard of HSMC
Port C
PIN_AD30
25
GPIO1_D22
GPIO Expansion 1 IO[22]
PIN_AE24
26
GPIO1_D23
GPIO Expansion 1 IO[23]
PIN_AD31
27
GPIO1_D24
GPIO Expansion 1 IO[24]
PIN_AB30
28
GPIO1_D25
GPIO Expansion 1 IO[25]
PIN_AE30
31
GPIO1_D26
GPIO Expansion 1 IO[26]
PIN_AB31
32
GPIO1_D27
GPIO Expansion 1 IO[27]
PIN_AE31
33
GPIO1_D28
GPIO Expansion 1 IO[28]
PIN_AG31
34
GPIO1_D29
GPIO Expansion 1 IO[29]
PIN_AE28
35
GPIO1_D30
GPIO Expansion 1 IO[30]
PIN_AG32
36
GPIO1_D31
GPIO Expansion 1 IO[31]
PIN_AE29
37
GPIO1_D32
GPIO Expansion 1 IO[32]
PIN_AF29
38
GPIO1_D33
GPIO Expansion 1 IO[33]
PIN_AD28
39
GPIO1_D34
GPIO Expansion 1 IO[34]
PIN_AG30
40
GPIO1_D35
GPIO Expansion 1 IO[35]
PIN_AD29
22..7
7
DDDDRR33 SSOO--DDIIMMMM
One DDR3 SO-DIMM socket is provided as a flexible and efficient form-factor volatile memory
for user applications. The DDR3 SODIMM socket is wired to support a maximum capacity of 4GB
with a 64-bit data bus. Using differential DQS signaling for the DDR3 SDRAM interfaces, it is
capable of running at up to 533MHz memory clock for a maximum theoretical bandwidth up to
68Gbps. Figure 2-23 shows the connections between the DDR3 SO-DIMM socket and Stratix IV
GX device. The information about mapping of the FPGA pin assignments to the DDR3 SODIMM
connectors, please refer to Table 2-15.
Table 2-15 DDR3 SODIMM Pin Assignments, Schematic Signal Names, and Functions
Schematic
Signal Name
Description
I/O Standard
Stratix IV GX
Pin Number
mem_addr [0]
DDR3 ADDRess [0]
SSTL-15 Class I
PIN_N23
mem_addr [1]
DDR3 ADDRess [1]
SSTL-15 Class I
PIN_C22
mem_addr [2]
DDR3 ADDRess [2]
SSTL-15 Class I
PIN_M22
mem_addr [3]
DDR3 ADDRess [3]
SSTL-15 Class I
PIN_D21
mem_addr [4]
DDR3 ADDRess [4]
SSTL-15 Class I
PIN_P24
mem_addr [5]
DDR3 ADDRess [5]
SSTL-15 Class I
PIN_A24
mem_addr [6]
DDR3 ADDRess [6]
SSTL-15 Class I
PIN_M21
mem_addr [7]
DDR3 ADDRess [7]
SSTL-15 Class I
PIN_D17
TR4 User Manual
37
www.terasic.com
March 30, 2017
mem_addr [8]
DDR3 ADDRess [8]
SSTL-15 Class I
PIN_A25
mem_addr [9]
DDR3 ADDRess [9]
SSTL-15 Class I
PIN_N25
mem_addr [10]
DDR3 ADDRess [10]
SSTL-15 Class I
PIN_C24
mem_addr [11]
DDR3 ADDRess [11]
SSTL-15 Class I
PIN_N21
mem_addr [12]
DDR3 ADDRess [12]
SSTL-15 Class I
PIN_M25
mem_addr [13]
DDR3 ADDRess [13]
SSTL-15 Class I
PIN_K26
mem_addr [14]
DDR3 ADDRess [14]
SSTL-15 Class I
PIN_F16
mem_addr [15]
DDR3 ADDRess [15]
SSTL-15 Class I
PIN_R20
mem_ba[0]
DDR3 Bank ADDRess [0]
SSTL-15 Class I
PIN_B26
mem_ba[1]
DDR3 Bank ADDRess [1]
SSTL-15 Class I
PIN_A29
mem_ba[2]
DDR3 Bank ADDRess [2]
SSTL-15 Class I
PIN_R24
mem_cas_n
DDR3 Column ADDRess
Strobe
SSTL-15 Class I
PIN_L26
mem_cke[0]
Clock Enable pin 0 for DDR3
SSTL-15 Class I
PIN_P25
mem_cke[1]
Clock Enable pin 1 for DDR3
SSTL-15 Class I
PIN_M16
mem_ck[0]
Clock p0 for DDR3
Differential 1.5-V SSTL Class I
PIN_K27
mem_ck[1]
Clock p1 for DDR3
Differential 1.5-V SSTL Class I
PIN_L25
mem_ck_n[0]
Clock n0 for DDR3
Differential 1.5-V SSTL Class I
PIN_J27
mem_ck_n[1]
Clock n1 for DDR3
Differential 1.5-V SSTL Class I
PIN_K28
mem_cs_n[0]
DDR3 Chip Select [0]
SSTL-15 Class I
PIN_D23
mem_cs_n[1]
DDR3 Chip Select [1]
SSTL-15 Class I
PIN_G28
mem_dm[0]
DDR3 Data Mask [0]
SSTL-15 Class I
PIN_G16
mem_dm[1]
DDR3 Data Mask [1]
SSTL-15 Class I
PIN_N16
mem_dm[2]
DDR3 Data Mask [2]
SSTL-15 Class I
PIN_P23
mem_dm[3]
DDR3 Data Mask [3]
SSTL-15 Class I
PIN_B29
mem_dm[4]
DDR3 Data Mask [4]
SSTL-15 Class I
PIN_H28
mem_dm[5]
DDR3 Data Mask [5]
SSTL-15 Class I
PIN_E17
mem_dm[6]
DDR3 Data Mask [6]
SSTL-15 Class I
PIN_C26
mem_dm[7]
DDR3 Data Mask [7]
SSTL-15 Class I
PIN_E23
mem_dq[0]
DDR3 Data [0]
SSTL-15 Class I
PIN_G15
mem_dq[1]
DDR3 Data [1]
SSTL-15 Class I
PIN_F15
mem_dq[2]
DDR3 Data [2]
SSTL-15 Class I
PIN_C16
mem_dq[3]
DDR3 Data [3]
SSTL-15 Class I
PIN_B16
mem_dq[4]
DDR3 Data [4]
SSTL-15 Class I
PIN_G17
mem_dq[5]
DDR3 Data [5]
SSTL-15 Class I
PIN_A16
TR4 User Manual
38
www.terasic.com
March 30, 2017
mem_dq[6]
DDR3 Data [6]
SSTL-15 Class I
PIN_D16
mem_dq[7]
DDR3 Data [7]
SSTL-15 Class I
PIN_E16
mem_dq[8]
DDR3 Data [8]
SSTL-15 Class I
PIN_N17
mem_dq[9]
DDR3 Data [9]
SSTL-15 Class I
PIN_M17
mem_dq[10]
DDR3 Data [10]
SSTL-15 Class I
PIN_K17
mem_dq[11]
DDR3 Data [11]
SSTL-15 Class I
PIN_L16
mem_dq[12]
DDR3 Data [12]
SSTL-15 Class I
PIN_P16
mem_dq[13]
DDR3 Data [13]
SSTL-15 Class I
PIN_P17
mem_dq[14]
DDR3 Data [14]
SSTL-15 Class I
PIN_J17
mem_dq[15]
DDR3 Data [15]
SSTL-15 Class I
PIN_H17
mem_dq[16]
DDR3 Data [16]
SSTL-15 Class I
PIN_N22
mem_dq[17]
DDR3 Data [17]
SSTL-15 Class I
PIN_M23
mem_dq[18]
DDR3 Data [18]
SSTL-15 Class I
PIN_J25
mem_dq[19]
DDR3 Data [19]
SSTL-15 Class I
PIN_M24
mem_dq[20]
DDR3 Data [20]
SSTL-15 Class I
PIN_R22
mem_dq[21]
DDR3 Data [21]
SSTL-15 Class I
PIN_P22
mem_dq[22]
DDR3 Data [22]
SSTL-15 Class I
PIN_K24
mem_dq[23]
DDR3 Data [23]
SSTL-15 Class I
PIN_J24
mem_dq[24]
DDR3 Data [24]
SSTL-15 Class I
PIN_A27
mem_dq[25]
DDR3 Data [25]
SSTL-15 Class I
PIN_A28
mem_dq[26]
DDR3 Data [26]
SSTL-15 Class I
PIN_C29
mem_dq[27]
DDR3 Data [27]
SSTL-15 Class I
PIN_C30
mem_dq[28]
DDR3 Data [28]
SSTL-15 Class I
PIN_C27
mem_dq[29]
DDR3 Data [29]
SSTL-15 Class I
PIN_D27
mem_dq[30]
DDR3 Data [30]
SSTL-15 Class I
PIN_A31
mem_dq[31]
DDR3 Data [31]
SSTL-15 Class I
PIN_B31
mem_dq[32]
DDR3 Data [32]
SSTL-15 Class I
PIN_G27
mem_dq[33]
DDR3 Data [33]
SSTL-15 Class I
PIN_G29
mem_dq[34]
DDR3 Data [34]
SSTL-15 Class I
PIN_F28
mem_dq[35]
DDR3 Data [35]
SSTL-15 Class I
PIN_F27
mem_dq[36]
DDR3 Data [36]
SSTL-15 Class I
PIN_E28
mem_dq[37]
DDR3 Data [37]
SSTL-15 Class I
PIN_D28
mem_dq[38]
DDR3 Data [38]
SSTL-15 Class I
PIN_H26
mem_dq[39]
DDR3 Data [39]
SSTL-15 Class I
PIN_J26
mem_dq[40]
DDR3 Data [40]
SSTL-15 Class I
PIN_F19
TR4 User Manual
39
www.terasic.com
March 30, 2017
mem_dq[41]
DDR3 Data [41]
SSTL-15 Class I
PIN_G19
mem_dq[42]
DDR3 Data [42]
SSTL-15 Class I
PIN_F20
mem_dq[43]
DDR3 Data [43]
SSTL-15 Class I
PIN_G20
mem_dq[44]
DDR3 Data [44]
SSTL-15 Class I
PIN_C17
mem_dq[45]
DDR3 Data [45]
SSTL-15 Class I
PIN_F17
mem_dq[46]
DDR3 Data [46]
SSTL-15 Class I
PIN_C18
mem_dq[47]
DDR3 Data [47]
SSTL-15 Class I
PIN_D18
mem_dq[48]
DDR3 Data [48]
SSTL-15 Class I
PIN_D25
mem_dq[49]
DDR3 Data [49]
SSTL-15 Class I
PIN_C25
mem_dq[50]
DDR3 Data [50]
SSTL-15 Class I
PIN_G24
mem_dq[51]
DDR3 Data [51]
SSTL-15 Class I
PIN_G25
mem_dq[52]
DDR3 Data [52]
SSTL-15 Class I
PIN_B25
mem_dq[53]
DDR3 Data [53]
SSTL-15 Class I
PIN_A26
mem_dq[54]
DDR3 Data [54]
SSTL-15 Class I
PIN_D26
mem_dq[55]
DDR3 Data [55]
SSTL-15 Class I
PIN_F24
mem_dq[56]
DDR3 Data [56]
SSTL-15 Class I
PIN_F23
mem_dq[57]
DDR3 Data [57]
SSTL-15 Class I
PIN_G23
mem_dq[58]
DDR3 Data [58]
SSTL-15 Class I
PIN_J22
mem_dq[59]
DDR3 Data [59]
SSTL-15 Class I
PIN_H22
mem_dq[60]
DDR3 Data [60]
SSTL-15 Class I
PIN_K22
mem_dq[61]
DDR3 Data [61]
SSTL-15 Class I
PIN_D22
mem_dq[62]
DDR3 Data [62]
SSTL-15 Class I
PIN_G22
mem_dq[63]
DDR3 Data [63]
SSTL-15 Class I
PIN_E22
mem_dqs[0]
DDR3 Data Strobe p[0]
Differential 1.5-V SSTL Class I
PIN_D15
mem_dqs[1]
DDR3 Data Strobe p[1]
Differential 1.5-V SSTL Class I
PIN_K16
mem_dqs[2]
DDR3 Data Strobe p[2]
Differential 1.5-V SSTL Class I
PIN_L23
mem_dqs[3]
DDR3 Data Strobe p[3]
Differential 1.5-V SSTL Class I
PIN_C28
mem_dqs[4]
DDR3 Data Strobe p[4]
Differential 1.5-V SSTL Class I
PIN_E29
mem_dqs[5]
DDR3 Data Strobe p[5]
Differential 1.5-V SSTL Class I
PIN_G18
mem_dqs[6]
DDR3 Data Strobe p[6]
Differential 1.5-V SSTL Class I
PIN_F25
mem_dqs[7]
DDR3 Data Strobe p[7]
Differential 1.5-V SSTL Class I
PIN_J23
mem_dqs_n[0]
DDR3 Data Strobe n[0]
Differential 1.5-V SSTL Class I
PIN_C15
mem_dqs_n[1]
DDR3 Data Strobe n[1]
Differential 1.5-V SSTL Class I
PIN_J16
mem_dqs_n[2]
DDR3 Data Strobe n[2]
Differential 1.5-V SSTL Class I
PIN_K23
mem_dqs_n[3]
DDR3 Data Strobe n[3]
Differential 1.5-V SSTL Class I
PIN_B28
TR4 User Manual
40
www.terasic.com
March 30, 2017
mem_dqs_n[4]
DDR3 Data Strobe n[4]
Differential 1.5-V SSTL Class I
PIN_D29
mem_dqs_n[5]
DDR3 Data Strobe n[5]
Differential 1.5-V SSTL Class I
PIN_F18
mem_dqs_n[6]
DDR3 Data Strobe n[6]
Differential 1.5-V SSTL Class I
PIN_E25
mem_dqs_n[7]
DDR3 Data Strobe n[7]
Differential 1.5-V SSTL Class I
PIN_H23
mem_odt[0]
DDR3 On-die Termination 0
SSTL-15 Class I
PIN_F26
mem_odt[1]
DDR3 On-die termination 1
SSTL-15 Class I
PIN_G26
mem_ras_n
DDR3 Row ADDRess Strobe
SSTL-15 Class I
PIN_D24
mem_we_n
DDR3 Write Enable
SSTL-15 Class I
PIN_M27
mem_event_n
DDR3 Temperature Event
SSTL-15 Class I
PIN_R18
mem_reset_n
DDR3 Reset
SSTL-15 Class I
PIN_J18
mem_scl
DDR3 I2C Serial Clock
1.5V
PIN_H19
mem_sda
DDR3 I2C Serial Data Bus
1.5V
PIN_P18

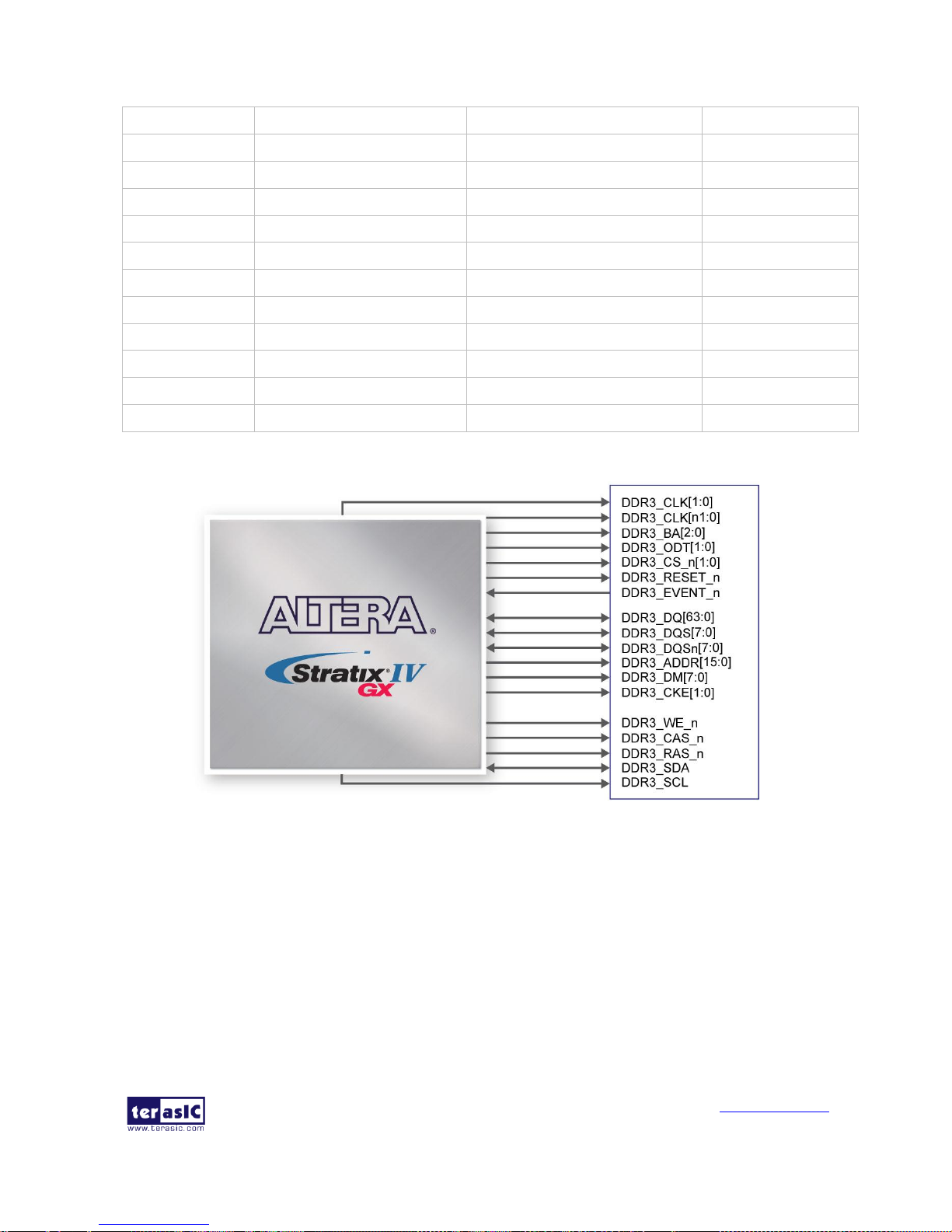

Figure 2-23 Connection between DDR3 and Stratix IV GX FPGA
22..8
8
CClloocckk CCiirrccuuiittrryy
Stratix IV GX FPGA Clock Inputs and Outputs
The TR4 development board contains three types of clock inputs which include 26 global clock
input pins, external PLL clock inputs and transceiver reference clock inputs. The clock input
TR4 User Manual
41
www.terasic.com
March 30, 2017
sources of the Stratix IV GX FPGA originate from on-board oscillators, a 50MHz, driven through
the clock buffers as well as other interfaces including HSMC, GPIO expansion headers(share pins
with HSMC Port C), and SMA connectors. The overall clock distribution of the TR4 is presented in
Figure 2-24.
TR4 User Manual
42
www.terasic.com
March 30, 2017
Figure 2-24 Clock Connections of the TR4
TR4 User Manual
43
www.terasic.com
March 30, 2017
Note:
(1) SMA_CLKOUT_p/N and some HSMC-A clock signals are connected to Bank 5C. If users use
SMA_CLKOUT_p/n ,please set HSMC-A I/O standard to 2.5V.
(2) SMA_GXBCLK_p/n input HSMC-E and PCIE0’s Transceiver Bank GXBL.
(3) PGM_GXBCLK_p1/n1input HSMC-A and PCIE1’s Transceiver Bank GXBR.
(4) HSMD_OUT0 interface through a level shift, so the maximum speed is 60Mbps.
The Stratix IV GX FPGA consists of 8 dedicated clock input pins and from those pins, 3 dedicated
differential clock input listed in Table 2–19. In addition, there are a total of 8 PLLs available for the
Stratix IV GX device.
Table 2–19 Dedicated Clock Input Pins
Dedicated Clock Input Pins
OSC_50_BANK1
HSMD_CLKIN0
HSMC_CLKIN_p2
HSMC_CLKIN_n2
HSMA_CLKIN_p2
HSMA_CLKIN_n2
HSME_CLKIN_p2
HSME_CLKIN_n2
The dedicated clock input pins from the clock input multiplexer allow users to use any of these
clocks as a source clock to drive the Stratix IV PLL circuit through the GCLK and RCLK networks.
Alternatively, PLLs through the GCLK and RCLK networks or from dedicated connections on
adjacent top/bottom and left/right PLLs can also drive the PLL circuit. The clock outputs of the
Stratix IV GX FPGA are derived from various interfaces, notably the HSMC and the SMA
connectors.
Stratix IV GX FPGA Transceiver Clock Inputs
The transceiver reference clock inputs for the serial protocols supported by the Stratix IV GX FPGA
transceiver channels include the PCI Express (PIPE) and the SMA connectors.
The TR4 uses three programmable low-jitter clock generators with default clock output of 100MHz
and an I/O standard of LVDS that is non-configurable. The clock generators are programmed via
Max II CPLD to generate the necessary clocks for the Stratix IV GX transceiver protocols and
interfaces such as HSMC. The PCI Express (PIPE) transceiver reference clock is generated from the
TR4 User Manual
44
www.terasic.com
March 30, 2017
PCIe connector.
The clock frequency for the programmable clock generators can be specified by using the TR4
control panel, TR4 system builder, or the external clock generator demo provided.
The associated pin assignments for clock buffer and SMA connectors to FPGA I/O pins are shown
in Table 2–20.
Table 2–20 Clock Inputs/Outputs Pin Assignments, Schematic Signal Names, and Functions
Board
Reference
Schematic
Signal Name
Description
I/O Standard
Stratix IV GX
Pin Number
U49-4
OSC_50_BANK1
Dedicated 50MHz clock
input for bank 1C
2.5-V
AB34
U21-4
OSC_50_BANK3
50MHz clock input for
bank 3C
2.5-V
AW22
U20-4
OSC_50_BANK4
50MHz clock input for
bank 4C
2.5-V
AV19
U12-4
OSC_50_BANK7
50MHz clock input for
bank 7C
1.5-V
A21
U13-4
OSC_50_BANK8
50MHz clock input for
bank 8C
1.5-V
B23
U11-6
HSMA_REFCLK_p
HSMC-A transceiver
reference clock input
LVDS
AA2
U11-5
HSMA_REFCLK_n
HSMC-A transceiver
reference clock input
LVDS
AA1
U5-6
HSME_REFCLK_p
HSMC-E transceiver
reference clock input
LVDS
AA38
U5-5
HSME_REFCLK_n
HSMC-E transceiver
reference clock input
LVDS
AA39
J20
SMA_CLKOUT_p
SMA differential clock
output
2.5V or LVDS
AC11
J19
SMA_CLKOUT_n
SMA differential clock
output
2.5V or LVDS
AC10
J16
SMA_GXBCLK_p
SMA transceiver
reference clock input
LVDS
J38
J17
SMA_GXBCLK_n
SMA transceiver
reference clock input
LVDS
J39
J21
SMA_CLKIN
SMA clock input
2.5V
AW19
TR4 User Manual
45
www.terasic.com
March 30, 2017
22..9
9
PPCCII EExxpprreessss
The TR4 development board features two PCIe Express downstream interfaces (x4 lane) which are
designed to interface with a PC motherboard x4 slot via PCIe cable and PCIe adapter card. Utilizing
built-in transceivers on a Stratix IV GX device, it is able to provide a fully integrated PCI
Express-compliant solution for multi-lane (x4) applications. With the PCI Express hard IP block
incorporated in the Stratix IV GX device, it will allow users to implement simple and fast protocol,
as well as saving logic resources for logic application.
The PCI Express interface supports complete PCI Express Gen1 at 2.5Gbps/lane and Gen2 at
5.0Gbps/lane protocol stack solution compliant to PCI Express base specification 2.0 that includes
PHY-MAC, Data Link, and transaction layer circuitry embedded in PCI Express hard IP blocks.
To use PCIe interface, two external associated devices will be needed to establish link with PC.
First, a PCIe half-height add-in host card with a PCIe x4 cable connector called PCA (PCIe Cabling
Adapter Card)(See Figure 2-25) will be used to plug into the PCIe slot on a mother board. Then, a
PCIe x4 cable (See Figure 2-26) will be used to connect TR4 board and PCIe add-in card as shown
in Figure 2-27, the longest length up to 3 meters. These two associated devices are not included in
TR4 kit. To purchase the PCA card as well as the external cable, please refrence Terasic website
pca.terasic.com and PCIe_Cable.terasic.com.
Finally, section 6.3 and 6.4 demonstrate two examples on how to use the PCIe interface of TR4
board with a PC. Table 2-16 and Table 2-17 summarize the PCI Express pin assignments of the
signal names relative to the Stratix IV GX FPGA.
TR4 User Manual
46
www.terasic.com
March 30, 2017

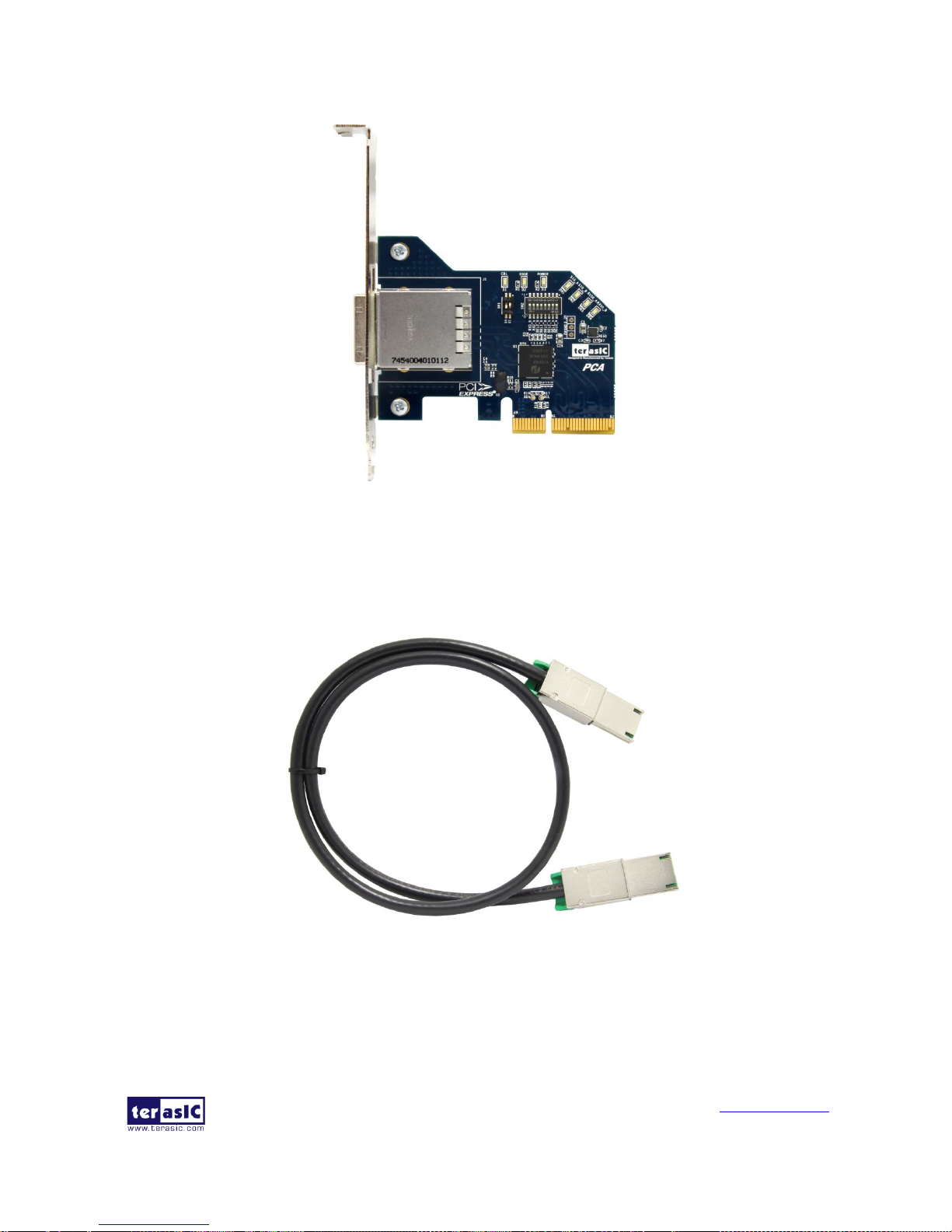

Figure 2-25 PCIe Cabling Adaptor(PCA) card
Figure 2-26 PCIe External Cable
TR4 User Manual
47
www.terasic.com
March 30, 2017
Figure 2-27 PCIe Link Setup between TR4 and PC
Figure 2-28 PCI Express Pin Connection
TR4 User Manual
48
www.terasic.com
March 30, 2017
Table 2-16 PCIe0 Pin Assignments, Schematic Signal Names, and Functions
PCIe0 4-Lane Downstream
Name
Description
I/O Standard
Stratix IV GX Pin Number
PCIE0_REFCLK_p
PCIe0 reference
clock
HCSL
AN38
PCIE0_PREST_n
PCIe0 present
Depends on HSMC
Port A I/O standard
F8
PCIE0_WAKE_n
PCIe0 wake
Depends on HSMC
Port A I/O standard
AE10
PCIE0_TX_p[0]
PCIe0 data lane
1.4-V PCML
AT36
PCIE0_RX_p[0]
1.4-V PCML
AU38
PCIE0_TX_p[1]
1.4-V PCML
AP36
PCIE0_RX_p[1]
1.4-V PCML
AR38
PCIE0_TX_p[2]
1.4-V PCML
AH36
PCIE0_RX_p[2]
1.4-V PCML
AJ38
PCIE0_TX_p[3]
1.4-V PCML
AF36
PCIE0_RX_p[3]
1.4-V PCML
AG38
Table 2-17 PCIe1 Express Pin Assignments, Schematic Signal Names, and Functions
PCIe1 4-Lane Downstream
Name
Description
I/OStandard
Stratix IV GX Pin Number
PCIE1_REFCLK_p
PCIe1 reference
clock
HCSL
AN2
PCIE1_PREST_n
PCIe1 present
Depends on HSMC
Port A I/O standard
G8
PCIE1_WAKE_n
PCIe1 wake
Depends on HSMC
Port A I/O standard
AE11
PCIE1_TX_p[0]
PCIe1 data lane
1.4-V PCML
AT4
PCIE1_RX_p[0]
1.4-V PCML
AU2
PCIE1_TX_p[1]
1.4-V PCML
AP4
PCIE1_RX_p[1]
1.4-V PCML
AR2
PCIE1_TX_p[2]
1.4-V PCML
AH4
PCIE1_RX_p[2]
1.4-V PCML
AJ2
PCIE1_TX_p[3]
1.4-V PCML
AF4
PCIE1_RX_p[3]
input
AG2
22..110
0
FFllaasshh MMeemmoorryy
The TR4 development board features a 64MB Intel CFI-compliant NOR-type flash memory device
which is part of the shared FMS Bus consisting of flash memory, SSRAM, and the Max II CPLD
TR4 User Manual
49
www.terasic.com
March 30, 2017
(EPM2210) System Controller. The single synchronous flash memory with 16-bit data bus supports
4-word, 8-word 16-word, and continuous-word burst mode provides non-volatile storage that can be
used for configuration as well as software storage. The memory interface can sustain output
synchronous-burst read operations at 40MHz with zero wait states. The device defaults to
asynchronous page-mode read when power-up is initiated or returned from reset.
This device is also used to store configuration files for the Stratix IV GX FPGA where the MAX II
CPLD (EPM2210) can access flash for FPP configuration of the FPGA using the PFL Megafunction.
Table 2-18 lists the flash pin assignments, signal names, and functions.
Figure 2-29 Connection between Flash, SSRAM, MAXII EPM2210 and the Stratix IV GX FPGA
TR4 User Manual
50
www.terasic.com
March 30, 2017
Table 2-18 Flash Memory Pin Assignments, Schematic Signal Names, and Functions
Schematic Signal Name
Description
I/O Standard
Stratix IV GX
Pin Number
FSM_A1
Address bus
3.0-V PCI-X
PIN_L31
FSM_A2
Address bus
3.0-V PCI-X
PIN_F34
FSM_A3
Address bus
3.0-V PCI-X
PIN_D35
FSM_A4
Address bus
3.0-V PCI-X
PIN_D34
FSM_A5
Address bus
3.0-V PCI-X
PIN_E34
FSM_A6
Address bus
3.0-V PCI-X
PIN_C35
FSM_A7
Address bus
3.0-V PCI-X
PIN_C34
FSM_A8
Address bus
3.0-V PCI-X
PIN_F33
FSM_A9
Address bus
3.0-V PCI-X
PIN_G35
FSM_A10
Address bus
3.0-V PCI-X
PIN_H35
FSM_A11
Address bus
3.0-V PCI-X
PIN_J32
FSM_A12
Address bus
3.0-V PCI-X
PIN_J33
FSM_A13
Address bus
3.0-V PCI-X
PIN_K32
FSM_A14
Address bus
3.0-V PCI-X
PIN_K31
FSM_A15
Address bus
3.0-V PCI-X
PIN_AH17
FSM_A16
Address bus
3.0-V PCI-X
PIN_AH16
FSM_A17
Address bus
3.0-V PCI-X
PIN_AE17
FSM_A18
Address bus
3.0-V PCI-X
PIN_AG16
FSM_A19
Address bus
3.0-V PCI-X
PIN_H32
FSM_A20
Address bus
3.0-V PCI-X
PIN_H34
FSM_A21
Address bus
3.0-V PCI-X
PIN_G33
FSM_A22
Address bus
3.0-V PCI-X
PIN_F35
FSM_A23
Address bus
3.0-V PCI-X
PIN_N31
FSM_A24
Address bus
3.0-V PCI-X
PIN_M31
FSM_A25
Address bus
3.0-V PCI-X
PIN_M30
FSM_D0
Data bus
3.0-V PCI-X
PIN_B32
FSM_D1
Data bus
3.0-V PCI-X
PIN_C32
FSM_D2
Data bus
3.0-V PCI-X
PIN_C31
FSM_D3
Data bus
3.0-V PCI-X
PIN_F32
FSM_D4
Data bus
3.0-V PCI-X
PIN_J30
FSM_D5
Data bus
3.0-V PCI-X
PIN_K29
FSM_D6
Data bus
3.0-V PCI-X
PIN_K30
FSM_D7
Data bus
3.0-V PCI-X
PIN_L29
FSM_D8
Data bus
3.0-V PCI-X
PIN_M29
FSM_D9
Data bus
3.0-V PCI-X
PIN_N29
FSM_D10
Data bus
3.0-V PCI-X
PIN_P29
FSM_D11
Data bus
3.0-V PCI-X
PIN_T27
FSM_D12
Data bus
3.0-V PCI-X
PIN_AM17
FSM_D13
Data bus
3.0-V PCI-X
PIN_AL17
FSM_D14
Data bus
3.0-V PCI-X
PIN_AK16
TR4 User Manual
51
www.terasic.com
March 30, 2017
FSM_D15
Data bus
3.0-V PCI-X
PIN_AJ16
FLASH_CLK
Clock
3.0-V PCI-X
PIN_AU15
FLASH_RESET_n
Reset
3.0-V PCI-X
PIN_AV16
FLASH_CE_n
Chip Enable
3.0-V PCI-X
PIN_AP16
FSM_OE_n
Output Enable
3.0-V PCI-X
PIN_AT16
FSM_WE_n
Write Enable
3.0-V PCI-X
PIN_AL16
FLASH_ADV_n
Address Valid
3.0-V PCI-X
PIN_AT15
FLASH_RDY_BSY_n
Ready
1.5 V
PIN_A23
FLASH_WP_n
Write Protect
1.5 V
PIN_A20
22..111
1
SSSSRRAAMM MMeemmoorryy
The Synchronous Static Random Access Memory (SSRAM) device featured on the TR4
development board is part of the shared Flash-SSRAM-Max II (FSM) bus, which connects to Flash
memory, SSRAM, and the MAX II CPLD (EEPM2210) System Controller. This device is a 2MB
synchronously pipelined and high-speed, low-power synchronous static RAM designed to provide
burstable, high-performance memory for communication and networking applications. Table 2-19
lists the SSRAM pin assignments and signal names relative to the Stratix IV GX device in terms of
I/O setting.
Table 2-19 SSRAM Memory Pin Assignments, Schematic Signal Names, and Functions
Schematic Signal
Name
Description
I/O Standard
Stratix IV GX
Pin Number
FSM_A2
Address bus A0
3.0-V PCI-X
PIN_F34
FSM_A3
Address bus A1
3.0-V PCI-X
PIN_D35
FSM_A4
Address bus A2
3.0-V PCI-X
PIN_D34
FSM_A5
Address bus A3
3.0-V PCI-X
PIN_E34
FSM_A6
Address bus A4
3.0-V PCI-X
PIN_C35
FSM_A7
Address bus A5
3.0-V PCI-X
PIN_C34
FSM_A8
Address bus A6
3.0-V PCI-X
PIN_F33
FSM_A9
Address bus A7
3.0-V PCI-X
PIN_G35
FSM_A10
Address bus A8
3.0-V PCI-X
PIN_H35
FSM_A11
Address bus A9
3.0-V PCI-X
PIN_J32
FSM_A12
Address bus A10
3.0-V PCI-X
PIN_J33
FSM_A13
Address bus A11
3.0-V PCI-X
PIN_K32
FSM_A14
Address bus A12
3.0-V PCI-X
PIN_K31
FSM_A15
Address bus A13
3.0-V PCI-X
PIN_AH17
FSM_A16
Address bus A14
3.0-V PCI-X
PIN_AH16
FSM_A17
Address bus A15
3.0-V PCI-X
PIN_AE17
FSM_A18
Address bus A16
3.0-V PCI-X
PIN_AG16
FSM_A19
Address bus A17
3.0-V PCI-X
PIN_H32
TR4 User Manual
52
www.terasic.com
March 30, 2017
FSM_A20
Address bus A18
3.0-V PCI-X
PIN_H34
FSM_A21
Address bus A19
3.0-V PCI-X
PIN_G33
FSM_A22
Address bus A20
3.0-V PCI-X
PIN_F35
FSM_D0
Data bus
3.0-V PCI-X
PIN_B32
FSM_D1
Data bus
3.0-V PCI-X
PIN_C32
FSM_D2
Data bus
3.0-V PCI-X
PIN_C31
FSM_D3
Data bus
3.0-V PCI-X
PIN_F32
FSM_D4
Data bus
3.0-V PCI-X
PIN_J30
FSM_D5
Data bus
3.0-V PCI-X
PIN_K29
FSM_D6
Data bus
3.0-V PCI-X
PIN_K30
FSM_D7
Data bus
3.0-V PCI-X
PIN_L29
FSM_D8
Data bus
3.0-V PCI-X
PIN_M29
FSM_D9
Data bus
3.0-V PCI-X
PIN_N29
FSM_D10
Data bus
3.0-V PCI-X
PIN_P29
FSM_D11
Data bus
3.0-V PCI-X
PIN_T27
FSM_D12
Data bus
3.0-V PCI-X
PIN_AM17
FSM_D13
Data bus
3.0-V PCI-X
PIN_AL17
FSM_D14
Data bus
3.0-V PCI-X
PIN_AK16
FSM_D15
Data bus
3.0-V PCI-X
PIN_AJ16
FSM_D16
Data bus
3.0-V PCI-X
PIN_AK17
FSM_D17
Data bus
3.0-V PCI-X
PIN_T28
FSM_D18
Data bus
3.0-V PCI-X
PIN_R27
FSM_D19
Data bus
3.0-V PCI-X
PIN_R28
FSM_D20
Data bus
3.0-V PCI-X
PIN_R29
FSM_D21
Data bus
3.0-V PCI-X
PIN_N30
FSM_D22
Data bus
3.0-V PCI-X
PIN_N28
FSM_D23
Data bus
3.0-V PCI-X
PIN_M28
FSM_D24
Data bus
3.0-V PCI-X
PIN_H31
FSM_D25
Data bus
3.0-V PCI-X
PIN_G31
FSM_D26
Data bus
3.0-V PCI-X
PIN_D31
FSM_D27
Data bus
3.0-V PCI-X
PIN_E31
FSM_D28
Data bus
3.0-V PCI-X
PIN_F31
FSM_D29
Data bus
3.0-V PCI-X
PIN_E32
FSM_D30
Data bus
3.0-V PCI-X
PIN_C33
FSM_D31
Data bus
3.0-V PCI-X
PIN_D33
FSM_OE_n(OE_n)
Output Enable
3.0-V PCI-X
PIN_AT16
FSM_WE_n(BWE_n)
Byte Write Enable
3.0-V PCI-X
PIN_AL16
SSRAM_ADSC_n
Address Status Controller
3.0-V PCI-X
PIN_AP17
SSRAM_ADSP_n
Address Status Processor
3.0-V PCI-X
PIN_AR17
SSRAM_ADV_n
Synchronous Burst Address Advance
3.0-V PCI-X
PIN_AW16
SSRAM_BE_n0
Synchronous Byte Write Controls
3.0-V PCI-X
PIN_AN16
SSRAM_BE_n1
Synchronous Byte Write Controls
3.0-V PCI-X
PIN_AN17
SSRAM_BE_n2
Synchronous Byte Write Controls
3.0-V PCI-X
PIN_AR16
SSRAM_BE_n3
Synchronous Byte Write Controls
3.0-V PCI-X
PIN_AU16
SSRAM_CE1_n
Synchronous Chip Enable
3.0-V PCI-X
PIN_AF17
TR4 User Manual
53
www.terasic.com
March 30, 2017
SSRAM_CLK
Synchronous Clock
3.0-V PCI-X
PIN_AG17
SSRAM_MODE
Burst Sequence Selection
-
-
SSRAM_GW_n
Synchronous Global Write Enable
-
-
SRAM_CE2
Synchronous Chip Enable
-
-
SSRAM_CE3_n
Synchronous Chip Enable
-
-
SSRAM_ZZ
Power Sleep Mode
-
-
22..112
2
TTeemmppeerraattuurree SSeennssoorr aanndd FFaann
The TR4 is equipped with a temperature sensor MAX1619, which provides temperature sensing and
over-temperature alerts. These functions are accomplished by connecting the temperature sensor to
the internal temperature sensing diode of the Stratix IV GX device. The temperature status and
alarm threshold registers of the temperature sensor can be programmed by a two-wire SMBus,
which is connected to the Stratix IV GX FPGA. The 7-bit power-on-reset (POR) slave address for
this sensor is ‘0011000b’.
An optional 3-pin +12V header for fan control located on J10 of the TR4 board is intended to
reduce the temperature of the FPGA. When the temperature of the FPGA device is over the
threshold value set by the users, the fan will turn on automatically. The pin assignments for the
associated interface are listed in Table 2-20.
Table 2-20 Temperature Sensor Pin Assignments, Schematic Signal Names, and Functions
Schematic Signal
Name
Description
I/O Standard
Stratix IV GX Pin Number
TEMP_SMCLK
SMBus clock
2.5-V
PIN_AR14
TEMP_SMDAT
SMBus data
2.5-V
PIN_AP14
TEMP_OVERT_n
SMBus over-temperature alarm
2.5-V
PIN_AK14
TEMP_INT_n
SMBus alert (interrupt)
2.5-V
PIN_AH13
FAN_CTRL
Fan control
1.5-V
PIN_B17
22..113
3
PPoowweerr
The TR4 board features a standalone DC input rated at 19V.The DC voltage is stepped down to
various power rails used by the components on the board and installed into the HSMC connectors.
PPoowweerr SSwwiittcchh
TR4 User Manual
54
www.terasic.com
March 30, 2017
The slide switch (SW7) is the board power switch for the DC power input. When the slide switch is
in the ON position, the board is powered on. Alternatively when the switch is in the OFF position,
the board is powered off.
22..114
4
SSeeccuurriittyy
The TR4 board features design security to protect your designs against unauthorized copying,
reverse engineering, and tampering of your configuration files. For more information, please refer
to Altera’s application note, “AN556: Using the Design Security Features in Altera FPGAs”
22..115
5
UUssiinngg EExxtteerrnnaall BBllaasstteerr
User can use external blaster to configure FPGA such us Ethernet Blaster. To use this feature, user
need to install 2x5 2.54mm connector and four 0 Ohm resistor (0402 size) on J2 and R199~R201,
respectively (See Figure 2-30 and Figure 2-31).
Figure 2-30 J2 Position on TR4
TR4 User Manual
55
www.terasic.com
March 30, 2017

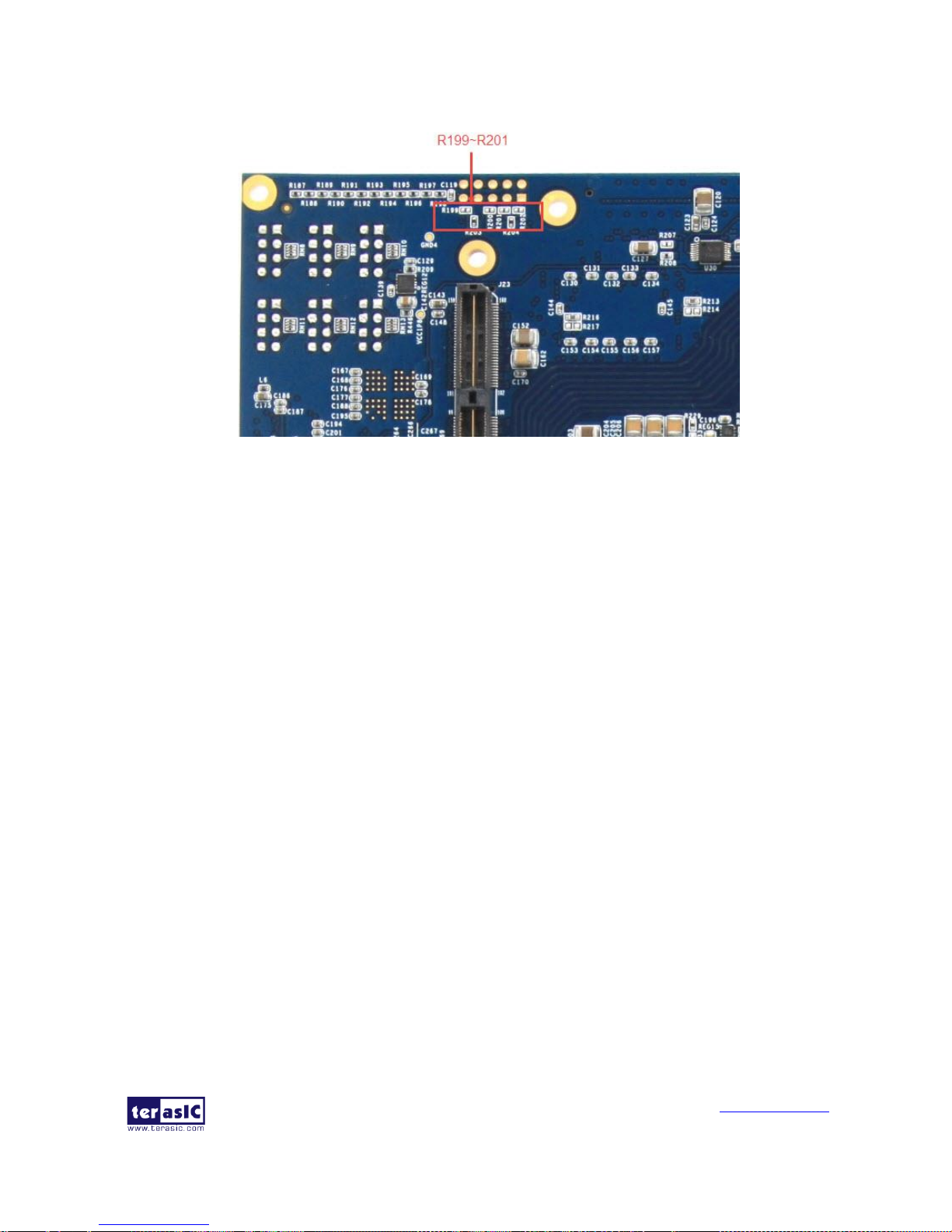

Figure 2-31 R199~R201 Position on TR4
TR4 User Manual
56
www.terasic.com
March 30, 2017
Chapter 3
Control Panel
The TR4 board comes with a PC-based Control Panel that allows users to access various
components onboard. The host computer communicates with the board via USB-Blaster port. The
tool can be used to verify the functionality of components.
This chapter presents some basic functions of the Control Panel, illustrates its structure in block
diagram form, and finally describes its capabilities.
33..1
1
CCoonnttrrooll PPaanneell SSeettuupp
The Control Panel software utility is located in the directory “/Tools/TR4_ControlPanel” in the
TR4 System CD. To execute the program, simply copy the whole folder to your host computer and
launch the control panel by double clicking the TR4_ControlPanel.exe.
CAUTION. Please make sure Quartus II and USB-Blaster Driver are installed before launching
TR4 Control Panel. In addition, before the TR4 control panel is launched, it is imperative that the
fan is installed on the Stratix IV GX device to prevent excessively high temperatures on the FPGA.
To activate the Control Panel, perform the following steps:
Make sure Quartus II and Nios II are installed successfully on your PC.
Connect the supplied USB cable to the USB Blaster port and the supplied power cord to J4.
Turn the power switch ON.
Verify the connection on the USB blaster is available and not occupied or used between
Quartus and TR4.
Start the executable TR4_ControlPanel.exe on the host computer. Figure 3-1 will appear and the
Control Panel starts to auto-detect the FPGA and download the .sof files.
After the configuration file is programmed to the TR4 board, the FPGA device information will be
displayed on the window.
TR4 User Manual
57
www.terasic.com
March 30, 2017
Note. The Control Panel will occupy the USB port; users will not be able to download any
configuration file into the FPGA before you exit the Control Panel program.
Figure 3-1 Download .sof Files to the TR4 board
The Control Panel is now ready, as shown in Figure 3-2.
TR4 User Manual
58
www.terasic.com
March 30, 2017

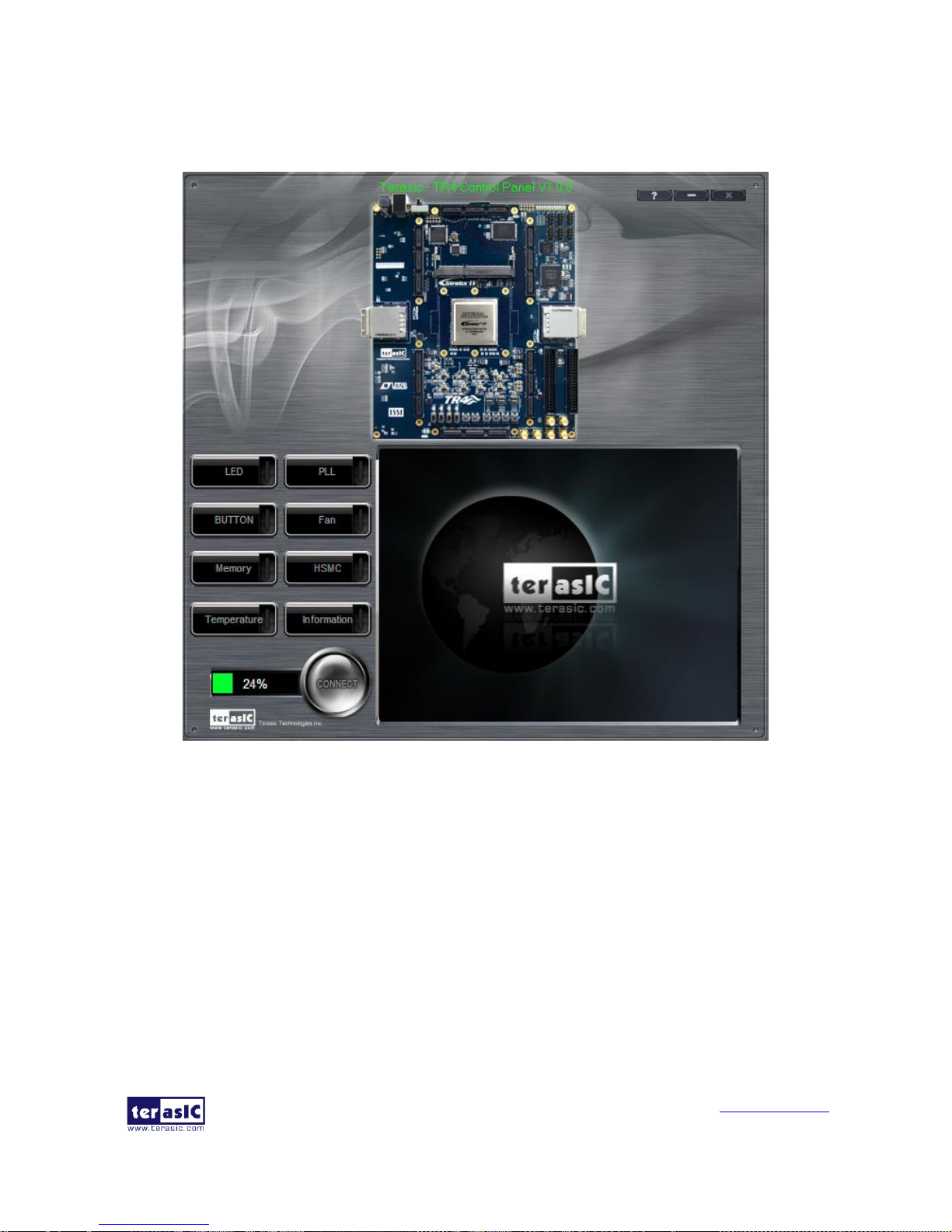

Figure 3-2 TR4 Control Panel is Ready
If the connection between TR4 board and USB-Blaster is not established, or the TR4 board is not
powered on before running the TR4_ControlPanel.exe, the Control Panel will fail to detect the
FPGA and a warning message window will pop up as shown in Figure 3-3.
TR4 User Manual
59
www.terasic.com
March 30, 2017

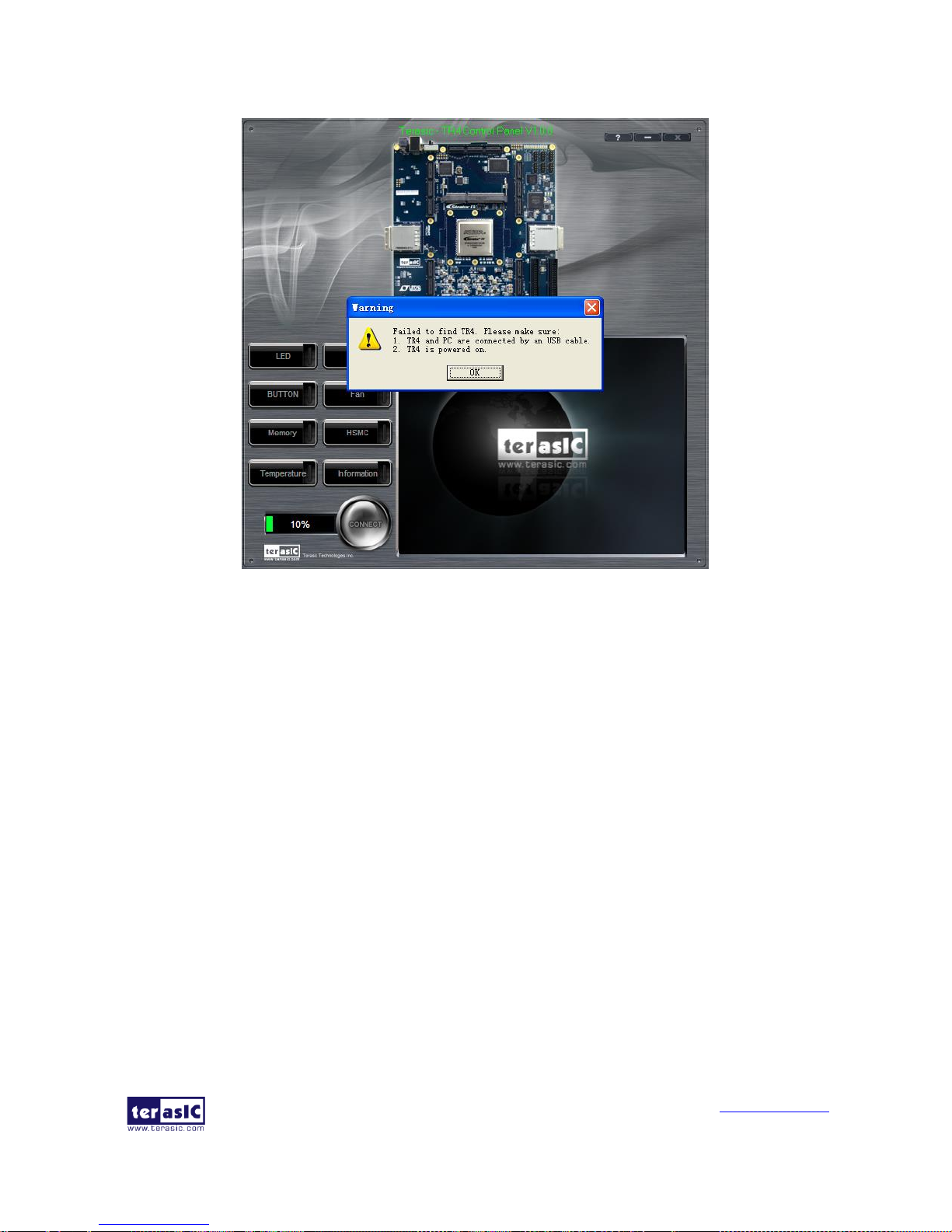

Figure 3-3 The TR4 Control Panel Fails to Download .sof File
The concept of the TR4 Control Panel is illustrated in Figure 3-4. The “Control Codes” which
performs the control functions is implemented in the FPGA board. It communicates with the
Control Panel window, which is active on the host computer, via the USB Blaster link. The
graphical user interface is used to issue commands to the control codes. It handles all requests and
performs data transfer between the computer and the TR4 board.
TR4 User Manual
60
www.terasic.com
March 30, 2017

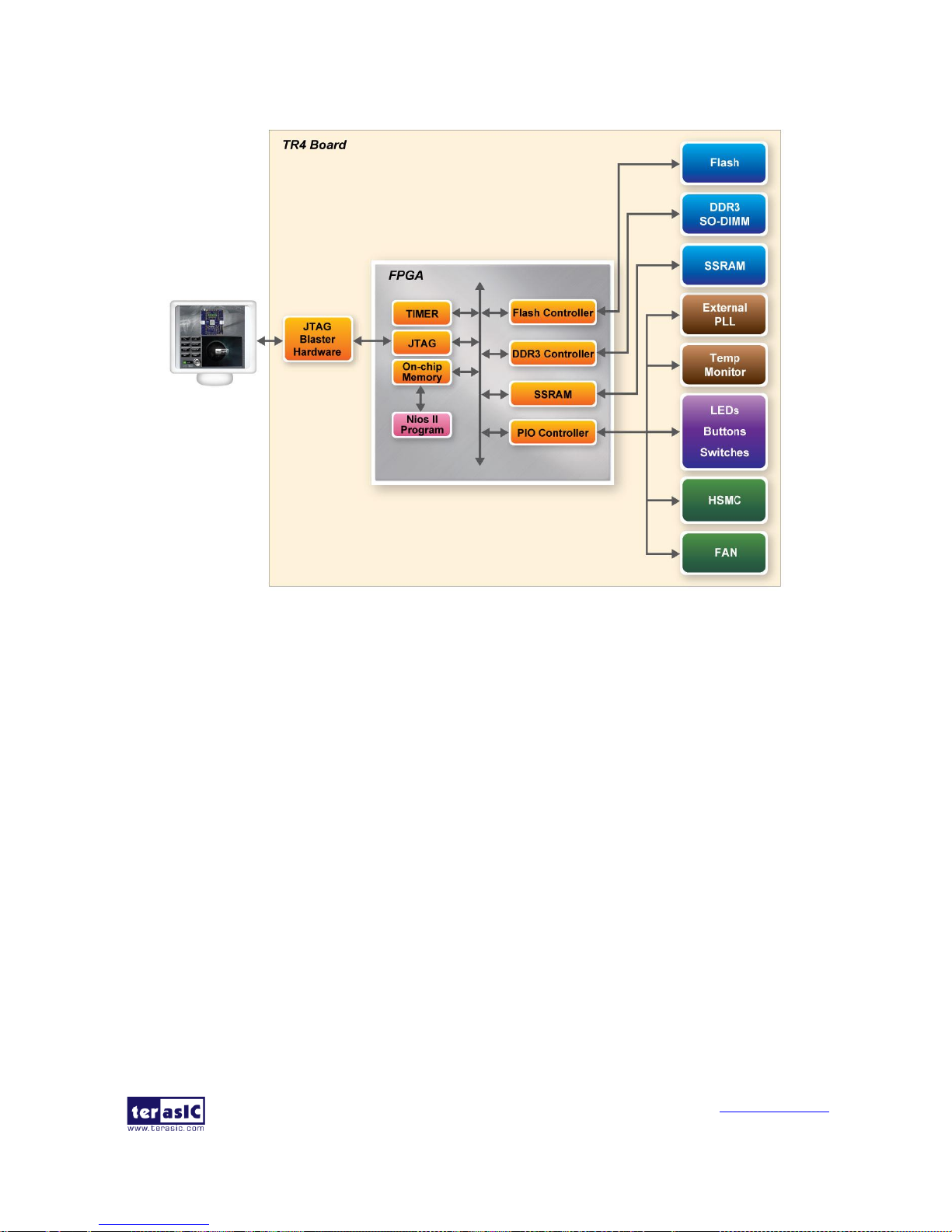

Figure 3-4 TR4 Control Panel Block Diagram
The TR4 Control Panel can be used to illuminate the LEDs, monitoring buttons/switches status,
read/write from various memory types, in addition to testing various components of the TR4 board.
33..2
2
CCoonnttrroolllliinngg tthhee LLEEDDss
One of the functions of the Control Panel is to set up the status of the LEDs. The tab-window shown
in Figure 3-5 indicates where you can directly turn all the LEDs on or off individually by selecting
them and clicking “Light All” or “Unlight All”.
TR4 User Manual
61
www.terasic.com
March 30, 2017
Figure 3-5 Controlling LEDs
33..3
3
SSwwiittcchheess aanndd PPuusshh--BBuuttttoonnss
Choose the Button tab as shown in Figure 3-6. This function is designed to monitor status of
switches and buttons from a graphical user interface in real-time. It can be used to verify the
functionality of switches and buttons.
TR4 User Manual
62
www.terasic.com
March 30, 2017
Figure 3-6 Monitoring Switches and Buttons
33..4
4
MMeemmoorryy CCoonnttrroolllleerr
The Control Panel can be used to write/read data to/from the DDR3 SO-DIMM/Flash/SSRAM
memory on the TR4 board. We will describe how the DDR3 SO-DIMM is accessed. Click on the
Memory tab to reach the tab-window shown in Figure 3-7.
A 16-bit value can be written into the DDR3 SO-DIMM memory by three steps, namely specifying
the address of the desired location, entering the hexadecimal data to be written, and pressing the
Write button. Contents of the location can be read by pressing the Read button. Figure 3-8 depicts
the result of writing the hexadecimal value 7EFF to location 0x100, followed by reading the same
location.
TR4 User Manual
63
www.terasic.com
March 30, 2017
The Sequential Write function of the Control Panel is used to write the contents of a file to the serial
configuration device, as described below:
Specify the starting address in the Address box.
Specify the number of bytes to be written in the Length box. If the entire file is to be
loaded, a check mark can be placed in the File Length box instead of giving the number
of bytes.
To initiate the writing of data, click on the Write a File to Memory button.
When the Control Panel responds with the standard Windows dialog box asking for the
source file, specify the desired file in the usual manner.
The Sequential Read function is used to read the contents of the serial configuration device and
place them into a file as follows:
Specify the starting address in the Address box.
Specify the number of bytes to be copied into a file in the Length box. If the entire
contents of the serial configuration device are to be copied, then place a check mark in the
Entire Memory box.
Press Load Memory Content to a File button.
When the Control Panel responds with the standard Windows dialog box ask for the
destination file, users can specify the desired file in the usual manner.
TR4 User Manual
64
www.terasic.com
March 30, 2017
Figure 3-7 Access DDR3 SO-DIMM Memory
TR4 User Manual
65
www.terasic.com
March 30, 2017
Figure 3-8 Writing the Hexadecimal Value 7EFF to Location 0x100
33..5
5
TTeemmppeerraattuurree MMoonniittoorr
Choose the Temperature tab to reach the window shown in Figure 3-9. This function is designed
to control temperature sensor through the Control Panel. The temperatures of Stratix IV GX and
TR4 board are shown on the right-hand side of the Control Panel.
When the temperature of Stratix IV GX exceeds the maximum setting of ‘Over Temperature’ or
‘Alert’, a warning message will be shown on the Control Panel. Click “Read” button to get current
settings for ‘Over temperature’ and ‘Alert’. Users can enter the maximum and minimum
temperatures for ‘Over temperature’ or ‘Alert’ as required. Click the Write button to update the
values entered.
TR4 User Manual
66
www.terasic.com
March 30, 2017
Figure 3-9 Accessing the Temperature Sensor through Control Panel
33..6
6
PPLLLL
The PLL function is designed to configure the external programmable PLL on the TR4. There are 3
programmable clocks for the TR4 board that generates reference clocks for the following signals
HSMA_REFCLK_p/n, HSMB_REFCLK_p/n, and PGM_GXBCLK_p1/n1. The clock frequency
can be adjusted to 62.5, 75, 100, 125, 150, 156.25, 187.5, 200, 250, 312.5, and 625MHz. Choose
the ‘PLL’ tab to reach the window shown in Figure 3-10. To set the desire clock frequency for the
associated clock signal, click on ‘Set’.
TR4 User Manual
67
www.terasic.com
March 30, 2017
Figure 3-10 Programmable External PLL Configured through Control Panel
33..7
7
HHSSMMCC
Choose the HSMC tab to reach the window shown in Figure 3-11. This function is designed to
verify the functionality of signals found on the HSMC connectors of ports A, B, C, D, E and F using
a loopback approach. Before running the loopback verification HSMC test, select the desired
HSMC connector to be tested. Follow the instruction noted under Loopback Installation section and
click on ‘Verify’. Note the Control Panel HSMC loopback test does not test the transceiver signals
on the HSMC interface. For HSMC transceiver loopback test, please refer to the demonstration
section.
CAUTION. Turn off the TR4 board before the HSMC loopback adapter is mounted to prevent any
damage to the TR4 board.
TR4 User Manual
68
www.terasic.com
March 30, 2017
Figure 3-11 HSMC Loopback Verification Test Performed under Control Panel
33..8
8
FFaann
Choose the Fan tab to reach the window shown in Figure 3-12. This function is designed to verify
the functionality of the fan components and signals. Please make sure the fan is installed on the TR4
before running this function.
TR4 User Manual
69
www.terasic.com
March 30, 2017
Figure 3-12 Fan Control of the TR4
33..9
9
IInnffoorrmmaattiioonn
For more information, please click on the Information button in order to reach the window shown in
Figure 3-13., Users can click “Terasic Web” button and “TR4_Web” button to reach the respective
websites in order to learn more about the TR4 and Terasic Technologies.
TR4 User Manual
70
www.terasic.com
March 30, 2017
Figure 3-13 Information Tab of TR4 Control Panel
TR4 User Manual
71
www.terasic.com
March 30, 2017
Chapter 4
TR4 System Builder
This chapter describes how users can create a custom design project on the TR4 board by using the
included TR4 software tool – TR4 System Builder.
44..1
1
IInnttrroodduuccttiioonn
The TR4 System Builder is a Windows-based software utility, designed to assist users in creating a
Quartus II project for the TR4 board within minutes. The generated Quartus II project files include:
Quartus II Project File (.qpf)
Quartus II Setting File (.qsf)
Top-Level Design File (.v)
External PLL Controller (.v)
Synopsis Design Constraints file (.sdc)
Pin Assignment Document (.htm)
The TR4 System Builder not only can generate the files above, but can also provide error-checking
rules to handle situations that are prone to errors. The common mistakes that users encounter are the
following:
Board damaged due to wrong pin/bank voltage assignments
Board malfunction caused by wrong device connections or missing pin counts for connections
Poor performance drop due to improper pin assignments
TR4 User Manual
72
www.terasic.com
March 30, 2017
44..2
2
GGeenneerraall DDeessiiggnn FFllooww
This section will introduce the general design flow to build a project for the TR4 board via the TR4
System Builder. The general design flow is illustrated in the Figure 4-1.
Users should launch TR4 System Builder and create a new project according to their design
requirements. When users complete the settings, the TR4 System Builder will generate two major
files which include a top-level design file (.v) and the Quartus II settings file (.qsf).
The top-level design file contains a top-level Verilog wrapper for users to add their own
design/logic. The Quartus II settings file contains information such as FPGA device type, top-level
pin assignments, and I/O standards for each user-defined I/O pin.
Finally, Quartus II programmer must be used to download SOF file to TR4 board using JTAG
interface.
TR4 User Manual
73
www.terasic.com
March 30, 2017
Figure 4-1 General Design Flow
44..3
3
UUssiinngg TTRR44 SSyysstteemm BBuuiillddeerr
This section provides the detail procedures on how the TR4 System Builder is used.
Install and launch the TR4 System Builder
The TR4 System Builder is located in the directory: "Tools\TR4_SystemBuilder" in the TR4
System CD. Users can copy the whole folder to a host computer without installing the utility.
Before using the TR4 System Builder, execute the TR4_SystemBuilder.exe on the host computer
as appears in Figure 4-2.
Figure 4-2 TR4 System Builder Window
TR4 User Manual
74
www.terasic.com
March 30, 2017
SSeelleecctt BBooaarrdd TTyyppee aanndd IInnppuutt PPrroojjeecctt NNaammee
Select the target board type and input project name as show in Figure 4-3.
Board Type: Select the appropriate FPGA device according to the TR4 board which includes
the EP4SGX230 and EP4SGX530 devices.
Project Name: Specify the project name as it is automatically assigned to the name of the
top-level design entity.
Figure 4-3 TR4 Board Type and Project Name
SSyysstteemm CCoonnffiigguurraattiioonn
TR4 User Manual
75
www.terasic.com
March 30, 2017
Under System Configuration, users are given the flexibility of enabling their choice of components
on the TR4 as shown in Figure 4-4. Each component of the TR4 is listed where users can enable or
disable a component according to their design by simply marking a check or removing the check in
the field provided. If the component is enabled, the TR4 System Builder will automatically generate
the associated pin assignments including the pin name, pin location, pin direction, and I/O
standards.
Note. The pin assignments for some components for e.g. DDR3 require associated controller codes
in the Quartus II project otherwise Quartus II will result in compilation errors. Therefore, do not
select them if they are not necessary in your design.
Figure 4-4 System Configuration Group
PPrrooggrraammmmaabbllee PPLLLL
TR4 User Manual
76
www.terasic.com
March 30, 2017
There are three external programmable PLLs on-board that provide reference clocks for the
following signals HSMA_REFCLK, HSME_REFLCLK and PGM_GXBCLK. To use these PLLs,
users can select the desired frequency on the Programmable PLL group, as shown in Figure 4-5.
As the Quartus II project is created, System Builder automatically generates the associated PLL
configuration code according to users’ desired frequency in Verilog which facilitates users’
implementation as no additional control code is required to configure the PLLs.
Note. If users need to dynamically change the frequency, they will need to modify the generated
control code themselves.

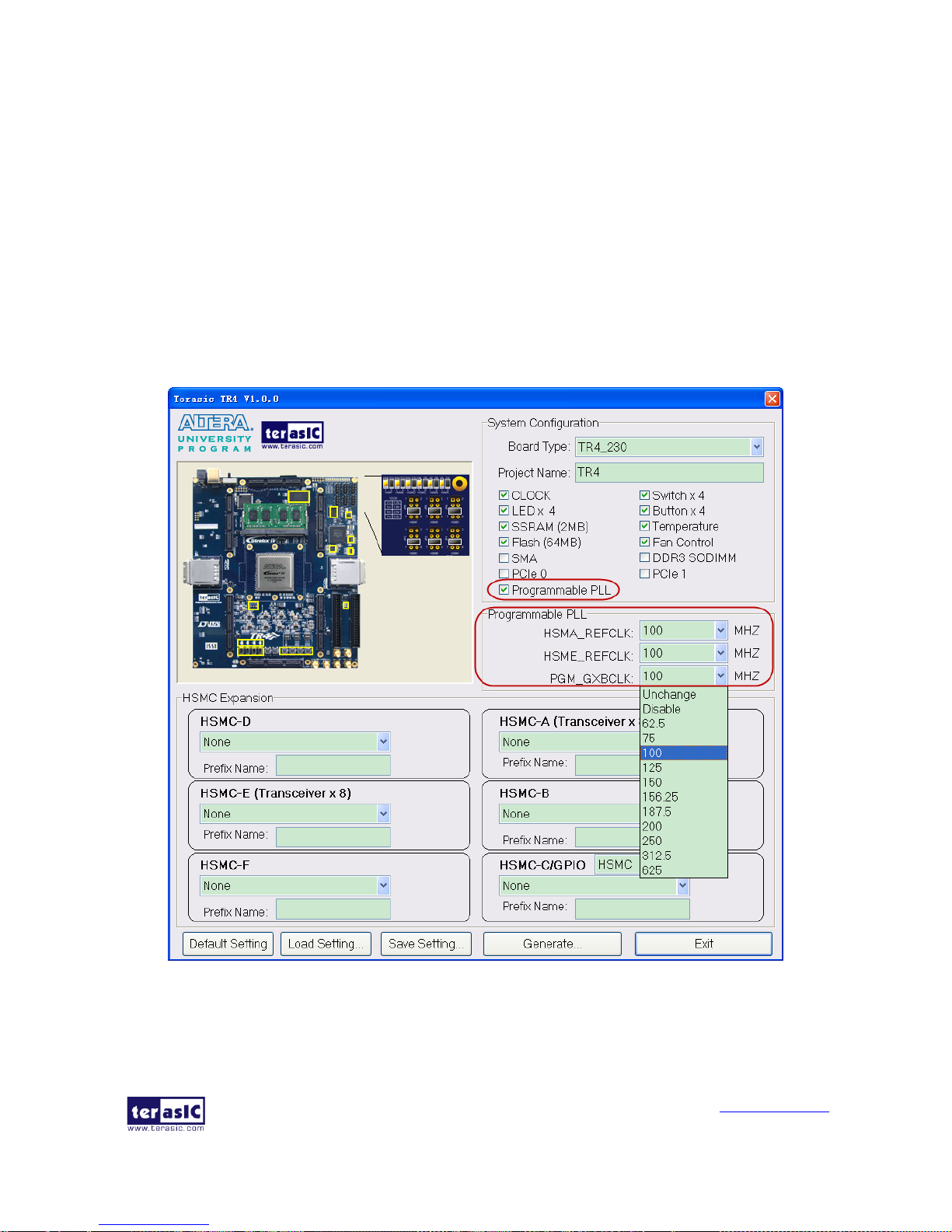

Figure 4-5 External Programmable PLL
TR4 User Manual
77
www.terasic.com
March 30, 2017
HHSSMMCC EExxppaannssiioonn
Users can connect HSMC-interfaced daughter cards onto the HSMC ports located on the TR4 board
shown in Figure 4-6. Select the daughter card you wish to add to your design under the appropriate
HSMC connector where the daughter card is connected to. The System Builder will automatically
generate the associated pin assignment including pin name, pin location, pin direction, and IO
standard.
If a customized daughter board is used, users can select “HSMC Default” followed by changing the
pin name, pin direction, and IO standard according to the specification of the customized daughter
board. If transceiver pins are not required on the daughter board, please remember to remove it,
otherwise Quartus II will report errors.
Figure 4-6 HSMC Expansion Group
TR4 User Manual
78
www.terasic.com
March 30, 2017
The “Prefix Name” is an optional feature that denotes the pin name of the daughter card assigned in
your design. Users may leave this field empty.
Note. If the same HSMC daughter card is selected in both HSMC-A and HSMC-B expansion, a
prefix name is required to avoid pin name duplication as shown in Figure 4-7, otherwise System
Builder will prompt an error message.
Figure 4-7 Specify Prefix Name for HSMC Expansion Board
Additionally, users can choose the “HSMC-C/GPIO” as either “HSMC” or “GPIO”, since the GPIO
ports share pins with HSMC Port C as shown in Figure 4-8.
TR4 User Manual
79
www.terasic.com
March 30, 2017

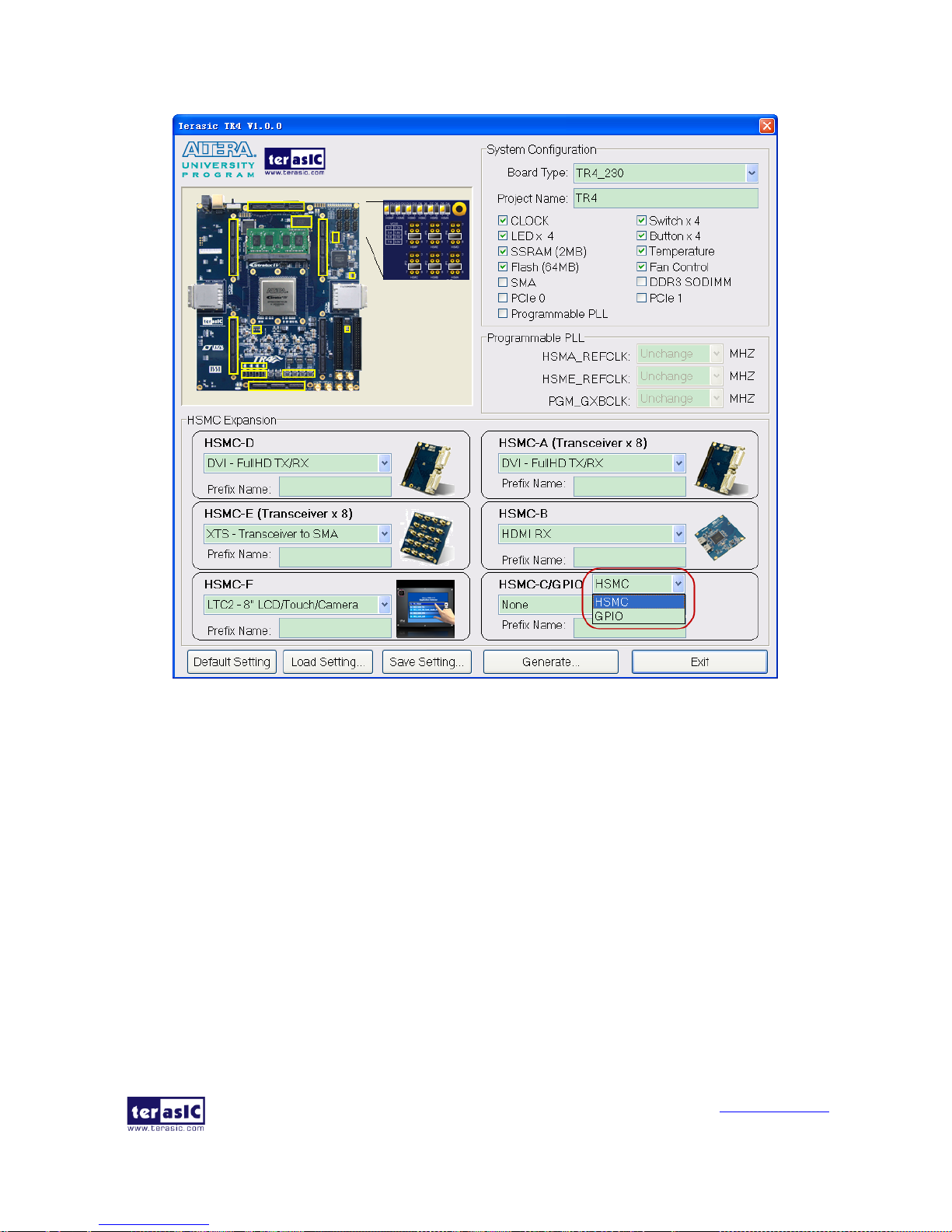

Figure 4-8 HSMC-C/GPIO share pins option
After users select the “GPIO” option, a “GPIO Edit” button will appear. If this is clicked, a “GPIO
Expansion” window will pop up for users to select a compatible Terasic daughter card. Once a
daughter card selected, the JP4 header diagram in the upper left hand corner of the window, which
configures HSMC Port C and GPIO I/O standards will adjust automatically to recommend a
suitable I/O standard for the selected daughter card as shown in Figure 4-9.
TR4 User Manual
80
www.terasic.com
March 30, 2017
Figure 4-9 GPIO option and I/O standard recommend
PPrroojjeecctt SSeettttiinngg MMaannaaggeemmeenntt
The TR4 System Builder also provides functions to restore a default setting, loading a setting, and
saving users’ board configuration file shown in Figure 4-10. Users can save the current board
configuration information into a .cfg file and load it to the TR4 System Builder.
TR4 User Manual
81
www.terasic.com
March 30, 2017
Figure 4-10 Project Settings
PPrroojjeecctt GGeenneerraattiioonn
When users press the Generate button, the TR4 System Builder will generate the corresponding
Quartus II files and documents as listed in the Table 4-1 in the directory specified by the user.
Table 4-1 Files Generated by TR4 System Builder
No.
Filename
Description
1
<Project name>.v
Top level Verilog file for Quartus II
2
EXT_PLL_CTRL.v
External PLL configuration controller IP
3
<Project name>.qpf
Quartus II Project File
TR4 User Manual
82
www.terasic.com
March 30, 2017
4
<Project name>.qsf
Quartus II Setting File
5
<Project name>.sdc
Synopsis Design Constraints file for Quartus II
6
<Project name>.htm
Pin Assignment Document
Users can use Quartus II software to add custom logic into the project and compile the project to
generate the SRAM Object File (.sof).
In addition, External Programmable PLL Configuration Controller IP will be instantiated in the
Quartus II top-level file as listed below:
ext_pll_ctrl u_ext_pll_ctrl
(
// system input
.osc_50(OSC_50_BANK1),
.rstn(rstn),
// device 1
.clk1_set_wr(clk1_set_wr),
.clk1_set_rd(),
// device 2
.clk2_set_wr(clk2_set_wr),
.clk2_set_rd(),
// device 3
.clk3_set_wr(clk3_set_wr),
.clk3_set_rd(),
// setting trigger
.conf_wr(conf_wr), // 1T 50MHz
.conf_rd(), // 1T 50MHz
// status
.conf_ready(),
// 2-wire interface
.max_sclk(MAX2_I2C_SCL),
.max_sdat(MAX2_I2C_SDA)
);
If dynamic PLL configuration is required, users need to modify the code according to users’ desired
PLL behavior.
TR4 User Manual
83
www.terasic.com
March 30, 2017
Chapter 5
Examples of Advanced
Demonstration
This chapter introduces several advanced designs that demonstrate Stratix IV GX features using the
TR4 board. The provided designs include the major features on board such as the HSMC connectors,
PCIe, and DDR3. For each demonstration the Stratix IV GX FPGA configuration file is provided, as
well as full source code in Verilog HDL. All of the associated files can be found in the
demonstrations\tr4_<Stratix device> folder from the TR4 System CD. For each of demonstrations
described in the following sections, we give the name of the project directory for its files, which are
sub-directories of the demonstrations\tr4_<Stratix_device> folder.
55..1
1
BBrreeaatthhiinngg LLEEDDss
This demonstration shows how to use the FPGA to control the luminance of the LEDs by means of
dividing frequency. By dividing the frequency from 50 MHz to 1 Hz, you can see LED flash once
per second.
DDeessiiggnn TToooollss
Quartus II 11.1
DDeemmoonnssttrraattiioonn SSoouurrccee CCooddee
Project directory: Breathing_LEDs
Bit stream used: Breathing_LEDs.sof
TR4 User Manual
84
www.terasic.com
March 30, 2017
DDeemmoonnssttrraattiioonn BBaattcchh FFiillee
Demo Batch File Folder: Breathing_LEDs\ Demo_batch
The demo batch file includes following files:
Batch File: Breathing_LEDs.bat
FPGA Configuration File: Breathing_LEDs.sof
DDeemmoonnssttrraattiioonn SSeettuupp
Make sure Quartus II and Nios II are installed on your PC.
Connect the USB Blaster cable to the TR4 board and host PC. Install the USB Blaster driver
if necessary.
Power on the TR4 board.
Execute the demo batch file “Breathing_LEDs.bat” under the batch file folder,
TR4_Breathing_LEDs\Demo_batch.
Press BUTTON0 of the TR4 board to reset.
The LEDs will pulse according to the set frequency.
55..2
2
EExxtteerrnnaall CClloocckk GGeenneerraattoorr
The External Clock Generator provides designers with 3 programmable clock generators via Texas
Instruments chips (CDCM61001RHBT x 2, CDCM61004RHBT) with the ability to specify the
clock frequency individually, as well as addressing the input reference clock for the Stratix IV GX
transceivers. The programmable clock is controlled by a control bus connected to the MAX II
EPM2210 device. This can reduce the Stratix IV GX I/O usage while enabling greater functionality
on the FPGA device. The MAX II EPM2210 device is capable of storing the last entered clock
settings at which in the event the board restarts, the last known clock settings are fully restored. In
this demonstration, we illustrate how to utilize the clock generators IP to define the clock output
using the serial bus. The programmable clock outputs generate clock signals HSMA_REFCLK_p/n
(CDCM61001/01), PGM_GXBCLK_p1/n1 (CDCM61004), and HSME_REFCLK_p/n
(CDCM61001/02) with adjustable output clock frequencies of 62.5, 75, 100, 125, 150, 156.25,
187.5, 200, 250, 312.5, and 625MHz. The I/O standard for the clock frequencies is set to LVDS
which is not configurable.
TR4 User Manual
85
www.terasic.com
March 30, 2017
An overall block diagram of the external clock generator is shown below in Figure 5-1.
Figure 5-1 External Clock Generator Block Diagram
TThhee EEXXTT__PPLLLL__CCTTRRLL IIPP PPoorrtt DDeessccrriippttiioonn
This section describes the operation for the EXT_PLL_CTRL instruction hardware port. Figure 5-2
shows the EXT_PLL_CTRL instruction block diagram connected to the MAX II EPM2210 device.
The EXT_PLL_CTRL controller module is defined by a host device, the Stratix IV GX FPGA and a
TR4 User Manual
86
www.terasic.com
March 30, 2017
slave device, the MAX II EPM2210. Through the I2C bus interface, the EXT_PLL_CTRL
controller is able to control the Max II device by specifying the desire clock outputs set by the user.
By changing the IP parameters of the Terasic EXT_PLL_CTRL IP, the external clock output
frequency can be adjusted accordingly.
Figure 5-2 EXT_PLL_CTRL Instruction Hardware Ports
Table 5-1 lists the EXT_PLL_CTRL instruction ports
Table 5-1 EXT_PLL_CTRL Instruction Ports
Port Name
Direction
Description
osc_50
input
System Clock (50MHz)
rstn
input
Synchronous Reset (0: Module Reset, 1: Normal)
clk1_set_wr
clk2_set_wr
clk3_set_wr
input
Setting Output Frequency Value
clk1_set_rd
clk2_set_rd
clk3_set_rd
output
Read Back Output Frequency Value
conf_wr
Input
Start to Transfer Serial Data（postive edge）
conf_rd
Input
Start to Read Serial Data （postive edge）
conf_ready
Output
Serial Data Transmission is Complete ( 0: Transmission in
Progress, 1: Transmission Complete)
max_sclk
Output
Serial Clock to MAX II
max_sdat
Inout
Serial Data to/from MAX II
TR4 User Manual
87
www.terasic.com
March 30, 2017
TThhee EEXXTT__PPLLLL__CCTTRRLL IIPP PPaarraammeetteerr SSeettttiinngg
Users can refer to the following Table 5-2 to set the external clock generator for the output
frequency.
Table 5-2 EXT_PLL_CTRL Instruction Ports
clk1_set_wr/ clk2_set_wr/
clk3_set_wr
Output Frequency（MHz）
Description
4’b0001
x
Clock Generator Disable
4’b0010
62.5
Setting External Clock Generator
4’b0011
75
4’b0100
100
4’b0101
125
4’b0110
150
4’b0111
156.23
4’b1000
187
4’b1001
200
4’b1010
250
4’b1011
312.5
4’b1100
625
Others
x
Setting Unchanged
TThhee EEXXTT__PPLLLL__CCTTRRLL IIPP TTiimmiinngg DDiiaaggrraamm
In this reference design the output frequency is set to 62.5, 75 and 100 MHz with the following
timing diagrams illustrated below.
When the ext_pll_ctrl IP receives the ‘conf_wr’ signal, the user needs to define (clk1_set_wr,
clk2_set_wr and clk3_set_wr) to set the External Clock Generator. When the ext_pll_ctrl IP
receives the ‘conf_rd’ signal, it will read the value back to clk1_set_rd, clk2_set_rd, and
clk3_set_rd.
Write Timing Waveform:
As BUTTON0 (the trigger source defined by Terasic) is pressed, the 'conf_wr' signal is on the
rising edge, serial data is transferred immediately with the 'conf_ready' signal in the transmission
period starting at falling edge level as shown in Figure 5-3. As the transfer is completed, the
‘conf_ready’ signal returns back to original state at high-level.
TR4 User Manual
88
www.terasic.com
March 30, 2017
Figure 5-3 Write Timing Waveform
RReeaadd TTiimmiinngg WWaavveeffoorrmm::
As BUTTON1 (the trigger source defined by Terasic) is pressed the 'conf_rd' signal is on the rising
edge, the user settings are read back immediately once the 'conf_ready' signal is on the falling edge
as shown in Figure 5-4. As the transfer is complete, the ‘conf_ready’ returns back to original state
at high-level.
TR4 User Manual
89
www.terasic.com
March 30, 2017
Figure 5-4 Read Timing Waveform
DDeessiiggnn TToooollss
Quartus II 11.1
DDeemmoonnssttrraattiioonn SSoouurrccee CCooddee
Project directory: TR4_EXT_PLL
Bit stream used: TR4_EXT_PLL.sof
Demonstration Batch File
Demo Batch File Folder: TR4_EXT_PLL\demo_batch
TThhee ddeemmoo bbaattcchh ffiillee ffoollddeerrss iinncclluuddee tthhee ffoolllloowwiinngg ffiillees
s
:
Batch File: TR4_EXT_PLL.bat
FPGA Configuration File: TR4_EXT_PLL.sof
TR4 User Manual
90
www.terasic.com
March 30, 2017
DDeemmoonnssttrraattiioonn SSeettuupp
Make sure Quartus II is installed on your PC.
Connect the USB Blaster cable to the TR4 board and host PC. Install the USB Blaster driver
if necessary.
Power on the TR4 board.
Execute the demo batch file “TR4_EXT_PLL.bat” under the batch file folder,
TR4_EXT_PLL\demo_batch
Press BUTTON0 to configure the external PLL chips via MAX CPLD.
55..3
3
HHiigghh SSppeeeedd MMeezzzzaanniinnee CCaarrdd ((HHSSMMCC))
The HSMC loopback demonstration reference design observes the traffic flow with an HSMC
loopback adapter which provides a quick way to implement your own design utilizing the
transceiver signals situated on the HSMC interface. This design also helps you verify the
transceiver signals functionality for ports A and E of the HSMC interface. A total of 8 transceiver
pairs on the HSMC Port A and port E each are tested.
HHSSMMCC PPoorrtt AA LLooooppbbaacckk TTeesstt::
Demonstration Source Code
Quartus Project directory: TR4_HSMA_LOOPBACK_TEST
FPGA Bit Stream: TR4_HSMA_LOOPBACK_TEST.sof
Demonstration Setup
Check that Quartus II and Nios II are installed on your PC.
Insert the HSMC loopback adapter onto the HSMC Port A.
Connect the USB Blaster cable to the TR4 board and host PC. Install the USB Blaster driver
if necessary.
Power on the TR4 board.
Program the TR4 using the TR4_HSMA_LOOPBACK_TEST.sof through Quartus II
programmer.
TR4 User Manual
91
www.terasic.com
March 30, 2017
Press BUTTON0 of the TR4 board to initiate the verification process.
LED [3:0] will flash indicating the loopback test passed.
HHSSMMCC PPoorrtt EE LLooooppbbaacckk TTeesstt::
Demonstration Source Code
Quartus Project directory: TR4_HSME_LOOPBACK_TEST
FPGA Bit Stream: TR4_HSME_LOOPBACK_TEST.sof
Demonstration Setup
Check that Quartus II and Nios II are installed on your PC.
Insert the HSMC loopback daughter card onto the HSMC Port E as shown in Figure 5-5.
Connect the USB Blaster cable to the TR4 board and host PC. Install the USB Blaster driver
if necessary.
Power on the TR4 board.
Program the TR4 using the TR4_HSME_LOOPBACK_TEST.sof through Quartus II
programmer.
Press BUTTON0 on the TR4 board to initiate the verification process
LED [3:0] will flash once to indicate the loopback test passed.
TR4 User Manual
92
www.terasic.com
March 30, 2017
Figure 5-5 HSMC Loopback Design Setup
55..4
4
DDDDRR33 SSDDRRAAMM ((11GGBB))
Many applications use a high performance RAM, such as a DDR3 SDRAM to provide temporary
storage. In this demonstration hardware and software designs are provided to illustrate how the
DDR3 SDRAM SODIMM on the TR4 can be accessed. We describe how the Altera’s “DDR3
SDRAM Controller with UniPHY” IP is used to create a DDR3-SDRAM controller, and how the
Nios II processor is used to read and write the SDRAM for hardware verification. The DDR3
SDRAM controller handles the complex aspects of using DDR3-SDRAM by initializing the
memory devices, managing SDRAM banks, and keeping the devices refreshed at appropriate
intervals. The required DDR3-SDRAM SODIMM module should be 1 GB DDR3-1066.
SSyysstteemm BBlloocckk DDiiaaggrraamm
TR4 User Manual
93
www.terasic.com
March 30, 2017
Figure 5-6 shows the system block diagram of this demonstration. The system requires a 50 MHz
clock provided from the board. The DDR3 controller is configured as a 1GB DDR3-1066 controller.
The DDR3 IP generates one 533.0 MHz clock as memory clock and one quarter-rate system clock
133.125 MHz for controllers, e.g. Nios II processor, accessing the SDRAM. In Qsys, Nios II and
On-Chip Memory are designed running with the 133.125 MHz clock, and the other controllers are
designed running with 50 MHz clock which is the external clock. The Nios II program itself is
running in the on-chip memory.
Figure 5-6 Block diagram of the DDR3 1G demonstration
The system flow is controlled by a Nios II program. First, the Nios II program writes test patterns
into the DDR3, filling it up to maximum capacity. Then, it calls a Nios II system function,
alt_dache_flush_all, to make sure all data has been written. Finally, it reads data from DDR3 for
data verification. The program will show progress in JTAG-Terminal when writing/reading data
to/from the DDR3. When the verification process is completed, the result is displayed in the
JTAG-Terminal.
AAlltteerraa DDDDRR33 SSDDRRAAMM CCoonnttrroolllleerr wwiitthh UUnniiPPHHYY
To use the Altera DDR3 controller, users need to perform three major steps: 1). Create correct pin
assignments for the DDR3. 2). Set up correct parameters in DDR3 controller dialog. 3). Execute
TCL files, generated by DDR3 IP, under your Quartus II project.
The following section describes some of the important issues in support of the DDR3 controller
TR4 User Manual
94
www.terasic.com
March 30, 2017
configuration. On the “PHY_Setting” tab, in order to achieve 533.0 MHz clock frequency, a
reference clock frequency of 50 MHz should be used. If a different DDR3 SODIMM is used, the
memory parameters should be modified according to the datasheet of the DDR3 SODIMM.
DDeessiiggnn TToooollss
Quartus II 11.1
Nios II IDE 11.1
DDeemmoonnssttrraattiioonn SSoouurrccee CCooddee
Project directory: TR4_DDR3_UniPHY_1G_QSYS
Bit stream used: TR4_DDR3_UniPHY_1G_QSYS.sof
Nios II Workspace: TR4_DDR3_UniPHY_1G_QSYS\Software
DDeemmoonnssttrraattiioonn BBaattcchh FFiillee
Demo Batch File Folder: TR4_DDR3_UniPHY_1G_QSYS\demo_batch
The demo batch file includes following files:
Batch File: TR4_DDR3_UniPHY_1G_QSYS.bat, TR4_DDR3_UniPHY_1G_QSYS_bashrc
FPGA Configuration File: TR4_DDR3_UniPHY_1G_QSYS.sof
Nios II Program: TR4_DDR3_UniPHY_1G_QSYS.elf
DDeemmoonnssttrraattiioonn SSeettuupp
Make sure Quartus II and Nios II are installed on your PC.
Make sure DDR3-SDRAM SODIMM (1G) is inserted into your TR4 board, as shown in
Figure 5-7.
Connect the USB Blaster cable to the TR4 board and host PC. Install the USB Blaster driver
if necessary.
Power on the TR4 board.
Execute the demo batch file “TR4_DDR3_UniPHY_1G_QSYS.bat” under the batch file folder,
TR4 User Manual
95
www.terasic.com
March 30, 2017
TR4_DDR3_UniPHY_1G_QSYS\demo_batch.
After Nios II program is downloaded and executed successfully, a prompt message will be
displayed in nios2-terminal.
Press BUTTON3~BUTTON0 of the TR4 board to start the DDR3 verification process. Press
BUTTON0 to continue the test and Ctrl+C to terminate the test
The program will display the progress and result, as shown in Figure 5-8
Figure 5-7 Insert the DDR3-SDRAM SODIMM for the DDR3 1G Demonstration
TR4 User Manual
96
www.terasic.com
March 30, 2017
Figure 5-8 Display Progress and Result for the DDR3 1G Demonstration
55..5
5
DDDDRR33 SSDDRRAAMM ((44GGBB))
This demonstration presents user a basic utilization of DDR3-SDRAM (4G) on TR4.It describes
how the Altera’s “DDR3 SDRAM Controller with UniPHY” IP is used to create a DDR3-SDRAM
controller, and modify the IP-generated example top to test the entire space of DDR3-SDRAM. This
demonstration is a pure RTL project. The required DDR3-SDRAM SODIMM module should be
exactly 4 GB of DDR3-1066.
FFuunnccttiioonn BBlloocckk DDiiaaggrraamm
Figure 5-9 shows the function block diagram of this demonstration. The DDR3 controller is
configured as a 4GB DDR3-1066 controller. The DDR3 IP generates one 533.0 MHz clock as
memory clock and one half-rate system clock, 266.5 MHz, for the controller.
TR4 User Manual
97
www.terasic.com
March 30, 2017
Figure 5-9 Block Diagram of the DDR3 4G Demonstration
The project is based on the example top code which is generated by the DDR3 IP, and can be used
to test the whole module after modifying the code. In the project, example driver will read out the
data for a comparison after writing every 1KB pseudo-random data. The read compare module will
buffer the write data, and then compare it with the data read back. If the right result is achieved, the
address will be accumulated and the test will check the whole memory span of 4GB after finishing
4*1024*1024 loops.
AAlltteerraa DDDDRR33 SSDDRRAAMM CCoonnttrroolllleerr wwiitthh UUnniiPPHHYY
To use Altera DDR3 controller, users need to perform three major steps: 1). Create correct pin
assignment for DDR3. 2). Setup correct parameters in DDR3 controller dialog. 3). Execute TCL
files, generated by DDR3 IP, under your Quartus project.
The following section describes some of the important issues in support of the DDR3 controller
configuration. On the “PHY_Setting” tab, in order to achieve 533.0 MHz clock frequency, a
reference clock frequency of 50 MHz should be used.
DDeessiiggnn TToooollss
Quartus II 11.1
Demonstration Source Code
Loading...
