Page 1
T-Core User Manual
1
Page 2
T-Core User Manual
1
www.terasic.com
January 14, 2020
CONTENTS
Chapter 1 Introduction ..................................................................................................... 2
1.1 Package Contents ................................................................................................................................... 2
1.2 T-Core System CD ................................................................................................................................. 3
1.3 Layout and Components ........................................................................................................................ 3
1.4 Block Diagram of the Board .................................................................................................................. 5
1.5 Getting Help ........................................................................................................................................... 6
Chapter 2 Using the T-Core ............................................................................................ 7
2.1 Configuration of MAX 10 FPGA on T-Core .......................................................................................... 7
2.2 Clock Circuitry ..................................................................................................................................... 15
2.3 Using the Push-buttons, Switches and LEDs ....................................................................................... 16
2.4 Using WS2812B RGB LED ................................................................................................................. 18
2.5 Using 2x6 TMD GPIO Expansion Headers ......................................................................................... 21
2.6 1x10 A/D Converter and Analog Input ................................................................................................ 22
2.7 Using QSPI Flash ................................................................................................................................. 23
Chapter 3 Example Designs ........................................................................................... 25

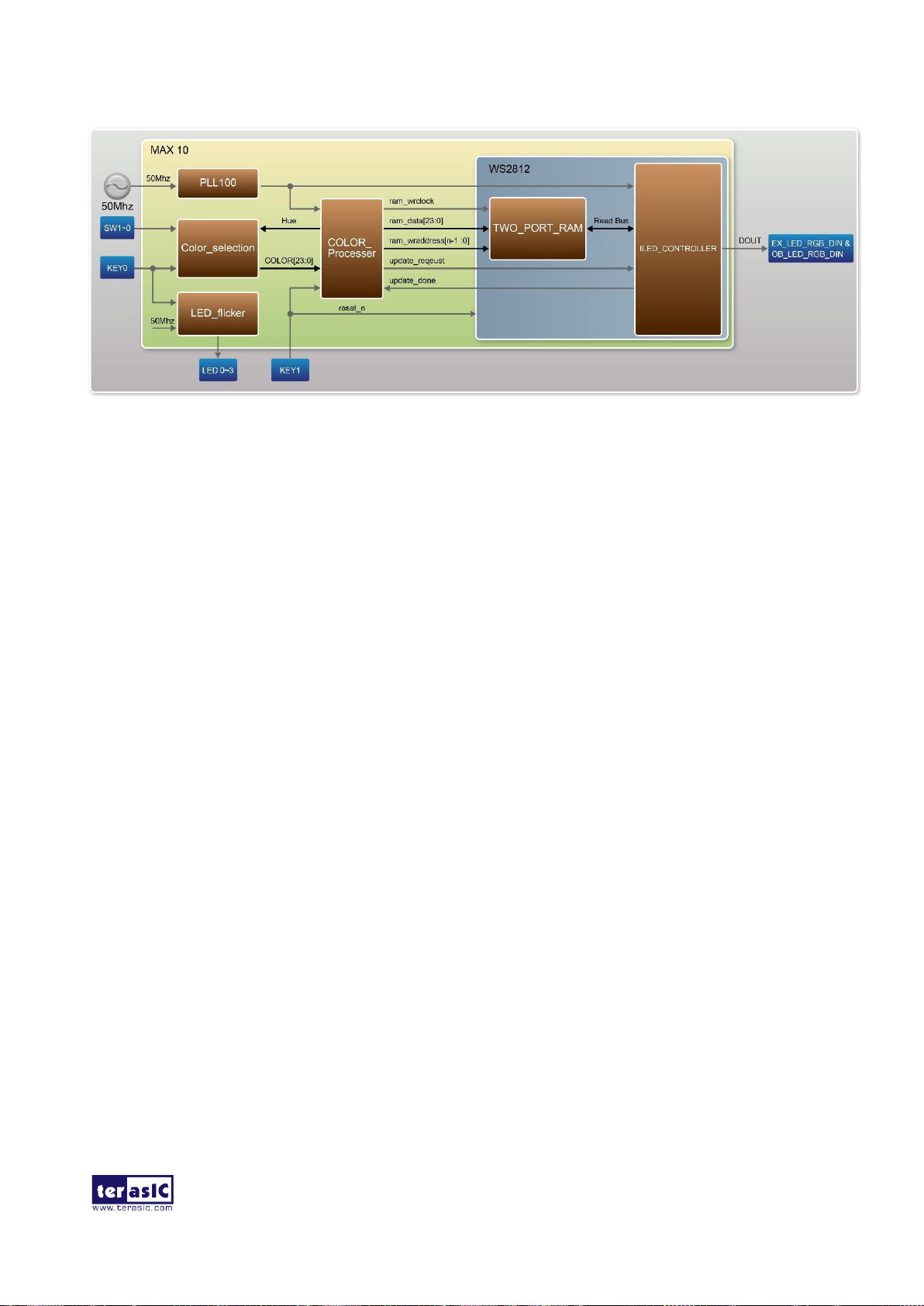

3.1 T-Core Factory Configuration .............................................................................................................. 25

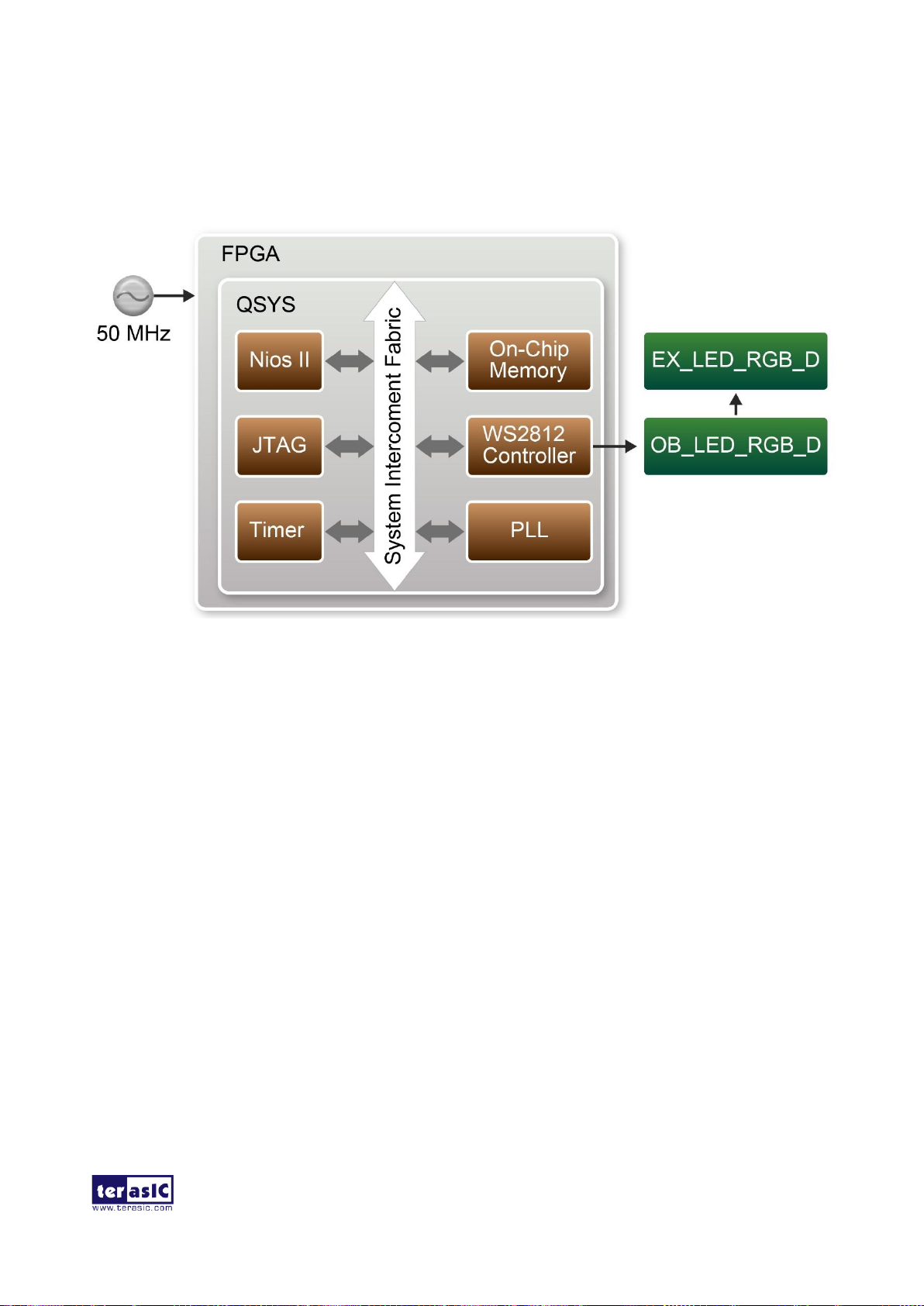

3.2 Control RGB LED in Nios II ............................................................................................................... 28
3.3 Control External RGB LED in Nios II ................................................................................................. 31

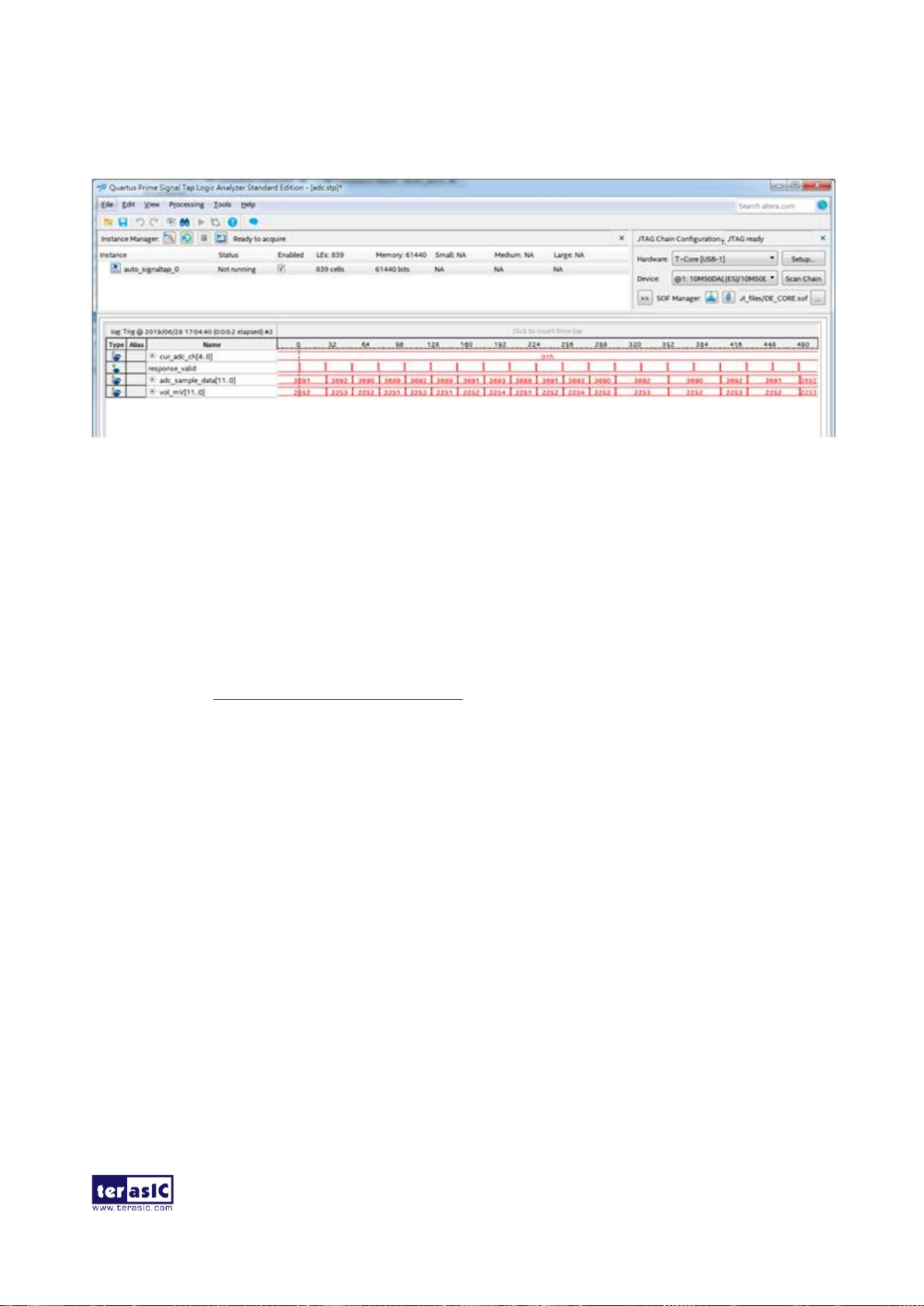

3.4 ADC Measurement ............................................................................................................................... 33

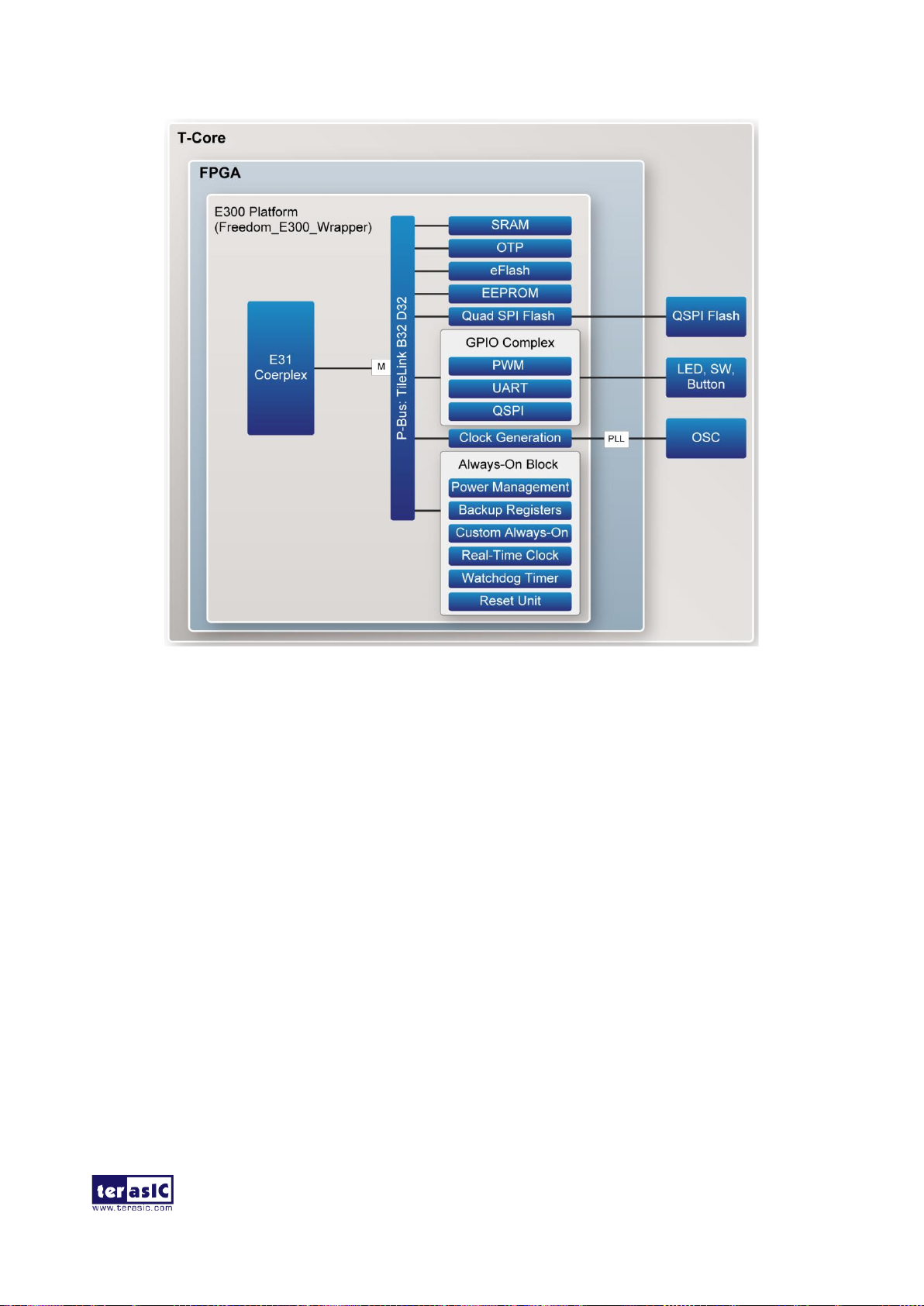

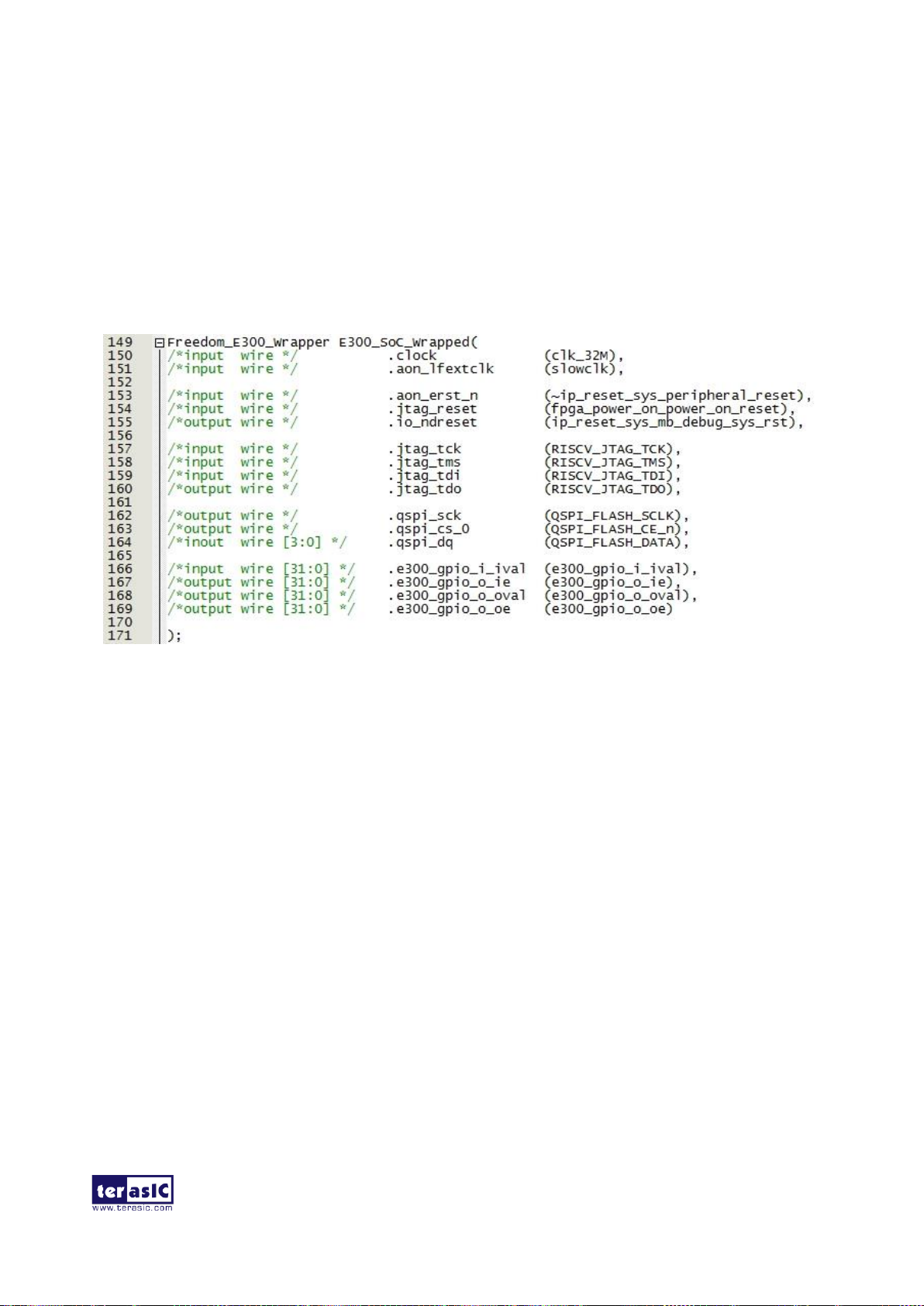

3.5 RISC-V ................................................................................................................................................. 36
Chapter 4 Programming the Configuration Flash Memory ..................................... 46
4.1 Internal Configuration .......................................................................................................................... 47

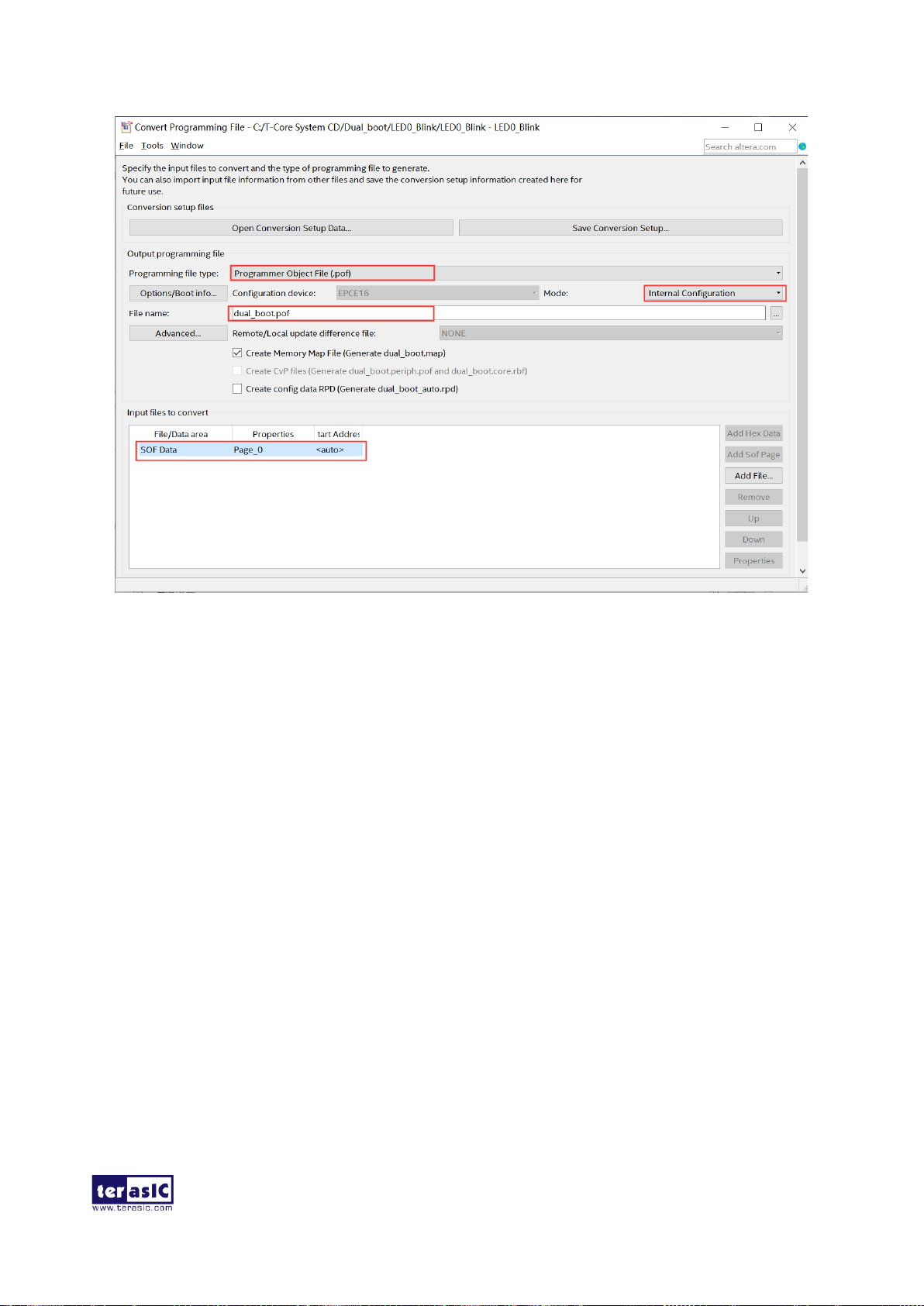

4.2 Using Dual Compressed Images .......................................................................................................... 49
Chapter 5 USB Blaster II Cable Feature .................................................................... 59
Page 3
T-Core User Manual
2
www.terasic.com
January 14, 2020
Chapter 1
Introduction
The T-Core presents a robust hardware design platform built around the Intel MAX 10 FPGA. The MAX 10 FPGA is well equipped to provide cost effective, single-chip solutions in control plane or data path applications and industry-leading programmable logic for ultimate design flexibility. With MAX 10 FPGA, you can get lower power consumption / cost and higher performance. When you need high-volume applications, including protocol bridging, motor control drive, analog to digital conversion, and handheld devices, the T-Core MAX 10 FPGA is your best choice.
The T-Core development board includes hardware such as on-board USB Blaster II, QSPI Flash, ADC-Header, WS2812B RGB LEDs and 2x6 TMD expansion header. By leveraging all of these capabilities, the T-Core is the perfect solution for showcasing, evaluating, and prototyping the true potential of the Intel MAX 10 FPGA.
T-Core also supports RISC-V CPU with on-board JTAG debug, it is an ideal platform for learning RISC-V CPU design or embedded system design.
11..1
1
PPaacckkaaggee CCoonntteennttss

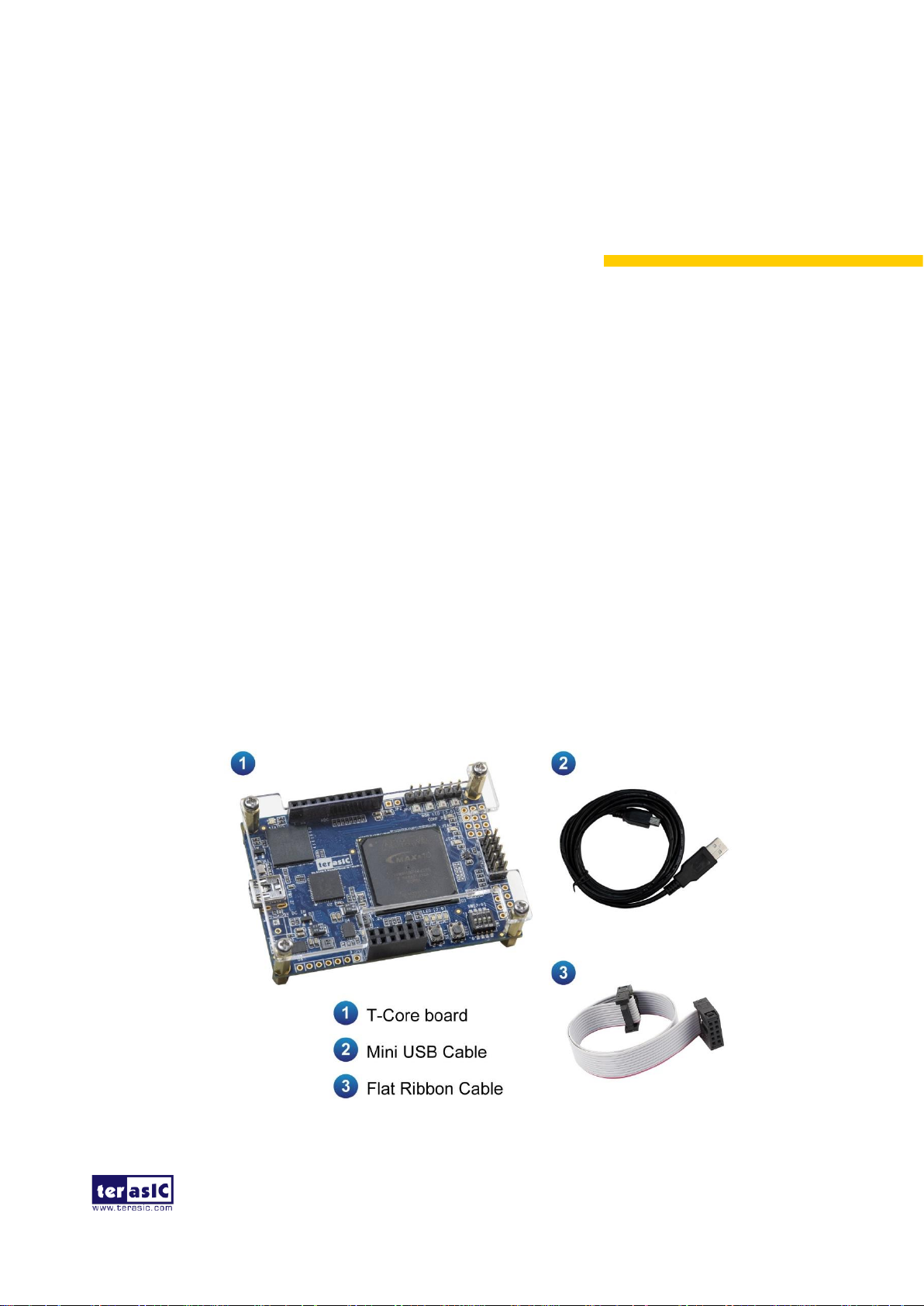

Figure 1-1 shows a photograph of the T-Core package.
Figure 1-1 The T-Core package contents
Page 4
T-Core User Manual
3
www.terasic.com
January 14, 2020
The T-Core package includes:
• The T-Core board
• USB Mini-B Cable
• Flat Ribbon Cable
11..2
2
TT--CCoorree SSyysstteemm CCDD
The T-Core System CD contains the documentation and supporting materials, including the User Manual, reference designs and device datasheets.
User can download this System CD from the web (http://T-Core.terasic.com/cd).
11..3
3
LLaayyoouutt aanndd CCoommppoonneennttss
This section presents the features and design characteristics of the board. A photograph of the board is shown in Figure 1-2 and Figure 1-3. It depicts the layout of the board
and indicates the location of the connectors and key components.

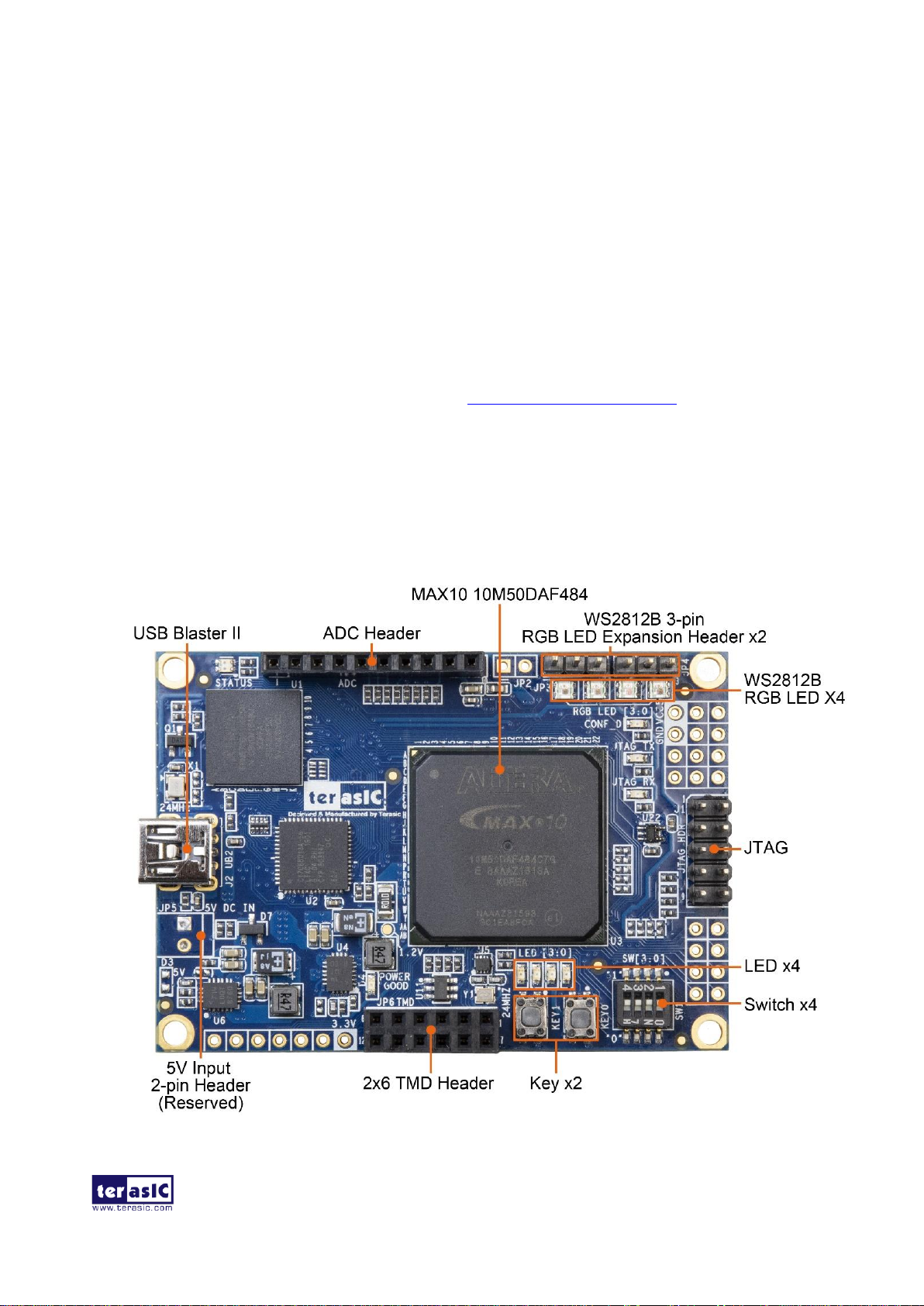

Figure 1-2 Development Board (top view)
Page 5
T-Core User Manual
4
www.terasic.com
January 14, 2020

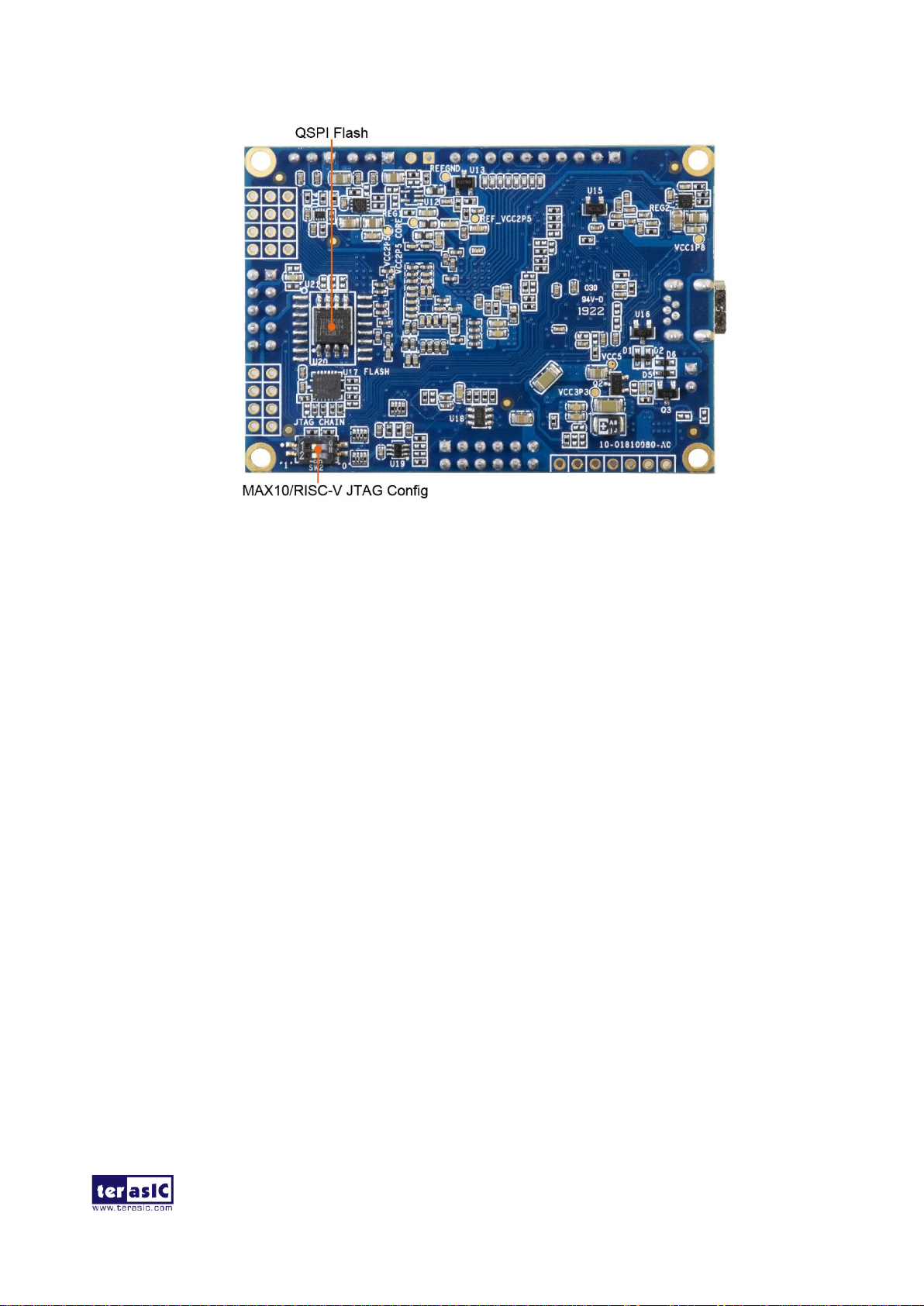

Figure 1-3 Development Board (bottom view)
This board has many features that allow users to implement a wide range of designed circuits, from simple circuits to various multimedia projects.
The following hardware are provided on the board:
FFPPGGAA DDeevviiccee
• MAX 10 10M50DAF484C7G Device
• Integrated dual ADCs, each ADC supports 1 dedicated analog input and 8 dual function
pins
• 50K programmable logic elements
• 1,638 Kbits M9K Memory
• 5,888 Kbits user flash memory
• 144 18 × 18 Multiplier
• 4 PLLs
PPrrooggrraammmmiinngg aanndd CCoonnffiigguurraattiioon
n
• On-Board USB Blaster II (Mini USB connector)
MMeemmoorryy DDeevviiccee
• QSPI Flash (Support RISC-V)
Page 6
T-Core User Manual
5
www.terasic.com
January 14, 2020
CCoonnnneeccttoorrss
• 2x6 TMD GPIO Header
• 1x10 ADC Header
• WS2812B RGB LED Expansion Header
SSwwiittcchheess,, BBuuttttoonnss aanndd LLEEDDss
• 4 Green LEDs
• 4 Dip Switches
• 2 Push Buttons with Debounced.
• 4 WS2812B RGB LED
PPoowweerr
• 5V DC input from USB or external power connector.
11..4
4
BBlloocckk DDiiaaggrraamm ooff tthhee BBooaarrdd

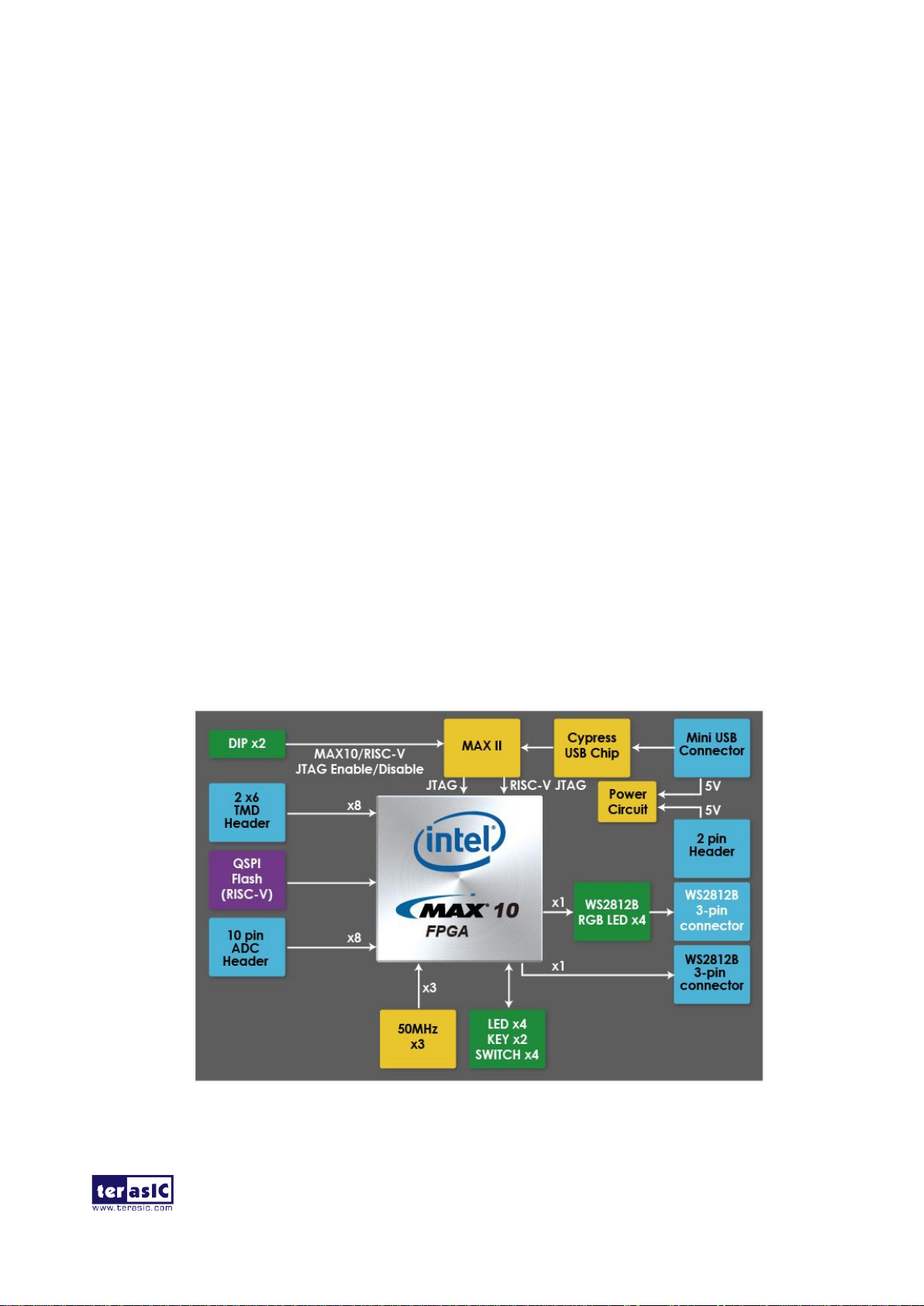

Figure 1-4 gives the block diagram of the board. To provide maximum flexibility for the user, all
connections are made through the MAX 10 FPGA device. Thus, the user can configure the FPGA to implement any system design.
Figure 1-4 Board Block Diagram
Page 7
T-Core User Manual
6
www.terasic.com
January 14, 2020
11..5
5
GGeettttiinngg HHeellpp
Here are the addresses where you can get help if you encounter any problem:
• Terasic Inc.
• 9F., No.176, Sec.2, Gongdao 5th Rd, East Dist, Hsinchu City, 30070. Taiwan
• Email: support@terasic.com
• Tel.: +886-3-5750-880
• Web: http://T-Core.terasic.com
Page 8
T-Core User Manual
7
www.terasic.com
January 14, 2020
Chapter 2
Using the T-Core
This chapter provides instructions to use the board and the peripherals description.
22..1
1
CCoonnffiigguurraattiioonn ooff MMAAXX 1100 FFPPGGAA oonn TT--CCoorree
There are two types of configuration method supported by T-Core:
1. JTAG configuration: configuration using JTAG port.
JTAG configuration scheme allows you to directly configure the device core through JTAG pins ­TDI, TDO, TMS, and TCK pins. The Quartus Prime software automatically generates .sof files that are used for JTAG configuration with a download cable in the Quartus Prime software program.
2. Internal configuration: configuration using internal flash.
Before internal configuration, you need to program the configuration data into the configuration flash memory (CFM) which provides non-volatile storage for the bit stream. The information is retained within CFM even if the T-Core board is turned off. When the board is powered on, the configuration data in the CFM is automatically loaded into the MAX 10 FPGA.
◼ JTAG Chain on T-Core Board
Figure 2-1 shows the JTAG interface of T-Core board, which uses the USB Blaster II (UB2) circuit
to connect to the host PC. The JTAG interface of the T-Core board can be divided into common FPGA configuration and RISC-V applications. Users can configure or debug the MAX10 FPGA on the T-Core through the UB2 interface and Quartus software on the host PC. You can also use the UB2 circuit to download the binary file from the host PC to RISC-V application. The two position switches on the SW2 can control whether the MAX10 FPGA and RISC-V application will appear in the JTAG chain of the T-Core board.
Page 9
T-Core User Manual
8
www.terasic.com
January 14, 2020
Figure 2-1 The JTAG configuration scheme

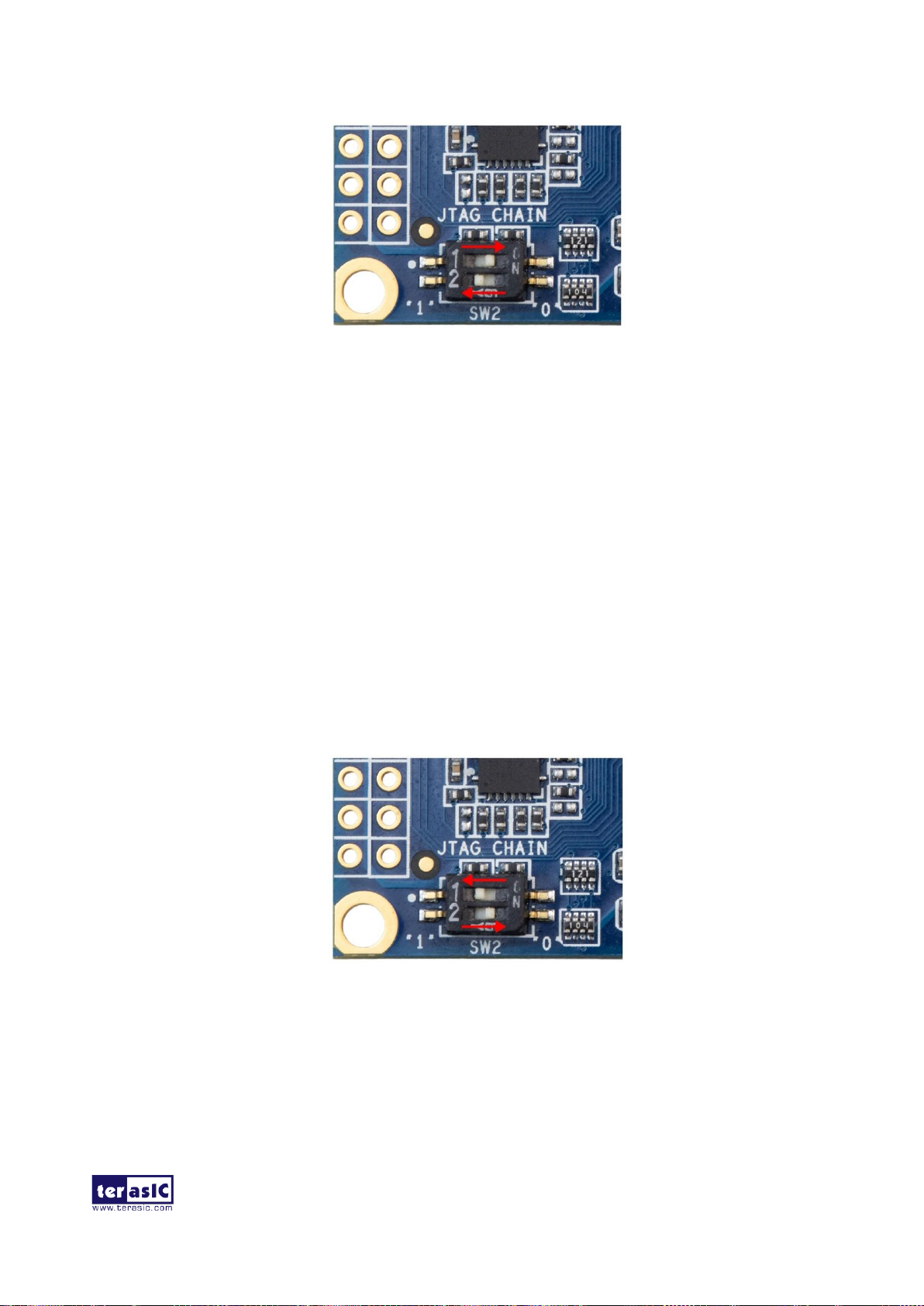

Figure 2-2 The JTAG Switch for MAX10 FPGA and RISC-V
Figure 2-2 shows the factory settings of the SW2. The SW2.1 position is used for enable/disable
the MAX 10 FPGA in the JTAG chain. When set to ON, the MAX10 FPGA will appear in the JTAG chain of T-Core. SW2.2 is the JTAG chain switch for RISC-V applications. If it is turned off, the application will not appear in the JTAG chain. For more information about the RISC-V application, please refer to section 3.5 for more information.
Table 2-1 is the setting of SW2 and its function.
Table 2-1 MAX10 and RISC-V JTAG Chain setting for SW2
SW2 Position
Description MAX10 (SW2.1)
RISC-V (SW2.2)
OFF
OFF
MAX10 and RISC-V off chain
OFF
ON
MAX10 off chain and RISC-V on chain
ON
OFF
MAX10 on chain and RISC-V off chain
ON
ON
MAX10 on chain and RISC-V on chain
Page 10
T-Core User Manual
9
www.terasic.com
January 14, 2020
◼ Configure the FPGA in JTAG Mode
The following shows how the FPGA is programmed in JTAG mode step by step.
1. Open the Quartus Prime programmer, please choose Tools > Programmer. The Programmer
window opens. See Figure 2-3.
Figure 2-3 Programmer Window
2. Click “Hardware Setup”, as circled in Figure 2-3.
3. If it is not already turned on, turn on the USB-Blaster [USB-0] option under currently selected
hardware and click “Close” to close the window. See Figure 2-4.
Page 11
T-Core User Manual
10
www.terasic.com
January 14, 2020
Figure 2-4 Hardware Setting
4. Click “Auto Detect” to detect all the devices on the JTAG chain, as circled in Figure 2-5.
Figure 2-5 Detect FPGA device in JTAG mode
5. Select detected device associated with the board, as circled in Figure 2-6.
Page 12
T-Core User Manual
11
www.terasic.com
January 14, 2020

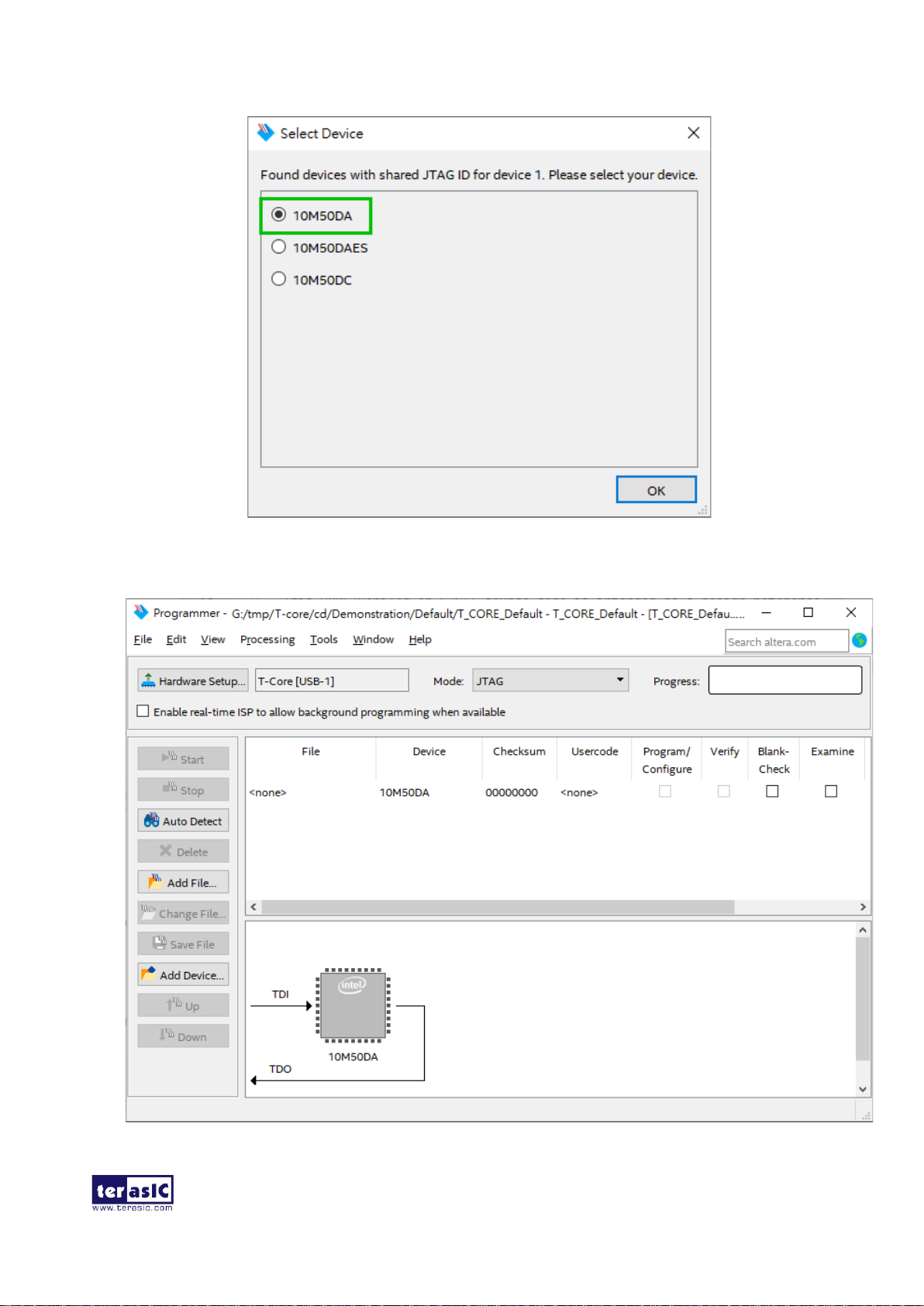

Figure 2-6 Select 10M50DA device
6. FPGA is detected, as shown in Figure 2-7.
Figure 2-7 FPGA detected in Quartus Prime programmer
Page 13
T-Core User Manual
12
www.terasic.com
January 14, 2020

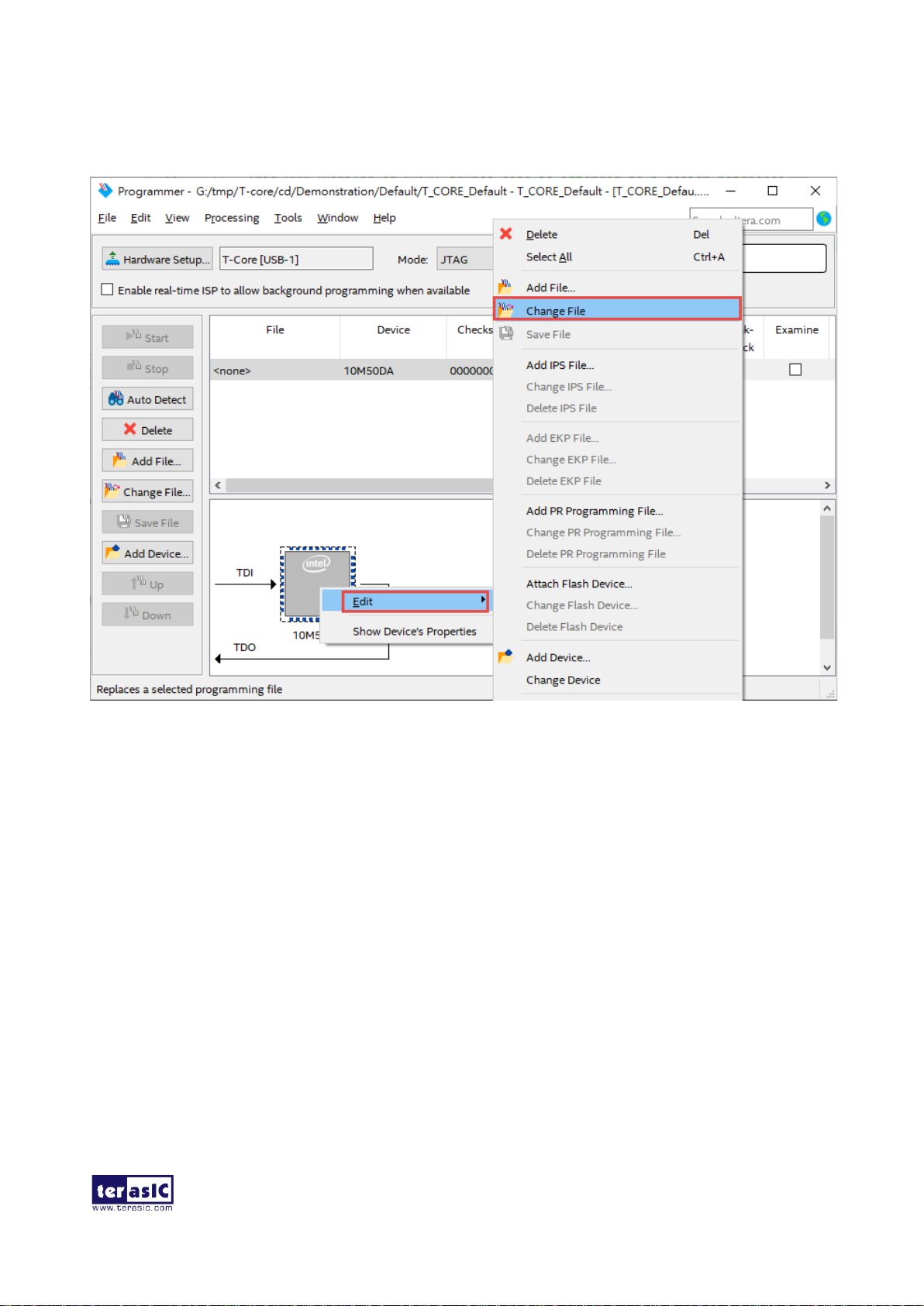

7. Right click on the FPGA device and click “Change File” to open the .sof file to be
programmed, as highlighted in Figure 2-8.
Figure 2-8 Open the .sof file to be programmed into the FPGA device
8. Open the “output_files” folder and select the .sof file to be programmed, as shown in Figure
2-9.
Page 14
T-Core User Manual
13
www.terasic.com
January 14, 2020

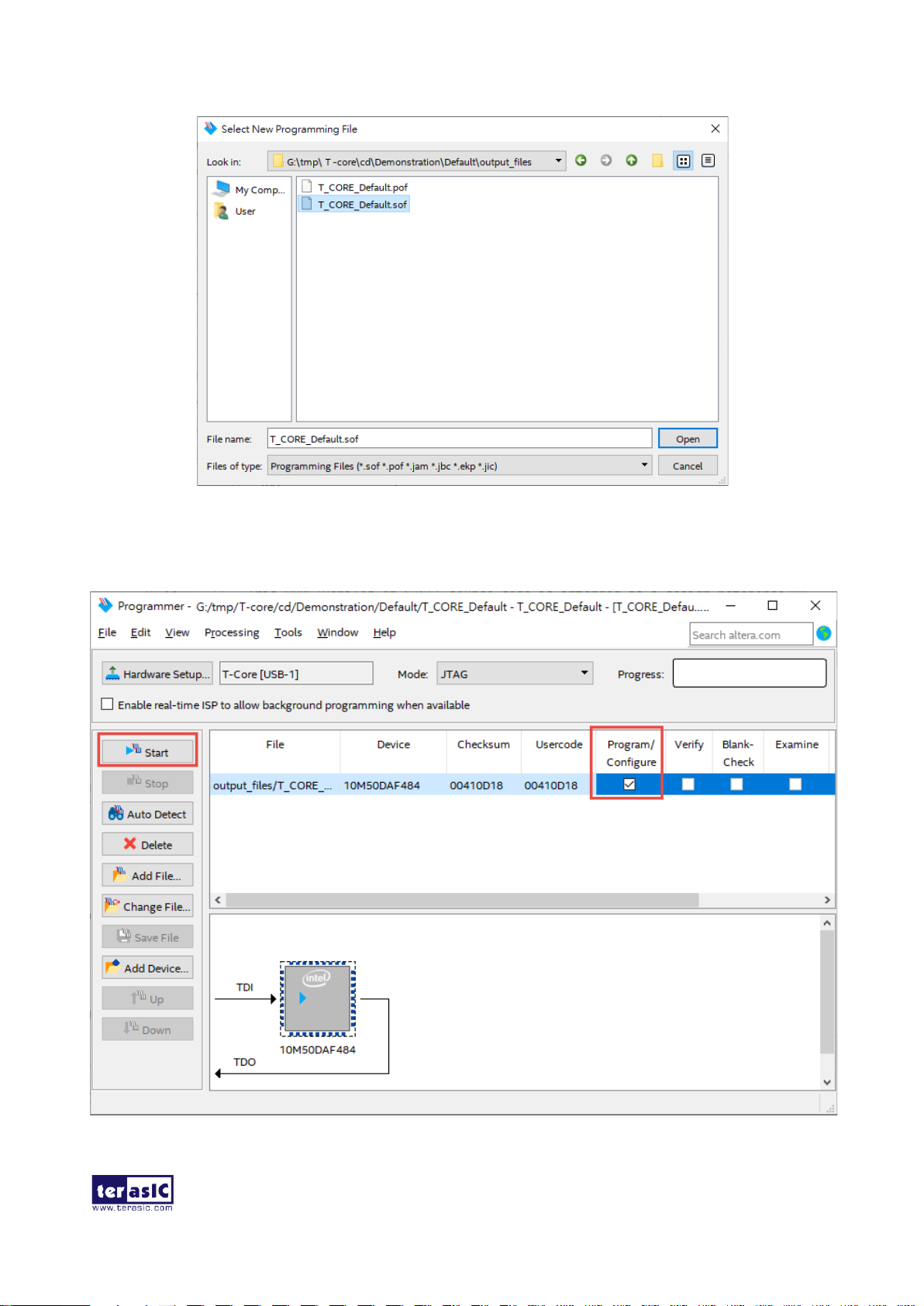

Figure 2-9 Select the .sof file to be programmed into the FPGA device
9. Click “Program/Configure” check box and then click “Start” button to download the .sof file
into the FPGA device, as shown in Figure 2-10.
Figure 2-10 Program .sof file into the FPGA device
Page 15
T-Core User Manual
14
www.terasic.com
January 14, 2020
◼ Internal Configuration
• The configuration data to be written to CFM will be part of the programmer object file (.pof). This configuration data is automatically loaded from the CFM into the MAX 10 devices when the board is powered up.
• Please refer to Chapter 4: Programming the Configuration Flash Memory (CFM) for the basic programming instruction on the configuration flash memory (CFM).

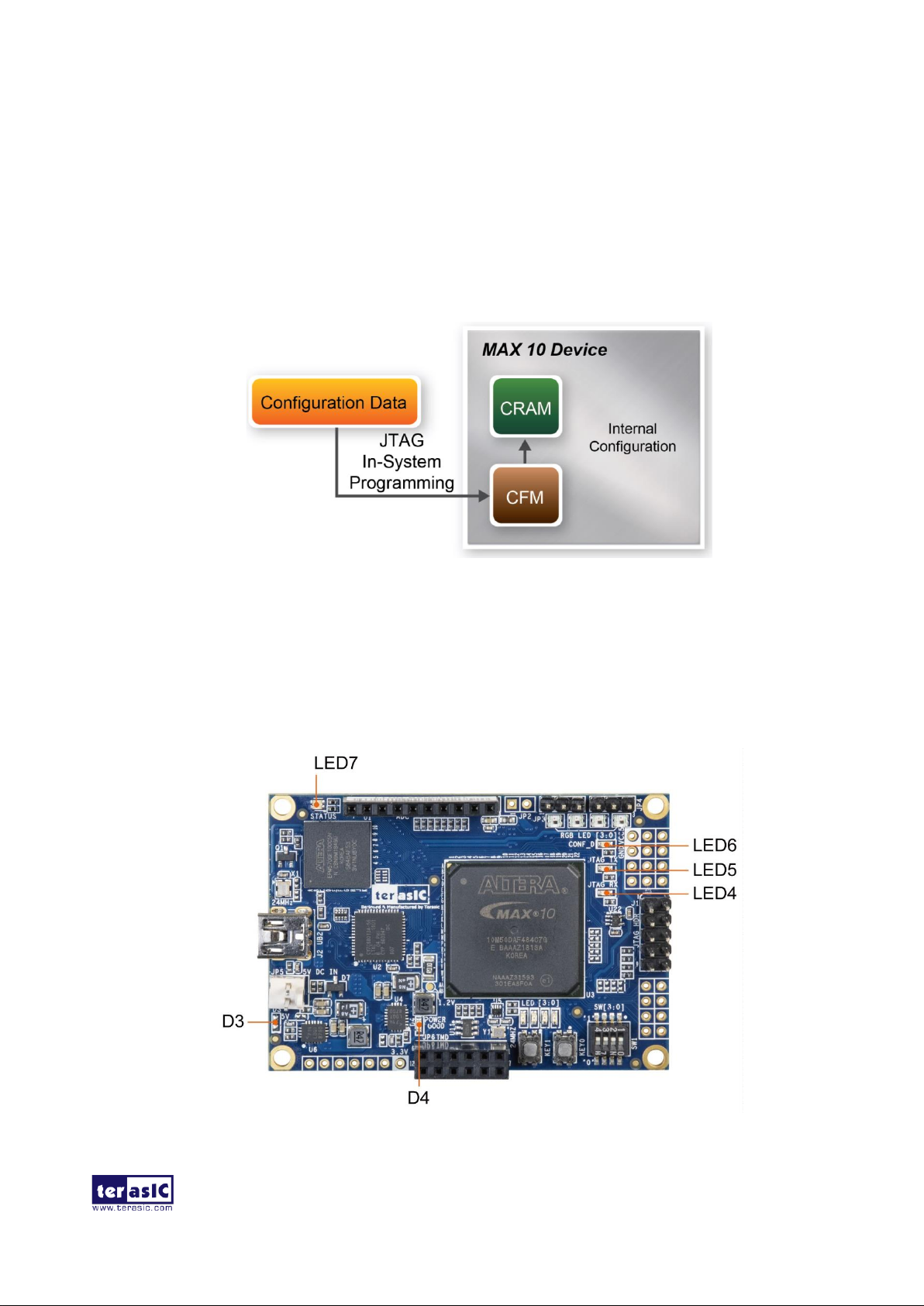

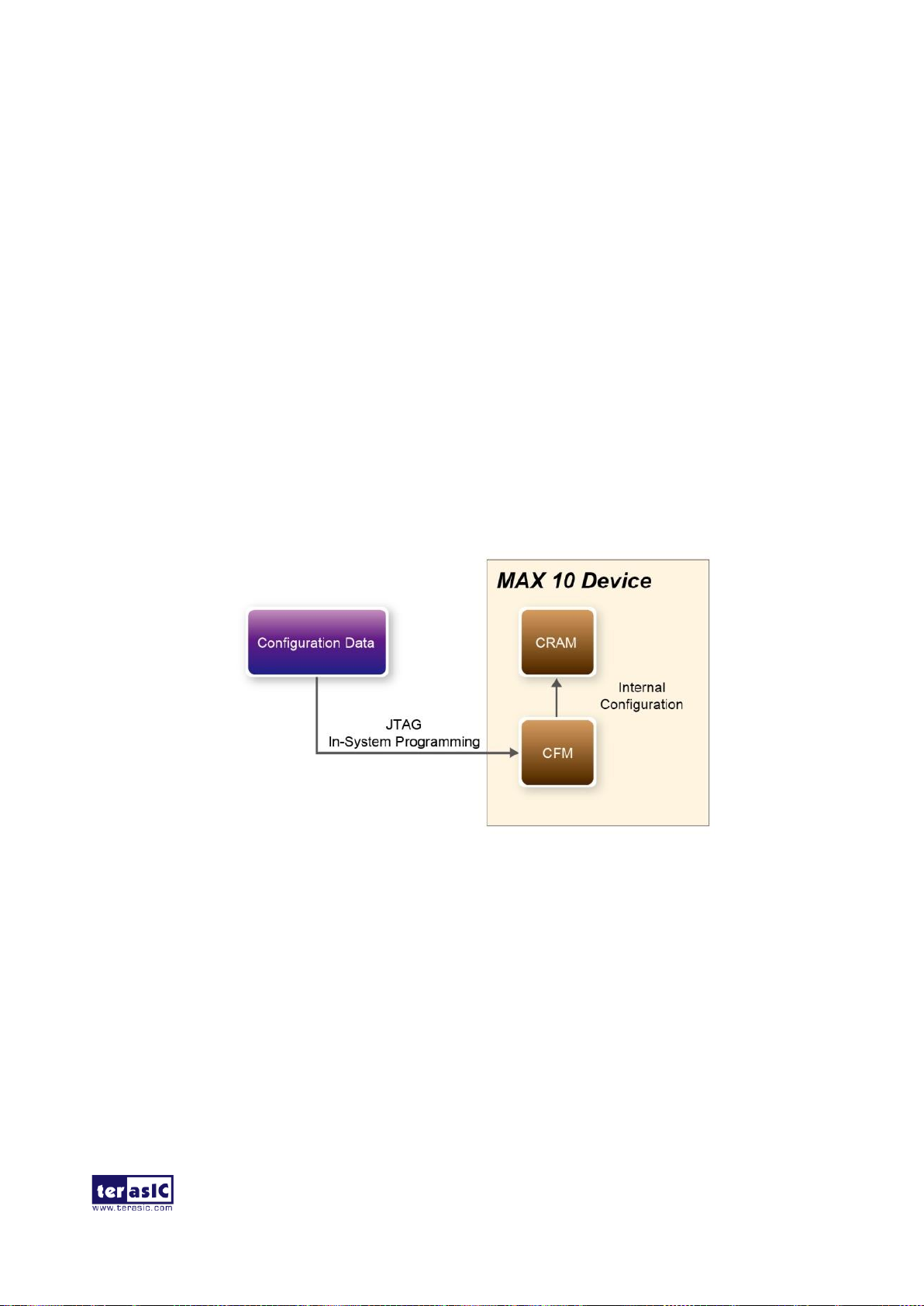

Figure 2-11 High-Level Overview of Internal Configuration for MAX 10 Devices
◼ Status LED
The T-Core development board includes board-specific status LEDs to indicate board status. Please refer to Table 2-2 for the description of the LED indicator. Please refer to Figure 2-12 for detailed LED location.
Figure 2-12 Status LED position
Page 16
T-Core User Manual
15
www.terasic.com
January 14, 2020
Table 2-2 Status LED
Reference
LED Name
Description
LED4
JTAG RX
Illuminate when data is transferred from USB Host to JTAG.
LED5
JTAG TX
Illuminate when data is transferred from JTAG to USB Host.
LED6
CONF_DONE
Illuminates when the FPGA is successfully configured.
LED7
Status
Illuminates Bard status
D3
5V
Illuminates when Input power is active. Not Installed.
D4
Power Good
Illuminates when board power system is OK.
22..2
2
CClloocckk CCiirrccuuiittrryy

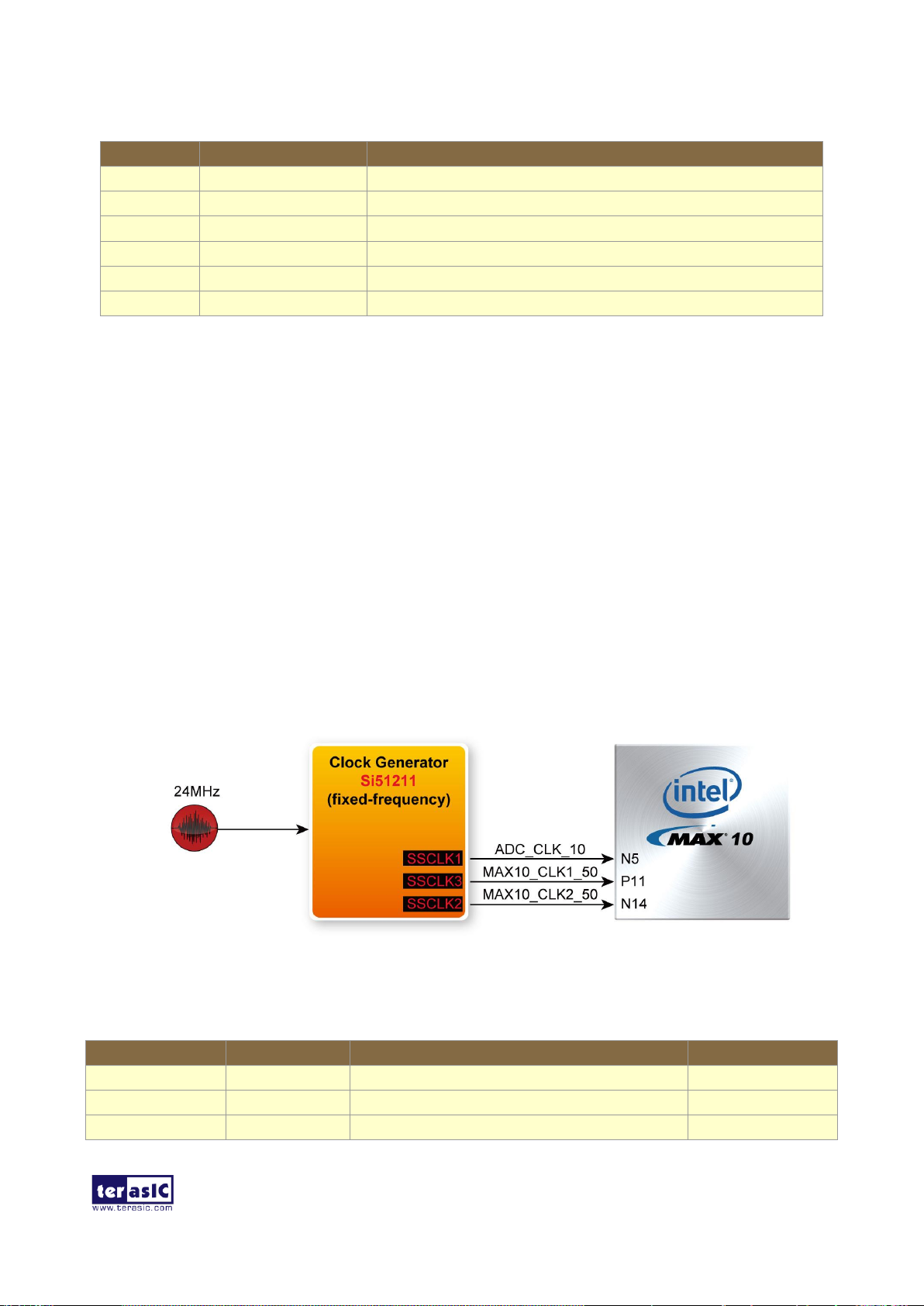

Figure 2-13 shows the default frequency of all external clocks to the MAX 10 FPGA. A clock
generator is used to distribute clock signals with low jitter. The two 50MHz clock signals connected to the FPGA are used as clock sources for user logic. One 24MHz clock signal is connected to the clock inputs of USB microcontroller of USB Blaster. One 10MHz clock signal is connected to the PLL1 and PLL3 of FPGA, the outputs of these two PLLs can drive ADC clock. The associated pin assignment for clock inputs to FPGA I/O pins is listed in Table 2-3.
Warning!!
Do not modify the clock generator settings.
Incorrect setting will cause the system to not work.
Figure 2-13 Clock circuit of the FPGA Board
Table 2-3 Pin Assignment of Clock Inputs
Signal Name
FPGA Pin No.
Description
I/O Standard
ADC_CLK_10
PIN_N5
10 MHz clock input for ADC (Bank 3B)
3.3-V LVTTL
MAX10_CLK1_50
PIN_P11
50 MHz clock input(Bank 3B)
3.3-V LVTTL
MAX10_CLK2_50
PIN_N14
50 MHz clock input(Bank 3B)
3.3-V LVTTL
Page 17
T-Core User Manual
16
www.terasic.com
January 14, 2020
22..3
3
UUssiinngg tthhee PPuusshh--bbuuttttoonnss,, SSwwiittcchheess aanndd LLEEDDss
◼ User-Defined Push-buttons
The board includes two user defined push-buttons that allow users to interact with the MAX 10 FPGA device. Each of these switches is debounced using a Schmitt Trigger circuit as indicated in
Figure 2-14. A Schmitt trigger feature introduces hysteresis to the input signal for improved noise
immunity, especially for signal with slow edge rate and act as switch debounce in Figure 2-15 for the push-buttons connected. Table 2-4 list the pin assignment of user push-buttons.

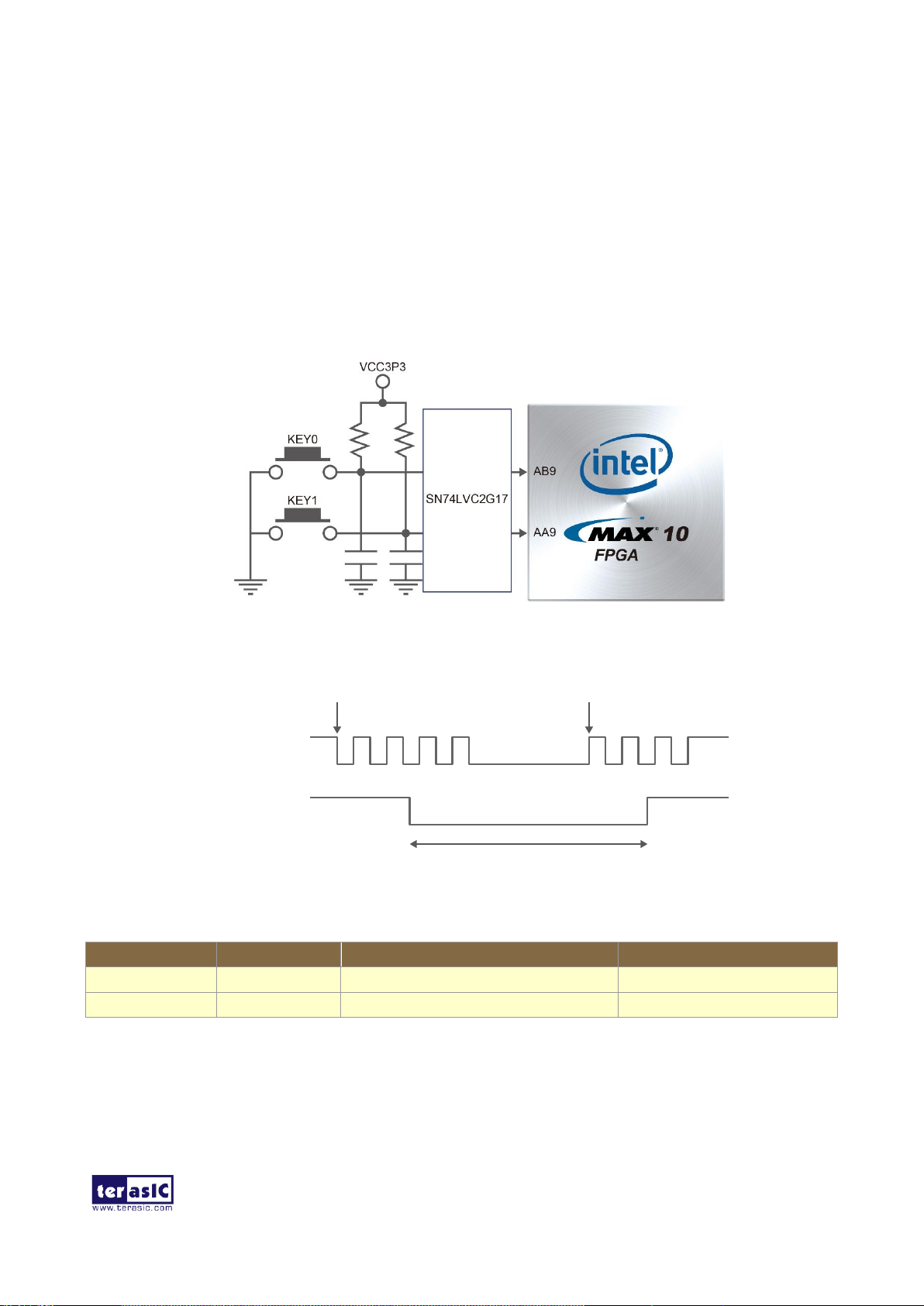

Figure 2-14 Connections between the push-button and MAX 10 FPGA
Figure 2-15 Switch debouncing
Table 2-4 Pin Assignment of Push-buttons
Signal Name
FPGA Pin No.
Description
I/O Standard
KEY[0]
PIN_AB9
Push-button[0]
3.3 V SCHMITT TRIGGER"
KEY[1]
PIN_AA9
Push-button[1]
3.3 V SCHMITT TRIGGER"
◼ User-Defined Dip Switch
There are 4 position dip switches connected to FPGA on the board (See Figure 2-16). These switches are used as level-sensitive data inputs to a circuit. Every one of the switches is connected directly and individually to a pin on the MAX 10 FPGA. When the switch is in the ON position
Pushbutton releasedPushbutton depressed
Before
Debouncing
Schmitt Trigger
Debounced
Page 18
T-Core User Manual
17
www.terasic.com
January 14, 2020
(closest to the edge of the board), it provides a low logic level to the FPGA, and when the switch is in another position, it provides a high logic level. Table 2-5 list the pin assignments of the user switches.

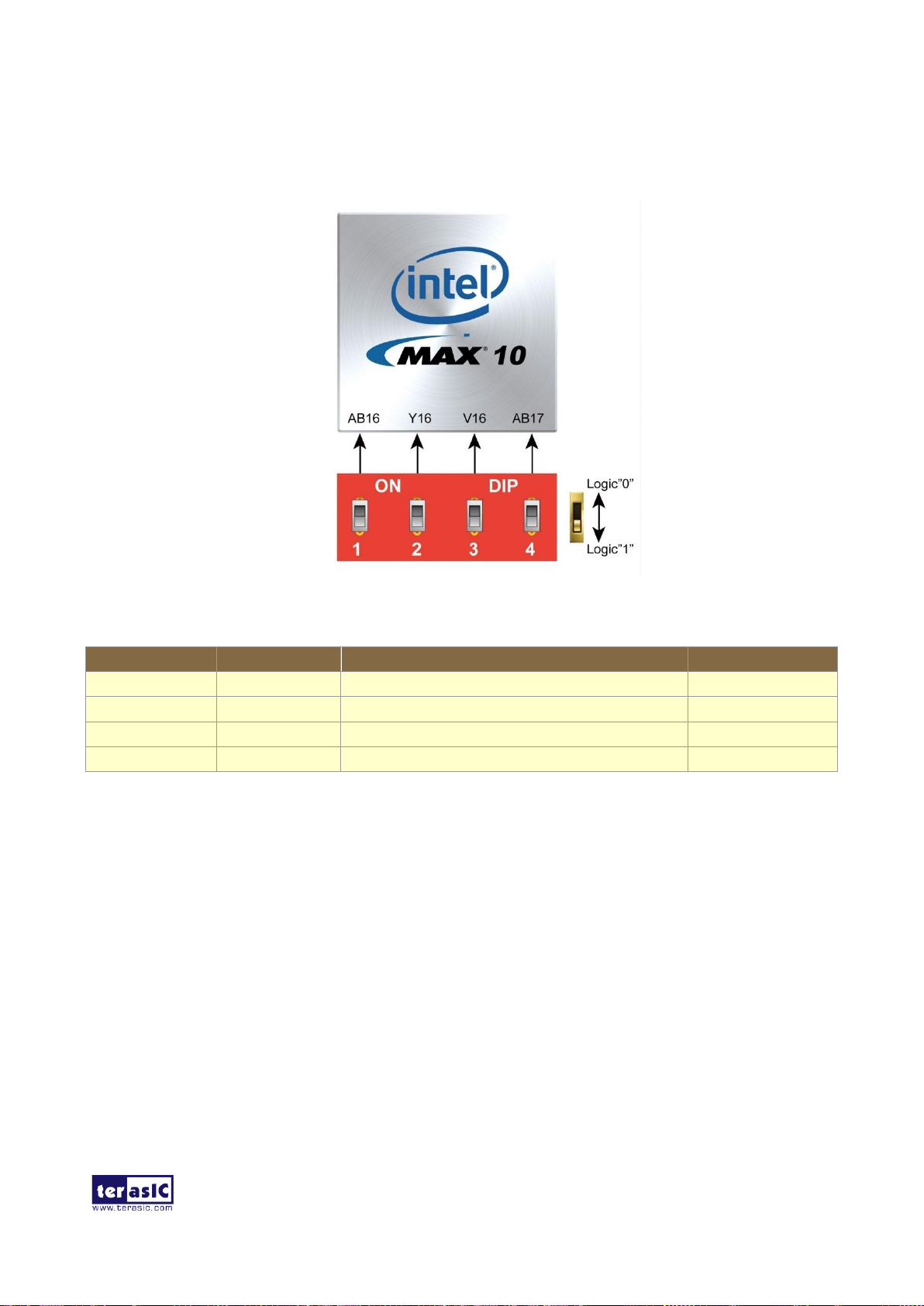

Figure 2-16 Connections between the slide switches and MAX 10 FPGA
Table 2-5 Pin Assignment of Slide Switches
Signal Name
FPGA Pin No.
Description
I/O Standard
SW[0]
PIN_AB16
Dip Switch[0]
3.3-V LVTTL
SW[1]
PIN_Y16
Dip Switch[1]
3.3-V LVTTL
SW[2]
PIN_V16
Dip Switch[2]
3.3-V LVTTL
SW[3]
PIN_AB17
Dip Switch[3]
3.3-V LVTTL
◼ User-Defined LEDs
There are also four user-controllable LEDs connected to FPGA on the board. Each LED is driven directly and individually by a pin on the MAX 10 FPGA; driving its associated pin to a high logic level turns the LED on, and driving the pin low turns it off. Figure 2-17 is the connections between LEDs and MAX 10 FPGA. Table 2-6 list the pin assignment of user LEDs.
Page 19
T-Core User Manual
18
www.terasic.com
January 14, 2020

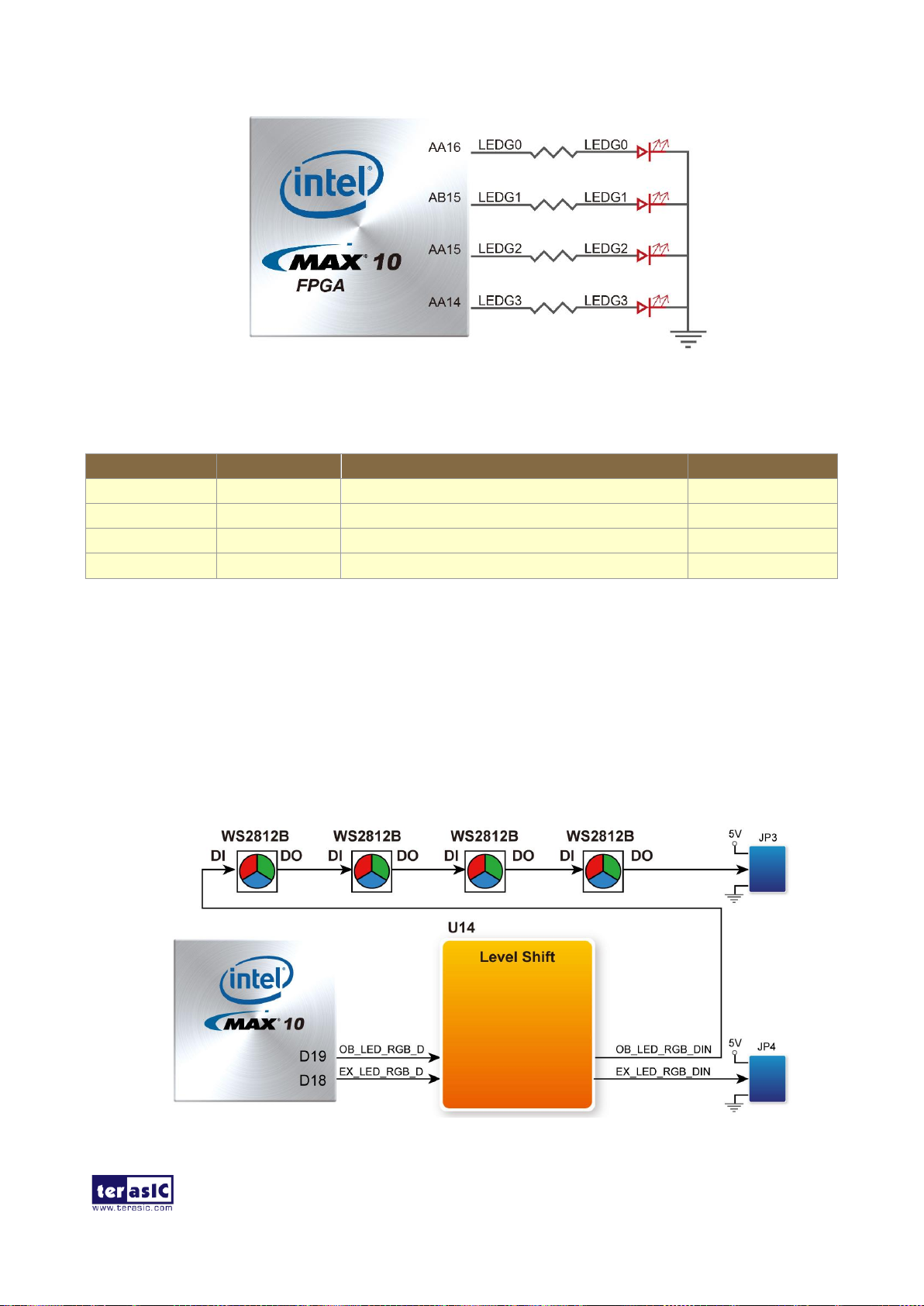

Figure 2-17 Connections between the LEDs and MAX 10 FPGA
Table 2-6 Pin Assignment of LEDs
Signal Name
FPGA Pin No.
Description
I/O Standard
LED[0]
PIN_AA16
LED [0]
3.3-V LVTTL
LED[1]
PIN_AB15
LED [1]
3.3-V LVTTL
LED[2]
PIN_AA15
LED [2]
3.3-V LVTTL
LED[3]
PIN_AA14
LED [3]
3.3-V LVTTL
22..4
4
UUssiinngg WWSS22881122BB RRGGBB LLEEDD
The board has Built-in the four Color LED (WS2812B) with intelligent controller (See Figure 2-18) and the four LED are connected in series controlled by one GPIO line. The WS2812B is an intelligent control LED light source that the control circuit and RGB chip are integrated in a package of 5050 components. It internal includes intelligent digital port data latch and signal reshaping amplification drive circuit. Also includes a precision internal oscillator and a 12V voltage programmable constant current control part, effectively ensuring the pixel point light color height consistent.
Figure 2-18 Level Shift between the REG LEDs and MAX 10 FPGA
Page 20
T-Core User Manual
19
www.terasic.com
January 14, 2020
◼ Control Method
For the WS281B RGB LED, each R/G/B color can be independently controlled, and each color can be adjusted from level 0 to 255. Therefore, each color needs to use 8bit control, and each LED needs 24bit control. The 24 bits corresponds to the Figure 2-19.
Figure 2-19 Composition of 24bit data
The logic 1 or 0 of each bit is determined as shown in Figure 2-20. It is determined by the length of the voltage level in a period. Detailed specifications can refer to Table 2-7.
Figure 2-20 Sequence Chart
Table 2-7 Code Timing
Code Status
Description
Timing
T0H
0 code, high voltage time
220ns~380ns
T1H
1 code, high voltage time
580ns~1µs
T0L
0 code, low voltage time
580ns~1µs
T1L
1 code, low voltage time
220ns~420ns
RES
Frame unit, low voltage time
>280µs
The data transfer protocol of the WS281 use single NRZ communication mode. As shown in Figure
2-21, after the pixel power-on reset, the DI port receive data from controller, the first pixel collect
initial 24bit data then sent to the internal data latch, the other data which reshaping by the internal signal reshaping amplification circuit sent to the next cascade pixel through the DO port. After transmission for each pixel, the signal to reduce 24bit. Pixel adopt auto reshaping transmit technology, making the pixel cascade number is not limited the signal transmission, only depends on the speed of signal transmission.
Page 21
T-Core User Manual
20
www.terasic.com
January 14, 2020

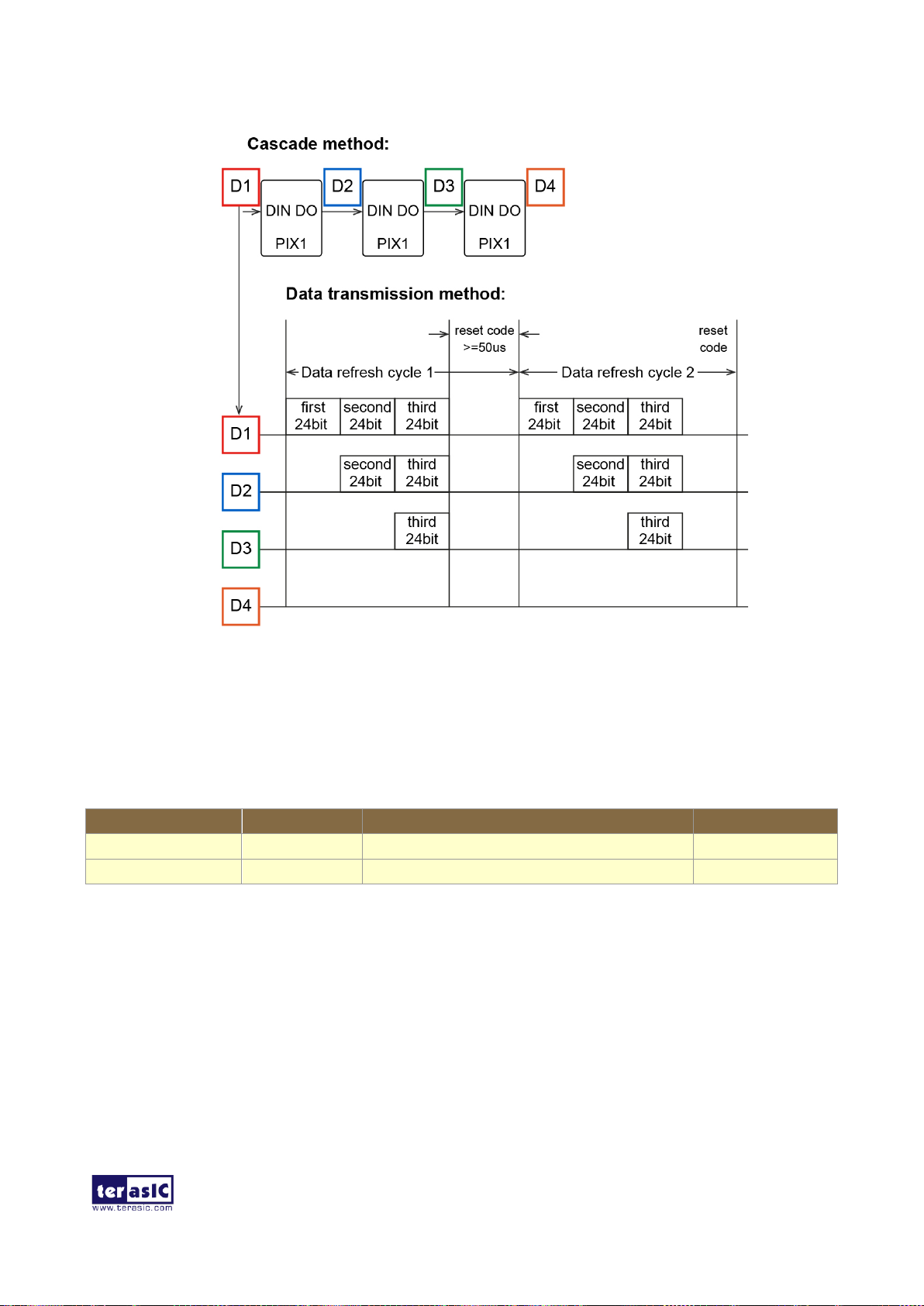

Figure 2-21 Data Transmission Method
The DIN signal level of the WS2812B is 5V, so a Level Shift will be required to raise the control signal voltage to the 5V level. Table 2-8 shows the pin assignment of RGB LED Control signal.
More information about the RGB Color LED is available in its datasheet. It can be found on manufacturer’s website or in the directory \Datasheet\RGB_LED of system CD.
Table 2-8 Pin Assignment for RGB Color LED and Extension port
Signal Name
FPGA Pin No.
Description
I/O Standard
OB_LED_RGB_D
PIN_D19
On-Board RGB LED Data IN
3.3-V LVTTL
EX_LED_RGB_D
PIN_D18
RGB LED Data IN for External Header
3.3-V LVTTL
◼ Expansion Port
In addition to the Built-in four RGB LEDs on the T-Core board, two 3-pin headers (JP3 and JP4) are reserved for user to expand more LED. Users can purchase the commercially RGB LED Line Pipe in series to make the application more widely available.
See Figure 2-22, if user expands more RGB LEDs on JP3, it must be noted that the control method should take into account that there are four on board LEDs on the front end. If you use JP4 to expand and connect more LEDs, you only need to consider the newly added LEDs for the controlling.
For these 3 pins header, detailed information is described as follows:
Page 22
T-Core User Manual
21
www.terasic.com
January 14, 2020
Pin 1 of the 3-pin header is a 5V power supply, but may not provide sufficient current for the extended LED strip (when connected a lot). Therefore, if the user needs to connect more than one LED strip, please do not connect the pin.1 of the 3-pin header, please supply it to the LED strip by an external 5V power supply.
Pin 2 of the header is a serial control signal with a voltage level of 5V. The user can define an arbitrary waveform to output.
Pin 3 is grounded. Please note that if the external light strip is attached, the ground of the light strip should be connected to this pin.
For detailed RGB LED and JP3/JP4 position, please refer to Figure 2-22, simple connection method, refer to Figure 2-23.

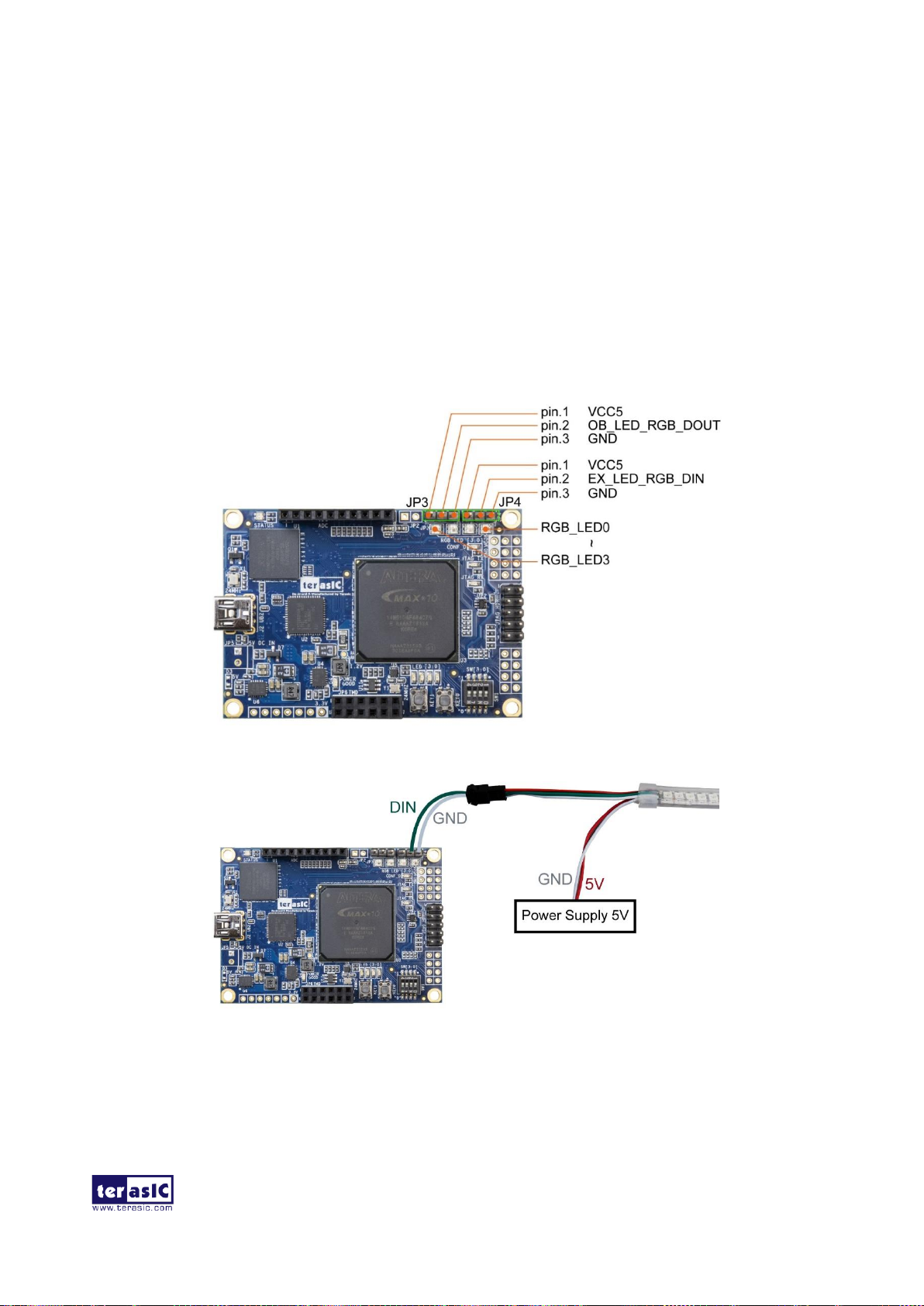

Figure 2-22 JP3 / JP4 and RGB LED Location
Figure 2-23 An example of a color light bar connection for an external power supply
22..5
5
UUssiinngg 22xx66 TTMMDD GGPPIIOO EExxppaannssiioonn HHeeaaddeerrss
The board has one 2x6 TMD (Terasic Mini Digital) expansion header. The TMD header has 8 digital GPIO user pins connected to the MAX 10 FPGA, two 3.3V power pins and two ground pins.
Page 23
T-Core User Manual
22
www.terasic.com
January 14, 2020
There are two Transient Voltage Suppressor diode arrays used to implement ESD protection for 8 GPIO user pins.
Figure 2-24 shows the connection between the TMD header and MAX 10 FPGA. Table 2-9 shows
the pin assignment of 2x6 TMD header.

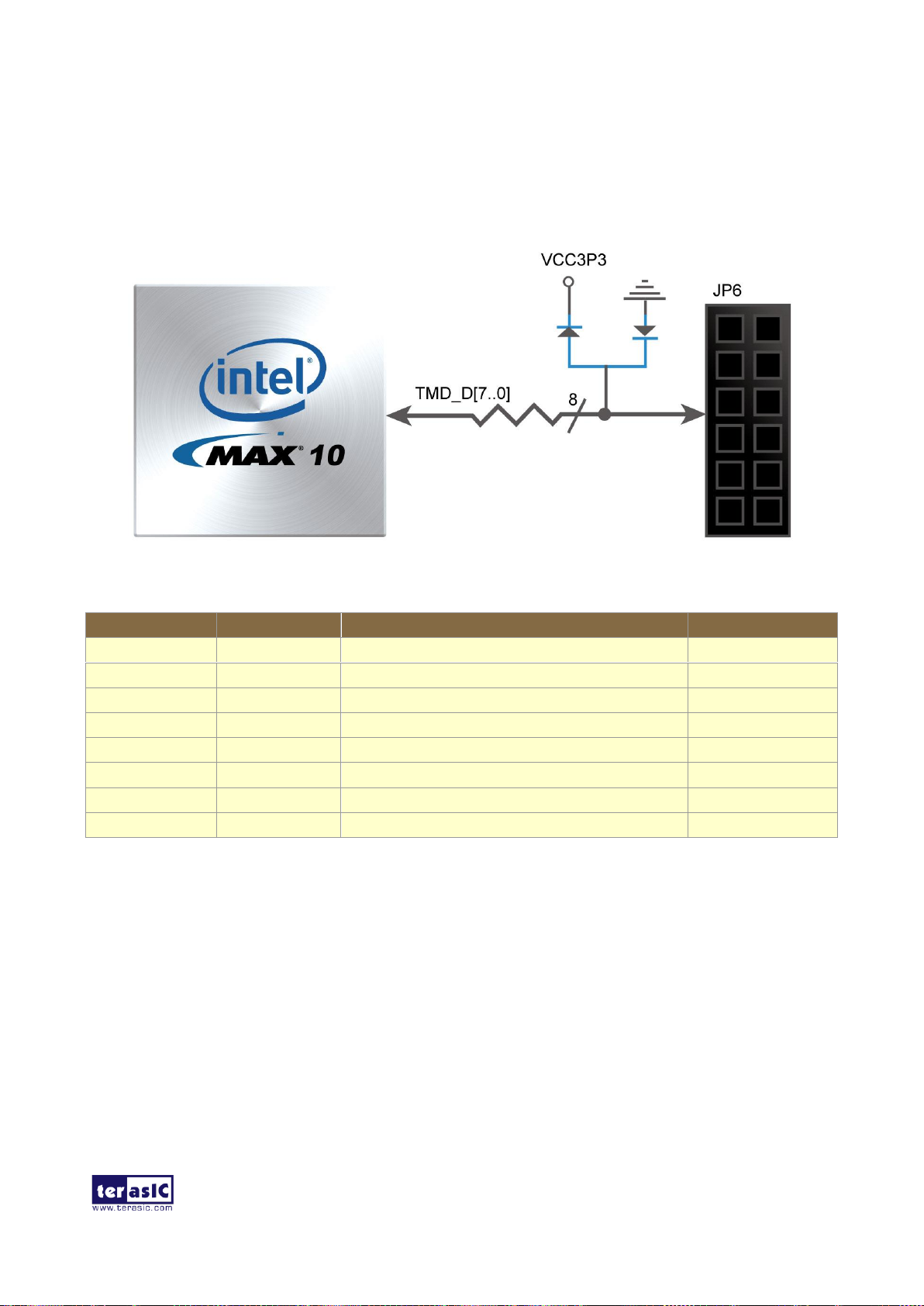

Figure 2-24 Connections between the 2x6 TMD header and MAX 10 FPGA
Table 2-9 Pin Assignment of 2x6 TMD Header.
Signal Name
FPGA Pin No.
Description
I/O Standard
TMD_D[0]
PIN_AB8
GPIO Connection [0]
3.3-V LVTTL
TMD_D[1]
PIN_AA8
GPIO Connection [1]
3.3-V LVTTL
TMD_D[2]
PIN_AA5
GPIO Connection [2]
3.3-V LVTTL
TMD_D[3]
PIN_AB5
GPIO Connection [3]
3.3-V LVTTL
TMD_D[4]
PIN_AB7
GPIO Connection [4]
3.3-V LVTTL
TMD_D[5]
PIN_AA7
GPIO Connection [5]
3.3-V LVTTL
TMD_D[6]
PIN_AB6
GPIO Connection [6]
3.3-V LVTTL
TMD_D[7]
PIN_AA6
GPIO Connection [7]
3.3-V LVTTL
22..6
6
11xx1100 AA//DD CCoonnvveerrtteerr aanndd AAnnaalloogg IInnppuutt
The board has eight analog inputs are connected to MAX 10 FPGA ADC1, through a 1x10 header (JP1) input. Any analog inputs signals sourced through the header JP1 are RC filtered by the Analog Front-End circuit, and the maximum allowable input voltage 2.5V per the MAX 10 FPGA ADC IP block. Figure 2-25 shows the connections between the header input and FPGA.
Page 24
T-Core User Manual
23
www.terasic.com
January 14, 2020

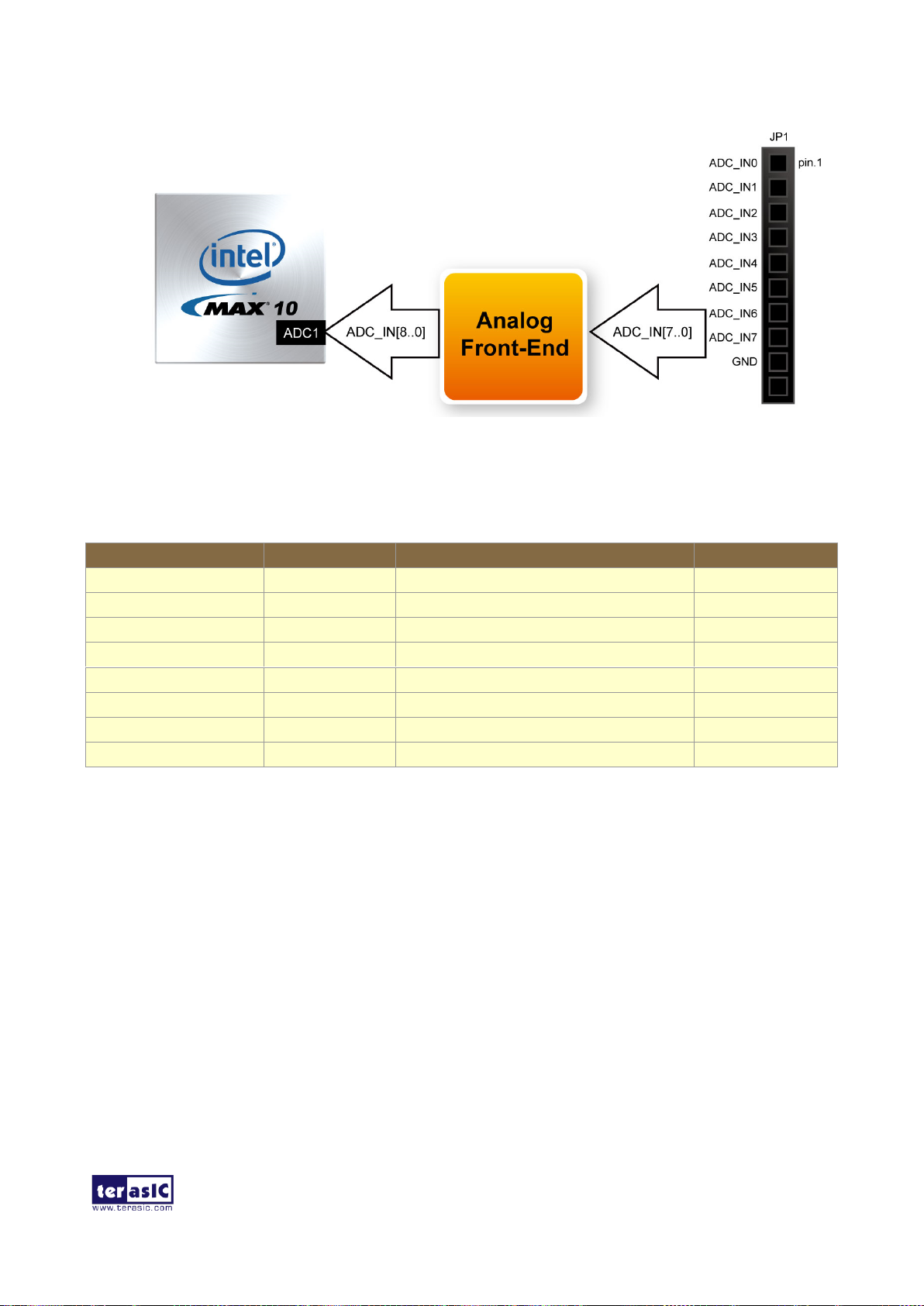

Figure 2-25 Connections between the Arduino Analog input and MAX 10 FPGA
Table 2-10 shows the pin assignment of 1x10 Analog input header.
Table 2-10 Pin Assignment of Analog Input
Signal Name
FPGA Pin No.
Description
I/O Standard
ADC_IN [0]
PIN_F5
Analog Input Data[0]
2.5-V LVTTL
ADC_IN [1]
PIN_F4
Analog Input Data[1]
2.5-V LVTTL
ADC_IN [2]
PIN_J8
Analog Input Data[2]
2.5-V LVTTL
ADC_IN [3]
PIN_J9
Analog Input Data[3]
2.5-V LVTTL
ADC_IN [4]
PIN_J4
Analog Input Data[4]
2.5-V LVTTL
ADC_IN [5]
PIN_H3
Analog Input Data[5]
2.5-V LVTTL
ADC_IN [6]
PIN_K5
Analog Input Data[6]
2.5-V LVTTL
ADC_IN [7]
PIN_K6
Analog Input Data[7]
2.5-V LVTTL
22..7
7
UUssiinngg QQSSPPII FFllaasshh
The board supports a 64M-bit serial NOR flash device for non-volatile storage, user data and program. This device has a 4-bit data interface and uses 3.3V CMOS signaling standard. Connections between MAX 10 FPGA and Flash are shown in Figure 2-26. Table 2-11 shows the QSPI Flash pin assignments
Page 25
T-Core User Manual
24
www.terasic.com
January 14, 2020

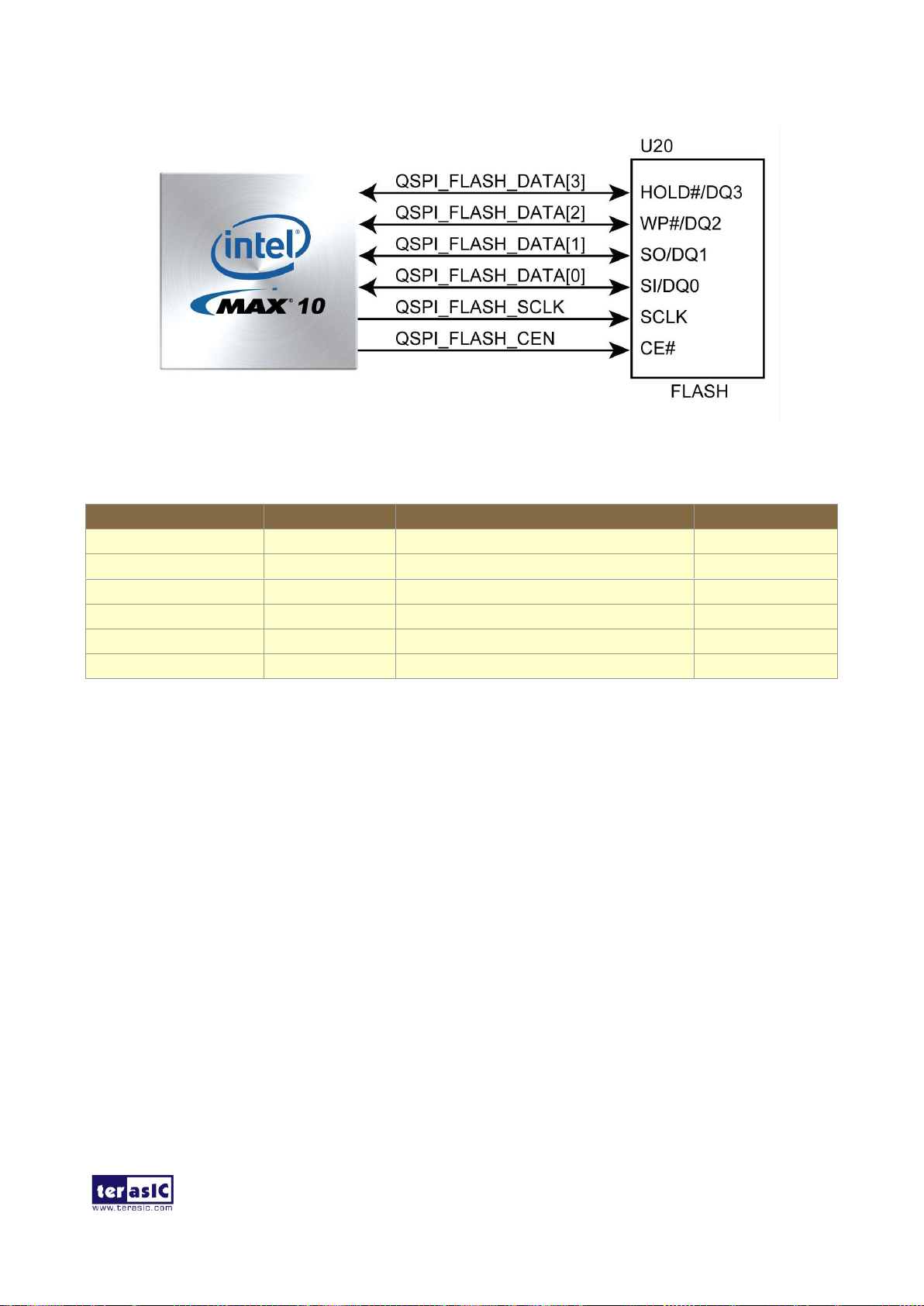

Figure 2-26 Connections between MAX 10 FPGA and QSPI Flash
Table 2-11 Pin Assignment of QSPI Flash
Signal Name
FPGA Pin No.
Description
I/O Standard
QSPI_FLASH_DATA[0]
PIN_P21
FLASH Data[0]
3.3-V LVTTL
QSPI_FLASH_DATA[1]
PIN_P18
FLASH Data[1]
3.3-V LVTTL
QSPI_FLASH_DATA[2]
PIN_R18
FLASH Data[2]
3.3-V LVTTL
QSPI_FLASH_DATA[3]
PIN_P20
FLASH Data[3]
3.3-V LVTTL
QSPI_FLASH_SCLK
PIN_P19
FLASH Data Clock
3.3-V LVTTL
QSPI_FLASH_CEN
PIN_L22
FLASH Chip Enable
3.3-V LVTTL
Page 26
T-Core User Manual
25
www.terasic.com
January 14, 2020
Chapter 3
Example Designs
This chapter provides examples of advanced designs implemented by RTL or Qsys on the T-Core board. These reference designs cover the features of peripherals connected to the FPGA, such as RGB LED. All the associated files can be found in the directory \Demonstrations of T-Core System CD.
◼ Installation of Demonstrations
To install the demonstrations on your computer: Copy the folder Demonstrations to a local directory of your choice. It is important to make sure the
path to your local directory contains NO space. Otherwise, it will lead to error in Nios II software.
Note: Quartus Prime Standard v18.1 or later is required for all T-Core demonstrations to support MAX 10 FPGA device.
33..1
1
TT--CCoorree FFaaccttoorryy CCoonnffiigguurraattiioonn
The T-Core board has a default configuration bit-stream pre-programmed, which demonstrates some of the basic features onboard. The setup required for this demonstration and the location of its files are shown as below.
◼ System Block Diagram
Figure 3-1 shows the system block diagram of this demonstration. This system can control the four
on-board green LEDs to all light on or blink. It can also control the four on-board RGB LEDs to display the Red/Green/Blue/White colors, or the 0~360degree continuous color according to the Hue of the HSL Color Model.
Page 27
T-Core User Manual
26
www.terasic.com
January 14, 2020
Figure 3-1 Block diagram of the Default demo
Below is the description for the block diagram:
1. PLL100: PLL module. Input 50MHz clock and output 100MHz clock.
2. KEY1: It is used to reset the system.
3. Color_selection: Provides four fixed colors Red/Green/Blue/White or the 0~360 degree
continuous color according to the Hue of the HSL Color Model. When the KEY0 is pressed, the color of the four on-board RGB LEDs is depending on the SW[1:0] setting, they will display Red/Green/Blue/White color respectively when the SW[1:0] is set as 00/01/10/11. If the KEY0 is not pressed, the four RGB LEDs will display 0~360 degree continuous color.
4. LED_flicker: It controls the four on-board green LEDs to all light on or blink with 1Hz
frequency. The four LEDs will all light on when KEY0 is pressed, or will blink with 1Hz if the KEY0 is not pressed.
5. WS2812: It is the WS2812 IC control IP, it can control any WS2812 IC, it contains two main
parts:
TWO_PORT_RAM: User can write in the R[7:0] G[7:0] B[7:0] data to control any one of RGB LEDs to be light as any colors. For example, user can set ram_wraddress=2, ram_data = {R[7:0],
G[7:0], B[7:0]} = {8’h00,8’hff ,8’h00} to make the RGB LED3 light as Green, then set the
ram_wrclock to 0->1->0, the data will be written to the RAM. ILED_CONTROLLER: After the LED RGB data is written successfully, active the
update_request as “1” to inform the ILED_CONTROLLER read out the RGB data in sequence
through the TWO_PORT_RAM, and input to the corresponding LED. The update_request must
return to “0” after a short of delay (>0.02MHz). The DOUT is the bit string data, the “0”/“1”
Sequence chart of each bit is generated according to WS2812 datasheet page 4. The sequence chart of each RGB bit is generated according to WS2812 datasheet page 5. After all the data is transferred to WS2812 RGB LED, this module will return update_done =”1” to indicates the data transmission is completed.
Page 28
T-Core User Manual
27
www.terasic.com
January 14, 2020
6. COLOR_Processer: It will extract the color date from Coloe_selection according to WS2812
IP controlling request, then output to the TWO_PORT_RAM in WS2812 IP, when this is completed, it will inform the ILED_CONTROLLER in WS2812 IP to sequence read out the RGB data stored in TWO_PORT_RAM, then the ILED_CONTROLLER will transfer the RGB
data to each WS2812 IC and wait for update_done = “1” returned by ILED_CONTROLLER, it
indicates the process is completed.
◼ Demonstration File Locations
• Project directory: \Default
• Bitstream used: T_CORE_Default.sof, T_CORE_Default.pof
◼ Demonstration Setup and Instructions
• Connect the Mini USB connector (J2) of the T-Core board to the host PC with a USB cable and install the USB-Blaster II driver if necessary.
• Execute the demo batch file “test.bat” from the directory \Default\demo_batch\
• If the KEY0 is not pressed, the four on-board green LEDs will blink in 1Hz and the four
on-board RGB LEDs will display 0~360 degree continuous color according to the Hue of the HSL Color Model.
• If the KEY0 is pressed on (do not release), the four on-board green LEDs will all light on, the color of the on-board four RGB LEDs is depending on SW[1:0], they will display Red/Green/Blue/White color respectively when the SW[1:0] is set as 00/01/10/11.
• Figure 3-2 shows the color of the four on-board green LEDs and RGB LEDs display.

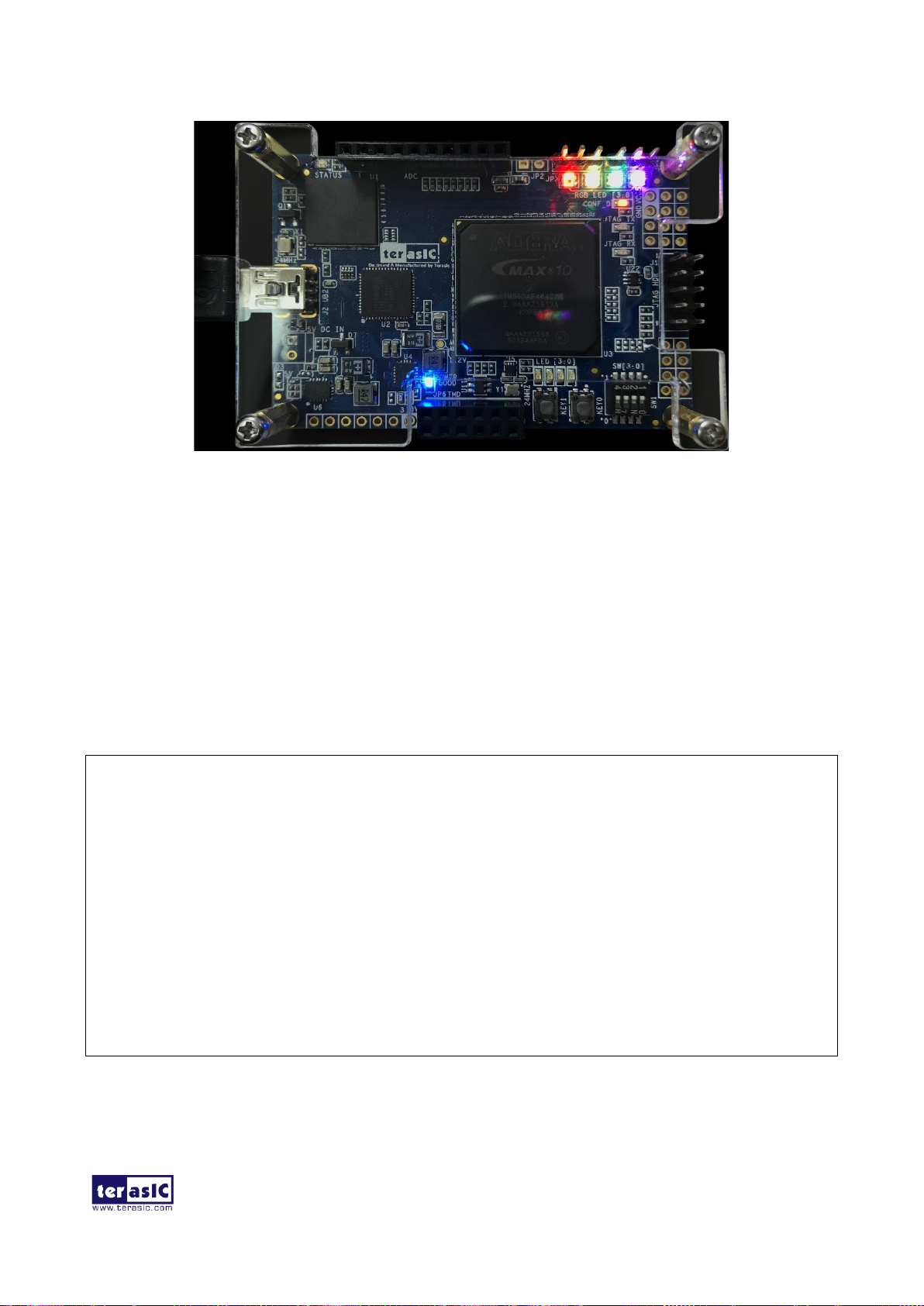

Figure 3-2 On-Board Green LED and RGB LED display
Page 29
T-Core User Manual
28
www.terasic.com
January 14, 2020
◼ Restore Factory Configuration
• Connect the mini USB connector (J2) of the T-Core board to the host PC with a USB cable and install the USB-Blaster II driver if necessary.
• Execute the demo batch file “program.bat” from the directory \Default\demo_batch\
• After the program is executed successfully, the program message as shown in Figure 3-3.
Please press any key to continue and the window will be closed.

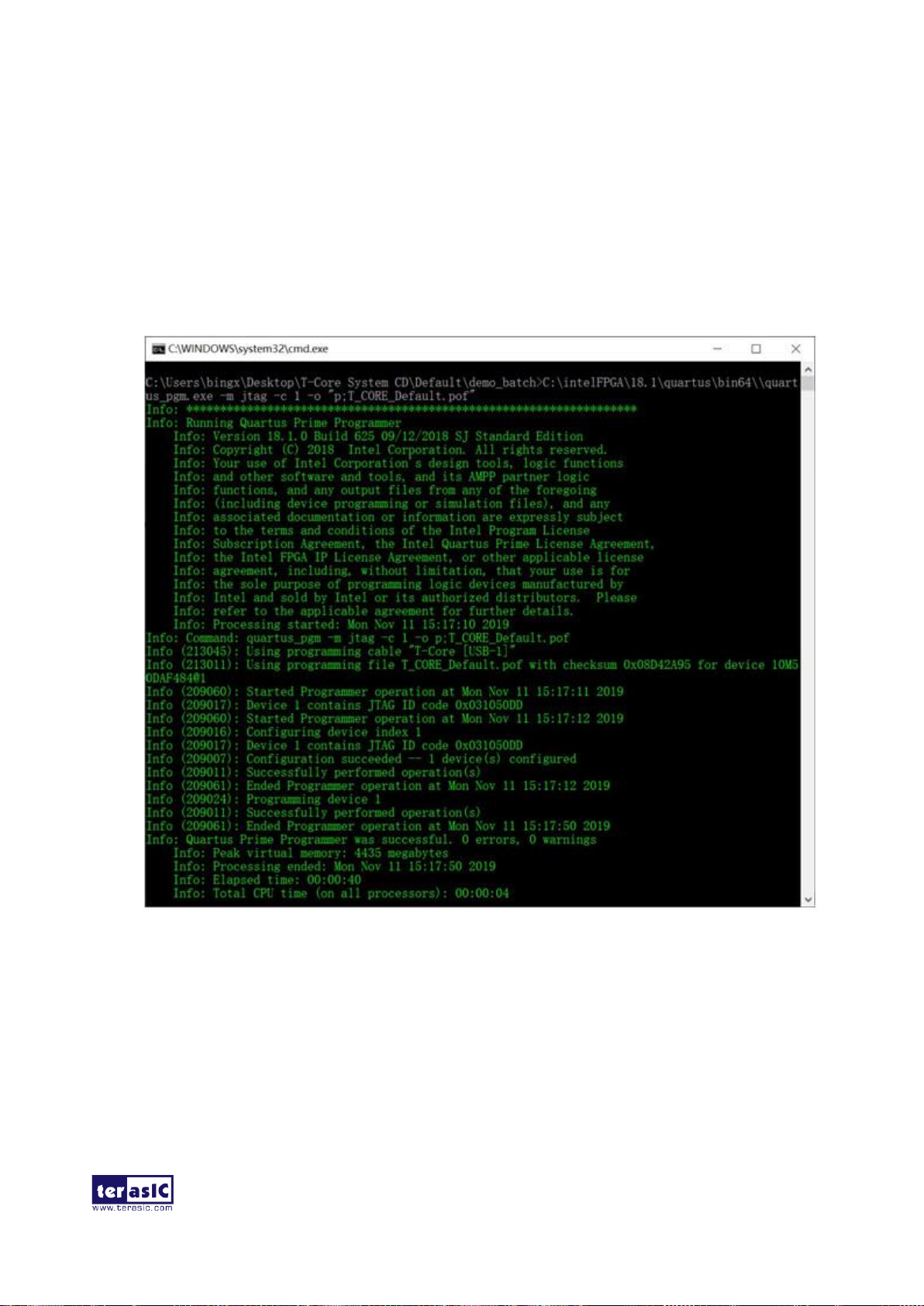

Figure 3-3 Quartus Prime Program MAX 10 CFM message
33..2
2
CCoonnttrrooll RRGGBB LLEEDD iinn NNiiooss IIII
Based on this demonstration, user can quickly learn how to develop C language program to control the RGB LEDs, it provides corresponding API function and allows the user to quickly started.
◼ System Block Diagram
Figure 3-4 shows the system block diagram of this demonstration. Nios II CPU and WS2812
Controller must run in 100MHz, the on-board OSC 50MHz needs to be multiplied to 100MHz
Page 30
T-Core User Manual
29
www.terasic.com
January 14, 2020
through the PLL, the JTAG is used to print information, the Nios II required a system time, the C language program is stored in On-Chip memory, user can develop C program to call the API WS2812 Controller, then control the RGB LEDs. User can also control the external RGB LED by modifying the parameters in the C program.
Figure 3-4 Block diagram of the SDRAM test in Nios II
◼ Design Tools
• Quartus Prime v18.1
• Nios II Eclipse v18.1
◼ Demonstration Source Code
• Quartus project directory: \RGBLED_NIOS
• Nios II Eclipse directory: \RGBLED_NIOS\Software
◼ Nios II Project Compilation
• Click “Clean” from the “Project” menu of Nios II Eclipse before compiling the reference design in the Nios II Eclipse.
◼ Demonstration Batch File
• The files are located in the director: \RGBLED_NIOS\demo_batch
• The folder includes the following files:
Page 31
T-Core User Manual
30
www.terasic.com
January 14, 2020
• Batch file for USB-Blaster II: test.bat and test.sh
• FPGA configuration file: T_CORE.sof
• Nios II program: WS2812_Test.elf
◼ Demonstration Setup
• Quartus Prime v18.1 and Nios II v18.1 must be pre-installed on the host PC.
• Connect the T-Core board to the host PC with a USB cable and install the USB-Blaster driver if
necessary.
• Execute the demo batch file “test.bat” from the directory \REGLED_NIOS\demo_batch
• After the program is downloaded and executed successfully, a prompt message will be
displayed in nios2-terminal.
• The program will display the test progress and result, as shown in
Figure 3-5.
• As shown in Figure 3-6, the RGB LED[3:0] display purple/green/orange/red and red/orange/green/purple respectively in turns.
Page 32
T-Core User Manual
31
www.terasic.com
January 14, 2020

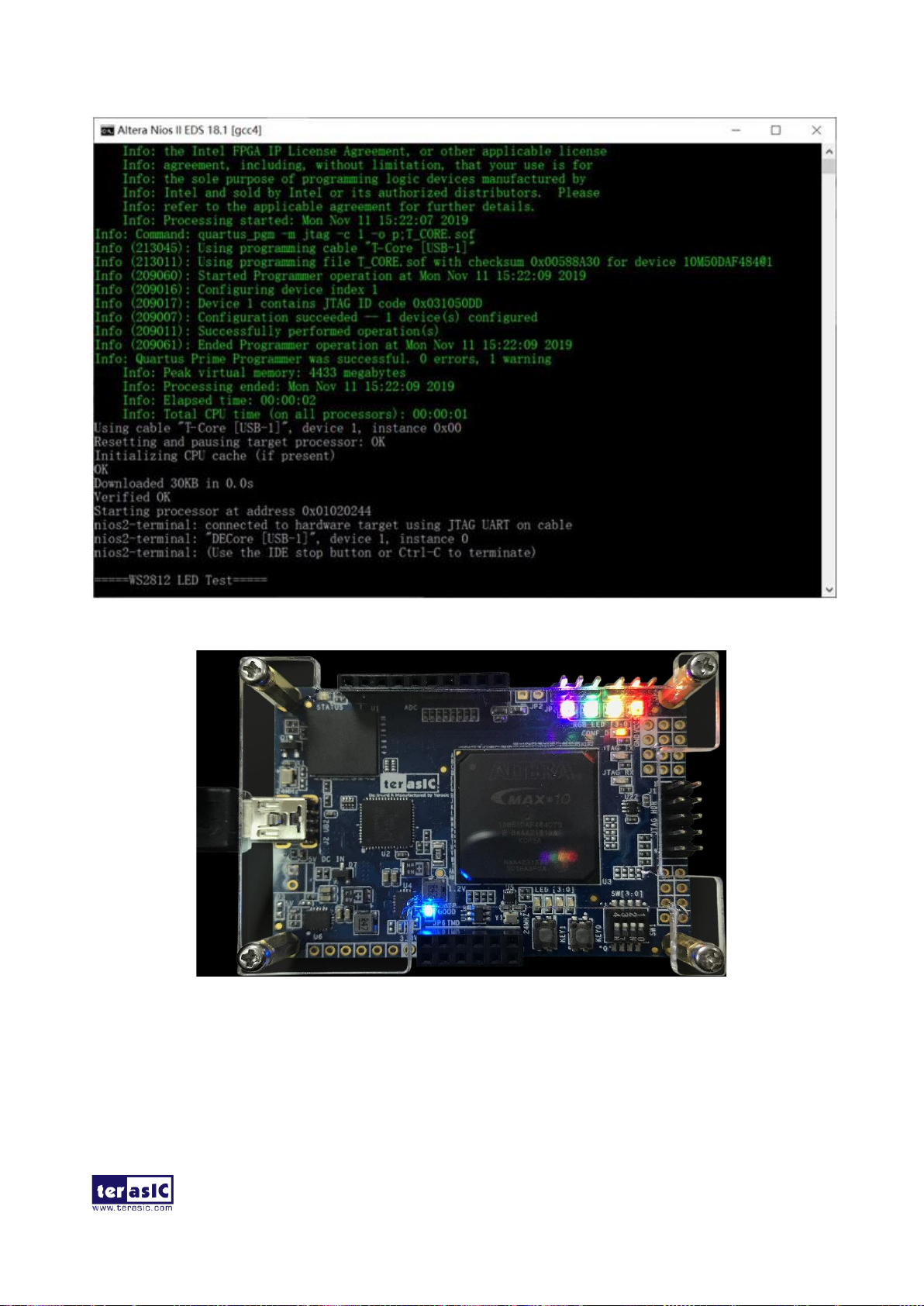

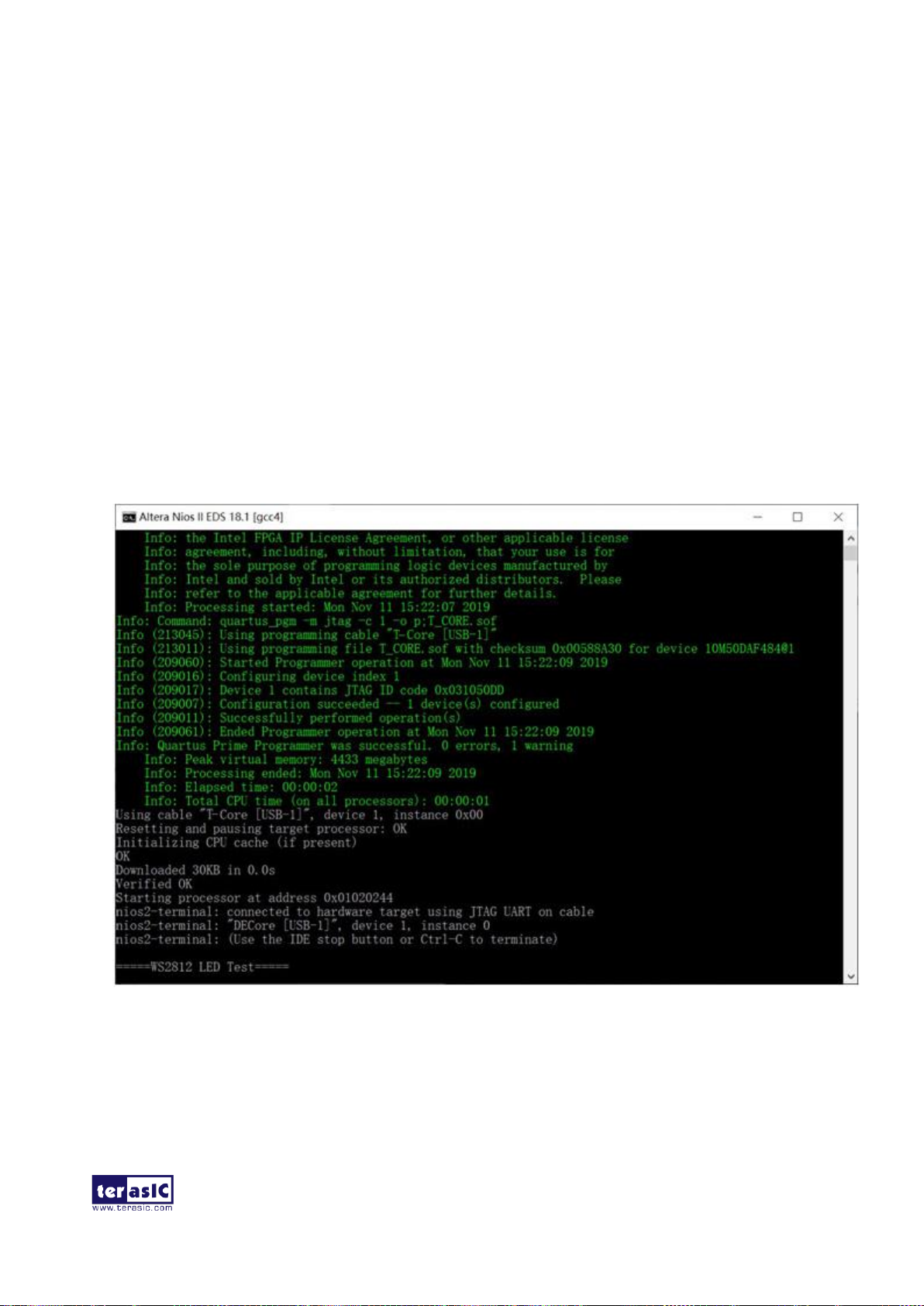

Figure 3-5 Display the progress and the result for the WS2812 test in Nios II
Page 33
T-Core User Manual
32
www.terasic.com
January 14, 2020
Figure 3-6 The RGB LEDs display after executing the batch file
33..3
3
CCoonnttrrooll EExxtteerrnnaall RRGGBB LLEEDD iinn NNiiooss IIII
This demonstration is very similar to the one in section 3.2. The difference is that user need to connect external RGB LEDs. Without the external power, the T-Core can control almost 10~20 external RGB LEDs, the quantities of external RGB LEDs are depending on the user’s code which is used to control the LED lightness.
User can refer to below demonstration to modify the C program and control the external RGB LEDs.
#define LED_NUM 143 // modify LED number
……
//call function WS2812_LED_SET(alt_u32 SelLED,alt_u8 R_Color, alt_u8 G_Color, alt_u8 B_Color)
//SelLED: Select LED ,Red : 8Bit ,Green: 8Bit ,Blue: 8Bit
WS2812_LED_SET(100,30,0,0); // set number 100 LED to red color.
WS2812_update();//update status
……
◼
◼
DDeessiiggnn TToooollss
• Quartus Prime v18.1
Page 34
T-Core User Manual
33
www.terasic.com
January 14, 2020
• Nios II Eclipse v18.1
◼
◼
DDeemmoonnssttrraattiioonn SSoouurrccee CCooddee
• Quartus project directory: \RGBLED_ NIOS_EXT
• Nios II Eclipse directory: \ RGBLED_ NIOS_EXT\software
◼
◼
DDeemmoonnssttrraattiioonn BBaattcchh FFiillee
• The files are located in the director: \ RGBLED_ NIOS_EXT\demo_batch
• The folder includes the following files:
• Batch file for USB-Blaster: test.bat and test.sh
• FPGA configuration file: T_CORE.sof
• Nios II program: WS2812_Test.elf
◼
◼
DDeemmoonnssttrraattiioonn SSeettuupp
• Quartus Prime v18.1 and Nios II v18.1 must be pre-installed on the host PC.
• As shown in Figure 3-7, connect the external RGB LED strip to the JP3 or JP4 port of T-Core
board, the pin marked with red box is connected to VCC, the pin marked with green box is connected to the signal, the pin marked with yellow box is connected to GND.
• Connect the T-Core board to the host PC with a USB cable and install the USB-Blaster driver if necessary.
• Execute the demo batch file “test.bat” from the directory \RGBLED_ NIOS_EXT\demo_batch
• After the program is downloaded and executed successfully, a prompt message will be
displayed in nios2-terminal.
• The color of external RGB LED strip will change in turn.
Page 35
T-Core User Manual
34
www.terasic.com
January 14, 2020

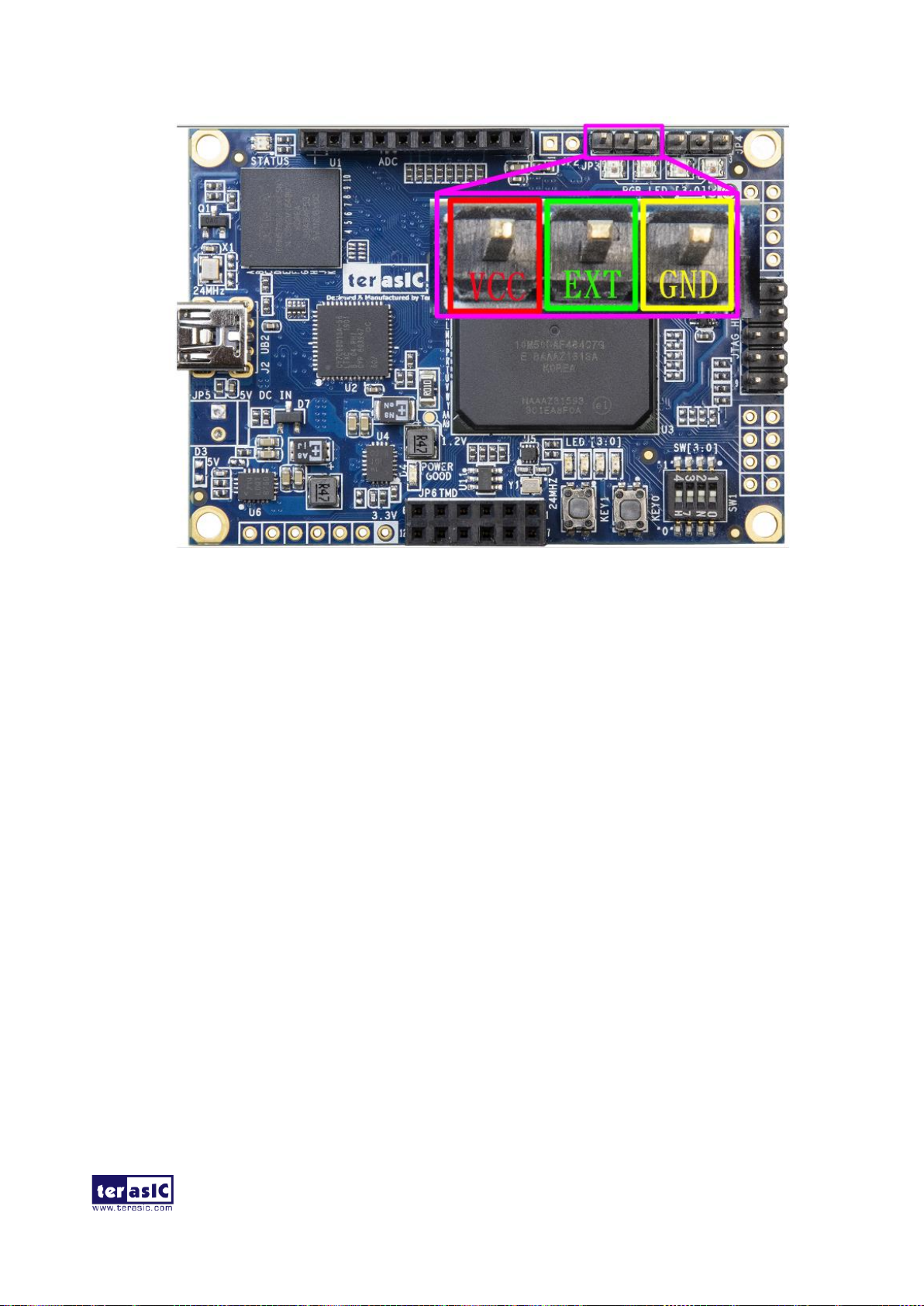

Figure 3-7 External RGB LED connection diagram
33..4
4
AADDCC MMeeaassuurreemmeenntt
This demonstration shows how to use the FPGA on-die ADC to measure the input power voltage from the eight analog input pins among the ADC connector. The measured voltage is displayed on the Signal Tap. Figure 3-8 shows the block diagram of this demonstration. The main control uses the Intel ADC IP to retrieve the 12-bit digitalized analog value according the channel specified by the SWITCH on the T-Core board. The input voltage can be calculated based on the 12-bit digital value. Finally, the voltage value will be displayed on the Signal Tap Logic Analyzer.
The 12-bit represents 0~2.5V input voltage to the ADC hardware. The input voltage to the ADC analog input can be calculated with the formula listed below:
Voltage input= (12-bit integer value)/4096 x 2.5
Page 36
T-Core User Manual
35
www.terasic.com
January 14, 2020

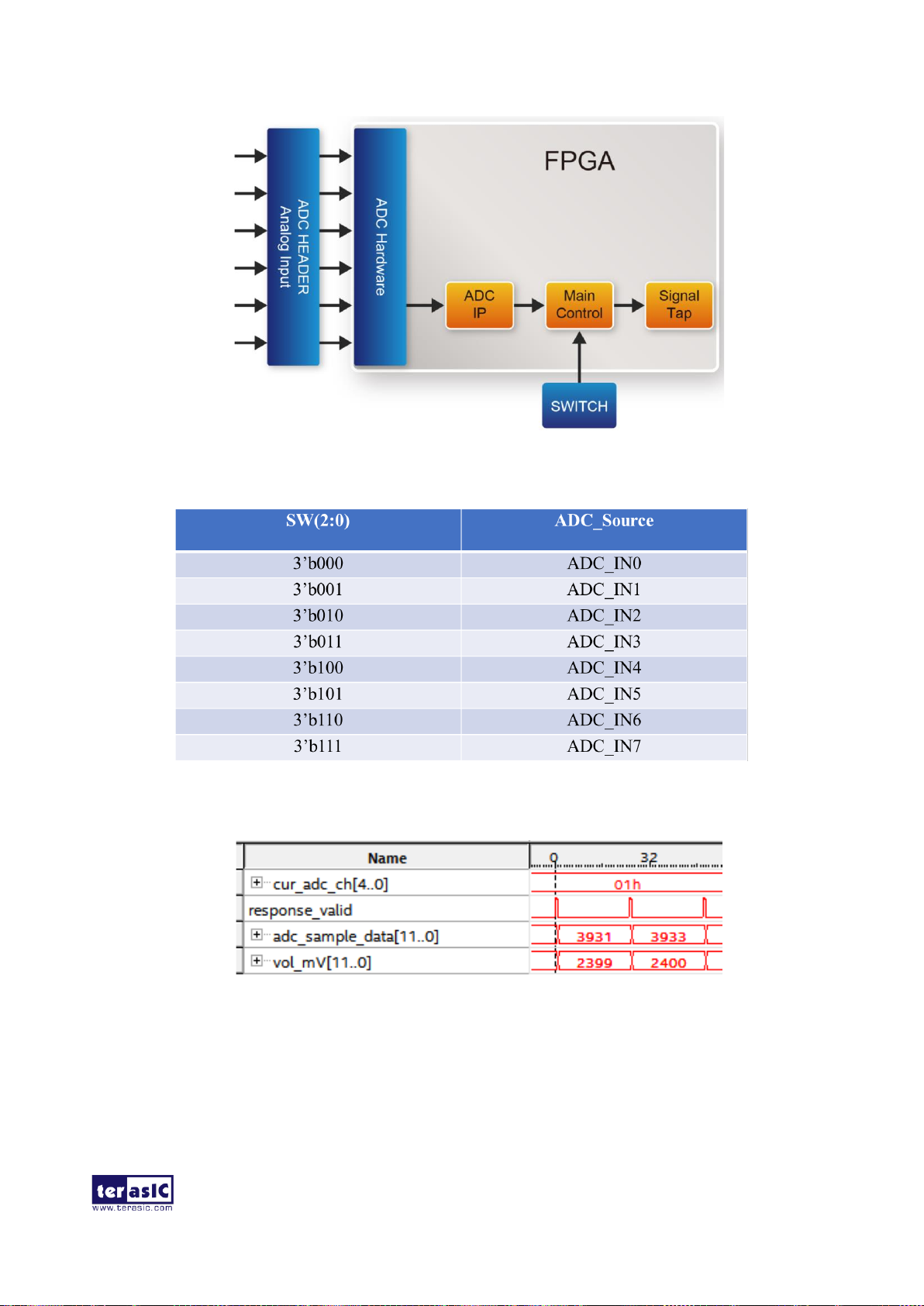

Figure 3-8 Block diagram of the ADC measurement demonstration
Table 3-1 The SW[2:0] Setting
In the demonstration, a Signal Tap is provided to display the retrieved 12-bit digitalized value and the calculated voltage for the input power to the analog input as shown in Figure 3-9.
Figure 3-9 Signal Tap of ADC
◼
◼
DDeessiiggnn TToooollss
• Quartus Prime 18.1 Standard Edition
Page 37
T-Core User Manual
36
www.terasic.com
January 14, 2020
◼
◼
DDeemmoonnssttrraattiioonn SSoouurrccee CCooddee
• Quartus Project directory: ADC_RTL
• Bitstream used: T_CORE.sof
• Demo Batch File: ADC_RTL\demo_batch\test.bat
◼
◼
DDeemmoonnssttrraattiioonn SSeettuupp
• Make sure Quartus Prime is installed on your PC
• Connect analog source to the analog input as shown in Figure 3-10.

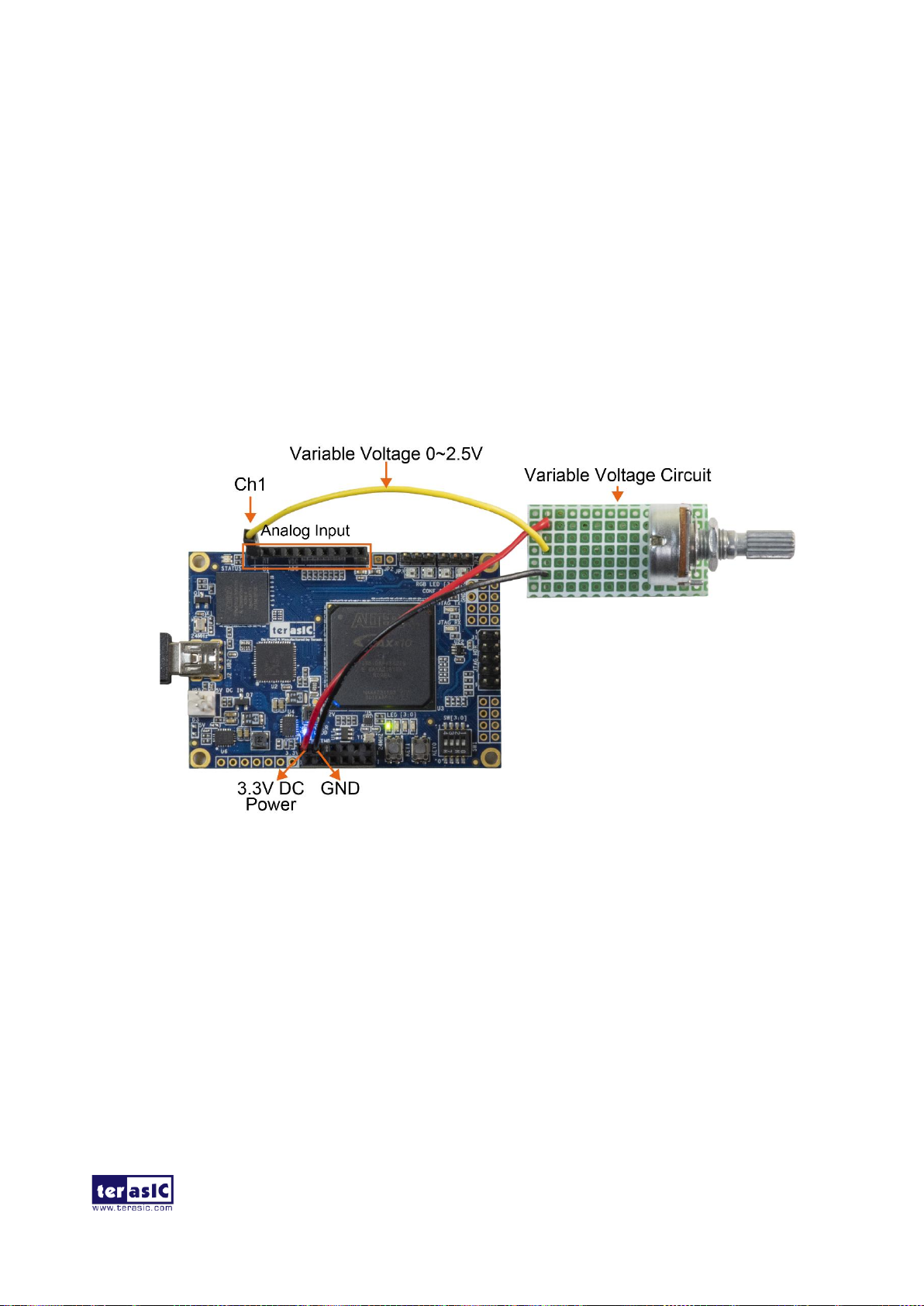

Figure 3-10 Connect analog source to the analog input
• Use the USB Cable to connect your PC and the FPGA board and install USB Blaster II driver if necessary.
• Execute the demo batch file “test.bat” from the directory ADC_RTL\demo_batch.
• Use SW[2:0] to specify measured analog input channel.
• The measured channel and voltage will be displayed on Signal Tap Logic Analyzer as shown in
Figure 3-11.
In the above steps we use a self-made variable voltage output circuit. It uses the T-Core 3.3V as the power source, the output voltage is adjusted by the divider resistance and the variable resistor of the circuit, which can convert the T-Core 3.3V to a 0~2.5V analog input (to the ADC_IN0 channel).
Page 38
T-Core User Manual
37
www.terasic.com
January 14, 2020
Note: Users can input their own power source, please make sure the input voltage is 0~2.5V, otherwise there is a risk of damage to the development board.
Figure 3-11 Signal Tap Logic Analyzer displays the measured channel and voltage
33..5
5
RRIISSCC--VV
◼ RISC-V Brief Introduction
RISC-V is a free and open Instruction Set Architecture (ISA) enabling a new era of processor innovation through open standard collaboration. Any organization or individual can design their own processor based on the RISC-V architecture. Freedom E300, a RISC-V core implemented in RTL, is realized on T-Core FPGA Board. For more information about Freedom E300, user can learn more from web (https://github.com/sifive/freedom).
Figure 3-12 shows the top-level block diagram of the Freedom E300 which contains an E31
Coreplex, a selection of flexible I/O peripherals, a dedicated off-chip Quad-SPI flash controller with execute-in-place support, On-chip Memory, clock generation, and an always-on (AON) block. In addition, custom accelerator can be added to provide application-specific processing.
Page 39
T-Core User Manual
38
www.terasic.com
January 14, 2020

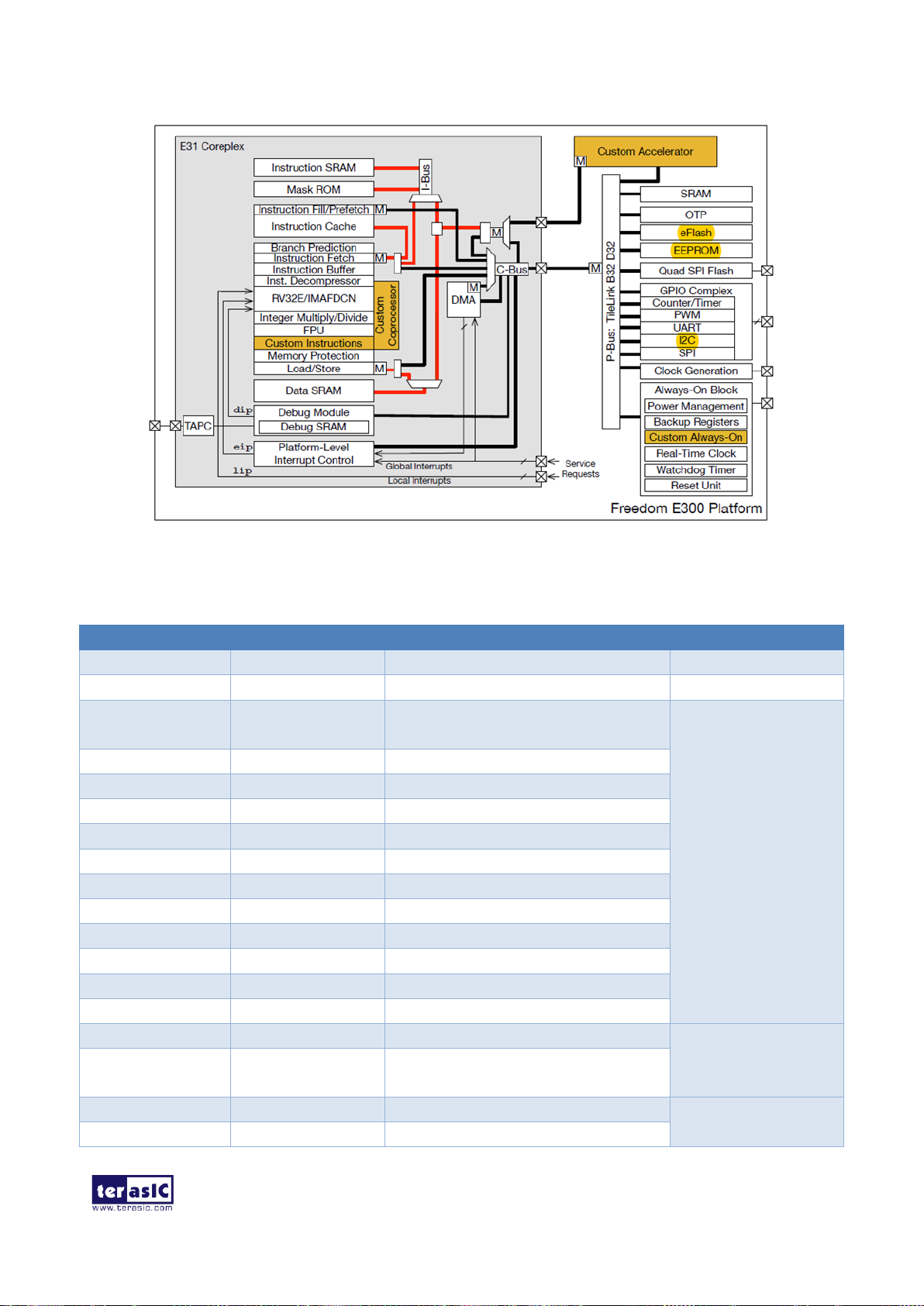

Figure 3-12 Top-Level Block Diagram of the E300 platform
The memory map of Freedom E300 is shown in Table 3-2.
Table 3-2 Memory map of Freedom E300
Base
Top
Description
Notes
0x0000_0000
refer E3 Coreplex Manual
0x1000_0000
Always-On (AON)
E3 Coreplex
0x1000_8000
Power, Reset, Clock, Interrupt (PRCI)
On-Chip Peripherals
0x1001_0000
On-chip OTP control
0x1001_1000
On-chip eFlash control
0x1001_2000
GPIO0
0x1001_3000
UART0
0x1001_4000
QSPI0
0x1001_5000
PWM0
0x1002_3000
UART1
0x1002_4000
QSPI1
0x1002_5000
PWM1
0x1003_4000
QSPI2
0x1003_5000
PWM2
0x2000_0000
QSPI0 XIP
Off-Chip Non-Volatile Memory
0x4000_0000
Additional I/O or RAM
0x8000_0000
Instruction and Data RAM
On-Chip Volatile Memory
0x8002_0000
Additional RAM
Page 40
T-Core User Manual
39
www.terasic.com
January 14, 2020
◼ About Quartus Project
The original Freedom E300 was implemented in the Scala and is not suitable for the T-Core FPGA board. We modified the Scala source code so that it can run on T-Core. Since the Verilog code generated by the Scala is hardly readable, we encapsulate it. Place the clock, reset, JTAG interface, QSPI interface, GPIO interface (including various peripherals such as UART, I2C, SPI, etc.) on the top-level port for easy logic operation and pin connection to the FPGA. The interface of the top file is as follows.
Add the PLL, Clock, LED and control logic to the Freedom_E300_Wrapper to generate the complete Quartus Project. The block diagram is shown below. The completed Quartus project is detailed in the demonstration directory.
Page 41
T-Core User Manual
40
www.terasic.com
January 14, 2020
Figure 3-13 Quartus Project System Block
◼ How to Run Demo (Using Ubuntu)
◆ Host PC
A Linux system is required to compile the RISC-V C-code project and download the binary file to the T-Core QSPI Flash. In the following demo, Ubuntu 16.04 is used and recommended. Quartus Prime (or Quartus Programmer), USB Blaster II Driver, RISC-V BSP should be installed on the host PC before running the demo.
◆ Intel Quartus Prime
Intel Quartus Prime 18.1 Standard Edition can be download from web site: http://fpgasoftware.intel.com/18.1/?edition=standard&platform=linux&download_manager=dlm3.
For Quartus Prime installation, please make sure the MAX 10 device is included.
Page 42
T-Core User Manual
41
www.terasic.com
January 14, 2020
Figure 3-14 Download Quartus Prime 18.1 Standard Edition
◆ USB-Blaster II Driver
The Intel Quartus Prime software accesses USB-Blaster II through USB file system. After installing the Quartus Prime software, user need to change the port permissions.
Page 43
T-Core User Manual
42
www.terasic.com
January 14, 2020
1. Create a file named /etc/udev/rules.d/51-usbblaster.rules.
2. Add the following lines.
SUBSYSTEMS=="usb", ATTRS{idVendor}=="09fb", ATTRS{idProduct}=="6010", MODE="0666"
SUBSYSTEMS=="usb", ATTRS{idVendor}=="09fb", ATTRS{idProduct}=="6810", MODE="0666"
◆ T-Core RISC-V BSP
After Quartus Prime and USB-Blaster II driver are installed, please download the T-Core RISC-V BSP (TCORE-RISCV-FreedomE300.tar.gz) from the web (http://T-Core.terasic.com/cd). Then, decompress the file using command: tar -zxvf TCORE-RISCV-FreedomE300.tar.gz. So far, you can see TCORE-RISCV-FreedomE300 file. For more information about T-Core RISC-V BSP, please refer following table.
Table 3-3 T-Core RISC-V BSP
file or folder
Description
Quartus_Project/TCORE_FreedomE 300
a Quartus Prime project, contains a RISC-V Core, Freedom E300.
Quartus_Project/ TCORE_FreedomE300/V/Freedom_ E300_Wrapper.v
the top file of Freedom E300. User can use it to connect to do logic operation, etc.
Toolchains
prebuilt tools for compiling and debugging programs.
freedom-e-sdk/bsp/drivers
contains some driver code, such as the underlying driver code for PLIC modules, PRCI, etc.
freedom-e-sdk/bsp/include
contains header files for register address and parameter of modules, such as SPI, UART, GPIO, etc.
freedom-e-sdk/bsp/libwrap
contains specific implementation of underlying library functions related to the hardware platform.
freedom-e-sdk/bsp/env/freedom-e300
-terasic
contains Terasic T-Core board supported package.
freedom-e-sdk/software
contains demonstration for reference.
freedom-e-sdk/Makefile
the main Makefile for compilation and debug.
◆ Download a pof file to FPGA
Follow the procedures below to write RISC-V FPGA configure data into MAX10 internal flash.
o Make sure SW2 is changed to correct location, set SW2.1=0 and SW2.2=1, as shown in
Figure 3-15 to ensure MAX10 is on JTAG chain, and RISC-V is off JTAG chain.
Page 44
T-Core User Manual
43
www.terasic.com
January 14, 2020
Figure 3-15 SW2 Setting
o Make sure Quartus Prime 18.1 Standard Edition is installed to the host PC. o Connect the T-Core board (J2) to the host PC via the USB cable. o Go to TCORE-RISCV-FreedomE300/Quartus_Project/TCORE_FreedomE300/demo_batch
directory using command: cd TCORE-RISCV-FreedomE300/Quartus_Project/TCORE_FreedomE300/demo_batch.
o Execute command: sh programming_pof.sh to configure the FPGA.
◆ Download bitstream to QSPI Flash Follow the procedures below to compile a C-code project and download the generated binary file
into QSPI Flash via on-board RISC-V JTAG.
o Remove the USB Blaster Cable from T-Core to power off the board. o Set SW2.1=1 and SW2.2=0 as Figure 3-16 to ensure MAX10 is off JTAG chain, and
RISC-V is on JTAG chain.
Figure 3-16 SW2 Setting
o Connect the T-Core board (J2) to the host PC via the USB cable. o Change the directory to TCORE-RISCV-FreedomE300/freedom-e-sdk using cd command. o Compile software by executing command: make software. o Download the binary file by executing command: make upload.
Page 45
T-Core User Manual
44
www.terasic.com
January 14, 2020

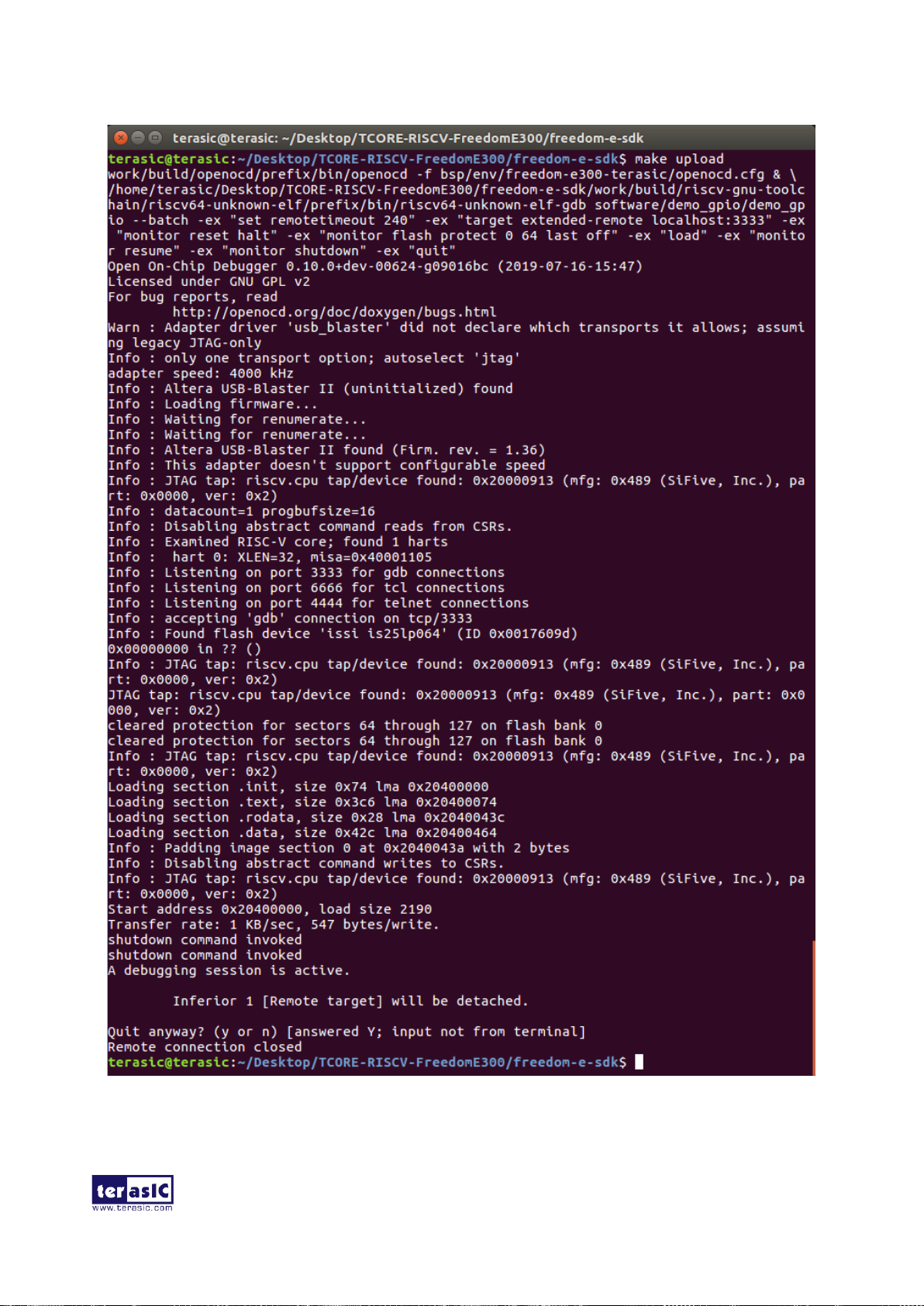

Figure 3-17 Compile and download process
Page 46
T-Core User Manual
45
www.terasic.com
January 14, 2020
Note: When you programming the QSPI Flash, you may encounter the error like Figure 3-18. If so, you can execute the command: sudo apt-get install libfdti1-dev, as shown in Figure 3-19, to solve it.

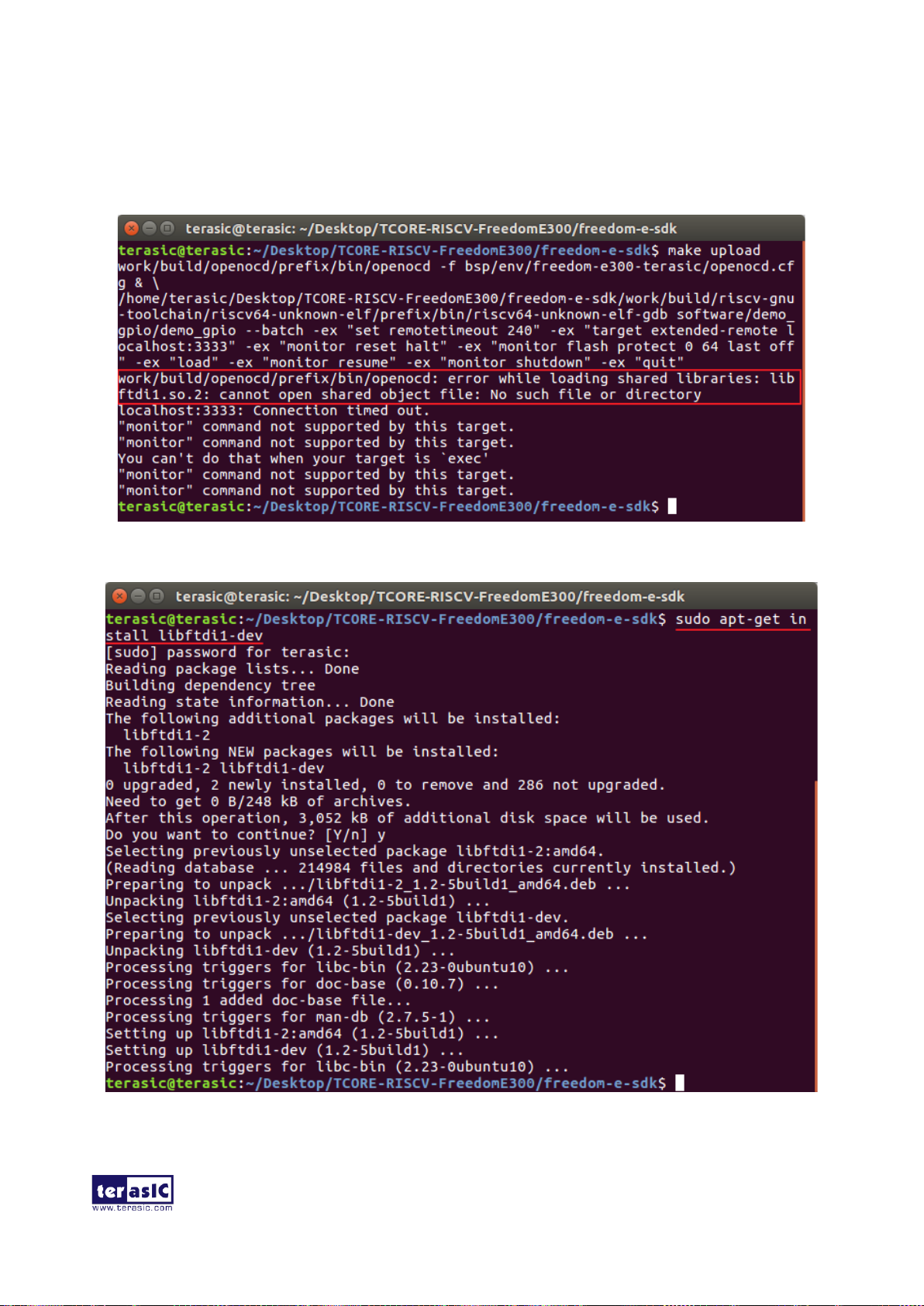

Figure 3-18 The error encountered when programming QSPI Flash
Figure 3-19 Fix the error encountered when programming QSPI Flash
Page 47
T-Core User Manual
46
www.terasic.com
January 14, 2020
o Now, you should now be able to observe the green LEDs are blinking. o Recycle the power, you can also observe the green LEDs are blinking as the demo program
is loaded from QSPI Flash. After the reset operation, the RISC-V core will execute the demo program. You can program new software into board with the SDK, but the FPGA image will not be modified.
Page 48
T-Core User Manual
47
www.terasic.com
January 14, 2020
Chapter 4
Programming the Configuration
Flash Memory
This tutorial provides comprehensive information that will help you understand how to configure T-Core board using internal configuration mode. The MAX 10 device on the T-Core board supports single and dual image boot. This tutorial explains the details of the internal dual image boot and external image boot. The following sections provide a quick overview of the design flow.
Please note that if you are using the dual image boot function on the T-Core board, you will need to solder the JP2 2-pin header (pitch 0.100" (2.54 mm)) by yourself.
Please refer to the Figure 4-1 for the JP2 position. The settings of JP2 are described in Table 4-1.

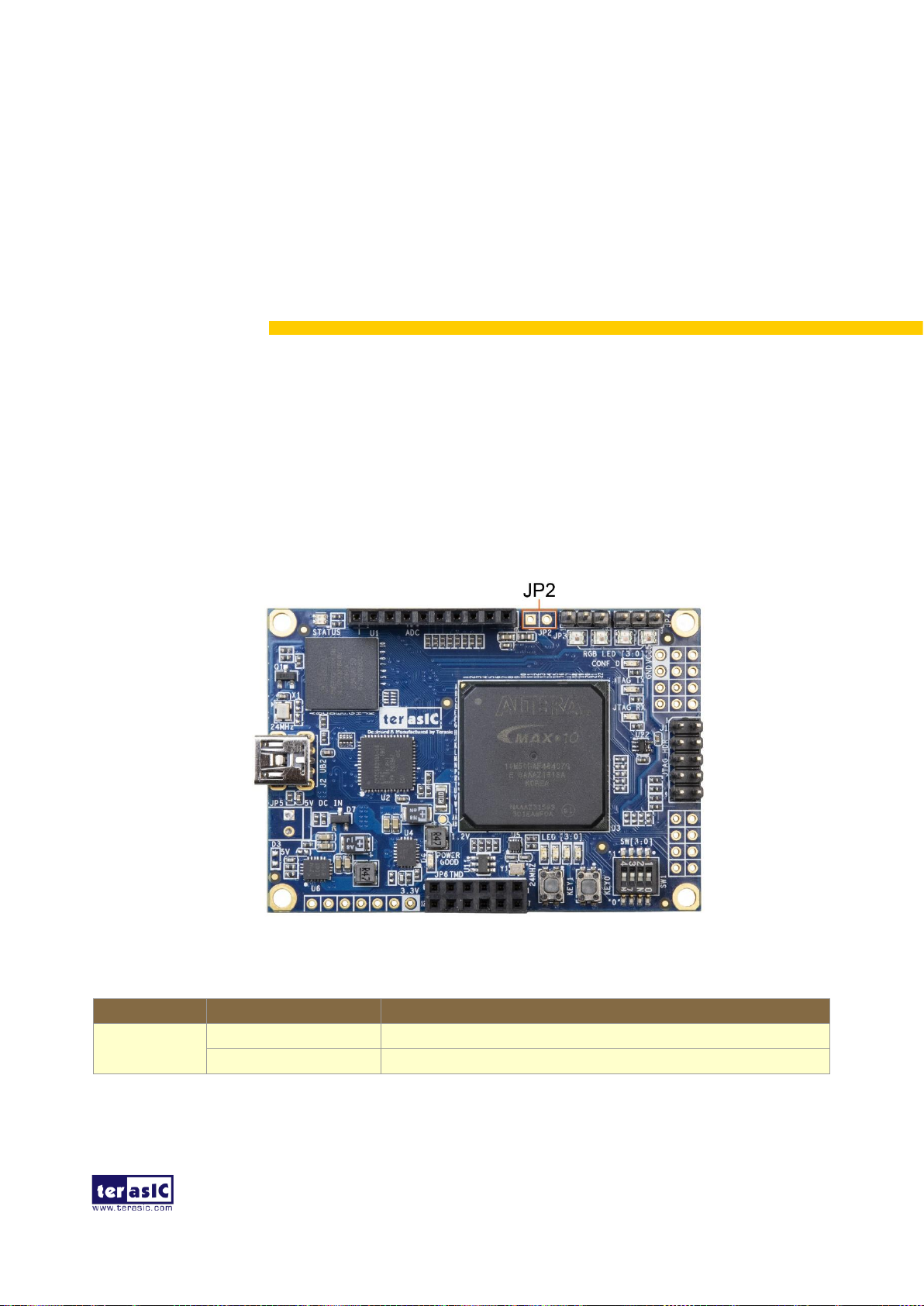

Figure 4-1 JP2 position on the T-Core board
Table 4-1 JP2 Jumper setting instructions
Reference
Jumper Setting
Description
JP2 Open (default)
Boot from image 0
Close
Boot from image 1
Page 49
T-Core User Manual
48
www.terasic.com
January 14, 2020
44..1
1
IInntteerrnnaall CCoonnffiigguurraattiioon
n
The internal configuration scheme for all MAX 10 devices except for 10M02 device consists of the following mode:
• Dual Compressed Images — configuration image is stored as image0 and image1 in the configuration flash memory (CFM).
• Single Compressed Image.
• Single Compressed Image with Memory Initialization.
• Single Uncompressed Image.
• Single Uncompressed Image with Memory Initialization.
In dual compressed images mode, you can use the BOOT_SEL pin to select the configuration image.
The High-Level Overview of Internal Configuration for MAX 10 Devices as shown in Figure 4-2.
Figure 4-2 High-Level Overview of Internal Configuration for MAX 10 Devices
Before internal configuration, we need to program the configuration data into the configuration flash memory (CFM). The CFM will be part of the programmer object file (.pof) programmed into the internal flash through the JTAG In-System Programming (ISP).
During internal configuration, MAX 10 devices load the configuration RAM (CRAM) with configuration data from the CFM. Both of the application configuration images, image 0 and image 1, are stored in the CFM. The MAX 10 device loads either one of the application configuration image from the CFM. If an error occurs, the device will automatically load the other application configuration image. Remote System Upgrade Flow for MAX 10 Devices is shown in Figure 4-3.
Page 50
T-Core User Manual
49
www.terasic.com
January 14, 2020

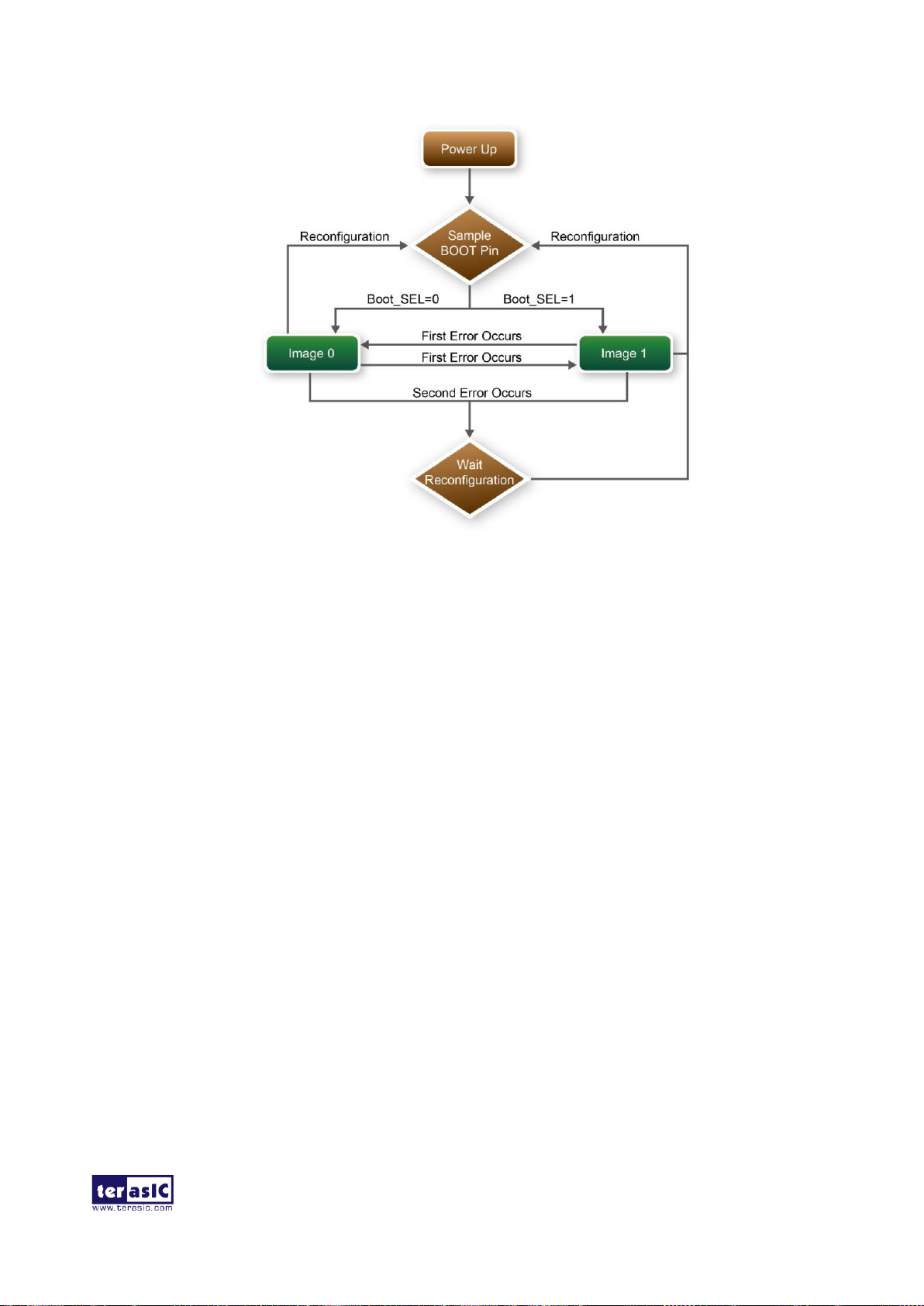

Figure 4-3 Remote System Upgrade Flow for MAX 10 Devices
The operation of the remote system upgrade feature detecting errors is as follows:
1. After powering-up, the device samples the BOOT_SEL pin to determine which application
configuration image to boot. The BOOT_SEL pin setting can be overwritten by the input register of the remote system upgrade circuitry for the subsequent reconfiguration.
2. If an error occurs, the remote system upgrade feature reverts by loading the other application
configuration image. The following lists the errors that will cause the remote system upgrade feature to load another application configuration image:
• Internal CRC error
• User watchdog timer time-out
3. Once the revert configuration completes and the device is in the user mode, you can use the
remote system upgrade circuitry to query the cause of error and which application image failed.
4. If the second error occurs, the device waits for a reconfiguration source. If the auto-reconfig is
enabled, the device will reconfigure without waiting for any reconfiguration source.
5. Reconfiguration is triggered by the following actions:
• Driving the nSTATUS low externally
• Asserting internal or external nCONFIG low
• Asserting RU_nCONFIG low (Avalon-MM interface signal)
Page 51
T-Core User Manual
50
www.terasic.com
January 14, 2020
44..2
2
UUssiinngg DDuuaall CCoommpprreesssseedd IImmaaggeess
Before using MAX 10 Dual Compressed Images feature, users must set these two image files’ Quartus Prime projects as follows:
• Add dual configuration IP.

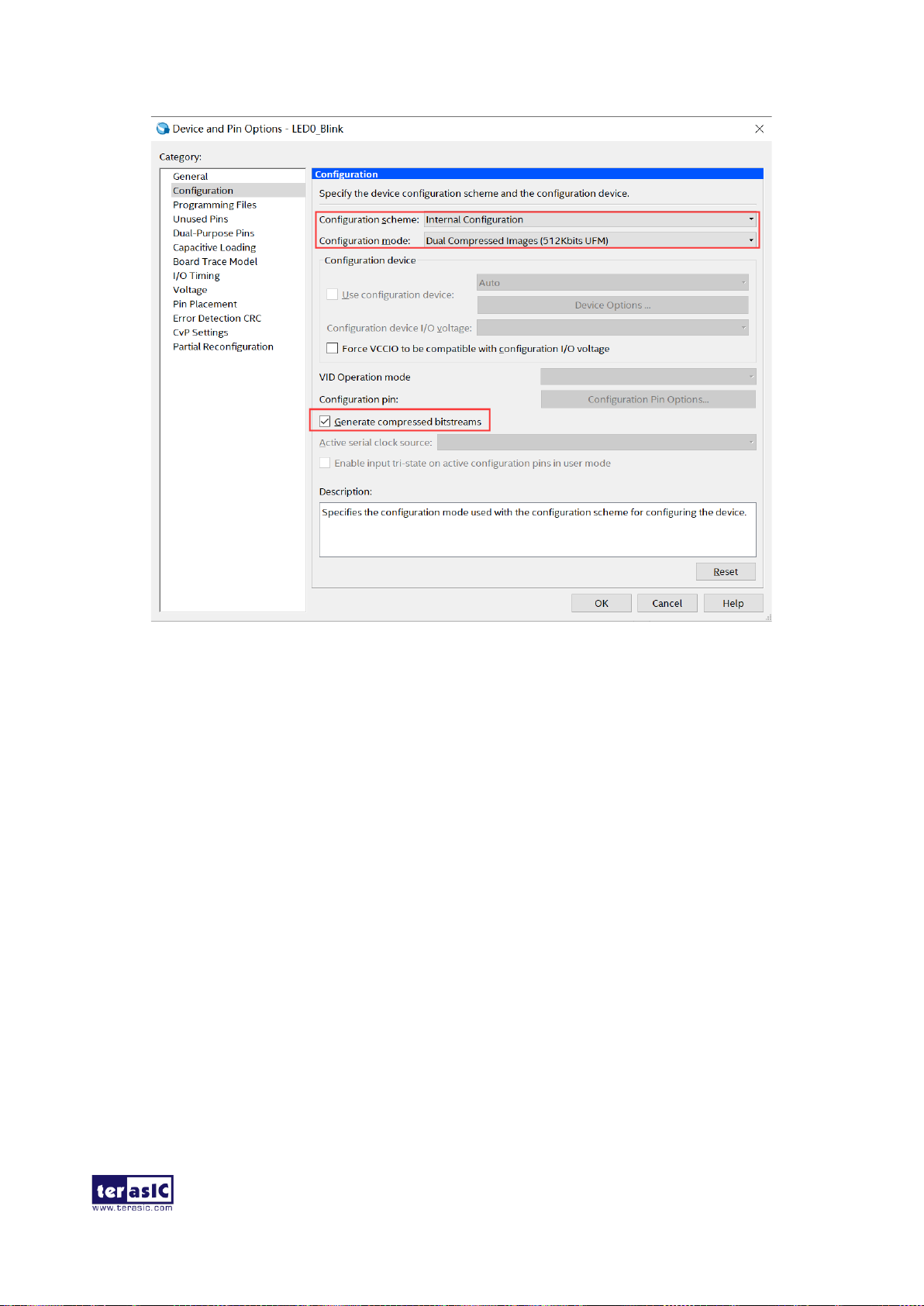

• Modify Configuration Mode in device setting.
First of all, a Dual Configuration IP should be added in an original project, so that the .pof file
can be programmed into CFM through it. Here we use a demonstration named "LED0_Blink" as an example to add Intel Dual Configuration IP to the project:

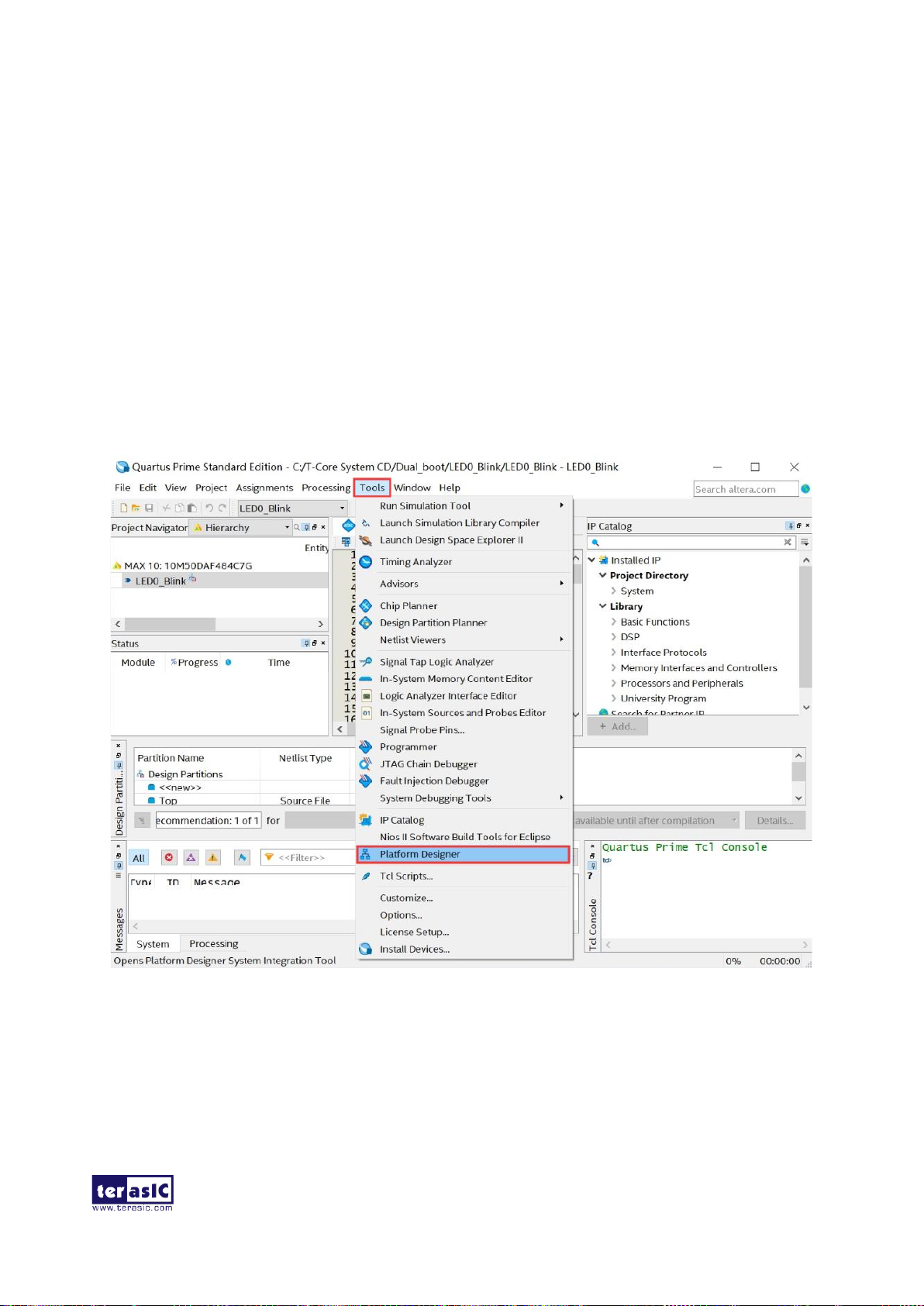

1. Open Quartus project and choose Tools > Platform Designer to open Platform Designer GUI
as shown in Figure 4-4.
Figure 4-4 Select Qsys menu and click
2. Please choose Library > Basic Function> Configuration and Programming > Dual
Configuration Intel FPGA IP to open wizard of adding dual boot IP. See Figure 4-5 and
Figure 4-6.
Page 52
T-Core User Manual
51
www.terasic.com
January 14, 2020

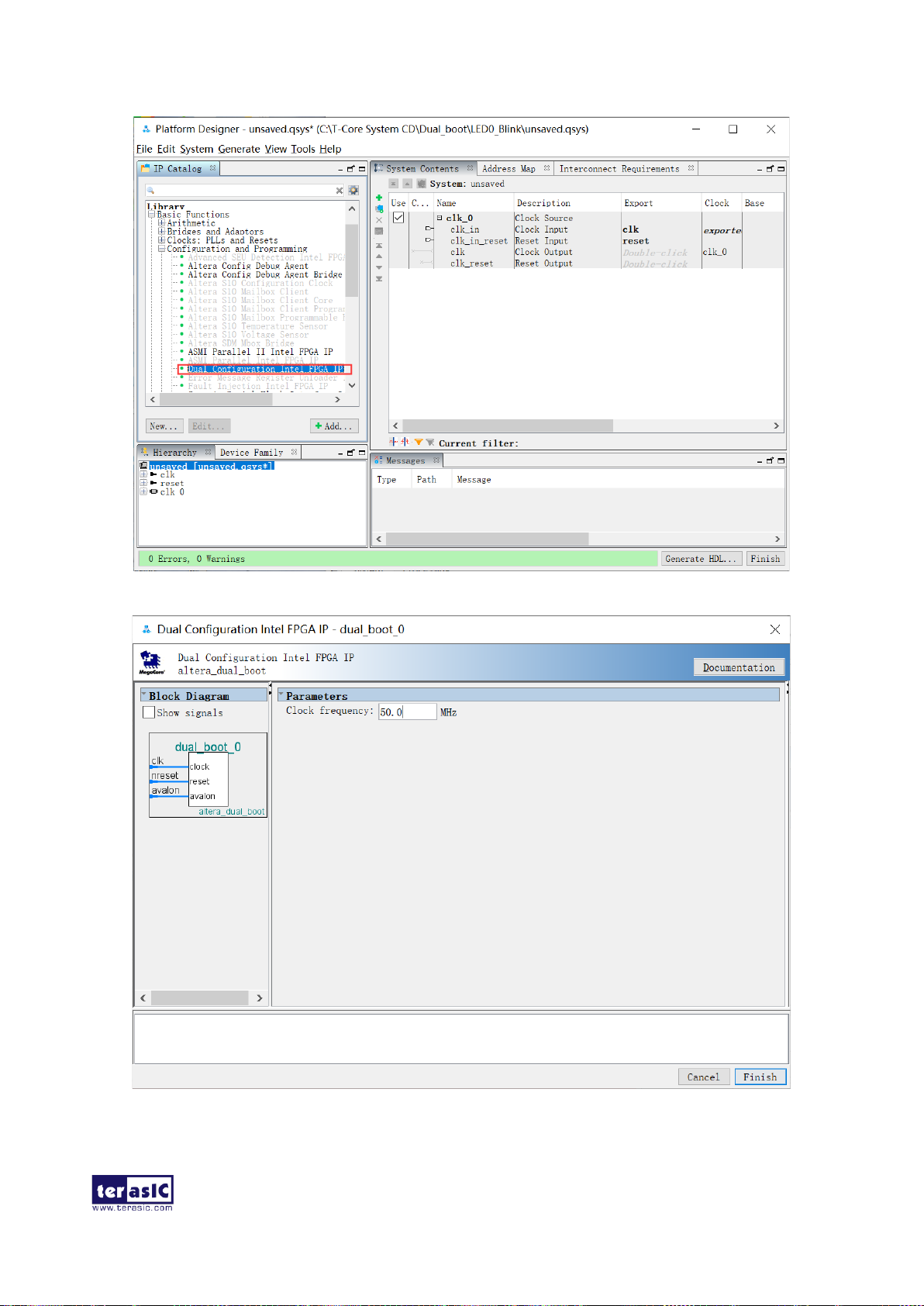

Figure 4-5 Select Dual Configuration Intel FPGA IP and click.
Figure 4-6 Open wizard and click Finish.
Page 53
T-Core User Manual
52
www.terasic.com
January 14, 2020
3. Click Finish to close the wizard and return to the Platform Designer window. Choose
dual_boot_0 and click right key to select Rename it to dual_boot, and connect the clk and nreset to clk_0.clk and clk_0.clk_reset as shown in Figure 4-7.

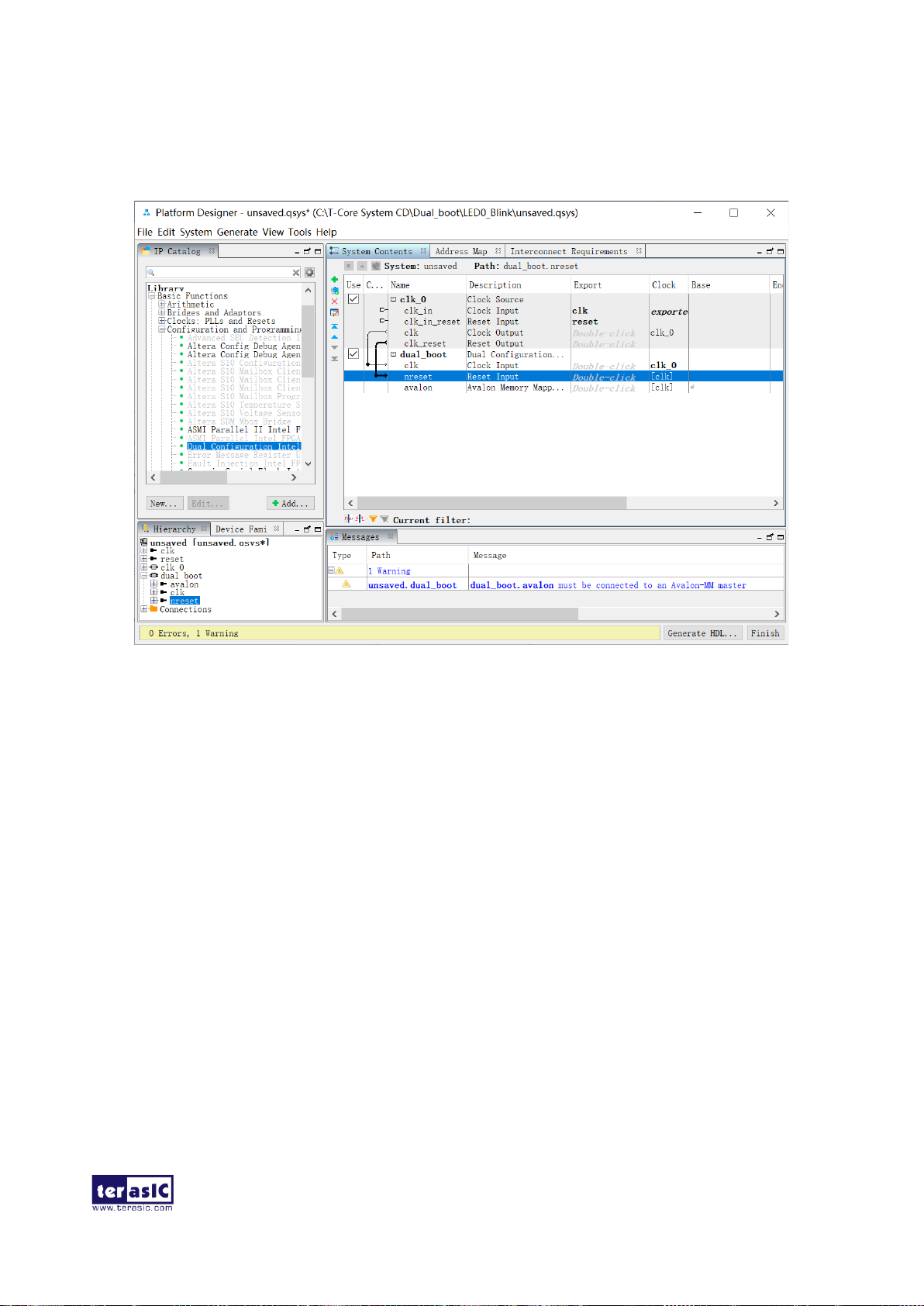

Figure 4-7 Rename and connect dual boot IP OK
4. Click “Generate HDL..” button and click Generate button when popping a window as shown
in Figure 4-8. Click Save it as dual_boot.qsys and the generation start. If there is no error in the generation, the window will show successful as shown in Figure 4-9.
Page 54
T-Core User Manual
53
www.terasic.com
January 14, 2020

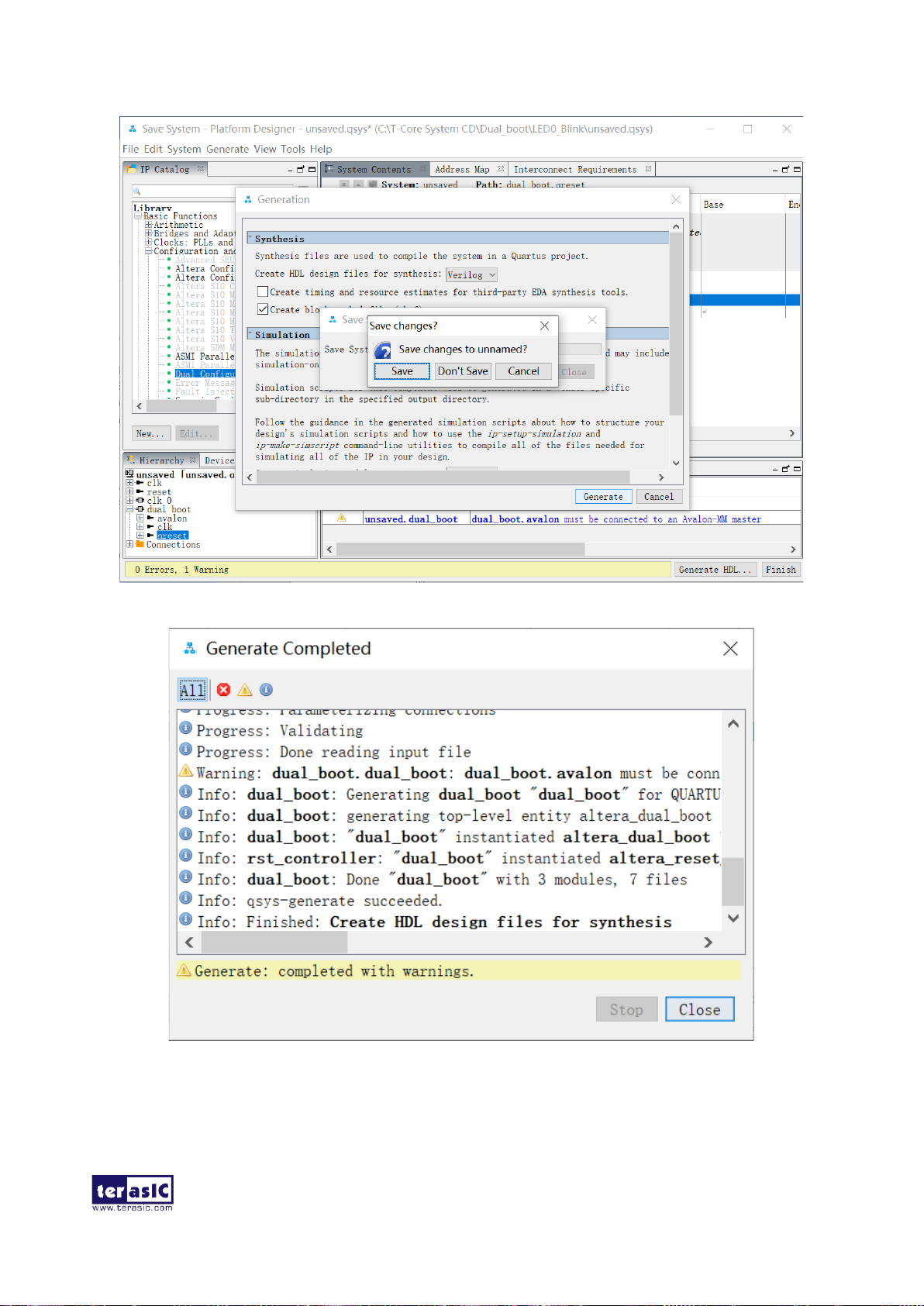

Figure 4-8 Generate and Save Qsys.
Figure 4-9 Generate completed.
5. Click Close and Finish to return to the Quartus window and add the dual_boot qsys into the top
file as shown in Figure 4-10, and add the dual_boot.qip file to the project and save.
Page 55
T-Core User Manual
54
www.terasic.com
January 14, 2020

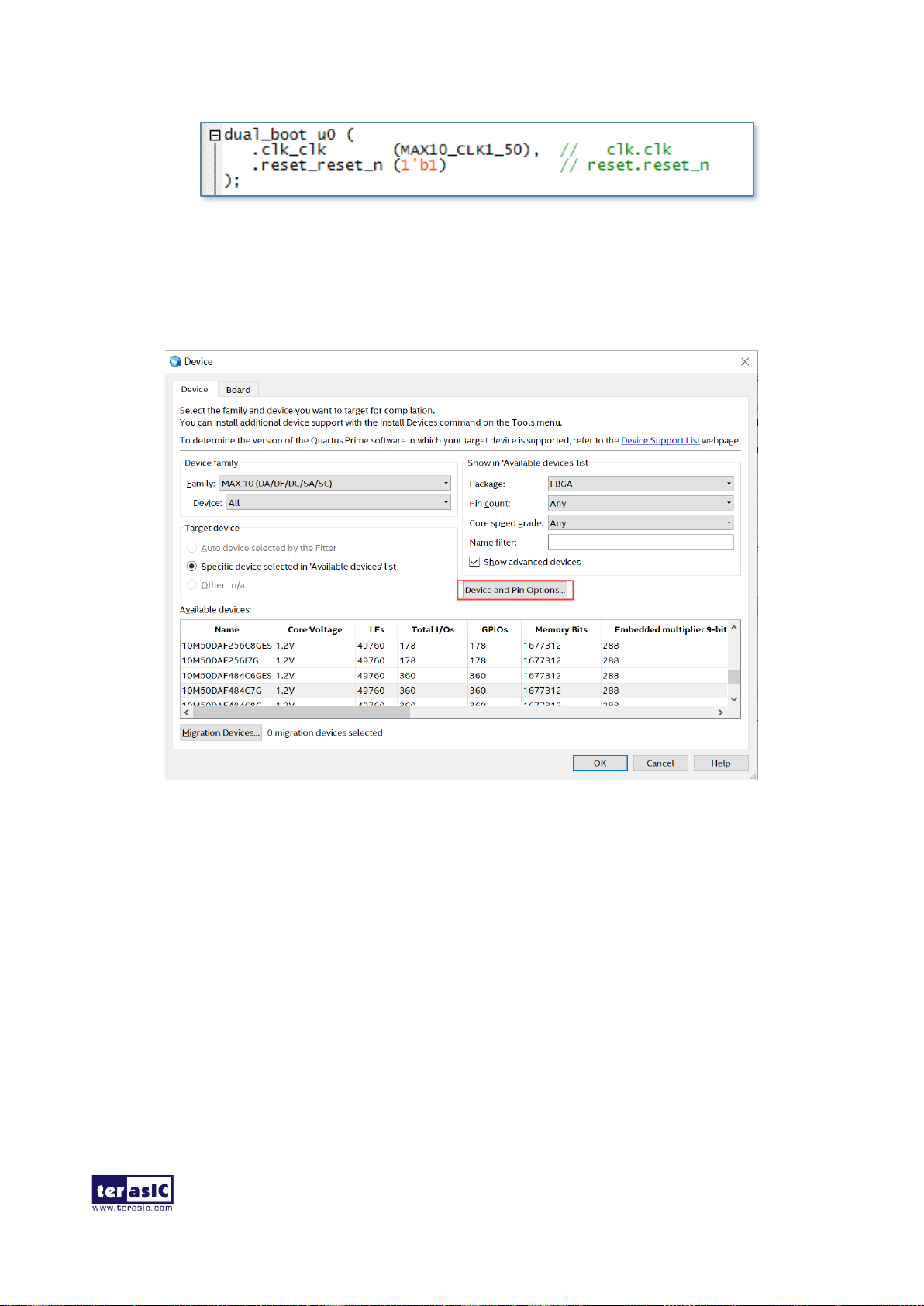

Figure 4-10 Add the dual_boot module in the top file.
Secondly, the project needs to be set before the compilation. After adding dual_boot IP successfully,
please set the project mode as Internal Configuration mode, detailed steps are as follows:
1. Choose Assignments > Device to open Device windows shown in Figure 4-11.
Figure 4-11 Open Device window…
2. Click Device and Pin Opinions to open the Device and Pin Opinions windows, and in the
Configuration tab, Set the Configuration Scheme to Internal Configuration and the Configuration Mode to Dual Compressed Images. Check the Option of Generate compressed bitstreams. shown in Figure 4-12.
Page 56
T-Core User Manual
55
www.terasic.com
January 14, 2020
Figure 4-12 Set Dual Configuration Mode
3. Choose OK to return to the Quartus window. In the Processing menu, choose Start
Compilation or click the Play button on the toolbar to compile the project, generate the
new .sof file.
4. Use the same flow to add the Dual Configuration IP into other project LED1_Blink to generate
the new .sof file by internal configuration mode.
Finally, so far, we have successfully obtained two image .sof files for dual boot demo according to
previous steps. This section describes how to generate .pof from .sof files with the internal configuration mode and program the .pof into configuration flash memory (CFM) through the JTAG interface.
I. Convert .SOF File to .POF File
1. Choose Convert Programming Files from the File menu of Quartus Prime to open new
window, as shown in Figure 4-13.
Page 57
T-Core User Manual
56
www.terasic.com
January 14, 2020

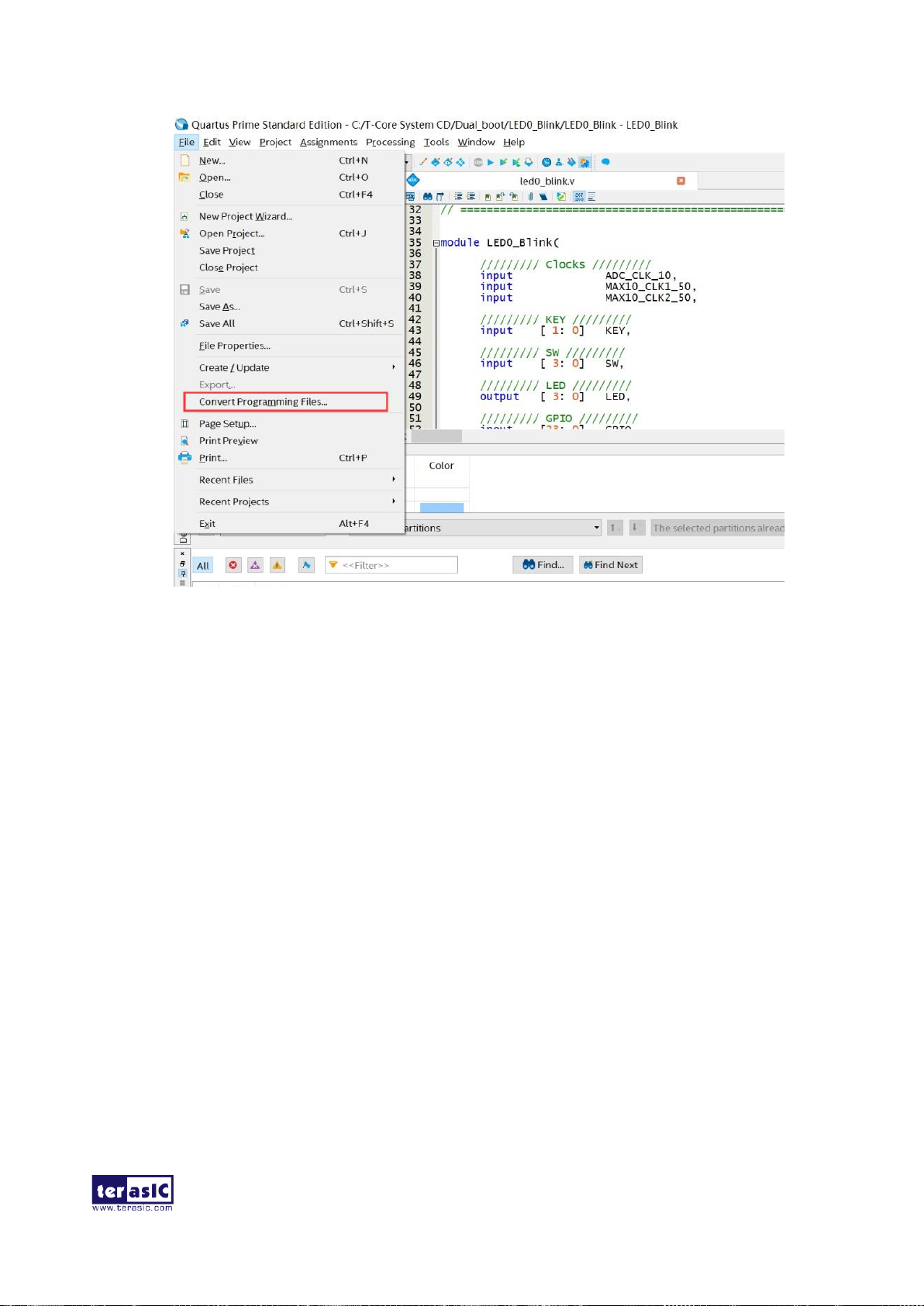

Figure 4-13 Select Convert Programming Files and click
2. Select Programmer Object File (.pof) from the Programming file type field in the dialog of
Convert Programming Files.
3. Choose Internal Configuration from the Mode filed.
4. Browse to the target directory from the File name field and specify the name of output file.
5. Click on the SOF data in the section of Input files to convert, as shown in Figure 4-14.
Page 58
T-Core User Manual
57
www.terasic.com
January 14, 2020
Figure 4-14 Dialog of Convert Programming Files and setting
6. Click Add File and select the LED0_blink.sof to be the sof data of Page_0.
7. Click Add Sof Page to add Page_1 and click Add File, Select the LED1_blink.sof to be the .sof
data of Page_1 as shown in Figure 4-15.
8. Click Generate. These project files can be found in the CD directory: \Demonstrations\Dual_boot\
Page 59
T-Core User Manual
58
www.terasic.com
January 14, 2020

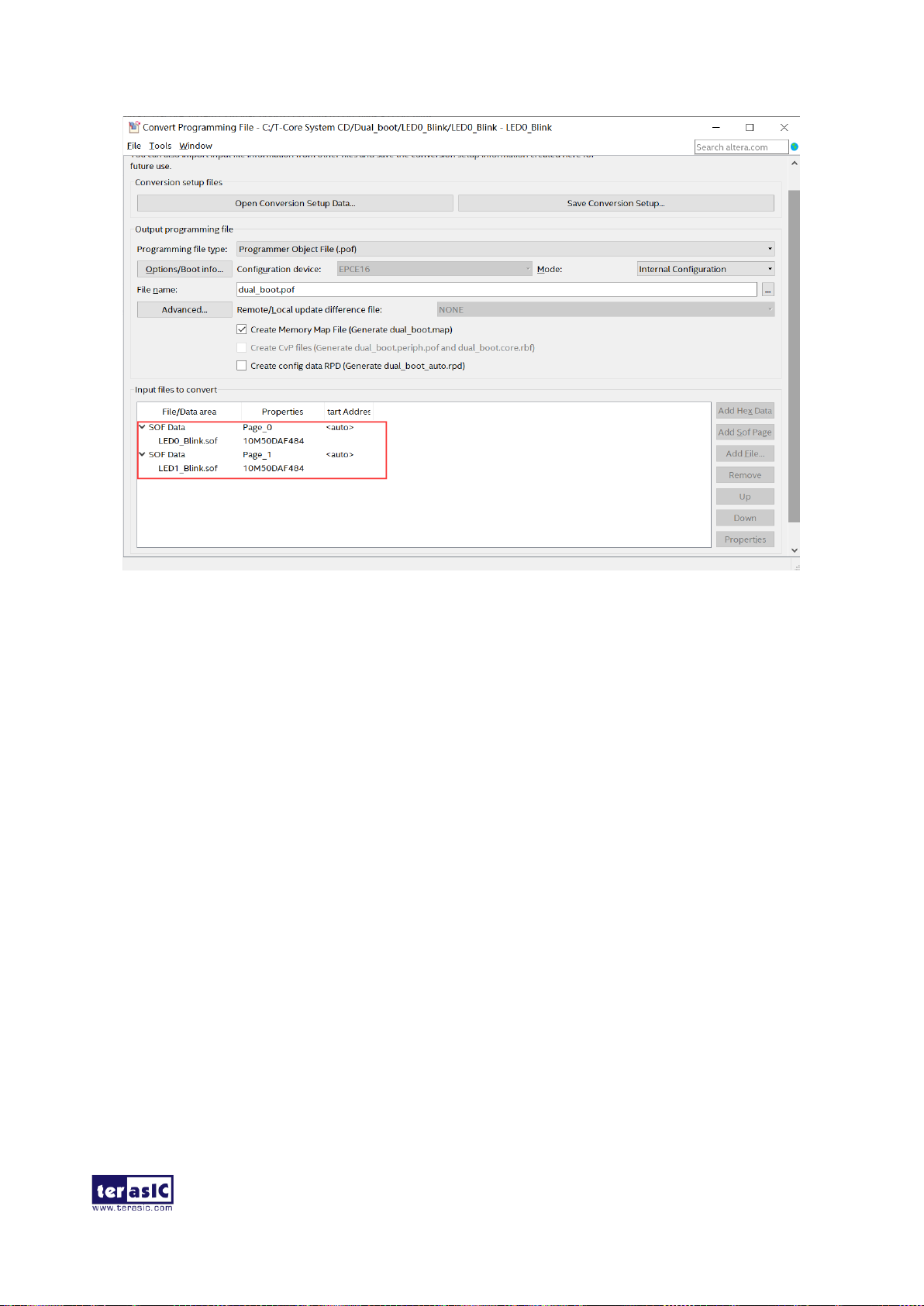

Figure 4-15 Add sof page and sof file
II. Write POF File into the CFM Device
When the conversion of SOF-to-POF file is complete, please follow the steps below to program the MAX 10 device with the .pof file created in Quartus Prime Programmer.
1. Choose Programmer from the Tools menu and the Chain.cdf window will appear.
2. Click Hardware Setup and then select the DECore[USB-*] as shown in Figure 4-16.
3. Click Add File and then select the dual_boot.pof.
4. Program the CFM device by clicking the corresponding Program/Configure and Verify box,
as shown in Figure 4-17.
5. Click Start to program the CFM device. Now, you can set the BOOT_SEL by JP2, you will find if you open JP2 (BOOT_SEL = 0), the
LED0 Blink function would show. Power off the board, insert the jumper to JP2 (BOOT_SEL = 1), then power on, you would find the LED1 Blink function show.
Page 60
T-Core User Manual
59
www.terasic.com
January 14, 2020

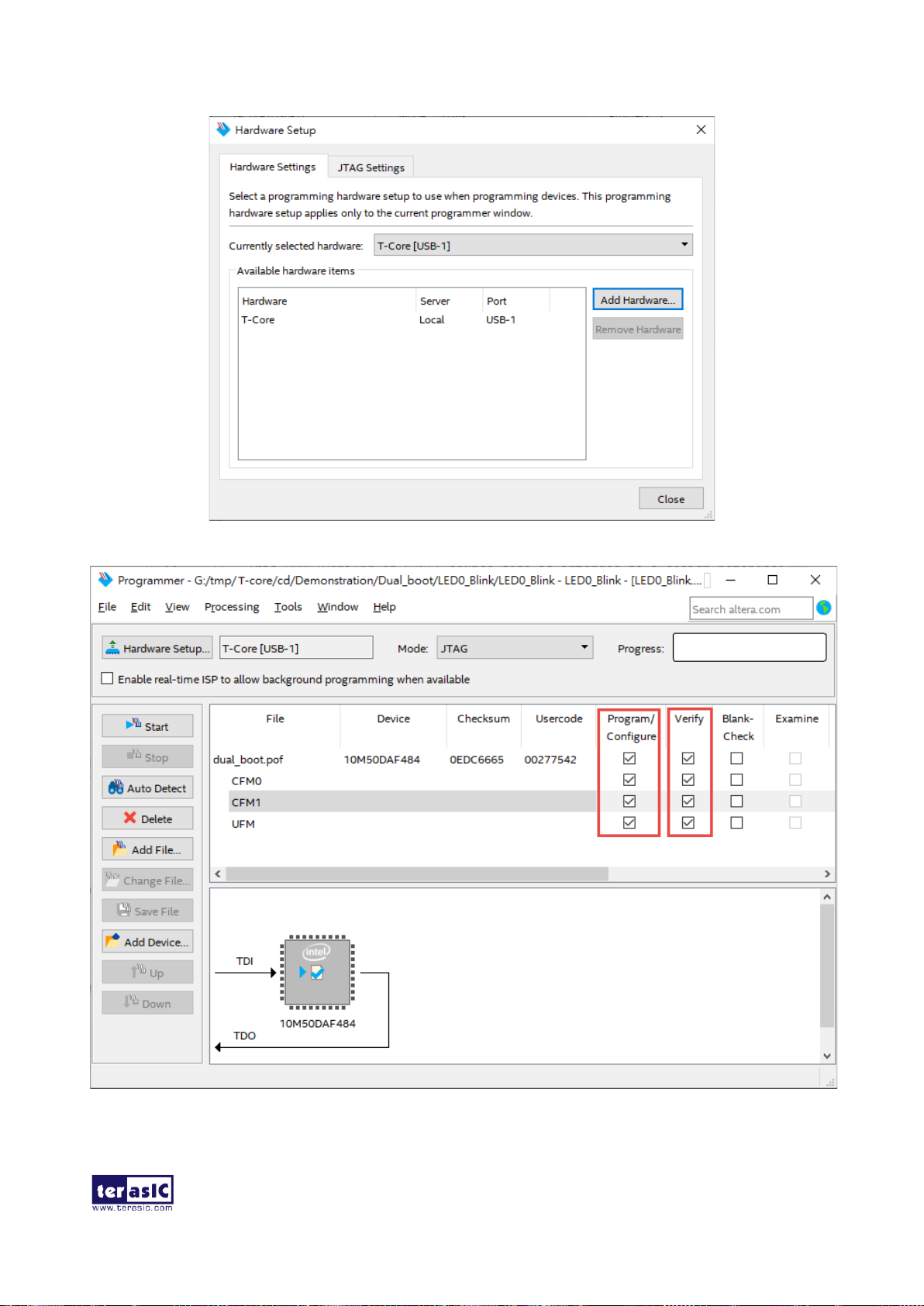

Figure 4-16 Hardware setup window
Figure 4-17 Programmer window with dual_boot.pof file
Page 61
T-Core User Manual
60
www.terasic.com
January 14, 2020
Chapter 5
USB Blaster II Cable Feature
The additional feature of T-Core is that it can be used as a USB blaster II to allow users to program other Intel FPGA boards from the host PC. As shown in Figure 5-1, users can connect to the external JTAG header (J1) of the T-Core using a flat ribbon cable. Then, use this cable to connect to other FPGA boards with 2x5 pin JTAG header for JTAG programming(See Figure 5-2).

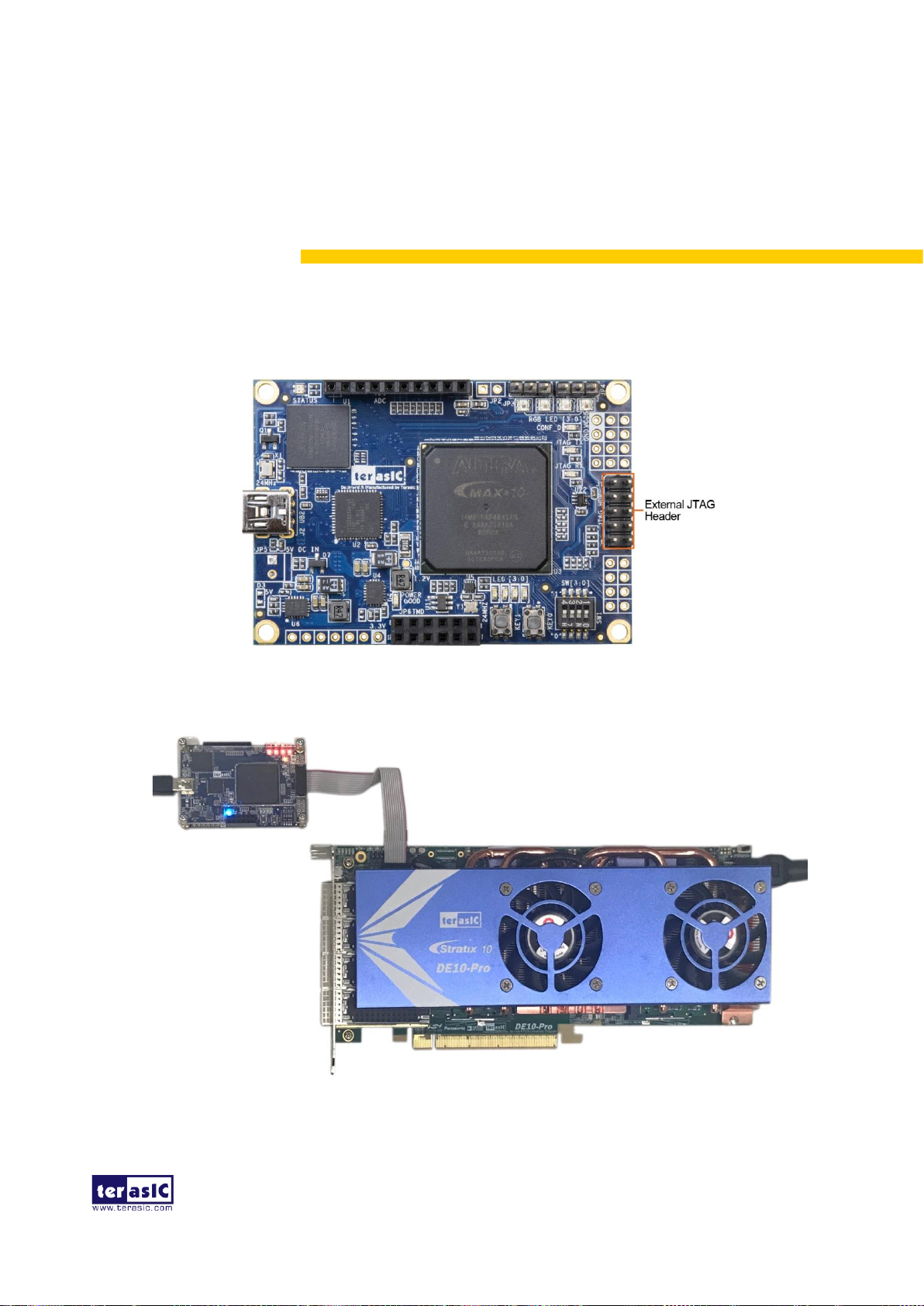

Figure 5-1 The external JTAG header of the T-Core board
Figure 5-2 Using T-Core board as an USB Blaster II cable
Page 62
T-Core User Manual
61
www.terasic.com
January 14, 2020
As shown in Figure 5-3, once the T-Core is connected to the JTAG interface of the external FPGA board, the T-Core board automatically detects the connection and switches the JTAG chain from the Intel MAX10 FPGA to the external JTGA header, and connected to the JTAG interface of the external FPGA board. Implement a USB blaster II function.

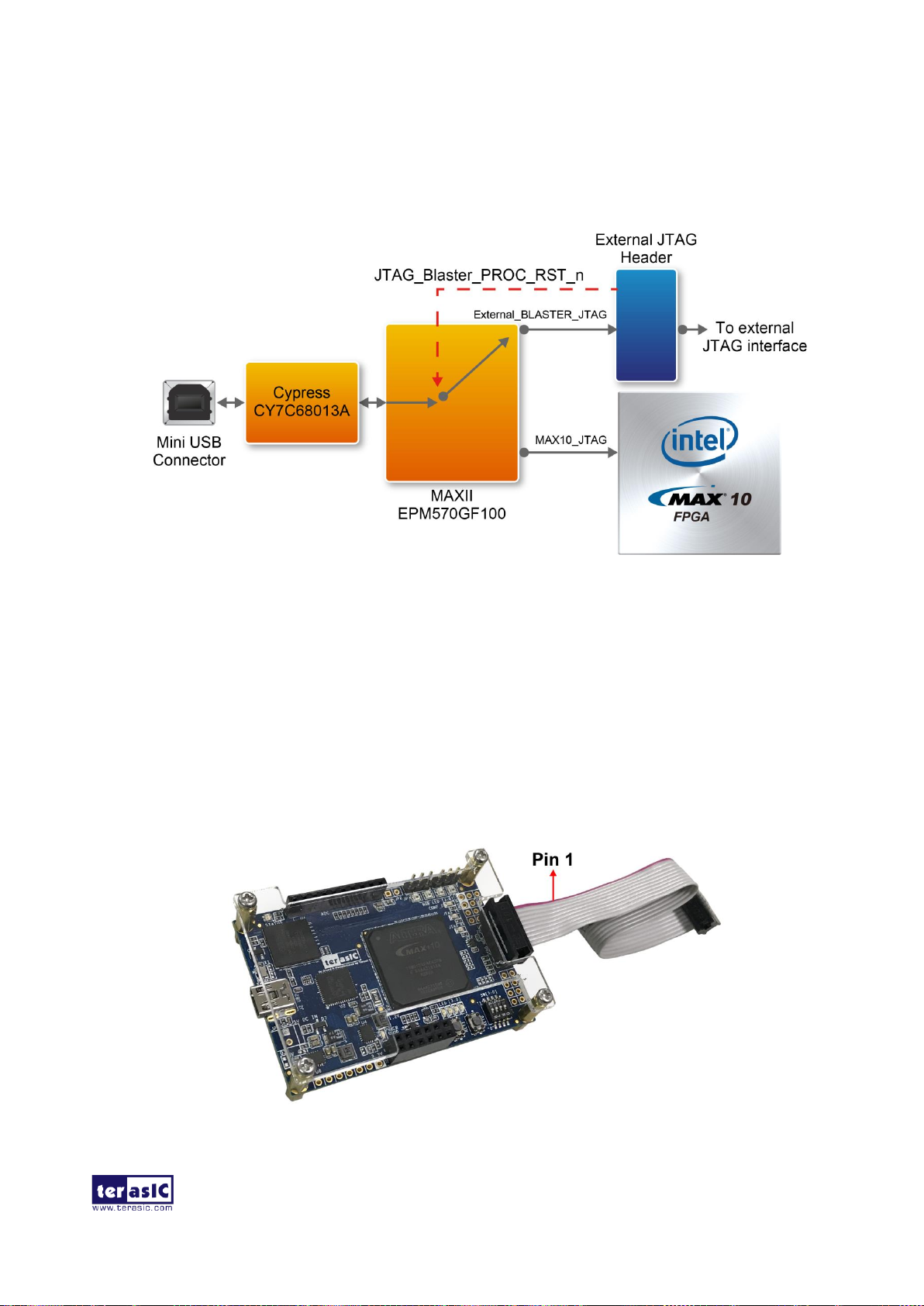

Figure 5-3 The auto-switch JTAG circuit of the T-Core board
In addition, users should note that for externally connected JTAG interface, the T-Core can
support I/O standard voltage range from 1.2V to 3.3V. If it is out of this range, it may not be
able to work properly or cause damage. The following example demonstrates that use the T-Core to connect the JTAG interface of the
Terasic's DE10-Pro Stratix 10 development board and program .sof file into the FPGA via JTAG interface.
1. Connect the flat ribbon cable to the J1 of the T-Core board, as shown in Figure 5-4. The red line
represents the connection line of pin 1, which needs to be connected to the pin of J1.
Figure 5-4 The flat ribbon cable connected to the T-Core board
Page 63
T-Core User Manual
62
www.terasic.com
January 14, 2020
2. Connect the other end of the flat ribbon cable to the 2x5 JTAG header on the DE10-Pro board,
see Figure 5-5.

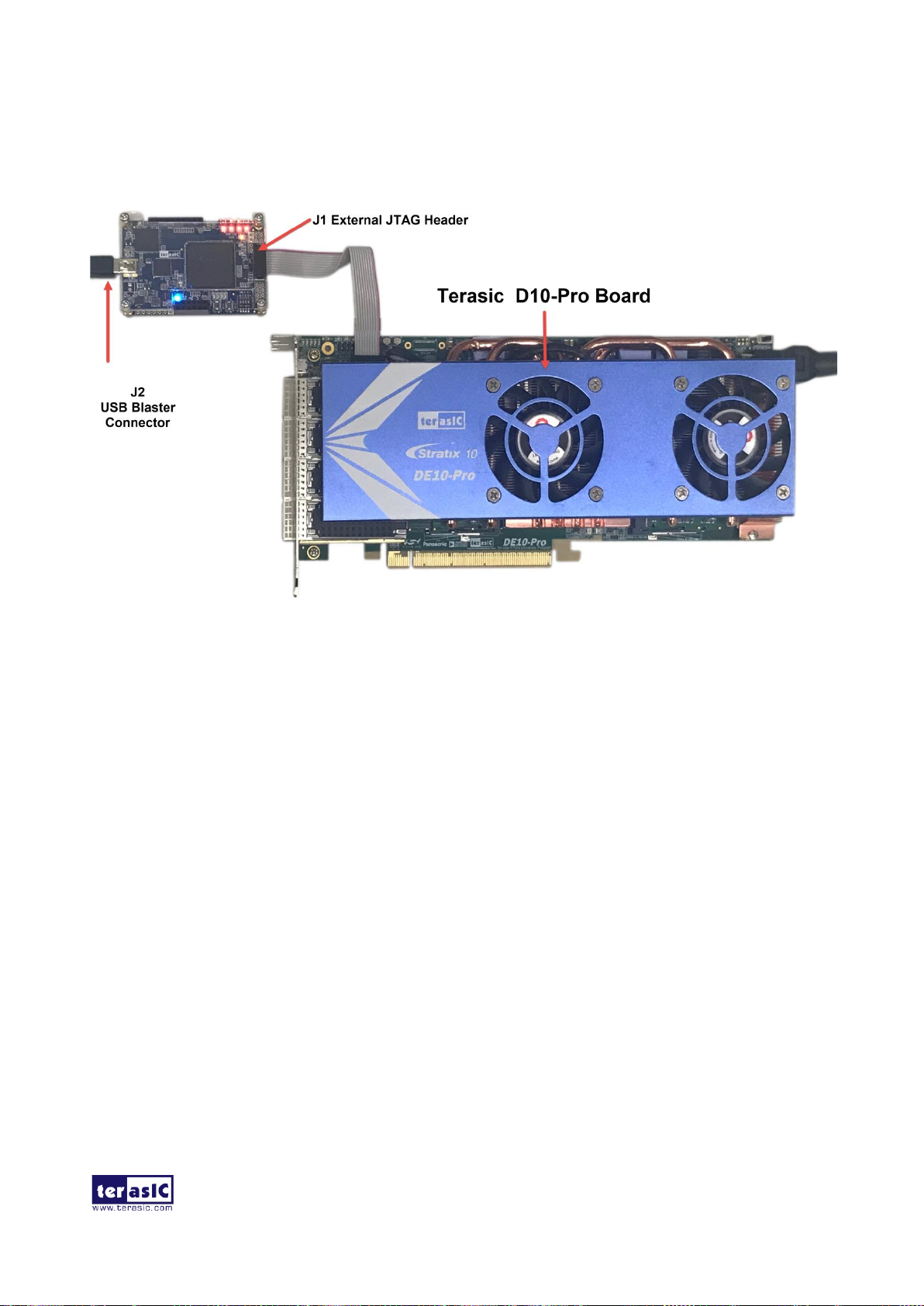

Figure 5-5 The flat ribbon cable connected to the T-Core board
3. Using mini USB cable to connected J2 of the T-Core board and the host PC.
4. Power the DE10-Pro board.
5. Open the Quartus programmer on the host PC, press "Hardware Setup" and select T-Core
[USB-*]. Then press "Auto Detect" and the Stratix 10 FPGA device on the DE10-Pro will appear in the window, as shown in Figure 5-6.
Page 64
T-Core User Manual
63
www.terasic.com
January 14, 2020
Figure 5-6 Using T-Core board to program the DE10-Pro
6. Select a .sof of the DE10-Pro project and download it. shows the success of the T-Core program
Stratix 10 FPGA, as shown in Figure 5-7.
Page 65
T-Core User Manual
64
www.terasic.com
January 14, 2020
Figure 5-7 Using T-Core board to program the DE10-Pro
Page 66
T-Core User Manual
65
www.terasic.com
January 14, 2020
Additional Information
RReevviissiioonn HHiissttoorryy
Date
Version
Change Log
2019.07
V1.0
Initial Version (Preliminary)
2020.01
V1.1
⚫ Modify the SW2 setting description for Figure 3-16. ⚫ Change blaster name from DE-Core to T-Core
CCooppyyrriigghhtt SSttaatteemmeenntt
Copyright © 2020 Terasic Inc. All rights reserved.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
