Chapter 1
The HDMI-FMC package includes:
Product Box
System CD Download Guide
One HDMI-FMC module
HDMI-FMC Development Kit
Terasic HDMI-FMC is a HDMI transmitter/receiver daughter board with FMC(FPGA Mezzanine card)
interface. The user can connect the HDMI module with the FPGA development kit via the FMC
connector for HDMI image & video capture, processing and display up to 4K@30fps resolution.
The HDMI-FMC provides both the HDMI Tx and Rx Module with the HDMI 1.4a features supported.
The Tx module is able to supports most common standard and non-standard video input format, most
common 3D formats and the video resolution up to 8-bit 4K(30Hz)、12-bit 1080p(60Hz)、12-bit
720p/1080i (120 Hz),and 16-bit 1080p (30 Hz). The audio interface supports S/PDIF, DSD , I2S and
HBR audio format input.
The Rx module is able to support all mandatory and additional 3D video formats and extended
colorimetry(sYCC601, Adobe® RGB,Adobe YCC601, xvYCC extended gamut color CEC
1.4-compatible) with up to 36-bit Deep Color. the audio interface supports S/PDIF, SACD, DSD , I2S
and HBR audio format output.
We also provide complete demo source codes for the HDMI-FMC working with different FPGA
development kits. These demos are created by using Verilog HDL & ALTERA VIP, By referring to these
demos, users can quickly develop their own applications.
1-1 Package Contents
Figure 1-1 The HDMI-FMC package contents
- 2 -
1-2 HDMI-FMC System CD
The HDMI-FMC System CD contains all the documents and supporting materials associated with
HDMI-FMC, including the user manual, reference designs, and device datasheets. Users can
download this system CD from the link: http://hdmi-fmc.terasic.com/cd.
1-3 Assemble the HDMI-FMC
Terasic HDMI-FMC is able to connect on to any FPGA development kit equiped with FMC(High-Pin
Count) connector. The Below pictures Figure 1-2 and Figure 1-3 show the connections with 2
different Terasic FPGA Boards:

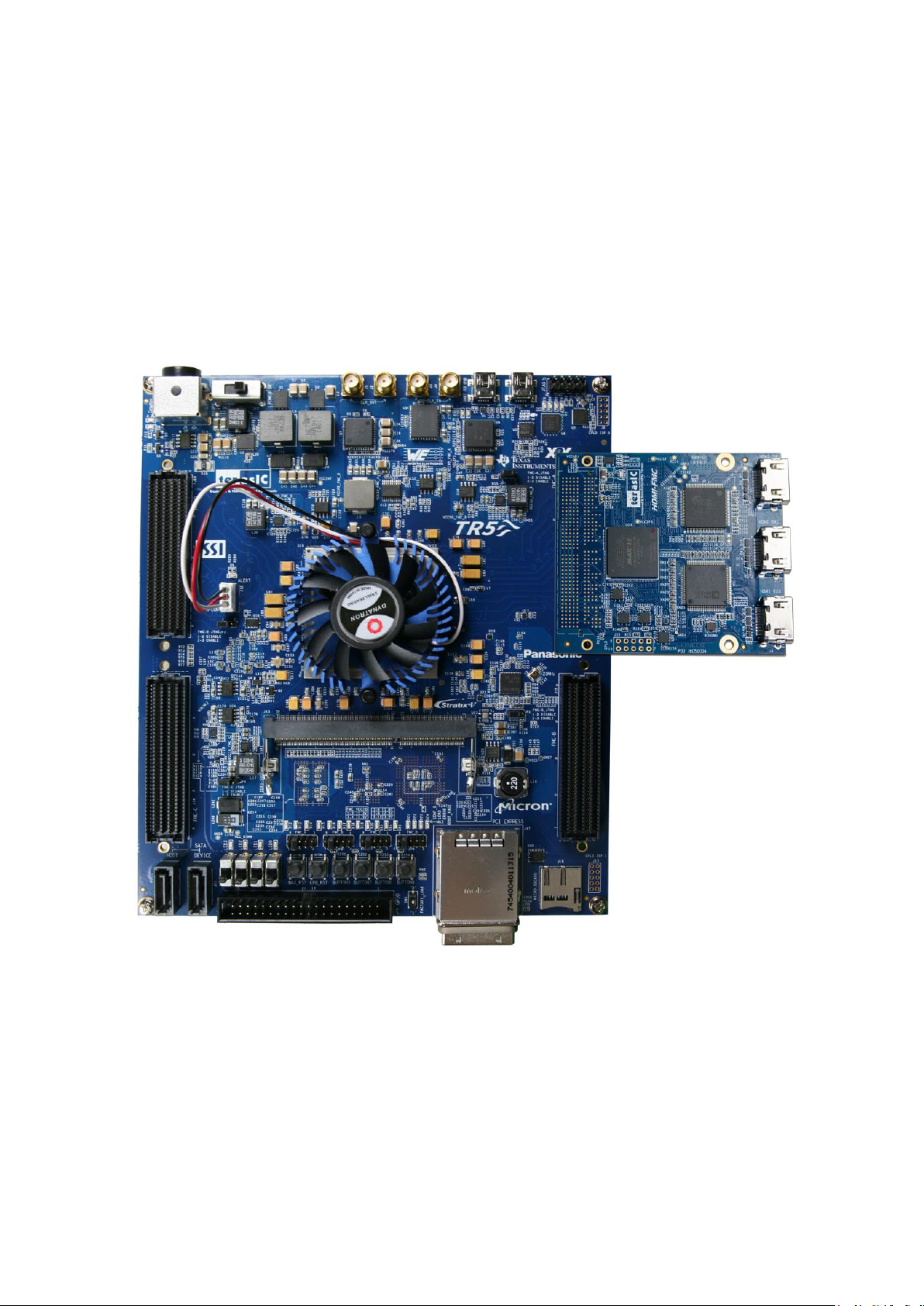

Figure 1-2 Connect the HDMI-FMC to TR5 board’s FMCA port
- 3 -
Figure 1-3 Connect the HDMI-FMC to A10SoC board’s FMCA port
1-4 Getting Help
Here are the addresses where you can get help if you encounter any problems:
Terasic Technologies
9F., No.176, Sec.2, Gongdao 5th Rd, East Dist, Hsinchu City, 30070. Taiwan
Email: support@terasic.com
Tel.: +886-3-575-0880
Website:http://www.terasic.com
- 4 -
Introduction of the HDMI-FMC Card
2-1 Features
Figure 2-1 shows a photograph of the card.
Chapter 2
Figure 2-1 HDMI-FMC daughter card
The HDMI-FMC card has many features that allow users to implement a wide range of design circuits,
from simple circuits to various multimedia projects.
The following hardware is provided on the board:
Package Interface：VITA 57.1 FMC, adjustable I/O-standard(1.5/1.8/2.5/3.0V).
- 5 -
Tx Module：
Chip P/N：SiI9136-3
HDMI 1.4a/1.3, HDCP 1.4 and DVI Compliant
Video fromats：4:4:4 RGB, 4:4:4/4:2:2 YCbCr
Pixels resolution：4Kx2K@30Hz
Pixels clock：DDR/SDR up to 300MHz
3D format support
High Bitrate Audio support
It supports the following input video formats:
- 6 -
Rx Module：
Chip P/N: ADV7619
HDMI 1.4a/1.3, HDCP 1.4 and DVI Compliant
Video formats: 4:4:4 RGB, 4:4:4/4:2:2 YCbCr
Pixels resolution: 3840x2160@30Hz
Pixels clock: DDR/SDR up to 297MHz
It supports the following output video formats:
Level Shift：
EPM2210
I/O-Standard(1.5/1.8/2.5/3.0V)
- 7 -
2-2 Block Diagram of the HDMI-FMC Board
Below Figure 2-2 shows the HDMI-FMC Block Diagram. Level shift module outputs audio and video
image data from FMC connector, which can be converted to TDMS data by passing through the
Sil9136-3 to the HDMI TX connector. Similarly, HDMI RX connector receives all mandatory 3D TV
formats defined in the HDMI 1.4a specification through a dual input HDMI-capable, which can be
converted to audio and video image data by the ADV7619,and send to the FMC connector through
Level shift. Both Sil9136-3 and ADV7619 can be controlled by FPGA I2C interface.
Figure 2-2 Block diagram of HDMI-FMC Board
- 8 -
Chapter 3
Using the HDMI-FMC Board
This chapter provides instructions on how to use Sil9136-3, ADV7619, Level shift and FMC connector
on the HDMI-FMC board.
3-1 Sil9136-3
Sil9136-3 is a HDMI Deep Color transmitter and can deliver up to 16-bit Deep Color at 1080p/30Hz
resolutions and 12-bit Deep Color at 1080p/60Hz resolutions. It merge independent video and audio
streams for transmission over HDMI. For video data input, Sil9136-3 support most standard and
non-standard video input formats and resolutions up to 8-bit 4K/30Hz, 12-bit 1080p/60Hz, 12-bit
720p/120 Hz, 12-bit 1080i/120 Hz, and 16-bit 1080p/30Hz. For audio input, it supports I2S, Direct
Stream Digital, and S/PDIF audio input formats.
For HDMI output, DVI and HDMI transmitter with xvYCC extended color gamut, Deep Color up to
16-bit color, and high bitrate audio are all supported. The I2C address for TPI/CR of Sil9136-3 is
0x72/0x7A. Figure 3-1 shows the system block diagram of Sil9136-3.
Figure 3-1 Sil9136-3 HDMI transmitter
The Sil9136-3 transmitter has four GPIO pins, and the value of each pin can be read or set through
the local I2C bus. The sil9136-3 also contains a Consumer Electronics Control (CEC) interface which
incorporates an HDMI-compliant CEC I/O and the Lattice CEC Programming Interface (CPI); this
reduces the need for system-level control by the system microcontroller and simplifies firmware
overhead.
There are individual components processing the video and audio input data. In the video data input
and conversion block, the bus configurations support most standardized video input formats as well as
other widely used non-standard formats. After configuration and processing, the clock, data, and sync
information are combined into a complete set of signals required for further processing as follows. The
- 9 -
upsampler and downsampler block convert the 4:2:2 sampled video to 4:4:4 and 4:4:4 sampled video
to 4:2:2 seperately. The two color space converters (CSCs, convert YCbCr to RGB and RGB to YCbCr)
are available to interface to the many video formats supplied by A/V processors and provide full DVI
backward compatibility. RGB range expression block scales the input color range from limited-range
into full-range and RGB/YCbCr range compression compresses full-range data into limited-range data
for each video channel. The clipping and dither function are also employed in the transmitter. The
audio capture block supports I2S, Direct Stream Digital, and S/PDIF audio input formats. The
appropriate registers must be configured to describe the audio format provided to the SiI9136-3
transmitter.
There is a TMDS transmitter for the output. The TMDS digital core performs 8-to-10-bit TMDS
encoding and is then sent over three TMDS data and a TMDS clock differential lines. All of the above
operations can be controlled by the configuration registers which can be accessed via the I2C
interface.
3-2 ADV7619
A DV7619 is a high quality with two input ports and one output multiplexed High-Definition Multimedia
Interface receiver. It supports all mandatory 3D TV formats defined in the HDMI 1.4 specification,
HDTV formats up to 1080p 36-bit Deep Color/2160p 8-bit, and display resolutions up to 4k × 2k (3840
× 2160 at 30 Hz).
ADV7619 also supports extended colorimetry, including sYCC601, Adobe RGB, Adobe YCC601,
xvYCC extended gamut color with a dual input HDMI-cable and 297MHz maximum TMDS clock
frequency. The audio interface supports HBR、DSD、S/PDIF、SACD and four I2S output format. The
receiver has advanced audio functionality, such as a mute controller, that prevents audible extraneous
noise in the audio output. Figure 3-2 shows the system block diagram of ADV7619.
Figure 3-2 ADV7619 HDMI receiver
The HDMI-compatible receiver on the ADV7619 allows active equalization of the HDMI data signals.
This equalization compensates for the high frequency losses inherent in HDMI and DVI cabling,
especially at longer cable lengths and higher frequencies. The HDMI-compatible receiver is capable of
equalizing for cable lengths up to 30 meters to achieve robust receiver performance.
For video format with pixel clock higher than 170MHz, the video signals received on the HDMI receiver
are outputed directly to the pixel port output. To accommodate the higher bandwidth required for these
- 10 -
higher resolutions, the output on the pixel bus consists of two 24-bit buses running at up to 150 MHz:
one bus contains the even pixels, and the other bus contains the odd pixels. When these two buses
are combined, they allow the transfer of video data with pixel clocks up to 300 MHz. In this mode, both
4:4:4 RGB 8-bit and 4:2:2 12-bit are supported.
3-3 Level shift
For the voltage matching between FMC connector and HDMI transmitter/receiver IC, EPM2210, LSF
0102 and TXB0104 are employed for the level shift. For HDMI transmitter/receiver IC, the I/O voltage
is 3.3V while the I/O voltage of all four FMC connectors is adjustable within 1.2/1.5/1.8/2.5/3.0V.
The MAX II architecture supports the MultiVolt I/O interface feature, which allow the EPM2210 to
interface with systems of different supply voltages. EPM2210 has one set of VCC pins for internal
operation(VCCINT), and up to four sets for input buffering and I/O output drivers buffers(VCCIO).
Users can connect VCCIO pins to either a 1.5/1.8/2.5/3.3V power supply, depending on the output
requirement. The output levels are compatible with systems of the same voltage as the power supply.
When VCCIO pins are connected to a 3.3V power supply, the output high is 3.3V and is compatible
with 3.3V systems. When VCCIO pins are connect to 2.5V power supply, the output high is 2.5V and is
compatible with 2.5V systems.
LSF0102 is a 2 channel bidirectional voltage level translator operational from 0.95 to 4.5 V on A port
1.8 to 5.5 V on B port. TXB0104 is a 4-bit bidirectional voltage level translator with auto direction
sensing operational 1.2 to 3.6 V on A port and 1.65 to 5.5 V on B port. LSF0102 and TXB0104 are
employed for the voltage translation of I2C and audio data.
Figure 3-3, Figure 3-4, Figure 3-5 gives an illustration of the level shift.
- 11 -
Figure 3-3 Voltage translation of I2C for Receiver
Figure 3-4 Voltage translation of audio data for receiver
Figure 3-5 Level shift（EPM2210）
- 12 -
3-4 FMC Connector
Signal Name
Pin Direction
Description
I/O Standard
TX_PCLK
Input
Transmitter pixel data clock
1.5/1.8/2.5/3.0/3.3V
TX_HS
Input
Transmitter Horizontal Synchronization
signal
1.5/1.8/2.5/3.0/3.3V
TX_VS
Input
Transmitter Vertical Synchronization
signal
1.5/1.8/2.5/3.0/3.3V
TX_DE
Input
Transmitter data enable
1.5/1.8/2.5/3.0/3.3V
TX_BD0
Input
Transmitter video blue data 0
1.5/1.8/2.5/3.0/3.3V
TX_BD1
Input
Transmitter video blue data 1
1.5/1.8/2.5/3.0/3.3V
TX_BD2
Input
Transmitter video blue data 2
1.5/1.8/2.5/3.0/3.3V
TX_BD3
Input
Transmitter video blue data 3
1.5/1.8/2.5/3.0/3.3V
TX_BD4
Input
Transmitter video blue data 4
1.5/1.8/2.5/3.0/3.3V
TX_BD5
Input
Transmitter video blue data 5
1.5/1.8/2.5/3.0/3.3V
TX_BD6
Input
Transmitter video blue data 6
1.5/1.8/2.5/3.0/3.3V
TX_BD7
Input
Transmitter video blue data 7
1.5/1.8/2.5/3.0/3.3V
TX_BD8
Input
Transmitter video blue data 8
1.5/1.8/2.5/3.0/3.3V
TX_BD9
Input
Transmitter video blue data 9
1.5/1.8/2.5/3.0/3.3V
TX_BD10
Input
Transmitter video blue data 10
1.5/1.8/2.5/3.0/3.3V
TX_BD11
Input
Transmitter video blue data 11
1.5/1.8/2.5/3.0/3.3V
TX_GD0
Input
Transmitter video green data 0
1.5/1.8/2.5/3.0/3.3V
TX_GD1
Input
Transmitter video green data 1
1.5/1.8/2.5/3.0/3.3V
TX_GD2
Input
Transmitter video green data 2
1.5/1.8/2.5/3.0/3.3V
TX_GD3
Input
Transmitter video green data 3
1.5/1.8/2.5/3.0/3.3V
TX_GD4
Input
Transmitter video green data 4
1.5/1.8/2.5/3.0/3.3V
TX_GD5
Input
Transmitter video green data 5
1.5/1.8/2.5/3.0/3.3V
TX_GD6
Input
Transmitter video green data 6
1.5/1.8/2.5/3.0/3.3V
TX_GD7
Input
Transmitter video green data 7
1.5/1.8/2.5/3.0/3.3V
TX_GD8
Input
Transmitter video green data 8
1.5/1.8/2.5/3.0/3.3V
TX_GD9
Input
Transmitter video green data 9
1.5/1.8/2.5/3.0/3.3V
TX_GD10
Input
Transmitter video green data 10
1.5/1.8/2.5/3.0/3.3V
TX_GD11
Input
Transmitter video green data 11
1.5/1.8/2.5/3.0/3.3V
TX_RD0
Input
Transmitter video red data 0
1.5/1.8/2.5/3.0/3.3V
TX_RD1
Input
Transmitter video red data 1
1.5/1.8/2.5/3.0/3.3V
TX_RD2
Input
Transmitter video red data 2
1.5/1.8/2.5/3.0/3.3V
TX_RD3
Input
Transmitter video red data 3
1.5/1.8/2.5/3.0/3.3V
Table 3-1 shows the pin out and pin definitions of the FMC connector.
Table 3-1 Pin Assignment of HDMI-FMC FMC interface
- 13 -
TX_RD4
Input
Transmitter video red data 4
1.5/1.8/2.5/3.0/3.3V
TX_RD5
Input
Transmitter video red data 5
1.5/1.8/2.5/3.0/3.3V
TX_RD6
Input
Transmitter video red data 6
1.5/1.8/2.5/3.0/3.3V
TX_RD7
Input
Transmitter video red data 7
1.5/1.8/2.5/3.0/3.3V
TX_RD8
Input
Transmitter video red data 8
1.5/1.8/2.5/3.0/3.3V
TX_RD9
Input
Transmitter video red data 9
1.5/1.8/2.5/3.0/3.3V
TX_RD10
Input
Transmitter video red data 10
1.5/1.8/2.5/3.0/3.3V
TX_RD11
Input
Transmitter video red data 11
1.5/1.8/2.5/3.0/3.3V
TX_MCLK
Input
Transmitter audio input master
clock(I2S、S/PDIF Mode)
1.5/1.8/2.5/3.0/3.3V
TX_SCK
Input
Transmitter I2S serial clock(I2S、S/PDIF
Mode)、DSD clock(DSD Mode)
1.5/1.8/2.5/3.0/3.3V
TX_WS
Input
Transmitter I2S word select(I2S、S/PDIF
Mode)、DSD data（DSD Mode）
1.5/1.8/2.5/3.0/3.3V
TX_SPDIF
Input
Transmitter S/PDIF input.(SPDIF
Mode)、DSD data（DSD Mode）
1.5/1.8/2.5/3.0/3.3V
TX_I2S0
Input
Transmitter I2S data 0(I2S、S/PDIF
Mode)
1.5/1.8/2.5/3.0/3.3V
TX_I2S1
Input
Transmitter I2S data 1(I2S、S/PDIF
Mode)
1.5/1.8/2.5/3.0/3.3V
TX_I2S2
Input
Transmitter I2S data 2(I2S、S/PDIF
Mode)
1.5/1.8/2.5/3.0/3.3V
TX_I2S3
Input
Transmitter I2S data 3(I2S、S/PDIF
Mode)
1.5/1.8/2.5/3.0/3.3V
TX_DSR3R
Input
Transmitter DSD data(DSD Mode)
1.5/1.8/2.5/3.0/3.3V
TX_DSR3L
Input
Transmitter DSD data(DSD Mode)
1.5/1.8/2.5/3.0/3.3V
SIL9136_RST_N
Input
Transmitter asynchronous reset signal,
active low
1.5/1.8/2.5/3.0/3.3V
SIL9136_INT
Output
Transmitter interrupt signal
1.5/1.8/2.5/3.0/3.3V
SIL9136_CSCL_FMC
Input
Transmitter configuration/status I2C
1.5/1.8/2.5/3.0/3.3V
- 14 -
serial clock
SIL9136_CSDA_FMC
Input/Output
Transmitter configuration/status I2C
serial data
1.5/1.8/2.5/3.0/3.3V
RX_PCLK
Output
Receiver pixel data clock
1.5/1.8/2.5/3.0/3.3V
RX_HS
Output
Receiver Horizontal Synchronization
signal
1.5/1.8/2.5/3.0/3.3V
RX_VS
Output
Receiver Vertical Synchronization signal
1.5/1.8/2.5/3.0/3.3V
RX_DE
Output
Receiver data enable
1.5/1.8/2.5/3.0/3.3V
RX_BD0
Output
Receiver video blue data 0
1.5/1.8/2.5/3.0/3.3V
RX_BD1
Output
Receiver video blue data 1
1.5/1.8/2.5/3.0/3.3V
RX_BD2
Output
Receiver video blue data 2
1.5/1.8/2.5/3.0/3.3V
RX_BD3
Output
Receiver video blue data 3
1.5/1.8/2.5/3.0/3.3V
RX_BD4
Output
Receiver video blue data 4
1.5/1.8/2.5/3.0/3.3V
RX_BD5
Output
Receiver video blue data 5
1.5/1.8/2.5/3.0/3.3V
RX_BD6
Output
Receiver video blue data 6
1.5/1.8/2.5/3.0/3.3V
RX_BD7
Output
Receiver video blue data 7
1.5/1.8/2.5/3.0/3.3V
RX_BD8
Output
Receiver video blue data 8
1.5/1.8/2.5/3.0/3.3V
RX_BD9
Output
Receiver video blue data 9
1.5/1.8/2.5/3.0/3.3V
RX_BD10
Output
Receiver video blue data 10
1.5/1.8/2.5/3.0/3.3V
RX_BD11
Output
Receiver video blue data 11
1.5/1.8/2.5/3.0/3.3V
RX_BD12
Output
Receiver video blue data 12
1.5/1.8/2.5/3.0/3.3V
RX_BD13
Output
Receiver video blue data 13
1.5/1.8/2.5/3.0/3.3V
RX_BD14
Output
Receiver video blue data 14
1.5/1.8/2.5/3.0/3.3V
RX_BD15
Output
Receiver video blue data 15
1.5/1.8/2.5/3.0/3.3V
RX_GD0
Output
Receiver video green data 0
1.5/1.8/2.5/3.0/3.3V
RX_GD1
Output
Receiver video green data 1
1.5/1.8/2.5/3.0/3.3V
RX_GD2
Output
Receiver video green data 2
1.5/1.8/2.5/3.0/3.3V
RX_GD3
Output
Receiver video green data 3
1.5/1.8/2.5/3.0/3.3V
RX_GD4
Output
Receiver video green data 4
1.5/1.8/2.5/3.0/3.3V
RX_GD5
Output
Receiver video green data 5
1.5/1.8/2.5/3.0/3.3V
RX_GD6
Output
Receiver video green data 6
1.5/1.8/2.5/3.0/3.3V
RX_GD7
Output
Receiver video green data 7
1.5/1.8/2.5/3.0/3.3V
RX_GD8
Output
Receiver video green data 8
1.5/1.8/2.5/3.0/3.3V
RX_GD9
Output
Receiver video green data 9
1.5/1.8/2.5/3.0/3.3V
RX_GD10
Output
Receiver video green data 10
1.5/1.8/2.5/3.0/3.3V
RX_GD11
Output
Receiver video green data 11
1.5/1.8/2.5/3.0/3.3V
RX_GD12
Output
Receiver video green data 12
1.5/1.8/2.5/3.0/3.3V
RX_GD13
Output
Receiver video green data 13
1.5/1.8/2.5/3.0/3.3V
RX_GD14
Output
Receiver video green data 14
1.5/1.8/2.5/3.0/3.3V
RX_GD15
Output
Receiver video green data 15
1.5/1.8/2.5/3.0/3.3V
- 15 -
RX_RD0
Output
Receiver video red data 0
1.5/1.8/2.5/3.0/3.3V
RX_RD1
Output
Receiver video red data 1
1.5/1.8/2.5/3.0/3.3V
RX_RD2
Output
Receiver video red data 2
1.5/1.8/2.5/3.0/3.3V
RX_RD3
Output
Receiver video red data 3
1.5/1.8/2.5/3.0/3.3V
RX_RD4
Output
Receiver video red data 4
1.5/1.8/2.5/3.0/3.3V
RX_RD5
Output
Receiver video red data 5
1.5/1.8/2.5/3.0/3.3V
RX_RD6
Output
Receiver video red data 6
1.5/1.8/2.5/3.0/3.3V
RX_RD7
Output
Receiver video red data 7
1.5/1.8/2.5/3.0/3.3V
RX_RD8
Output
Receiver video red data 8
1.5/1.8/2.5/3.0/3.3V
RX_RD9
Output
Receiver video red data 9
1.5/1.8/2.5/3.0/3.3V
RX_RD10
Output
Receiver video red data 10
1.5/1.8/2.5/3.0/3.3V
RX_RD11
Output
Receiver video red data 11
1.5/1.8/2.5/3.0/3.3V
RX_RD12
Output
Receiver video red data 12
1.5/1.8/2.5/3.0/3.3V
RX_RD13
Output
Receiver video red data 13
1.5/1.8/2.5/3.0/3.3V
RX_RD14
Output
Receiver video red data 14
1.5/1.8/2.5/3.0/3.3V
RX_RD15
Output
Receiver video red data 15
1.5/1.8/2.5/3.0/3.3V
RX_MCLK
Output
Receiver audio master clock
1.5/1.8/2.5/3.0/3.3V
RX_SCLK
Output
Receiver audio serial clock
1.5/1.8/2.5/3.0/3.3V
RX_AP0
Output
Receiver audio data 0
1.5/1.8/2.5/3.0/3.3V
RX_AP1
Output
Receiver audio data 1
1.5/1.8/2.5/3.0/3.3V
RX_AP2
Output
Receiver audio data 2
1.5/1.8/2.5/3.0/3.3V
RX_AP3
Output
Receiver audio data 3
1.5/1.8/2.5/3.0/3.3V
RX_AP4
Output
Receiver audio data 4
1.5/1.8/2.5/3.0/3.3V
RX_AP5
Output
Receiver audio data 5
1.5/1.8/2.5/3.0/3.3V
ADV7619_CS_N
Input
Receiver chip select, active low
1.5/1.8/2.5/3.0/3.3V
ADV7619_INT
Output
Receiver interrupt signal
1.5/1.8/2.5/3.0/3.3V
ADV7619_RESET_N
Input
Receiver reset signal, active low
1.5/1.8/2.5/3.0/3.3V
ADV7619_CSCL_FM
C
Input
Receiver I2C serial clock
1.5/1.8/2.5/3.0/3.3V
ADV7619_CSDA_FM
C
Input/Output
Receiver I2C serial data
1.5/1.8/2.5/3.0/3.3V
RX0_DDC_SCL
Input
Receiver EDID controller serial clock
port A
1.5/1.8/2.5/3.0/3.3V
RX0_DDC_SDA
Input/Output
Receiver EDID controller serial data port
A
1.5/1.8/2.5/3.0/3.3V
RX1_DDC_SCL
Input
Receiver EDID controller serial clock
port B
1.5/1.8/2.5/3.0/3.3V
RX1_DDC_SDA
Input/Output
Receiver EDID controller serial data port
B
1.5/1.8/2.5/3.0/3.3V
- 16 -
Note : 1. For I/O standard, 3.0 V is applied to High-end FPGAs and 3.3 V is applied to Low Cost and
Power FPGAs.
2. The RX pixel color-bit plane is adjustable accord to the video interface data format
settings,including video format and data width.
- 17 -
Chapter 4
Example Codes
This chapter provides NIOS based examples for users to get started using the HDMI-FMC board.
4-1 4K HDMI Loopback Demonstration
The Loopback demonstration establishes connection between the HDMI Receiver input to the
transmitter output of the HDMI daughter board. The Loopback (Internal bypass) generates the HDMI
video and/or audio signals, as the audio and video output pins of the receiver are directly connected to
the input audio and video pins of the transmitter with a buffer to realize the synchronous operation.
Figure 4-1 shows the system block diagram of loopback demonstration,Figure 4-2 shows the
hardware setup of loopback demonstration.
- 18 -
Figure 4-1 system Block diagram of the HDMI loopback demonstration
- 19 -
Figure 4-2 hardware setup of HDMI loopback demonstration
- 20 -
Version
Change Log
V1.0
Initial Version
Revision History
Copyright Statement
Copyright © 2016 Terasic Inc. All rights reserved.
Chapter 5
Appendix
- 21 -
Loading...
