Chapter 1

DE1-SoC

Development Kit

The DE1-SoC Development Kit presents a robust hardware design platform built around the Altera System-on-Chip (SoC) FPGA, which combines the latest dual-core Cortex-A9 embedded cores with industry-leading programmable logic for ultimate design flexibility. Users can now leverage the power of tremendous re-configurability paired with a high-performance, low-power processor system. Altera’s SoC integrates an ARM-based hard processor system (HPS) consisting of processor, peripherals and memory interfaces tied seamlessly with the FPGA fabric using a high-bandwidth interconnect backbone. The DE1-SoC development board includes hardware such as high-speed DDR3 memory, video and audio capabilities, Ethernet networking, and much more.

The DE1-SoC Development Kit contains all components needed to use the board in conjunction with a computer that runs the Microsoft Windows XP or later.

11..1

PPaacckkaaggee CCoonntteennttss

Figure 1-1 shows a photograph of the DE1-SoC package.

Figure 1-1 The DE1-SoC package contents

The DE1-SoC package includes:

 The DE1-SoC development board  DE1-SoC Quick Start Guide  USB Cable (Type A to B) for FPGA programming and control  USB Cable (Type A to Mini-B) for UART control  DE1-SoC System CD-ROM  12V DC power adapter

11..2

DDEE11--SSooCC SSyysstteemm CCDD

The DE1-SoC System CD containing the DE1-SoC documentation and supporting materials, including the User Manual, System Builder, reference designs and device datasheets. User can download this System CD form the link : http://de1-soc.terasic.com.

11..3

GGeettttiinngg HHeellpp

Here are the addresses where you can get help if you encounter any problem:

 Altera Corporation  101 Innovation Drive San Jose, California, 95134 USA

Email: university@altera.com

 Terasic Technologies  9F., No.176, Sec.2, Gongdao 5th Rd, East Dist, Hsinchu City, 30070. Taiwan

Email: support@terasic.com

Tel.: +886-3-575-0880

Web: de1-soc.terasic.com

Chapter 2

Introduction of the

DE1-SoC Board

This chapter presents the features and design characteristics of the board.

22..1

LLaayyoouutt aanndd CCoommppoonneennttss

A photograph of the board is shown in Figure 2-1. It depicts the layout of the board and indicates the location of the connectors and key components.

Figure 2-1 Development Board (top view)

Figure 2-2 Development Board (bottom view)

The DE1-SoC board has many features that allow users to implement a wide range of designed circuits, from simple circuits to various multimedia projects.

The following hardware is provided on the board:

 FPGA

 Altera Cyclone® V SE 5CSEMA5F31C6N device  Altera Serial Configuration device – EPCQ256  USB Blaster II(on board) for programming; JTAG Mode  64MB SDRAM (16-bit data bus)  4 Push-buttons  10 Slide switches  10 Red user LEDs  Six 7-segment displays  Four 50MHz clock sources from clock generator  24-bit CD-quality audio CODEC with line-in, line-out, and microphone-in jacks  VGA DAC (8-bit high-speed triple DACs) with VGA-out connector  TV Decoder (NTSC/PAL/SECAM) and TV-in connector  PS/2 mouse/keyboard connector  IR receiver and IR emitter  Two 40-pin Expansion Header with diode protection  A/D Converter, 4-pin SPI interface with FPGA

 HPS (Hard Processor System)

 800MHz Dual-core ARM Cortex-A9 MPCore processor  1GB DDR3 SDRAM (32-bit data bus)  1 Gigabit Ethernet PHY with RJ45 connector  2-port USB Host, Normal Type-A USB connector  Micro SD card socket  Accelerometer (I2C interface + interrupt)  UART to USB, USB Mini-B connector  Warm reset button and cold reset button  One user button and one user LED  LTC 2x7 expansion header

22..2

BBlloocckk DDiiaaggrraamm ooff tthhee DDEE11--SSooCC BBooaarrdd

Figure 2-3 gives the block diagram of the board. To provide maximum flexibility for the user, all

connections are made through the Cyclone V SoC FPGA device. Thus, the user can configure the FPGA to implement any system design.

Figure 2-3 Board Block Diagram

Following is more detailed information about the blocks in Figure 2-3:

FFPPGGAA DDeevviiccee

 Cyclone V SoC 5CSEMA5F31 Device  Dual-core ARM Cortex-A9 (HPS)  85K Programmable Logic Elements  4,450 Kbits embedded memory  6 Fractional PLLs  2 Hard Memory Controllers

CCoonnffiigguurraattiioonn aanndd DDeebbuug

 Quad Serial Configuration device – EPCQ256 on FPGA  On-Board USB Blaster II (Normal type B USB connector)

MMeemmoorryy DDeevviiccee

 64MB (32Mx16) SDRAM on FPGA  1GB (2x256Mx16) DDR3 SDRAM on HPS  128MB QSPI Flash on HPS  Micro SD Card Socket on HPS

CCoommmmuunniiccaattiioonn

 Two Port USB 2.0 Host (ULPI interface with USB type A connector)  UART to USB (USB Mini-B connector)  10/100/1000 Ethernet  PS/2 mouse/keyboard  IR Emitter/Receiver  I2C Multiplexer

CCoonnnneeccttoorrss

 Two 40-pin Expansion Headers  One 10-pin ADC Input Header  One LTC connector (One Serial Peripheral Interface (SPI) Master ,one I2C and one GPIO

interface )

DDiissppllaayy

 24-bit VGA DAC

AAuuddiioo

 24-bit CODEC, Line-in, line-out, and microphone-in jacks

VViiddeeoo IInnppuutt

 TV Decoder (NTSC/PAL/SECAM) and TV-in connector

SSwwiittcchheess,, BBuuttttoonnss aanndd IInnddiiccaattoorrss

 5 User Keys (FPGA x4, HPS x1)  10 User switches (FPGA x10)  11 User LEDs (FPGA x10, HPS x 1)  2 HPS Reset Buttons (HPS_RESET_n and HPS_WARM_RST_n)  Six 7-segment displays

SSeennssoorrss

 G-Sensor on HPS

PPoowweerr

 12V DC input

Chapter 3

Using the DE1-SoC

Board

This chapter gives instructions for using the board and describes each of its peripherals.

33..1

BBooaarrdd SSeettuupp

This section will explain the settings of FPGA configuration modes, HPS boot source select and HPS flash controller clock frequency in detail.

33..11..1

FFPPGGAA CCoonnffiigguurraattiioonn MMooddee SSeettttiinngg

Table 3-1 gives the MSEL pins setting for each configuration scheme of Cyclone V SoC devices.

FPGA default works in ASx4 Fast mode with MSEL[4:0] = 10010.

Table 3-1 MSEL pin Settings for each Scheme of Cyclone V Device

Configuration Scheme

Compression Feature

Design Security Feature

POR Delay Valid MSEL[4:0]

FPPx8

Disabled

Disabled Fast

10100

Standard

11000

Disabled

Enabled Fast

10101

Standard

11001

Enabled

Disabled Fast

10110

Standard

11010

FPPx16

Disabled

Enabled Fast

00000

Standard

00100

Disabled

Disabled Fast

00001

Standard

00101

Enabled

Enabled Fast

00010

Standard

00110

Enabled/ Disabled

Disabled Fast

10000

Standard

10001

AS(X1 and X4)

Enabled/ Disabled

Enabled Fast

10010

Standard

10011

Table 3-2 shows the switch controls and descriptions for MSEL.

Table 3-2 SW10 FPGA Configuration Mode Switch

Board Reference

Signal Name

Description

Default

SW10.1

MSEL0

Sets the Cyclone V MSEL[4:0] pins. Use these pins to set the configuration scheme and POR delay.

SW10.2

MSEL1

Off

SW10.3

MSEL2

SW10.4

MSEL3

SW10.5

MSEL4

Off

SW10.6

N/A

33..11..2

HHPPSS BBOOOOTTSSEELL aanndd CCLLKKSSEELL SSeettttiinngg

The processor in the HPS can be boot from many sources such as the SD card, QSPI Flash or FPGA. Selecting the boot source for the HPS can be set using the BOOTSEL signal. Figure 3-1 lists the settings for selecting a suitable boot source. The default boot source for the HPS is from SD card with fixing BOOTSEL[2:0] = 101. HPS flash controller clock frequency can be set using CLOCKSEL signal. Table 3-3 lists the setting for SD/MMC controller CLOCKSEL pins. The default CLOCKSEL setting is CLOCKSEL[1:0] = 00.

If users need to change BOOTSEL[2:0] and CLOCKSEL[1:0] setting, since we make our schematic/layout flexible, users can change BOOTSEL[2:0] and CLOCKSEL[1:0] by :

 Change the BOOTSEL and CLOCKSEL resistors on the board  By soldering or removing the resistors (R97~R100, R106~R111) will change the value of

BOOTSEL and CLOCKSEL.

 Add a x6 dip switch (SW16) on the board  Solder SW16, R97, R98, R107 and remove R99, R100, R110, will let MSEL[4:0] value to be

changed by switching SW16. Table 3-4 shows the switch controls and descriptions for MSEL

Table 3-3 BOOTSEL[2:0] Setting Values and Flash Device Selection

BOOTSEL[2:0] Setting Value

Flash Device

000

Reserved

001

FPGA (HPS-to-FPGA bridge)

010

1.8 V NAND Flash memory (*1)

011

3.0 V NAND Flash memory(*1)

100

1.8 V SD/MMC Flash memory(*1)

101

3.0 V SD/MMC Flash memory

110

1.8 V SPI or quad SPI Flash memory(*1)

111

3.0 V SPI or quad SPI Flash memory

(*1) : Not supported on DE1-SoC board

Table 3-4 SD/MMC Controller CSEL Pin Settings

Setting

CSEL Pin

0 1 2

Osc1_clk (EOSC1 pin) range

10-50MHz

10-12.5MHz

12.5-25MHz

25-50MHz

ID mode

sdmmc_cclk_out device clock

Osc1_clk/128, 391 KHz max

Osc1_clk/32, 391 KHz max

Osc1_clk/64, 391 KHz max

Osc1_clk/128, 391 KHz max

Controller baud rate divisor

Data transfer mode

sdmmc_cclk_out device clock

Osc1_clk/4, 391

12.5MHz max

Osc1_clk*1,

12.5MHz max

Osc1_clk/2,

12.5MHz max

Osc1_clk/4,

12.5MHz max

Controller baud rate divisor (even numbers only)

1 (bypass)

1 (bypass

sdmmc_clk controller clock:

Osc1_clk, 50MHz max

Osc1_clk*2, 50MHz max

mpu_clk

Osc1_clk, 50MHz max

Osc1_clk*32, 400MHz max

Osc1_clk*16, 400MHz max

Osc1_clk*8, 400MHz max

PLL modes

Bypassed

Locked

Table 3-5 SW16 HPS BOOTSEL and CLKSEL Setting

Board Reference

Signal Name

Description

Default

SW16.1

BOOTSEL0

Sets the Cyclone V BOOTSEL[2:0] and CLOCKSEL[1:0] pins.

Off

SW16.2

BOOTSEL1

SW16.3

BOOTSEL2

Off

SW16.4

CLOCKSEL0

SW16.5

CLOCKSEL1

SW16.6

N/A

33..2

CCoonnffiigguurriinngg tthhee CCyycclloonnee VV SSooCC FFPPGGAA

The DE1-SoC board contains a serial configuration device that stores configuration data for the Cyclone V SoC FPGA. This configuration data is automatically loaded from the configuration device into the FPGA every time while power is applied to the board. Using the Quartus II software, it is possible to reconfigure the FPGA at any time, and it is also possible to change the non-volatile data that is stored in the serial configuration device. Both types of programming methods are described below.

1. JTAG programming: In this method of programming, named after the IEEE standards Joint Test Action Group, the configuration bit stream is downloaded directly into the Cyclone V SoC FPGA. The FPGA will retain this configuration as long as power is applied to the board; the configuration information will be lost when the power is turned off.

2. AS programming: In this method, called Active Serial programming, the configuration bit stream is downloaded into the quad serial configuration device (EPCQ256). It provides non-volatile storage of the bit stream, so that the information is retained even when the power supply to the DE1-SoC board is turned off. When the board’s power is turned on, the configuration data in the EPCQ256 device is automatically loaded into the Cyclone V SoC FPGA.

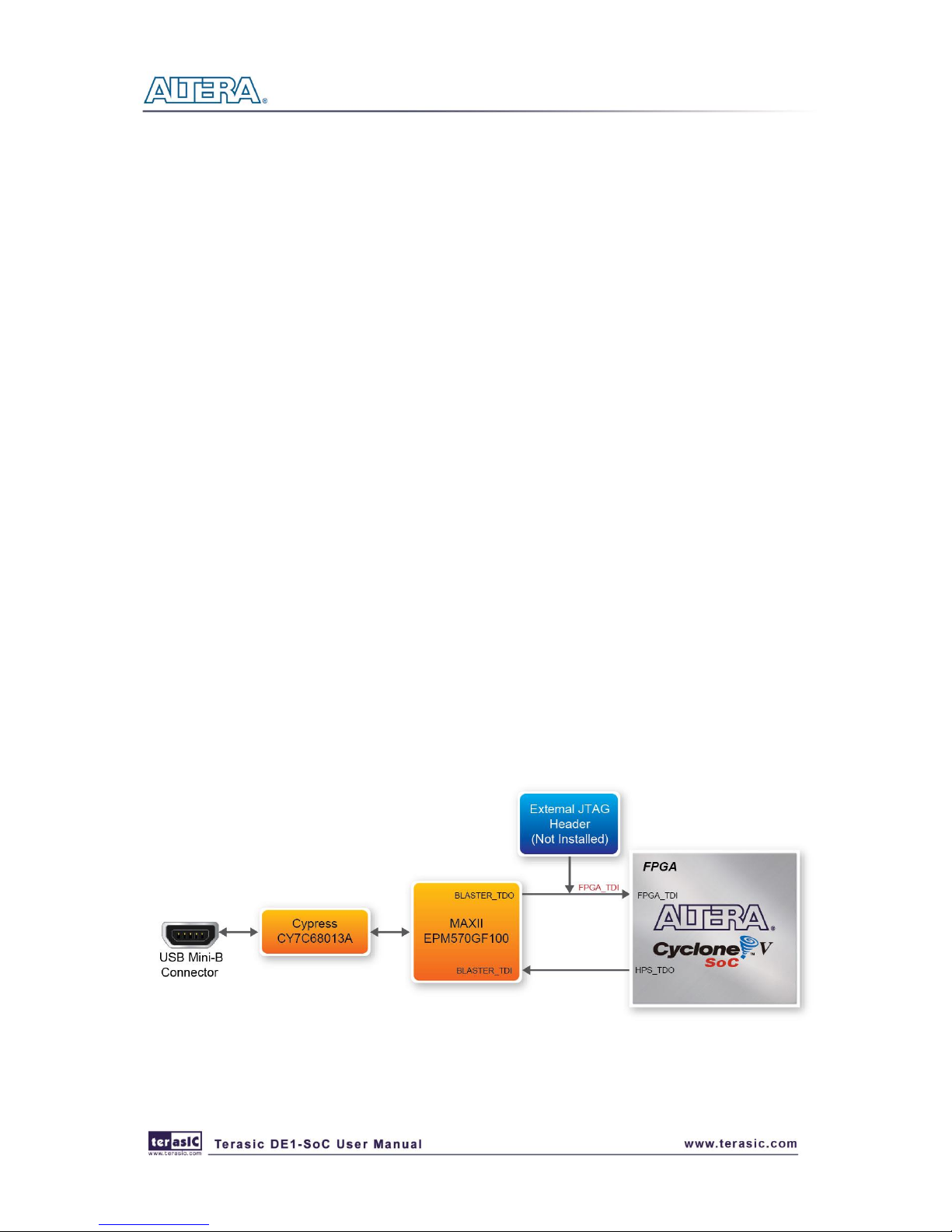

 JTAG Chain on DE1-SoC Board

To use JTAG interface for configuring FPGA device, the JTAG chain on DE1-SoC must form a close loop that allows Quartus II programmer to detect FPGA device. Figure 3-1 illustrates the JTAG chain on DE1-SoC board.

Figure 3-1 The JTAG chain on the board

 Configuring the FPGA in JTAG Mode

There are two devices (FPGA and HPS) on the JTAG Chain, the configure flow is different from DE1. The following shows the programming flow with JTAG mode step by step.

 Open Programmer and click “Auto Detect “ as Figure 3-2

 Select detected device as Figure 3-3 (Please select device as same as which shows on the board)

Figure 3-2 FPGA JTAG Programming Steps 1

Figure 3-3 FPGA JTAG Programming Steps 2

 Both FPGA and HPS will be detected as Figure 3-4

 Click the FPGA device, right click mouse to popup the manual, and then select .sof file for

FPGA as Figure 3-5

Figure 3-4 FPGA JTAG Programming Steps 3

 Select .sof file for FPGA as Figure 3-6

Figure 3-5 FPGA JTAG Programming Steps 4

Figure 3-6 FPGA JTAG Programming Steps 5

 Click “Program/Configure” check box, and then click “Start” button to download .sof file into

FPGA as Figure 3-7

 Configuring the FPGA in AS Mode (from EPCQ256)

 The board contains a quad serial configuration device (EPCQ256) that stores configuration data

for the Cyclone V SoC FPGA. This configuration data is automatically loaded from the quad serial configuration device chip into the FPGA when the board is powered up.

 To program the configuration device, users will need to use a Serial Flash Loader (SFL)

function to program the quad serial configuration device via the JTAG interface. The

Figure 3-7 FPGA JTAG Programming Steps 6

FPGA-based SFL is a soft intellectual property (IP) core within the FPGA that bridges the JTAG and flash interfaces. The SFL mega-function is available from Quartus II software. Figure 3-8 shows the programming method when adopting a SFL solution

 Please refer to Chapter 9: Steps of Programming the Quad Serial Configuration Device for the

basic programming instruction on the serial configuration device

Figure 3-8 Programming a Quad Serial Configuration Device with the SFL Solution

33..3

BBooaarrdd SSttaattuuss EElleemmeennttss

The board includes status LEDs. Please refer to Table 3-6 for the status of the LED indicator.

Table 3-6 LED Indicators

Board Reference

LED Name

Description

D14

12-V Power

Illuminates when 12-V power is active.

TXD

UART TXD

Illuminates when data from FT232R to USB Host.

RXD

UART RXD

Illuminates when data from USB Host to FT232R.

JTAG_RX

Reserved

JTAG_TX

33..4

BBooaarrdd RReesseett EElleemmeennttss

The board equips two HPS reset circuits (See Figure 3-9). Table 3-7 shows the buttons references and its descriptions. Figure 3-10 shows the reset tree on the board.

Figure 3-9 Board Reset Elements

Table 3-7 Reset Elements

Board Reference

Signal Name

Description

KEY5

HPS_RESET_N

Cold reset to the HPS , Ethernet PHY and USB host device . Active low input that will reset all HPS logics that can be reset. Places the HPS in a default state sufficient for software to boot.

KEY7

HPS_WARM_RST_N

Warm reset to the HPS block. Active low input affects the system reset domains which allows debugging to operate.



Figure 3-10 Reset Tree on the Development Board

33..5

CClloocckk CCiirrccuuiittrryy

Figure 3-11 is a diagram showing the default frequencies of all of the external clocks going to the

Cyclone V SoC FPGA. A clock generator is used to distribute clock signals with low jitter to FPGA. The four distributing 50MHz clock signals are connected to the FPGA that are used for clocking the user logic. One distributing 25MHz clock signal is connected to HPS clock inputs, the other distributing 25MHz clock signal is connected to the clock input of Gigabit Ethernet Transceiver. Two distributing 24MHz clock signals are connected to clock inputs of USB Host/OTG PHY and USB Hub controller, respectively. The associated pin assignments for clock inputs to FPGA I/O pins are listed in Table 3-8.

Figure 3-11 Block diagram of the clock distribution

Table 3-8 Pin Assignments for Clock Inputs

Signal Name

FPGA Pin No.

Description

I/O Standard

CLOCK_50

PIN_AF14

50 MHz clock input

3.3V

CLOCK2_50

PIN_AA16

50 MHz clock input

3.3V

CLOCK3_50

PIN_Y26

50 MHz clock input

3.3V

CLOCK4_50

PIN_K14

50 MHz clock input

3.3V

HPS_CLOCK1_25

PIN_D25

25 MHz clock input

3.3V

HPS_CLOCK2_25

PIN_F25

25 MHz clock input

3.3V

33..6

IInntteerrffaaccee oonn FFPPGGAA

This section describes the interfaces to the FPGA. Users can control or monitor the different interfaces with user logic on the FPGA.

3.6.1 User Push-buttons, Switches and LEDs on FPGA

The board provides four push-button switches connected to FPGA as shown in Figure 3-12

Connections between the push-button and Cyclone V SoC FPGA. Each of these switches is debounced

using a Schmitt Trigger circuit, as indicated in Figure 3-13. The four outputs called KEY0, KEY1, KEY2, and KEY3 of the Schmitt Trigger devices are connected directly to the Cyclone V SoC FPGA. Each push-button switch provides a high logic level when it is not pressed, and provides a low logic level when depressed. Since the push-button switches are debounced, they are appropriate for using as clock or reset inputs in a circuit.

Figure 3-12 Connections between the push-button and Cyclone V SoC FPGA

Pushbutton releasedPushbutton depressed

Before

Debouncing

Schmitt Trigger

Debounced

Figure 3-13 Switch debouncing

There are ten slide switches connected to FPGA on the board (See Figure 3-14). These switches are not debounced, and are assumed for use as level-sensitive data inputs to a circuit. Each switch is connected directly to a pin on the Cyclone V SoC FPGA. When the switch is in the DOWN position (closest to the edge of the board), it provides a low logic level to the FPGA, and when the switch is in the UP position it provides a high logic level.

Figure 3-14 Connections between the slide switches and Cyclone V SoC FPGA

There are also ten user-controllable LEDs connected to FPGA on the board. Each LED is driven directly by a pin on the Cyclone V SoC FPGA; driving its associated pin to a high logic level turns the LED on, and driving the pin low turns it off. Figure 3-15 shows the connections between LEDs and Cyclone V SoC FPGA. Table 3-9, Table 3-10 and Table 3-11 list the pin assignments of these user interfaces.

Figure 3-15 Connections between the LEDs and Cyclone V SoC FPGA

Table 3-9 Pin Assignments for Slide Switches

Signal Name

FPGA Pin No.

Description

I/O Standard

SW[0]

PIN_AB12

Slide Switch[0]

3.3V

SW[1]

PIN_AC12

Slide Switch[1]

3.3V

SW[2]

PIN_AF9

Slide Switch[2]

3.3V

SW[3]

PIN_AF10

Slide Switch[3]

3.3V

SW[4]

PIN_AD11

Slide Switch[4]

3.3V

SW[5]

PIN_AD12

Slide Switch[5]

3.3V

SW[6]

PIN_AE11

Slide Switch[6]

3.3V

SW[7]

PIN_AC9

Slide Switch[7]

3.3V

SW[8]

PIN_AD10

Slide Switch[8]

3.3V

SW[9]

PIN_AE12

Slide Switch[9]

3.3V

Table 3-10 Pin Assignments for Push-buttons

Signal Name

FPGA Pin No.

Description

I/O Standard

KEY[0]

PIN_AA14

Push-button[0]

3.3V

KEY[1]

PIN_AA15

Push-button[1]

3.3V

KEY[2]

PIN_W15

Push-button[2]

3.3V

KEY[3]

PIN_Y16

Push-button[3]

3.3V

Table 3-11 Pin Assignments for LEDs

Signal Name

FPGA Pin No.

Description

I/O Standard

LEDR[0]

PIN_V16

LED [0]

3.3V

LEDR[1]

PIN_W16

LED [1]

3.3V

LEDR[2]

PIN_V17

LED [2]

3.3V

LEDR[3]

PIN_V18

LED [3]

3.3V

LEDR[4]

PIN_W17

LED [4]

3.3V

LEDR[5]

PIN_W19

LED [5]

3.3V

LEDR[6]

PIN_Y19

LED [6]

3.3V

LEDR[7]

PIN_W20

LED [7]

3.3V

LEDR[8]

PIN_W21

LED [8]

3.3V

LEDR[9]

PIN_Y21

LED [9]

3.3V

3.6.2 Using the 7-segment Displays

The DE1-SoC board has six 7-segment displays. These displays are arranged into three pairs, behaving the intent of displaying numbers of various sizes. As indicated in the schematic in Figure

3-16, the seven segments (common anode) are connected to pins on Cyclone V SoC FPGA.

Applying a low logic level to a segment will light it up and applying a high logic level turns it off.

Each segment in a display is identified by an index from 0 to 6, with the positions given in Figure

3-16.Table 3-12 shows the assignments of FPGA pins to the 7-segment displays.

Figure 3-16 Connections between the 7-segment display HEX0 and Cyclone V SoC FPGA

Table 3-12 Pin Assignments for 7-segment Displays

Signal Name

FPGA Pin No.

Description

I/O Standard

HEX0[0]

PIN_AE26

Seven Segment Digit 0[0]

3.3V

HEX0[1]

PIN_AE27

Seven Segment Digit 0[1]

3.3V

HEX0[2]

PIN_AE28

Seven Segment Digit 0[2]

3.3V

HEX0[3]

PIN_AG27

Seven Segment Digit 0[3]

3.3V

HEX0[4]

PIN_AF28

Seven Segment Digit 0[4]

3.3V

HEX0[5]

PIN_AG28

Seven Segment Digit 0[5]

3.3V

HEX0[6]

PIN_AH28

Seven Segment Digit 0[6]

3.3V

HEX1[0]

PIN_AJ29

Seven Segment Digit 1[0]

3.3V

HEX1[1]

PIN_AH29

Seven Segment Digit 1[1]

3.3V

HEX1[2]

PIN_AH30

Seven Segment Digit 1[2]

3.3V

HEX1[3]

PIN_AG30

Seven Segment Digit 1[3]

3.3V

HEX1[4]

PIN_AF29

Seven Segment Digit 1[4]

3.3V

HEX1[5]

PIN_AF30

Seven Segment Digit 1[5]

3.3V

HEX1[6]

PIN_AD27

Seven Segment Digit 1[6]

3.3V

HEX2[0]

PIN_AB23

Seven Segment Digit 2[0]

3.3V

HEX2[1]

PIN_AE29

Seven Segment Digit 2[1]

3.3V

HEX2[2]

PIN_AD29

Seven Segment Digit 2[2]

3.3V

HEX2[3]

PIN_AC28

Seven Segment Digit 2[3]

3.3V

HEX2[4]

PIN_AD30

Seven Segment Digit 2[4]

3.3V

HEX2[5]

PIN_AC29

Seven Segment Digit 2[5]

3.3V

HEX2[6]

PIN_AC30

Seven Segment Digit 2[6]

3.3V

HEX3[0]

PIN_AD26

Seven Segment Digit 3[0]

3.3V

HEX3[1]

PIN_AC27

Seven Segment Digit 3[1]

3.3V

HEX3[2]

PIN_AD25

Seven Segment Digit 3[2]

3.3V

HEX3[3]

PIN_AC25

Seven Segment Digit 3[3]

3.3V

HEX3[4]

PIN_AB28

Seven Segment Digit 3[4]

3.3V

HEX3[5]

PIN_AB25

Seven Segment Digit 3[5]

3.3V

HEX3[6]

PIN_AB22

Seven Segment Digit 3[6]

3.3V

HEX4[0]

PIN_AA24

Seven Segment Digit 4[0]

3.3V

HEX4[1]

PIN_Y23

Seven Segment Digit 4[1]

3.3V

HEX4[2]

PIN_Y24

Seven Segment Digit 4[2]

3.3V

HEX4[3]

PIN_W22

Seven Segment Digit 4[3]

3.3V

HEX4[4]

PIN_W24

Seven Segment Digit 4[4]

3.3V

HEX4[5]

PIN_V23

Seven Segment Digit 4[5]

3.3V

HEX4[6]

PIN_W25

Seven Segment Digit 4[6]

3.3V

HEX5[0]

PIN_V25

Seven Segment Digit 5[0]

3.3V

HEX5[1]

PIN_AA28

Seven Segment Digit 5[1]

3.3V

HEX5[2]

PIN_Y27

Seven Segment Digit 5[2]

3.3V

HEX5[3]

PIN_AB27

Seven Segment Digit 5[3]

3.3V

HEX5[4]

PIN_AB26

Seven Segment Digit 5[4]

3.3V

HEX5[5]

PIN_AA26

Seven Segment Digit 5[5]

3.3V

HEX5[6]

PIN_AA25

Seven Segment Digit 5[6]

3.3V

3.6.3 Using the 2x20 GPIO Expansion Headers

The Board provides two 40-pin expansion headers. The header connects directly to 36 pins of the Cyclone V SoC FPGA, and also provides DC +5V (VCC5), DC +3.3V (VCC3P3), and two GND pins. The maximum power consumption of the daughter card that connects to GPIO port is shown in Table 3-13.

Table 3-13 Power Supply of the Expansion Header

Supplied Voltage

Max. Current Limit

3.3V

1.5A

Each pin on the expansion headers is connected to two diodes and a resistor that provides protection against high and low voltages. Figure 3-17 shows the protection circuitry for only one of the pin on the header, but this circuitry is included for all 72 data pins. Table 3-14 shows all the pin assignments of the GPIO connector.

Figure 3-17 Connections between the GPIO connector and Cyclone V SoC FPGA

Table 3-14 Pin Assignments for Expansion Headers

Signal Name

FPGA Pin No.

Description

I/O Standard

GPIO_0[0]

PIN_AC18

GPIO Connection 0[0]

3.3V

GPIO_0 [1]

PIN_Y17

GPIO Connection 0[1]

3.3V

GPIO_0 [2]

PIN_AD17

GPIO Connection 0[2]

3.3V

GPIO_0 [3]

PIN_Y18

GPIO Connection 0[3]

3.3V

GPIO_0 [4]

PIN_AK16

GPIO Connection 0[4]

3.3V

GPIO_0 [5]

PIN_AK18

GPIO Connection 0[5]

3.3V

GPIO_0 [6]

PIN_AK19

GPIO Connection 0[6]

3.3V

GPIO_0 [7]

PIN_AJ19

GPIO Connection 0[7]

3.3V

GPIO_0 [8]

PIN_AJ17

GPIO Connection 0[8]

3.3V

GPIO_0 [9]

PIN_AJ16

GPIO Connection 0[9]

3.3V

GPIO_0 [10]

PIN_AH18

GPIO Connection 0[10]

3.3V

GPIO_0 [11]

PIN_AH17

GPIO Connection 0[11]

3.3V

GPIO_0 [12]

PIN_AG16

GPIO Connection 0[12]

3.3V

GPIO_0 [13]

PIN_AE16

GPIO Connection 0[13]

3.3V

GPIO_0 [14]

PIN_AF16

GPIO Connection 0[14]

3.3V

GPIO_0 [15]

PIN_AG17

GPIO Connection 0[15]

3.3V

GPIO_0 [16]

PIN_AA18

GPIO Connection 0[16]

3.3V

GPIO_0 [17]

PIN_AA19

GPIO Connection 0[17]

3.3V

GPIO_0 [18]

PIN_AE17

GPIO Connection 0[18]

3.3V

GPIO_0 [19]

PIN_AC20

GPIO Connection 0[19]

3.3V

GPIO_0 [20]

PIN_AH19

GPIO Connection 0[20]

3.3V

GPIO_0 [21]

PIN_AJ20

GPIO Connection 0[21]

3.3V

GPIO_0 [22]

PIN_AH20

GPIO Connection 0[22]

3.3V

GPIO_0 [23]

PIN_AK21

GPIO Connection 0[23]

3.3V

GPIO_0 [24]

PIN_AD19

GPIO Connection 0[24]

3.3V

GPIO_0 [25]

PIN_AD20

GPIO Connection 0[25]

3.3V

GPIO_0 [26]

PIN_AE18

GPIO Connection 0[26]

3.3V

GPIO_0 [27]

PIN_AE19

GPIO Connection 0[27]

3.3V

GPIO_0 [28]

PIN_AF20

GPIO Connection 0[28]

3.3V

GPIO_0 [29]

PIN_AF21

GPIO Connection 0[29]

3.3V

GPIO_0 [30]

PIN_AF19

GPIO Connection 0[30]

3.3V

GPIO_0 [31]

PIN_AG21

GPIO Connection 0[31]

3.3V

GPIO_0 [32]

PIN_AF18

GPIO Connection 0[32]

3.3V

GPIO_0 [33]

PIN_AG20

GPIO Connection 0[33]

3.3V

GPIO_0 [34]

PIN_AG18

GPIO Connection 0[34]

3.3V

GPIO_0 [35]

PIN_AJ21

GPIO Connection 0[35]

3.3V

GPIO_1[0]

PIN_AB17

GPIO Connection 1[0]

3.3V

GPIO_1[1]

PIN_AA21

GPIO Connection 1[1]

3.3V

GPIO_1 [2]

PIN_AB21

GPIO Connection 1[2]

3.3V

GPIO_1 [3]

PIN_AC23

GPIO Connection 1[3]

3.3V

GPIO_1 [4]

PIN_AD24

GPIO Connection 1[4]

3.3V

GPIO_1 [5]

PIN_AE23

GPIO Connection 1[5]

3.3V

GPIO_1 [6]

PIN_AE24

GPIO Connection 1[6]

3.3V

GPIO_1 [7]

PIN_AF25

GPIO Connection 1[7]

3.3V

GPIO_1 [8]

PIN_AF26

GPIO Connection 1[8]

3.3V

GPIO_1 [9]

PIN_AG25

GPIO Connection 1[9]

3.3V

GPIO_1[10]

PIN_AG26

GPIO Connection 1[10]

3.3V

GPIO_1 [11]

PIN_AH24

GPIO Connection 1[11]

3.3V

GPIO_1 [12]

PIN_AH27

GPIO Connection 1[12]

3.3V

GPIO_1 [13]

PIN_AJ27

GPIO Connection 1[13]

3.3V

GPIO_1 [14]

PIN_AK29

GPIO Connection 1[14]

3.3V

GPIO_1 [15]

PIN_AK28

GPIO Connection 1[15]

3.3V

GPIO_1 [16]

PIN_AK27

GPIO Connection 1[16]

3.3V

GPIO_1 [17]

PIN_AJ26

GPIO Connection 1[17]

3.3V

GPIO_1 [18]

PIN_AK26

GPIO Connection 1[18]

3.3V

GPIO_1 [19]

PIN_AH25

GPIO Connection 1[19]

3.3V

GPIO_1 [20]

PIN_AJ25

GPIO Connection 1[20]

3.3V

GPIO_1 [21]

PIN_AJ24

GPIO Connection 1[21]

3.3V

GPIO_1 [22]

PIN_AK24

GPIO Connection 1[22]

3.3V

GPIO_1 [23]

PIN_AG23

GPIO Connection 1[23]

3.3V

GPIO_1 [24]

PIN_AK23

GPIO Connection 1[24]

3.3V

GPIO_1 [25]

PIN_AH23

GPIO Connection 1[25]

3.3V

GPIO_1 [26]

PIN_AK22

GPIO Connection 1[26]

3.3V

GPIO_1 [27]

PIN_AJ22

GPIO Connection 1[27]

3.3V

GPIO_1 [28]

PIN_AH22

GPIO Connection 1[28]

3.3V

GPIO_1 [29]

PIN_AG22

GPIO Connection 1[29]

3.3V

GPIO_1 [30]

PIN_AF24

GPIO Connection 1[30]

3.3V

GPIO_1 [31]

PIN_AF23

GPIO Connection 1[31]

3.3V

GPIO_1 [32]

PIN_AE22

GPIO Connection 1[32]

3.3V

GPIO_1 [33]

PIN_AD21

GPIO Connection 1[33]

3.3V

GPIO_1 [34]

PIN_AA20

GPIO Connection 1[34]

3.3V

GPIO_1 [35]

PIN_AC22

GPIO Connection 1[35]

3.3V

3.6.4 Using the 24-bit Audio CODEC

The DE1-SoC board provides high-quality 24-bit audio via the Wolfson WM8731 audio CODEC (Encoder/Decoder). This chip supports microphone-in, line-in, and line-out ports, with a sample rate adjustable from 8 kHz to 96 kHz. The WM8731 is controlled via by a serial I2C bus, which is connected to HPS or Cyclone V SoC FPGA through a I2C multiplexer. A schematic diagram of the audio circuitry is shown in Figure 3-18, and the FPGA pin assignments are listed in Table 3-15. Detailed information for using the WM8731 codec is available in its datasheet, which can be found on the manufacturer’s website, or in the DE1_SOC_datasheets\Audio CODEC folder on the DE1-SoC System CD.

Figure 3-18 Connections between FPGA and Audio CODEC

Table 3-15 Audio CODEC Pin Assignments

Signal Name

FPGA Pin No.

Description

I/O Standard

AUD_ADCLRCK

PIN_K8

Audio CODEC ADC LR Clock

3.3V

AUD_ADCDAT

PIN_K7

Audio CODEC ADC Data

3.3V

AUD_DACLRCK

PIN_H8

Audio CODEC DAC LR Clock

3.3V

AUD_DACDAT

PIN_J7

Audio CODEC DAC Data

3.3V

AUD_XCK

PIN_G7

Audio CODEC Chip Clock

3.3V

AUD_BCLK

PIN_H7

Audio CODEC Bit-Stream Clock

3.3V

I2C_SCLK

PIN_J12 or PIN_E23

I2C Clock

3.3V

I2C_SDAT

PIN_K12 or PIN_C24

I2C Data

3.3V

3.6.5 I2C Multiplexer

The DE1-SoC board implements an I2C multiplexer so that HPS can access the I2C bus originally owned by FPGA. Figure 3-19 shows the connection of I2C multiplexer. HPS will own I2C bus and then can access Audio CODEC and TV Decoder when the HPS_I2C_CONTROL signal is set to high. By default, FPGA owns the I2C bus. The FPGA pin assignments of I2C bus are listed in Table

3-16 .

Figure 3-19 Connections of I2C Multiplexer

Table 3-16 I2C Bus Pin Assignments

Signal Name

FPGA Pin No.

Description

I/O Standard

FPGA_I2C_SCLK

PIN_J12

FPGA I2C Clock

3.3V

FPGA_I2C_SDAT

PIN_K12

FPGA I2C Data

3.3V

HPS_I2C1_SCLK

PIN_E23

I2C Clock of the first HPS I2C concontroller

3.3V

HPS_I2C1_SDAT

PIN_C24

I2C Data of the first HPS I2C concontroller

3.3V

HPS_I2C2_SCLK

PIN_H23

I2C Clock of the second HPS I2C concontroller

3.3V

HPS_I2C2_SDAT

PIN_A25

I2C Data of the second HPS I2C concontroller

3.3V

3.6.6 VGA

The DE1-SoC board includes a 15-pin D-SUB connector for VGA output. The VGA synchronization signals are provided directly from the Cyclone V SoC FPGA, and the Analog Devices ADV7123 triple 10-bit high-speed video DAC (only the higher 8-bits are used) is used to produce the analog data signals (red, green, and blue). It could support the SXGA standard (1280*1024) with a bandwidth of 100MHz. Figure 3-20 gives the associated schematic.

Figure 3-20 VGA Connections between FPGA and VGA

The timing specification for VGA synchronization and RGB (red, green, blue) data can be found on various educational website (for example, search for “VGA signal timing”). Figure 3-20 illustrates the basic timing requirements for each row (horizontal) that is displayed on a VGA monitor. An active-low pulse of specific duration (time (a) in the figure) is applied to the horizontal synchronization (hsync) input of the monitor, which signifies the end of one row of data and the start of the next. The data (RGB) output to the monitor must be off (driven to 0 V) for a time period called the back porch (b) after the hsync pulse occurs, which is followed by the display interval (c). During the data display interval the RGB data drives each pixel in turn across the row being displayed. Finally, there is a time period called the front porch (d) where the RGB signals must again be off before the next hsync pulse can occur. The timing of the vertical synchronization (vsync) is the similar as shown in Figure 3-21, except that a vsync pulse signifies the end of one frame and the start of the next, and the data refers to the set of rows in the frame (horizontal timing).

Table 3-17 and Table 3-18 show different resolutions and durations of time periods a, b, c, and d

for both horizontal and vertical timing.

Detailed information for using the ADV7123 video DAC is available in its datasheet, which can be found on the manufacturer’s website, or in the Datasheets\VIDEO DAC folder on the DE1-SoC System CD. The pin assignments between the Cyclone V SoC FPGA and the ADV7123 are listed in

Table 3-19.

Figure 3-21 VGA horizontal timing specification

Table 3-17 VGA Horizontal Timing Specification

VGA mode

Horizontal Timing Spec

Configuration

Resolution(HxV)

a(us)

b(us)

c(us)

d(us)

Pixel clock(MHz)

VGA(60Hz)

640x480

3.8

1.9

25.4

0.6

VGA(85Hz)

640x480

1.6

2.2

17.8

1.6

SVGA(60Hz)

800x600

3.2

2.2

20 1 40

SVGA(75Hz)

800x600

1.6

3.2

16.2

0.3

SVGA(85Hz)

800x600

1.1

2.7

14.2

0.6

XGA(60Hz)

1024x768

2.1

2.5

15.8

0.4

XGA(70Hz)

1024x768

1.8

1.9

13.7

0.3

XGA(85Hz)

1024x768

1.0

2.2

10.8

0.5

1280x1024(60Hz)

1280x1024

1.0

2.3

11.9

0.4

108

Table 3-18 VGA Vertical Timing Specification

VGA mode

Vertical Timing Spec

Configuration

Resolution(HxV)

a(lines)

b(lines)

c(lines)

d(lines)

Pixel clock(MHz)

VGA(60Hz)

640x480

480

VGA(85Hz)

640x480

480 1 36

SVGA(60Hz)

800x600

600 1 40

SVGA(75Hz)

800x600

600 1 49

SVGA(85Hz)

800x600

600 1 56

XGA(60Hz)

1024x768

768 3 65

XGA(70Hz)

1024x768

768 3 75

XGA(85Hz)

1024x768

768 1 95

1280x1024(60Hz)

1280x1024

1024

108

Table 3-19 Pin Assignments for VGA

Signal Name

FPGA Pin No.

Description

I/O Standard

VGA_R[0]

PIN_A13

VGA Red[0]

3.3V

VGA_R[1]

PIN_C13

VGA Red[1]

3.3V

VGA_R[2]

PIN_E13

VGA Red[2]

3.3V

VGA_R[3]

PIN_B12

VGA Red[3]

3.3V

VGA_R[4]

PIN_C12

VGA Red[4]

3.3V

VGA_R[5]

PIN_D12

VGA Red[5]

3.3V

VGA_R[6]

PIN_E12

VGA Red[6]

3.3V

VGA_R[7]

PIN_F13

VGA Red[7]

3.3V

VGA_G[0]

PIN_J9

VGA Green[0]

3.3V

VGA_G[1]

PIN_J10

VGA Green[1]

3.3V

VGA_G[2]

PIN_H12

VGA Green[2]

3.3V

VGA_G[3]

PIN_G10

VGA Green[3]

3.3V

VGA_G[4]

PIN_G11

VGA Green[4]

3.3V

VGA_G[5]

PIN_G12

VGA Green[5]

3.3V

VGA_G[6]

PIN_F11

VGA Green[6]

3.3V

VGA_G[7]

PIN_E11

VGA Green[7]

3.3V

VGA_B[0]

PIN_B13

VGA Blue[0]

3.3V

VGA_B[1]

PIN_G13

VGA Blue[1]

3.3V

VGA_B[2]

PIN_H13

VGA Blue[2]

3.3V

VGA_B[3]

PIN_F14

VGA Blue[3]

3.3V

VGA_B[4]

PIN_H14

VGA Blue[4]

3.3V

VGA_B[5]

PIN_F15

VGA Blue[5]

3.3V

VGA_B[6]

PIN_G15

VGA Blue[6]

3.3V

VGA_B[7]

PIN_J14

VGA Blue[7]

3.3V

VGA_CLK

PIN_A11

VGA Clock

3.3V

VGA_BLANK_N

PIN_F10

VGA BLANK

3.3V

VGA_HS

PIN_B11

VGA H_SYNC

3.3V

VGA_VS

PIN_D11

VGA V_SYNC

3.3V

VGA_SYNC_N

PIN_C10

VGA SYNC

3.3V

3.6.7 TV Decoder

The DE1-SoC board is equipped with an Analog Device ADV7180 TV decoder chip. The ADV7180 is an integrated video decoder that automatically detects and converts a standard analog baseband television signals (NTSC, PAL, and SECAM) into 4:2:2 component video data compatible with the 8-bit ITU-R BT.656 interface standard. The ADV7180 is compatible with a broad range of video devices, including DVD players, tape-based sources, broadcast sources, and security/surveillance cameras.

The registers in the TV decoder can be programmed by a serial I2C bus, which is connected to HPS or Cyclone V SoC FPGA through a I2C multiplexer as indicated in Figure 3-22. Note that the I2C address W/R of the TV decoder (U4) is 0x40/0x41. The pin assignments are listed in Table 3-20. Detailed information of the ADV7180 is available on the manufacturer’s website, or in the DE1_SOC_datasheets\Video Decoder folder on the DE2-115 System CD.

Figure 3-22 Connections between FPGA and TV Decoder

Table 3-20 TV Decoder Pin Assignments

Signal Name

FPGA Pin No.

Description

I/O Standard

TD_DATA [0]

PIN_D2

TV Decoder Data[0]

3.3V

TD_DATA [1]

PIN_B1

TV Decoder Data[1]

3.3V

TD_DATA [2]

PIN_E2

TV Decoder Data[2]

3.3V

TD_DATA [3]

PIN_B2

TV Decoder Data[3]

3.3V

TD_DATA [4]

PIN_D1

TV Decoder Data[4]

3.3V

TD_DATA [5]

PIN_E1

TV Decoder Data[5]

3.3V

TD_DATA [6]

PIN_C2

TV Decoder Data[6]

3.3V

TD_DATA [7]

PIN_B3

TV Decoder Data[7]

3.3V

TD_HS

PIN_A5

TV Decoder H_SYNC

3.3V

TD_VS

PIN_A3

TV Decoder V_SYNC

3.3V

TD_CLK27

PIN_H15

TV Decoder Clock Input.

3.3V

TD_RESET_N

PIN_F6

TV Decoder Reset

3.3V

I2C_SCLK

PIN_J12 or PIN_E23

I2C Clock

3.3V

I2C_SDAT

PIN_K12 or PIN_C24

I2C Data

3.3V

3.6.8 IR Receiver

The board provides an infrared remote-control receiver module (model: IRM-V538/TR1), whose datasheet is offered in the Datasheets\ IR Receiver and Emitter folder on DE1-SoC System CD. The accompanied remote controller with an encoding chip of uPD6121G is very suitable of generating expected infrared signals. Figure 3-23 shows the related schematic of the IR receiver. Table 3-21 shows the IR receiver interface pin assignments.

Figure 3-23 Connection between FPGA and IR Receiver

Table 3-21 Pin Assignments for IR

Signal Name

FPGA Pin No.

Description

I/O Standard

IRDA_RXD

PIN_ AA30

IR Receiver

3.3V

3.6.9 IR Emitter LED

The board provides an IR Emitter LED for IR communication which is widely used for operating the television device wirelessly from a short line-of-sight distance. Match this IR Emitter LED with an IR receiver will allow the board to communicate with similarly equipped system. Figure 3-24 shows the related schematic of the IR emitter LED. Table 3-22 shows the IR emitter interface pin assignments.

Figure 3-24 Connection between FPGA and IR Emitter LED

Table 3-22 Pin Assignments for IR

Signal Name

FPGA Pin No.

Description

I/O Standard

IRDA_TXD

PIN_ AB30

IR Emitter

3.3V

3.6.10 SDRAM Memory on FPGA

The board features 64MB of SDRAM, implemented using a 64MB (32Mx16) SDRAM device. The device consists of 16-bit data line, control line and address line connected to the FPGA. This chip use the 3.3V LVCMOS signaling standard. Connections between FPGA and SDRAM are shown in

Figure 3-25, while the pin assignments are listed in Table 3-23.

Figure 3-25 Connections between FPGA and SDRAM

Table 3-23 SDRAM Pin Assignments

Signal Name

FPGA Pin No.

Description

I/O Standard

DRAM_ADDR[0]

PIN_AK14

SDRAM Address[0]

3.3V

DRAM_ADDR[1]

PIN_AH14

SDRAM Address[1]

3.3V

DRAM_ADDR[2]

PIN_AG15

SDRAM Address[2]

3.3V

DRAM_ADDR[3]

PIN_AE14

SDRAM Address[3]

3.3V

DRAM_ADDR[4]

PIN_AB15

SDRAM Address[4]

3.3V

DRAM_ADDR[5]

PIN_AC14

SDRAM Address[5]

3.3V

DRAM_ADDR[6]

PIN_AD14

SDRAM Address[6]

3.3V

DRAM_ADDR[7]

PIN_AF15

SDRAM Address[7]

3.3V

DRAM_ADDR[8]

PIN_AH15

SDRAM Address[8]

3.3V

DRAM_ADDR[9]

PIN_AG13

SDRAM Address[9]

3.3V

DRAM_ADDR[10]

PIN_AG12

SDRAM Address[10]

3.3V

DRAM_ADDR[11]

PIN_AH13

SDRAM Address[11]

3.3V

DRAM_ADDR[12]

PIN_AJ14

SDRAM Address[12]

3.3V

DRAM_DQ[0]

PIN_AK6

SDRAM Data[0]

3.3V

DRAM_DQ[1]

PIN_AJ7

SDRAM Data[1]

3.3V

DRAM_DQ[2]

PIN_AK7

SDRAM Data[2]

3.3V

DRAM_DQ[3]

PIN_AK8

SDRAM Data[3]

3.3V

DRAM_DQ[4]

PIN_AK9

SDRAM Data[4]

3.3V

DRAM_DQ[5]

PIN_AG10

SDRAM Data[5]

3.3V

DRAM_DQ[6]

PIN_AK11

SDRAM Data[6]

3.3V

DRAM_DQ[7]

PIN_AJ11

SDRAM Data[7]

3.3V

DRAM_DQ[8]

PIN_AH10

SDRAM Data[8]

3.3V

DRAM_DQ[9]

PIN_AJ10

SDRAM Data[9]

3.3V

DRAM_DQ[10]

PIN_AJ9

SDRAM Data[10]

3.3V

DRAM_DQ[11]

PIN_AH9

SDRAM Data[11]

3.3V

DRAM_DQ[12]

PIN_AH8

SDRAM Data[12]

3.3V

DRAM_DQ[13]

PIN_AH7

SDRAM Data[13]

3.3V

DRAM_DQ[14]

PIN_AJ6

SDRAM Data[14]

3.3V

DRAM_DQ[15]

PIN_AJ5

SDRAM Data[15]

3.3V

DRAM_BA[0]

PIN_AF13

SDRAM Bank Address[0]

3.3V

DRAM_BA[1]

PIN_AJ12

SDRAM Bank Address[1]

3.3V

DRAM_LDQM

PIN_AB13

SDRAM byte Data Mask[0]

3.3V

DRAM_UDQM

PIN_AK12

SDRAM byte Data Mask[1]

3.3V

DRAM_RAS_N

PIN_AE13

SDRAM Row Address Strobe

3.3V

DRAM_CAS_N

PIN_AF11

SDRAM Column Address Strobe

3.3V

DRAM_CKE

PIN_AK13

SDRAM Clock Enable

3.3V

DRAM_CLK

PIN_AH12

SDRAM Clock

3.3V

DRAM_WE_N

PIN_AA13

SDRAM Write Enable

3.3V

DRAM_CS_N

PIN_AG11

SDRAM Chip Select

3.3V

3.6.11 PS/2 Serial Port

The DE1-SoC board includes a standard PS/2 interface and a connector for a PS/2 keyboard or mouse. Figure 3-26 shows the schematic of the PS/2 circuit. In addition, users can use the PS/2 keyboard and mouse on the DE1-SoC board simultaneously by plugging an extension PS/2 Y-Cable (See Figure 3-27). Instructions for using a PS/2 mouse or keyboard can be found by performing an appropriate search on various educational websites. The pin assignments for the associated interface are shown in Table 3-24.

Note: If users connect only one PS/2 equipment, the PS/2 interface between FPGA I/O should be

“PS2_CLK” and “PS2_DAT”.

Figure 3-26 Connection between FPGA and PS/2

Figure 3-27 Y-Cable use for both Keyboard and Mouse

Table 3-24 PS/2 Pin Assignments

Signal Name

FPGA Pin No.

Description

I/O Standard

PS2_CLK

PIN_AD7

PS/2 Clock

3.3V

PS2_DAT

PIN_AE7

PS/2 Data

3.3V

PS2_CLK2

PIN_AD9

PS/2 Clock (reserved for second PS/2 device)

3.3V

PS2_DAT2

PIN_AE9

PS/2 Data (reserved for second PS/2 device)

3.3V

3.6.12 A/D Converter and 2x5 Header

The DE1-SoC contains an AD7928 lower power, eight-channel CMOS 12-bit analog-to-digital converter. This A-to-D provides conversion throughput rates up to 1MSPS. It can be configured to accept eight input signals at inputs ADC_IN0 through ADC_IN7. This eight input signals are connected to the 2x5 header, as shown in Figure 3-28.

For more detailed information on the A/D converter chip, please refer to its datasheet which is available on manufacturer’s website or under the /datasheet folder of the system CD.

Figure 3-28 Pin distribution of the 2x5 Header

Figure 3-29 shows the connections on the 2x5 header, A/D converter and Cyclone V SoC device.

Figure 3-29 Wiring for 2x5 header and A/D converter

Table 3-25 Pin Assignments for ADC

Signal Name

FPGA Pin No.

Description

I/O Standard

ADC_CS_N

PIN_AJ4

Chip select

3.3V

ADC_DOUT

PIN_AK3

Digital data input

3.3V

ADC_DIN

PIN_AK4

Digital data output

3.3V

ADC_SCLK

PIN_AK2

Digital clock input

3.3V

33..7

IInntteerrffaaccee oonn HHaarrdd PPrroocceessssoorr SSyysstteemm ((HHPPSS))

This section introduces the interfaces connected to the HPS section of the FPGA. Users can access these interfaces via the HPS processor.

33..77..1

UUsseerr PPuusshh--bbuuttttoonn aanndd LLEEDD oonn HHPPSS

Like the FPGA, the HPS also features its own set of switches, buttons, LEDs, and other user interfaces. Users can control these interfaces for observing HPS status and debugging.

Table 3-26 gives the all the pin assignments of all the user interfaces.

Table 3-26 Pin Assignments for LEDs, Switches and Buttons

Signal Name

HPS GPIO

Function

HPS_KEY

GPIO54

GPIO1[25]

I/O

HPS_LED

GPIO53

GPIO1[24]

I/O

33..77..2

GGiiggaabbiitt EEtthheerrnneett

The board provides Ethernet support via an external Micrel KSZ9021RN PHY chip and HPS Ethernet MAC function. The KSZ9021RN chip with integrated 10/100/1000 Mbps Gigabit Ethernet transceiver support RGMII MAC interfaces. Figure 3-30 shows the connection setup between the Gigabit Ethernet PHY and Cyclone V SoC FPGA.

The associated pin assignments are listed in Table 3-27. For detailed information on how to use the

KSZ9021RN refers to its datasheet and application notes, which are available on the manufacturer’s

website.

Figure 3-30 Connections between Cyclone V SoC FPGA and Ethernet

Table 3-27 Pin Assignments for Ethernet PHY

Signal Name

FPGA Pin No.

Description

I/O Standard

HPS_ENET_TX_EN

PIN_A20

GMII and MII transmit enable

3.3V

HPS_ENET_TX_DATA[0]

PIN_F20

MII transmit data[0]

3.3V

HPS_ENET_TX_DATA[1]

PIN_J19

MII transmit data[1]

3.3V

HPS_ENET_TX_DATA[2]

PIN_F21

MII transmit data[2]

3.3V

HPS_ENET_TX_DATA[3]

PIN_F19

MII transmit data[3]

3.3V

HPS_ENET_RX_DV

PIN_K17

GMII and MII receive data valid

3.3V

HPS_ENET_RX_DATA[0]

PIN_A21

GMII and MII receive data[0]

3.3V

HPS_ENET_RX_DATA[1]

PIN_B20

GMII and MII receive data[1]

3.3V

HPS_ENET_RX_DATA[2]

PIN_B18

GMII and MII receive data[2]

3.3V

HPS_ENET_RX_DATA[3]

PIN_D21

GMII and MII receive data[3]

3.3V

HPS_ENET_RX_CLK

PIN_G20

GMII and MII receive clock

3.3V

HPS_ENET_RESET_N

PIN_E18

Hardware Reset Signal

3.3V

HPS_ENET_MDIO

PIN_E21

Management Data

3.3V

HPS_ENET_MDC

PIN_B21

Management Data Clock Reference

3.3V

HPS_ENET_INT_N

PIN_C19

Interrupt Open Drain Output

3.3V

HPS_ENET_GTX_CLK

PIN_H19

GMII Transmit Clock

3.3V

Additionally, the Ethernet PHY (KSZ9021RNI) LED status has been set to two LED mode. The LED control signals are connected to LEDs (yellow and green) on the RJ45 connector. States and definitions can be found in Table 3-28, which can display the current status of the Ethernet. For example once the green LED lights on , the board has been connected to Giga bit Ethernet.

Table 3-28 LED Mode-Pin Definition

LED (State)

LED (Definition)

Link /Activity LEDG

LEDY

LEDG

LEDY

H H OFF

OFF

Link off

L H ON

OFF

1000 Link / No Activity

Toggle

Blinking

OFF

1000 Link / Activity (RX, TX)

H L OFF

100 Link / No Activity

Toggle

OFF

Blinking

100 Link / Activity (RX, TX)

L L ON

10 Link/ No Activity

Toggle

Blinking

10 Link / Activity (RX, TX)

33..77..3

UUAARRTT

The board has one UART interface connected for communication with the HPS. This interface wouldn’t support HW flow control signals. The physical interface is done using UART-USB onboard bridge from an FT232R chip and connects to the host using an USB Mini-B connector. For detailed information on how to use the transceiver, please refer to the datasheet, which is available on the manufacturer’s website, or in the Datasheets\UART TO USB folder on the DE1-SoC System CD. Figure 3-31 shows the related schematics, and Table 3-29 lists the pin assignments of HPS in Cyclone V SoC FPGA.

Figure 3-31 Connections between the Cyclone V SoC FPGA and FT232R Chip

Table 3-29 UART Interface I/O

Signal Name

FPGA Pin No.

Description

I/O Standard

HPS_UART_RX

PIN_B25

HPS UART Receiver

3.3V

HPS_UART_TX

PIN_C25

HPS UART Transmitter

3.3V

HPS_CONV_USB_N

PIN_B15

Reserve

3.3V

33..77..4

DDDDRR33 MMeemmoorryy oonn HHPPSS

The DDR3 devices that are connected to the HPS are the exact same devices connected to the FPGA in capacity (1GB) and data-width (32-bit), comprised of two x16 devices with a single address/command bus. This interface connects to dedicate Hard Memory Controller for HPS I/O banks and the target speed is 400 MHz. Table 3-30 lists DDR3 pin assignments, I/O standards and descriptions with Cyclone V SoC FPGA.

Table 3-30 Pin Assignments for DDR3 Memory

Signal Name

FPGA Pin No.

Description

I/O Standard

HPS_DDR3_A[0]

PIN_F26

HPS DDR3 Address[0]

SSTL-15 Class I

HPS_DDR3_A[1]

PIN_G30

HPS DDR3 Address[1]

SSTL-15 Class I

HPS_DDR3_A[2]

PIN_F28

HPS DDR3 Address[2]

SSTL-15 Class I

HPS_DDR3_A[3]

PIN_F30

HPS DDR3 Address[3]

SSTL-15 Class I

HPS_DDR3_A[4]

PIN_J25

HPS DDR3 Address[4]

SSTL-15 Class I

HPS_DDR3_A[5]

PIN_J27

HPS DDR3 Address[5]

SSTL-15 Class I

HPS_DDR3_A[6]

PIN_F29

HPS DDR3 Address[6]

SSTL-15 Class I

HPS_DDR3_A[7]

PIN_E28

HPS DDR3 Address[7]

SSTL-15 Class I

HPS_DDR3_A[8]

PIN_H27

HPS DDR3 Address[8]

SSTL-15 Class I

HPS_DDR3_A[9]

PIN_G26

HPS DDR3 Address[9]

SSTL-15 Class I

HPS_DDR3_A[10]

PIN_D29

HPS DDR3 Address[10]

SSTL-15 Class I

HPS_DDR3_A[11]

PIN_C30

HPS DDR3 Address[11]

SSTL-15 Class I

HPS_DDR3_A[12]

PIN_B30

HPS DDR3 Address[12]

SSTL-15 Class I

HPS_DDR3_A[13]

PIN_C29

HPS DDR3 Address[13]

SSTL-15 Class I

HPS_DDR3_A[14]

PIN_H25

HPS DDR3 Address[14]

SSTL-15 Class I

HPS_DDR3_BA[0]

PIN_E29

HPS DDR3 Bank Address[0]

SSTL-15 Class I

HPS_DDR3_BA[1]

PIN_J24

HPS DDR3 Bank Address[1]

SSTL-15 Class I

HPS_DDR3_BA[2]

PIN_J23

HPS DDR3 Bank Address[2]

SSTL-15 Class I

HPS_DDR3_CAS_n

PIN_E27

DDR3 Column Address Strobe

SSTL-15 Class I

HPS_DDR3_CKE

PIN_L29

HPS DDR3 Clock Enable

SSTL-15 Class I

HPS_DDR3_CK_n

PIN_L23

HPS DDR3 Clock

Differential 1.5-V SSTL Class I

HPS_DDR3_CK_p

PIN_M23

HPS DDR3 Clock p

Differential 1.5-V SSTL Class I

HPS_DDR3_CS_n

PIN_H24

HPS DDR3 Chip Select

SSTL-15 Class I

HPS_DDR3_DM[0]

PIN_K28

HPS DDR3 Data Mask[0]

SSTL-15 Class I

HPS_DDR3_DM[1]

PIN_M28

HPS DDR3 Data Mask[1]

SSTL-15 Class I

HPS_DDR3_DM[2]

PIN_R28

HPS DDR3 Data Mask[2]

SSTL-15 Class I

HPS_DDR3_DM[3]

PIN_W30

HPS DDR3 Data Mask[3]

SSTL-15 Class I

HPS_DDR3_DQ[0]

PIN_K23

HPS DDR3 Data[0]

SSTL-15 Class I

HPS_DDR3_DQ[1]

PIN_K22

HPS DDR3 Data[1]

SSTL-15 Class I

HPS_DDR3_DQ[2]

PIN_H30

HPS DDR3 Data[2]

SSTL-15 Class I

HPS_DDR3_DQ[3]

PIN_G28

HPS DDR3 Data[3]

SSTL-15 Class I

HPS_DDR3_DQ[4]

PIN_L25

HPS DDR3 Data[4]

SSTL-15 Class I

HPS_DDR3_DQ[5]

PIN_L24

HPS DDR3 Data[5]

SSTL-15 Class I

HPS_DDR3_DQ[6]

PIN_J30

HPS DDR3 Data[6]

SSTL-15 Class I

HPS_DDR3_DQ[7]

PIN_J29

HPS DDR3 Data[7]

SSTL-15 Class I

HPS_DDR3_DQ[8]

PIN_K26

HPS DDR3 Data[8]

SSTL-15 Class I

HPS_DDR3_DQ[9]

PIN_L26

HPS DDR3 Data[9]

SSTL-15 Class I

HPS_DDR3_DQ[10]

PIN_K29

HPS DDR3 Data[10]

SSTL-15 Class I

HPS_DDR3_DQ[11]

PIN_K27

HPS DDR3 Data[11]

SSTL-15 Class I

HPS_DDR3_DQ[12]

PIN_M26

HPS DDR3 Data[12]

SSTL-15 Class I

HPS_DDR3_DQ[13]

PIN_M27

HPS DDR3 Data[13]

SSTL-15 Class I

HPS_DDR3_DQ[14]

PIN_L28

HPS DDR3 Data[14]

SSTL-15 Class I

HPS_DDR3_DQ[15]

PIN_M30

HPS DDR3 Data[15]

SSTL-15 Class I

HPS_DDR3_DQ[16]

PIN_U26

HPS DDR3 Data[16]

SSTL-15 Class I

HPS_DDR3_DQ[17]

PIN_T26

HPS DDR3 Data[17]

SSTL-15 Class I

HPS_DDR3_DQ[18]

PIN_N29

HPS DDR3 Data[18]

SSTL-15 Class I

HPS_DDR3_DQ[19]

PIN_N28

HPS DDR3 Data[19]

SSTL-15 Class I

HPS_DDR3_DQ[20]

PIN_P26

HPS DDR3 Data[20]

SSTL-15 Class I

HPS_DDR3_DQ[21]

PIN_P27

HPS DDR3 Data[21]

SSTL-15 Class I

HPS_DDR3_DQ[22]

PIN_N27

HPS DDR3 Data[22]

SSTL-15 Class I

HPS_DDR3_DQ[23]

PIN_R29

HPS DDR3 Data[23]

SSTL-15 Class I

HPS_DDR3_DQ[24]

PIN_P24

HPS DDR3 Data[24]

SSTL-15 Class I

HPS_DDR3_DQ[25]

PIN_P25

HPS DDR3 Data[25]

SSTL-15 Class I

HPS_DDR3_DQ[26]

PIN_T29

HPS DDR3 Data[26]

SSTL-15 Class I

HPS_DDR3_DQ[27]

PIN_T28

HPS DDR3 Data[27]

SSTL-15 Class I

HPS_DDR3_DQ[28]

PIN_R27

HPS DDR3 Data[28]

SSTL-15 Class I

HPS_DDR3_DQ[29]

PIN_R26

HPS DDR3 Data[29]

SSTL-15 Class I

HPS_DDR3_DQ[30]

PIN_V30

HPS DDR3 Data[30]

SSTL-15 Class I

HPS_DDR3_DQ[31]

PIN_W29

HPS DDR3 Data[31]

SSTL-15 Class I

HPS_DDR3_DQS_n[0]

PIN_M19

HPS DDR3 Data Strobe n[0]

Differential 1.5-V SSTL Class I

HPS_DDR3_DQS_n[1]

PIN_N24

HPS DDR3 Data Strobe n[1]

Differential 1.5-V SSTL Class I

HPS_DDR3_DQS_n[2]

PIN_R18

HPS DDR3 Data Strobe n[2]

Differential 1.5-V SSTL Class I

HPS_DDR3_DQS_n[3]

PIN_R21

HPS DDR3 Data Strobe n[3]

Differential 1.5-V SSTL Class I

HPS_DDR3_DQS_p[0]

PIN_N18

HPS DDR3 Data Strobe p[0]

Differential 1.5-V SSTL Class I

HPS_DDR3_DQS_p[1]

PIN_N25

HPS DDR3 Data Strobe p[1]

Differential 1.5-V SSTL Class I

HPS_DDR3_DQS_p[2]

PIN_R19

HPS DDR3 Data Strobe p[2]

Differential 1.5-V SSTL Class I

HPS_DDR3_DQS_p[3]

PIN_R22

HPS DDR3 Data Strobe p[3]

Differential 1.5-V SSTL Class I

HPS_DDR3_ODT

PIN_H28

HPS DDR3 On-die Termination

SSTL-15 Class I

HPS_DDR3_RAS_n

PIN_D30

DDR3 Row Address Strobe

SSTL-15 Class I

HPS_DDR3_RESET_n

PIN_P30

HPS DDR3 Reset

SSTL-15 Class I

HPS_DDR3_WE_n

PIN_C28

HPS DDR3 Write Enable

SSTL-15 Class I

HPS_DDR3_RZQ

PIN_D27

External reference ball for output drive calibration

1.5 V

33..77..5

QQSSPPII FFllaasshh

The board supports a 1G-bit serial NOR flash device for non-volatile storage of HPS boot code, user data and program. The device is connected to HPS dedicated interface. It may contain secondary boot code.

This device has a 4-bit data interface and uses 3.3V CMOS signaling standard. Connections between Cyclone V SoC FPGA and Flash are shown in Figure 3-32.

To program the QSPI flash, the HPS Flash Programmer is provided both as part of the Altera Quartus II suite and as part of the free Altera Quartus II Programmer. The HPS Flash Programmer sends file contents over an Altera download cable, such as the USB Blaster II, to the HPS, and instructs the HPS to write the data to the flash memory.

Figure 3-32 Connections Between Cyclone V SoC FPGA and QSPI Flash

Table 3-31 below summarizes the pins on the flash device. Signal names are from the device

datasheet and directions are relative to the Cyclone V SoC FPGA.

Table 3-31 QSPI Flash Interface I/O

Signal Name

FPGA Pin No.

Description

I/O Standard

HPS_FLASH_DATA[0]

PIN_C20

HPS FLASH Data[0]

3.3V

HPS_FLASH_DATA[1]

PIN_H18

HPS FLASH Data[1]

3.3V

HPS_FLASH_DATA[2]

PIN_A19

HPS FLASH Data[2]

3.3V

HPS_FLASH_DATA[3]

PIN_E19

HPS FLASH Data[3]

3.3V

HPS_FLASH_DCLK

PIN_D19

HPS FLASH Data Clock

3.3V

HPS_FLASH_NCSO

PIN_A18

HPS FLASH Chip Enable

3.3V

33..77..6

MMiiccrroo SSDD

The board supports Micro SD card interface using x4 data lines. And it may contain secondary boot code for HPS. Figure 3-33 shows the related signals.

Finally, Table 3-32 lists all the associated pins for interfacing HPS respectively.

Figure 3-33 Connections between Cyclone V SoC FPGA and SD Card Socket

Table 3-32 SD Card Socket Pin Assignments

Signal Name

FPGA Pin No.

Description

I/O Standard

HPS_SD_CLK

PIN_A16

HPS SD Clock

3.3V

HPS_SD_CMD

PIN_F18

HPS SD Command Line

3.3V

HPS_SD_DATA[0]

PIN_G18

HPS SD Data[0]

3.3V

HPS_SD_DATA[1]

PIN_C17

HPS SD Data[1]

3.3V

HPS_SD_DATA[2]

PIN_D17

HPS SD Data[2]

3.3V

HPS_SD_DATA[3]

PIN_B16

HPS SD Data[3]

3.3V

33..77..7

22--ppoorrtt UUSSBB HHoosstt

The board provides 2-port USB 2.0 host interfaces using the SMSC USB3300 controller and 2-port hub controller. A SMSC USB3300 device in a 32-pin QFN package device is used to interface to a SMSC USB2512B. This device supports UTMI+ Low Pin Interface (ULPI) to communicate to USB

2.0 controller in HPS. By connecting the ID pin of USB3300 to ground, the PHY operates in Host mode. When operating in Host mode, the interface will supply the power to the device through the 2-port USB type-A interface. Figure 3-34 shows the schematic diagram of the USB circuitry; the pin assignments for the associated interface are listed in Table 3-33.

Figure 3-34 Connections between Cyclone V SoC FPGA and USB OTG PHY

Table 3-33 USB OTG PHY Pin Assignments

Signal Name

FPGA Pin No.

Description

I/O Standard

HPS_USB_CLKOUT

PIN_N16

60MHz Reference Clock Output

3.3V

HPS_USB_DATA[0]

PIN_E16

HPS USB_DATA[0]

3.3V

HPS_USB_DATA[1]

PIN_G16

HPS USB_DATA[1]

3.3V

HPS_USB_DATA[2]

PIN_D16

HPS USB_DATA[2]

3.3V

HPS_USB_DATA[3]

PIN_D14

HPS USB_DATA[3]

3.3V

HPS_USB_DATA[4]

PIN_A15

HPS USB_DATA[4]

3.3V

HPS_USB_DATA[5]

PIN_C14

HPS USB_DATA[5]

3.3V

HPS_USB_DATA[6]

PIN_D15

HPS USB_DATA[6]

3.3V

HPS_USB_DATA[7]

PIN_M17

HPS USB_DATA[7]

3.3V

HPS_USB_DIR

PIN_E14

Direction of the Data Bus

3.3V

HPS_USB_NXT

PIN_A14

Throttle the Data

3.3V

HPS_USB_RESET

PIN_G17

HPS USB PHY Reset

3.3V

HPS_USB_STP

PIN_C15

Stop Data Stream on theBus

3.3V

33..77..8

GG--SSeennssoorr

The board is equipped with a digital accelerometer sensor module. The ADXL345 is a small, thin, ultralow power assumption 3-axis accelerometer with high-resolution measurement. Digitalized output is formatted as 16-bit twos complement and can be accessed using I2C interface. The I2C address of the G-Sensor device is 0xA6/0xA7. For more detailed information of better using this chip, please refer to its datasheet which is available on manufacturer’s website or under the Datasheet folder of the DE1-SoC System CD. Figure 3-35 shows the connections between ADXL345 and HPS. The associated pin assignments are listed in Table 3-34.

Figure 3-35 Connections between Cyclone V SoC FPGA and G-Sensor

Table 3-34 G-Sensor Pin Assignments

Signal Name

FPGA Pin No.

Description

I/O Standard

HPS_GSENSOR_INT

PIN_B22

HPS GSENSOR Interrupt Output

3.3V

HPS_I2C1_SCLK

PIN_E23

HPS I2C Clock (share bus with LTC)

3.3V

HPS_I2C1_SDAT

PIN_C24

HPS I2C Data (share bus)

3.3V

33..77..9

LLTTCC CCoonnnneeccttoorr

The board allows connection to interface card from Linear Technology. The interface is implemented using a14-pin header that can be connected to a variety of demo boards from Linear Technology. It will be connected to SPI Master and I2C ports of the HPS to allow bidirectional communication with two types of protocols. The 14-pin header will allow for GPIO, SPI and I2C extension for user purposes if the interfaces to Linear Technology board aren’t in use. Connections between the LTC connector and the HPS are shown in Figure 3-36, and the functions of the 14 pins is listed in Table 3-25.

Figure 3-36 Connections between the LTC Connector and HPS

Table 3-35 LTC Connector Pin Assignments

Signal Name

FPGA Pin No.

Description

I/O Standard

HPS_LTC_GPIO

PIN_H17

HPS LTC GPIO

3.3V

HPS_I2C2_SCLK

PIN_H23

HPS I2C2 Clock (share bus with G-Sensor)

3.3V

HPS_I2C2_SDAT

PIN_A25

HPS I2C2 Data (share bus with G-Sensor)

3.3V HPS_SPIM_CLK

PIN_C23

SPI Clock

3.3V

HPS_SPIM_MISO

PIN_E24

SPI Master Input/Slave Output

3.3V

HPS_SPIM_MOSI

PIN_D22

SPI Master Output /Slave Input

3.3V

HPS_SPIM_SS

PIN_D24

SPI Slave Select

3.3V

Chapter 4

DE1-SoC System

Builder

This chapter describes how users can create a custom design project on the board by using the DE1-SoC Software Tool – DE1-SoC System Builder.

44..1

IInnttrroodduuccttiioonn

The DE1-SoC System Builder is a Windows-based software utility, designed to assist users to create a Quartus II project for the board within minutes. The generated Quartus II project files include:

 Quartus II Project File (.qpf)  Quartus II Setting File (.qsf)  Top-Level Design File (.v)  Synopsis Design Constraints file (.sdc)  Pin Assignment Document (.htm)

By providing the above files, the DE1-SoC System Builder prevents occurrence of situations that are prone to errors when users manually edit the top-level design file or place pin assignments. The common mistakes that users encounter are the following:

1. Board damage due to wrong pin/bank voltage assignments.

2. Board malfunction caused by wrong device connections or missing pin counts for connected ends.

3. Performance degeneration due to improper pin assignments.

44..2

GGeenneerraall DDeessiiggnn FFllooww

This section will introduce the general design flow to build a project for the development board via the DE1-SoC System Builder. The general design flow is illustrated in Figure 4-1.

Users should launch the DE1-SoC System Builder and create a new project according to their design requirements. When users complete the settings, the DE1-SoC System Builder will generate two major files, a top-level design file (.v) and a Quartus II setting file (.qsf).

The top-level design file contains top-level Verilog HDL wrapper for users to add their own design/logic. The Quartus II setting file contains information such as FPGA device type, top-level pin assignment, and the I/O standard for each user-defined I/O pin.

Finally, the Quartus II programmer must be used to download SOF file to the development board using a JTAG interface.

Figure 4-1 The general design flow of building a design

44..3

UUssiinngg DDEE11--SSooCC SSyysstteemm BBuuiillddeerr

This section provides the detailed procedures on how the DE1-SoC System Builder is used.

 Install and launch the DE1-SoC System Builder

The DE1-SoC System Builder is located in the directory: “Tools\SystemBuilder” on the DE1-SoC

System CD. Users can copy the whole folder to a host computer without installing the utility. Launch the DE1-SoC System Builder by executing the DE1-SoC SystemBuilder.exe on the host computer and the GUI window will appear as shown in Figure 4-2.

Figure 4-2 The DE1-SoC System Builder window

 Input Project Name

Input project name as show in Figure 4-3.

Project Name: Type in an appropriate name here, it will automatically be assigned as the name of your top-level design entity.

Figure 4-3 Board Type and Project Name

 System Configuration

Under the System Configuration users are given the flexibility of enabling their choice of included components on the board as shown in Figure 4-4. Each component of the board is listed where users can enable or disable a component according to their design by simply marking a check or removing the check in the field provided. If the component is enabled, the DE1-SoC System Builder will automatically generate the associated pin assignments including the pin name, pin location, pin direction, and I/O standard.

Figure 4-4 System Configuration Group

 GPIO Expansion

Users can connect GPIO daughter cards onto the GPIO connector located on the development board shown in Figure 4-5. Select the daughter card you wish to add to your design under the appropriate GPIO connector to which the daughter card is connected. The System Builder will automatically generate the associated pin assignment including pin name, pin location, pin direction, and I/O standard.

Figure 4-5 GPIO Expansion Group

The “Prefix Name” is an optional feature that denotes the pin name of the daughter card assigned in

your design. Users may leave this field empty.

 Project Setting Management

The DE1-SoC System Builder also provides functions to restore default setting, loading a setting,

and saving users’ board configuration file shown in Figure 4-6. Users can save the current board

configuration information into a .cfg file and load it to the DE1-SoC System Builder.

Figure 4-6 Project Settings

 Project Generation

When users press the Generate button, the DE1-SoC System Builder will generate the corresponding Quartus II files and documents as listed in the Table 4-1:

Table 4-1 The files generated by DE1-SoC System Builder

No.

Filename

Description

<Project name>.v

Top level Verilog HDL file for Quartus II

<Project name>.qpf

Quartus II Project File

<Project name>.qsf

Quartus II Setting File

<Project name>.sdc

Synopsis Design Constraints file for Quartus II 5

<Project name>.htm

Pin Assignment Document

Users can use Quartus II software to add custom logic into the project and compile the project to generate the SRAM Object File (.sof).

Chapter 5

Examples For FPGA

This chapter provides a number of examples of advanced circuits implemented by RTL or Qsys on the DE1-SoC board. These circuits provide demonstrations of the major features which connected to FPGA interface on the board, such as audio, SDRAM and IR receiver. All of the associated files can be found in the Demonstrations/FPGA folder on the DE1-SoC System CD.

 Installing the Demonstrations

To install the demonstrations on your computer:

Copy the directory Demonstrations into a local directory of your choice. It is important to ensure that the path to your local directory contains no spaces – otherwise, the Nios II software will not work. Note Quartus II v13 or later is required for all DE1-SoC demonstrations to support Cyclone V

SoC device.

55..1

DDEE11--SSooCC FFaaccttoorryy CCoonnffiigguurraattiioonn

The DE1-SoC board is shipped from the factory with a default configuration bit-stream that demonstrates some of the basic features of the board. The setup required for this demonstration, and the locations of its files are shown below.

 Demonstration Setup, File Locations, and Instructions

 Project directory: DE1_SoC_Default  Bit stream used: DE1_SoC_Default.sof or DE1_SoC_Default.jic  Power on the DE1-SoC board, with the USB cable connected to the USB Blaster port. If

necessary (that is, if the default factory configuration of the DE1-SoC board is not currently stored in EPCQ device), download the bit stream to the board by using JTAG programming

 You should now be able to observe that the 7-segment displays are displaying a sequence of

characters, and the red LEDs are flashing.

 Optionally connect a VGA display to the VGA D-SUB connector. When connected, the VGA

display should show a color picture

 Optionally connect a powered speaker to the stereo audio-out jack. Press KEY[1] to hear a 1

kHz humming sound from the audio-out port.

 There is a demo_batch folder in the project. It is able to load the bit stream into the FPGA ,

programming or erasing .jic file to EPCQ by executing test.bat file as shown in the Figure 5-1.If user want to download the new design into the EPCQ, the easy method is to copy the new .sof file into the demo_batch folder and Execute the test.bat. Select the option “2” to covert the .sof to .jic firstly. Then using the option”3” to program .jic file into EPCQ.

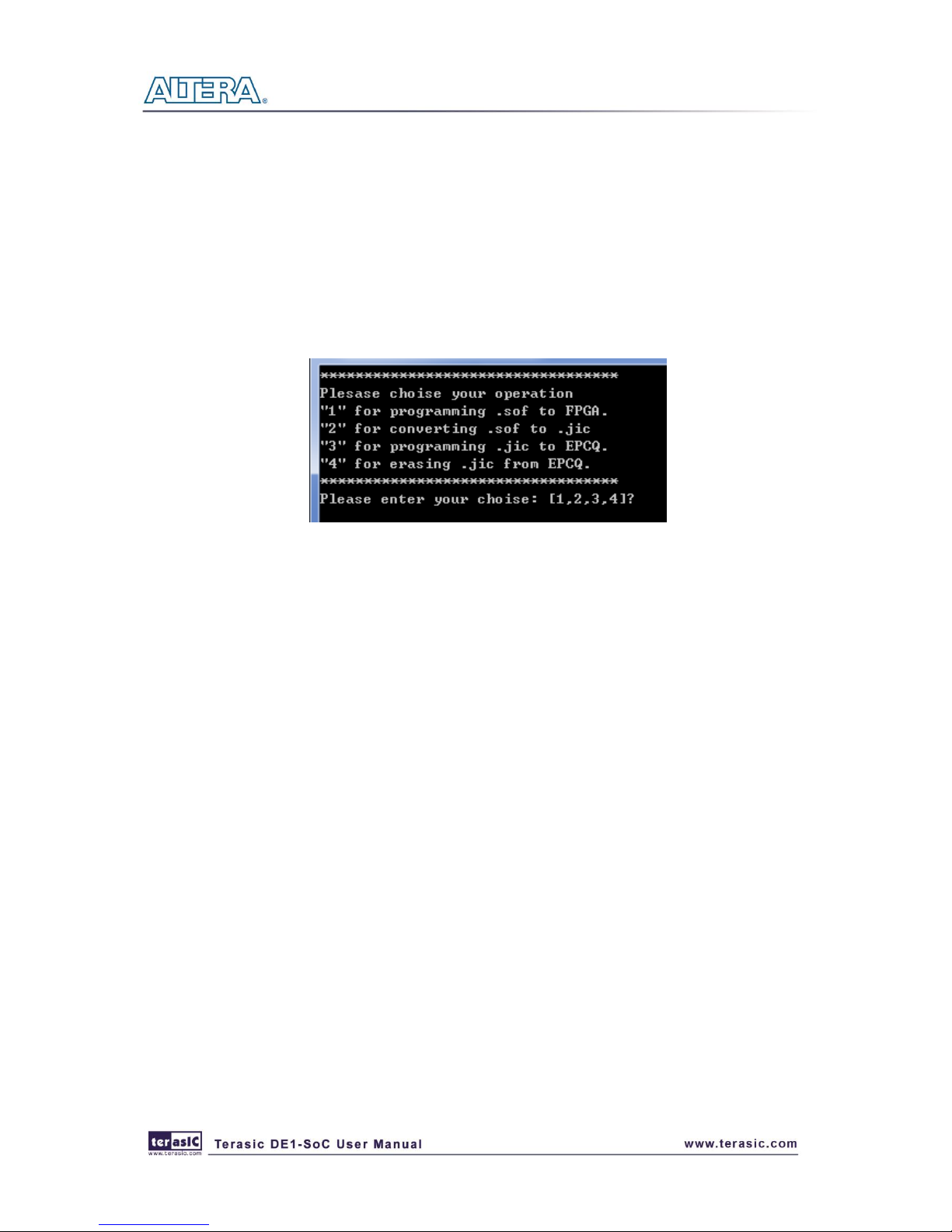

Figure 5-1 Batch file for download FPGA and EPCQ

55..2

AAuuddiioo RReeccoorrddiinngg aanndd PPllaayyiinngg

This demonstration shows how to implement an audio recorder and player using the DE1-SoC board with the built-in Audio CODEC chip. This demonstration is developed based on Qsys and Eclipse. Figure 5-2 shows the man-machine interface of this demonstration. Two push-buttons and four slide switches are used for users to configure this audio system: SW0 is used to specify recording source to be Line-in or MIC-In. SW1, SW2, and SW3 are used to specify recording sample rate as 96K, 48K, 44.1K, 32K, or 8K. Table 5-1 and Table 5-2 summarize the usage of Slide switches for configuring the audio recorder and player.

Figure 5-2 Man-Machine Interface of Audio Recorder and Player

Figure 5-3 shows the block diagram of the Audio Recorder and Player design. There are hardware

and software parts in the block diagram. The software part stores the Nios II program in the on-chip memory. The software part is built by Eclipse in C programming language. The hardware part is built by Qsys under Quartus II. The hardware part includes all the other blocks. The “AUDIO Controller” is a user-defined Qsys component. It is designed to send audio data to the audio chip or receive audio data from the audio chip.

The audio chip is programmed through I2C protocol which is implemented in C code. The I2C pins from audio chip are connected to Qsys System Interconnect Fabric through PIO controllers. In this example, the audio chip is configured in Master Mode. The audio interface is configured as I2S and 16-bit mode. 18.432MHz clock generated by the PLL is connected to the MCLK/XTI pin of the audio chip through the AUDIO Controller.

Figure 5-3 Block diagram of the audio recorder and player

 Demonstration Setup, File Locations, and Instructions

 Hardware Project directory: DE1_SoC _Audio  Bit stream used: DE1_SoC _Audio.sof  Software Project directory: DE1_SoC _Audio\software  Connect an Audio Source to the LINE-IN port of the DE1-SoC board.  Connect a Microphone to MIC-IN port on the DE1-SoC board.  Connect a speaker or headset to LINE-OUT port on the DE1-SoC board.  Load the bit stream into FPGA. (note *1)  Load the Software Execution File into FPGA. (note *1)  Configure audio with the Slide switches SW0 as shown in Table 5-1.  Press KEY3 on the DE1-SoC board to start/stop audio recording (note *2)  Press KEY2 on the DE1-SoC board to start/stop audio playing (note *3)

Table 5-1 Slide switches usage for audio source

Slide Switches

0 – DOWN Position

1 – UP Position

SW0

Audio is from MIC

Audio is from LINE-IN

Table 5-2 Slide switch setting for sample rate switching for audio recorder and player

SW5 (0 – DOWN; 1- UP)

SW4 (0 – DOWN; 1-UP)

SW3 (0 – DOWN; 1-UP)

Sample Rate

0 0 0

96K

0 0 1

48K 0 1 0 44.1K

0 1 1

32K 1 0 0 8K

Unlisted combination

96K

Note:

(1). Execute DE1_SoC _Audio \demo_batch\ DE1-SoC _Audio.bat will download .sof and .elf

files.

(2). Recording process will stop if audio buffer is full.

(3). Playing process will stop if audio data is played completely.

55..3

AA KKaarraaookkee MMaacchhiinnee

This demonstration uses the microphone-in, line-in, and line-out ports on the DE1-SOC board to create a Karaoke Machine application. The WM8731 CODEC is configured in the master mode, with which the audio CODEC generates AD/DA serial bit clock (BCK) and the left/right channel clock (LRCK) automatically. As indicated in Figure 5-4, the I2C interface is used to configure the Audio CODEC. The sample rate and gain of the CODEC are set in this manner, and the data input from the line-in port is then mixed with the microphone-in port and the result is sent to the line-out port.

For this demonstration the sample rate is set to 48kHz. Pressing the pushbutton KEY0 reconfigures the gain of the audio CODEC via I2C bus, cycling within ten predefined gain values (volume levels) provided by the device.

Figure 5-4 Block diagram of the Karaoke Machine demonstration

 Demonstration Setup, File Locations, and Instructions

 Project directory: DE1_SOC_i2sound  Bit stream used: DE1_SOC_i2sound.sof  Connect a microphone to the microphone-in port (pink color) on the DE1-SOC board  Connect the audio output of a music-player, such as an MP3 player or computer, to the line-in

port (blue color) on the DE1-SOC board

 Connect a headset/speaker to the line-out port (green color) on the DE1-SOC board  Load the bit stream into the FPGA by execute the batch file ‘DE1_SOC_i2sound’ under the

DE1_SOC_i2sound\demo_batch folder

 You should be able to hear a mixture of the microphone sound and the sound from the music

player

 Press KEY0 to adjust the volume; it cycles between volume levels 0 to 9

Figure 5-5 illustrates the setup for this demonstration.

Figure 5-5 Setup for the Karaoke Machine

55..4

SSDDRRAAMM TTeesstt bbyy NNiiooss IIII

Many applications use SDRAM to provide temporary storage. In this demonstration hardware and software designs are provided to illustrate how to perform memory access in QSYS. We describe how the Altera’s SDRAM Controller IP is used to access a SDRAM, and how the Nios II processor is used to read and write the SDRAM for hardware verification. The SDRAM controller handles the complex aspects of using SDRAM by initializing the memory devices, managing SDRAM banks, and keeping the devices refreshed at appropriate intervals.

 System Block Diagram

Figure 5-6 shows the system block diagram of this demonstration. The system requires a 50 MHz

clock provided from the board. The SDRAM controller is configured as a 64MB controller. The working frequency of the SDRAM controller is 100MHz, and the Nios II program is running in the on-chip memory.

Figure 5-6 Block diagram of the SDRAM Basic Demonstration

The system flow is controlled by a Nios II program. First, the Nios II program writes test patterns into the whole 64MB of SDRAM. Then, it calls Nios II system function, alt_dcache_flush_all, to make sure all data has been written to SDRAM. Finally, it reads data from SDRAM for data verification. The program will show progress in JTAG-Terminal when writing/reading data to/from the SDRAM. When verification process is completed, the result is displayed in the JTAG-Terminal.

 Design Tools

 Quartus II 13.0  Nios II Eclipse 13.0

 Demonstration Source Code

 Quartus Project directory: DE1_SoC_SDRAM_Nios_Test  Nios II Eclipse: DE1_SoC_SDRAM_Nios_Test \Software

 Nios II Project Compilation

 Before you attempt to compile the reference design under Nios II Eclipse, make sure the project

is cleaned first by clicking ‘Clean’ from the ‘Project’ menu of Nios II Eclipse.

 Demonstration Batch File

Demo Batch File Folder:

DE1_SoC_SDRAM_Nios_Test \demo_batch

The demo batch file includes following files:

 Batch File for USB-Blaster (II) : DE1_SoC_SDRAM_Nios_Test.bat,

DE1_SoC_SDRAM_Nios_Test_bashrc

 FPGA Configure File : DE1_SoC_SDRAM_Nios_Test.sof  Nios II Program: DE1_SoC_SDRAM_Nios_Test.elf

 Demonstration Setup

 Make sure Quartus II and Nios II are installed on your PC.  Power on the DE1-SoC board.  Use USB cable to connect PC and the DE1-SoC board (J13) and install USB Blaster driver if

necessary. Execute the demo batch file “DE1_SoC_SDRAM_Nios_Test.bat” for USB-Blaster II under the batch file folder, DE1_SoC_SDRAM_Nios_Test\demo_batch

 After Nios II program is downloaded and executed successfully, a prompt message will be

displayed in nios2-terminal.

 Press KEY3~KEY0 of the DE1-SoC board to start SDRAM verify process. Press KEY0 for

continued test.

 The program will display progressing and result information, as shown in Figure 5-7.

Figure 5-7 Display Progress and Result Information for the SDRAM Demonstration

55..5

SSDDRRAAMM RRTTLL TTeesstt

This demonstration presents a memory test function on the bank of SDRAM on the DE1-SoC board. The memory size of the SDRAM bank is 64MB and all the test codes on this demonstration are written in Verilog HDL.

 Function Block Diagram

Figure 5-8 shows the function block diagram of this demonstration. The controller uses 50 MHz as

a reference clock, generates one 100 MHz clock as memory clock.

Figure 5-8 Block Diagram of the SDRAM Demonstration

RW_test modules read and write the entire memory space of the SDRAM through the interface of the controller. In this project, the read/write test module will first write the entire memory and then compare the read back data with the regenerated data (the same sequence as the write data). KEY0 will trigger test control signals for the SDRAM, and the LEDs will indicate the test results according to Table 5-3.

 Design Tools

 Quartus 13.0

 Demonstration Source Code

 Project directory: DE1_SoC_SDRAM_RTL_Test  Bit stream used: DE1_SoC_SDRAM_RTL_Test.sof

 Demonstration Batch File

Demo Batch File Folder: DE1_SoC_SDRAM_RTL_Test\demo_batch

The demo batch file includes following files:

 Batch File: DE1_SoC_SDRAM_RTL_Test.bat  FPGA Configure File: DE1_SoC_SDRAM_RTL_Test.sof

 Demonstration Setup

 Make sure Quartus II is installed on your PC.

 Connect the USB cable to the USB Blaster connector on the DE1_SoC board and host PC.  Power on the DE1_SoC board.  Execute the demo batch file “ DE1_SoC_SDRAM_RTL_Test.bat” under the batch file folder,

DE1_SoC_SDRAM_RTL_Test \demo_batch.

 Press KEY0 on the DE1_SoC board to start the verification process. When KEY0 is pressed,

the LEDs (LEDR [2:0]) should turn on. At the instant of releasing KEY0, LEDR1, LEDR2 should start blinking. After approximately 8 seconds, LEDR1 should stop blinking and stay on to indicate that the SDRAM has passed the test, respectively. Table 5-3 lists the LED indicators.

 If LEDR2 is not blinking, it means 50MHz clock source is not working.  If LEDR1 fail to remain on after 8 seconds, the corresponding SDRAM test has failed.  Press KEY0 again to regenerate the test control signals for a repeat test.

Table 5-3 LED Indicators

Table 5-4NAME

Description

LEDR0

Reset

LEDR1

If light, SDRAM test pass

LEDR2

Blinks

55..6

TTVV BBooxx DDeemmoonnssttrraattiioonn

This demonstration plays video and audio input from a DVD player using the VGA output, audio CODEC, and one TV decoder on the DE1-SoC board. Figure 5-9 shows the block diagram of the design. There are two major blocks in the circuit, called I2C_AV_Config and TV_to_VGA. The TV_to_VGA block consists of the ITU-R 656 Decoder, SDRAM Frame Buffer, YUV422 to YUV444, YCbCr to RGB, and VGA Controller. The figure also shows the TV Decoder (ADV7180) and the VGA DAC (ADV7123) chips used.

As soon as the bit stream is downloaded into the FPGA, the register values of the TV Decoder chip are used to configure the TV decoder via the I2C_AV_Config block, which uses the I2C protocol to communicate with the TV Decoder chip. Following the power-on sequence, the TV Decoder chip will be unstable for a time period; the Lock Detector is responsible for detecting this instability.

The ITU-R 656 Decoder block extracts YcrCb 4:2:2 (YUV 4:2:2) video signals from the ITU-R 656 data stream sent from the TV Decoder. It also generates a data valid control signal indicating the valid period of data output. Because the video signal from the TV Decoder is interlaced, we need to perform de-interlacing on the data source. We used the SDRAM Frame Buffer and a field selection

multiplexer (MUX) which is controlled by the VGA controller to perform the de-interlacing operation. Internally, the VGA Controller generates data request and odd/even selection signals to the SDRAM Frame Buffer and filed selection multiplexer (MUX). The YUV422 to YUV444 block converts the selected YcrCb 4:2:2 (YUV 4:2:2) video data to the YcrCb 4:4:4 (YUV 4:4:4) video data format.

Finally, the YcrCb_to_RGB block converts the YcrCb data into RGB data output. The VGA Controller block generates standard VGA synchronous signals VGA_HS and VGA_VS to enable the display on a VGA monitor.

Figure 5-9 Block diagram of the TV box demonstration

DDeemmoonnssttrraattiioonn SSoouurrccee CCooddee

 Project directory: DE1_SoC_TV  Bit stream used: DE1_SoC_TV.sof

DDeemmoonnssttrraattiioonn BBaattcchh FFiillee

Demo Batch File Folder: DE1_SoC_TV \demo_batch

The demo batch file includes the following files:

 Batch File: DE1_SoC_TV.bat  FPGA Configure File : DE1_SoC_TV.sof

DDeemmoonnssttrraattiioonn SSeettuupp,, FFiillee LLooccaattiioonnss,, aanndd IInnssttrruuccttiioonnss

 Connect a DVD player’s composite video output (yellow plug) to the Video-In RCA jack (J6) of

the DE1-SoC board (See Figure 5-10). The DVD player has to be configured to provide:

 NTSC output  60Hz refresh rate  4:3 aspect ratio  Non-progressive video  Connect the VGA output of the DE1-SoC board to a VGA monitor (both LCD and CRT type of

monitors should work).

 Connect the audio output of the DVD player to the line-in port of the DE1-SoC board and

connect a speaker to the line-out port. If the audio output jacks from the DVD player are RCA type, then an adaptor will be needed to convert to the mini-stereo plug supported on the DE1-SoC board; this is the same type of plug supported on most computers.

 Load the bit stream into FPGA by execute the batch file ‘DE1_SoC_TV.bat’ under

DE1_SoC_TV \demo_batch\ folder. Press KEY0 on the DE1-SoC board to reset the circuit

Figure 5-10 Setup for the TV box demonstration

55..7

PPSS//22 MMoouussee DDeemmoonnssttrraattiioonn

We offer this simple PS/2 controller coded in Verilog HDL to demonstrate bidirectional communication between PS/2 controller and the device, the PS/2 mouse. You can treat it as a how-to basis and develop your own controller that could accomplish more sophisticated instructions, like setting the sampling rate or resolution, which need to transfer two data bytes.

For detailed information about the PS/2 protocol, please perform an appropriate search on various educational web sites. Here we give a brief introduction:

 Outline

PS/2 protocol use two wires for bidirectional communication, one clock line and one data line. The PS/2 controller always has total control over the transmission line, but the PS/2 device generates clock signal during data transmission.

 Data transmit from the device to controller

After sending an enabling instruction to the PS/2 mouse at stream mode, the device starts to send displacement data out, which consists of 33 bits. The frame data is cut into three similar slices, each of them containing a start bit (always zero) and eight data bits (with LSB first), one parity check bit (odd check), and one stop bit (always one).

PS/2 controller samples the data line at the falling edge of the PS/2 clock signal. This could easily be implemented using a shift register of 33 bits, but be cautious with the clock domain crossing problem.

 Data transmit from the controller to device

Whenever the controller wants to transmit data to device, it first pulls the clock line low for more than one clock cycle to inhibit the current transmit process or to indicate the start of a new transmit process, which usually be called as inhibit state. After that, it pulls low the data line then release the clock line, and this is called the request state. The rising edge on the clock line formed by the release action can also be used to indicate the sample time point as for a 'start bit. The device will detect this succession and generates a clock sequence in less than 10ms time. The transmit data consists of 12bits, one start bit (as explained before), eight data bits, one parity check bit (odd check), one stop bit (always one), and one acknowledge bit (always zero). After sending out the parity check bit, the controller should release the data line, and the device will detect any state

change on the data line in the next clock cycle. If there’s no change on the data line for one clock cycle, the device will pull low the data line again as an acknowledgement which means that the data is correctly received.

After the power on cycle of the PS/2 mouse, it enters into stream mode automatically and disable data transmit unless an enabling instruction is received. Figure 5-11 shows the waveform while communication happening on two lines.

Figure 5-11 Waveforms on two lines while communication taking place

DDeemmoonnssttrraattiioonn SSoouurrccee CCooddee

 Project directory: DE1_SoC_PS2_DEMO  Bit stream used: DE1_SoC_PS2_DEMO.sof

DDeemmoonnssttrraattiioonn BBaattcchh FFiillee

Demo Batch File Folder: DE1_SoC_PS2_DEMO \demo_batch

The demo batch file includes the following files:

 Batch File: DE1_SoC_PS2_DEMO.bat  FPGA Configure File : DE1_SoC_PS2_DEMO.sof

DDeemmoonnssttrraattiioonn SSeettuupp,, FFiillee LLooccaattiioonnss,, aanndd IInnssttrruuccttiioonnss

 Load the bit stream into FPGA by executing DE1_SoC_PS2_DEMO \demo_batch\

DE1_SoC_PS2_DEMO.bat

 Plug in the PS/2 mouse  Press KEY[0] for enabling data transfer  Press KEY[1] to clear the display data cache  You should see digital changes on 7-segment display when the PS/2 mouse moves, and the

LEDR[2:0] will blink respectively when the left-button, right-button or middle-button is pressed.

Table 5-5 gives the detailed information.

Table 5-5 Detailed information of the indicators

Indicator Name

Description

LEDR[0]

Left button press indicator

LEDR[1]

Right button press indicator

LEDR[2]

Middle button press indicator

HEX0

Low byte of X displacement

HEX1

High byte of X displacement

HEX2

Low byte of Y displacement

HEX3

High byte of Y displacement

55..8

IIRR EEmmiitttteerr LLEEDD aanndd RReecceeiivveerr DDeemmoonnssttrraattiioonn

In this demonstration we show a simple example of using IR Emitter LED and IR receiver. All the codes in this demonstration are coding by verilog HDL.

Figure 5-12 Block Diagram of the IR Emitter LED and Receiver Demonstration

Figure 5-12 shows the block diagram of the design. It mainly implement a IR TX Controller and a

IR RX Controller. When KEY0 is pressed, Data test pattern generator continuously generates data to the IR TX Controller. When IR TX Controller works, it will format the sending data into NEC IR transmission protocol and send it out through IR emitter LED. IR receiver will decode the received data and display it on six HEXs. Also, user can use a remote controller to sending data to IR Receiver. The main function of IR TX /RX controller and IR remote in this demonstration will be described in below:

 IR TX Controller

User can input 8-bit address and 8-bits command into IR TX Controller. IR TX Controller will encode the the address and command first , and send it out according to NEC IR transmission protocol through IR emitter LED. Note that the input clock of the Controller should be 50MHz.

The NEC IR transmission protocol uses pulse distance encoding of the message bits. Each pulse burst is

562.5µs in length, at a carrier frequency of 38kHz (26.3µs). As shown in Figure 5-13,Logical bits are transmitted as follows:

• Logical '0' – a 562.5µs pulse burst followed by a 562.5µs space, with a total transmit time of 1.125ms

• Logical '1' – a 562.5µs pulse burst followed by a 1.6875ms space, with a total transmit time

of 2.25ms

Figure 5-13 Logical “1”and Logical “0”

Figure 5-14 shows the frame of the protocol. Protocol will send a lead code first, a 9ms leading pulse

burst followed by a 4.5msThe second inversed data is sent to verify the accuracy of the information received. At last, a final 562.5µs pulse burst to signify the end of message transmission.. Because every time it is sent inversed data, the overall transmission time is constant.

Figure 5-14 Typical frame of NEC protocol

Note: IR Receiver receives the signal a inverted value(e.g. IR TX Controller send a lead code 9 ms high then 4.5 ms low, IR Receiver will receive a 9 ms low then 4.5 ms high lead code).

 IR Remote

When a key on the remote controller(See Figure 5-15) is pressed, the remote controller will emit a standard frame, shown in Table 5-6 The beginning of the frame is the lead code represents the start bit, and then is the key-related information, and the last 1 bit end code represents the end of the

frame.(This frame is descript the signal which IR Receiver Received)

Figure 5-15 Remote controller

Table 5-6 Key code information for each Key on remote controller

Key

Key Code

Key

Key Code

Key

Key Code

Key

Key Code

0x0F

0x13

0x10

0x12

0x01

0x02

0x03

0x1A

0x04

0x05

0x06

0x1E

0x07

0x08

0x09

0x1B

0x11

0x00

0x17

0x1F

0x16

0x14

0x18

0x0C

Lead Code 1bit Custom Code 16bits Key Code 8bits

Inv Key Code

8bits

End

Code

1bit

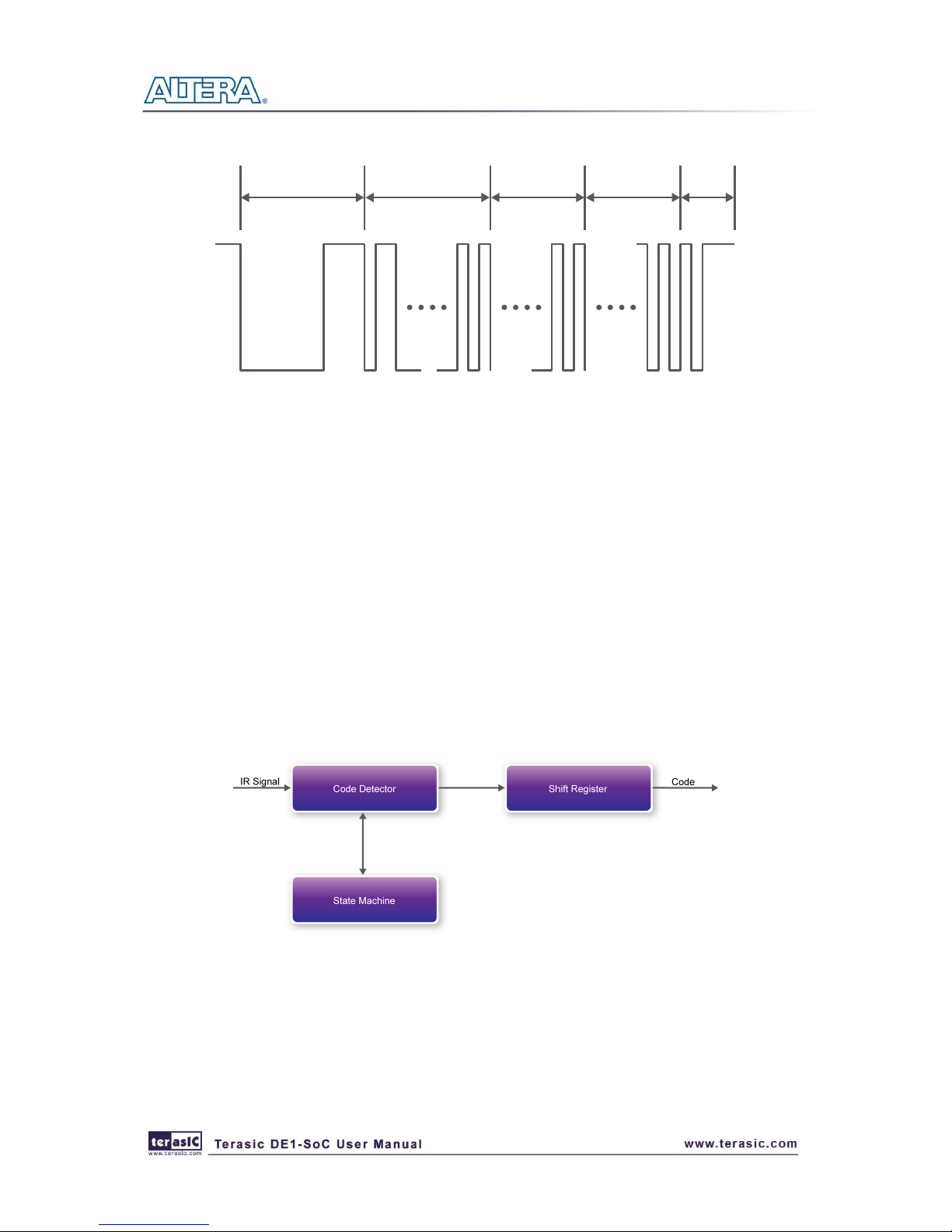

Figure 5-16 The transmitting frame of the IR remote controller

 IR RX Controller

In this demo, the IP of IR receiver controller is implemented in the FPGA. As Figure 5-17 show, it includes Code Detector, State Machine, and Shift Register. First, the IR receiver demodulates the signal inputs to Code Detector block .The Code Detector block will check the Lead Code and feedback the examination result to State Machine block.

The State Machine block will change the state from IDLE to GUIDANCE once the Lead code is detected. Once the Code Detector has detected the Custom Code status, the current state will change from GUIDANCE to DATAREAD state. At this state, the Code Detector will save the receiving data and output to Shift Register then displays it on 7-segment displays. Figure 5-18 shows the state shift diagram of State Machine block. Note that the input clock should be 50MHz.

Figure 5-17 The IR Receiver controller

Figure 5-18 State shift diagram of State Machine

DDeemmoonnssttrraattiioonn SSoouurrccee CCooddee

 Project directory: DE1_SoC_IR  Bit stream used: DE1_SOC_IR.sof

DDeemmoonnssttrraattiioonn BBaattcchh FFiillee

Demo Batch File Folder: DE1_SoC_IR \demo_batch

The demo batch file includes the following files:

 Batch File: DE1_SoC_IR.bat  FPGA Configure File : DE1_SOC_IR.sof

DDeemmoonnssttrraattiioonn SSeettuupp,, FFiillee LLooccaattiioonnss,, aanndd IInnssttrruuccttiioonnss

 Load the bit stream into FPGA by executing DE1_SoC_IR \demo_batch\ DE1_SoC_IR.bat  Press KEY[0] to enable the continuously pattern sending out by IR TX Controller.  Observe the six HEXs (See Table 5-7 for detail)  Releasing KEY[0] to stop the IR TX.  Point the IR receiver with the remote-controller and press any button  Observe the six HEXs(See Table 5-7 for detail)  And User can using Multi DE1_SoC boards to do more IR test between boards.

Table 5-7 Detailed information of the indicators

Indicator Name

Description

HEX5

Inversed high byte of DATA(Key Code)

HEX4

Inversed low byte of DATA(Key Code)

HEX3

High byte of ADDRESS(Custom Code)

HEX2

Low byte of ADDRESS(Custom Code)

HEX1

High byte of DATA(Key Code)

HEX0

Low byte of DATA (Key Code)

55..9

AADDCC RReeaaddiinngg

This demonstration illustrates steps which can be used to evaluate the performance of the 8-channel 12-bit A/D Converter ADC7928. The DC 5.0V on the 2x5 header is used to drive the analog signals and by using a trimmer potentiometer, the voltage can be adjusted within the range of 0~5.0V. The 12-bit voltage measurements are indicated on the NIOS II console. Figure 5-19 shows the block diagram of this demonstration.

Note that，the input voltage range is 0-5V，and if your input voltage is -2.5-2.5V，you can make the pre-scale circuit to adjust their range to 0-5V.

Figure 5-19 ADC Reading Block Diagram

Figure 5-20 depicts the pin arrangement of the 2x5 header. In this demonstration, this header is the

input source of ADC convertor. Users can connect a trimmer to the specified ADC channel (ADC_IN0 ~ ADC_IN7) that provides voltage to the ADC convert. Then FPGA will read the associated register in the convertor via serial interface and translates it to voltage value displayed on the NIOS II console

Figure 5-20 ADC Pin distribution of the 2x5 Header

 System Requirements

The following items are required for the ADC Reading demonstration

o DE1-SoC board x1 o Trimmer Potentiometer x1 o Wire Strip x3

 Demonstration File Locations

 Hardware Project directory: DE1_SoC_ADC  Bit stream used: DE1_SoC_ADC.sof  Software Project directory: DE1_SoC_ADC software  Demo batch file : DE1_SoC_ADC\demo_batch\ DE1_SoC_ADC.bat

 Demonstration Setup and Instructions

 Connect the trimmer to corresponding ADC channel on the 2x5 header as shown in Figure 5-21

to read from, as well as the +5V and GND signals. (Note: the setup shown above is connected ADC channel 0).

 Execute the demo batch file DE1_SoC_ADC.bat to load bit stream and software execution file

in FPGA.

 The NIOS II console will display the voltage of the specified channel voltage result information

Figure 5-21 ADC Reading hardware setup

Chapter 6

Examples for HPS

SoC

This chapter provides a number of C-code examples based on the Altera SoC Linux built by Yocto Project. These examples provide demonstrations of the major features which connected to HPS interface on the board, such as users LED/KEY, I2C interfaced G-sensor and I2C MUX. All of the associated files can be found in the Demonstrations/SOC folder in the DE1_SoC System CD.

 Installation of the Demonstrations

To install the demonstrations on your computer:

Copy the directory Demonstrations into a local directory of your choice. Altera SoC EDS v13.0 is

required for users to compile the c-code project.

66..1

HHeelllloo PPrrooggrraamm

This demonstration presents how to develop your first HPS program by using Altera SoC EDS tool. For operation details, please refer to My_First_HPS.pdf in the system CD.

Here are the major procedures to develop and build HPS project.

 Make sure Altera SoC EDS is installed on your PC.  Create program .c/.h files with a generic text editor  Create a "Makefile" with a generic text editor  Build your project under Altera SoC EDS

 Program File

Here is the main program of this Hello World demo.

 Makefile

To compile a project, a Makefile is required. Here is the Makefile used for this demo.

 Compile

To compile a project, please launch Altera SoC EDS Command Shell by executing

C:\altera\13.0\embedded\Embedded_Command_Shell.bat

Use the "cd" command to change the current directory to where the Hello World project is located. Then type "make" to build the project. The executable file "my_first_hps" will be generated after the compiling process is finished. The "clean all" command can be used to remove all temporary files.

 Demonstration Source Code

 Build Tool: Altera SoC EDS v13.0  Project directory: \Demonstration\SoC\my_first_hps  Binary file: my_first_hps  Build Command: make ("make clean" to remove all temporary files)  Execute Command: ./my_first_hps 

 Demonstration Setup

 Connect USB cable to the USB-to-UART connector (J4) on the DE1_SoC board and host PC.  Make sure the demo file "my_first_hps" is copied into the SD card under the "/home/root"

folder in Linux.

 Insert the booting micro SD card into the DE1_SoC board.  Power on the DE1_SoC board.  Launch PuTTY to connect to the UART port of Putty and type "root" to login Altera Yocto

Linux.

 In the UART terminal of PuTTY, type "./my_first_hps" to start the program, and you will see

"Hello World!" message in the terminal.

66..2

UUsseerrss LLEEDD aanndd KKEEYY

This demonstration presents how to control the users LED and KEY by accessing the register of GPIO controller through the memory-mapped device driver. The memory-mapped device driver allows developer to access the system physical memory.

 Function Block Diagram

Figure 6-1 shows the function block diagram of this demonstration. The users LED and KEY are

connected to the GPIO1 controller in HPS. The behavior of the GPIO controller is controlled by the register in the GPIO controller. The registers can be accessed by application software through the memory-mapped device driver, which is built into Altera SoC Linux.

Figure 6-1 Block Diagram of GPIO Demonstration

 GPIO Interface Block Diagram

The HPS provides three general-purpose I/O (GPIO) interface modules. Figure 6-2 shows the block diagram of the GPIO Interface. GPIO[28..0] is controlled by GPIO0 controller and GPIO[57..29] is controlled by GPIO1 controller. GPIO[70..58] and input-only GPI[13..0] are controlled by GPIO2 controller.

Figure 6-2 Block Diagram of GPIO Interface

 GPIO Register Block

The behavior of I/O pin is controlled by the registers in the register block. In this demonstration, we only use three 32-bit registers in the GPIO controller. The registers are:

 gpio_swporta_dr: used to write output data to output I/O pin  gpio_swporta_ddr: used to configure the direction of I/O pin  gpio_ext_porta: used to read input data of I/O input pin

For LED control, we use gpio_swporta_ddr to configure the LED pin as output pin, and drive the pin high or low by writing data to the gpio_swporta_dr register. For the gpio_swporta_ddr register, the first bit (least significant bit) controls direction of the first IO pin in the associated GPIO controller and the second bit controls the direction of second IO pin in the associated GPIO controller, and so on. The value "1" in the register bit indicates the I/O direction is output, and the value "0" in the register bit indicates the I/O direction is input.

For the gpio_swporta_dr register, the first bit controls the output value of first I/O pin in the associated GPIO controller, and the second bit controls the output value of second I/O pin in the associated GPIO controller, and so on. The value "1" in the register bit indicates the output value is high, and the value "0" indicates the output value is low.

The status of KEY can be queried by reading the value of gpio_ext_porta register. The first bit represents the input status of first IO pin in the associated GPIO controller, and the second bit represents the input status of second IO pin in the associated GPIO controller, and so on. The value "1" in the register bit indicates the input state is high, and the value "0" indicates the input state is low.

 GPIO Register Address Mapping

The registers of HPS peripherals are mapped to HPS base address space 0xFC000000 with 64KB size. Registers of GPIO1 controller are mapped to the base address 0xFF208000 with 4KB size, and registers of GPIO2 controller are mapped to the base address 0xFF20A000 with 4KB size, as shown in Figure 6-3.

Figure 6-3 GPIO Address Map

 Software API

Developers can use the following software API to access the register of GPIO controller.

 open: use to open memory mapped device driver  mmap: map physical memory to user space  alt_read_word: read a value from a specified register  alt_write_word: write a value into a specified register  munmap: clean up memory mapping  close: close device driver.

Developers can also use the following MACRO to access the register

 alt_setbits_word: set specified bit value to zero for a specified register  alt_clrbits_word: set specified bit value to one for a specified register

To use the above API to access register of GPIO controller, the program must include the following header files.

#include <stdio.h> #include <unistd.h> #include <fcntl.h> #include <sys/mman.h> #include "hwlib.h" #include "socal/socal.h" #include "socal/hps.h"

#include "socal/alt_gpio.h"

 LED and KEY Control

Figure 6-4 shows the HPS users LED and KEY pin assignment for the DE1_SoC board. The LED

is connected to HPS_GPIO53, KEY is connected to HPS_GPIO54, which are controlled by the GPIO1 controller, which also controls HPS_GPIO29 ~ HPS_GPIO57.

Figure 6-4 LED and KEY Pin Assignment

Figure 6-5 shows the gpio_swporta_ddr register of the GPIO1 controller. The bit-0 controls the

pin direction of HPS_GPIO29. The bit-24 controls the pin direction of HPS_GPIO53, which connects to the HPS_LED, the bits-25 controls the pin direction of HPS_GPIO54 which connects to the HPS_KEY, and so on. In summary, the pin direction of HPS_LED, HPS_KEY are controlled by the bit-24, bit-25 in the gpio_swporta_ddr register of the GPIO1 controller, respectively. Similarly, the output status of HPS_LED is controlled by the bit-24 in the gpio_swporta_dr register of the GPIO1 controller. The status of KEY can be queried by reading the value of the bit-24 in the gpio_ext_porta register of the GPIO1 controller.

Figure 6-5 gpio_swporta_ddr Register in the GPIO1

In this demo code, the following mask is defined to control LED and KEY direction and LED’s output value.

#define USER_IO_DIR (0x01000000)

#define BIT_LED (0x01000000)

#define BUTTON_MASK (0x02000000)

The following statement can be used to configure the LED associated pins as output pins.

alt_setbits_word( ( virtual_base + ( ( uint32_t )( ALT_GPIO1_SWPORTA_DDR_ADDR ) & ( uint32_t )( HW_REGS_MASK ) ) ), USER_IO_DIR );

The following statement can be used to turn on the LED.

alt_setbits_word( ( virtual_base + ( ( uint32_t )( ALT_GPIO1_SWPORTA_DR_ADDR ) & ( uint32_t )( HW_REGS_MASK ) ) ), BIT_LED );

The following statement can be used to read the content of gpio_ext_porta register. The bit mask is used to check the status of the key.

alt_read_word( ( virtual_base + ( ( uint32_t )( ALT_GPIO1_EXT_PORTA_ADDR ) & ( uint32_t )( HW_REGS_MASK ) ) ) );

 Demonstration Source Code

 Build tool: Altera SoC EDS V13.0  Project directory: \Demonstration\SoC\hps_gpio  Binary file: hps_gpio  Build command: make ('make clean' to remove all temporal files)  Execute command: ./hps_gpio

 Demonstration Setup

 Connect the USB cable to the USB-to-UART connector (J4) on the DE1_SoC board and host

PC.

 Make sure the executable file "hps_gpio" is copied into the SD card under the "/home/root"

folder in Linux.

 Insert the booting micro SD card into the DE1_SoC board.  Power on the DE1_SoC board.  Launch PuTTY to connect to the UART port of DE1_SoC board and type "root" to login Altera

Yocto Linux.

 In the UART terminal of PuTTY, execute "./hps_gpio" to start the program.

Figure 6-6 Putty window

 HPS_LED will flashing 2 times first.  Press HPS_KEY to light up HPS_LED ,Press "CTRL + C" to terminate the application.

66..3

II22CC IInntteerrffaacceedd GG--sseennssoorr

This demonstration shows how to control the G-sensor by accessing its registers through the built-in I2C kernel driver in Altera Soc Yocto Powered Embedded Linux.

 Function Block Diagram

Figure 6-7 shows the function block diagram of this demonstration. The G-sensor on the DE1_SoC

board is connected to the I2C0 controller in HPS. The G-Sensor I2C 7-bit device address is 0x53. The system I2C bus driver is used to access the register files in the G-sensor. The G-sensor interrupt signal is connected to the PIO controller. In this demonstration, we use polling method to read the register data, so the interrupt method is not introduced here.

Figure 6-7 Block Diagram of the G-sensor Demonstration

 I2C Driver

Here is the list of procedures in order to read a register value from G-sensor register files by using the existing I2C bus driver in the system:

1. Open I2C bus driver "/dev/i2c-0": file = open("/dev/i2c-0", O_RDWR);

2. Specify G-sensor's I2C address 0x53: ioctl(file, I2C_SLAVE, 0x53);

3. Specify desired register index in g-sensor: write(file, &Addr8, sizeof(unsigned char));

4. Read one-byte register value: read(file, &Data8, sizeof(unsigned char));

Because the G-sensor I2C bus is connected to the I2C0 controller, as shown in the Figure 6-8, the given driver name is '/dev/i2c-0'.

Figure 6-8 Schematic of I2C

To write a value into a register, developer can change step 4 to:

write(file, &Data8, sizeof(unsigned char));

To read multiple byte values, developer can change step 4 to:

read(file, &szData8, sizeof(szData8)); // where szData is an array of bytes

To write multiple byte values, developer can change step 4 to:

write(file, &szData8, sizeof(szData8)); // where szData is an array of bytes

 G-sensor Control

The ADI ADXL345 provides I2C and SPI interfaces. I2C interface is used by setting the CS pin to high on this DE1_SoC board.

The ADI ADXL345 G-sensor provides user-selectable resolution up to 13-bit ± 16g. The resolution can be configured through the DATA_FORAMT(0x31) register. In the demonstration, we configure the data format as:

 Full resolution mode  ± 16g range mode  Left-justified mode

The X/Y/Z data value can be derived from the DATAX0(0x32), DATAX1(0x33), DATAY0(0x34), DATAY1(0x35), DATAZ0(0x36), and DATAX1(0x37) registers. The DATAX0 represents the least significant byte, and DATAX1 represents the most significant byte. It is recommended to perform multiple-byte read of all registers to prevent change in data between reads of sequential registers. Developer can use the following statement to read 6 bytes of X, Y, or Z value.

read(file, szData8, sizeof(szData8)); // where szData is an array of six-bytes

 Demonstration Source Code

 Build tool: Altera SoC EDS v13.0  Project directory: \Demonstration\SoC\hps_gsensor  Binary file: gsensor  Build command: make ('make clean' to remove all temporal files)  Execute command: ./gsensor [loop count]

 Demonstration Setup

 Connect the USB cable to the USB-to-UART connector (J4) on the DE1_SoC board and host

PC.

 Make sure the executable file "gsensor" is copied into the SD card under the "/home/root"

folder in Linux.

 Insert the booting micro sdcard into the DE1_SoC board.

 Power on the DE1_SoC board.  Launch PuTTY to connect to the UART port of DE1_SoC borad and type "root" to login Yocto

Linux.

 In the UART terminal of PuTTY,, execute "./gsensor" to start the gsensor polling.  The demo program will show the X, Y, and Z values in the Putty, as shown in Figure 6-9. Press

"CTRL + C" to terminate the program.

Figure 6-9 Terminal output of the G-sensor Demonstration

66..4

II22CC MMUUXX TTeesstt

This demonstration shows how to switch the I2C multiplexer so that HPS can access the I2C bus originally owned by FPGA.

 Function Block Diagram

Figure 6-11 shows the function block diagram of this demonstration. The I2C bus from both FPGA

and HPS are connected to an I2C multiplexer and I2C multiplexer is controlled by HPS_I2C_CONTROL which connected to GPIO1 controller in HPS. The HPS I2C is connected to the I2C0 controller in HPS (Gsensor is also connected to I2C0 controller, See Figure 6-10).

Figure 6-11 Block Diagram of the I2C MUX Test Demonstration

 HPS_I2C_CONTROL Control

HPS_I2C_CONTROL is connected to HPS_GPIO48, bit 19 of GPIO1 controller. HPS will own I2C bus and then can access Audio CODEC and TV Decoder when the HPS_I2C_CONTROL signal is set to high.

In this demo code, the following mask is defined to control HPS_I2C_CONTROL direction and their output value.

#define HPS_I2C_CONTROL ( 0x00080000 )

The following statement can be used to configure the HPS_I2C_CONTROL associated pins as output pin.

alt_setbits_word( ( virtual_base + ( ( uint32_t )( ALT_GPIO1_SWPORTA_DDR_ADDR ) & ( uint32_t )( HW_REGS_MASK ) ) ), HPS_I2C_CONTROL );

The following statement can be used to set HPS_I2C_CONTROL high.

alt_setbits_word( ( virtual_base + ( ( uint32_t )( ALT_GPIO1_SWPORTA_DR_ADDR ) & ( uint32_t )( HW_REGS_MASK ) ) ), HPS_I2C_CONTROL );

The following statement can be used to set HPS_I2C_CONTROL low.

alt_clrbits_word( ( virtual_base + ( ( uint32_t )( ALT_GPIO1_SWPORTA_DR_ADDR ) & ( uint32_t )( HW_REGS_MASK ) ) ), HPS_I2C_CONTROL );

 I2C Driver

Here is the list of procedures in order to read register value from TV Decoder by using the existing I2C bus driver in the system:

 Set HPS_I2C_CONTROL high so that HPS can access I2C bus.  Open I2C bus driver "/dev/i2c-0": file = open("/dev/i2c-0", O_RDWR);  Specify ADV7180 's I2C address 0x20: ioctl(file, I2C_SLAVE, 0x20);  Read or write registers;  Set HPS_I2C_CONTROL low to release I2C bus.

 Demonstration Source Code

 Build tool: Altera SoC EDS v13.0  Project directory: \Demonstration\SoC\ hps_i2c_switch  Binary file: i2c_switch  Build command: make ('make clean' to remove all temporal files)  Execute command: ./ i2c_switch

 Demonstration Setup

 Connect the USB cable to the USB-to-UART connector (J4) on the DE1_SoC board and host

PC.

 Make sure the executable file " i2c_switch " is copied into the SD card under the "/home/root"

folder in Linux.

 Insert the booting micro sdcard into the DE1_SoC board.  Power on the DE1_SoC board.  Launch PuTTY to connect to the UART port of DE1_SoC borad and type "root" to login Yocto

Linux.

 In the UART terminal of PuTTY,, execute "./ i2c_switch " to start the I2C MUX test.  The demo program will show the result in the Putty, as shown in Figure 6-12.



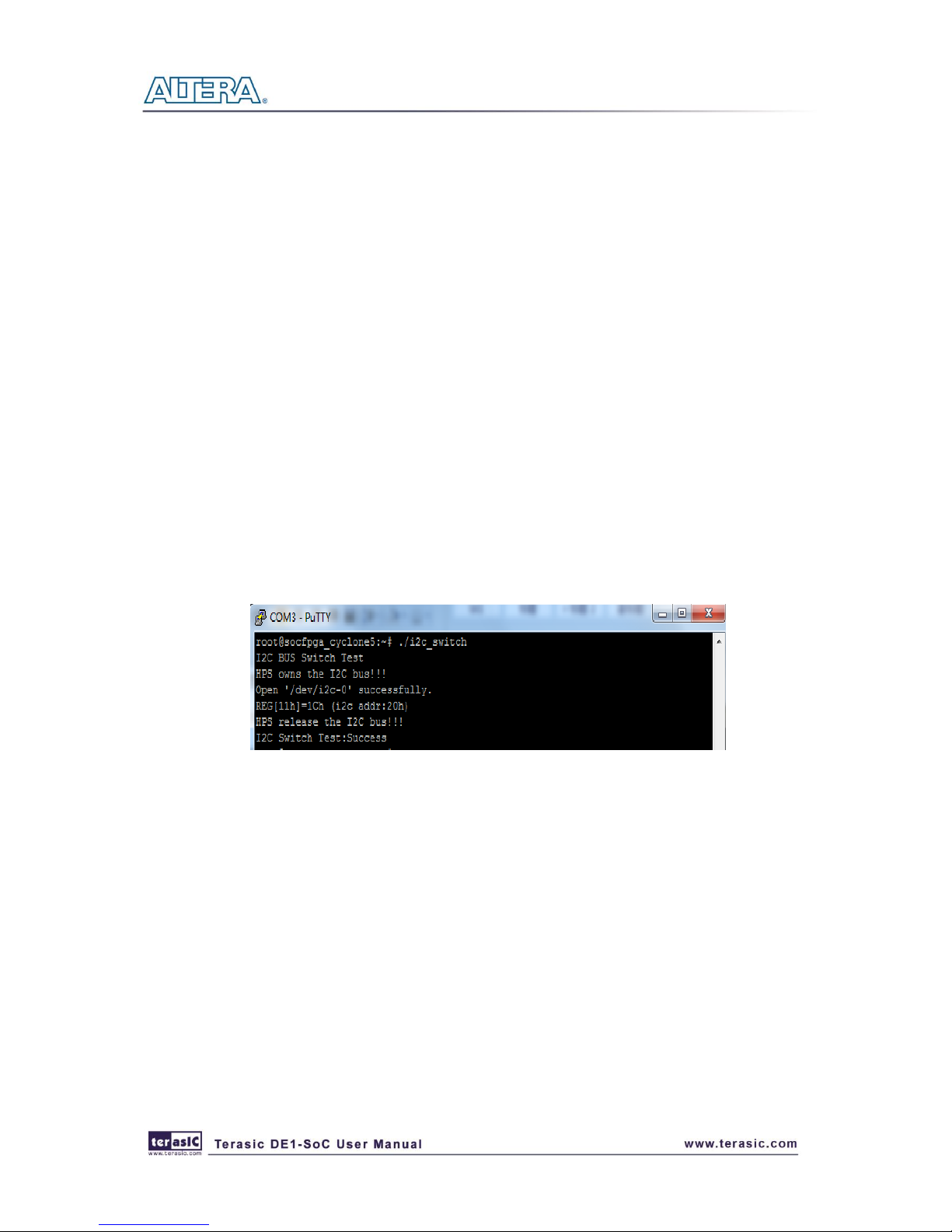

Figure 6-12 Terminal output of the I2C MUX Test Demonstration

 Press "CTRL + C" to terminate the program.

Chapter 7

Examples for using

both HPS SoC and

FGPA

Although the HPS and the FPGA can operate independently, they are tightly coupled via a high-bandwidth system interconnect built from high-performance ARM AMBA® AXITM bus bridges. Both FPGA fabric and HPS can access to each other via these interconnect bridges. This chapter provides demonstrations for how to using these bridges that can achieve superior performance and lower latency when compared to solutions containing a separate FPGA and discrete processor.

77..1

HHPPSS CCoonnttrrooll LLEEDD aanndd HHEEXX

This demonstration presents using HPS to control the LED and HEX on the FPGA part through Lightweight HPS-to-FPGA Bridge.

 Function Block Diagram

Figure 7-1 shows the diagram of this demonstration. The HPS use Lightweight HPS-to-FPGA AXI

Bridge to communicate with FPGA. The HPS translate data to the FPGA through the lwaxi bridge. The hardware in FPGA part is built in Qsys. The data translate through Lightweight HPS-to-FPGA Bridge is converted into Avalon-MM master interface. So the IP PIO controller and HEX Controller works as the Avalon-MM slave in the system. They control the pins related to the LED and HEX to change the LED and HEX’s state. This is similar to the system using NIOS II processor to control LED and HEX.

Terasic De1-Soc User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
