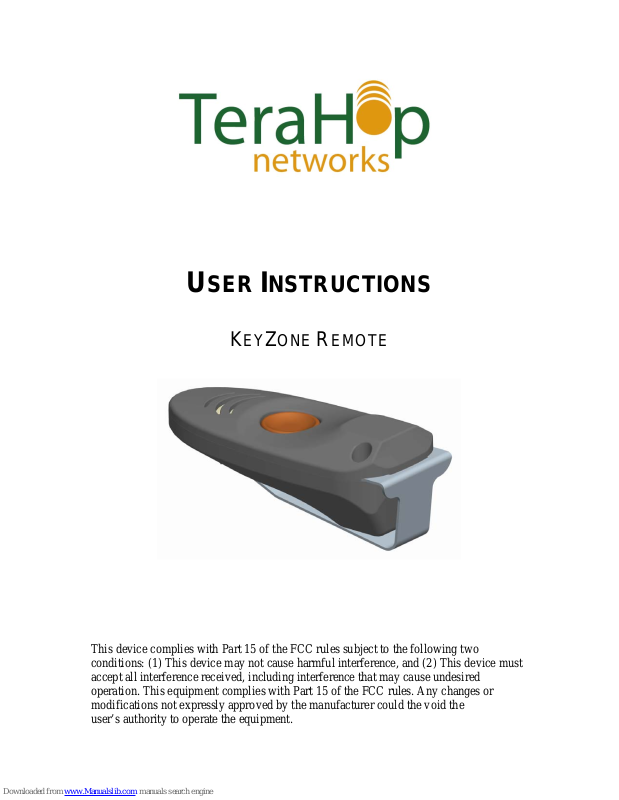

USER INSTRUCTIONS
KEYZONE REMOTE
This device complies with Part 15 of the FCC rules subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) This device must
accept all interference received, including interference that may cause undesired
operation. This equipment complies with Part 15 of the FCC rules. Any changes or
modifications not expressly approved by the manufacturer could the void the
user’s authority to operate the equipment.
RSI11-09-00622 (REV. 02) PAGE 1 OF 3
LOGIN/AUTHENTICATION KEY
In the KeyZone Client Application, you must first log into the system
with your name and password. Once you log in, an authentication
key is sent to the Remote by the Gateway Server.
The first time you press the button on the remote after logging in,
both the green and red light will illuminate on the remote. Press the
button on the remote again and the green light should illuminate. The
green light indicates that the Gateway server has successfully
assigned an authentication key to the Remote. If the red light
illuminates instead, try moving the Remote to a location with a clearer
line of sight to the Gateway Server and pressing the button again. If
you continue to get the red light, then this indicates that the
authentication key was not successfully assigned to the Remote. See
Figure 1.
Figure 1: Remote Lights
Remote with a valid key Remote without a valid key
OPENING A VAULT
To use the Remote to open a KeyZone Vault, first position the
Remote 1 inch or less from the Vault just beneath the rightmost light
(see Figure 2). (Note: the Remote may not be able to access the
Vault when the Remote and Vault are more than 1 inch apart). Press
the button on the Remote and wait for one of the lights on the Vault to
illuminate. If the green light on the Vault illuminates, then you have
successfully accessed the Vault. You can then push upwards on the
bottom of the Vault to release the car key drawer. If the red light on
the Vault illuminates, then the Remote was unable to gain access to
the Vault. This could indicate a problem with the Remote’s
authentication key.
RSI11-09-00622 (REV. 02) PAGE 2 OF 3
Figure 2: Correct Position Of Remote When Accessing A Vault
For questions or assistance, please contact:
TeraHop Networks, Inc.
Alpharetta, GA 30005
(678) 455-8844
www.terahop.com
RSI11-09-00622 (REV. 02) PAGE 3 OF 3
