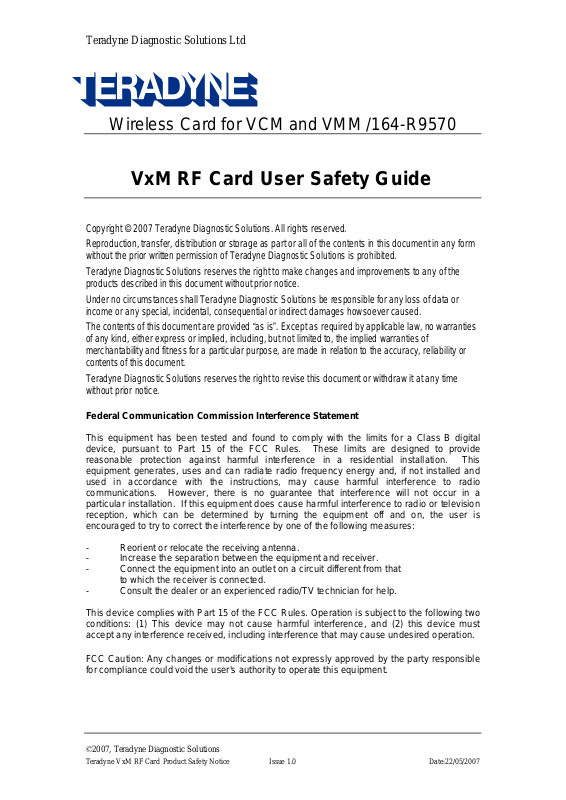

Teradyne Diagnostic Solutions 35540121 Users Manual

Teradyne Diagnostic Solutions Ltd

Wireless Card for VCM and VMM /164-R9570

VxM RF Card User Safety Guide

Copyright © 2007 Teradyne Diagnostic Solutions. All rights reserved.
Reproduction, transfer, distribution or storage as part or all of the contents in this document in any form

without the prior written permission of Teradyne Diagnostic Solutions is prohibited.
Teradyne Diagnostic Solutions reserves the right to make changes and improvements to any of the

products described in this document without prior notice.
Under no circumstances shall Teradyne Diagnostic Solutions be responsible for any loss of data or

income or any special, incidental, consequential or indirect damages howsoever caused.
The contents of this document are provided “as is”. Except as required by applicable law, no warranties

of any kind, either express or implied, including, but not limited to, the implied warranties of
merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability or
contents of this document.

Teradyne Diagnostic Solutions reserves the right to revise this document or withdraw it at any time
without prior notice.

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.

FCC Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate this equipment.

©2007, Teradyne Diagnostic Solutions

Teradyne VxM RF Card Product Safety Notice Issue 1.0 Date:22/05/2007

Teradyne Diagnostic Solutions Ltd

IMPORTANT NOTE:
FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. End users must follow the specific operating instructions for satisfying RF
exposure compliance. To maintain compliance with FCC RF exposure compliance
requirements, please follow operation instruction as documented in this manual.

This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.

SAR compliance has been established in typical laptop computer(s) with CardBus slot, and
product could be used in typical laptop computer with CardBus slot. Other application like
handheld PC or similar device has not been verified and may not compliance with related RF
exposure rule and such use shall be prohibited.

The availability of some specific channels and/or operational frequency bands are country
dependent and are firmware programmed at the factory to match the intended destination.
The firmware setting is not accessible by the end user.

Industry Canada Statement

This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the
following two conditions:

1) This device may not cause interference and

2) This device must accept any interference, including interference that may cause undesired

operation of the device
This device has been designed to operate with an antenna having a maximum gain of 2 dBi.

Antenna having a higher gain are strictly prohibited per regulations of Industry Canada. The
required antenna impedance is 50 ohms.

To reduce potential radio interference to other users, the antenna type and its gain should be
so chosen that the EIRP is not more than required for successful communication.

IMPORTANT NOTE:
IC Radiation Exposure Statement:

This equipment complies with IC radiation exposure limits set forth for an uncontrolled
environment. End users must follow the specific operating instructions for satisfying RF
exposure compliance. To maintain compliance with IC RF exposure compliance requirements,
please follow operating instructions as documented in this manual.

©2007, Teradyne Diagnostic Solutions

Teradyne VxM RF Card Product Safety Notice Issue 1.0 Date:22/05/2007

Teradyne Diagnostic Solutions Ltd

1. Product Safety Information

How to identify safety notices

There are five types of safety information. These are examples:

CAUTION - This indicates the presence of a hazard that can cause
damage to , a vehicle or other equipment connected to, or that might
corrupt software if the hazard is not avoided.

WARNING - This indicates the presence of a hazard that can cause
personal injury if the hazard is not avoided.

SPECIFIC HAZARD - Indicates the presence of a specific hazard,
such as static sensitive components, electric shock risk or hot
surface.

DO - Indicates a safety-critical activity that must be carried out.

DO NOT - Indicates a safety-critical activity or action that must not
be carried out under any circumstances.
