DMM-Series User Guide V1.2

DDMMMM--S

EERRIIEES

User Guide V1.1

Teracue eyevis GmbH

Schlossstr. 18 85235 Odelzhausen Germany

Tel: +49 (0)8134-555-10 Fax: +49 (0)8134-555-199

info@teracue.com www.teracue.com

Document Version 1.2/141113

DMM-Series User Guide V1.2

OPYRIGHT

ISCLAIMER

This publication supersedes all previous publications. Information and specification in this documentation is subject to change

without notice. Please make sure you have the latest document version. Documents are located at: www.teracue.com/support

If you find some points in this document unclear then please let us know, so we can improve this documentation. Thank you! Mail to: documentation@teracue.com

All information within this document is confidential to Teracue eyevis GmbH costumers and should not be copied or distributed to non Teracue eyevis

GmbH customers.

RADEMARKS

All Teracue products and all of its components are registered trademarks licensed to Teracue eyevis GmbH.

All other logos and trademarks both marked and not, may be trademarks or registered trademarks and therefore property of their respective owners.

DMM-Series User Guide V1.2

I. Information about the manual

This manual is designed to help administrators and users to install the DMM-Series on their computer.

If you received this publication as a PDF, then it's a good idea to print it out for future reference. It is best to use this user guide directly in front of your computer, by doing so you try out everything at

once.

.!. Important features are marked by this sign.

DMM-Series User Guide V1.2

II. Content

1. OVERVIEW ...................................................................................................................................... 6

1.1 C

HARACTERISTICS

..................................................................................................................... 6

1.2 M

AIN FEATURE

.......................................................................................................................... 6

1.3 DMM-100 M

AIN CHASSIS

.......................................................................................................... 6

1.4 DMM-100 CU H

ANDHELD PROGRAMMER UNIT

........................................................................... 6

1.5 DMM-140 S

ERIES PROFESSIONAL

MPEG-2 SD IRD

AND PROCESSOR MODULE

......................... 7

1.6 DMM-150 S

ERIES PROFESSIONAL MULTI-FORMAT

HD/SD IRD

AND PROCESSOR MODULE

.......... 7

2. CONTROL WITH DISPLAY AND KEYPAD .................................................................................... 8

2.1 DMM-150 S

ERIES

..................................................................................................................... 8

2.2 DMM-140 S

ERIES

................................................................................................................... 11

3. CONTROL WITH WEB SERVER .................................................................................................. 14

3.1 DMM-150 D

ECODER MODULE

................................................................................................. 14

3.1.1 Status Menu ....................................................................................................................... 14

3.1.2 Tuner ................................................................................................................................. 15

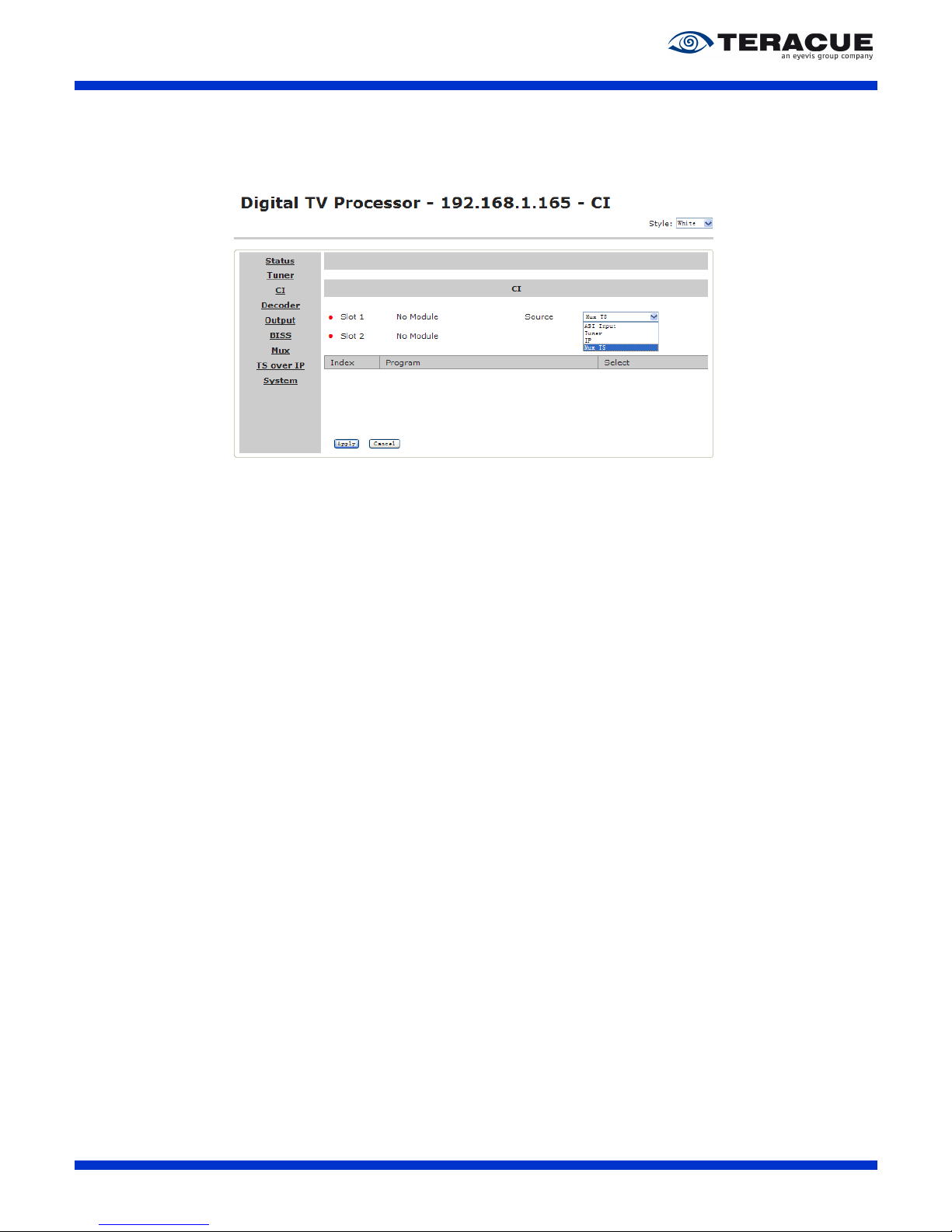

3.1.3 CI ....................................................................................................................................... 16

3.1.4 Decoder ............................................................................................................................. 17

3.1.4.1 Audio .......................................................................................................................... 17

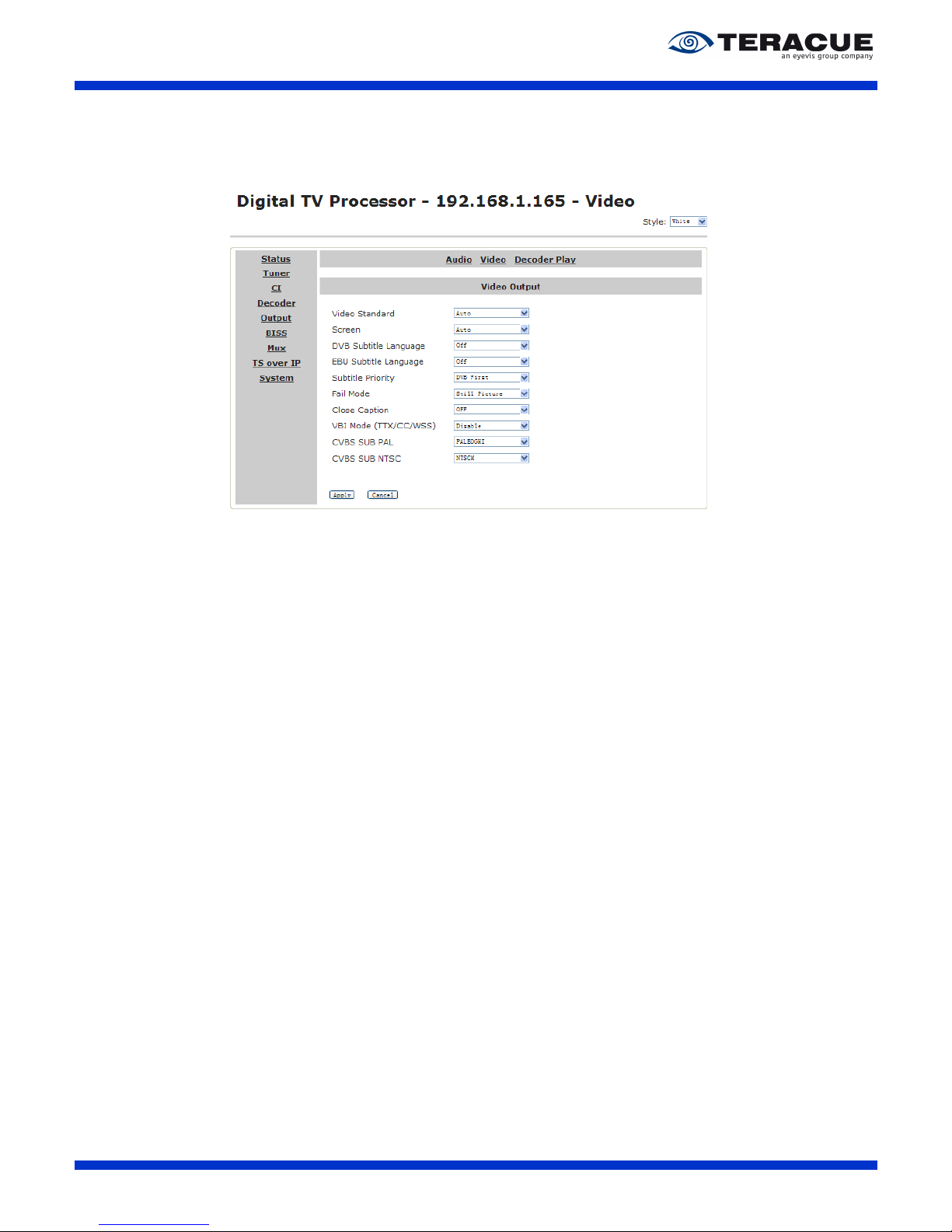

3.1.4.2 Video .......................................................................................................................... 18

3.1.4.3 Decoder Play ............................................................................................................. 19

3.1.5 Output ................................................................................................................................ 20

3.1.6 BISS ................................................................................................................................... 20

3.1.7 MUX ................................................................................................................................... 21

3.1.8 IP Out ................................................................................................................................. 21

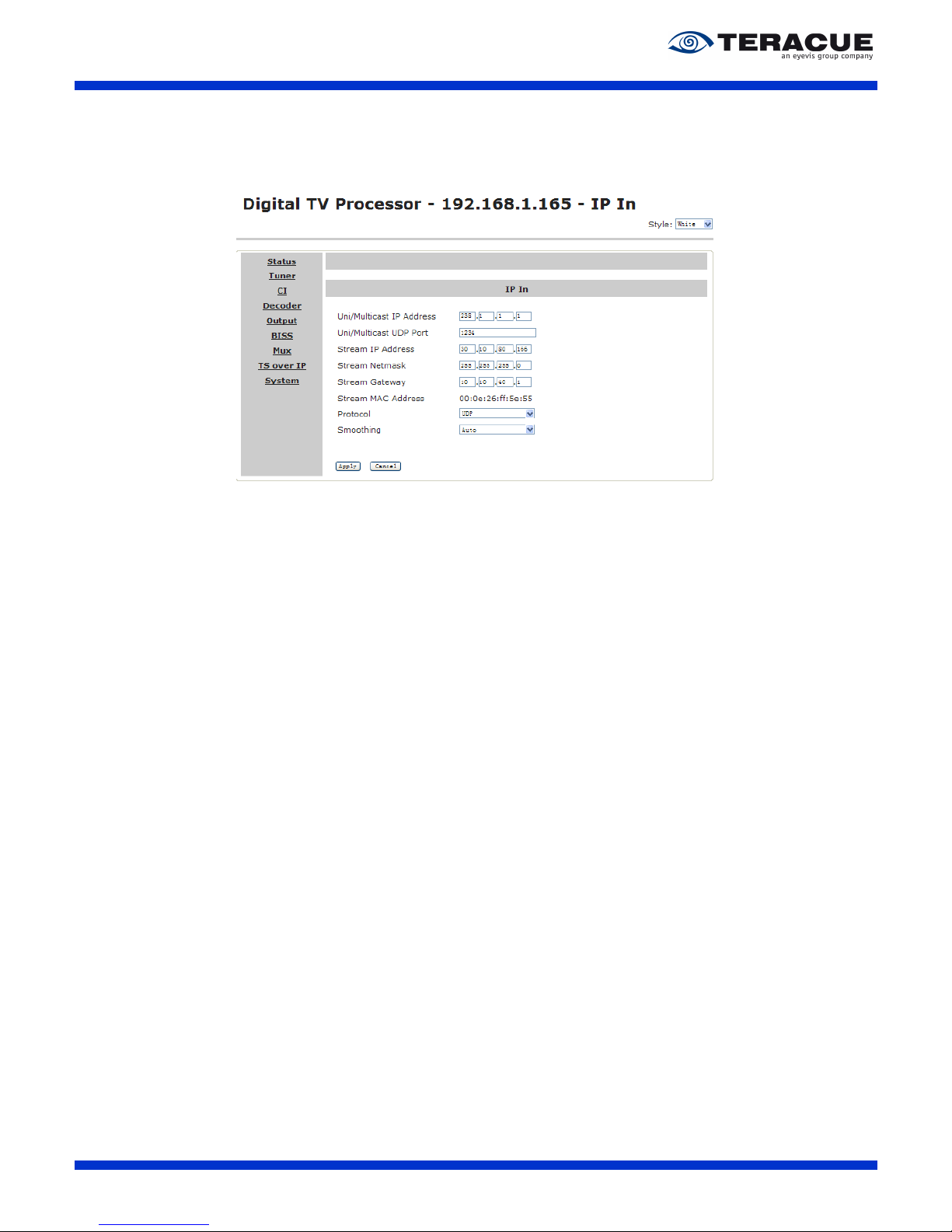

3.1.9 IP In ................................................................................................................................... 24

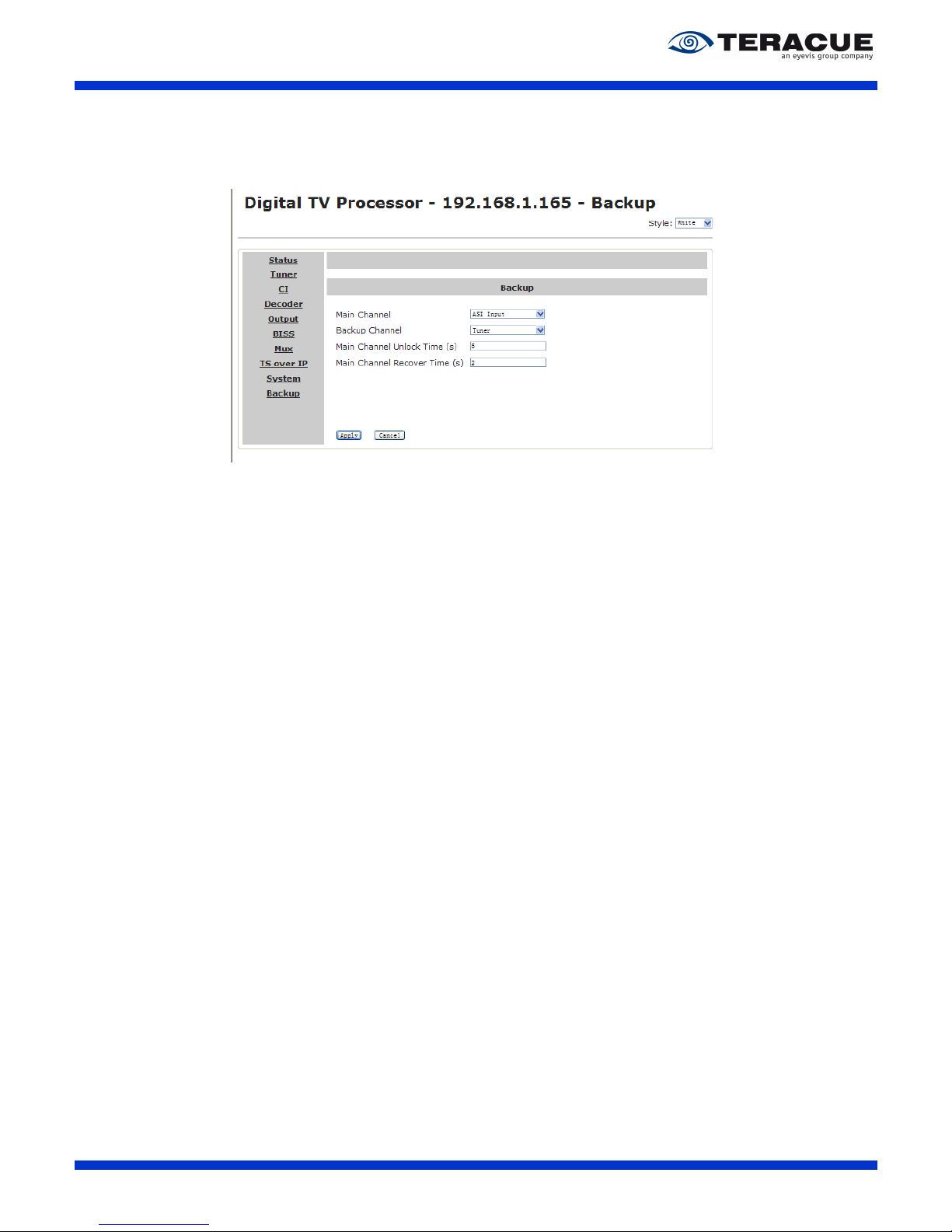

3.1.10 Backup ........................................................................................................................... 25

3.1.11 System ........................................................................................................................... 26

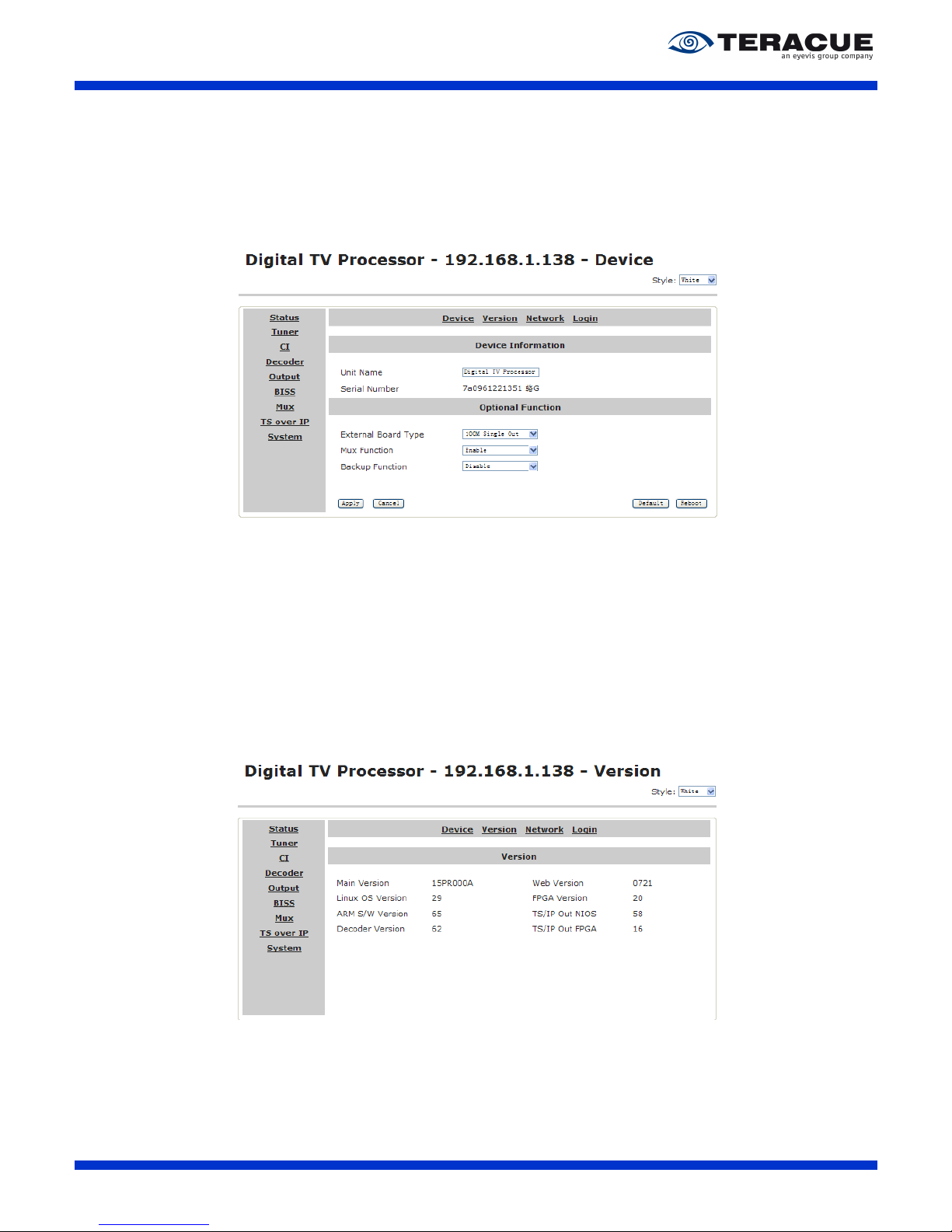

3.1.11.1 Device ....................................................................................................................... 26

3.1.11.2 Version...................................................................................................................... 26

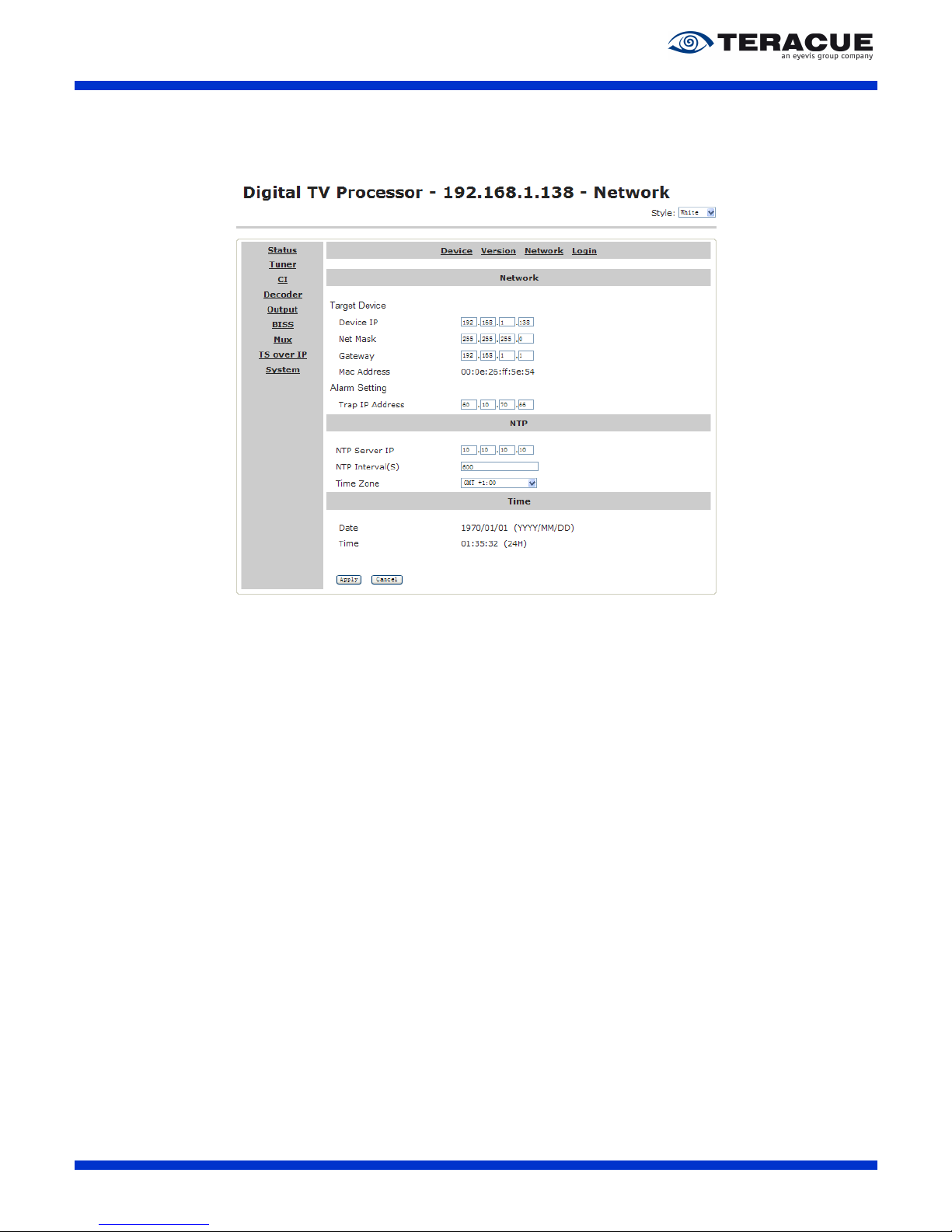

3.1.11.3 Network..................................................................................................................... 27

3.2 DMM-140 D

ECODER MODULE

................................................................................................. 28

3.2.1 Status Menu ....................................................................................................................... 28

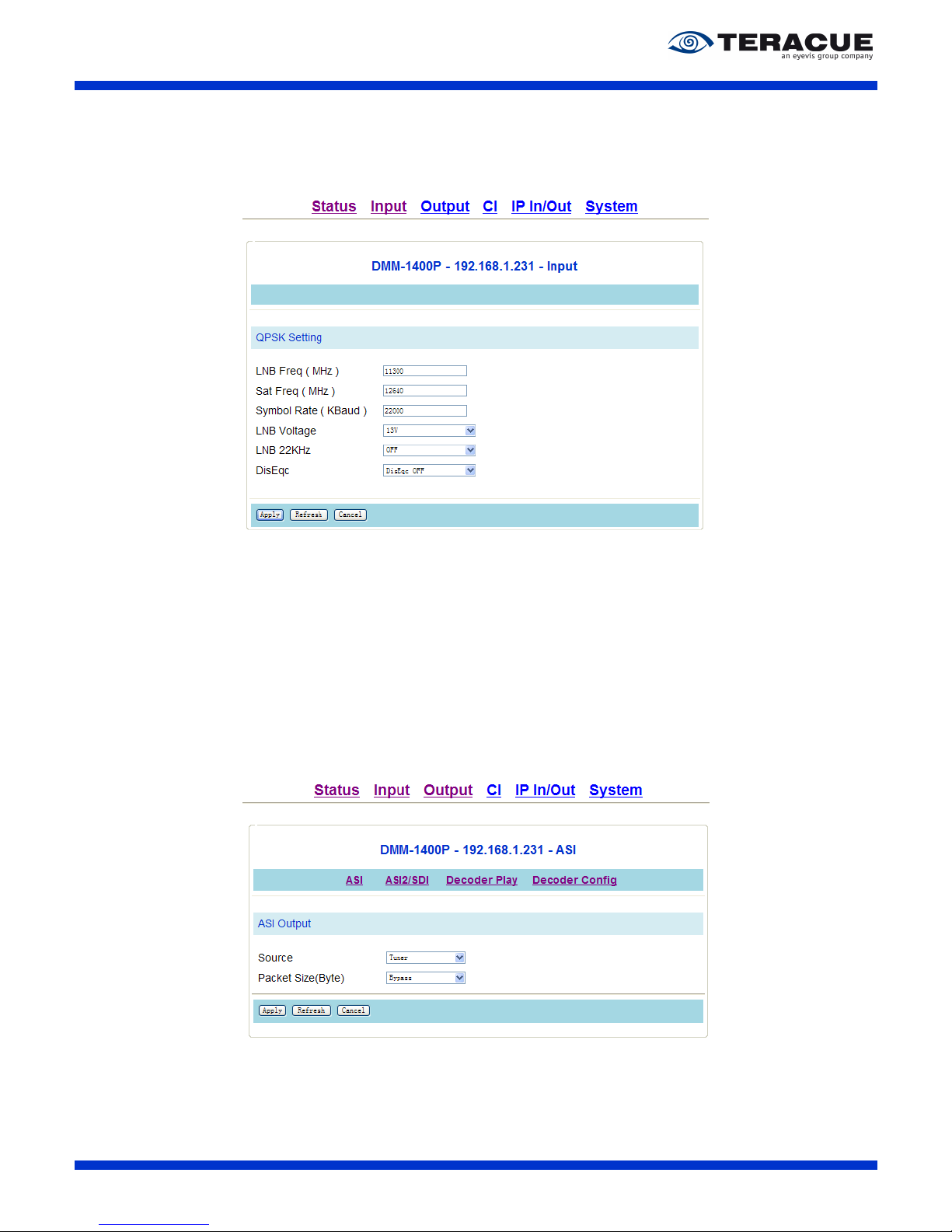

3.2.2 Input Menu ......................................................................................................................... 29

3.2.3 Output Menu ...................................................................................................................... 29

3.2.3.1 ASI Output ................................................................................................................. 29

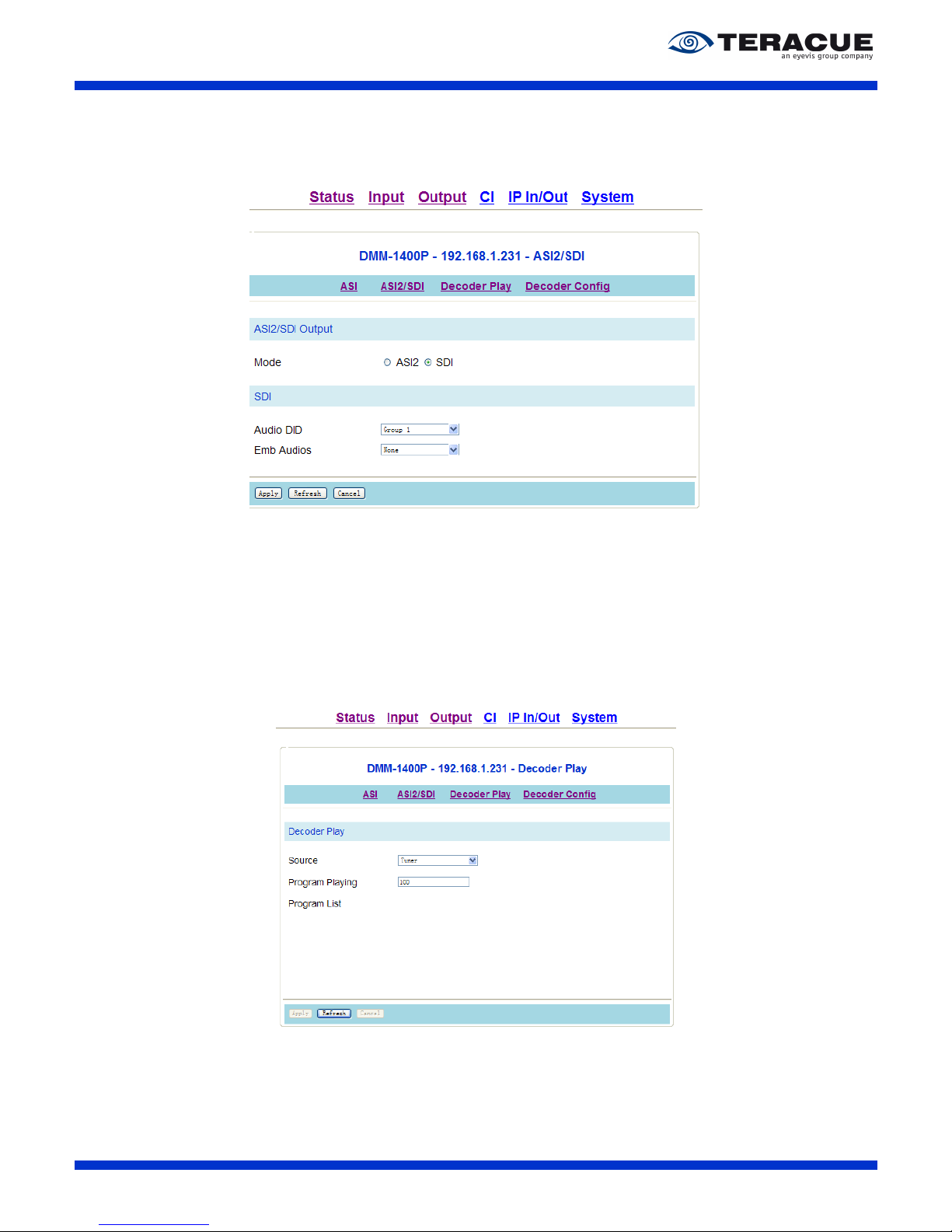

3.2.3.2 ASI2/SDI .................................................................................................................... 30

3.2.3.3 Decoder Play ............................................................................................................. 30

3.2.3.4 Decoder Config .......................................................................................................... 31

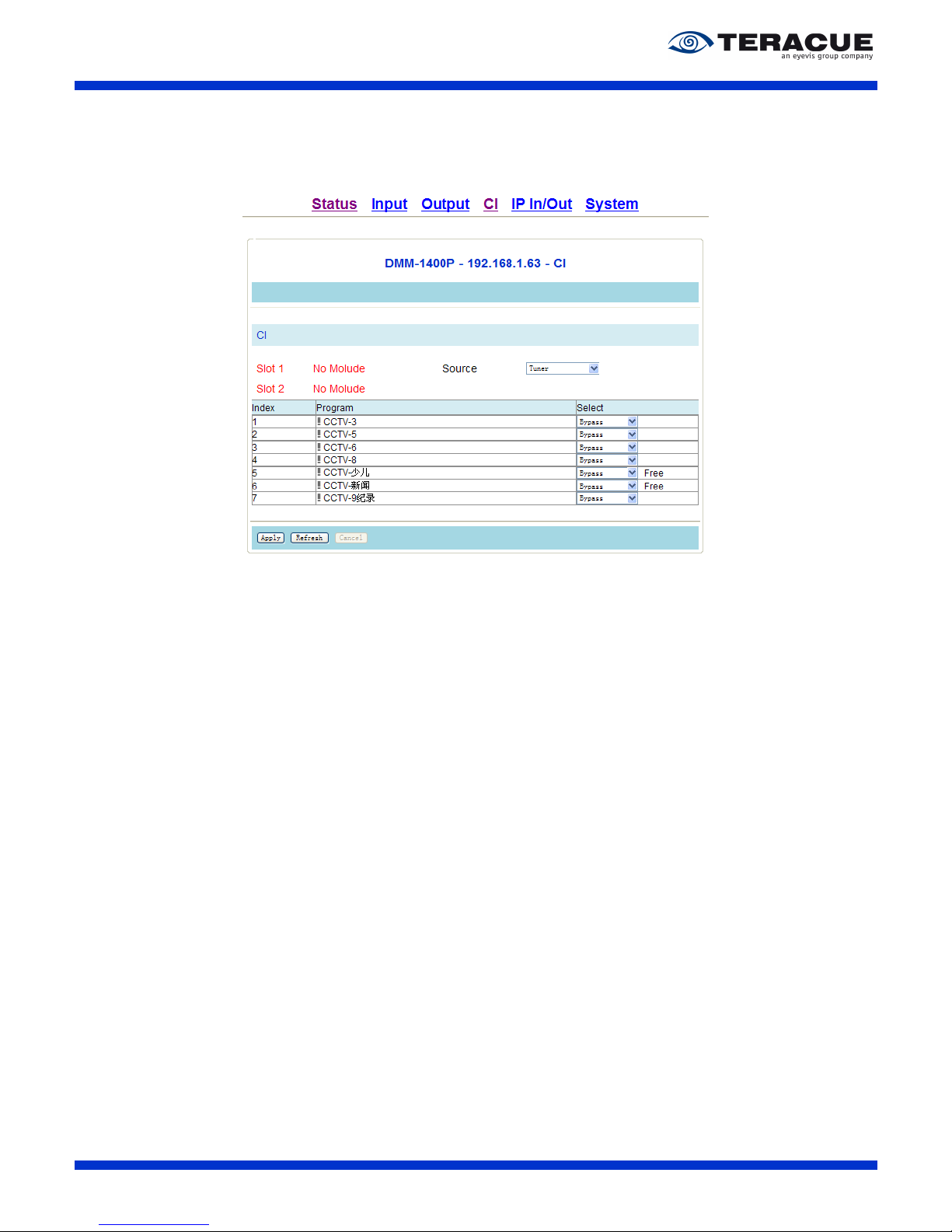

3.2.4 CI ....................................................................................................................................... 32

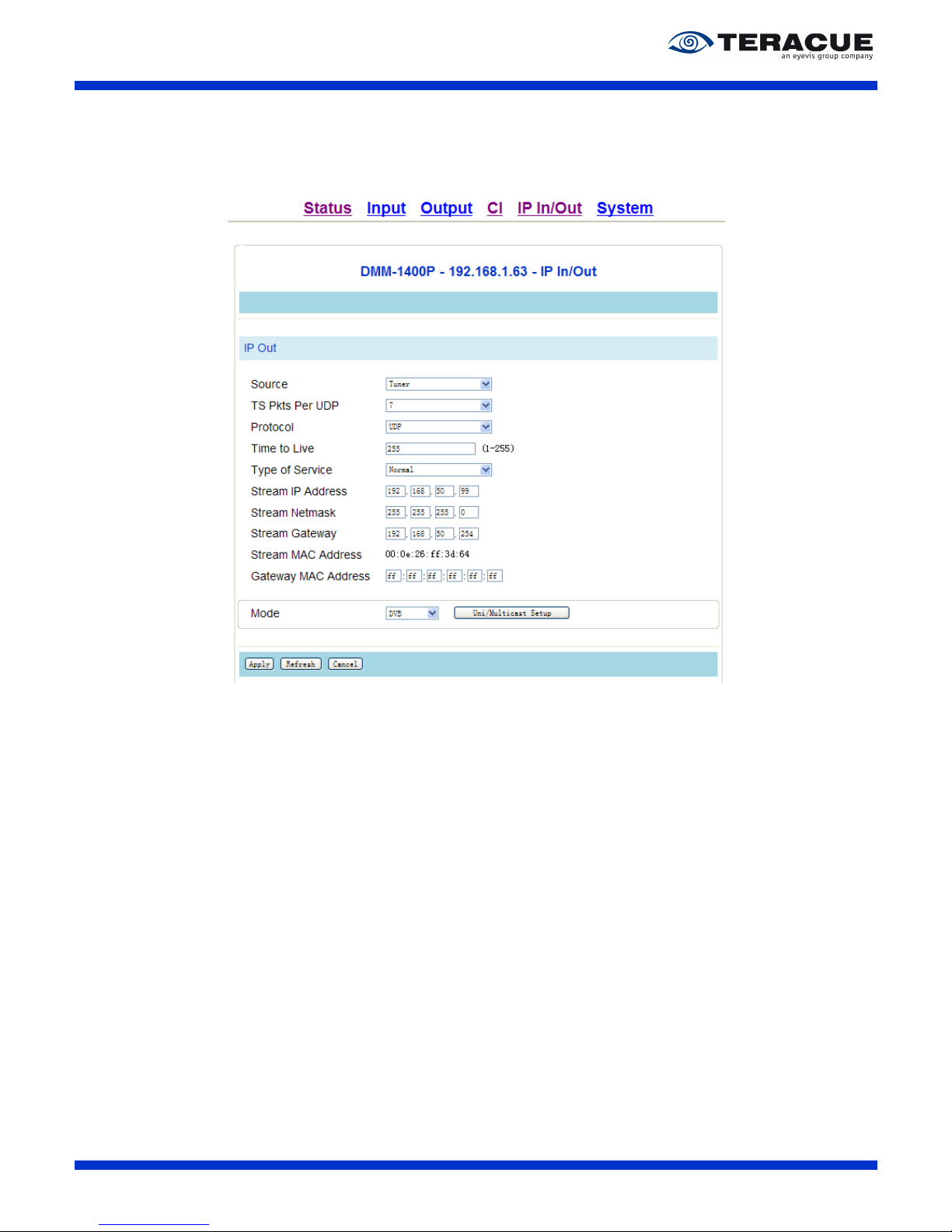

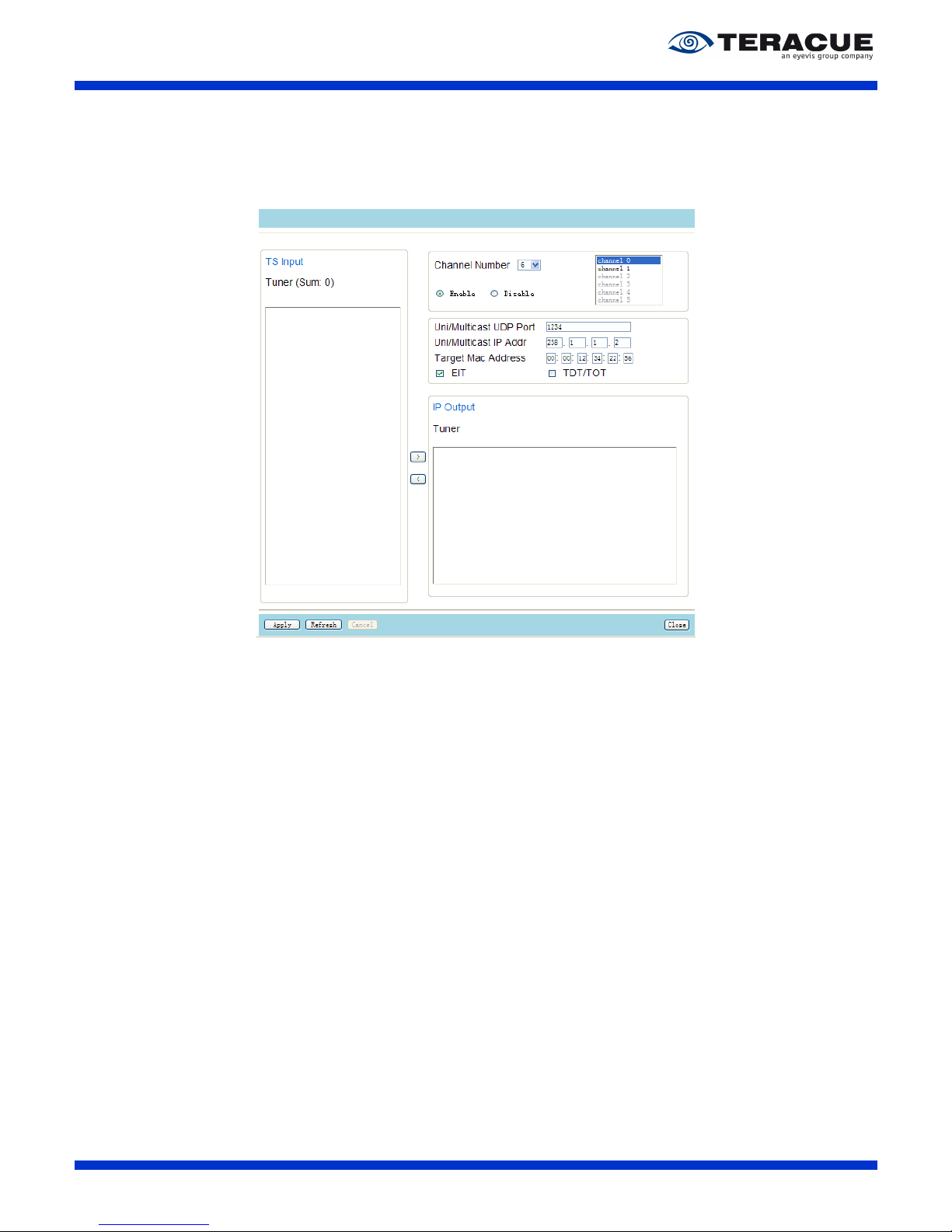

3.2.5 IP Out ................................................................................................................................. 33

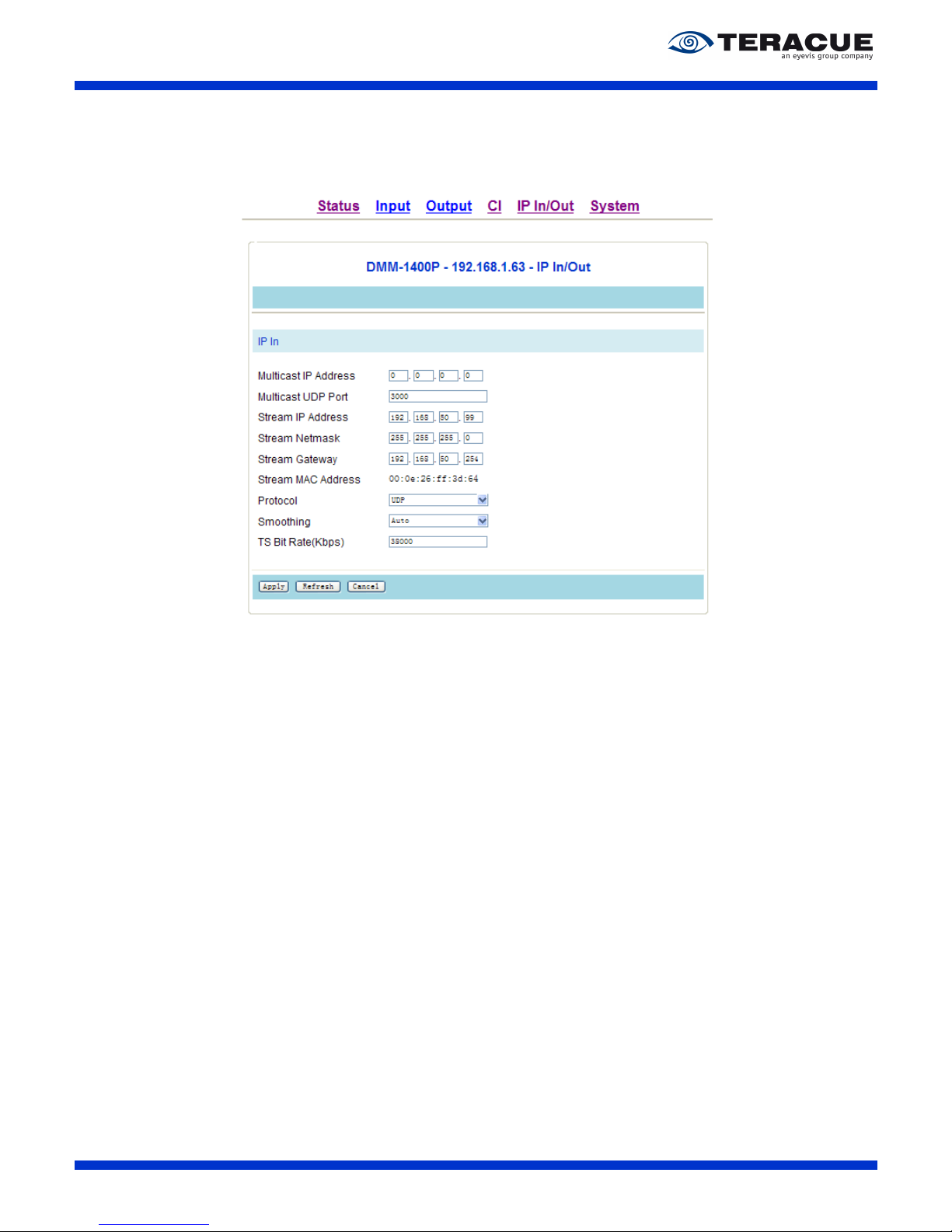

3.2.6 IP In ................................................................................................................................... 36

3.2.7 System ............................................................................................................................... 37

4. TECHNICAL SPECIFICATION ...................................................................................................... 39

4.1 DMM-140 S

ERIES

................................................................................................................... 39

4.2 DMM-150 S

ERIES

................................................................................................................... 41

5. FAQ ................................................................................................................................................ 43

5.1 W

HAT IS A “GOOD” INPUT SIGNAL FOR SATELLITE RECEPTION

? .................................................... 43

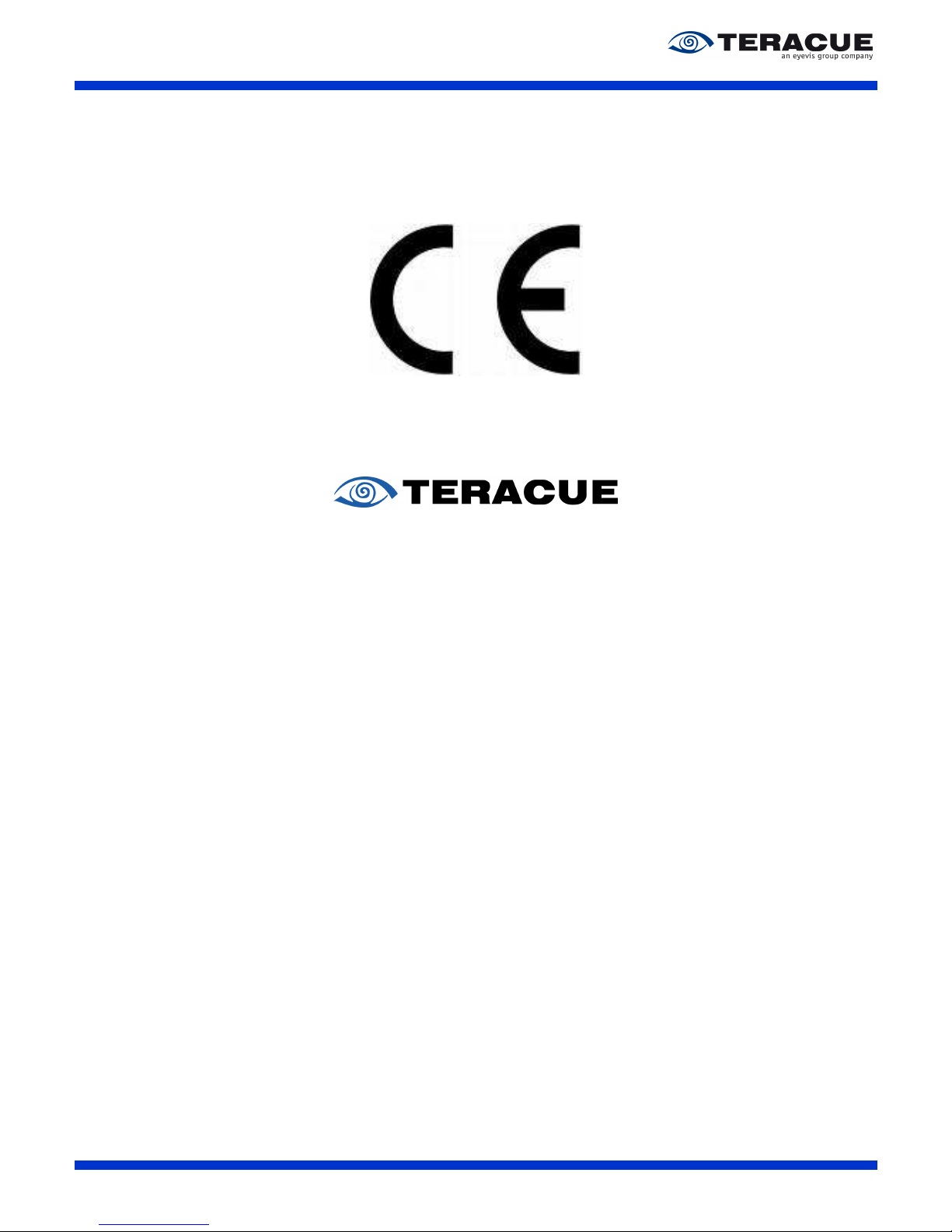

6. STATEMENT OF CONFORMITY DMM-140-SERIES ................................................................... 44

7. STATEMENT OF CONFORMITY DMM-150-SERIES ................................................................... 45

DMM-Series User Guide V1.2

1. Overview

1.1 Characteristics

DMM-Series is a compact modular digital TV head end that includes professional MPEG-2 and H.264 SD/HD IRD, MPEG-2 and H.264 SD/HD, Re-Multiplexer, QAM/COFDM Trans-Modulator, DVB Scrambler. Within 19” 4RU chassis, it provides 8 slots for any type of modules with redundant power supply. Also available 19” 1RU chassis for 2 slots with single power supply. With flexible solution and the high density, DMM-100 offers operators the advanced head end architectures in the marketplace for delivering analog and digital broadcast services to their subscribers. Coming with more new modules, DMM-100 is most suitable for future multiple network architectures: streaming and multiplexing of digital content over IP based networks and conversion of digital content for analog networks.

1.2 Main Feature

 DVB-S2/S, DVB-S, DVB-C, DVB-T2/T IRD modules with CI  DVB-S/S2T/T2 to DVB-C QAM and DVB-T COFDM trans-modulator module  8 Way re-multiplexer module  DVB Simulcrypt, BISS-1, BISS-E scrambler module  Rich interface with ASI, IP, SDI, YPbPr, CVBS, XLR  Web, SNMP Remote Control or handheld programmer unit local control  4RU 19” chassis compact modular design, supporting up to 8 modules with redundant power

supply.

 1RU 19” chassis compact modular design, supporting up to 2 modules with single power supply  Functional module hot-swappable  Intelligent cooling system  Stand alone function of each module  Cost-saving by backward compatible with new modules  On site software update through IP

1.3 DMM-100 Main Chassis

 Standard 19” 4RU chassis with 8 slots for functional modules and 2 slots for power supplies  Hot-swappable power supply unit  Intelligent cooling system  Wall mounted or Rack mounted  Backward compatible with new modules  Power Supply: AC 100V-260V, 50-60Hz  Optional Build-in IP Switch  19” 1RU chassis with 2 slots and single power supply  Dimension: L: 40,3 cm, W: 48,3 cm, H: 17,5 cm

1.4 DMM-100 CU Handheld Programmer Unit

 2 x 20 LCD display screen and 6-key keypad  No external power or battery needed  Easy and quick on site system configuration without PC  Backward compatible with new modules  Dimension: L: 17,0 cm, W: 7,5 cm, H: 2,1 cm

DMM-Series User Guide V1.2

1.5 DMM-140 Series

Professional MPEG-2 SD IRD and Processor Module

 Multiple inputs DVB-S2/S/C/T, TS/IP and ASI  SD MPEG-2 MP@ML digital video decoding  Flexible built-in re-multiplexing between ASI, Tuner and TS/IP Inputs  2x DVB-CI slots, multi programs, BISS-1 and BISS-E decryption  Dynamic PMT detection and automatic updating  UDP, RTP Multicast / Unicast IP output, supports up to 32 independent channels  PCM audio embedded in SDI output  Remote control and supervision by SNMP, HTTP WEB and proprietary HDMS software  RSSI, received Eb/No & BER monitoring  On Site software update through IP

1.6 DMM-150 Series

Professional Multi-format HD/SD IRD and Processor Module

 Multiple inputs DVB-T2/S2/S/C/T/T2, TS/IP and ASI  Redundant inputs between tuner, ASI and TS/IP  SD/HD MPEG-2 and H.264 digital video decoding  Digital audio decoding and loop through via SDI, HDMI and AES-EBU  Multiple analog and digital outputs, ASI, CVBS, YPbPr, HDMI, SD/HD-SDI, TS/IP  Flexible re-multiplexing between 2xASI, tuner and TS/IP Inputs  2x DVB-CI slots, multi programs, BISS 1 and BISS E decryption  Dynamic PMT detection and automatic updating  Support VBI TELETEXT, EBU/ DVB subtitle, closed caption  UDP/RTP & Unicast/Multicast SPTS and MPTS over IP I/O  Remote control and supervision by SNMP, HTTP WEB and proprietary HDMS software  PCM audio embedded in SDI output or PCM audio over HDMI  PCM output on two AES/EBU output ports  On Site software update through IP  RSSI, received Eb/No & BER monitoring

DMM-Series User Guide V1.2

2. Control with Display and Keypad

2.1 DMM-150 Series

Main-Menu Sub-Menu Description

Inputs

Status

ASI: Display ASI input status TUNER: Display tuner input status IP IN: Display IP input status

DVB-S2

LNB Frequency: Input LNB frequency Satellite Frequency: Input downstream frequency of satellite Symbol Rate: Input symbol rate of satellite LNB Voltage: Off/13V/18 V LNB 22KHz: 22KHz or Off. DISQEC: Port A/Port B/Port C/Port D/DiSEQC OFF PLS Gold Code: 0~5000 Frequency Offset High: 5000KHz Frequency Offset Low: -5000KHz

QAM

Constellation: 16/32/64/128/256QAM/64B/256B Frequency: Enter the frequency of the QAM signal in MHz. Symbol Rate: Edit the symbol rate to the proper value in kBaud.

COFDM

Frequency: Input terrestrial frequency. Bandwidth: select bandwidth from 6MHz, 7 MHz and 8 MHz.

RSSI

Tuner Status: Display tuner status Strength Display: Display the strength of tuner signal

Ethernet

Stream IP Addr: 1.0.0.1~223.255.255.254 Stream Netmask: 1.0.0.1~223.255.255.254 and 0.0.0.0 Stream Gateway: 1.0.0.1~223.255.255.254 and

224.0.0.0~239.255.255.255 Stream Mac Address: Display MAC address Multicast IP Addr: Enter the IP address of the multicast stream for the transport stream over IP. Multicast UDP Port: Enter the UDP port number of the TS over IP stream. Protocol: UDP/RTP. Output Smoothing:

 Auto: the bit rate is variable.  Disable: the unit let the TS pass by.  Fixed Rate: the bit rate is fixed.  TS Bit Rate: sets the bit rate of the TS which comes from

the TS/IP input. The setting is only valid when the output smoothing is configured as Fixed Rate.

DMM-Series User Guide V1.2

Main-Menu Sub-Menu Description

Outputs

BISS Menu

Biss Mode: Set Biss mode, can select ‘OFF’, ‘Biss E’ or ‘Biss 1’ Biss 1 Setup: Set Biss 1 (password is required) Biss E Setup: Set Biss E (ID number and password are required) Biss Source: Tuner/ASI Input

CI Source: MUX TS/Tuner/ASI Input Setup: Select TS CAM Name: Display CAM name of CI Slot1 and Slot2

Decoder

Status: Show Status Source: CI De-encrypted/TUNER/ASI Input/Mux TS Program: Select programs. Video

 Video Standard: Select from Auto/1920x1080i

30/1920x1080i 29.97/1920x1080i 25/1280x720p 60/1280x720p 59.97/1280x720p 50/720x480p

59.94/720x480p 60/720x576p 50/720x576p 25/720x480i

29.97/720x576i 25

 Screen: Select from Auto, 4:3 Full, 4:3 Letterbox, 16:9

Letterbox or 16:9 Full.

 DVB subtitle language: Choose DVB Subtitle language.  EBU subtitle language: Choose EBU Subtitle language.  Subtitle Priority: Select from DVB First or EBU First.  Fail Mode: Select from Black Screen, No Sync and Still

Picture.

 VBI Mode: Disable/Enable. VBI option only controls Closed

– Caption over CVBS. To activate the CC over CVBS, enable the VBI option.

 Close Caption: Off/On. Controls both CC on CVBS and

SDI.

 CVBS Sub PAL: select PAL mode, including PAL-

B/D/G/H/I, PAL-N, PAL-N_C and SECAM.

 CVBS Sub NTSC: select NTSC Mode, including NTSC-M,

NTSC-M_J, NTSC-M_443 and PAL-M. Note: the sub-menus VBI Mode, CVBS Sub PAL and CVBS Sub NTSC will only show up when the Closed Caption option is on. Audio

 Audio Level: 0~99.  Audio Mode: select Stereo, Left, Right or Mono for

soundtracks.

 Audio Priority: select the priority of the audio. Mode: select from Manual Selection and First Service. First Service means to select the program no. automatically, normally the first program in the TS. Manual Selection means to select the program manually.

ASI1/2 ASI1/2 Source: CI De-encrypted/TUNER/ASI Input/Mux TS

SDI

Embedded Audios: On and Off. Closed Caption Mode: select from SMPTE 708, SMPTE 608, Line 21, and Auto. The mode of closed caption needs to be selected based on the video resolution. SMPTE 708 and SMPTE 608 are more suitable for HD video; SMPTE 608 and Line 21 are for SD. When select Auto, the unit will choose SMPTE 608 for HD video, and Line 21 for SD video. Note: Before doing the setup, be sure to enable the Closed Caption switch in the menu Decoder- Video.

Mux

Mux Switch: On/Off Bit Rate: should be set to a specified value that doesn’t exceed the max physical limit of the output medium. For example, to deliver the multiplexed TS to an 8MHz DVB 256QAM modulator, it should not exceed 55000Kb/s, otherwise overflow occurs.

DMM-Series User Guide V1.2

TS ID: 1~65535 Program List: Select program. Output Bit Rate: Display Output bit rate

Ethernet

Stream IP Addr: 1.0.0.1~223.255.255.254 Stream Netmask: 1.0.0.1~223.255.255.254 and 0.0.0.0 Stream Gateway: 1.0.0.1~223.255.255.254 and

224.0.0.0~239.255.255.255 Stream Mac address: Display factory-Set Mac addresses Gateway Mac address: Edit Gateway Mac address Multicast IP Addr: Enter the IP address of the Multicast Stream for the transport Stream over IP. Multicast UDP Port: Enter the UDP Port number of the TS over IP stream. Protocol: UDP/RTP TS Pkts Per UDP: 1~7 Time to live: 1~255 Type Of Service: Min Delay/Max Reliability/Max Throughput/Min Monetary Cost/Normal Source: Tuner/ASI input/Mux TS/CI De-encrypted Mode: IPTV/DVB Uni-/Multicast Setup

 Max Channels: 1~32

 Channel 0~31

Switch: On/Off. Enable or disable the channel. Multicast IP Address: 224.0.0.0 ~ 239.255.255.255 *(When using Unicast, the Multicast IP Address should be set as the IP address of the receiving device.) Multicast UDP Port: 1~65535 Target MAC Address: Edit Target MAC Address Program List: Select program

Backup

Main channel: ASI/Tuner. Backup channel: ASI/Tuner. Main CH Unlock Time: set Main CH Unlock Time, ranging from 0 to 59 seconds. When signal of the main channel remains the disconnected status over this value, the unit will switch to the backup channel automatically. Main CH Recover Time: set Main CH Recover Time, ranging from 0 to 59 seconds. When the signal of the main channel recovers and remains stable over this value, the unit will switch back to the main channel.

Local Setup

IP Address: 1.0.0.1~223.255.255.254 Netmask: 1.0.0.1~223.255.255.254 and 0.0.0.0 Gateway: 1.0.0.1~223.255.255.254 and

224.0.0.0~239.255.255.255 MAC Address: Display MAC Address

Trap IP Addr Trap IP Addr Unit Name Unit Name

Properties

Main Version Linux OS Version ARM S/W Version Decoder Version FPGA Version TS/IP Out NIOS TS/IP Out FPGA

Factory Setting Enter: Yes, Exit: No Optional

Function

External Board Type: 100M Single In/100M Single Out/No Exist Mux Function: Enable/Disable Filter Function: Select from Disable/Filter/Mux.

HTTP Login Modify the username and password for the WEB management.

DMM-Series User Guide V1.2

2.2 DMM-140 Series

Main-Menu Sub-Menu Description

Inputs

Status

ASI: Display ASI input status TUNER: Display tuner input status IP IN: Display IP input status

QPSK

LNB Local Oscillator (L.O.) Freq: enter the frequency of the LNB in MHz. Satellite Freq: edit the satellite down link frequency in MHz. The IF frequency will be calculated automatically. Symbol Rate: enter the QPSK symbol rate. LNB Voltage: Off/13 V/18 V LNB 22KHz: On/Off DiSEQC: Port A/Port B/Port C/Port D/DiSEQC OFF

COFDM

Frequency: enter the proper frequency of the COFDM signal in MHz. Bandwidth: 6/7/8MHz

QAM

Constellation: 16/32/64/128/256QAM/64B/256B Frequency: enter the frequency of the QAM signal in MHz. Symbol Rate: edit the symbol rate to the proper value in kBaud.

RSSI

Tuner Status: Display tuner status Strength Display: Display the strength of tuner signal

Ethernet

Stream IP Addr: 1.0.0.1~223.255.255.254 Stream Netmask: 1.0.0.1~223.255.255.254 and 0.0.0.0 Stream Gateway: 1.0.0.1~223.255.255.254 and

 Auto: the bit rate is variable.

 Disable: the unit let the TS pass by.

 Fixed Rate: the bit rate is fixed.

TS Bit Rate: 1~38000Kbps. The setting is only valid when the output smoothing is configured as Fixed Rate.

Status

Decoder: Press <Enter> to enter the alarm status page. CI: Display status for Slot1 and Slot2 Ethernet: Display Ethernet Status

CI Source: MUX TS/Tuner/ASI Input/IP In Setup: Select TS

Decoder

Program: Select program Video Standard: Auto/SECAM/NTSC/PAL Screen: Auto/4: 3 Full/16: 9 Full/4: 3 Letterbox. DVB Subtitle Lang: select the language of DVB Subtitle. EBU Subtitle Lang: select the language of EBU Subtitle. Subtitle Priority: choose whether DVB or EBU should be first. Fail Mode: Black Screen/No Sync/Still Picture Close Caption: Select ‘OFF’ will turn off the caption and select ‘ON’ will turn on the caption. VBI Mode: Select ‘DISABLE’ will disable the VBI mode and select ‘ENABLE’ will enable the VBI mode. Audio:

 Audio Level: 0~99.

 Audio Mode: Stereo/Left/Right/Mono

 Audio Language: select the language of the audio.

DMM-Series User Guide V1.2

Biss: It includes Biss Mode, Biss 1 Setup and Biss E Setup

 Biss Mode: Set Biss mode, can select ‘OFF’, ‘Biss E’ or

‘Biss 1’

 Biss 1 Setup: set Biss 1 (password is required)

 Biss E Setup: set Biss E (ID number and password are

required)

ASI

ASI Source: CI De-encrypted/TUNER/ASI Input/Mux TS ASI Package Length: 188/Bypass

ASI2/SDI Select from ASI2 and SDI

Mux

Filter

Filter Switch: On/Off. To activate the filter function, you should turn on this filter functional block in System Menu. Bit Rate: should be set to a specified value that doesn’t exceed the max physical limit of the output medium, otherwise overflow occurs. Source: CI De-encrypted/TUNER/ASI Input/IP in Program List: Select program.

Ethernet

Stream IP Addr: 1.0.0.1~223.255.255.254 Stream Netmask: 1.0.0.1~223.255.255.254 and 0.0.0.0 Stream Gateway: 1.0.0.1~223.255.255.254 and

224.0.0.0~239.255.255.255 Stream Mac Address: Display MAC address Gateway Mac address: Edit Gateway Mac address Multicast IP Addr: Enter the IP address of the Multicast Stream for the transport Stream over IP. Multicast UDP Port: Enter the UDP Port number of the TS over IP stream. Protocol: UDP/RTP TS Pkts Per UDP: 1~7 Time to live: 1~255 Type Of Service: Min Delay/Max Reliability/Max Throughput/Min Monetary Cost/Normal Source: Tuner/ASI input/Mux TS/CI De-encrypted Mode: IPTV/DVB Unicast/Multicast Setup

 Max Channels: 1~6

 Channel 0~6

DMM-Series User Guide V1.2

Main-Menu Sub-Menu Description

System

Local Setup

Stream IP Addr: 1.0.0.1~223.255.255.254 Stream Netmask: 1.0.0.1~223.255.255.254 and 0.0.0.0 Stream Gateway: 1.0.0.1~223.255.255.254 and

224.0.0.0~239.255.255.255 MAC Address: Display MAC Address

Trap IP Addr Trap IP Addr: 0.0.0.0~255.255.255.255 Unit Name Edit U\unit name

Properties

Main Version Linux OS Version ARM S/W Version Decoder Version FPGA Version TS/IP Out NIOS TS/IP Out FPGA

Factory Settings Enter: Yes, Exit: No Optional Function

External Board Type: IP In/IP Out/No Exist

Machine Type HTTP Login Modify the username and password for the WEB management.

DMM-Series User Guide V1.2

3. Control with web server

To control the unit via Web server, type in the unit IP address in the web browser. Default username and password are as following.

Username: root Password: 12345

3.1 DMM-150 Decoder Module

3.1.1 Status Menu

Output Status

Video: Video status Audio: Audio status PMT PID: PMT PID Display Program Number: Program Number Display Audio PID: Audio PID Display Video PID: Video PID Display

DMM-Series User Guide V1.2

Input Status

ASI: ASI input status Total Bitrate: Total bitrate of ASI input Packet size: ASI input Packet size Valid Bitrate: Valid bitrate of ASI input

Tuner: Tuner input status Total Bitrate: Total bitrate of Tuner input Packet size: Tuner input Packet size Valid Bitrate: valid bitrate of tuner input Strength: Tuner input intensity C/N: Carrier noise of tuner input BER: Bit error rate of tuner input Eb/N0: Tuner input quality Modulation: Bit error rate of tuner input FEC: FEC display Guard Interval: Guard Interval display FFT: FFT display

IP: IP input status Total Bitrate: Total bitrate of IP input Packet size: IP input Packet size Link Status: Link Status display

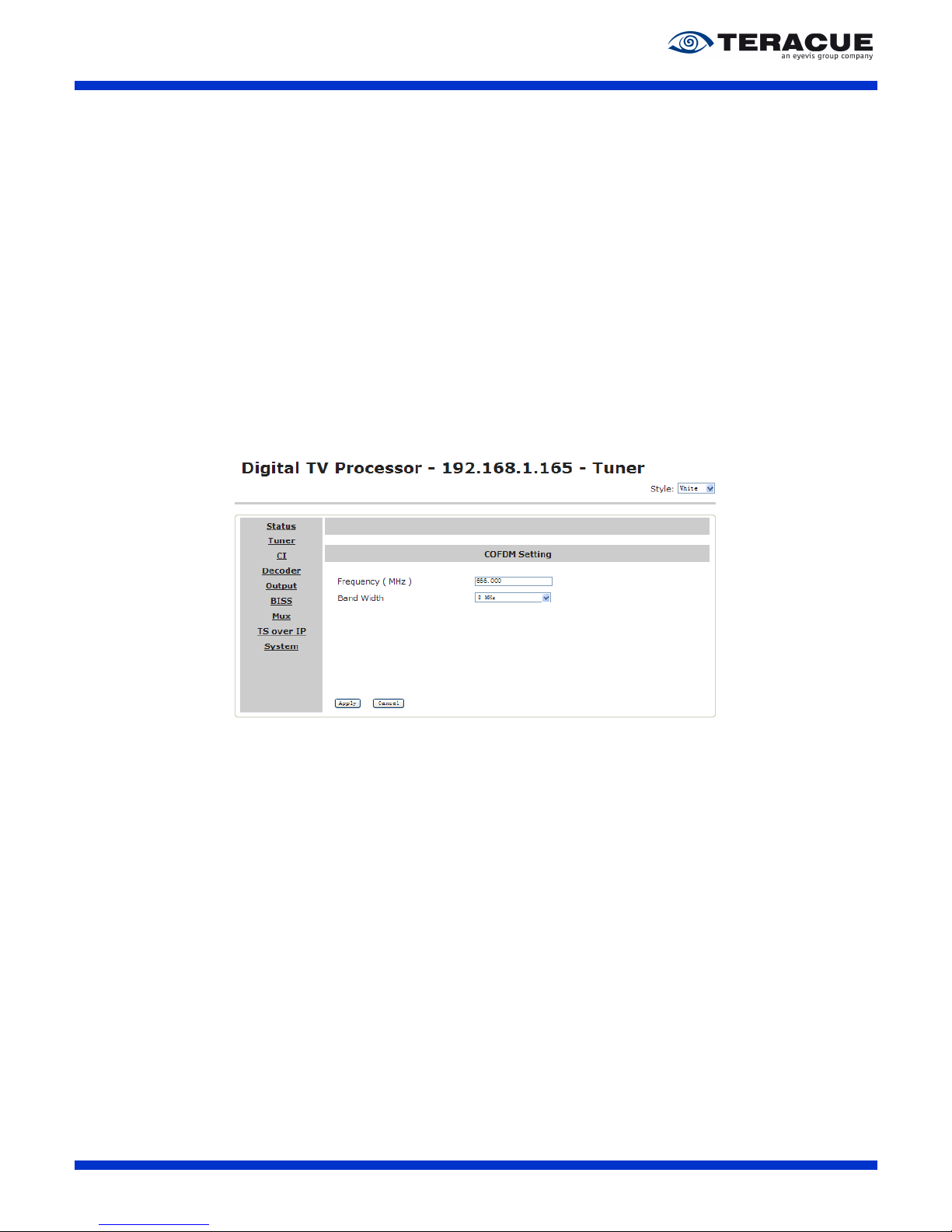

3.1.2 Tuner

COFDM Setting

Frequency (MHz): Local channel frequency Band Width: select from 6/7/8MHz

QPSK Setting

LNB Freq. (MHz): LNB Local Oscillator Frequency SatFreq. (MHz): Satellite down link frequency Symbol rate (kBaud): Set Symbol rate LNB Voltage: Select from OFF/13V/18V LNB 22kHz: Select from OFF/22K DiSEqC: Select from DiSEqC Off, Port A, Port B, Port C, Port D

DMM-Series User Guide V1.2

3.1.3 CI

Source: Select from Tuner, ASI Input, IP or MUX TS. Program column: Show the program name. Select column: Select the channels which you want to descramble. Free means this channel can be received without CAM; Bypass means to skip this channel, this program will be still scrambled; Slot 1/Slot 2 means to descramble the program by CAM modules in different CI slots.

DMM-Series User Guide V1.2

3.1.4 Decoder

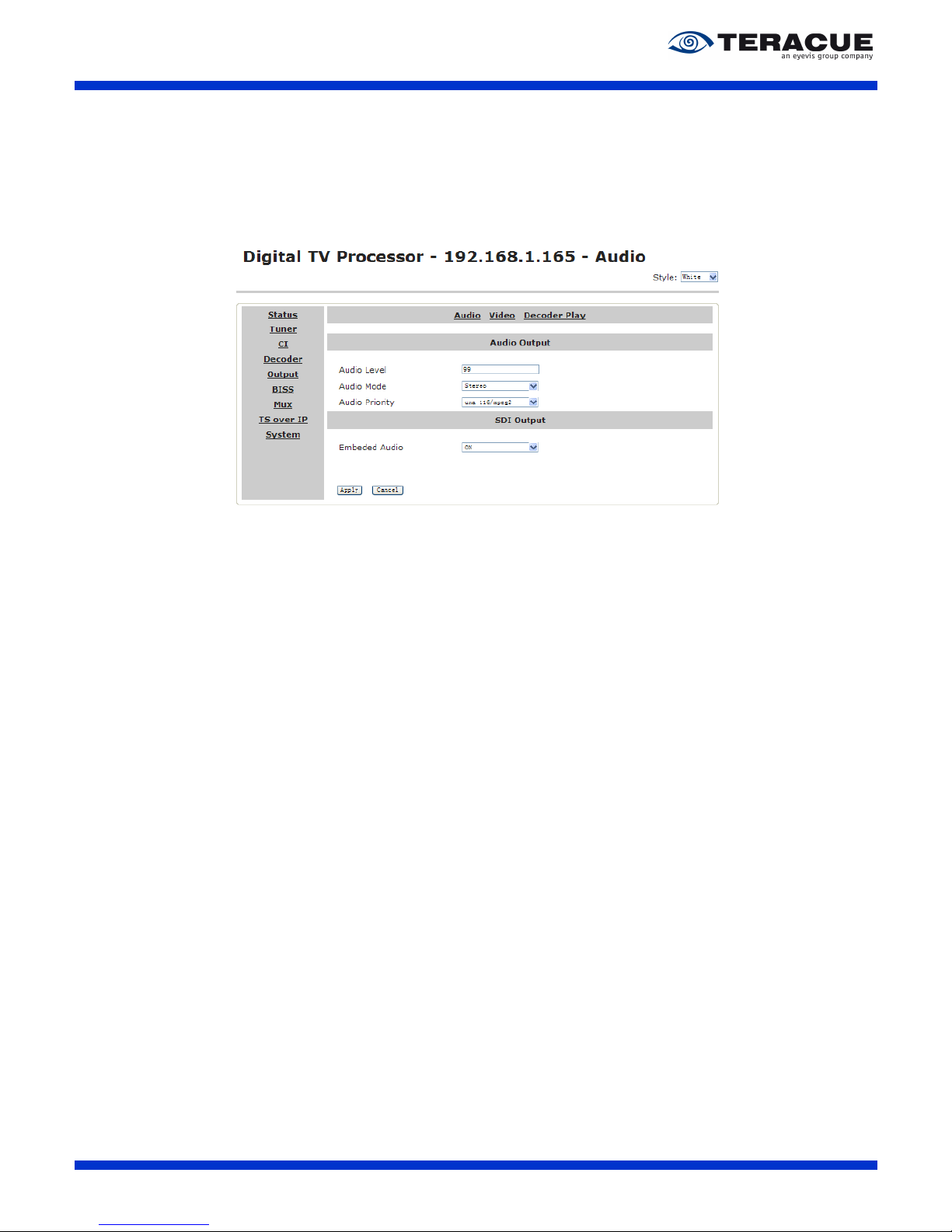

3.1.4.1 Audio

Audio Output

Audio level: Audio level, ranging from 0-99. Audio Mode: Select from Stereo, Left, Right and Mono Audio language: Audio language

SDI Output

Embedded Audio: On/Off.

DMM-Series User Guide V1.2

3.1.4.2 Video

Video Output

Video Standard: Select from Auto/1920x1080i 30/1920x1080i 29.97/1920x1080i 25/1280x720p 60/1280x720p 59.97/1280x720p 50/720x480p

59.94/720x480p 60/720x480p 60/720x576p 50/720x576p 25/ Screen: Select from Auto, 4:3 Full, 4:3 Letterbox, 16:9 Letterbox or 16:9 Full. DVB subtitle language: Choose DVB Subtitle language. EBU subtitle language: Choose EBU Subtitle language. Subtitle Priority: Select from DVB First or EBU First. Fail Mode: Select from Black Screen, No Sync and Still Picture. VBI Mode: Off/On. VBI option only controls Closed Caption over CVBS. To activate the CC over CVBS, enable the VBI option. Close Caption: Off/On. This switch controls both CC on CVBS and SDI. CVBS Sub PAL: select PAL mode, including PAL-B/D/G/H/I, PAL-N, PAL-N_C and SECAM. CVBS Sub NTSC: select NTSC Mode, including NTSC-M, NTSC-M_J, NTSC-M_443 and PAL-M. Note: the sub-menus VBI Mode, CVBS Sub PAL and CVBS Sub NTSC will only show up when the Closed Caption option is on.

DMM-Series User Guide V1.2

3.1.4.3 Decoder Play

Source: Select from Tuner, ASI Input, IP, MUX TS, CI Descramble or BISS De-encrypted. Program: Choose the program need to be played

Mode

Decoder Mode: Select from Manual Selection and First Service. First Service means to select the program no automatically, normally the first program in the TS. Manual Selection means to select the program manually.

DMM-Series User Guide V1.2

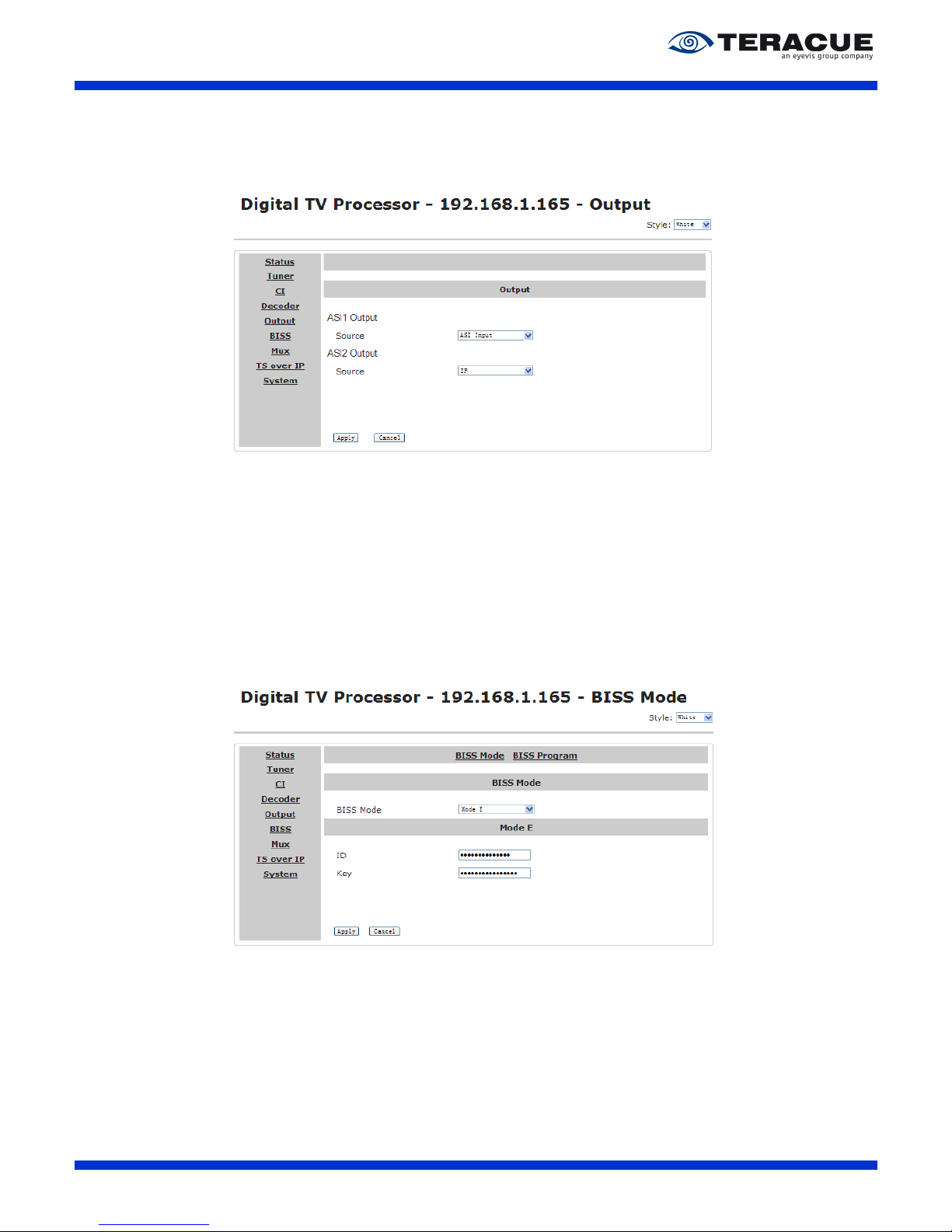

3.1.5 Output

ASI1 Output

Source: Select from Tuner, ASI Input, IP, MUX TS, CI Descramble or BISS De-encrypted.

ASI2 Output

Source: Select from Tuner, ASI Input, IP, MUX TS, CI Descramble or BISS De-encrypted.

3.1.6 BISS

BISS Mode: Select from OFF, Biss E or Biss 1. Biss 1: Password is required for Biss 1 setup. Biss E: ID and Key are required for Biss E setup.

DMM-Series User Guide V1.2

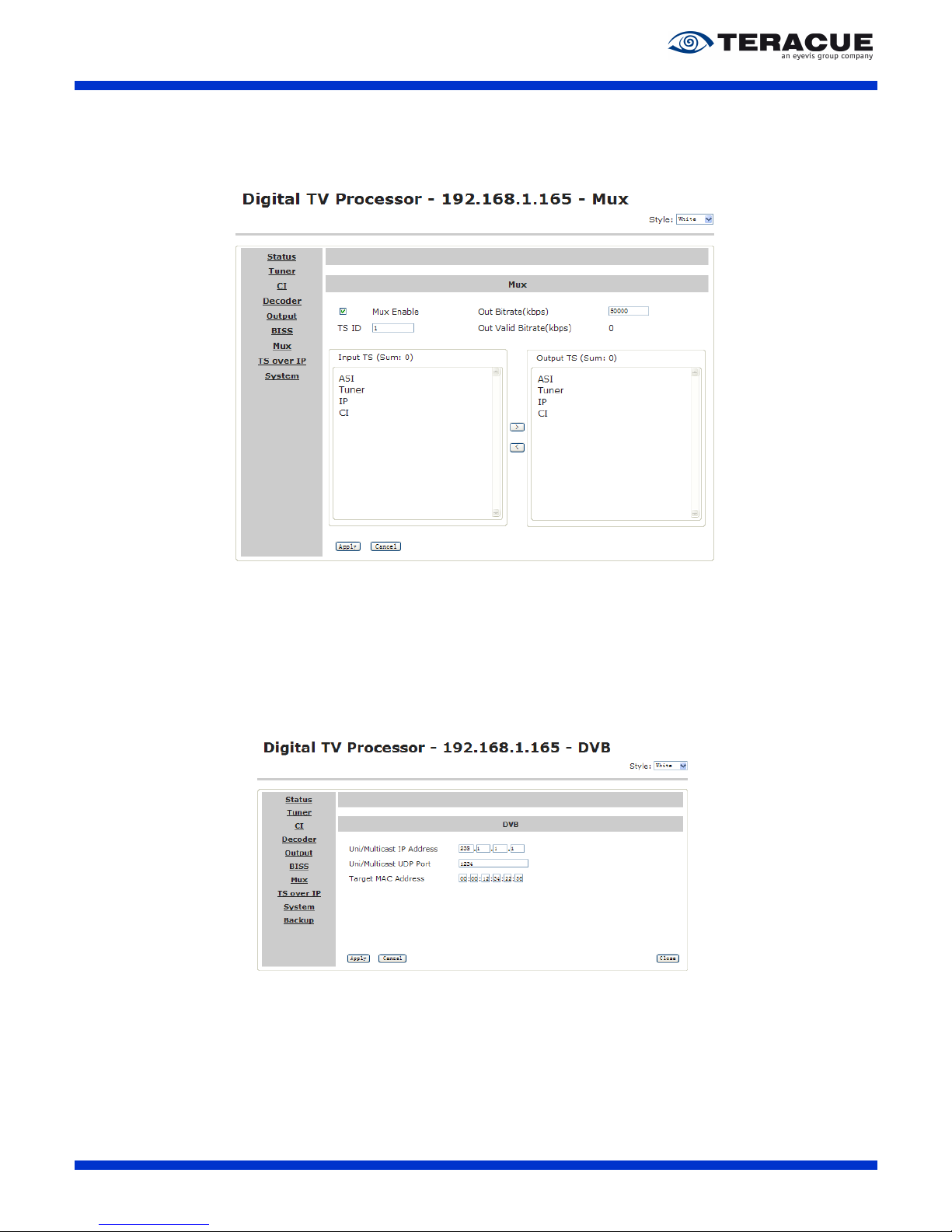

3.1.7 MUX

Output Bit rate: Set output bit rate. TS input: Program list from ASI input. User can click ‘Refresh’ button to refresh the list. TS output: Select output program.

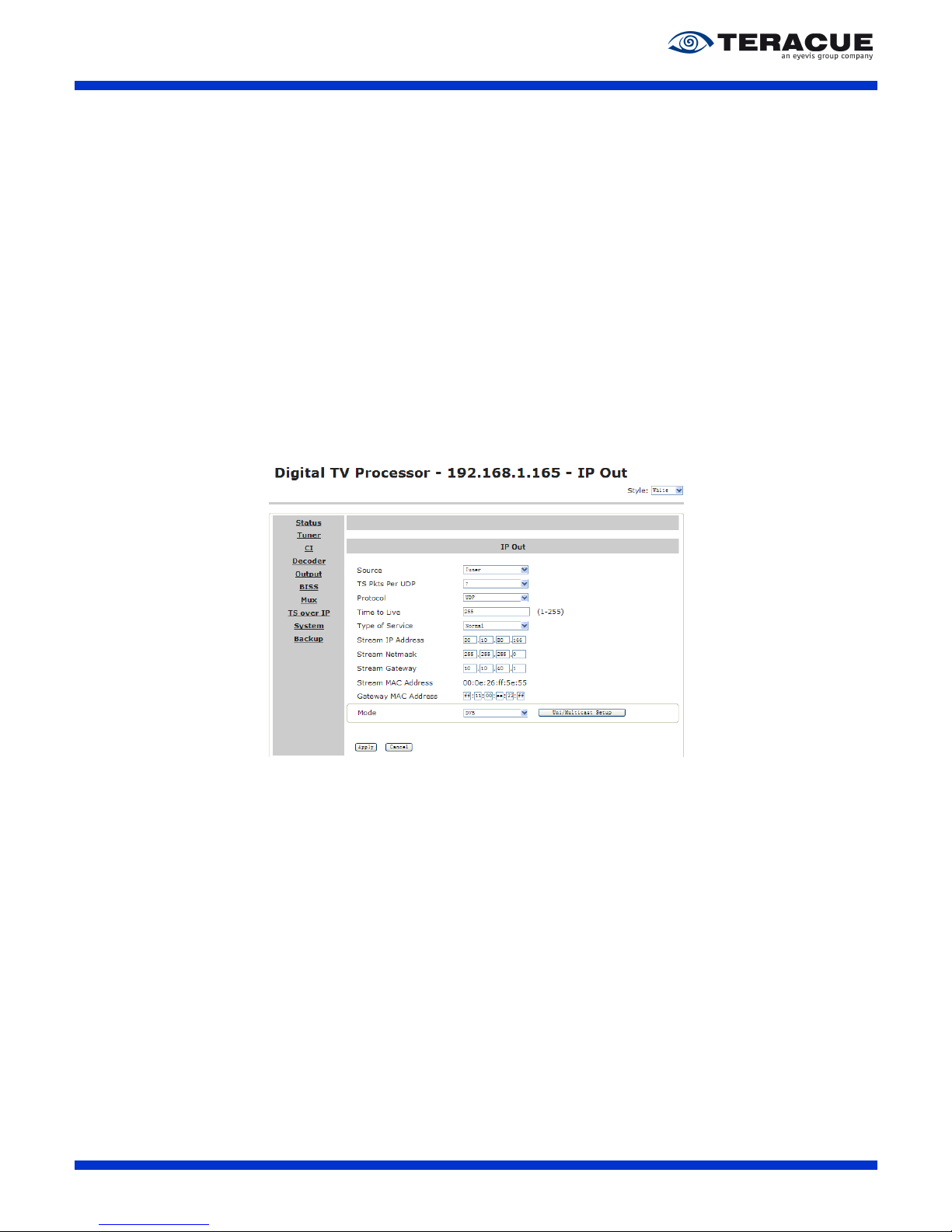

3.1.8 IP Out

DMM-Series User Guide V1.2

Source: TS/IP output signal source, select from: Tuner, ASI, CI Descramble. TS Pkts Per UDP: Set how many TS packages will be encapsulated in one UDP package. The valid range goes from 1 to 7. Protocol: Select from UDP or RTP. Time to Live: Set the number of the routers over which the TS over IP can be transmitted. The valid range goes from 1 to 255. Service type: Select from Normal, Min Monetary Cost, Max Reliability, Max Throughput and MiniDelay. Stream IP Address: IP address of TS/IP output signal source. Stream Netmask: Subnet mask of TS/IP output signal source. Stream Gateway: Gateway of TS/IP output signal source. Stream MAC address: TS/IP output signal source Mac address. Gateway Mac Address: Gateway MAC address. Mode: Select from DVB and IPTV output

DVB Mode TS which come from the ‘source’ selected in previous step will be packed into IP Stream directly. It requires configuring the following parameters.

Multicast/unicast IP: Multicast or unicast IP address setting. Target UDP port: Multicast UDP port number. Target Mac address: Set the Mac address of PC at the receiving end in unicast mode.

DMM-Series User Guide V1.2

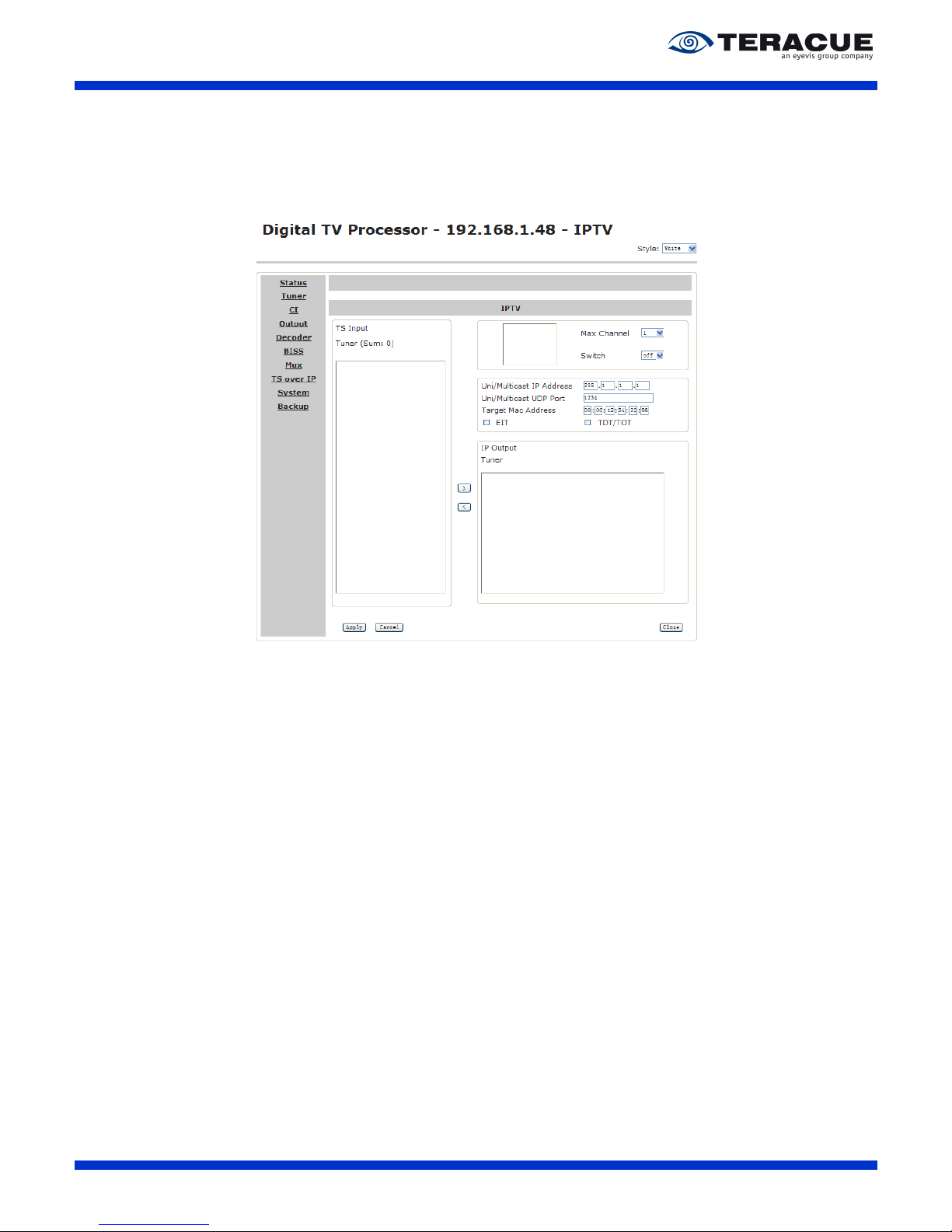

IPTV Mode

TS which come from the ‘source’ selected in previous step will be de-muxed to several single programs, and each program is packed into one IP stream.

Channel Number: Select IPTV output channel number ranging from 1~6 (or 1~32). Channel 0~5 (0~32): Select IP output channel to be configured. Enable: Check this option to enable one channel. Multicast/unicast IP: Set multicast or unicast IP address. Target UDP port: Set multicast UDP port Target Mac Address: In unicast mode, Mac address of the TS reception device TS input: Show program list of signal source. IP output: Select the output program of each channel.

DMM-Series User Guide V1.2

3.1.9 IP In

Multicast IP: Multicast IP address. Multicast UDP port: Set Multicast UDP port number. Stream IP address: IP address of TS/IP signal source. Protocol: Network Protocol including UDP or RTP. Stream Netmask: Subnet mask of TS/IP signal source. Smoothing: Set smoothing mode, including Auto, Fixed rate, Disable. Stream Gateway: Gateway of TS/IP signal source. Stream MAC address: Mac address of TS/IP signal source.

DMM-Series User Guide V1.2

3.1.10 Backup

Main channel: select main channel from ASI or tuner. Backup channel: select backup channel from ASI or tuner. Main CH Unlock Time: set Main CH Unlock Time, ranging from 0 to 59 seconds. When signal of the main channel remains the disconnected status over this value, the unit will switch to the backup channel automatically. Main CH Recover Time: set Main CH Recover Time, ranging from 0 to 59 seconds. When the signal of the main channel recovers and remains stable over this value, the unit will switch back to the main channel.

DMM-Series User Guide V1.2

3.1.11 System

3.1.11.1 Device

Device Information

Unit Name: User can edit the unit name. Serial Number: The serial number of the unit.

Optional Function

External Board Type: Select from No Exist/IP out/IP in/QAM out. Mux Function: Enable/Disable Filter Function: Select from Disable/Filter/Mux.

3.1.11.2 Version

DMM-Series User Guide V1.2

3.1.11.3 Network

Network

Target device Device IP: IP address of current device. Net mask: Network mask Gateway: Gateway address MAC Address Alarm Setting Trap IP Addr: IP address of SNMP target device.

NTP

NTP Server IP: Edit NTP Server IP. NTP Interval(s): Edit NTP refreshing interval. Time Zone: Select time zone.

Time

Date: Display current date. Time: Display current time.

DMM-Series User Guide V1.2

3.2 DMM-140 Decoder Module

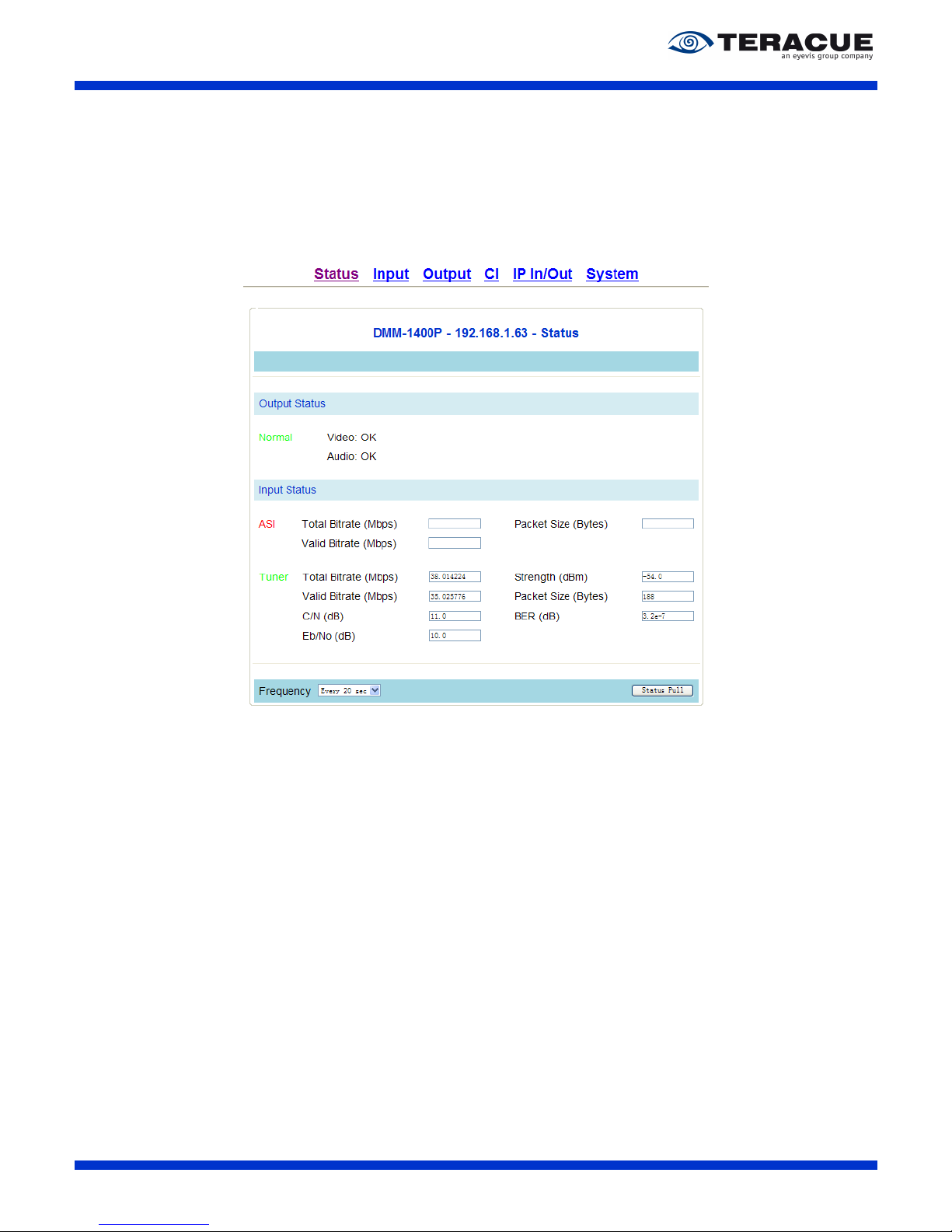

3.2.1 Status Menu

Output Status

Video: Video status Audio: Audio status

Input Status

ASI: ASI input status Total Bitrate: Total bitrate of ASI input Packet size: ASI input Packet size Valid Bitrate: Valid bitrate of ASI input

Tuner: Tuner input status Total Bitrate: Total bitrate of tuner input Packet size: Tuner input Packet size Valid Bitrate: valid bitrate of tuner input Strength: Tuner input intensity C/N: Carrier noise of tuner input BER: Bit error rate of tuner input Eb/No: Tuner input quality

DMM-Series User Guide V1.2

3.2.2 Input Menu

LNB Freq. (MHz): LNB local oscillator frequency SatFreq. (MHz): Satellite down link frequency Symbol rate (KBaud): Set Symbol rate LNB Voltage: Select from OFF/13V/18V LNB 22KHz: Select from OFF/22K DisEqc: Select from DisEqc Off, Port A, Port B, Port C, Port D

3.2.3 Output Menu

3.2.3.1 ASI Output

Source: Select from Tuner/ASI/CI scramble Packet Size (Byte): Bypass/188

DMM-Series User Guide V1.2

3.2.3.2 ASI2/SDI

ASI2/SDI Output

Mode: Select from ASI2/SDI

SDI

Audio DID: Select from Group1~4 Emb Audios: Select from None/One/Two/One&Two

3.2.3.3 Decoder Play

Source: Select from Tuner, ASI, CI Descramble, IP Program: Choose the program need to be played

DMM-Series User Guide V1.2

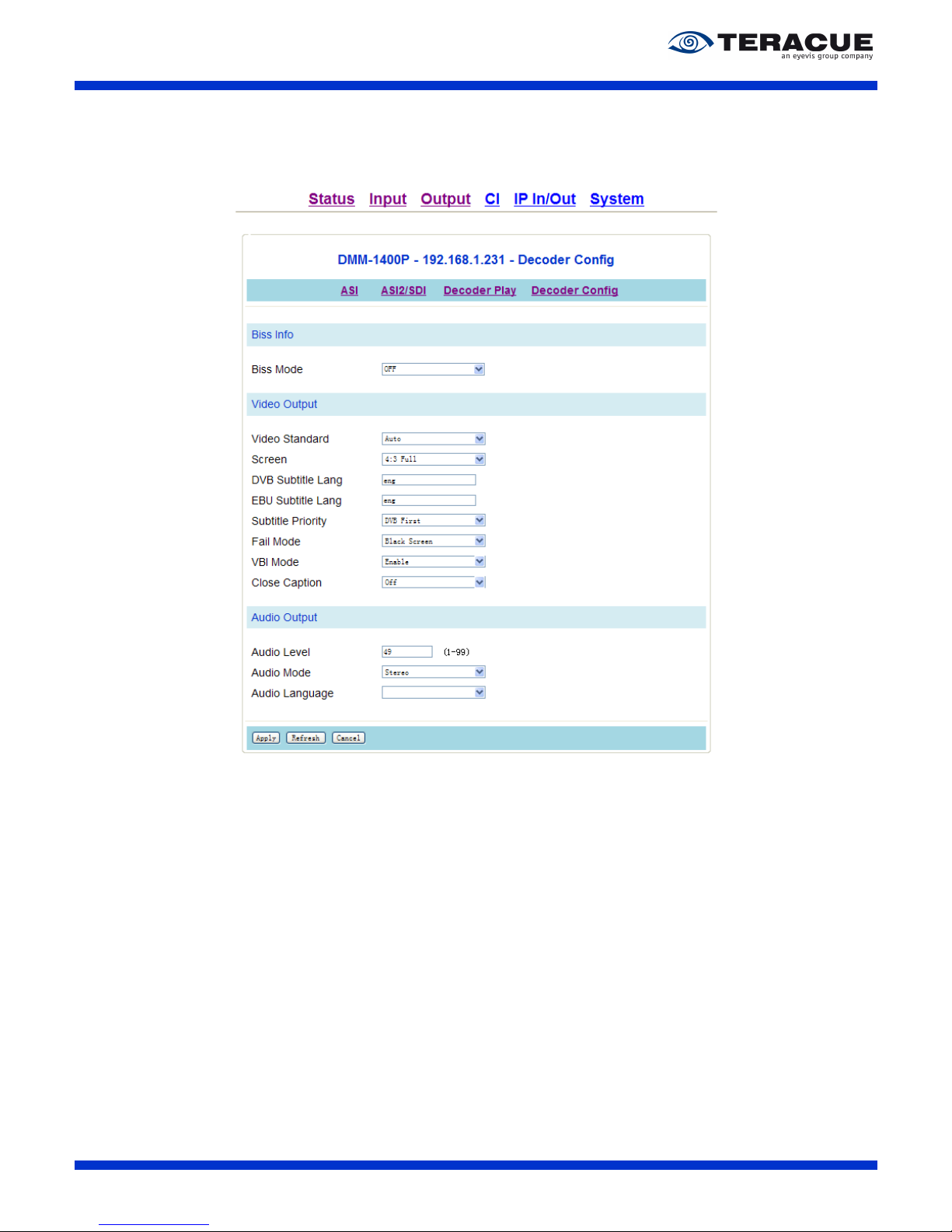

3.2.3.4 Decoder Config

Biss

Mode: Select from OFF, Biss E or Biss 1. Biss 1 Setup: Password is required for Biss 1 setup. Biss E Setup: ID and Password are required for Biss E setup.

Video Output

Video Standard: Select from Auto, PAL, NTSC and SECAM. Screen: Select from Auto, 4:3 Full, 4:3 Letterbox or 16:9 Full. DVB subtitle language: Choose DVB Subtitle language. EBU subtitle language: Choose EBU Subtitle language. Subtitle Priority: Select from DVB First or EBU First. Fail Mode: Select from Black Screen, No Sync and Still Picture. VBI Mode: Off/On Close Caption: Off/On

Audio Output

Audio level: Audio level, ranging from 0-99. Audio Mode: Select from Stereo, Left, Right and Mono Audio language: Audio language

DMM-Series User Guide V1.2

3.2.4 CI

Source: Select from Tuner or ASI. Program column: Show the program name. Select column: Select the channels which you want to descramble. Free means this channel can be received without CAM; Bypass means to skip this channel, this program will be still scrambled; Slot 1/Slot 2 means to descramble the program by CAM modules in different CI slots.

DMM-Series User Guide V1.2

3.2.5 IP Out

Source: TS/IP output signal source, select from: Tuner, ASI, CI Descramble. TS Pkts Per UDP: Set how many TS packages will be encapsulated in one UDP package. The valid range goes from 1 to 7. Protocol: Select from UDP or RTP. Time to Live: Set the number of the routers over which the TS over IP can be transmitted. The valid range goes from 1 to 255. Service type: Select from Normal, Min Monetary Cost, Max Reliability, Max Throughput and Min Delay. Stream IP Address: IP address of TS/IP output signal source. Stream Netmask: Subnet mask of TS/IP output signal source. Stream Gateway: Gateway of TS/IP output signal source. Stream MAC address: TS/IP output signal source Mac address. Gateway Mac Address: Gateway MAC address. Mode: Select from DVB and IPTV output

DMM-Series User Guide V1.2

DVB Mode

TS which come from the ‘source’ selected in previous step will be directly packed into IP Stream. It requires configuration of the following parameters.

Multicast/unicast IP: Multicast or unicast IP address setting. Target UDP port: Multicast UDP port number. Target Mac address: Set the Mac address of PC at the receiving end in unicast mode.

DMM-Series User Guide V1.2

IPTV Mode

TS which comes from the ‘source’ selected in previous step will be de-muxed to several single programs, and each program is packed into one IP stream.

Channel Number: Select IPTV output channel number ranging from 1~6 (or 1~32). Channel 0~5 (0~32): Select IP output channel to be configured. Enable: Check this option to enable one channel. Multicast/unicast IP: Set multicast or unicast IP address. Target UDP port: Set multicast UDP port Target Mac Address: In unicast Mode, Mac address of the TS reception device TS input: Show program list of signal source. IP output: Select the output program of each channel.

DMM-Series User Guide V1.2

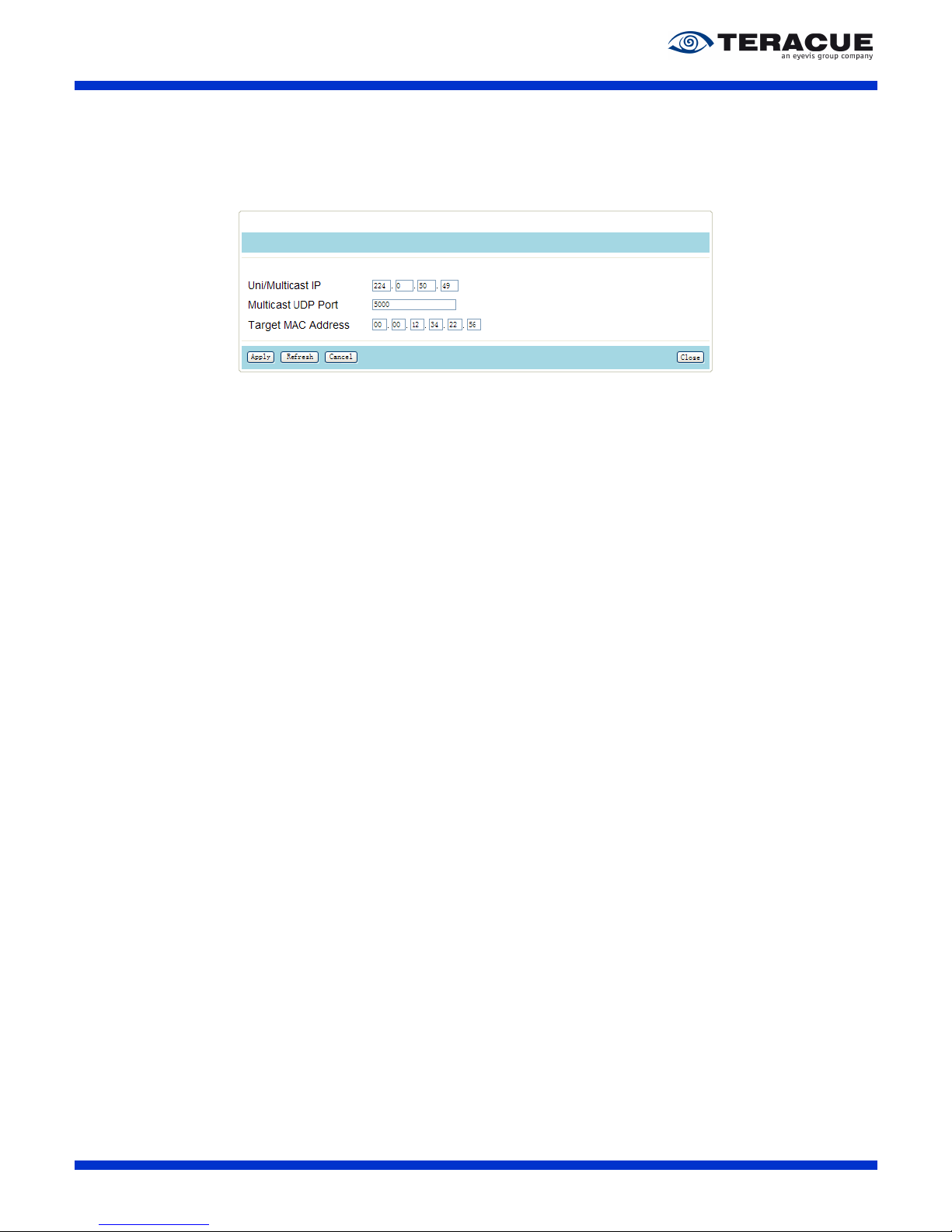

3.2.6 IP In

Multicast IP: Multicast IP address. Multicast UDP port: Set Multicast UDP port number. Stream IP: IP address of TS/IP signal source. Protocol: Network protocol including UDP or RTP. Stream Netmask: Subnet mask of TS/IP signal source. Smoothing: Set smoothing mode, including Auto, Fixed rate, Disable. Stream Gateway: Gateway of TS/IP signal source. TS Bit Rate: Input Bit rate. Stream MAC address: Mac address of TS/IP signal source.

DMM-Series User Guide V1.2

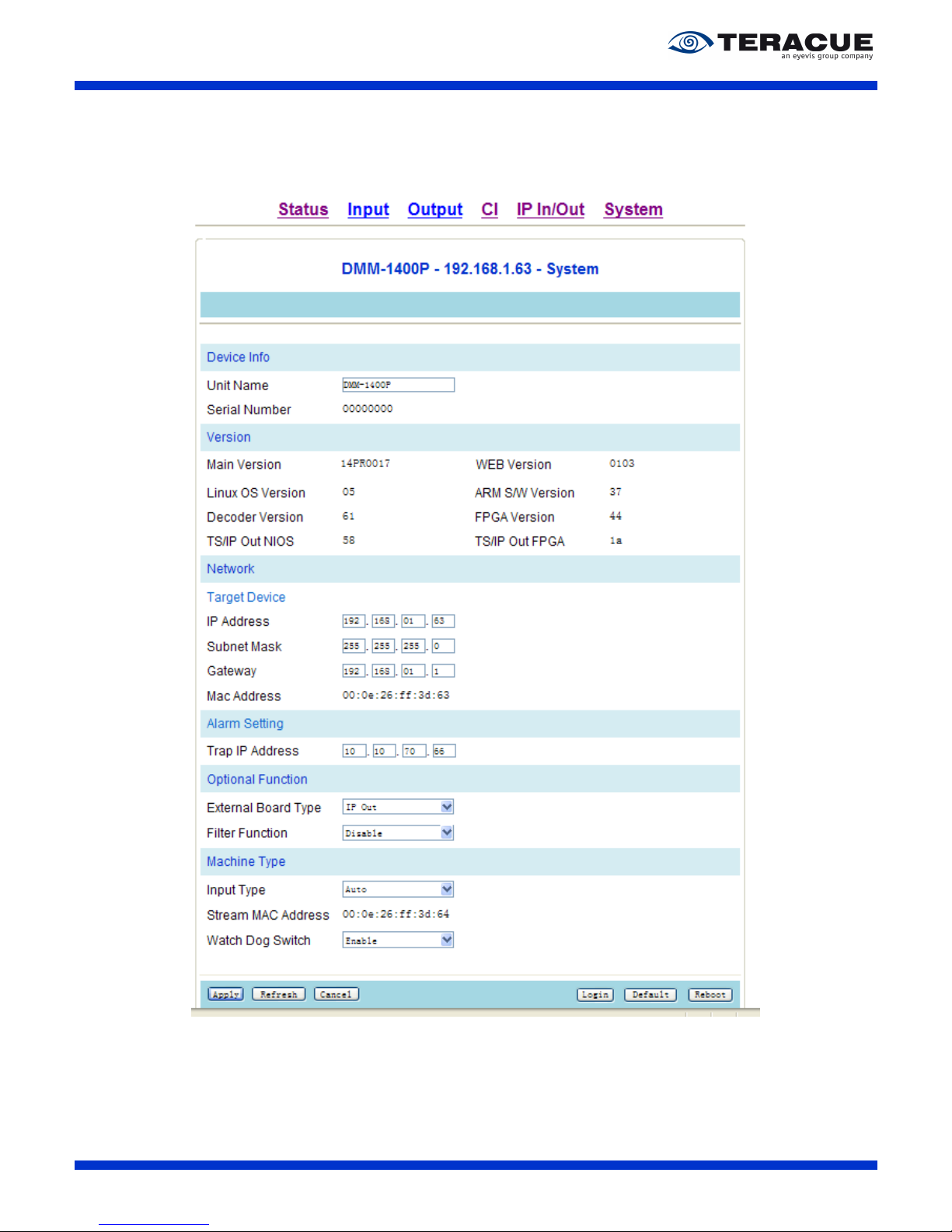

3.2.7 System

DMM-Series User Guide V1.2

Device Info

Unit Name: User can edit the unit name. Serial Number: The serial number of the unit.

Version

Main Version WEB Version Linux OS Version ARM S/W Version Decoder Version FPGA Version TS/IP Out NIOS TS/IP Out FPGA

Network

Target device IP Address: IP address of current device. Subnet mask: Network mask Gateway: Gateway address

Alarm Setting

Trap IP Addr: IP address of SNMP target device.

Optional Function

External Board Type: Select from No Exist/IP out/IP in/QAM out. Filter Function: Select from Disable/Filter/Mux.

Machine Type

Input Type: Select from None/DVB-S/DVB-S2/DVB-T/DVB-C/DS3/auto. Stream MAC Address: MAC address of the IP board. Watch Dog Switch: Enable/Disable.

DMM-Series User Guide V1.2

4. Technical Specification

4.1 DMM-140 Series

Tuner Input

DVB-S/S2 Tuner Input

Connector Type 1 x F type

female 75Ω for Input, 1 x F type female 75Ω for

loop through output Input Frequency Range 950 ~ 2150MHz Input Level -25 ~ -65dBm Symbol Rates DVB-S QPSK: 5 ~ 45MS/s; DVB-S2 8PSK 10~31MS/s Roll-off Factor DVB-S QPSK: 0.35; DVB-S2 8PSK: 0.35, 0.25, 0.2 FEC Code Rate DVB-S2 8PSK: 2/3, 3/4, 3/5, 5/6, 8/9, 9/10

DVB-S QPSK: 1/2, 2/3, 3/4, 5/6, 6/7, 7/8 LNB Polarization 0, 13V, 18V selectable LNB Band Switching Tone 0/22kHz selectable

DVB-S Tuner Input

Connector Type 1 x F type female 75Ω for Input,

1 x F type female 75Ω for

loop through output Input Frequency Range 950 ~ 2150MHz Input Level -25 ~ -65dBm Symbol Rates 2 ~ 45MS/s Roll-off Factor 0.35 Puncture Rates 1/2, 2/3, 3/4, 5/6, 7/8 LNB Polarization 0, 13V, 18V selectable LNB Band Switching Tone 0/22kHz selectable

DVB-C Tuner Input

Connector Type

1 x F type female 75Ω for Input, 1 x F type female 75Ω for

loop through output Input Frequency Range 48 ~ 860MHz Symbol Rates 1 ~ 7MS/s (ITU J.83 Annex A) Constellation 64/128/256 QAM Input Level -15 ~ 15dBmV Bandwidth 6/7/8MHz Input Return Loss 7dB (typ.)

DVB-T Tuner Input

Connector Type

1 x F type female 75Ω for Input, 1 x F type female 75Ω for

loop through output Input Frequency Range 174 ~ 230MHz (VHF); 470 ~ 860MHz (UHF) Input Level -20 ~ -70dBm Constellation QPSK, 16-QAM, 64-QAM Carrier bandwidth 6/7/8 MHz FTT Mode 2K/8K Guard Interval 1/4, 1/8, 1/16, 1/32 FEC Code Rate 1/2, 2/3, 3/4, 5/6, 7/8

ASI Input

Connector 1 x BNC Female, 75Ω Standard DVB-ASI, EN50083-9 Input Bit Rates ≤ 100Mb/s Package Length 188 or 204 Bytes

TS over IP

Connector Type 1 x RJ45, 10/100M for TS/IP Useful bit rate 70Mb/s for 10/100M Protocol UDP / RTP, Multicast / Unicast, IGMPv2, ARP

DMM-Series User Guide V1.2

TS Processing

TS Input Management Remux and demux between Tuner, ASI and TS/IP Inputs TS Output Management Remux and demux for 2 mirror ASI outputs Service and PID management Remux, filtering and remapping PSI/SI

PSI/SI table regeneration, NIT and SDT edition, LCN Edition

and Re-generation Descrambler DVB Common Scrambling Algorithm (CSA) Common Interface

Double PCMCIA slots, compatible with major CA CAMs in

the market

ASI Output

Connector Type

2 x BNC Female, 75Ω (one connector is shared with SDI

output) Standard DVB-ASI, EN50083-9 Output Bit Rates ≤ 99Mb/s

Digital Video Processing

Video Standard

MPEG-2(MP@ML)

SDI Video Resolution 576i x 25, 480i x 29.97

Video Bit Rate

< 80Mb/s

SD-SDI O

utput

Connector Type

1 x BNC Female, 75Ω (share with one of the two ASI

outputs) Serial Interface SMPTE 259M, 270 Mb/s (10bit) Level 800mV p-p Audio Embedded Yes

Digital Audio Processing

Number of Outputs 1 pair of stereo audio output (1 Audio PID is decoded)

Analog Video Output

CVBS Connector 1 x 2.5mm phone jack (with phone jack to RCA adaptor)

Video Standard

NTSC, PAL, and SECAM

Analog Audio Output

Connector Type 1 x 2.5mm phone jack for CVBS and stereo audio Number of Outputs 1 pair of stereo audio

Control & Monitoring

Connector Type 1 x RJ45, 10/100M, for equipment IP Control Remote Control

SNMP, HTTP Web, Proprietary HDMS Network System

Management Software Local Control Handheld Programmer Unit Software Upgrade FTP loader

DMM-Series User Guide V1.2

4.2 DMM-150 Series

Tuner Input

DVB-S/S2 Tuner Input

Connector Type

1 x F type female 75Ω for Input, 1 x F type female 75Ω for

loop through output Input Frequency Range 950 ~ 2150MHz Input Level -25 ~ -65dBm Symbol Rate 5 ~ 45MS/s for QPSK

10 ~ 31MS/s for 8PSK Rolling-off Factor DVB-S QPSK: 0.35

DVB-S2 8PSK: 0.35, 0.25, 0.2 Punctured Rates DVB-S QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 8/10

DVB-S2 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 LNB Polarization 0, 13V, 18V selectable LNB Band Switching Tone 0/22kHz selectable DiSEqC DiSEqC 1.0

DVB-C Tuner Input

Connector Type

1 x F type female 75Ω for Input, 1 x F type female 75Ω for

loop through output Input frequency 48 ~ 860MHz Input level 45 ~ 75dBuV Symbol rate 1 ~ 7MS/s (ITU J.83 Annex A) Constellation 64/128/256QAM Bandwidth 6/7/8MHz Input return loss 7dB (typ.)

DVB-

T/T2 Tuner Input

Connector Type

1 x F type female 75Ω for Input, 1 x F type female 75Ω for

loop through output Input frequency 104 ~ 862MHz (VHF/UHF) Input level -20 ~ -70dBm (Quasi Error Free, QEF) Constellation DVB-T: QPSK/16-QAM/64-QAM

DVB-T2: QPSK, 16QAM, 64QAM, 256QAM Bandwidth 6MHz/7MHz/8MHz FFT mode DVB-T: 2K/8K

DVB-T2: 1K, 2K, 4K, 8K, 16K, 32K Guard interval DVB-T: 1/4, 1/8, 1/16, 1/32

DVB-T2: 1/4, 5/32, 1/8, 5/64, 1/16, 1/32, 1/64, 1/128 FEC code rate DVB-T: 1/2, 2/3, 3/4, 5/6, 7/8

DVB-T2: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6 Input return 7dB (typ.)

ASI Input

Connector Type 2 x BNC Female, 75Ω Standard DVB-ASI, EN50083-9 Input Bit Rates ≤ 100Mb/s Package Length 188 or 204 Bytes TS Processing Re-multiplexing of 2 ASI Inputs

TS over IP

Connector Type 1 x RJ45, 10/100M for TS/IP Useful bit rate 70Mb/s for 10/100M Protocol UDP / RTP, Multicast / Unicast, IGMPv2, ARP

DMM-Series User Guide V1.2

TS Processing

TS Input Management Remux and demux between Tuner, ASI and TS/IP Inputs TS Output Management Remux and demux for 2 independent ASI outputs Service and PID management Remux, filtering and remapping PSI/SI

PSI/SI table regeneration, NIT and SDT edition, LCN Edition

and regeneration Descrambler DVB Common Scrambling Algorithm (CSA) BISS Mode BISS-1, BISS-E Common Interface

Double PCMCIA slots, compatible with major CA CAMs in

the market

ASI Output

Connector Type 2 x BNC Female, 75Ω Standard DVB-ASI, EN50083-9 TS Processing 2 Independent TS Re-

multiplexing from tuner, TS/IP and 2

ASI inputs

HDMI Output

Standard HDMI 1x HDMI 1.3 interface (partial)

Video Resolution

1080i x 30, 1080i x 29.97, 1080i x 25, 720p x 60,

720p x 59.94, 720p x 50, 480p x 60, 576p x 50, 576i x 25,

480i x 29.97 Embedded Digital Audio Loop Through

Digital Video Processing

Video Standard

MPEG-2(MP@ ML for SD, MP@HL for HD)

MPEG 4/H.264 Part 10 (MP@L3 for SD, HP@L4.1 for HD) SDI Video Resolution 1080i x 30, 1080i x 29.97, 1080i x 25, 720p x 60

720p x 59.94, 720p x 50, 576i x 25, 480i x 29.97

Video Bit Rate

< 80Mb/s

SD-SDI Output

Connector Type 2 x SD-SDI outputs in mirror, BNC Female, 75Ω Serial Interface SMPTE 259M, 270 Mb/s (10bit) Level 800mV p-p

HD-SDI Output

Connector Type 2 HD-SDI outputs in mirror, BNC Female, 75Ω Serial Interface SMPTE 292M, 1.485 Gbit/s (10bit) Level 800mV p-p

igital Audio Processing

Number of Outputs 2 pairs of audio outputs (2 Audio PIDs are decoded)

Analog Video Output

YPbPr Connector 1 x 2.5mm phone jack, 75Ω (phone jack to RCA adaptor) CVBS Connector 1 x 2.5mm phone jack, 75Ω (phone jack to RCA adaptor)

Video Standard

NTSC, PAL, and SECAM

YPbPr Resolution 1080i x 30, 1080i x 29.97, 1080i x 25, 720p x 60,

720p x 59.94, 720p x 50, 480p x 60, 576p x 50, 576i x 25,

480i x 29.97 Signal Level I.0 Vp-p±5% Frequency Response < ±I dB at 5.5 MHz Chroma-Luma Delay < ±30 ns Field Time Distortion < 2% Line Time Distortion < 1% Short Time distortion < 2% Differential Gain < 4% Differential Phase < 2° Signal to Noise Ratio > 55 dB (luminance weighted)

Analog Audio Output

Connector type 1 x 2.5mm phone jack, 75Ω (phone jack to RCA adaptor) Output mode Left, Right, Dual Mono, Stereo Number of Outputs 2 pairs of audio outputs (2 Audio PIDs are decoded).

DMM-Series User Guide V1.2

Baseband Data Output

Subtitle DVB/EBU

VBI

Teletext, WSS, VFD, VPS

Closed Caption EIA 608, EIA 708, EIA 608-to-708

Redundancy

Redundancy Port between Tuner, 2 x ASI inputs and TS/IP Switching Condition TS Sync Loss Switching Mode Main, Spare

Control & Monitoring

Connector Type 1×RJ45, 10/100M, for equipment IP Control Remote Control SNMP, H

TTP Web, Proprietary HDMS Network System

Management Software Local Control Handheld Programmer Unit Equipment Upgrade FTP loader

5. FAQ

5.1 What is a “good” input signal for satellite reception?

Strength: the range is -25 ~ -65dBm, the more large value is better within this range, like: -30dBm is better than -25dBm

C/N and Eb/N0: the more large value is better, C/N reference value: 9.5dB, Eb/N0 reference value: 6.4dB, could receive a good signal

BER: the lower value is better, BER reference value 0.0E-8 and 0.0E-9, could receive a good signal

DMM-Series User Guide V1.2

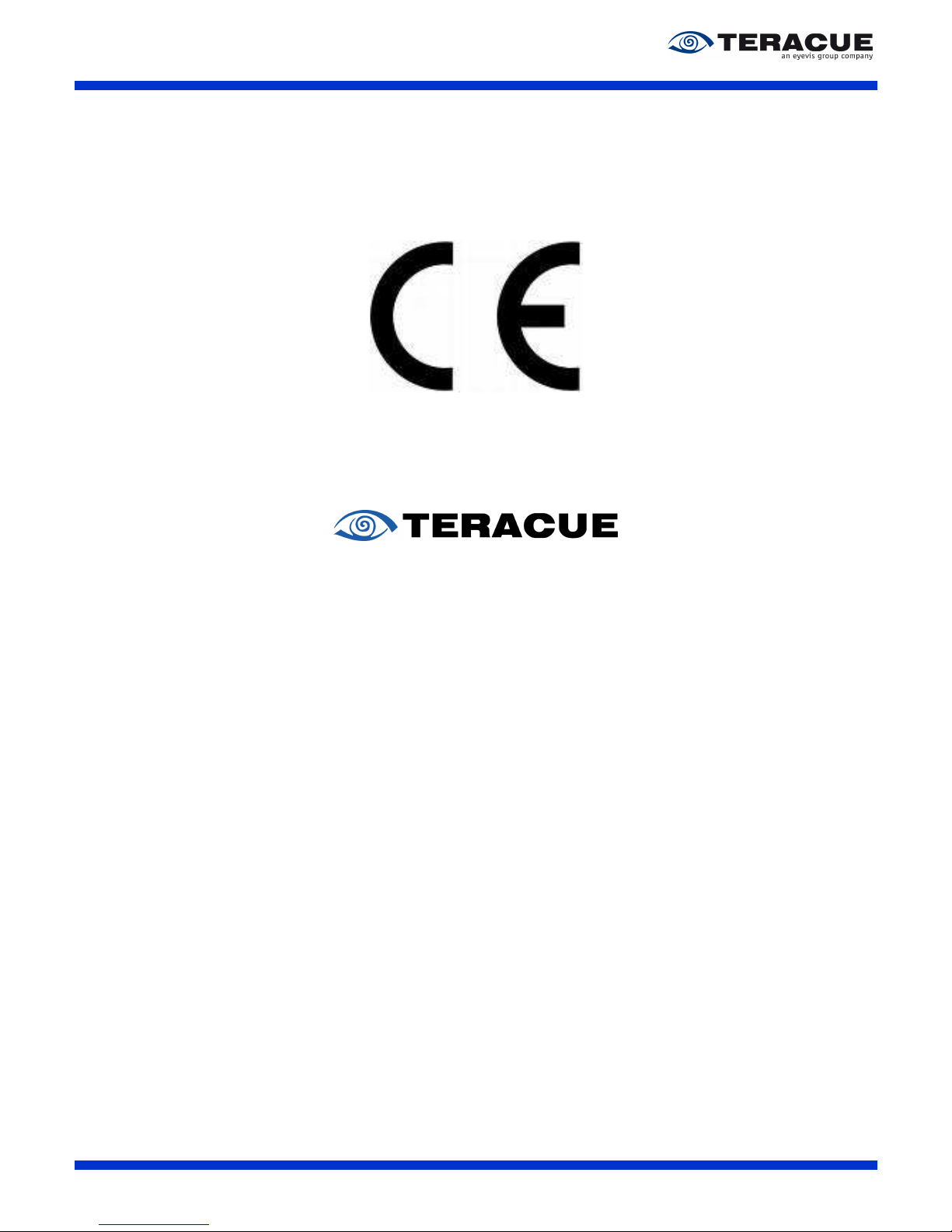

6. Statement of Conformity DMM-140-Series

state that our products, where they bear the CE marking illustrated above, are in conformity with the following standards:

EN 50083-2:2001 Electromagnetic compatibility for equipment – Cabled distribution

systems for television and sound signals.

EN 61000-3-2:2006 Electromagnetic compatibility Limits – Limits for harmonic current

emissions (equipment input current <= 16 A per phase).

EN 61000-3-3:2008 Electromagnetic compatibility Limits – Limitation of voltage changes,

voltage fluctuations and flicker in public low-voltage supply systems, for equipment with rated current <= 16 A per phase and not subject to conditional connection.

This regards to the following Teracue products: DMM-100-FR DMM-140-S2 DMM-140-C DMM-140-T

Designed, developed and manufactured to conform with the:

- Directive EMC 2004/108/EC Electromagnetic Compatibility

DMM-Series User Guide V1.2

7. Statement of Conformity DMM-150-Series

state that our products, where they bear the CE marking illustrated above, are in conformity with the following standards:

EN 50083-2:2006 Electromagnetic compatibility for equipment – Cabled

distribution systems for television and sound signals.

EN 61000-3-2:2006 + A1:2009 + A2:2009 Electromagnetic compatibility Limits – Limits for

harmonic current emissions (equipment input current <= 16 A per phase).

EN 61000-3-3:2008 Electromagnetic compatibility Limits – Limitation of

voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for equipment with rated current <= 16 A per phase and not subject to conditional connection.

This regards to the following Teracue products: DMM-100-FR, DMM-100-FR-1RU DMM-150-S2, DMM-150-C, DMM-150-T, DMM-150-T2

Designed, developed and manufactured to conform with the:

- Directive EMC 2004/108/EC Electromagnetic Compatibility

DMM-Series User Guide V1.2

8. Statement of Conformity DMM-220-Series

state that our products, where they bear the CE marking illustrated above, are in conformity with the following standards:

EN 50083-2:2006 Electromagnetic compatibility for equipment – Cabled

distribution systems for television and sound signals.

EN 61000-3-2:2006 + A1:2009 + A2:2009 Electromagnetic compatibility Limits – Limits for

harmonic current emissions (equipment input current <= 16 A per phase).

EN 61000-3-3:2008 Electromagnetic compatibility Limits – Limitation of

voltage changes, voltage fluctuations and flicker in public low-voltage supply systems, for equipment with rated current <= 16 A per phase and not subject to conditional connection.

This regards to the following Teracue products: DMM-100-FR, DMM-100-FR-1RU DMM-220-S2, DMM-220-T/T2/C

Designed, developed and manufactured to conform with the:

- Directive EMC 2004/108/EC Electromagnetic Compatibility

Teracue DMM-Series User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
