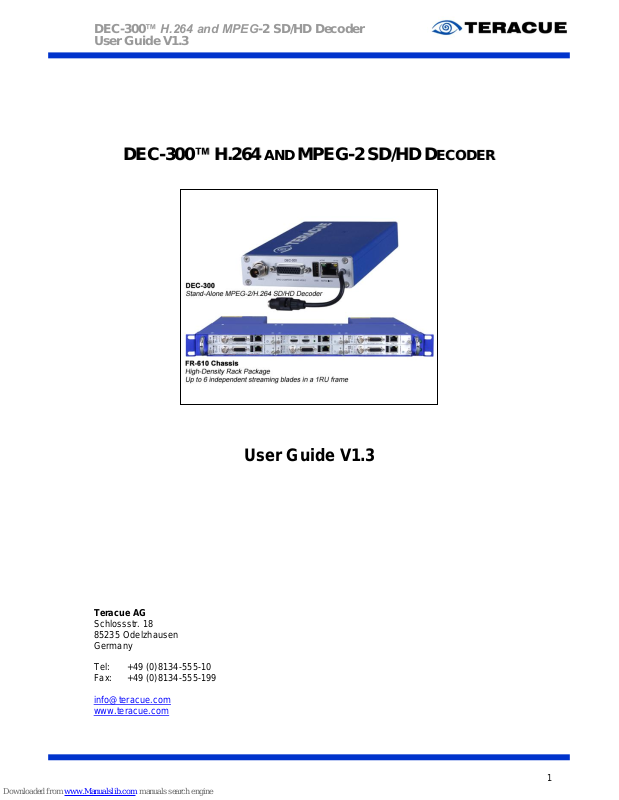

Teracue DEC-, DEC-300 User Manual

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

1

DDEECC--33000

0

™

™

HH..22664

4

AANNDD

MMPPEEGG--2

2

SSDD//HHD

D

D

D

EECCOODDEER

R

User Guide V1.3

Teracue AG

Schlossstr. 18
85235 Odelzhausen
Germany

Tel: [phone]
Fax: [phone]

[e-mail]
www.teracue.com

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

2

COPYRIGHT

This document may not be reproduced in any form, in whole or in part, without
the prior permission of Teracue.
Copyright © 2013 by Teracue, all rights reserved.

DISCLAIMER

This publication supersedes all previous publications.
Information and specification in this documentation is subject to change

without notice. Please make sure you have the latest document version. User
guides are located at: www.teracue.com/support

If you find some points in this document unclear then please let us know, so
we can improve this documentation.
Thank you! Mail to: [e-mail]

All information within this document is confidential to Teracue costumers and
should not be copied or distributed to non Teracue customers.

TRADEMARKS

DEC-300™ and all of its components are registered trademarks licensed to
Teracue.

All other logos and trademarks both marked and not, may be trademarks or
registered trademarks and therefore property of their respective owners.

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

3

I. Information about the manual

This document is designed to help users setup, configure and work with the H.264/
MPEG-2 SD/HD decoders.

If you received this publication as a PDF, then it's a good idea to print it out for future reference.
It is best to use this user guide directly in front of your computer, by doing so you try out everything at

once.

.!. Important features are marked by this sign.

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

4

II. Release Notes

Following are the Features listed which are supported from the firmware versions:
Version 2.06_w18 (2013-12-04)

 BUGFIX: DEC-300 freezes after several hours when caching buffer is set
 to middle or high
 allow hostnames with NTP server setting

Version 2.05_w18 (2013-10-14)

 BUGFIX(?): removed potential deadlock for UDP networking
 Busybox NTP support (static/dhcp)
 Save system clock to realtime clock once a day

Version 2.04_w18 (2013-10-09)

 BUGFIX: avoid/minimize audio output lockups
 BUGFIX: Make 1st network authentication packet come through
 Removed additional restart on TCP resyncs
 Don't disable DNS resolver when changing form DHCP to static IP.

Version 2.03_w18

–

2013-08-23

09:30

 BUGFIX: Support for "intel accelerated" transcoded streams

Version 2.02_w18

–

2013-08-21

06:10

 Fix problem: Loading different presets crashes decsrv
 Fix problem: System freezes when sine is played after video
 Ieee802.1x support
 Hostname lookup

Version 1.31_w18

–

2013-08-03

12:05

 Fix problem: Swap audio channels when recovering from error
 In UDP unicast mode use 0.0.0.0 to accept any source

Version 1.30_w14

–

2013-01-24

11:30

 SNMP support

Version 1.20_w14

–

2013-01-11

18:55

 SYSTEM/PASSWORD: change fixed
 DECODER/AUDIO: Talkback rate option 16000 added
 Info icons added
 Show OSD on startup and when factory reset hw button is pressed shortly
 DECODER/SOURCE: New protocol added RTP, RTP/FEC (See Rights in

SYSTEM/SETTINGS); When 'RTP/FEC' is selected: 'FEC Dimension' option added

 SYSTEM/SETTINGS: Right show added, about FEC

Rights: If FEC Permission = enabled, DECODER/SOURCE: Protocol 'RTP/FEC' is available

 FIX: Equal end-to-end delay for VES and TS low delay
 Improve overall system stability
 Tuning of TCP connection parameters
 Hold two buffers less in low latency mode
 Don’t look for stream errors and let DSP codecs arrange error cases

Version 1.15_w12 – 1.20_w13

–

Internal Versions

Version 1.14_w12

–

2012-10-25

17:00

 DECODER/AUDIO: 'Talkback Stereo' check box added

Version 1.14_w11

–

2012-10-19

13:16

 Fix problem: color bar and blank screen did not show up every time.
 Broadcast "minimal" SAP
 Support for audio options: input mute, output mute and input gain, output gain

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

5

 Stereo talkback
 Display of aspect ratio
 NTSC is working now
 Eliminated "spike" artefacts
 Add talkback sample rates 22.05kHz, 12kHz and 6kHz for better ENC-300 support
 DHCP support
 CVBS support
 Add framerate conversion (double and half)
 DECODER/XPLAYER: XPLAYER link works in other browsers with XPlayer_v.4.0.0.9
 DECODER/SETTINGS: OSD Active disabled , StreamLoss Display options HOLD->FREEZE,

BWTEXT->TEXT renamed

 DECODER/TRANSPORT: Receive Buffer enabled
 DECODER/AUDIO: Talkback IP info added, Info Text = “Enter 0.0.0.0 in Talkback IP to

disable talkback”

 DECODER/VIDEO: Aspect ratio: Removed

Format: AUTO = AUTO (YPbPr)
1080i60
1080i50
720p60
720p50
PAL = 576i50
NTSC = 480i60
AUTO_CVBS = AUTO (CVBS)
PAL_CVBS = PAL
NTSC_CVBS = NTSC

 DECODER/SOURCE: Fix invisible field problem: IP address when in TCP/Server mode
 Blue-Info-Box: 'Video Continuity Errors' added (video pids only)

IE9 align fix

Version 1.10_w06 – 1.13_w10

–

Internal Versions

Version 1.09_w06

–

2012-08-27

16:17

 Decoder/Settings: OSD Active added
 Decoder/Transport: Program Number, Video PID, Audio PID adjustable
 Decoder/Video: Aspect Ratio added
 Decoder/Audio: Talkback IP, Talkback Port, Talkback Rate, Audio Input, Linein Gain, Micin

Gain, LineOut Gain, Output Mute added

 Decoder/Source: Transport Protocol (TCP/Server, TCP/Client) added
 Comport/Settings: Mode, Destination, Bitrate Databits Parity Stopbits added

Version 1.04_w05 – 1.09_w05

–

Internal Versions

Version 1.03_w05

–

2012-07-18

12:33

 Decoder/Video: Format, Output options added (note: output only COMPONENTS)
 Decoder/GPIO: Mode, GPO-Value, Destination, GPI-Value added (for testing)

Version 0.98_w04 – 1.02_w05

–

Internal Versions

Version 0.97_w04

–

2012-07-05

08:36

 Decoder/Settings: LowLatency, StreamLoss added
 Decoder/XPlayer: XPlayer link updated

Version 0.93_w02 – 0.96_w04

–

Internal Versions

Version 0.92_w02

–

2012-10-25

13:15

 Fix 'Save' button problem
 Network set fixed
 Blue-Info-Box: labels modify (Codec, Video bitrate, Encoder Status, Video resolution, Uptime,

Video framerate, Stream Locked, Source, Transport Rate, Recieved Bytes, Stream mode)

Version 0.92_w01

–

Internal Version

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

6

III. Content

1. OVERVIEW ...................................................................................................................................... 8

2. GENERAL INFORMATION ............................................................................................................. 9

2.1 UNPACKING THE DECODER ......................................................................................................... 9

2.1.1 DEC-300™ blade-based units ............................................................................................. 9

2.1.2 DEC-300™ chassis-based devices ..................................................................................... 9

2.2 SETTING UP THE DECODER AND SAFETY INSTRUCTIONS ............................................................ 10

2.3 CONNECTING THE DECODER (CHASSIS-BASED) ......................................................................... 11

2.4 ASSIGNMENT OF THE SUB-D 26-PIN CONNECTOR ...................................................................... 12

2.5 BREAKOUT CABLE ‘S’ ............................................................................................................... 13

2.6 BREAKOUT CABLE ‘P’ ............................................................................................................... 14

3. DEC-300™ USER GUIDE ............................................................................................................. 15

3.1 ACCESSING AND CONFIGURING DECODERS ............................................................................... 15

3.2 LOGIN ..................................................................................................................................... 16

3.3 GRAPHICAL USER INTERFACE OF THE DEC-300™ .................................................................... 17

3.3.1 Navigational Menus ........................................................................................................... 17

3.3.2 ‘APPLY’ and ‘SAVE’ Buttons ............................................................................................. 18

3.3.3 Blue Info-Box ..................................................................................................................... 18

3.4 DECODER CONFIGURATION ...................................................................................................... 19

3.4.1 Menu: Decoder / Settings .................................................................................................. 19

3.4.2 Menu: Decoder / Transport ................................................................................................ 20

3.4.3 Menu: Decoder / Video ...................................................................................................... 21

3.4.4 Menu: Decoder / Audio ...................................................................................................... 22

3.4.5 Menu: Decoder / Source .................................................................................................... 23

3.4.6 Menu: Decoder / GPIO ...................................................................................................... 25

3.4.7 Menu: Decoder / XPlayer .................................................................................................. 27

3.4.8 Menu: Network / Settings .................................................................................................. 28

3.4.9 Menu: Comport / Settings .................................................................................................. 30

3.4.10 Menu: System / Settings ................................................................................................ 31

3.4.11 Menu: System / Date/Time ............................................................................................ 32

3.4.12 Menu: System / Update (Upgrading firmware version) ................................................. 33

3.4.13 Menu: System / Password ............................................................................................. 34

3.4.14 Menu: System / Remote ................................................................................................ 35

3.5 HELP ....................................................................................................................................... 36

3.6 LOGOUT .................................................................................................................................. 37

4. EXTENDED FUNCTION ................................................................................................................ 38

4.1 REMOTE CONTROL .................................................................................................................. 38

4.2 AUDIO TALKBACK ..................................................................................................................... 42

4.2.1 Talkback Session between DEC-300™ and ENC-300™ .................................................. 42

4.2.2 Talkback Session between DEC-300™ and ENC-200™ .................................................. 44

4.2.3 Talkback Session between DEC-300™ and ENC-100™ .................................................. 45

4.3 TCP STREAMING ..................................................................................................................... 47

4.3.1 TCP configuration: ENC-200™ is the Server .................................................................... 48

4.3.2 TCP configuration: ENC-300™ is the Server .................................................................... 49

4.3.3 TCP configuration: ENC-200™ is the Client ..................................................................... 50

4.3.4 TCP configuration: ENC-300™ is the Client ..................................................................... 51

4.4 RESETTING TO FACTORY DEFAULT ........................................................................................... 52

4.5 RESTARTING THE DEC-300™ .................................................................................................. 53

5. CE, FCC CONFORMANCE ........................................................................................................... 54

6. RESTRICTION OF HAZARDOUS SUBSTANCES DIRECTIVE (ROHS) ..................................... 54

7. WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT DIRECTIVE (WEEE) ........................ 55

8. TECHNICAL SPECIFICATION ...................................................................................................... 56

9. KNOWN ISSUES ........................................................................................................................... 59

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

7

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

8

1. Overview

The DEC-300™ is a professional compact H.264 SD/HD and MPEG-2 SD/HD video/audio stream
receiver and IPTV decoder. It is designed for network IP video system integration. As an output
decoder device for streaming media it provides easy access to DVB IP and IPTV streams on HD-SDI
and analog video outputs.

DEC-300™ decoders incorporate low-latency compression technology and professional signal
processing, creating full resolution video output in HD resolution. To access the intuitive graphical user
interface use your standard web browser from any PC on the network. Remote network configuration
is also supported over SNMP*, by Telnet and by control over the local COM port.

Multiple DEC-300™ blades are operated inside the FR frame series. The decoder is also available as
a chassis-based compact device (‘PORTABLE’). High-density requirements are solved by operating
the DEC blades in the FR-2000-24 (4 RU rack mount) or FR-610 (1 RU rack mount) multi-channel
racks. Different types of DEC decoder blades, ENC encoder blades and DVB/IP videogateways can
be “mixed and matched” inside the FR-frame series.

DEC-300™ combines high-performance with unparalleled simplicity in a compact Ethernet video
decoding appliance designed for commercial, institutional, and industrial applications such as:

 Broadcast & CDN IP contribution
 Wireless & mobile streaming
 Digital signage streaming
 IPTV/OTT streaming
 Medical & campus TV
 Telemedicine
 Security monitoring
 Stadium & event TV
 Training & research
 Video monitoring
 Control rooms & command centres

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

9

2. General Information

DEC-300™ can be ordered as blade-based units or as chassis-based devices. Please specify at your
order which DEC-300™ type (blade-based or chassis-based) do you exactly want.

DEC-300™ blade-based units can be used in the FR-610 multi-channel chassis, which can hold up to
max. 6 Teracue blades. Inside the FR-610 chassis different types of ENC encoder blades, DEC
decoder blades can be ‘mixed and matched’.

DEC-300™ chassis-based devices are fixed implemented in a chassis. The chassis-based devices
are called DEC-300™ PORTABLE. So you do not need purchase a chassis separately.

All equipment (like the FR-610 chassis) and DEC-300™ accessories are handled as model options
and need to be purchased separately.

2.1 Unpacking the Decoder

When you unpack the ordered equipment, please make sure that all the equipment is complete.

2.1.1 DEC-300™ blade-based units

Normally the DEC-300™ blades are pre-fit into the according chassis that the decoders have been
ordered with.
If DEC-300™ blades are ordered and shipped separately, please be careful when handling the blades.
Be sure to avoid electrostatic influence when touching the blades.

After unpacking, your DEC-300™ should include the following:

 1 x Teracue DVD which includes this user guide
 1 x DEC-300™ MPEG-2/H.264 HD Decoder blade
 1 x Breakout cable ‘S’

2.1.2 DEC-300™ chassis-based devices

After unpacking, your DEC-300™ should include the following:

 1 x Teracue DVD which includes this user guide
 1 x DEC-300™ MPEG-2/H.264 HD Decoder (chassis-based)
 1 x Breakout cable ‘S’

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

10

2.2 Setting up the Decoder and Safety Instructions

Always read the instructions carefully and keep this user guide for future reference.
Please choose a suitable location for operating the decoder(s).
The DEC-300™ should not be exposed to the following:

 Moist and dusty environments.
 Air humidity above 80%.
 Avoid extreme vibrations or shocks.
 Direct sunlight and extreme heat.
 Temperatures below 0°C and above +65°C.
 Avoid quick and dramatic temperature changes.

.!. Please set up the decoder on a reliable and flat surface when using the chassis-based
device or mount in a rack, when using the FR-610 chassis.

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

11

2.3 Connecting the Decoder (chassis-based)

Please pay attention about the cabling order between the power supply and the FR-chassis. Connect
at first always the connector of the power supply to the FR-chassis.

The cable connector can be locked to the socket of the decoder, so the cable cannot accidentally be
pulled out.

After you have connected the connector of the power supply to the chassis, please connect the power
cable to the power supply.

As next, please connect the network cable to the network interface and connect your display unit to
the video output of the DEC-300™. Concerning of the video output you have the choice between
different video signal types. The DEC-300™ supports SD/HD-SDI (with embedded audio), Composite,
S-Video, YPbPr and RGB signals. If you need a Composite (CVBS), S-Video (YC), YPbPr or a RGB
signal, please use the Sub-D 26-pin connector via the breakout cable. If you need a SD/HD-SDI
signal, please use the BNC connector.

If you want use analogue audio, please use the Sub-D 26-pin connector via breakout cable.

Figure 1: DEC-300™ front side

Front panel connection:

Description:

DIAG:

LED status indicator. The LED indicates the status (operational
state) of the DEC-300 decoder. The status is indicated by the
LED colour and LED flashing (blinking) speed.

LED status:

Description:

Constant green:

OK, decoder in operation, decoding video.

Flashing green:

OK, but stream input signal is missing.

Flashing red:

Network error. Decoder cannot send data
packets.

Constant red:

General error.

No LED light:

Check power and power supply.

Video:

Video Output for SD/HD-SDI (with embedded Audio) via BNC
interface.

Video Audio Comport GPIO:

Audio-, Video- and Data Output/Input for Composite, S-Video,
YPbPr, RGB, H- and V-Synchronisation, Audio-In, Audio-Out,
GPIO, RS-232/422, via Sub-D 26 pin interface.

USB:

USB-interface.

Network:

Standard 10/100Mbit/s Ethernet via RJ-45

Power in:

Power cable with connector for the power supply..

Table 1: Description of the connectors on the DEC-300™ front side

CVBS = FBAS = Composite Signal
YC = S-Video Signal

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

12

2.4 Assignment of the Sub-D 26-pin Connector

Table 2 describes the assignment of the Sub-D 26-pin connector which is on the front side of the
DEC-300™.

Pin:

Sub-D 26-pin Connector Assignment:

1

TxA 2 TxB (RS-232 TxD)

3

GPO-A (Relay A)

4

Audio In R

5

Audio Out R

6

NC 7 Video Out

Pb / Y 8 Video Out

CVBS

/ Y 9

Video Out

/ Pr / C

10

GND

11

GND

12

GPO-B (Relay B)

13

GPI-C

14

GND

15

GND

16

GND

17

GND

18

GND

19

RxB

20

RxA (RS-232 RxD)

21

GPI-A

22

Audio In L

23

Audio Out L

24

3V3

25

GND

26

NC

Table 2: Assignment of the Sub-D 26-pin Connector

CVBS = FBAS = Composite Signal
YC = S-Video Signal
NC = not connected
* = is not supported at the moment

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

13

2.5 Breakout Cable ‘S’

For the DEC-300™ it exists two different breakout cables which are called Breakout cable ‘S’ and
Breakout cable ‘P’. The Breakout cable ‘S’ is the standard breakout cable and Table 3 describes the

provided signals.

Signal:

Connector Type:

Audio In R + L

Mini Jack 3,5 mm

Audio Out R + L

2 x Cinch (RCA)

Video CVBS

Cinch (RCA)

Video YC

Mini-DIN 4-pin (Hosiden)

Table 3: Breakout cable 'S'

Figure 2: Breakout cable 'S'

CVBS = FBAS = Composite Signal
YC = S-Video Signal

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

14

2.6 Breakout Cable ‘P’

For the DEC-300™ it exists two different breakout cables which are called Breakout cable ‘S’ and
Breakout cable ‘P’. The Breakout cable ‘P’ is the professional breakout cable and Table 4 describes

the provided signals.

Signal:

Connector Type:

RS-232/422

Sub-D 9-pin

GPIO

Sub-D 9-pin

Audio In R + L

2 x Cinch (RCA)

Audio Out R + L

2 x Cinch (RCA)

Video CVBS / YC / YPbPr

3 x BNC

Table 4: Breakout cable 'P'

Figure 3: Breakout cable 'P'

CVBS = FBAS = Composite Signal
YC = S-Video Signal
NC = not connected
* = is not supported at the moment

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

15

3. DEC-300™ User Guide

This chapter gives you an overview over DEC-300™ and demonstrates the decoder's main functions.

.!. Before proceeding please be sure that the decoder is setup correctly and all necessary
connections are established.

Working and configuring Teracue's decoders is very easy.
You do not need to install an application or remote configuring software. If you know how to browse
the internet, then you already know how to access and control the decoders, simply via web-browser.

3.1 Accessing and Configuring Decoders

Open your standard web-browser and type in the decoder's IP-address (e.g. ‘172.16.20.200’) in the
address field and press the ‘Enter’ button.

.!. If you haven't changed the factory presets and if not specified elsewhere in the
shipment the decoder's IP-address will by default be set to: 172.16.20.200.

Default IP-address:

172.16.20.200

Login username:

admin

Login password:

admin

.!. The decoder is configured by factory default to automatically start the decoding
process and displaying the stream of the multicast address 239.252.20.100, when a
network link and a link to the display unit are established.

.!. To be able to login to the decoder's user interface, your computer has to be in the same
IP-address range (subnet).

You briefly might have to change your computers IP-address to be in the same subnet as the decoder.
Only then you will be able to access the decoder and change the decoder's IP-address, and of course
afterwards change your computer's IP-address back.

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

16

3.2 Login

After typing the IP-address of your DEC-300™ into the browser and hitting enter, a login screen
should appear. See Figure 4.

Enter your username and password and click on ‘login’.

Figure 4: DEC-300™ web interface 'Login Page'

Default IP-address:

172.16.20.200

Login username:

admin

Login password:

admin

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

17

3.3 Graphical User Interface of the DEC-300™

3.3.1 Navigational Menus

After successful login you have access to the decoder's configuration. All of the settings can be
adjusted via web-browser.

Main Menu:

The main menu contains the ‘DECODER’, ‘NETWORK’, ‘COMPORT’, ‘SYSTEM’, ‘HELP’ and

‘LOGOUT’ links from the top bar. See

Figure 5.

Secondary Menu:

After selecting the desired menu item from the main menu, choose an area for configuration from the
secondary menu, which is resides on the left-hand side. See

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

18

Figure 5.

Figure 5: Settings of the DEC-300™

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

19

3.3.2 ‘APPLY’ and ‘SAVE’ Buttons

A change or multiple changes of the configuration settings will only take effect
after the ‘> APPLY’ button is pressed.
The decoder will then start working with the new parameters, but the parameters
will not be saved to the decoder. Applied settings are not saved and will be lost
after a reboot.

Good for quickly testing and applying different settings.

Same as the ‘> APPLY’ button, but the configuration parameters will be applied
and saved to the decoders flash memory.
Saved parameters will be used by the decoder even when the decoder is turned
off & on or after a reboot has taken place.

Good for permanently saving the decoder configuration.

3.3.3 Blue Info-Box

The blue Info-Box shows read-only state information for the user, see Figure 6. Table 5 contains the
description of the blue Info-Box.

Figure 6: Blue Info-Box of the DEC-300 webpages

Information:

Description:

Codec:

Shows the video codec of the input stream.

Encoder Status:

Shows whether the decoder is decoding or not.

Uptime:

Shows how long the decoder runs.

Stream Locked:

Shows whether the input stream is locked or not.

Transport Rate:

Shows the transport rate of the input stream.

Stream mode:

Shows the stream mode of the input stream

Video bitrate:

Shows the video bitrate of the input stream.

Video resolution:

Shows the video resolution of the input stream.

Video framerate:

Shows the video frame rate of the input stream.

Source:

Shows the specified source IP-address and port number.

Received Bytes:

Shows the bytes which the decoder has received.

Video Continuity Errors:

Shows the values of occurred video continuity errors.

Audio Continuity Errors:

Shows the values of occurred audio continuity errors.

Table 5: Description of the blue Info-Box of DEC-300 webpages

You can minimize the blue Info-Box by clicking at the blue Info-Box. Furthermore, the blue
Info-Box minimizes itself automatically after five minutes. To maximize the blue Info-Box,
please click at the arrow which is shown at the minimized Info-Box. The arrow is shown at
the left of this text break.

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

20

3.4 Decoder Configuration

3.4.1 Menu: Decoder / Settings

Under the menu option ‘DECODER/SETTINGS’ you define the main operational state of the decoder.

Here you can set decoding process to ‘On’ or ‘Off’. See

Figure 7.

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

21

Figure 7: 'Decoder / Settings' page of the DEC-300™ decoder

Settings:

Description:

Decoder Start:

Stops or starts the decoding process.

Mode:

NORMAL / LOW DELAY The low delay mode and improves the
audio video offset, if the source of the encoder has not a
compliant audio video offset.

.!. The ‘Low Latency’ should be always enabled, if it is
well-known that the used encoder has also a ‘Low
Delay’ Mode (e.g. the ENC-200™) and the user wants
the lowest delay.

OSD Active

If enabled, then the OSD is visible for 10 seconds when the DEC­300 is switched on.

Buffer

DEC Buffer for input signal. Selectable ‘LOW / MIDDLE / HIGH’

StreamLoss Display:

If the video input stream is lost, you can choose here the screen
which should be displayed instead of the video stream. If

‘FREEZE’ is chosen, the decoder displays the last video frame of
the buffer as a frozen frame. If ‘COLORBAR’ is chosen, the
decoder displays a colorbar. If ‘TEXT’ is chosen, the decoder

displays a black screen which contains the display status
message ‘STREAM LOSS’.

Stream Loss Text

Free text field. Default: ‘DEC-300 - Teracue AG’

Table 6: Description of the 'DECODER/SETTINGS' webpage of the DEC-300™

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

22

3.4.2 Menu: Decoder / Transport

In the ‘DECODER/TRANSPORT’ menu, you are able to specify which PIDs the decoder should
receive. Table 7 describes the ‘Decoder / Transport’ page of the DEC-300™ decoder, see Figure 8.

PID stands for Packet Identifier. The PIDs help to identify and locate the elementary signals in a
stream containing lots of different information and signals (audio, video and data). This is necessary
due to the multiplexed nature of transport streams.

Figure 8: 'Decoder / Transport' page of the DEC-300™ decoder

Settings:

Description:

Program Number:

Specifies the program number. The DEC-300™ recognizes the
manual mode by entering of the desired program number. To
change back the automatically mode, enter in the text field the
value ‘0’ and confirm this entry with the 'APPLY' button.

Video PID:

Specifies the video packet identifier of the video which should be
displayed (e. g. a stream contains several videos). The DEC­300™ recognizes the manual mode by entering of the desired
video PID. To change back the automatically mode, enter in the
text field the value ‘0’ and confirm with the 'APPLY' button.

Audio PID:

Specifies the audio packet identifier of the audio which should be
played (e. g. a stream contains several audios). The DEC-300™
recognizes the manual mode by entering of the desired audio
PID. To change back the automatically mode, enter in the text
field the value ‘0’ and confirm this entry with the 'APPLY' button.

Program Number:

Displays the program number of the received stream. (Read only)

Video PID:

Displays the video PID of the received stream. (Read only)

Audio PID:

Displays the audio PID of the received stream. (Read only)

PCR PID:

Displays the PCR (Program Clock Reference) packet identifier of
the received stream. (Read only)

PMT PID:

Displays the PMT (Program Map Table) packet identifier of the
received stream. (Read only)

Table 7: Description of the 'DECODER/TRANSPORT' webpage of the DEC-300™

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

23

3.4.3 Menu: Decoder / Video

Figure 9 shows the ‘Decoder / Video’ page of the DEC-300™ decoder.

Figure 9: 'Decoder / Video' page of the DEC-300™ decoder

Table 8 describes the ‘Decoder / Video’ page of the DEC-300™.

Settings:

Description:

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

24

Format:

Specifies the SD/HD format and colour encoding system of the
received video. You can choose between:

 AUTO (YPbPr)
 1080i60
 1080i50
 720p60
 720p50
 576i50
 480i60
 AUTO (CVBS)
 PAL
 NTSC

.!. Changes in this field require a reboot.

Table 8: Description of the 'DECODER/VIDEO' webpage of the DEC-300™

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

25

3.4.4 Menu: Decoder / Audio

Figure 10 shows the ‘Decoder / Audio’ page of the DEC-300™ decoder and Table 9 describes it.

Figure 10: 'Decoder / Audio' page of the DEC-300™ decoder

Settings:

Description:

Input:

Specifies the audio input for the talkback function. You can
choose between microphone (MIC) input and line (LINE) input.
For more information about the talkback feature, see chapter 4.2.

Input Mute:

Enables / Disables muting the audio input.

LineIn Gain:

Specifies the line level gain for the talkback function. For more
information about the talkback feature, please see chapter 4.2.

MicIn Gain [-12dB...59.5dB]:

Specifies the microphone level gain for the talkback function. For
more information about the talkback feature, see chapter 4.2.

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

26

Output Gain (dB):

Specifies the line level gain for the audio output.

Output Mute:

Enables / Disables muting the audio output.

Talkback IP:

Specifies the IP-address of the encoder with which the DEC-

300™ should start the talkback session. For example: A DEC­300™ should start a talkback session with an ENC-300™. The

encoder has the IP-address 172.16.20.100. So you must enter in
the ‘Talkback IP’ field of the DEC-300™ the IP-address of the
encoder, in this case 172.16.20.100. If you want to turn off the

talkback function, please enter the value ‘0.0.0.0’ in this field and
click the ‘>APPLY’ button. For more information about the

talkback feature, please see chapter 4.2.

Talkback Port (1-65535):

Specifies the port number of the talkback channel. For a talkback
session the encoder and the decoder must have the same
talkback port number. At the ENC-100™ the talkback port is 9177
and cannot be changed there. For more information about the
talkback feature, please see chapter 4.2.

Talkback Rate (Hz):

Specifies the talkback sample rate. For a talkback session the
encoder and decoder must have the same sample rate. For more
information about the talkback feature, please see chapter 4.2.

Talkback Stereo:

Enables / Disables the stereo option of the talkback function.

Table 9: Description of the 'DECODER/AUDIO' webpage of the DEC-300™

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

27

3.4.5 Menu: Decoder / Source

DEC-300™ is capable to receive a stream either as a unicast stream or a multicast stream. According
to the entered source IP-address, the decoder will automatically recognize whether it concerns about
a unicast or multicast stream.

Figure 11 shows the ‘Decoder / Source’ page of the DEC-300™ decoder.

Figure 11: 'Decoder / Source' page of the DEC-300™ decoder

Table 10 describes the ‘Decoder / Source’ page of the DEC-300™.

Settings:

Description:

Transport Protocol:

Specifies the transport protocol. You can choose between the
connectionless protocol UDP and the connection-oriented
protocol TCP. If you use TCP, your source must also support the
TCP protocol. Furthermore, no multicast is supported when using

TCP. If you choose ‘TCP/SERVER’, your source must be the
client. If you choose ‘TCP/CLIENT’, your source must be the

server. For more information, please see chapter 4.3 on page 47.

.!. If network errors occur in your network, we
recommend using TCP protocol.

IP address:

Specifies the stream which should the DEC-300™ receive.
If you want to receive a multicast stream:
Please enter in the ‘IP address’ field your desired multicast IP­address, e. g. 239.252.20.100.
If you want to receive a unicast stream:
Please enter in the ‘IP address’ field the IP-address of the source,
e. g. the IP-address of the ENC-300™, see Figure 12.
Or type in ‘0.0.0.0’

Port number:

Specifies the port number of the stream which should DEC-300™
receive. Enter here the port number of your desired stream.

Table 10: Description of the 'DECODER/SOURCE' webpage of the DEC-300™

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

28

Figure 12: Unicast connection between ENC-300™ and DEC-300™

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

29

3.4.6 Menu: Decoder / GPIO

The General Purpose Input/Output (GPIO) supports a GPI function for the pass-through mode to
control devices which are connected with another DEC-300™ decoder or ENC-300™ encoder.
Furthermore it supports a GPO function for the manual mode to send a signal to a device which is
directly connected to the decoder via the GPIO D-Sub connector of the breakout cable ‘P’. This allows
users to connect a special device, e.g. sensor to the GPIO Port and send from the decoder a signal to
control the special device.

Figure 13: 'Decoder / GPIO' page of the DEC-300™ decoder

Settings:

Description:

Mode:

Specifies the GPIO mode. ‘Manual’ switches the local GPO value
to the level high (=1) or low (=0). The high or low level must be

entered in the ‘GPO-Value’ field. ‘Passthrough/A’ and
‘Passthrough/B’ forward the high (=1) or low (=0) level via UDP

to another encoder or decoder at which a device is connected.
Therefor the IP-address of the destination encoder/decoder must

be entered in the ‘Destination’ field. The difference between

‘Passthrough/A’ and ‘Passthrough/B’ is that the GPO value of
‘Passthrough/B’ is inverted. ‘Passthrough/A’ and ‘Passthrough/B’

has the following states:

Passthrough

Parameter:

DEC-300

GPI:

ENC-300

GPO:

Passthrough/A

1 1 0

0

Passthrough/B

1 0 0

1

GPO-Value:

Specifies the GPO high or low level. ‘0’ indicates the low level

and ‘1’ indicates the high level. This field is only in use, when the

mode is set to ‘Manual’.

Destination:

Specifies the IP-address of the destination encoder/decoder to
which the connection shall be created. This field is only in use,
when the mode is set to ‘Passthrough/A’ or ‘Passthrough/B’.

GPI-Value:

Shows the high/low level which the decoder gets. Read-only field.

Table 11: Description of the 'DECODER/GPIO' webpage of the DEC-300™

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

30

The GPIO D-Sub Connector of the breakout cable ‘P’ has the following pin assignment.

Pin:

GPIO Assignment:

1

NC 2 GPO-B (Relay B)

3

GPI-C (Input)

4

3.3V

5

GND

6

NC 7 GPO-A (Relay A)

8

GPI-A (Input)

9

NC

Table 12: Assignment of the GPIO Sub-D Connector of the Breakout Cable 'P'

.!. The 3.3V output has no series resistor inside.
.!. The non-operating state of GPI is 1. To change the GPI value to 0, you must set GPI-C to

GND and feed the GPI-A with 3.3V.
.!. The non-operating state of GPO is 0 that means the relay has a normally-open contact.
.!. The GPI has an optoelectronic coupler and GPO has a relay.
.!. For an error-free GPIO operation in passthrough mode, both, the GPI source and the

GPO destination must be configured correctly. That means, the source and the
destination must be set to the identical passthrough mode, the correct IP-address of
the GPO destination must be entered in the source and the correct IP-address of the
GPI source must be entered in the destination. Furthermore, as long as the GPIO mode
is set to ‘Manual’ the GPI is blocked.

NC = Not Connected

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

31

3.4.7 Menu: Decoder / XPlayer

The menu ‘XPlayer’ starts the ‘Standalone XPlayer’, if an ‘XPlayer’ is installed on the client PC. The
XPlayer-Link was added to check whether the entered source is available in the network. You can

start the ‘XPlayer’ by clicking the XPlayer-Link inside the ‘Decoder’ menu.
Afterwards the ‘XPlayer’ automatically displays the input stream, which you have entered in the

‘Decoder / Source’ page of the DEC-300™ decoder, provided that the source IP-address is a multicast

stream. The source IP-address must be a multicast address.

Figure 14: 'Decoder / XPlayer' page with opened XPlayer

If the XPlayer is not installed on the client PC, the XPlayer-Link will have no function.

.!. Requirement for this feature: The XPlayer must be installed.

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

32

3.4.8 Menu: Network / Settings

Figure 15 shows the ‘Network / Settings’ page of the DEC-300™ decoder. Here you are able to set the
decoder's own IP-address, subnet mask, gateway address and define the decoder's host name.

Figure 15: 'Network / Settings' page of the DEC-300™ decoder

Table 13 describes the ‘Network / Settings’ page of the DEC-300™.

Settings:

Description:

Link Mode:

Specifies the network port characteristics of the DEC-300™. This
option has been added especially to address specialized network
and/or administration requirements.

.!. In most cases it is sufficient (and recommended) to
leave this setting on ‘AUTO’, so the DEC-300™ and
the connected switch can deal out the preferred
connection on their own.

DHCP:

Enables / Disables DHCP. Only use this option if you are familiar
with DCHP and your network supports DCHP.

Host Name:

Specifies the hostname of the DEC-300™. Please enter your
desired hostname of the DEC-300™.

IP Address:

Specifies the IP-address of the DEC-300™. The IP-address is an
identifier for your DEC in the TCP/IP network. Networks use the
TCP/IP protocol route messages based on the IP-address of the
destination. The format of an IP-address is a 32-bit numeric
address written as four numbers separated by periods. Each
number can range from 0 to 255. E.g.: 172.16.20.200

Subnet Mask:

Specifies the subnet mask of the DEC-300™. A subnet mask is a
32-bitmask used to divide an IP-address into subnet and specify
the networks available hosts. E.g.: 255.255.0.0 is the net mask
for a class-B IP-address like 172.16.20.200.

Broadcast Address:

Displays the broadcast IP-address. (Read only field)

Gateway Address:

Specifies the IP-address of your gateway. The gateway is
commonly the address of the network device such as a network
router.

Table 13: Description of the 'NETWORK/SETTINGS' webpage of the DEC-300™

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

33

.!. When the IP-address has been changed, the decoder needs to be reset (reboot), in
order for the new IP-address to take effect. When changing the IP-address please type
in the new IP-address, subnet mask, gateway-address and host name. Then hit the
‘SAVE’ button and then the ‘REBOOT’ button.

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

34

3.4.9 Menu: Comport / Settings

The ‘comport / settings’ webpage defines the parameters for the DEC's integrated comport/serial port.
DEC-300™ decoders are always comport clients and ENC-300™ encoders are always comport
servers.

Figure 16: 'Comport / Settings' page of the DEC-300™ decoder

Settings:

Description:

Mode:

Specifies the comport mode. You can choose between ‘Console’
and ‘Passthrough’.
‘Console’ enables access and control of the DEC-300™
configuration via the com-cable (null modem cable). Use this
cable to set the DEC-300™ configuration when you do not want
to use web access.
‘Passthrough’ enables setting comport to a serial mode. RS-232
devices can be connected and controlled via comport. This is
useful, e. g. when cameras or other non-network devices need to
be remotely controlled. RS-232 commands can be tunnelled and
sent via TCP/IP to comport client, where they will be returned into
native RS-232 commands. When a connection is opened from
the client (e.g. decoder) to the IP-address of an encoder (e.g.
ENC-300™) at port 7777, the serial function is activated and any
data (string) is passed straight to the connected RS-232 device.
Once the connection is established, this also works the other way
for information coming back from the RS-232 device.

Destination:

Specifies the destination IP-address at which tunnelled RS-232
commands shall be sent. If ‘Passthrough’ is chosen as comport
mode, here must be entered the destination IP-address.

Bitrate:

Specifies the used bitrate in bits per second.

Databits:

Specifies the databits. You can choose between ‘7’ and ‘8’.

Parity:

Specifies the parity. You can choose between ‘none’, ‘odd’ and
‘even’.

Stopbits:

Specifies the value of used stopbits. You can choose between ‘1’

and ‘2’.

Table 14: Description of the 'COMPORT/SETTINGS' webpage of the DEC-300™

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

35

3.4.10 Menu: System / Settings

The menu ‘System/Settings’ displays information about the firmware version that is installed on your

DEC-300™.
Among other things you will find information about the system uptime, MAC-address and the Link

Mode. See

Figure 17.

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

36

Figure 17: 'System / Settings' page of the DEC-300™ decoder

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

37

3.4.11 Menu: System / Date/Time

You can set the time and date for the decoder in the menu ‘System/Date/Time’. See Figure 18.

Figure 18: 'System / Date/Time' page of the DEC-300™ decoder

Settings:

Description:

Device Date/Time:

Specifies the current date / time which is set at the DEC-300.

Client Date/Time:

Specifies the current date / time of your client.

Set Date/Time:

Specifies the current date and time. Please enter in the left field
the date in the following syntax MM/DD/YYYY. Afterwards enter
the time. Therefor enter in the middle field the hours and in the
right field the minutes.

Table 15: Description of the 'SYSTEM/DATE/TIME' webpage of the DEC-300™

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

38

3.4.12 Menu: System / Update (Upgrading firmware version)

Teracue's goal is customer satisfaction and constant product improvement. Please check regularly to
see if the most recent firmware version is installed on your DEC-300™. Please visit the IPTV Support
area on: www.teracue.com.

Firmware versions can be downloaded from the Teracue support website listed above. Firmware
versions have the suffix *.cpio.

Download the correct firmware version that you wish, to update your decoders with, and save it locally
on your computer.

Open the configuration webpage of the DEC-300™ and select the submenu ‘UPDATE’ within the

menu ‘SYSTEM’, see Figure 19.
Click on the ‘Browse’ button to locate the cpio-file on your local hard drive. Hit ‘OK’ and the path to the

file will be listed in the box in the middle of the screen.
To start the firmware update procedure simply click on the ‘►UPDATE’ button.
After you have started the firmware update a hint website appears, that you shall not disconnect the

decoder from the network or power down the decoder. During the firmware update the decoding
process stops. Please wait till your web browser shows login screen from your decoder. If the login
screen appears, the update is finished and you can login to your decoder. It is no rebooting necessary.
The decoding process starts automatically after the firmware update is finished.

Figure 19: 'System / Update' page of the DEC-300™ decoder

.!. The update will not change your current settings.
.!. During update time do not disconnect the decoder from the network or the power.
Doing so will harm your decoder!
.!. Trying to connect to the decoder or navigating on the configuration webpages during
the updating process can also harm your decoder.

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

39

3.4.13 Menu: System / Password

Figure 20 shows the ‘System / Password’ page of the DEC-300™ decoder.
If you do need to change the password due to security issues, then simply click on the submenu

‘PASSWORD’ and enter the new password twice in the provided boxes. Then hit the ‘APPLY’ button.

Figure 20: 'System / Password' page of the DEC-300™ decoder

.!. Unless your decoder is used in very critical scenarios, we recommend to leave the
password set to its default value (‘admin’, ‘admin’).

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

40

3.4.14 Menu: System / Remote

Figure 21 shows the ‘System / Remote’ page of the DEC-300™ decoder.
Enables / Disables the port 2323 for remote controlling. If you want use the remote control function,

you must enable the ‘Remote Configuration’ field. Then hit the ‘APPLY’ and ‘SAVE’ button. For more

information about remote control, please see chapter 4.1 on page 38.

Figure 21: 'System / Remote' page of the DEC-300™ decoder

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

41

3.5 Help

Clicking on the ‘HELP’ button will open the Teracue website where you can get to the ‘Support’ link.
Here you can get the current version of the DEC-300™ user guide.

.!. This will only work if the decoder is situated in a network in which internet access is
provided. Otherwise ‘page not found’ may be displayed.

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

42

3.6 Logout

After having made adjustments to the decoder, please be sure to logout, see

Figure 22.

Figure 22: Logout from the DEC-300™

.!. Logging out prevents misuse and unauthorized access to the DEC-300™.

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

43

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

44

4. Extended Function

4.1 Remote Control

This chapter describes the remote control of the DEC-300™ for media controls like Crestron or AMX.
To control the DEC-300™, the telnet protocol is used at the port number 2323. Furthermore here is no
login necessary.

To test the remote control under windows you can open the command prompt tool. A practical way to
open a command window within Windows Explorer is to write C:\Windows\system32\cmd.exe.
Another way to open a new commando prompt is by choosing the ‘Start’ menu and selecting ‘Run’.
Then write ‘cmd’ in the text field and press the ‘OK’ button. See Figure 23.

Figure 23: Command to open the command prompt

In both cases the following window opens, see Figure 24.

Figure 24: 'Command Prompt' window to test the remote control of the DEC-300™

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

45

For starting a telnet session type: telnet <ip-address> <2323>, e.g. ‘telnet 172.16.20.200 2323’, and
press the Enter button. See Figure 25.

The value ‘2323’ specifies the used TCP/IP port number for the telnet session of the remote control
test. The IP-address should correspond to the DEC's IP-address.

Figure 25: Starting a telnet session for the remote control test

Figure 26: Session to test the remote control of the DEC-300™

After you have start the session, you got the display, see Figure 26: SDECRP

The command ‘help’ will display a list of all available options.
The ‘ls’ command allows you to see the available directories and options in the current directory.

To change the current directory, write ‘cd directory_name’, e.g. ‘cd status’. To go one directory layer
upstairs, enter the command ‘cd ..’. If you enter the command ‘exit’, the telnet session will close.

If you want to enter the value of an option you must use the ‘put’ command followed by the correct
values. Afterwards use the ‘apply’ and ‘save’ commands to apply and/or save your changes.

.!. Example:

E.g. for changing the source IP-address, you need to type the following:

 put /configuration/decoder/0/source/ip_addr 239.252.20.100

 apply /configuration/decoder/0/source/ip_addr

 save

.!. Figure 27 provides an overview over the telnet navigational and directory structure to
test the remote control. This overview is useful to find the correct configuration
settings when navigating in telnet mode. For instructions and descriptions on the
individual settings, please see the corresponding chapters for web based
configuration.

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

46

/

╠►

configuration/

║ ╠═══════►

decoder/

║ ║ ╠════►

enable_config_port

Enable Config Port 2323 (yes, no)

║ ║ ╚════►

0/ ║ ║ ╠═════════►

page_refresh

Page Refresh (yes/no)

║ ║

╠═════════►

start

Decoder Start (yes/no)

║ ║

╠═════════►

low_latency

Low Latency (yes/no)

║ ║

╠═════════►

streamloss_screen

Stream loss Screen

║ ║

╠═════════►

transport/

║ ║ ║ ╠════════►

program_number

Program Number

║ ║ ║ ╠════════►

video_pid

Video PID; Read-only

║ ║ ║ ╠════════►

audio1_pid

Audio1 PID; Read-only

║ ║ ║ ╚════════►

audio2_pid

Audio2 PID; Read-only

║ ║ ║

║ ║

╠═════════►

video/

║ ║ ║ ╠════════►

format

Display Format

║ ║ ║ ╠════════►

output

Video Output

║ ║ ║ ╚════════►

aspect_ratio

Display Aspect Ratio

║ ║ ║ ║ ║

╠═════════►

audio/

║ ║ ║ ╠════════►

talkback_ip

Talkback Destination IP-address

║ ║ ║ ╠════════►

talkback_port

Talkback Port number

║ ║ ║ ╠════════►

talkback_rate

Sample Rate for Talkback

║ ║ ║ ╠════════►

talkback_stereo

Stereo for Talkback (yes/no)

║ ║ ║ ╠════════►

input

Talkback Audio Input

║ ║ ║ ╠════════►

linein_gain

Line Input Gain

║ ║ ║ ╠════════►

micin_gain

Microphone Input Gain

║ ║ ║ ╠════════►

input_mute

Audio Input Mute (yes/no)

║ ║ ║ ╠════════►

output_gain

Audio Output Gain

║ ║ ║ ╚════════►

output_mute

Audio Output Mute (yes/no)

║ ║ ║

║ ║

╠═════════►

source/

║ ║ ║ ╠════════►

protocol

Protocol

║ ║ ║ ╠════════►

ip_addr

Source IP-address

║ ║ ║ ╚════════►

port Source port number

║ ║ ║ ║ ║

╚═════════►

gpio/

║ ║ ╠════════►

mode

GPIO Mode

║ ║ ╠════════►

gpovalue

GPO Value (0/1)

║ ║ ╚════════►

server

GPIO Destination IP-address

║ ║

║

╠═══════►

network/

║ ║

╠════►

dhcp

DHCP Support (yes/no)

║ ║ ╠════►

ip_addr

DEC-300 IP-address

║ ║ ╠════►

subnet_mask

Subnet Mask

║ ║ ╠════►

broadcast_addr

Broadcast address; Read-only

║ ║ ╠════►

gateway_addr

Gateway address

║ ║ ╠════►

hostname

Hostname

║ ║ ╚════►

link_mode

Link Mode

║ ║

║

╠═══════►

comport/

║ ║

╠════►

mode

Comport mode

║ ║ ╠════►

server

Destination IP for pass-through

║ ║ ╠════►

bitrate

Bitrate

║ ║ ╠════►

databits

Databits (7/8)

║ ║ ╠════►

parity

Parity (none/odd/even)

║ ║ ╚════►

stopbits

Stopbits (1/2)

║ ║

║

╚═══════►

system/

║ ╠════►

date Date; MM/DD/YYYY

║ ╚════►

time Time; HH:MM; 24hours

║

║ ║

║

║ ║

║

║ ║

║

║ ║

║

║

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

47

║

╚►

status/

╠═══════►

system/

║ ╠════►

board_version

DEC-300 Hardware Version

║ ╠════►

software_version

* ║

╠════►

uptime

System uptime

║ ╠════►

arm ARM load (%)

║ ╠════►

dsp DSP load (%)

║ ╠════►

mac_address

MAC Address of the board

║ ╠════►

link_mode

Link Mode

║ ╠════►

date Date ║

╚════►

time Time

║

╚═══════►

decoder/

╚════►

0/

╠═════════►

decoder_running

Decoder runs Read-only

╠═════════►

steam_locked

Input stream locked Read-only

╠═════════►

stream_mode

Input stream mode; Read-only

╠═════════►

bytes_received

Received bytes; Read-only

╠═════════►

transport/

║

╠════════►

transport_rate

Transport Rate; Read-only

║ ╠════════►

program_number

Program Number; Read-only

║ ╠════════►

video_pid

Video PID; Read-only

║ ╠════════►

audio1_pid

Audio 1 PID; Read-only

║ ╠════════►

audio2_pid

Audio 2 PID; Read-only

║ ╠════════►

pcr_pid

PCR PID; Read-only

║ ╠════════►

pmt_pid

PMT PID; Read-only

║ ╠════════►

video_continuity_errors

Video Continuity Errors; Read

║ ╚════════►

audio_continuity_errors

Video Continuity Errors; Read

║

╠═════════►

video/

║ ╠════════►

codec

Video codec; Read-only

║ ╠════════►

bitrate

Video bitrate (KBit/s); Read-only

║ ╠════════►

resolution

Input resolution; Read-only

║ ╠════════►

fps Input framerate; Read-only

║ ╚════════►

aspect_ratio

Aspect Ratio; Read-only

║

╠═════════►

audio/

║

╠════════►

1_codec

Audio1 codec; Read-only

║ ╠════════►

1_bitrate

Audio1 bitrate (KBit/s); Read-only

║ ╠════════►

1_samplerate

Audio1 samplerat (Hz); Read-only

║ ╠════════►

2_codec

Audio2 codec; Read-only

║ ╠════════►

2_bitrate

Audio2 bitrate (KBit/s); Read-only

║ ╚════════►

2_samplerate

Audio2 samplerat (Hz); Read-only

║

╚═════════►

gpio/

╚════════►

gpivalue

GPI Value; Read-only

Figure 27: Telnet directory structure for Remote Control testing

* = is not supported at the moment

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

48

4.2 Audio Talkback

The audio input on the DEC-300™ operates as an audio encoder. It enables operating the DEC-300™
in Full Duplex Audio. The DEC-300™ in connection with the ENC-100™/ENC-200™ or ENC-300™
can therefore be used for audio conferencing environments, where viewers of the encoded live
streams are to be able to ask questions and communicate with people on the encoding side. The
default talkback port number of the DEC-300™ is 9177.

For Example:
An encoder can be set up to encode video and audio from a camera that is installed at an entrance
(security application). The person who wants to enter speaks into a microphone to state his/her name,
etc. The microphone is connected to the audio input of the encoder. By using the decoder’s audio
input a receptionist/security officer is able to talk back to the person, e.g. arguing why access is denied
or that the person should hold its ID into the camera. This represents regular two-way communication
(Full Duplex Mode).

Another Example:
Students from classrooms or large auditoriums are communicating with doctors or surgeons inside of
operation rooms or other sealed environments. With the DEC-300's talkback option students or
monitoring staff are able to ask on the spot questions and communicate and learn in real-time.

4.2.1 Talkback Session between DEC-300™ and ENC-300™

To use the talkback function on the DEC-300™ in connection with the ENC-300™, please be sure that
your encoder has the firmware version 2.03_w36 or higher, because this firmware is necessary. If your
ENC-300™ does not have the firmware version 2.03_w36 or higher, please contact

[e-mail].

Furthermore the ENC-300-HDSDI supports the talkback function in the portable chassis and in the
FR-610 chassis. The ENC-300-DVI supports the talkback function only in the FR-610 chassis.

In order to talkback from the DEC-300™ to the ENC-300™, please be sure that you have a
microphone or another audio signal connected to the ‘Audio In’ input of your DEC-300™. Take also
care that loudspeakers are connected in the ‘Audio Out’ output of the ENC-300™ on which you want
talkback. See Figure 28. Figure 29 shows the talkback connection between DEC-300™ and ENC­300™ in Full Duplex Mode.

Figure 28: Talkback connection between DEC-300™ and ENC-300™

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

49

For a talkback session you must configure the DEC-300™ decoder and the ENC-300™ encoder.

To start the talkback session you must configure the DEC-300™ webpage. Please open the DEC-300™ webpage,
300™ webpage, select in the main menu ‘DECODER’ and click in the submenu ‘AUDIO’. See

Figure 10 on page 22.
Enter in the ‘Talkback IP’ field the IP-address of the encoder with which the DEC-300™ should start

the talkback session. For example: A DEC-300™ should start a talkback session with an ENC-300™.
The encoder has the IP-address 172.16.20.100. So you must enter in the ‘Talkback IP’ field of the
DEC-300™ webpage the IP-address of the encoder, in this case 172.16.20.100.

Next, the talkback port number must be entered in the ‘Talkback Port’ field. The decoder and the
encoder must always have the same talkback port number. So please enter in the ‘Talkback Port’ field

of the DEC-300™ your desired port number for the talkback session. This talkback port number must
also be set in the ENC-300™ webpage.

Now, you must select in the field ‘Talkback Rate’ your desired sample rate, which should be used from

the decoder. The decoder and the encoder must always use the same sample rate. So, the set
talkback rate must also be set in the ENC-300™ webpage.

Furthermore, please select in the drop-down-field ‘Input’ the corresponding audio input for the talkback
function. If you supply the DEC-300™ with the audio signal from a microphone, you must select in the
drop-down-field ‘Input’ the parameter ‘MIC’. If you supply the DEC-300™ with a line level signal (e. g.:
the audio signal from a DVD-Player), you must select in the drop-down-field ‘Input’ the parameter

‘LINE’.
You can also set the gain in the fields ‘LineIn Gain’ and ‘MicIn Gain’ for the corresponding audio input,

which you have set in the 'Input' drop-down-field.
The DEC-300™ is totally configured for a talkback session now. As next you must configure the ENC-

300™ webpage. Therefor please open the ENC-300™ webpage, select in the main menu ‘ENCODER’

and click in the submenu ‘AUDIO’. Here you must enter the talkback port number in the ‘Talkback
Port’ field. The port number which you enter must be the same port number which you have entered

on the decoder side. Furthermore you must select in the field ‘Talkback Rate’ the sample rate, which
you have selected on the decoder side. If you have an stereo audio signal, you can enable the
‘Talkback Stereo’ check-box. You can also set the output gain level in the ‘Output Gain’ field and you
can mute the audio of the talkback session by enabling the ‘Output Mute’ check-box.

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

50

Now, the DEC-300™ and your desired ENC-300™ is completely configured and you can talkback to
your desired ENC-300™. To stop the talkback session, please enter ‘0.0.0.0’ in the ‘Talkback IP’ field
of the DEC-300™.

Figure 29: Talkback connection between DEC-300™ and ENC-300™ in Full Duplex Mode

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

51

4.2.2 Talkback Session between DEC-300™ and ENC-200™

To use the talkback function on the DEC-300™ in connection with the ENC-200™, please be sure that
your encoder has the firmware version 0.9.20 or higher, because this firmware is necessary. If your
ENC-200™ does not have the firmware version 0.9.20 or higher, please contact

[e-mail].

In order to talkback from the DEC-300™ to the ENC-200™, please be sure that you have a
microphone or another audio signal connected to the ‘Audio In’ input of your DEC-300™. Take also
care that loudspeakers are connected in the ‘Audio Out’ output of the ENC-200™ on which you want
talkback. See Figure 30. Figure 31 shows the talkback connection between DEC-300™ and ENC­200™ in Full Duplex Mode.

Figure 30: Talkback connection between DEC-300™ and ENC-200™

For a talkback session you must configure the DEC-300™ decoder and the ENC-200™ encoder.

To start the talkback session you must configure the DEC-300™ webpage. Please open the DEC-300™ webpage,
300™ webpage, select in the main menu ‘DECODER’ and click in the submenu ‘AUDIO’. See

Figure 10 on page 22.
Enter in the ‘Talkback IP’ field the IP-address of the encoder with which the DEC-300™ should start

the talkback session. For example: A DEC-300™ should start a talkback session with an ENC-200™.
The encoder has the IP-address 172.16.20.100. So you must enter in the ‘Talkback IP’ field of the
DEC-300™ webpage the IP-address of the encoder, in this case 172.16.20.100.

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

52

Next, the talkback port number must be entered in the ‘Talkback Port’ field. The decoder and the

encoder must always have the same talkback port number. So please enter in the ‘Talkback Port’ field
of the DEC-300™ your desired port number for the talkback session. This talkback port number must
also be set in the ENC-200™ webpage.

Now, you must select in the field ‘Talkback Rate’ your desired sample rate, which should be used from

the decoder. The decoder and the encoder must always use the same sample rate. So, the set
talkback rate must also be set in the ENC-200™ webpage.

Furthermore, please select in the drop-down-field ‘Input’ the corresponding audio input for the talkback
function. If you supply the DEC-300™ with the audio signal from a microphone, you must select in the
drop-down-field ‘Input’ the parameter ‘MIC’. If you supply the DEC-300™ with a line level signal (e. g.:
the audio signal from a DVD-Player), you must select in the drop-down-field ‘Input’ the parameter
‘LINE’.

You can also set the gain in the fields ‘LineIn Gain’ and ‘MicIn Gain’ for the corresponding audio input,
which you have set in the 'Input' drop-down-field.

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

53

The DEC-300™ is totally configured for a talkback session now. As next you must configure the ENC­200™ webpage. Therefor please open the ENC-200™ webpage, select in the main menu ‘ENCODER’

and click in the submenu ‘AUDIO’. Here you must enter the talkback port number in the ‘Talkback

Port’ field. The port number which you enter must be the same port number which you have entered

on the decoder side. Furthermore you must select in the field ‘Talkback Rate’ the sample rate, which
you have selected on the decoder side. You can also set the output gain level in the ‘Output Gain’ field
and you can mute the audio of the talkback session by enabling the ‘Output Mute’ check-box.

Now, the DEC-300™ and your desired ENC-200™ is completely configured and you can talkback to
your desired ENC-200™. To stop the talkback session, please enter ‘0.0.0.0’ in the ‘Talkback IP’ field
of the DEC-300™.

Figure 31: Talkback connection between DEC-300™ and ENC-200™ in Full Duplex Mode

4.2.3 Talkback Session between DEC-300™ and ENC-100™

To use the talkback function on the DEC-300™ in connection with the ENC-100™, please be sure that
your encoder has the firmware version 3.12, because this firmware is necessary. If your ENC-100™
does not have the firmware version 3.12, please contact [e-mail].

In order to talkback from the DEC-300™ to the ENC-100™, please be sure that you have a
microphone or another audio signal connected to the ‘Audio In’ input of your DEC-300™. Take also
care that loudspeakers are connected in the ‘Audio Out’ output of the ENC-100™ on which you want
talkback. See Figure 32. Figure 33 shows the talkback connection between DEC-300™ and ENC­100™ in Full Duplex Mode.

Figure 32: Talkback connection between DEC-300™ and ENC-100™

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

54

To start the talkback session you must configure the DEC-300™ webpage. Please open the DEC-300™ webpage,
300™ webpage, select in the main menu ‘DECODER’ and click in the submenu ‘AUDIO’. See

Figure 10 on page 22.
Enter in the ‘Talkback IP’ field the IP-address of the encoder with which the DEC-300™ should start

the talkback session. For example: A DEC-300™ should start a talkback session with an ENC-100™.
The encoder has the IP-address 172.16.20.100. So you must enter in the ‘Talkback IP’ field of the
DEC-300™ webpage the IP-address of the encoder, in this case 172.16.20.100.

Next, the talkback port number must be entered in the ‘Talkback Port’ field. The decoder and the

encoder must always have the same talkback port number. For a talkback session the ENC-100™
listens always on port 9177 and this port number cannot be changed at the encoder side. So please
enter in the ‘Talkback Port’ field of the DEC-300™ the port number 9177.

Now, you must select in the field ‘Talkback Rate’ your desired sample rate, which should be used from
the decoder. The decoder and the encoder must always use the same sample rate. So, the set
talkback rate must also be set in the ENC-100™ webpage. At the encoder side it can be only chosen
between 22.05 kHz and 48 kHz.

Furthermore, please select in the drop-down-field ‘Input’ the corresponding audio input for the talkback
function. If you supply the DEC-300™ with the audio signal from a microphone, you must select in the
drop-down-field ‘Input’ the parameter ‘MIC’. If you supply the DEC-300™ with a line level signal (e. g.:
the audio signal from a DVD-Player), you must select in the drop-down-field ‘Input’ the parameter

‘LINE’.
You can also set the gain in the fields ‘LineIn Gain’ and ‘MicIn Gain’ for the corresponding audio input,

which you have set in the 'Input' drop-down-field.
The DEC-300™ is totally configured for a talkback session now. As next you must configure the ENC-

100™ webpage. At the ENC-100™ encoder side, you must configure in the ‘Talkback’ field the sample
rate, which you have selected on the decoder side. Furthermore you can also set the output gain level
in the ‘LineOut’ field and you can mute the audio of the talkback session by enabling the ‘mute’ check­box.

Now, you can talkback to your desired ENC-100™. To stop the talkback session, please enter ‘0.0.0.0’
in the ‘Talkback IP’ field of the DEC-300™.

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

55

Figure 33: Talkback connection between DEC-300™ and ENC-100™ in Full Duplex Mode

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

56

4.3 TCP Streaming

If in your network occurs packet loss, jitter etc., we recommend using the connection-oriented protocol
TCP. TCP provides a point-to-point connection (unicast) for applications that require reliable
communications. If the TCP connection is established, then the data will be streamed in the same
order as it was sent from the encoder. Furthermore, lost packets can be retransmitted via TCP.

The ENC-200™ and ENC-300™ support TCP streaming in connection with the DEC-300™.
To use TCP streaming on the ENC-200™ in connection with the DEC-300™, please be sure that your

encoder has the firmware version 0.9.29 or higher, because this firmware version is necessary for
TCP streaming.

To use TCP streaming on the ENC-300™ in connection with the DEC-300™, please be sure that your
encoder has the firmware version 2.06_w40 or higher, because this firmware version is necessary for
TCP streaming.

TCP streaming is based on the client/server architecture. For TCP streaming with the ENC­200™/ENC-300™ to DEC-300™ it exists to possibilities:

 For TCP streaming you can configure the ENC-200™/ENC-300™ as a server and the DEC-

300™ as a client.

 For TCP streaming you can configure the ENC-200™/ENC-300™ as a client and the DEC-

300™ as a server.

The ENC-200™/ENC-300™ and DEC-300™ configuration changes depending on which client/server
possibility do you choose. So, the following subchapters describe the ENC-200™/ENC-300™ and
DEC-300™ configuration for the two possibilities to make a TCP connection.

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

57

4.3.1 TCP configuration: ENC-200™ is the Server

Follow the steps below, to create a TCP connection at which the ENC-200™ is the server:

 Please open the ENC-200™ webpage, go to the ENCODER > SETTINGS webpage and

select in the ‘Transport Protocol’ drop-down field the variable ‘TCP/SERVER’.

 Go to the ENCODER > DESTINATION webpage of the ENC-200™ and enter in ‘Port’ field a

port number which is not blocked (e. g. 1234). The ENC-200 listens at this port number and as
soon as a TCP request is sent by the decoder, the encoder negotiates with the decoder about
a new port number.

 Remain at the ENCODER > DESTINATION webpage of the ENC-200™ and enter a value in

the ‘Sendbuffer Size’ field (e.g. 250000). The ‘Sendbuffer Size’ specifies how much TCP data
are maximal stored at the sender side (at the encoder side). The higher the value, the more
network problems can be absorbed, but the higher is the delay at the decoder in error case.
After an error case, the delay decreases again. The delay increases only, if an error occurs in
the network. That means: If no network problems occur, the delay does not increase, even
though a high value is set in the ‘Sendbuffer Size’ field.

 Please open the DEC-300™ webpage, go to the DECODER > SOURCE webpage and select

in the ‘Transport Protocol’ drop-down field the variable ‘TCP/CLIENT’.

 At the DECODER > SOURCE webpage of the DEC-300™, please enter in the ‘IP address’

field the IP-address of the ENC-200™ (e. g. 172.16.20.100). Note: TCP supports only unicast.

 Remain at the DECODER > SOURCE webpage of the DEC-300™ and enter in the ‘Port

number’ field the same port number, which you have entered in the ENC-200™ (e.g. 1234).

Now the ENC-200™ and the DEC-300™ are configured for a TCP-connection.

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

58

4.3.2 TCP configuration: ENC-300™ is the Server

Follow the steps below, to create a TCP connection at which the ENC-300™ is the server:

 Please open the ENC-300™ webpage, go to the ENCODER > DESTINATION webpage and

select in the ‘Transport Protocol’ drop-down field the variable ‘TCP/SERVER’.

 Remain at the ENCODER > DESTINATION webpage of the ENC-300™ and specify in ‘Max

Clients’ field the maximum number of allowed decoder clients for the TCP connection.

Maximum 5 decoder clients are possible. This field has only an effect when the ENC-300 is
the ‘TCP/SERVER’.

 At the ENCODER > DESTINATION webpage of the ENC-300™, please enter a value in the

‘Send Buffer Size’ field (e.g. 250000). The ‘Send Buffer Size’ specifies how much TCP data
are maximal stored at the sender side (at the encoder side). The higher the value, the more
network problems can be absorbed, but the higher is the delay at the decoder in error case.
After an error case, the delay decreases again. The delay increases only, if an error occurs in
the network. That means: If no network problems occur, the delay does not increase, even
though a high value is set in the ‘Send Buffer Size’ field.

 Remain at the ENCODER > DESTINATION webpage of the ENC-300™ and enter in ‘Port’

field a port number which is not blocked (e. g. 1234). The ENC-300 listens at this port number
and as soon as a TCP request is sent by the decoder, the encoder negotiates with the
decoder about a new port number.

 Please open the DEC-300™ webpage, go to the DECODER > SOURCE webpage and select

in the ‘Transport Protocol’ drop-down field the variable ‘TCP/CLIENT’.

 At the DECODER > SOURCE webpage of the DEC-300™, please enter in the ‘IP address’

field the IP-address of the ENC-300™ (e. g. 172.16.20.100). Note: TCP supports only unicast.

 Remain at the DECODER > SOURCE webpage of the DEC-300™ and enter in the ‘Port

number’ field the same port number, which you have entered in the ENC-300™ (e.g. 1234).

Now the ENC-300™ and the DEC-300™ are configured for a TCP-connection.

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

59

4.3.3 TCP configuration: ENC-200™ is the Client

Please make the following steps, to create a TCP connection at which the DEC-300™ is the server:

 Please open the ENC-200™ webpage, go to the ENCODER > SETTINGS webpage and

select in the ‘Transport Protocol’ drop-down field the variable ‘TCP/CLIENT’.

 Go to the ENCODER > DESTINATION webpage of the ENC-200™ and enter in the ‘IP

address’ field the IP-address of the DEC-300™ (e. g. 172.16.20.200). Note: TCP supports

only unicast.

 At the ENCODER > DESTINATION webpage of the ENC-200™, please enter in ‘Port’ field a

port number, which is not used in the network and which is not blocked (e. g. 1234).

 Remain at the ENCODER > DESTINATION webpage of the ENC-200™ and enter a value in

the ‘Sendbuffer Size’ field (e.g. 250000). The ‘Sendbuffer Size’ specifies how much TCP data
are maximal stored at the sender side (at the encoder side). The higher the value, the more
network problems can be absorbed, but the higher is the delay at the decoder in error case.
After an error case, the delay decreases again. The delay increases only, if an error occurs in
the network. That means: If no network problems occur, the delay does not increase, even
though a high value is set in the ‘Sendbuffer Size’ field.

 Please open the DEC-300™ webpage, go to the DECODER > SOURCE webpage and select

in the ‘Transport Protocol’ drop-down field the variable ‘TCP/SERVER’.

 Remain at the DECODER > SOURCE webpage of the DEC-300™ and enter in the ‘Port

number’ field the same port number, which you have entered in the ENC-200™ (e.g. 1234).

Now the ENC-200™ and the DEC-300™ are configured for a TCP-connection.

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

60

4.3.4 TCP configuration: ENC-300™ is the Client

Please make the following steps, to create a TCP connection at which the DEC-300™ is the server:

 Please open the ENC-300™ webpage, go to the ENCODER > DESTINATION webpage and

select in the ‘Transport Protocol’ drop-down field the variable ‘TCP/CLIENT’.

 Remain at the ENCODER > DESTINATION webpage of the ENC-300™ and enter in the ‘IP

address’ field the IP-address of the DEC-300™ (e. g. 172.16.20.200). Note: TCP supports

only unicast.

 At the ENCODER > DESTINATION webpage of the ENC-300™, please enter in ‘Port’ field a

port number, which is not used in the network and which is not blocked (e. g. 1234).

 Remain at the ENCODER > DESTINATION webpage of the ENC-300™ and enter a number

in the ‘Send Buffer Size’ field (e.g. 250000). The ’Send Buffer Size’ specifies how much TCP
data are maximal stored at the sender side (at the encoder side). The higher the value, the
more network problems can be absorbed, but the higher is the delay at the decoder in error
case. After an error case, the delay decreases again. The delay increases only, if an error
occurs in the network. That means: If no network problems occur, the delay does not increase,
even though a high value is set in the ’Send Buffer Size’ field.

 Remain at the ENCODER > DESTINATION webpage of the ENC-300™ and enter in ‘Stop

Interval’ field the time interval in sec. for reconnecting in error case. This field is active when

‘TCP/CLIENT’ or ‘UDP’ is used as ‘Transport Protocol’ in the ENC-300™.

 Please open the DEC-300™ webpage, go to the DECODER > SOURCE webpage and select

in the ‘Transport Protocol’ drop-down field the variable ‘TCP/SERVER’.

 Remain at the DECODER > SOURCE webpage of the DEC-300™ and enter in the ‘Port

number’ field the same port number, which you have entered in the ENC-300™ (e.g. 1234).

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

61

4.4 Resetting to Factory Default

The DEC-300™ (blade based and chassis based) can easily be returned to its factory default values.
In order to do these please power down the decoder chassis.

Please execute the following steps to reset the DEC-300™ to the factory default settings:
Steps for the DEC-300™ blade based version which is operated in the FR-610 chassis:

 Remove the DEC-300™ blade gently and carefully from the chassis.
 Hold the blade as shown in Figure 34, with the video input pointing to the left.
 Locate the green pin connector and the jumper which is placed on the middle pin pair of the

green pin field.

 Place the jumper now on the left pair of the green pins, see Figure 34.
 Insert the DEC-300™ blade gently into the chassis and turn the power on.
 Wait for 2 minutes.
 Power down the chassis and carefully remove the blade once more. Return the jumper to its

original position, i.e. onto the middle pin pair of the green pin field.

 Insert the DEC-300™ blade gently into the chassis, connect the network cable and all

audio/video cables and turn the power on. All configuration settings except the network
settings of your decoder blade have been returned to its factory defaults.

Steps for the DEC-300™ PORTABLE (chassis based version):

 Please remove only the blue top cover of the DEC-300™ PORTABLE chassis.
 Hold the opened chassis with the video input pointing to the left.
 Locate the green pin connector and the jumper which is placed on the middle pin pair of the

green pin field.

 Place the jumper now on the left pair of the green pins, see Figure 34.
 Turn the power on.
 Wait for 2 minutes.
 Power down the chassis. Return the jumper to its original position, i.e. onto the middle pin pair

of the green pin field.

 Close the chassis with the blue top cover, connect the network cable and all audio/video

cables and turn the power on. All configuration settings except the network settings of your
decoder blade have been returned to its factory defaults.

Figure 34: DEC-300™ Blade

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

62

4.5 Restarting the DEC-300™

If a DEC-300™ is not approachable anymore, you can restart the DEC-300™ by using the restart
switch. The restart button is placed in a hole on the front panel and it is located into the ‘O’ of the
lettering ‘NETWORK’, see Figure 35. To press the restart button, you need a long thin object with
which you can put it through the hole and with which you can press the restart button. After you have
pressed the button, the DEC-300™ restarts.

Figure 35: Restarting the DEC-300™ by using the restart button

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

63

5. CE, FCC conformance

The DEC-300™ is labeled with the CE and FCC seal.
The DEC-300™ is in conformity with the following
standards:

EN 55103-1

Electromagnetic Interference - Product Family Standard for Audio,
Video, Audio-Visual and Entertainment Lighting Control Apparatus for
Professional use - Part 1: Emissions

EN 55103-2

Electromagnetic Susceptibility - Product Family Standard for Audio,
Video, Audio-Visual and Entertainment Lighting Control Apparatus for
Professional use - Part 2: Immunity

EN 55022

Limits and Methods of Measurement of Radio Interference
Characteristics of Information Technology Equipment

6. Restriction of Hazardous Substances Directive
(RoHS)

The DEC-300™ is manufactured according to the RoHS Directive. The Directive on the Restriction of
Hazardous Substances in Electrical and Electronic Equipment (RoHS) has been passed as a law by
the European Union. It affects manufacturers, sellers, distributors and recyclers of electrical and
electronic equipment containing hazardous substances as lead, cadmium, mercury, hexavalent
chrome, polybrominated biphenyl (PBB) and polybrominated diphenyl ether (PBDE).

After July 1, 2006 the use of these materials will be banned in new products sold in Europe.

Since beginning of 2005, Teracue AG began the process of redesigning and converting all of
its products to not contain any of the listed materials. All new products sold by Teracue will be
fully RoHS-compliant by July 1, 2006.

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

64

7. Waste Electrical and Electronic Equipment
Directive (WEEE)

The WEEE Directive has been passed to reduce waste arising from electrical
and electronic equipment. It encourages reuse, recycling and other forms of
recovery. Customers and end-users of electronic equipment in the EU can
therefore play an important role in reducing WEEE and saving the environment
by separating out WEEE and disposing of it properly.

Teracue AG is a registered WEEE participant since 2004. Within Germany,
Teracue is registered under the WEEE Number: DE10642708. German

customers and end-users are required to discard products marked with the
WEEE symbol (crossed out trash bin) at local resource collection points. Do not
dispose products marked with the WEEE symbol in domestic refuse.

Every country within the EU has defined different directives and methods for the collection of
electronic materials to ensure the WEEE Directive. Please follow the national guidelines that have
been identified for your country. For more information about waste disposal of your old electrical and
electronic equipment, please contact your local city office, your waste disposal service or the company
where you bought the product.

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

65

8. Technical Specification

DEC-300™:

DEC-300™:

H.264 SD/HD and MPEG-2 SD/HD decoder with analogue video output
and SDI output, embedded audio supported.

Decoding Specifications:

Standards:

PAL, NTSC, 720p 50/60, 1080i 50/60, 1080p 25/30

Video Outputs:

HD/SD-SDI: 0,8 Vpp, 75 Ohm (BNC, embedded audio support)

Break-out cable outputs:

Composite: 1 Vpp, 75 Ohm
S-Video: 1 Vpp (Y), 0,3 Vpp (C - Pal), 0,286 Vpp (C - NTSC), 75 Ohm
Component: 1 Vpp (Y), 0,7 Vpp (PBPR) , 75 Ohm

Video Output Resolutions:

Full D1: 720h x 480/576v, Half-D1: 352h x 480/576v, CIF/SIF: 360/384h x
288/240v, QCIF: 176h x 144/120v, 720p 50/60, 1080i 50/60, 1080p 25/30

Audio Outputs:

Unbalanced analogue stereo, consumer line level

Audio Inputs (Talkback):

Analogue stereo, consumer line- and MIC-level

Video Codecs:

MPEG-2 (ISO/IEC 13818-2):
Main Profile at Main Level (MP@ML), 4:2:0
High Profile at Main Level (HP@ML), 4:2:0
MPEG-4 AVC/H.264 (ISO/IEC 14496-10):
Main Profile at Level 3.0 (MP@L3),
Baseline Profile at Level 3.0 (BP@L3), 4:2.0,
High Profile at Level 4 (HP@L4)

Stream types:

ISO/IEC 13818-1 Transport Streams
Elementary A/V

Audio Codecs:

MPEG-1 Audio Layer 1, 2 (ISO/IEC 11172-3 Layer 1, 2)
MPEG-4 AAC LC (ISO/IEC 14496-3)

I/O Specifications:

Network:

10/100TX Ethernet, RJ45, half/full duplex, Auto-sensing

Streaming traffic:

Unicast and Multicast traffic supported, TCP error correction

IP Protocols:

HTTP (Web Browser), TCP/IP Control Protocol, UDP/TCP Streaming,
IGMPv2, SNMP*, DHCP

RS-232/422 port:

RS-232 connection via console (remote control for non IP devices via
TCP/IP RS-232/422 command tunnelling*)

GPI in*:

1 INPUT, isolated*

GPI out:

1 OUTPUT, isolated*

Environmental:

Agency Approvals:

CE, RoHS compliant

Humidity:

Up to 90%, non-condensing

Temperature:

-25 to +45°C environment temperature; fan less when operated as ­PORTABLE

Blade weight:

Approx. 130 grams

Blade dimensions:

(H/W/D) 20mm x 130mm x 190mm, Europe Card (160mm x 100mm,
3HE), Conform to IEC60297-3/-4

Power:

5V(DC) ±10% / 8W per blade

PORTABLE weight:

Approx. 700 grams

PORTABLE dimensions:

(H/W/D) 280mm x 104mm x 191mm

Limited Warranty:

1 year standard limited warranty. Extensions for up to 5 years available.

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

66

Order Information:

DEC-300:

H.264 SD/HD & MPEG-2 SD/HD decoder blade with SD/HD-SDI-,
embedded audio-, analog video/audio output.

DEC-300-PORTABLE:

H.264 SD/HD & MPEG-2 SD/HD portable decoder device with SD/HD­SDI-, embedded audio-, analogue video/audio output. Including power
supply.

BREAKOUT-CABLE-S:

YC (MiniDIN), CVBS (RCA), Analogue Audio In (MiniJack), Analogue
Audio Out (RCA)

BREAKOUT-CABLE-P:

YPbPr, YC, CVBS, Audio Out/In (RCA), GPI In/Out (Sub-D 9pin), RS­232/422 (Sub-D 9pin)

Blade-Chassis:

FR-610:

1RU Rack-Mount-Chassis for max. 6 blades.

FR-610:-DPS

1RU Rack-Mount-Chassis for max. 6 blades.

FR-2000-24:

4RU Rack-Mount-Chassis for up to 21 blades (depends on blade
combination) with redundant power supply.

COMPLEMENTARY PRODUCTS:

ENC-300-DVI:

H.264 HD/SD encoder blade with DVI/HDMI input. Also available as ­PORTABLE encoder device.

ENC-300-HDSDI:

H.264 HD/SD encoder blade with SDI, PAL/NTSC, Composite, S-Video,
Component or analog VGA input. Also available as -PORTABLE encoder
device.

MC-ROUTE-1RU:

1RU appliance for live stream routing and bridging of unicast and
multicast streams.

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

67

IV. List of figures

FIGURE 1: DEC-300™ FRONT SIDE .......................................................................................................... 11

FIGURE 2: BREAKOUT CABLE 'S' ............................................................................................................... 13

FIGURE 3: BREAKOUT CABLE 'P' ............................................................................................................... 14

FIGURE 4: DEC-300™ WEB INTERFACE 'LOGIN PAGE' ............................................................................... 16

FIGURE 5: SETTINGS OF THE DEC-300™ ................................................................................................. 17

FIGURE 6: BLUE INFO-BOX OF THE DEC-300 WEBPAGES .......................................................................... 18

FIGURE 7: 'DECODER / SETTINGS' PAGE OF THE DEC-300™ DECODER ...................................................... 19

FIGURE 8: 'DECODER / TRANSPORT' PAGE OF THE DEC-300™ DECODER................................................... 20

FIGURE 9: 'DECODER / VIDEO' PAGE OF THE DEC-300™ DECODER ........................................................... 21

FIGURE 10: 'DECODER / AUDIO' PAGE OF THE DEC-300™ DECODER ......................................................... 22

FIGURE 11: 'DECODER / SOURCE' PAGE OF THE DEC-300™ DECODER ...................................................... 23

FIGURE 12: UNICAST CONNECTION BETWEEN ENC-300™ AND DEC-300™............................................... 24

FIGURE 13: 'DECODER / GPIO' PAGE OF THE DEC-300™ DECODER .......................................................... 25

FIGURE 14: 'DECODER / XPLAYER' PAGE WITH OPENED XPLAYER .............................................................. 27

FIGURE 15: 'NETWORK / SETTINGS' PAGE OF THE DEC-300™ DECODER.................................................... 28

FIGURE 16: 'COMPORT / SETTINGS' PAGE OF THE DEC-300™ DECODER.................................................... 30

FIGURE 17: 'SYSTEM / SETTINGS' PAGE OF THE DEC-300™ DECODER....................................................... 31

FIGURE 18: 'SYSTEM / DATE/TIME' PAGE OF THE DEC-300™ DECODER ..................................................... 32

FIGURE 19: 'SYSTEM / UPDATE' PAGE OF THE DEC-300™ DECODER ......................................................... 33

FIGURE 20: 'SYSTEM / PASSWORD' PAGE OF THE DEC-300™ DECODER .................................................... 34

FIGURE 21: 'SYSTEM / REMOTE' PAGE OF THE DEC-300™ DECODER ......................................................... 35

FIGURE 22: LOGOUT FORM THE DEC-300™ ............................................................................................. 37

FIGURE 23: COMMAND TO OPEN THE COMMAND PROMPT ........................................................................... 38

FIGURE 24: 'COMMAND PROMPT' WINDOW TO TEST THE REMOTE CONTROL OF THE DEC-300™ .................. 38

FIGURE 25: STARTING A TELNET SESSION FOR THE REMOTE CONTROL TEST ............................................... 39

FIGURE 26: SESSION TO TEST THE REMOTE CONTROL OF THE DEC-300™ ................................................. 39

FIGURE 27: TELNET DIRECTORY STRUCTURE FOR REMOTE CONTROL TESTING ........................................... 41

FIGURE 28: TALKBACK CONNECTION BETWEEN DEC-300™ AND ENC-300™ ............................................ 42

FIGURE 29: TALKBACK CONNECTION BETWEEN DEC-300™ AND ENC-300™ IN FULL DUPLEX MODE ......... 43

FIGURE 30: TALKBACK CONNECTION BETWEEN DEC-300™ AND ENC-200™ ............................................ 44

FIGURE 31: TALKBACK CONNECTION BETWEEN DEC-300™ AND ENC-200™ IN FULL DUPLEX MODE ......... 45

FIGURE 32: TALKBACK CONNECTION BETWEEN DEC-300™ AND ENC-100™ ............................................ 45

FIGURE 33: TALKBACK CONNECTION BETWEEN DEC-300™ AND ENC-100™ IN FULL DUPLEX MODE ......... 46

FIGURE 34: DEC-300™ BLADE ............................................................................................................... 52

FIGURE 35: RESTARTING THE DEC-300™ BY USING THE RESTART BUTTON ............................................... 53

DEC-300™ H.264 and MPEG-2 SD/HD Decoder
User Guide V1.3

68

V. List of tables

TABLE 1: DESCRIPTION OF THE CONNECTORS ON THE DEC-300™ FRONT SIDE .......................................... 11

TABLE 2: ASSIGNMENT OF THE SUB-D 26-PIN CONNECTOR ........................................................................ 12

TABLE 3: BREAKOUT CABLE 'S' ................................................................................................................. 13

TABLE 4: BREAKOUT CABLE 'P' ................................................................................................................. 14

TABLE 5: DESCRIPTION OF THE BLUE INFO-BOX OF DEC-300 WEBPAGES ................................................... 18

TABLE 6: DESCRIPTION OF THE 'DECODER/SETTINGS' WEBPAGE OF THE DEC-300™ ........................... 19

TABLE 7: DESCRIPTION OF THE 'DECODER/TRANSPORT' WEBPAGE OF THE DEC-300™ ....................... 20

TABLE 8: DESCRIPTION OF THE 'DECODER/VIDEO' WEBPAGE OF THE DEC-300™ .................................. 21

TABLE 9: DESCRIPTION OF THE 'DECODER/AUDIO' WEBPAGE OF THE DEC-300™ .................................. 22

TABLE 10: DESCRIPTION OF THE 'DECODER/SOURCE' WEBPAGE OF THE DEC-300™ ............................ 23

TABLE 11: DESCRIPTION OF THE 'DECODER/GPIO' WEBPAGE OF THE DEC-300™ .................................. 25

TABLE 12: ASSIGNMENT OF THE GPIO SUB-D CONNECTOR OF THE BREAKOUT CABLE 'P' .......................... 26

TABLE 13: DESCRIPTION OF THE 'NETWORK/SETTINGS' WEBPAGE OF THE DEC-300™ ......................... 28

TABLE 14: DESCRIPTION OF THE 'COMPORT/SETTINGS' WEBPAGE OF THE DEC-300™ ......................... 30

TABLE 15: DESCRIPTION OF THE 'SYSTEM/DATE/TIME' WEBPAGE OF THE DEC-300™ ........................... 32

9. Known Issues

- All German "Oeffentlich Rechtliche" HD TV programs show artefacts.

- No support for MPEG4 audio AAC streams in LOAS or LATM format

- No support for Intra coded MBAFF IDR frames. These frames are decoded
as uniform colour planes. Colour depends on video content. So with bright
content the erroneous frames look like a flash, with dark content one might
not even recognize those frames.

- When downgrading to a "non-IEEE802.1x" aware firmware, it might be necessary
to do a factory-reset to regain network access.

- If a GOP has more than two B-frames, artefacts are visible.
