Thank you for purchasing TERA model TR-7200/TR-7400. These models feature 1,024 channels, 64 zones. Th ese radios models are built to D MR standards which insures operation worldwide.

To get the most out of your radio, please read this manual carefully before use.

TERA

TR-7200 TR-7400

www.t era .c o

User Manual

TR-7200 TR-7400

Page 2

This commercial handheld radio ships from the manufacture “Di splayed Locked” per FCC rules. You must first use the programming software to unlock this radio for the first time of use. You will need the programming cable to connect your radio to your computer for programming. Please contact your dealer for radio programming software. When programming this radio for the first time , it is recommended you first READ the radio with the software and then save thi s fi le for future reference. In addition, after you READ this radio w ith software, first make your programming and frequency changes, then send this edited file back to your ra dio. Ple ase cont act the dealer you purchased th is radio from o r TERA s hould you have any questions.

Initial Programming

The TERA website provides additional information about obtaining service or support for the TERA line of digital portable radio and accessories.

visit: www.tera.co

On-line Service and Support

User Manual

Safety Matters

The following recommendations will help you understand this radios safety requirements.

1. Only qualified TERA technicians are allowed to service this . Do not disassemble the radio by yourself as it will void the warranty.

2. Use only the TERA brand battery pack and desk charger, so as to not damage the transceiver.

3. Do not expose this radio to long periods of direct sunlight, or hot or humid areas.

4. Do not put this radio in dusty or dirty locations.

5. Do not use harsh chemicals, cleaning solvents, or strong detergent to wash this radio.

6. Never transmit on this radio without an antenna.

Caution

Safety and operability of this radio can’t be guaranteed unless TERA brand accessories or parts are used.

digital portable radio

Attaching/Removing the battery

Attaching/Removing the antenna

Installing/Removing the Belt Clip

Installing Hand Strap

Attaching the Audio Accessory /Removing

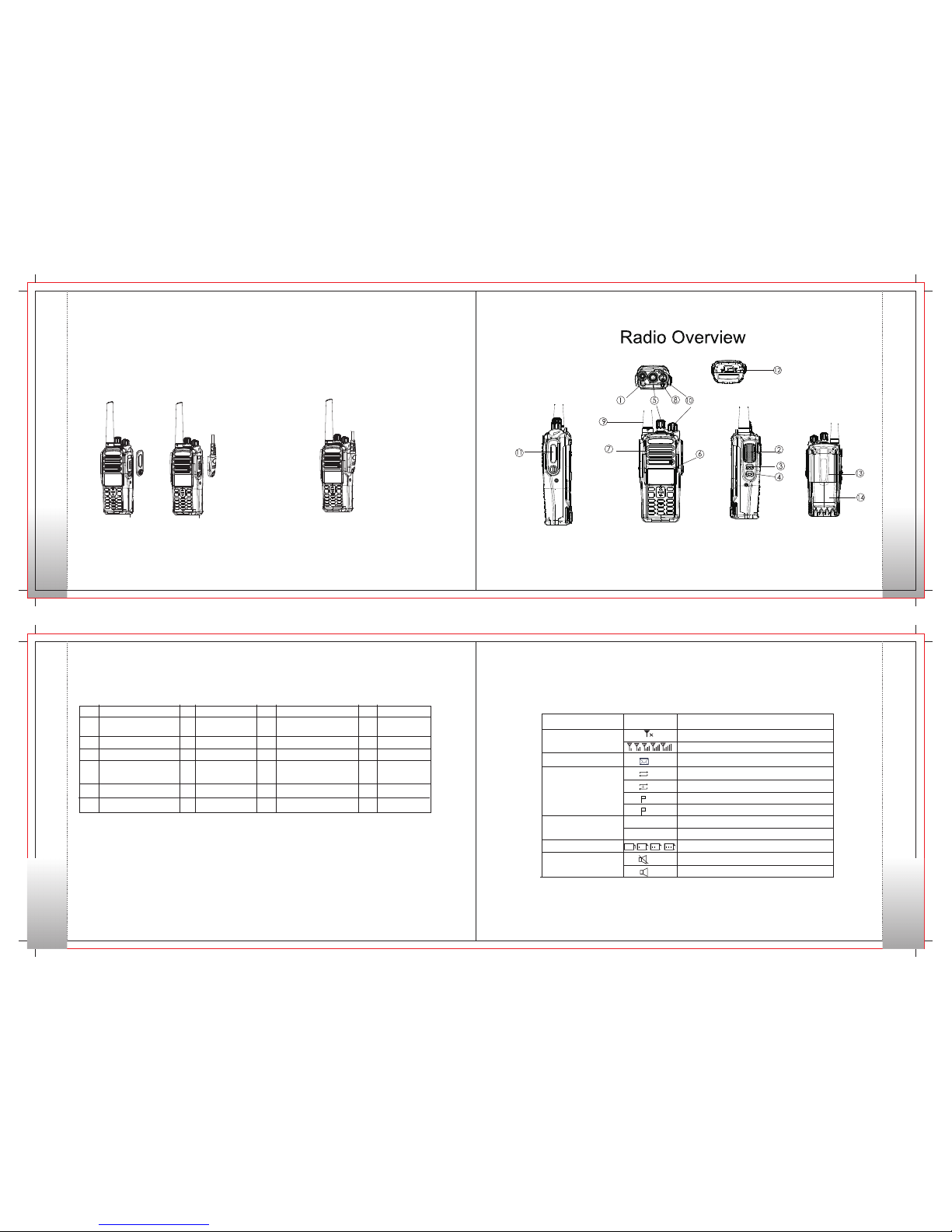

Radio Overview

Status Indicators

LED Indicator

Programmable Keys

Basic Operations

Turning the Radio On/Off

Adjusting the Volume

Contents

Safety Matters

Product Inspection

Get Acquainted

Cautions in Charging

Antenna Information

Attaching and Removing

Page 3

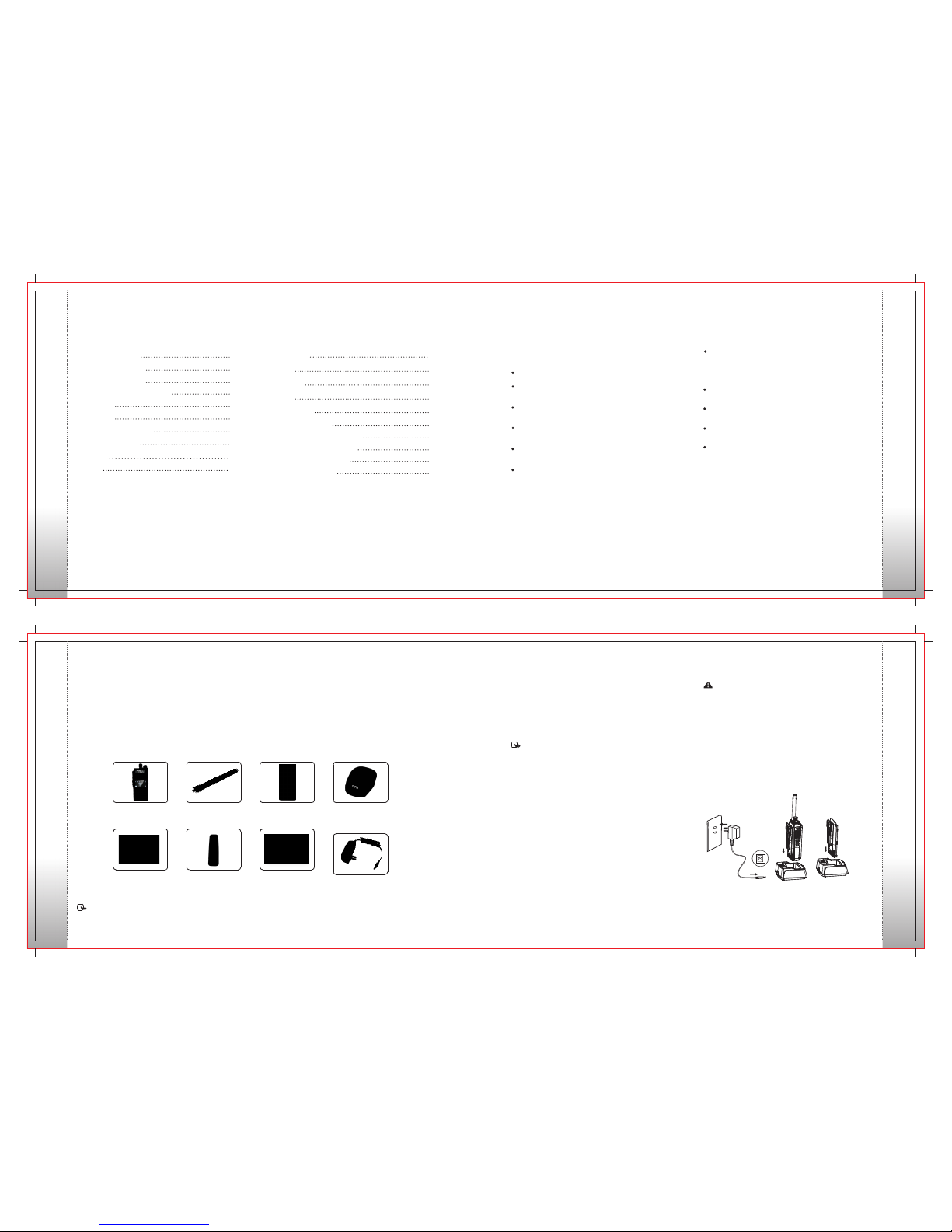

Safety Matters

Contents

Product Inspectionrs

Get Acquainted

Selecting a Zone

Selecting a Channel

Analog/Digital Switch

Locking/Unlocking the Keypad

Private Call

Group Call

Transmitting an All Call

Menu Navigation

Contact

Message

Call Logs

Scan

Settings

TOT

TX Power

Basic Settings

Care and Maintenance

Service and Support

Terms of Warranty

Functions and Operations

Safety Matters

To avoid problems caused by electro magnetic i nterferen ce or electromagnetic compatibility, please turn off the radio in places with “Wireless Communication Transmit Equipment Prohibited” mark, such as hospitals or other health care places. When taking a plane, turn off the radio if required.

In a car with air bag, do not place the radio within possibly involved area when air bag expands.

Do not expose the radio to direct sunlight or near heating devices for a long time.

Keep the radio vertical and speak near the mi croph one during transmitting.

Make sure that the antenna is 2.5 cm away from the body during transmitting if you carry the radio on your body.

Thanks for using TR-7200 / TR-7400 . Before use, we recommend that: First check the package for any signs of damage; Carefully open the package and identify the items listed below; If any items are missing or damaged during shipment, please contact your dealer.

digital portable radio

Product Inspection

Items

Radio DH-9800 Qty:1

Li-Ion Battery Qty:1

Charger Qty:1

Adapter Qty:1

Antenna Qty:1

Lanyard Strap Qty:1

Belt Clip Qty:1

Note: Frequency is marked on the color circle at the bottom of the antenna.

User Manual Qty:1

Please read rules below. Nonobservance of these rules may cause danger or violation of law.

The use this radio must comply with regulations of local government.

Turn off the radio before you enter places of flammable or explosive environment.

Do not replace or charge battery pack in places of flammable or explosive environment.

Turn off the radio before you approach blast area and detonator area.

Do not use the damaged antenna which may cause lightly burn on skin.

Only qualified technician are allowed to maintain this two-way radio. Do not disassemble the radio by yourself.

Applicable Battery Model:

lease charge with TERA approved battery ; Using other batteries may burst and cause personal damage.

Get Acquainted

Battery Information

Note:

1. Do not short-circuit the battery terminals or dispose the battery in fire. Never attempt to disassemble the battery pack.

2. Charge the battery in 0-45℃ temperature. Otherwise the battery may not be fully charged.

3. Turn off the radio equipped with battery before charge. Use the radio while charging may interfere with charging.

4. Do not pull/plug the adapter and the battery during charging to avoid interfere with the charging procedure.

5. When the battery power consumes quickly even if it is fully and

correctly charged, that means the battery life is over and please replace with new battery.

6. Do not charge if the battery or radio is wet. Before charge, you should dry it with cloth to avoid danger.

Warning:

Con duct ive meta ls su ch as je we lry , key or decorating lace ma y result in sh ort ci rc ui t a nd generate a large quantity of heat when c oming to contact with battery ele ct rode s. Treat any battery carefully especially when placing it into pocket, wallet or other metal container.

Charge Operation

Please charge as follows:

Page 4

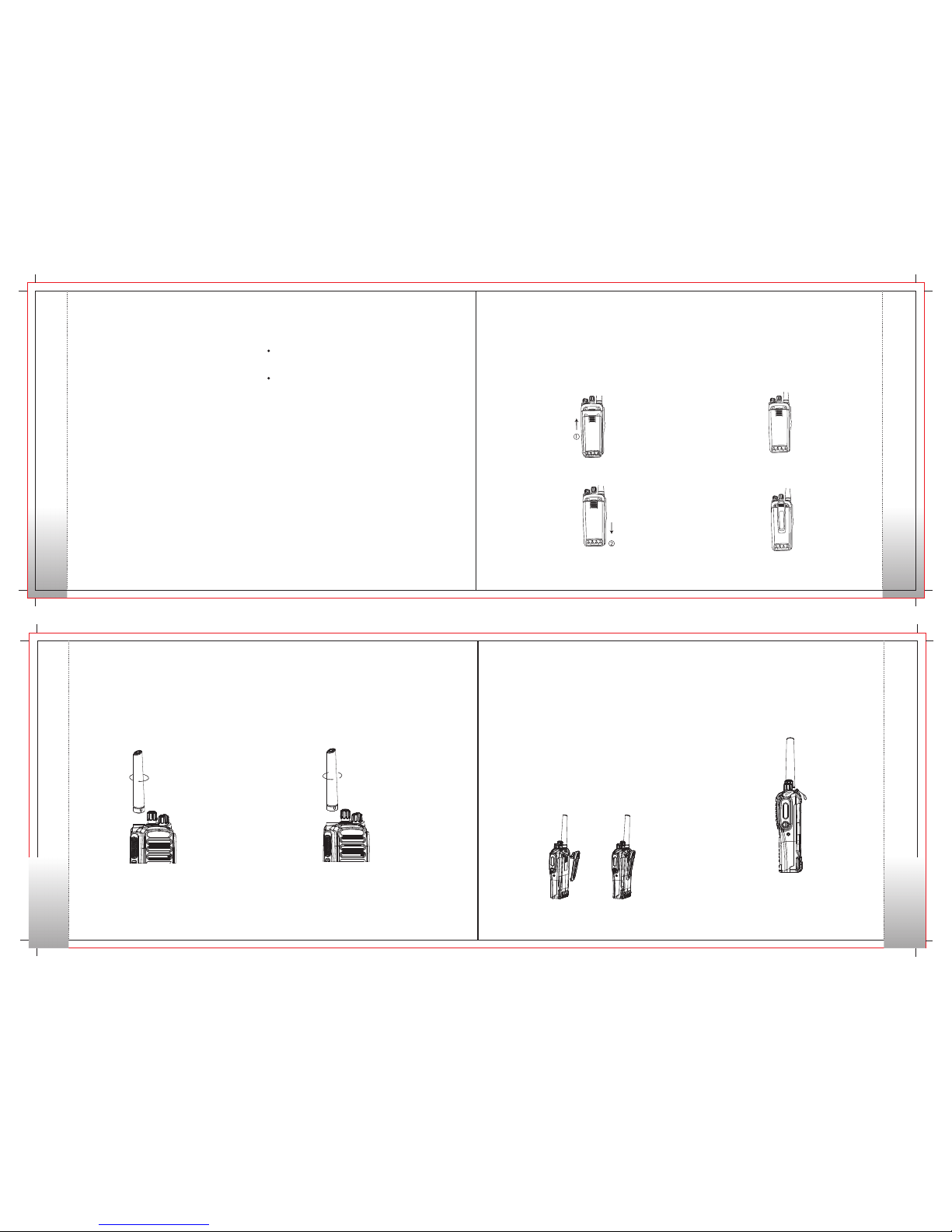

Attaching/Removing the Antenna

Attaching the antenna:

1. Insert the antenna into the connector on the top of radio by holding the antenna at its base.

2. Rotate the antenna clockwise to fasten it.

Removing the Antenna:

Rotate the antenna counter clockwise until you can remove it.

Removing the Batt ery

Attaching/Removing the Battery

Attaching/Removing the Antenna

Installing/Removing the Belt Clip

Cautions in Charging

1. Turn off the radio. Plug the DC connector of adapter into the DC jack on the rear of the charger.

2. Plug the AC connector of adapter into an AC outlet.

3. After the charger is electrified, the LED glows red for 1 second and goes out. That means the c harger is ready for normal charging. If the LED flashes red, it means the charger is not ready for battery charging.

4. Insert the battery or radio equipped with battery into the charger. Mak e sure the bat tery is in good connection with the charger electrode.

5. LED glows red during charging and flashed during trickle charging because of very low battery power. And after the battery power reached a certain mount during trick le charge, the charger automatically turns to normal charge mode.

6. The battery is fully charged when LED glows green. The charger stops charging automatically.

Cautions in Charging

1. The battery is not charged in factory. Please charge the battery before initial use or after long-time storage.

2. Repeat charging 2 to 3 times will make the battery reach its best capacity. Please replace or charge the battery if battery power is low.

3. When the battery power consumes quickly even if it is fully and correctly charged, that means the battery life is over and please contact your dealer and buy new approved battery.

Antenna Information

Stubby antenna is suitable for short-distance communication; thin and long anten na wil l provide best communicat ion effect. Also it is comfortable to carry on the waist.

The communication range may be shortened in rainy days or in forest. Please make preparations for that .

Push the ba ttery latch tow ards the mark “Lo ck” to lock it.

Match the two grooves of battery with corresponding guides on the back of the radio. And make sure the full contact and parallel between the battery and aluminum chassis.

Then push the battery along the guide until the battery latch locks.

To remove the battery, first make sure the radio is turned off, then push the battery latch in the opposite direction of the mark “LOCK” to unlock it, and push the battery latch downwards.

Slide the battery away from the radio.

Installing Belt Clip

Match the grooves of belt clip with those on the rear of radio and press the belt clip downwards until it is locked.

Installing/Removing the Belt Clip

Removing Belt Clip

Use your nail or a tool to lift the metal spring piece in the belt clip from topside and pull the belt clip upward from the battery pack.

Note:

1. To use belt clip, please install the be lt clip onto the batt ery before the installing of battery pack.

2. Remove the battery fro m the radio be fore the removing of belt clip.

Installing Hand Strap

Thread the strap into the hole at the back of the radio and fasten it.

(Figure 1) (Figure 2)

Attaching the Battery

Attaching and Removing

Page 5

Attaching the Audio Accessory Programming Cable

1. Remove the screw on the ac cessory jack cover, open the accessory jack cover as figure show below.

2. Align the plug with the accessory jack.

3. Tighten the screw on the plug.

Removing the Accessory

To remove accessories, loosen the screw as figure shown belo w.

Attaching the Audio Accessory

Radio Overview

Status Indicators

Radio Overview

PTT Key

SK1（Side Key 1） LCD Display

Speaker Numeric Keypad

LED Indicator

Antenna

OK/Menu Key Accessory Jack

Radio On-Off/ Volume Control Knob

Back Key

Right Key/ Home Screen Key

Left Key Up Key

Down Key

Battery Latch

Belt Clip

Battery

SK2（Side Key 2）

TK（Top Key）

Channel Selector Knob Microphone

Part Name Part Name

No. No.

1 7 13

Status Indicators

LCD Icons

Icon Name

RSSI

Message Icons

Scan Icons

Tx Power Icons

Battery Strength Icons

Tone Icons

Radio Status

No signal More bars indicate better signal strength

New Message/Unread Message

Scanning is in progress

Scanning pauses on a non-priority channel

Scanning pauses on Priority Channel 1 Scanning pauses on Priority Channel 2

Low Tx power for the current channel High Tx power for the current channel

More bars indicate more battery power

Radio Silent is on

Radio Silent is off

Icon

Page 6

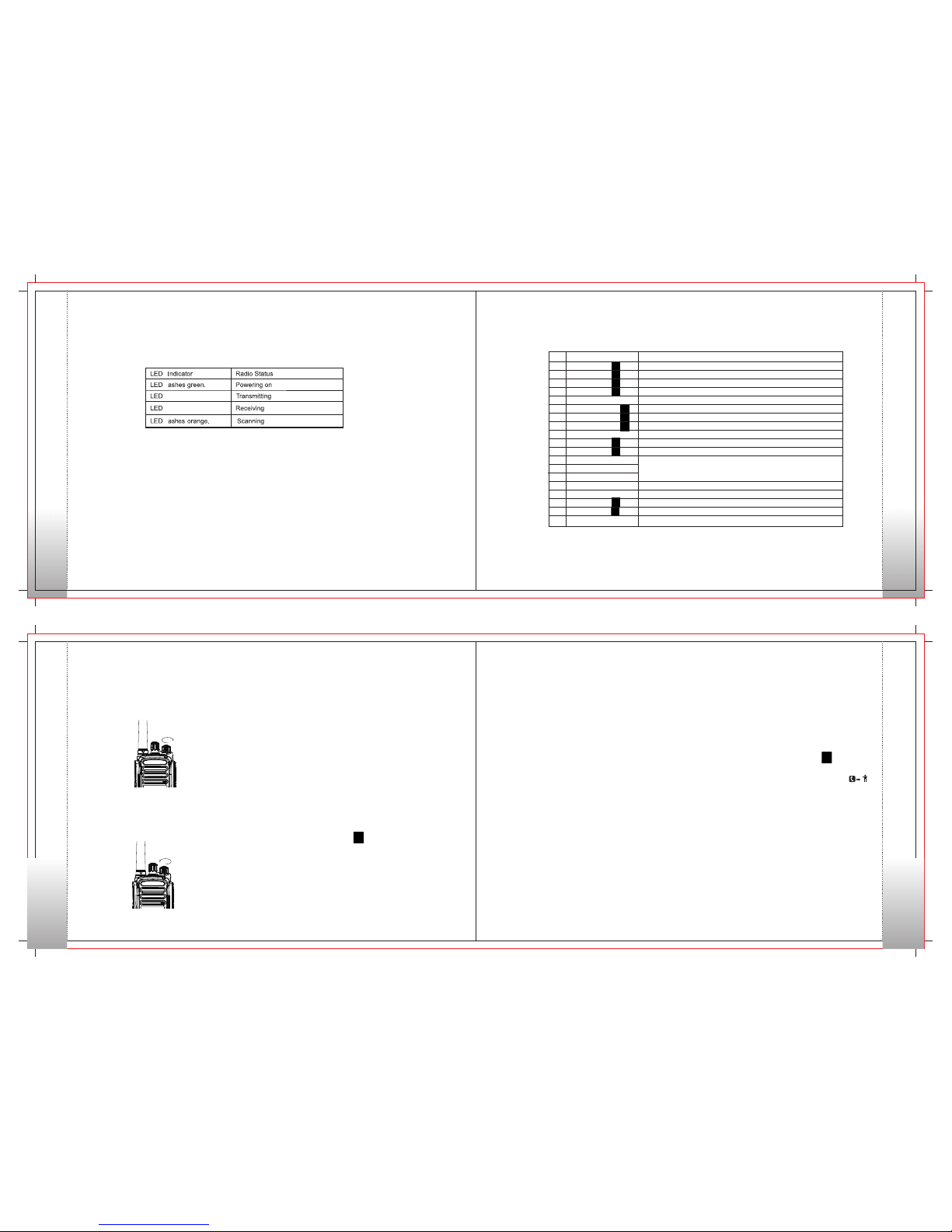

LED lndicator

Programmable Keys

Basic Operations

Call

fla shes re d.

fla shes gr een.

LED lndicator

The top LED indicator will help you easily identify current radio status.

For enhanced convenience, you may request your dealer to program the keys【SK1】、【SK2】、【TK】as shortcuts to the functions listed below:

Note： 1）Long and short press of a key can be assigned with different functions by your dealer.

2 The【TK】is programmed as the Emergency key by default, and is programmable by your dealer.）

Shortcut Keys

Radio Disable Radio Enable Radio Check Alert Call Adjust Power Level Remote Monitor Emergency On Emergency Off

VOX Message Contact Zone Up Zone Down Zone Switch Keypad Lock

Vibration Man Down Squelch Off Battery Power Indicator

No.

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

Description

To disable the radio of a private contact quickly To enable the radio of a private contact quickly To check the radio of a private contact quickly To initiate an alert call To change the TX power between High and Low To remotely monitor a contact through one button press To initiate an emergency call. To stop the emergency call To toggle the VOX function between on and off.

Quick access to the menu “Message” Quick access to Contact List

Quick access to a desired zone

To lock or unlock the keypad quickly To enable or disable Vibration function through one button press To enable or disable Man Down function through one button press To always unmute speaker no matter whether carrier is present or not.

To show the battery power through one button press.

Programmable Keys

Turning the Radio On/Off

Basic Operations

Adjusting the Volume

Selecting a Zone

A zone is a group of channels exhibiting the same property, and is programmed by your dealer. The radio supports up to 16 zones, each with a maximum of 16channels. You may select a zone through any of the following methods.

1. Always Allow: the user can transmit all the time.

2. Through menu selection. Go to the menu “Zone”, and use the 【Up】/ 【Down】keys to select your desired zone and use【OK】key to switch to the zone.

3. . You may quickly toggle to you desired zone by pressing the

programmed【Zone Up】/【 Zone Down】/【Zone Switch】 key.

Note: This feature is available for digital channel only.

Through the function keys

Rotate the【Radio On-Off/Volume Control】knobclockwise/ counter-clockwise until a click is heard to turn the radio on/off.

After tur ning the radio on, rotate the Rad io On-Off/Volum e Control knob clockwis e to increase the volume, or counterclockwise to decrease the volume.

Selecting a Channel

Rotate the【Channel Selector】knob to select a desired channel. Users can set the “Tx Admit” feature for each dig ital channel via programming software. This fea ture preve nts users from transmitting on channels that are already in use.

1. Always Allow: the user can transmit all the time.

2. Channel Free: the radio can transmit only if the channel is free.

3. Color Code Free: the radio can transmit only when the channel is free or the color code is not matched. Note: This feature is available for digital channel only.

Each channel can be programmed as either analog channel or digital channel . If the current zon e includes both analog and digital channel s, you may quickly switch between di gital and analog through the 【Channel Selector】knob.

Digital/Analog Switch

When the keypad is not in use, you can l ock th e ke ypa d t o preve nt acci dental k eypad op eratio n. Thre e me th ods a re available for you to lock or unlock the keypad:

Locking/Unlocking the Keypad

Keypad Lock On:

The keypad will be locked automatically if no operation is made for the preset time period.

Keypad Lock Off:

The keypad will not be locked automatically. However, you can lock or unlock the keypad via the key combination or Keypad Lock key mention above .

3. Through menu selection Go to Settings -> Basic Setting -> Keypad Lock, and then select On or Off.

2. Through the function key Press the programmed Keypad Lock key to lock or unlock the keypad.

1. Through key combination Use“【OK】+【*DEL】”to lock or unlock the keypad.

Call

You may transmit a Private Call through any of the followi ng methods. When transmitting a Private Call, the icon “ ” will appear.

Transmitting a Private Call

Transmitting a call to the preset contact

In standby mode, pressing PTT key will transmit a n indivi dual call to the contact (a Private Call number) preset for the current channel.

Note: Your dealer may preset a contact for each digital channel. The preset contact could be a Private Call number, a Group Call number or an All Call number.

Page 7

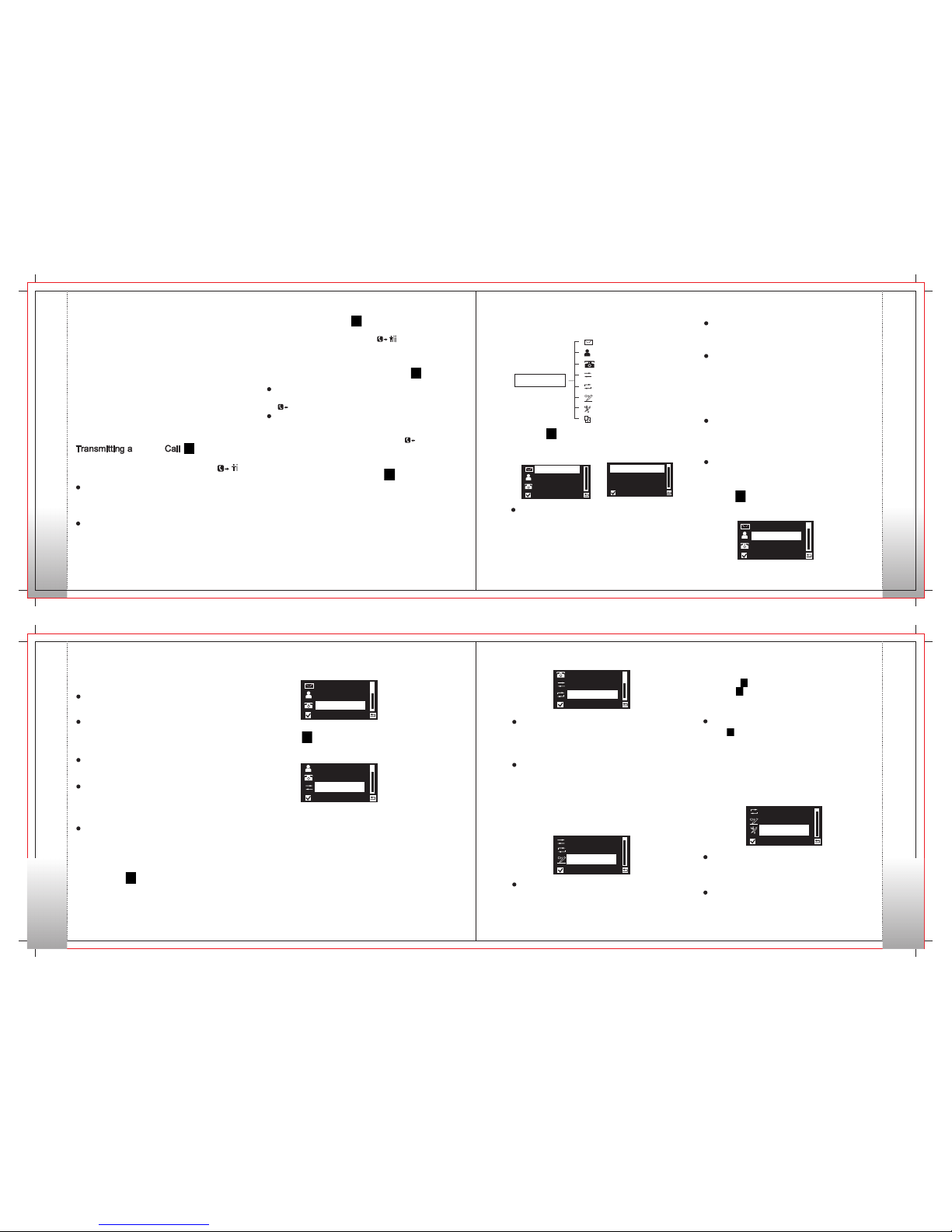

Menu Navigation

Settings

Receiving an All Call

When an All Call is receive d, your rad io will displ ay the icon .

Make a Call on Analog Channels

To transmit on an analog ch annel, hold dow n the PTT and speak into the microphone. To receive, release the PTT.

Transmitting an All Call

Methods are the same as those in Transmitting a Group Call When transmitting an All Call, the icon“ ” will appear.

Message

To access this item, press the Menu key in id le mode and then select “Message”, or press the shortcut key for Message directly.

Inbox

To access this item, press the Menu key in idle mod e and th en select “Message”, or press the shortcut key fo r Message directly.

For each message, you can choose to perform any of these operations: Reply/Forward/Edit/Delete. To delete all messages in the Inbox, select

“Message→Delete→Inbox”.

New Msg

You can create your desired text messages (150 characters at most) and send it to an individual user or to a talk group.

Outbox

The Outbox can save up to 15 sent messages. When th e Outbox is full, the oldest entr y will be overwritten by the latest one auto matically.For each message, you can choose to perform any of these operations: Resend / Forward / Edit /Delete. To delete all messages in the Outbox, select“Message→Delete→Outbox”.

Quick Text

Under this option there are some text messages (15 entries at most) preset by your dealer. You can choose to edi t and sen d any entry.

Drafts Box

The Drafts Box can save up to 15 messages. Users can re-edit or send the message saved in the Drafts Box.

Call

Detail

You can view details of each contact.

New Contact

You can add a Private Call contact to the contact list. The number and alias of each contact must be unique, and the available number range is 1-16776415.

Editing a Contact

You can edit the number and alias of each Private Call contact.

Deleting a Contact

You can delete a Private Call contact. However, please note that you can not delete the contact when there is only one entry left in the list.

Sending Msg

Users can send a message to a contact.

You can enable Radio Check/ Alert Call/ Remote Monitor/ Radio Disable/ Radio Enable of a Private Call contact.

Manual Dial

To access this item, press the【Menu】key and then select “Manual Dial”.

Message Contact

Manual Dial

Contact Manual Dial

Call Logs

To access this item, press the【Menu】key and then select “Scan”.

You can save up to 64 entries in the list. To access this. item, select “Contact” or press the shortcut key for Contact List.

You can manually input the Private Call number for calling.

Call Logs

To access this item, press the Menu key in idle mode and then select “Call Logs”.

This radio can save up to 20 entries in the Outgoing List, Incoming List and Missed List respectively (only for private call list). When the memory for call logs is full, the oldest entry will be overwritten by latest one automatically . After accessing a list and selecting an entry, you can perform any of these operations: hold down the PTT key to initiate a call, view, send a message or delete it. To delete all entries in Outgoing List, Incoming List and Missed List at

a time, select “Call Logs→Delete→Outgoing /Incoming /Missed”.

Scan

Transmitting a call through Contact List or Call Logs

1) Go to Contact, or go to Call Logs ->Call List Missed List

2) Use the Up/Down key to select the Private Call number you want to call.

3) Hold down PTT key to transmit a Private Call to the selected contact.

->Outgoing/Incoming/

Transmitting a call through Manual Dial

1) Go to Manual Dial.

2) Input a Private Call number you want to call.

3) Press PTT key to transmit a call.

Note: If the keypad input function is enabled by the dealer via the programming software users can input a Private Cal l number though Numeric Keypad.

You may transmit a Call through any of the fol lowing methods. When transmitting a Group Call, the icon“ ” will appear.

Grou p

Gro up

Transmitting a call to the preset contact

In standby mode, pressing PTT key will transmit a group call to the contact (a Group Call number) preset for the cur rent channel.

Transmitting a call through Contact List or Call Logs

1) Go to Contact .

2) Use the Up/Down key to select the Group Call number you

want to call.

3) Hold down PTT key totransmit a Group Call to the selected contact.

Note: You can transmit an All Call only when it is enabled by your dealer.

Receiving and Responding to a CallGroup

Responding to a Call , after a Call is received, you may press the PTT key within the pres et time period to call back. If you do not respond to a received Private Call, the radio will display the missed call icon“ ”.

Group Group

Note: You cannot respond to an All Call.

Note: To ensure an optimal volume for the receiving radio, hold the radio approximately 2.5 to 5 centimeters away from your mouth during transmission.

Contact

Message

Manual Dial Call Logs Scan Program

Settings Zone

Main Menu

Inbox

New Msg Outbox

Message

Contact Manual Dial

Contact

To access this item, press Menu key in idle mode and then select “Contact”.

Message

Contact

Manual Dial

Manual Dial Call Logs

Scan

Scan On/Off

The func tion “Scan” allows you to listen to comm unication activities on other channels so that you can keep a close track of your team members. This option is used to enable or disable the function.

Scan List

The func tion “Scan” al lows you to list en to communi cation activities on other channels so that you can keep a close track of your team members. This option is used to enable or disable the function.

Program

To access this item, press the【Men u】key and then select “Program”.

Call Logs Scan

Program

Channel

You can optimize your radi o performance by customi zing related para meters acco rding t o actual needs a nd your preferen ces.

Frequency：to set the Rx frequency and Tx frequency of current channel Slot ：to select the Tx slot Color Code ：to set the color c ode value f or current digital channel (available range: 0-15)

Radio

Radio ID ：to view and change radio ID (this item is restricted by its available range “1~16776415”and the program software).

Settings

To access this item, press the【Menu】key and then select “Settings”. You can optimize your radio performan ce by

customizing related parameters according to actual needs and your preferences.

Scan Program

Settings

Device Information

With this option, you can view the basic information of. your radio, including radio ID, software version, firmware version, model number.

Parameter Setting

TOT

With this option you can set the duration that the radio can

Menu Navigation

Page 8

continuously transmit. The purpose of this feature is to prevent any user from occupying a channel for an extended period. If the preset time expires, the radio will automatically terminate transmission and keep beeping. To stop beeping, please release the PTT key. You must wait for a certain time period before you can press and hold down the PTT key to transmit again.

This option allo ws users to enable vibration alert for messages, private calls, alert calls and so on.

To set the language in which all interface information s displayed. At the moment, this radio only supp orts two languages: Simplified Chinese and English.

Keypad Tone

To set whether the radio will give tone indication when there are keypad operations and to set the volume of the tone.

VOX

This option allows users to configure the VOX function. When enabled, this function allows users to speak into the radio directly without pressing PTT key.

To set whether to enable auto keypad lock.

To access this item, press the【 Menu】k ey and then select “Zone”. This radio supports up to 16 zones. You can use this menu to select you r d esir ed zone or you can use pro gra mmed Zone Up】/【Zo ne Down】/【Zone Switch 】key to switch to your desired zone.

Settings

Basic Operations

Emergency Mode

Note：This feature is null in Emergency mode.

Tx Power

This option allows you to set transmit power level. Alternatively, you can change the power level by pressing the shortcut key for Adjust Power Level. There are two levels avai lable: H igh (ind icated b y H ) and Low (i ndicate d by L ). H igh p ower leve l en able s you to communicate with further team members.

Vibration

To set tones for your radio, you can set the following tones:

Radio Silent

To set whether the radio will give tone indication. If Silent on is selected, all alerts will be off.

Tone

Low Battery Tone

To set whether the radio will give tone indication when the battery power is low and to set th e volume of the tone.

Message Tone

To set whether the radio will give tone indication when receiving a message and to select a ring .

Private Call Tone

To set whether the radio will give tone indication when making a private call and to select a ring.

Group Call Tone

To set whether the radio will give tone indication when making a group call and to select a ring.

Basic Settings

Language

Keypad Lock

Display Setting

Backlight：To set the backlight paramete rs. Ther e are three options available: On, Off and Timer. Backlight Time：The backlight will be off automatica lly upon expiration of the time set here. The available range is 5-15s. Brightness： To set the display brightness. You can increase or lower it using 【Up】/【Down】 key.

Keypad LED

To set whether to enable keypad LED. When “On” is selected and there is no keypad operation in 5s, the keypad LED will be off.

Zone

Functions and Operations

The feature “Scan” allows you to listen to communication activities on other channels so that you can keep a close track of your team members.

Scan

1、To enable the fea ture, you can sel ect “On”f rom the menu “Sc an”; or s witch to a cha nnel f or whi ch the

feature “Auto Scan”is enable d via the programmin g software. 2、Aft er th e fea ture is en abled , you r rad io wi ll sc an according to the scan list set for the channel on which scanning starts. The scanning process is as follows: During scanning, LCD displays icon , and LED flashes

orange. When activities are detected on a channe l, the radio will stay on the channel to receive current activities. If your radio stays on a non-priority channel, LCD will display icon ; If on Priority Channel 1 or Priority Channel 2, LCD will display icon or icon respectively. To exit the scanning process, you can select “Off” from the menu “Scan”.

Operation:

Squelch Off

If the feature “Squelch Off” is enabled, your radio’s speaker will keep unmuted no matter whether carrier is present.

Emergency

If the feature “Squelch Off” is enabled, your radio’s speaker will keep unmuted no matter whether carrier is present.

In case of an emergency, you can use the feature to ask for help from your companion or control center.

Emergency Mode

1、Digital Emergency

Description

The radio will emit siren locally, but will not transmit any emergency signal to the control center.

The radio gives visible and audible indications during emergency state. The radio gives no indication during emergency state.

The radio gives no indication during emergency state, but will unmute its speaker once it receives a call.

The radio transmits the emergency signals to the control center first, and then gives siren locally with visible indication.

Emergency Type

Siren Only

Regular

Silent

Silent w/ Voice

Alarm w/ Siren

The Emergency process has the highest priority. You can make emergency operation even when your radio is transmitting or receiving.

To enable the feature on a channel, an emerg ency system must be assigned to the channel via the programming software. In addition, the Emergency type and Emergency mode are settable via the programming software.

Emergency Type

There are five Emergency types available. You can select one of them via your dealer.

Emergency Mode

Your radio supports three Emergency modes. You can select one of them via your dealer.

To set this feature via programming software. Once this feature is activated, the radio will enter Man Down status automatically when it tilts to the preset gradient. Or you can press the shortcut key to enable or disable this function.

This feature triggers off the Emergency mode if the user fails to have any Lone Worker response operation on the radio for a certain time period. This feature is designed for persons who work alone. If the user cannot operate the radio within the preset time due to emergency, the radio will make an emer gency alarm automatically to inform user’s colleagues or the control center for help.

Emergency Mode

Alarm

Alarm w/ Call

Call Only

Description

The radio only sends emergency alarm request upon emergency activation.

The radio sends emergency alarm request before the emergency call upon emergency activation.

The radio only transmit Emergency call upon emergency activation

2、Man Down

3、 Lone Worker

Page 9

Optional Accessories

Care and Maintenance

Service and Support

Terms of Warranty

Question and Answer

Care and Maintenance

Phenomena

Analysis

Solution

The equipment can not be powered on.

During receiving signals, the voice is weak, discontinuous or totally inactive.

You can not communicate with other members.

Irrelevant communications or noises are heard on the channel.

The battery may run out.

The battery may be improperly installed.

The battery may suffer from poor contact caused by dirtied or damaged battery contacts.

The battery strength may be too low. The volume may be set to a low level.

The antenna may get loose or may be improperly installed.

The speaker may be blocked or damaged.

The frequency or signaling may be inconsistent with that of other members.

The channel type (digital/analog) may be set inconsistently.

You may be too far away from the group members.

You may be interrupted by radios using the same frequency.

The radio may not be set with any signaling.

Remove the battery and attach it again.

Recharge or replace the battery.

Clean the battery contacts. If the problem can not be solved, contact your dealer or authorized service center for inspection and repair.

Recharge or replace the battery.

Increase the volume.

Power off the radio, and re-install the antenna.

Clean surface of the speaker. If the problem can not be solved, contact your dealer or authorized service center for inspection and repair.

Set your TX/RX frequency and signaling to the same as that of other members.

Make sure all members are on the same digital/ analog channel.

Move towards other members.

Change the frequency, or adjust the squelch level.

Set signaling for all member radios to avoid interference at the same frequency.

Service and Support

TERA Radio provides warranty and non-warranty support for this radio and accessories.

Warranty and Repair Services

1. TERA two-way radio body has an industry leading 2-year warranty. Radio accessories(battery, charge adapter, charger and antenna , speaker mics) include a 6 month war ranty fro m date of purchase.

2. The radio warranty of 2-years is in effect from the original purchase date on the sales receipt or invoice.

3. Repair or Replacement is available provided the original purchaser’s sales receipt copy is included when the radio or accessories are sent in for repairs.

4. Replacement and repair or radios and accessories is provided at the discretion of TERA radio.

5. All repaired parts have its own warranty of 90-days from the repair date or the original radio warranty depending on the longer one is valid.

6. The warranty is only valid using this radio for normal use. And guaranty is unavailable under such conditions: dissembling or modifications damages caused by outside force and usage of unapproved accessories or antenna, not according to the user manual and so on.

7. Warranty is void if the TERA label or Serial Number label is missing or torn off.

Cautions

1. Read the user manual before use.

2. Do not use the radio with damaged antenna. Use the radio only with standard antenna.

3. Turn off the radio in potential dangerous environment.

4. Avoid the contact between the battery and the metal oily or corrosive objects.

5. Do not dip the radio or battery into water or throw them in fire.

6. Use the radio only with standard battery, adapter charger and earphone.

Optional Accessories

Optional accessories are available according to your requirements. All accessories with good quality will ensure you clear communication and outstanding performance.

Optional UHF Antenna

G-Hook Lapel Mic Covert Clear Acoustic

Tube Earphone MIc

USB Programming Cable Heavy Duty Speaker Mic

Terms of Warranty

1. TERA two-way radio body has an 2-year guarantee; accessories (battery, charge adapter, charger and antenna), earphone 6 months.

2. Only the original purchasing sales receipt or valid dealer’s invoice (The invoice will give clear indication of items purchased and the radio serial-number, and purchasing date).

3. Replacement and repair is avai lable subject to the presentatio n of original purchasing invoice in case that the radio cannot work normally as the instruction says within 30 days from the purchase date. (Note that there must not be visible abrasion on radio body and accessories.

4. Repair of accessories (battery, adapter, charger and antenna) is available to the presentation of original purchasing invoice.

5. The cost of materials and labor for repair are covered in warranty.

6. Warranty is void in case that the TERA mark or the serial-number mark is torn off.

7. Warranty is void in cases below:

1) Beyond the warranty period;

2) Defects or damages under abnormal use;

3) Defects or damages because of mis-operation, accident and carelessness;

4) Defects or damages because of incorrect testing, operation, repair, installation, reconfiguration or adjustment;

5) Defects or damages to antenna because of non-material or non-processing problems;

6) Defects or damages because of unauthorized repair and disassembling;

7) Product that the serial-number marks is torn off or unable to identify;

8) Product with unclear purchasing date on original sales receipt.

9) Battery under such conditions: a. Any damages or unsealing to the battery pack; b. Defects or damages to battery because of charging with improper equipment or use beyond regulated maintain condition;

10) Abrasion under normal use.

Page 10

Safety

FCC Licensing InformationWarning

Warning Noes

Every effort has been made to ensure that the information in this document is complete, accurate, and up to-date. TERA Radio assumes no responsibility for the results of errors beyond its control. The manufacturer of this equipment also cannot guarantee that changes in the equipment made by non-authorized users will not affect the information in it.

FCC Licensing Information

This TERA radio operates on Commercial / Land Mobile frequencies which require a license from the Federal Communications Commission (FCC) for business, persona l, education and recreational use. To obtain forms, call the FCC form s hotline at: 1-800-418-3676 or go to http://www.fcc.gov. For questions concerning commercial licensing, contact the FCC at 1-888-CALL-FCC(1-888-225-5322).

Safety

The TERA handheld transceiver has been carefully designed to provide you with years of safe, reliable operation. As with all electrical equipment, however, there are a few basic precautions you should take to avoid hurting yourself or damaging the radio:

• Read the instructions in this handbook carefully. Be sure to save it for future reference.

• Read and follow all warning and instruction labels on the radio and owner’s manual.

• Do not carry the transceiver by the antenna. This may damage the antenna or antenna terminal. Grasp the handheld by its base (not the antenna) when you need to place or remove it.

• Do not keep the radio with the antenna very close to, or touching exposed parts of the body, while transmitting. TERA radios will perform best, if you speak 2-4 inches away from the microphone and the radio is vertical.

• Be sure the “PTT” key is not pressed when you do not need to transmit.

• Do not operate the radio near unshielded electrical blasting caps or in an explosive atmosphere.

• Do not transmit without the antenna fitted on the radio. Though it is provided with a protection, it may damage the TX output final stage.

• Respect the environment conditions. The radio is designed to be used in heavy environments, however avoid exposing it to extremely hot or cold temperature (out of the range between –20 to +140°F). Do not expose the transceiver to excessive vibrations as well as dusty or rainy locations.

• Never try to disassemble or service the radio by yourself (aside from the routine maintenance described in this handbook). It may cause damage to the radio transceiver and void your warranty requiring extensive repair work. Always contact your local dealer for assistance.

• Use only authorized accessories. Using non TERA radio brand accessories may seriously damage your handheld transceiver and void your warranty.

• Do Not spill liquid of any kind into your radio. If the transceiver gets wet, immediately dry it by a soft and clean cloth.

• Switch the radio off before you clean it. Follow the directions described in the paragraph “Care and maintenance”.

• Handle the battery properly. Never place the LI-ion battery in your pocket or purse with loose coins. This could result in short circuiting the battery.

• Be certain that your power source matches the rating listed for the supplied battery charger (AC adapter). If you are not sure, check with your authorized TERA dealer

• Avoid damaging the power cable of the battery charger. Do not step on or place anything on it as this could result in a damaged charger power cord. This product complies with the requirements of the Council Directives 89/336/EEC and 73/23/EEC on the approximation of the laws of the member states relating to electromagnetic compatibility and low voltage..

Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

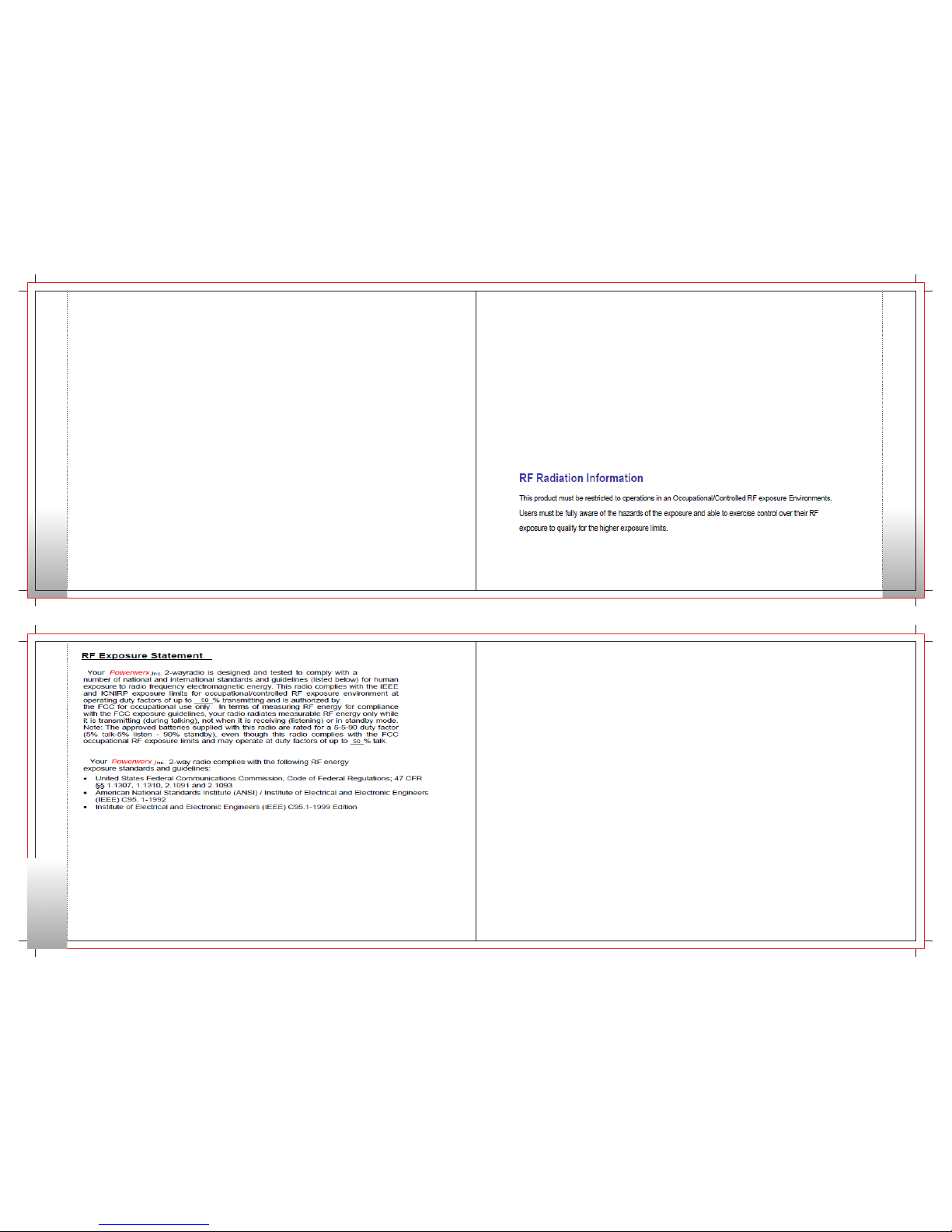

FCC Caution:
