Teptron Move User Manual

User manual

MOVE- Bluetooth controlled motor for indoor blinds and shades

Teptron AB, 2018-v2-en, main user manual MOVE

Table of Content

1 Warnings and general precautions for safety 3

2 Regulatory and safety notices 4

3 Product description and intended use 5

4 Bead chain 8

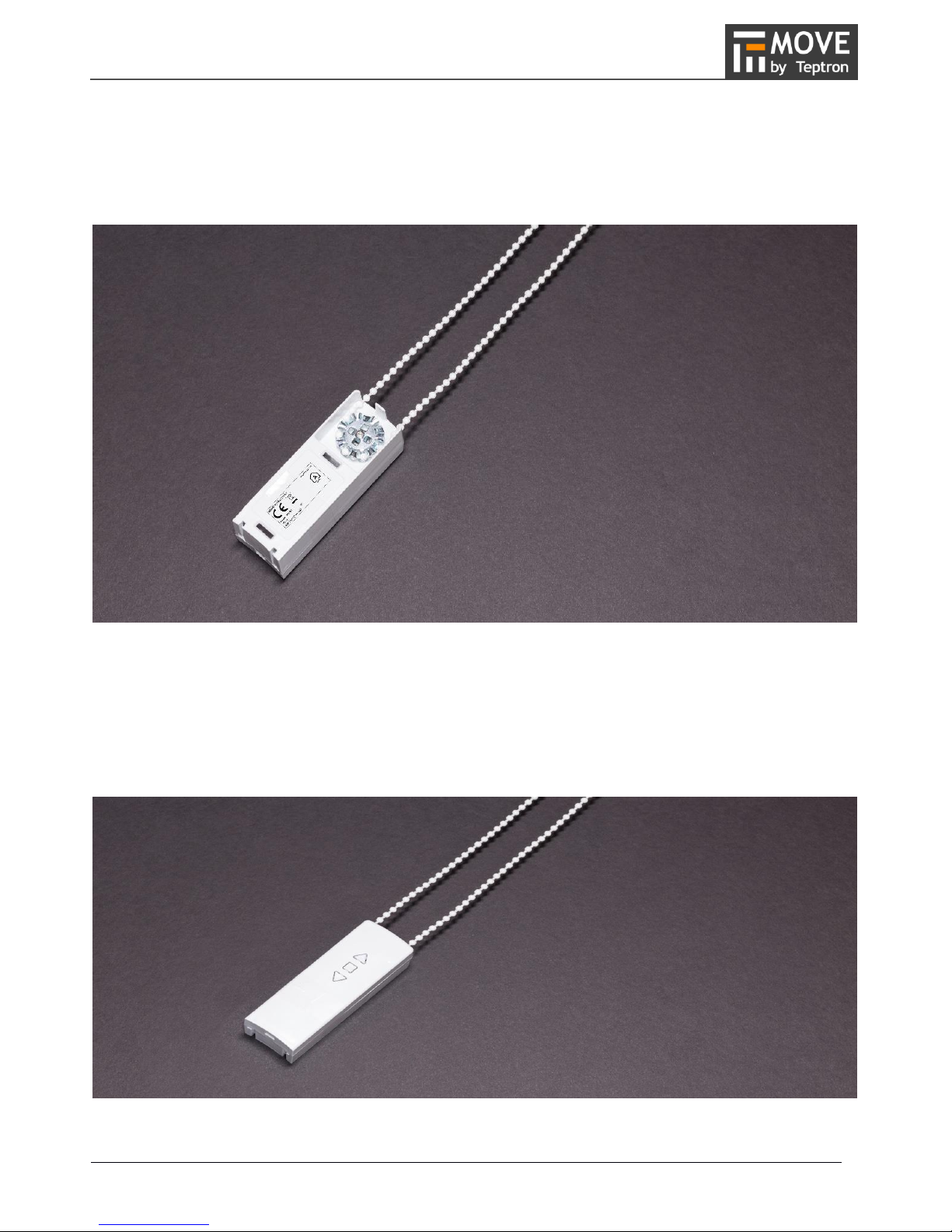

4.1 Mount bead chain to Pulley 8

4.2 Bead chain with a connector 8

5 Cord loop 9

6 Cords 10

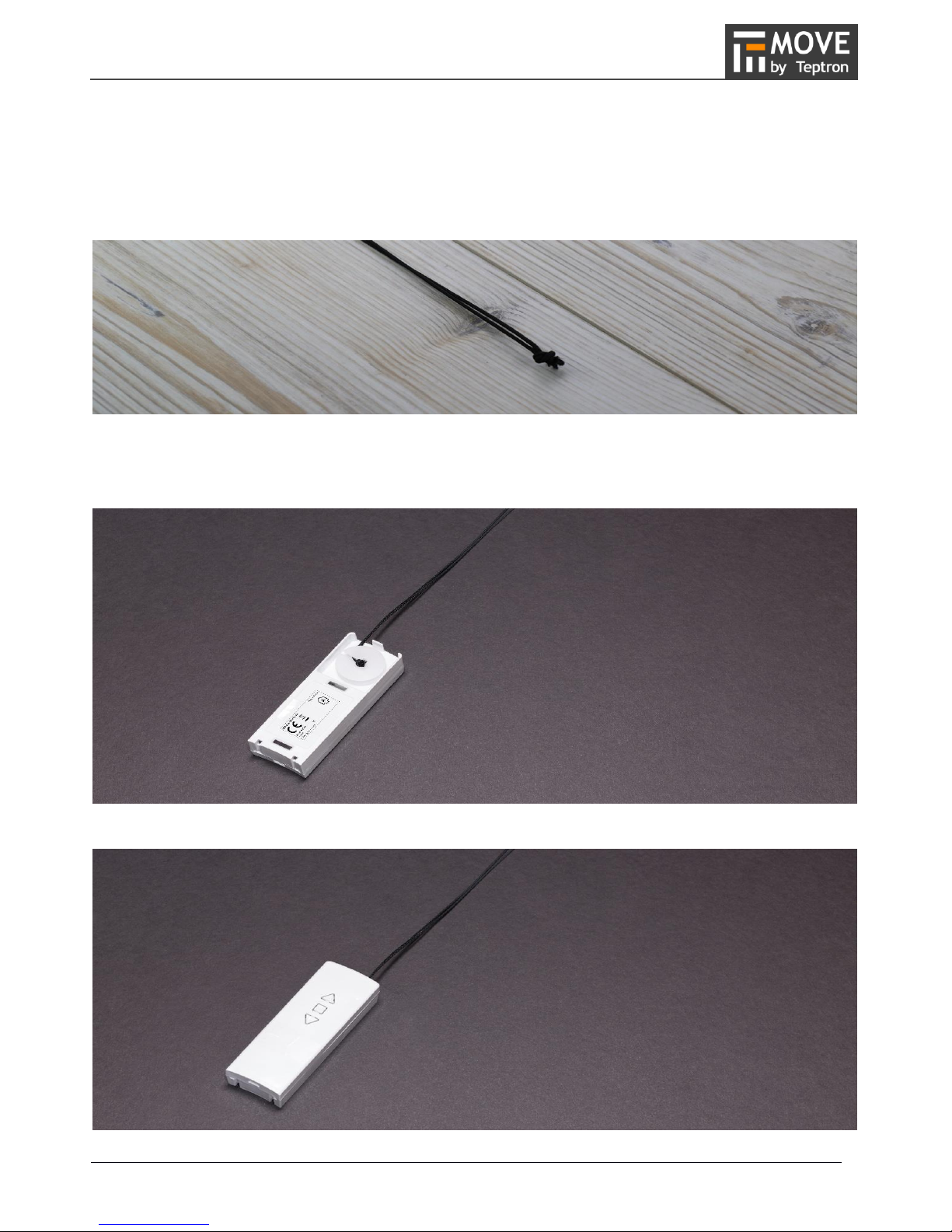

6.1 Prepare the cord 10

6.2 Attached cord to pulley 10

7 Ways to install 11

7.1 Mounting Plate 11

8 Install Unit 13

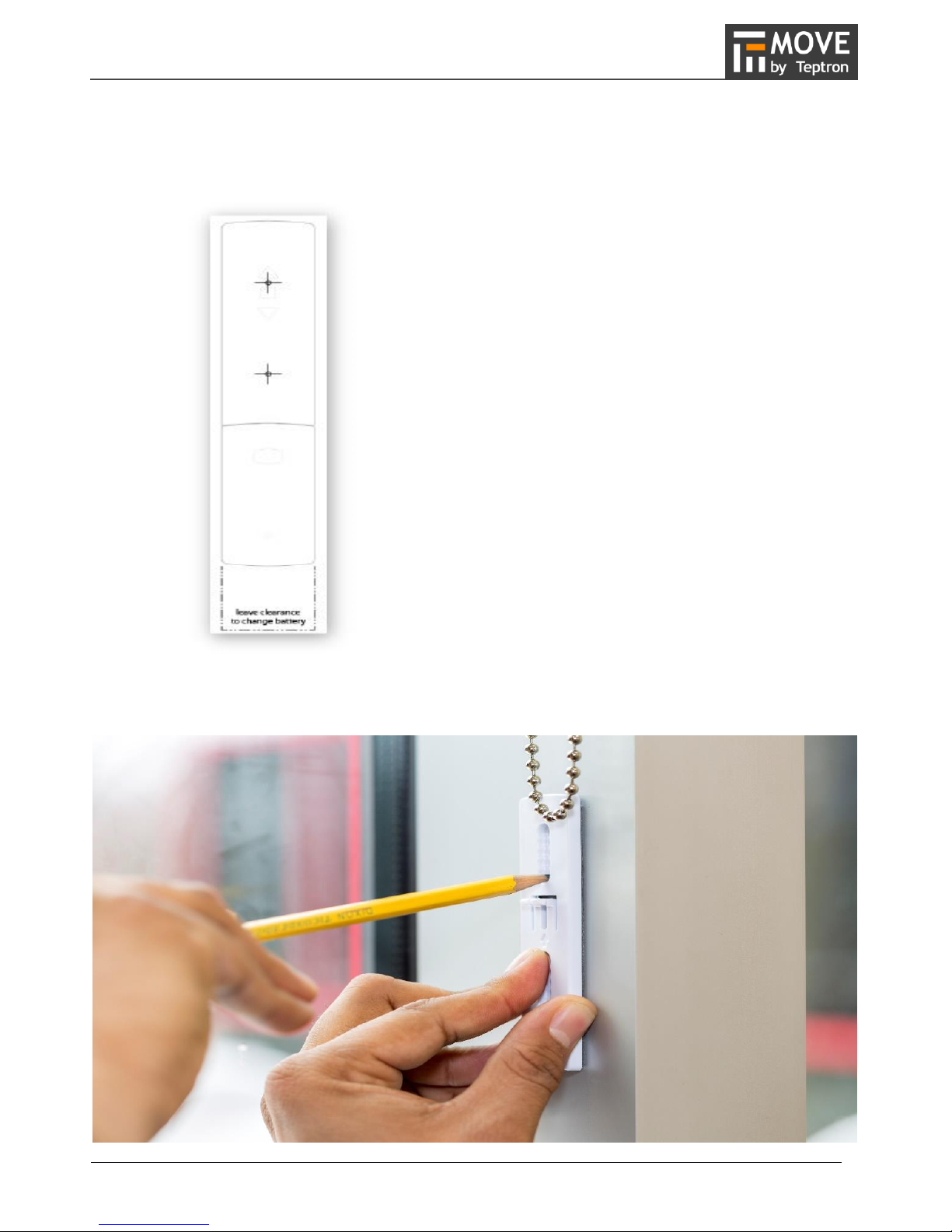

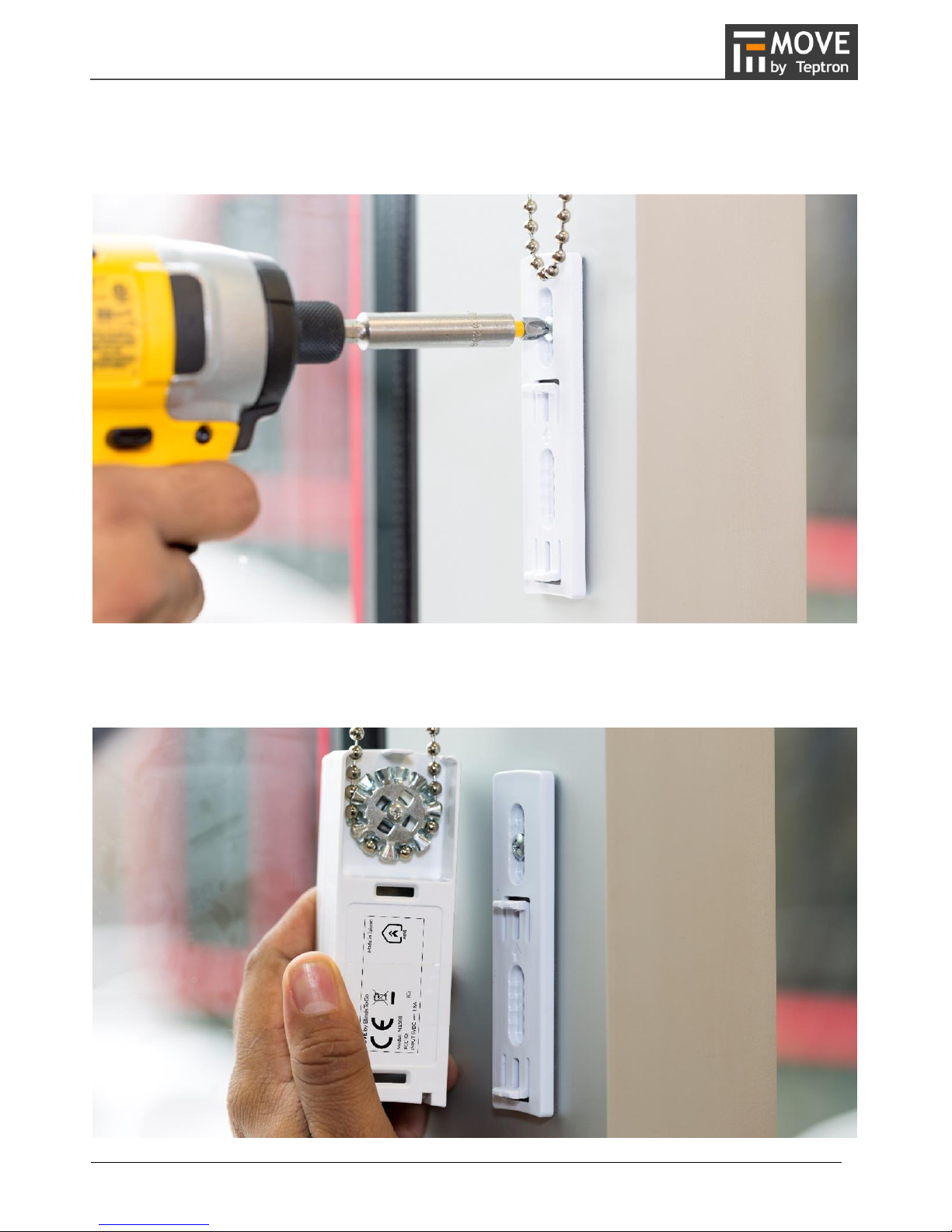

8.1 Install the Mounting plate 13

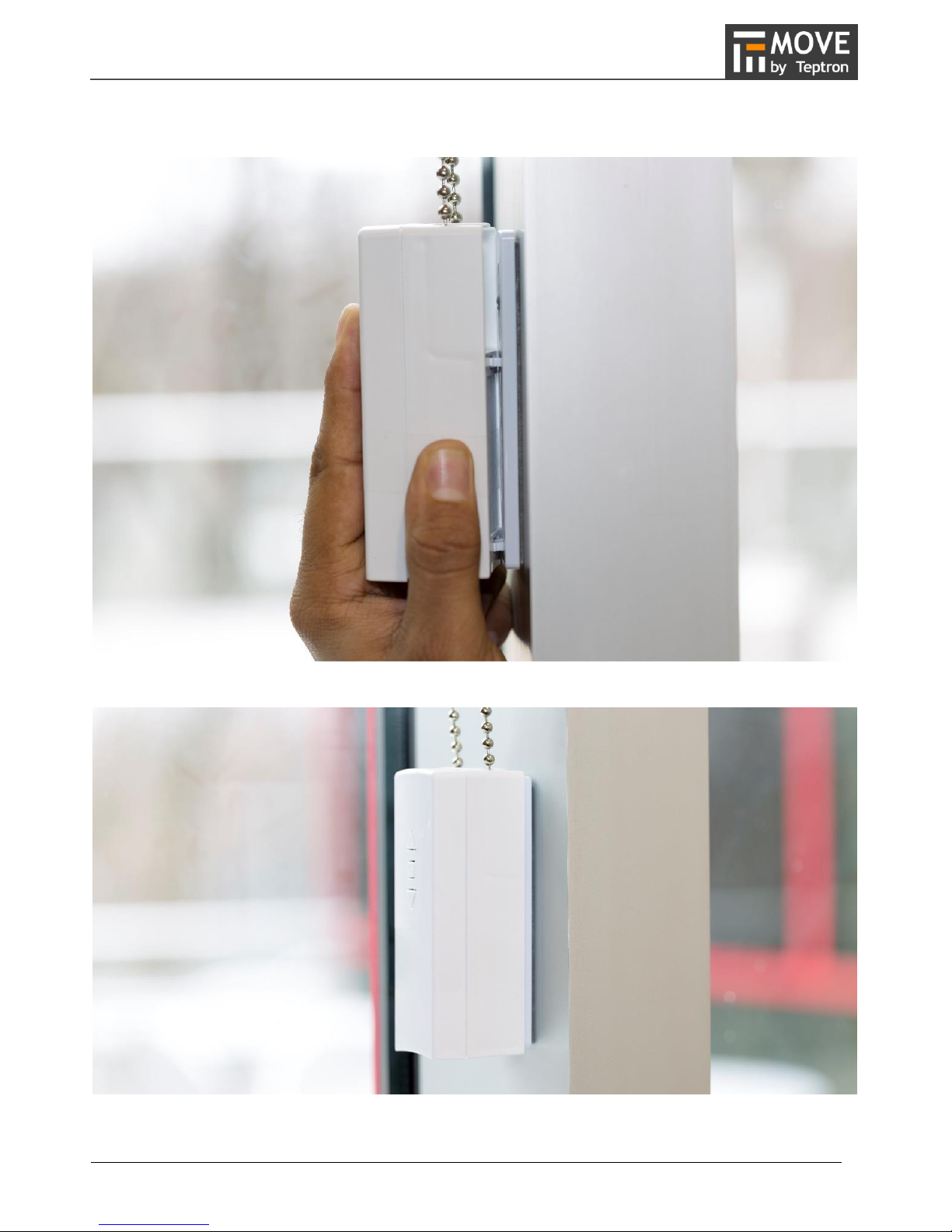

8.2 Attached Main Unit to Mounting plate 13

8.3 Fixed main Unit to Mounting plate 14

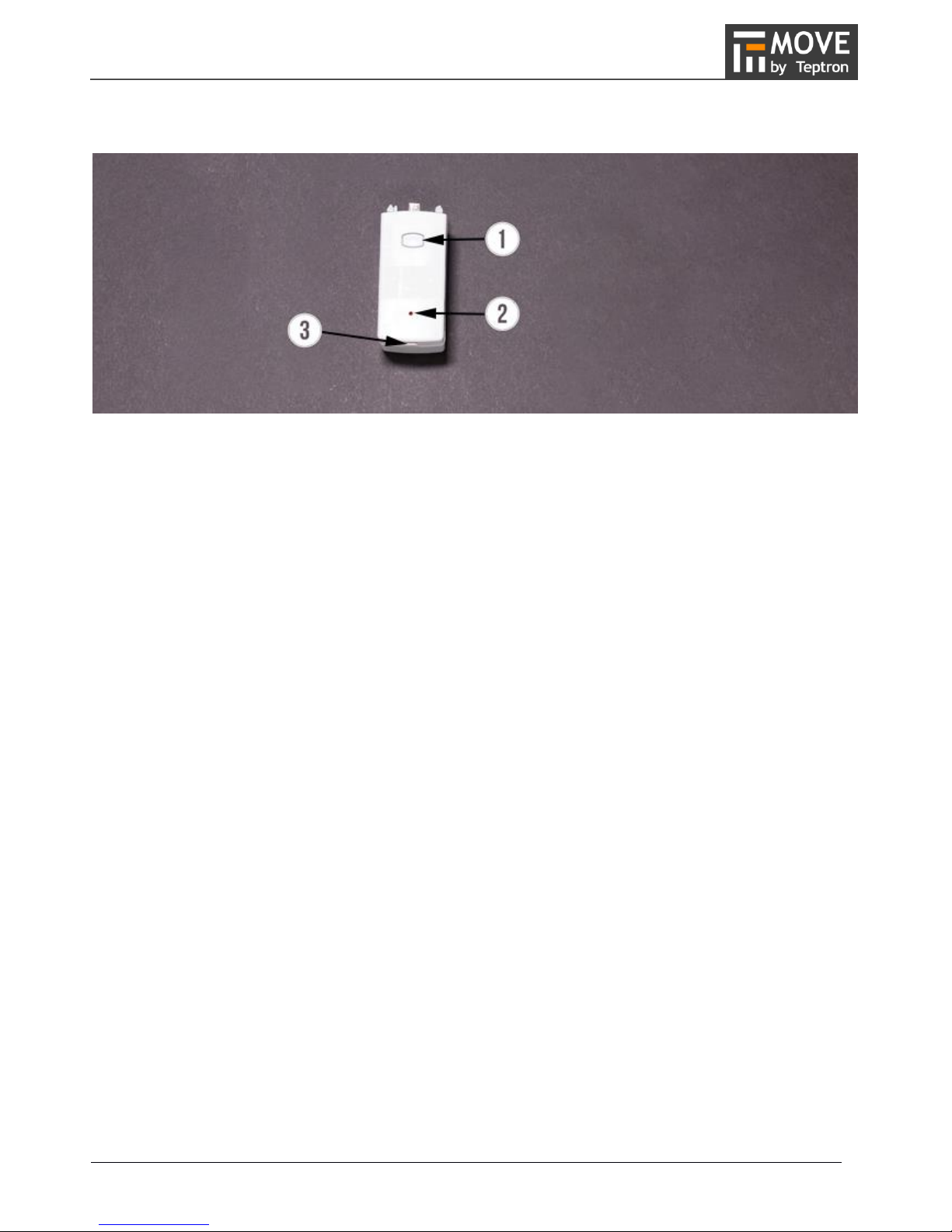

9 Battery Pack 15

9.1 Install Battery Pack 15

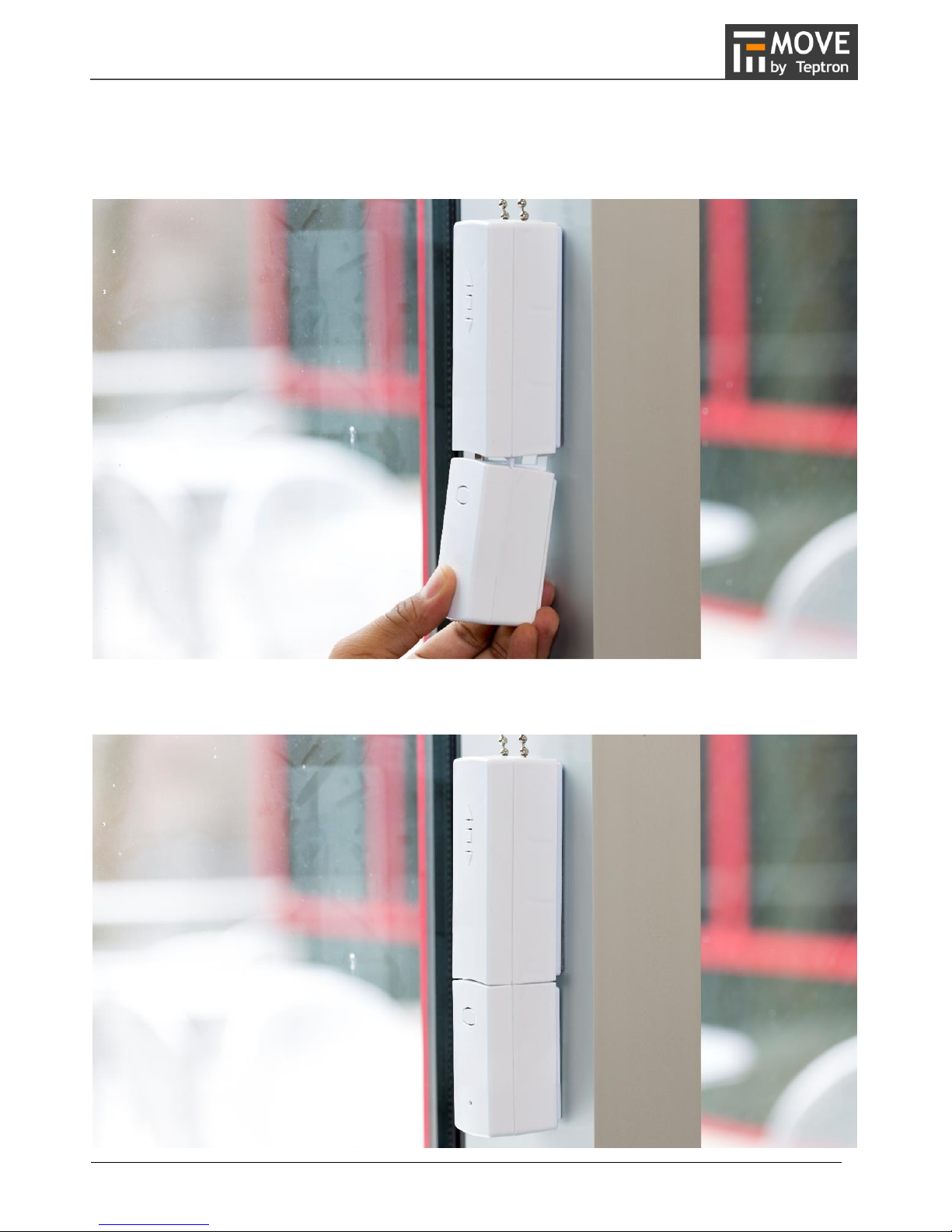

9.2 Secure Battery pack with main Unit 15

11 Installation of the motor and the accessories 16

11.1 Mounting MOVE 16

11.1.1 Roller blinds installation 16

11.1.2 Vertical blinds installation 16

11.1.2.1 Attaching MOVE to bead chain 16

11.1.2.2 Attaching MOVE to cord loop 16

11.1.3 Pleated blinds installation 16

11.1.4 Venetian blinds installation 16

11.2 Calibration 17

11.3 Pairing and controlling with a smartphone app 17

11.4 Electrical connections 17

11.4.1 Rechargeable Batteries 18

11.4.2 Solar panel 18

11.4.3 Micro USB 18

11.5 Factory reset 18

12 Technical specifications 18

13 Disposal and recycling information 19

Teptron AB, 2018-v2-en, main user manual MOVE

1 Warnings and general precautions for safety

Read these warnings carefully before you continue installing, connecting and using MOVE hereinafter called the product. It is very important that you follow the
safety and warning instructions written in this manual to ensure a safe use of the product. Keep these instructions. Heed all warnings. Only use the product as
described in these instructions.

WARNING: Failure to follow these safety instructions could result in fire, electric shock, or other injury or damage to the product or other property.

1.1 Installation warnings

The product installation, collection programming and maintenance operations must be carried out exclusively by a qualified adult in observance of the instructions in
this manual.

Before starting installation make sure the product can be retrofitted to your type of indoor blinds and shades. If not suitab le do NOT proceed with installation. Make
sure the product is able to run without risks of entangling, also make sure that anything in the vicinity is within such risk.

The product installation and maintenance operations must be performed with all power sources disconnected from MOVE.
Install the product out of reach for children. The product shall not and cannot replace the purpose of a child safety product for indoor blinds and shades. The

product and its accessories may contain small parts. Keep them away from small children.

It is very important NOT to use the product with battery power if it must be placed in direct sunlight or near other heat sources, in high temperatures batteries can
be dangerous. In these conditions always remove the batteries and use a suitable USB power adapter to power the product. Exact specification for the USB power
adapter can be found in this manual. Read all safety instructions for any other products and/or accessories before using with th e product. Teptron AB is not
responsible for the operation of, or any damage caused by, third-party accessories or their compliance with safety and regulatory standards.

During installation, handle the product with care - avoid crushing, impact, dropping or contact with liquids - never place the product near sources of heat or expose
to naked flames. All these actions could damage the product and cause malfunctions or dangerous situations.

Pay attention to your personal safety in regards to proper use of ladders. Be careful when handling tools from an extended height, do not drop them. Do not drop the
product. If dropped or damaged do not install it. Be aware of that a dropped product may not have visibly detectable damage.

Be very careful when handling knifes, scissors or similar sharp cutting tools.
Do not install the product to outdoor shading products, its only intended to be applied to indoor blinds and shades.

Do not dismantle the product other than described in this manual. Do not make any changes to any part of the product except those indicated in this manual. Do not
insert anything in the product except what’s described in this manual. The manufacturer declines all liability for damage caused by makeshift modifications to the
product.

Before connecting a power adapter, batteries or blinds and shades to the product, carefully read the warnings and the product manuals of those products, and it’s
important to only use approved certified products.

When connecting a power adapter to the product do not use a damaged power cord or plug and do not use loose or damaged power outlets. Unplug power adapter
during lightning storms or when unused for long periods of time.

Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

1.2 Use warnings

Do not operate the product when jobs are being performed in the vicinity i.e. window cleaning, maintenance jobs, etc. Disconn ect the all power supplies to the
product before starting such jobs. Be aware of operating the product when your window is open. Outside circumstances may cause damage to the product and the
surroundings.

Keep the product out of reach for children. The product may attract attention of children and animals. During operation children and animals should be kept away
from the device.

Do not pull the cord, cord loop or bead chain when the product is attached to and installed in active or passive mode.
Wash yourself immediately if exposed to battery acid.
Always shield the product from direct sunlight regardless of power source.
Make sure that your burglar alarm does not trigger because of movement from your blinds or shades

After commissioning, the batteries are trickle-charged by electrical energy generated by the solar panel. The energy produced by the solar panel is stored in Li-iron
batteries. It is normal for the battery to gain more energy in summer as compared to winter. The solar panel converts the intensity of light to energy when available.

If the motor does not operate due to an excessively diminished battery, the battery pack may require a full recharge by batte ry charger that is approved by
manufacture. If the battery no longer provides adequate power to operate the motor, new rechargeable battery pack should be installed.
Always read instructions on how to install and remove Battery pack on MOVE unit.

Never force a connector into a port when using connectors and ports. Check for obstructions on the port. If the connector a nd port don’t join with reasonable ease,
they probably don’t match. Make sure that the connector matches the port and that you have positioned the connector correctly in relation to the port.

Refer all servicing to qualified service personnel. Service is required when the apparatus has been damaged in any way, such as when the solar panel cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moistur e, dose not operate normally, or has
been dropped.

Do not use the product in rain, or near washbasins or other wet locations and avoiding water and wet locations. Take care not to spill any food or liquid on the
product. In case the product gets wet, unplug all cables and remove the battery before cleaning, and allow it to dry thoroughly before turning it on again. Do not
attempt to dry the product with an external heat source, such as a microwave oven or hair dryer. Damage to the product caused by contact with liquid is not covered
by the manufacturer.

Teptron AB, 2018-v2-en, main user manual MOVE

2 Regulatory and safety notices

Model name: M1703

FCC warnings:

FCC Statement:

Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired operation.

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .The
device has been evaluated to meet general RF exposure requirement.

ISED RSS Warning/ISED RF Exposure Statement:

ISED RSS Warning:

This device complies with Innovation, Science and Economic Development Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d'ISED applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.

ISED RF exposure statement:

This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment.The
device has been evaluated to meet general RF exposure requirement.

Le matériel est conforme aux limites de dose d'exposition aux rayonnements énoncés pour fac un autre
environnement.ce dispositif a été évalué à satisfaire l'exigence générale de l'exposition aux rf.

Teptron AB, 2018-v2-en, main user manual MOVE

3 Product description and intended use

Note: MOVE is intended exclusively for the automation of various types of indoor blinds and shades. Any other use is
absolutely prohibited! The manufacturer is not liable for damage resulting from any use of the product other than
the intended use specified in this manual.

Functional characteristics of the product:

-MOVE is a motor for existing indoor blinds and shades.

-It is built to fit as many different manually controlled indoor blinds and shades as possible.

This is why the motor can be retrofitted to nearly all different manually controlled indoor blinds and shades. No
matter if its continuous cord loops, bead chain loop, bead chin with connectors or just reeling in a cord MOVE will
be able to operate it. MOVE is installed enclosed wall bracket.

MOVE uses a CSR 1024 chip with the radio protocol Bluetooth Smart 4.0, the chip have CSRmesh radio which is a
mesh protocol running over Bluetooth Smart. This means multiple units can communicate with each other
forwarding transmissions making the radio coverage better. This also makes it possible to link units together making
them act as one. To ensure its function even under heavy load MOVE has a custom metal gearbox and the gears are
made of metal. The electronics controlling the motor has a force limiting safety feature making it safe to use.

Pic 1, all included parts

1. MOVE device*

2. Battery device**

3. Mounting plate

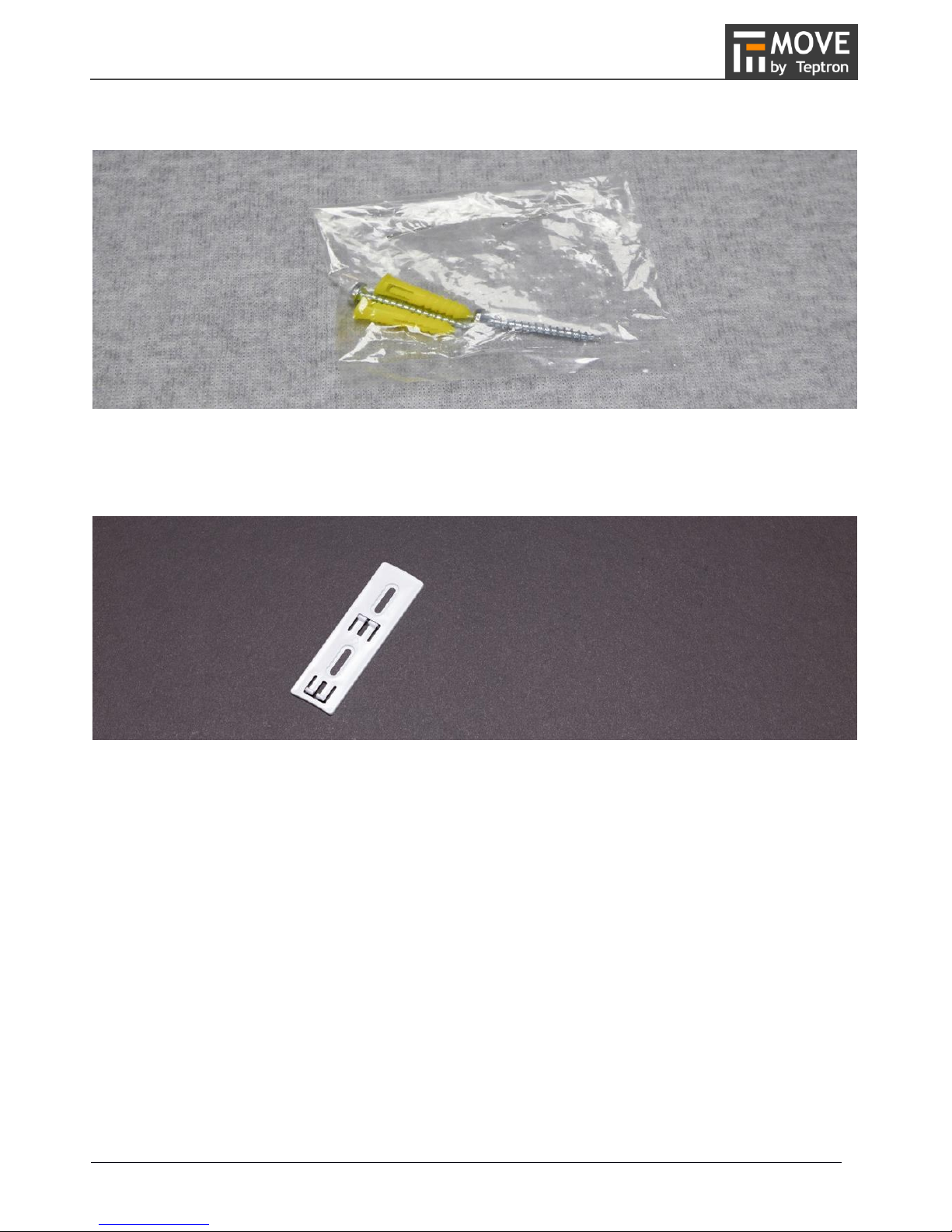

4. Screw and anchor

*can also be powered with only a power supply connected to the mains power
**can be charged with regular USB adapter or a solar panel

Teptron AB, 2018-v2-en, main user manual MOVE

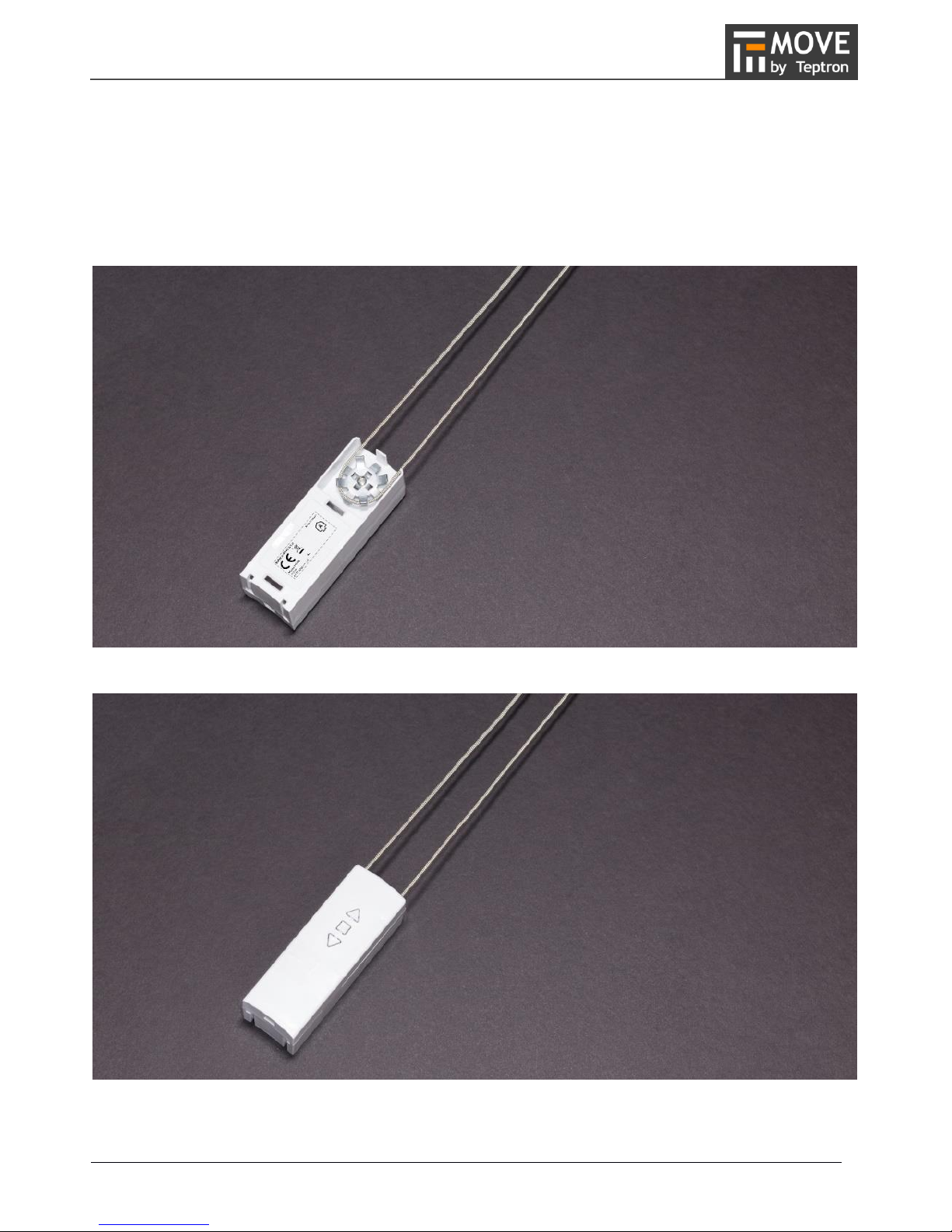

Pic 2, MOVE device overview

1. Run clockwise button

2. Stop button

3. Run counter clockwise button

4. USB connector

5. LED indicator

The LED indicator can have the following states:

One quick blink when the battery device or USB power adapter is installed: Bootup
Continuously green blink: Paring mode
Constant illumination: Factory reset performed
Continuously green slow blink: Calibration “home” mode
Continuously green rapid blink: Calibration “end” mode
Continuously red rapid blink: Safety stop

Before calibration MOVE will only run for as long as any one of the two buttons “run clockwise” or “run counter
clockwise” is pushed down. After calibration it will be possible to click on either the “run clockwise” or the “run
counter clockwise” button to make MOVE go to the respective end positions.

MOVE can always be stopped by clicking the “stop” button on the unit. This is true no matter if the initial run
command originates from the push/click of buttons “run clockwise” or “run counter clockwise” or from the app.

The output axel can run with different speeds, the speed is adjusted in the app.
