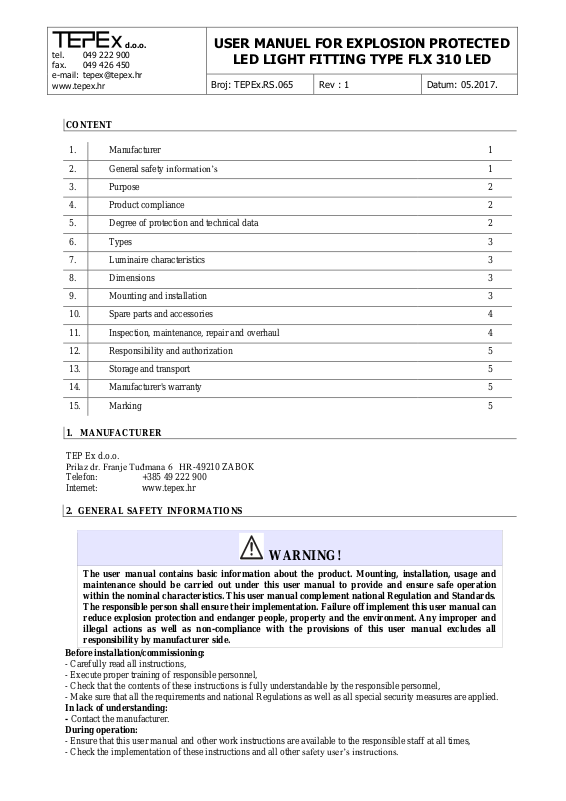

Page 1
d.o.o.
USER MANUEL FOR EXPLOSION PROTECTED
LED LIGHT FITTING TYPE FLX 310 LED
Broj: TEPEx.RS.065
Rev : 1
Datum: 05.2017.
1.
Manufacturer
1
2.
General safety information’s
1
3.
Purpose
2
4.
Product compliance
2
5.
Degree of protection and technical data
2
6.
Types
3
7.
Luminaire characteristics
3
8.
Dimensions
3
9.
Mounting and installation
3
10.
Spare parts and accessories
4
11.
Inspection, maintenance, repair and overhaul
4
12.
Responsibility and authorization
5
13.
Storage and transport
5
14.
Manufacturer's warranty
5
15.
Marking
5
WARNING!
The user manual contains basic information about the product. Mounting, installation, usage and
maintenance should be carried out under this user manual to provide and ensure safe operation
within the nominal characteristics. This user manual complement national Regulation and Standards.
The responsible person shall ensure their implementation. Failure off implement this user manual can
reduce explosion protection and endanger people, property and the environment. Any improper and
illegal actions as well as non-compliance with the provisions of this user manual excludes all
responsibility by manufacturer side.
CONTENT
1. MANUFACTURER
TEP Ex d.o.o.
Prilaz dr. Franje Tuđmana 6 HR-49210 ZABOK
Telefon: +385 49 222 900
Internet: www.tepex.hr
2. GENERAL SAFETY INFORMATIONS
Before installation/commissioning:
- Carefully read all instructions,
- Execute proper training of responsible personnel,
- Check that the contents of these instructions is fully understandable by the responsible personnel,
- Make sure that all the requirements and national Regulations as well as all special security measures are applied.
In lack of understanding:
- Contact the manufacturer.
During operation:
- Ensure that this user manual and other work instructions are available to the responsible staff at all times,
- Check the implementation of these instructions and all other safety user’s instructions.
Page 2
2
Certificate:
EXA 15 ATEX 0050X
Category and
explosion protection:
Ambient temperature:
-20 °C ≥ +50° C
Mechanical protection:
IP66 / IP67
Resistance to shock:
IK 08
Class of protection
I (PE - protective earthing)
Rated voltage
230 V AC
Frequency:
50 Hz
Rated power:
36 W
Power factor:
λ ≥ 0,99
LED light source:
LED 3 x 12 W chip-on-board technology
with OVP, OCP, OTP protection
Rated luminous flux:
3600 lm at tamb = 25°C
Light color:
4000 K
Refractive index(CRI):
>80
Estimated service life:
50 000 working hours tamb = 40°C L90/B10
Cable entries:
- two Ex d entries, M20x1,5-6H, according to EN 60079-1:2007,
ISO 965-1, ISO 965-3 or
- two Ex d entries, 3/4"NPT, according to ANSI/ASME B1.20.1
Terminals:
- screw terminals for L, N, PE, 2,5 mm2 max per terminal,– sol(r),
s(r), f
Ex d e adapter:
(type FLX 310 LED / 3)
- tip ADP 23/1, II 2G Ex d e IIC Gb II 2D Ex tb IIIC Db,
cable gland ISO 25 for cables v 7-15 mm
Terminals inside Ex d e adapter:
- terminals for phase and neutral conductors
L1, L2, L3, N; max 2 x 2,5 mm2 sol(r), sol(s), f
- terminal for protective earthing -PE; max 2 x 6 mm2 sol(s), f
- terminal for external grounding, equipotential bounding
- max 2 x 6 mm2 sol(s) , f
- torque screw for terminals is 1,2 Nm
External PA/PE terminal:
- max 2 x 6 mm
2
sol(r), sol(s), f
- torque screw for terminals is 2,2 Nm
Torques:
- body of Ex d e bushings and Ex d plug 3,5 Nm
- cable gland of the Ex d adapter 2,5 Nm
- screw terminals of the Ex d adapter 1,2 Nm
3. PURPOSE
Explosion protected LED light fitting type FLX 310 LED, is intended for general lighting in industrial areas with
potentially explosive atmosphere Zones 1, 2, 21, 22 in accordance with EN 60079-10-1/-2: 2009. The quality of the
materials ensures compliance with standard functionality in standard industrial atmosphere.
For special requirements please contact the manufacturer.
4. PRODUCT COMPLIENCE
The product complies with the ATEX Directive 2014/34/EU and standard:
- EN 60079-0:2012 / A11:2013,
- EN 60079-1:2007,
- EN 60079-7:2007,
- EN 60079-31:2014.
The product has been developed, manufactured and tested according to the existing state of technique accordance with
the standards EN 9001:2015 EN ISO 80079-34:2011 and EN 14001:2015.
- The product is in compliance with the LVD Directive 2014/35/EU.
- The product is in compliance with the RoHS Directive 2011/65/EU.
- The product is in compliance with EMC Directive 2004/30/EU.
-
5. DEGREE OF PROTECTION AND TECHNICAL DATA
Page 3
3
6. TYPES
FLX 310 LED .
Basic type
Entry type
- 0 - Ex d cable entry 2 x M20, ISO 965-1, ISO 965-3
- 1 - Ex d cable entry 2 x 3/4"NPT, ANSI/ASME B1.20.1
- 2 - Ex d cable entry 2 x M20, ISO 965-1, ISO 965-3 with one Ex d e adapter
type ADP 23/1 and one Ex d plug
- 3 - 2 x Ex d e adapters type ADP 24/1 for through-wiring

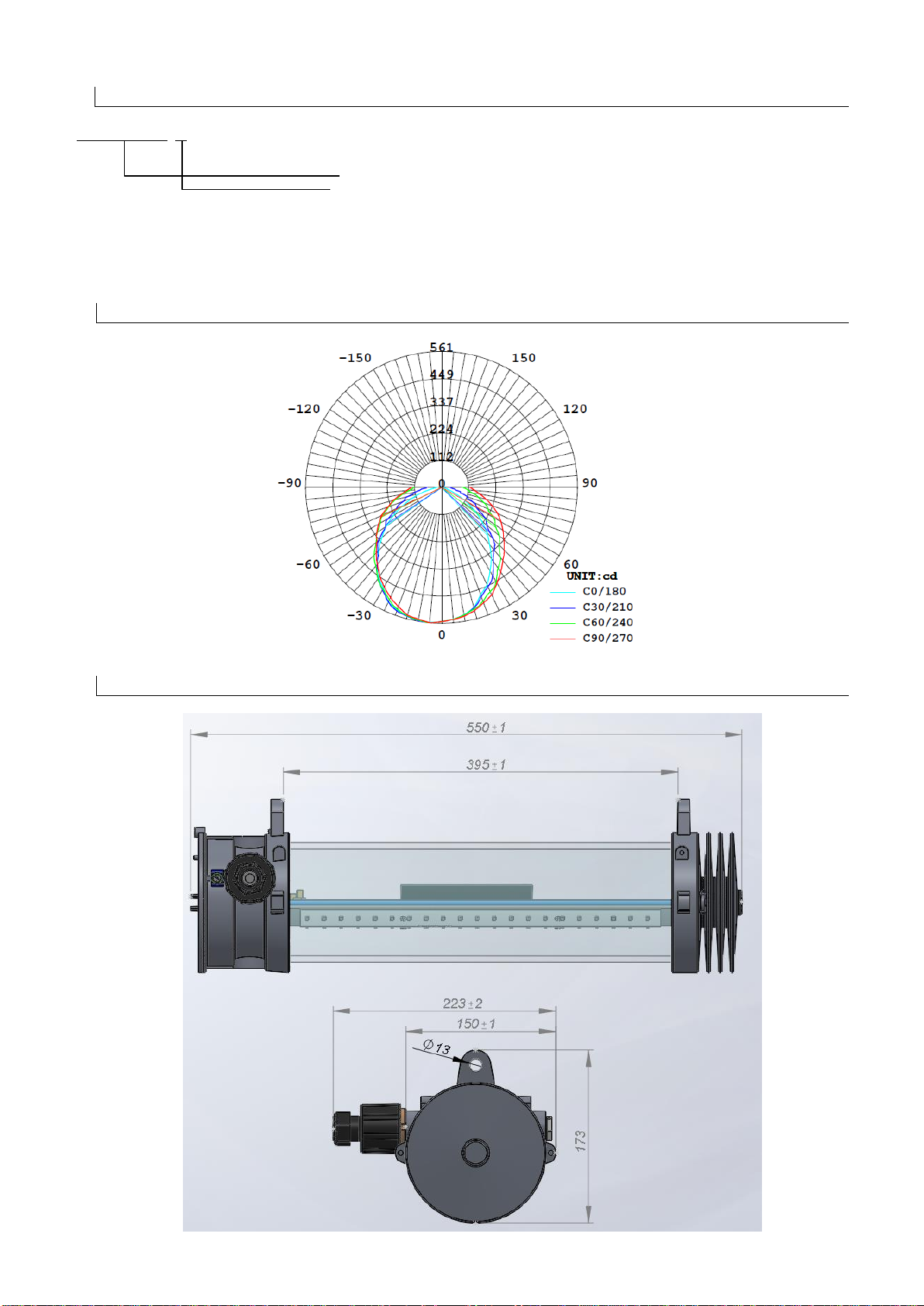

7. LUMINAIRE CHARACTERISTICS
8. DIMENSIONS
Page 4
4
PART
DESCRIPTION
CODE
PART
DESCRIPTION
CODE
Housing cover
set.
FLXE
10-110
Ex d cable gland
ISO 20
SPUD 20
Cover gasket
FLXE
10-120
Ex d cable gland
3/4"NPT
SPUD
3/4"NPT
LED module
set
FLX
310
LED
Ex d plug
ISO 20
SPCD 20
Protective grid
FLX
310
LED
Ex d plug
3/4"NPT
SPCD
3/4"NPT
Adapter Ex d e
ADP
10-160
Wall/ceiling
mounting set
FLXE
20-170
OVP, OVP, OTP
set
FLX 310 LED
10-150
Pipe mounting set
FLXE
20-180

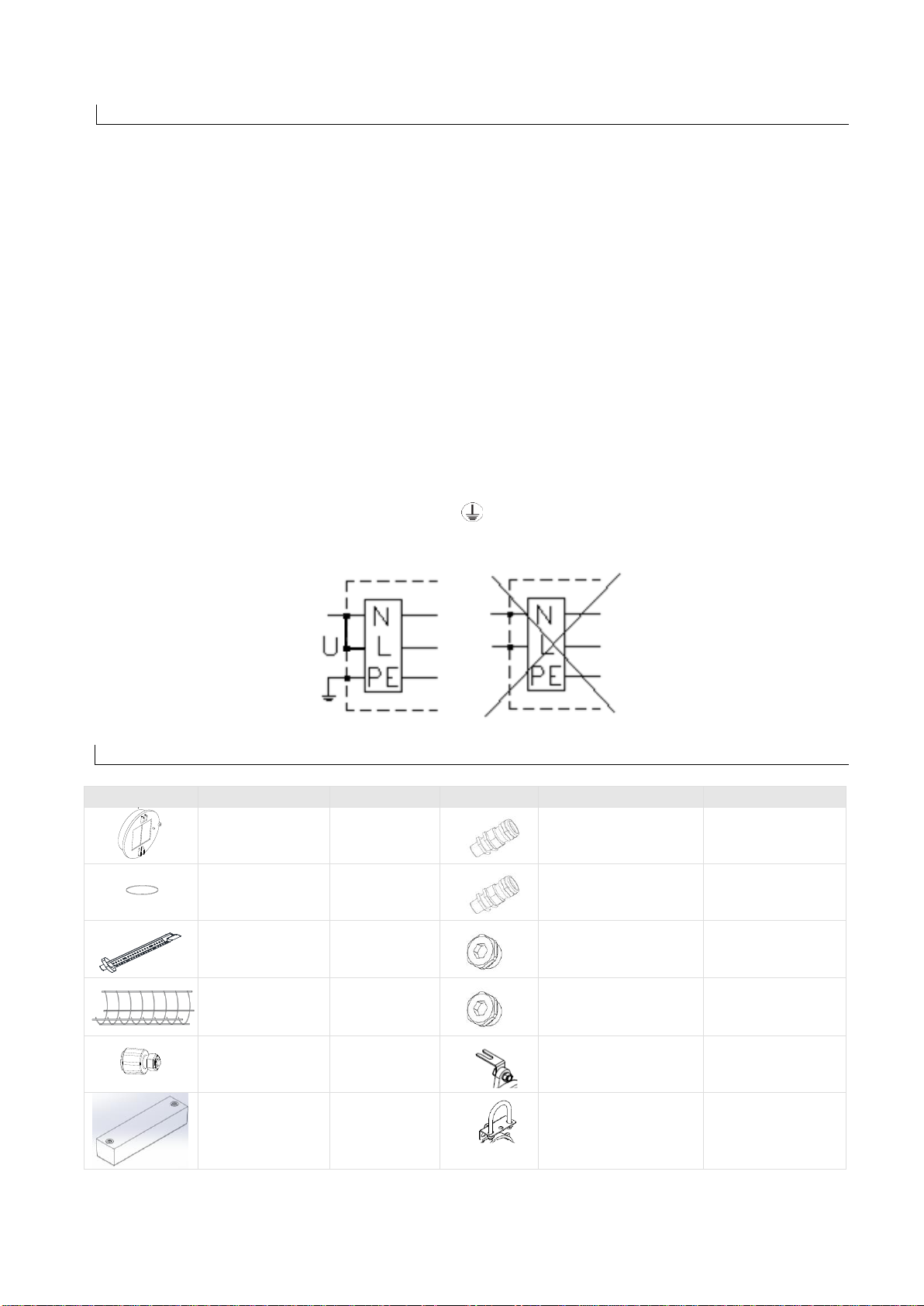

9. MOUNTING AND INSTALLATION
Mounting and installation of light fitting is carried out according to the labeled technical data and the additional
manufacturer's instructions, national rules and regulations, as well as the generally recognized rules of technique. Only
under this conditions the explosion protection that is committed with type certificate will be confirmed.
The quality of the used materials ensures compliance in the “standard” industrial atmosphere. For special requirements
please contact the manufacturer.
Standard mounting is performed with suspension or fixing with a screws through an Ø13 mm hole in the housing. Using
accessories for quick installation FLXE 20-170 can be directly fixed on the wall or ceiling - screw accessories Ø8 at a
distance of 230 mm. Using accessories for quick installation FLXE 20-180 can be directly fixed on the pole with
diameter up to 2".
Ex d cable glands and EX d plugs are not part of the standard delivery for the types FLX 310 LED/0 and
310 FLX LED/1, but it’s ensured users. Standard design lamps presumed closure introduction with blind introductions
to protect volumes. When installing the user should comply with the cable glands manufacturer instructions. If the user
requests through-wiring, it is necessary to use two Ex de adapter or two Ex d glands
The light fitting comes with a cover fully twisted in its entirety in the housing and mechanically locked by a screw
M5x10 ISO 4027to protect from self-loosening. After each opening, lamp threat should be protected by protective agent
threads.
Checking individual traceability of the quality control plan.
Testing the insulation resistance at 10 MW / 500 V DC.
Testing of mechanical strength of the casing with static pressure 1,5P
Testing dielectric strength between L / N short circuit and with test voltage (2UN + 1000 V) rms ie. 1500 V r.m.s.
for min. 60 or the test voltage of 1.2 (2UN + 1000 V) rms ie. 1800 V r.m.s. for min. 100 ms.
for at least 10s.
ref
10. SPARE PARTS AND ACCESSORIES
It is not possible to change a single LED source, but only replacement of the entire kit (LED module set. - FLX 310
LED)
Page 5
5
WARNING
DO NOT OPEN WHEN
ENERGIZED
AFTER DE-ENERGIZING DELAY
FIVE MINUTES BEFORE OPENING
x
Medarska 69, Zagreb, Croatia
Made in Croatia
FLX 310 LED / . 230V 50Hz 36W
IP66 . . . . -20°C
<
Ta
< +50°C
II 2G Ex db eb IIC T6 Gb
II 2D Ex tb IIIC T80°C Db
EXA 15 ATEX 0050X P - . . . . DAT - . . .
0722
ili
x
Medarska 69, Zagreb, Croatia
Made in Croatia
FLX 310 LED / . 230V 50Hz 36W
IP66 . . . . -20°C
<
Ta
< +50°C
II 2G Ex db IIC T6 Gb
II 2D Ex tb IIIC T80°C Db
EXA 15 ATEX 0050X P - . . . . DAT - . . .
0722
1)
1)
2)
2)
3)
3)
4)
4)
11. INSPECTION, MAINTENANCE, REPAIR AND OVERHAUL
Inspections are carried out in accordance with IEC 60079-17:2007 general and special conditions of manufacturer and
users Regulations and includes inspection of parts on which the explosion protection depends, especially:
the housing, terminal chamber, glass protective framework, cable gland, plugs, protective glass and seal are without
rupture and damage,
the glands, plugs, terminals, screw and locking bolt on the housing cover are fastened with nominal torque
In to the parts for maintenance and repair belongs all the parts provided by the manufacturer and indicated in the list of
spare parts. All other procedures have the character of repair. All the repairs are performed by the manufacturer or the
manufacturer's authorized personal and the original parts have to be provided according to the product documentation, all
in accordance with EN 60079-19:2011.
Overhaul and modifications are not allowed.
If repair or any other procedure are performed on the product by unauthorized person, all producer responsibility for the
product and the warranty and the manufacturer's declaration of conformity becomes invalid.
12. RESPONSIBILITY AND AUTHORIZATION
This instruction is the basic information about the product. It is complementing with the corresponding national laws
and regulations.
Production, use, certification and supervision are determined at the national level:
a) Regulations concerning equipment and protective systems intended for use in potentially explosive
atmospheres EU directive 94/9 EC (ATEX 94)
b) Regulations on minimum requirements for safety and health protection of workers and technical inspection
of facilities, equipment, installations and equipment in hazardous areas EU directive 1999/92/EC (ATEX 137).
The responsible person shall ensure their implementation at the working facility.
13. STORAGE AND TRANSPORT
Transportation and storage of the light fitting is only allowed in the original cardboard box.
14. MANUFACTURER'S WARRANTY
The manufacturer provides a Warranty on the product for a period of one year under the provisions of this User manual
and the Law. This statement has the force of Warranty sheet.
15. MARKING
Explosion protected fluorescent lighting fitting, type FLX 310 LED . is labeled with:
- a warning labels with technical data on the housing
- Marking label with the technical data (outside):
Page 6
6
x
Medarska 69, Zagreb, Croatia
Made in Croatia
FLX 310 LED / . 230V 50Hz 36W
IP66 . . . . -20°C
<
T
a
< +50°C
II 2G Ex db eb IIC T6 Gb
II 2D Ex tb IIIC T80°C Db
EXA 15 ATEX 0050X P - . . . . DAT - . . .
0722
x
Medarska 69, Zagreb, Croatia
Made in Croatia
FLX 310 LED / . 230V 50Hz 36W
IP66 . . . . -20°C
<
T
a
< +50°C
II 2G Ex db eb IIC T6 Gb
II 2D Ex tb IIIC T80°C Db
EXA 15 ATEX 0050X P - . . . . DAT - . . .
0722
ili
x
Medarska 69, Zagreb, Croatia
Made in Croatia
FLX 310 LED / . 230V 50Hz 36W
IP66 . . . . -20°C
<
T
a
< +50°C
II 2G Ex db IIC T6 Gb
II 2D Ex tb IIIC T80°C Db
EXA 15 ATEX 0050X P - . . . . DAT - . . .
0722
ili
x
Medarska 69, Zagreb, Croatia
Made in Croatia
FLX 310 LED / . 230V 50Hz 36W
IP66 . . . . -20°C
<
T
a
< +50°C
II 2G Ex db IIC T6 Gb
II 2D Ex tb IIIC T80°C Db
EXA 15 ATEX 0050X P - . . . . DAT - . . .
0722
1)
1)
1)
1)
2)
2)
2)
2)
3)
3)
3)
3)
4)
4)
4)
4)
- Marking label with the technical data (inside):
1) Entry type
2) Number and size of entries
3) Individual tests number
4) Date
