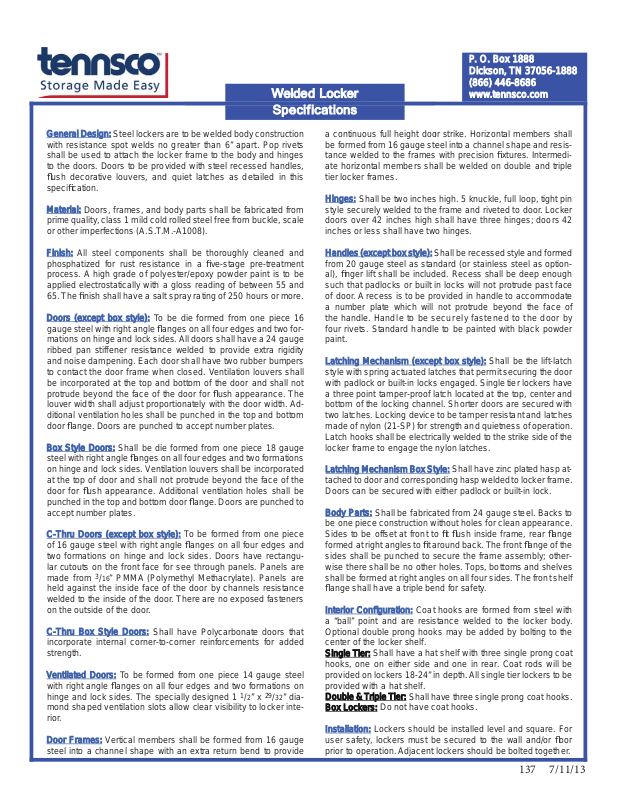

Welded Locker
Welded Locker
Specifications
Specifications
P. O. Box 1888
Dickson, TN 37056-1888
(866) 446-8686
www.tennsco.com
General Design: Steel lockers are to be welded body construction
with resistance spot welds no greater than 6” apart. Pop rivets
shall be used to attach the locker frame to the body and hinges
to the doors. Doors to be provided with steel recessed handles,
fl ush decorative louvers, and quiet latches as detailed in this
specifi cation.
Material: Doors, frames, and body parts shall be fabricated from
prime quality, class 1 mild cold rolled steel free from buckle, scale
or other imperfections (A.S.T.M.-A1008).
Finish: All steel components shall be thoroughly cleaned and
phosphatized for rust resistance in a fi ve-stage pre-treatment
process. A high grade of polyester/epoxy powder paint is to be
applied electrostatically with a gloss reading of between 55 and
65. The fi nish shall have a salt spray rating of 250 hours or more.
Doors (except box style): To be die formed from one piece 16
gauge steel with right angle fl anges on all four edges and two for-
mations on hinge and lock sides. All doors shall have a 24 gauge
ribbed pan stiffener resistance welded to provide extra rigidity
and noise dampening. Each door shall have two rubber bumpers
to contact the door frame when closed. Ventilation louvers shall
be incorporated at the top and bottom of the door and shall not
protrude beyond the face of the door for fl ush appearance. The
louver width shall adjust proportionately with the door width. Additional ventilation holes shall be punched in the top and bottom
door fl ange. Doors are punched to accept number plates.
Box Style Doors: Shall be die formed from one piece 18 gauge
steel with right angle fl anges on all four edges and two formations
on hinge and lock sides. Ventilation louvers shall be incorporated
at the top of door and shall not protrude beyond the face of the
door for fl ush appearance. Additional ventilation holes shall be
punched in the top and bottom door fl ange. Doors are punched to
accept number plates.
C-Thru Doors (except box style): To be formed from one piece
of 16 gauge steel with right angle fl anges on all four edges and
two formations on hinge and lock sides. Doors have rectangular cutouts on the front face for see through panels. Panels are
made from
held against the inside face of the door by channels resistance
welded to the inside of the door. There are no exposed fasteners
on the outside of the door.
C-Thru Box Style Doors: Shall have Polycarbonate doors that
incorporate internal corner-to-corner reinforcements for added
strength.
Ventilated Doors: To be formed from one piece 14 gauge steel
with right angle fl anges on all four edges and two formations on
hinge and lock sides. The specially designed 1
mond shaped ventilation slots allow clear visibility to locker interior.
Door Frames: Vertical members shall be formed from 16 gauge
steel into a channel shape with an extra return bend to provide
3
/16” PMMA (Polymethyl Methacrylate). Panels are
be welded body construction
ter than 6” apart. Pop rivets
rame to the body and hinges
with steel recessed handles,
t latches as detailed in this
1
/2” x 29/32” dia-
a continuous full height door strike. Horizontal members shall
a continuous full height d
be formed from 16 gauge steel into a channel shape and resis-
be formed from 16 gauge st
tance welded to the frames with precision fi xtures. Intermedi-
tance welded to the frame
ate horizontal members shall be welded on double and triple
ate horizontal members s
tier locker frames.
tier locker frames.
Hinges: Shall be two inches high. 5 knuckle, full loop, tight pin
style securely welded to the frame and riveted to door. Locker
doors over 42 inches high shall have three hinges; doors 42
inches or less shall have two hinges.
Handles (except box style): Shall be recessed style and formed
from 20 gauge steel as standard (or stainless steel as optional), fi nger lift shall be included. Recess shall be deep enough
such that padlocks or built in locks will not protrude past face
of door. A recess is to be provided in handle to accommodate
a number plate which will not protrude beyond the face of
the handle. Handl e to be securely fastened to the door by
four rivets. Standard handle to be painted with black powder
paint.
Latching Mechanism (except box style): Shall be the lift-latch
style with spring actuated latches that permit securing the door
with padlock or built-in locks engaged. Single tier lockers have
a three point tamper-proof latch located at the top, center and
bottom of the locking channel. Shorter doors are secured with
two latches. Locking device to be tamper resistant and latches
made of nylon (21-SP) for strength and quietness of operation.
Latch hooks shall be electrically welded to the strike side of the
locker frame to engage the nylon latches.
Latching Mechanism Box Style: Shall have zinc plated hasp at-
tached to door and corresponding hasp welded to locker frame.
Doors can be secured with either padlock or built-in lock.
Body Parts: Shall be fabricated from 24 gauge steel. Backs to
be one piece construction without holes for clean appearance.
Sides to be offset at front to fi t fl ush inside frame, rear fl ange
formed at right angles to fi t around back. The front fl ange of the
sides shall be punched to secure the frame assembly; otherwise there shall be no other holes. Tops, bottoms and shelves
shall be formed at right angles on all four sides. The front shelf
fl ange shall have a triple bend for safety.
Interior Confi guration: Coat hooks are formed from steel with
a “ball” point and are resistance welded to the locker body.
Optional double prong hooks may be added by bolting to the
center of the locker shelf.
Single Tier: Shall have a hat shelf with three single prong coat
hooks, one on either side and one in rear. Coat rods will be
provided on lockers 18-24” in depth. All single tier lockers to be
provided with a hat shelf.
Double & Triple Tier: Shall have three single prong coat hooks.
Box Lockers: Do not have coat hooks.
Installation: Lockers should be installed level and square. For
user safety, lockers must be secured to the wall and/or fl oor
prior to operation. Adjacent lockers should be bolted together.
