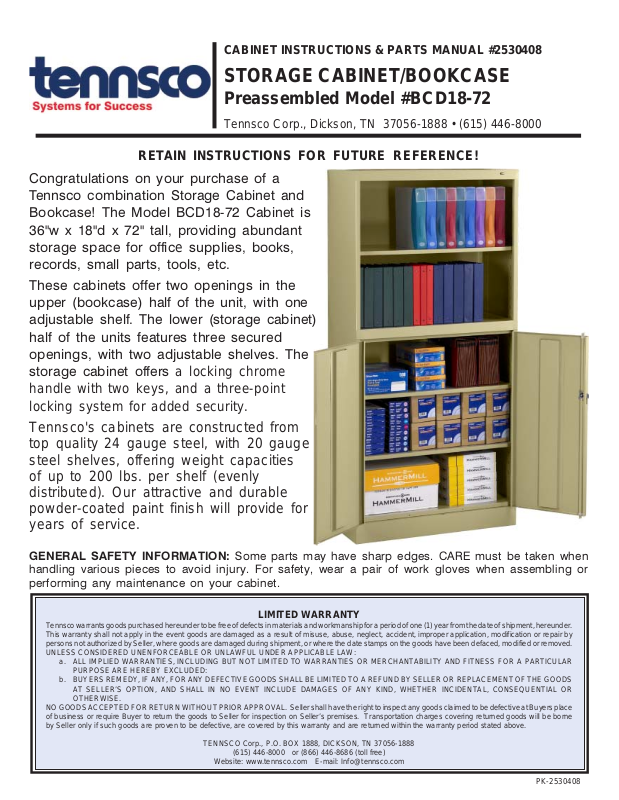

CABINET INSTRUCTIONS & PARTS MANUAL #2530408

STORAGE CABINET/BOOKCASE

Preassembled Model #BCD18-72

Tennsco Corp., Dickson, TN 37056-1888 • [phone]

RETAIN INSTRUCTIONS FOR FUTURE REFERENCE!

Congratulations on your purchase of a
Tennsco combination Storage Cabinet and
Bookcase! The Model BCD18-72 Cabinet is
36"w x 18"d x 72" tall, providing abundant
storage space for offic

e supplies, books,

records, small parts, tools, etc.

These cabinets offer two openings in the
upper (bookcase) half of the unit, with one
adjustable shelf. The lower (storage cabinet)
half of the units features three secured
openings, with two adjustable shelves. The

storage cabinet offers a locking chrome

handle with two keys, and a three-point
locking system for added security.

Tennsco's cabinets are constructed from
top quality 24 gauge steel, with 20 gauge
steel shelves, offering weight capacities
of up to 200 lbs. per shelf (evenly
distributed). Our attractive and durable
powder-coated paint finish will provide for
years of service.

GENERAL SAFETY INFORMATION: Some parts may have sharp edges. CARE must be taken when
handling various pieces to avoid injury. For safety, wear a pair of work gloves when assembling or
performing any maintenance on your cabinet.

LIMITED WARRANTY

Tennsco warrants goods purchased hereunder to be free of defects in materials and workmanship for a period of one (1) year from the date of shipment, hereunder.
This warranty shall not apply in the event goods are damaged as a result of misuse, abuse, neglect, accident, improper application, modification or repair by
persons not authorized by Seller, where goods are damaged during shipment, or where the date stamps on the goods have been defaced, modified or removed.
UNLESS CONSIDERED UNENFORCEABLE OR UNLAWFUL UNDER APPLICABLE LAW:

a. ALL IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO WARRANTIES OR MERCHANTABILITY AND FITNESS FOR A PARTICULAR

PURPOSE ARE HEREBY EXCLUDED:

b. BUYERS REMEDY, IF ANY, FOR ANY DEFECTIVE GOODS SHALL BE LIMITED TO A REFUND BY SELLER OR REPLACEMENT OF THE GOODS

AT SELLER’S OPTION, AND SHALL IN NO EVENT INCLUDE DAMAGES OF ANY KIND, WHETHER INCIDENTAL, CONSEQUENTIAL OR

OTHERWISE.
NO GOODS ACCEPTED FOR RETURN WITHOUT PRIOR APPROVAL. Seller shall have the right to inspect any goods claimed to be defective at Buyers place
of business or require Buyer to return the goods to Seller for inspection on Seller’s premises. Transportation charges covering returned goods will be borne
by Seller only if such goods are proven to be defective, are covered by this warranty and are returned within the warranty period stated above.

TENNSCO Corp., P.O. BOX 1888, DICKSON, TN 37056-1888

[phone] or [phone] (toll free)

Website: www.tennsco.com E-mail: [e-mail]

PK-2530408

Shelf Adjustment

1. Using a flat-head screwdriver, gently pull the
locking tab away from the hole in the shelf
edge. This will allow the shelf to be released
and lifted from the tab.

2. Place the shelf at the desired level.

3. Insert the shelf edges into the tabs at the new
location. Be sure that the shelf is securely
fitted into the tabs at all points of contact.

Leveling the Cabinet

If cabinet doors don't easily open and close, your
unit likely needs leveling. Leveling can be accom-

View from beneath

shelf

plished by placing small shims underneath the
corners of the unit until the doors align along the top.

REPLACEMENT PARTS

For Storage Cabinet For Locking Handle

PART DESCRIPTION

Shelf 301
Door (left) 978LD
Door (right) 978RD
Hinge Pin 944HP

*Included in Locking Handle w/keys and hardware (part no. 043LH). May be ordered alone or as part of the full hardware set.

Tennsco makes every effort to ensure that all units ship complete with all parts and arrive undamaged. However, should
your unit contain missing or damaged parts, replacements may be obtained directly from us. To obtain proper replacement
parts follow the instructions below, or fill out the form at www.tennsco.com/partsorder.html.

PART NO.

PART DESCRIPTION PART NO.

Lock Bar Set 978LB
Locking Handle w/keys and hardware 944LH
Locking Cam* 944LC
Cam Retainer* 944CR
Lock Bar Guide Insert* 944GI

TO OBTAIN PROPER REPLACEMENT PARTS, PLEASE PROVIDE THE FOLLOWING INFORMATION:

●●

●

●●

Model Number (BCD18-72) Purchase Date

●●

●

●●

Description of part(s) needed and part Your company name
number(s) as shown in Parts List (above) Contact person's name

●●

●

●●

Color (i.e. Medium Grey, etc.) Who the product was purchased from

●●

●

●●

Was item missing, or was it damaged?

●●

●

●●

●●

●

●●

●●

●

●●

●●

●

●●

Tennsco Corp., P.O. Box 1888, Dickson, TN 37056-1888 Customer Service: [phone] Fax: [phone]

If requesting parts by telephone, ask for customer service and have as much of the above information ready as possible.
