Page 1
Air Velocity Meter
TM-411/412/413/414
HB2TM4110000
TENMARS ELECTRONICS CO., LTD
User’s Manual
Page 2
Table of Contents
1. Introduction ............................................... 1
2. Features.................................................... 1
3. Functions Cross table ............................... 2
4. Air Velocity Meter Features....................... 3
5. Display Features ....................................... 5
6. Power On/Off ............................................ 6
7. Auto Shutoff .............................................. 6
8. LED Backlight ........................................... 6
9. Auto Backlight On/Off ............................... 7
10. Air Velocity Measures ............................... 8
11. Change Secondary Display Mode............. 9
12. Change Units ............................................ 9
13. Air Flow Calculation ................................ 10
14. Setting Area ............................................ 10
15. MAX/MIN/AVG record: .............................11
16. Freeze Display (HOLD)........................... 12
17. 99 Records ............................................. 12
18. Clear Memory ......................................... 13
19. Memory Recall........................................ 14
20. Checking the LCD and Software Version 14
21. Battery Replacement .............................. 15
22. Specifications.......................................... 15
23. End of life................................................ 17
Page 3
TM-411/412/413/414
EN-1
1. Introduction
TM-40X series measures air speed, temperature
and humidity. It is ideal for spot measurements
at air outlets on account of its 30mm vane. In
addition to air speed and temperature, TM-404
also measures air moisture and absolute pressure.
In this way, air conditions can be reliably checked.
2. Features
45mm 4 plastics vane
High sensitivity of 0.4m/s.
Air flow calculate function.
Max/Min/Avg and data hold.
Auto power off with disable function.
Low battery indication. “ ”
Low battery indication.
Datalogging capacity: 99 records.
Memory recall function.
Backlight function.
Absolute Pressure Sensor
Humidity Sensor
Page 4
TM-411/412/413/414
EN-2
3. Functions Cross table
Page 5
TM-411/412/413/414
EN-3
4. Air Velocity Meter Features
Page 6
TM-411/412/413/414
EN-4
1. HOLD and Recall key
2. ESC and Rec key
3. Max, Min and AVG key
4. Select up and Auto shutoff key
5. Enter and Unit change key
6. Select down and Power key
7. backlight and Set Key
8. Display and Backlight
9. Probes input
10. Battery placement
11. Battery cover
12. Probes Plug
13. Probes hold
14. Probes sensor (Temperature/Humidity)
15. Vane
16. Internal Pressure Sensor (TM-414)
Page 7
TM-411/412/413/414
EN-5

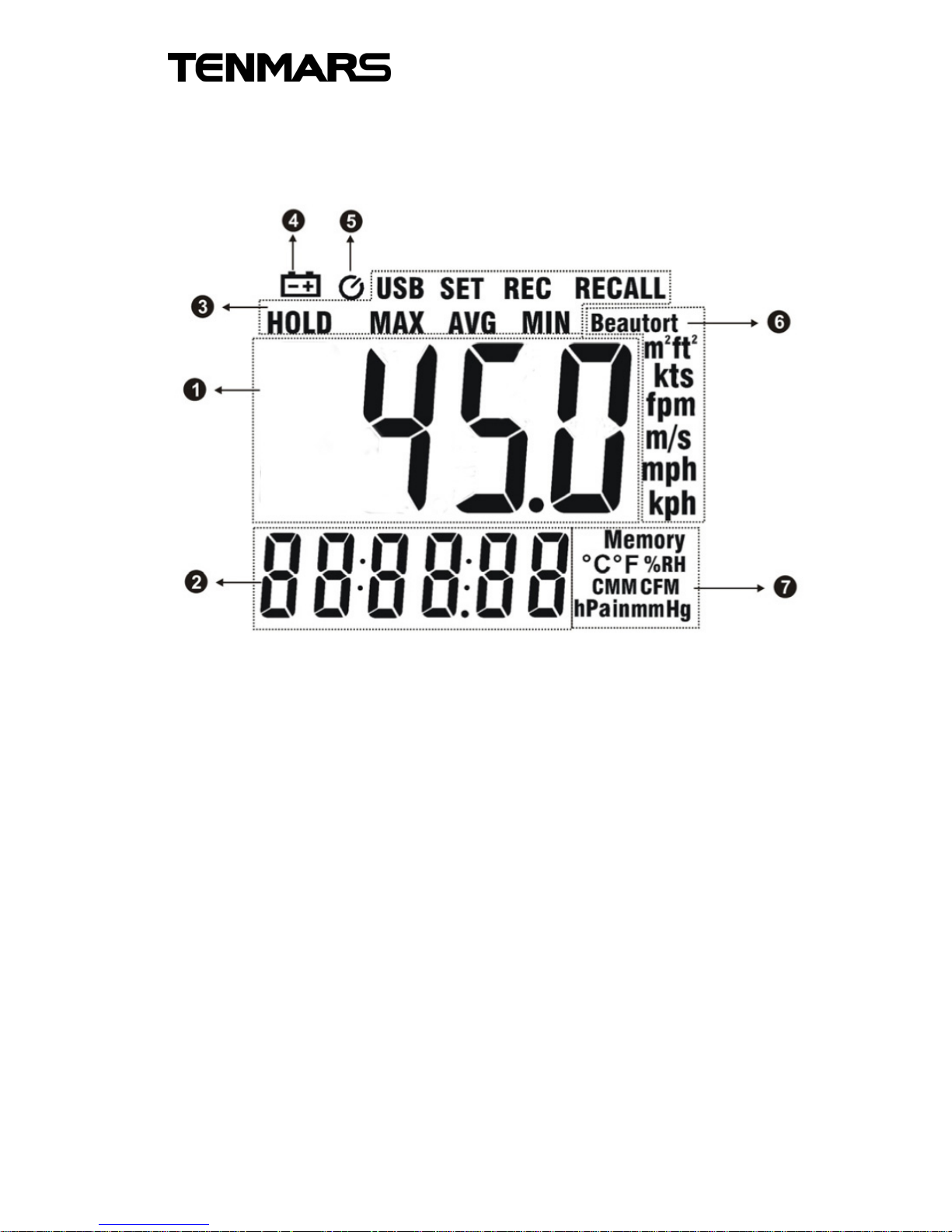

5. Display Features
1. Primary display
2. Secondary display
3. Functional symbol display area
4. Lower battery indication.
5. Auto shutoff symbol indication.
6. Units of Primary display
7. Units of Secondary display
Page 8
TM-411/412/413/414
EN-6
6. Power On/Off
In the shutoff mode Press key to turn on he
power.
If want to turn off Press and hold key.
※ In the Set ,Unit change and recall mode can
not turn off the power.
7. Auto Shutoff
The device will auto shutoff if there is no action for
15 minutes.
If want to disable or enable the auto power off
function, please press and hold
key.
※In the Set ,Unit change and recall mode can not
change this.
8. LED Backlight
When press key to turn on backlight. Press
key to turn off again. The backlight will turn off of
after 30 seconds.
Page 9
TM-411/412/413/414
EN-7

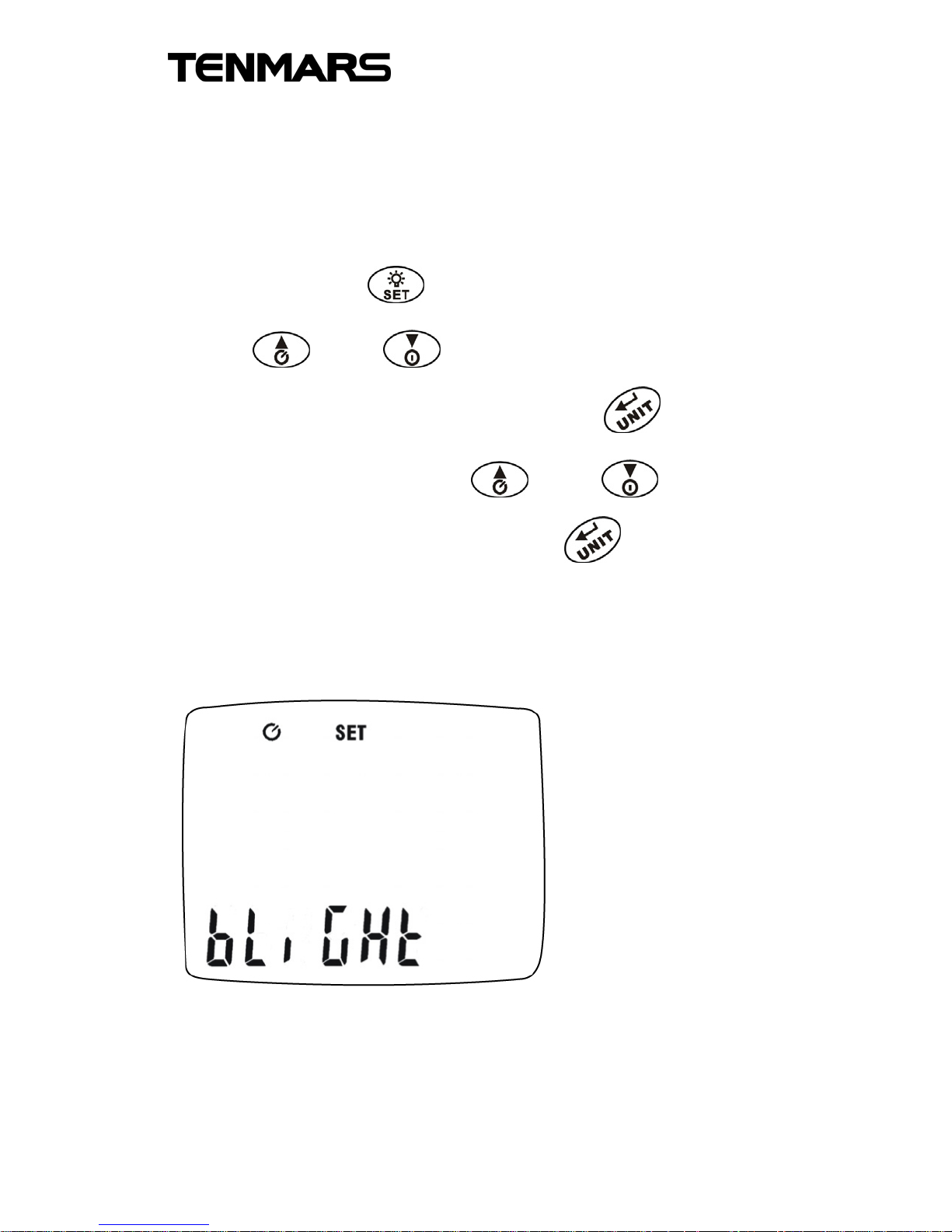

9. Auto Backlight On/Off
Users can set on or off the 30-seconds auto-off
backlight
Press and hold key into setting mode.
Press
and key to select BLIGHT
setting, as shown in figures. Press
key into
Backlight setting. Press
and key to
select auto off on or off. Press
key to finish
and leave setting mode.
Page 10
TM-411/412/413/414
EN-8

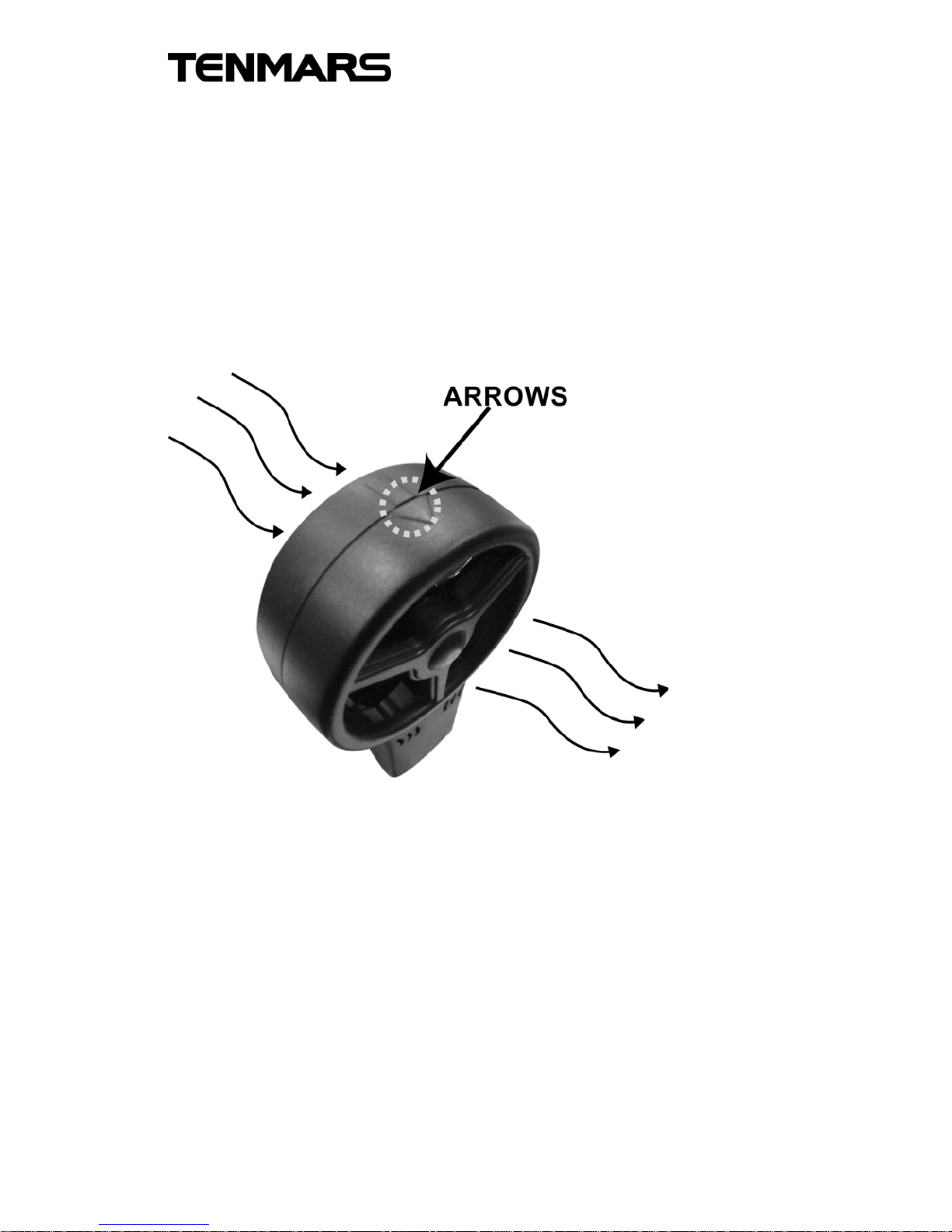

10. Air Velocity Measures
1. Please insert probe plug into the device
sensor input socket.
2. Fallow the arrows to measure velocity. As
shown in figures.
Page 11
TM-411/412/413/414
EN-9
11. Change Secondary Display
Mode
In the normal mode, Press and key to
change secondary display mode.
※ In the Humidity mode need to waiting minutes
to acquire accuracy humidity reading.
12. Change Units
Press and hold key into the setting units
mode. If want to change the secondary display
units, please press and hold key again.
When in the setting units mode, LCD blink the
choose unit. Press
and key to change
the units and press key to finish and leave
setting mode.
Page 12
TM-411/412/413/414
EN-10
13. Air Flow Calculation
When secondary display in the flow mode
(CMM/CFM), the device will calculate flow by the
users key in area volume.

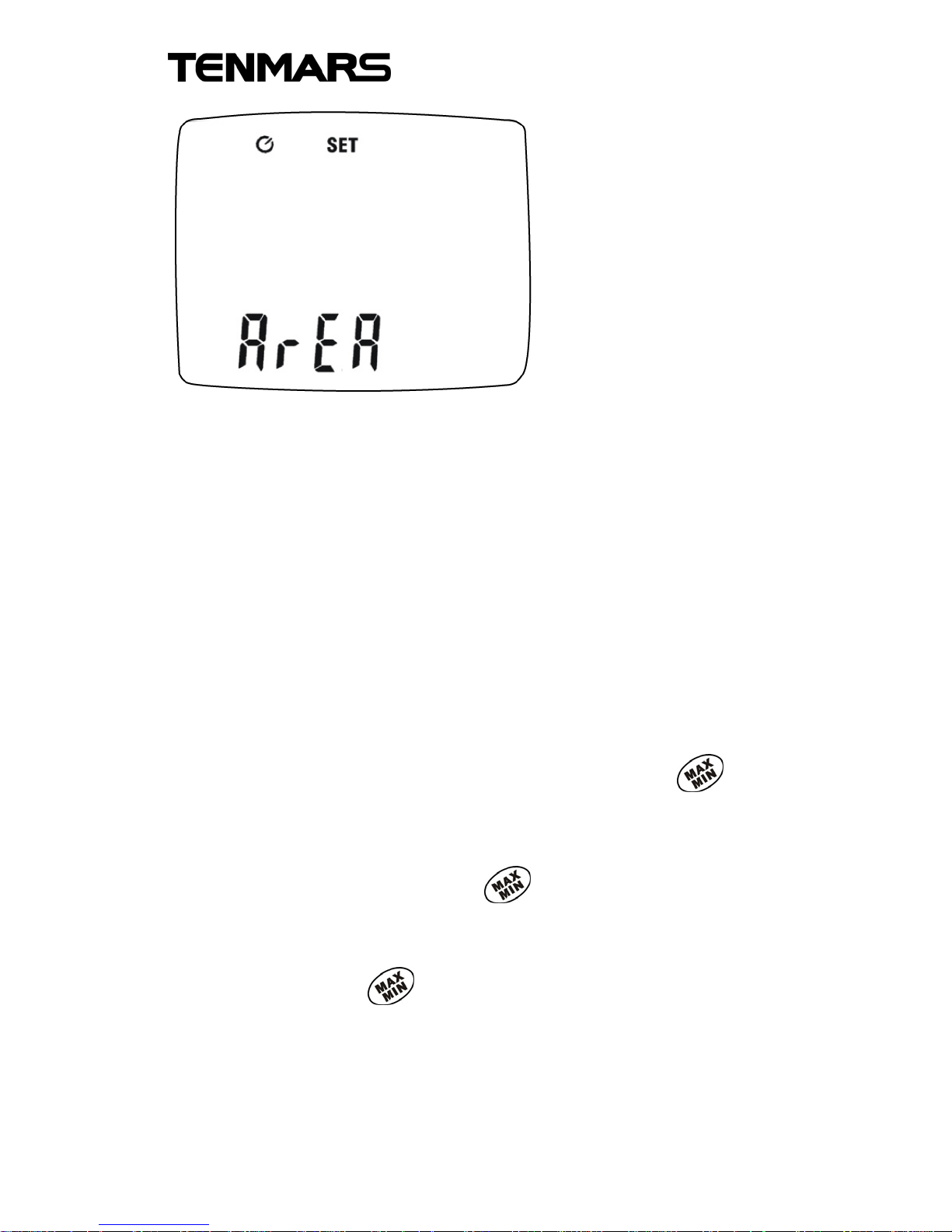

14. Setting Area
Press and hold key into the setting mode.
Press and key to select setting area
mode, as shown in figures. Press key into
the setting area mode.
From left to right to set the digits, and press
and key to adjust digits to left or right. Press
and key to increase and decrease
volume through last right digits.
Users can press and hold key to change
area units (m
2
/ ft2).
Page 13
TM-411/412/413/414
EN-11
※ The units(m2) maximum volume is 1.5 m2, and
minimum volume is 0.096 m
2
.
※ The units (ft
2
) maximum volume is 16.15 ft2,
and minimum volume is 1.03 ft2.
15. MAX/MIN/AVG record:
This function can record maximum, minimum and
average. User can select viewing. Press key
to start record MAX, MIN, and AVG. Show the max
reading to display. Press key to switch
viewing between MAX, AVG and MIN.
Press and hold
key to disable this function.
※ In the Set ,Unit change and recall mode can
not used this function.
Page 14
TM-411/412/413/414
EN-12
16. Freeze Display (HOLD)
Users can press key to freeze display, and
press key again to release display.
※ In the Set ,Unit change and recall mode can
not used this function.
17. 99 Records
Device cans storage air velocity data up to 99
records.
Press key to storage once record data, and
shown memory location on the LCD about 1 second.
※ When the enable HOLD and MAX/MIN
function, the record data still real reading.
Page 15
TM-411/412/413/414
EN-13

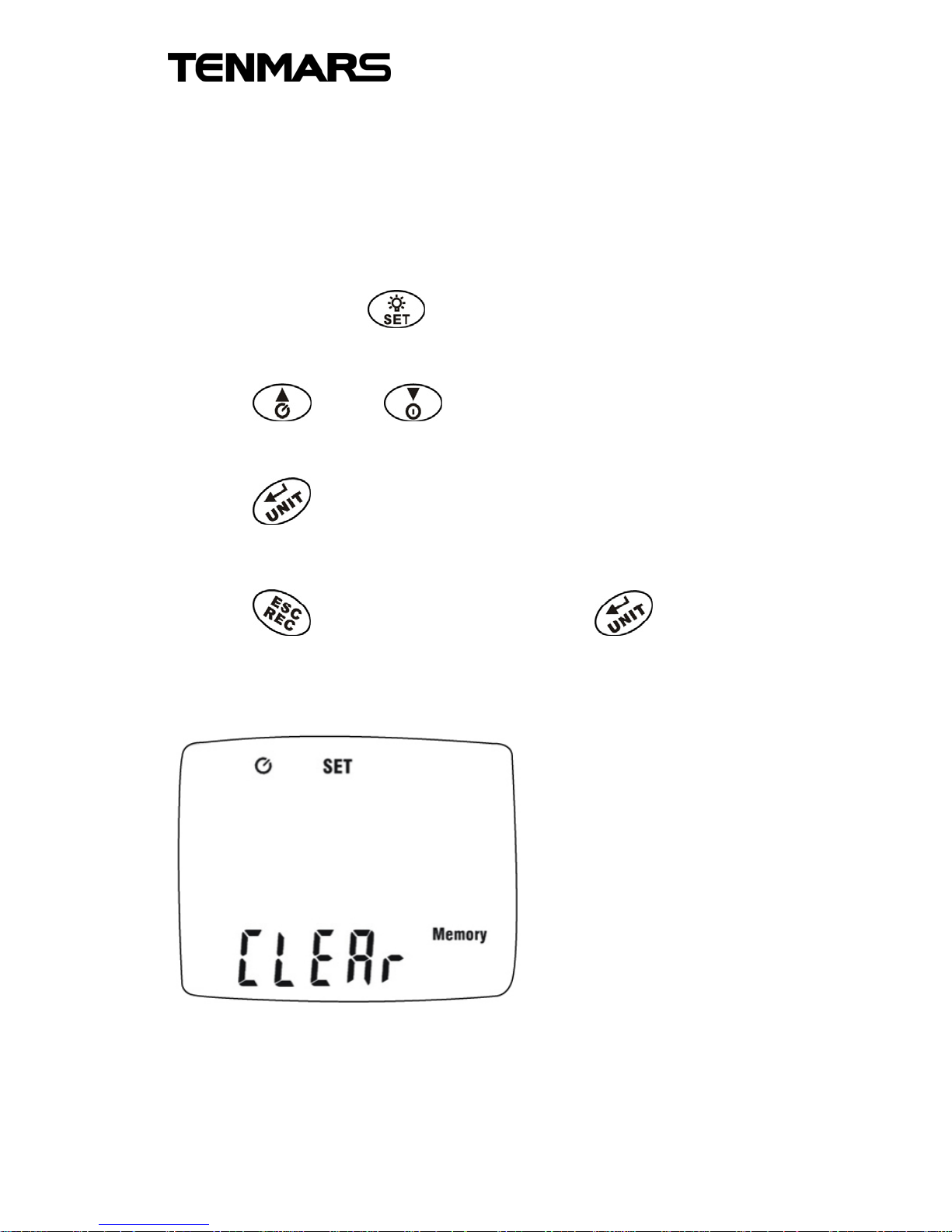

18. Clear Memory
When the memory are full or want to clear
memory data, please fallow the setup to clear
memory.
Press and hold
key into the setting mode,
as shown in figures.
Press
and key to select the clear
memory mode.
Press
key into the clear memory mode.
The LCD showed the “yes” to reconfirm.
Press key to leave or press key to
clear memory and leave clear memory mode.
Page 16
TM-411/412/413/414
EN-14
19. Memory Recall
Users can recall the memory data to show on the
display.
Press and hold key into the RECALL mode.
The secondary display showed the memory
location and primary display showed the storage
velocity data.
Press
and key to increase and
decrease memory location.
If want to leave the recall mode, please press and
hold
key to leave this mode.
20. Checking the LCD and Software
Version
In the shutoff mode, Press and hold key to
turn on device and LCD will keep all dark
continued.
Starting device will show the software version
about 1 second.
Page 17
TM-411/412/413/414
EN-15
21. Battery Replacement
Turn off the device and disconnect all test leads
before replacing the battery.
Use only the correct type of batteries, properly
installed in the case, to power the device.
22. Specifications
Velocity:
Unit Range Resolution Accuracy
m/s 0.4~45 0.1
±3﹪+0.2
Km/hr(kph) 1.5~160 0.1
±3﹪+0.8
mph 0.9~100 0.1
±3﹪+0.4
Knots(kts) 0.8~88 0.1
±3﹪+0.4
ft/min(fpm) 79~8800 1
±3﹪+40
Beaufort 1~12 1 -
Air Flow Calculation:
Unit Range Resolution Accuracy
CMM 0~9999 1 --
CFM 0~9999 1 --
Temperature:
WARNING
If the symbol “ ” appears on the LCD,
please replace the battery immediately
Page 18
TM-411/412/413/414
EN-16
Unit Range Resolution Accuracy
℃
-20~60 0.1
±1℃
℉
-4~140 0.1
±1.8℉
Humidity:
Unit Range Resolution Accuracy
%RH 20~80 0.1
±3.5%RH
%RH <20 , >80 0.1
±5%RH
Absolute Pressure:
Unit Range Resolution Accuracy
hPa 350~1100 0.1
±2hPa
mmHg 263~825 0.1
±1.5mmHg
inHg 10.3~32 0.1
±0.1
Display : 42mm(W)*33mm(L) Monochrome
LCD with backlight
Battery : 9V (NEDA 1604、IEC 6F22 or JIS
006P)
Battery Lift : Approx continuous used 100
hours.
Shutoff Rate Power : 3uA
Operate Maximum Power : 25mA
Operating temperature and humidity : 5℃to
40℃,below 80% RH.
Storage temperature and humidity : -10℃ to
60℃, below 70%.
