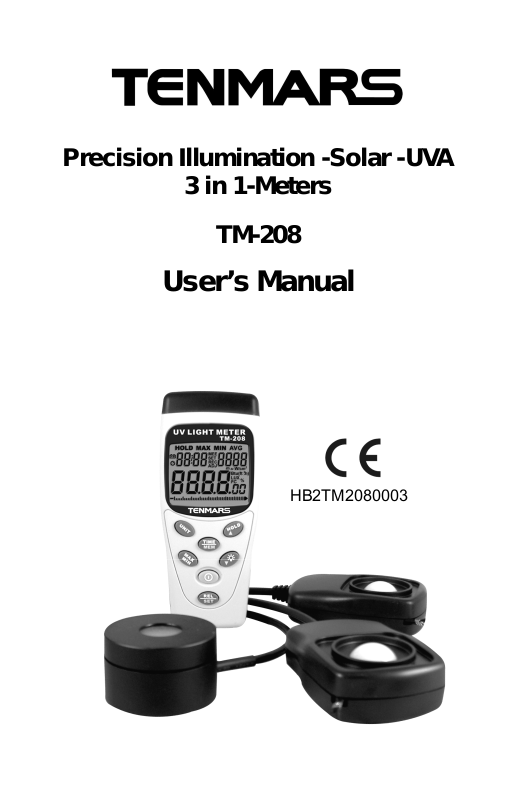

TENMARS TM-208 User guide

Precision Illumination -Solar -UVA

3 in 1-Meters

TM-208

User’s Manual

HB2TM2080003

Content:

1 Preface...................................................... 1

2 Characteristics...........................................1

3 Specifications............................................ 2

4 Illumination Instruction ..............................6

5 Instrument description...............................9

6 LCD description........................................11

7 Measurement Procedures.......................12

8 Zero Adjustment......................................13

9 MAX/MIN/AVG Record:........................... 14

10 Single Data Record................................. 15

11 Auto Power Off........................................16

12 Relative Deduction Value(%)...................17

13 Setup Mode.............................................18

14 Auto Recording Time Setup.................... 19

15 Time clock Setup..................................... 21

16 Viewing Records ..................................... 22

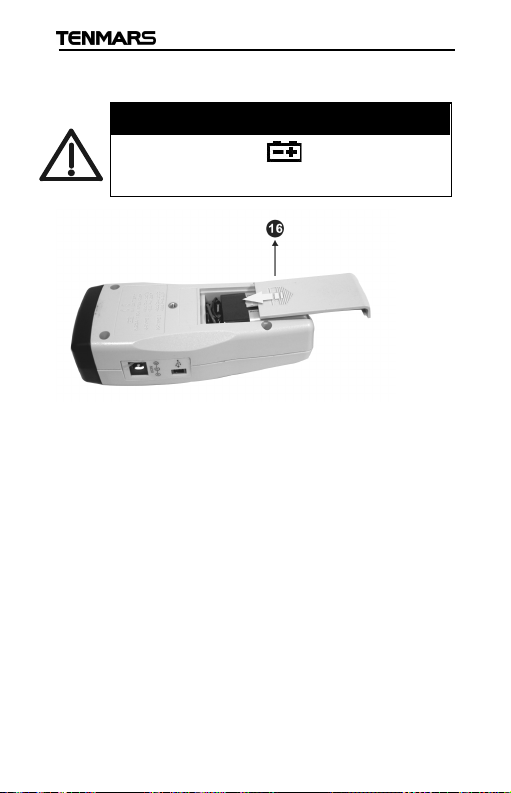

17 Battery Replacement............................... 24

18 External DC Power.................................. 25

19 Computer Grade......................................25

20 Software installation................................ 26

21 Safety and maintenance standards......... 29

22 Service .................................................... 30

23 End of life ................................................32

TM-208

displayed clearly.

1 Preface

Thank you for purchasing our product. Please,
read the operating instructions in details before
you use this optics meter, so you will operate the
meter correctly.This meter can be used in
industry and home.

2 Characteristics

 It gives the selection of Illumination –Solar.

-UVAof one’s own accord unit.

 Illumination -Solar –UVA.

 Convenient, no need to adjust, data

 Real time data.
 Data hold function.
 Auto ranging.
 Back light.
 Auto power off and disable auto power off.
 USB PC interface.
 Data logging capacity up to 45,000 reading.
 Data logging of Illumination –Solar. -UVAof

one’s reading.

 Low battery indication“ ”.
 Over load display “OL”.
 Maximum/Minimum/Average record and

elapse time.

 Auto zero adjustment.

1

TM-208

3 Specifications

3.1 General Specifications

 Battery life: approx. 100 hr.
 Display: 3 3/4 LCD display maximum

display 4000.Illumination -Solar -UVAof
one’s own accord unit BTU (ft2*h) / W/m2/
uW/cm2/ mW/cm2Lux /foot candles (fc) unit.

 Sampling: 4 times/second.
 Power off: Manual off by push button, or

auto shut off after 30 minutes
approximately.

 Data Output: USB PC serial interface.
 Datalogging capacity up to 45,000 reading.
 Power: 9V battery、 NEDA1604、IEC 6F22

or JIS 006P(Only data logger use), or AC to
DC Adapter. (9V/300mA).

 Size: 130(L) x 56(W) x 38 (H)mm.
 Weight: approx.250g.
 Consumption Current: ≦10mA.
 Standard Accessories: User’s manual, 9V

battery，Carrying case, MINI USB4P(MALE)
to USB AType cable, Install CD disk of
TM-208 AC to DC 9V(300mA) If you want to
change sensor，you must turn the meter off
first.

 Sensor length:1.0M.

2

TM-208

EMC

 This tester was designed in accordance

with EMC Standards in force and its
compatibility has been tested in accordance
with EN61326-1 (2006).

3.2 UVA Electric Electrical Specification

 Range : 400.0μw/cm2, 400μw/cm

4000μw/cm

2

, 20mW/cm2.

 Resolution :

0.1μw/cm2,1μ/cm

2

,0.01mW/cm2.

 Accuracy : ± 4(%FS + 2dgt) FS: full

scale/< ±3/year

 Wavelength : 320 - 390 nm.
 Peak sensitivity wavelength: 365 nm.
 Sensor : The exclusive photo diode &

UVAcolor correction filter

2

,

3

TM-208

3.3 Solar Power Electric Specification

 Range : 40.00w/m2m2,400.0w/ m2,4000w/

m2,2000W/m2/13 Btu(ft2．h),127Btu(ft2．
h),634 Btu(ft2．h).

 Resolution : 0.01 w/ m2, 0.1 w/ m2, 1W/ m2/

0.01 Btu(ft2．h),0.1 Btu(ft2．h),1 Btu(ft2．h).

 Accuracy：Typically within ± 10W/m2 [ ±3

BTU / (ft2*h) ] or ±5% , whichever is greater
in sunlight; Additional temperature induced
error ±0.38W/m2 / °C[ ±0.12 BTU / (ft2*h)/ °C]
from 25°C

 Peak sensitivity wavelength : 400 - 1100 nm.
 Auto Measurement & ranges : 0.01W/ m

~2000W/m2、0.01 BTU /(ft 2* h)~634 BTU /(ft
2 * h). °C.

2

4

TM-208

6% other visible light source

Angle deviation

According to JIS C 1609:1993 and CNS 5119

3.4 Illumination Electric Specification

Sensor Silicon photodiode and filter
Measuring

Range

Accuracy ±3% (Calibrated to standard

from cosine
characteristics

 Peak sensitivity wavelength：380 - 780 nm.
 Cosine Angular corrected.



general Aclass Specifications.

 Measuring lights source include all visible.
 Manyapplications include: Warehouses,

factories, office buildings, restaurants,
schools, library, hospitals, photographic,
many video, parking garages, museums, art
galleries, stadiums, building security.

 Peak sensitivity wavelength:550nm

40.00,400.0,400,4000,
40000,400000 Lux
40,400,4000,40000 Footcandles

incandescent lamp 2856 K)

°

30
60

80

°
°

±2%
±6%

±25%

5

TM-208

4 Illumination Instruction

The flux of light received in a unit area of a certain
side being shone is popularly known as
illumination. In both United Kingdom and United
States, the unit is known as foot-candle light, but
in Europe it is known as meter candlelight.
The unit is defined as the amount of illumination
the inside surface an imaginary 1-foot radius
sphere would be receiving if there were a uniform
point source of one candela in the exact center of
the sphere. Alternatively, it can be defined as the
illumination on a 1-square foot surface of which
there is a uniformly distributed flux of one lumen.
This can be thought of as the amount of light that
actually falls on a given surface. The foot-candle
is equal to one lumen per square foot. Its
abbreviated form is written as 1 Fc=1 Lm/ft,
similarly,one-meter candlelight is the illumination
of light that falls on a side that lies in a distance
one meter away from a one meter candlelight and
exactly intersects the light. It is also called Lux i,e.
the flux of light being received in each sq. meter is
called the illumination of one lumen.
As one foot candle=10.764 Lux, therefore,Nbr. of
foot (meter) candlelight =Nbr. of Lumen

――――――――――――――

Area(sq. foot or sq. meter)
Nbr. of Lumen=Nbr. of foot (or meter)x area
Foot-candle/Lux conversion
1 foot-candle=10.764 lux

6

TM-208

1 lux=0.09290 foot-candles
(sq, foot or sq. meter)

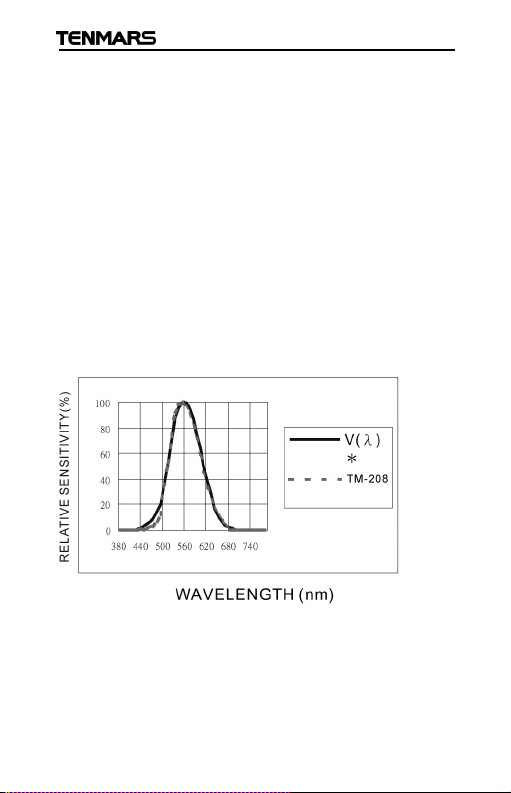

Relative Spectral (SENSITIVITY)

The deviation from the comparative standards for
luminosity is determined by JIS standard C
1609-1993.

Typ.Ta=23°C

NOTE 1.：When the light sensor cap is not
attached on the sensor, the word “CAP” will
appear on the LCD. Make sure that the cap is

7

TM-208

attached on the sensor.If the zero adjustment has
not been made correctly, some digits will still
appear on the LCD instead of 0.00. In this case,
please make the zero adjustment again.

NOTE 2.：Light Source Luminous Intensity (cd)
calculated if a single light source is used and is
regarded as a single-point light source, the
luminous intensity of the light source can be
calculated and displayed, by setting the distance
from the light source to the measuring point.

Luminous intensity (cd) = llluminance (LUx) x
distance (m)

2

Set the distance to the measuring light source in
advance.

8

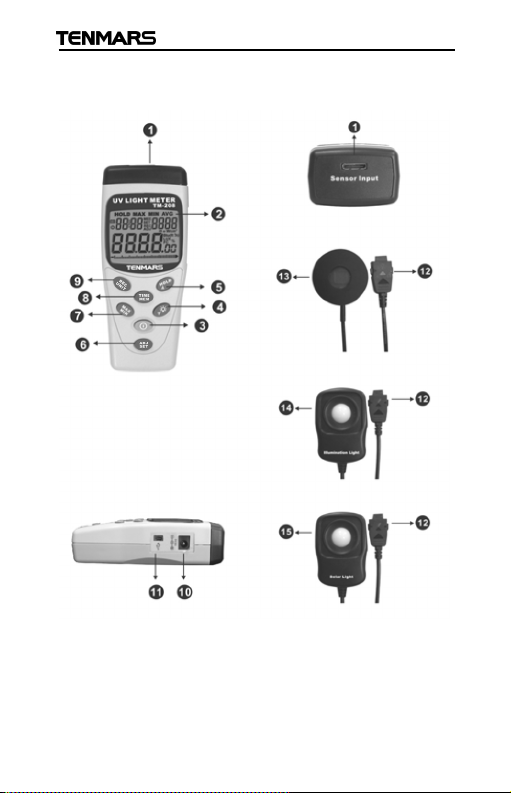

5 Instrument description

TM-208

9

1. Sensor Input connector.

2. LCD

3. Power Button

4. Backlight/Down Button

5. Hold/Up Button

6. ADJ/SET Button

7. MAX/AVG/Min Button

8. Time/MEM button

9. Recode/ UNIT switch Button

10. External power DC 9V

11. USB interface

12. Sensor Probe input(+)

13. UVASensor

14. Illumination sensor

15. SOLAR Sensor

TM-208

10

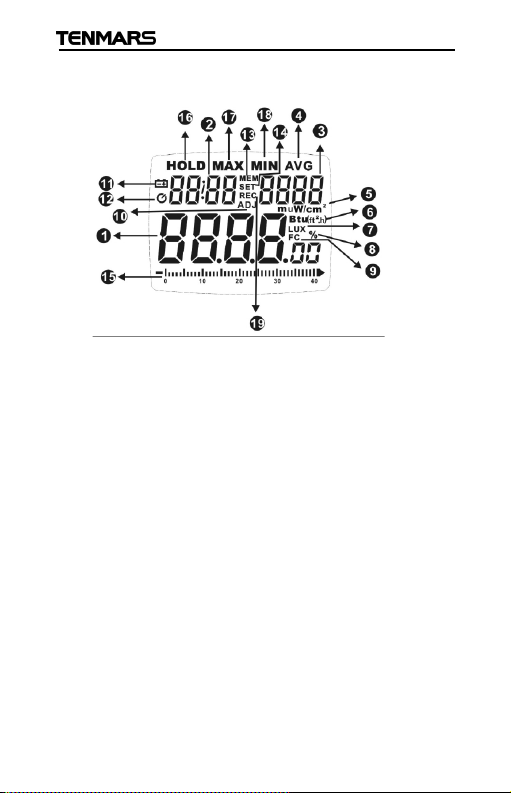

6 LCD description

TM-208

1. Numeral reading

value

3. Memory reading

symbol

5. W/m2/mw/cm2/

uw/cm2unit.

7. Lux unit. 8. % unit.

9. Fc unit. 10. Adj symbol.

11. Low battery symbol. 12. Auto power off

13. MEM symbol. 14. Set symbol.

15. Analogue bar graph 16. Hold symbol

17. Max symbol 18. Min symbol

19. REC symbol

2. Time unit (hour:
minute: month:
second)

4. AVG. symbol

6. Btu (ft2*h) unit.

symbol.

11

TM-208

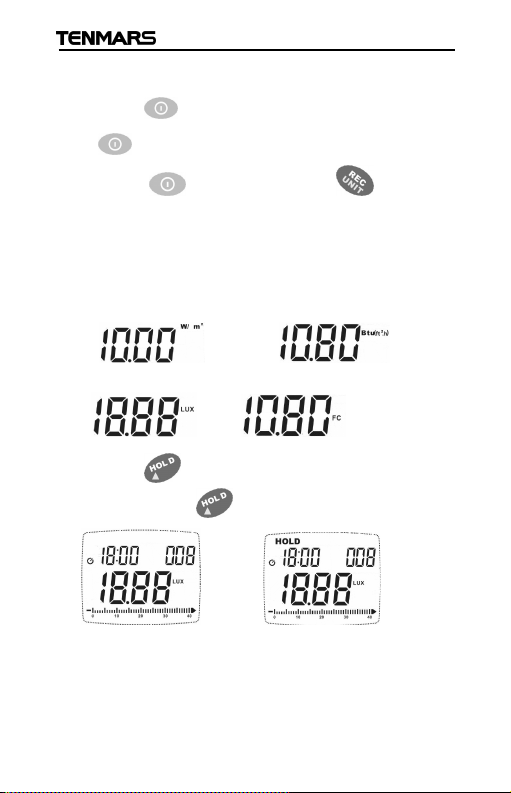

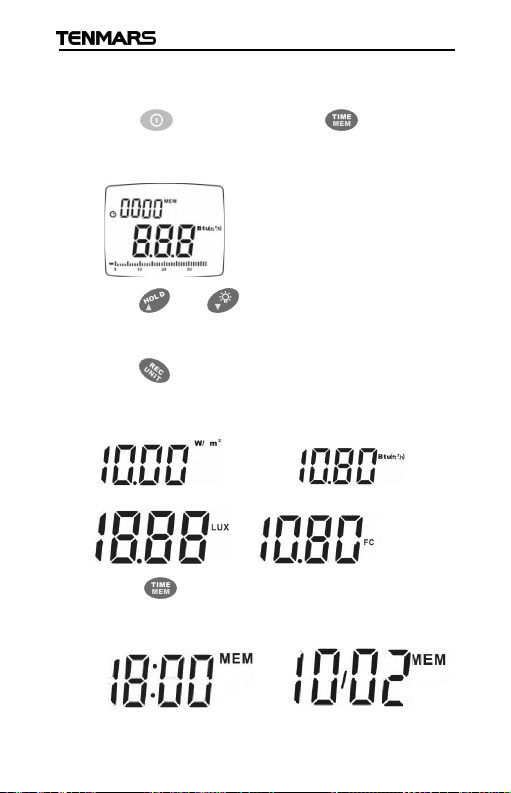

7 Measurement Procedures

 Push “ ” button turn on the meter, push

“ ”button again to turn off the meter.

 Hold “ ” button and push “ ”button to

change the unit.(Transform measuring unit
w/m2) display data.

W/m2>> Btu (ft2*h)>> W/m2/ Lux>> Fc >>Lux

2:

W/m

Lux: Fc:

 Push “ ” button to lock display data on the

LCD，push “ ” button again to unlock.

Btu(ft2*h):

HOLD:

12

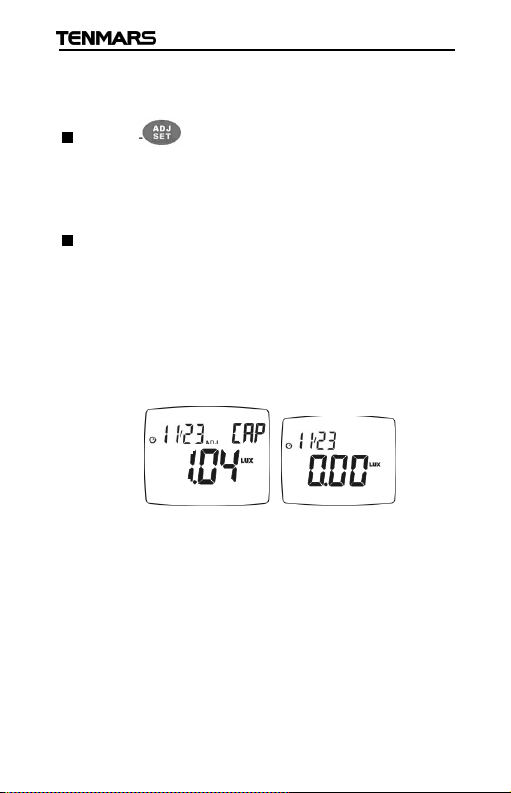

8 Zero Adjustment

Push“ ” button and attach Cap on the
sensor. 0.00 will appear on the LCD. Make

sure that the cap is attached on the sensor.
If the zero adjustment has not been made

correctly,some digits will appear on the LCD
instead of 0.00, and the word “Cap” will also
appear on the LCD to inform you that the cap
is covered completely on the sensor.

ADJ/CAP:

TM-208

13

TM-208

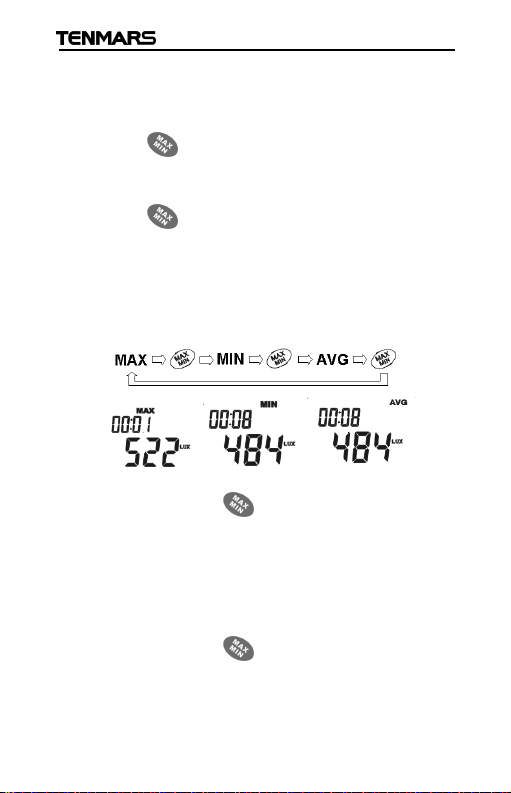

9 MAX/MIN/AVG Record:

 Press “ ” key to show the current MAX,

MIN, and AVG values.

 Press “ ” key to switch to the next display.

The display switches from MAX to MIN, MIN
to AVG, andAVG to MIN. Follow the figure
circles.

 Press and hold “ ”key to disable this

function.

 The maximum storage is up to 99 minutes

and 99seconds.

 Press and hold “ ” button for more than 2

seconds to exit this mode.

14

TM-208

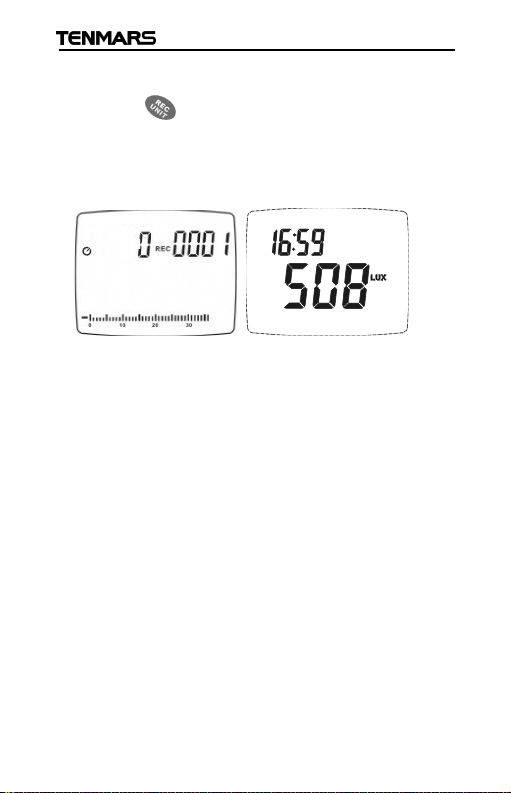

10 Single Data Record

 Push“ ”button, the meter will save the

current measured result, and REC will
also appear on the LCD.

15

TM-208

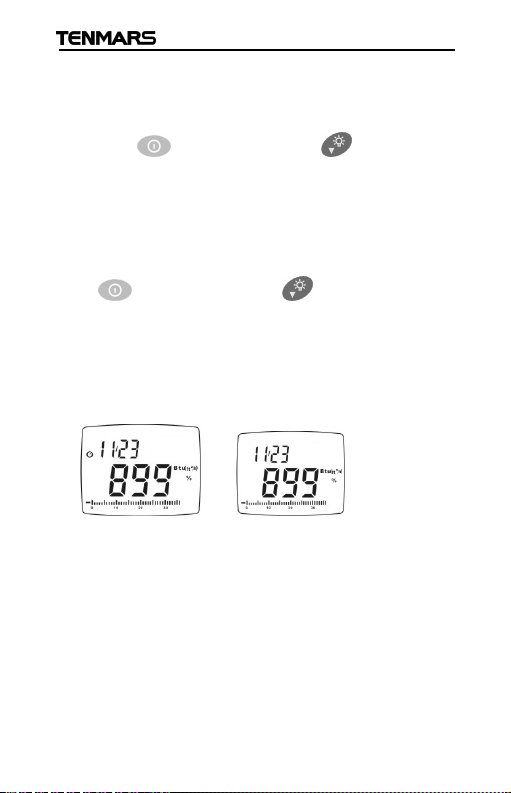

11 Auto Power Off

 If you want disable auto power off, please

hold “ ” button and push “ ” button, the
auto power off symbol will not display on the

LCD.

 If you want enable auto power off please hold

“ ” button and push “ ” button again.
The auto power off symbol will display on the

LCD.

 Auto power off time is 30 minutes.

16

TM-208

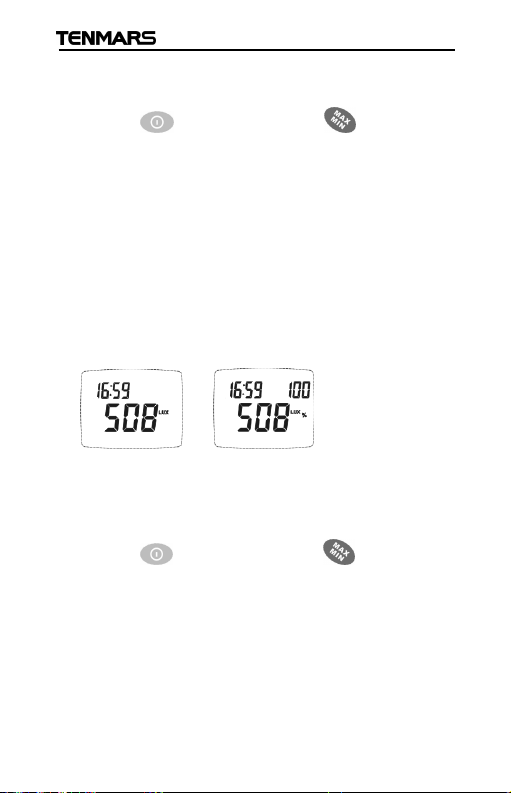

12 Relative Deduction Value(%)

 Hold “ ” button and push “ ” button into

the setup mode to save the current measured
result (=100% transmission), and then the
current measured result will be divisor by the
next measured result, and the diff erence
from the divisor will appear RATE on the
LCD.

%:

 The transmission percent is= (second

measured value/first measured value)x100

 Hold “ ” button and push “ ” button

again to exit REL mode.

17

TM-208

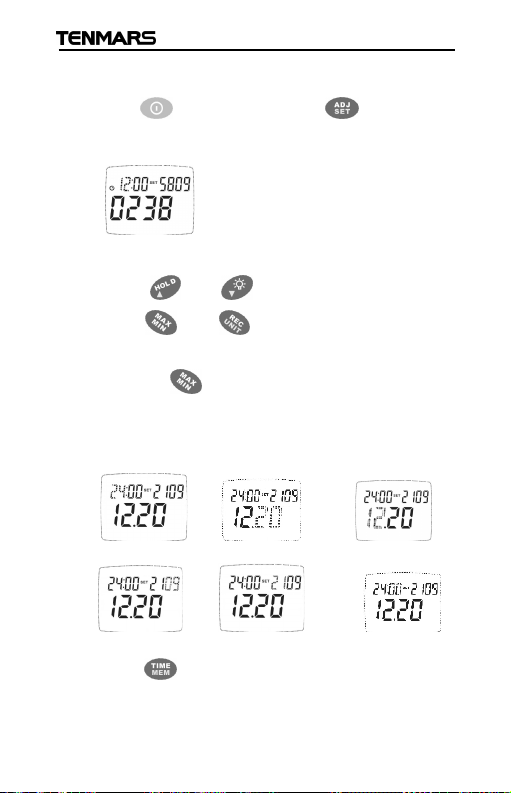

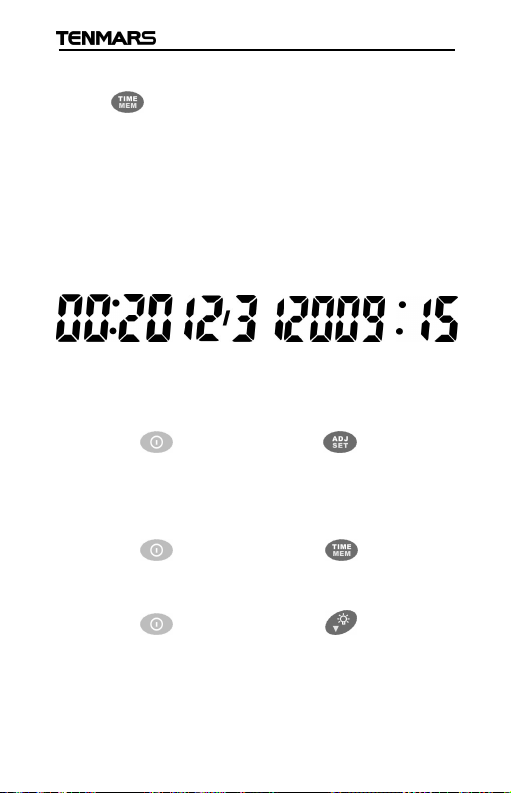

13 Clock LCD Display

Press button for more than seconds to
select the display method of the Year, Month,
Date, hour and Second.

This meter’s clock uses 24 hour time setting.
Default time mode setting is “2010/01/07 00: 02”
“:00”.

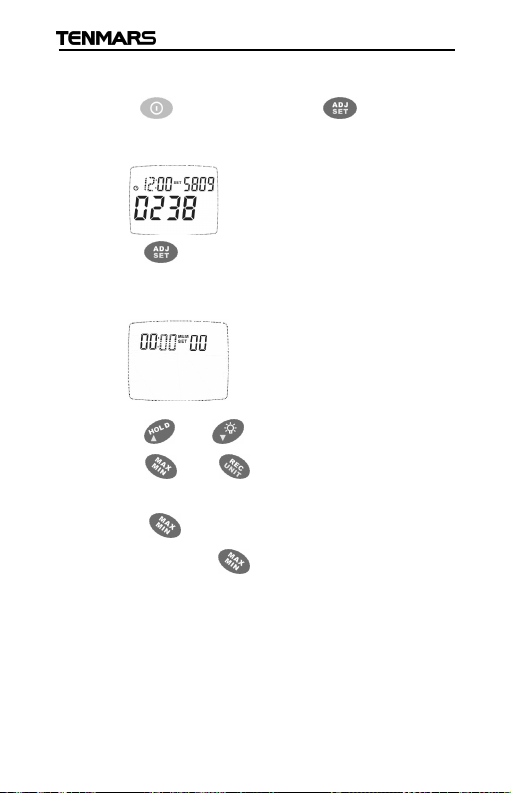

14 Setup Mode

 Hold “ ” button and push “ ” button into

the setup mode to use Auto Recording time
setup or Time setup function.

 Hold “ ” button and Push “ ” button to

view records.

 Hold “ ” button and Push “ ” button to

disable Auto power off.

18

TM-208

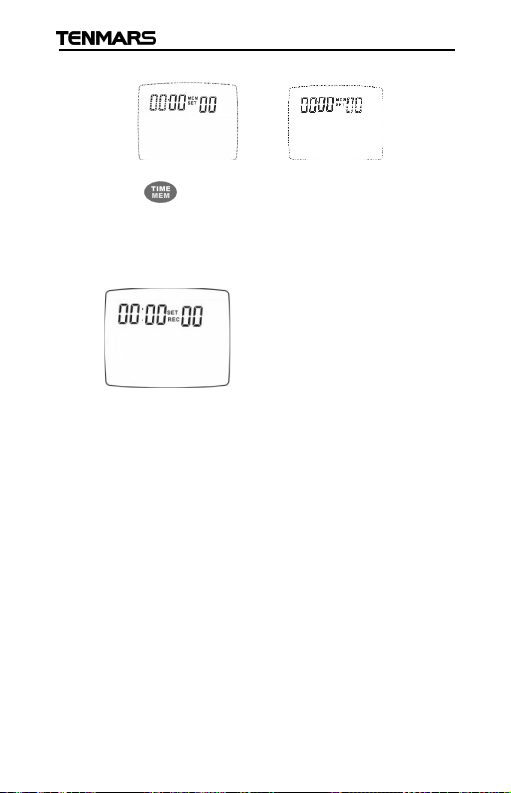

15 Auto Recording Time Setup

 Hold “ ” button and push “ ” button into

the setup mode to change setup function.

 Push “ ” button again into Auto Recording

Time Setup.

Min:

 Push “ ” or “ ” button to change digit

 Push “ ” or “ ” to select option to

adjust

 Press “ ” button to skip from minute to

hour and press“ ” button one more time, it
will skip to second, and so far so on. (Min→

Hour →Sec). .

19

TM-208

Hour: Sec:

 Push “ ” button to store the setting.
 If you do not want to use auto power off, you

can set auto power off time to be 00:00 00.

 Maximum auto recording time: 23 hours 59

minutes 59 seconds.

 Minimum auto recording time: 1 second.

20

TM-208

16 Time clock Setup

 Hold “ ” button and Push “ ” button to

change time setup mode.

 This meter clock is 24 hour time setting.

 Push “ ” or “ ” button to change digit
 Push “ ” or “ ” to select option to

adjust

 And pres “ ” button to skip from hour to day,

and day to month, and so far so on. (Hour→
day→Month→year→Sec→Minute).

Hour: day: Month:

Year: Sec: Minute:

 Push “ ” button to store the setting.

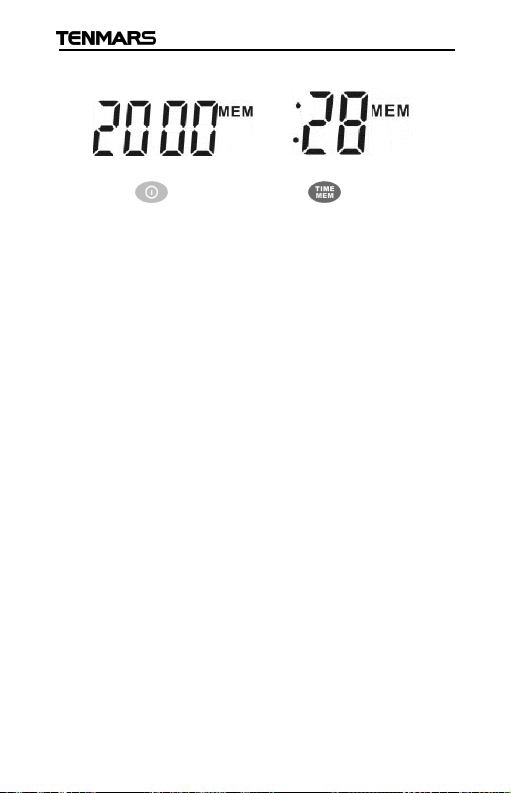

 Years time 2000~2099: display 00 ~ 99

21

TM-208

17 Viewing Records

 Hold “ ” button and Push “ ” button to

view records.

 Push“ ” or “ ” button to scroll through

the records.
Push“ ” to change (BTU (ft

2

W/m

→BTU (ft2*h)) / (FC→LUX→ FC)unit.

2:

W/m

Lux: Fc:

Btu(ft2*h):

 Push “ ” button to change time data (H:M

→M:D→year→ sec).

2

*h) →

H:M M:D

22

TM-208

year sec

 Hold“ ”button and push“ ”button again

to exit viewing records mode.

23

TM-208

18 Battery Replacement

WARNING

If the LCD display “ ” symbol, please
replace the battery immediately.

 Turn off the instrument.
 Open the battery covers and remove the

battery.

 Replace with four-9V NEDA 1604, IEC 6F22

or JIS 006P size battery.

 Install the battery cover.

24

TM-208

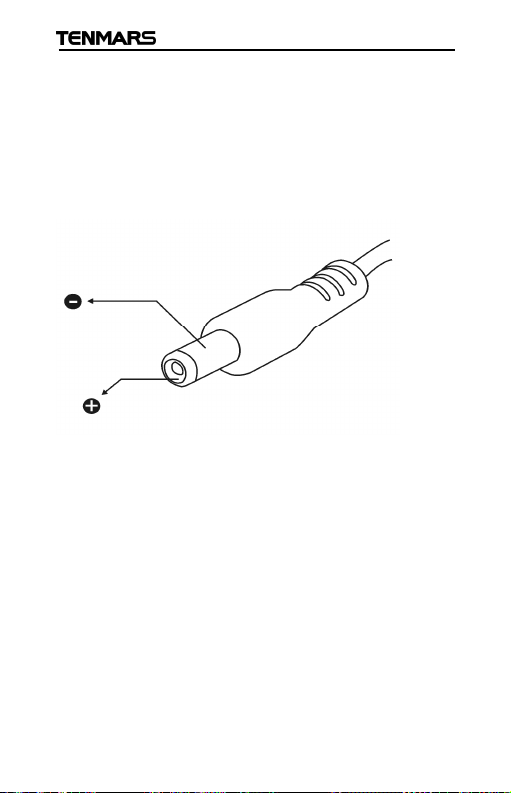

19 External DC Power

 External AC to DC adapter: Voltage

9VDC(8~14VDCMax).

 Socket：pin Positive, Ground Casing

External.

 Diameter 5.5mm internal Diameter 2.1 mm.

20 Computer Grade

 CPU：Pentium Ⅲ 1000MHZ.
 RAM：SDRAM 256MB.

 Hard Disk：200MB.
 OS：XP/Windosw7/Windows 8.1/Windows10.
 Display: 800×600 256 cooler.

25

TM-208

21 Software installation

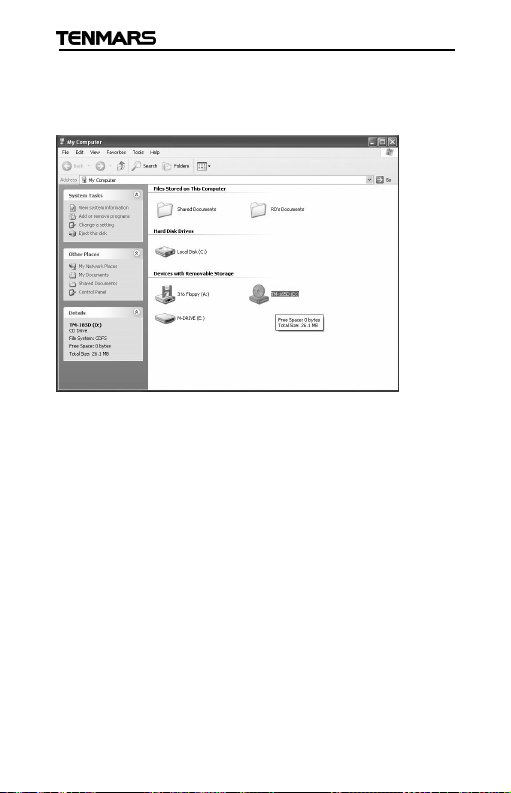

 Please insert the CD into PC to install the

software.

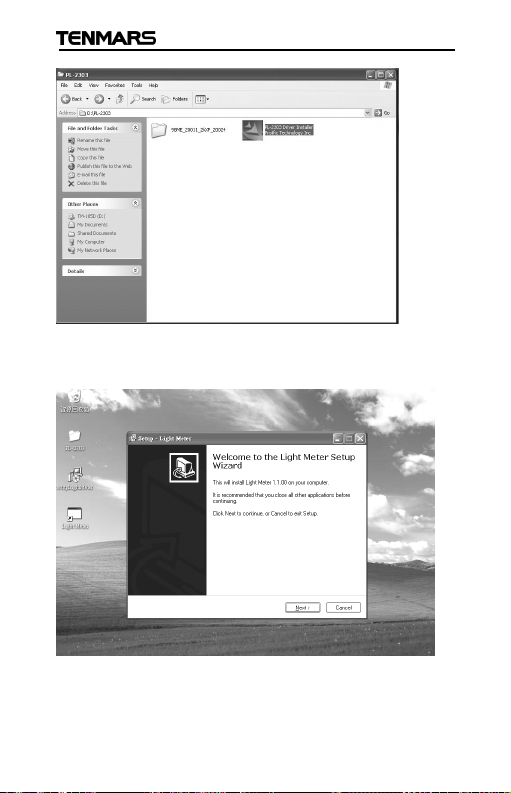

 Please select the USB driver that will be

installed, such as E:\ Light Meter Driver
Setup.exe, click twice on the left key of the
mouse to install the USB driver.

26

 Select the SETUP.EXE i.e., E:\Light

Metre\SETUP.EXE and installs the desktop
icon

TM-208

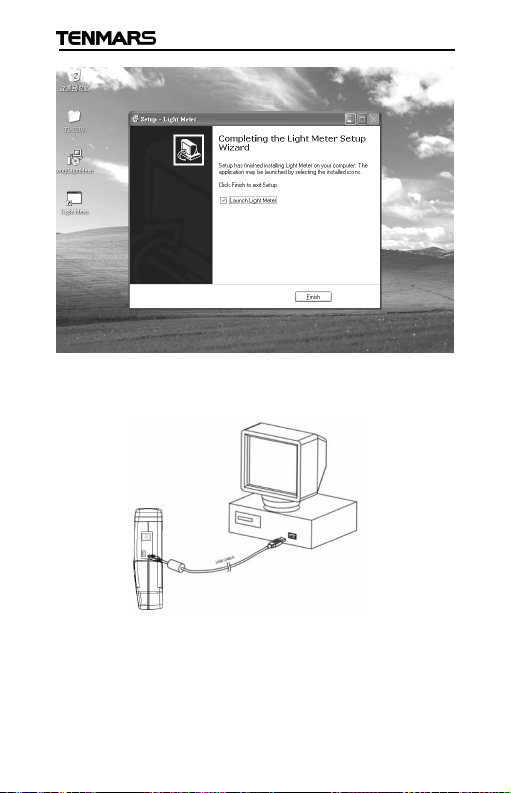

ck out the CD from PC after completed the
installation of the desktop icon.

27

Ta

TM-208

 Use the USB cable to connect the meter and

computer according to the drawing.

 Select the desktop icon (Light Metre) and

click twice on left key of the mouse to run the
procedure.

28

TM-208

22 Safety and maintenance

standards

 Operating altitude: below 2,000m.
 Operating environment: for indoor use,

expose to pollution level II.

 This is a precision device. During use or

storage, do not go beyond its spec. to
prevent any possible damage or danger.

 Do not put this device in direct sunlight or

where it is hot and/or damp.

 Remember to turn OFF the power after use.

For long storage, remove the battery to
prevent the battery from leaking to cause
damage to the parts inside.

 Clean the device with a dry soft cloth. Wet

29

TM-208

cloths, liquid and water are prohibited.

23 Service

Warranty Conditions

This instrument is guaranteed for one year
against material or production defects, in
accordance with our general sales conditions.
During the warranty period the manufacturer
reserves the right to decide either to repair or
replace the product.
Should you need for any reason toreturnback the
instrument for repair or replacement take prior
agreements with the local distributor from whom
you bought it. Do not forget to enclose a report
describing the reasons for returning (detected
fault). Use only original packaging. Any damage
occurred in transit due to non-original packaging
will be charged anyhow to the customer.
The warranty doesn’t apply to:
 Accessories and batteries (not covered by

warranty).

 Repairs made necessary by improper use

(including adaptation to particular
applications not foreseen in the instructions
manual) or improper combination with
incompatible accessories or equipment.

30

TM-208

 Repairs made necessary by improper

shipping material causing damages in transit.

 Repairs made necessary by previous

attempts for repair carried out by non-skilled
or unauthorized personnel.

 Instruments for whatever reason modified by

the customer himself without explicit

authorization of our Technical Dept.
The contents of this manual may not be
reproduced in any form whatsoever without the
manufacturer’s authorization.
Our products are patented and our logotypes
registered. We reserve the right to modify
specifications and prices in view of technological
improvements or developments, which might be
necessary.
Shouldn’t the instrument work properly, before
contacting your distributor make sure that
batteries are correctly installed and working,
check the test leads and replace them if
necessary.
Should you need for any reason toreturnback the
instrument for repair or replacement take prior
agreements with the local distributor from whom
you bought it. Do not forget to enclose a report
describing the reasons for returning (detected
fault). Use only original packaging. Any damage

31

TM-208

occurred in transit due to non original packaging
will be charged anyhow to the customer.
The manufacturer will not be responsible for any
damage to persons or things.

24 End of life

Caution

this symbol indicates that
equipment and its accessories
shall be subject to a separate
collection and correct disposal

32

Professional Electrical and

Environment Test & Measurement

Instruments:

Battery Capacity / Impedance Tester, TACHO

Meter ,LED light meter,Temperature & Humidity

meter ,Infrared Thermometer, Sound level

meter ,Light meter, EMF meter, UV Light meter,

RF meter, Hot wireAnemometer, CO meter

Anemometer, Lan cable tester,CO2meter,

Solar power meter, Radiation meter,

Clamp meter, Multimeter, Phase Rotation test,

Digital Insulation tester

Our products of high quality are selling

well all over the world

TENMARS ELECTRONICS CO., LTD

6F, 586, RUI GUANG ROAD, NEIHU,

TAIPEI 114, TAIWAN.

E-mail: [email protected]

http://www.tenmars.com
