TENMAIIS

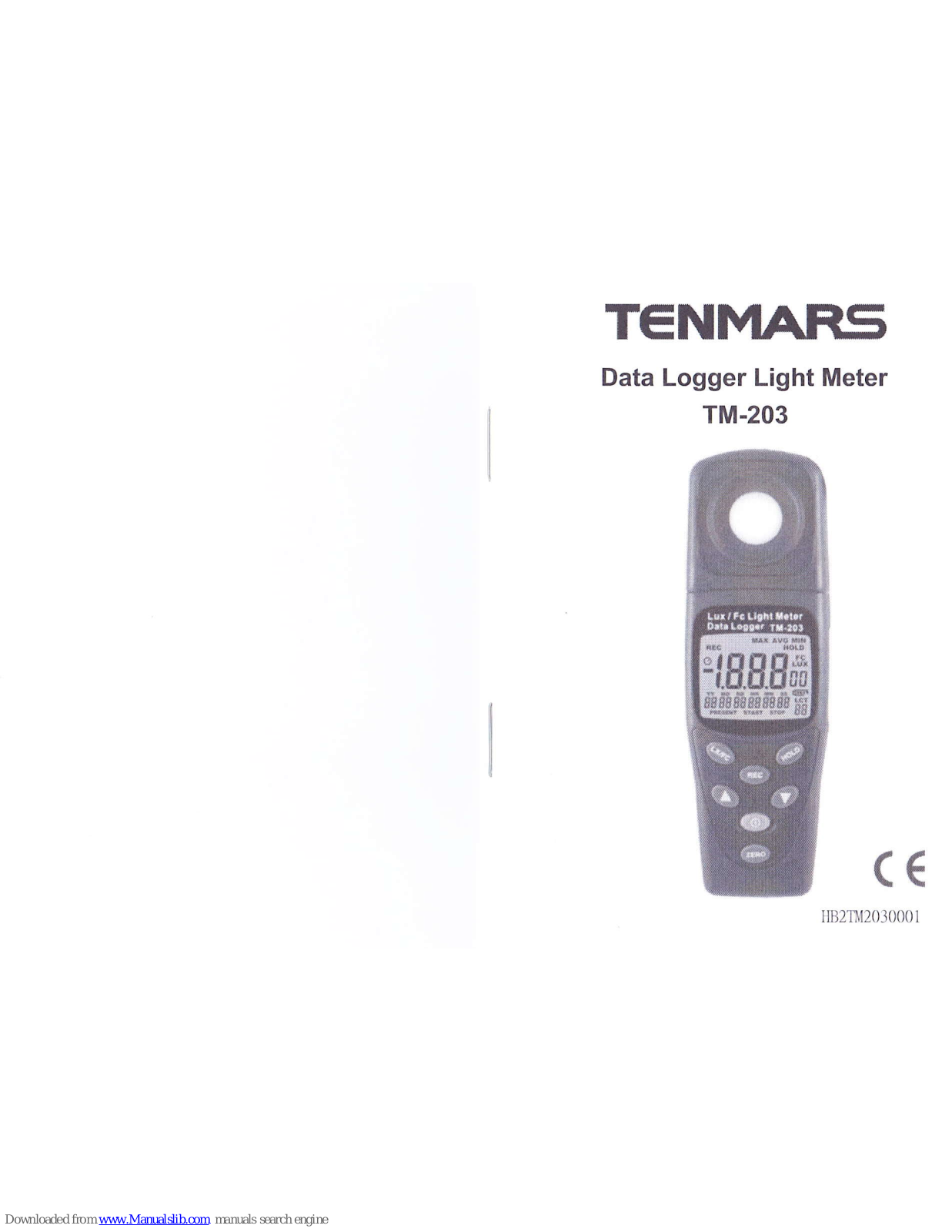

Data Logger Light Meter
TM-203
((
HB2ll\,12030001
Page 2

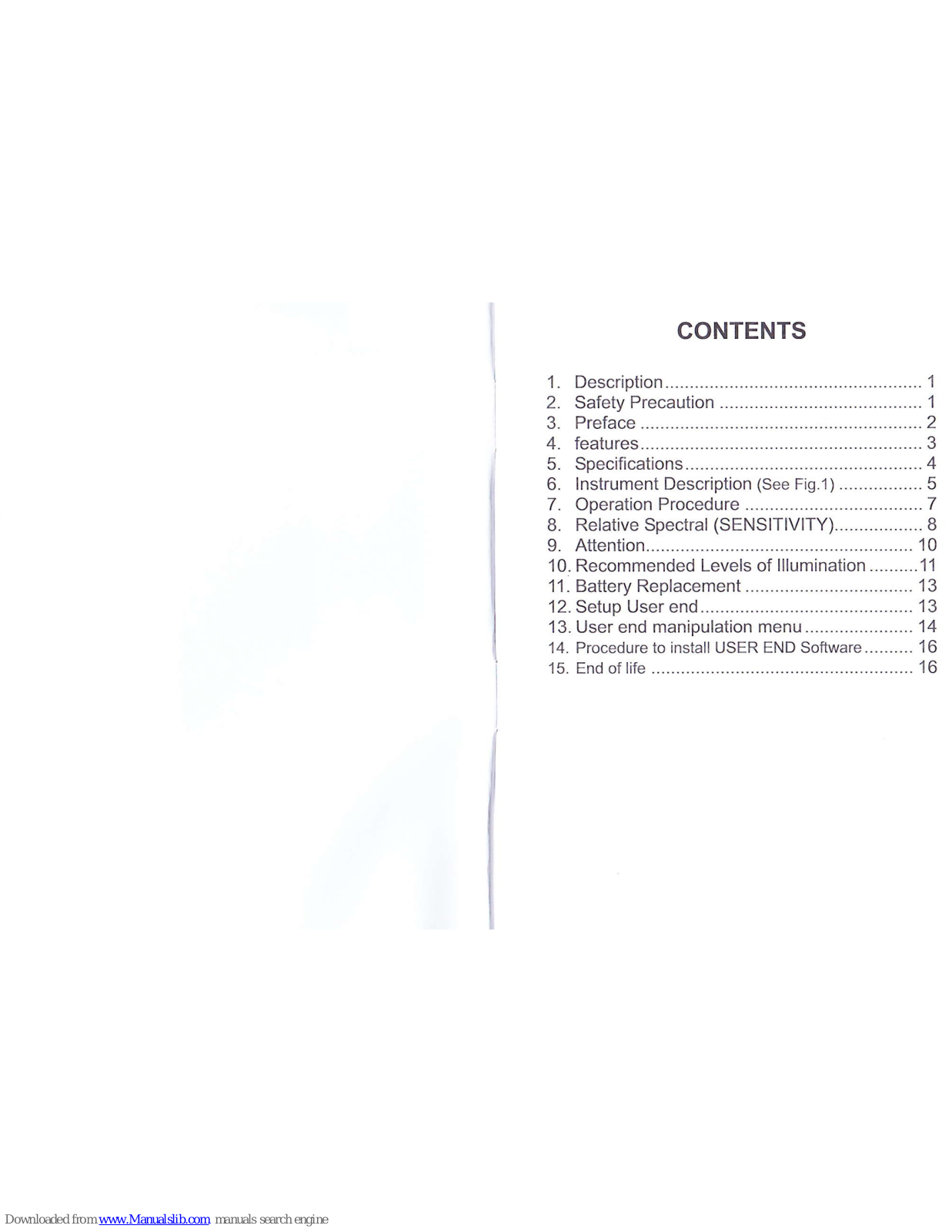

CONTENTS
1 . Description...................
............
't
2. Safety Precaution
.................... 1
3. Preface
...-...-.-.-.-.2
4. features..
..-..........
3
5. Specifications..............
.............4
6. lnstrument Description
(See
Fig.1)................. 5
7. Operation Procedure
...............7
8.
Relative Spectral
(SENSITIVITY)..................
8
9.
Attention.
........... 10
10.
Recommended Levels of lllumination
..........11
11. Battery
Replacement
............. 13
12. Setup User end......
................ 13
13.
User end
manipulation menu.....
.................14
14. Procedure to instrall USER END Software..........
16
15. End of life ............
.................... 16
Page 3

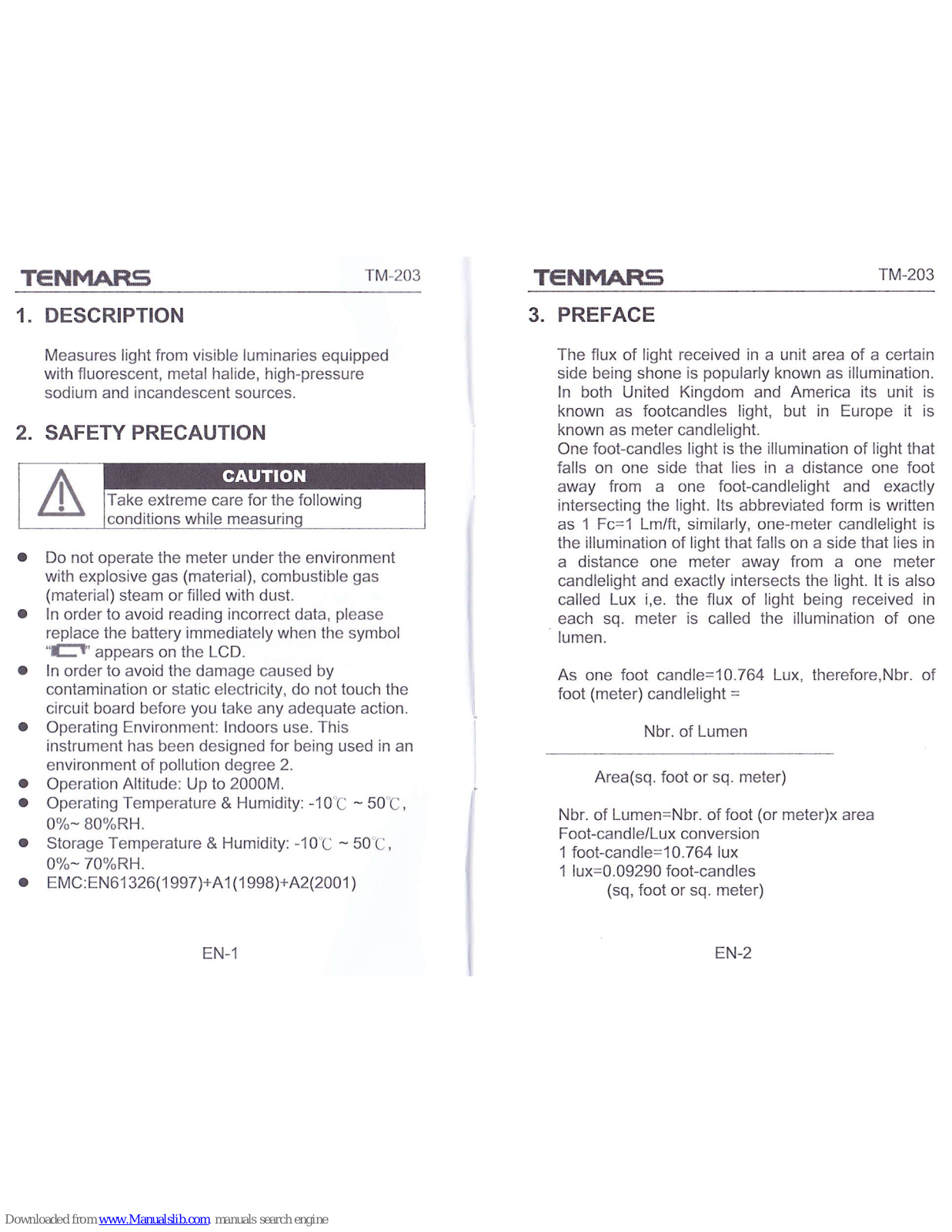

1.
2.
TCNMARS
TM-203
DESCRIPTION
Measures light from visible luminaries equipped
with
fluorescent,
metal halide, high-pressure
sodium and incandescent sources.
SAFETY PRECAUTION
ake extreme care for the following
while measuri
Do not
operate
the meter
under
the
environment
with
explosive
gas
(material),
combustible
gas
(material)
steam or filled with dust.
ln
order
to
avoid
reading incorrect
data,
please
replace the
battery
immediately when the
symbol
"lEt'appears
on the
LCD.
ln
order
to
avoid
the damage caused
by
coniamination or static electricity, do not touch the
circuit
board
before
you
take
any adequate action.
Operating Environment: lndoors use. This
instrument has been designed for being used in an
environment of
pollution
degree 2.
Operation
Altitude:
Up to
2000M.
Operating Temperature & Humidity:
-10
C
-
50'C
,
0%- B0%RH.
Storage Temperature & Humidity:
-10
C -
50
C
,
0%-70%RH.
EMC:EN61
326(1 997)+41
11
998)+A2(2001
)
T€NMAIi5
TM-203
3. PREFACE
The flux of light received in a unit area of a ceriain
side being
shone
is
popularly
known as illumination.
ln both United Kingdom and
America its
unit
is
known
as
footcandles light, but in Europe it is
known
as
meter candlelight.
One foot-candles
light is the illumination
of
light that
falls on one side that lies in a distance one foot
away from a one footcandlelight and exactly
iniersecting the light. lts
abbreviated
form is written
as
1 Fc=1 Lm/ft,
similarly, one-meter candlelight
is
the illumination
of
light that falls
on a side
that lies in
a distance one meter away from a one meter
candlelight and exactly
intersects the light. lt is
also
called
Lux i,e. the flux
of
light
being
received in
each sq. meter is called the illumination of one
lumen.
As
one
foot
candle=10.764
Lux, therefore,Nbr. of
foot
(meter)
candlelight
=
Nbr.
of
Lumen
Area(sq. foot or sq. meter)
Nbr.
of
Lumen=Nbr. of foot
(or
meter)x area
Foot-candle/Lux
conversion
1 footcandle=10.764
lux
1 lux=0.09290 foot-candles
(sq,
foot
or
sq. meter)
a
a
EN-1
Page 4
TCN]tl/ARs
TM-203

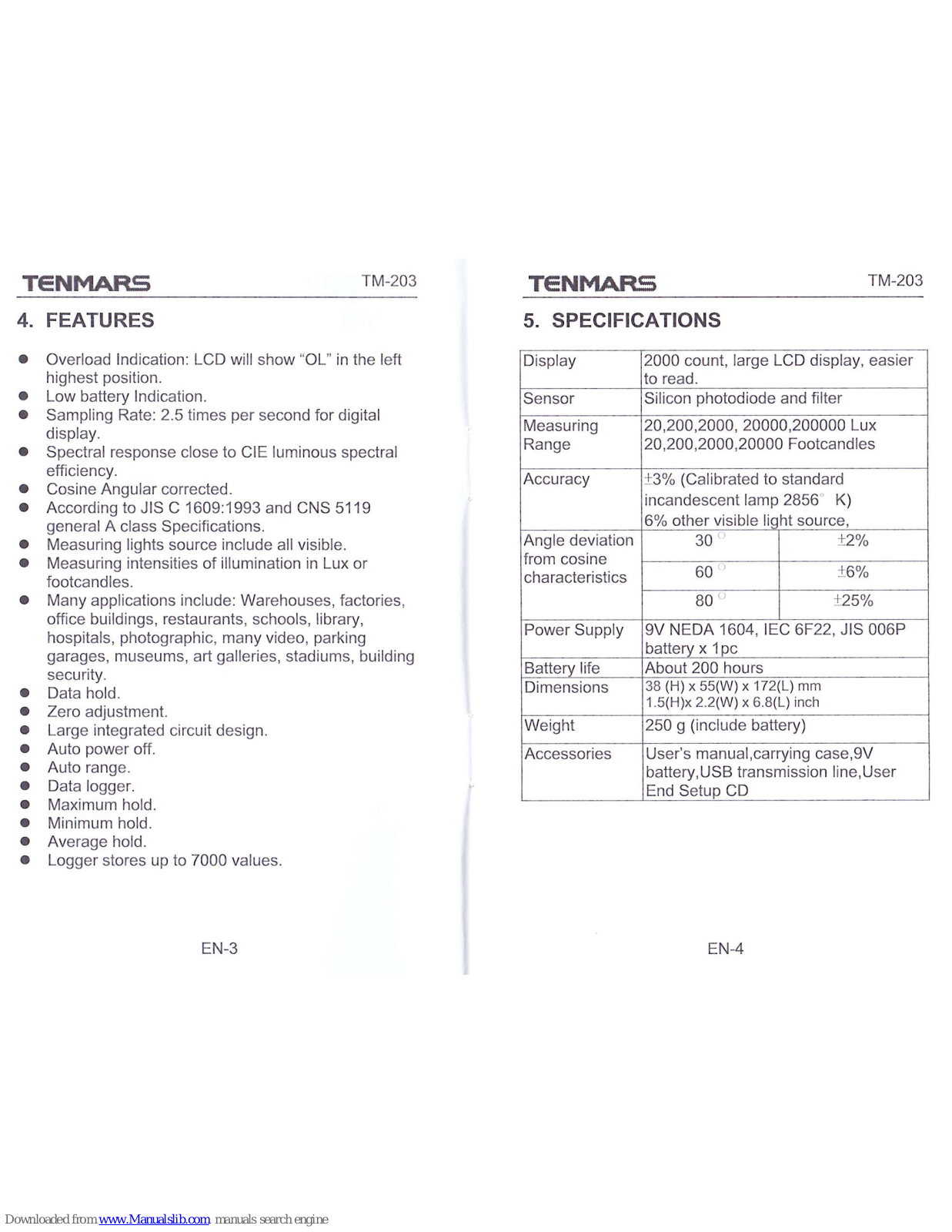

4. FEATURES
o
Overload lndication: LCD will
show
"OL"
in the left
highest
position.
o
Low battery lndication.
.
Sampling Rate:
2.5
times
per
second for digital
display.
o
Spectral response close to CIE luminous
spectral
efficiency.
o
Cosine
Angular
corrected.
o
According to JIS C 1609:1993 and CNS
5119
general
A class Specifications.
.
Measuring lights source include all visible.
o
Measuring intensities
of
illumination in Lux
or
footcandles.
o
Many
applications include: Warehouses, factories,
office buildings, restaurants,
schools,
library,
hospitals,
photographic,
many video,
parking
garages,
museums,
art
galleries,
stadiums, building
security.
o
Data hold.
a
Zeroadjustment.
o
Large integrated
circuit design.
o
Auto
power
off.
a
Auio range.
.
Data logger.
.
Maximum hold.
.
Minimum hold.
.
Average hold.
.
Logger
stores
up to 7000 values.
T€NMARS
TM-203
5. SPECIFICATIONS
Display
2000
count,
large LCD display, easier
to read.
Sensor
Silicon
photodiode
and filter
Measuring
Range
20,200,2000, 20000,200000 Lux
20,200,2000,20000
Footcandles
qccuracy
L3% (Calibrated
to standard
ncandescent lamp 2856'
K)
i% other visible liqht source.
Angle deviation
from
cosine
characteristics
30'
t20/"
60'
!6%
80"
t25%
)ower
Supply
]V NEDA 1604, IEC 6F22, JIS OO6P
ratterv
x 1oc
3atterv life \bout 200 hours
)imensions
38
(H)
x 55(W) x 172(L)
mm
1.5(H)x 2.2(W) x 6.8(L) inch
ffeight 250
g
(include
battery)
\ccessories
User's
manual,carrying case,9V
battery,
USB transmission line, User
End Setup CD
EN-3 EN-4
Page 5
TENMARS
TM-203
6.

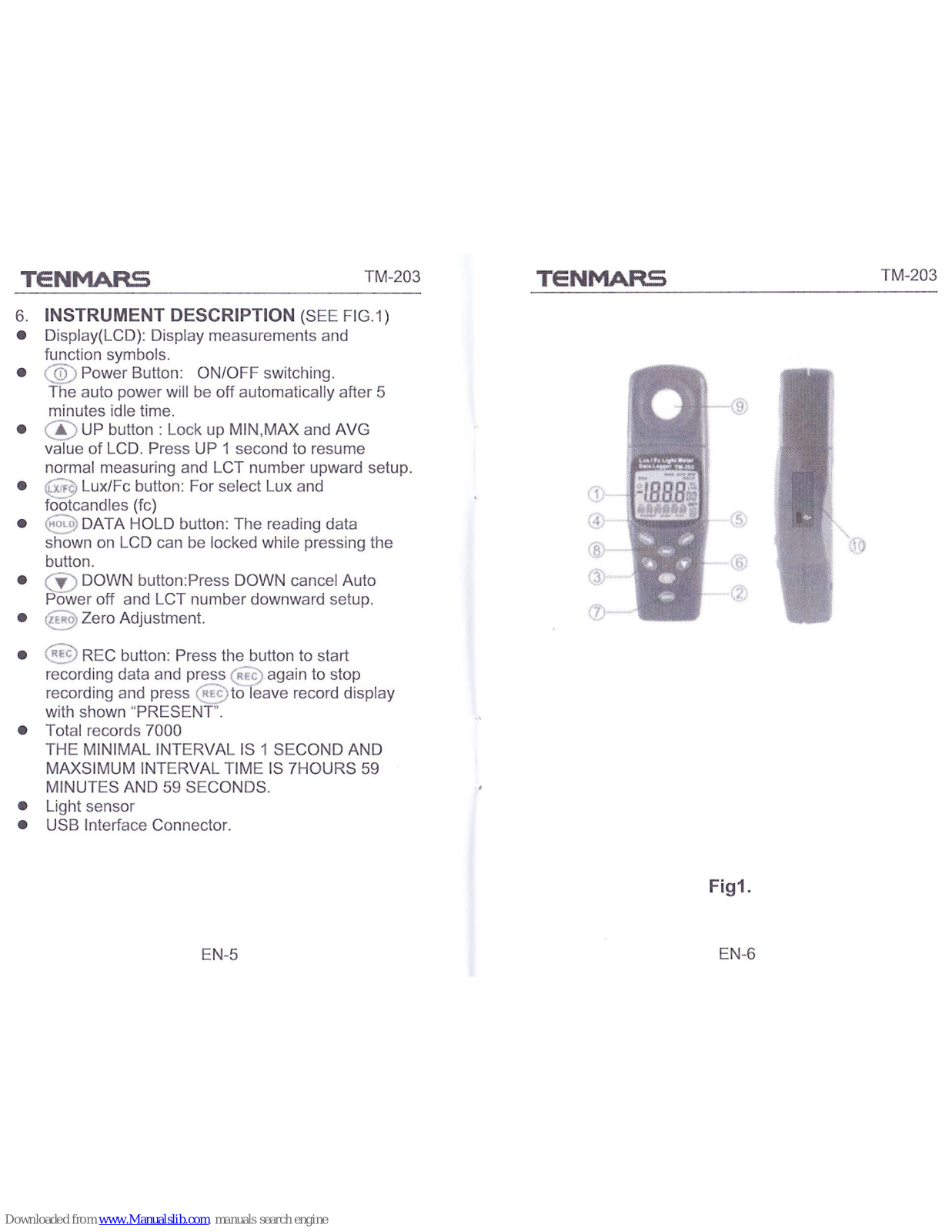

INSTRUMENT DESCRIPTION
(sEE
Ftc.1)
o
Display(LCD): Display measurements
and
function
symbols.
.
{Qi
Power Button: ON/OFF switching.
The
auto
power
will
be off automatically after 5
minutes idle time.
.
{}
UP button : Lock up MIN,MAX and AVG
value
of
LCD. Press
UP 1 second
to
resume
normal measuring and LCT number upward setup.
.
{-*$
Lux/Fc
button: For select Lux and
footcandles
(fc)
.
€&
DATA HOLD button: The reading data
shown on LCD can be locked while
pressing
the
button.
{}
DOWN button:Press DOWN cancel Auto
Power off and LCT number downward setup.
{6idsZero
Adjustment.
@
neC
button:
Press the
button
to
start
recording data and
prgg-s
$3}
again
io
stop
recording and
press
(f9to
leave record
display
with shown
"PRESENT".
Total records 7000
THE MINIMAL INTERVAL IS 1
SECOND
AND
MAXSIMUM
INTERVAL
TIME IS THOURS 59
MINUTES AND 59 SECONDS.
Light sensor
USB lnterface Connector.
TGNlvtAfrS
TM-203
:t
a
l.3l
o
a
o
o
Fig1.
EN-6
EN-5
Page 6

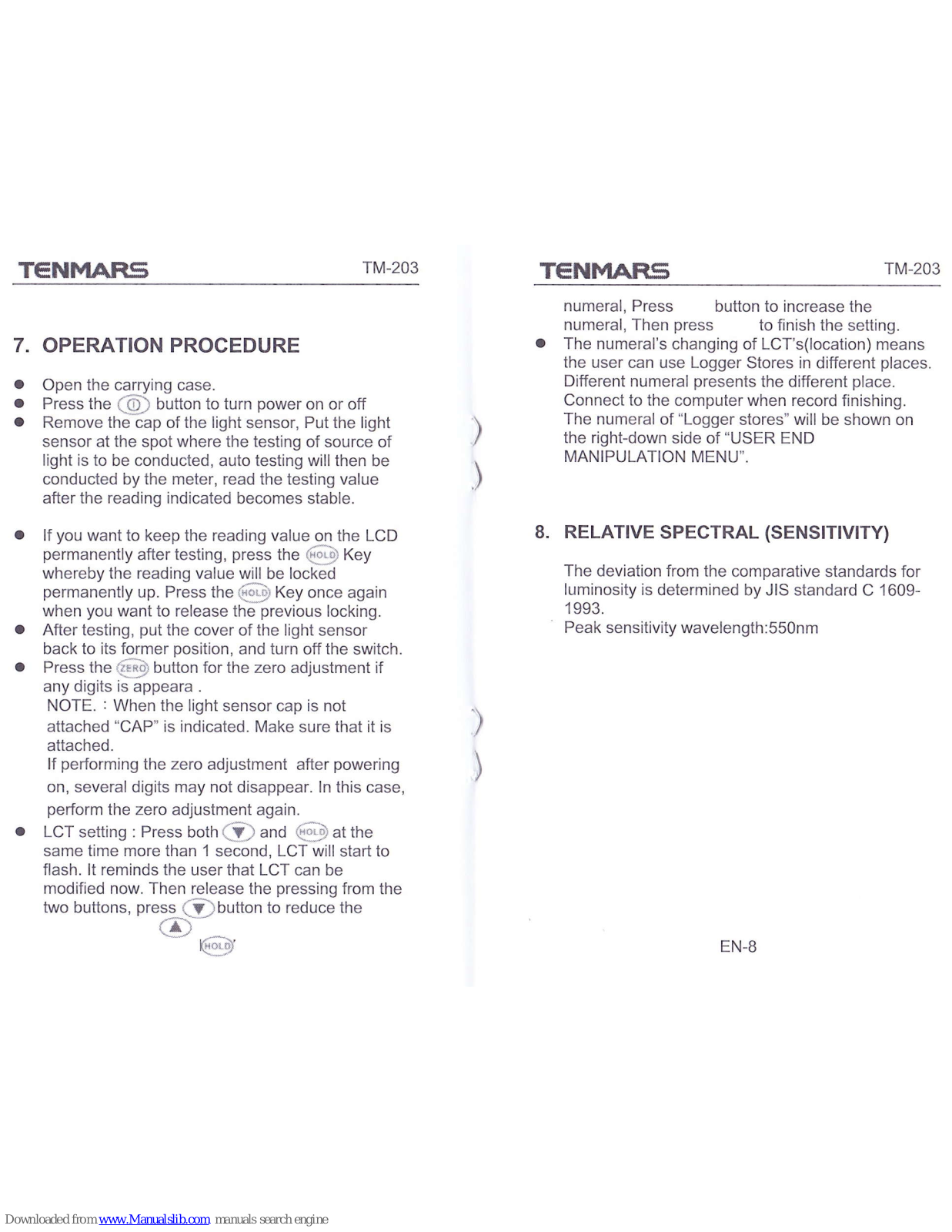

7.
o
o
o
TCNMARS
TM-203
OPERATION PROCEDURE
Open
the
carrying case.
Press the
-fO
button
to turn
power
on or off
Remove the cap of the light
sensor,
Put the
light
sensor at
the
spot
where
the testing of source of
light is to be conducted, auto testing will then
be
conducted by the meter, read the testing value
after
the reading indicated
becomes stable.
lf
you
want to keep the reading
value on the LCD
permanently
after testing,
press
the
@p
X"y
whereby the reading value will
be locked
permanently
up. Press the
Sg
Key
once again
when
you
want to release the
previous
locking.
After testing,
put
the
cover of
the light
sensor
back to its former
position,
and
turn
off
the
switch.
Press the
ffi
button for the zero
adjustment
if
any digits
is
appeara
.
NOTE.
:
When the
light sensor cap is not
attached
"CAP"
is indicated. Make
sure
that
it
is
attached.
lf
performing
the zero
adjustment after
powering
on, several digits
may
not disappear. ln this case,
perform
the zero
adjustment again.
LCT
setting : Press both
$
and
S)
at
the
same time more than 1
second,
LCT
will start to
flash.
lt reminds the user thai LCT can be
modified now.
Then release the
pressing
from the
two buttons,
press
{_f}button
to reduce the
c-^
qo:9
T€f{M.AFi5
TM-203
numeral,
Press button to increase
the
numeral,
Then
press
to finish
the setting.
o
The numeral's
changing of LCT's(location) means
the user
can use
Logger
Stores in different
places.
Different numeral
presents
the different
place.
Connect to the computer when record
finishing.
The numeral
of
"Logger
stores" will be shown
on
the right-down
side of
"USER
END
MANIPULATION
MENU".
8. RELATTVE
SPECTRAL
(SENSlTtVtTy)
The deviation from the
comparative
standards
for
luminosity is
determined by JIS standard C 1609-
1
993.
Peak sensitivity wavelength:550nm
)
)
)
)
EN-8
Page 7
TCN}lAIt$
TM-203
E
F
F"
a
z
ul
a
L.l
F
J
U
t
Typ.
Ta=23'C
-v(l)
*
*
-
* *TM-203
WAVEI.ENG'lfl
(nm)
t<
CIE
luminous
spectral
luminous
EN-9
9.
"€HMARS
TM-203
ATTENTION
set
for referring the testing
of source of light is
located at the right top
end
(0
degree) of
the
light
sensor ball
plane.
(See
fig. 2)
When the meter is not in
use,
please
keep the
cap of the light sensor in its
place
to
avoid
the
diode from wearing
out.
When it is not in use for a long time,
please
take
the
batteries away. And avoid keeping it in
a
place
of high temperature
and
humidity.
Light Source
0 degree
Fig2.
EN.1O
Page 8
T€NlVLAFlS
rM-zog
10.

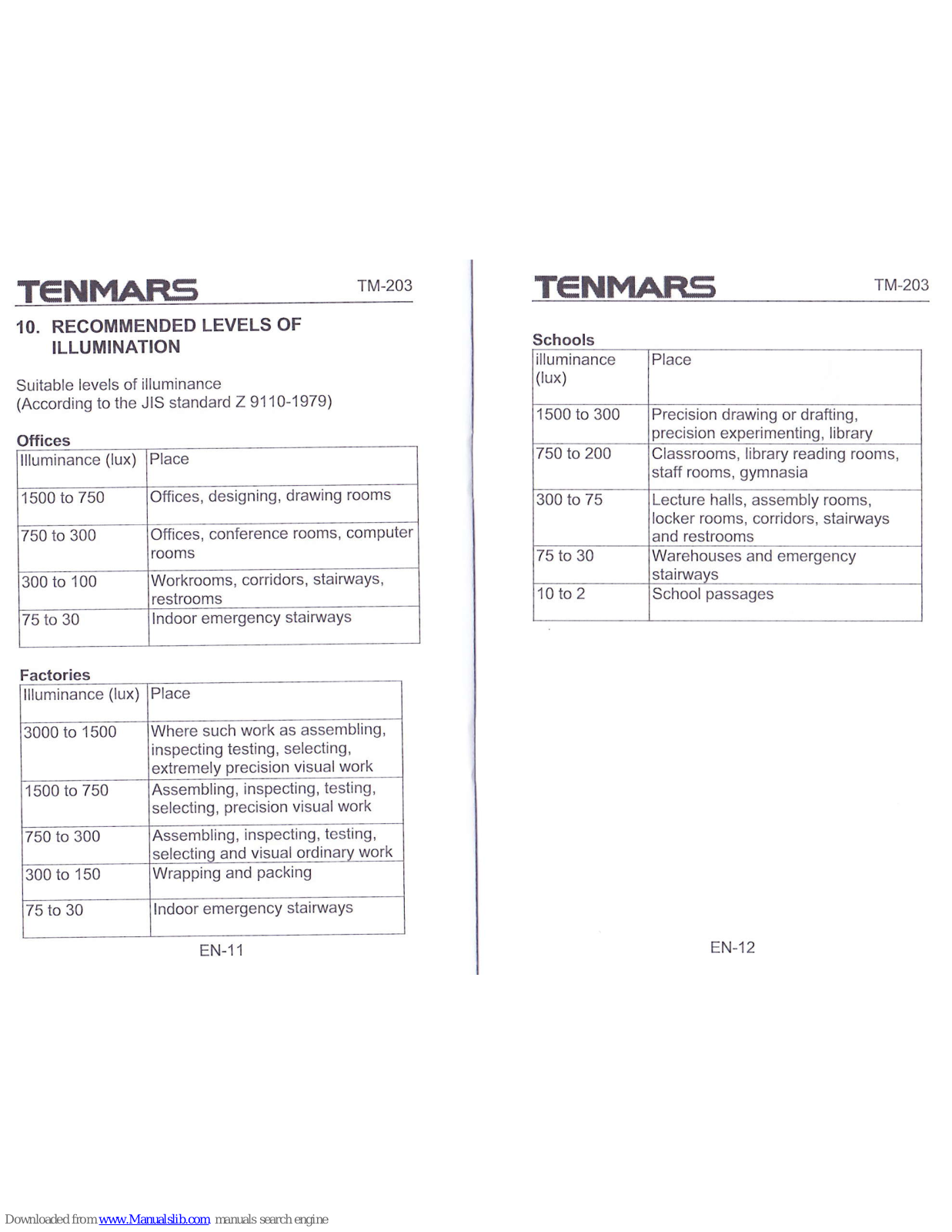

RECOMMENDED
LEVELS
OF
ILLUMINATION
Suitable
levels of
illuminance
(According
to the JIS
siandard
29110-1979)
Offices
Factories
lluminance
(lux)
)lace
1500
to
750
Cffices,
designing,
drawing
rooms
750
to 300
Offices,
conference
rooms,
computer
rooms
300
to 100
Workrooms,
corridors,
stairwaYs,
restrooms
Z5 to 30
lndoor
emergencY
stairwaYs
llluminance
(lux)
Place
1000
to 1500
Where such
work
as assembling,
inspecting
testing, selecting,
extremely
precision
visual
work
1 500
to 750
Assembling,
inspecting,
testing,
selecting,
precision
visual
work
750
io 300
Assembling,
inspecting,
testing,
selectino and
visual ordinarv
work
300
to 150
Wrapping
and
packing
75
to 30
lndoor
emergency
stairwaYs
EN.1
1
T€NMAR$,
rM-203
Schools
lluminance
'lux)
)lace
1
500
to
300
)recision
drawing or drafting,
rrecision exoerimentino. librarv
750 to 200 Classrooms, library reading rooms,
staff
rooms,
gymnasia
100
to
75 Lecture halls, assembly rooms,
locker rooms,
corridors, stairways
and restrooms
75 to 30
y'Varehouses
and emergency
stainrvavs
10 to 2 School
passages
EN-12
Page 9
TENMAIlS
11.

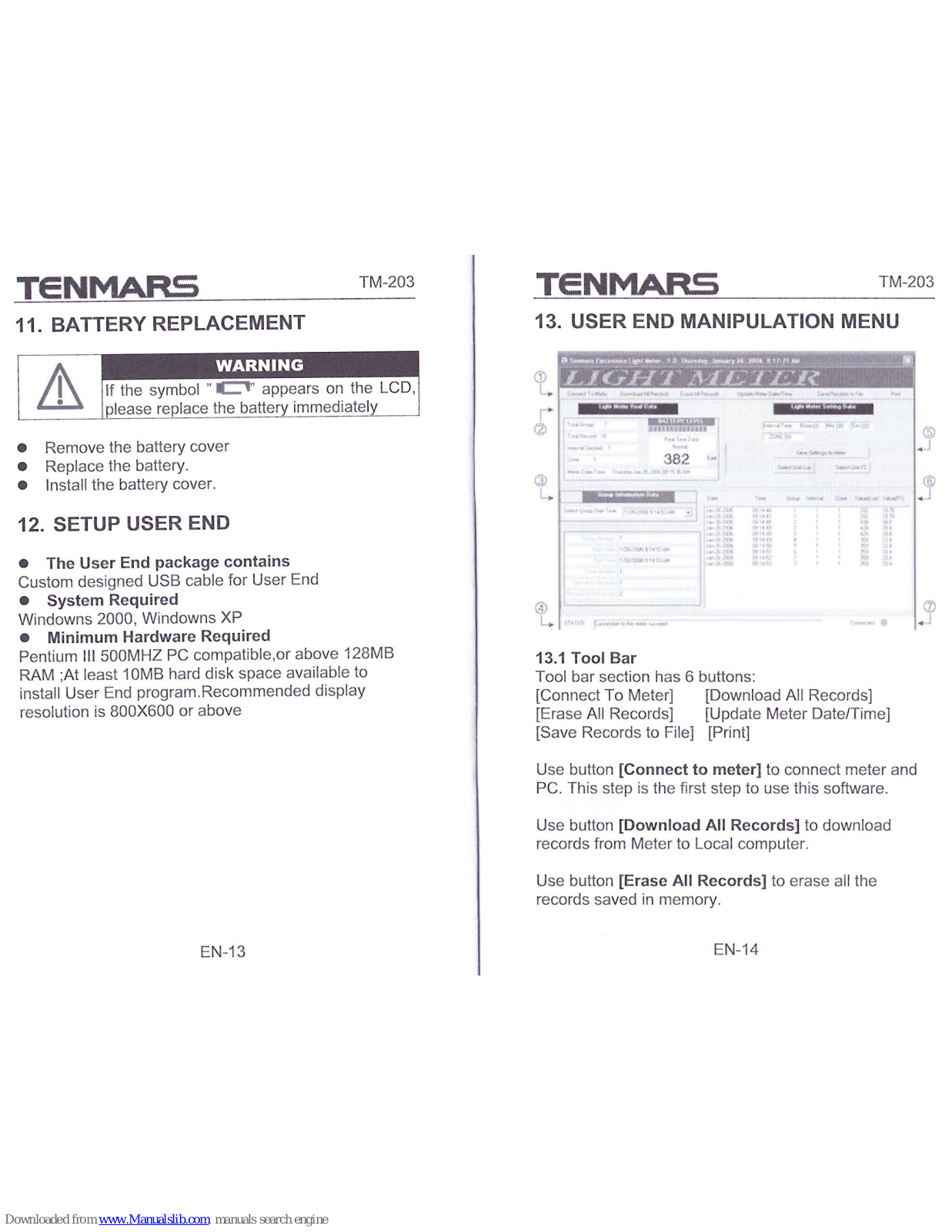

BATTERY
REPLACEMENT
the symbol
"
lffl'
appears
on
the LCD,
replace
the battery
immediatel
a
Remove
the
battery
cover
o
Replace
the batterY.
o
lnstall
the battery
cover.
12. SETUP
USER
END
o
The User
End
package
contains
Custom
designed
USB cable
for User
End
o
System
Required
Windowns
2000,
Windowns
XP
.
Minimum
Hardware
Required
Pentium
lll 500MHZ
PC compatible,or
above
12BMB
RAM
,At
least 1OMB
hard
disk
space
available
to
install
User
End
program.Recommended
display
resolution
is 800X600
or
above
TM-203
EN.13
EN-14
TENMAFIS
TM-203
13. USER END MANIPULATION MENU
13.1 Tool Bar
Tool bar section has 6 buttons:
[Connect
To Meter]
[Download
All Records]
[Erase
All Records]
[Update
Meier
Date/Time]
[Save
Records to File]
[Print]
Use button
[Gonnect
to
meter] to
connect meter and
PC. This step is the first step to use this software.
Use button
[Download
All Records] to
download
records from Meter to Local
computer.
Use button
[Erase
All Records] to erase all the
records
saved
in memory.
Page 10
TCNJvIAFIS
rM-zos
Use button
[Update
Meter
Date/Time]
to
let the
time
in meter
to be same
with
the computer
time.
Remember
if the battery
is taken
out,
the clock
in the
meter
will stop.
Please
do
time
re-setup and
load
it into
the meter
after
replacement
or
removed
of battery.
Use
button
[Save
Records
to
File]
to export
the
records
from
the list
box
to txt file.
This button
will
be
enabled
after
downloading
records.
Use
button
[Print]
to
print
all
the downloaded
data.
13.2
Light
Meter
Real Data
Real time
data section
is used
to displayed
real time
data,
LUXFC
status,
HOLD,
REC,
MA)OMIN
status.
Current
meter
situation
including
toial
group
and
total
records
in the memory,
interval,
meter
date and
time,
are also
displayed
at
the
left side.
13.3
Group
information
Data
Group
information
data
section
is used
to display
selected
group
information
including
start
time, end
time,
LUX/FC
status,
records
number
in selected
group.
13.4
Status
Message
Staius
message
is to display
current
mete status
such
as
recording,
connected,
disconnected,
13.5
Light Meter
Setting
Data
This
section
is used
to set
interval
into
meter.
EN-15
EN-16
T€NMARs
TM-203
13.6 Records Data
Data will be downloaded
into this
section
after
[download
records] button is
pressed.
13.7
Connected
Signal
The light is used
indicated connection status. Green
means
connected, red means disconnected.
14. PROCEDURE
TO INSTALL USER END
SOFTWARE
1. Place the setup disc into
the
CD-ROM.
2. Double click
"Setup.exe"
in the CD-ROM.
3. After finishing setup
process, go
to start-all
program-"Data
Logger\Light
MeteALightMeter
.
"to
run the
program.
15. END OF LIFE
Caution: this symbol indicates that
equipment
and its accessories shall be
subject
to
a separate collection
and
correct disposal
I
Loading...
