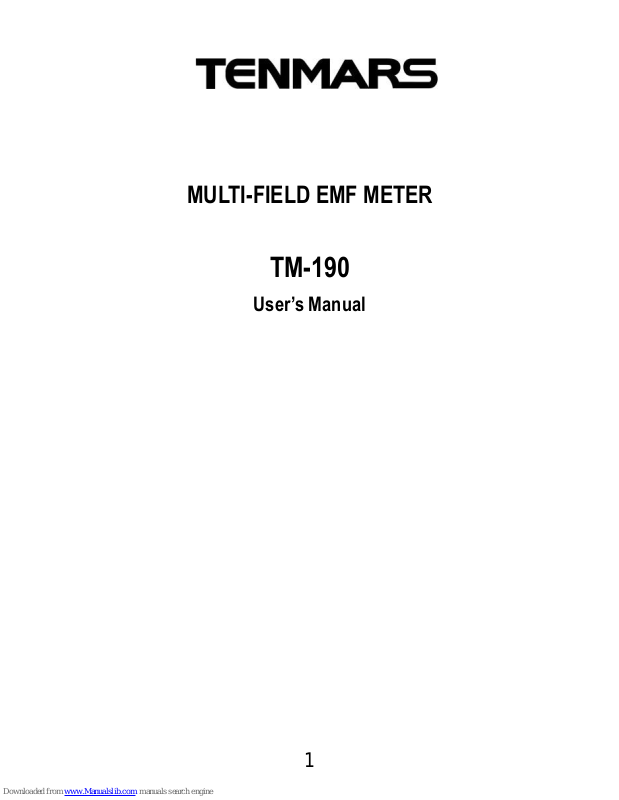

1
MULTI-FIELD EMF METER
TM-190
User’s Manual
English
2
B2TM1900001
3
Meun
1 Features .......................................................... 5
2 Identifying Parts ............................................... 8
3 TFT description ................................................ 9
4 Measurement Procedures .............................. 10
4.1 POWER ON/OFF Button: ................................. 10
4.2 Reading Individual and Aggregated XYZ Axial Data: ... 10
4.3 Data hold (HOLD): ............................................ 11
4.4 Menu Settings: ................................................. 12
4.4.1. Option Buttons: 13
4.4.2. Screen Brightness options: 14
4.4.3. Magnetic Unit: 14
4.4.4. RF Strength Unit： 15
4.4.5. Language: 17
4.4.6. Power Off Time: 19
4.4.7. Sound on/off: 20
4.4.8. Keys/Alarm Sound: 21
4.4.9. Keys Sound: 22
English
4
4.4.10. Alarm Sound: 22
4.4.11. Information: 23
5 Specifications ................................................. 25
5.1 Sensor type: LF Magnetic Fields (MF) .............. 25
5.2 Sensor type: LF Electric Fields ......................... 25
5.3 Sensor type: RF Strength ................................. 27
6 Battery replacement ....................................... 29
7 External USB power supply: ........................... 30
8 Safety and maintenance standards ................ 31
9 End of life ....................................................... 32
English
5
1 Features
Data hold (HOLD)
Low battery indication： HIGH LOW
Over load display “OL”.
External USB Power Supply: ” ”
Brightness options: low-Middle-high
Magnetic unit：Gauss(mG) or. Tesla(uT)
RF Strength Unit: (uW/m² ~mW/m²) (μW/cm²) (m V/m ~V/m)
(mA/m) (dBm).
Languages: English; Traditional Chinese; Simplified Chinese;
English
6
Japanese; Español.
Power Off Time：No; 1; 3; 5; 10; 15; 30. Factory default sets as
“5”. Settings can be changed by the user. is displayed
on the screen after power off time is set.
Keys/Alarm Sounds: On ; Off
Low-Frequency EMF Readings: Individual and aggregated XYZ
axial readings .
RF Historical Records:
Up to 20 groups .
Information: Software version: V1.0
High-frequency EMF Readings: Please perform tests according
to the indicated direction .
TM-190 English
7
Electric field Measurement Precautions: Please perform tests
according to the indicated direction . Please
hold the meter at the bottom of the display, as shown in the
figure below:
Fig. 1 Electric Field measurement:
Magnetic Fie lds Elect ric Field RF s tre n g th
The Green zon e 0~10.00mG 0~500V/m 0~0.99mW/m²;0~0.59V/m
Th e Ye llo w zone 10.01~100mG 501~1000V/m 1~9.99mW/m²;0.6~1.9V/m
Th e Re d zone 101~2000mG
>1001V/m >10mW/m²;>2V/m
The color zones are for reference only
electromagnetic safety reference standard
English
8
international國際的 Council Recommendation1999/519/EC 42V/m(4.75W/m²) 59V/m(9.25W/m²)
international國際的 ICNIRP Guidelines,April1998 42V/m(4.75W/m²) 59V/m(9.25W/m²)
Austria 奧地利 ONORM S1120 49V/m(6.33W/m²) 61V/m(10W/m²)
Belgium比利時 Belgisch Staatsblad F.2001-1365 21V/m(1.18W/m²) 30V/m(2.31W/m²)
Germang 德國 26.Deutsche Verordnung 42V/m(4.75W/m²) 59V/m(9.25W/m²)
italy意大利 Decreto n.381,1998 20V/m(1W/m²) 20V/m(1W/m²)
the netherlands荷蘭 Health Council 51V/m(6.92W/m²) 83V/m(18W/m²)
switzerland瑞士 Verordnung 1999 4V/m(0.04W/m²) 6V/m(0.1W/m²)
united states美國 IEEE C95.1 49V/m(6.33W/m²) 68V/m(12W/m²)
china中國 Draft:National Quality Technology Monitoring Bureau 49V/m(6.33W/m²) 61V/m(10W/m²)
japan日本 Radio-Radiadiation Protection Guidelines,1990 49V/m(6.33W/m²) 61V/m(10W/m²)
1W/m²=0.1mW/Cm²=100uW/Cm².1mW/m²=0.1uW/Cm²
2 Identifying Parts
Fig. 2 Instrument description:
English
9
1. 2.4” 240*320 resolution color TFT.
2. Power and Menu button
3. Hold and Enter button
4. Select and Down button
5. Mini USB power interface
6. Battery cover
3 TFT description
1 Data Hold indicator.
2 Auto power off indicator.
3 Buzzer indicator.
4 Battery indicator.
English
10
5 Connecting a USB power indicator.
6 Tesla(uT) or Gauss(mG) display.
7 Electric Field (V/m) display.
8 RF strength history histogram display.
9 RF strength digital (mV/m/ W/m²/μW/cm²/dB) display.
10 Menu key indication
11 Hold/ Enter key indicator
12 RF electronic field warning indicator:
GOOD/NORMAL/WARNING.
13 LF electric field warning indicator:
GOOD/NORMAL/WARNING.
14 Individual XYZ axial value of LF electromagnetic wave
display
15 LF electromagnetic wave warning indicator:
GOOD/NORMAL/WARNING
4 Measurement Procedures
4.1 POWER ON/OFF Button:
Press button to power on. LCD display measurement
screen.(see Fig. 3)
Press button for 3 seconds to power off LCD display.
4.2 Reading Individual and Aggregated XYZ Axial Data:
English
11
Direct the front section of the meter at the desired electromagnetic
field for measurements.
The meter simultaneously displays the electromagnetic field
readings of individual and aggregated XYZ axes, where the
aggregated calculation equation can be expressed as follows:
Because of environment-related magnetic field factors, this
electromagnetic field EMF meter may display a reading of under 0.50
mG prior to testing. This is caused by the magnetic noise in the
environment, rather than meter failure.
4.3 Data hold (HOLD):
Press the left button as to activate the HOLD function and
hold the current readings at the upper left of the display.
To release the held data, press the left button again.
Press the middle button for 3 seconds to power off the meter.
English
12
4.4 Menu Settings:
On the measurement screen: Press the middle button to enter
the main menu, where 7 options can be selected, namely,
Brightness, Magnetic unit, RF Strength Unit, Language, Power
off, Sound, and Information.
Press the right button to make the blue brick scroll down.
Press the right button repeatedly, and the blue brick will
cycle through the options.
Press the left button to enter the selected option. Press the
left button again to exit the selected option and return to the
main menu.
Press the middle button to return to the previous menu.
English
13
4.4.1. Option Buttons:
Press the right button to scroll to and check the next
check box. Press the right button repeatedly to cycle through
the check boxes.
Press the left button to exit to the main menu.
Press the middle button to return to the previous setting
menu.
English
14
4.4.2. Screen
Brightness options:
Following the operation procedures in 4.4, the Brightness setting
comprises the following three options, namely, Low, Middle, and
High. Under the sub-directory, use the option buttons to select and
confirm the desired selection.
Default: Middle
4.4.3. Magnetic Unit:
Following the operation procedures in 4.4, the Magnetic Unit setting
comprises the following two options, namely, Gauss/mG and Tesla/uT.
Under the sub-directory, use the option buttons to select and confirm the
desired selection.
English
15
Default: mG

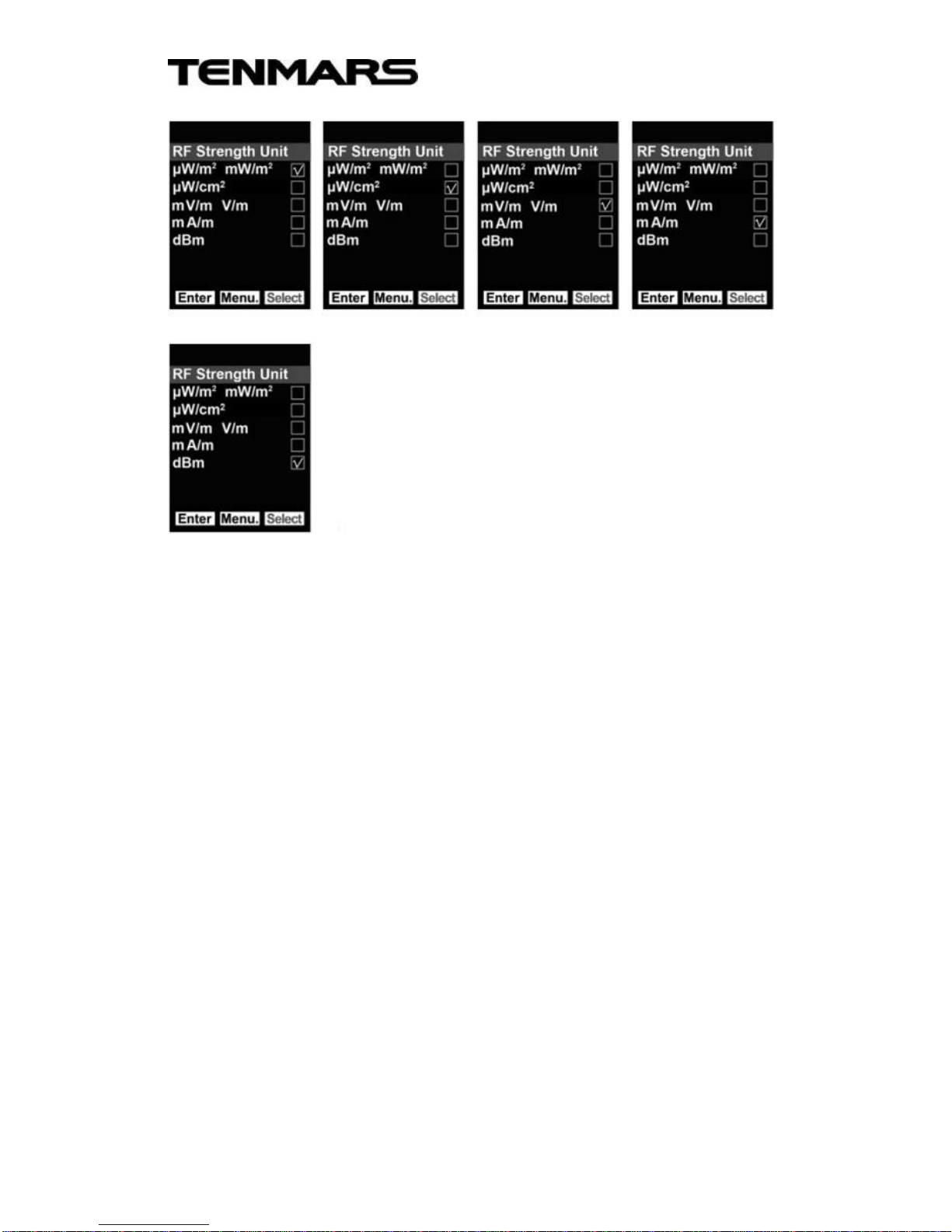

4.4.4. RF Strength
Unit：
Following the operation procedures in 4.4, the RF Strength Unit
setting comprises the following five options, namely, uW/m²~mW/m²,
uW/cm², mV/m~V/m, mA/m, and dBm (files are automatically skipped
within the selected unit). Under the sub-directory, use the option
buttons to select and confirm the desired selection.
English
16
Default: uV/m² ~ mW/m²
English
17

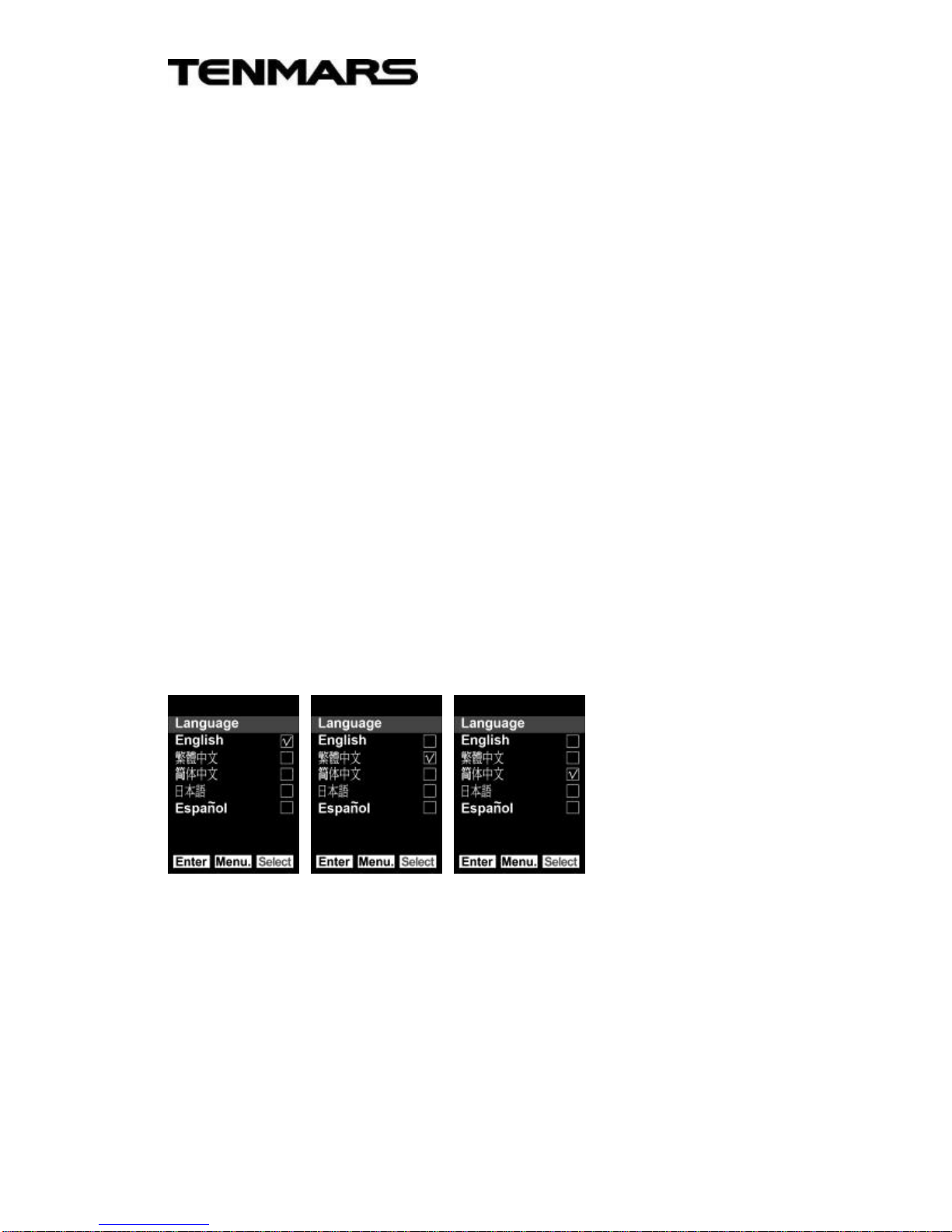

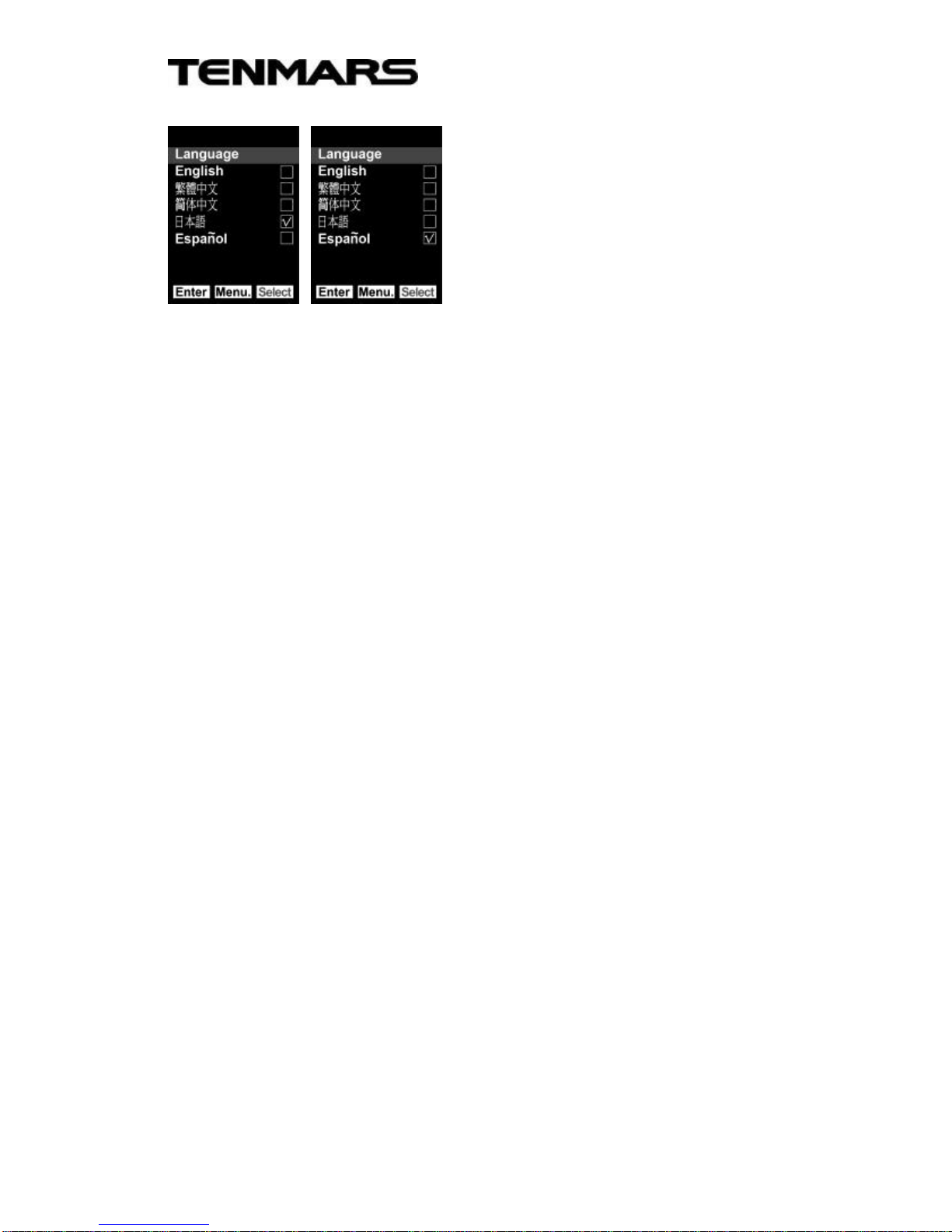

4.4.5. Language:
Following the operation procedures in 4.4, the Language setting
comprises the following five options, namely, English, Traditional
Chinese, Simplified Chinese, Japanese, and Español (Spanish).
Under the sub-directory, use the option buttons to select and
confirm the desired selection.
English
18
Default: English
English
19
4.4.6. Power Off Time:
Following the operation procedures in 4.4, the Power Off setting
comprises the following seven options, namely, NO, 1, 3, 5, 10, 15,
and 30 (min). Under the sub-directory, use the option buttons to
select and confirm the desired selection.
Default: 5min
English
20
4.4.7. Sound on/off:
Following the operation procedures in 4.4, the Sound setting
comprises the following two options, namely, On and Off.
Press the right button to scroll to and check the next check
box. Press the right button to cycle thought he options.
Press the left button to select the “Enable” setting and enter
English
21
the Keys/Alarm Sound menu (Section 4.4.8).
Press the left button to select the “Disable” setting and
return to the main menu(Fig. 3).
Press the middle button to return to the measurement screen
4.4.8. Keys/Alarm
Sound:
Following the selection of the Enable option in the Sound settings
menu, the Keys/Alarm Sound setting comprises the following two
options, namely, Keys and Alarm.
Press the right button to scroll to and check the check the
next check box. Press the right button repeatedly to cycle
through the options.
Press the left button to enter the next options screen.
English
22
4.4.9. Keys Sound:
Following the selection of the Keys option in the Keys/Alarm Sound
settings menu, the Keys setting comprises 3 options, namely 1, 2,
and 3.
Press the right button to scroll to and check the next check
box. Press the right button repeatedly to cycle through the
options.
Press the left button to exit to the main menu.
Default: 3
4.4.10. Alarm Sound:
Following the selection of the Alarm option in the Keys/Alarm Sound
settings menu, the Alarm setting comprises 3 options, namely 1, 2,
English
23
and 3.
Press the right button to scroll to and check the next check
box. Press the right button repeatedly to cycle through the
options.
Press the left button to exit to the main menu.
Default: 3

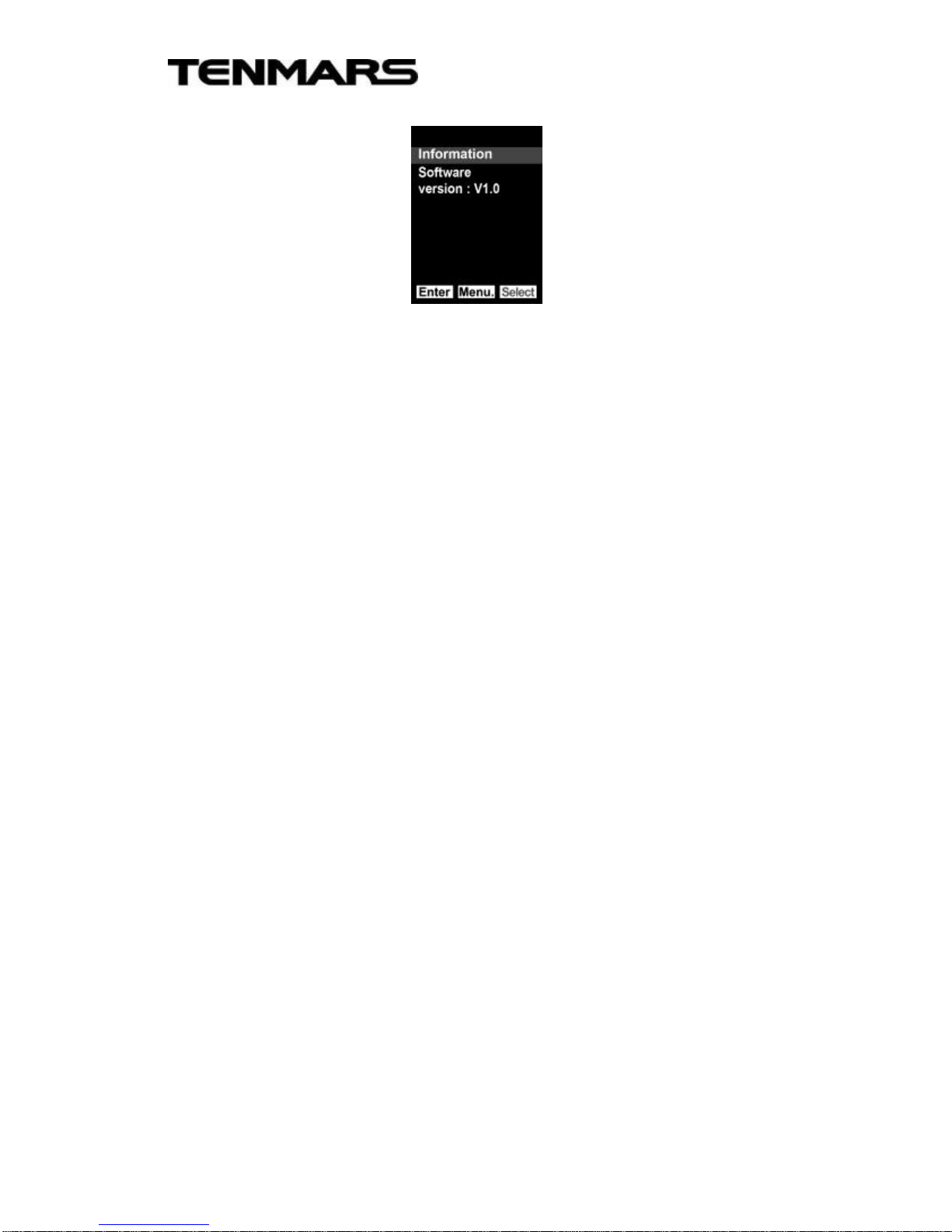

4.4.11. Information:
Following the operation procedures in 4.4, select the Information
option to display the software version (V1.0).
Press the left button to exit to the main menu.
Press the middle button to return to the settings screen.
English
24
English
25
5 Specifications
5.1 Sensor type: LF Magnetic Fields (MF)
The meter is equipped with three individual aerial sensors to
measure EMFs. The overload indications can be displayed
simultaneously on three axes (X, Y, Z):
Range: 20/200/2000mG, 2/20/200µT.
Resolution: 0.02/0.1/1 mG or 0.02/0.1/1 µT.
Frequency response: 50/60 Hz
Sensor: Triple Axis (X, Y, Z).
Accuracy: ±(15%+100dgt).
5.2 Sensor type: LF Electric Fields
English
26
Range: 50V/m to 2000V/m.
Frequency response: 50/60Hz
Accuracy: ± (7% + 50dgt).
English
27
5.3 Sensor type: RF Strength
Frequency range：50MHz to 3.5GHz.
Accuracy: ± 2dB at 2.45GHz
Measurement units: uW/m²~mW/m²; μW/cm²; mV/m~V/m,
mA/m, and dBm
Specified measurement range: (0.02uW/m²to 554.6mW/m²)
(0.02uW/cm²to 55.4uW/cm²)(36.1mV/mto14.46V/m) (0.02mA/m
to 38.35mA/m)( -51dB to 16dBm)
Display resolution: 0.02μW / m², 0.2μA / m, 0.2mV/m, m,
0.002μW/cm ², 2dB.
Display: 4 digits Triple LCD display.
Sample rate: 6 seconds per time.
Battery life: Approximate 8 hours.
Battery: 1.5V AAA Alkaline Battery*3.
Audible Key tone alarm: Buzzer
English
28
Operating temperature & humidity: 5°C to 40°C, below 80% RH.
Storage temperature & humidity: -10°C to 60°C, below 70%.
Weight: About 120g.
Dimensions: 115(L)*60(W)*21(H) mm.
English
29
6 Battery replacement
Turn off the instrument.
Open the battery covers and remove the battery.
Take three new 1.5VAAA alkaline batteries, and install the
batteries according to the polarity.
Put back the battery cover.
WARNING
If the symbol “
” appears on the screen,
please replace the battery immediately
English
30
7 External USB power supply:
External USB.
Specifications: Voltage DC 4.8 ~ 5.2V current ≧ 500mA.
A icon is displayed when an external USB power
supply is connected to the meter.
The meter determines connected USB cables to be
antennas, and thus such cables should not exceed the
top rim of the buttons during testing. If the cables
exceed this limit, the readings of subsequent tests are
considered invalid.
English
31
8 Safety and maintenance
standards
Do not operate around combustible gases or in damp
environment.
Operating altitude: below 2,000m.
Operating environment: for indoor use, expose to pollution
level II.
This is a precision device. During use or storage, do not go
beyond its spec. to prevent any possible damage or
danger.
Do not put this device in direct sunlight or where it is hot
and/or damp.
For long storage, remove the battery to prevent the battery
from leaking and causing damage to the parts inside.
Clean the device with a dry soft cloth. The use of wet
cloths, liquid and water is prohibited.
English
32
9 End of life
Caution
This symbol indicates that equipment and
its accessories shall be subject to a
separate collection and correct disposal
English
33
Professional Electrical and
Environment Test & Measurement
Instruments:
Battery Capacity/Impedance Tester,
TACHO Meter, LED light meter, Temperature
& Humidity meter, Infrared Thermometer,
Sound level meter, Light meter, EMF meter,
UV Light meter, RF meter, Hot wire
Anemometer, CO meter, Anemometer, Lan
cable tester, CO2 meter, Solar power meter,
Radiation meter,
Clamp meter, Multimeter, Phase Rotation
test, Digital Insulation tester.
TENMARS ELECTRONICS CO., LTD
6F, 586, RUI GUANG ROAD, NEIHU,
TAIPEI 114, TAIWAN.
Loading...
