Wireless-N Broadband Router
Wireless-N Broadband Router
Copyright Statement
is the registered trademark of Shenzhen
Tenda Technology Co., Ltd. All the products and
product names mentioned herein are the
trademarks or registered trademarks of their
respective holders. Copyright of the whole product
as integration, including its accessories and
software, belongs to Shenzhen Tenda Technology
Co. , Ltd. Without the permission of Shenzhen Tenda
Technology Co., Ltd, any individual or party is not
allowed to copy, plagiarize, imitate or translate it
into other languages.
All the photos and product specifications mentioned
in this manual are for references only. As the
upgrade of software and hardware, there will be
changes. And if there are changes, Tenda is not
responsible for informing in advance. If you w ant to
know more about our product information, please
visit our website at www.tenda.cn.
11N Wireless Broadband Router
Contents
Chapter 1: Introduction...............................................1
1.1 Product Features..............................................2
1.2 Package Contents ............................................. 4
1.3 LED Indicator and Port Description......................4
Chapter 2 Hardware Installation....................................7
2.1 How to Install the Router.....................................7
2.2 Network Application Plan.....................................9
Chapter 3 How to Login to the Router.......................... 10
3.1 How to Set the Network Configurations ............... 10
3.2 Login to the Router........................................... 12
Chapter 4: Quick Setup Guide .................................... 14
4.1 Setup Wizard................................................... 14
Chapter 5: Advanced Settings .................................... 20
5.1 LAN Settings.................................................. 20
5.2 WAN Settings .................................................. 21
5.3 MAC Address Clone .......................................... 26
5.4 DNS Settings................................................... 27
Chapter 6: Wireless Setting........................................ 28
6.1 Basic Settings.................................................. 28
11N Wireless Broadband Router
6.2 Wireless Security Setting................................... 30
6.3 Advanced Settings............................................ 33
6.4 WPS Settings................................................... 35
6.5 WDS Settings.................................................. 37
6.6 Wireless Access Control..................................... 39
6.7 Connection Status............................................ 40
Chapter 7: DHCP Server ............................................ 41
7.1 DHCP Settings................................................. 41
7.2 DHCP List and Binding ...................................... 42
Chapter 8 Virtual Server............................................ 43
8.1 Port Range Forwarding .................................... 43
8.2 DMZ Settings................................................... 44
8.3 UPNP Settings ................................................. 45
Chapter 9 Traffic Control............................................ 46
9.1 Traffic Control.................................................. 46
Chapter10 URL Monitor.............................................. 48
10.1 URL Monitor................................................... 48
Chapter 11: Security Settings..................................... 50
11.1 Client Filter Settings ....................................... 50
11.2 URL Filter Settings ........................................ 51
11.3 MAC Address Filter........................................ 53
11N Wireless Broadband Router
11.4 Prevent Network Attack................................... 54
11.5 Remote Web Management ............................... 55
11.6 WAN Ping .................................................... 56
Chapter12 Routing Setting......................................... 57
12.1 Routing Table................................................. 57
Chapter 13 System Tools ........................................... 58
13.1 Time Settings ................................................ 58
13.2 DDNS ........................................................... 59
13.3 Backup/Restore Settings ................................. 60
13.4 Restore to Factory Default Setting................... 62
13.5 Upgrade Firmware.......................................... 63
13.6 Reboot the Router .......................................... 63
13.7 Password Change........................................... 64
13.8 System Log ................................................... 65
13.9 Logout.......................................................... 65
Appendix 1：Glossary................................................ 66
Appendix 2: Ask and Question.................................... 68
11N Wireless Broadband Router
Chapter 1: Introduction
Thank you for purchasing Tenda 11N Wireless Broadband
Router!
W368R utilizes advanced MIMO technology and increases
over 8 times transmission range of ordinary 802.11g
products. Compatible with IEEE802.11n (Draft 4.0) and
IEEE802.11g/b standards, it can provide up to 300Mbps
stable transmission rate. Additionally, it includes router,
wireless access point, four-port switch and firewall in one,
dedicated to SOHOs (Small Office/Home Office) and family
networking.
It supports WDS (Wireless Distribution System) function for
repeating and amplifying the signals to extend the wireless
network coverage. Besides, the Router also supports all of
the latest wireless security features, such as 64/128-bit WEP ,
WPA, WPA2, WPA&WPA and WPS (PBC and PIN) encryption
methods, packet filtering and port forwarding, to prevent
unauthorized access and protect your network against
malicious attack.
In addition, URL and MAC address filtering can take it easy
for parents and network administrator to manage network
1
11N Wireless Broadband Router
life and QoS bandwidth control over specific computer’s
downloading speed is supported as well. Moreover , UPnP and
WMM support can smooth your MSN voice better, and the
included Setup Wizard on CD-ROM will be easy and fast for
non-savvy users to install the device and access to the
Internet.
1.1 Product Features
¾ Includes router, wireless access point, four-port switch
and firewall in one
¾ Provides up to 300Mbps uploading and downloading
speed
¾ Supports two WPS (Wi-Fi Protected Setup) encryption
methods: PBC and PIN
¾ Compliant to IEEE802.11n, IEEE802.11g,
IEEE802.11b, IEEE802.3 and IEEE802.3u standards
¾ Supports over 8 times transmission range of 11G
products
¾ Supports 64/128-bit WEP, WPA, WPA2, WPA&WPA2
encryption methods
¾ Supports RTS/CTS protocol and data partitioning
function
¾ Provides one 10/100Mbps Auto-Negotiation Ethernet
WAN port
2
11N Wireless Broadband Router
¾ Provides four 10/100Mbps Auto-Negotiation Ethernet
LAN ports
¾ Supports xDSL/Cable MODEM, static and dynamic IP in
community networking
¾ Supports remote/local Web management
¾ Supports WMM to better smooth your voice and video
¾ Supports SSID stealth mode and access control based
over MAC address (up to 30 entries)
¾ Supports Auto MDI/MDIX
¾ Supports wireless Roaming technology for
high-efficient wireless connections
¾ Supports auto negotiation/manual mode for
802.11b/802.11g/802.11n
¾ Supports UPnP and DDNS
¾ Supports Firefox 1.0, IE5.5 or above
¾ Supports SNTP
¾ Supports virtual server, DMZ host
¾ Built-in firewall for hacker's attack prevention
¾ Supports DHCP server/client
¾ Supports auto wireless channel selection
¾ Supports LAN access control to the Internet
¾ Provides syslog to record the status of the router
¾ Supports WDS wireless network extension
¾ Supports QoS function
¾ Built-in two omni-directional antennas
3
11N Wireless Broadband Router
1.2 Package Contents
Please unpack the box and check the following items:
¾ One W368R 11N Wireless Broadband Router
¾ One Quick Installation Guide
¾ One Power Adapter
¾ One CD-ROM
If any of listed items are missing or damaged, please contact
the Tenda reseller from whom you purchased for
replacement immediately.
1.3 LED Indicator and Port Description
Front Panel and LED Indicator Show
LED indicator description on front panel (from L to R)
POWER
When turns green, Always ON indicates the power
4
11N Wireless Broadband Router
connects well.
SYS
When turns green, blinking indicates the system runs
well.
WPS
When blinking, it indicat es t he de vice is neg otiatin g with
client in WPS mode.
WLAN
Wireless signal LED indicator . When turns green, blinking
indicates the wireless function is enabled;
LAN (4,3,2,1)
Wired local network LED indicator . Alw ays ON indicates it
is connected with Ethernet device; blinking indicates the
device is transmitting and/or receiving data.
WAN
Wide area network indicator. Always ON indicates the
Router’s WAN port is connected well; blinking indicates
the port is being transmitted and received data packets.
Back Panel Show：
5
11N Wireless Broadband Router
Rear Panel：（From L to R）
POWER
The jack is for power adapter connection. Please use the
included 9V DC power adapter.
WAN
A 100Mbps Ethernet port, can be connected with MODEM,
Switch, Router and other Ethernet device for Internet
connecting to DSL MODEM, Cable MODEM and ISP.
LAN (1, 2, 3, 4)
4 10/100Mbps Ethernet ports can be connected with
Ethernet switch, Ethernet router and NIC card.
RESET
The system reset button. Press this button for 7 seconds,
the settings configured in this device will be deleted and
it will restore the settings to the default one.
WLAN/WPS
WPS button. Press it for 1 second, the WPS feature will
be enabled and WPS indicator will be shown blinking.
6
11N Wireless Broadband Router
Chapter 2 Hardware Installation
2.1 How to Install the Router
After you unpack the box, please follow the steps below to
connect. For better wireless performance, please put the
device in the middle of wireless coverage area.
1. Please use the included power adapter to power on the
Router. IMPORTANT: Use of a different power adapter
could cause damage and void the warranty for this
product.
2. Please connect the LAN port of the Router to the network
adapter of your computer with a cable.
7
11N Wireless Broadband Router
3. Please connect your broadband line provided by your ISP
to the WAN port.
4. Insert the included CD-ROM into the CD-ROM drive,
double click the “Setup” icon and follow the instructions
to complete the installation. Or you can enter the Router’s
Web page to configure it. (More details please refer to
Chapter 3.)
8
11N Wireless Broadband Router

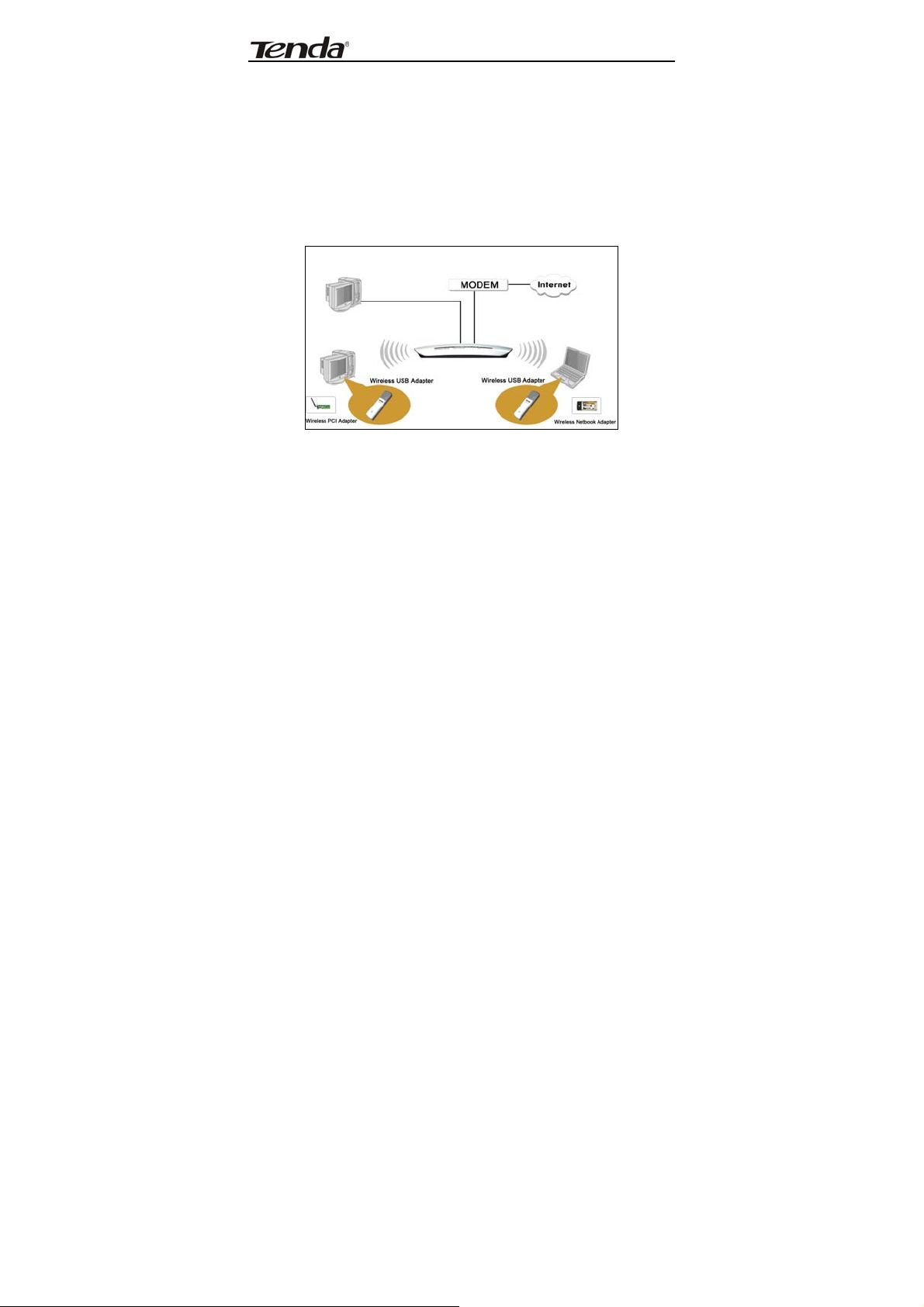

2.2 Network Application Plan
Usually wireless LAN Network is deployed in a planned
environment where each access point is located in a steady
place with certain wireless coverage area for communication
service. Generally speaking, it is in the center of the area to
reduce “dead spot”.
9
11N Wireless Broadband Router
Chapter 3 How to Login to the Router
The chapter mainly presents how to enter the Router’s Web
page. After you have finished the hardware installation, the
following steps will assist you to set the network
configurations for you computer.
3.1 How to Set the Network Configurations
1. On your computer desktop right click “My Network
Places” and select “Properties”.
2. Right click “Local Area Network Connection” and
select “Properties”.
10
11N Wireless Broadband Router
3. Select “Internet Protocol (TCP/IP)” and click
“Properties”.
4． Select “Obtain an IP address automatically” and
“Obtain DNS server address automatically”. Click
“OK” to save the configurations.
11
11N Wireless Broadband Router
Or select “Use the following IP address” and enter the IP
address, Subnet mask, Default gateway as follows:
IP Address: 192.168.0.XXX：(XXX is a number from 2~254)
Subnet Mask: 255.255.255.0
Gateway: 192.168.0.1
Certainly you need to input the DNS server address provided
by your ISP. Otherwise, you can use the Router’s default
gateway as the DNS proxy server. Click “OK” to save the
configurations.
3.2 Login to the Router
1. To access the Router’s Web-based interface, launch a web
browser such as Internet Explorer or Firefox and enter the
Router’s default IP address, http://192.168.0.1. Press
“Enter”.
12
11N Wireless Broadband Router
2．Input the “admin” in both User Name and Password. Click
“OK”.
3. If you enter the correct user name and password, the
screen will be the next one.
13
11N Wireless Broadband Router
Chapter 4: Quick Setup Guide
This chapter deals with how to access the Internet quickly.
Please follow this guide to connect your Router to the
Internet.
4.1 Setup Wizard
1. Here is the “Welcome to Setup Wizard” for configuring
your Router quickly. Click “Next”.
2. In this screen, select one mode of your Internet
connection you use. If you are not clear, press the
“Detect” button or contact your Internet Service
Provider, and click “Next”.
14
11N Wireless Broadband Router
ADSL Virtual Dial-up (Via PPPoE)
Enter the Account and Password provided by your ISP, and
click “Next”.
For example
：
Dynamic IP (Via DHCP)
If your connection mode is Dynamic IP, it means your IP
address keeps changing every time you connect. Y ou do not
need to enter the information like other modes. Click “Next”
and “Save” to finish the settings.
Static IP
In this screen, fill the network address information from your
ISP in the IP Address, Subnet Mask, Gateway and Primary
15
11N Wireless Broadband Router
DNS server fields and click “Next”.
For example：
ISP provides the following TCP/IP parameters as follows：
IP Address：192.168.1.2
Subnet Mask：255.255.255.0
Gateway：192.168.1.1
Primary DNS Server：192.168.1.2
Alternate DNS Server：202.96.134.133
Click “Save” to complete the setup wizard. The Router will
record the settings you made. To activate the settings, it is
recommended to select “Reboot the Router” from “System
Tool” of the left menu.
few minutes and DO NOT power off it.
It is rebooting now, please wait for a
16
11N Wireless Broadband Router
Click the “System Status” in the left menu of the
Web-based Utility to find out the current network and system
information. If the “Connection Status” is “Connected”,
Congratulations you on completing the Router’s basic
settings. You are on the Internet now. If you want to
configure more, please proceed to the following explanations
for Advanced Settings.
L2TP
L2TP Server IP: Enter the Server IP provided by your ISP.
User Name: Enter L2TP username.
Password: Enter L2TP password.
MTU: Maximum Transmission Unit, you may need to change
it for optimal performance with your specific ISP . 1400 is the
default MTU.
Address Mode: Select “Static” if your ISP supplies you with
the IP address, subnet mask, and gateway. In most cases,
17
11N Wireless Broadband Router
select Dynamic.
IP Address: Enter the L2TP IP address supplied by your ISP.
Subnet Mask: Enter the Subnet Mask supplied by your ISP.
Default Gateway: Enter the Default Gateway supplied by
your ISP.
PPTP
PPTP Server IP: Enter the Server IP provided by your ISP.
User Name: Enter PPTP username provided by your ISP.
Password: Enter PPTP password provided by your ISP.
Address Mode: Select “Static” if your ISP supplies you with
the IP address, subnet mask, and gateway. In most cases,
select Dynamic.
IP Address:
Enter the PPTP IP address supplied by your ISP .
18
11N Wireless Broadband Router
Subnet Mask: Enter the Subnet Mask supplied by your ISP.
Default Gateway: Enter the Default Gateway supplied by
your ISP.
19
11N Wireless Broadband Router
Chapter 5: Advanced Settings
5.1 LAN Settings
LAN Settings are for the basic TCP/IP parameters of LAN
ports.
MAC Address: The Router’s physical MAC address as
seen on your local network, which is unchangeable.
IP Address: The Router’s LAN IP addresses (not your
PC’s IP address). 192.168.0.1 is the default value.
Subnet Mask: It’s shown the Router’ s subnet mask for
measurement of the network size. 255.255.255.0 is the
default value.
IMPORTANT: Once you modify the IP address, you
need to remember it for the Web-based Utility login next time.
20
11N Wireless Broadband Router
5.2 WAN Settings
After you have selected the ISP connection type in “Setup
Wizard” and you want to modify the related settings, here
you can modify and configure the settings in details.
Virtual Dial-up（PPPoE）
Connection Mode: Show your current connection
mode.
Account: Enter them provided by your ISP.
Password: Enter them provided by your ISP.
MTU: Maximum Transmission Unit. It is the size of
largest datagram that can be sent over a network. The
default value is 1492. Do NOT modify it unless necessary .
21
11N Wireless Broadband Router
But if when some specific website or web application
software can not be open or enabled, have a try to
change the MTU value as 1450, 1400, etc.
Service Name: It is defined as a set of characteristics
that are applied to a PPPoE connection. Enter it if
provided. Do NOT modify it unless necessary.
AC Name: Enter it if provide d. Do NOT modify it unless
necessary.
Connect Automatically: Connect automatically to the
Internet after rebooting the system or connection
failure.
Connect Manually: Connect to the Internet by users
manually.
Connect on Demand: Re-establish your connection to
the Internet after the specific time (Max Idle Time). Zero
means your Internet connection at all time. Otherwise,
enter the minutes to be elapsed before you want to
disconnect the Internet access.
Connect on Fixed Time: Connect to the Internet
during the time you fix.
Notice:
The “Connect on Fixed Time” can be deployed only
when you have set the current time in “Time
Settings” from “System Tools”.
22
11N Wireless Broadband Router

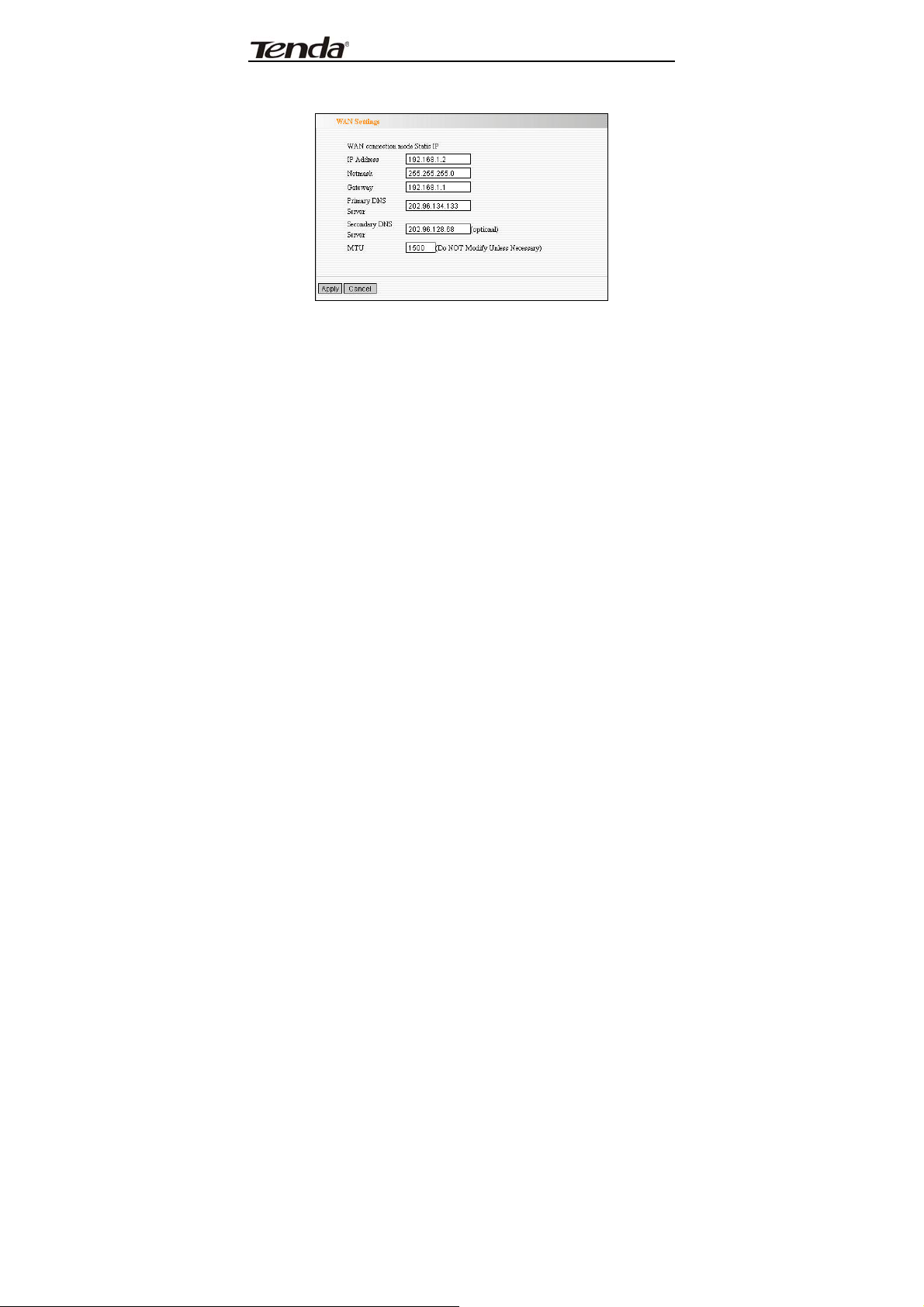

Static IP
If your connection mode, static IP is chosen, you can modify
the following addressing information.
IP Address: Here enter the WAN IP address provided
by your ISP.
Subnet Mask: Enter the WAN Subnet Mask here.
Gateway: Enter the WAN Gateway here.
Primary DNS Server: Enter the Primary DNS server
provided by your ISP.
Secondary DNS Server: Enter the secondary DNS.
L2TP
L2TP Server IP: Enter the Server IP provided by your ISP.
User Name: Enter L2TP username.
Password: Enter L2TP password.
MTU: Maximum Transmission Unit, you may need to change
it for optimal performance with your specific ISP . 1400 is the
23
11N Wireless Broadband Router
default MTU.
Address Mode: Select “Static” if your ISP supplies you with
the IP address, subnet mask, and gateway. In most cases,
select Dynamic.
IP Address: Enter the L2TP IP address supplied by your ISP.
Subnet Mask: Enter the Subnet Mask supplied by your ISP.
Default Gateway:
your ISP.
Enter the Default Gateway supplied by
PPTP
PPTP Server IP: Enter the Server IP provided by your ISP.
User Name: Enter PPTP username provided by your ISP.
Password: Enter PPTP password provided by your ISP.
Address Mode: Select “Static” if your ISP supplies you with
the IP address, subnet mask, and gateway. In most cases,
select Dynamic.
24
11N Wireless Broadband Router
IP Address: Enter the PPTP IP address supplied by your ISP .
Subnet Mask: Enter the Subnet Mask supplied by your ISP.
Default Gateway:
your ISP.
Enter the Default Gateway supplied by
25
11N Wireless Broadband Router
5.3 MAC Address Clone
This page is for the Router’s MAC address to WAN.
Some ISPs require end-user's MAC address to access their
network. This feature copies the MAC address of your
network device to the Router.
MAC Address: The MAC address to be registered with
your Internet service provider.
Clone MAC Address: Register your PC's MAC address.
Restore Default MAC Address: Restore to the default
hardware MAC address.
26
11N Wireless Broadband Router
5.4 DNS Settings
DNS is short for Domain Name System (or Service), an
Internet service that translate domain names into IP
addresses which are provided by your Internet Service
Provider. Please consult your Internet Service Provider for
details if you do not have them.
DNS: Click the checkbox to enable the DNS server. The
Router’s DHCP sever will answer the client’s requests
and distribute DNS address.
Primary DNS Address: Enter the necessary address
provided by your ISP.
Secondary DNS Address: Enter the second address if
your ISP provides, which is optional.
Notice:
After the settings are completed, reboot the device
to activate the modified settings.
27
11N Wireless Broadband Router
Chapter 6: Wireless Setting
6.1 Basic Settings
Enable Wireless: Check to enable the Router’s wireless
features; uncheck to disable it.
Network Mode：Select one mode from the following.
The default is 11b/g/n mode.
11b mode：Allow the wireless client to connect with the
device in 11b mode at the maximum speed of 11Mbps.
11g mode：Allow the 11g/11n-compliant client device
to connect with the AP at the maximum speed of
54Mbps.
28
11N Wireless Broadband Router
11b/g mode：Allow the 11b/g-compliant client device
to connect with the AP with auto-negotiation speed, and
11n wireless client to connect the device with 11g
speed.
11b/g/n mode：Allow 11b/g/n-compliant client device
to connect with the AP with auto-negotiation speed.
：
SSID
of the wireless network. This device has two SSID and
the SSID is necessary.
Broadcast (SSID): Select “Enable” to enable the
device's SSID to be visible by wireless clients. The
default is enabled.
BSSID
In IEEE802.11, BSSID is the MAC address of wireless
access point.
Channel
13\Auto) of the wireless network.
Extension Channel
wireless network, the extension channel range is used in
11n mode.
Channel Bandwidth：Select the channel bandwidth to
improve the wireless performance. When the network
has 11b/g and 11n clients, you can select the 40M;
when it is an 11n network, select 20/40M to improve its
throughput.
SSID (Service Set Identifier) is the unique name
：
Basic Service Set Identifier of wireless network.
：
Specify the effective channel (from 1 to
：
To increase data throughput of
29
11N Wireless Broadband Router
6.2 Wireless Security Setting
It is used to configure the AP network’s security setting. Here
presents the common six (ten in all) encryption methods,
including Mixed WEP, WPA-personal, WPA2-personal, etc.
6.2.1 Mixed WEP
WEP (Wired Equiva len t P rivacy), a basic encryption method ,
usually encrypts wireless data using a series of digital keys
(64 bits or 128 bits in length). By using the same keys on
each of your wireless network devices, you can prevent
unauthorized wireless devices from monitoring your
transmissions or using your wireless resources. Select Mixed
WEP to enter the following window:
Select SSID：Select the SSID (main SSID or minor
SSID) to configure security setting from the drop-down
30
11N Wireless Broadband Router
menu.
Security Mode：From the drop-down menu select the
corresponding security encryption modes.
WEP Key1~4
ASCII and Hex. Y ou can enter ASCII code (5 or 13 ASCII
characters. Illegal character as “/” is not allowed.) Or
10/26 hex characters.
Default Key
keys as the current available one.
6.2.2 WPA-Personal
WPA (Wi-Fi Protected Access), a Wi-Fi standard, is a
more recent wireless encryption scheme, designed to
improve the security features of WEP. It applies more
powerful encryption types (such as TKIP [Temporal Key
Integrity Protocol] or AES [Advanced Encryption Standard])
and can change the keys dynamically on every authorized
wireless device.
：
Set the WEP key with the format of
：
Select one key from the four configured
31
11N Wireless Broadband Router
Select SSID： Select the SSID (main SSID or minor
SSID) to configure security setting from the drop-down
menu.
WPA Algorithms ： Provides TKIP [Temporal Key
Integrity Protocol] or AES [Advanced Encryption
Standard]. The default is TKIP mode.
Pass Phrase： Enter the encrypted characters with
8-63 ASCII characters.
Key Renewal Interval：Set the key’s renewal period.
6.2.3 WPA2- Personal
WPA2 (Wi-Fi Protected Access version 2) provides higher
security than WEP (Wireless Equivalent Privacy) and WPA
(Wi-Fi Protected Access).
Select SSID： Select the SSID (main SSID or minor
SSID) to configure security setting from the drop-down
menu.
32
11N Wireless Broadband Router
WPA Algorithms ： Provides TKIP [Temporal Key
Integrity Protocol] or AES [Advanced Encryption
Standard]. The default is TKIP mode.
Pass Phrase： Enter the encrypted characters with
8-63 ASCII characters.
Key renewal Interval：Set the key’s renewal period.
6.3 Advanced Settings
This section is to configure the advanced wireless setting of
the Router, including the Radio Preamble, 802.11g/n Rate,
Fragmentation Threshold, RTS Threshold, etc.
BG protection Mode: Auto by default. It is for 11b/g
wireless client to connect 11n wireless network
smoothly in a complicated wireless area.
Basic Data Rates: For different requirement, you can
33
11N Wireless Broadband Router
select one of the suitable Basic Data Rates. Here, default
value is (1-2-5.5.-11Mbps…). It i s recommended not to
modify this value.
Beacon Interval: Set the beacon interval of wireless
radio. Default value is 100. It is recommended not to
modify this value.
Fragment Threshold: The fragmentation threshold
defines the maximum transmission packet size in bytes.
The packet will be fragmented if the arrival is bigger
than the threshold setting. The default size is 2346
bytes. It is recommended not to modify this value.
RTS Threshold: RTS stands for “Request to Send”. This
parameter controls what size data packet the frequency
protocol issues to RTS packet. The default value of the
attribute is 2346. It is recommended not to modify this
value in SOHO environment.
TX Power: Set the output power of wireless radio. The
default value is 100.
WMM Capable: It will enhance the data transfer
performance of multimedia data when they’re being
transferred over wireless network. It is recommended to
enable this option.
APSD Capable: It is used for auto power-saved service.
The default is disabled.
34
11N Wireless Broadband Router

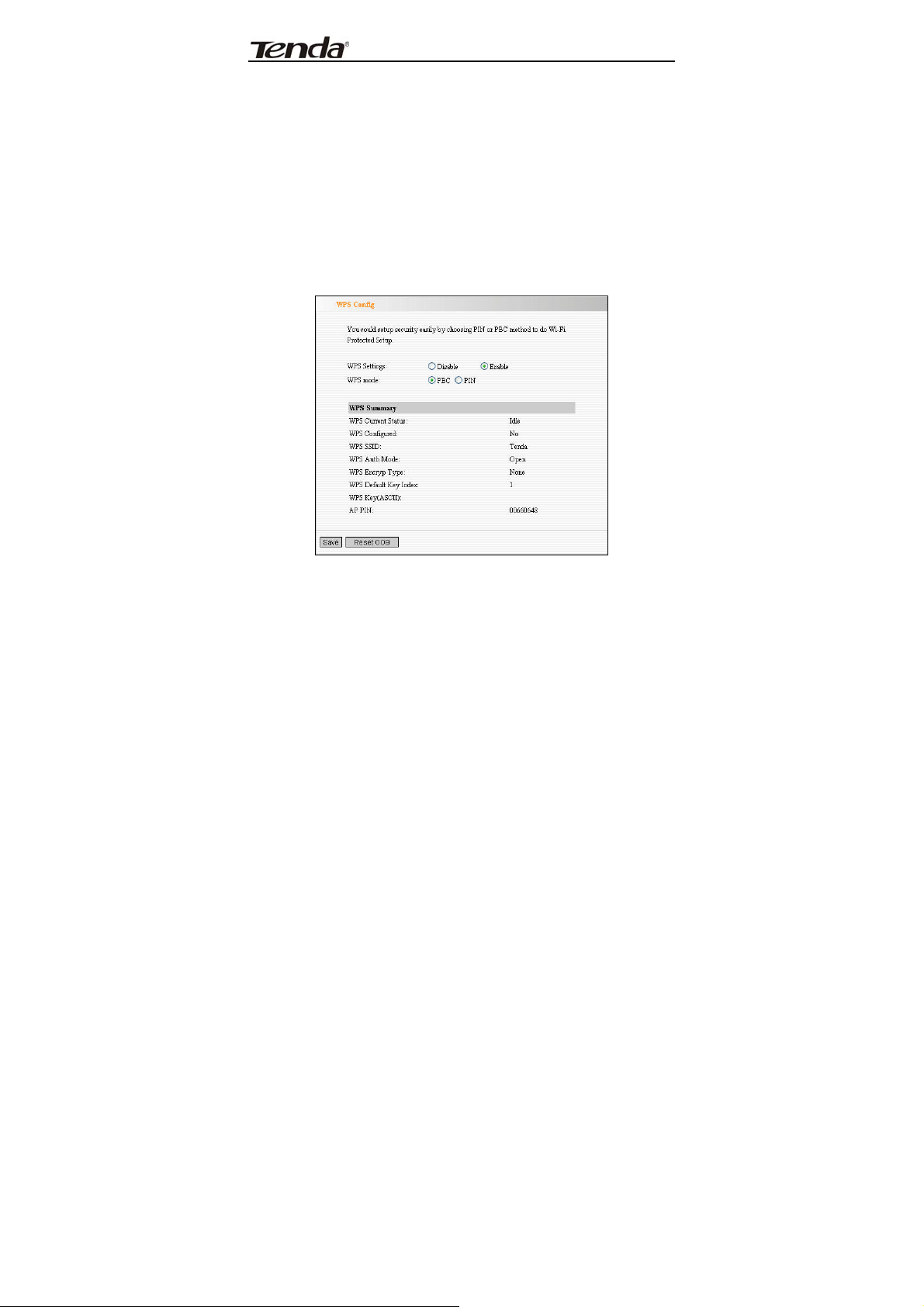

6.4 WPS Settings
WPS (Wi-Fi Protected Setting) can be easy and quick to
establish the connection between the wireless network
clients and the device through encrypted contents. The users
only enter PIN code or press WLAN/WPA button on the panel
to configure it without selecting encryption method and
secret keys by manual. In the “Wireless settings” menu, click
“WPS settings” to enter the next screen.
WPS settings：T o enable or disable WPS function. The
default is “disable”.
WPS mode ： Provide two ways: PBC (Push-Button
Configuration) and PIN code.
PBC
：
Select the PBC or press the WLAN/WPS button on
35
11N Wireless Broadband Router
the front panel of the device for about one second (Press
the button for about one second and WPS indicator will
be blinking for 2 minutes, which means the WPS is
enabled. During the blinking time, you can enable
another device to implement the WPS/PBC negotiation
between them. T wo minutes later, the WPS indicator will
be off, which means the WPS connection is comp leted. If
more clients are added, repeat the above steps. At
present, the WPS supports up to 32 clients access.)
PIN：If this option is enabled, you need to enter a
wireless client’s PIN code in the field and keep the same
code in the WPS client.
WPS Summary： Show the current state of Wi-Fi
protected setting, including authorized mode,
encryption type, default key and other information.
WPS Current Status：Idle means WPS in idle state.
Start MSC process means the process has been started
and waits for being connected. Configured means the
negotiation is successful between server and clients.
WPS Configured ： “yes” means WPS feature is
enabled and goes into e ffect. “n ot use d” mea ns it is no t
used. Usually the AP-security has been enabled, here
will displayed “not used”.
WPS SSID： Show the main SSID set by WPS.
WPS Auth. Mode：The authorization mode deployed
36
11N Wireless Broadband Router
by WPS, generally WPA/WPA2-personal mode.
WPS Encrypt Type：The encryption type used by WPS,
generally AES/TKIP.
WPS key ： The effective key generated by AP
automatically.
AP PIN（KEY）：The PIN code used by default.
Reset OOB： When this button is pressed, the WPS
client will be idle state, and WPS indicator will be turned
off. AP will not respond the WPS client’s requests and the
set the security mode as WPA mode.
6.5 WDS Settings
WDS (Wireless Distribution System) is used to expand
wireless coverage area. This Router provides three modes:
Lazy, Bridge and Repeater.
37
11N Wireless Broadband Router
Lazy: In this mode, the connected device can be Bridge
mode or Repeater mode and enter the Router’s BSSID to
establish the connection.
Bridge: You can wirelessly connect two or more wired
networks via this mode. In this mode, you need to add
the Wireless MAC address of the connecting device into
the Router's AP MAC address table or select one from
the scanning table.
Repeater Mode：In this mode, add the opposing MAC
address into each own AP MAC address table by manual
or scanner to enlarge and extend the wireless radio.
Encrypt Type: Select one from WEP, TKIP, AES for
security here.
Pass phrase: Enter the encrypted key for wireless
devices.
AP MAC: Input the MAC address of another (opposing)
wireless router you want to connect.
NOTE:
It is recommended that two wireless routers keep
the same bandwidth, channel number, and
security settings. Apply the settings and reboot
the Router to activate it.
38
11N Wireless Broadband Router

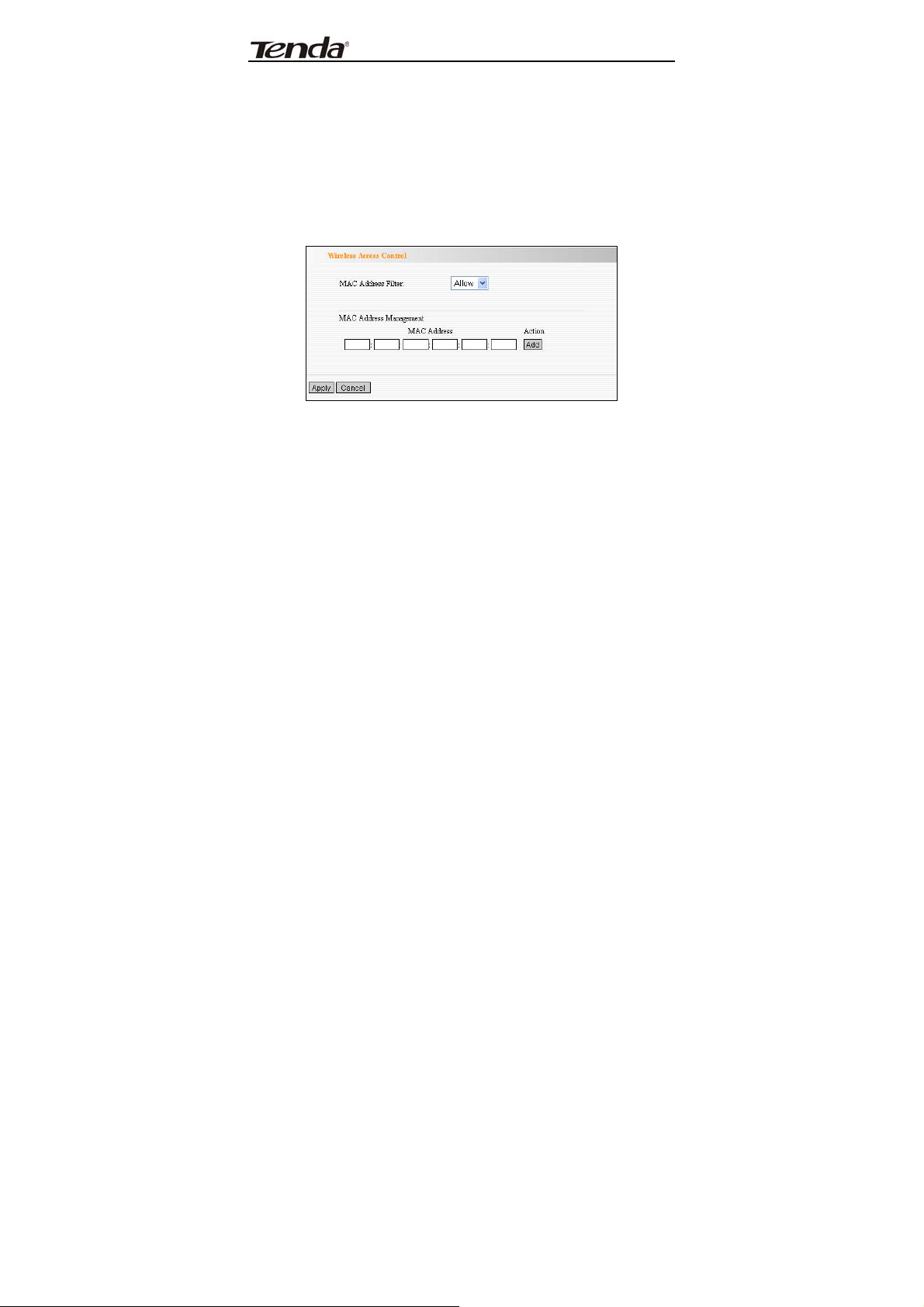

6.6 Wireless Access Control
To secure your wireless LAN, the wireless access control is
actually based on the MAC address management to allow or
block the specific clients to access the wireless network.
Select “Wireless Setting->Access Control” to display the
following screen:
MAC Address Filter：Enable/disable MA C address filter.
Select “Close” to malfun ction MAC a ddre ss; “d isable ” to
prevent the MAC addresses in the list from accessing the
wireless network; “Allow” to allow the MAC address in
the list to access the wireless network.
MAC Address Management：Input the MAC address
to implement the filter policy. Click “Add” to finish the
MAC add operation.
MAC list：Show the added MAC addresses. You can add
or delete them.
39
11N Wireless Broadband Router
6.7 Connection Status
This page shows wireless client’s connection status, including
MAC address, Channel bandwidth, etc. Select “Wireless
Setting->connection status” to enter the following screen:
MAC Address：Shows current MAC addresses of the
hosts connecting to the Router.
Bandwidth： Shows current bandwidth of the hosts
(wireless client).
40
11N Wireless Broadband Router
Chapter 7: DHCP Server
7.1 DHCP Settings
DHCP (Dynamic Host Control Protocol) is to assign an IP
address to the computers on the LAN/private network. When
you enable the DHCP Server, the DHCP Server will allocate
automatically an unused IP address from the IP address pool
to the requesting computer in premise of activating “Obtain
an IP Address Automatically”. So specifying the starting and
ending address of the IP Address pool is needed.
DHCP Server: Activate the checkbox to enable DHCP
server.
IP Address Start/End: Enter the range of IP address
for DHCP server distribution.
Lease Time: The length of the IP address lease.
For example：If the lease time is an hour, then DHCP
server will reclaim the IP address in each hour.
41
11N Wireless Broadband Router
7.2 DHCP List and Binding
The Static IP assignment is to add a specifically static IP
address to the assigned MAC address. You can view the
related information in the DHCP server list.
IP Address: Enter the IP address which needs to be
bound.
MAC Address: Enter the MAC address of the
computer you want to assign the above IP address. Click
“Add” to add the entry in the list.
Hostname: The name of the computer which is added a
new IP address.
Lease Time: The left time length of the corresponding
IP address lease.
42
11N Wireless Broadband Router
Chapter 8 Virtual Server

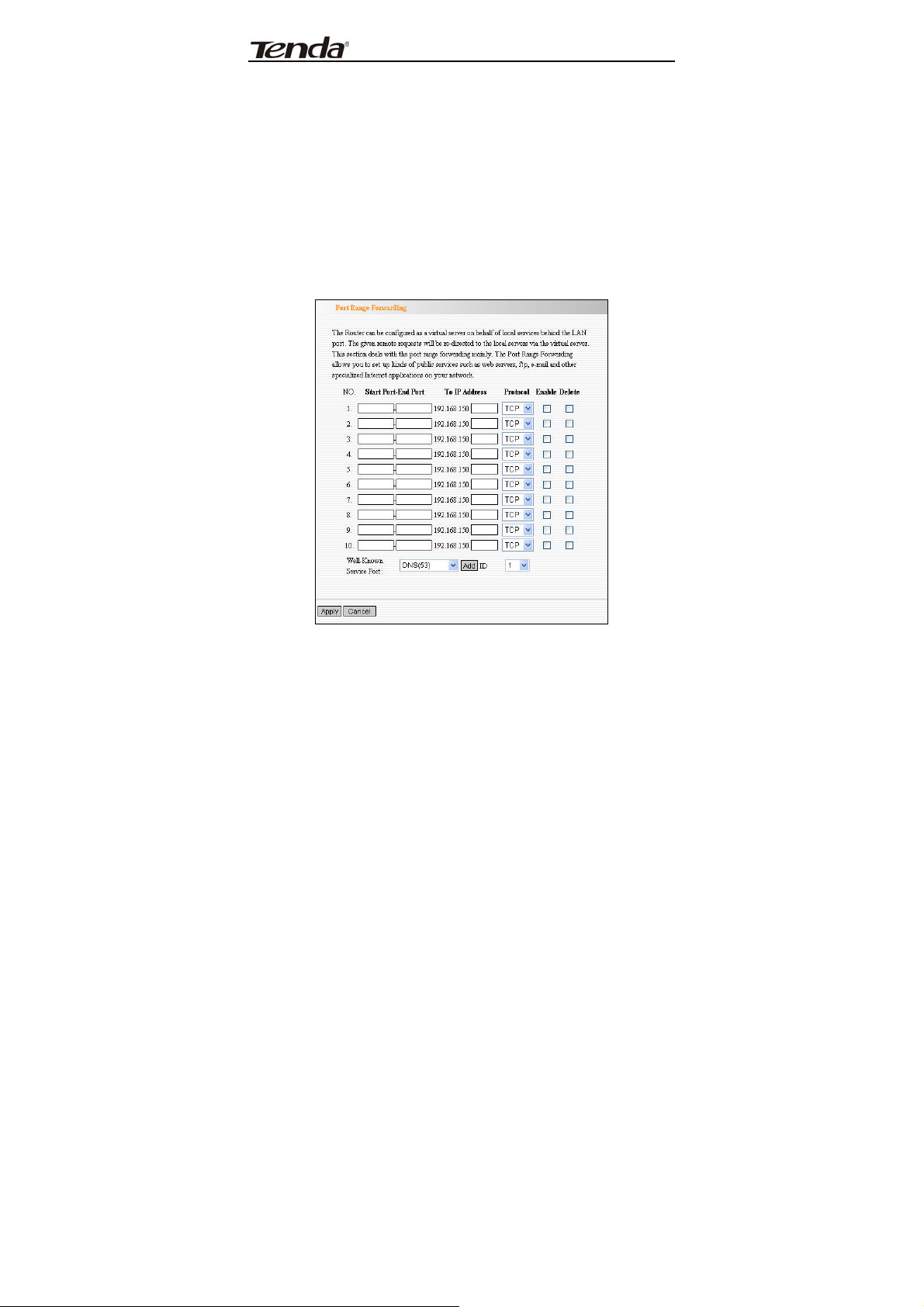

8.1 Port Range Forwarding
This section deals with the port range forwarding mainly . The
Port Range Forwarding allows y ou to set up a range of public
services such as web servers, ftp, e-mail and other
specialized Internet applications to an assigned IP address
on your LAN.
Start/End Port: Enter the start/end port number which
ranges the External ports used to set the server or
43
11N Wireless Broadband Router
Internet applications.
IP Address: Enter the IP address of the PC where you
want to set the applications.
Protocol: Select the protocol (TCP/UDP/Both) for
the application.
Delete/Enable: Click to check it for corresponding
operation.
Well-Known Service Port: Select the well-known
services as DNS, FTP from the drop-down menu to add
to the configured one above.
Add: Add the selected well-known port to the policy ID.
NOTE:
If you set the virtual server of the service port as
80, you must set the Web management port on
Remote Web Management page to be any value
except 80 such as 8080. Otherwise, there will be a
conflict to disable the virtual server.
8.2 DMZ Settings
The DMZ function is to allow one computer in LAN to be
exposed to the Internet for a special-purpose service as
Internet gaming or videoconferencing.
44
11N Wireless Broadband Router
DMZ Host IP Address: The IP address of the computer
you want to expose.
Enable: Click the checkbox to enable the DMZ host.
IMPORTANT: When the DMZ host is enabled, the
firewall settings of the DMZ host will not function.
8.3 UPNP Settings
It supports latest Universal Plug and Play. This function goes
into effect on Windows XP or Windows ME or this function
would go into effect if you have installed software that
supports UPnP. With the UPnP function, host in LAN can
request the router to process some special port switching so
as to enable host outside to visit the resources in the internal
host.
Enable UPnP: Click the checkbox to enable the UPnP.
45
11N Wireless Broadband Router
Chapter 9 Traffic Control
9.1 Traffic Control
Traffic control is used to limit communication speed in the
LAN and WAN. Up to 20 entries can be supported with the
capability for at most 254 PCs' speed control, including for IP
address range configuration.
Enable Traffic Control: To enable or disable the
internal IP bandwidth control. The default is disabled.
Interface: To limit the uploading and downloading
bandwidth in WAN port.
Service: To select the controlled service type, such as
46
11N Wireless Broadband Router
HTTP service.
IP Starting Address: The first IP address for traffic
control.
IP Ending Address: The last IP address for traffic
control.
Uploading/Downloading: To specify the traffic
heading way for the selec ted IP ad dresses: up loading or
downloading.
Bandwidth: To specify the uploading/downloa ding Min.
/Max. Traffic speed (KB/s), which can not exceed the
WAN speed.
Apply: T o enable the current editing rule. If not, the rule
will be disabled.
Add: After edit the rule, click the “add to list” button to
add the current rule to rule list.
Apply: Click “Save” to activate the current rule.
Cancel: Click “Cancel” to drop all setting saved last
time.
47
11N Wireless Broadband Router
Chapter10 URL Monitor
10.1 URL Monitor
This feature is used to record user’s Internet activity, so in
terms of this feature, the administrator can check out and
control what they can do and have done.
Enable URL Monitor: After checking this feature, the
Router will record LAN computer’s URL information,
including the visiting Website, your LAN IP address and
the time. The Router can record up to 500 entries. If the
record is more than 500 entries, the counter will clean
all records and restart the URL record again. If the
Router is powered off and restarts the device, the
records will be also lost. The default setting is disabled.
48
11N Wireless Broadband Router
Enable Email: To enable this feature, the URL records
will be sent to spec ified e -ma il, wh ich c an be solv ed the
problem that the records will be lost when it is over 500
entries.
Receive E-mail Address: Input the received E-mail’s
address here. For example: tenda@sina.com.cn
SMTP Server Address: Input the SMTP server address
here. If you are not clear what your SMTP server’s
address is, you can find them from Help page of the
registered e-mail. For example: smtp.sohu.com,
smtp.163.com, etc.
Send Email Address: Input the sending email address
here.
User Name: Input the sending e-mail’s user name.
Email Password: Input the sending e-mail’s password.
Time Triggering Interval: To set sending e-mail’s
time interval. The time ranges from 30 to 1440 minutes.
For example: if you input 30 here, it means the Router
will send a email from “Send Email Address” to “Receive
Email Address” in every 30 minutes. And then the device
will clean all records and start the recording again.
Entry Triggering Interval: To set sending e-mail’s
entry interval. The entry ranges from 100 to 500. For
example: if you input 100 here, it means the Router will
send a email from “Send Email Address” to “Receive
Email Address” in every 100 entries. And then the device
will clean all records and start the recording again.
49
11N Wireless Broadband Router
Chapter 11: Security Settings
11.1 Client Filter Settings
To benefit your further management to the computers in the
LAN, you can control some ports access to Internet by data
packet filter function.
Client Filter: Check to enable client filter.
Access Policy: Select one number from the drop-down
menu.
Enable: Check to enable the access policy.
Clear the Policy: Click “Clear” button to clear all
settings for the policy.
Filter Mode: Click one radio button to enable or disable
to access the Internet.
50
11N Wireless Broadband Router
Policy Name: Enter a name for the access policy
selected.
IP Start/End: Enter the starting/ending IP address.
Port No.: Enter the port range based over the protocol
for access policy.
Protocol: Select one protocol (TCP/UDP/Both) from the
drop-down menu.
Times: Select the time range of client filter.
Days: Select the day(s) to run the access policy.
11.2 URL Filter Settings
In order to control the computer to have access to websites,
you can use URL filtering to allow the computer to have
access to certain websites at fixed time and forbids it having
access to certain websites at fixed time.
51
11N Wireless Broadband Router
URL Filter: Check to enable URL filter.
Access Policy: Select one number from the
drop-down menu.
Enable: Check to enable the access pol icy.
Clear the Policy: Click “Clear” button to clear all
settings for the policy.
Filter Mode: Click one radio button to enable or
disable to access the Internet.
Policy Name: Enter a name for the access policy
selected.
Start/End IP: Enter the starting/ending IP
address.
URL Strings: Specify the text strings or keywords
needed to be filtered. If any part of the URL
contains these strings or words, the web page will not be
accessible and displayed.
Times: Select the time range of client filter.
Days: Select the day(s) to run the access policy.
52
11N Wireless Broadband Router
11.3 MAC Address Filter
In order to manage the computers in LAN better, you could
control the computer’s access to Internet by MAC Address
Filter.
MAC Address Filter: Check to enable MAC address
filter.
Access Policy: Select one number from the drop-down
menu.
Enable: Check to enable the access policy.
Clear the Policy: Click “Clear” button to clear all
settings for the policy.
Filter Mode: Click one radio button to enable or disable
to access the Internet.
Policy Name: Enter a name for the access policy
53
11N Wireless Broadband Router
selected.
MAC Address: Enter the MAC address you want to
run the access policy.
Times: Select the time range of client filter.
Days: Select the day(s) to run the access policy.
Apply： Click to make the settings go into effect.
For example:
if you want to configure the host with MAC address 00:C0:9F:
AD:FF:C5 not to access the Internet at 8：00-18：00, you need
to set it as above.
11.4 Prevent Network Attack
This section is to protect the internal network from exotic
attack such as SYN Flooding attack, Smurf attack, LAND
attack, etc. Once detecting the unknown attack, the Router
will restrict its bandwidth automatically.
The attacker’s IP address can be found from the “System
Log”.
Prevent Network Attack: Check to enable it for attack
prevention.
54
11N Wireless Broadband Router
11.5 Remote Web Management
This section is to allow the network administrator to manage
the Router remotely. If you want to access the Router from
outside the local network, please select the “Enable”.
Enable: Check to enable remote web management.
Port: The management port open to outside access. The
default value is 80.
WAN IP Address: Specify the range of the WAN IP
address for remote management.
Note：
1. If you want to login the device’s Web-based
interface via port 8080, you need use the format of
WAN IP address: port (for example
http://219.134.32.101: 8080) to implement
remote login.
2. If your WAN IP address starts and ends with
0.0.0.0, it means all hosts in WAN can implement
remote Web management. If you change the WAN
IP address as 218.88.93.33-218.88.93.35, then
55
11N Wireless Broadband Router
only the IP addresses as 218.88.93.33,
218.88.93.34 and 218.88.93.35 can access the
Router.
For example:
If you want to configure the IP address 218.88.93.33 to
access the device’s web interface, please set it as follows:
11.6 WAN Ping
The ping test is to check the status of your internet
connection. When disabling the test, the system will ignore
the ping test from WAN.
Ignore Ping from WAN: Check to ignore the ping
request and give no reply.
56
11N Wireless Broadband Router
Chapter12 Routing Setting
12.1 Routing Table
The main duty for a router is to look for a best path for every
data frame, and transfer this data frame to a destination. So,
it’s essential for the router to choose the best path, i.e.
routing arithmetic. In order to finish this function, many
transferring paths, i.e. routing table, are saved in the router,
for choosing when needed.
57
11N Wireless Broadband Router
Chapter 13 System Tools
13.1 Time Settings
This section is to select the time zone for your location. If you
turn off the Router, the settings for time disappear . However,
the Router will automatically obtain the GMT time again once
it has access to the Internet.
Time Zone: Select your time zone from the drop-down
menu.
Customized time: Enter the time you customize.
Note：
When the Router is powered off, the time setting
will be lost. Before the Router will obtain GMT time
automatically, you need connect with the Internet
and obtain the GMT time, or set the time on this
page first. Then the time in other features (e.g.
firewall) can be activated.
58
11N Wireless Broadband Router
13.2 DDNS
The DDNS (Dynamic Domain Name System) is
supported in this Router. It is to assign a fixed host and
domain name to a dynamic Internet IP address, which is
used to monitor hosting website, FTP server and so on behind
the Router. If you want to activate this function, please select
“Enable” and a DDNS service provider to sign up.
Main Features: Owing to ISP most times provides
dynamic IP address, DDNS is used to capture the
changeable IP address and match the fixed domain.
Then users can have access to the Internet to
communicate with others.
DDNS can help you establish virtual host in your home
and company.
DDNS: Click the radio button to enable or disable the
DDNS service.
Service Provider: Select one from the drop-down
menu and press “Sign up” for registration.
User Name: Enter the user name the same as the
59

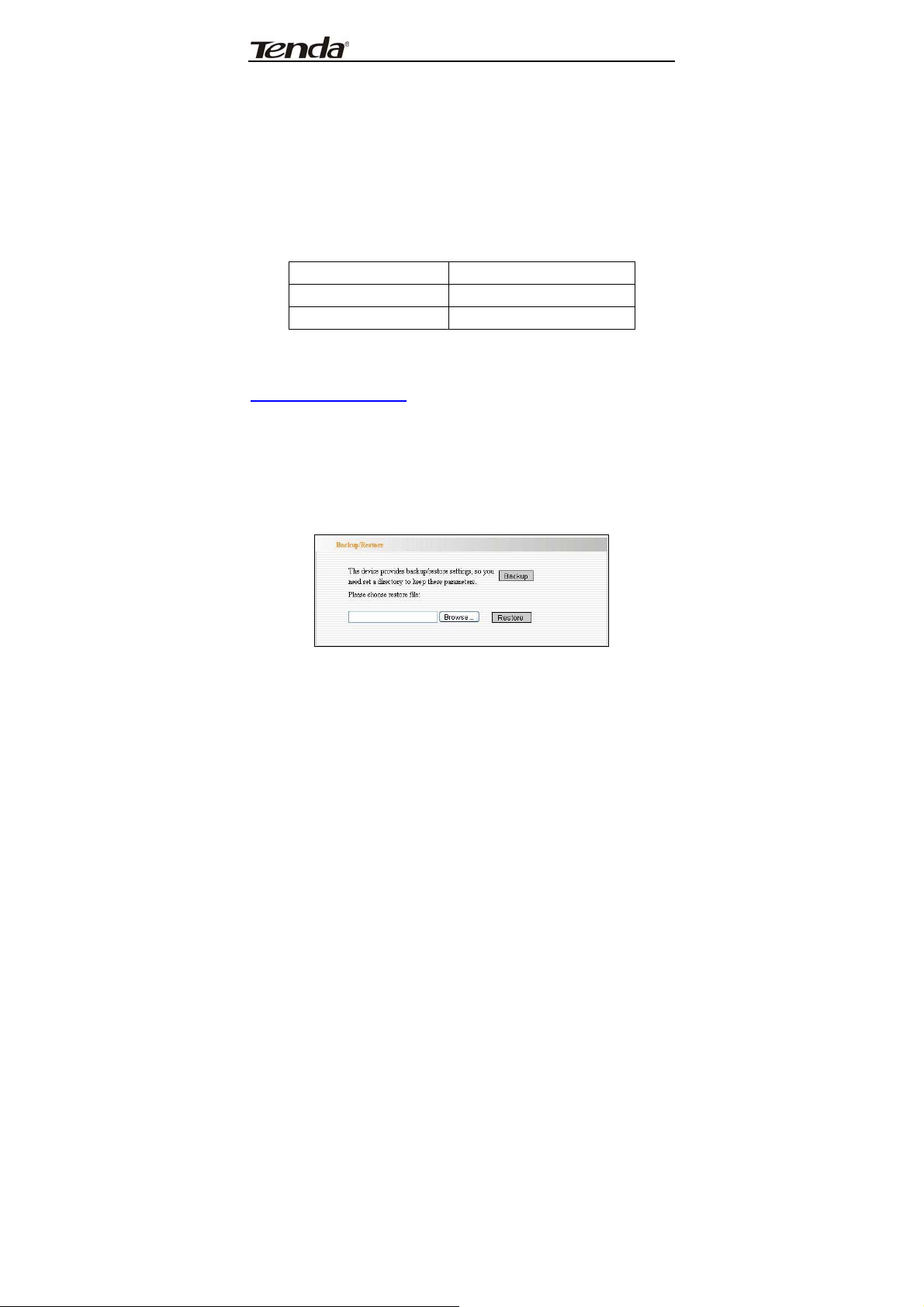

11N Wireless Broadband Router
registration name.
Password: Enter the password you set.
Domain Name: Enter the domain name which is
optional.
For example
In the local host 192.168.0.10 establish a Web server, and
register in 3322.org as follows:
User name tenda
Password 123456
Domain Name tenda.vicp.net
After mapping the port in the virtual server, setting account
information in DDNS server and in the address field entering
http://tenda.3322.org
：
, you can access the Web page.
13.3 Backup/Restore Settings
The device provides backup/restore settings, so you need set
a directory to keep these parameters.
Backup Setting：
Click “Backup” button to back up the Router’s settings and
60

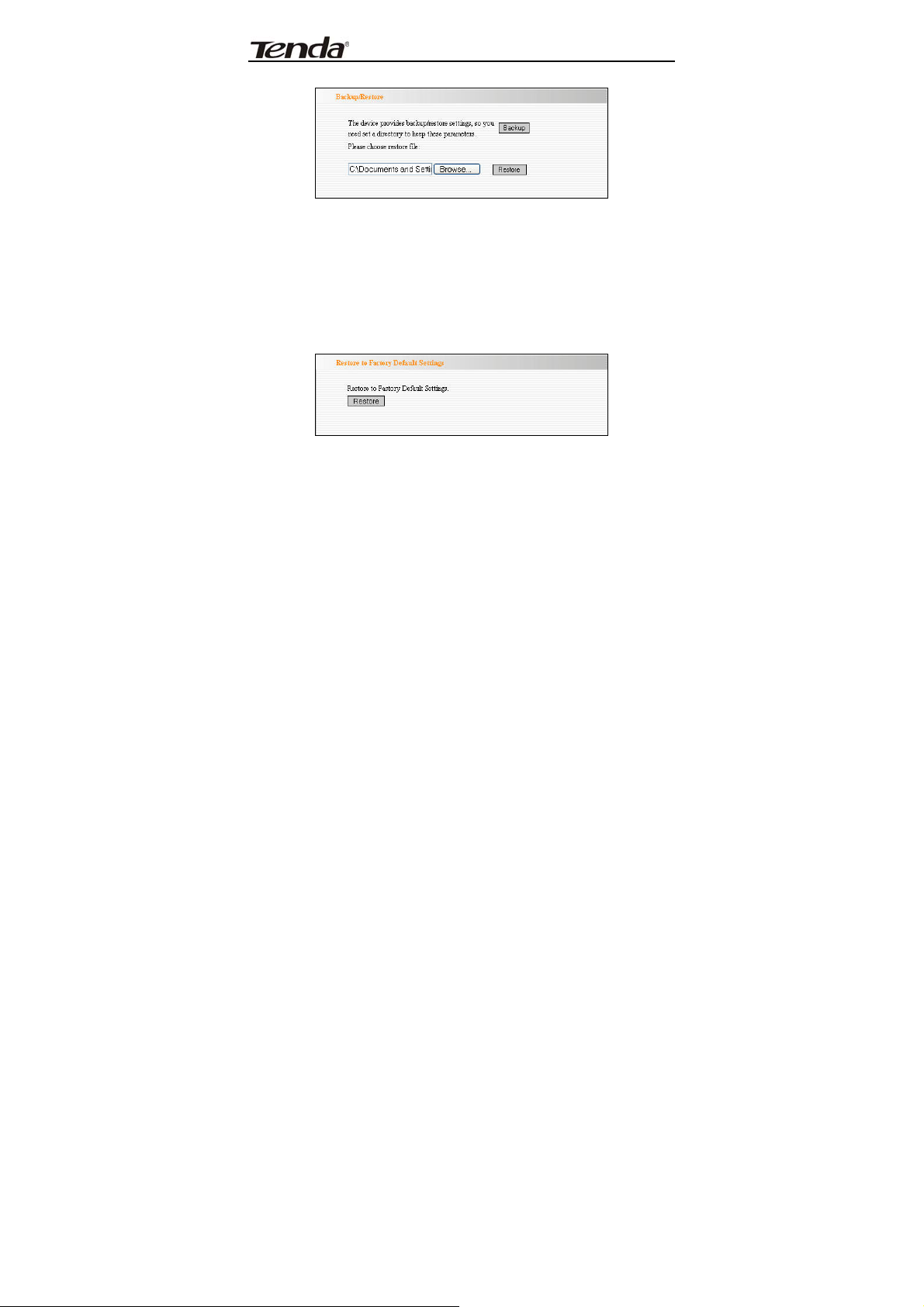

11N Wireless Broadband Router
select the path for save.
Click “Save” to save the configuration files.
Restore Setting：
Click “Browse” button to select the backup files.
Click “Restore” button to restore previous settings.
61
11N Wireless Broadband Router
13.4 Restore to Factory Default Setting
This button is to reset all settings to the default values. It
means the Router will lose all the settings you have set. So
please Note down the related settings if necessary.
Restore: Click this button to restore to default settings.
Factory Default Settings:
User Name: admin
Password: admin
IP Address: 192.168.0.1
Subnet Mask: 255.255.255.0
NOTE:
After restoring to default settings, please restart
the device, then the default settings can go into
effect.
62

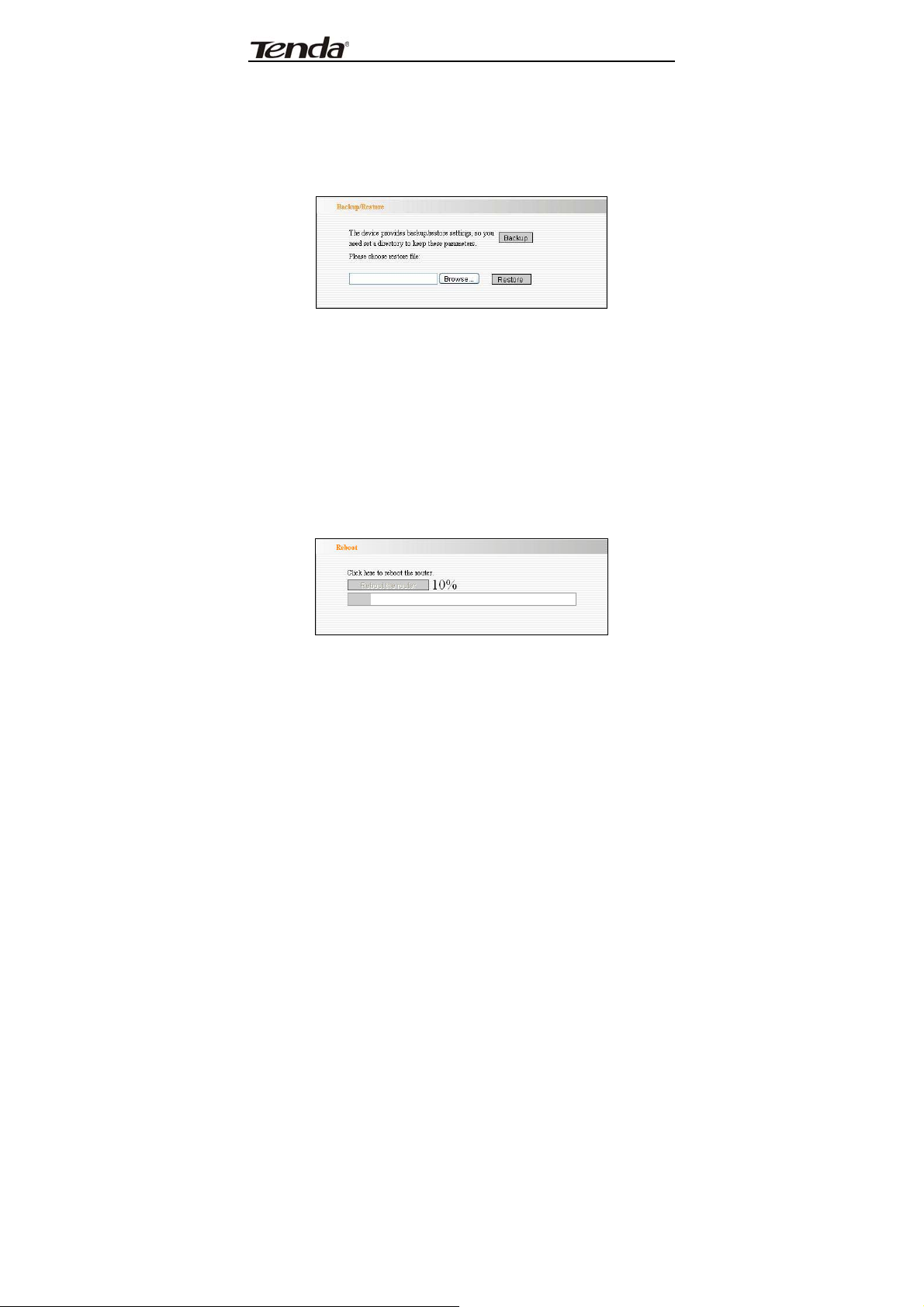

11N Wireless Broadband Router
13.5 Upgrade Firmware
The Router provides the firmware upgrade by clicking the
“Upgrade” after browsing the firmware upgrade packet which
you can download from www.tenda.cn.
Browse: click this button to select the upgrade file.
Upgrade: click this button to start the upgrading
process. After the upgrade is completed, the Router will
reboot automatically.
13.6 Reboot the Router
Rebooting the Router makes the settings configured go into
effect or to set the Router again if setting failure happens.
Reboot the router: Click this button to reboot the device.
63
11N Wireless Broadband Router
13.7 Password Change
This section is to set a new user name and password to better
secure your router and network.
User Name: Enter a new user name for the device.
Old Password: Enter the old password.
New Password: Enter a new password.
Re-enter to Confirm: Re-enter to confirm the new
password.
NOTE:
It is highly recommended to change the password
to secure your network and the Router.
64
11N Wireless Broadband Router
13.8 System Log
The section is to view the system log. Click the “Refresh” to
update the log. Cl ick “Clear” to clear all shown information. I f
the log is over 150 records, it will clear them automatically.
Refresh: Click this button to update the log.
Clear: Click this button to clear the current shown log.
13.9 Logout
After you have finished the settings completely, in logout
page click “Yes” to logout the web management page.
65
11N Wireless Broadband Router
Appendix 1：Glossary
Access
Point(AP): Any entity that has station functionality and
provides access to the distribution services, via the wireless
medium(WM) for associated stations.
Channel: An instance of medium use for the purpose of
passing protocol data units (PDUs) that may be used
simultaneously, in the same volume of space, with other
instances of medium use(on other channels) by other
instances of the same physical layer (PHY),with an
acceptably low frame error ratio(FER) due to mutual
interference.
SSID: Service Set identifier. An SSID is the network name
shared by all devices in a wireless network. Your network’s
SSID should be unique to your network and identical for all
devices within the network. It is case-sensitive and must not
exceed 20 characters (use any of the characters on the
keyboard).Make sure this setting is the same for all devices
in your wireless network.
WEP: Wired Equivalent Privacy (WEP) is the method for
secure wireless data transmission. WEP adds data
encryption to every single packet transmitted in the wireless
66
11N Wireless Broadband Router
network. The 40bit and 64bit encryption are the same
because of out 64 bits, 40 bits are private. Conversely, 104
and 128 bit are the same. WEP uses a common KEY to
encode the data. Therefore, all devices on a wireless
network must use the same key and same type of
encryption. There are 2 methods for entering the KEY; one
is to enter a 16-bit HEX digit. Using this method, users must
enter a 10-digit number (for 64-bit) or 26-digit number (for
128-bit) in the KEY field. Users must select the same key
number for all devices. The other method is to enter a text
and let the computer generate the WEP key for
you. However, since each product use different method for
key generation, it might not work for different
products. Therefore, it is NOT recommended using.
WPA/WPA2: A security protocol for wireless networks that
builds on the basic foundations of WEP. It secures wireless
data transmission by using a key similar to WEP, but the
added strength of WPA is that the key changes dynamically.
The changing key makes it much more difficult for a hacker
to learn the key and gain access to the network.WPA2 is the
second generation of WPA security and provides a stronger
encryption mechanism through Advanced Encryption
Standard (AES), which is a requirement for some
government users.
67
11N Wireless Broadband Router
Appendix 2: Ask and Question
In this part some questions and problems shown during the
Router’s usage and installation will be given suggesting
answers. If your problems are not in the list, please log into
our website www.tenda.cn or send an E-mail to
support@tenda.cn, and we will reply you in the first time.
1、 Can not login to the Web interface of the Router
after you enter the IP address in the address
field？
9 Step 1: check the Router if it works well. Once the
device is powered on for a few seconds, the SYS
indicator on the panel will be turned on. If it is not,
please contact us.
9 Step 2: check the network cables if it is good and the
corresponding indicator is “Always ON”. Sometimes, the
indicator is “Always ON”, but it does not mean it gets
through.
9 Run “Ping” command and check if it can ping the
Router’s LAN IP address 192.168.0.1. If it is OK, please
make sure your browser does not access the Internet by
proxy server . If the ping fails, you can pr ess the “RESET”
button for 7 seconds to restore to default settings. And
then repeat the ping operation. If it still does not work,
please contact us.
68
11N Wireless Broadband Router
2、 Forget the login password and can not en ter the
setting page. What can I do?
9 Press the “RESET” button for 7 seconds to restore the
Router to default settings.
3、 The computer connected with the Router shows IP
address conflict. What can I do?
9 Check if there are other DHCP servers in the LAN. If
there have, disable them. The default IP address of the
Router is 192.168.0.1 and please maker sure the
address is not occupied by other devices. If there are
two computers with the same IP addresses, please
modify one.
4、 I can not use E-mail and access the Internet. What
can I do?
9 It happens in ADSL connection and Dynamic IP users.
And you need modify the default MTU value (1492).
Please in the “WAN Setting” modify the MTU value with
the recommended value as 1450 or 1400.
5 、 How to configure and access the Internet via
Dynamic IP?
9 In Setup Wizard of the Web utility interface, select
“Dynamic IP” connection type and click “Save” to
69
11N Wireless Broadband Router
activate it. As some ISPs bind the user computer’s MAC
address, you need to clone the Router’s WAN MAC
address to the bind21ing PC’s MAC address. Select “MAC
Address Clone” in “Advanced Setting” to input your
computer’s MAC address and click “Apply” to activ ate it.
6、How to share my computer’s source with other
users in Internet？
9 If you want Internet users to access the internal server
via the Router such as e-mail server, Web, FTP, you can
configure the “Virtual Server” to come true.
9 Step 1: create your internal server, make sure the LAN
users can access these servers and know related service
port. For example, Web server’s port is 80; FTP is 21;
SMTP is 25 and POP3 is 110.
9 Step 2: in the Router’s web click “Virtual Server” and
select “Single Port Forwarding”.
9 Step 3: input the external service port given by the
Router, for example, 80.
9 Step 4: input the internal Web service port, for example,
80.
9 Step 5: Input the internal server’s IP address. If your
Web server’s IP address is 192.168.0.10, please input it.
9 Step 6: select the communication protocol used by your
interna l host: TCP, UDP, ICMP.
70
11N Wireless Broadband Router
9 Step 7: click “Apply” to activate the settings.
9 The following t able has listed the well-known ap plication
and service port:
Server Protocol Service Port
WEB Server TCP 80
FTP Server TCP 21
Telnet TCP 23
NetMeeting TCP 1503、1720
File Send:6891-6900(TCP)
MSN Messenger TCP/UDP
PPTP VPN TCP 1723
Iphone5.0 TCP 22555
SMTP TCP 25
POP3 TCP 110
Voice:1863、6901(TCP)
Voice:1863、5190(UDP)
71
11N Wireless Broadband Router
Eu Declaration or Declaration of Conformity
Hereby, SHENZHEN TENDA TECHNOLOGY CO.,LTD, declares
that this Wireless Broadband Router is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
FCC Statement
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of
the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful
interference
to radio or television reception, which c a n be determined by
turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and
receiver.
-Connect the equipment into an outlet on a circuit different
72
11N Wireless Broadband Router
from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for
help.
To assure continued compliance, any changes or
modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate this equipment. (Example- use only shielded
interface cables when connecting to computer or peripheral
devices).
“The antenna(s) used for this transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.”
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits
set forth for an uncontrolled environment and it also
complies with P art 15 of FCC RF Rule s. Operation is su bject to
the following two conditions:
1) This device may not cause interference and
2) This device must accept any interference, including
interference that may cause undesired operation of the
device.
This device must be installed to provide a separation distance
of at least 20 cm from all personsand must not be collocated
or operating in conjunction with any other antenna or transmitter.
Caution!
The manufacturer is not responsible for any radio or TV
73
11N Wireless Broadband Router
interference caused by unauthorized modifications to this
equipment. Such modifications could void the user authority
to operate the equipment.
74
Loading...
