TENDA TECHNOLOGY W302C User Manual

11n Wireless Notebook Adapter User Guide

11n Wireless Notebook Adapter User Guide

Copyright Statement

is the registered trademark of
Shenzhen Tenda Technology Co., Ltd. All the products
and product names mentioned herein are the
trademarks or registered trademarks of their
respective holders. Copyright of the whole product as
integration, including its accessories and software,
belongs to Shenzhen Tenda Technology Co., Ltd.
Without the permission of Shenzhen T enda T echnology
Co., Ltd, any individual or party is not allowed to copy ,
plagiarize, imit ate or t ra nslate it into ot her lan guage s.

All the photos and product specifica tions mentione d in
this guide are for references only. As the upgrade of
software and hardware, there will be changes. And if
there are changes, Tenda is not responsible for
informing in adv ance. If yo u want to kn ow more about
our product information, please visit our website at
www.tenda.cn

.

11n Wireless Notebook Adapter User Guide

Table of Content

Chapter 1 Introduction........................................1

1.1 Product Feature ......................................................... 2

1.2 Product Deployment ................................................ 3

1.3 Package Contents ..................................................... 4

Chapter 2 Installation Guide.................................5

Chapter 3 Client Utility Interface......................... 10

3.1 Station Mode............................................................. 11

3.1.1 Station Mode Topology ................................. 11

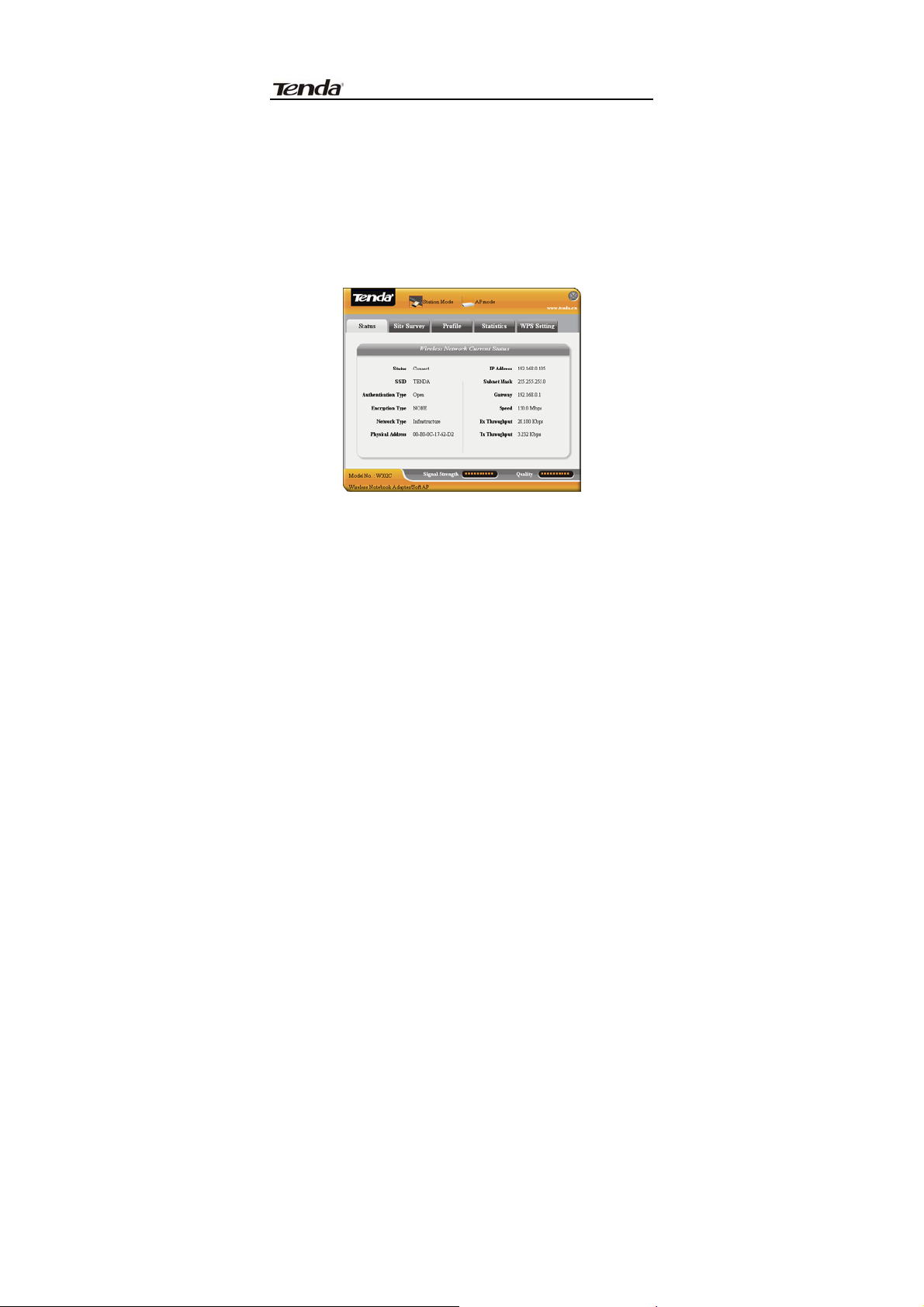

3.1.2 Status ................................................................. 12

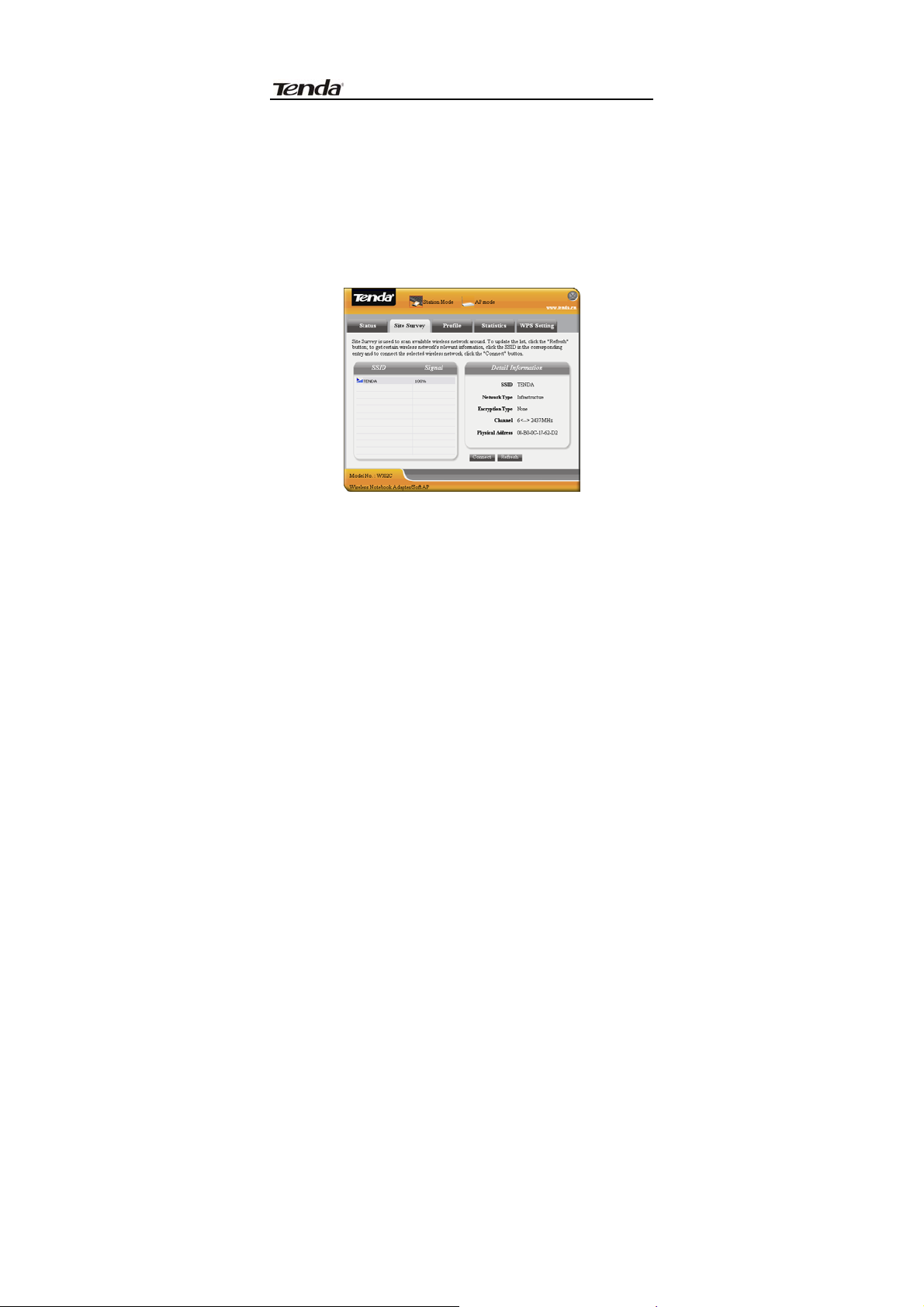

3.1.3 Site Survey ....................................................... 13

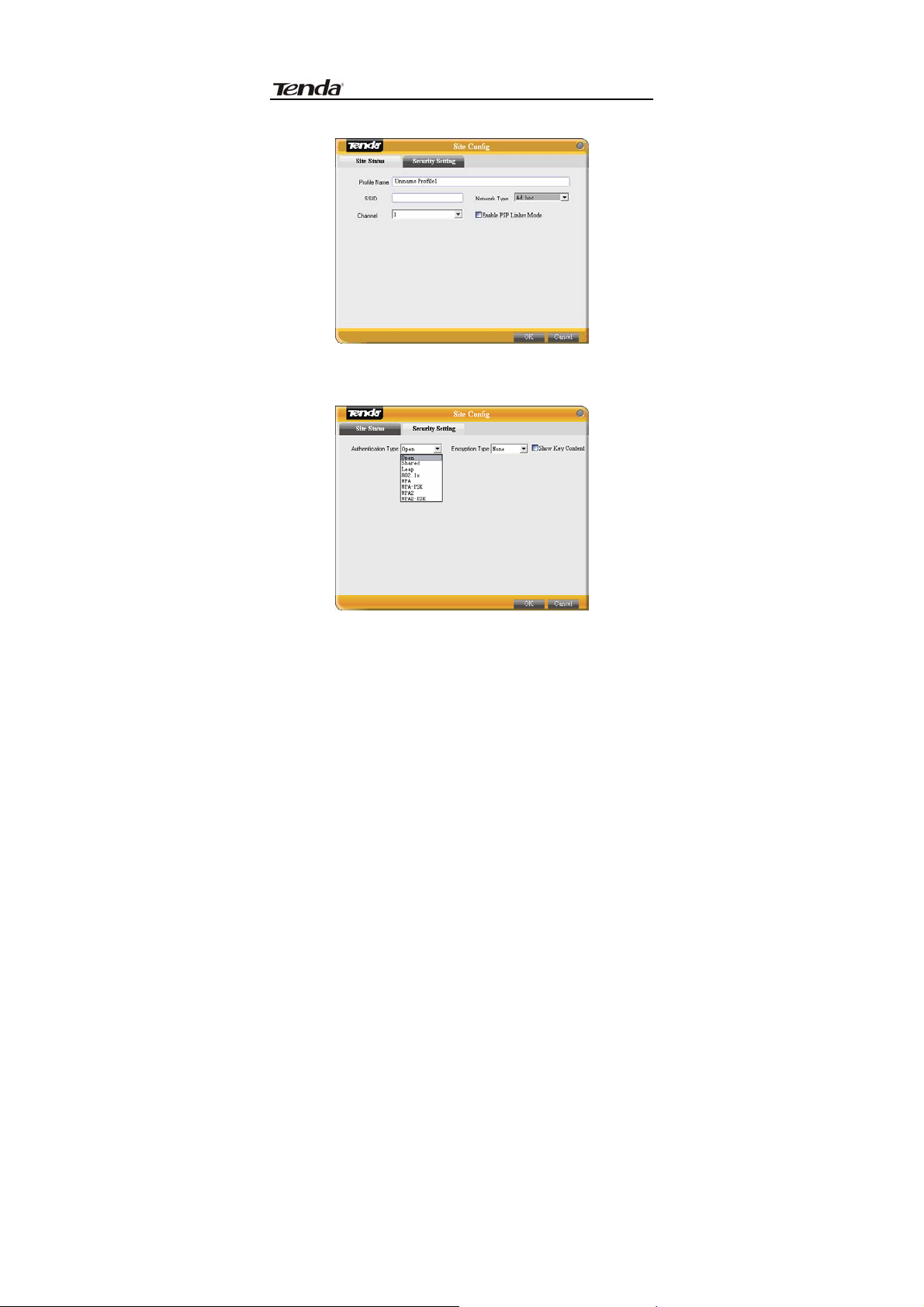

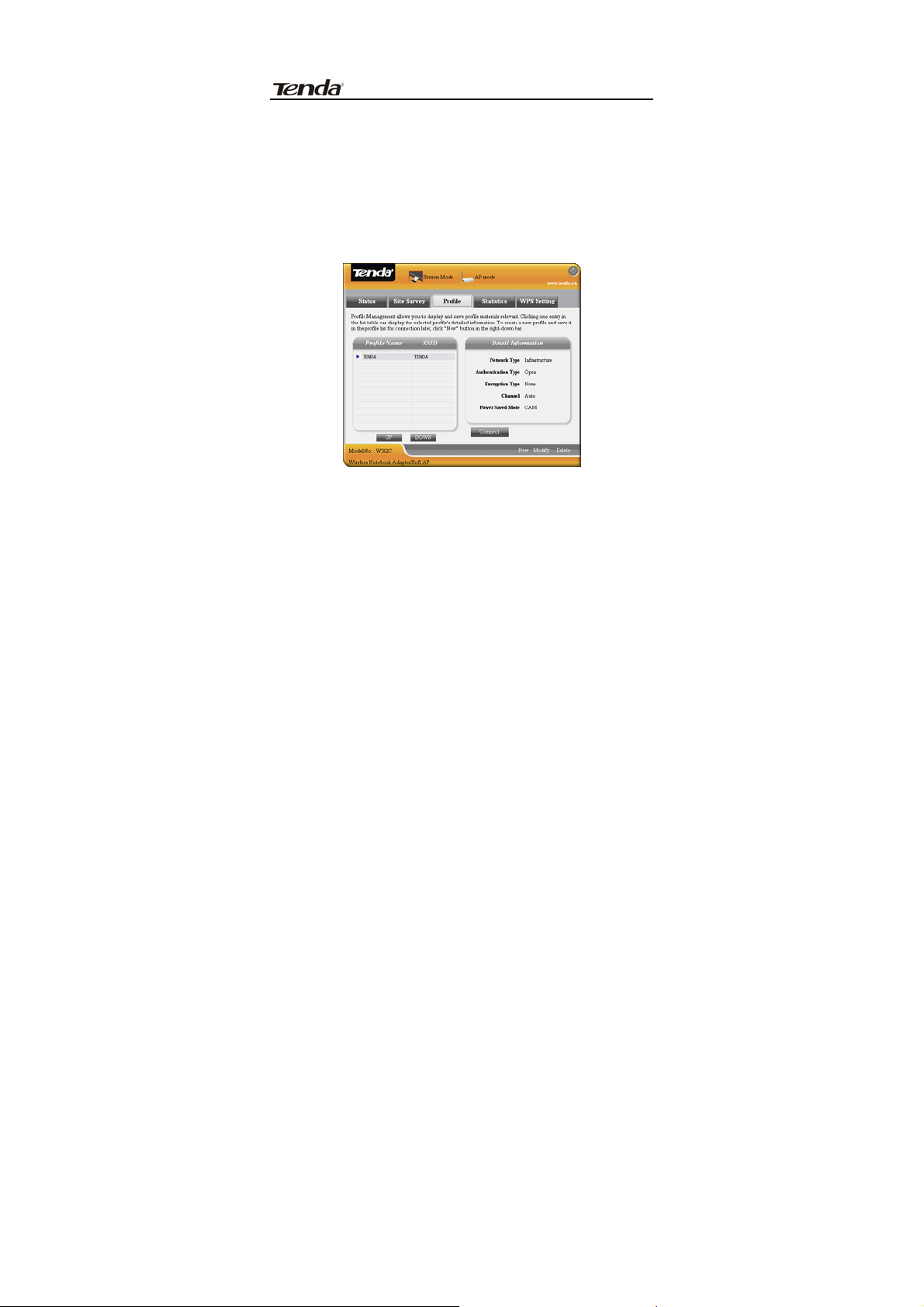

3.1.4 Profile Management....................................... 14

3.1.5 Statistics ............................................................ 16

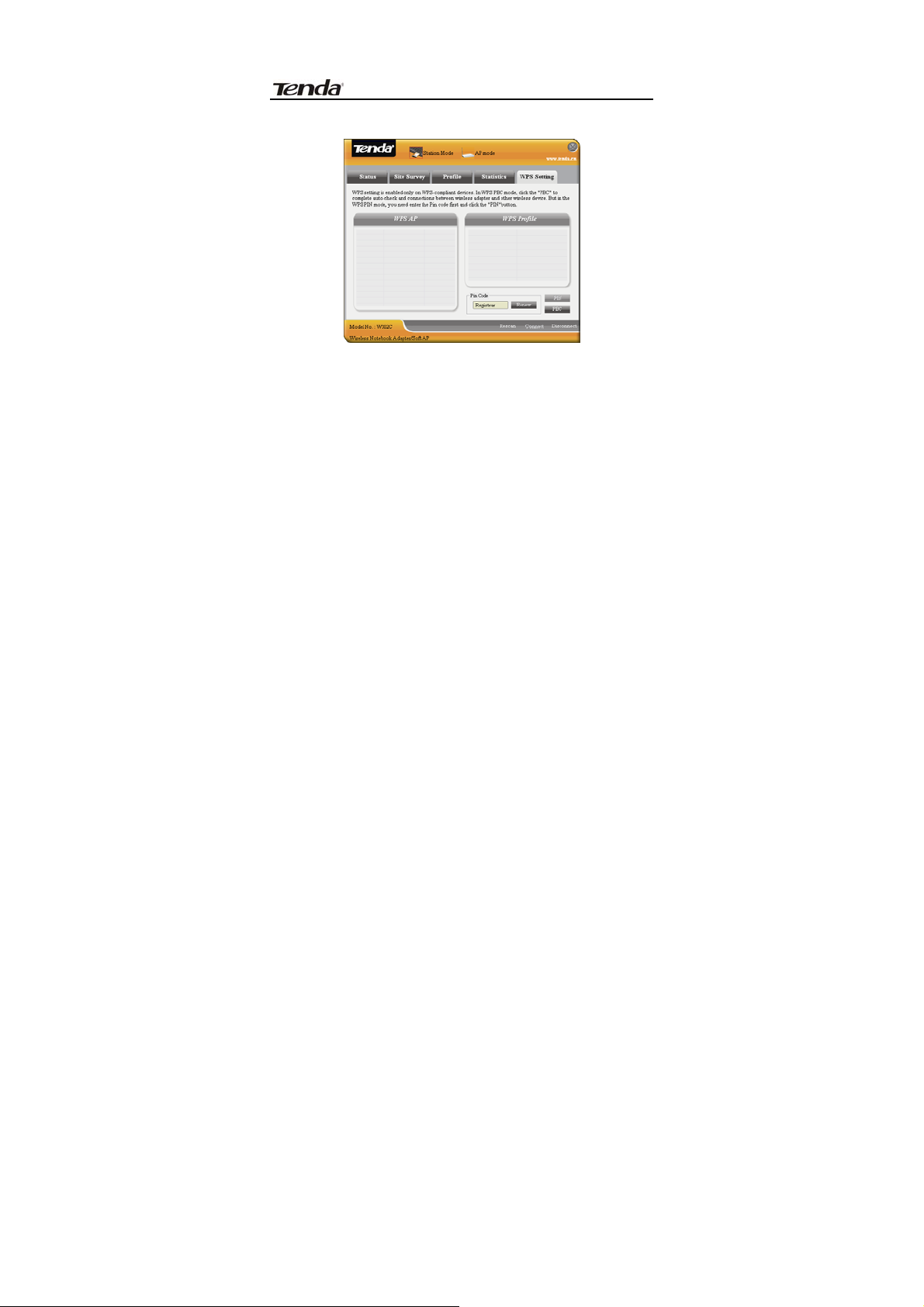

3.1.6 WPS Setting...................................................... 16

3.2 AP Mode.................................................................. 18

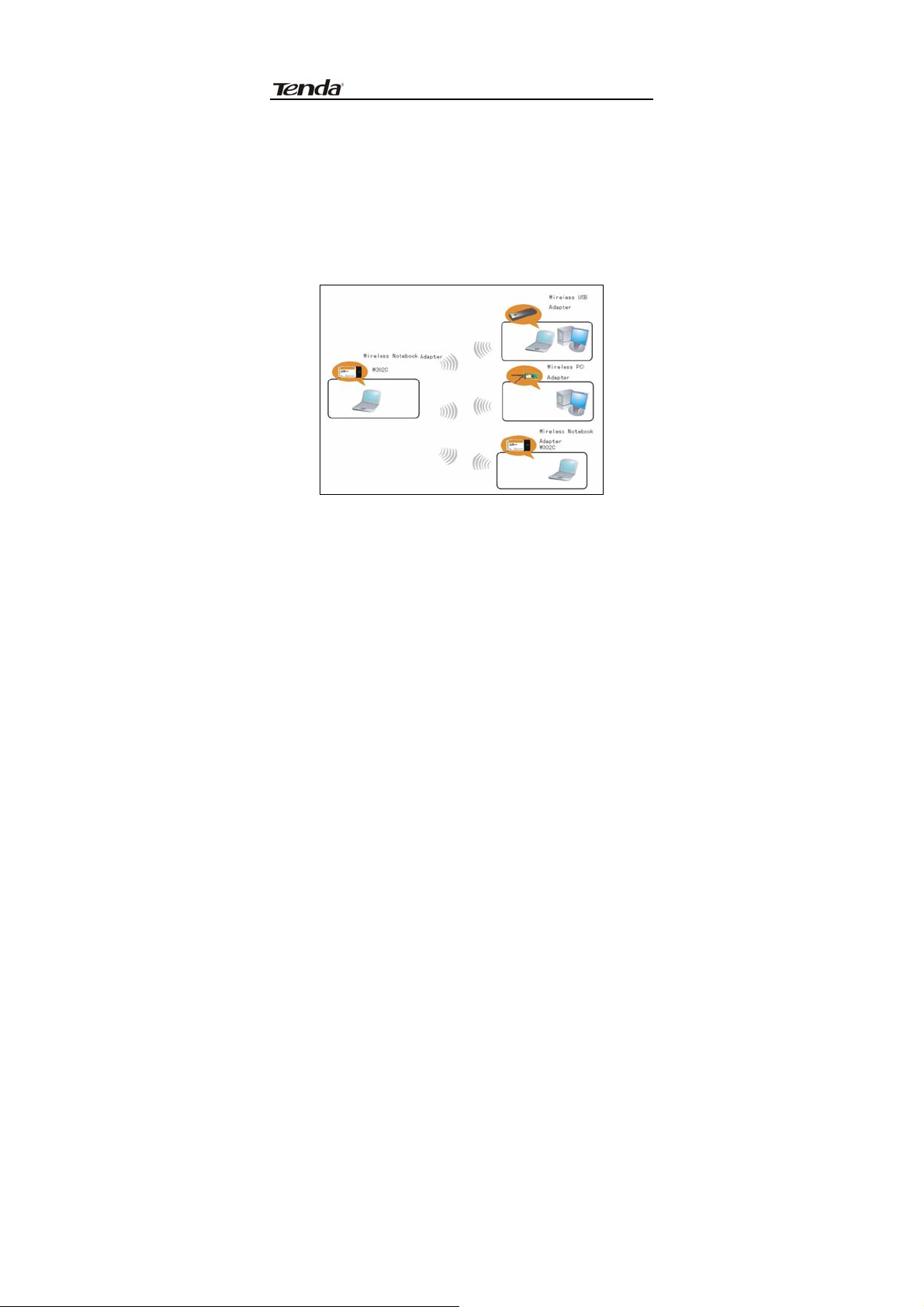

3.2.1 AP Mode Topology.......................................... 18

3.2.2 Basic Setting .................................................. 19

3.2.3 Security Setting .............................................. 20

3.2.4 Access Control ................................................. 21

3.2.5 About .................................................................. 23

Appendix One: Acronyms and Terms................... 24

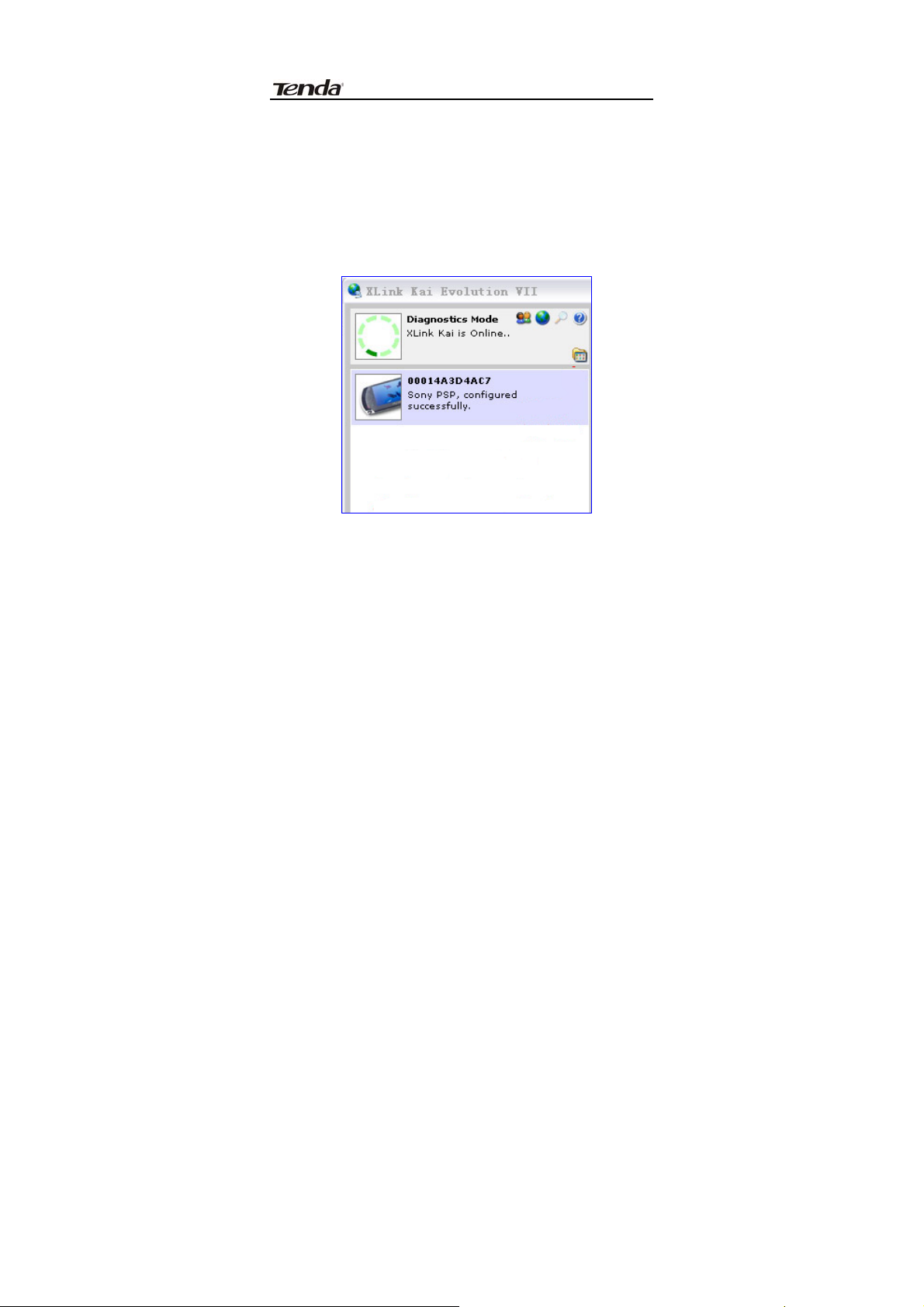

Appendix Two: How to connect with PSP.............. 27

11n Wireless Notebook Adapter User Guide

Chapter 1 Introduction

W302C employs the most advanced wireless
networking technology, IEEE802.11n (Draft 2.0). By
using the reflection signal, 802.11n's “Multiple In,
Multiple Out” (MISO) technology increases the range
and reduces “dead spots” in the wireless coverage
area. Unlike ordinary wireless networking of

802.11b/g standards that are confused by wireless
reflections, MISO can actually use these reflections to
increase four times transmission range of 802.11g
products. Besides, when both ends of the wireless link
are 802.11n products, MISO technology can utilize
twice radio band to increase three times transmission
speed of ordinary 802.11g standard products, and can
comply with backwards 802.11b/802.11g standards.

Soft AP supported by W302C can help you establish
wireless LAN networking with lowest cost. Besides,
WPS (PBC and PIN) encryption method can free you
from remembering the long passwords. Complete
WMM function makes your voice and video more
smooth.

-1-

11n Wireless Notebook Adapter User Guide

1.1 Product Feature

• Complies with IEEE 802.11n (Draft 2.0), IEEE

802.11g, IEEE 802.11b standards

• Provides 32-bit Cardbus interface

• Provides 300Mbps receiving rate and 150Mbps

sending rate

• Supports 20MHz/40MHz frequency width

• Auto-detects and changes the network

transmission rate

• Provides two work modes: Infrastructure and
Ad-Hoc

• Supports Soft AP to establish your wireless
LAN networking with lowest cost

• Supports 64/128-bit WEP, WPA, WPA2
encryption methods and 802.1x security
authentication standard

• Supports WPS (PBC and PIN) encryption
method to free you from remembering long
passwords

-2-

11n Wireless Notebook Adapter User Guide

• Supports WMM to make your voice and video
more smooth

• Supports Windows XP, 2000 operating
systems, etc.

1.2 Product Deployment

W302C Wireless Notebook Adapter offers fast,
reliable and cost-effective solution for wireless
access. Deployment as follows:

• For staff who requires higher mobility in the
office, they want to have access to traditional
wired or wireless network in any place of the
company;

• Enterprise or individual who requires often
changes in lay out of network cables;

• Companies or places which are not suitable for
LAN cable laying out because of budget or
objective building, including places of great

-3-

interests, rent places or places for short-term
usage;

• Company or individual who avoids using
expensive cables, renting cables or renting
rights for access.

1.3 Package Contents

Unpack the packets, and please find the following
items:

¾ One W302C Wireless Notebook Adapter
¾ One CD-ROM

11n Wireless Notebook Adapter User Guide

-4-

11n Wireless Notebook Adapter User Guide

Chapter 2 Installation Guide

This chapter is to assist you how to use included the
CD-ROM which comprises the Setup Wizard and the
Client Utility Interface.

The following steps on Setup Wizard are taken the
Windows XP as example.

1. Please insert the Wi reless Notebook Adapter into
the Cardbus interface of your computer.

2. “Found New Hardware” system dialogue appears,

and selects “Cancel” to use the included Setup Wizard
for fast installation; of course, you also can select
“Next” to install by manual.

-5-

11n Wireless Notebook Adapter User Guide

3. Inert the included CD-ROM into the CD-ROM
drive of your computer, and the Welcome screen
appears. (If not appear, double click the
“Setup.exe” icon.)

-6-

11n Wireless Notebook Adapter User Guide

4. Click “Enter”.

5. Click “Next” to start installing.

-7-

11n Wireless Notebook Adapter User Guide

6. Click “Change…” to select the directory path, or
click “Next”.

7. Select “OK” and “Next” in the following window.

-8-
