TENDA TECHNOLOGY W300D User Manual
ADSL2/2+ Router
Copyright Statement
is the registered trademark of Shenzhen Tenda
Technology Co., Ltd. All the products and product names
mentioned herein are the trademarks or registered trademarks
of their respective holders. Copyright of the whole product as
integration, including its accessories and software, belongs to
Shenzhen Tenda Technology Co., Ltd. Without the permission of
Shenzhen Tenda Technology Co., Ltd, any individual or party is
not allowed to copy, plagiarize, reproduce, or translate it into
other languages.
All photos and product specifications mentioned in this manual
are for references only. Upgrades of software and hardware may
occur, and if there are changes, Tenda is not responsible for
notifying in advance. If you would like to know more about our
product information, please visit our website at www.tenda.cn.
-1 -
ADSL2/2+ Router
TABLE OF Contents
CHAPTER 1 PRODUCT OVERVIEW.................................................- 5 -
1.1 Product Features..................................................................... - 6 -
1.2 Package Contents................................................................... - 7 -
CHAPTER 2 HARDWARE DESCRIPTION .......................................- 9 -
2.1 Panel Layout............................................................................ - 9 -
2.1.1 Front Panel...................................................................- 9 -
2.1.2 Back Panel ................................................................. - 11 -
2.2 Hardware Connection............................................................ - 12 -
CHAPTER 3 FAST CONFIGURATION............................................- 13 -
3.1Logging on to your router’s web-based utility through the “setup
wizard” on provided CD-ROM................................................... - 13 -
3.2Logging on to your router through Web browser................... - 17 -
3.3Fast Internet Access ............................................................... - 20 -
CHAPTER 4 ADVANCED SETTINGS ..............................................- 26 -
4.1 Device Information ............................................................... - 27 -

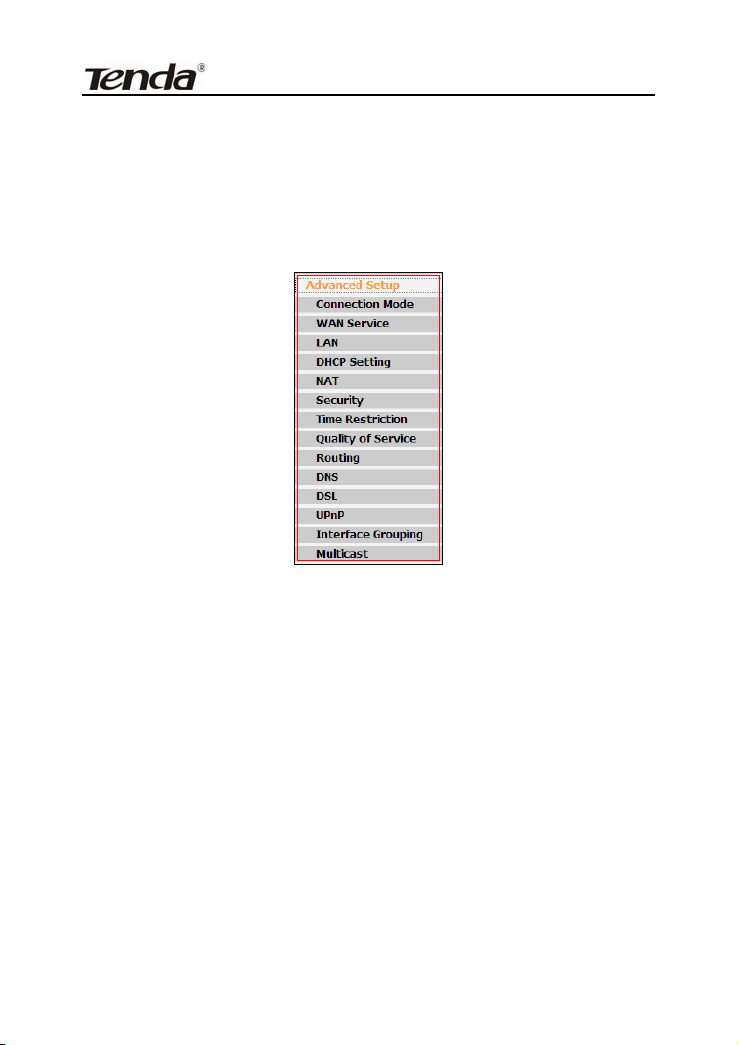

4.2 Advanced Setup..................................................................... - 31 -
4.2.1 Connection mode....................................................... - 31 -

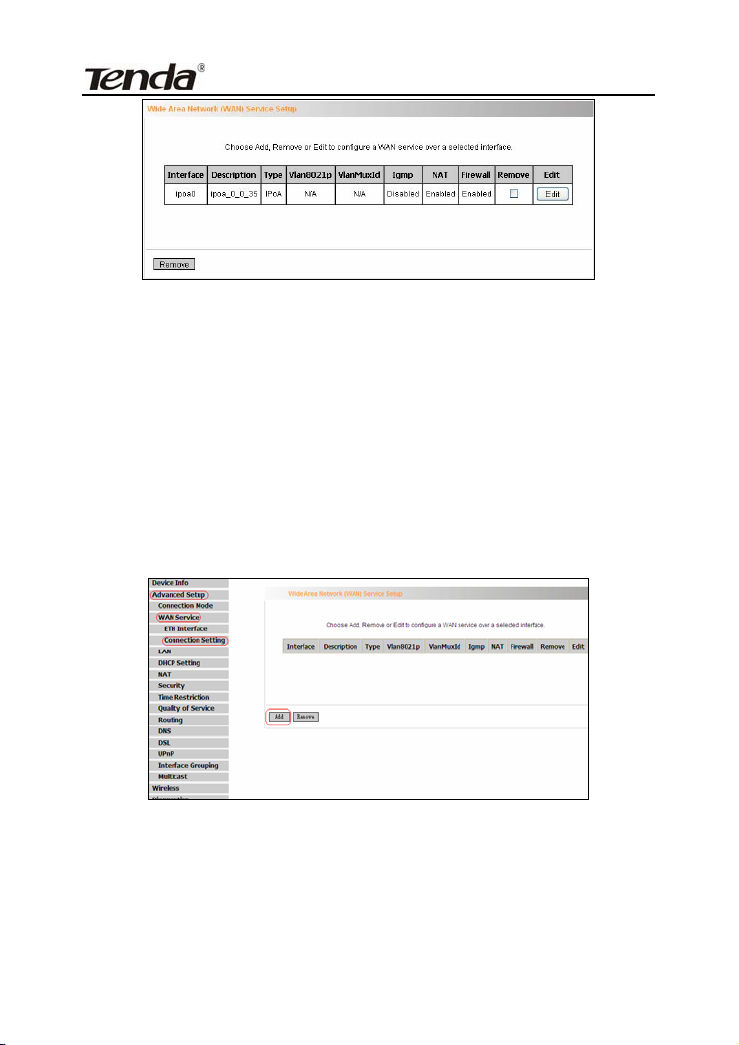

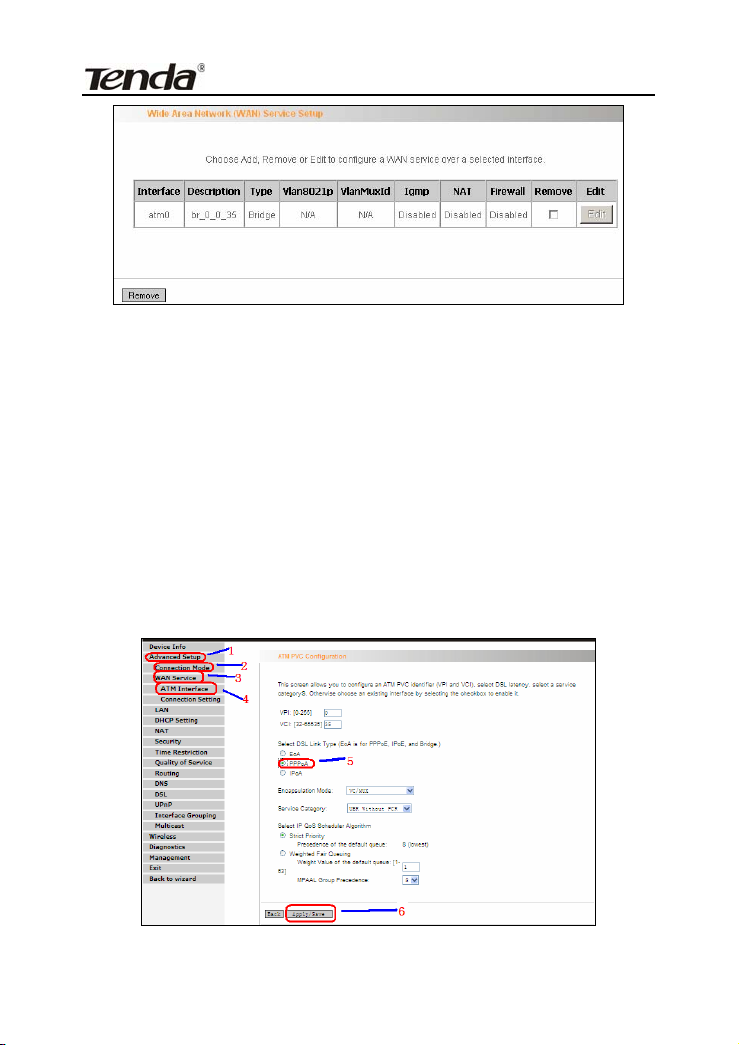

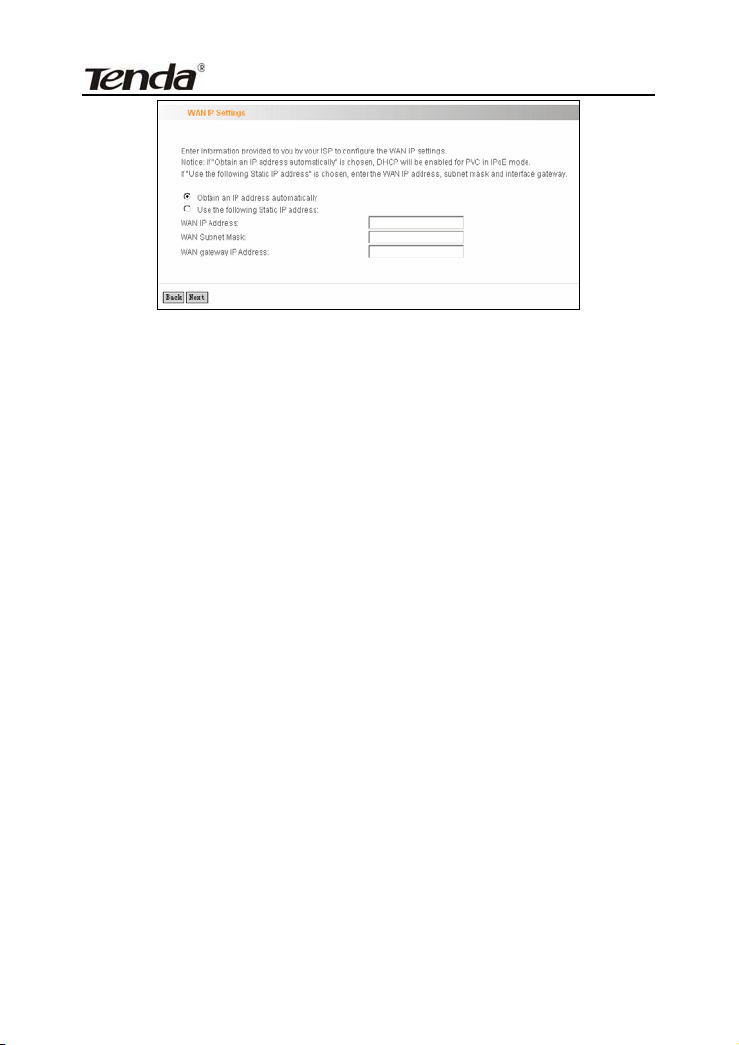

4.2.2 WAN Service............................................................. - 33 -
4.2.3 LAN........................................................................... - 60 -
4.2.4 DHCP setting............................................................. - 61 -

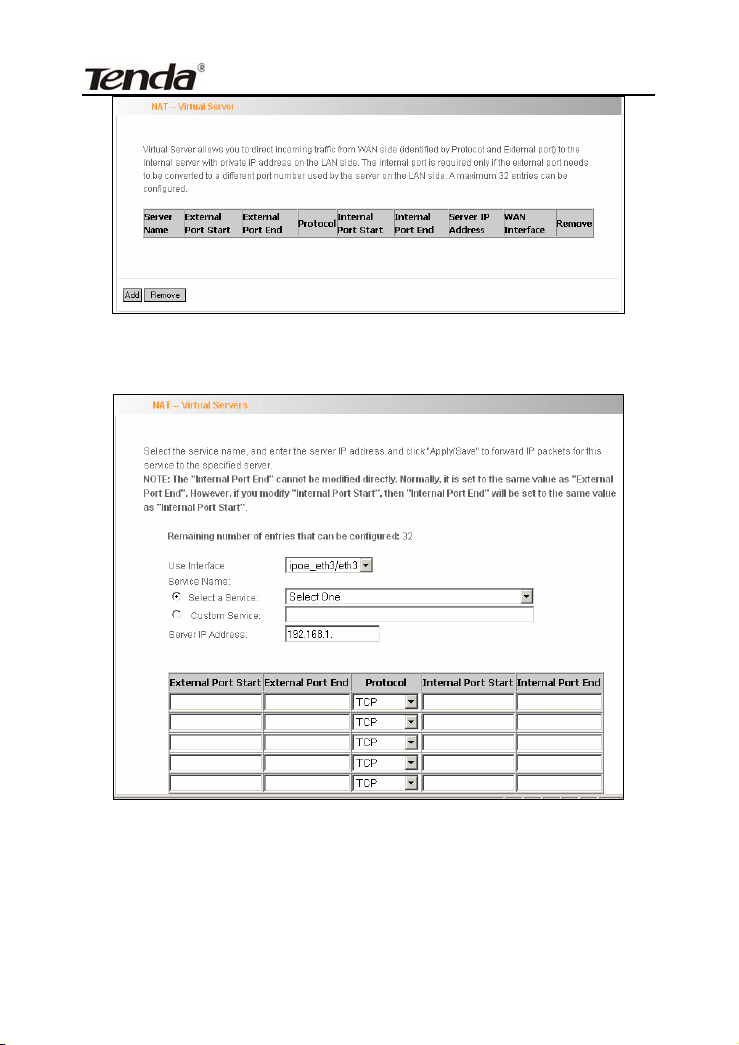

4.2.5 NAT........................................................................... - 63 -
4.2.6 Port Triggering........................................................... - 67 -
4.2.7 DMZ Host.................................................................. - 70 -
-2 -
ADSL2/2+ Router
4.2.8 Security...................................................................... - 71 -
4.2.9 Time Restriction......................................................... - 75 -

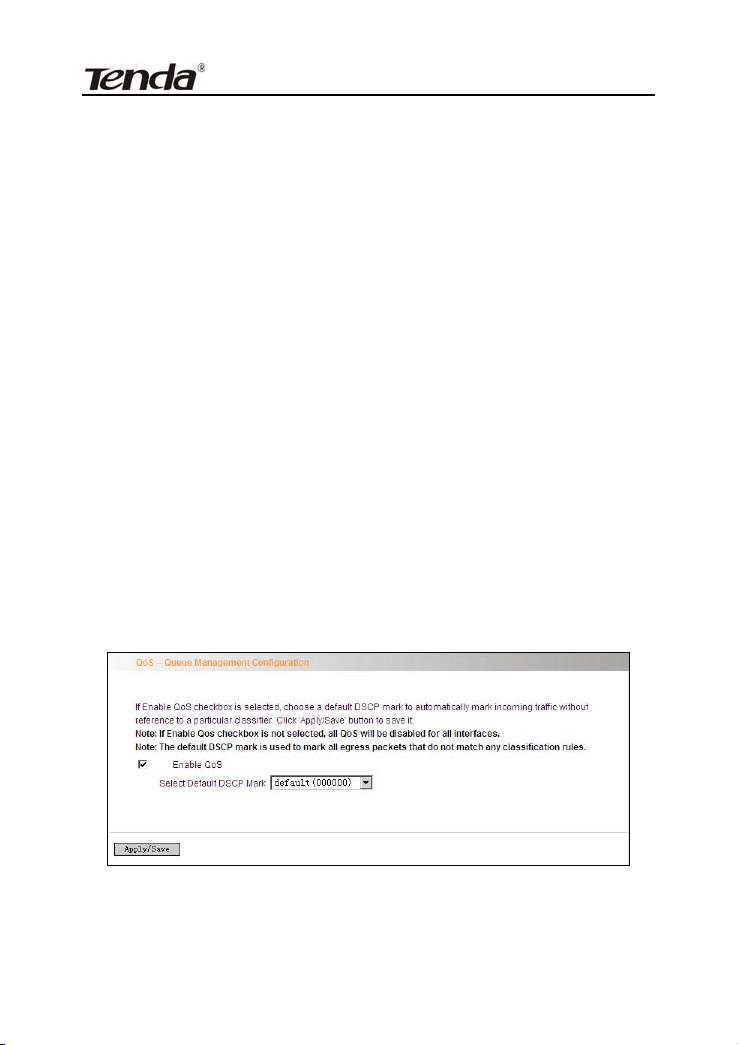

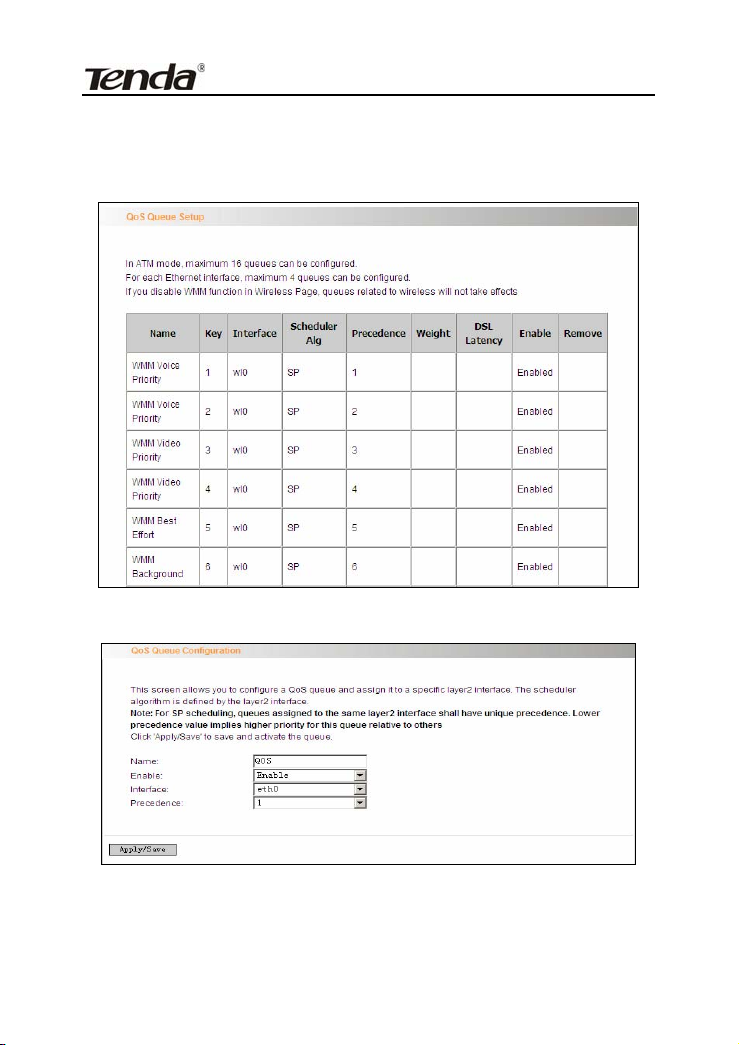

4.2.10 Quality of Service .................................................... - 77 -

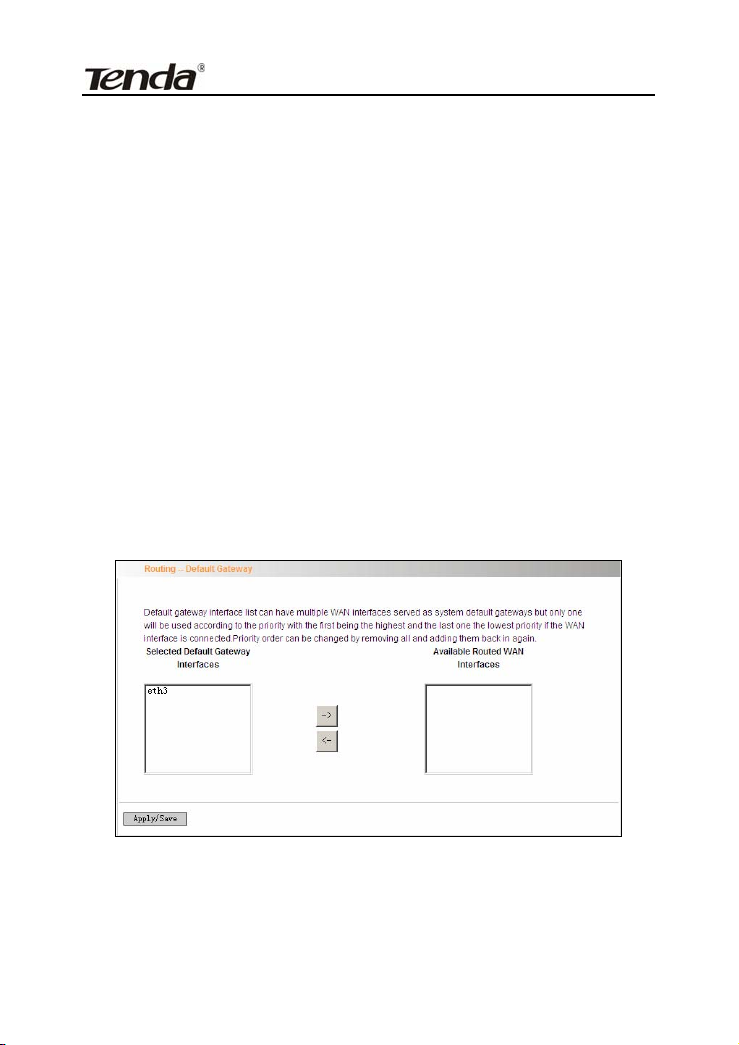

4.2.11 Routing..................................................................... - 79 -
4.2.12 DNS ......................................................................... - 82 -
4.2.13 DSL.......................................................................... - 84 -
4.2.14 UPnP........................................................................ - 85 -
4.2.15 Interface Grouping................................................... - 86 -
4.2.16 Multicast .................................................................. - 89 -
4.3 Wireless Setting..................................................................... - 89 -
4.3.1 Basic Setting.............................................................. - 90 -
4.3.2 Security Setting.......................................................... - 98 -
4.3.3 MAC Filter................................................................. - 99 -
4.3.4 Wireless Bridge.........................................................- 102 -
4.3.5 Station Info................................................................- 105 -
4.4 Diagnostics...........................................................................- 105 -
4.5 Management.........................................................................- 107 -
4.5.1 System log.................................................................- 107 -
4.5.2TR-069 client.............................................................- 108 -
4.5.3 Internet Time.............................................................- 111 -
4.5.4 Access Control..........................................................- 111 -
4.5.5 Backup......................................................................- 114 -
4.5.6 Update.......................................................................- 114 -
4.5.7 Restore default..........................................................- 116 -
4.5.8 Update Software........................................................- 117 -
4.5.9 Reboot.......................................................................- 118 -
4.6 Exit.......................................................................................- 119 -
-3 -
ADSL2/2+ Router
4.7 Back to Wizard.....................................................................- 119 -
APPENDIX 1........................................................................................- 120 -
1. Setting the IP of your PC manually........................................- 120 -
2. PC dial-up...............................................................................- 121 -
APPENDIX 2........................................................................................- 125 -
1. Troubleshooting .....................................................................- 125 -

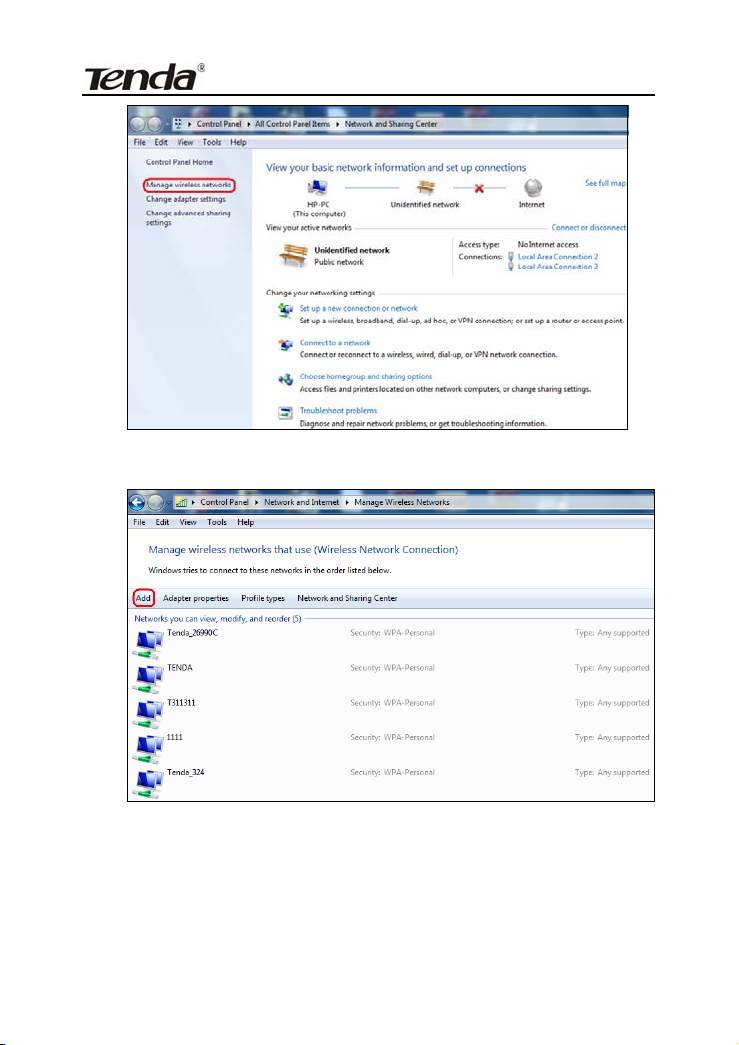

2. Verifying the Connection.......................................................- 126 -
3. FAQ.....................................................................................- 128 -
4. VPI/VCI List..........................................................................- 131 -
APPENDIX 3: REGULATORY INFORMATION..错误！未定义书签。
APPENDIX 4 CONTACT INFORMATION ...........错误！未定义书签。
-4 -
ADSL2/2+ Router
Chapter 1 Product Overview
Note: This user guide applies to W300D and W150D products. W300D
is used as an example throughout this user guide for demonstration and
explanation. The differences between the two products are: the former
has 2 antennas and the maximum wireless rate it can reach is 300Mbps;
while the latter is equipped with 1 antenna and the maximum wireless
rate it can reach is 150Mbps.
Functions and operations are subject to vary according to different
software versions; please refer to the actual product you purchase.
Thanks for purchasing this W300D/ W150D ADSL2/2+ router! It is an
easy-to install gateway device, which provides easy-to-operate
configuration interface to free you from complicated configurations.
Thus, it can help you to access Internet through some simple
configurations.
W300D, an IEEE802.11n-compliant, easy to use, power saving,
ADSL2+ router with an up to 300Mbps Wireless transmission rate, is
integrated with ADSL2+ Modem, wireless router, switch and wired
router all in one. The wireless transmission rate and coverage it
provides is 6 times of that of a common 54Mbps product, thus freeing
you from surplus and complicated cable distribution.
It mainly uses ADSL (telephone line) access way to share the Internet
with multiple computers through wired or wireless connection without
being connected to other devices. With super compatibility, it can also
share Internet access with multiple computers when its WAN port is
connected via a network cable.
-5 -
ADSL2/2+ Router
WPA, WPA2 and WPS encryption methods, etc are supported on the
device to guarantee the security of your wireless network; IPTV set-top
box access is supported to enable the reception of digital TV signal and
surfing online to be proceeded simultaneously; An English Web
management interface and TR-069 remote management methods are
supported for easier management; Furthermore, the exclusive setup
wizard installation software provided by Tenda offers you easy
installation and fast, shared internet access.
In a word, with fast wireless speed and large coverage, W300D is the
best choice for families, student dorms and small-sized enterprises, etc
to access Internet wirelessly.
1.1 Product Features
¾ Complies with IEEE802.11b/g/n, IEEE802.3, IEEE802.3u, ADSL,
ADSL2, ADSL2+ standards etc
¾ Up to 300Mbps Wireless transmission rate which is 6 times of that
of a common 54Mbps product
¾ 6000V lightning－proof design, adaptable to lightning-intensive
area
¾ Compatible with mainstream DSLAM equipments, strong
adaptability
¾ Strong driving capability with up to 6.5Km transmission distance
¾ Integrates ADSL2+ Modem, wireless router, switch and wired
router all in one
¾ Up to ADSL 24Mbps downstream rate and 1Mbps upstream rate
¾ Provides one RJ11 port
-6 -
ADSL2/2+ Router
¾ Provides 4 LAN ports and the fourth LAN port can be used as a
WAN port
¾ Supports ADSL（telephone line） and LAN（network cable）access
ways
¾ Supports Firewall to prevent hacker attacks
¾ Supports WPA and the latest WPA2 encryption methods and
security authentication agreement
¾ Supports Bridge, PPPoE, PPPoA, dynamic IP and static IP, etc
broadband access methods etc
¾ Supports IPTV access
¾ Supports automatic selection of wireless channel
¾ Supports FDM to enable telephoning, faxing and surfing activities
to proceed simultaneously without mutual interference
¾ Supports backup and save of multiple configuration files to meet
different network needs
¾ Setup Wizard software provided for easy and fast installation and
configuration
¾ Supports easy Web based installation to enable fast and easy
configuration of parameters
1.2 Package Contents
Unpack the package and check the following items.
¾ One ADSL2/2+ router
¾ One Power Adapter
¾ One Voice Splitter
¾ One RJ45 network Cable
-7 -
ADSL2/2+ Router
¾ Two RJ11 Telephone Lines
¾ One Quick Installation Guide
¾ One CD-ROM
If any of the above listed items is missing or damaged, please contact
your Tenda reseller for immediate replacement.
-8 -
ADSL2/2+ Router
Chapter 2 Hardware Description
2.1 Panel Layout
2.1.1 Front Panel
W300D”s Front Panel
There are 9 LED indicators on the front panel of W300D. You can judge
whether the device is in correct working condition by checking the
status of the indicators. The meanings of the indicators are described
as follows:
LED Color Status Description
Always On The device has power
Power Green
OFF
-9 -
The device has no power
or power adapter is
damaged
ADSL2/2+ Router
SYS Green
WLAN Green
ADSL Green
LAN
1/2/3/4
WPS Green
Green
Flashing System functions correctly
Flashing
Off Wireless is disabled
Slow
Flashing
Fast
Flashing
Always On
Off Unconnected
Flashing
Always On
ON
Flashing
Off
Packets are being
transferred
ADSL Link has not been
established
ADSL Link is being
established
ADSL Link has already
been established
Packets are being
transferred
The router has been
connected to the computer
Terminal WPS is
successfully connected
and the LED lights off in 2
minutes
WLAN terminal is
connecting WPS
No WLAN terminal WPS
connection is present or
terminal WPS connection
exceeds 2 minutes
- 10 -
ADSL2/2+ Router
2.1.2 Back Panel
W300D’s Back Panel
ON/OFF: Power Switch. Press it in to turn on the power and press it out
to turn off the power.
WPS/RESET：Hold and press it for 1 second to connect WPS, and 7
seconds to bring all settings back to factory defaults.
Note:
Please use the supplied power adapter, for use of an unmatched
power adapter may damage the device.
LAN1/2/3/4：LAN network cable interface. It is used to connect Hub,
Switch, or computer in a LAN.
(LAN2 port can also be used to connect IPTV Set-top box to enable
watching TV and online surfing at the same time. When the access way
is changed into community broadband, LAN4 can be used as the
wireless Router’s WAN port.)
DSL: RJ11 interface for telephone line connection (It does not function
when the device is configured to use Ethernet uplink mode as access
mode).
-11 -
ADSL2/2+ Router
2.2 Hardware Connection
Follow the diagram below to connect your network devices when
using DSL uplink access mode (through telephone line).
Follow the diagram below to connect your network devices when
using Ethernet uplink access mode (through network cable).
- 12 -
ADSL2/2+ Router
Chapter 3 Fast configuration
Since we are using computer to access Internet, we need to first
configure the computer and then log on to router’s management
interface (WEB UI) to configure the router through the configured
computer.
Select an appropriate way from the 2 options below to access your
router depending on your network knowledge: log in to the router’s
Web-based UI through “Setup Wizard” on the provided CD-ROM or
through a browser installed in your PC.
3.1Logging on to your router’s web-based utility through
the “setup wizard” on provided CD-ROM
In this way, CD-ROM drive is needed, if your computer does not have a
CD-ROM driver, you will have to use the router’s web-based utility to
configure the router. For detailed illustration, refer to 3. 2.
A. First, you need to configure your PC. The procedures of the example
below (taken under Windows 7) instructs you in configuring your PC.
1. Click the “Network” icon on your computer’s desktop, select
“Properties” in the appearing menu and then click” Open Network
and Sharing Center”.
- 13 -
ADSL2/2+ Router
2. Click “Change adapter settings” on the left side of the window.
3. Right click “Local Area Connection” and select “Properties”.
- 14 -
ADSL2/2+ Router
4. Select” Internet Protocol Version 4(TCP/IPv4)"and then click
“Properties”.
Select “Obtain an IP address automatically” and “Obtain DNS server
5.
- 15 -
ADSL2/2+ Router
address automatically”. Click “OK” to save the configurations.
Note:
Certainly you can set your IP manually, for detailed information
please refer to appendix 1 ：
B. Insert the provided CD-ROM in your PC’s drive:
If your PC does not run the CD-ROM content automatically. Open it and
run icon, then follow the prompts.
- 16 -
ADSL2/2+ Router
3.2Logging on to your router through Web browser
Before entering the web browser, you need to verify the connectivity
between the router and your computer.
First, click the start menu on the lower left corner of your computer
desktop.
- 17 -
ADSL2/2+ Router
Then, input “cmd” in the search programs and file texts box and press
“enter’.
Finally, Open the dos window and enter “ping 192.168.1.1”, and press
Enter. If the screen displays the following results, it indicates your
computer has already been connected to the router.
Now the direct link between your computer and the router has been
successfully established, which means you can log on to the router’s
web-based utility.
- 18 -
ADSL2/2+ Router
1. Open the IE Browser as shown below.
2. Input http://192.168.1.1 in the address field and press “Enter” to
enter router’s management interface.
The router’s management interface is displayed as below:
3.
- 19 -
ADSL2/2+ Router
3.3Fast Internet Access
In previous section, we have explained how to log on to the router and
in the following; we are going to illustrate how to configure the router
quickly to let your PC access Internet.
Now check whether you have the screen below, if not, please re-log on
to the router’s management interface.
The device provides two Internet access ways: DSL Uplink and
Ethernet Uplink. If you are using Ethernet Uplink (through network
cable) for Internet access, please click the “Advanced Settings” on top
right corner of the interface to enter the configuration interface and refer
to section 2 of Chapter 4.2.2 WAN Service for configurations.
You need to configure the parameters below on this interface:
- 20 -
ADSL2/2+ Router
1. VPI/VCI
2. PPPOE User name
3. PPPOE Password
VPI/VCI: Different areas and ISPs have different VPI/VCI. For the
convenience of its users, the device has integrated many important
VPI/VCI. Therefore, you only need to select your ISP and area and the
device will provide you with an auto-matched VPI/VCI in accordance
with your area. However, if your ISP provides you with a special
VPI/VCI, then select “Manual” for ISP option and enter the value
manually.
PPPOE User name: the user name provided by your ISP; used
together with password to authenticate the user.
PPPOE Password: the password provided by your ISP; used together
with user name to authenticate the user.
For example: User A obtains a user name and a pass word, which are
respectively sz123456789@163.gd and 88888888, from Shenzhen
Telecom for ADSL broadband, so he/she needs to input the parameters
as below:
Note: For the sake of security, password input on Web UI is displayed
in encryption code.
This product supports wireless function, so you still have to configure
- 21 -
ADSL2/2+ Router
wireless parameters. Please read the following:
Key：It allows you to enter a password; only the users who know your
password can be connected to your wireless network.
For example, if you want to set the password to 88888888, follow the
configurations as shown in the figure below:
Note:
1. The wireless network name (SSID) of this device is “tenda_the last 6
characters of MAC address”, for example, “tenda_051609”. You can
check it by clicking “Advanced Setup”------“Wireless”--------“Basic
Setting” tabs.
2. The factory default password of wireless network is empty. So, if you click “OK”
without having configured a password, system will prompt you to setup it.
- 22 -
ADSL2/2+ Router
3. The factory default password for management interface login is empty. So, if you
click “OK” without having configured a password, system will prompt you to setup
it.
The screen for configuring login password will display after the “OK” button is
clicked. You can setup your password for logging in to the device’s management interface
on this screen.
After all settings are finished and status shows “Connected”.
Congratulations! You can access Internet now!
- 23 -
ADSL2/2+ Router
Launch a web browser; enter http://www.tenda.cn in the address field
and Internet access will be successful as below:
Now, try to use a wireless network adapter to search “tenda_051609”:
First, click (network adapter connection icon) to search wireless
signals as shown in the figure below:
- 24 -
ADSL2/2+ Router
Then click “tenda_051609”select “Connect” to go to the dialogue box
below:
Enter the key: 88888888 and click “OK”; system will automatically
connects with your wireless network in a while.
Advanced settings provide you more powerful functions such as filter,
QoS and port range forwarding. Continue to read the “Advanced
Settings” section below if necessary.
- 25 -
ADSL2/2+ Router
Chapter 4 Advanced Settings
Enter the setup wizard screen below and then click “Advanced
Settings” on the right top corner as shown in the figure below:
After you enter the advanced settings screen, you can set the advanced
settings for the router to satisfy your requirements. There are seven
main menus on this screen: Device Info, Advanced Setup, Wireless,
Diagnostics, Management, Exit and Back to wizard as shown in the
below picture.
- 26 -
ADSL2/2+ Router
4.1 Device Information
There are five submenus: Summary, WAN, Statistics, Route and ARP.
Summary: It displays system information ， current status of WAN
connection and Wireless as shown in the figure below:
- 27 -
ADSL2/2+ Router
WAN: Click this menu to display the WAN information of this routing
modem: Interface, Description, Type, Igmp, NAT, Firewall, Status, IPv4
Address and vlanID as shown in the figure below:
Statistics: It gathers the received and transmitted packets on
LAN/WAN ports.
Statistics—LAN: It displays the received and transmitted packets of
- 28 -
ADSL2/2+ Router
the device’s LAN ports as shown in the figure below:
Note: eth0, eth1 and eth2 are respectively LAN port1, 2 and 3 of the
device; and wl0 is a wireless port.
Statistics—WAN: It displays the received and transmitted packets of
the device’s WAN port as shown in the figure below:
Statistics-xDSL:
including mode, traffic type, status and other ADSL parameters as
shown in the below figure:
It displays statistic information of ADSL connection
- 29 -
ADSL2/2+ Router
Route: displays routing table of the device as shown in the figure
below:
ARP: displays the device’s LAN ports, IP and MAC addresses of the
PCs that are wirelessly connected as shown in the figure below:
- 30 -
Loading...
