You can use the following 4 methods to establish a WPS connection:
Method 1: Establish a WPS connection using PBC on the Web Manager:
① Select a band, for example, 2.4GHz.
② Click Enable.
③ Click Save to save your settings.
④ Click Start PBC.
⑤ The WPS LED on this router will keep blinking for 2 seconds. Within these 2
minutes, enable WPS/PBC on the wireless client to join your wireless network.
Method 2: Establish a WPS connection using the hardware WPS button on the
device:
① Select a band, for example, 2.4GHz.
② Click Enable.
③ Click Save to save your settings.
④ Press and hold the WPS button on the back panel of this router for about
1-3 seconds and then release it.
⑤ The WPS LED on this router will keep blinking for 2 seconds. Within these
2 minutes, enable WPS/PBC on the wireless client to join your wireless network.
76
High Power Wireless AC1200 Dual Band Router
Method 3: Establish a WPS connection using the 8-digit PIN code from the
wireless network adapter:
① Select a band, for example, 2.4GHz.
② Click Enable.
③ Select PIN and enter the 8-digit PIN code from the wireless network
adapter.
④ Click Save to save your settings.
⑤ Click Start PIN.
⑥ The WPS LED on this router will keep blinking for 2 seconds. Within these
2 minutes, enable WPS/PIN- Enrollee on the wireless client to join your wireless
network.
Method 4: Establish a WPS connection using the 8-digit PIN code from the
device:
① Select a band, for example, 2.4GHz.
② Click Enable.
③ Select PIN.
④ Click Save to save your settings.
⑤ Click Start PIN.
⑦ Enable WPS/PIN on your router and WPS/PIN- Enrollee on the wireless
client, and then enter the 8-digit PIN code from your router to join your wireles s
network.
To quickly join a secured wireless network with WPS
If you have already secured your wireless network with WPS or WPA2-PSK or
Mixed WPA/WPA2-PSK and you want to join your wireless network but you hate to
enter or forget the security key, do as follows:
Method 1: Establish a WPS connection using the hardware WPS button on the
router:
77
High Power Wireless AC1200 Dual Band Router
① Check the WPS LED status on the router. It should display a solid light.
② Press and hold the WPS button on the back panel of this router for about
1-3 seconds and then release it.
③ The WPS LED on this router will keep blinking for 2 seconds. Within these
2 minutes, enable WPS/PBC on the wireless client to join your wireless network.
Method 2: Establish a WPS connection using the 8-digit PIN code from the
router:
① Check the WPS LED status on the router. It should display a solid light.
④ Enable WPS/PIN- Registrar on the wireless client and enter the 8-digit PIN
code from your router to join your wireless network.
Note --------------------------------------------------------------------------------------
To use the WPS security, the wireless client must be also WPS-capable.
------------------------------------------------------------------------------------------------
3.8 Connection Status
Click Wireless -> Connection Status. Here you can see a list of wireless devices
connected to the router.
Tip ------------------------------------------------------------- ---------------------------
You can know whether there are unauthorized accesses to your wireless network by
viewing the wireless client list.
------------------------------------------------------------------------------------------------
78
High Power Wireless AC1200 Dual Band Router
4 Advanced Applications
4.1 Bandwidth Control
If there are multiple PCs behind your router competing for limited bandwidth
resource, then you can use this feature to specify a reasonable amount of bandwidth
for each such PC, so that no one will be over stuffed or starved to death. Click
Advanced -> Bandwidth Control to enter the bandwidth control screen.
Tip ----------------------------------------------------------------------------------------
1. 1M=128KByte/s.
2. The volume of uplink traffic/downlink traffic should not be larger than that
allowed on the router's WAN (Internet) port. You can ask your ISP to provide the
volume of Internet traffic.
------------------------------------------------------------------------------------------------
Bandwidth Control Application Example:
If you share a 4M-broadband service with your neighbor. He always downloads a
large volume of data from Internet, which sharply frustrates your Internet surfing
experience; you can use this feature to set limits for the volume of Internet traffic
he can get. For example, you can split the 4M into two, so your neighbor can only
use up to 2M Internet traffic and you can enjoy 2M. (Assuming the IP address of
your neighbor's PC is 192.168.0.100. 2M=256KByte/s)
Configuration Procedures:
① Click Advanced -> Bandwidth Control.
② Click Add Bandwidth Control Rule.
79
High Power Wireless AC1200 Dual Band Router
③ Enter 192.168.0.100 in the IP Range fields.
④ Enter 32 in the Uplink Bandwidth field.
⑤ Enter 256 in the Downlink Bandwidth field.
⑥ Click Save to save your settings.
80
High Power Wireless AC1200 Dual Band Router
⑦ Click Reboot on the appearing screen to reboot the router.
⑧ System returns to the bandwidth control screen after reboot. You can view
the rule you just add. Also you can click Edit to edit the rule or Delete to
delete the rule. You can also add more rules.
4.3 DDNS
Dynamic DNS or DDNS is a term used for the updating in real time of Internet
Domain Name System (DNS) name servers. We use a numeric IP address allocated
by Internet Service Provider (ISP) to connect to Internet; the address may either be
stable ("static"), or may change from one session on the Internet to the next
("dynamic"). However, a numeric address is inconvenient to remember; an address
81
High Power Wireless AC1200 Dual Band Router
which changes unpredictably makes connection impossible. The DDNS provider
allocates a static host name to the user; whenever the user is allocated a new IP
address this is communicated to the DDNS provider by software running on a
computer or network device at that address; the provider distributes the association
between the host name and the address to the Internet's DNS servers so that they
may resolve DNS queries. Thus, uninterrupted access to devices and services
whose numeric IP address may change is maintained.
Click Advanced -> DDNS to enter the DDNS screen.
Tip ------------------------------------------------------------- ---------------------------
1. To use the DDNS feature, you need to have an account with one of the Service
Providers in the drop-down menu first.
2. This router supports five DDNS service providers: 88ip.cn3322.org, gnway,
dyndns and no-ip.
------------------------------------------------------------------------------------------------
DDNS Application Example:
If your ISP gave you a dynamic (changing) public IP address, you want to access
your router remotely but you cannot predict what your router's WAN IP address
will be, and the address can change frequently. In this case, you can use a
commercial Dynamic DNS service. It lets you register your domain to their IP
address and forwards traffic directed at your domain to your frequently changing IP
address.
82
High Power Wireless AC1200 Dual Band Router
If you obtain the following account from your dyndns.org service provider:
User Name: tenda
Password: 123456
Domain Name: tenda.dyndns.org.
And you want to use the PC at 218.88.93.33 to remotely access this router on port
number 8090.
Configuration Procedures:
① DDNS Service: Select Enable.
② Service Provider: Select your DDNS service provider from the drop-down
menu. Here in this example, select dyndns.
③ User Name: Enter the DDNS user name registered with your DDNS service
provider. Here in this example, enter tenda.
④ Password: Enter the DDNS Password registered with your DDNS service
provider. Here in this example, enter 123456.
⑤ Domain Name: Enter the DDNS domain name with your DDNS service
provider. Here in this example, enter tenda.dyndns.org.
⑥ Click Save to save your settings.
⑦ Click Security -> Remote Web Management, enable the Remote Web
Management feature, enter 8090 in the Port field, 218.88.93.33 in the IP Address
83
High Power Wireless AC1200 Dual Band Router
field and then click Save to save your settings.
⑧ Click Reboot on the appearing screen to reboot the router.
Now you can access the router from the Internet by entering
http://tenda.dyndns.org:8090 in your browser.
4.1 Virtual Server
You want to share resources on your PC with your friends who are not in your LAN.
But, by default, the router's firewall blocks inbound traffic from the Internet to
your computers except replies to your outbound traffic. You can use the Virtual
Server feature to create exceptions to this rule so that your friends can access these
files from external networks.
Click Advanced -> Virtual Server to enter the configuration screen.
84
High Power Wireless AC1200 Dual Band Router
Application Example:
As shown in the diagram above, your PC (PC1: 192.168.0.100) connects to the
router and runs a FTP server on port number 21. Your friend (PC3) wants to access
the FTP server on your PC.
Tip ------------------------------------------------------------- ---------------------------
1. Make sure your WAN IP address (Internet IP address) is a public IP address.
Private IP addresses are not routed on the Internet.
2. Make sure you enter correct service port numbers.
3. To ensure that your server computer always has the same IP address, assign a
static IP address to your PC.
4. Operating System built-in firewall and some anti-virus programs may block
other PCs from accessing resources on your PC. So it is advisable to disable them
before using this feature.
------------------------------------------------------------------------------------------------
85
High Power Wireless AC1200 Dual Band Router
Configuration Procedures:
① Ext Port: Enter the external port number for the public ports at the
Internet interface. Here in this example, enter 21.
Int Port: Enter the internal port number for the private ports at the computer on
the r out er’s local area ne twork (LAN ). Here in this exa mp le, ente r 21.
② Internal IP: Enter the IP address of your local computer that will provide
this service. Here in this example, enter 192.168.0.100.
③ Protocol: Specify the protocol required for the service utilizing the
port(s).
④ Check Enable to activate this rule.
⑤ Click Save to save your settings.
Now, your friends only need to enter ftp://xxx.xxx.xxx.xxx:21in their browsers to
access your FTP server. xxx.xxx.xxx.xxx is the router's WAN IP address. Assuming it is
172.16.102.89, then your friends need to enter ftp://202.33.56.88:21 in their browsers.
86
High Power Wireless AC1200 Dual Band Router
Note --------------------------------------------------------------------------------------
If you use the port number 80 here, you must set the port number for remote web
management (Click Tools -> Remote Web Management) to any port number
excluding 80 to avoid collision. Otherwise the port forwarding feature may not be
effective.
------------------------------------------------------------------------------------------------
4.2 DMZ Host
The DMZ (De-Militarized Zone) function disables the firewall on the router for one
device for a special purpose service such as Internet gaming or video conferencing
applications that are not compatible with NAT (Network Address Translation).
Click Advanced -> DMZ Host to enter the DMZ Host screen.
Note --------------------------------------------------------------------------------------
1. DMZ host poses a security risk. A computer configured as the DMZ host loses
much of the protection of the firewall and becomes vulnerable to attacks from
external networks.
2. Hackers may use the DMZ host computer to attack other computers on your
network.
------------------------------------------------------------------------------------------------
Configuration Procedures:
① Enable: Check to enable the DMZ host.
② DMZ Host IP Address: The IP Address of the device for which the
route r ’s firewall w ill be disab led. Be s ure to st atically set the IP Ad dre ss of that
device for this function to be consistent.
87
High Power Wireless AC1200 Dual Band Router
③ Click Save to save your settings.
Tip ------------------------------------------------------------- ---------------------------
1. Be sure to statically set the IP Address of the computer that serves as a DMZ
host for this function to be consistent.
2. Security softwares such as anti-virus software and OS built-in firewall, etc may
affect the DMZ host feature. Disable them if DMZ host fails.
------------------------------------------------------------------------------------------------
4.4 UPnP
The Universal Plug and Play (UPnP) feature allows network devices, such as
computers from Internet, to access resources on local host or devices as needed.
UPnP-enabled devices can be discovered automatically by the UPnP service
application on the LAN. If you use applications such as multiplayer gaming,
peer-to-peer connections, real-time communications such as instant messaging, or
remote assistance (a feature in Windows XP), you may need to enable Universal
Plug and Play (UPnP) for better experience.
Click Advanced -> UPnP to enter the UPnP screen. The UPnP feature is enabled by
default.
88
High Power Wireless AC1200 Dual Band Router
4.6 Route Table
Click Advanced -> Route Table to view the router's route table.
Knowledge Center --------------------------------- ---------------------------------
1.Destination Network: The IP address of the final destination. "0.0.0.0" indicates
any network segment.
2. Subnet Mask: The subnet mask for the specified destination.
3. Gateway: This is the next router on the same LAN segment as the router to
reach.
4. Metric: This stands for the number of routers between your network and the
destination.
5. Interface: The interface between your router and the final destination.
------------------------------------------------------------------------------------------------
4.5 Static Route
Static routes provide additional routing information to your router. Typically, you
do not need to add static routes. However, when there are several routers in the
network, you may want to set up static routing. Static routing determines the path
of the data in your network. You can use this feature to allow users on different IP
domains to access the Internet via this device. It is not recommended to use this
setting unless you are familiar with static routing. In most cases, dynamic routing
89
High Power Wireless AC1200 Dual Band Router
is recommended, because this feature allows the router to detect the physical
changes of the network layout automatically. If you want to use static routing,
ma ke su re t he r outer’s D HCP fu nct ion is d isabl ed. Click Advanced -> Static
Routing to enter the configuration screen.
Tip ------------------------------------------------------------- ---------------------------
1. Gateway must be on the same IP segment as WAN or LAN segment as the router.
2. Subnet Mask must be entered 255.255.255.255 if destination IP address is a
single host.
------------------------------------------------------------------------------------------------

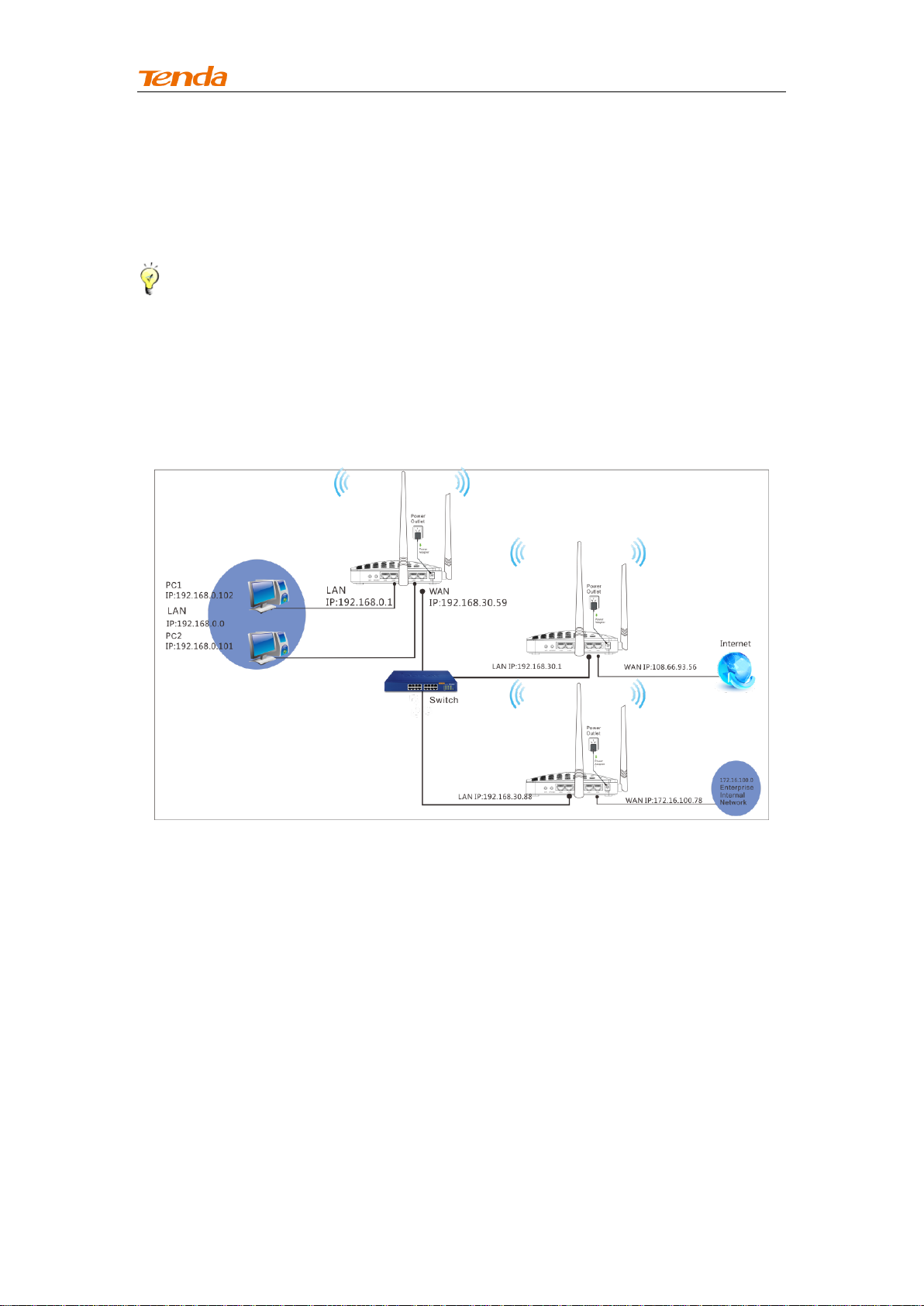

Static Route Application Example - Gateway IP address on the same IP segment
as WAN IP:
For example, your company internal network and Internet are on different IP net
segment and you want PCs on your LAN to access Internet and your company
internal network via the Tenda Router. You can simply configuring static routes on
the Tenda Router. The figure above depicts this application scenario.
Configuration Procedures:
90
High Power Wireless AC1200 Dual Band Router

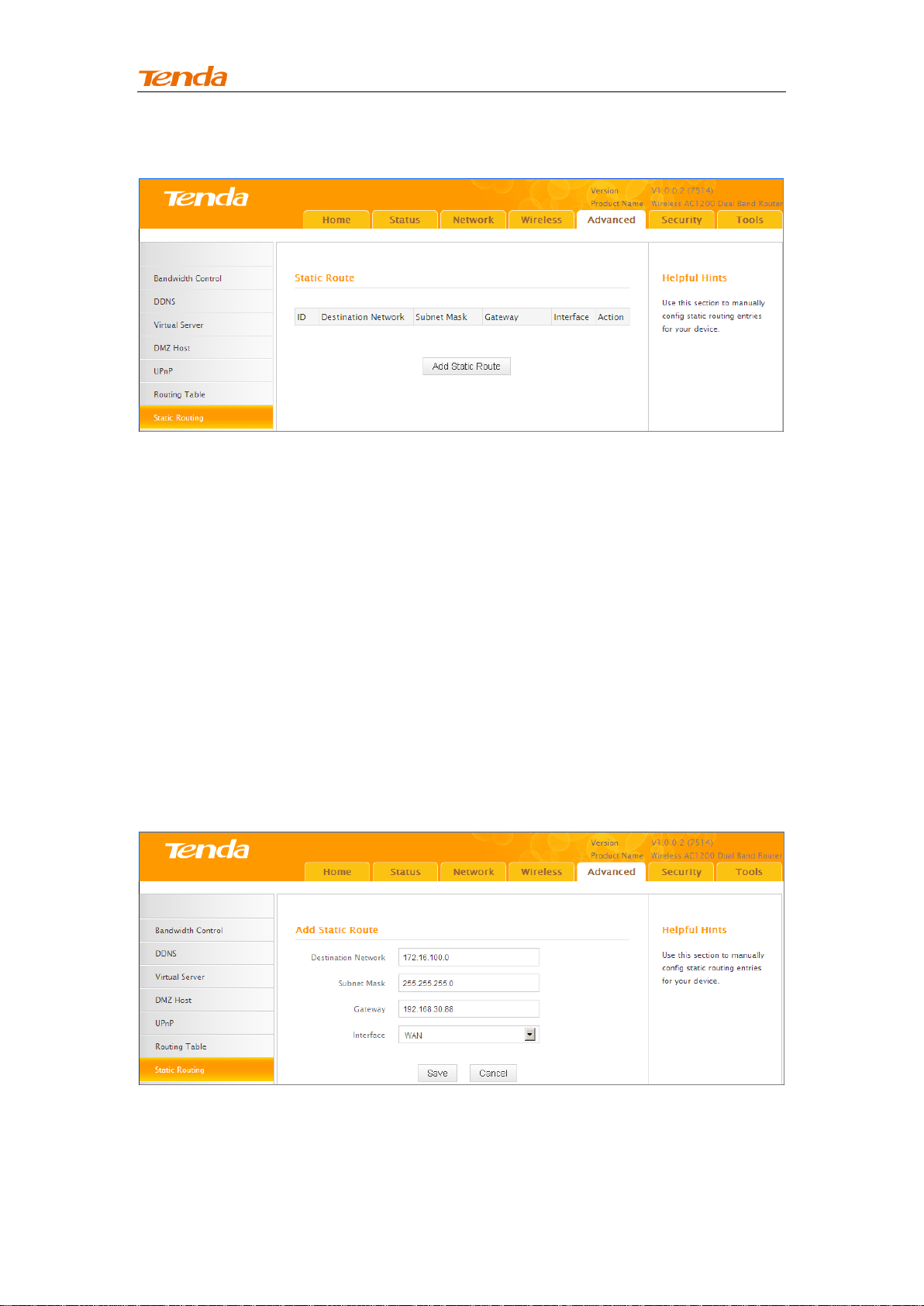

① Click Add Static Route.
② Destination Network: The IP address of the final destination. Enter
your corporate internal network IP address: 172.16.100.0.
③ Subnet Mask: Enter the subnet mask of your corporate internal
network: 255.255.255.0.
④ Gateway: Enter the gateway IP address to your corporate internal
network: 192.168.30.88
⑤ Interface: Select WAN.
⑥ Click Save to save your settings.

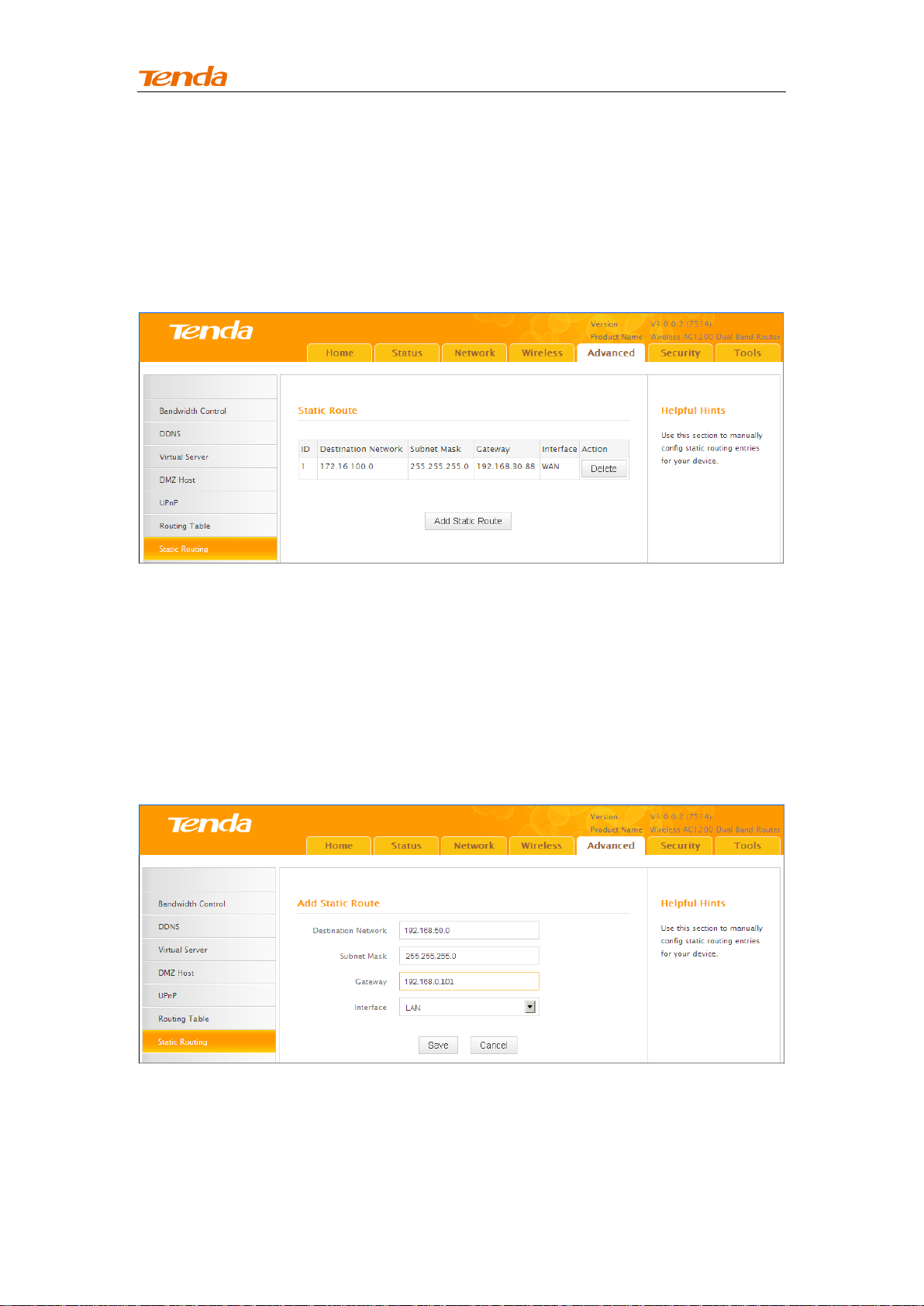

Click Advanced -> Routing Table to view your static route entry. If it does not
display, go to Tools to reboot your router. Enter the router's management interface.
When the router successfully connects to the Internet, the following screen will
91
High Power Wireless AC1200 Dual Band Router
display:
Static Route Application Example - Gateway IP address on the same IP segment
as LAN IP:

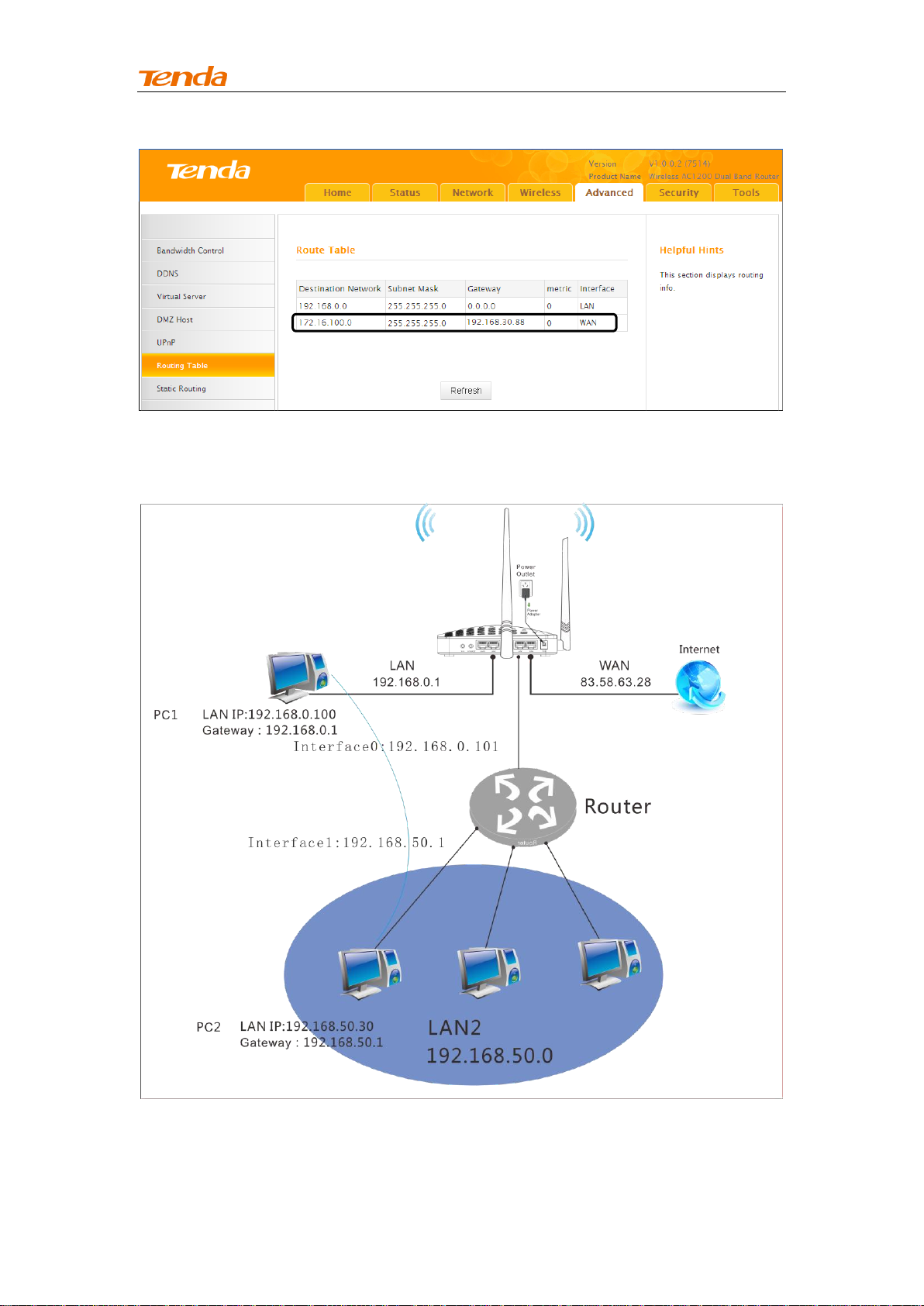

As seen in the above figure, PC2 on LAN2 connects with the Tenda Router via the
Router; PC1 on LAN1 accesses Internet via the Tenda Router that performs NAT.
92
High Power Wireless AC1200 Dual Band Router
You can configure static routes to implement mutual communication between PCs
on LAN1 and LAN2.
Configuration Procedures:
① Click Add Static Route.
② Destination Network: Enter 192.168.50.0.
③ Subnet Mask: Enter 255.255.255.0.
④ Gateway: Enter 192.168.0.101
⑤ Click Save to save your settings.
Click Advanced -> Routing Table to view your static route entry. If it does not
display, go to Tools to reboot your router. Enter the router's management interface.
When the router successfully connects to the Internet, the following screen will
93
High Power Wireless AC1200 Dual Band Router
display:
5 Security
This router provides three security policies: MAC filter, client filter and URL
filter.
To restrict your LAN PCs to access Internet via the their MAC addresses,
see MAC Filter.
To restrict your LAN PCs to access certain services on Internet via their IP
addresses, see Client Filter.
To restrict your LAN PCs to access certain websites on Internet via URL,
see URL Filter.
5.1 MAC Filter
This section allows you to restrict specific clients to access the Internet via the
devic es’ MA C a dd res ses. Eac h PC has at least an installed network adapter with an
unique MAC address. Three options are available: Disable, Deny and Allow.
A. Disable: Disable the MAC Filter feature.
B. Deny: Disallow only the devices at specific MAC addresses to access Internet during the
specific time period and/or specific days of the week. Access to Internet during other time
period and/or other days of the week are not restricted.
C. Allow: Allow only the specified devices to access Internet during the specific time period
94
High Power Wireless AC1200 Dual Band Router
and/or specific days of the week. Access to Internet during other time period and/or other
days of the week are denied.
Click Security -> MAC Filter to enter the configuration screen.
MAC Filter Application Example:
To allow only the PC at the MAC address of 00:C8:08:F5:E6:06 to access Internet
from Friday to Sunday (18:30-22:30).
Configuration Procedures:
① Filter Mode: Select Allow.
② Select: Select a rule ID, for example, (1).
③ Enable: Check to enable this feature.
④ Description: Briefly describe the current rule. This field is optional.Or if
you want to enter it, then enter numbers, letters or underscore only.
⑤ MAC Address: Specify the MAC address of the computer that you want to
restrict, 00:C8:08:F5:E6:06.
⑥ Time: Specify a time period for the current rule to take effect. Here in this
example, select 18:30-22:30.Day: Select a day, or several days of the week for
the current rule to take effect. Here in this example, select Friday, Saturday and
95
High Power Wireless AC1200 Dual Band Router
Sunday.
⑦ Click Save to save your settings.
5.2 Client Filter
This section allows you to set the times specific clients can or cannot access the
Inter net vi a the d evice s’ as signe d IP a ddresses and se rvice por t. Thr ee opt ions a re
available: Disable, Deny and Allow.
A. Disable: Disable the Filter feature.
B. Deny: Disallow only the devices at specific IP addresses to access certain services on
Internet during the specific time period and/or specific days of the week. Other time period
and/or other days of the week are not restricted.
C. Allow: Allow only the devices at specific IP addresses to access specific services
on Internet during the specific time period and/or specific days of the week. Access
to any other services during other time period and/or other days of the week are
denied.
Click Security -> Client Filter to enter the configuration screen.
Client Filter Application Example:
To prohibit PCs within the IP address range of 192.168.0.100--192.168.0.120 from
accessing web pages during the time period of 8:00~18:00 from Monday to
Frida
96
High Power Wireless AC1200 Dual Band Router
Configuration Procedures:
① Filter Mode: Select Deny.
② Select: Select a rule ID, for example, (1).
③ Enable: Check to enable this feature.
④ Description: Briefly describe the current rule. This field is optional.Or if
you want to enter it, then enter numbers, letters or underscore only, for example,
80.
⑤ Start IP: Enter a starting IP address. Here in this example, enter
192.168.0.100.End IP: Enter an ending IP address. Here in this example, enter
192.168.0.120.
⑥ Port: Enter a service port number. Here in this example, enter 80.
⑦ Traffic Type: Select Both.
⑧ Time: Specify a time period for the current rule to take effect. Here in this
example, select 8:00~18:00.Day: Select a day, or several days of the week for
the current rule to take effect. Here in this example, select Mon, Tue, Wed, Thur
97
High Power Wireless AC1200 Dual Band Router
and Fri.
⑨ Click Save to save your settings.
5.3 URL Filter
To better control LAN PCs, you can use the URL filter functionality to allow or disallow such
PCs to access certain websites within a specific time period and/or specific days of the week.
Three options are available: Disable, Deny and Allow.
A. Disable: Disable the URL Filter feature.
B. Deny: Disallow only the devices at specific IP addresses to access certain services on
Internet during the specific time period and/or specific days of the week. Other time pe riod
and/or other days of the week are not restricted.
C. Allow: Allow only the devices at specific IP addresses to access specific services
on Internet during the specific time period and/or specific days of the week. Access
to any other services during other time period and/or other days of the week are
denied.
Click Security -> URL Filter to enter the configuration screen.
URL Filter Application Example:
If you want to disallow all computers on your LAN to acc ess “ yah oo.co m” from
8：00 to 18： 00 during working days: Monday- Friday, then do as follows:
98
High Power Wireless AC1200 Dual Band Router
① Filter Mode: Select Deny.
② Enable: Check to enable this feature.
③ Select: Select a rule ID, for example, (1).
④ Description: Briefly describe the current rule, say, yahoo, (It can only
consist of numbers, letters, or underscore). This field is optional.
⑤ Start IP/End IP: Enter 2-254.
⑥ URL String: Enter yahoo.
⑦ Time: Specify a time period for the current rule to take effect. Here in this
example, select 8:00~18:00.Day: Select a day, or several days of the week for
the current rule to take effect. Here in this example, select Mon, Tue, Wed,
Thur and Fri.
⑧ Click Save to save your settings.
Note --------------------------------------------------------------------------------------
Each entry can include up to 16 URL keywords, each of which must be
separated by ", ".
------------------------------------------------------------------------------------------------
99
High Power Wireless AC1200 Dual Band Router
5.4 Remote Web Management
The Remote management allows the device to be configured and managed remotely
from the Internet via a web browser.
Click Security -> Remote Web Management to enter the configuration screen.
Tip ------------------------------------------------------------- ---------------------------
1 For better security, customize a port number between 1024-65535 for the remote
web management interface, do not use the number of any common service port
(1-1024).
2. Make sure your WAN IP address (Internet IP address) is a public IP address.
Private IP addresses are not routed on the Internet.
3. It is unsafe to make your router remotely accessible to all PCs on external
network. For better security, we suggest that only enter the IP address of the PC for
remote management.
------------------------------------------------------------------------------------------------
Remote Web Management Application Example:
To access your router (WAN IP address: 102.33.66.88) at your home from the PC
(218.88.93.33) at your office via the port number 8080
Configuration Procedures:
① Check "Enable".
② Enter 8080.
③ Enter 218.88.93.33.
④ Click Save to save your settings.
Type h ttp ://10 2.3 3. 66. 88:80 80 into your bro wser’s add res s or loc ation fiel d and
100
High Power Wireless AC1200 Dual Band Router
you can access the router at your home remotely.
Knowledge Center --------------------------------- ---------------------------------
1. Port: This is the management port to be open to outside access. The default
setting is 8080. This can be changed.
2. IP Address: Here you can specify the IP address for remote management
(When set to 0.0.0.0, the device becomes remotely accessible to all the PCs on
Internet or other external networks).
------------------------------------------------------------------------------------------------
6 Tools
6.1 Logs
Click Tools -> Logs to enter the logs screen. The Logs option allows you to view
all events that occur upon system startup. View Log Levels: There are three
types of logs available.
101
High Power Wireless AC1200 Dual Band Router
Here you can view the hist ory of t he devic e’s act ions.
Up to 150 entries can be logged. After 150 entries, you can click Refresh to update
the logs or click Clear to clear the earliest logs.
6.2 Traffic Statistics
Click Tools -> Traffic Statistics to enter the Traffic Statistics screen. Traffic
Statistics meter allows you to monitor and view the volume of traffic used by LAN
devices.
Tip ------------------------------------------------------------- ---------------------------
If you suspect some PCs behind your router are consuming a large volume of
bandwidth (downloading videos, etc) you can enable this Traffic Statistics meter
feature to find out which PCs are overusing the traffic. Enabling the Traffic
Statistics featur e may de gra de th e r out er’s performance. Do not enable it unless
necessary.
------------------------------------------------------------------------------------------------
Configuration Procedures:

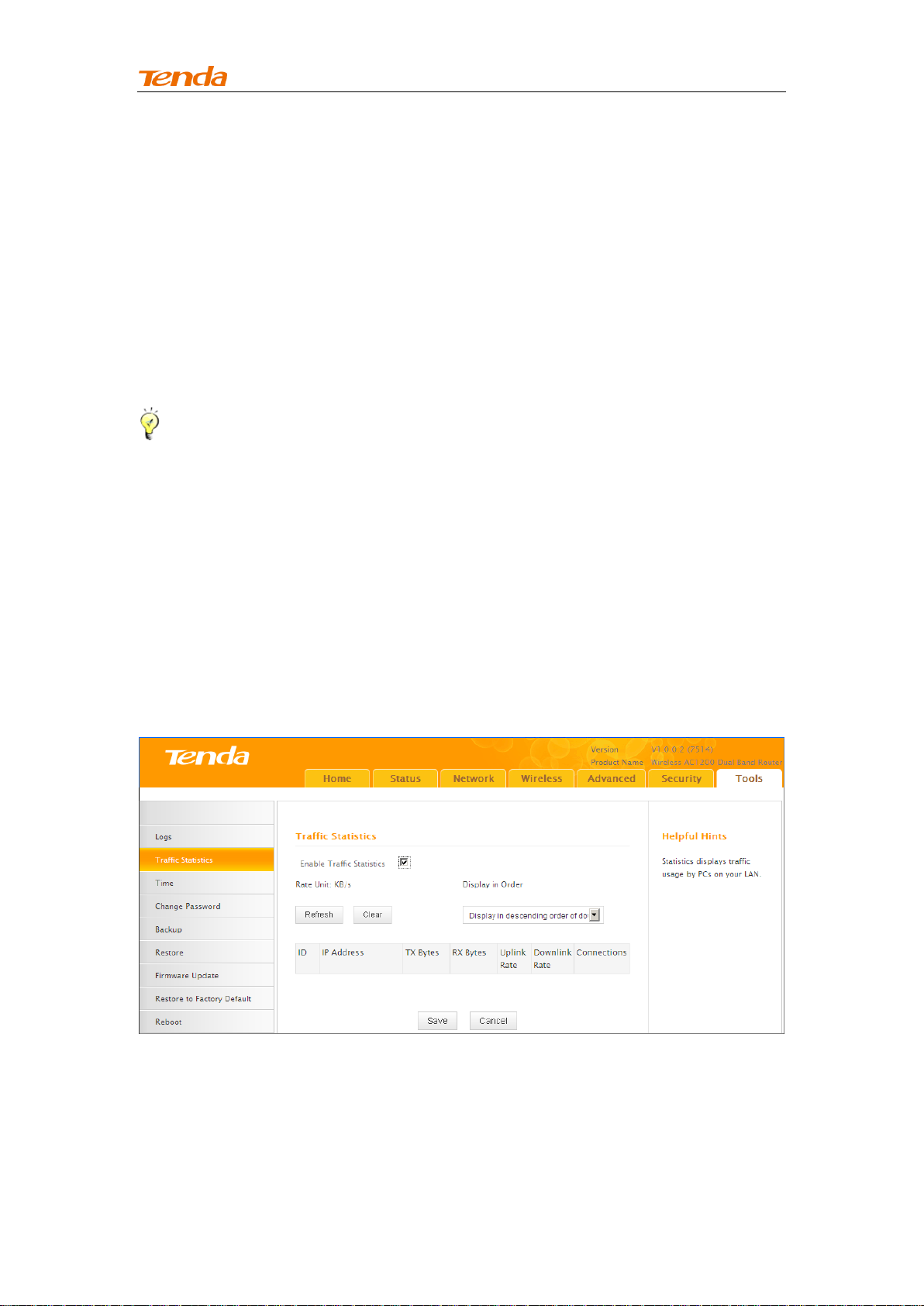

① Check Enable Traffic Statistics.
102
High Power Wireless AC1200 Dual Band Router
② Click Save to save your settings.
③ Click Reboot on the appearing screen to reboot the router.
The following screen appears after reboot.
103
High Power Wireless AC1200 Dual Band Router
Knowledge Center --------------------------------- ---------------------------------
1. IP Address: Displays the IP addresses of the PCs that have connected to the
device.
2. Uplink Rate: Displays the upload speed (KByte/s) of a corresponding PC.
3. Downlink Rate: Displays the download speed (KByte/s) of a corresponding PC.
4. TX Bytes: The number of bytes transmitted by a corresponding PC upon traffic
statistics meter startup. The unit is M.
5. RX Bytes: The number of bytes received by a corresponding PC upon traffic
statistics meter startup. The unit is M.
6. Connections: The number of clients that connect to this router.
------------------------------------------------------------------------------------------------
6.3 Time

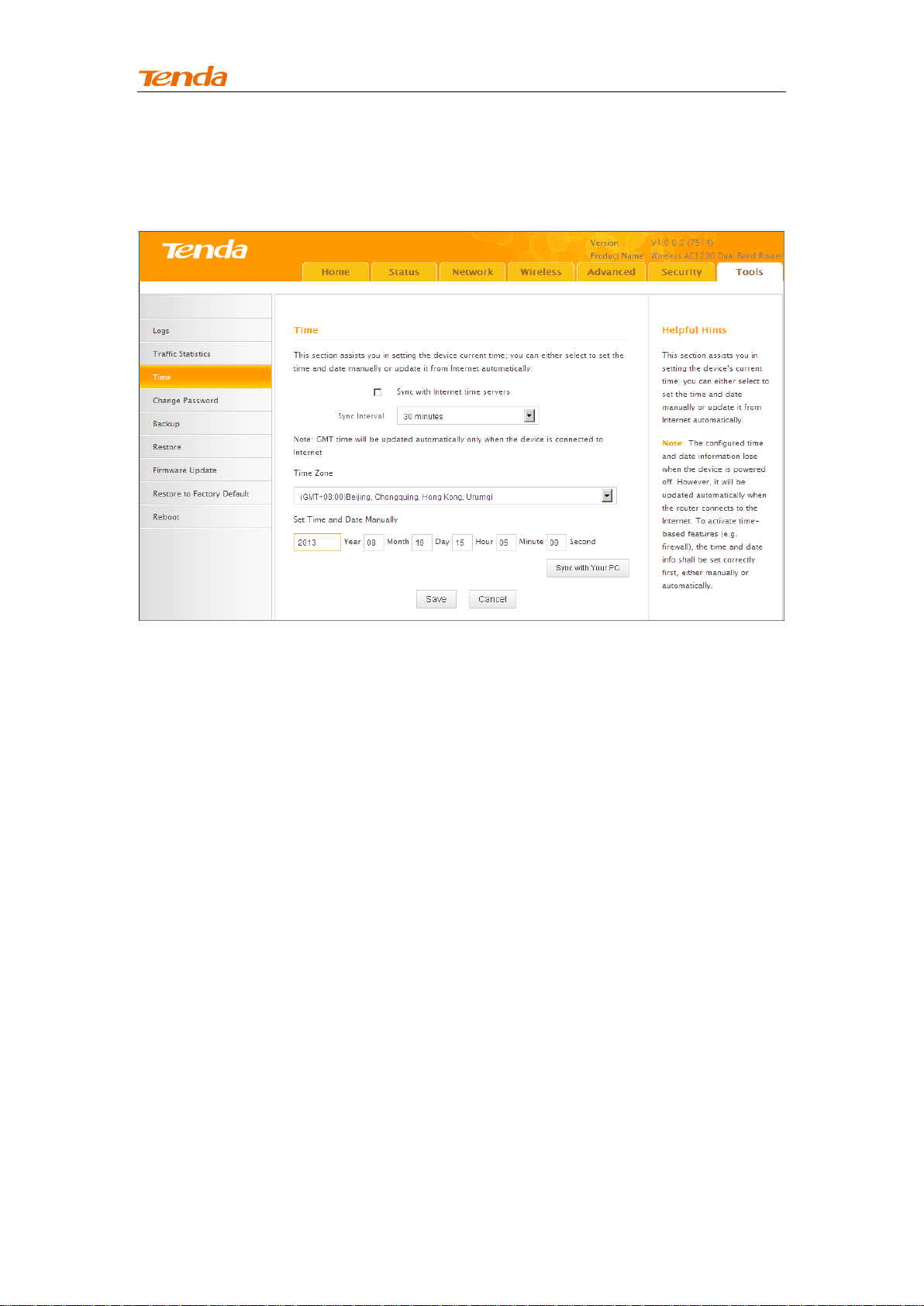

Click Tools -> Time to enter the time screen.
A. Sync with Internet time servers
Note that the GMT time is obtained only when Device is connected to Internet. You
can also configure the system time manually.
Configuration Procedures:
104
High Power Wireless AC1200 Dual Band Router

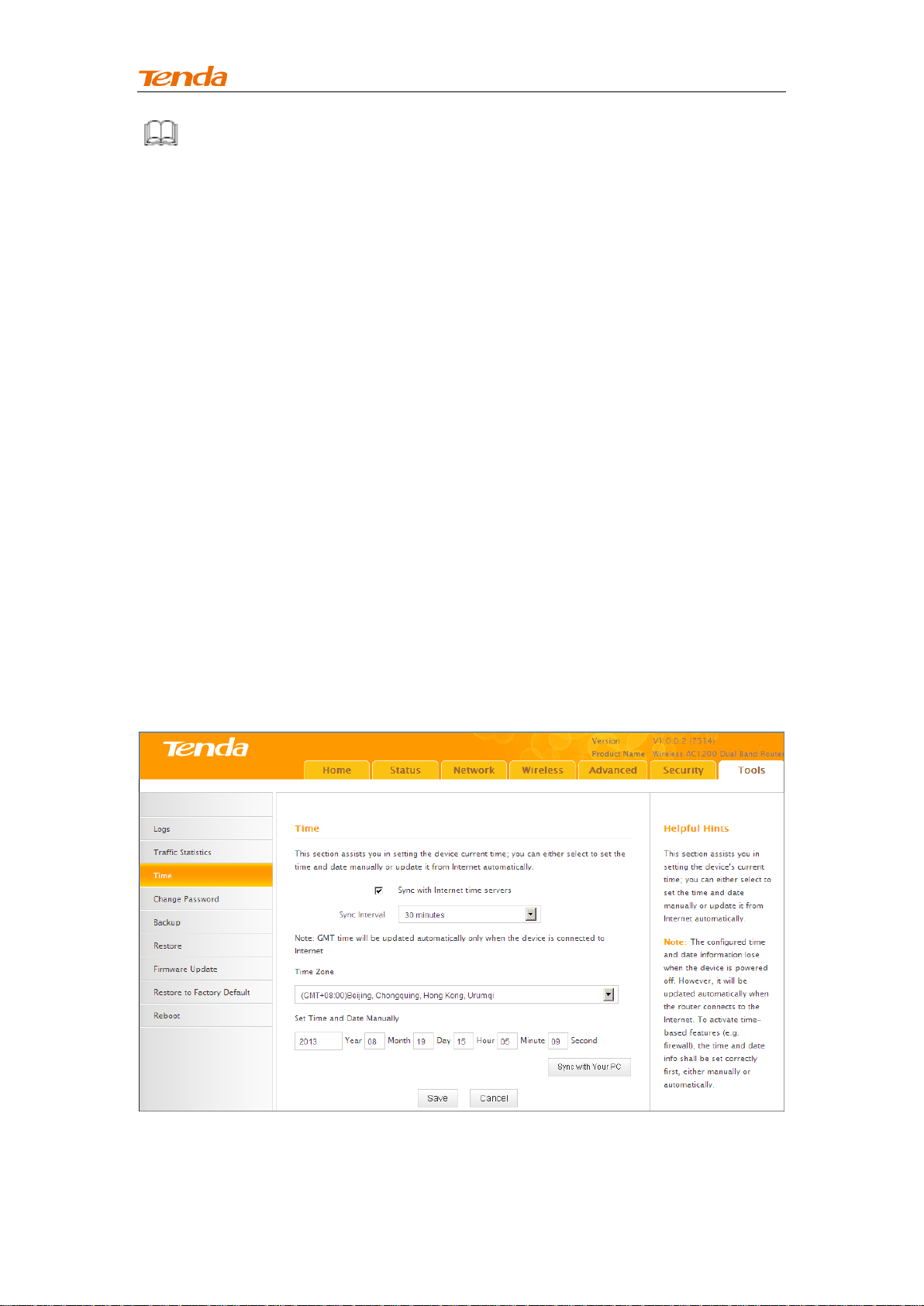

① Select your time zone.
② Click Save to save your settings.
B. Set Time and Date Manually/Sync with Your PC
Configuration Procedures:
① Specify the time and date manually or click the Sync with Your PC to
automatically copy your PC's time to the device.
② Click Save to save your settings.
6.4 Change Password
Click Tools -> Change Password to enter the configuration screen. Here you
can change the login password. It is strongly recommended that you change the
factory default login password. Otherwise, anyone in your network can access this
utility to change your settings.
For example, if you want to change the login password to "tenda", do as follows:
Configuration Procedures:

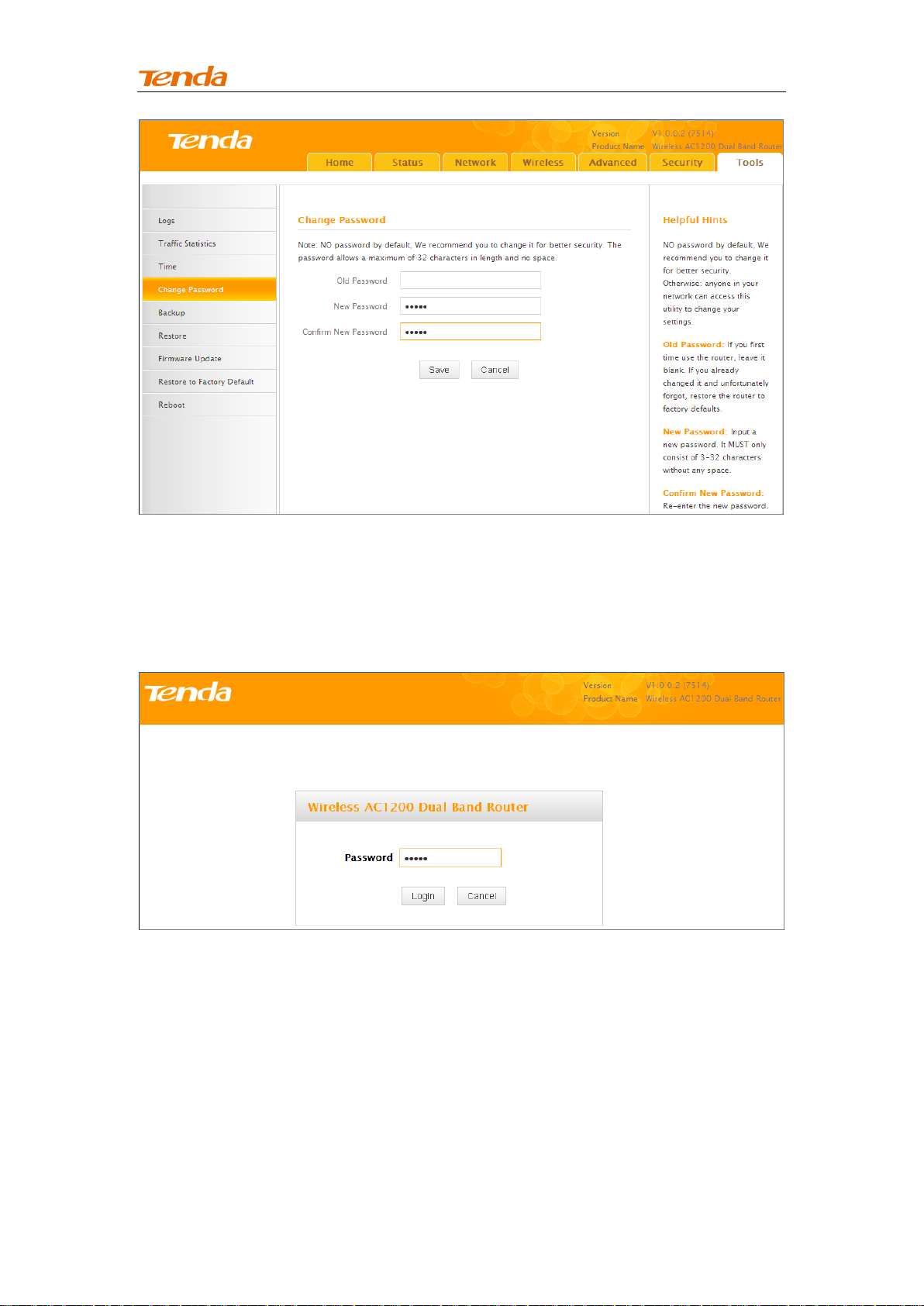

① New Password: Input a new password. Here in this example, enter
"tenda".
② Confirm New Password: Re-enter the new password for confirmation.
Here in this example, enter "tenda".
③ Click Save to save your settings.
105
High Power Wireless AC1200 Dual Band Router
④ Click OK on the appearing window.
⑤ System will automatically enter the login window if you click OK. Enter
the n ew login passw ord o f “ tenda” a nd cli ck Login to ent er the d evice’s
configuration interface.
6.5 Backup
Backup: Once you have configured the device the way you want it, you can save
these settings to a configuration file on your local hard drive that can later be
imported to your device in case that the device is restored to factory default
settings. Click Tools -> Backup to enter the configuration screen.
106
High Power Wireless AC1200 Dual Band Router
Tip ------------------------------------------------------------- ---------------------------
The default configuration file name is "RouterCfm.cfg". Do include the file name
suffix of ".cfg" when renaming the file name to avoid proble ms.
------------------------------------------------------------------------------------------------
Configuration Procedures:

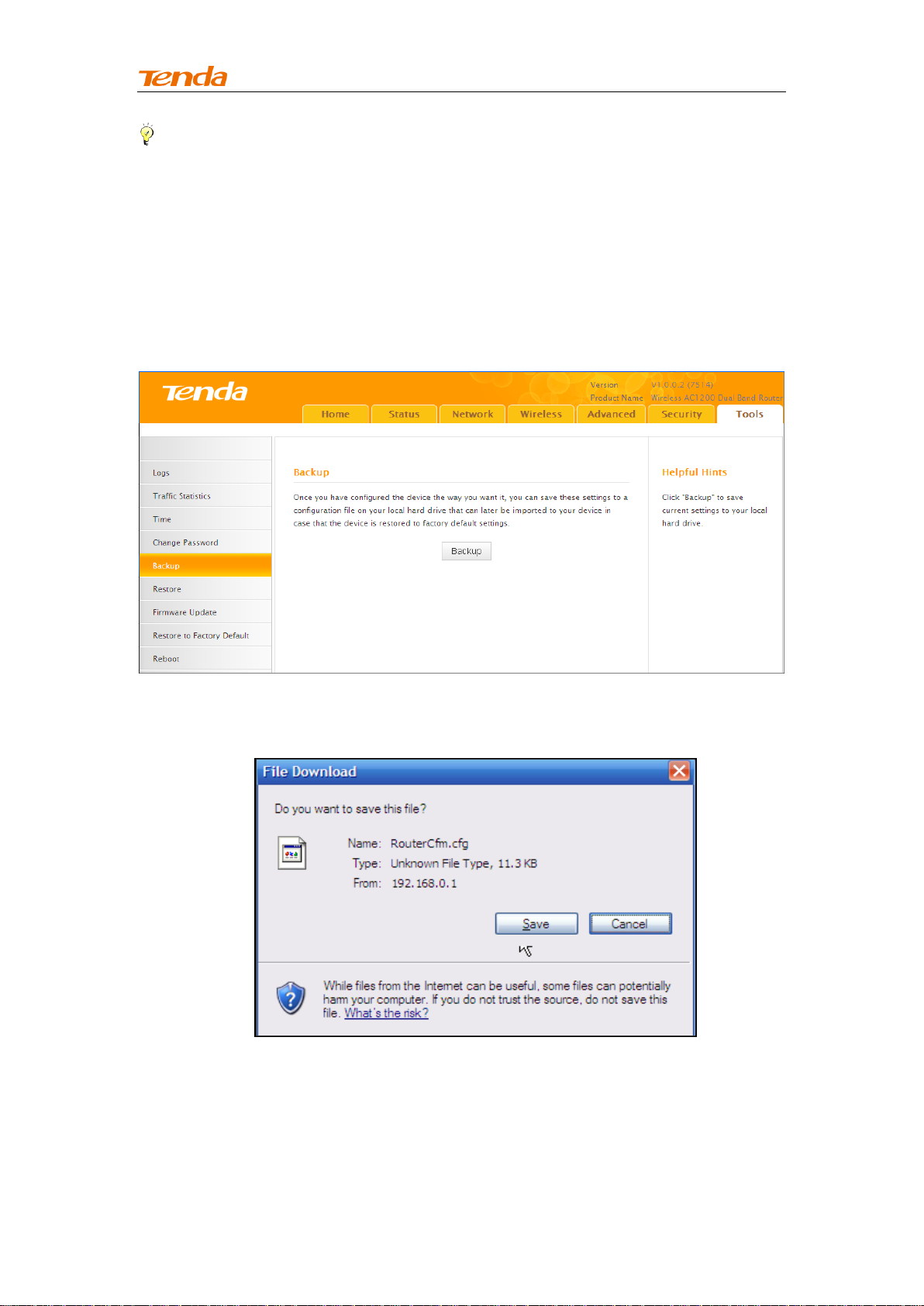

① Click Backup.
② Click OK on the appearing window.
③ Click Save on the File Download window.
107
High Power Wireless AC1200 Dual Band Router
④ Select a local hard drive to save the file and click Save.
6.6 Restore
Click Tools -> Restore to enter the configuration screen.
Configuration Procedures:
① Click Browse.
② Select the configuration file that is saved previously to your local hard
drive and click Open.
108
High Power Wireless AC1200 Dual Band Router
③ Click the Restore button to reset your device to previous settings.
6.7 Firmware Update
Click Tools -> Firmware Update to enter the configuration screen. Firmware
upgrade is released periodically to improve the functionality of your device and
also to add new features. If you run into a problem with a specific feature of the
device, log on to our website (www.tendacn.com) to download the latest firmware
to update your device. When upgrade is complete, the device restarts automatically.
Update takes a few minutes. Please wait. If you run into a problem with a specific
feature of the device, log on to our website (www.tendacn.com) to download the
latest firmware to update your device.
Note --------------------------------------------------------------------------------------
1 Before you upgrade the firmware, make sure you are having a correct firmware. A
wrong firmware may damage the device.
2. Do NOT upgrade the firmware wirelessly or disconnect device from power
supply while firmware update is in process. Note that you need to update the
device's firmware via a wired connection.
109
High Power Wireless AC1200 Dual Band Router
Configuration Procedures:
① Click Browse.
② Select the upgrade file and click Open.
③ Click Upgrade (or Update).
④ Click OK on the appearing window.
⑤ An upgrade progress indicator bar appears during the upgrade process.
When upgrade is complete, the device restarts automatically.
110
High Power Wireless AC1200 Dual Band Router
6.8. Restore to Factory Default Settings
Click Tools -> Restore to Factory Default to enter the configuration screen. Here
you can reset the device to factory default settings.
Note ------------------------------------------------------------------------------------
1. If you enable this option, all current settings will be deleted and be restored to
factory default values. You will have to reconfigure Internet connection settings
and wireless settings.
2. Do not restore factory default settings unless the following happens:
You need to join a different network or unfortunately forget the login
password.
You cannot access Internet and Tenda technical staff asks you to reset the
router.
111
High Power Wireless AC1200 Dual Band Router
Click the Restore Factory Default button to reset the device to factory default
settings.
Default IP Address: 192.168.0.1
Default Subnet Mask: 255.255.255.0
6.9 Reboot
Click Tools -> Reboot to enter the configuration screen. This section allows you
to reboot the device.
① Click Reboot.
112
High Power Wireless AC1200 Dual Band Router
② Click OK on the appearing screen below:
③ The router restarts automatically if the OK button is clicked.
113
High Power Wireless AC1200 Dual Band Router
Appendix 1 Configure PC TCP/IP Settings
Windows 7

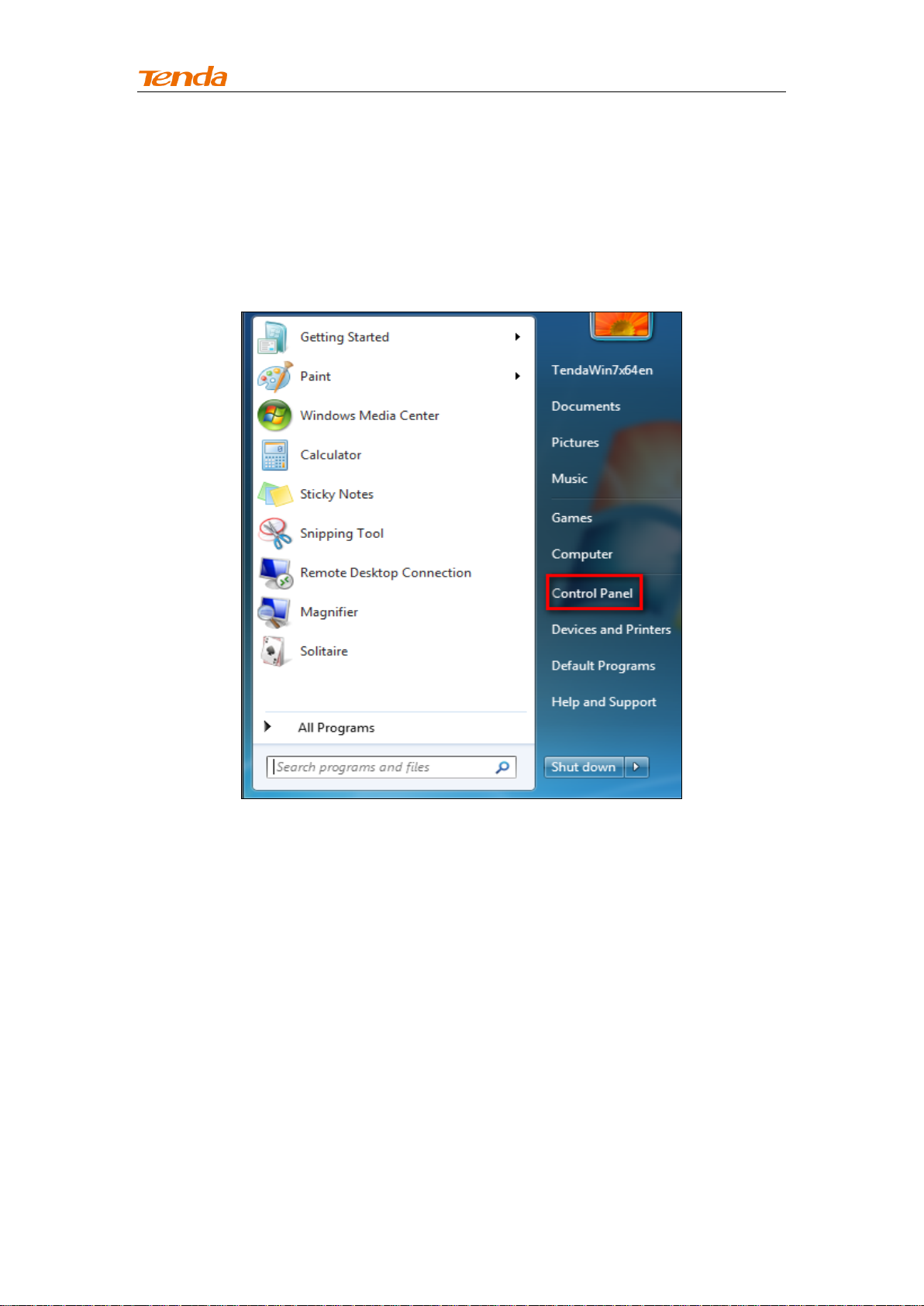

① Click Start -> Control Panel.
114
High Power Wireless AC1200 Dual Band Router
② Click Network and Internet.
③ Click Network and Sharing Center.
115
Loading...
