Wireless Modem Router User Guide

- 51 -

_________________________________________________________________________________________________

Warning!

DMZ servers pose a security risk. A computer designated as the DMZ server loses much of the protection of the firewall

and is exposed to exploits from the Internet.

_________________________________________________________________________________________________

4.2.5 Security

This section explains the following information:

• IP Filtering

• MAC Filtering

IP Filtering

Outgoing IP Filtering Setup

By default, all outgoing IP traffic from LAN is allowed, but some IP traffic can be BLOCKED by setting up filters.

Choose Add or Remove to configure outgoing IP filters.

Choose Add to enter the following screen:

Wireless Modem Router User Guide

- 52 -

This screen allows you to create a filter rule to identify outgoing IP traffic by specifying a new filter name and at least

one condition below. All of the specified conditions in this filter rule must be satisfied for the rule to take effect. Click

'Apply/Save' to save and activate the filter.

 Filter Name: Enter a descriptive filtering name.

 IP Version: Select either IPv4 or IPv6.

 Protocol: TCP/UDP, TCP, UDP and ICMP are available for your option.

 Source IP address [/prefix length]: Enter the LAN IP address to be filtered.

 Source Port (port or port: port): Specify a port number or a range of ports used by LAN PCs to access Internet. If

you are unsure, leave it blank.

 Destination IP address [/prefix length]: Specify the external network IP address to be accessed by specified LAN

PCs.

 Destination Port (port or port:port): Specify a port number or a range of ports used by LAN PCs to access external

network.

Incoming IP Filtering Setup

When the firewall is enabled on a WAN or LAN interface, all incoming IP traffic is BLOCKED. However, some IP

traffic can be ACCEPTED by setting up filters.

Choose Add or Remove to configure incoming IP filters.

Click Add to enter the following screen:

Wireless Modem Router User Guide

- 53 -

This screen allows you to create a filter rule to identify incoming IP traffic by specifying a new filter name and at least

one condition below. All of the specified conditions in this filter rule must be satisfied for the rule to take effect. Click

Apply/Save to save and activate the filter.

 IP Version: Select either IPv4 or IPv6.

 Protocol: TCP/UDP, TCP, UDP and ICMP are available for your option.

 Source IP address [/prefix length]: Enter the Internal IP address [/prefix length] to be filtered.

 Source Port (port or port: port): Specify a port number or a range of ports used by PCs from external network to

access your internal network.

 Destination IP address [/prefix length]: Specify the internal network IP address [/prefix length] to be accessed by

the specified PCs from external network.

 Destination Port (port or port:port): Specify a port number or a range of ports used by PCs from external network

to access your internal network.

MAC Filtering

A bridge WAN service is needed to configure this service.

MAC Filtering is only effective on ATM PVCs configured in Bridge mode. FORWARDED means that all MAC layer

frames will be FORWARDED except those matching with any of the specified rules in the following table. BLOCKED

means that all MAC layer frames will be BLOCKED except those matching with any of the specified rules in the

following table.

Choose Add or Remove to configure MAC filtering rules.

_________________________________________________________________________________________________

Warning!

Changing from one policy to another of an interface will cause all defined rules for that interface to be REMOVED

AUTOMATICALLY! You will need to create new rules for the new policy.

_________________________________________________________________________________________________

Wireless Modem Router User Guide

- 54 -

Click Add to enter the following screen:

Here you can create a filter to identify the MAC layer frames by specifying at least one condition below. If multiple

conditions are specified, all of them take effect. Click Save/Apply to save and activate the filter.

Protocol Type: Select a protocol type from the drop-down list.

Destination MAC Address: Enter the destination MAC address apply the MAC filtering rule to which you wish to

apply the MAC filtering rule.

Source MAC Address: Enter the source MAC address to which you wish to apply the MAC filtering rule.

Frame Direction: Select a frame direction from the drop-down list.

WAN Interfaces: Select a WAN interface from the drop-down list.

4.2.6 Parental Control

This section explains the following information:

• Time Restriction

• URL Filter

Time Restriction

Click Parental Control -> Time Restriction -> Add to enter the following screen.

Here you can add time of day restriction that an attached LAN device can access Internet.

The 'Browser's MAC Address' automatically displays the MAC address of the LAN device where the browser is running.

To restrict other LAN device, click the "Other MAC Address" button and enter the MAC address of the other LAN

device.

 User Name: Enter a user name.

 Browser's MAC Address: Automatically adds the MAC address of the attached LAN device where the browser is

Wireless Modem Router User Guide

- 55 -

running.

 Other MAC Address: Specify the MAC address of the computer that you want to apply Internet access restriction.

 Days of the week: Click to select the days of the week during which you wish to restrict Internet access.

 Start Blocking Time/ End Blocking Time: Specify time of day restriction to an attached LAN device. Within this

specified time length of the day, this LAN device will be blocked from Internet.

 Apply/Save: Click to Apply/Save your settings.

URL Filter

Here you can add URL access restriction to specific LAN PCs.

Select the URL List Type (Exclude or Include) first and then click Add to enter the screen below for configuring the list

entries. Maximum 100 entries can be configured.

URL Address: Enter the URLs that a specific LAN PC cannot access.

Port Number: Specify the port number used by the web server. The default is 80, which is the standard protocol for web

servers.

Enter the URL address and port number then click "Apply/Save" to add the entry to the URL filter.

Wireless Modem Router User Guide

- 56 -

_________________________________________________________________________________________________

Note:

If you have accessed the URL before you include it in a URL filter rule, you must reboot the router and erase it from your

PC to activate this URL filter rule. To erase the domain name from your PC, click Start -> Run, enter cmd and then type

ipconfig /flushdns.

_________________________________________________________________________________________________

4.2.7 Quality of Service

This section explains the following:

• QoS Queue

• QoS Classification

If Enable QoS checkbox is selected, choose a default DSCP mark to automatically mark incoming traffic without

reference to a particular classifier. Click Apply/Save button to save it.

Enable QoS: Check/uncheck to enable/disable the QoS feature.

_________________________________________________________________________________________________

Note:

1. If Enable Qos checkbox is not selected, all QoS will be disabled for all interfaces.

2. The default DSCP mark is used to mark all egress packets that do not match any classification rules.

_________________________________________________________________________________________________

QoS Queue

In ATM mode, maximum 8 queues can be configured.

In PTM mode, maximum 8 queues can be configured.

For each Ethernet interface, maximum 4 queues can be configured.

For each Ethernet WAN interface, maximum 4 queues can be configured.

To add a queue, click the Add button.

To remove queues, check their remove-checkboxes, then click the Remove button.

The Enable button will scan through every queues in the table. Queues with enable-checkbox checked will be enabled.

Wireless Modem Router User Guide

- 57 -

Queues with enable-checkbox un-checked will be disabled.

The enable-checkbox also shows status of the queue after page reload.

Note that if WMM function is disabled in Wireless Page, queues related to wireless will not take effects.

To add a queue, click the Add button to enter the following screen.

Here you can configure a QoS queue and add it to a selected layer2 interface.

QoS Classification

To add a rule, click the Add button.

To remove rules, check their remove-checkboxes, then click the Remove button.

The Enable button will scan through every rules in the table. Rules with enable-checkbox checked will be enabled.

Rules with enable-checkbox un-checked will be disabled.

The enable-checkbox also shows status of the rule after page reload.

If you disable WMM function in Wireless Page, classification related to wireless will not take effects.

Wireless Modem Router User Guide

- 58 -

To add a rule, click the Add button to enter the following screen.

Here you can create a traffic class rule to classify the ingress traffic into a priority queue and optionally mark the DSCP

or Ethernet priority of the packet.

Click Apply/Save to save and activate the rule.

4.2.8 Routing

This section explains the following:

• Default Gateway

• Static Route

Default Gateway

Default gateway interface list can have multiple WAN interfaces served as system default gateways but only one will be

used according to the priority with the first being the highest and the last one the lowest priority if the WAN interface is

connected. Priority order can be changed by removing all and adding them back in again.

 Selected Default Gateway Interfaces: Displays the selected dfault gteway iterfaces. Select a WAN interface and

click the button to move it to the Available Routed WAN Interfaces box.

 Available Routed WAN Interfaces: Displays the available routed WAN interfaces. Select a WAN interface and

click the button to add it to the Selected Default Gateway Interfaces box.

 Apply/Save: Click to save and activate your settings.

Wireless Modem Router User Guide

- 59 -

Static Route

Static routes provide additional routing information to your router. Typically, you do not need to add static routes.

However, when there are several routers in the network, you may want to set up static routing. Static routing determines

the path of the data in your network. You can use this feature to allow users on different IP domains to access the Internet

via this device. It is not recommended to use this setting unless you are familiar with static routing. In most cases,

dynamic routing is recommended, because this feature allows the router to detect the physical changes of the network

layout automatically. If you want to use static routing, make sure the router’s DHCP function is disabled.

Click Add to enter the following screen:

 IP Version: Select either IPv4 or IPv6.

 Destination IP address/prefix length: Enter the destination IP address and prefix length of the final destination.

 Interface: Select an interface from the drop-down list.

 Gateway IP address: Enter the gateway IP address, which must be a router on the same LAN segment as the

router.

 Metric: Enter a number in the Metric field. This stands for the number of routers between your network and the

destination.

 Apply /Save: Click to apply and save your settings.

Wireless Modem Router User Guide

- 60 -

_________________________________________________________________________________________________

Note:

1. Destination IP address cannot be on the same IP segment as WAN or LAN segment as the router.

2. Only configure additional static routes for unusual cases such as multiple routers or multiple IP subnets located on

your network. Wrong static routes may lead to network failure.

3. For system created route, the 'Remove' checkbox is disabled.

_________________________________________________________________________________________________

4.2.9 DNS

DNS Server (Static DNS)

The DNS server translates domain names to numeric IP addresses. It is used to look up site addresses based on their

names.

Select DNS Server Interface from available WAN interfaces OR enter static DNS server IP addresses for the system.

Here you can configure the WAN DNS address:

For IPv4:

-Click the Select DNS Server Interface from available WAN interfaces option

-OR select the Use the following Static DNS IP address option and enter static DNS server IP addresses for the system

And then click Apply/Save.

For IPv6:

-Select Obtain IPv6 DNS info from a WAN interface and Select a configured WAN interface for the IPv6 DNS server

information.

-Select Use the following Static IPv6 DNS address and enter the static IPv6 DNS server Addresses.

And then click Apply/Save.

_________________________________________________________________________________________________

Note:

1. DNS Server Interfaces can have multiple WAN interfaces served as system dns servers but only one will be used

according to the priority with the first being the higest and the last one the lowest priority if the WAN interface is

connected. Priority order can be changed by removing all and adding them back in again.

Wireless Modem Router User Guide

- 61 -

2. In ATM mode, if only a single PVC with IPoA or static IPoE protocol is configured, Static DNS server IP addresses

must be entered.

3. If you cannot locate the static DNS server IP information, ask your ISP to provide it.

4. The default settings are recommended if you are unsure about the DNS server addresses. If a wrong DNS server

address is configured, webpages may not be open.

_________________________________________________________________________________________________

Dynamic DNS (DDNS)

If your Internet service provider (ISP) gave you a static (fixed) public IP address, you can register a domain name and

have that name associated with your IP address by public Domain Name Servers (DNS). However, if your ISP gave you

a dynamic (changing) public IP address, you cannot predict what your IP address will be, and the address can change

frequently. In this case, you can use a commercial Dynamic DNS service. It lets you register your domain to their IP

address and forwards traffic directed at your domain to your frequently changing IP address.If your ISP assigns a private

WAN IP address (such as 192.168.x.x or 10.x.x.x), the Dynamic DNS service does not work because private addresses

are not routed on the Internet.

Click Advanced Setup -> DNS -> Dynamic DNS to enter the Dynamic DNS screen.

Click the Add button to configure the DDNS settings.

D-DNS Provider: Select your DDNS service provider from the drop-down menu.

- 62 -

Hostname: Enter the DDNS domain name registered with your DDNS service provider.

Interface: Specify a WAN connection interface.

User Name: Enter the DDNS user name registered with your DDNS service provider.

Password: Enter the DDNS Password registered with your DDNS service provider.

Click Apply/Save to save your settings.

4.2.10 DSL

Wireless Modem Router User Guide

This screen provides multiple ASDL modulation modes to meet diversified environments. You can also select phone line

pair and Capability.

DSL parameter configurations must be supported by ISP to take effect. Actual parameters (see Statistics-xDSL) resulted

from the negotiation between your router and ISP. Wrong configurations may fail your Internet access.

The best DSL configurations are the factory defaults. Only change them if you are instructed by your ISP or our

technical staff when your router fails to negotiate with ISP in DSL (ATM) mode. Usually, this failure can be identified

and confirmed if the ADSL LED on the device keeps displaying a slow or quick blinking light.

Check the checkbox next to a modulation to enable it and then click Apply/Save.

Advanced Settings: Click to enter the Advanced Settings screen as below.

Wireless Modem Router User Guide

- 63 -

Here you can select the test mode and tone.

_________________________________________________________________________________________________

Tip:

If you are unsure about the ADSL parameters, please apply the factory default settings.Wrong configurations may fail

your Internet access.

_________________________________________________________________________________________________

4.2.11 UPnP

UPnP (Universal Plug and Play) allows Windows based systems to configure the device for various Internet applications

automatically. UPnP devices can automatically discover the services from other registered UPnP devices on the network.

If you use applications such as multiplayer gaming, peer-to-peer connections, or real-time communications, such as

instant messaging or remote assistance (a feature in Windows XP), you should enable UPnP.

Enable UPnP: Check/uncheck to enable/disable the UPnP feature.

_________________________________________________________________________________________________

Note:

UPnP is activated only when there is a live WAN service with NAT enabled.

_________________________________________________________________________________________________

- 64 -

4.2.12 Print Server (Available only in D301)

This page allows you to enable / disable printer support.

Enable on-board print server: Check/uncheck to enable / disable the printer support.

Printer name: Enter a descriptive name of your printer.

Make and model: Enter the make and model of your printer.

Apply/Save: Click to apply and save your settings.

Wireless Modem Router User Guide

4.2.13 Storage Service (Available only in D301)

The Storage service allows you to use Storage devices with the modem router to be more easily accessed.

This section explains the following:

• Storage Device Info

• User Account

Storage Device Info

This screen displays the information of the storage device as seen on the screenshot below.

- 65 -

User Account

This section allows you to Add, or Remove User Accounts.

To add a user account:

1. Click Add to enter the following screen:

Wireless Modem Router User Guide

2. Enter the user name, password and volume name on which the home directory is to be created.

3. Click Apply/Save to apply and save your settings.

To remove an existing user account:

1. Check Remove next to the user account.

2. Click the Remove button.

4.1.14 Interface Grouping

Interface Grouping supports multiple ports to PVC and bridging groups. Each group will perform as an independent

network. To support this feature, you must create mapping groups with appropriate LAN and WAN interfaces using the

Wireless Modem Router User Guide

- 66 -

Add button. The Remove button will remove the grouping and add the ungrouped interfaces to the Default group. Only

the default group has IP interface.

Click Add to enter the screen below:

 Group Name: The name of a configured rule.

 WAN Interface used in the grouping: WAN connection to which the interface grouping rules apply.

 Available LAN Interfaces: LAN interfaces that can be used for interface grouping.

 Grouped LAN Interfaces: LAN interfaces that use specified WAN interface.

To create a new interface group:

1. Enter the Group name and the group name must be unique and select either 2. (dynamic) or 3. (static) below:

2. If you like to automatically add LAN clients to a WAN Interface in the new group add the DHCP vendor ID string.

By configuring a DHCP vendor ID string any DHCP client request with the specified vendor ID (DHCP option 60)

will be denied an IP address from the local DHCP server.

3. Select interfaces from the available interface list and add it to the grouped interface list using the arrow buttons to

create the required mapping of the ports. Note that these clients may obtain public IP addresses.

4. Click Apply/Save button to make the changes effective immediately.

_________________________________________________________________________________________________

Note:

If a vendor ID is configured for a specific client device, please REBOOT the client device attached to the modem to

allow it to obtain an appropriate IP address.

_________________________________________________________________________________________________

- 67 -

4.1.15 IP Tunnel

This section explains the following information:

• IPv6inIPv4

• IPv4inIPv6

IPv6inIPv4

Click IPv6inIPv4 and Add to enter the following screen:

Wireless Modem Router User Guide

 Tunnel Name: Specify the name of the tunnel.

 Mechanism: Currently, only DS-Lite configuration is supported.

 Associated WAN Interface: Specify the WAN iterface of the tunnel.

 Associated LAN Interface: Specify the LAN iterface of the tunnel.

 Manual: If you select Manual, configure the following settings also:

IPv4 Mask Length: Specify the IPv4 Mask Length.

6rd Prefix with Prefix Length: Specify the 6rd Prefix with Prefix Length.

Border Relay IPv4 Address: Specify the Border Relay IPv4 Address.

 Automatic: If Automatic is selected, no configurations are required.

 Apply/Save: Click to apply and save your settings.

IPv4inIPv6

Click IPv4inIPv6 and Add to enter the following screen:

- 68 -

 Tunnel Name: Specify the name of the tunnel.

 Mechanism: Currently, only 6rd configuration is supported.

 Associated WAN Interface: Specify the WAN iterface of the tunnel.

 Associated LAN Interface: Specify the LAN iterface of the tunnel.

 Manual: If you select Manual, enter the AFTR information also:

 Automatic: If Automatic is selected, no configurations are required.

 Apply/Save: Click to apply and save your settings.

Wireless Modem Router User Guide

4.1.16 Certificate

This section explains the following information:

• Local Certificates

• Trusted CA (Certificate Authority) Certificates

Local Certificates

Here you can Add, View or Remove certificates. Local certificates are used by peers to verify your identity. Maximum 4

certificates can be stored.

To generate generate a certificate signing request:

1. Click the Create Certificate Request button to enter the page below.

Wireless Modem Router User Guide

- 69 -

2. Specify the Common Name, Organization Name and State/Province Name

3. Enter the 2-letter Country Code for the certificate.

4. Click Apply to apply your settings.

To Import certificate：

1. Click the Import Certificate button on the local certificates page to enter the page below.

2. Enter the certificate name.

3. Paste the certificate content and private key.

4. Click Apply to apply your settings.

Trusted CA (Certificate Authority) Certificates

Here you can Add, View or Remove CA certificates. CA certificates are used by you to verify peers' certificates.

Maximum 4 certificates can be stored.

- 70 -

To Import certificate：

1. Click the Import Certificate button to enter the page below.

Wireless Modem Router User Guide

2. Enter the certificate name.

3. Paste the certificate content.

4. Click Apply to apply your settings.

4.1.17 Multicast

Here you can configure the multicast feature.

To configure IGMP for IPv4

1. Check the LAN to LAN (Intra LAN) Multicast Enable box.

2. Check the Mebership Join Immediate (IPTV) box. This is only required for IPTV.

3. Keep other options unchanged from factory defaults if you are not an advanced user. This is strongly recommended.

Wireless Modem Router User Guide

- 71 -

To configure IGMP for IPv6

1. Check the LAN to LAN (Intra LAN) Multicast Enable box.

2. Keep other options unchanged from factory defaults if you are not an advanced user. This is strongly recommended.

4.1.18 IPTV

If you check the Enable IPTV checkbox, you must choose a layer2 interface, and then configure the PVC/VLAN info

(ATM), or ETH port/VLAN info (ETH). Click Apply/Save button to save it.

Enable IPTV: Check/uncheck to enable/disable the IPTV service.

Wireless Modem Router User Guide

- 72 -

_________________________________________________________________________________________________

Tip:

For tagged service, enter valid 802.1P Priority and 802.1Q VLAN ID.

For untagged service, set -1 to both 802.1P Priority and 802.1Q VLAN ID.

_________________________________________________________________________________________________

4.3 Wireless

This section explains the following information:

• Basic

• Security

• MAC Filter

• Wireless Bridge

• Station Info

4.3.1 Basic

This page allows you to configure basic features of the wireless LAN interface. You can enable or disable the wireless

LAN interface, hide the network from active scans, set the wireless network name (also known as SSID) and restrict the

channel set based on country requirements.

Click Apply/Save to configure the basic wireless options.

Enable Wireless: check/uncheck to enable/disable the wireless feature.

SSID: This is thepublic name of your wireless network.

Hide SSID (Hide Access Point): This option allows you to have your network names (SSID) publicly broadcast or

if you choose to enable it, the SSID will be hidden.

BSSID：Display the BSSID.

Wireless Modem Router User Guide

- 73 -

Country: Select your country.

Max Clients: The max wireless clients your wireless network can accept. Up to 8 clients can join your wireless network

at a time. The default setting is 8.

Channel: Select a channel or select Auto to let system automatically select one for your wireless network to operate on

if you are unsure. The best selection is a channel that is the least used by neighboring networks.

4.3.2 Security

This page allows you to configure security features of the wireless LAN interface. You may setup configuration

manually OR through WiFi Protcted Setup (WPS).

WPS Setup

Wi-Fi Protected Setup makes it easy for home users who know little of wireless security to establish a home network, as

well as to add new devices to an existing network without entering long passphrases or configuring complicated settings.

Simply enter a PIN code on the device web interface or press hardware WPS button (on the back panel of the device) and

a secure wireless connection is established.

WPS Button: Press the hardware WPS button on the device for 1 second and the WPS LED will keep blinking for about

2 minutes. Within the 2 minutes, press the WPS button on your wireless computer or other device. When the WPS

displays a solid light, the device has joined your wireless network.

PIN: To use this option, you must know the PIN code from the wireless client and enter it in the corresponding field on

your device while using the same PIN code on client side for such connection.

Enable WPS: Check/uncheck to enable/disable the WPS function. It is enabled by default.

_________________________________________________________________________________________________

Note:

1. To use the WPS security, the wireless client must be also WPS-capable.

2. When both STA PIN and Authorized MAC are empty, PBC is used. If Hide Access Point enabled or Mac filter list is

empty with "allow" chosen, WPS2 will be disabled.

_________________________________________________________________________________________________

Manual Setup AP

You can set the network authentication method, selecting data encryption, specify whether a network key is required to

authenticate to this wireless network and specify the encryption strength.

Click "Apply/Save" when done.

Wireless Modem Router User Guide

- 74 -

Network Authentication: Select Open, Shared, WPA-PSK, WPA2-PSK or Mixed WPA/ WPA2-PSK from the

drop-down list to encrypt your wireless network.

Depending on the type of network authentication you select, you will be prompted to enter corresponding settings.

WEP Encryption: Select Enabled or Disabled.

Encryption Strength: Select 128-bit or 64-bit.

Current Network Key: Select a network key to be active.

Network Key 1/2/3/4: Enter 13 ASCII characters or 26 hexadecimal digits for 128-bit encryption keys; enter 5 ASCII

characters or 10 hexadecimal digits for 64-bit encryption keys.

WPA/WAPI passphrase: Enter a WPA/WAPI network key.

WPA Group Rekey Interval: Specify a key update interval.

WPA/WAPI Encryption: Select AES or TKIP+AES.

4.3.3 MAC Filter

The MAC-based Wireless Access Control feature can be used to allow or disallow clients to connect to your wireless

network.

Allow: Only allow PCs at specified MAC addresses (in the list) to connect to your wireless network.

Deny: Block only PCs at specified MAC addresses from connecting to your wireless network.

Disable: Disable this feature.

Add: Click to add a MAC address.

To delete an existing MAC address, first check the Remove box next to the MAC address in list and then click the

Remove button.

Example 1: To allow only the PC at the MAC address of 00:1A:3D:9C:BB:23 to connect to your wireless network, do as

follows:

1. Select Allow.

2. Click the Add button.

3. Enter 00:1A:3D:9C:BB:23 in the MAC address box as shown in the figure below:

4. Click Apply/Save.

Wireless Modem Router User Guide

- 75 -

_________________________________________________________________________________________________

Note:

If “allow” is choosed and mac filter is empty, WPS will be disabled.

_________________________________________________________________________________________________

4.3.4 Wireless Bridge

This page allows you to configure wireless bridge (also known as Wireless Distribution System) features of the wireless

LAN interface.

Wireless distribution system (WDS) is a system enabling the wireless interconnection of access points in an IEEE 802.11

network. It allows a wireless network to be expanded using multiple access points without the traditional requirement for

a wired backbone to link them.

AP Mode: You can select Wireless Bridge (also known as Wireless Distribution System) to disable access point

functionality. Selecting Access Point enables access point functionality. Wireless bridge functionality will still be

available and wireless stations will be able to associate to the AP.

Bridge Restrict: There are three options available: Enabled, Enabled (Scan) and Disabled. Select Disabled in Bridge

Restrict which disables wireless bridge restriction. Any wireless bridge will be granted access. Selecting Enabled or

Enabled (Scan) enables wireless bridge restriction. Only those bridges selected in Remote Bridges will be granted access.

The Enabled (Scan) enables wireless bridge restriction and automatically scans the remote bridges.Remote Bridges

MAC Address: Specify the MAC address of the remote bridge. If you select the Enabled (Scan) option in Bridge

Restrict, system automatically scans the remote bridges and you only need to select those bridges and their MAC

addresses will be added to automatically.

Refresh: Click to update the remote bridges. Wait for few seconds to update.

Apply/Save: Click to apply and save the settings.

_________________________________________________________________________________________________

Note:

The WDS feature (also known as Wireless Bridge) can only be implemented between 2 WDS-capable wireless devices.

Plus, SSID, channel, security settings and security key must be exactly the same on both such devices.

_________________________________________________________________________________________________

Wireless Modem Router User Guide

- 76 -

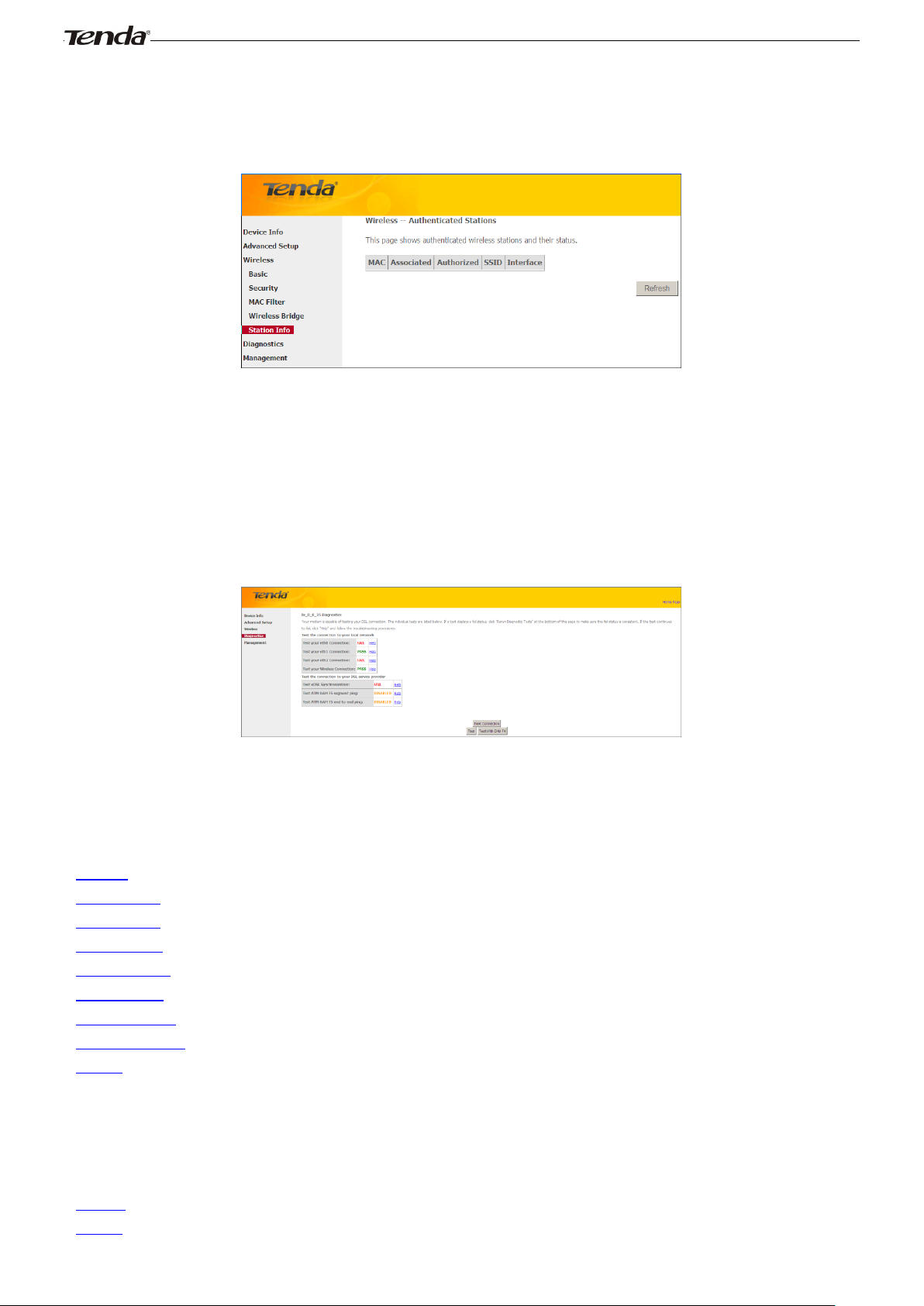

4.3.5 Station Info

This page shows authenticated wireless stations and their status.

4.4 Diagnostics

The modem router is capable of testing the connection to your DSL service provider, the connection to your Internet

service provider and the connection to your local network. If a test displays a fail status, click "Rerun Diagnostic Tests"

at the bottom of this page to make sure the fail status is consistent. If the test continues to fail, click "Help" and follow

the troubleshooting procedures.

4.5 Management

This section explains the following information:

• Settings

• System Logs

• Security Log

• SNMP Agent

• TR-069 Client

• Internet Time

• Access Control

• Update Software

• Reboot

4.5.1 Settings

This section explains the following information:

• Backup

• Update

Wireless Modem Router User Guide

- 77 -

• Restore Default

Backup

Here you can save a copy of your device’s configurations to your computer. Once you have configured the device, you

can save these settings to a configuration file on your local hard drive. The configuration file can later be imported to

your device in case the device is reset to factory default settings.

Update

Here you can restore the configuration from a file saved on your PC.

Restore Default

Under some circumstances (for example, join a different network or unfortunately forgetting the login password), you

may need to remove the existing configuration and restore the factory default settings.

Wireless Modem Router User Guide

- 78 -

4.5.2 System Logs

The System Log dialog allows you to view the System Log and configure the System Log options.

To view the System Log, simply click View System Log.

To configure the System Log options, click Configure System Log.

Log: If Enable is selected, the system will begin to log all the selected events.

Log Level: All events above or equal to the selected level will be logged.

Display Level: All logged events above or equal to the selected level will be displayed.

Mode: If the selected mode is 'Remote' or 'Both,' events will be sent to the specified IP address and UDP port of the

remote syslog server. If the selected mode is 'Local' or 'Both,' events will be recorded in the local memory.

Wireless Modem Router User Guide

- 79 -

Server IP Address: Specify the IP address of the remote syslog server.

Server UDP Port: Specify the UDP port of the remote syslog server.

Apply/Save: click to apply and save the system log settings.

4.5.3 Security Log

The Security Log page allows you to view the Security Log and configure the Security Log options. You can also save

Security Log to a file.

View: Click to view the Security Log.

Reset: Click to clear and reset the Security Log.

4.5.4 SNMP Agent

Simple Network Management Protocol (SNMP) allows a management application to retrieve statistics and status from

the SNMP agent in this device.

SNMP Agent：Select “Enable” to activate the SNMP Agent feature or “Disable” to deactivate it.

Read Community: Specify a Read Community string. The default is public.

Set Community: Specify a Set Community string. The default is private.

System Name: Specify a descriptive system name.

System Location: Specify a system location.

System Contact: Specify a system contact.

Trap Manager IP: Specify the IP address of the Trap Manager.

Wireless Modem Router User Guide

- 80 -

4.5.5 TR-069 Client

WAN Management Protocol (TR-069) allows a Auto-Configuration Server (ACS) to perform auto-configuration,

provision, collection, and diagnostics to this device.

Click the TR-069 Client tab to enter the TR-069 Client configuration screen as seen below:

Inform：Select Enable/Disable to enable/disable the TR-069 Client function. By default, it is disabled.

Inform Interval: Specify the inform interval.

ACS URL: Enter the ACS (Auto-Configuration Server) URL address.

ACS User Name: Enter the ACS (Auto-Configuration Server) user name.

ACS Password: Enter the ACS (Auto-Configuration Server) password.

WAN Interface used by TR-069 client: Select the WAN interface used by the TR-069 client from the drop-down list.

Display SOAP messages on serial console: If Enable is selected, SOAP messages will be displayed on serial console; if Disable is

selected, SOAP messages will not be displayed on serial console.

Connection Request Authentication: Check/uncheck to enable/disable the cnnection request authentication.

Connection Request User Name: Enter the cnnection request user name.

Connection Request Password: Enter the cnnection request password.

Connection Request URL: Specify the connection request URL.

4.5.6 Internet Time

This page is used to set the router’s system time. If Automatically synchronize with Internet time servers is checked, the system

will automatically connect to NTP server to synchronize the time.

Wireless Modem Router User Guide

- 81 -

First/Second/Third/Fourth/Fifth NTP time server: Select a NTP time server from the drop-down list. If the NTP time

server you are looking for is not included in the list, select “Other” and then enter it manually in the box.

Time zone offset: Select your time zone from the drop-down list.

4.5.7 Access Control

This section explains the following information:

• Password

• AccessControl - Service

Password

Access to your broadband router is controlled through three user accounts: admin, support, and user.

The user name "admin" has unrestricted access to change and view configuration of your Broadband Router.

The user name "support" is used to allow an ISP technician to access your Broadband Router for maintenance and to run

diagnostics.

The user name "user" can access the Broadband Router, view configuration settings and statistics, as well as, update the

router's software.

User Name: Enter the user name of up to 16 characters.

Old Password: Enter the old password of up to 16 characters.

New Password: Enter a new password of up to 16 characters.

Confirm Password: Re-enter to confirm the new password.

Apply/Save: Click to change or create passwords.

_________________________________________________________________________________________________

Note:

Password cannot contain a space.

_________________________________________________________________________________________________

AccessControl - Service

Here you can manage the device either from LAN or WAN side using HTTP, ICMP, TELNET, SNMP and FTP.

Wireless Modem Router User Guide

- 82 -

_________________________________________________________________________________________________

Note:

1. If you are not an advanced user, we suggest you keep the default settings.

2. To access the device from the LAN side, you must use the LAN IP address and log in as "admin" or "user"; to access

the device from the WAN side, you must use the WAN IP address and log in as "support".

_________________________________________________________________________________________________

4.5.8 Update Software

Firmware upgrade is released periodically to improve the functionality of your device and add any new features. If you

run into a problem with a specific feature of the device you could log in to our website (www.tendacn.com) to download

the latest firmware to update your device.

To update software, do as follows:

1. Obtain an updated software image file from our website: www.tendacn.com.

2. Enter the path to the image file location in the box below or click the "Browse" button to locate the image file.

3. Click the "Update Software" button once to upload the new image file.

_________________________________________________________________________________________________

Note:

The update process takes about 2 minutes to complete, and your Broadband Router will reboot.

_________________________________________________________________________________________________

- 83 -

4.5.9 Reboot

Click the Reboot button to reboot the router.

Wireless Modem Router User Guide

- 84 -

Appendix 1 Configure Your PC

Screens to configure TCP/IP properties in other Operating Systems are similar to those below.

Windows 7

Click Start-> Control Panel-> Network and Sharing Center-> Change adapter settings, select a desired Local Area

Connection and select Properties.

Wireless Modem Router User Guide

- 85 -

- 86 -

MAC

Click on the Apple icon from the top-left corner and select System Preferences.

Wireless Modem Router User Guide

- 87 -

Wireless Modem Router User Guide

- 88 -

Appendix 2 Join Your Wireless Network

Windows XP

a). Click Start-> Settings -> Control Panel;

b). Double click Network Connections, select the desired wireless network connection and then click View Available

Wireless Networks.

When you see Connected displayed next to the wireless network you selected, you have connected to the wireless

network successfully.

- 89 -

Windows 7

Wireless Modem Router User Guide

Click Start-> Control Panel-> Network and Sharing Center-> Change adapter settings, select a desired wireless

connection and click Connect/Disconnect.

Wireless Modem Router User Guide

- 90 -

When you see Connected displayed next to the wireless network you selected, you have connected to the wireless

network successfully.

- 91 -

MAC

Click ->System Preferences.

Wireless Modem Router User Guide

- 92 -

iPhone/iPad

Wireless Modem Router User Guide

- 93 -

Wireless Modem Router User Guide

- 94 -

Appendix 3 FAQs

1. What information should I have to access Internet via the ADSL uplink?

If you have DSL broadband service, you might need the following information to set up your modem router.

• Active Internet service provided by an ADSL account

• The ISP configuration information for your DSL account

- ISP login name and password

- Fixed or static IP address

Depending on how your ISP set up your Internet account, you could need to know the Virtual path identifier (VPI) and

virtual channel identifier (VCI) parameters for a manual setup.

2. I cannot access the device's management interface. What should I do?

1. Verify the physical connection (namely, the Ethernet cable) between your PC and the device. For details, see

Hardware Install hereof.

2. Double check the TCP/IP settings on your PC. For details, see Appendix 1.Configure PC hereof.

3. Press the Reset button on the device and then re-access the management interface.

4. Change the Ethernet cable that connects your PC and the device.

5. Try accessing device management interface from other PCs, smart phones or iPads.

6. Connect your PC alone to one of the LAN ports on the device.

3. I forget the wireless security key. What should I do? (How do I configure or change the security key?)

1. Try the default security key, which can be seen from the label attached to the device bottom.

2. If step 1 that works, access the device web manager and customize a new security key.

3. If step 1 does not work, press the Reset button on the device to restore factory default settings. And then log in to

the device web manager to customize a new security key.

4. My notebook is unable to search wireless networks, what should I do?

1. Verify that wireless service is enabled on your notebook by checking the wireless hardware or software button on

your notebook. The hardware button is usually located on the side of your notebook. Note that some notebooks

may not have such hardware button. Software button can be implemented by pressing Fn+ . Fn is situated on

the bottom left corner of your keyboard, may be any key between F1-F12 depending on what type of keyboard you are using.

2. Log in to the device, select Advanced-> Wireless-> Basic and change the wireless network name (SSID). Then

search again.

3. Follow below steps to verify that wireless service is enabled on your notebook (for Windows XP OS only).

From the desktop, right-click on the My Computer icon and select Manage. Select Services and Applications, double

click Services and view the status of Wireless Zero Configuration. If Status dose not display Started, right click the

Wireless Zero Configuration and select Start; if Startup Type displays Disabled, right click the Wireless Zero

Configuration, select Properties; from the Startup Type drop-down list box, select Automatic and then click Start in

Service Status.

5. Why cannot I connect to the searched wireless network?

1. Verify that you entered a correct security key.

2. Log in to the device, select Advanced-> Wireless and change the wireless network name (SSID). Then connect

again.

Wireless Modem Router User Guide

- 95 -

3. Log in to the device, select Advanced-> Wireless-> Security and change the security settings. Then connect again.

6. Where should I place the wireless device for optimum performance?

1. Place it in the center to extend wireless coverage as far as possible.

2. Never place the device near to metal objects or in direct sunshine.

3. Keep it far away from devices that use the 2.4 GHz radio wave frequency to transmit and receive data, such as

802.11g/n wireless network devices, electronic devices such as cell phones, radio transmitters, blue tooth, cordless

phones, fax machine, refrigerator and microwaves to avoid electronic interference.

Wireless Modem Router User Guide

- 96 -

Country

ISP

VPI

VCI

Encapsulation

Australia

Telstra

PPPoA LLC

Australia

GoldenIT

_PPPOA_VCMUX

Australia

Telstra Bigpond

PPPOE_LLC

Australia

OptusNET

PPPOE_VCMUX

Australia

AAPT

PPPOE_VCMUX

Australia

ADSL Direct

PPPOE_LLC

Australia

Ausie Broadband

PPPOE_LLC

Australia

Australia On Line

PPPOA_VCMUX

Australia

Connexus

PPPOE_LLC

Australia

Dodo

PPPOE_LLC

Australia

Gotalk

PPPOE_VCMUX

Australia

Internode

PPPOE_VCMUX

Australia

iPrimus

PPPOA_VCMUX

Australia

Netspace

PPPOE_VCMUX

Australia

Southern Cross Telco

PPPOE_LLC

Australia

TPG Internet

PPPOE_LLC

Argentina

Telecom

PPPoE LLC

Argentina

Telefonica

PPPoE LLC

Argentina

1 33

PPPoA VC-MUX

Belgium

ADSL Office

1483 Routed IP LLC

Belgium

Turboline

PPPoA LLC

Bolivia

0 34

1483 Routed IP LLC

Brazil

Brasil Telcom

PPPoE LLC

Brazil

Telefonica

PPPoE LLC

Brazil

Telmar

PPPoE LLC

Brazil

South Region

PPPoE LLC

Colombia

EMCALI

PPPoA VC-MUX

Columbia

ETB 0 33

PPPoE LLC

Costa Rica

ICE 1 50

1483 Routed IP LLC

Denmark

Cybercity, Tiscali

PPPoA VC-MUX

France (1)

Orange

PPPoE LLC

France (2)

8 67

PPPoE LLC

France (3)

SFR 8 35

PPPoA VC-MUX

Germany

1 32

PPPoE LLC

Hungary

Sci-Network

PPPoE LLC

Iceland

Islandssimi

PPPoA VC-MUX

Appendix 4 VPI/VCI List

The following table lists common ISPs and their VPI and VCI numbers. If you cannot locate your ISP and their VPI and

VCI information here, ask your ISP to provide it.

Wireless Modem Router User Guide

- 97 -

Iceland

Siminn

PPPoA VC-MUX

Israel

8 35

PPPoA VC-MUX

Italy

8 35

PPPoA VC-MUX

Iran (1)

0 35

PPPoE LLC

Iran (2)

8 81

PPPoE LLC

Israel(1)

8 48

PPPoA VC-MUX

Jamaica (1)

8 35

PPPoA VC-MUX

Jamaica (2)

0 35

PPPoA VC-MUX

Jamaica (3)

8 35

1483 Bridged IP LLC SNAP

Jamaica (4)

0 35

1483 Bridged IP LLC SNAP

Kazakhstan

0 33

PPPoA VC-MUX

Malaysia

0 35

PPPoE LLC

Mexico

Telmex (1)

PPPoE LLC

Mexico

Telmex (2)

PPPoE LLC

Mexico

Telmex (3)

PPPoE LLC

Mexico

Telmex (4)

PPPoE LLC

Netherlands

BBNED

PPPoA VC-MUX

Netherlands

MX Stream

PPPoA VC-MUX

New Zealand

Xtra 0 35

PPPoA VC-MUX

New Zealand

Slingshot

100

PPPoA VC-MUX

Pakistan (cyber net)

8 35

PPPoE LLC

Pakistan (linkDotnet)

0 35

PPPoA LLC

Pakistan(PTCL)

8 81

PPPoE LLc

Portugal

0 35

PPPoE LLC

Puerto Rico

Coqui.net

PPPoA LLC

Saudi Arabia (1)

0 33

PPPoE LLC

Saudi Arabia (2)

0 35

PPPoE LLC

Saudi Arabia (3)

0 33

1483 Bridged IP LLC

Saudi Arabia (4)

0 33

1483 Routed IP LLC

Saudi Arabia (5)

0 35

1483 Bridged IP LLC

Saudi Arabia (6)

0 35

1483 Routed IP LLC

Spain

Albura, Tiscali

PPPoA VC-MUX

Spain

Colt Telecom, Ola Internet

PPPoA VC-MUX

Spain

EresMas, Retevision

PPPoA VC-MUX

Spain

Telefonica (1)

PPPoE LLC

Spain

Telefonica (2), Terra

1483 Routed IP LLC

Spain

Wanadoo (1)

PPPoA VC-MUX

Spain

Wanadoo (2)

PPPoE LLC

Spain

Wanadoo (3)

1483 Routed IP LLC

Sweden

Telenordia

PPPoE

Sweden

Telia

1483 Routed IP LLC

Switzerland

8 35

PPPoE LLC

Trinidad & Tobago

TSTT

PPPoA VC-MUX

Turkey (1)

8 35

PPPoE LLC

Wireless Modem Router User Guide

- 98 -

Turkey (2)

8 35

PPPoA VC-MUX

Thailand

TRUE

100

PPPoE LLC

Thailand

TOT

PPPoE LLC

Thailand

3BB 0 33

PPPoE LLC

Thailand

Cat Telecom

PPPoE LLC

Thailand

BuddyBB

PPPoE LLC

United States

4DV.Net

PPPoA VC-MUX

United States

All Tel (1)

PPPoE LLC

United States

All Tel (2)

1483 Bridged IP LLC

United States

Ameritech

PPPoA LLC

United States

AT&T (1)

PPPoE LLC

United States

AT&T (2)

1483 Bridged IP LLC

United States

AT&T (3)

1483 Bridged IP LLC

United States

August.net (1)

1483 Bridged IP LLC

United States

August.net (2)

1483 Bridged IP LLC

United States

BellSouth

PPPoE LLC

United States

Casstle.Net

1483 Bridged IP LLC

United States

CenturyTel (1)

PPPoE LLC

United States

CenturyTel (2)

1483 Bridged IP LLC

United States

Coqui.net

PPPoA LLC

United States

Covad

PPPoE LLC

United States

Earthlink (1)

PPPoE LLC

United States

Earthlink (2)

PPPoE LLC

United States

Earthlink (3)

PPPoE VC-MUX

United States

Earthlink (4)

PPPoA LLC

United States

Eastex

100

PPPoA LLC

United States

Embarq

1483 Bridged IP LLC

United States

Frontier

PPPoE LLC

United States

Grande ommunications

PPPoE LLC

United States

GWI

1483 Bridged IP LLC

United States

Hotwire

1483 Bridged IP LLC

United States

Internet Junction

1484 Bridged IP LLC

United States

PVT 0 35

1485 Bridged IP LLC

United States

QWest (1)

PPPoALLC

United States

QWest (2)

PPPoA VC-MUX

United States

QWest (3)

1483 Bridged IP LLC

United States

QWest (4)

PPPoE LLC

United States

SBC (1)

PPPoE LLC

United States

SBC (2)

1483 Bridged IP LLC

United States

SBC (3)

1483 Bridged IP LLC

United States

Sonic

1484 Bridged IP LLC

United States

SouthWestern Bell

1483 Bridged IP LLC

United States

Sprint (1)

PPPoALLC

United States

Sprint (2)

PPPoE LLC

Wireless Modem Router User Guide

- 99 -

United States

Sprint Territory

PPPoE LLC

United States

SureWest Communications(1)

1483 Bridged LLC Snap

United States

SureWest Communications(2)

PPPoE LLC

United States

SureWest Communications(3)

PPPoA LLC

United States

Toast.Net

PPPoE LLC

United States

Uniserv

1483 Bridged IP LLC

United States

US West

PPPoA VC-MUX

United States

Verizon (1)

PPPoE LLC

United States

Verizon (2)

1483 Bridged IP LLC

United States

Windstream

PPPoE LLC

Canada

Primus Canada

PPPoE LLC

Canada

Rogers Canada (1)

PPPoE LLC

Canada

Rogers Canada (2)

1483 Bridged IP LLC

Canada

Rogers Canada (3)

1484 Bridged IP LLC

Canada

BellSouth(1) Canada

PPPoE LLC

Canada

BellSouth(2) Canada

PPPoE LLC

Canada

Sprint (1) Canada

PPPoA LLC

Canada

Sprint (2) Canada

PPPoE LLC

Canada

Verizon (1) Canada

PPPoE LLC

Canada

Verizon (2) Canada

1483 Bridged IP LLC

United States

Verizon (2)

1483 Bridged IP LLC

United Kingdom (1)

0 38

PPPoA VC-MUX

United Kingdom (2)

0 38

PPPoE LLC

United Kingdom

AOL

PPPoE VC-MUX

United Kingdom

Karoo

PPPoA LLC

Venezuela

CANTV

1483 Routed IP LLC

Vietnam

0 35

PPPoE LLC

Vietnam

VDC

PPPoE LLC

Vietnam

Viettel

PPPoE LLC

Vietnam

FPT 0 33

PPPoE LLC

Russia

Rostel

PPPoE LLC

Russia

Port telecom

PPPoE LLC

Russia

VNTC

PPPoE LLC

Uzbekistan

Sharq Stream

PPPoE LLC

Uzbekistan

Sarkor

PPPoE LLC

Uzbekistan

TShTT

PPPoE LLC

Kazakhstan

Kazakhtelecom «Megaline»

LLC/SNAP Bridging

Spain

Arrakis

1483 Bridged IP VC-MUX

Spain

Auna

1483 Bridged IP VC-MUX

Spain

Comunitel

1483 Bridged IP VC-MUX

Wireless Modem Router User Guide

- 100 -

Spain

Eresmas

1483 Bridged IP VC-MUX

Spain

Jazztel

IPOE VC-MUX

Spain

Jazztel ADSL2+ / Desagregado

1483 Bridged IP

LLC-BRIDGING

Spain

OpenforYou

1483 Bridged IP VC-MUX

Spain

Tele2

1483 Bridged IP VC-MUX

Spain

Telefónica (España)

1483 Bridged IP LLC/SNAP

Telefónica (Argentina)

8 35

1483 Bridged IP LLC-based

Telefónica (Perú)

8 48

1483 Bridged IP VC-MUX

Spain

Terra

1483 Bridged IP LLC/SNAP

Spain

Terra

1483 Bridged IP LLC/SNAP

Spain

Uni2

1483 Bridged IP VC-MUX

Spain

Orange

1483 Bridged IP VC-MUX

Spain

Orange 20 Megas

LLC-BRIDGING

Spain

Orange

1483 Bridged IP LLC/SNAP

Spain

Ya.com

1483 Bridged IP VC - MUX

Spain

Ya.com

1483 Bridged IP LLC/SNAP

France

Free 8 36

LLC

Netherlands

MXSTREAM

1483 Bridged IP LLC

Netherlands

BBNED

1483 Bridged IP LLC

Belgium

Turboline

1483 Bridged IP LLC

Belgium

ADSL Office

1483 Bridged IP LLC

0 38

1483 Bridged IP LLC

Italy

8 35

1483 Bridged IP LLC

Switzerland

8 35

1483 Bridged IP LLC

SpainWanadoo

8 32

1483 Bridged IP LLC

Czech Republic

1483 Bridged IP LLC

Dubai

1483 Bridged IP LLC

UAE (Al sahmil)

1483 Bridged IP LLC

Egypt:

TE-data

1483 Bridged IP LLC

Egypt:

Linkdsl

1483 Bridged IP LLC

Egypt:

Vodafone

1483 Bridged IP LLC

kuwait unitednetwork

1483 Bridged IP LLC

Pakistan

(PALESTINE)

1483 Bridged IP LLC

Dominican Republic

1483 Bridged IP LLC

Orange Nyumbani

(Kenya)

PPPoE LLC

Pakistan for PTCL

103

1483 Bridged IP LLC

Sri Lanka

Telecom-(SLT)

PPPOE LLC

Philippines(1)

1483 Bridged IP LLC

Philippines(2)

100

1483 Bridged IP LLC

RomTelecom

Romania:

1483 Bridged IP LLC

Wireless Modem Router User Guide

- 101 -

Finland

Iran Iran

Asia-Tech

PPPOE LLC

Iran

Iran Iran

Iran

India

India India

India

morocco

Malaysia

Indonesia Speedy

Telkomnet

Saunalahti

Elisa

DNA

Sonera

[Shatel]

Aria-Rasaneh-Tadbir

Pars-Online (Tehran)

Pars-Online (Provinces)

[Saba-Net]

Neda-Gostar-Saba

Pishgaman-Tose

Fan-Ava

Datak

Laser (General)

Laser (Privates)

Asr-Enteghal-Dadeha

Kara-Amin-Ertebat

ITC

Dadegostar Asre Novin

Airtel

BSNL

MTNL

RELIANCE

COMMUNICATION

TATA INDICOM

CONNECT

0 100 1483 Bridged IP LLC

0 35 1483 Bridged IP LLC

0 35 PPPOE LLC

0 59 PPPOE LLC

0 35 PPPOE LLC

8 35 PPPOE LLC

0 35 PPPOE LLC

0 32 PPPOE LLC

8 35 PPPOE LLC

0 33 PPPOE LLC

0 35 PPPOE LLC

0 33 PPPOE LLC

1 32 1483 Bridged IP LLC

0 35 1483 Bridged IP LLC

0 35 PPPOE LLC

0 32 PPPOE LLC

1 32 PPPOE LLC

IAM

Streamyx

8 35 PPPOE

0 35 PPPOE LLC

8 81 PPPoE LLC

Wireless Modem Router User Guide

Appendix 5 Regulatory Compliance Information

CE Mark Warning

This is a Class B product In a domestic environment,this product may cause radio interference,in which case the user

may be required to take adequate measures.This device complies with EU 1999/5/EC.

NOTE:(1)The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to

this equipment.(2) To avoid unnecessary radiation interference, it is recommended to use a shielded RJ45 cable



FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This

device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of

the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference

to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to

try to correct the interference by one of the following measures:

ȍ Reorient or relocate the receiving antenna.

ȍ Increase the separation between the equipment and receiver.

ȍ Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

ȍ Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void

the user's authority to operate this equipment.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

- 102 -

Wireless Modem Router User Guide

The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this

equipment.

Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment

should be installed and operated with minimum distance 20cm between the radiator & your body.

NOTE: (1)The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to

this equipment.(2) To avoid unnecessary radiation interference, it is recommended to use a shielded RJ45 cable

IC RSS warning

This device complies with Industry Canada licence-exempt RSS standard (s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference,including interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.



Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that, the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante.

(1/2) This radio transmitter (identify the device by certification number, or model number if Category II) has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.

Le présent émetteur radio (identifier le dispositif par son numéro de certification ou son numéro de modèle s'il fait partie du matériel de catégorie I) a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal etl'impédance requise pour chaque type d'antenne. Les types d'antenne non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur.

IC Radiation Exposure Statement:

This equipment complies with IC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

- 103 -



TENDA TECHNOLOGY D301, D151 Users Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
