TENDA TECHNOLOGY D1201 User Manual

Wireless AC1200 ADSL2+ Dual Band Modem Router

is the registered trademark of Shenzhen Tenda Technology Co., Ltd. All the products and product names mentioned herein are the trademarks or registered trademarks of their respective holders. Copyright of the whole product as integration, including its accessories and software, belongs to Shenzhen Tenda Technology Co., Ltd. No part of this publication can be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means without the prior written permission of Shenzhen Tenda Technology Co., Ltd. If you would like to know more about our product information, please visit our website at http://www.tendacn.com.

Disclaimer

Pictures, images and product specifications herein are for references only. To improve internal design, operational function, and/or reliability, Tenda reserves the right to make changes to the products without obligati on to notify any person or organization of such revisions or changes. Tenda does not assume any liability that may occur due to the use or application of the product described herein. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information and recommendations in this document do not constitute the warranty of any kind, express or implied.

Technical Support

Website: http://www.tendacn.com Telephone: (86 755) 2765 7180 E-mail: support@tenda.com.cn

Wireless AC1200 ADSL2+ Dual Band Modem Router

Contents

Chapter 1 Get to Know Your Router ..................................................................................................................................... 1

1. What it does .............................................................................................................................................................. 1

2. Product Features ........................................................................................................................................................ 1

3. Package Contents ...................................................................................................................................................... 2

Chapter 2 Hardware Install ................................................................................................................................................... 3

1. LED Indicators, Buttons and Interfaces .................................................................................................................... 3

2. Install the device ....................................................................................................................................................... 5

Chapter 3 Quick Internet Setup ............................................................................................................................................. 7

1. Log in to Web Manager ............................................................................................................................................. 7

2. Internet Setup ............................................................................................................................................................ 9

2.1 ADSL Mode .................................................................................................................................................... 9

2.2 Ethernet Mode ............................................................................................................................................... 10

2.3 T est Internet Connectivity ............................................................................................................................. 12

Chapter 4 Advanced Settings .............................................................................................................................................. 13

1. Device Info .............................................................................................................................................................. 13

1.1 Summary ....................................................................................................................................................... 13

1.2 WAN .............................................................................................................................................................. 14

1.3 Statistics ........................................................................................................................................................ 14

1.4 Route ............................................................................................................................................................. 16

1.5 ARP ............................................................................................................................................................... 16

1.6 DHCP ............................................................................................................................................................ 16

2. Advanced Setup....................................................................................................................................................... 17

2.1 Layer2 Interface ............................................................................................................................................ 17

2.2 WAN Service ................................................................................................................................................. 19

2.3 LAN .............................................................................................................................................................. 89

2.4 NAT ............................................................................................................................................................... 92

2.5 Security ......................................................................................................................................................... 99

2.6 Parental Control .......................................................................................................................................... 102

2.7 Bandwidth Control ...................................................................................................................................... 104

2.8 Routing ........................................................................................................................................................ 105

2.9 DNS

2.10 DSL ........................................................................................................................................................... 112

2.11 UPnP ......................................................................................................................................................... 114

2.12 Print Server ............................................................................................................................................... 115

2.13 Storage Service .......................................................................................................................................... 121

2.14 Interface Grouping .................................................................................................................................... 124

2.15 IP Tunnel ................................................................................................................................................... 127

2.16 Certificate .................................................................................................................................................. 129

2.17 Multicast.................................................................................................................................................... 133

2.18 IPTV .......................................................................................................................................................... 134

3. Wireless ................................................................................................................................................................. 135

3.1 2.4G ............................................................................................................................................................. 135

3.2 5G ................................................................................................................................................................ 141

4. Diagnostics ............................................................................................................................................................ 148

4.1 Diagnostics .................................................................................................................................................. 148

4.2 Ping test ....................................................................................................................................................... 148

............................................................................................................................................................. 108

iii

Wireless AC1200 ADSL2+ Dual Band Modem Router

5. Management .......................................................................................................................................................... 149

5.1 Settings ........................................................................................................................................................ 149

5.2 System Log ................................................................................................................................................. 151

5.3 SNMP Agent ............................................................................................................................................... 152

5.4 Internet Time ............................................................................................................................................... 153

5.5 Access Control ............................................................................................................................................ 154

5.6 Update Firmware ......................................................................................................................................... 155

5.7 Reboot ......................................................................................................................................................... 156

Appendix 1 Configure Your PC ........................................................................................................................................ 157

Windows 8 ................................................................................................................................................................ 157

Windows 7 ................................................................................................................................................................ 159

Windows XP ............................................................................................................................................................. 161

MAC ......................................................................................................................................................................... 162

Appendix 2 WiFi Connection ........................................................................................................................................... 164

Windows 8 ................................................................................................................................................................ 164

Windows 7 ................................................................................................................................................................ 165

Windows XP ............................................................................................................................................................. 166

MAC ......................................................................................................................................................................... 167

iPhone/iPad ............................................................................................................................................................... 169

Appendix 3 FAQs .............................................................................................................................................................. 171

Appendix 4 VPI/VCI List ................................................................................................................................................. 173

Appendix 5 Regulatory Compliance Information ............................................................................................................. 181

Wireless AC1200 ADSL2+ Dual Band Modem Router

Chapter 1 Get to Know Your Router

1. What it does

The Wireless AC1200 ADSL2+ Dual Band Modem Router provides you with an easy and secure way to set up a wireless

home network with fast access to the Internet over a high-speed digital subscriber line (DSL). Complete with a built-in

ADSL modem, it is compatible with all major ADSL Internet service providers. It offers wireless speed of up to

1200Mbps (2.4G: 300Mbps; 5G: 900Mbps) needed for demanding applications, such as large file transfers, streaming

HD video, and multiplayer gaming. The unit comes with a wide range of premium features and applications such as IPv6,

SNMP, Multicast, IP tunnel, ready share USB, IPTV service and parental controls, etc. Plus, with the router, you can

access the Internet via the ATM interface or Ethernet interface.

2. Product Features

Wireless AC speeds up to 1200 Mbps for streaming HD videos and online gaming in addition to basic Internet

applications

All-in-one device combines a Built-in ADSL2+ modem, wired router, wireless router and switch Sharable USB lets you access and share files on an attached USB hard drive Sharable Printer lets you print from your Windows computer to a connected USB printer Advanced QoS helps prioritize media streaming and gaming applications for best entertainment experience Paren tal Control keeps your kids Internet experience safe using flexible and customizable filter settings One-touch WPS ensures a quick and secure network connection WEP and WPA/WPA2 are supported for advanced encryptions Compatibility: Works with all major ADSL Internet service providers (ISPs); backward compatible with 802.11b/g WiFi

devices

Interchangeable LAN/WAN ports to schedule the Ethernet port to function either as a LAN or a WAN port Interchangeable LAN/IPTV to schedule the Ethernet port to function either as a LAN or an IPTV port Optional Ethernet and ADSL Uplinks: Access the Internet via ADSL2+ Broadband Internet Service or an

interchangeable LAN/WAN RJ45 port

Multiple Internet Connection Types: Bridging, PPPoE, IPoE, PPPoA, IPoA, dynamic IP and static IP IPTV Service lets your surf the Internet while watching online TV 6000V lightning－proof design fits into lightni ng-intensive environment

Wireless AC1200 ADSL2+ Dual Band Modem Router

Strong driving capability up to 6.5Km transmission distance High speed ADSL speed up to 24Mbps downstream 1Mbps upstream Built-in firewall prevents hacker attacks Channel auto-select for optimum performance FDM technology enables telephoning, faxing and surfing activities to proceed simultaneously without mutual

interference

Other Advanced Features: IPv6, DDNS, virtual server, DMZ, port triggering, IP filter, MAC filter and UPnP, etc. Tenda Setup Wizard for easy and fast installation and configuration Tenda Green: Use hardware Power On/Off and software WiFi On/Off buttons to turn on and off power and WiFi to save

energy when not in use

3. Package Contents

Your box should contain the following items:

¾ Wireless AC1200 ADSL2+ Dual Band Modem Router ¾ Phone Cable ¾ Ethernet Cable ¾ ADSL Splitter ¾ Install Guide ¾ Power Adapter

If any of the parts are incorrect, missing, or damaged, keep the carton, including the original packing materials and

contact the dealer for immediate replacement.

Wireless AC1200 ADSL2+ Dual Band Modem Router

Chapter 2 Hardware Install

You can also set up your new router instead of using the Install Guide that comes in the box. Th is chapter walks you

through the hardware install.

1. LED Indicators, Buttons and Interfaces

Front Panel

LED Status Description

Solid Power is supplied to the device.

PWR

Off Power is not supplied to the device.

Blinking System is functioning correctly.

SYS

Solid/Off System is functioning incorrectly.

Blinking Transmitting data wirelessly

WLAN

DSL

Off Wireless is disabled.

Solid Wireless is enabled.

Slow Blinking Physical connection failure.

Fast Blinking Synchronizing...

Solid ADSL connection is established.

LAN 1/2/3/4

Off No connection established

Blinking Transmitting data

Solid Connection is established.

Wireless AC1200 ADSL2+ Dual Band Modem Router

Solid Client connected successfully.

WPS

USB

INTERNET

Back Panel

Blinking WPS LED starts blinking if you press the WPS button on the device or interface.

Off No wireless clients are connected. WPS LED turns off after blinking for 2 minutes.

Solid Connection is successfully established on the USB port.

Off Connection is not established on the USB port.

Solid Current client is connecting to the Internet; no data is transmitted via the Internet.

Blinking Current client is connecting to the Internet; data is transmitted via the Internet.

Off Current Internet client is not connecting to the Internet.

Button & Interface Description

DSL For connecting the router to the Internet via a phone cable p rovided by your ISP.

LAN port or WAN port. When you access the Internet via the DSL, this port works as a LAN

port which can be used to connect to a PC, a switch, or a router; when you access the Internet

1/WAN

2/3

4/iTV

via an Ethernet cable from your ISP directly, this port works as a WAN port, but this port

works as a LAN port by default, you need to go to the Management webpage to select

Ethernet type (namely, stimulate this port to function as a WAN port).

LAN port, used to cable the device to the local network devices such as computers.

LAN port or IPTV port. When IPTV feature is disabled, it works as a LAN port which can be

used to connect to a PC, switch or a router; when IPTV feature is enabled, it works as an IPTV

port, and it can only be connected to a Set-Top Box. Note: IPTV feature is disabled by default.

USB Used to connect a USB device, such as a 3G USB modem, USB print server or storage

service.

Wireless AC1200 ADSL2+ Dual Band Modem Router

Press it for 1-3 seconds to enable WPS-PBC feature;

RST/WPS

Press it for 8 seconds to restore all configurations to factory defaults.

DC Used to connect to the power adapter, which is included in the package.

ON/OFF Power switch to turn the router on or off.

2. Install the device

n Connect the included power adapter to your router and turn on the router. o Connect your computer to your router. (You can also wirelessly connect the router to one wireless device by

connecting to its SSID—wireless network name, and then enter the default username and password admin/admin, for

entering the management web to configure the router. SSID and default username/password, see the bottom label of the

router.)

p Connect your router to the Internet. Choose ADSL Mode or Ethernet Mode according to your actual Internet service

type.

Wireless AC1200 ADSL2+ Dual Band Modem Router

With a telephone Simply connect the DSL line to the DSL port of your router.

Use the splitter as a medium:

ADSL Mode

Ethernet Mode

If your ISP provides

you a DSL line

If your ISP provides

you an Ethernet cable

1) Connect the DSL line from the Internet side to the LINE port of the splitter;

Without a telephone

2) Connect the telephone with a phone cable to the PHONE port of the splitter;

3) Connect the MODEM port of the splitter and DSL port of your router via another phone cable.

Do not go to

p (connect the Ethernet cable to the 1/WAN port) until you finish the

Primary Setup of Internet connection type on the Web Management Homepage, i.e., finish settings in Ethernet Mode in Chapter 3 Quick Internet Setup >3.2 Internet

Setup.

Wireless AC1200 ADSL2+ Dual Band Modem Router

Chapter 3 Quick Internet Setup

This chapter instructs you to quickl y set up your Internet connection.

1. Log in to Web Manager

Preparation for logging in to web manager:

 Method 1: Using Resource CD

n Insert the included resource CD into your computer’s driver and the CD automatically runs. If it does not, double

click

, and you will see the screen below.

o Click Run and it will automatically configure your PC’s TCP/IP properties. If your PC is successfully configured, the

 Method 2: Using a Web Browser

n Set your PC to Obtain an IP address automatically. For more information, see Appen di x 1 Confi gure Your PC. o Launch a web browser and enter 192.168.1.1 in the address bar.

Wireless AC1200 ADSL2+ Dual Band Modem Router

p Enter admin in both the Login Username and Password fields if you access the router for the first time and then click

Tip

If you change the login username and password and forget them, press the RST/WPS button on the device for at least 8

seconds to reset the router, and then enter the home page with the default name and password “admin” to reconfigure all settings you need.

Wireless AC1200 ADSL2+ Dual Band Modem Router

2. Internet Setup

2.1 ADSL Mode

n Connection Mode: Select ADSL mode. o Country: Select your country. p ISP: Select your ISP. q VPI/VCI: This two fields will be populated automatically if you select a correct country and I S P. r Connection Type: Select your Connection Type, and fill the relevant Internet information. If you are not clear about

this info, contact and consult your ISP.

Connection T ype ISP Information

Enter the ISP user name and password. If you are not clear about this information,

PPPoE/ PPPoA

ask your ISP to provide it.

Dynamic IP No entries are needed.

IPoE

Static IP Ent er th e a ssign ed IP address, subnet mask, and the IP address of your ISP’s primary



Wireless AC1200 ADSL2+ Dual Band Modem Router

DNS server. This information should have been provided to you by your ISP. If a

secondary DNS server address is available, enter it also.

Enter the assigned IP address, subnet mask, and the IP address of your ISP’s primary

IPoA Static IP

Bridge



Note

If your country and/or your ISP are not covered on the home page, select Other and configure the VPI and VCI value

manually. If you do not know this information, ask your ISP to provide it. Also you can refer to Appendix 4 VPI/VCI

List.

DNS server. This information should have been provided to you by your ISP. If a

secondary DNS server address is available, enter it also. When Bridge mode is enabled, the router works as a modem. If you wish to initiate

a dialup directly from your PC for Internet access or enjoy the entire Internet connection by yourself (instead of sharing it with others), you can select Bridge.



2.2 Ethernet Mode

n Connection Mode: Select ETH mode. o Connection Type: Select your Connection Type, and fill the relevant Internet information. If you are not clear about

this info, contact and consult your ISP.

Wireless AC1200 ADSL2+ Dual Band Modem Router

Connection T ype ISP Information

Dynamic IP No entries are needed.

IPoE

Static IP

PPPoE

Enter the Internet info (IP address, subnet mask, gateway and DNS server address) provided by your ISP.

Enter the username and password provided by your ISP.

When Bridge mode is enabled, the router works as a modem. If you wish to initiate

Bridge

a dialup directly from your PC for Internet access or enjoy the entire Internet connection by yourself (instead of sharing it with others), you can select Bridge.

Note

After saving the Ethernet mode settings, you will see a note prompt to tell you the connection status Disconnected and

asks you to insert the Ethernet cable to 1/WAN port.

And then you need to connect the Ethernet cable from the Internet side provided by your ISP to the 1/WAN port, i.e. to

p there in Ethernet Mode in Chapter 2 Hardware Install-> 2.2 Install the Device.

finish

For your network security, please finish this part of settings. (Recommended)

Quick Wireless Setup:

 Set wireless SSID  Set the wireless password.  Click OK to apply all the configurations on this page (including Primary Setup)

Wireless AC1200 ADSL2+ Dual Band Modem Router

2.3 Test Internet Connectivity

If Connection Status shows Connected shown as below, you access the Internet now.

Try to launch a web browser and enter www.tendacn.com. If the webpage displays properly, you are successfully

connected to the Internet.

Wireless AC1200 ADSL2+ Dual Band Modem Router

Chapter 4 Advanced Settings

If you prefer configuring your modem router for unique situations, consult this chapter to know advanced features.

Click

on the home page to enter the screen below.

1. Device Info

1.1 Summary

Here you can view system information and current status of your WAN connection as seen in the screenshot.

Wireless AC1200 ADSL2+ Dual Band Modem Router

1.2 WAN

Here you can view the WAN Information including Interface, Description, Type, IGMP, NAT, Firewall, Status, IPv4

Address as seen in the screenshot.

1.3 Statistics

Here you can view the packets received and transmitted on LAN and WAN ports.

Statistics--LAN: Displays the packets received and transmitted on the LAN ports as seen in the screenshot below.

Wireless AC1200 ADSL2+ Dual Band Modem Router

Statistics--WAN: Displays the packets received and transmitted on the WAN (eth0.1) port as seen in the screenshot

below.

Statistics-xDSL: Displays the packets received and transmitted on the DSL port.

Wireless AC1200 ADSL2+ Dual Band Modem Router

1.4 Route

Here you can view the route table as seen in the screenshot:

1.5 ARP

Here you can view the IP and MAC addresses of the PCs that attach to the device either via a wired or wireless

connection as seen in the screenshot.

1.6 DHCP

Here you can view the DHCP leases, including IP and MAC addresses of the PCs, hostnames and remaining lease time

as seen in the screenshot:

Wireless AC1200 ADSL2+ Dual Band Modem Router

2. Advanced Setup

2.1 Layer2 Interface

Click Advanced Setup > Layer2 Interface to enter the Layer2 Interface screen.

This modem router provides two Layer2 Interfaces:

- A TM Interface for ADSL broadband Internet service. (By default, system applies the ATM Interface (ADSL uplink).)

- ETH Interface for connecting to the Internet via an Ethernet cable.

¾ If you directly connect to the ADSL line via a phone cable, first refer to 2.1.1 To set up the ATM interface

skip to 2.2.1 For ATM Interface ¾ If you connect to the Internet via a fiber/cable modem using an Ethernet cable, first refer to 2.1.2 To set up the ETH

interface and then skip to 2.2.2 For ETH Interface.

and then

2.1.1 To set up the ATM interface

n Select ATM Interface and click Add to configure it.

o Enter the VPI and VCI values. Select a DSL Link Type (Internet connection type): EoA, PPPoA or IPoA. Leave

other options unchanged from factory defaults. Click Apply/Save.

Wireless AC1200 ADSL2+ Dual Band Modem Router

Go to 2.2.1 For ATM Interface to configure the WAN service for Internet access.

Tip

If you are unsure about the VPI/VCI parameters, see Appendix 4 V PI/V CI List, or ask your ISP to provide it.

Wireless AC1200 ADSL2+ Dual Band Modem Router

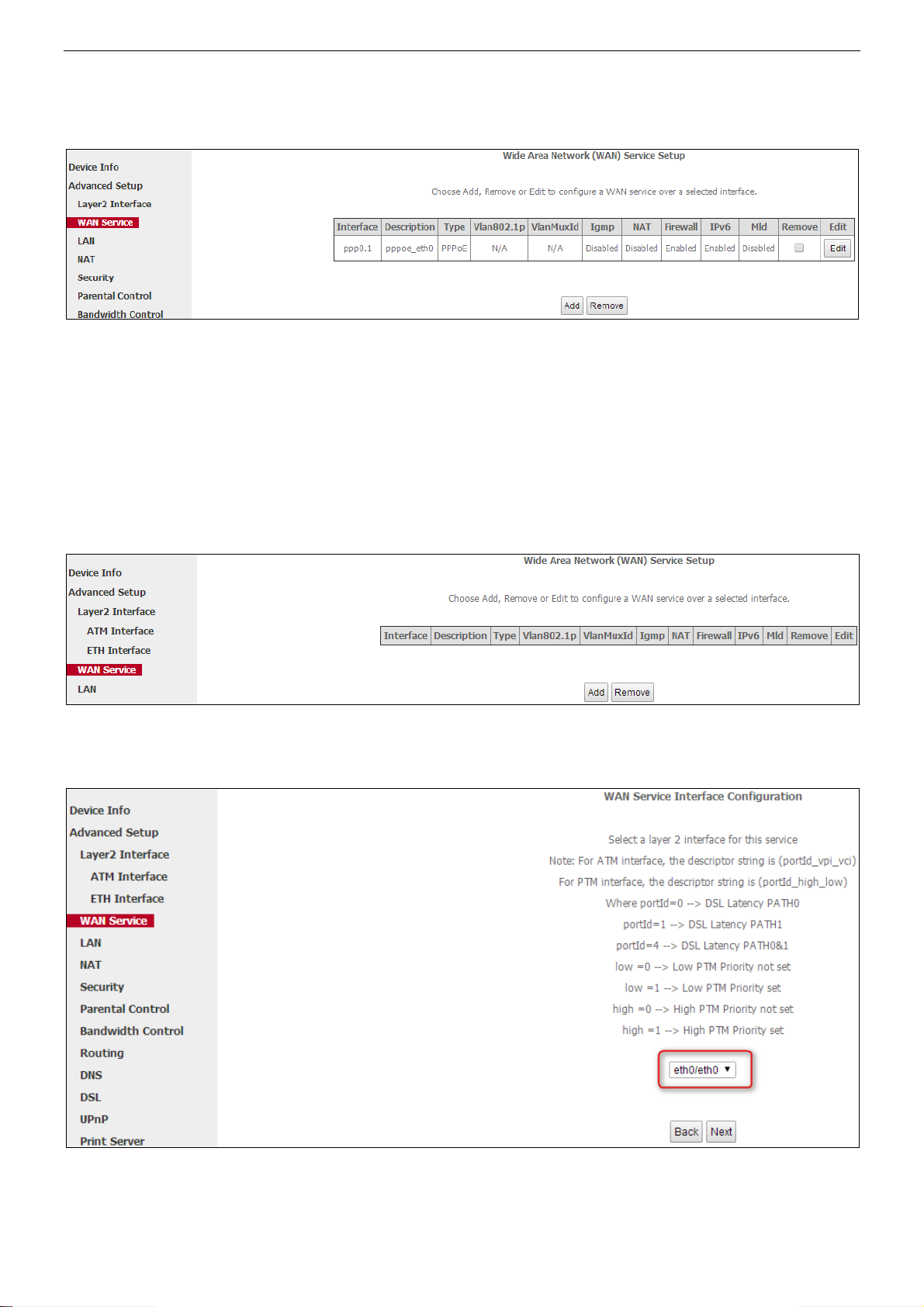

2.1.2 To set up the ETH interface

n Select ETH Interface and click Add.

o Select eth0/eth0 in the box to function as a WAN port. Only one LAN port can be configured as the WAN port at a

time. Click Apply/Save to take the settings into effect.

Go to 2.2.2 For ETH Interface to configure the WAN service for Internet access.

2.2 WAN Service

This modem router provides two WAN services:

- WAN Service for ATM Interface

- WAN Service for ETH Interface

(ADSL uplink)

(Ethernet uplink)

Wireless AC1200 ADSL2+ Dual Band Modem Router

2.2.1 For ATM Interface

Following 11 modes are for you to choose according to your actual Internet service.

PPPoE 1) IPv4 Only

EoA

PPPoA PPPoA 8) IPv4 Only 9) IPv4&IPv6(Dual Stack) 10) IPv6 Only

IPoA 11) IPoA

IPoE 4) IPv4 Only 5) IPv4&IPv6(Dual Stack) 6) IPv6 Only

7) Bridging

2) IPv4&IPv6(Dual Stack) 3) IPv6 Only

1) PPPoE IPv4 Only Users

If you configure the ATM Interface (ADSL uplink) and select EoA as the DSL link type, then you can start to set up

WAN service for accessing the Internet.

n Click Advanced Setup > WAN Service and then click the Add button.

o Select the ATM interface you added just now from the pull-down menu in the figure below. Click Next.

p Select PPP over Ethernet (PPPoE). Edit the Enter Service Description field which is optional. Suggest you keep

the default. Select a network protocol: IPv4 Only. Click Next.

Wireless AC1200 ADSL2+ Dual Band Modem Router

q Finish PPP Username and Password and other settings on the figure below. Click Next.

PPP Username/ Password: Enter your PPP username and password. If you cannot locate this information, ask your ISP

to provide it.

PPPoE Service Name: Provided by your ISP. Only enter it if instructed by your ISP. Authentication Method: Used by ISP to authenticate the client that attempts to connect. If you are not sure, consult

Wireless AC1200 ADSL2+ Dual Band Modem Router

your ISP or select AUT O. MAC Clone: When you cannot access the Internet after finishing other settings here except this option, consider whether it’s the matter of the MAC address of your computer. Clicking Clone MAC button copies the MAC address of

your computer to the modem router.

: Keep the default value unless you are sure it is necessary for your ISP connection.

MTU Dial on demand: Connect to ISP only when there is traffic transmission. This saves your broadband Internet service bill. PPP IP extension: If enabled, all the IP addresses in outgoing packets including management packets on the WAN port

will be changed to the device's WAN IP address. Only change the default settings if necessary.

Enable PPP Debug Mode: Only enable this feature if supported by your ISP. Bridge PPPoE Frames Between WAN and Local Ports: If enabled, PPPoE dialup frame from LAN side will directly

egress the WAN port without modification.

Multicast Proxy: If enabled, the modem router will use multicast proxy.

Knowledge Expansion

1. MAC Clone: Many broadband ISPs restrict access by allowing traffic only from the MAC address of your broadband

modem, but some ISPs additionally register the MAC address of your computer when your account is first opened. If so,

only by cloning the MAC address of your computer can you access the Internet through the modem router.

2. MTU

: Short for Maximum Transmission Unit, the largest physical packet size, measured in bytes, which

a network can transmit. Any messages larger than the MTU are divided into smaller packets before being sent. The

default MTU is 1492 bytes. For some ISPs, you might need to change the MTU. This is rarely required, and should not

be done unless you are sure it is necessary for your ISP connection.

r To configure the Default Gateway interface, select the interface that you want to configure with the WAN gateway

address in Available Routed WAN Interfaces box and move it into Selected Default Gateway Interfaces box. The default setting is recommended. Then click Next.

Wireless AC1200 ADSL2+ Dual Band Modem Router

s To configure the WAN DNS address, click the Select DNS Server Interface from available WAN interfaces option,

or select the Use the following Static DNS IP address option and enter the static DNS server IP addresses provided by your ISP. At last, click Next.

Click Apply/Save to save your settings if everything is correctly set.

Wireless AC1200 ADSL2+ Dual Band Modem Router

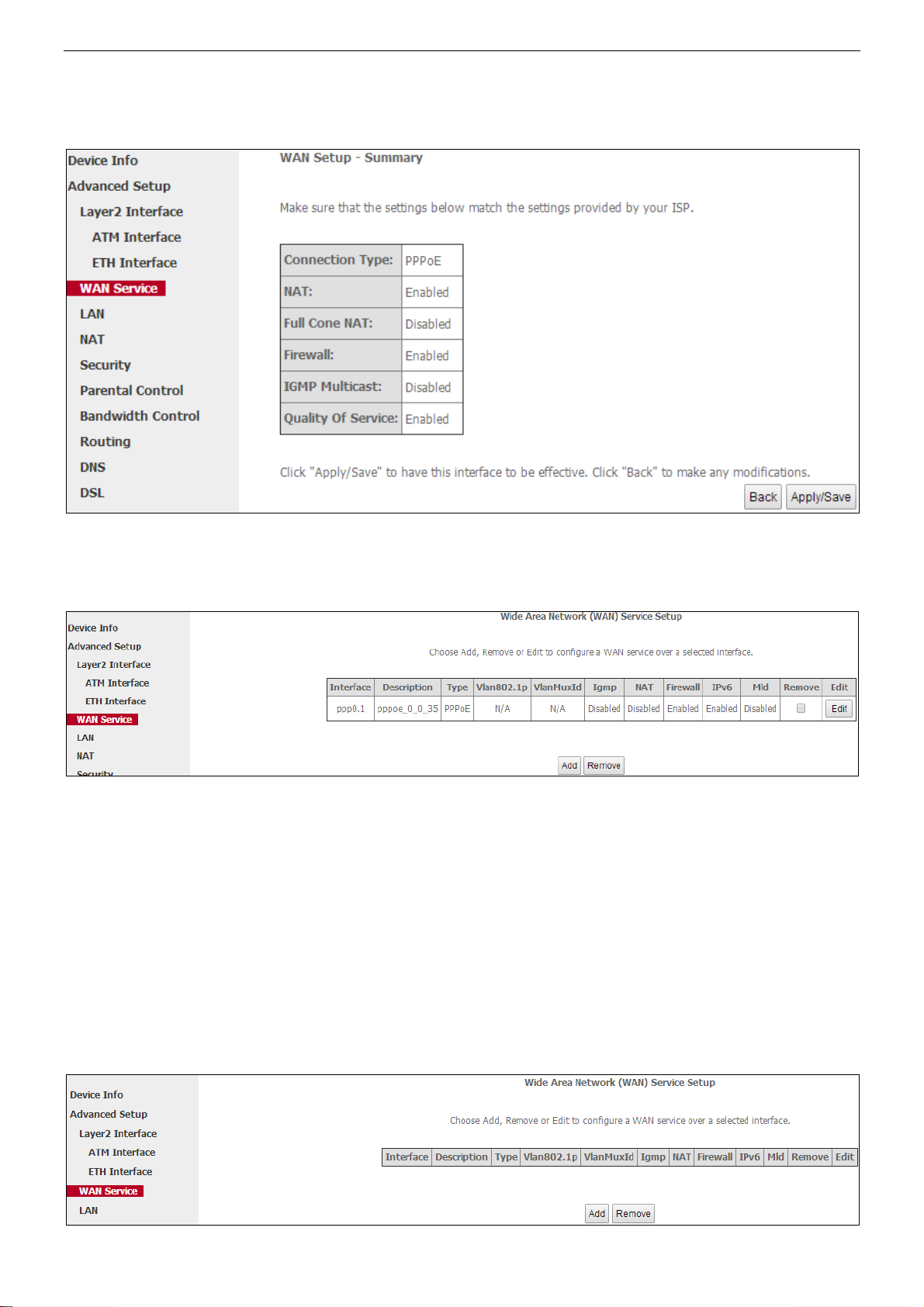

Here you can view your configurations. When the PPPoE connection is successful, you can access the Internet.

Ê Steps 1~6 above for PPPoE and IPv4 Only users

---------------------------------------------------------------------------------------------------------------------------

2) PPPoE IPv4&IPv6 (Dual Stack) Users

If you configure the ATM Interface (ADSL uplink) and select EoA as the DSL link type, then you can start to set up

WAN service for accessing the Internet.

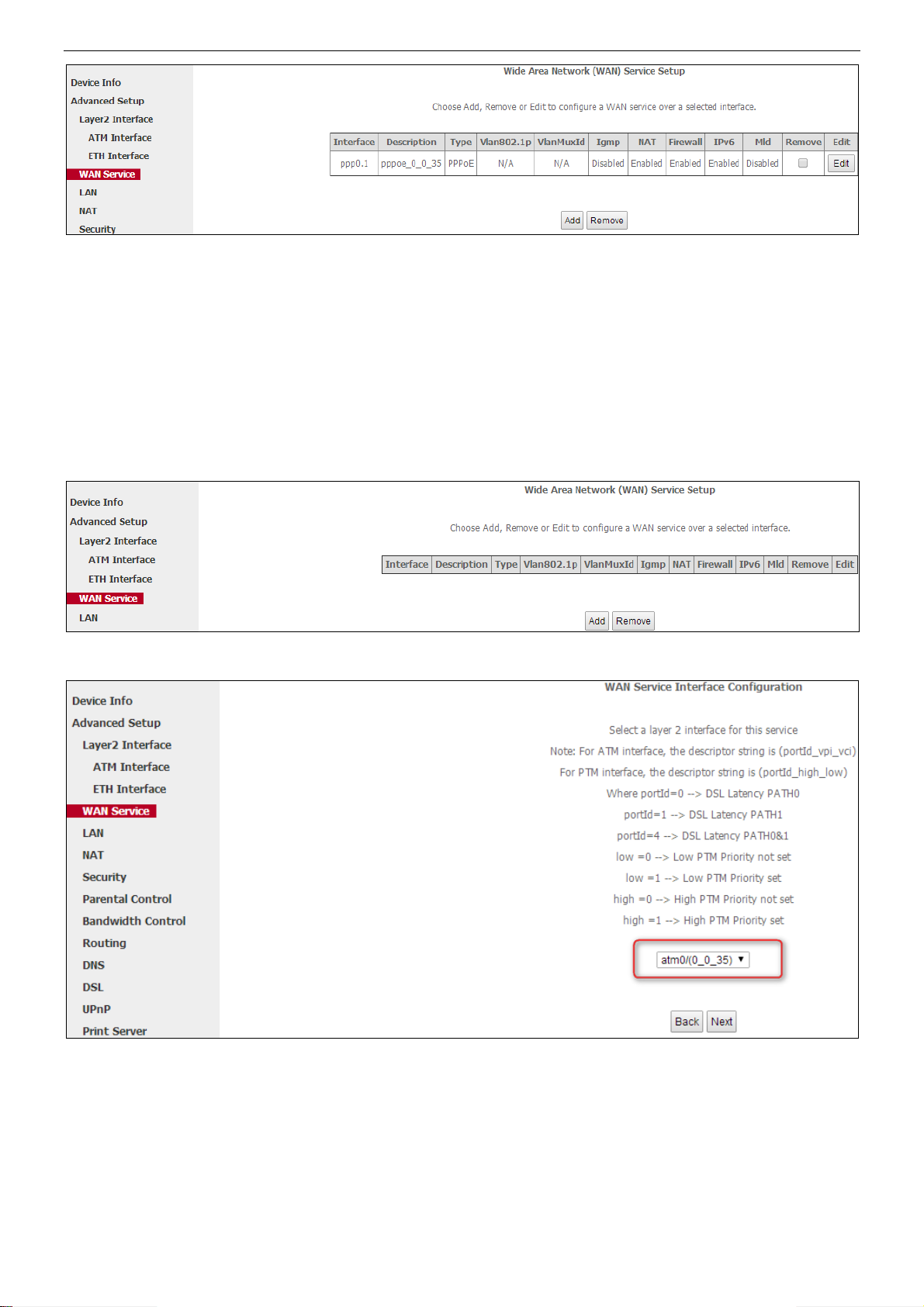

n Click Advanced Setup > WAN Service and then click the Add button.

o Select the ATM interface you added just now from the pull-down menu in the figure below. Click Next.

Wireless AC1200 ADSL2+ Dual Band Modem Router

p Select PPP over Ethernet (PPPoE). Edit the Enter Service Description field which is optional. Suggest you keep

the default. Select a network protocol you need: IPv4&IPv6 (Dual Stack). Click Next.

q Configure PPP Username and Password and other settings on the figure below. Each field with its indication is

mentioned above in PPPoE and IPv4 users- If ISP provides you no static IPv4 or IPv6 address, you just keep the default settings DHCP mode. Check Launch Dhcp6c for Prefix Delegation (IAPD). If your ISP is using stateful DHCPv6, check Launch Dhcp6c for Address Assignment (IANA) also. Click Next.

q section.

Wireless AC1200 ADSL2+ Dual Band Modem Router

If ISP provides you with the static IPv4 and IPv6 address, configure the static IP addresses by checking Use Static IPv4 Address and Use Static IPv6 Address and enter the static IPv4 and IPv6 address.

Wireless AC1200 ADSL2+ Dual Band Modem Router

r To configure the Default Gateway interface, select the interface that you want to configure with the WAN gateway

address. Then click Next.

s To configure the WAN DNS address, finish both the IPv4 setting and IPv6 setting. Click Next.

Wireless AC1200 ADSL2+ Dual Band Modem Router

Click Apply/Save to save your settings if everything is correctly set.

Here you can view your configurations. When the PPPoE connection is successful, you can access the Internet.

Wireless AC1200 ADSL2+ Dual Band Modem Router

Ê Steps 1~6 above for PPPoE and IPv4&IPv6 (Dual Stack) users

------------------------------------------------------------------------------------------------

3) PPPoE IPv6 Only Users

If you configure the ATM Interface (ADSL uplink) and select EoA as the DSL link type, then you can start to set up

WAN service for accessing the Internet.

n Click Advanced Setup > WAN Service and then click the Add button.

o Select the ATM interface you added just now from the pull-down menu in the figure below. Click Next.

p Select PPP over Ethernet (PPPoE). Edit the Enter Service Description field which is optional. Suggest you keep

the default. Select a network protocol you need: IPv6 Only. Click Next.

Wireless AC1200 ADSL2+ Dual Band Modem Router

q Configure PPP Username and Password and other settings on the figure below. Each field with its indication is

mentioned above in PPPoE and IPv4 users section.

If ISP provides you no static IPv6 address, you just keep the default settings DHCP mode. Check Launch Dhcp6c for Prefix Delegation (IAPD). If your ISP is using stateful DHCPv6, check Launch Dhcp6c for Address Assignment (IANA) also. Click Next.

Wireless AC1200 ADSL2+ Dual Band Modem Router

If ISP provides you with the static IPv6 address, configure a static IP address by checking Use Static IPv6 Address and

enter the static IPv6 address.

Wireless AC1200 ADSL2+ Dual Band Modem Router

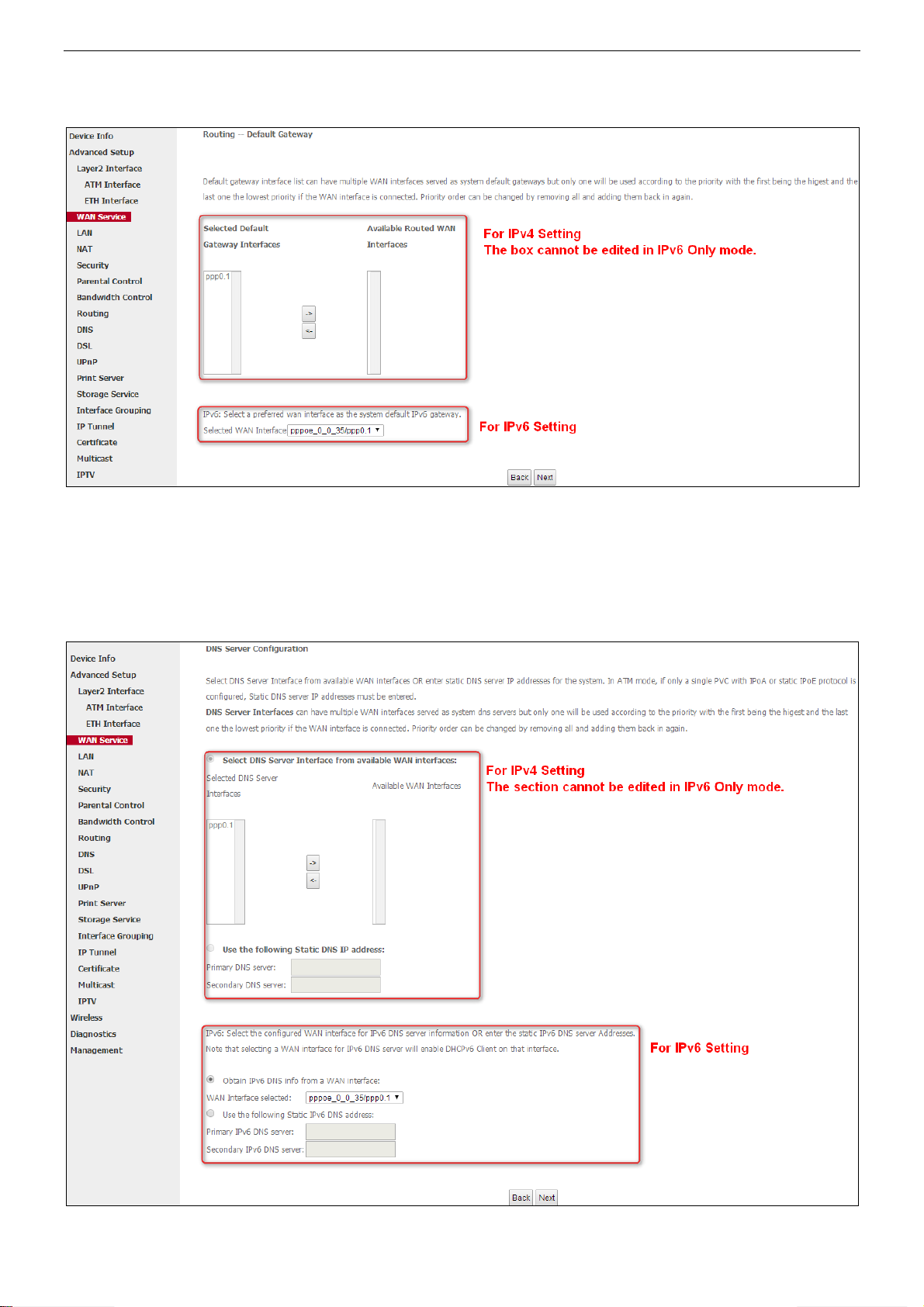

r To configure the Default Gateway interface when using IPv6, select the interface that you want to configure with the

WAN gateway address in Selected WAN Interface box. Then click Next.

s To configure the WAN DNS address, check the Obtain IPv6 DNS info from a WAN interface option, or select the

Use the following Static IPv6 DNS address option to enter the static DNS server IPv6 addresses provided by your ISP.

At last, click Next.

Wireless AC1200 ADSL2+ Dual Band Modem Router

Click Apply/Save to save your settings if everything is correctly set.

Here you can view your configurations. When the PPPoE connection is successful, you can access the Internet.

Ê Steps 1~6 above for PPPoE and IPv6 Only users

4) IPoE IPv4 Only Users

If your ISP uses DHCP to assign your IP address or if your ISP assigns you a static (fixed) IP address, IP subnet mask

and the gateway IP address, you need to select the IP over Ethernet (IPoE).

---------------------------------------------------------------------------------------------------------------------------

After you configure the ATM Interface (ADSL uplink) and select EoA as the DSL link type, you can start to set up

WAN service for accessing the Internet.

n Click Advanced Setup > WAN Service and then cl ick the Add button.

Wireless AC1200 ADSL2+ Dual Band Modem Router

o Select the ATM interface you added just now from the pull-down menu in the figure below. Click Next.

p Select IP over Ethernet. Edit the Enter Service Description which is optional. Suggest you keep the default. Select

a network protocol: IPv4 Only. Click Next.

q Finish WAN IP Settings on the figure below. Click Next.

Wireless AC1200 ADSL2+ Dual Band Modem Router

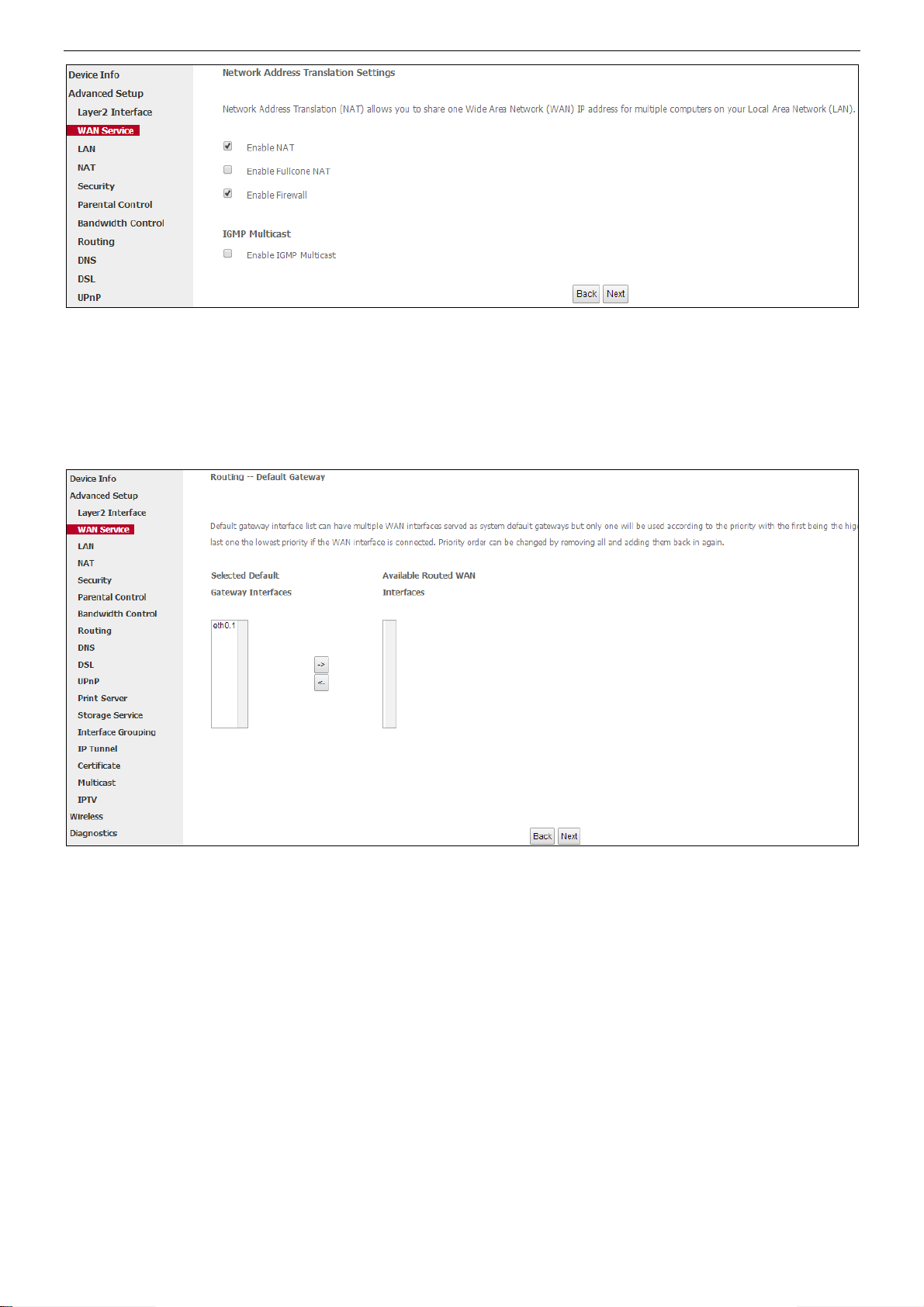

r Finish Network Address Translation Settings. Suggest keeping the default settings. Click Next.

s To configure the Default Gateway interface, select the interface that you want to configure with the WAN gateway

address in Available Routed WAN Interfaces box and move it into Selected Default Gateway Interfaces box. The default setting is recommended. Then click Next.

Wireless AC1200 ADSL2+ Dual Band Modem Router

t To finish DNS Server Configuration, click the Select DNS Server Interface from available WAN interfaces option,

or select the Use the following Static DNS IP address option and enter the static DNS server IP addresses provided by your ISP. At last, click Next.

Click Apply/Save to save your settings if everything is correctly set.

Wireless AC1200 ADSL2+ Dual Band Modem Router

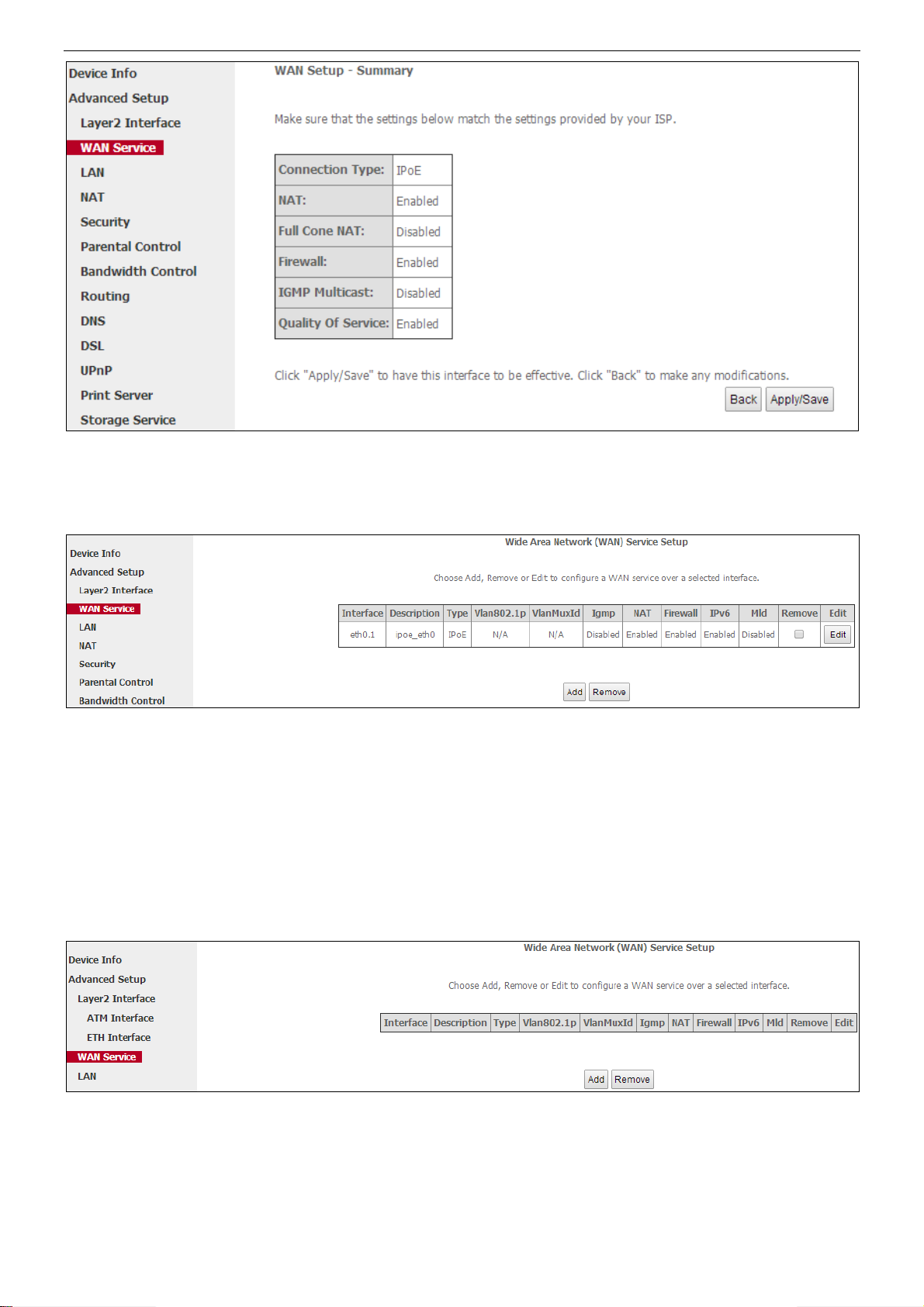

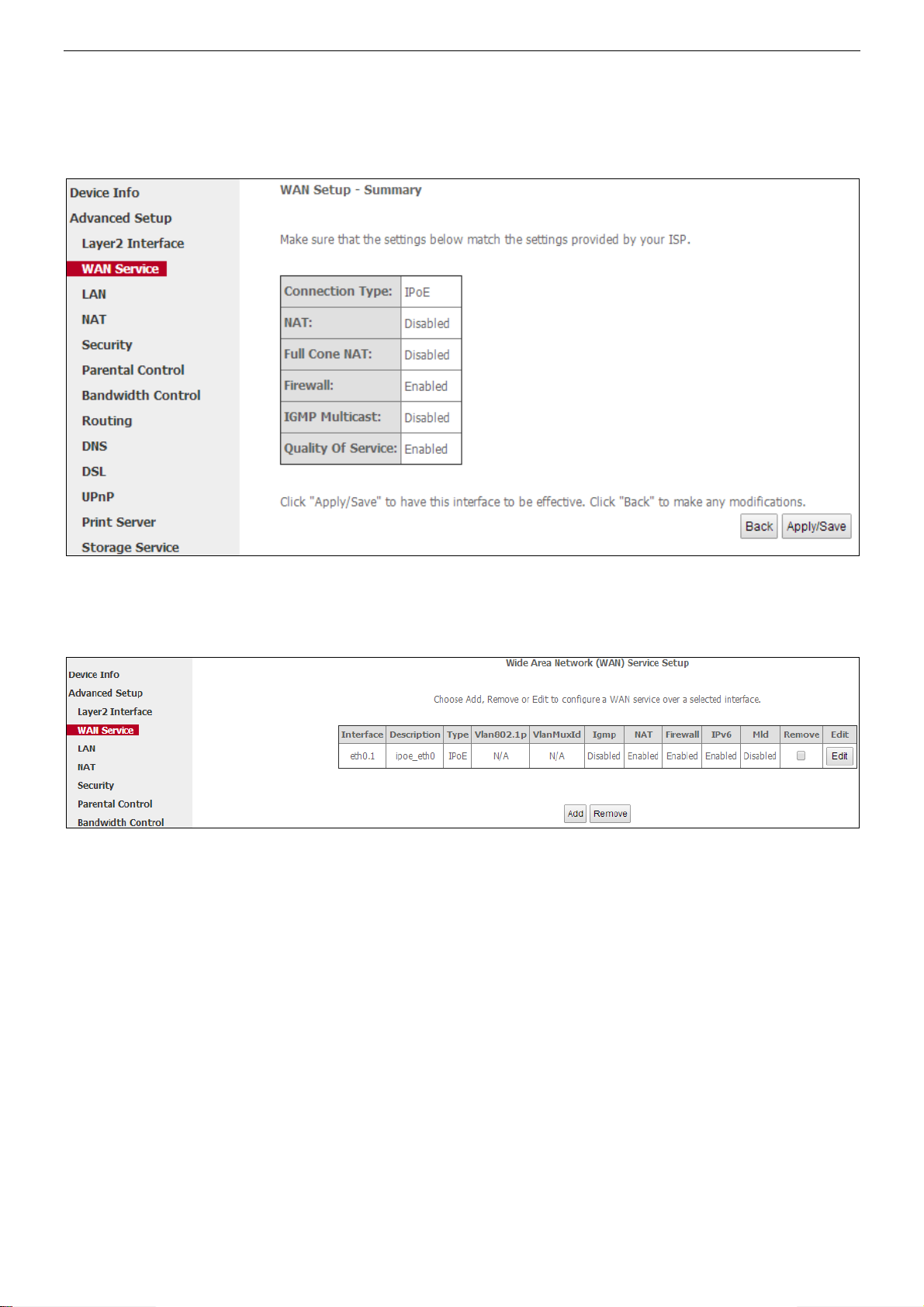

Here you can view your configurations. When the IPoE connection is successful, you can access the Internet.

Ê Steps 1~7 above for IPoE and IPv4 Only users

-------------------------------------------------------------------------------------------------------------------------------

5) IPoE IPv4&IPv6 (Dual Stack) Users

If your ISP uses DHCP to assign your IP address or if your ISP assigns you a static (fixed) IP address, IP subnet mask

and the gateway IP address, you need to select the IP over Ethernet (IPoE). After you configure the ATM Interface (ADSL uplink) and select EoA as the DSL link type, you can start to set up

WAN service for accessing the Internet.

n Click Advanced Setup > WAN Service and then click the Add button.

o Select the ATM interface you added just now from the pull-down menu in the figure below. Click Next.

Wireless AC1200 ADSL2+ Dual Band Modem Router

p Select IP over Ethernet. Edit the Enter Service Description which is optional. Suggest you keep the default. Select

a network protocol you need: IPv4&IPv6 (Dual Stack). Click Next.

q To finish WAN IP Settings, select Obtain an IP/IPv6 address automatically, check Dhcpv6 Prefix Delegation

(IAPD). If your ISP is using stateful DHCPv6, check Dhcpv6 Address Assignment (IANA) also. Or select Use the following Static IP/IPv6 address if your ISP provide you with an IPv6 address. Click Next.

Wireless AC1200 ADSL2+ Dual Band Modem Router

r Finish Network Address Translation Settings. Suggest keeping the default settings. Click Next.

s To configure the Default Gateway interface, select the interface that you want to configure with the WAN gateway

address. Then click Next.

Wireless AC1200 ADSL2+ Dual Band Modem Router

t To configure the WAN DNS address, finish both the IPv4 setting and IPv6 setting. Click Next.

Note

If Obtain an IP address automatically is chosen, DHCP will be enabled for PVC in IPoE mode.

Wireless AC1200 ADSL2+ Dual Band Modem Router

Click Apply/Save to save your settings if everything is correctly set.

Here you can view your configurations. When the IPoE connection is successful, you can access the Internet.

Ê Steps 1~7 above for IPoE and IPv4&IPv6 (Dual Stack) Users

6) IPoE IPv6 Only Users

If your ISP uses DHCP to assign your IP address or if your ISP assigns you a static (fixed) IP address, IP subnet mask

--------------------------------------------------------------------------------------------------

and the gateway IP address, you need to select the IP over Ethernet (IPoE). After you configure the ATM Interface (ADSL uplink) and select EoA as the DSL link type, you can start to set up

WAN service for accessing the Internet.

n Click Advanced Setup > WAN Service and then click the Add button.

Wireless AC1200 ADSL2+ Dual Band Modem Router

o Select the IPoA interface you added just now from the pull-down menu in the figure below. Click Next.

p Select IP over Ethernet (IPoE). Edit the Enter Service Description field which is optional. Suggest you keep the

default. Select a network protocol you need: IPv6 Only. Click Next.

Wireless AC1200 ADSL2+ Dual Band Modem Router

q Finish WAN IP Settings on the figure below. Click Next.

r Finish Network Address Translation Settings. Suggest keeping the default settings. Click Next.

s To configure the Default Gateway interface when using IPv6, select the interface that you want to configure with the

WAN gateway address in Selected WAN Interface box. Then click Next.

Wireless AC1200 ADSL2+ Dual Band Modem Router

t To configure the WAN DNS address, check the Obtain IPv6 DNS info from a WAN interface option, or select the

Use the following Static IPv6 DNS address option to enter the static DNS server IPv6 addresses provided by your ISP. At last, click Next.

Wireless AC1200 ADSL2+ Dual Band Modem Router

Click Apply/Save to save your settings if everything is correctly set.

Here you can view your configurations. When the IPoE connection is successful, you can access the Internet.

Ê Steps 1~7 above for IPoE and IPv6 Only Users

------------------------------------------------------------------------------------------------------------------------------

7) Bridging

If you wish to initiate a dialup directly from your PC for Internet access or enjoy the entire Internet connection (instead

of sharing it with others), you can use the Bridging DSL link type and create a dialup program on your PC. After you configure the ATM Interface (ADSL uplink) and select EoA as the DSL link type, you can start to set up

WAN service for accessing the Internet.

n Click Advanced Setup > WAN Service and then click the Add button.

o Select the ATM interface you added just now from the pull-down menu in the figure below. Click Next.

Wireless AC1200 ADSL2+ Dual Band Modem Router

p Select Bridging. Edit the Enter Service Description field which is optional. Suggest you keep the default. Click

Next.

Click Apply/Save to save your settings if everything is correctly set.

Wireless AC1200 ADSL2+ Dual Band Modem Router

Here you can view your configurations. When the Bridge connection is successful, you can access the Internet.

Ê Steps 1~3 above for Bridging Users

---------------------------------------------------------------------------------------------------------------------------------------------------

8) PPPoA IPv4 Only Users

After you configure the ATM Interface (ADSL uplink) and select PPPoA as the DSL link type, you can start to set up

WAN service for accessing the Internet.

n Click Advanced Setup > WAN Service and then click the Add button.

o Select the ATM interface you added just now from the pull-down menu in the figure below. Click Next.

Wireless AC1200 ADSL2+ Dual Band Modem Router

p Edit the Enter Service Description field which is optional. Suggest you keep the default. Select a network protocol

you need: IPv4 Only. Click Next.

q Set PPP Username and Password on the figure below. Suggest keeping other options default. Click Next.

Wireless AC1200 ADSL2+ Dual Band Modem Router

r To configure the Default Gateway interface, select the interface that you want to configure with the WAN gateway

address in Available Routed WAN Interfaces box and move it into Selected Default Gateway Interfaces box. The default setting is recommended. Then click Next.

s To configure the WAN DNS address, click the Select DNS Server Interface from available WAN interfaces option,

or select the Use the following Static DNS IP address option and enter the static DNS server IP addresses provided by your ISP. At last, click Next.

Wireless AC1200 ADSL2+ Dual Band Modem Router

Click Apply/Save to save your settings if everything is correctly set.

Here you can view your configurations. When the PPPoA connection is successful, you can access the Internet.

Wireless AC1200 ADSL2+ Dual Band Modem Router

Ê Steps 1~6 above for PPPoA and IPv4 Only Users

--------------------------------------------------------------------------------------------------------------------------

9) PPPoA IPv4&IPv6 (Dual Stack) Users

After you configure the ATM Interface (ADSL uplink) and select PPPoA as the DSL link type, you can start to set up

WAN service for accessing the Internet.

n Click Advanced Setup > WAN Service and then click the Add button.

o Select the ATM interface you added just now from the pull-down menu in the figure below. Click Next.

p Edit the Enter Service Description which is optional. Suggest you keep the default. Select a network protocol you

need: IPv4&IPv6 (Dual Stack). Click Next.

Wireless AC1200 ADSL2+ Dual Band Modem Router

q Set PPP Username and Password on the figure below. Suggest keeping other options default. Click Next.

Wireless AC1200 ADSL2+ Dual Band Modem Router

r To configure the Default Gateway interface, select the interface that you want to configure with the WAN gateway

address. Then click Next.

s To configure the WAN DNS address, finish both the IPv4 setting and IPv6 setting. Click Next.

Wireless AC1200 ADSL2+ Dual Band Modem Router

Click Apply/Save to save your settings if everything is correctly set.

Here you can view your configurations. When the PPPoA connection is successful, you can access the Internet.

Wireless AC1200 ADSL2+ Dual Band Modem Router

Ê Steps 1~6 above for PPPoA and IPv4&IPv6 (Dual Stack) Users

-----------------------------------------------------------------------------------------------

10) PPPoA IPv6 Only Users

After you configure the ATM Interface (ADSL uplink) and select PPPoA as the DSL link type, you can start to set up

WAN service for accessing the Internet.

n Click Advanced Setup > WAN Service and then click the Add button.

o Select the ATM interface you added just now from the pull-down menu in the figure below. Click Next.

p Edit the Enter Service Description which is optional. Suggest you keep the default. Select a network protocol you

need: IPv6 Only. Click Next.

Wireless AC1200 ADSL2+ Dual Band Modem Router

q Set PPP Username and Password on the figure below. Suggest keeping other options default. Click Next.

r To configure the Default Gateway interface, select the interface that you want to configure with the WAN gateway

address. Then click Next.

Wireless AC1200 ADSL2+ Dual Band Modem Router

s To configure the WAN DNS address, finish both the IPv4 setting and IPv6 setting. Click Next.

Wireless AC1200 ADSL2+ Dual Band Modem Router

Click Apply/Save to save your settings if everything is correctly set.

Here you can view your configurations. When the PPPoA connection is successful, you can access the Internet.

Ê Steps 1~6 above for PPPoA and IPv6 Only Users

11) IPoA Users

After you configure the ATM Interface (ADSL uplink) and select IPoA as the DSL link type, you can start to set up

WAN service for accessing the Internet.

n Click Advanced Setup > WAN Service and then click the Add button.

--------------------------------------------------------------------------------------------------------------------------

o Select the ATM interface you added just now from the pull-down menu in the figure below. Click Next.

Wireless AC1200 ADSL2+ Dual Band Modem Router

p Edit the Enter Service Description. This field is optional. Suggest to keep the default name. Click Next.

q Set the WAN IP address and subnet mask provided by your ISP.

r Finish Network address translation settings. Suggest keeping the default settings if you’re not sure how to set them.

Click Next.

Wireless AC1200 ADSL2+ Dual Band Modem Router

s Finish the default settings on the following screen. To configure one interface with the default gateway, select and

move the interface from Available Routed WAN Interfaces into Selected Default Gateway Interfaces. To cancel the interface as the selected defau lt gateway interface, select and move the interface from the Selected Default Gateway Interfaces into Available Routed WAN Interfaces. Click Next.

t Configure the DNS server of the interface you select. If you use static DNS IP address, select Use the following

Static DNS IP address and then enter the DNS addresses provided by your ISP. Click Next.

Wireless AC1200 ADSL2+ Dual Band Modem Router

Click Apply/Save to save your settings if everything is correctly set.

Here you can view your configurations. When the IPoA connection is successful, you can access the Internet.

Ê Steps 1~7 above for IPoA Users

-----------------------------------------------------------------------------------------------------------------------------------------------------------

Wireless AC1200 ADSL2+ Dual Band Modem Router

2.2.2 For ETH Interface

Following 7 modes are for you to choose according to your actual Internet service.

PPPoE 1) IPv4 Only 2) IPv4&IPv6 (Dual Stack) 3) IPv6 Only

ETH

7) Bridging

IPoE 4) IPv4 Only 5) IPv4&IPv6 (Dual Stack) 6) IPv6 Only

1) PPPoE IPv4 Only Users

If you configure the ETH Interface (Ethernet uplink) and select eth0/eth0 as the ETH WAN interface, then you can start

to set up WAN service for accessing the Internet.

n Click Advanced Setup > WAN Service and then click the Add button.

o Select the ETH interface you added just now from the pull-down menu in the figure below. Click Next.

p Select PPP over Ethernet (PPPoE). Edit the Enter Service Description field which is optional. Suggest you keep

the default. Select a network protocol: IPv4 Only. Click Next.

Wireless AC1200 ADSL2+ Dual Band Modem Router

q Finish PPP Username and Password and other settings on the figure below. Click Next.

r To configure the Default Gateway interface, select the interface that you want to configure with the WAN gateway

address in Available Routed WAN Interfaces box and move it into Selected Default Gateway Interfaces box. The

Wireless AC1200 ADSL2+ Dual Band Modem Router

default setting is recommended. Then click Next.

s To configure the WAN DNS address, click the Select DNS Server Interface from available WAN interfaces option,

or select the Use the following Static DNS IP address option and enter the static DNS server IP addresses provided by your ISP. At last, click Next.

Wireless AC1200 ADSL2+ Dual Band Modem Router

Click Apply/Save to save your settings if everything is correctly set.

Here you can view your configurations. When the PPPoE connection is successful, you can access the Internet.

Wireless AC1200 ADSL2+ Dual Band Modem Router

Ê Steps 1~6 above for PPPoE and IPv4 Only users

---------------------------------------------------------------------------------------------------------------------------

2) PPPoE IPv4&IPv6 (Dual Stack) Users

If you configure the ETH Interface (Ethernet uplink) and select eth0/eth0 as the ETH WAN interface, then you can start

to set up WAN service for accessing the Internet.

n Click Advanced Setup > WAN Service and then click the Add button.

o Select the ATM interface you added just now from the pull-down menu in the figure below. Click Next.

p Select PPP over Ethernet (PPPoE). Edit the Enter Service Description field which is optional. Suggest you keep

the default. Select a network protocol you need: IPv4&IPv6 (Dual Stack). Click Next.

Wireless AC1200 ADSL2+ Dual Band Modem Router

q Configure PPP Username and Password and other settings on the figure below. Each field with its indication is

mentioned above in PPPoE and IPv4 users- If ISP provides you no static IPv4 or IPv6 address, you just keep the default settings for it’s by default the DHCP mode. Check Launch Dhcp6c for Prefix Delegation (IAPD). If your ISP is using stateful DHCPv6, check Launch Dhcp6c for Address Assignment (IANA) also. Click Next.

q section.

Wireless AC1200 ADSL2+ Dual Band Modem Router

r To configure the Default Gateway interface, select the interface that you want to configure with the WAN gateway

address. Then click Next.

Wireless AC1200 ADSL2+ Dual Band Modem Router

s To configure the WAN DNS address, finish both the IPv4 setting and IPv6 setting. Click Next.

Click Apply/Save to save your settings if everything is correctly set.

Wireless AC1200 ADSL2+ Dual Band Modem Router

Here you can view your configurations. When the PPPoE connection is successful, you can access the Internet.

Ê Steps 1~6 above for PPPoE and IPv4&IPv6 (Dual Stack) users

------------------------------------------------------------------------------------------------

3) PPPoE IPv6 Only Users

If you configure the ETH Interface (Ethernet uplink) and select eth0/eth0 as the ETH WAN interface, then you can start

to set up WAN service for accessing the Internet.

n Click Advanced Setup > WAN Service and then click the Add button.

o Select the ETH interface you added just now from the pull-down menu in the figure below. Click Next.

Wireless AC1200 ADSL2+ Dual Band Modem Router

p Select PPP over Ethernet (PPPoE). Edit the Enter Service Description field which is optional. Suggest you keep

the default. Select a network protocol: IPv6 Only. Click Next.

q Configure PPP Username and Password and other settings on the figure below. Each field with its indication is

mentioned above in PPPoE and IPv4 users section.

If ISP provides you no static IPv6 address, you just keep the default settings for it’s by default the DHCP mode. Check Launch Dhcp6c for Prefix Delegation (IAPD). If your ISP is using stateful DHCPv6, check Launch Dhcp6c for Address Assignment (IANA) also. Click Next.

Wireless AC1200 ADSL2+ Dual Band Modem Router

r To configure the Default Gateway interface when using IPv6, select the interface that you want to configure with the

WAN gateway address in Selected WAN Interface box. Then click Next.

Wireless AC1200 ADSL2+ Dual Band Modem Router

s To configure the WAN DNS address, check the Obtain IPv6 DNS info from a WAN interface option, or select the

Use the following Static IPv6 DNS address option to enter the static DNS server IPv6 addresses provided by your ISP. At last, click Next.

Click Apply/Save to save your settings if everything is correctly set.

Wireless AC1200 ADSL2+ Dual Band Modem Router

Here you can view your configurations. When the PPPoE connection is successful, you can access the Internet.

Ê Steps 1~6 above for PPPoE and IPv6 Only users

---------------------------------------------------------------------------------------------------------------------------

4) IPoE IPv4 Only Users

If you configure the ETH Interface (Ethernet uplink) and select eth0/eth0 as the ETH WAN interface, then you can start

to set up WAN service for accessing the Internet.

n Click Advanced Setup > WAN Service and then click the Add button.

o Select the ETH interface you added just now from the pull-down menu in the figure below. Click Next.

p Select IP over Ethernet (IPoE). Edit the Enter Service Description field which is optional. Suggest you keep the

Wireless AC1200 ADSL2+ Dual Band Modem Router

default. Select a network protocol: IPv4 Only. Click Next.

q Finish WAN IP Settings on the figure below. Click Next.

r Finish Network Address Translation Settings. Suggest to keep the default settings. Click Next.

Wireless AC1200 ADSL2+ Dual Band Modem Router

s To configure the Default Gateway interface, select the interface that you want to configure with the WAN gateway

address in Available Routed WAN Interfaces box and move it into Selected Default Gateway Interfaces box. The default setting is recommended. Then click Next.

t To finish DNS Server Configuration, click the Select DNS Server Interface from available WAN interfaces option,

or select the Use the following Static DNS IP address option and enter the static DNS server IP addresses provided by your ISP. At last, click Next.

Wireless AC1200 ADSL2+ Dual Band Modem Router

Click Apply/Save to save your settings if everything is correctly set.

Wireless AC1200 ADSL2+ Dual Band Modem Router

Here you can view your configurations. When the IPoE connection is successful, you can access the Internet.

Ê Steps 1~7 above for IPoE and IPv4 Only users

---------------------------------------------------------------------------------------------------------------------------

5) IPoE IPv4&IPv6 (Dual Stack) Users

If you configure the ETH Interface (Ethernet uplink) and select eth0/eth0 as the ETH WAN interface, then you can start

to set up WAN service for accessing the Internet.

n Click Advanced Setup > WAN Service and then click the Add button.

o Select the ATM interface you added just now from the pull-down menu in the figure below. Click Next.

p Select IP over Ethernet (IPoE).. Edit the Enter Service Description field which is optional. Suggest you keep the

default. Select a network protocol you need: IPv4&IPv6 (Dual Stack). Click Next.

Wireless AC1200 ADSL2+ Dual Band Modem Router

q To finish WAN IP Settings, select Obtain an IP/IPv6 address automatically, check Dhcpv6 Prefix Delegation

(IAPD). If your ISP is using stateful DHCPv6, check Dhcpv6 Address Assignment (IANA) also. Or select Use the following Static IP/IPv6 address if your ISP provide you with an IPv6 address. Click Next.

Wireless AC1200 ADSL2+ Dual Band Modem Router

r Finish Network Address Translation Settings. Suggest to keep the default settings. Click Next.

s To configure the Default Gateway interface, select the interface that you want to configure with the WAN gateway

address. Then click Next.

Wireless AC1200 ADSL2+ Dual Band Modem Router

t To configure the WAN DNS address, finish both the IPv4 setting and IPv6 setting. Click Next.

Click Apply/Save to save your settings if everything is correctly set.

Wireless AC1200 ADSL2+ Dual Band Modem Router

Here you can view your configurations. When the IPoE connection is successful, you can access the Internet.

Ê Steps 1~7 above for IPoE and IPv4&IPv6 (Dual Stack) Users

--------------------------------------------------------------------------------------------------

6) IPoE IPv6 Only Users

If you configure the ETH Interface (Ethernet uplink) and select eth0/eth0 as the ETH WAN interface, then you can start

to set up WAN service for accessing the Internet.

n Click Advanced Setup > WAN Service and then click the Add button.

o Select the ETH interface you added just now from the pull-down menu in the figure below. Click Next.

Wireless AC1200 ADSL2+ Dual Band Modem Router

p Select IP over Ethernet (IPoE). Edit the Enter Service Description field which is optional. Suggest you keep the

default. Select a network protocol: IPv6 Only. Click Next.

q Finish WAN IP Settings on the figure below. Click Next.

Wireless AC1200 ADSL2+ Dual Band Modem Router

r Finish Network Address Translation Settings. Suggest to keep the default settings. Click Next.

s To configure the Default Gateway interface when using IPv6, select the interface that you want to configure with the

WAN gateway address in Selected WAN Interface box. Then click Next.

Wireless AC1200 ADSL2+ Dual Band Modem Router

t To configure the WAN DNS address, check the Obtain IPv6 DNS info from a WAN interface option, or select the

Use the following Static IPv6 DNS address option to enter the static DNS server IPv6 addresses provided by your ISP.

At last, click Next.

Wireless AC1200 ADSL2+ Dual Band Modem Router

Click Apply/Save to save your settings if everything is correctly set.

Here you can view your configurations. When the IPoE connection is successful, you can access the Internet.

Ê Steps 1~7 above for IPoE and IPv6 Only Users

7) Bridging

If you wish to initiate a dialup directly from your PC for Internet access or enjoy the entire Internet connection (instead

of sharing it with others), you can use the Bridging DSL link type and create a dialup program on your PC.

------------------------------------------------------------------------------------------------------------------------------

After you configure the ETH Interface (Ethernet uplink) and select eth0/eth0 as the ETH WAN interface, then you can

start to set up WAN service for accessing the Internet.

n Click Advanced Setup > WAN Service and then click the Add button.

Wireless AC1200 ADSL2+ Dual Band Modem Router

o Select the ETH interface you added just now from the pull-down menu in the figure below. Click Next.

p Select PPP over Ethernet (PPPoE). Edit the Enter Service Description field which is optional. Suggest you keep

the default. Select a network protocol: IPv4 Only. Click Next.

Wireless AC1200 ADSL2+ Dual Band Modem Router

Here you can view your configurations. Click Apply/Save to save your settings if everything is correctly set.

When the connection is successful, you can access the Internet.

Wireless AC1200 ADSL2+ Dual Band Modem Router

Ê Steps 1~3 above for Bridging Users

---------------------------------------------------------------------------------------------------------------------------------------------------

2.3 LAN

Click Advanced > LAN to configure the LAN IP Address and Subnet Mask. This IP address is to be used to access the

device’s settings through a web browser. Suggest to take a note of the IP address or subnet mask you input here.

2.3.1 IPv4

Click Advanced > LAN to enter the IPv4 address setting interface.

n Keep the Group Name Default in the pull-down menu.

Wireless AC1200 ADSL2+ Dual Band Modem Router

o IP Address/Subnet Mask: The device's LAN IP address and subnet mask that both you can change to fit your

network. The default IP address is 192.168.1.1. Once you change the LAN IP address, you need to use the new address to

p Enable IGMP Snooping: Check to enable the IGMP Snooping feature. IGMP Snooping is to restrain broadcast on

Layer 2. Enabling IGMP snooping is good for managing and controlling IPv4 broadcasts. Suggest to select Blocking Mode.

¾ Standard Mode: If no members join in one broadcast group, packets of this group will be broadcasted; if

there’re members joining in the group, packets will be only forwarded to the LAN port where the group

members exist.

¾ Blocking Mode: If no members join in one broadcast group, packets of this group will be dropped; if

there’s members joining in the broadcast group, packets will be only forwarded to the LAN port where the

group members exist.

q Enable DHCP Server: Check to enable the DHCP Server so that every upstream device connected to your router can

obtain the IP address to access the Internet. If you would like to configure every upstream device with static IP address to access the Internet, you can check Disable DHCP Server.

r Start/End IP Address: Specify the start/end of the range for the IP address pool in the same subnet as the router.

Only enabling DHCP server can this section can be edited.

s Leased Time: A time length that the IP address is assigned to each device before it is refreshed. t Static IP Lease List: A list of devices with reserved static IP addresses. If you prefer to configure each upstream

device of your router with a static IP address for better management, you can add static IP addresses to the list.

¾ Add Entries: Click to add a static IP lease entry. A maximum 32 entries can be configured. ¾ Remove Entries: Click to remove a static IP lease entry.

u Configure the second IP Address and Subnet Mask for LAN interface: If you want to configure two IP addresses

for the LAN interface, you can check this option and enter the second IP Address and Subnet Mask manually. The second

IP address and subnet mask have the same function as the first ones.

v Apply/Save: After you configure all the needed settings, click this button to apply and save them.

Tip

DHCP (Dynamic Host Configuration Protocol) assigns an IP address to each device on the LAN/private network. When

you enable the DHCP Server, the DHCP Server will automatically allocate an unused IP address from the IP address pool

specified in this screen to the requesting device as long as the device is set to "Obtain an IP Address Automatically". By

default, the router functions as a DHCP server.

Wireless AC1200 ADSL2+ Dual Band Modem Router

2.3.2 IPv6 Autoconfig

IPv6 address can only be Aggregatable Global Unicast Addresses and Unique Local Address. Link-Local Unicast

Addresses and Multicast Addresses are not permitted. Click Advanced > LAN > IPv6 Autoconfig to enter the IPv6 address setting page.

n Interface Address: Enter the interface address with prefix length. E.g., the interface address is “2000::1/64”, then

you need to input “http://[2000::1]”.

o Enable DHCPv6 Server: Check to enable the DHCPv6 Server. p Check Stateless or Stateful as you need.

¾ Stateless: If selected, IPv6 clients will generate IPv6 addresses automatically based on the Prefix Delegation's

IPv6 prefix and their own MAC addresses.

¾ Stateful: Stateful DHCPv6 is supported based on the assumption of prefix length less than 64. Select this

option and configure the start/end interface ID and leased time. The router will automatically assign IPv6

addresses to IPv6 clients.

q Enable RADVD: Check it to enable the RADVD for informing computers in the LAN of your router’s existence.

Wireless AC1200 ADSL2+ Dual Band Modem Router

When computers get the message, they will take the router’s IP address as the secondary route for easy use. In addition,

checking RADVD can also broadcast the prefix address generated from the computer in the LAN.

r Enable IGMP Snooping: Check to enable the IGMP Snooping feature. IGMP Snooping is to restrain broadcast on

Layer 2. Enabling IGMP snooping is good for managing and controlling IPv6 broadcasts. Suggest to select Blocking Mode.

¾ Standard Mode: If no members join in one broadcast group, packets of this group will be broadcasted; if

there’re members joining in the group, packets will be only forwarded to the LAN port where the group

members exist.

¾ Blocking Mode: If no members join in one broadcast group, packets of this group will be dropped; if

there’s members joining in the broadcast group, packets will be only forwarded to the LAN port where the

group members exist.

s Click Save/Apply.

Other fields’ introduction that may help:

¾ Enable ULA Prefix Advertisement: If enabled, the router will advertise ULA prefix periodically. ¾ Leased Time (hour): A time length that the IP address is assigned to each device before it is refreshed. ¾ Start interface ID/End interface ID: Specify the start/end interface ID Interface ID does NOT support ZERO

COMPRESSION "::". Please enter the complete information. For example: Please enter "0:0:0:2" instead of "::2".

¾ Randomly Generate: If selected, address prefix can be automatically gen erated. ¾ Statically Configure: If you select this option, you need to manually configure the address prefix and life time. ¾ Prefix: Specify the prefix. ¾ Preferred Life Time (hour): Specify the preferred life time in hour. ¾ Valid Life Time (hour): Specify the valid life time in hour. ¾ Enable MLD Snooping: MLD is used by IPv6 routers for discovering multicast listeners on a directly attached link.

If disabled on layer2 devices, IPv6 multicast data packets will be broadcast on the entire layer2; if enabled, these

packets will be multicast to only specified recipient instead of being broadcast on the entire lay er2 .

2.4 NAT

2.4.1 Virtual Server

The Virtual Server is useful for web servers, ftp servers, e-mail servers, gaming and other specialized Internet

applications.

Scenario: If you have a server in the LAN, such as a website, FTP server or game server, you want e-friends to visit the

Wireless AC1200 ADSL2+ Dual Band Modem Router

server, but the firewall and NAT function of your router stop visitors from accessing computers in the LAN.

Solution: Set virtual server rules to allow visitors to access the server via WAN IP address of your router.

Click Advanced Setup > NAT > Virtual Servers to enter the virtual server setup page. Click Add to add rules.

n User Interface: Select the WAN interface you will use to visit the server in your LAN. o Configure the Service Name > Select a Service option to select an existing service (Select One here is only an

express to tell you select one service.) from the drop-down list. And then the corresponding external/internal start/end

port will prompt automatically

. Or configure Service Name > Custom Service to customize a service manually.

p Server IP Address: Enter the IP address of your local computer that will provide this service. q Click Apply/Save next to the Server IP Address or click Apply/Save next to the port number table.

Other fields’ introduction that may help:

External Port Start/External Port End: Server ports provided for Internet users accessing the LAN.

Wireless AC1200 ADSL2+ Dual Band Modem Router

Protocol: Select the protocol from the Protocol drop-down list. If you are unsure, select TCP/UDP. Internal Port Start/Internal Port End: The ports used by the server in the LAN.

After all the configurations, visitors on the Internet can access your server by simply using “Protocol Name://WAN IP

address: External Port”.

Note

If you have enabled the UPnP functionality on both the router and your PC that is attached to one of the LAN port on the

router, you will be prompted on the Virtual Server page that the UPnP interface is being used.

Application Scenario:

You have set up one web server on the LAN. Web server——IP: 192.168.1.50, TCP port: 8090. Now you hope friends on the Internet can access your web by Port 10480 through WAN port. WAN port——ipoe_eth1,

IP: 1.2.3.4

Configuration Steps:

Click Advanced Setup > NAT > Virtual Server to enter it and then click the Add button.

Wireless AC1200 ADSL2+ Dual Band Modem Router

n Select the WAN interface ipoe_eth/eth0.1 here. o Input the word web in the Custom Service field. Then manually enter the port number 10480 in the External Port

Start and External Port End fields, and enter the port number 8090 in the Internal Port Start and Internal Port End fields. Actually port in the Internal Port End filed follows the port number in the Internal Port Start field

automatically.

p Select a protocol from the Protocol drop-down list. If you are unsure, select TCP/UDP. q In the Server IP Address field, enter the IP address of the web server: 192.168.1.50.

Wireless AC1200 ADSL2+ Dual Band Modem Router

r Click Apply/Save next to the Server IP Address or click Apply/Save next to the port number table.

Result:

Your friend on the Internet will be able to access your web server simply by entering “http://1.2.3.4:10480” in browser.

Actually if you set the DNS in 2.9, your friend can also enter http://admin name:10480

to access your web server.

2.4.2 Port Triggering

Ports of some applications such as games, video conferencing and instant messenger, etc., are specified and meanwhile,

your router’s firewall will stop messages to/from such ports, so for those applications, you cannot use them properly. However, Port Triggering is provided to help your play such games, or use this kind of instant messenger normally.

Some safety system applications (like, safe guard and firewall) in the computer on the LAN may interfere with the Port

triggering function. When using Port triggering, you can disable such application s .

Click Advanced Setup > NAT > Port Triggering and then click the Add button to add rules.

TENDA TECHNOLOGY D1201 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
