TENDA TECHNOLOGY A30 Users Manual

11N Wireless User Guide
11N Wireless User Guide
Product Name: 300Mbps Wirless
Range Extender
Model: A30
Copyright Statement
All the photos and product specifications mentioned in this manual are for refer ences only. Upgrades of software and hardware may occur, and if there are changes, Tenda is not responsible for notifying in advance. If you would like to know more about our product information, please visit our website at www.tenda.cn.
11N Wireless User Guide
11N Wireless User Guide
Contents
CHAPTER 1 PRODUCT INTRODUCTION ...................... 1
1.1 Package Contents ................................... 1
1.2 LED Indicators and Port Description .......... 1
CHAPTER 2 PRODUCT INSTALLATION ........................ 4
CHAPTER 3 HOW TO CONFIGURE TO ACCESS THE
INTERNET ............................................................................. 6
3.1 How to Set the Network Configurations ..... 6
3.2 Log in to the Router .............................. 11
3.3 Fast Internet Access .............................. 12
3.4 Fast Encryption ..................................... 13
CHAPTER 4 ADVANCED SETTINGS .............................. 14
4.1 System Status ...................................... 14
4.2 WAN Settings ....................................... 15
4.3 LAN Settings ........................................ 19
4.4 DNS Settings ........................................ 19
4.5 WAN Medium Type ................................ 20

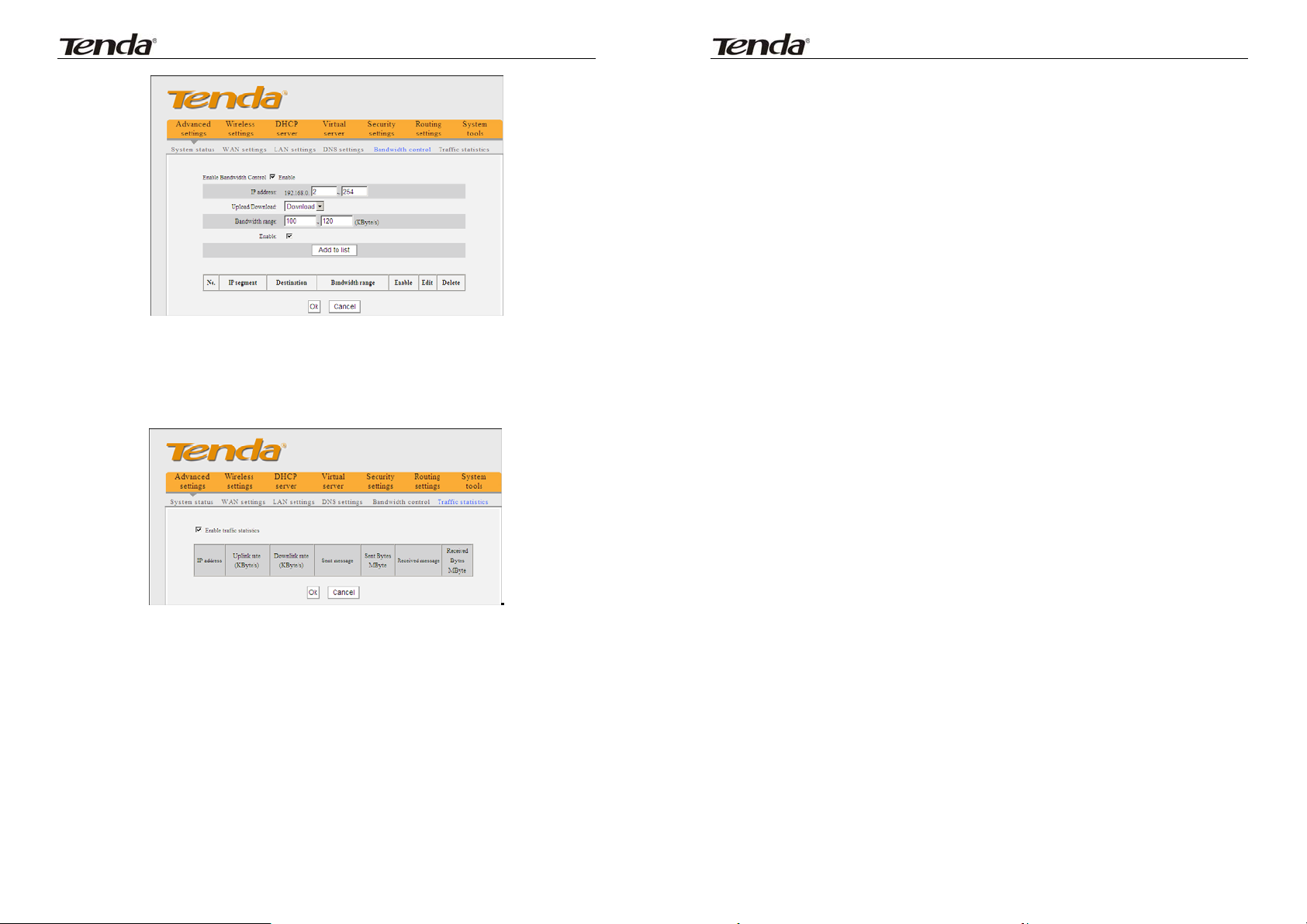

4.6 Bandwidth Control .............. ................... 21
4.7 Traffic Statistics .................................... 24
CHAPTER 5 WLAN SETTINGS ....................................... 26

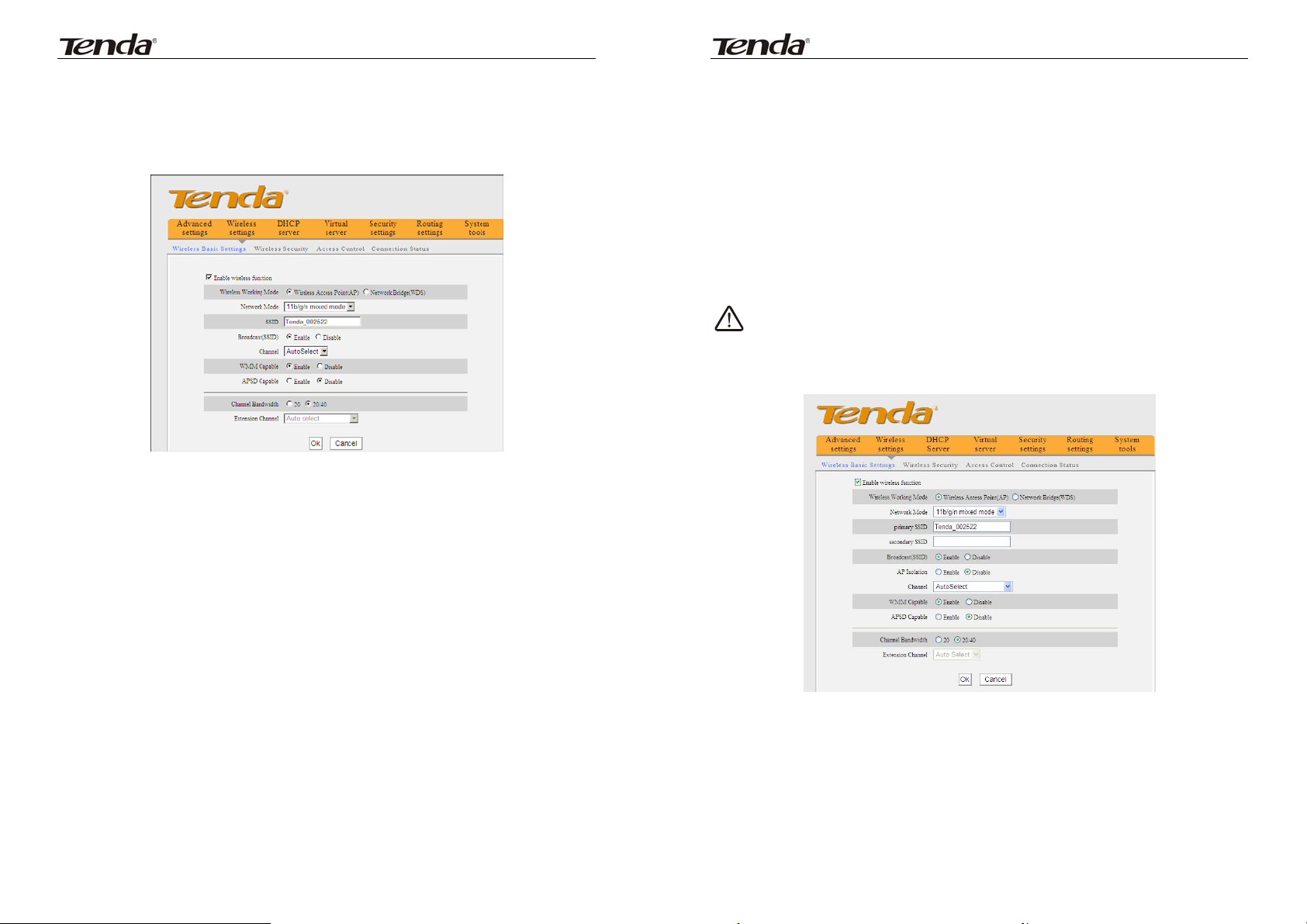

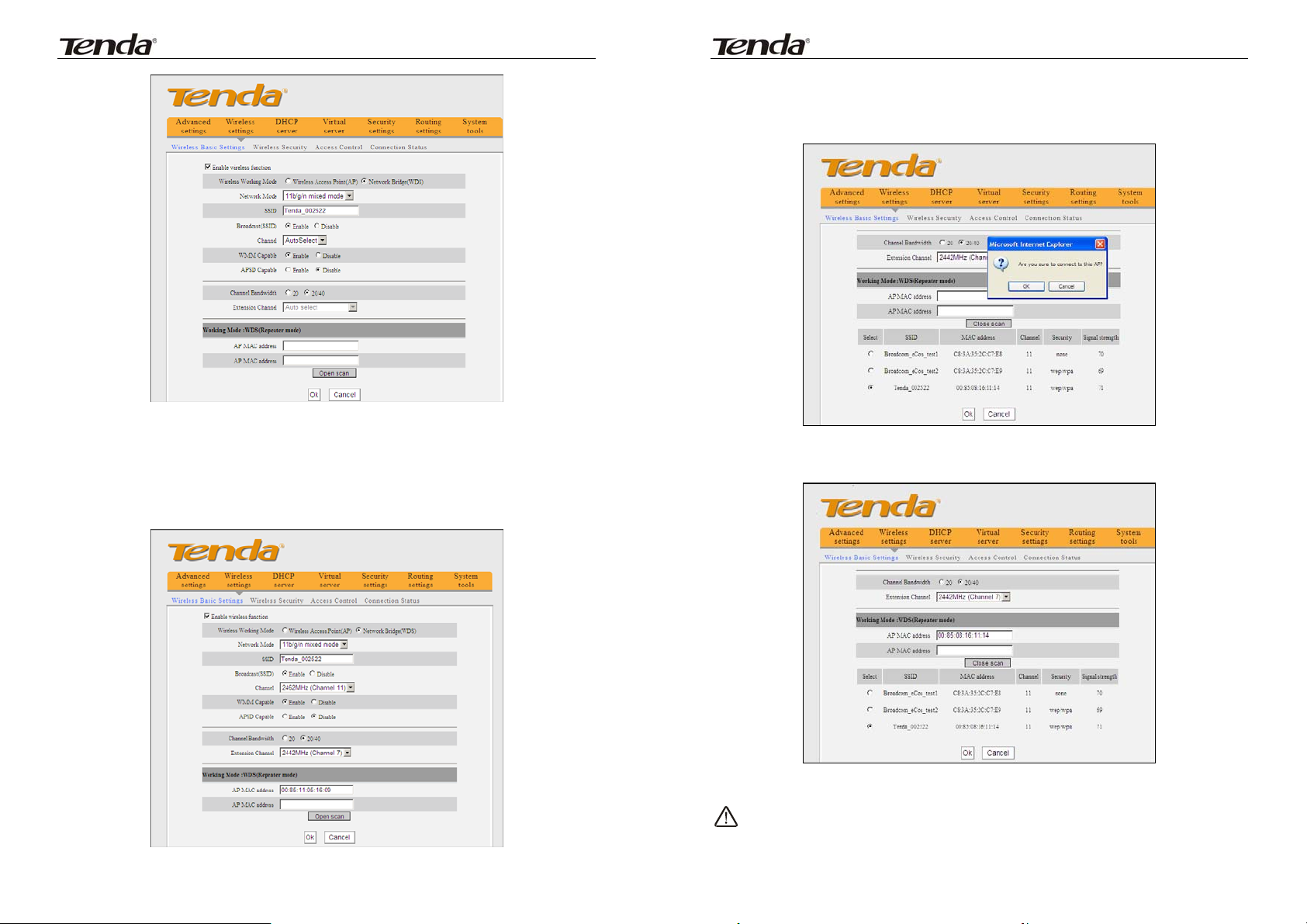

5.1 Wireless Basic Settings .......................... 26

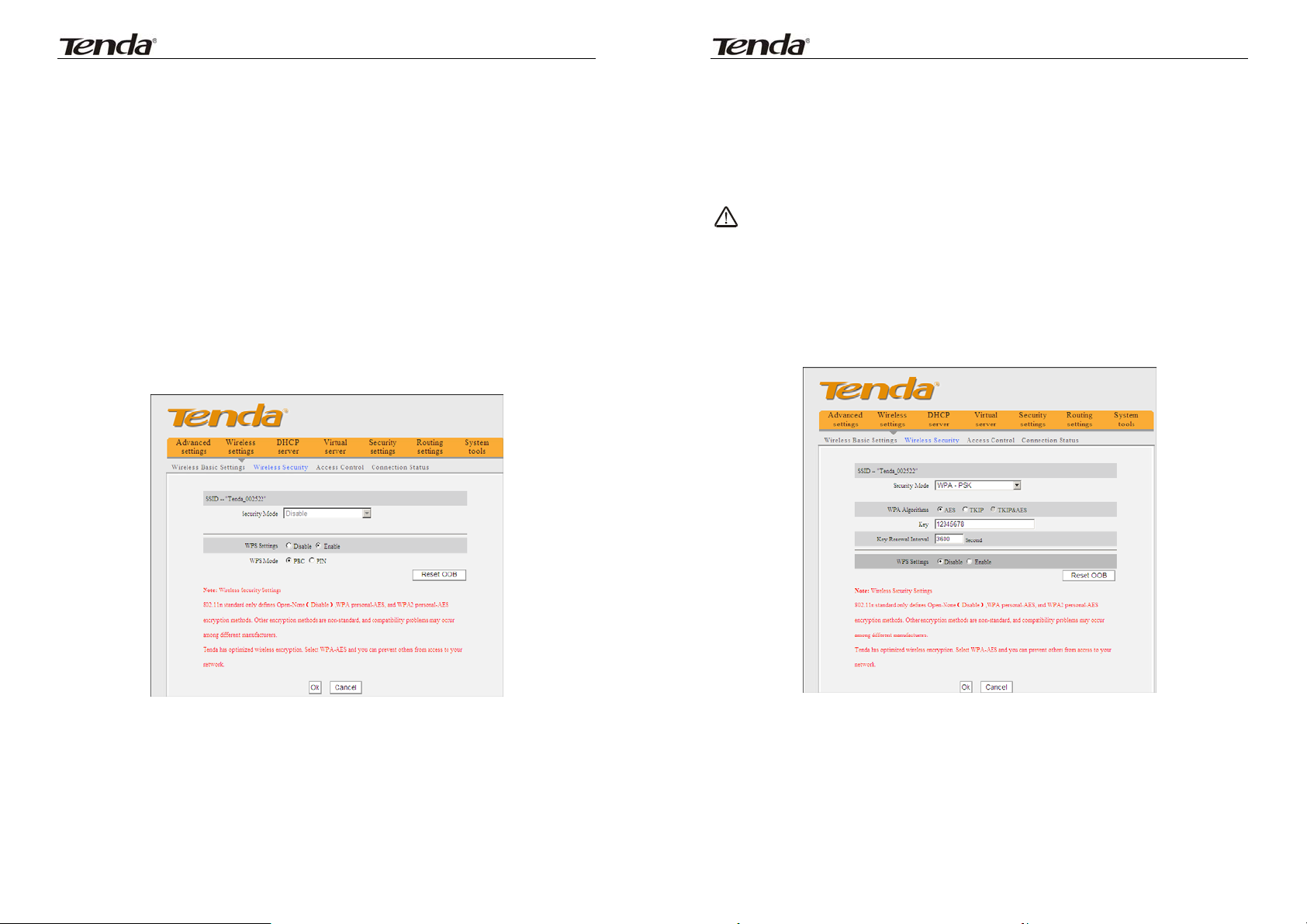

5.2 Wireless Security Settings ...................... 30
5.2.1 WPS Settings ..................................... 30
5.2.2 WPA- PSK .......................................... 31

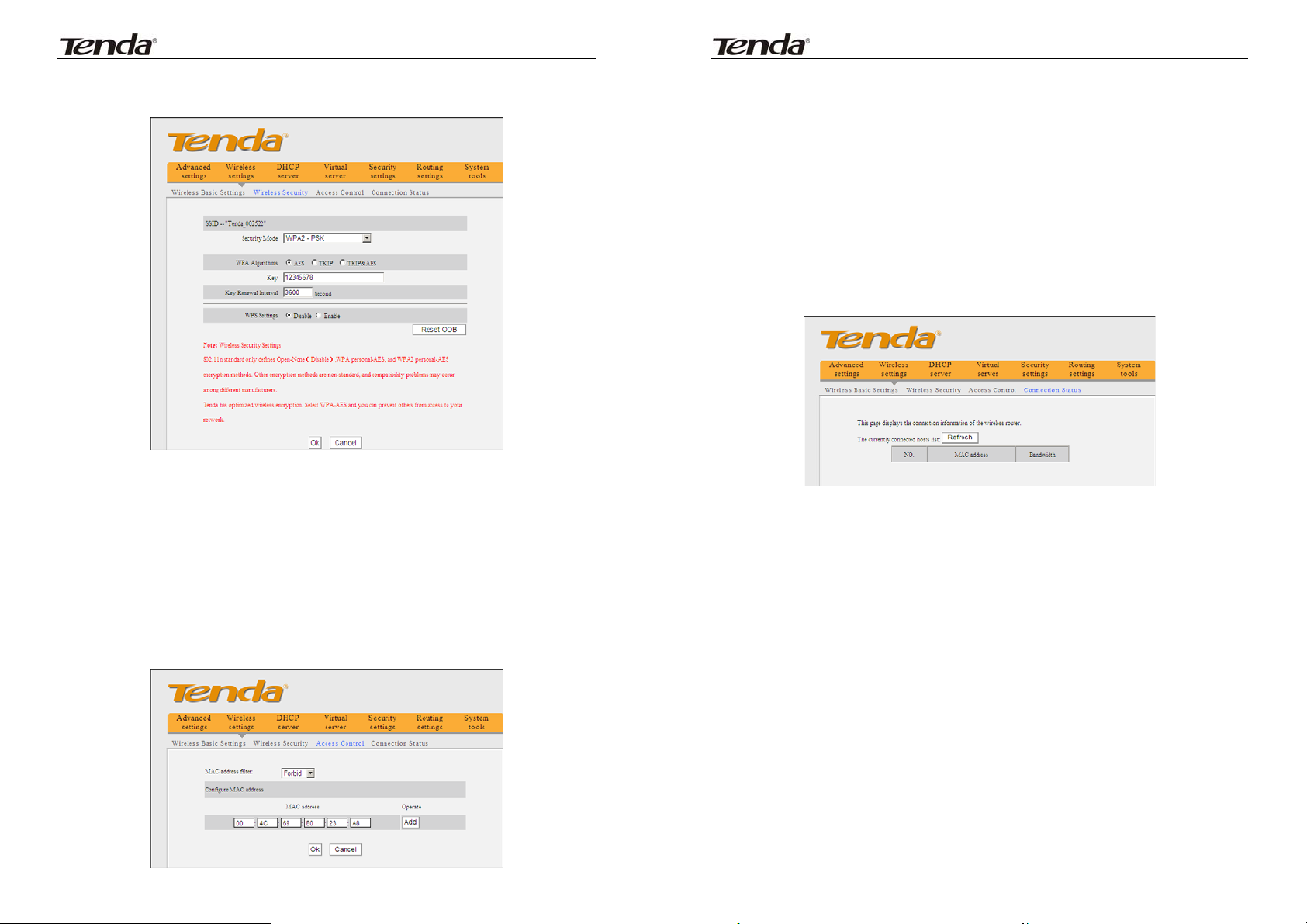

5.2.3 WPA2- PSK ........................................ 31
5.3 Wireless Access Control ......................... 32
5.4 Connection Status ................................. 33

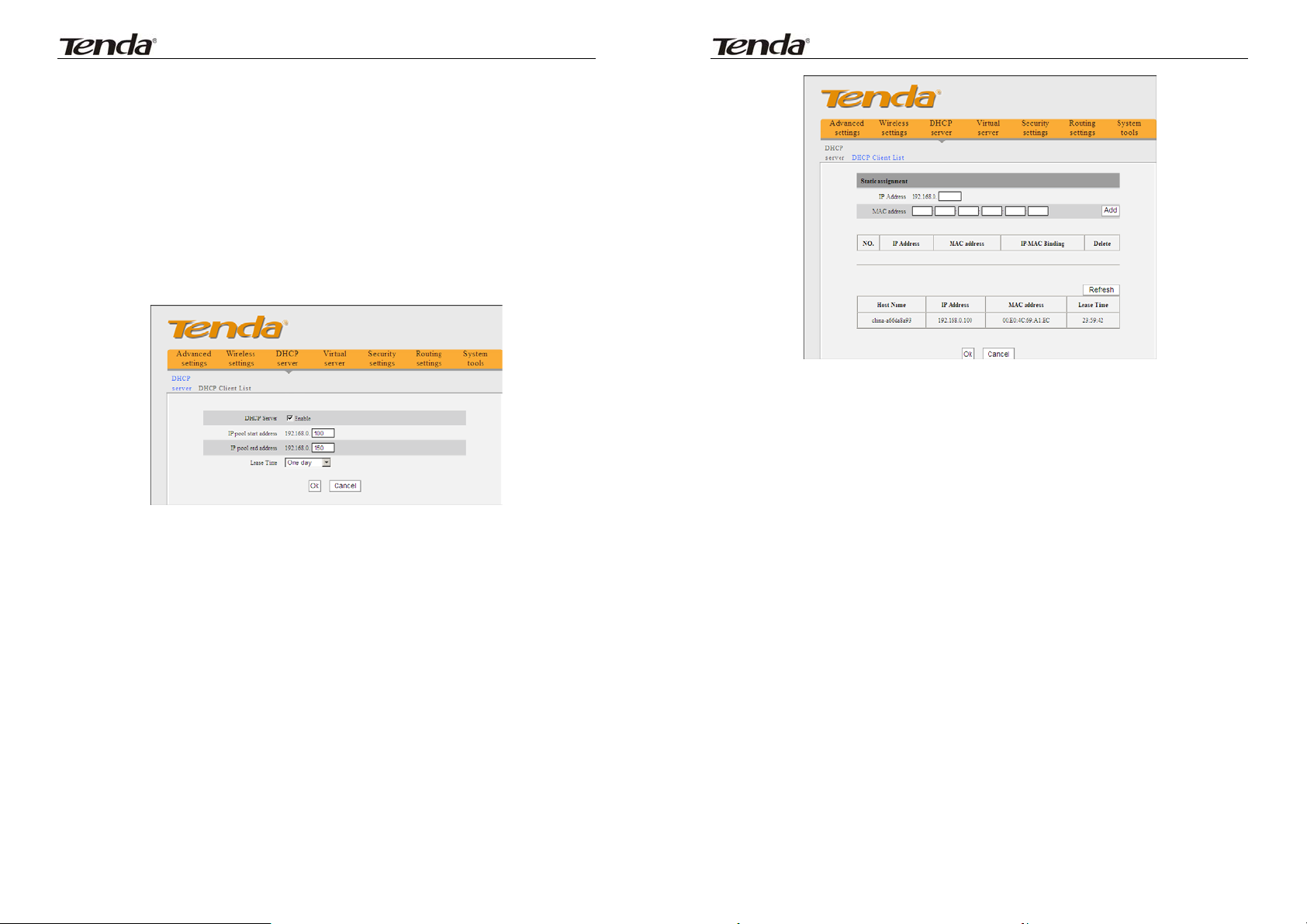

CHAPTER 6 DHCP SERVER ............................................. 34
6.1 DHCP Server ........................................ 34
6.2 DHCP Client List .................................... 34
CHAPTER 7 VIRTUAL SERVER ...................................... 36
7.1 Port Range Forwarding ........................... 36

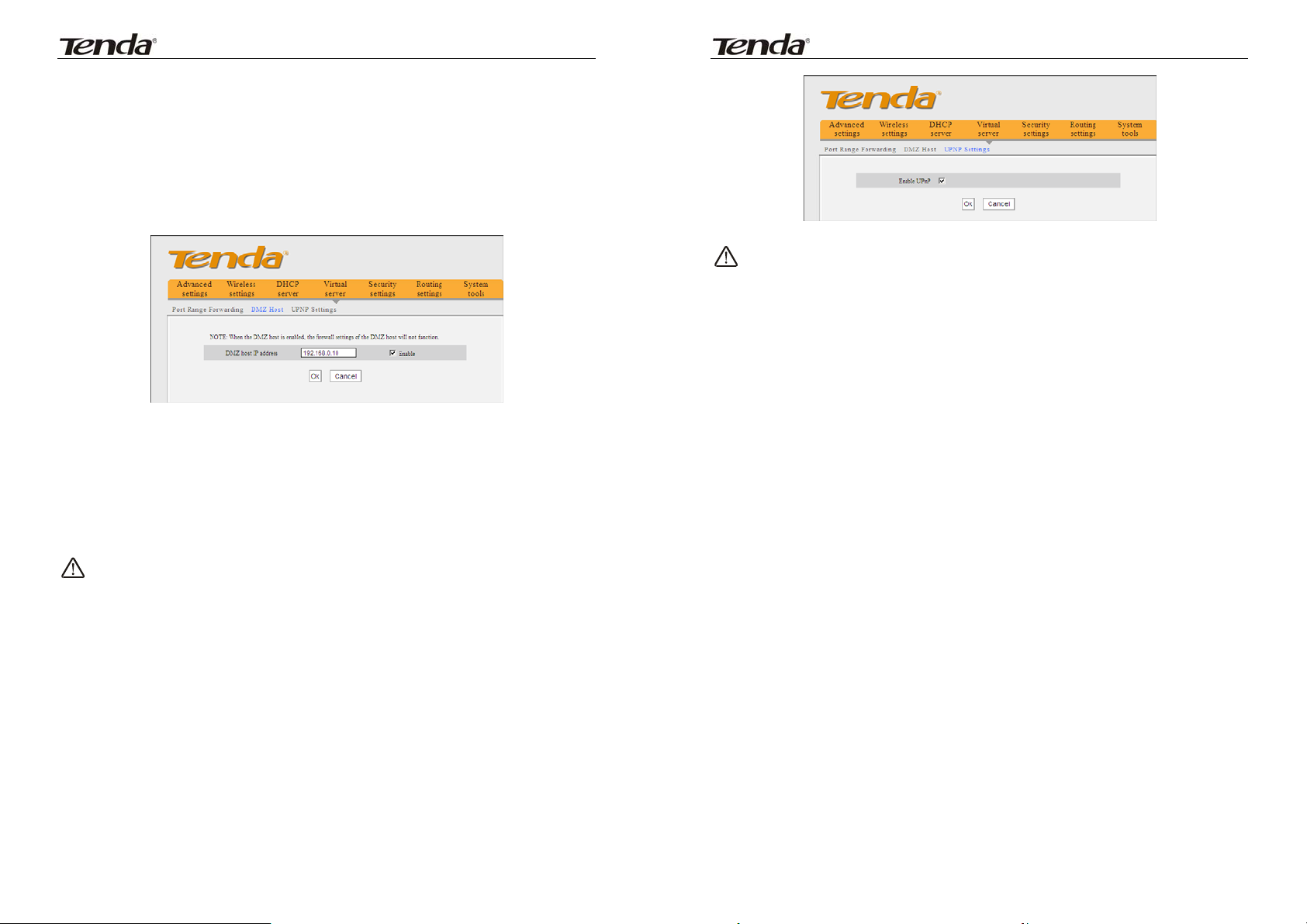

7.2 DMZ Settings ........................................ 38
7.3 UPNP Settings ....................................... 38
CHAPTER 8 SECURITY SETTINGS ............................... 40

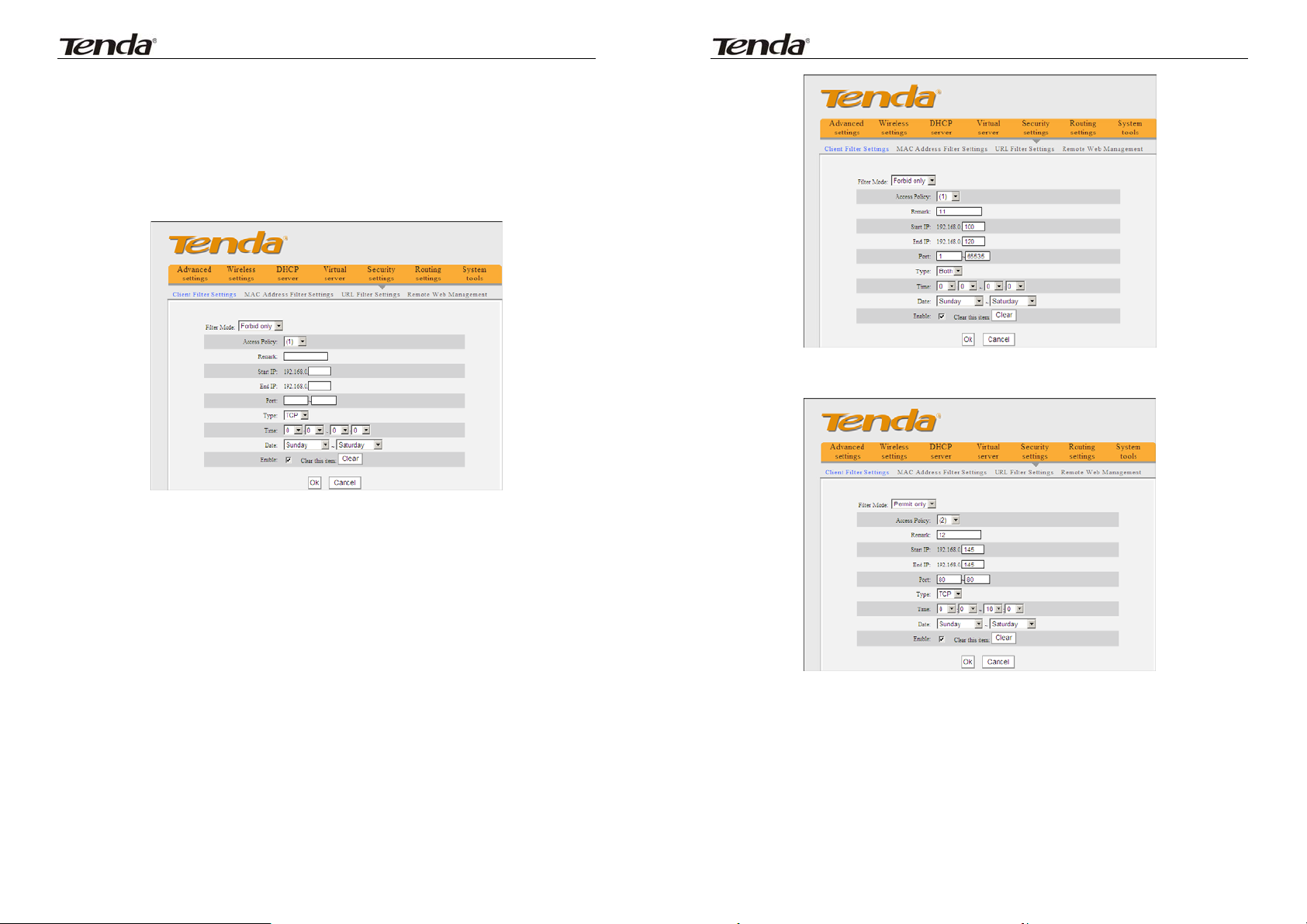

8.1 Client Filter Settings .............................. 40

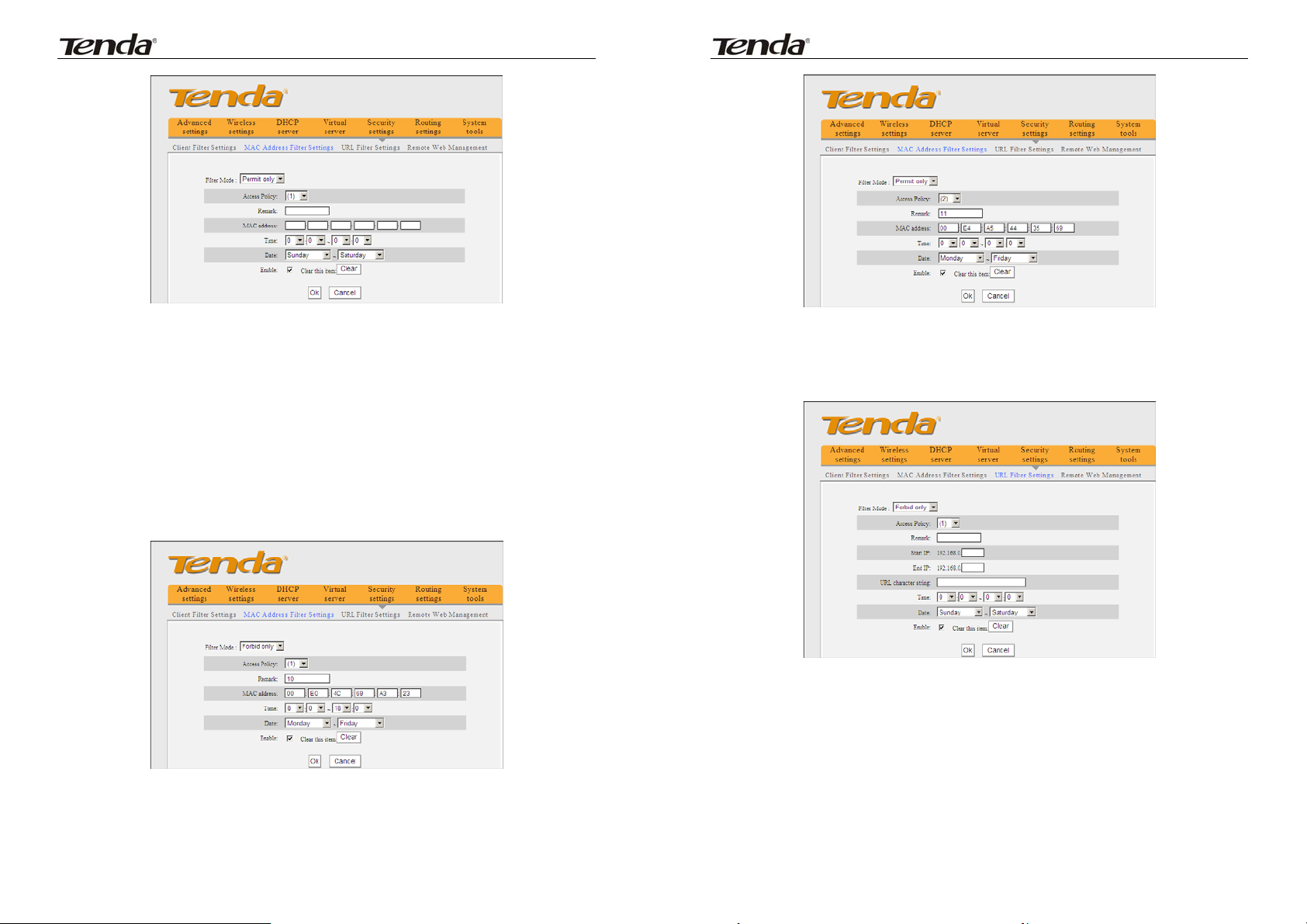

8.2 MAC Address Filter ................................ 41

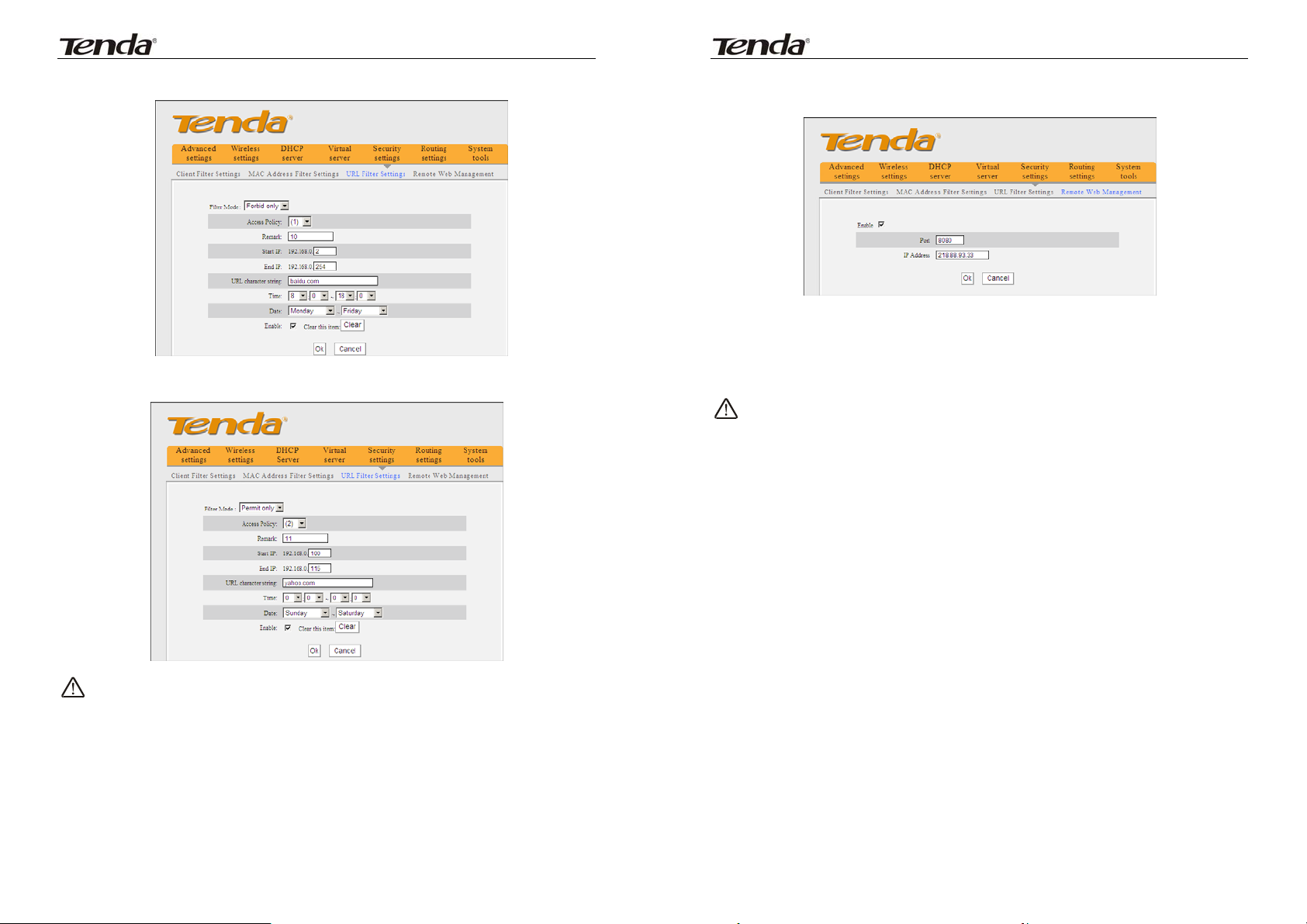

8.3 URL Filter Settings ................................ 43
8.4 Remote Web Management ...................... 44
CHAPTER 9 ROUTING SETTINGS ................................. 46
9.1 Routing Table ........................................ 46
9.2 Static Routing ....................................... 46
CHAPTER 10 SYSTEM TOOLS ........................................ 48
10.1 TIME SETTINGS ...................................... 48
10.2 DDNS ................................................ 48
10.3 Backup/Restore ................................... 49
10.4 Restore to Factory Default .................... 51
10.5 Upgrade ............................................. 51
10.6 Reboot the Router ............................... 52
10.7 Password Change ................................ 52
10.8 Syslog................................................ 53
10.9 Log out .............................................. 53
APPENDIX 1 GLOSSARY .................................................. 54
APPENDIX 2 PRODUCT FEATURES .............................. 55
APPENDIX 3 FAQ ............................................................... 56
11N Wireless User Guide
11N Wireless User Guide

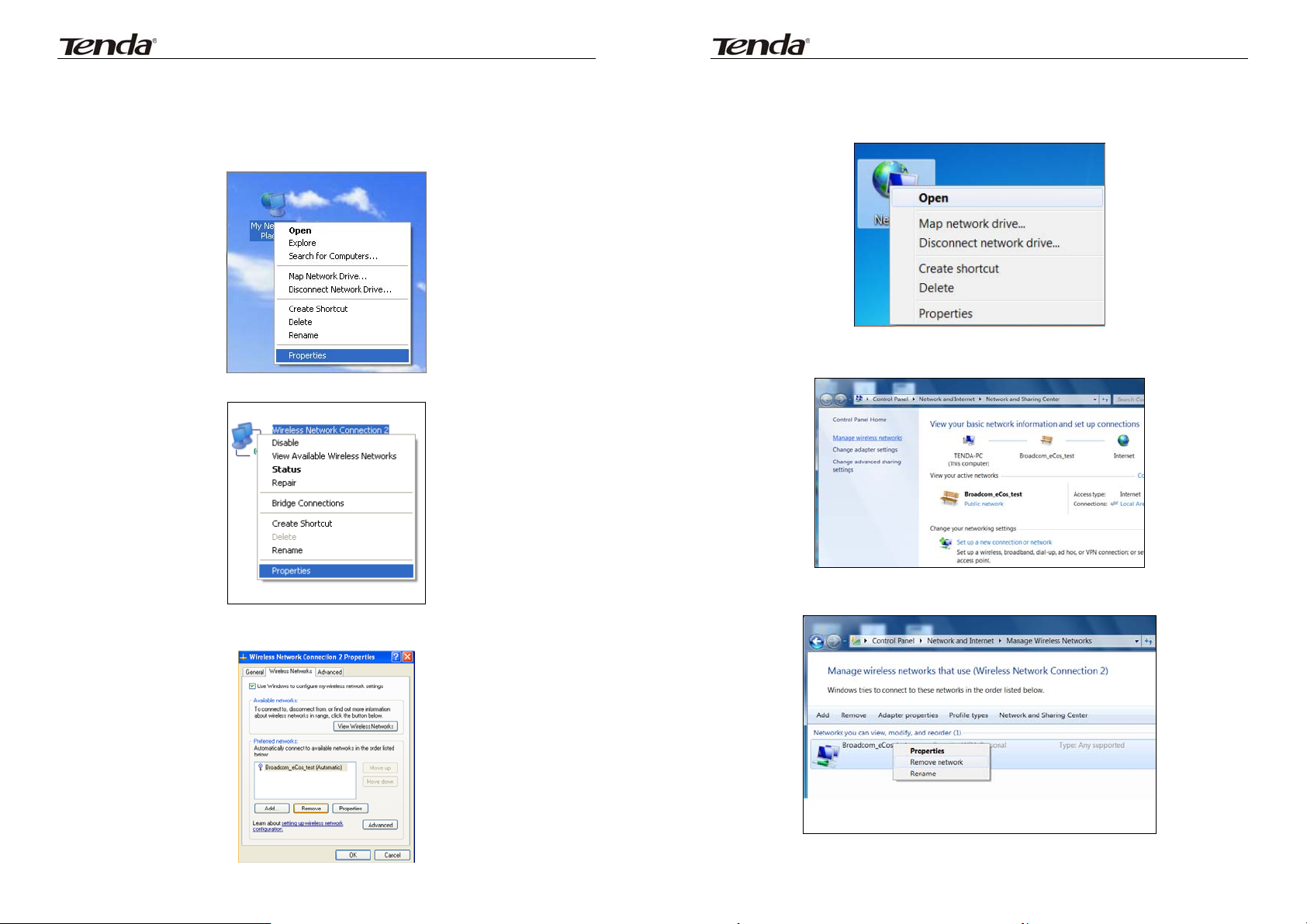

APPENDIX 4 CLEAR WIRELESS CONFIGURATION . 58
APPENDIX 5 REGULATORY INFORMATION ............. 60
Chapter 1 Product Introduction
Thank you for purchasing the Tenda Wireless N Broadband Router! This easy-to-use router provides simple configuration interface which enables you to configure it with ease. It is based on the latest IEEE802.11n standard, and is backward compatible with devices of IEEE802.11b/g standards. The Tenda wireless router，including router, wireless AP, four-port switch and firewall in one，provides powerful onlin e moni tor functi on and support s URL filter and MAC filter. With WDS function, it can re peat and a mplify wireless signals so as to enl arg e netw o rk cove rage area. It truly supports UPnP and WMM to make your audio and video smoother. With QoS function, it can efficiently distribute the downloading rate for the clients. With super compatibility, the router can break the access limits in some areas so that multiple computers can share the Internet access. Additionally, it supports WISP function to access to the ISP’s wireless hotspots (this function applies only to some of the products).
1.1 Package Contents
Please verify the following items after you open the package:
¾ One Wireless N Broadband Router ¾ One Quick Installation Guide
¾ One Power Adapter ¾ One Software CD
If any of the listed items are missing or damag ed, please contact the Te nda reseller for immediate replacement.
1.2 LED Indicators and Port Description
Panel and LED indicators show:
LED indicator description on the front panel
1
11N Wireless User Guide
Back panel port show (take W316R as an example)
11N Wireless User Guide
Back panel port description
2
3
11N Wireless User Guide
11N Wireless User Guide
Chapter 2 Product Installation
In this user guide, we take W316R as an example to explain the installation steps. The installation steps of other prod ucts are similar to this one.
1. Please use only the included power adapter to power your router. (NOTE: Use of an unmatched power adapter could cause damage to this product).
2. Please connect the router’s LAN port to your computer with an Ethernet cable as shown
below.
4. Insert the included software CD into the CD drive of your computer. After the software automatically initiates, double click the “Setup” icon and follow the instructions to complete the installation. You can also enter the router’s Web-based Utility to complete the configuration.
3. Please connect your broadband line provided by your ISP to the router’s WAN port.
4
5
11N Wireless User Guide
Chapter 3 How to configure to access the Internet
3.1 How to Set the Network Configurations
Network Configurations under windows XP
1. Right click “My Network Places ” on your computer desktop and select “Properties”.
11N Wireless User Guide
4. Select “Obtain an IP address automatically” and “Obtain DNS server address automatically”. Click “OK” to save the confi gu rations.
2. Right click “Local Area Connection” and select “Properties”.
3. Select “Internet Protocol (TCP/IP)” and click “Properties”.
6
Or select “Use the following IP address” and enter the IP address, Subnet mask, Default gateway as follows:
¾ IP Address: 192.168.0.XXX: (XXX is a number from 2~254) ¾ Subnet Mask: 255.255.255.0 ¾ Gateway: 192.168.0.1 ¾ DNS server: You should input the DNS server address provided by your ISP.
Otherwise, you can enter 192.168.0.1. Click “OK” to save the configurations.
7
11N Wireless User Guide
3. Right click “Local Area Connection” and select “Properties”.
11N Wireless User Guide
Network Configurations under windows 7
1. Click the network icon on the lower right corner of your computer desktop, and then click” Open Network and Sharing Center”.
2. Click “Change adapter settings” on the left side of the window.
4. Double click” Internet Protocol Version 4(TCP/IPv4)".
5. Select “Obtain an IP address automatically” and “Obtain DNS server address
8
9
11N Wireless User Guide
11N Wireless User Guide
automatically”. Click “OK” to save the confi gu rations.
Or select “Use the following IP address” and enter the IP address, Subnet mask, Default gateway as follows:
3.2 Log in to the Router
1. To access the Router’s Web-based Utility, launch a web browser such as Internet Explorer or Firefox and enter http://192.168.0.1. Press “Enter”.
2. The system will automatically choose the corresponding web language in accordance with the Browser’s language. For example, if your Browser’s language is French, the router’s web language will display as French.
3. If your Browser language is English or beyond the 9 languages (Arabic, French, German, Italian, Polish, Portuguese, Russian, Spanish, Turkish), the router’s web language will be English.
¾ IP Address: 192.168.0.XXX: (XXX is a number from 2~254) ¾ Subnet Mask: 255.255.255.0 ¾ Gateway: 192.168.0.1 ¾ DNS server: You should input the DNS server address provided by your ISP.
Otherwise, you can enter 192.168.0.1. Click “OK” to save the configurations.
10
11
11N Wireless User Guide
11N Wireless User Guide
3.3 Fast Internet Access
Two kinds of fast access methods are provided on the router’s web-based utility: ADSL dial-up and DHCP. If you select ADSL dial-up, you only need to enter the access account and access password as well as the wireless password, and then click “Ok” to complete the settings.
If you select DHCP, you only need to enter the wireless password and click “Ok” to complete the settings.
3.4 Fast Encryption
The router provides two encryption setting screens, one is simple and easy, the other is advanced (For advanced setting, please refer to chapter 5.2).
Simple and easy screen:
Log on to the router’s web-based utility and you may set encryption for the router. The default adopts WPA-PSK mode and AES Algorithm. The default password is 12345678, as shown below.
NOTE: The wireless password can only be 8 cha rac ters in le ngth and the default
is 12345678, you can modify it when necessary.
The default access method is ADSL dial-up and the access account and access password are the same as the ADSL dial-up account and password, which you can inquire your broadband ISP. For other access methods, please refer to WAN settings in chapter 4.The wireless password can only consist of 8 characters, th e default is 12345678 and you can modify it when necessary.
12
13
11N Wireless User Guide
11N Wireless User Guide
Chapter 4 Advanced Settings
4.1 System Status
System status screen allows you to view the router’s WAN port status and system status.
¾ Connection status: It displays the router’s WAN connection status.
Disconnected: It indicates the router’s WAN port hasn’t been connected with the network cable. Connecting: It indicates the router’s WAN port is obtaining IP address. Connected: It indicates the Router is well connected with the ISP.
¾ WAN IP：IP address obtained from ISP. ¾ Subnet mask: Obtained from ISP. ¾ Gateway: Obtained from ISP. ¾ DNS server: Obtained from ISP. ¾ Alternate DNS server: Obtained from ISP. ¾ Connection type: It displays your current acces s m eth od.
¾ LAN MAC address：It displays the Router’s LAN MAC address. ¾ WAN MAC address：It displays the Router’s WAN MAC Address.
¾ System time：It displays the sys tem’s updated time ¾ Connected client ：It displays the number of the connected computers(normally it
displays the number of clients whose IP addresses obtained via DHCP server)
¾ Software vers ion：It displays the Router’s software version； ¾ Hardware version：It display s the Route r’s hardware version.
4.2 WAN Settings
Virtual Dial-up (PPPoE)
¾ Mode: Show your current connection mode. ¾ Access Account: Enter the account provided by your ISP. ¾ Access Password: Enter the password provided by your ISP. ¾ MTU: Maximum Transmission Unit. It is the size of the largest data packet that can
be sent over the network. The default value is 1492. Do NOT modify it unless necessary, but if a specific website or web application software cannot open or be enabled, you can try to change the MTU value to 1450, 1400, etc.
¾ Service Name: The connection name for current PPPOE, enter it if necessary，
otherwise, leave it blank.
¾ AC Name: The service name, enter it if necessary，otherwise, leave it blank. ¾ Connect Automatically: Connect automatically to the Internet after rebooting the
system or connection failure.
14
15
