Chapter 1 Introdution
W54A is fully compliant with IEEE802.11g/b standards. It can help
you extend from the wired network to the wireless network, free
from the cabling troubles. It is the best choice for SOHO and small
enterprise users. W54A provides five work modes: AP, WDS P2P
Bridge, WDS P2MP Bridge, WDS AP Bridge and Client. It also
supports 64/128-bit WEP, WPA, TKIP, AES, WPA2, WPA&WPA2
encryptions and security mechanism. The MAC address filter can
protect your network against any malicious intrusion. Moreover , the
Web management utility can benefit you to manage the device
easily.
1.1 Product Features
¾ Supports IEEE 802.11g, IEEE 802.11b standards
¾ Supports five connection modes: AP, WDS P2P Bridge, WDS
P2MP Bridge, WDS AP Bridge and Client
¾ Provides up to 54M transmission rate and 54/48/36
/24/18/12/9/6M or 11/5.5/2/1M Auto-Negotiation rate
selection
¾ Supports one 10/100M Auto-Negotiation Ethernet port
¾ Supports 150 meters indoors and 400 meters outdoors
(depends on the environments around)
1
W54A 54M Wireless AP User Guide
¾ Supports Web management utility and easy Setup Wizard
¾ Supports 64/128-bit WEP data encryption
¾ Supports WPA, TKIP, AES , WP A2, WP A&WP A2 encryptions and
security mechanism
¾ Supports IEEE802.11b/IEEE802.11g Auto-negotiation and
manual configuration modes
¾ Supports Auto MDI/MDIX
¾ Supports Firefox1.0，IE5.5 or above
¾ Supports authorization access over thirty-two MAC addresses
¾ Supports auto wireless channel selection
¾ Provides detachable antenna
1.2 Package contents
One W54A Wireless AP
One Power Adapter
One Quick Installation Guide
One CD-ROM
2
W54A 54M Wireless AP User Guide
Chapter 2 Hardware Installation
This chapter explains how to connect the Access Point (take the AP
mode installation as example, other installation mo des please r efer
to the Quick Inst alla t ion Gu ide ) . Th e d et aile d pr oc es se s a re sh ow n
as below:
1. Connect one end of the network cable to your Ethernet
broadband router, switch or PC, and the other end to the
W54A’s LAN port.
2. Connect the power adapter to the AP’s Power port. Then plug
the power adapter into an electrical outlet. The LEDs on the
front panel will light up as soon as the AP’s powers on.
Then, connect wireless adapter to the AP via wireless signal.

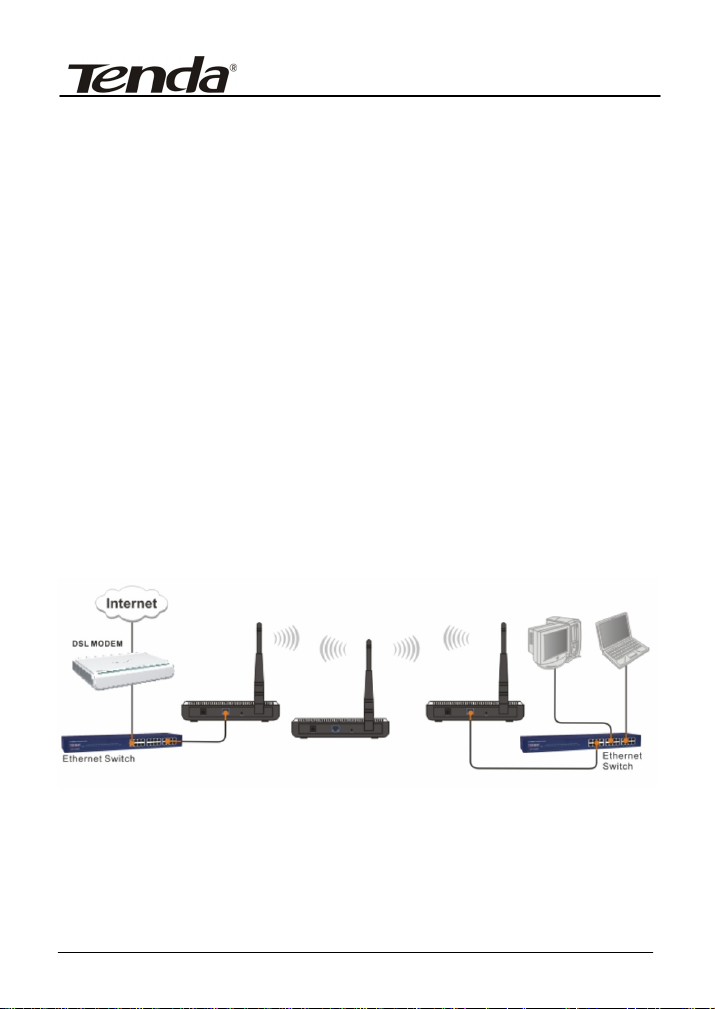

Please refer to the topology below:
3
W54A 54M Wireless AP User Guide
The topology plan of AP mode connection
4
W54A 54M Wireless AP User Guide
Chapter 3 Configuration
Now that you’ve connected the AP to your wired network, you are
ready to begin setting it up. This chapter will take you through all
the steps necessary to configure your AP.
3.1 Log in
Launch Internet Explorer or Netscape Navigator . In the address bar,
enter the AP’s default IP address, 192.168.0.254. Press Enter key
and the login screen will appear. Before doing this, you need set
192.168.0.x(x ranges 1-253) as your PC’s IP address, and
255.255.255.0 as your subnet mask. (Please refer to the Appendix
II for the detail of TCP/IP setting)
Enter admin in both the user name and password field. When this
is your first time to open the Web-based management interface,
you can set a new password from the System Tool – Change
password tab.
5
W54A 54M Wireless AP User Guide
Click Ok; the welcome screen will appear;
Click Next and Wizard screen will appear. On the screen, there are
five different operating modes including W54A—AP, WDS P2P
Bridge, WDS P2MP Bridge, WDS AP Repeater and the client. The
specific setting for each mode will be showed below.
3.2 Wizard
6
W54A 54M Wireless AP User Guide
If the wizard page hasn’t appeared, you can also click the wizard
tab on the left to active.
For different requirements, you can select one of the suitable
operating modes. Here, we’ll take AP mode as example to introduce
the settings method.
Select AP mode and click Next.
This page will require you to enter the SSID, Channel settings for
your wireless network.
SSID: The name of your wireless network. The default value is
“Tenda”.
Channel: Select the operating frequency for your wireless
network.
Click the Next button to continue or the Back button to
7
return to
W54A 54M Wireless AP User Guide
the previous screen.
Then you’ll see the security setting screen. You can select the
different level of security:
Authentication: WEP_Open System/Share Key, WPA, WPA2, and
WPA_WPA2_Mixed
Key Type: Select ASCII or Hex format.
Key Size: 64-bit or 128-bit (Note: If you select 64-bit, please enter
10 Hexadecimal characters or 5 ASCII Characters for the key
content. For 128 -bit, you should enter 26 Hexadecimal characters
or 13 ASCII Characters).
Key Choice: when using the WEP encryption mode, you could save
up to 4 keys.
According to W54A modes, wireless encryption settings supported
are shown below.
8
W54A 54M Wireless AP User Guide
Table 1: Wireless Security
Mode
WEP
WPA WPA2 WPA_WPA2_Mi
xed
AP Yes Yes
Yes Yes
Repeater Yes NO NO NO
P2P Yes NO NO NO
P2MP Yes NO NO NO
Client Yes Yes
Yes Yes
Note: After clicking Apply to save your settings, you have to
reboot the device (From System Tools—Reboot) to let your settings
take effect.
3.3 Status
This page shows the AP’s product information and working status.
9
