Chapter 1 Introduction

Thank you for purchasing Tenda 11N Wireless Broadband Router!
W268R utilizes advanced MIMO technology which increases transmission range to over 6 times of ordinary 802.11g products. Compatible with IEEE802.11n and IEEE802.11g/b standards, it can provide up to 150Mbps stable transmission rate. Additionally, it includes router, wireless access point, four-port switch and firewall in one, dedicated to SOHOs (Small Office/Home Office) and family networking.
It supports WDS (Wireless Distribution System) function for repeating and amplifying the signals to extend the wireless network coverage. In addition, the router also supports all of the latest wireless security features, such as 64/128-bit WEP , WPA, WPA2, WPA&WPA and WPS (PBC and PIN) encryption methods, packet filtering and port forwarding, to prevent unauthorized access and protect your network against malicious attack.
URL and MAC address filtering can make it easy for parents and network administrators to manage network activity and QoS can control the bandwidth of specific computer’s
1
11N Wireless Broadband Router
downloading speed. In addition, UPnP and WMM support can help to improve your MSN voice.
The Setup Wizard, included with the software CD, makes installation and access to the Internet fast and easy even for the non-savvy users.

1.1 Product Features

¾ Includes router, wi reless access point, four-port switch
and firewall all-in-one
¾ Provides up to 150Mbps uploading and downloading
speed
¾ Supports two WPS (Wi-Fi Protected Setup) encryption
methods: PBC and PIN
¾ Compliant to IEEE802.11n, IEEE802.11g, IEEE802.11b,
IEEE802.3 and IEEE802.3u standards
¾ Supports over 8 times transmission range of 11G
products
¾ Supports 64/128-bit WEP, WPA, WPA2, WPA&WPA2
encryption methods
¾ Supports RTS/CTS protocol and data partitioning
function
¾ Provides one 10/100Mbps Auto-Negotiation Ethernet
WAN port
2
11N Wireless Broadband Router
¾ Provides four 10/100Mbps Auto-Negotiation Ethernet
LAN ports
¾ Supports xDSL/Cable MODEM, static and dynamic IP in
community networking
¾ Supports remote/local Web management ¾ Supports WMM to better smooth your voice and video ¾ Supports SSID stealth mode and access control based
over MAC address (up to 30 entries)
¾ Supports Auto MDI/MDIX ¾ Supports wireless Roaming technology for high-efficient
wireless connections
¾ Supports auto negotiation/manual mode for
802.11b/802.11g/802.11n
¾ Supports UPnP and DDNS ¾ Supports Firefox 1.0, IE5.5 or above ¾ Supports SNTP ¾ Supports virtual server, DMZ host ¾ Built-in firewall to prevent network attacks ¾ Supports DHCP server/client ¾ Supports auto wireless channel selection ¾ Supports LAN access control to the Internet ¾ Provides syslog to record the status of the router ¾ Supports WDS wireless network extension ¾ Supports QoS function ¾ Two built-in omni-directional antennas
3
11N Wireless Broadband Router

1.2 Package Contents

Please unpack the box and check the following items:
¾ One W268R 11N Wireless Broadband Router ¾ One Quick Installation Guide ¾ One Power Adapter ¾ One software CD
If any of listed items are missing or damaged, please contact the Tenda reseller for immediate replacement.

1.3 LED Indicator and Port Description

Front panel LED indicator description (from L to R):
POWER LED
Illuminates green to indicate the router is on and has power.
4
11N Wireless Broadband Router
SYS LED
Flashes green to indicate the router is operating correctly.
WPS LED
Flashes to indicate the device is communicating in WPS mode.
WLAN LED
Wireless signal indicator, flashes green to indicate the wireless function is enabled.
LAN (4,3,2,1) LEDs
Wired local network indicators are illuminated when connected to an Ethernet device; flashing indicates the device is transmitting and/or receiving data.
WAN LED
Wide Area Network indicator is always illuminated to indicate the router’s WAN port is properly connected; flashing indicates the port is transmitting and/or receiving data packets.
5
11N Wireless Broadband Router
Rear panel port description (from L to R
POWER
The jack is for power adapter connection. Please use the included 9V DC AC adapter.
WAN
A 100Mbps Ethernet port that can be connected to a MODEM, Switch, router, DSL or Cable MODEM, or other Ethernet device for connecting to the Internet.
LAN (1, 2, 3, 4)
Four 10/100Mbps Ethernet ports that can be connected to an Ethernet switch, Ethernet router, or NIC card.
RESET
The system reset button. Press and hold this button for 7 seconds and all configured settings will be deleted and router settings will be restored to original factory default.
WPS
Press and hold the WPS button for 1 second and the WPS
6
11N Wireless Broadband Router
feature will be enabled. The WPS LED will flash when communicating in this mode.
7
11N Wireless Broadband Router

Chapter 2 Hardware Installation

2.1 How to Install the Router

After you unpack the box, please follow the steps below to setup your router. For better wireless performance, please put the device in the middle of the wireless coverage area.
1. Please use the included AC adapter to power your router. IMPOR T ANT: Use of a different power adapter could cause damage and void the warranty for this product.
8
11N Wireless Broadband Router
2. Please connect a LAN cable to the LAN port of the router and then to the network adapter of your computer.
3. Please connect your broadband line provided by your ISP to the WAN port.
9
11N Wireless Broadband Router
4. Insert the included software CD into the CD drive of your computer. After the software initiates, doubl e click the “Setup” icon and follow the instructions to complete the installation. You can also enter the router’s web page to complete the setup and configure your router. (For more details please refer to Chapter 3.)
Note:
If your operating system is Windows 7 and the "Program Compatibility Assistant" window appears please click, "This program installed correctly", to finish
the router setup process.
10
11N Wireless Broadband Router

2.2 Network Application Plan

Usually, a wireless LAN network is positioned in an area where each access point is setup in a dedicated location to ensure optimum wireless coverage and consistent communication service. Generally speaking, it is in the center of the area to reduce “dead spots”.
11
11N Wireless Broadband Router

Chapter 3 How to Login to the Router

This chapter explains how to enter the router’s web page. After you have finished the hardware installation the following steps will assist you in setting the network configurations for you computer.

3.1 How to Set the Network Configurations

1. From “Control Panel” open “Network
Connections”.
2. Right click “Local Area Connection” for network and select “Properties”.
12
11N Wireless Broadband Router
3 Select “Internet Protocol (TCP/IP)” and click
Properties”.
4Select “Obtain an IP address automatically” and
Obtain DNS server address automatically”. Click “OK” to save the configurations.
13
11N Wireless Broadband Router
Or select “Use the following IP address” and enter the IP address, Subnet mask, Default gateway as follows:
IP Address: 192.168.0.XXX(XXX is a number from 2~254) Subnet Mask: 255.255.255.0 Gateway: 192.168.0.1 DNS server: You should input the DNS server address
provided by your ISP. Otherwise, you can use the router’s default gateway as the DNS proxy server. Click “OK” to save the configurations.

3.2 Login to the Router

1. T o access the router’s web-based interface, launch a web browser such as Internet Explorer or Firefox and enter the router’s default IP address, http://192.168.0.1. Press “Enter”.
14
11N Wireless Broadband Router
2. Ty pe “admin” as both “User Name” and “Password”. Clic k
OK”.
3. If you entered the user name and password correctly ,
the following screen will be displayed.
15
11N Wireless Broadband Router

Chapter 4 Quick Setup Guide

This chapter outlines how to quickly access the Internet. Please follow this guide to connect your router to the Internet.

4.1 Setup Wizard

1. Install the software CD into your computer and after the software initiates double click the “Setup” icon and “Welcome to Setup Wizard” will be displayed, click “Next”.
2. In this screen, select the Internet connection mode you use. If you are unsure of the mode, press the “Auto Detect” button (or you can contact your Internet Service Provider for the mode to be used), and then click “Next”.
16
11N Wireless Broadband Router
ADSL Virtual Dial-up (Via PPPoE)
Enter the Account and Password provided by your ISP, and click “Next”.
For example
Dynamic IP (Via DHCP)
If your connection mode is Dynamic IP, it means your IP address keeps changing every time you connect. Y ou do not need to enter the information like other modes. Click “Next”
17
11N Wireless Broadband Router
and “Save” to finish the settings.
Static IP
In this screen, fill the network address information from your ISP in the IP Address, Subnet Mask, Gateway and Primary DNS server fields and click “Next”.
For example:
ISP provides the following TCP/IP parameters as follows
IP Address192.168.1.2 Subnet Mask255.255.255.0 Gateway192.168.1.1 Primary DNS Server192.168.1.2 Alternate DNS Server202.96.134.133
18
11N Wireless Broadband Router
Click “Save” to complete the setup wizard. The router will record the settings you made. To activate the settings, it is recommended to select “Reboot the Router” from “System Tool” of the left menu. wait for a few minutes and DO NOT power off your computer.
During the rebooting process, please
After rebooting, click the “System Status” in the left menu of the Web-based Utility to find out the current network and system information. If the “Connection Status” is “Connected”, congratulations you completed the router’s basic settings and you are now connected to the Internet. If you want to modify your configuration, please proceed to the following explanations for Advanced Settings.
19
11N Wireless Broadband Router
L2TP
L2TP Server IP: Enter the Server IP provided by your ISP. User Name: Enter L2TP username. Password: Enter L2TP password. MTU: Maximum Transmission Unit, you may need to change
it for optimal performance with your specific ISP . 1400 is the default MTU. Address Mode: Select “Static” if your ISP supplies you with the IP address, subnet mask, and gateway. In most cases, select Dynamic.
IP Address: Enter the L2TP IP address supplied by your ISP. Subnet Mask: Enter the Subnet Mask supplied by your ISP. Default Gateway:
your ISP.
Enter the Default Gateway supplied by
20
11N Wireless Broadband Router
PPTP
PPTP Server IP: Enter the Server IP provided by your ISP. User Name: Enter PPTP username provided by your ISP. Password: Enter PPTP password provided by your ISP. Address Mode: Select “Static” if your ISP supplies you with
the IP address, subnet mask, and gateway. In most cases, select Dynamic.
IP Address: Subnet Mask: Enter the Subnet Mask supplied by your ISP. Default Gateway: Enter the Default Gateway supplied by
your ISP.
Enter the PPTP IP address supplied by your ISP .
21
11N Wireless Broadband Router

Chapter 5 Advanced Settings

5.1 LAN Settings

LAN Settings are for the basic TCP/IP parameters of LAN ports.
MAC Address: The router’s physical MAC address as
seen on your local network, which is unchangeable.
IP Address: The router’s LAN IP addresses (not your
PC’s IP address). 192.168.0.1 is the default value.
Subnet Mask: It displays the router ’s subnet mask
for measurement of the network size. 255.255.255.0 is the default value.
IMPORTANT: Once you modify the IP address, you
need to remember it for the next time you login to the web-based utility.
22
11N Wireless Broadband Router

5.2 WAN Settings

After you have selected the ISP connection mode in “Setup Wizard” and would like to modify or configure the related settings in detail.
Virtual Dial-upPPPoE
Connection Mode: Show your current connection
mode.
Account: Enter the name provided by your ISP. Password: Enter password provided by your ISP. MTU: Maximum Transmission Unit. It is the size of
23
11N Wireless Broadband Router
largest datagram that can be sent over a network. The default value is 1492. Do NOT modify it unless necessary , but if a specific website or web application software cannot open or be enabled, you can try to change the MTU value to 1450, 1400, etc.
Service Name: It is defined as a set of characteristics
that are applied to a PPPoE connection. Enter it if provided. Do NOT modify it unless necessary.
AC Name: Enter it if provid ed. Do NOT modify it unless
necessary.
Connect Automatically: Connect automatically to the
Internet after rebooting the system or connection failure.
Connect Manually: Connect to the Internet by user
manually.
Connect on Demand: Re-establish your connection to
the Internet after the specific time (Max Idle Time). Zero means you are connected to the Internet all the times. Otherwise, enter the minutes to be elapsed before you are disconnected from the Internet.
Connect on Fixed Time: Connect to the Internet
during the time you set.
Notice:
The “Connect on Fixed Time” can be deployed only when you have set the current time in “Time
24
11N Wireless Broadband Router
Settings” from “System Tools”.
Static IP
If Static IP connection mode is chosen, you can modify the following address information. IP Address: Enter the WAN IP address provided by
your ISP.
Subnet Mask: Enter the WAN Subnet Mask here. Gateway: Enter the WAN Gateway here. Primary DNS Server: Enter the Primary DNS server
provided by your ISP.
Secondary DNS Server: Enter the secondary DNS.
25
11N Wireless Broadband Router

5.3 MAC Address Clone

This page is for the Router’s MAC address to WAN.
Some ISPs require end-user's MAC address to access their network. This feature copies the MAC address of your network device to the Router.
MAC Address: The MAC address to be registered with
your Internet service provider.
Clone MAC Address: Register your PC's MAC address. Restore Default MAC Address: Restore to the default
hardware MAC address.
26
11N Wireless Broadband Router

5.4 DNS Settings

DNS is short for Domain Name System (or Service), an Internet service that translate domain names into IP addresses which are provided by your Internet Service Provider. Please consult your Internet Service Provider for details if you do not have them.
DNS: Click the checkbox to enable the DNS server. The
Router’s DHCP sever will answer the client’s requests and distribute DNS address.
Primary DNS Address: Enter the necessary address
provided by your ISP.
Secondary DNS Address: Enter the second address if
your ISP provides, which is optional.
Notice:
After the settings are completed, reboot the device to activate the modified settings.
27
11N Wireless Broadband Router

Chapter 6 Wireless Setting

6.1 Basic Settings

Enable Wireless: Check to enable the router’s wireless
features; uncheck to disable it.
Network Mode:Select one mode from the following.
The default is 11b/g/n mode.
11b modeAllow the wireless client to connect with the
device in 11b mode at the maximum speed of 11Mbps.
11g modeAllow the 11g/11n-compliant client device
to connect with the AP at the maximum speed of 54Mbps.
28
11N Wireless Broadband Router
11b/g modeAllow the 11b/g-compliant client device
to connect with the AP with auto-negotiation speed, and 11n wireless client to connect the device with 11g speed.
11b/g/n mode:Allow 11b/g/n-compliant client device
to connect with the AP with auto-negotiation speed.
SSID
of the wireless network. This device has two SSID and the SSID is necessary.
Broadcast (SSID): Select “Enable” to enable the
device's SSID to be visible by wireless clients. The default is enabled.
BSSID
In IEEE802.11, BSSID is the MAC address of wireless access point.
Channel
13\Auto) of the wireless network.
Extension Channel
wireless network, the extension channel range is used in 11n mode.
Channel BandwidthSelect the channel bandwidth to
improve the wireless performance. When the network has 11b/g and 11n clients, you can select the 40M; when it is an 11n network, select 20/40M to improve its throughput.
SSID (Service Set Identifier) is the unique name
Basic Service Set Identifier of wireless network.
Specify the effective channel (from 1 to
To increase data throughput of
29
11N Wireless Broadband Router

6.2 Wireless Security Setting

It is used to configure the AP network’s security setting. The following are the common six (ten in all) encryption methods, including Mixed WEP, WPA-personal, WPA2-personal, etc.
6.2.1 Mixed WEP
WEP (Wired Equiva len t P rivacy), a basic encryption method , usually encrypts wireless data using a series of digital keys (64 bits or 128 bits in length). By using the same keys on each of your wireless network devices, you can prevent unauthorized wireless devices from monitoring your transmissions or using your wireless resources. Select Mixed WEP to enter the following window:
Select SSID:Select the SSID (main SSID or minor
30
11N Wireless Broadband Router
SSID) to configure security setting from the drop-down menu.
Security Mode
corresponding security encryption modes.
WEP Key1~4
ASCII and Hex. Y ou can enter ASCII code (5 or 13 ASCII characters. Illegal character as “/” is not allowed.) Or 10/26 hex characters.
Default Key
keys as the current available one.
6.2.2 WPA-Personal
WPA (Wi-Fi Protected Access), a Wi-Fi standard, is a more recent wireless encryption scheme, designed to improve the security features of WEP . It applies more powerful encryption types (such as TKIP [T emporal Key Integrity Protocol] or AES [Advanced Encryption Standard]) and can change the keys dynamically on every authorized wireless device.
From the drop-down menu select the
Set the WEP key with the format of
Select one key from the four configured
Select SSIDSelect the SSID (main SSID or minor
31
11N Wireless Broadband Router
SSID) to configure security setting from the drop-down menu.
WPA Algorithms Provides TKIP [Temporal Key
Integrity Protocol] or AES [Advanced Encryption Standard]. The default is TKIP mode.
Pass PhraseEnter the encrypted characters with
8-63 ASCII characters.
Key Renewal IntervalSet the key’s renewal period.
6.2.3 WPA2- Personal
WPA2 (Wi-Fi Protected Access version 2) provides higher security than WEP (Wireless Equivalent Privacy) and WPA (Wi-Fi Protected Access).
Select SSIDSelect the SSID (main SSID or minor
SSID) to configure security setting from the drop-down menu.
WPA Algorithms Provides TKIP [Temporal Key
Integrity Protocol] or AES [Advanced Encryption
32
11N Wireless Broadband Router
Standard]. The default is TKIP mode.
Pass PhraseEnter the encrypted characters with
8-63 ASCII characters.
Key renewal Interval:Set the key’s renewal period.

6.3 Advanced Settings

This section is to configure the advanced wireless setting of the Router, including the Radio Preamble, 802.11g/n Rate, Fragmentation Threshold, RTS Threshold, etc.
BG protection Mode: Auto by default. It is for 11b/g
wireless client to connect to an 11n wireless network smoothly in a complicated wireless area.
Basic Data Rates: For different requirement, you can
select one of the suitable Basic Data Rates. Here, default value is (1-2-5.5.-11Mbps…). It i s recommended not to
33
11N Wireless Broadband Router
modify this value.
Beacon Interval: Set the beacon interval of wireless
radio. Default value is 100. It is recommended not to modify this value.
Fragment Threshold: The fragmentation threshold
defines the maximum transmission packet size in bytes. The packet will be fragmented if the arrival is bigger than the threshold setting. The default size is 2346 bytes. It is recommended not to modify this value.
RTS Threshold: RTS stands for “Request to Send”. This
parameter controls what size data packet the frequency protocol issues to RTS packet. The default value of the attribute is 2346. It is recommended not to modify this value in SOHO environment.
TX Power: Set the output power of wireless radio. The
default value is 100.
WMM Capable: It will enhance the data transfer
performance of multimedia data when they’re being transferred over wireless network. It is recommended to enable this option.
APSD Capable: It is used for auto power-saved service.
The default is disabled.

6.4 WPS Settings

34
11N Wireless Broadband Router
WPS (Wi-Fi Protected Setting) is an easy and quick method to establish the connection between the wireless network clients and the device through encrypted contents. The user only enters a PIN code or presses the WLAN/WPA button on the panel to configure it without manually selecting encryption method and secret keys. In the “Wireless settings” menu, click “WPS settings” to enter the next screen.
WPS settingsT o enable or disable WPS function. The
default is “disable”.
WPS mode Provide two ways: PBC (Push-Button
Configuration) and PIN code.
PBC
Select the PBC or press and hold the WLAN/WPS button on the back panel of the device for about one second. The WPS LED indicator will flash for 2 minutes,
35
11N Wireless Broadband Router
which means the WPS is enabled. During this time (flashing WPS LED), yo u c an e nable an othe r de vice and implement the WPS/PBC connection between them. After two minutes, the WPS indicator will turn off, which means the WPS connection has been completed. If more clients are added, repeat the above steps. At present, the WPS supports up to 32 clients access.)
PINIf this option is enabled, you need to enter a
wireless client’s PIN code in the field and keep the same code in the WPS client.
WPS Summary Show the current state of Wi-Fi
protected setting, including authorized mode, encryption type, default key and other information.
WPS Current StatusIdle means WPS in idle state.
Start MSC process means the process has been started and waits for being connected. Configured means the negotiation is successful between server and clients.
WPS Configured“yes” means WPS feature is enabled
and goes into effect. “not used” means it is not used. Usually the AP-security has been enabled and will be displayed here as “not used”.
WPS SSIDShow the main SSID set by WPS. WPS Auth. ModeThe authorization mode deployed
by WPS, generally WPA/WPA2-personal mode.
WPS Encrypt TypeThe encryption type used by WPS,
generally AES/TKIP.
WPS key The effective key generated by AP
36
11N Wireless Broadband Router
automatically.
AP PINKEY):The PIN code used by default. Reset OOBWhen this button is pressed, the WPS client
will be in an idle state, and WPS indicator will be turned off. AP will not respond to the WPS client’ s requests and set the security mode as WPA mode.

6.5 WDS Settings

WDS (Wireless Distribution System) is used to expand wireless coverage area. This Router provides three modes: Lazy, Bridge and Repeater.
Lazy: In this mode, the connected device can be either
then Bridge mode or Repeater mode and enter the router’s BSSID to establish the connection.
Bridge: You can wirelessly connect two or more wired
networks via this mode. In this mode, you need to add
37
11N Wireless Broadband Router
the Wireless MAC address of the connecting device into the Router's AP MAC address table or select one from the scanning table.
Repeater ModeIn this mode, add the opposing MAC
address into their individual AP MAC address table by manual or scanning to enlarge and extend the wireless radio.
Encrypt Type: Select one from WEP, TKIP, or AES for
security here.
Pass phrase: Enter the encrypted key for wireless
devices.
AP MAC: Input the MAC address of another (opposing)
wireless router you want to connect.
NOTE:
It is recommended that two wireless routers keep the same bandwidth, channel number, and security settings. Apply the settings and reboot the router to activate it.

6.6 Wireless Access Control

To secure your wireless LAN, the wireless access control is actually based on the MAC address management to allow or block the specific clients to access the wireless network. Select “Wireless Setting->Access Control” to display the following screen:
38
11N Wireless Broadband Router
MAC Address FilterEnable/disable MA C address filter.
Select “Close” to disallow MAC address; “disable” to prevent the MAC addresses in the list from accessing the wireless network; select “Allow” to allow the MAC address in the list to access the wireless network.
MAC Address ManagementInput the MAC address
to implement the filter policy. Click “Add” to finish the MAC add operation.
MAC listShow the added MAC addresses. You can add
or delete them.

6.7 Connection Status

This page shows wireless client’s connection status, including MAC address, Channel bandwidth, etc. Select “Wireless Setting->connection status” to enter the following screen:
39
11N Wireless Broadband Router
MAC AddressShows current MAC addresses of the
hosts connecting to the Router.
Bandwidth Shows current bandwidth of the hosts
(wireless client).
40
11N Wireless Broadband Router

Chapter 7 DHCP Server

7.1 DHCP Settings

DHCP (Dynamic Host Control Protocol) is to assign an IP
address to the computers on the LAN/private network. When you enable the DHCP Server, the DHCP Server will allocate automatically an unused IP address from the IP address pool to the requesting computer in premise of activating “Obtain an IP Address Automatically”. So specifying the starting and ending address of the IP Address pool is needed.
DHCP Server: Activate the checkbox to enable DHCP
server.
IP Address Start/End: Enter the range of IP address
for DHCP server distribution.
Lease Time: The length of the IP address lease.
For example:
If the lease time is an hour, then DHCP server will reclaim the IP address in each hour.
41
11N Wireless Broadband Router

7.2 DHCP List and Binding

The Static IP assignment is to add a specifically static IP address to the assigned MAC address. You can view the related information in the DHCP server list.
IP Address: Enter the IP address which needs to be
bound.
MAC Address: Enter the MAC address of the computer
you want to assign the above IP address. Click “Add” to add the entry in the list.
Hostname: The name of the computer which is added a
new IP address.
Lease Time: The left time length of the corresponding
IP address lease.
42
11N Wireless Broadband Router

Chapter 8 Virtual Server

8.1 Port Range Forwarding

This section deals with the port range forwarding. The Port Range Forwarding allows you to set up a range of public services such as web servers, ftp, e-mail and other specialized Internet applications to an assigned IP address on your LAN.
Start/End Port: Enter the start/end port number which
43
11N Wireless Broadband Router
ranges the External ports used to set the server or Internet applications.
IP Address: Enter the IP address of the PC where you
want to set the applications.
Protocol: Select the protocol (TCP/UDP/Both) for the
application.
Delete/Enable: Click to check it for corresponding
operation.
Well-Known Service Port: Select the well-known
services as DNS, FTP from the drop-down menu to add to the configured one above.
Add: Add the selected well-known port to the policy ID.
NOTE:
If you set the virtual server of the service port as 80, you must set the Web management port on Remote Web Management page to be any value except 80 such as 8080. Otherwise, there will be a conflict to disable the virtual server.
44
11N Wireless Broadband Router

8.2 DMZ Settings

The DMZ function is to allow one computer in LAN to be exposed to the Internet for a special-purpose service as Internet gaming or video conferencing.
DMZ Host IP Address: The IP address of the computer
you want to expose.
Enable: Click the checkbox to enable the DMZ host. IMPORTANT: When the DMZ host is enabled, the
firewall settings of the DMZ host will not function.
45
11N Wireless Broadband Router

8.3 UPNP Settings

It supports the latest Universal Plug and Play device drivers. UPnP is a standard function Windows ME, XP, or Vista or if you have installed software that supports UPnP. With the UPnP function, the internal host can request the router to process some special port switching so as to enable the external host to visit the resources of the internal host.
Enable UPnP: Click the checkbox to enable the UPnP.
46
11N Wireless Broadband Router

Chapter 9 Traffic Control

9.1 Traffic Control

Traffic control is used to limit communication speed in the LAN and WAN. Up to 20 entries can be supported with the capability for at most 254 PCs' speed control, including for IP address range configuration.
Enable Traffic Control: To enable or disable the
internal IP bandwidth control. The default is disabled.
Interface: To limit the uploading and downloading
bandwidth in WAN port.
Service: To select the controlled service type, such as
HTTP service.
47
11N Wireless Broadband Router
IP Starting Address: The first IP address for traffic
control.
IP Ending Address: The last IP address for traffic
control.
Uploading/Downloading: To specify the traffic
heading way for the selec ted IP ad dresses: up loading or downloading.
Bandwidth: To specify the uploading/downloa ding Min.
/Max. Traffic speed (KB/s), which can not exceed the WAN speed.
Apply: T o enable the current editing rule. If not, the rule
will be disabled.
Add: After edit the rule, click the “add to list” button to
add the current rule to rule list.
Apply: Click “Save” to activate the current rule. Cancel: Click “Cancel” to drop all setting saved last
time.
48
11N Wireless Broadband Router

Chapter 10 Security Settings

10.1 Client Filter Settings

To further benefit your management of the computers in the network, you can control some ports access to Internet by the data packet filter function.
Client Filter: Check to enable client filter. Access Policy: Select one number from the drop-down
menu.
Enable: Check to enable the access policy. Clear the Policy: Click “Clear” button to clear all
settings for the policy.
Filter Mode: Click one radio button to enable or disable
to access the Internet.
49
11N Wireless Broadband Router
Policy Name: Enter a name for the access policy
selected.
IP Start/End: Enter the starting/ending IP address. Port No.: Enter the port range based over the protocol
for access policy.
Protocol: Select one protocol (TCP/UDP/Both) from the
drop-down menu.
Times: Select the time range of client filter. Days: Select the day(s) to run the access policy.

10.2 URL Filter Settings

In order to control the computer to have access to websites, you can use URL filtering to allow the computer to have access to certain websites at fixed time and forbids it from having access to certain websites at fixed time.
50
11N Wireless Broadband Router
URL Filter: Check to enable URL filter. Access Policy: Select one number from the drop-down
menu.
Enable: Check to enable the access policy. Clear the Policy: Click “Clear” button to clear all
settings for the policy.
Filter Mode: Click one radio button to enable or disable
to access the Internet.
Policy Name: Enter a name for the access policy
selected.
Start/End IP: Enter the starting/ending IP address. URL Strings: Specify the text strings or keywords
needed to be filtered. If any part of the URL contains these strings or words, the web page will not be accessible and displayed.
Times: Select the time range of client filter. Days: Select the day(s) to run the access policy.

10.3 MAC Address Filter

In order to manage the computers in the network better, you could control the computer’s access to Internet by MAC Address Filtering.
51
11N Wireless Broadband Router
MAC Address Filter: Check to enable MAC address
filter.
Access Policy: Select one number from the drop-down
menu.
Enable: Check to enable the access policy. Clear the Policy: Click “Clear” button to clear all
settings for the policy.
Filter Mode: Click one radio button to enable or disable
to access the Internet.
Policy Name: Enter a name for the access policy
selected.
MAC Address: Enter the MAC address you want to
run the access policy.
Times: Select the time range of client filter.
52
11N Wireless Broadband Router
Days: Select the day(s) to run the access policy. Apply Click to make the settings go into effect.
For example:
If you want to configure the host with MAC address 00:C0:9F: AD:FF:C5 not to access the Internet at 8:00-18:00, you need to set it as above.

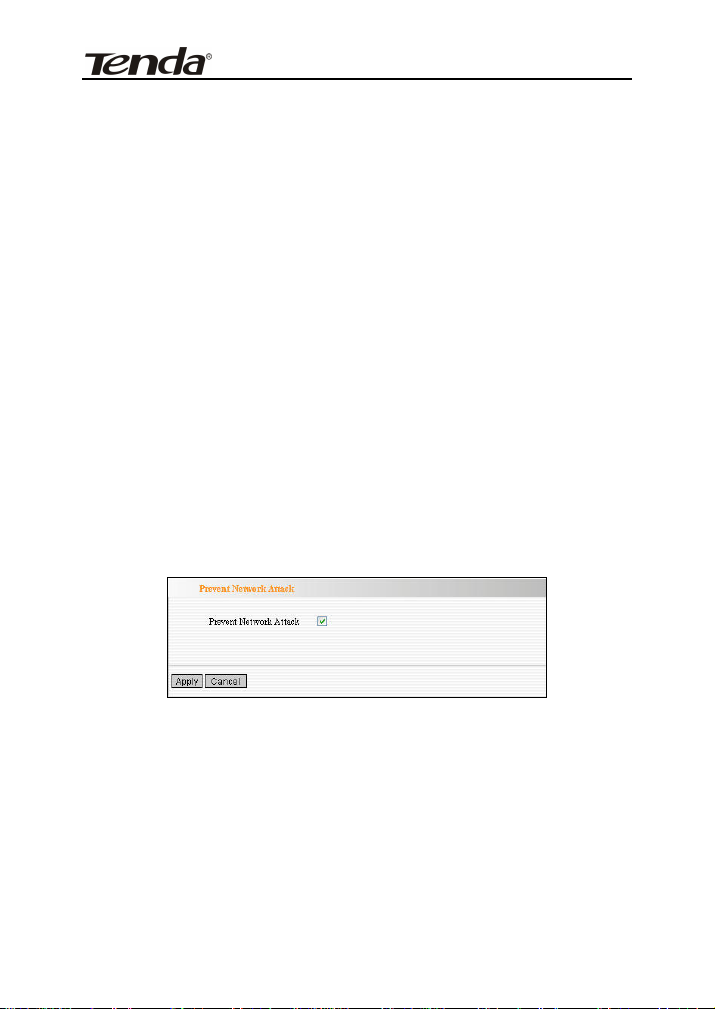

10.4 Prevent Network Attack

This section is to protect the internal network from exotic attack such as SYN Flooding attack, Smurf attack, LAND attack, etc. Once detecting the unknown attack, the router will restrict its bandwidth automatically. The attacker’s IP address can be found in the “System Log”.
Prevent Network Attack: Check to enable it for attack prevention.
53
11N Wireless Broadband Router

10.5 Remote Web Management

This section is to allow the network administrator to manage the Router remotely. If you want to access the Router from outside the local network, please select the “Enable”.
Enable: Check to enable remote web management. Port: The management port open to outside access. The
default value is 80.
WAN IP Address: Specify the range of the WAN IP
address for remote management.
Note
1. If you want to login the device’s Web-based interface via port 8080, you need use the format of WAN IP address: port (for example http://219.134.32.101: 8080) to implement remote login.
2. If your WAN IP address starts and ends with
54
11N Wireless Broadband Router
0.0.0.0, it means all hosts in WAN can implement remote Web management. If you change the WAN IP address as 218.88.93.33-218.88.93.35, then only the IP addresses as 218.88.93.33,
218.88.93.34 and 218.88.93.35 can access the Router.
For example:
If you want to configure the IP address 218.88.93.33 to access the device’s web interface, please set it as follows:

10.6 WAN Ping

The ping test is to check the status of your internet connection. When disabling the test, the system will ignore the ping test from WAN.
Ignore Ping from WAN: Check to ignore the ping
request and give no reply.
55
11N Wireless Broadband Router

Chapter11 Routing Setting

11.1 Routing Table

The main duty for a router is to look for a best path for every data frame, and transfer this data frame to a destination. So, it’s essential for the router to choose the best path, i.e. routing arithmetic. In order to finish this function, many transferring paths, i.e. routing table, are saved in the router, for choosing when needed.
56
11N Wireless Broadband Router

Chapter 12 System Tools

12.1 Time Settings

This section is to select the time zone for your location. If you turn off the Router, the settings for time disappear . However, the Router will automatically obtain the GMT time again once it has access to the Internet.
Time Zone: Select your time zone from the drop-down menu. Customized time: Enter the time you customize.
Note:
When the Router is powered off, the time setting will be lost. Before the Router will obtain GMT time automatically, you need connect with the Internet and obtain the GMT time, or set the time on this page first. Then the time in other features (e.g. firewall) can be activated.
57
11N Wireless Broadband Router

12.2 DDNS

The DDNS (Dynamic Domain Name System) is supported in this router. It assigns a fixed host and domain name to a dynamic Internet IP address, which is used to monitor website hosting, FTP server and so on behind the router. If you want to activate this function, please select “Enable” and a DDNS service provider to sign up.
Main Features: Your ISP provides dynamic IP address,
DDNS is used to capture the changeable IP address and match the fixed domain. Then users can have access to the Internet to communicate with others. DDNS can help you establish virtual host in your home and company.
DDNS: Click the radio button to enable or disable the
DDNS service.
Service Provider: Select one from the drop-down
menu and press “Sign up” for registration.
58
11N Wireless Broadband Router
User Name: Enter the user name the same as the
registration name.
Password: Enter the password you set. Domain Name: Enter the domain name which is
optional.
For example
In the local host 192.168.0.10 establish a Web server, and register in 3322.org as follows:
User name tenda Password 123456
Domain Name tenda.vicp.net After mapping the port in the virtual server, setting account information in DDNS server and in the address field entering (for example the Web page.
http://tenda.3322.org), you can then access

12.3 Backup/Restore Settings

The device provides backup/restore settings, so you need to set a directory to keep these parameters.
59
11N Wireless Broadband Router
Backup Setting
Click “Backup” button to back up the Router’s settings and select the path for save.
Click “Save” to save the configuration files.
Restore Setting
Click “Browse” button to select the backup files.
60
11N Wireless Broadband Router
Click “Restore” button to restore previous settings.

12.4 Restore to Factory Default Setting

This button is to reset all settings to the default values. It means the router will lose all the settings you have set. So please note the related settings if necessary.
Restore: Click this button to restore to default settings. Factory Default Settings: User Name: admin Password: admin IP Address: 192.168.0.1 Subnet Mask: 255.255.255.0
NOTE:
After restoring to default settings, please restart the device, then the default settings can go into effect.
61
11N Wireless Broadband Router

12.5 Upgrade Firmware

The Router provides the firmware upgrade by clicking the “Upgrade” after browsing the firmware upgrade packet which you can download from
www.tenda.cn.
Browse: click this button to select the upgrade file. Upgrade: click this button to start the upgrading
process. After the upgrade is completed, the Router will reboot automatically.

12.6 Reboot the Router

Rebooting the router makes the settings configured effective or to reset the router again if the configured settings fail.
Reboot the router: Click this button to reboot the device.
62
11N Wireless Broadband Router

12.7 Password Change

This section is to set a new user name and password to better secure your router and network.
User Name: Enter a new user name for the device. Old Password: Enter the old password. New Password: Enter a new password. Re-enter to Confirm: Re-enter to confirm the new
password.
NOTE:
It is highly recommended to change the password to secure your network and the Router.
63
11N Wireless Broadband Router

12.8 System Log

The section is to view the system log. Click the “Refresh” to update the log. Cl ick “Clear” to clear all shown information. I f the log is over 150 records, it will clear them automatically.
Refresh: Click this button to update the log. Clear: Click this button to clear the current shown log.

12.9 Logout

After you have finished the settings completely, in logout page click “Yes” to logout the web management page.
64
11N Wireless Broadband Router

Appendix 1Glossary

Access Point(AP): Any entity that has station functionality and
provides access to the distribution services, via the wireless medium(WM) for associated stations.
Channel: An instance of medium use for the purpose of passing protocol data units (PDUs) that may be used simultaneously, in the same volume of space, with other instances of medium use(on other channels) by other instances of the same physical layer (PHY),with an acceptably low frame error ratio(FER) due to mutual interference.
SSID: Service Set identifier. An SSID is the network name shared by all devices in a wireless network. Your network’s SSID should be unique to your network and identical for all devices within the network. It is case-sensitive and must not exceed 20 characters (use any of the characters on the keyboard).Make sure this setting is the same for all devices in your wireless network.
WEP: Wired Equivalent Privacy (WEP) is the method for secure wireless data transmission. WEP adds data encryption to every single packet transmitted in the wireless
65
11N Wireless Broadband Router
network. The 40bit and 64bit encryption are the same because of out 64 bits, 40 bits are private. Conversely, 104 and 128 bit are the same. WEP uses a common KEY to encode the data. Therefore, all devices on a wireless network must use the same key and same type of encryption. There are 2 methods for entering the KEY; one is to enter a 16-bit HEX digit. Using this method, users must enter a 10-digit number (for 64-bit) or 26-digit number (for 128-bit) in the KEY field. Users must select the same key number for all devices. The other method is to enter a text and let the computer generate the WEP key for you. However, since each product use different method for key generation, it might not work for different products. Therefore, it is NOT recommended using.
WPA/WPA2: A security protocol for wireless networks that builds on the basic foundations of WEP. It secures wireless data transmission by using a key similar to WEP, but the added strength of WPA is that the key changes dynamically. The changing key makes it much more difficult for a hacker to learn the key and gain access to the network.WPA2 is the second generation of WPA security and provides a stronger encryption mechanism through Advanced Encryption Standard (AES), which is a requirement for some government users.
66
11N Wireless Broadband Router

Appendix 2: Questions and Answers

In this part some questions and problems normally found during the router’s usage and installation will be given with suggested answers. If your problems are not in the list, please log into our website to
support@tenda.cn, and we will immediately reply.
1 Cannot login to the Web interface of the Router
after you enter the IP address in the address field
9 Step 1: Check if the router is working and if the “Power”
LED is illuminated. After the device is powered on for a few seconds, the SYS indicator on the front panel should be illuminated. If it is not, please contact us.
9 Step 2: Check the network cables are connected
correctly and the corresponding LED indicator is illuminated. Sometimes, the indicator is illuminated, but it does not mean it is functioning.
9 Run “Ping” command and check if it can ping the
Router’s LAN IP address 192.168.0.1. If it is OK, please make sure your browser does not access the Internet by proxy server . If the ping fails, you can pr ess the “RESET” button for 7 seconds to restore to default settings. And then repeat the ping operation. If it still does not work, please contact us.
www.tenda.cn or send an E-mail
67
11N Wireless Broadband Router
2Forget the login password and cannot enter the
setting page. What can I do?
9 Press the “RESET” button for 7 seconds to restore the
Router to default settings.
3 The computer connected with the Router shows IP
address conflict. What can I do?
9 Check if there are other DHCP servers in the LAN. If
there are then disable them. The default IP address of the router is 192.168.0.1 please maker sure the address is not being by another device. If there are two computers with the same IP address, please modify one of them.
4 I cannot use E-mail and access the Internet. What
can I do?
9 It happens in ADSL connection and Dynamic IP users.
And you need modify the default MTU value (1492). In the “WAN Setting” modify the MTU value with the recommended value as 1450 or 1400.
68
11N Wireless Broadband Router
5 How to configure and access the Internet via
Dynamic IP?
9 In Setup Wizard of the Web utility interface, select
“Dynamic IP” connection type and click “Save” to activate it. As some ISPs bind the user computer’s MAC address, you need to clone the Router’s WAN MAC address to the bind21ing PC’s MAC address. Select “MAC Address Clone” in “Advanced Setting” to input your computer’s MAC address and click “Apply” to activate it.
6How to share my computer’s source with other
users in Internet
9 If you want Internet users to access the internal server
via the router such as: e-mail server, W eb , FTP. You can configure the “Virtual Server”.
9 Step 1: create your internal server, make sure the LAN
users can access these servers and know related service port. For example, Web server’s port is 80; FTP is 21; SMTP is 25 and POP3 is 110.
9 Step 2: in the router’s web click “Virtual Server” and
select “Single Port Forwarding”.
9 Step 3: input the external service port given by the
router, for example, 80.
9 Step 4: input the internal Web service port, for example,
80.
69
11N Wireless Broadband Router
9 Step 5: Input the internal server’s IP address. If your
Web server’s IP address is 192.168.0.10, please input.
9 Step 6: select the communication protocol used by your
internal host: TCP, U D P, ICMP.
9 Step 7: click “Apply” to activate the settings. 9 The following tab le has listed the well-known applic ation
and service port:
Server Protocol Service Port WEB Server TCP 80 FTP Server TCP 21 Telnet TCP 23 NetMeeting TCP 1503、1720
File Send:6891-6900(TCP)
MSN Messenger TCP/UDP
PPTP VPN TCP 1723
Voice:18636901(TCP) Voice:18635190(UDP)
Iphone5.0 TCP 22555 SMTP TCP 25 POP3 TCP 110
70
Loading...
