Excellent lightning protection of ports
Professional integrated lightning protection circuit enables all the 16 ports to
provide IV-class (6 kV in common mode) lightning protection, effectively
decreasing the damage rate to the ports by lightning surge.
Dedicated for SMEs and
IP security surveillance

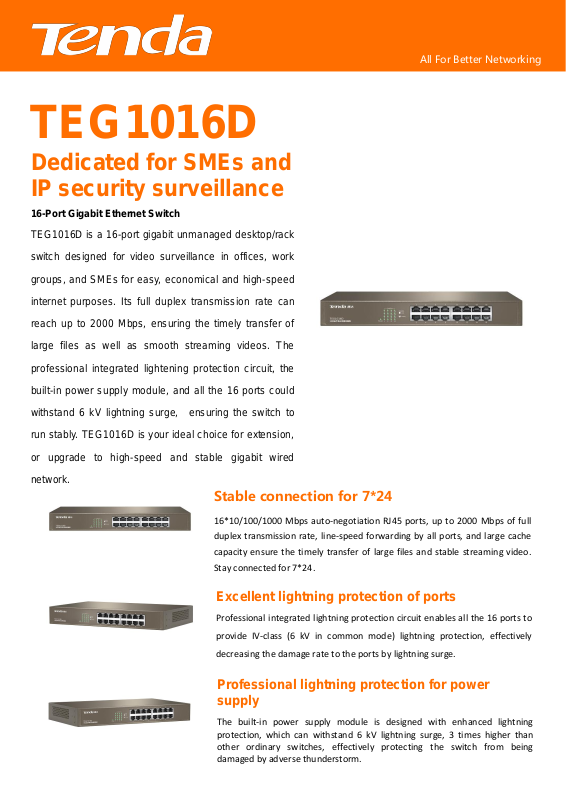

TEG1016D
16-Port Gigabit Ethernet Switch
TEG1016D is a 16-port gigabit unmanaged desktop/rack
switch designed for video surveillance in offices, work
groups, and SMEs for easy, economical and high-speed
internet purposes. Its full duplex transmission rate can
reach up to 2000 Mbps, ensuring the timely transfer of
large files as well as smooth streaming videos. The
professional integrated lightening protection circuit, the
built-in power supply module, and all the 16 ports could
withstand 6 kV lightning surge, ensuring the switch to
run stably. TEG1016D is your ideal choice for extension,
or upgrade to high-speed and stable gigabit wired
network.
All For Better Networking
Professional lightning protection for power
supply
The built-in power supply module is designed with enhanced lightning
protection, which can withstand 6 kV lightning surge, 3 times higher than
other ordinary switches, effectively protecting the switch from being
damaged by adverse thunderstorm.
Stable connection for 7*24
16*10/100/1000 Mbps auto-negotiation RJ45 ports, up to 2000 Mbps of full
duplex transmission rate, line-speed forwarding by all ports, and large cache
capacity ensure the timely transfer of large files and stable streaming video.
Stay connected for 7*24.
N150
Mode NO.
TEG1016D
Hardware
Features
Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
Intertface
16*10/100/1000M auto-negotiation RJ45 ports (Auto MDI/MDIX)
Transmission Media
10Base-T: Cat. 3 UTP or better 100Base-TX: Cat.5 UTP or better
1000Base-T: Cat.5e UTP or better
Forwarding Speed
10Mbps: 14880pps 100Mbps: 148800pps 1000Mbps: 1488000pps
Power
Input: AC:100-240V; 50/60Hz
Lightning Level
6kV in Common Mode Protection for all ports
6kV in Common Mode, 4kV in Differential mode Protection for power
supply
Product Dimensions
（L*W*H）
294mm *179mm *44mm
LEDs
1* Power, 16* Link/Act
Switching Capacity
32Gbps
MAC Address Table
8K
Power Consumption
Maximum : 12W (220V)
Software
Features
Transfer Method
Store and Forward
Access Control
CDMA/CD
MAC Address Learning
Automatic update
Others
Temperature
Operating Temperature: 0℃~40℃
Storage Temperature: -40℃~70℃
Humidity
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Certification
CE , FCC , RoHS
Related Products
L8139D 10/100M Network Adapter
S16 16-Port 10/100Mbps Desktop Switch
TEG1024D 24-Port Gigabit Ethernet Switch
Compatible OS
Windows 8 32/64 bit , Windows 7 32/64 bit , Windows xp 32/64 bit ,
Linux , MAC OS
Package Contents
16-Port Gigabit Ethernet Switch
Power cord
user Guide
Packing (Qty)
Package Size: 440*250*80mm
Carton size: 425*415*270mm
Packing number: 5 PCS
Weight
NW/GW: 1.3KG / 1.9KG
Carton Weight: 9.5KG
Note: "Net" is the weight of device, Power cord weight differs from different districts.
The datasheet reserves the changes.
○
C 2013 SHENZHEN TENDA TECHNOLOGY CO.,Ltd, the Tenda logo is registered trademark of Shenzhen Tenda Technology Co.,Ltd in China and/or other countries.
Tenda Technology Bldg. Int’l E-City, # 1001 Zhong Shan Yuan Rd. ,Nanshan District, Shenzhen
518055,China
Phone: (86 755) 2765 7180 Fax:(86 755) 2765 7178
Email: sales@tenda.com.cn support@tenda.com.cn
Http: www.tendacn.com
Other brand and product names are trademarks or registered trademarks of their respective holders. Information is subject to change without notice. ALL rights reserved.
