Tenda PH3 User Manual

Download
Copyright Statement
i
Copyright Statement
© 2016 Shenzhen Tenda Technology Co., Ltd. All rights reserved.
Disclaimer
Pictures, images and product specifications herein are for references only. To improve internal design, operational function, and/or reliability, Tenda reserves the right to make changes to the products without obligation to notify any person or organization of such revisions or changes. Tenda does not assume any liability that may occur due to the use or application of the product described herein. Every effort has been made in the preparation of this document to ensure accuracy of the contents, but all statements, information and recommendations in this document do not constitute the warranty of any kind, express or implied.
Copyright Statement
ii

Contents

I Get to Know the Adapter ..................................................................................... 1
1 Overview ............................................................................................................................................................. 1
2 Package Contents ................................................................................................................................................ 1
3 LED/Interface/Button .......................................................................................................................................... 2
II Access the Internet .............................................................................................. 3
1 Install Your Adapters ........................................................................................................................................... 3
2 Secure Your Powerline Network.......................................................................................................................... 4
3 Add Adapters to a Private Powerline Network ................................................................................................... 6
III Manage Your Adapters ....................................................................................... 7
1 UI Installation ...................................................................................................................................................... 7
2 Run the UI ......................................................................................................................................................... 12
3 Change Device Name ........................................................................................................................................ 13
4 Change Network Name ..................................................................................................................................... 15
5 Reset.................................................................................................................................................................. 18
6 Upgrade ............................................................................................................................................................. 19
Appendix ............................................................................................................. 21
1 Configure Your Computer ................................................................................................................................. 21
Windows 8 ....................................................................................................................................................... 21
Windows 7 ....................................................................................................................................................... 22
2 FAQs .................................................................................................................................................................. 25
3 Technical Support .............................................................................................................................................. 27
4 Technical Specifications ..................................................................................................................................... 27
5 Safety and Emission Statement ......................................................................................................................... 28
Contents
1

I Get to Know the Adapter

Before you use the PLC product, take a moment to become familiar with the package contents and the front panel. Pay particular attention to the LEDs on the front panel.

1 Overview

PH3 AV1000 Gigabit Powerline Adapters are designed for online video/audio player, web camera, IPTV and other high bandwidth applications. It adopts electrical circuit to transmit Internet data with electrical power, which in a sense reduces the Ethernet cable cost and easily extends network coverage to where the electrical power can get within the valid range. The rate of these powerline adapters are up to 1000Mbps, giving a guarantee of a more fluent online playing experience.

2 Package Contents

Unpack the package. Your box should contain the following items:
AV1000 Gigabit Powerline Adapter * 2 Install Guide * 1 Ethernet Cable * 2
* If any item is incorrect, missing or damaged, please keep the original package and contact the vendor for replacement immediately.
2
I Get to Know the Adapter
LED
Color
Status
Description
Power
/
Off
The device is NOT receiving electrical power.
Green
Solid
The electrical power is on.
Green
Slow blinking
The device is in power saving mode.
PLC
/
Off
The device doesn’t pair with other powerline devices, or is powered off.
Green
Solid
The device is connected to a powerline network.
Green
Fast blinking
The device is pairing with a powerline devices.
Red
Solid
The powerline signal of the adapter is poor; try plugging the adapter closing to your router or modem until the PLC LED turns to green.
Ethernet
/
Off
No Ethernet cable is detected on the Ethernet port.
Green
Solid
The Ethernet cable is connected properly.
Interface/Button
Description
Ethernet Port
For connecting to the Internet, a computer, or other network devices via an Ethernet cable.
Pair
Press and hold it for about 1 second to start pairing.
Press and hold it for about 6 seconds (the Power LED will be off and then light up again) to restore the adapter to factory default.
Ethernet LED
Power LED
Ethernet Port
Pair Button

3 LED/Interface/Button

Access the Internet
3

II Access the Internet

This section explains how to access the Internet via a pair of Powerline Adapters, including how to position and use your Powerline Adapters, how to connect them and access the Internet. Here’s an example for you.

1 Install Your Adapters

Attention
The adapter can only be used in vertical directions.
Plug and Play
Connect one adapter to one of the LAN ports of an ADSL modem/wireless router for Internet
access, and plug it into a wall outlet nearby.
Access the Internet
4
Connect the other adapter to a computer or other wired devices, and plug it to a wall outlet.
Wait until the PLC LEDs on the two adapters are lit.
Then you can try accessing the Internet via your computer. If you cannot access the Internet after the operation above, please refer to Q1 for solution.

2 Secure Your Powerline Network

Two or more powerline adapters under the same electrical circuit will automatically interconnect to
create an unencrypted public network (Named “HomePlugAV”).
If you want to create a secure powerline network (Named “Private”), use the Pair button to pair the
two adapters with each other.
Access the Internet
5
Procedure:
Plug in your adapters.
Wait until the PLC LEDs on the two adapters are lit.
Press the Pair button on one adapter for 1 second, and the PLC LED on the adapter starts
blinking.
Then press the Pair button on the other adapter for 1 second.
Both buttons must be pressed within two minutes. Observe the PLC LEDs on the two adapters until they are lit again. It indicates that a secure powerline network is established successfully between the two adapters.
Access the Internet
6
3 Add Adapters to a Private Powerline
Network
If you want to add more powerline adapters to a private powerline network, follow the steps below:
Press the Pair button on any powerline adapter in the security powerline network for 1 second.
Within two minutes, plug in the new powerline adapter, and press its Pair button for 1 second.
Observe the PLC LEDs on the two adapters until they are lit.
Done.
Manage Your Adapters
7

III Manage Your Adapters

This section introduces how to manage your adapters using the UI, including changing your Powerline adapters’ device name/network name, resetting your Powerline adapters, and etc.

1 UI Installation

This section instructs you to install the adapter s’ UI on your computer. If you are a Windows 8 user, simply follow steps below. If you are using other operation systems, instructions herein are also good for references. To install the UI: Go to Tenda official website http://www.tendacn.com to download the management software. Save it to your local host, and unzip it.
Double click the setup icon to run the management software, and click Next when
you see the screen below.
Manage Your Adapters
8
After you read the license agreement shown as below, select “I accept the agreement” and
click Next.
Click Browse… on below screen to locate where to install the UI and click Next to go forward.
Manage Your Adapters
9

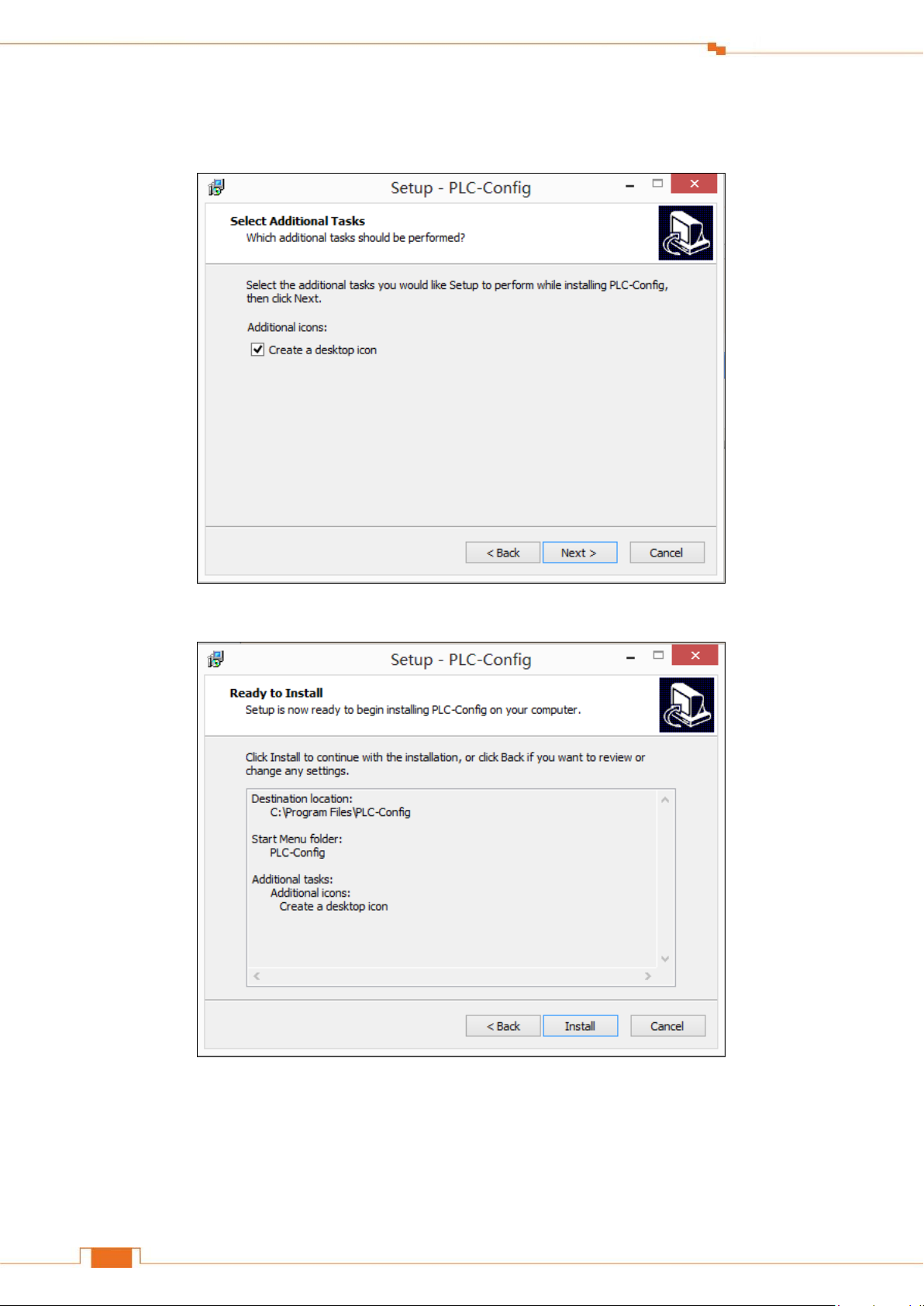

Keep clicking Next until the screen below displays. Then check the Create a desktop icon
option and click Next.
Click Install to install the UI.
Manage Your Adapters
10

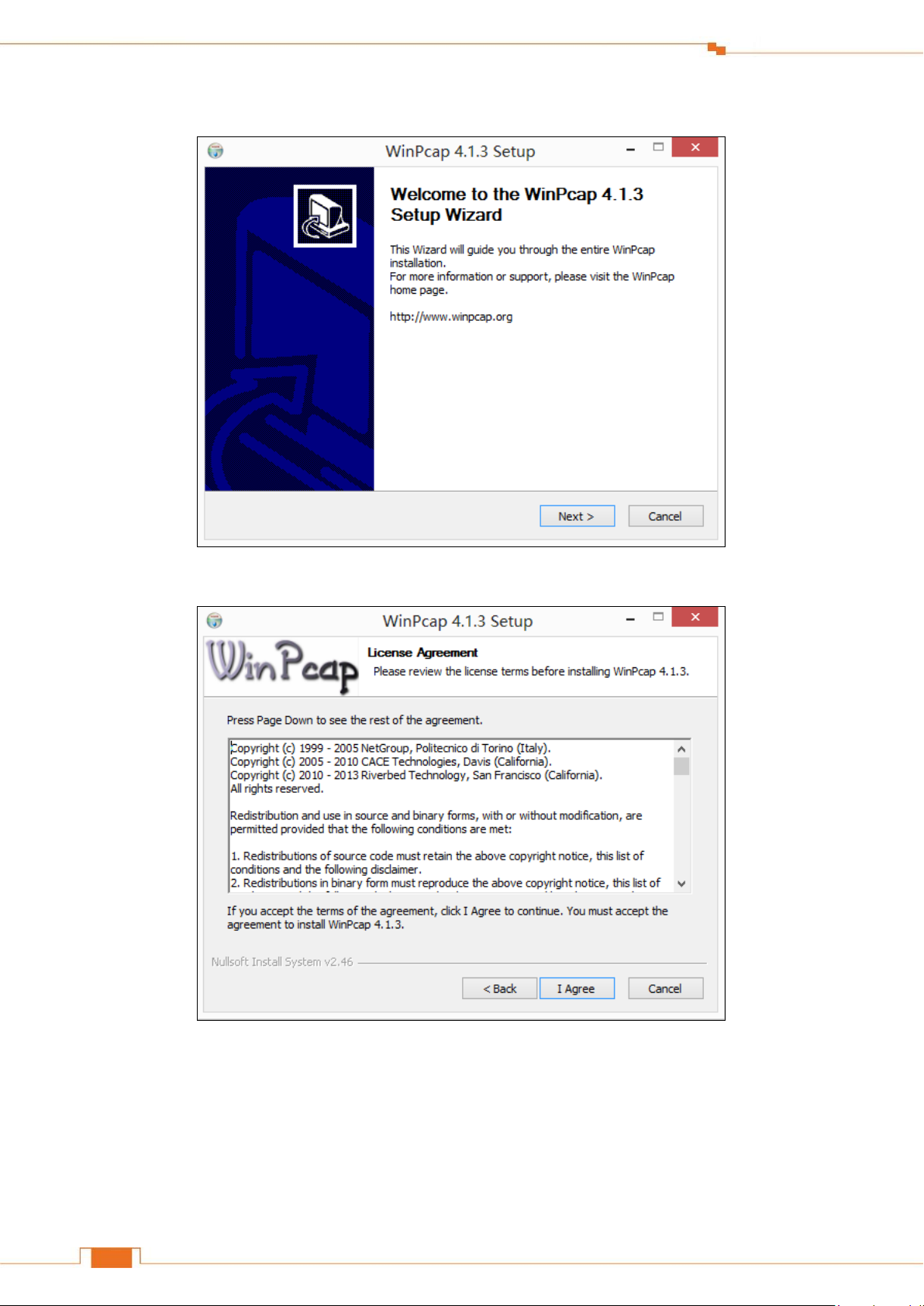

WinPcaP Setup Wizard will be displayed as below. Click Next to go forward.
Click I Agree.
Manage Your Adapters
11
Click Install.
Click Finish.
Click Finish to complete the installation.
Manage Your Adapters
12
After you finish the installation, a UI shortcut will appear on your desktop.

2 Run the UI

After the UI is installed, double-click icon on your desktop to run the UI. The main interface is shown as below:
Manage Your Adapters
13
CCO
This adapter will be regarded as a station, to which other adapters will attempt to connect. When attempting to connect to each other, adapters automatically negotiate with each other to select an adapter as CCO.
Local
This adapter is connected to the computer with the UI installed.
Device Info
The Device Info of a currently selected adapter.
Network name
/HomePlugAV
HomePlugAV is the local Powerline network name if you do not customize a Powerline network name, or use pair button to pair the adapters with each other. To establish a same powerline network, powerline adapters MUST share an identical network name. Based on the network name, the powerline network is classified into 2 types: a powerline network named “HomePlugAV” is considered a public network; a powerline network named “Private” is considered an encrypted network.
MAC Address
The MAC address of a currently selected adapter.
Click to see the User Guide.
In the Device List, you can view the adapters in a same powerline network which have negotiated with each other.

3 Change Device Name

For easy recognition and convenient management, you can change the adapter’s name if there are
multiple adapters managed by the UI.
To change device name:
Click to start configuration.
Select Change Device Name.
Manage Your Adapters
14
Select the adapter whose name you want to change, and specify a new name in the Device
name edit box, and click OK.
Manage Your Adapters
15
After it saved successfully, you’ll find that the Device name displays the new name.

4 Change Network Name

To establish a same powerline network, powerline adapters MUST share an identical network name.
Therefore, if you change one adapter’s network name in a powerline network, you MUST change the other adapters’ as well. If not, the adapter will exit from the current powerline network. Also, if
you change the default network name HomePlugAV into another one, this powerline network will become an encrypted private powerline network. You need to use the pair button to add more adapters into this powerline network.
To change the network name:

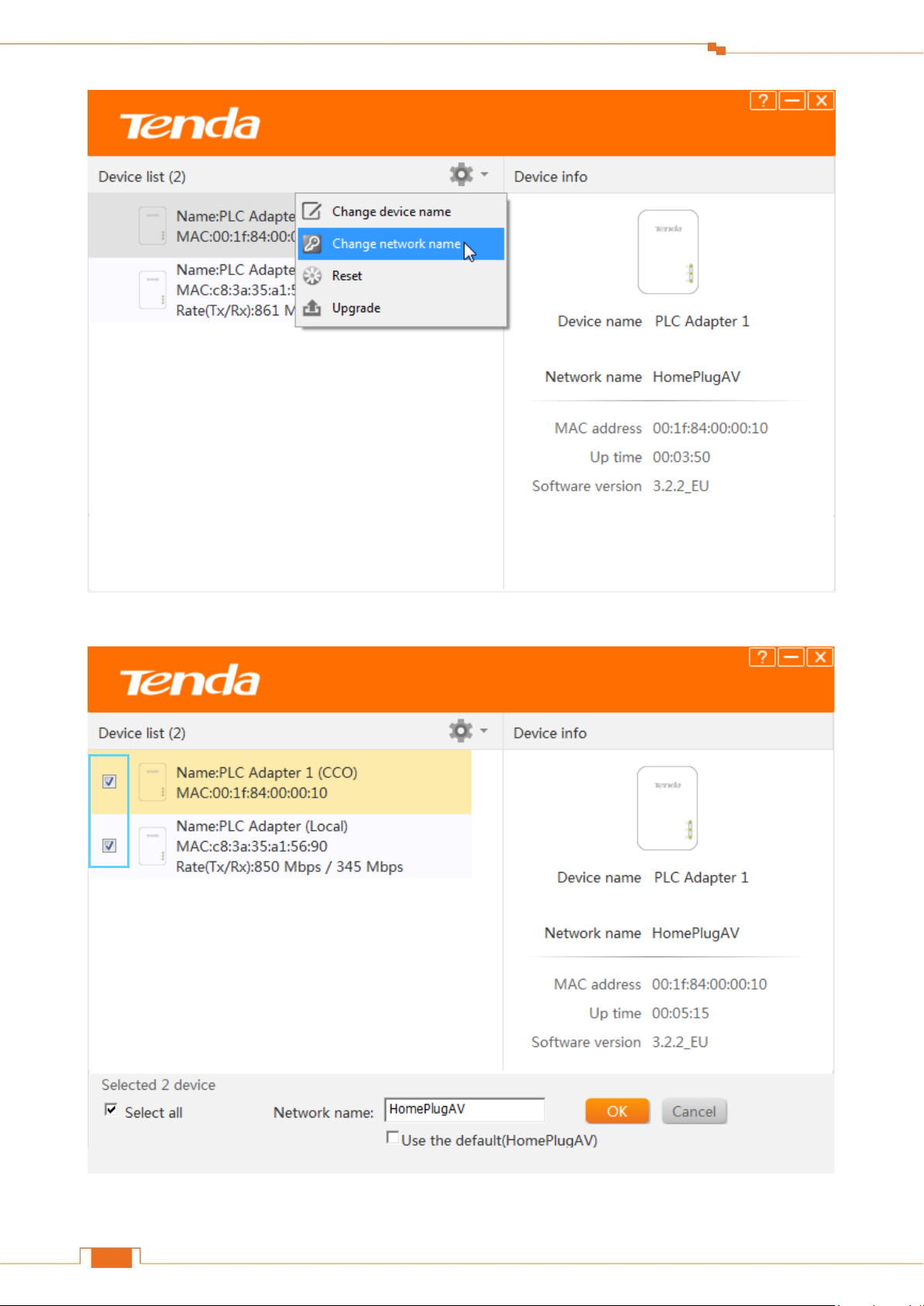

Click to start configuration.
Then select Change Network Name.
Manage Your Adapters
16
Select all adapters whose name you want to change.
Type a new network name in Network Name edit box.
Manage Your Adapters
17
Click OK to activate the settings.
After successful network name configuration, the Network Name will be changed from “HomPlugAV” into “Private”, which means it is a private and encrypted network.
Manage Your Adapters
18

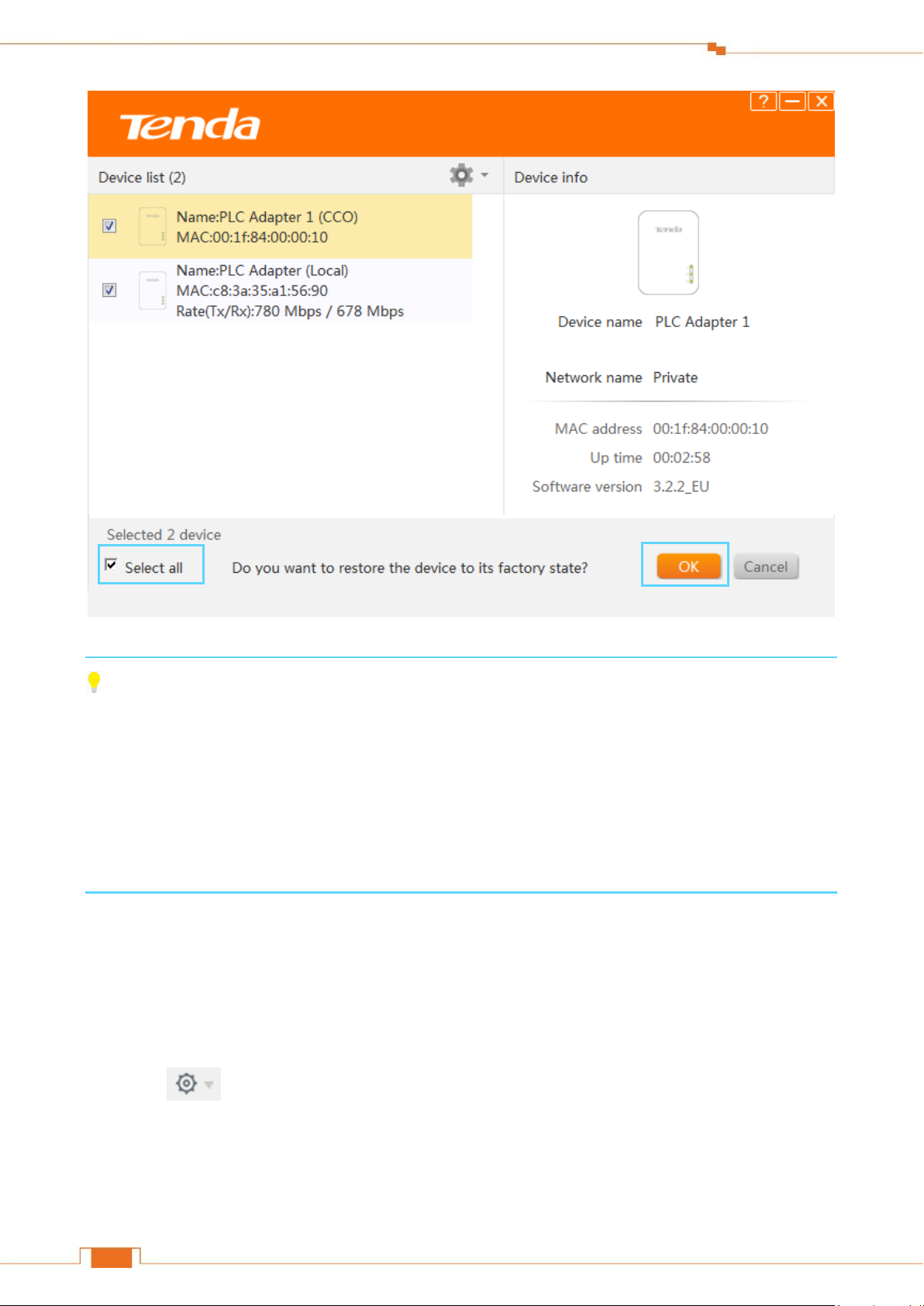

5 Reset

Device name will be PLC Adapter, and network name will be HomeplugAV once the device resets to factory default. You can reset the adapters here, or use the hardware button Pair button on the device.
To reset the adapters:
Click to start configuration.
Select Reset.
Select the adapter you want to reset or you can click Select All.
Click OK to activate the settings.
Manage Your Adapters
19
Tips
If it is a private network before, the adapter you select to restore to factory default won’t display in
Device list any more. But if the adapter you reset is connected to the configuration PC via an Ethernet cable, other adapters with different network name will disappear from the list. If you want to add the adapter which you reset to the Powerline network again, you need to use the pair button, or reset all of other adapters to factory default.

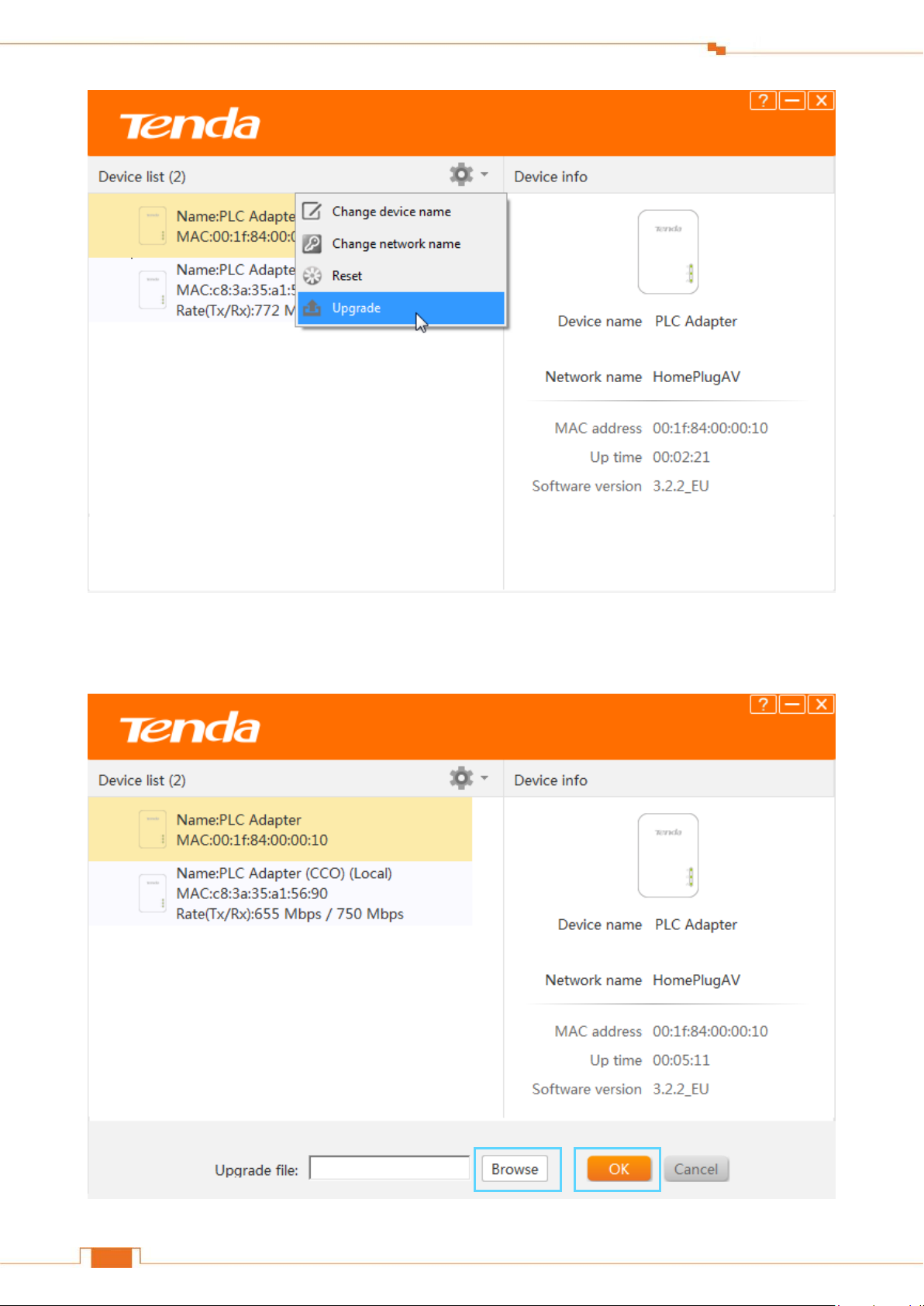

6 Upgrade

Upgrading the adapters’ software may get more stable performance. Please go to Tenda website (http://www.tendacn.com) to download upgrade file.
To upgrade the adapters:
Click to start configuration.
Select Upgrade.
Manage Your Adapters
20
Click Browse to locate and upload the upgrade file you have downloaded.
Click OK to start upgrading.
21

Appendix

Appendix
This Chapter provides you with more information about how to configure your computer, common questions and answers, and etc.

1 Configure Your Computer

We take Windows 8, Windows 7, and Windows XP as examples here.

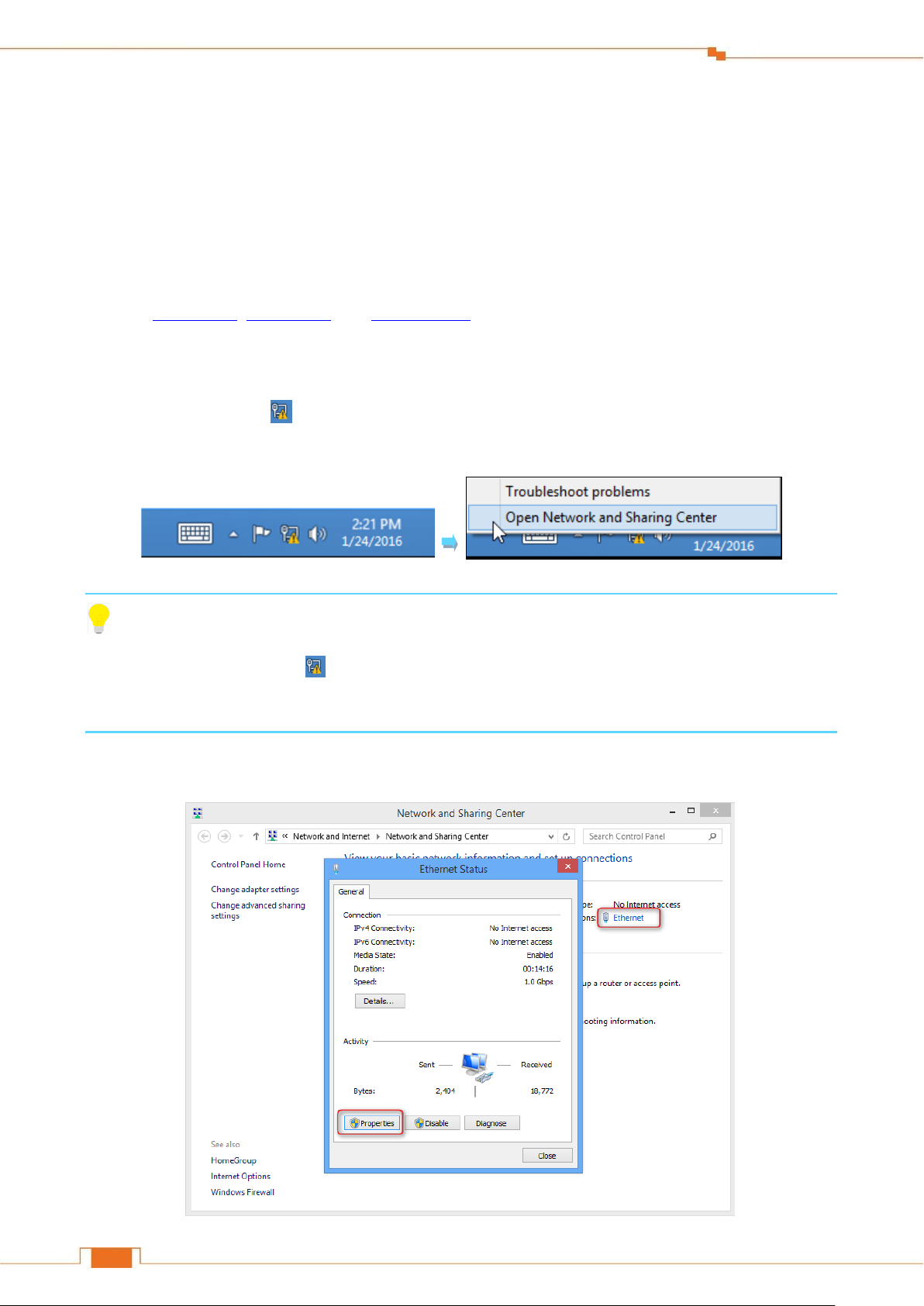

Windows 8

❶ Right click the icon on the bottom right corner of your desktop. Click Open Network and
Sharing Center.
Tips
If you cannot find the icon , please move your cursor to the top right corner of your desktop, select Settings > Control Panel > Network and Internet > Network and Sharing.
❷ Click Ethernet > Properties.
22
Appendix

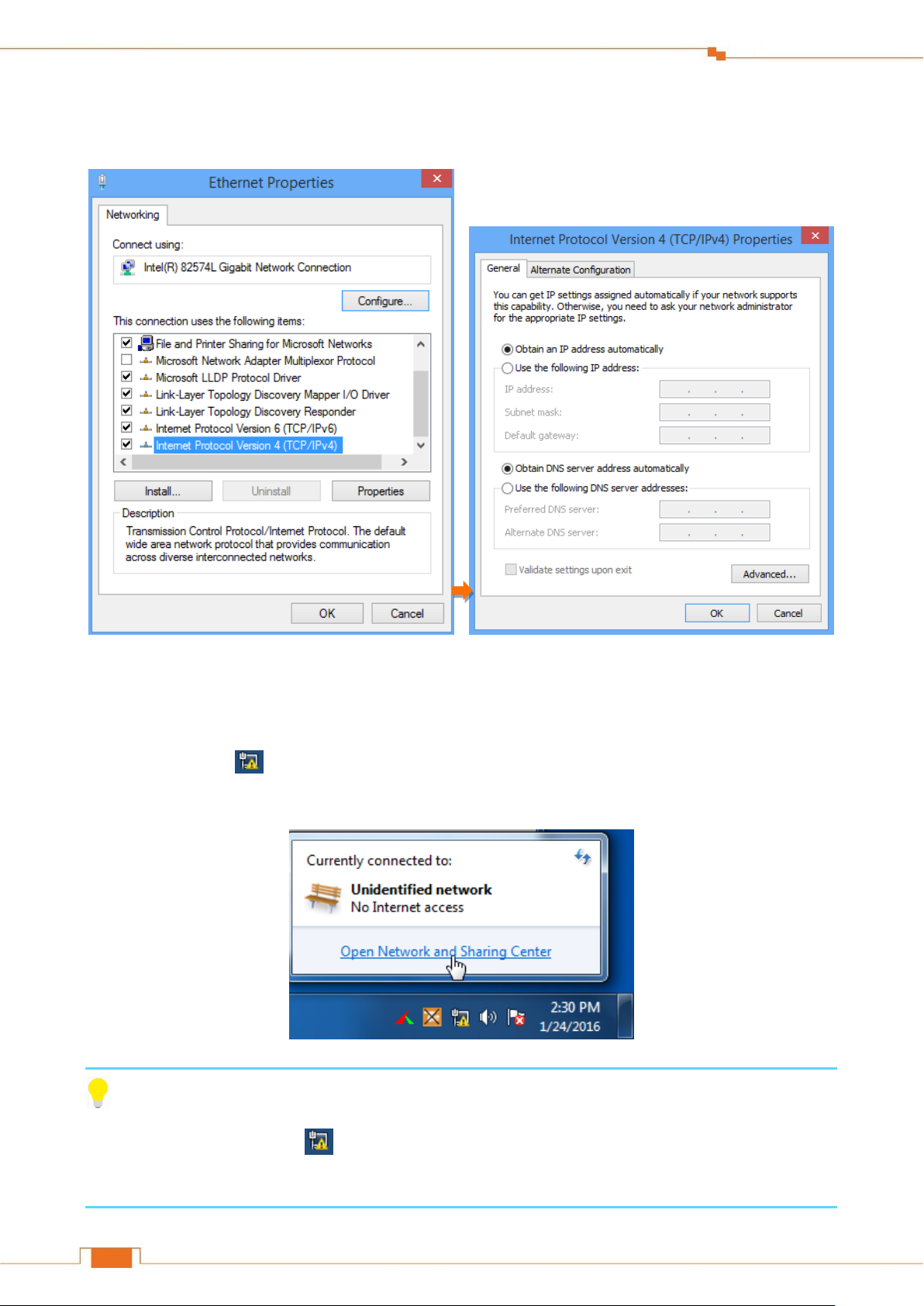

❸ Find and double click Internet Protocol Version 4(TCP/IPv4). Select Obtain an IP address
automatically and Obtain DNS server address automatically and click OK.
❹ Click OK on the Ethernet Properties window (see ❸ for the screenshot).

Windows 7

❶ Click the icon on the bottom right corner of your desktop. Click Open Network and
Sharing Center.
Tips
If you cannot find the icon on the bottom right corner of your desktop, follow steps below: Click Start > Control Panel > Network and Internet > Network and Sharing Center.
23
Appendix

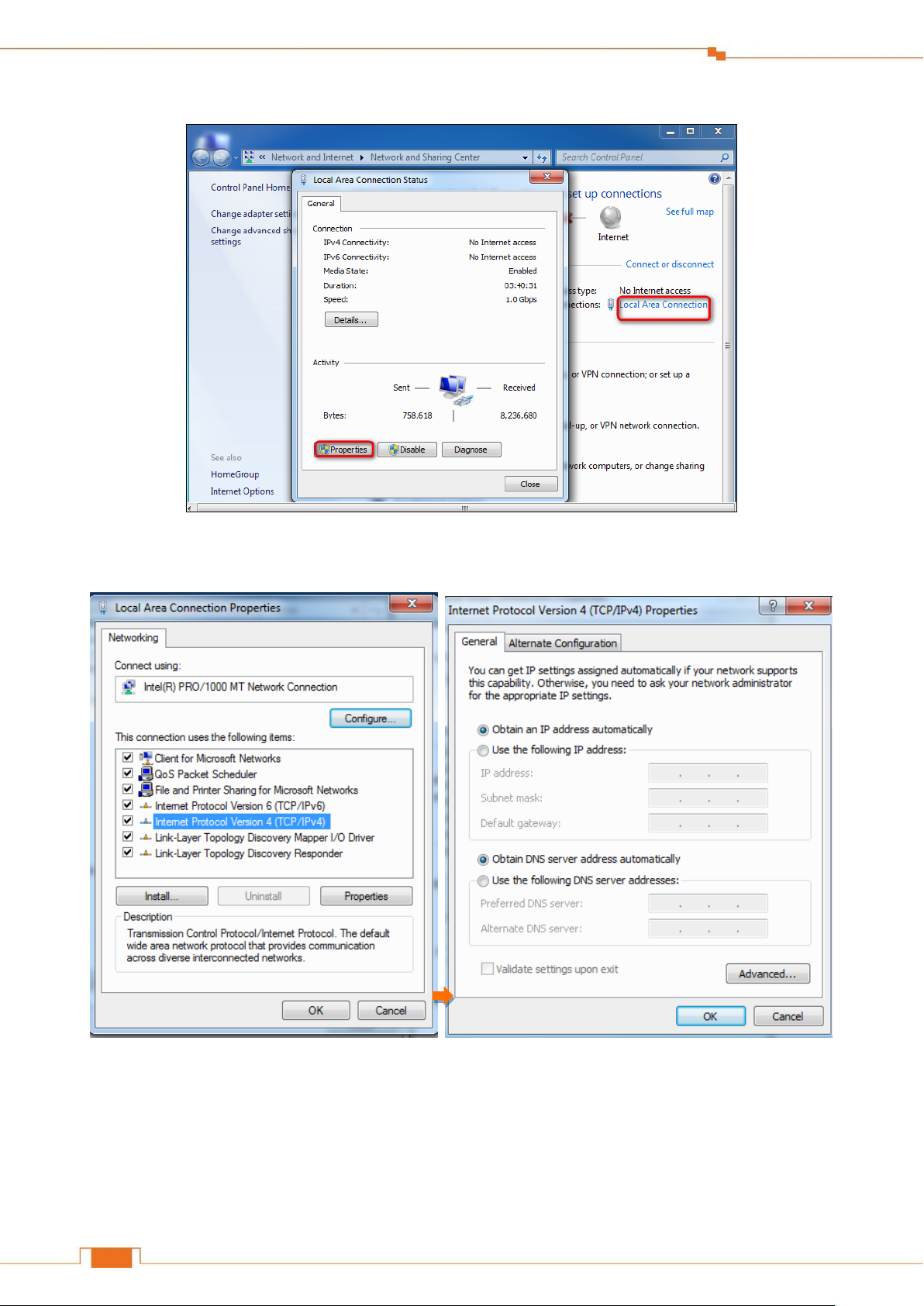

❷ Click Local Area Connection > Properties.
❸ Find and double click Internet Protocol Version 4(TCP/IPv4). Select Obtain an IP address
automatically and Obtain DNS server address automatically and click OK.
❹ Click OK on the Local Area Connection Properties window (see ❸ for the screenshot).
24
Appendix
Windows XP
❶ Right click My Network Places on your desktop and select Properties. Right click Local Area
Connection and select Properties.
❷ Scroll down to find and double click Internet Protocol (TCP/IP). Select Obtain an IP address
automatically and Obtain DNS server address automatically and click OK.
❸ Click OK on the Local Area Connection Properties window (see ❷ for the screenshot).
Appendix

2 FAQs

Here some questions come with solutions. If your problem is still unsolved, please go to our website (www.tendacn.com) for help or mail your questions to our support (support@tenda.com.cn).
Q1: I cannot access the Internet after finishing the installation in Plug and Play, what should I do?
A1: Please follow the instructions below step by step to troubleshoot.
a. Verify that your wireless router and the adapters are well-connected. b. Verify that you can access the Internet normally by connecting your computer directly to the router or modem. c. Verify that your computer has been set to obtain an IP address automatically. Please refer to
Configure Your Computer for details.
d. Verify that the PLC LEDs on the adapters are solid green. If they are not, reset all adapters and then observe the PLC LEDs again. e. Verify that all powerline adapters are on the same electrical circuit.
Q2: I cannot access the Internet after finishing the operations in Secure Your Powerline Network, what should I do?
A2: Please follow the instructions below step by step to troubleshoot. a. Check if you can access the Internet before use the Pair button to secure your powerline network. b. Verify that the PLC LEDs on the adapters are solid green. If they are not, reset all adapters and then use the Pair button to pair the adapters again. c. Verify that all powerline adapters are on the same electrical circuit.
Q3: The adapter failed to connect to the powerline network after I moved it to a new location, what should I do?
A3: Please follow the instructions below step by step to troubleshoot. a. Verify that all powerline adapters are on the same electrical circuit. b. Verify that the PLC LED on the adapter is solid green before you move it to a new location. c. Use the Pair button to pair it with one of the adapters in the powerline network again. d. Observe the PLC LED on the adapter, if it is solid red, move it to another location until the PLC LED turns to solid green again.
Appendix
Q4: Can I just plug one powerline adapter into a wall outlet to access the Internet?
A4: Sorry, you cannot. You must connect one more such adapter to an Internet-enabled ADSL
Modem or Router, and another one to a computer. When the two adapters interconnect successfully, you can access the Internet.
Q5: Do I need to install a utility to use the device?
A5: No. PH3 are plug-and-play powerline adapters. Two such devices connected to the same
electricity meter are able to interconnect automatically, no configuration required. Yet, there is still an included utility for advanced features such as Upgrade, private network, etc. See Manage Your
Adapters for details.
Q6: How many powerline adapters at most can be included under a single electricity meter?
A6: Up to 8 adapters. However, you can create numerous private networks under the same electrical
circuit.
Q7: Can powerline devices of different brands communicate with each other?
A7: Yes. PH3 complies with HomePlugAV standard and thus can communicate with other
manufacturers’ HomePlugAV- compliant powerline devices.
Appendix
Country
Hotline
Global Hotline
(86) 755-27657180
United States
1-800-570-5892
HongKong
00852-81931998
Canada Hotline
1-888-998-8966
Type
Details
Skype
Tendasz
Website
http:// www.tendacn.com
E-mail
support@tenda.com.cn
Hardware Specifications
Standards
RJ45: IEEE 802.3, IEEE 802.3u; IEEE 802.3ab PLC: HomePlugAV2
Button
1*Pair Button
LEDs
1*Power LED: Green Indicator 1*PLC LED: Green Indicator (PLC is in good condition); Red Indicator (PLC is in poor condition) 1*LAN LED: Green Indicator
Input Power
AC 100V-240V 50/60Hz
Dimensions
L（mm）
82
W（mm）
60
H（mm）
32
Electrical Security
128-bit AES encryption

3 Technical Support

If you still have some problems, please contact our technical support.

4 Technical Specifications

Appendix
Operating Temperature
0℃~40℃
Storage Temperature
-40℃~70℃
Operating Humidity
10%~90%RH Non-condensing
Storage Humidity
10%－90%RH (non-condensing)

5 Safety and Emission Statement

CE Mark Warning
This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.
-For PLUGGABLE EQUIPMENT, the socket-outlet shall be installed near the equipment and shall be easily accessible. NOTE: (1) The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. (2) To avoid unnecessary radiation interference, it is recommended to use a shielded RJ45 cable.
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:
— Reorient or relocate the receiving antenna. — Increase the separation between the equipment and receiver.
Appendix
— Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. — Consult the dealer or an experienced radio/TV technician for help. Caution! Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: (1) The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. (2) To avoid unnecessary radiation interference, it is recommended to use a shielded RJ45 cable.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
