Tenda N3 User Manual

Download
11N Wireless User Guide
Wirless N Broadband Router
N3
11N Wireless User Guide
Copyright Statement
All the photos and product specifications mentioned in this manual are for references only. Upgrades of software and hardware may occur, and if there are changes, Tenda is not responsible for notifying in advance. If you would like to know more about our product information, please visit our website at www.tenda.cn.
Contents
11N Wireless User Guide
CHAPTER 1 PRODUCT INTRODUCTION ...................... 1
1.1 Package Contents .................................. 1
1.2 LED Indicators and Port Description .......... 1
CHAPTER 2 PRODUCT INST ALLA TION ........................ 4
CHAPTER 3 HOW TO CONFIGURE TO ACCESS THE
INTERNET ............................................................................. 6
3.1 How to Set the Network Configurations ..... 6
3.2 Log in to the Router ............................. 11
3.3 Fast Internet Access ............................. 12
3.4 Fast Encryption .................................... 13
CHAPTER 4 ADVANCED SETTINGS .............................. 14
4.1 System Status ..................................... 14
4.2 WAN Settings ...................................... 15
4.3 LAN Settings ....................................... 19
4.4 DNS Settings ....................................... 19
4.5 WAN Medium Type ............................... 20
4.6 Bandwidth Control ............................... 21
4.7 Traffic Statistics ................................... 24
CHAPTER 5 WLAN SETTINGS ....................................... 26
5.1 Wireless Basic Settings ......................... 26
5.2 Wireless Security Settings ..................... 30
5.2.1 WPS Settings .................................... 30
5.2.2 WPA- PSK ........................................ 31
5.2.3 WPA2- PSK ....................................... 31
5.3 Wireless Access Control ........................ 32
5.4 Connection Status ................................ 33
11N Wireless User Guide
CHAPTER 6 DHCP SERVER ............................................. 34
6.1 DHCP Server ....................................... 34
6.2 DHCP Client List ................................... 34
CHAPTER 7 VIRTUAL SERVER ...................................... 36
7.1 Port Range Forwarding .......................... 36
7.2 DMZ Settings ...................................... 38
7.3 UPNP Settings ..................................... 38
CHAPTER 8 SECURITY SETTINGS ............................... 40
8.1 Client Filter Settings ............................. 40
8.2 MAC Address Filter ............................... 41
8.3 URL Filter Settings ............................... 43
8.4 Remote Web Management ..................... 44
CHAPTER 9 ROUTING SETTINGS ................................. 46
9.1 Routing Table ...................................... 46
9.2 Static Routing...................................... 46
CHAPTER 10 SYSTEM TOOLS ........................................ 48
10.1 T
10.2 DDNS ............................................... 48
10.3 Backup/Restore ................................. 49
10.4 Restore to Factory Default ................... 51
10.5 Upgrade ............................................ 51
10.6 Reboot the Router .............................. 52
10.7 Password Change ............................... 52
10.8 Syslog .............................................. 53
10.9 Log out ............................................. 53
IME SETTINGS
..................................... 48
APPENDIX 1 GLOSSARY .................................................. 54
APPENDIX 2 PRODUCT FEATURES .............................. 55
APPENDIX 3 FAQ ............................................................... 56
11N Wireless User Guide
APPENDIX 4 CLEAR WIRELESS CONFIGURATION . 58
APPENDIX 5 REGULATORY INFORMATION ............. 60
11N Wireless User Guide
Chapter 1 Product Introduction
Thank you for purchasing the Tenda Wireless N Broadband Router! This easy-to-use router provides simple configuration interface which enables you to configure it with ease. It is based on the latest IEEE802.11n standard, and is backward compatible with devices of IEEE802.11b/g standards. The Tenda wireless router，including router, wireless AP, four-port switch and firewall in one，provides powerful online m oni tor fun ction a nd su pport s UR L filter and MA C filter. With WDS function, it can repeat an d amplify wireles s signals so a s to enl arge n etwork covera ge area. It truly supports UPnP and WMM to make your audio and video smoother. With QoS function, it can efficiently distribute the downloading rate for the clients. With super compatibility, the router can break the access limits in some areas so that multiple computers can share the Internet access. Additionally, it supports WISP function to access to the ISP’s wireless hotspots (this function applies only to some of the products).
1.1 Package Contents
Please verify the following items after you open the package:
¾ One Wireless N Broadband Router ¾ One Quick Installation Guide ¾ One Power Adapter ¾ One Software CD
If any of the listed items are missing or damaged, please contact the Tenda reseller for immediate replacement.
1.2 LED Indicators and Port Description
Panel and LED indicators show:
LED indicator description on the front panel
1
11N Wireless User Guide
Back panel port show (take W316R as an example)
2
Back panel port description
11N Wireless User Guide
3
11N Wireless User Guide
Chapter 2 Product Installation
In this user guide, we take W316R as an example to explain the installation steps. The installation steps of other products are similar to this one.
1. Please use only the included power adapter to power your router. (NOTE: Use of an
unmatched power adapter could cause damage to this product).
2. Please connect the router’s LAN port to your computer with an Ethernet cable as shown
below.
3. Please connect your broadband line provided by your ISP to the router’s WAN port.
4
4. Insert the included software CD into the CD drive of your computer. After the software automatically initiates, double click the “Setup” icon and follow the instructions to co mple te the installation. You can also enter the router’s Web-based Utility to complete the configuration.
11N Wireless User Guide
5
11N Wireless User Guide
Chapter 3 How to configure to access the Internet
3.1 How to Set the Network Configurations
Network Configurations under windows XP
1. Right click “My Network Places” on your computer desktop and select “Properties”.
2. Right click “Local Area Connection” and select “Properties”.
3. Select “Internet Protocol (TCP/IP)” and click “Properties”.
6
11N Wireless User Guide
4. Select “Obtain an IP address automatically” and “Obtain DNS server address
automatically”. Click “OK” to save the configurations.
Or select “Use the following IP address” and enter the IP address, Subnet mask, Default gateway as follows:
¾ IP Address: 192.168.0.XXX: (XXX is a number from 2~254) ¾ Subnet Mask: 255.255.255.0 ¾ Gateway: 192.168.0.1 ¾ DNS server: You should input the DNS server address provided by your ISP.
Otherwise, you can enter 192.168.0.1. Click “OK” to save the configurations.
7
11N Wireless User Guide
Network Configurations under windows 7
1. Click the network icon on the lower right corner of your computer desktop, and then
click” Open Network and Sharing Center”.
2. Click “Change adapter settings” on the lef t sid e of the w ind ow.
8
11N Wireless User Guide
3. Right click “Local Area Connection” and select “Properties”.
4. Double click” Internet Protocol Version 4(TCP/IPv4)".
5. Select “Obtain an IP address automatically” and “Obtain DNS server address
9
11N Wireless User Guide
automatically”. Click “OK” to save the configurations.
Or select “Use the following IP address” and enter the IP address, Subnet mask, Default gateway as follows:
¾ IP Address: 192.168.0.XXX: (XXX is a number from 2~254) ¾ Subnet Mask: 255.255.255.0 ¾ Gateway: 192.168.0.1 ¾ DNS server: You should input the DNS server address provided by your ISP.
Otherwise, you can enter 192.168.0.1. Click “OK” to save the configurations.
10
11N Wireless User Guide
3.2 Log in to the Router
1. To access the Router’s Web-based Utility, launch a web browser such as Internet Explorer or Firefox and enter http://192.168.0.1. Press “Enter”.
2. The system will automatically choose the corresponding web language in accordance with the Browser’s language. For example, if your Browser’s language is French, the router’s web language will display as French.
3. If your Browser language i s E n glish or beyond the 9 languages (Arabic, French, German, Italian, Polish, Portuguese, Russian, Spanish, Turkish), the router’s web language will be English.
11
11N Wireless User Guide
3.3 Fast Internet Access
Two kinds of fast access methods are provided on the router’s web-based utility: ADSL dial-up and DHCP. If you select ADSL dial-up, you only need to enter the access account and access password as well as the wireless password, and then click “Ok” to complete the settings.
If you select DHCP, you only need to enter the wireless password and click “Ok” to complete the settings.
The default access method is ADSL dial-up and the access account and access password are the same as the ADSL dial-up account and password, which you can inquire your broadband ISP. For other access methods, please refer to WAN settings in chapter 4.Th e wireless password can only cons ist of 8 characters, the de fault is 12345678 and you can modify it when necessary.
12
11N Wireless User Guide
3.4 Fast Encryption
The router provides two encryption setting screens, one is simple and easy, the other is advanced (For advanced setting, please refer to chapter 5.2).
Simple and easy screen:
Log on to the router’s web-based utility and you may set encryption for the router. The default adopts WPA-PSK mode and AES Algorithm. The default password is 12345678, as shown below.
NOTE: The wireless password can only be 8 characters in length and the default
is 12345678, you can modify it when necessary.
13
11N Wireless User Guide
Chapter 4 Advanced Settings
4.1 System Status
System status screen allows you to view the router’s WAN port status and system status.
¾ Connection status: It displays the router’s WAN connection status.
Disconnected: It indicates the router’s WAN port hasn’t been connected with the network cable. Connecting: It indicates the router’s WAN port is obtaining IP address. Connected: It indicates the Router is well connected with the ISP.
¾ WAN IP：IP address obtained from ISP. ¾ Subnet mask: Obtained from ISP. ¾ Gateway: Obtained from ISP. ¾ DNS server: Obtained from ISP. ¾ Alternate DNS server: Obtained from ISP. ¾ Connection type: It displays your current access method.
¾ LAN MAC address：It display s the R oute r’s LAN MAC addre ss . ¾ WAN MAC address：It displays the Router’s WAN MAC Address.
14
11N Wireless User Guide
¾ System time：It displays the system’s updated time ¾ Connected client ：It displays the number of the connected computers(normally it
displays the number of clients whose IP addresses obtained via DHCP server)
¾ Software version：It displays the Router’s software version； ¾ Hardware version：It displays the Router’s hardwar e v ersion.
4.2 WAN Settings
Virtual Dial-up (PPPoE)
¾ Mode: Show your current connection mode. ¾ Access Account: Enter the account provided by your ISP. ¾ Access Password: Enter the password provided by your ISP. ¾ MTU: Maximum Transmission Unit. It is the size of the largest data packet that can
be sent over the network. The default value is 1492. Do NOT modify it unless necessary, but if a specific website or web application software cannot open or be enabled, you can try to change the MTU value to 1450, 1400, etc.
¾ Service Name: The connection name for current PPPOE, enter it if necessary，
otherwise, leave it blank.
¾ AC Name: The service name, enter it if necessary，otherwise, leave it blank. ¾ Connect Automatically: Connect automatically to the Internet after rebooting the
system or connection failure.
15
11N Wireless User Guide
¾ Connect on Demand: Re-establish your connection to the Internet after the specific
time (Max Idle Time). Zero means you are connected to the Internet all times. Otherwise, enter the minutes to be elapsed before you are disconnected from the Internet.
¾ Connect Manually: Connect to the Internet by users manually. ¾ Connect on Fixed Time: Connect to the Internet during the time you fix
automatically.
NOTE:
The “Connect on Fixed Time” goes into effect only when you have set the current time in “Time settings” from “System tools”.
Static IP
If your ISP provides you the static IP, please choose static IP, and you need to enter the IP address, subnet mask, gateway, DNS server and alternate DNS server provided by your ISP or network administrator。
¾ Mode: Show your current connection mode. ¾ IP address: Enter the WAN IP address provided by your ISP. If you are not clear,
please inquire your local ISP.
¾ Subnet mask: Enter the WAN Subnet Mask provided by your ISP. Generally it is
255.255.255.0。
¾ Gateway: Enter the Gateway provided by your ISP. If you are not clear, please
inquire your local ISP.
¾ DNS server: Enter the necessary DNS server provided by your ISP. ¾ Alternate DNS server: Enter the se cond D NS add re ss if y our IS P pr ov ides, w hich i s
optional.
16
11N Wireless User Guide
Dynamic IP (Via DHCP)
If your connection mode is Dynamic IP, it means every time you access the Internet, you will get a different IP. You don’t need to enter any par ameters in this mo de, ju st Click “Ok” to finish the settings.
PPTP
¾ Mode: Show your current connection mode. ¾ PPTP server address: The IP address or domain name of the destination server
and it is used to specify the destination address which needs for PPTP connection.
¾ Username/Password: Used to validate identity when connecting to the PPTP
server.
¾ Address mode: Set the router’s IP address mode, you can select either “ Dynamic”
or “Static”. If your ISP doesn’t provide the IP address, please select “Dynamic”.
17
11N Wireless User Guide
¾ IP address: Please enter the IP address provided by your ISP, inquire your local ISP
if you are not clear.
¾ Subnet mask: Please enter the subnet mask provided by your ISP ,generally its
255.255.255.0
¾ Gateway: Please enter the gateway provided by your ISP, inquire your local ISP if
you are not clear.
All the above parameters are provided by ISP.
L2TP
¾ Mode: Show your current connection mode. ¾ L2TP server address: The IP address or domain name of the destination server and
it is used to specify the destination address which needs for L2TP connection.
¾ Username/Password: Used to validate identity when connecting to the L2TP
server.
¾ Address mode: Set the router’s IP address mode, you can select either “ Dynamic”
or “Static”. If your ISP doesn’t provide the IP address, please select “Dynamic”.
¾ IP address: Please enter the IP address provided by your ISP, inquire your local ISP
if you are not clear.
¾ Subnet mask: Please enter the subnet mask provided by your ISP ,generally its
255.255.255.0
¾ Gateway: Please enter the gateway provided by your ISP, inquire your local ISP if
you are not clear.
All the above parameters are provided by ISP.
18
11N Wireless User Guide
4.3 LAN Settings
Click “Advanced settings” –LAN settings to enter the following screen.
¾ LAN MAC address: The Router’s LAN MAC address, which is unchangeable. ¾ IP address: The Router’s LAN IP address (not your PC’s IP address).The default
value is 192.168.0.1; you can change it when necessary.
¾ Subnet mask: The Router’s LAN subnet mask. The default value is 255.255.255.0
NOTE: Once you modify the IP address, you need to remember it for next time you log in to the web-based utility.
4.4 DNS Settings
DNS stands for Domain Name System (or Service).
¾ DNS setting: Select to enable the DNS server. ¾ Primary DNS address: Enter the necessary address provided by your ISP. ¾ Alternate DNS address: Enter the second DNS address if your ISP provides, which
19
11N Wireless User Guide
is optional.
NOTE: After the settings are completed, reboot the device to activate the modified settings.
4.5 WAN Medium Type
Wired WAN and wireless WA N
NOTE: This function applies only to some of the products.
Wired WAN: In this mode, the cable is directly connected to the WAN port. Wired WAN is
the default mode. Wireless WAN: Enable this mode if your ISP provides you wireless connection service or you want to use it to amplify wireless signals. SSID: SSID (Service Set Identifier) is the identity of the wireless device. You can only access to the ISP’ network by entering the correct SSID, namely the SSID of the ISP’s wireless device. You can click the “Open scan” button to let the router automatically search the ISP’s available SSID. The SSID can also be the SSID of the superior wireless device when using wireless bridge. MAC: To connect to the ISP’s wirele ss dev ice, y ou ne ed to k now the device’s MAC address. You can click the “Open scan” button to let the router automatically search the wireless device’s MAC or superior wireless device’s MAC. Channel: The wireless device’s communication channel. You must select the same channel as the ISP’s wireless device to enable their communications. It can also be scanned by clicking the “Open scan” button. Security mode: When the ISP wireless device is secured, the access device should set the
20
11N Wireless User Guide
same security mode, encryption mode and key as the ISP’ wireless device.
For example
If your ISP wireless device’s SSID is “wireless”, then just enter the ISP’s SSID, wireless MAC address, and channel respectively into the corresponding fields of the above picture. If the ISP device is secured, please set your router’s encryption type the same as the ISP device’s .Or you can click the “Open scan” button to let the router automatically fill in the SSID, Channel and wireless MAC. After saving, come back to the WAN Setting screen to select the corresponding WAN connection type to complete the settings (For example, if your ISP wireless device’s connection type is dynamic IP, just select DHCP).

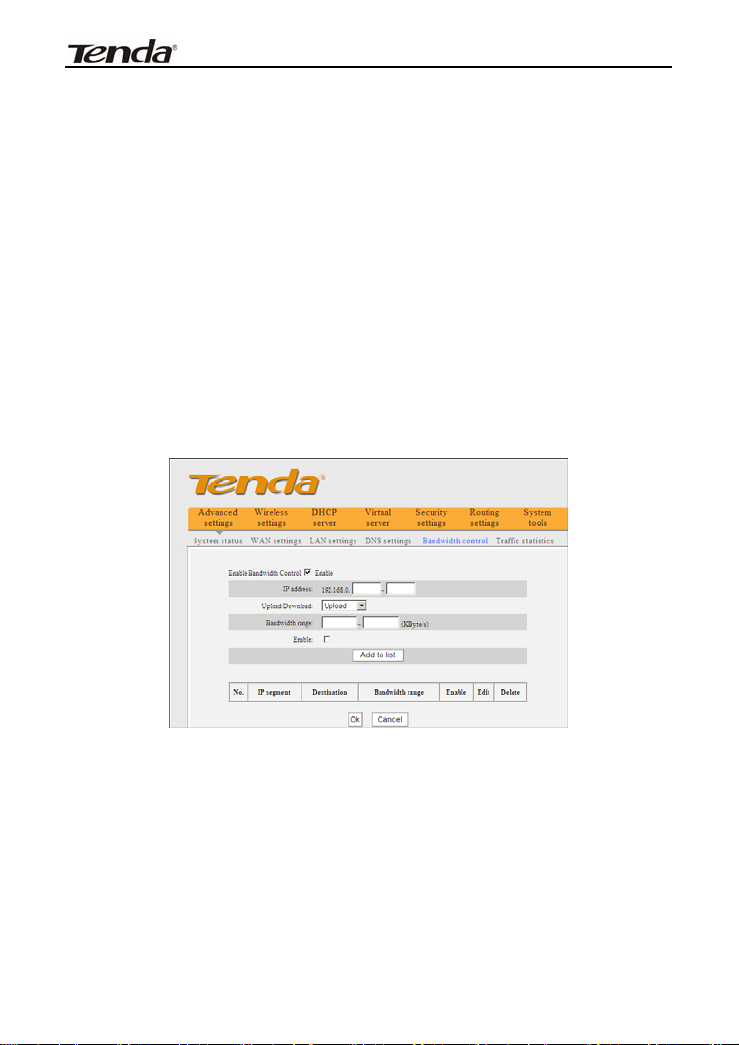

4.6 Bandwidth Control
Bandwidth control is used to limit the communication traffic of LAN computers when accessing the Internet. It can simultaneously control maximum of 254 PCs' traffic. In addition, IP address range configuration is supported.
¾ Enable Bandwidth Control: To enable or disable the internal IP bandwidth control.
The default is disabled.
¾ IP Address: The IP address range of the hosts whose traffic has been controlled. It
can be a single IP address or IP address range.
¾ Upload/Download: To specify the traffic heading way for the selected IP addresses:
upload or download.
¾ Bandwidth Range: The maximum and minimum upload/download data traffic of the
hosts in specified IP range. The unit is KByte/s. Th e uplink of upload and download can not exceed the WAN port bandwidth limitation range.
21
11N Wireless User Guide
¾ Enable: To enable the current edited rule. Otherwise, the rule will not go into effect. ¾ Add to list: After you edit the rule, click the “add to list” button to add the current
rule to the rule list. Here we take 2Mbps ban dwi d th as a n ex ample. Theor etically, the biggest downloading rate for 2Mbps bandwidth is 2Mbps=256KByte/s, and the biggest uploading rate is 512kbps=64KByte/s
Example 1
If you want to set the download rate of the computer at the IP address of 192.168.0.100 as 80-90KByte/s, upload rate as 10-15KByte/s, first add one upload rule as shown in the picture below:
1. Enter 192.168.0.100 in the IP address field
2. Select upload in the Upload/Download field.
3. Enter 10-15 in the bandwidth range field
4. Select “Enable”
5. Click “Add to list”
6. Click “Ok” to finish the upload rule settings.
And then add a download rule as shown in the picture below.
22
11N Wireless User Guide
The setting method is the same as the above.
Example 2 Set the download rate of all computers within the range of
192.168.0.2--192.168.0.254 as 100-120KByte/s, and the upload rate as 20-30KByte/s, as shown in the picture below.
23
11N Wireless User Guide
The setting method is the same as Examp le 1.
4.7 Traffic Stat istics
Traffic statistics is used to display the bandwidth that LAN PC used.
Enable Traffic statistics: It i s use d to c alcul ate t he tr af f ic use d by the LA N comput ers. You can enable it to calculate the traffic for you. Usually, disable it to improve the router’s data packet processing ability, and the default is disabled. W hen this function is enabled, the webpage will refresh automatically every five minutes, meanwhile, each computer’s traffic value will refresh automatically.
¾ IP address: the IP address of the computer whose traffic is being calculated. ¾ Uplink rate: the data sending speed per second, the unit is KByte/s. ¾ Downlink rate: the data receiving speed per second, the unit is KByte/s. ¾ Sent message: the number of the calculated computer’s data packets that are sent
out through the router. ¾ Sent Bytes: the volume of the calculated computer’s statistics that is sent out
through the router
24
11N Wireless User Guide
¾ Received message: the number of the calculated computer’s the data packets that
are received through the router. ¾ Received Bytes: the volume of the calculated computer’s statistics that is received
through the router .
25
Chapter 5 WLAN Settings
5.1 Wireless Basic Settings
11N Wireless User Guide
¾ Enable wireless function: Select to enable the Router’s wireless features; deselect
to disable it and all functions related with wireless are disabled. ¾ Wireless working mode: This router provides two kinds of working modes: Wireless
Access Point(AP) and Network Bridge (WDS)
Wireless Access Point (AP) ¾ Network Mode: Select one mode from the drop-down list.
11b mode：Select it if you have only Wireless-B clients in your network. 11g mode：Select it if you have only Wireless-G clients in your network. 11b/g mixed mode: Select it if you have only Wireles s-B and Wireless -G clients
in your network.
11b/g/n mixed mode: Select it if you have Wireless-B, Wireless-G and
Wireless-N clients in your network.
¾ SSID: It is the unique name of the wireless network and can be modified. The SSID
must be entered. ¾ Broadcast (SSID): Select “Enable” to enable th e router’ SSID to be scannable b y
wireless devices. The default is enabled. If you disable it, the wireless devices must
know the SSID for communication.
26
11N Wireless User Guide
¾ Channel: The currently used channel by the rout er. Select an effective channel (from
1 to 13\Auto) of the wireless network. ¾ WMM Capable: Enable it to enhance the transfer performance of the wirelessly
transferred multimedia data (such as video or online playing).We recommend
enabling this option if you are not familiar with WMM.
¾ APSD Capable: It is used for auto power-saved service. The default is disabled. ¾ Channel bandwidth: Select an appropriate channel bandwidth to enhance the
wireless performance. Select 20/40M when the network has 11b/g and 11n wireless
clients. Select 20M when the network has only non-11n wireless clients. Select
20/40M to promote its throughput when the wireless network is in 11n mode.
¾ Extension Channel: To confirm the network’s frequency range in 11n mode.
NOTE: Some products may have primary SSID and secondary SSID options, as
shown below. Primary SSID is necessary, secondary SSID is optional.
Network Bridge (WDS) Settings
WDS (Wireless Distribution System) is used to expand wireless coverage area.
27
11N Wireless User Guide
¾ AP MAC address: Input the MAC address of another (op posing) wireless router you
want to connect.
Example: This example is to bridge two W316R routers.
1. If you know the connecting router’s MAC address, please enter it into the AP MAC address field and click “Ok”.
2. You can also search for the wireless router’s signal by scanning.
28
11N Wireless User Guide
a) Click “Open scan” and click the scanned signal and click the ”Ok” button on the dialog box and the corresponding wireless MAC address will be added to the AP MAC address field automatically.
b) Click “Ok” after the MAC address is added.
After finishing the above steps, you need to set the other W316R router in the same way.
NOTE:
WDS feature requires both routers support this function and the SSID, channel,
29
11N Wireless User Guide
encryption method and password are the same as those of the connecting router.
5.2 Wireless Security Settings
With the wireless security function, y ou can p revent others from c onnecti ng to y our w ireles s network and using the network resources without your consent. Meanwhile, you can also block illegal users from intercepting or intrudin g y our wireless network.
5.2.1 WPS Settings
WPS (Wi-Fi Protected Setting) makes it quick and easy to establish a secure connection between the wireless clients and the router. The users only need to enter a PIN code or press WPS button on the back panel to configure it without manually selecting an encryption method or set a key.
¾ WPS settings: To enable or disable WPS function. The default is “Enable”. ¾ WPS mode: Provide two ways: PBC (Push-Button Configuration) and PIN code. ¾ PBC: Select the PBC and click Ok, or press and hold the WPS button on the back
panel of the device for about one second. The WPS LED indicator will b e flashin g for
2 minutes, which means the WPS is enabled. During this time (flashing WPS LED),
you can enable the wireless client to implement the WPS/PBC negotiation between
them. When the WPS connection is completed, the LED indicator will be
continuously lit. To add more clients, repeat the above steps.)
30
11N Wireless User Guide
¾ PIN: If this option is enabled, you need to enter a wireless client’s PIN code in the
field and keep the same code in the WPS client. ¾ Reset OOB: Press this button, the WPS client will be in an idle state, and the WPS
indicator will turn off. AP will not respond to the WPS client’s connection request and
will set the security mode as Open-None (Disable) mode.
NOTE:
The use of WPS function requires the wireless adapter to support this function.
5.2.2 WPA- PSK
WPA guarantees to protect WLAN users’ data and only the authorized network users can have access to WLAN.
¾ WPA Algorithms: Provides TKIP [Temporal Key Integrity Protocol] or AES
[Advanced Encryption Standard].
¾ Key: Enter the pass phrase that consists of 8-6 3 ASCII characters. ¾ Key Renewal Interval: Set the key’s renewal pe riod, which tells the device how
often it should change the dynamic keys.
5.2.3 WPA2- PSK
31
11N Wireless User Guide
WPA2 (Wi-Fi Protected Access version 2) provides higher security than and WPA (Wi-Fi Protected Access).
¾ WPA Algorithms: Provides TKIP [Temporal Key Integrity Protocol] or AES
[Advanced Encryption Standard].
¾ Key: Enter the pass phrase that consists of 8-6 3 ASCII characters. ¾ Key Renewal Interval: Set the key’s renewal pe riod, which tells the device how
often it should change the dynamic keys.
5.3 Wireless Access Control
Wireless access control is actually based on the MAC address to permit or forbid specific clients to access the wireless network.
32
11N Wireless User Guide
¾ MAC address filter: “Permit” indicates to allow the clients in the list to access the
wireless network, “Forbid” indicates to prevent the clients in the list from accessing
the wireless network. ¾ Configure MAC address: Input the MAC addresses of the wireless clients to
implement the filter policy. Click “Add” to finish the MAC add operation.
¾ MAC Address list: Show the added MAC addresses. You can add or delete them.
5.4 Connection Status
This screen shows wireless client’s connection status, including MAC address, Channel bandwidth.
¾ MAC address: Shows the MAC addresses of the hosts connected to the Router. ¾ Bandwidth: Shows the chan nel bandwidth of the cu rrent conne cted hosts (wirele ss
clients).
33
11N Wireless User Guide
Chapter 6 DHCP Server
6.1 DHCP Server
DHCP (Dynamic Host Control Protocol) is used to assign an IP address to the computers on the LAN/private network. When you enable the DHCP Server, the DHCP Server will allocate automatically an unused IP address from the IP address pool to the requesting computer in premise of activating “Obtain an IP Address Automatically”. So specifying the start and end address of the IP Address pool is needed.
¾ DHCP server: Check the Enable box to enable DHCP server. ¾ IP pool start/end address: Enter the range of IP addresses for DHCP server
distribution. ¾ Lease time: It indicates the valid time of the dynamic IP add ress which i s distr ibuted
to the DHCP client’s host computer by DHCP server. During this time, the server will
not distribute the IP address to any other host computer.
6.2 DHCP Client List
DHCP client list displays user computer’ IP address, MAC address, host name and other information which are assigned by the DHCP server. Yo u can manually enter the IP and MAC address and convert them to static assignment.
34
11N Wireless User Guide
¾ Host name: It displays the name of the computer whose IP is allocated by the DHCP
server.
¾ IP address: Enter the IP address which needs static binding. ¾ MAC address: Enter the MAC address of the computer you want to bind. Click
“Add” to add the entry in the list. ¾ Lease time: The remaining time length of the corresponding IP address lease.
35
Chapter 7 Virtual Server
7.1 Port Range Forwarding
11N Wireless User Guide
¾ Start/End port: Enter the start/end port number which ranges the External ports
used to set the server or Internet applications.
¾ LAN IP: Enter the IP address of the PC which you want to set as the server. ¾ Protocol: Select the protocol (TCP/UDP/Both) for the application. If you are not
clear about the protocol you are using, you can select “Both”.
¾ Enable: Click the Enable checkbox to bring the set rule into effect. ¾ Delete: Clear all settings of this item. ¾ Well-known service port: The well-known protocol ports are liste d in th e dro p-dow n
list. Select one and select a sequen ce n umb er in the ID drop-down list and then cl ic k
“Add”, this port will be added autom atica lly to th e ID list . For ot her w ell kn ow n serv ice
ports that are not listed, you can manually add them to the list.
¾ Add to: Add the selected well-known port to the policy ID. For Example: You want to share some large files with your friends outside of your local
area network, however, they are too big, and it’s not convenient to transfer t hem. T hen, y ou can build a FTP server on your computer and set the router’s port range forwarding to enable your friends to access to these files on your computer. Suppose that your FTP server or your computer’s static IP address is 192.168.0.10, and you wish your friends can
36
11N Wireless User Guide
access the server through the default port 21 and ad op ts TCP protocol.
Please follow the steps below to configure.
1.Enter 21 in both start port and end port fields, or you can also select FTP from the well-known service port and its port 21 will be added to the corresponding field automatically.
2. Enter 192.168.0.10 in the LAN IP column, and then select “Both” as the protocol and select “Enable”.
3. As the picture shown below.
4. Click the “Ok” button to save the settings. And now, when your friends want to visit the FTP server, they only need to enter ftp://xxx.xxx.xxx.xxx:21 in the address field. Here, xxx.xxx.xxx.xxx means the router’s WAN IP address. For example, when your router’s WAN IP address is 172.16.102.89; your friends need to enter ftp://172.16.102.89:21 in the address field.
NOTE: If you set the service port of the virtual server as 80, you must set the Web management port on Remote Web Management screen to be any value except 80 such as 8080. Otherwise, there will be a conflict to disable the virtual server.
37
11N Wireless User Guide
7.2 DMZ Settings
The DMZ Settings screen allows one local computer to be exposed to the Internet for use of a special-purpose service such as Internet gaming or videoconferencing. DMZ hosting forwards all the ports at the same time to one PC.
¾ DMZ Host IP Address: The IP address of the LAN computer you want to set as
DMZ host.
¾ Enable: Check to enable the DMZ host.
For example:
Set the computer at the IP address of 192.168.0.10 as DMZ host to connect another host on the Internet for intercommunication.
NOTE: When the DMZ host is enabled, the firewall settings of the DMZ host will not function.
7.3 UPNP Settings

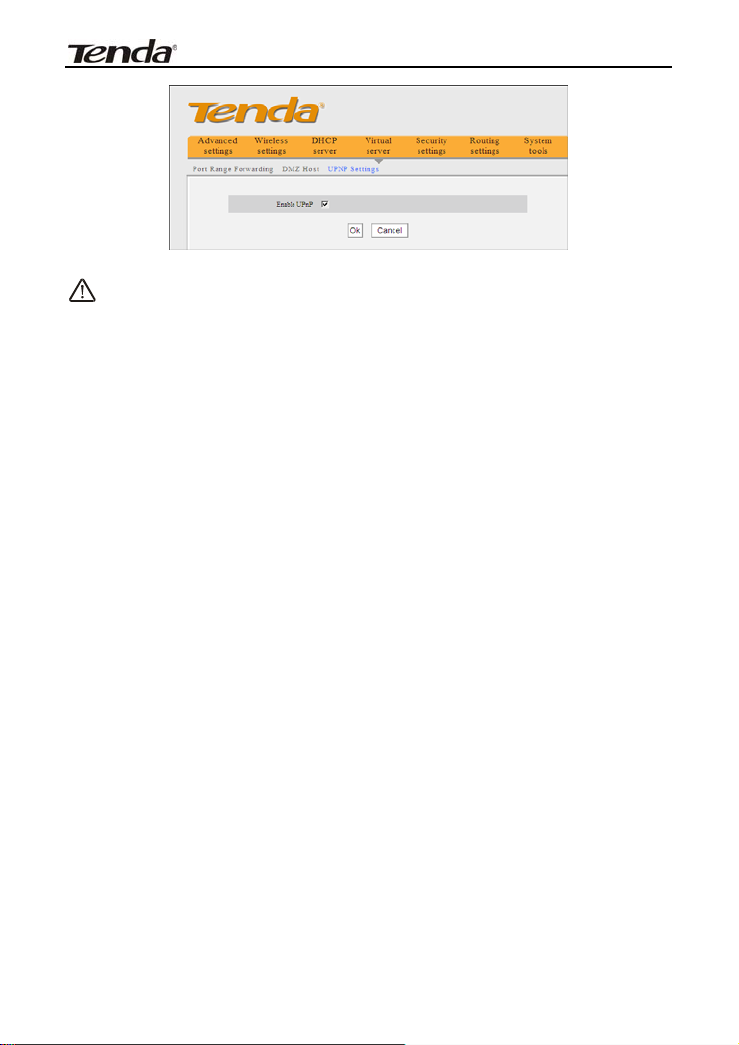

UPnP (Universal Plug and Play).With the UPnP function, the internal host can request the router to process some special port switching so as to enable the external host to visit the resources of the internal host.
38
11N Wireless User Guide
¾ Enable UPnP: Click the checkbox to enable the UPnP.
NOTE: This function goes into effect under Windows XP or Windows ME (NOTE: the system should integrate or have installed the Directx 9.0) or this function would go into effect if you have installed software that supports UPnP.
39
11N Wireless User Guide
Chapter 8 Security Settings
8.1 Client Filter Settings
You can enable client filter to control LAN computers’ access to some ports of the Internet。
¾ Filter Mode: You can select either “Permit only” or “Forbid only”. ¾ Access Policy: Select one number from the drop-dow n list. ¾ Remark: A simple description of the configured file. You can also leave it blank. ¾ Start/End IP: Enter the start/end IP address. ¾ Port: Enter the controlled TCP/UDP protocol port. You can specify a port or port
range.
¾ Type: Select one protocol (TCP/UDP/Both) from the drop-down list. ¾ Time: Select the time range of client filter. ¾ Date: Select the day(s) to run the access policy. ¾ Enable: To enable/disable the access policy (forbid/permit the packets matched with
the access policy to pass through the router.
Example1 Forbid LAN computers at the IP addresses of 192.168.0.100--192.168.0.120 to access the Internet.
40
11N Wireless User Guide
Example 2 Permit LAN computer with the IP address of 192.168.0.145 to access websites during 8:00 to 18:00 from Sunday to Saturday.
8.2 MAC Address Filter
You can limit the computer’s access to Internet by MAC Address Filter.
41
11N Wireless User Guide
¾ Filter mode: You can select either “Permit only” or “Forbid only”. ¾ Access Policy: Select one number from the drop-dow n list. ¾ Remark: A simple description of the configured file. You can also leave it blank. ¾ MAC Address: Enter the MAC address you want to run the access policy. ¾ Time: Select the time range of MAC address filter. ¾ Date: Select the day(s) to run the access policy. ¾ Enable: To enable/disable the access policy (forbid/permit the packets matched with
the access policy to pass through the router).
Example 1 Forbid the computer with the MAC address of 00:E0:4C:69:A3:23 to access Internet during 8:00 to 18:00 from Monday to Friday.
Example 2 Permit the computer with the MAC address of 00:E4:A5:44:35:69 to access Internet from Monday to Friday.
42
11N Wireless User Guide
8.3 URL Filter Settings
You can use URL filtering to forbid their access to certain websites at a specified time.
¾ Filter Mode: You can select either “Permit only” or “Forbid only”. ¾ Access Policy: Select one number from the drop-down list. ¾ Remark: A simple description of the configured file. You can also leave it blank. ¾ Start/End IP: Enter the start/end IP address. ¾ URL character string: Specify the text strings or keywords needed to be filtered. ¾ Time: Select the time range of URL filter. ¾ Date: Select the day(s) to run the access policy. ¾ Enable: To enable/disable the access policy (forbid /permit the p ackets matched with
the access policy to pass through the router).
Example1 Forbid all computers on LAN to access baidu.com during 8:00 to 18:00 from
43
Monday to Friday.
11N Wireless User Guide
Example2 Permit LAN computers with the IP addresses of 192.168.0.100- 192.168.0.115 to access yahoo.com.
NOTE:
Enter only one domain name for each access policy for one access policy can only filter one domain name. So, if you want to filter multiple domain name s, you need to set multiple access policies
8.4 Remote Web Management
This section instructs how to allow the network administrator to manage the Router
44
11N Wireless User Guide
remotely. If you want to access the Router from outside of the local network, please click the checkbox after “Enable”.
¾ Enable: Check to enable remote web management. ¾ Port: The management por t open to outside access. The default valu e is 80. ¾ IP Address: Specify the range of the IP addresses of the computers on the Internet
for remote management.
NOTE:
1. If you want to log in the device’s Web-based Utility via port 8080, you need to use the format of WAN IP address: port (for example http：//220.135.211.56:8080) to implement remote login.
2. If your WAN I P address starts and ends with 0.0.0.0, it means all hosts on the Internet can implement remote Web management. If you change the Internet IP address as 218.88.93.33-21 8.88. 93.35 , th en o nly the computers at the IP addresses of
218.88.93.33, 218.88.93.34 and 218.88.93.35 can access the Router to implement remote web management. For example:
If you want to configure the computer at the IP address of 218.88.93.33 to access the router’s web-based utility via port 8080, please set the parameters as above.
45
Chapter 9 Routing Settings
9.1 Routing Table
This page shows the router’s core routing tabl e.
11N Wireless User Guide
The main duty for a router is to look for a best path for every data packet, and transfer this data packet to a destination station. In order to fulfill this function, many transferring paths, i.e. routing table, are saved in the router, for choosing when needed.
9.2 Static Routing
This screen is used to set the router’s static routing. A static route is a pre-determined pathway that network information must travel to reach a specific host or network.
¾ Destination network IP address: The destination host or IP segment you visit. ¾ Subnet mask: Enter the subnet mask, generally it is 255.255.255.0 ¾ Gateway: The entry IP address of the next router.
46
11N Wireless User Guide
NOTE:
1. The gateway must be at the same net segment with the router’s LAN IP.
2. If the destination IP address is one host’ address, then the subnet mask must be
255.255.255.255.
3. If the destination IP address is an IP segment, then it must match with the subnet mask. For example, if the destination IP is 10.0.0.0 then the subnet mask must be
255.0.0.0
47
11N Wireless User Guide
Chapter 10 System Tools
10.1 Time Settings
This section is to configure the router’s system time. You can set it manually or obtain the GMT time from the Internet.
¾ Time zone: Select the time zone where you are operating the Router from the
drop-down list.
¾ Customized time: Enter the time you wish to configure.
NOTE: When the Router is powered off, the time settings will be lost. The router will obtain the GMT time automatically when you next time access the Internet. Only when you connect to the Internet and obtain the GMT time or set the time on this screen, can the time settings in other functions (e.g. security settings) take effect.
10.2 DDNS
The DDNS (Dynamic Domain Name System) is supported in this Router. It is used to assign a fixed host and domain name to a dynamic Internet IP address. Every time you access the Internet, the dynamic domain name software installed on your host will tell the ISP’S host server its dynamic IP address by sending messages. And the server software is responsible for providing DNS service and implementing dynamic domain name resolution.
48
11N Wireless User Guide
¾ Main features:
1. Mostly, your ISP provides a dynamic IP address and the DDNS is used to capture the changeable IP address and match to the fixed domain. Then users can have access to the Internet to communicate with others outside the network.
2. DDNS can help you to establish a virtual host in your home or company.
¾ DDNS: Click the radio button to enable or disable the DDNS service. ¾ Service provider: Select one from the drop-down list and click “Sign up” for
registration.
¾ Username: Enter the username that you use to register from the DDNS provider ¾ Password: Enter the password that you use to register from the DDNS provider ¾ Domain name: Enter the effective registered domain name
For example:
Establish a Web server in the local host 192.168.0.10 and register in 3322.org as follows:
Username Tenda Password 123456
Domain Name tenda.3322.org
After mapping the port in the virtual server, and setting account information in DDNS server, you can then access the web page by entering http://tenda.3322.org in the address field.
10.3 Backup/Restore
On this screen, you can back up the router’s current settings or restore previous settings.
49
11N Wireless User Guide

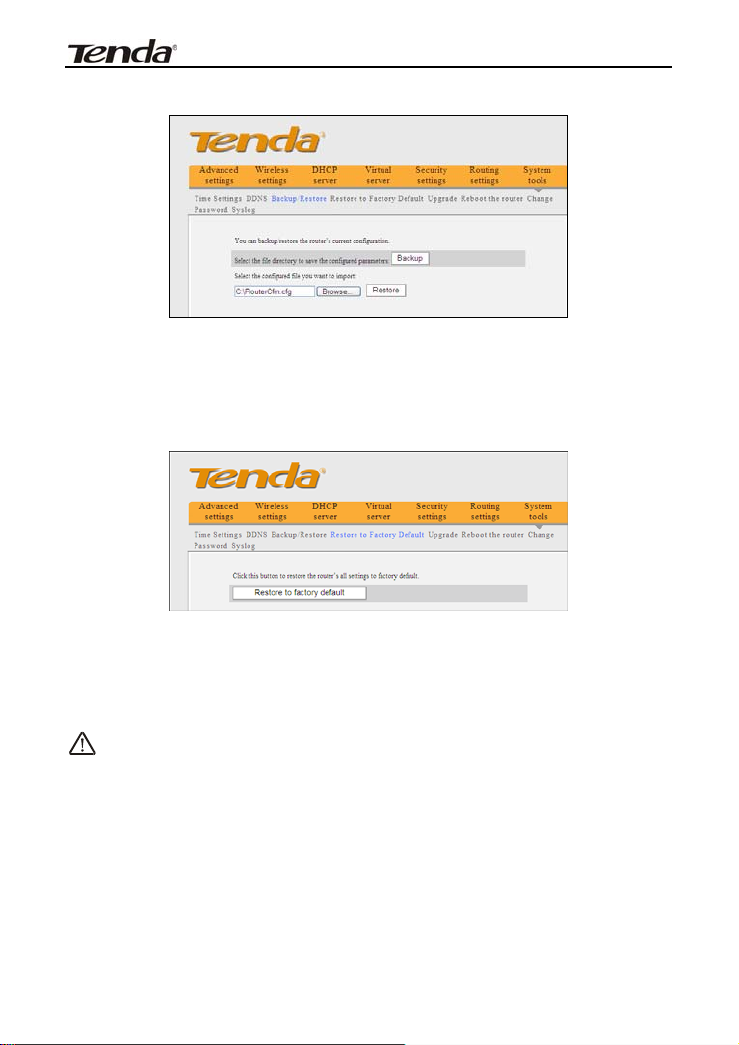

¾ Backup Setting:
Click the Backup bu tton to back up the Router ’s settings an d select a path to save them.
Click the “Save” button to save the configuration files. ¾ Restore Setting:
Click the “Browse” button to select the backup files.
50
Click the “Restore” button to restore previous settings.
11N Wireless User Guide
10.4 Restore to Factory Default
This screen allows you to restore all settings to the factory default values.
¾ Restore: Click this button to restore to default settings. ¾ Factory default settings:
Password: NULL(the default password displays as null) IP address: 192.168.0.1 Subnet mask: 255.255.255.0
NOTE: After restoring to default settings, please restart the router to make the default settings effective.
10.5 Upgrade
By upgrading the router’s software, you’ll get better software version and appreciated routing function. Before upgrading, download the Router’s software upgrade file from our website, www.tenda.cn.
51
11N Wireless User Guide
¾ Browse: Click this button to select the upgrade file. ¾ Upgrade: Click this button to start the upgrading process. After the upgrade is
completed, the router will reboot automatically.
10.6 Reboot the Router
Reboot the router to make the configuration effective. The router will cut its WAN connection automat ically after rebooting.
¾ Reboot the router: Click this button to reboot the router.
10.7 Password Change
This section is to set a new password to better secure your router and network.
52
11N Wireless User Guide
¾ Old password: Enter the old password. ¾ New password: Enter a new password.
¾
Confirm new password: Re-enter to confirm the new password.
NOTE: The default password displays as null, users can log on the web-based utility without any authentication. To secure the router and your network, it is highly recommended that you change the initial password.
10.8 Syslog
The section is to view the system log. You can view various conditions appearing after system start, and also check whether there’s an attack on the network. The log can record at most 150 entries.
¾ Refresh: Click this button to update the log. ¾ Clear: Click this button to clear the curre nt sh own log.
10.9 Log out
After all settings are finished, please click’” Log out” to exit securely and completely.
53
11N Wireless User Guide
Appendix 1 Glossary
Channel:
An instance of medium use for the purpose of passing protocol data units (PDUs) that may be used simultaneously, in the same volume of space, with other instances of medium use(on other channels) by other instances of the same physical layer (PHY),with an acceptably low frame error ratio(FER) due to mutual interference. SSID: SSID (Service Set Identifier) is the network name shared by all devices in a wireless network. Your network’s SSID should be unique to your network and identical for all devices within the network. It is cas e-sens itive an d must not exceed 20 char acter s (use any of the characters on the keyboard).Make sure thi s setting is the same fo r all device s in your wireless network.
WPA/WPA2 Encryption:
A security protocol for wireless networks that builds on the basic foundations of WEP. It secures wireless data trans mission by usin g a key similar to WEP, but the added strength of WPA is that the key changes dynamically. The changing key makes it much more difficult for a hacker to learn the key and gain access to the network.WPA2 is the second generation of WPA security and provides a stronger encryption mechanism through Advanced Encryption Standard (AES), which is a requirement for some government users.
802,1x authentication
Static WEP key is difficult to manage for when you change the key, you will have to inform all others, and if the key is disclosed in one of the places, the key can no longer provide security. Besides, there’s severe security loophol e about static WEP encryption . The WEP key can be decrypted after one person receives a specific amount of data via wireless intercepting. 802,1x is initially used for wired Ethernet authentication access to prevent illegal users from accessing the network. Later, it is found that 802.1x can better solve the wireless network security problem. EAP-TLS of the 802.1x successfully achieves the two-way authentication between users and networks, i.e. can prevent illegal users from accessing the network and can also prevent users from accessing the illegal AP. 802.1x utilizes dynamic WEP encryption to protect the WEP key from being decrypted. To solve the publishing problem for digital certification, people make some changes to TLS authentication and TTLS and EA P come into exist, which enable y ou to acce ss th e netw or k by using the traditional way of authentication: username and password.
54
11N Wireless User Guide
Appendix 2 Product Features
Supports IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.3 and IEEE 802.3u
standards.
High gain omni-directional antenna, with strong signals and long transmission
distance.
Wireless transmission rate up to 150Mbps or 150 Mbps  Provides one 10/100Mbps auto-negotiation Ethernet WAN port to connect to the
Wide Area Network
Provides four 10/100Mbps auto-negotiation Ethernet LAN ports to connect to the
Local Area Network
Supports Auto MDI/MDIX Supports xDSL/Cable MODEM, static and dynamic IP in community broadband
networking
Includes router, wireless access point, four-port switch and firewall all in one  SupportsWPA-PSK,WPA2-PSK,andWPA-PSK&WPA2-PSK mixed security modes  Supports WPS button  Supports hidden SSID function and MAC address-based access control  Supports WMM to make your audio and video smoother  Supports SNTP  Supports UPnP and DDNS  Supports WDS to extend wireless network  Supports wireless WAN and allows access to ISP’s wireless hotspots to share
Internet access with mult iple computers (this function applies on ly to some of the products).
Supports virtual server, DMZ host  Provides syslog to record the running status of the router
55
11N Wireless User Guide
Appendix 3 FAQ
This section provides some solutions to the problems which may occur during the router’s installation or usage. The instructions below may help you deal with the problems. If your problem is not in the list, please log into our website www.tenda.cn or send an E-mail to support@tenda.cn, and we will reply to you at the earliest time.
1. Can not log in to the Web-based Utility of the router after you enter the IP address in the address field?
Step 1: Check if the router is working correctly, after the device is powered on for a few seconds, the SYS indicator on the front panel should light up. If it is not, please contact us. Step 2: Check the network cables are connected correctly and the corresponding LED indicator lights up. Sometimes, the indicator lights up, but it does not mean it is functioning. Step 3: Run “Ping” command and check if it can ping the Router’s LAN IP address
192.168.0.1 (open “Command Prompt” and type “Ping 192.168.0.1” and then enter). If it is OK, please make sure your browser does not access the Internet by proxy server. If the ping fails, you can press the “RESET” button for 7 seconds to restore t o default settings. And then repeat the ping operation. If it still does not work, please contact us.
2. Forgot the login password and cannot enter the Web-based Utility. What can I do? Press the “RESET” button for 7 seconds to restore the Router to default settings.
3. The computer connected with the Router shows IP address conflict. What can do?
Check if there are other DHCP servers in the LAN and if there are then disab le them. The default IP address of the router is 192.168.0.1 please maker sure the address is not being used by any other device. If there are two computers with the same IP address, please change one of them.
4. I cannot use E-mail and access the Internet. What can I do?
Sometimes happens with A DSL connection and Dynamic IP users. You may need to modify the default MTU value (1492). Please open the “WAN Setting” and modify the MTU value with the recommended value as 1450 or 1400.
56
5.How to share my computer’s resource with other users in Internet？
If you want Internet users to access t he intern al serv er via the ro uter suc h as: e-mai l serv er, Web, FTP. You can configure the “Virtual Server”. Step 1: create your internal server, make sure the LAN users can access these servers and know related service port. For example, We b server’s port is 80; FTP is 21; SMTP is 25 and POP3 is 110.
Step 2: In the router’s web click “Virtual Serve r” and select “Port Range Forwarding”. Step 3: Input the service port provided by the router (i.e. the external port) for mapping the
internal and external network, for example, 80- 80 .
Step 4: input the internal Web service port, for example, 80-80. Step 5: Input the internal server’s IP ad dress. F or ex ample, if y our Web server’s IP add ress
is 192.168.0.10, please input it.
Step 6: select the communication protocol used by your internal host: TCP, UDP, Both. Step 7: click “Ok” to activate the setting s.
The following table lists some well-known applications and their respective service ports:
Server Protocol Service Port WEB Server TCP 80 FTP Server TCP 21 Telnet TCP 23 NetMeeting TCP 1503、1720
MSN Messenger
PPTP VPN TCP 1723 Iphone5.0 TCP 22555 SMTP TCP 25 POP3 TCP 110
TCP/UDP
File Send:6891-6900(TCP) Voice:1863、6901(TCP) Voice:1863、5190(UDP)
11N Wireless User Guide
57
11N Wireless User Guide
Appendix 4 Clear Wireless Configuration
Clear Wireless configuration file under wi ndows XP
1. Right click “My Network Places” on your computer desktop and select “Properties”.
2. Right click “Wireless Network Connections” and select “Properties”.
3. Click “Wireless Network Configuration” and clear the corresponding wireless configuration file as shown below.
58
Clear Wireless configuration file under windows 7
1. Right click “Network” and click “Properties”.
11N Wireless User Guide
2. Click “Manage wireless networks” on the left side of the window.
3. Delete the corresponding configured file in the “Manage wireless networks”.
59
11N Wireless User Guide
Appendix 5 Regulatory Information
CE Mark Warning
This is a Class B product In a domestic environment,this product may cause radio interference,in which case the user may be required to take adequate measures.This device complies with EU 1999/5/EC. NOTE:(1)The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment.(2) To avoid unnecessary radiation interference, it is recommended to use a shielded RJ45 cable
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
60
11N Wireless User Guide
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment.
Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
NOTE:(1)The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment.(2) To avoid unnecessary radiation interference, it is recommended to use a shielded RJ45 cable
61
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
