Copyright Statement
is the registered trademark of Shenzhen Tenda Technology Co., Ltd. All the products and product names mentioned herein are the trademarks or registered trademarks of their respective holders. Copyright of the whole product as integration, including its accessories and software, belongs to Shenzhen Tenda Technology Co., Ltd. Without prior expressed written permission from Shenzhen Tenda Technology Co., Ltd, any individual or party is not allowed to copy, plagiarize, reproduce, or translate it into other languages.
All photos and product specifications mentioned in this manual are for references only. Upgrades of software and hardware may occur; Tenda reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. If you would like to know more about our product information, please visit our website at http://www.tendacn.com.
Contents |
|
|
COPYRIGHT STATEMENT.............................................................................................. |
1 |
|
CHAPTER 1 PRODUCT OVERVIEW .................................................................................... |
1 |
|
1 PACKAGE CONTENTS............................................................................................................. |
1 |
|
2 LEDS AND PORTS.................................................................................................................. |
1 |
|
CHAPTER 2 INSTALLATION AND QUICK SETUP GUIDE .............................................. |
4 |
|
1 PHYSICAL INSTALLATION ...................................................................................................... |
4 |
|
1.1 Preparation .................................................................... |
4 |
|
1.2 |
Physical installation............................................................... |
5 |
2 INTERNET CONNECTION SETUP ............................................................................................. |
6 |
|
2.1 |
Log in to Web Manager ............................................................ |
6 |
2.2 |
Internet Connection Setup .......................................................... |
8 |
3 VERIFY INTERNET CONNECTION SETTINGS.......................................................................... |
10 |
|
4 CONNECT TO DEVICE WIRELESSLY...................................................................................... |
13 |
|
WIN7 Operation ................................................................... |
13 |
|
Windows XP Operation ............................................................. |
18 |
|
CHAPTER 3 ADVANCED SETTINGS .................................................................................. |
21 |
|
1 ADVANCED.......................................................................................................................... |
21 |
|
1.1 |
Status ......................................................................... |
21 |
1.2 Internet Connection Setup ........................................................ |
22 |
|
1.3 MAC Clone ................................................................... |
29 |
|
1.4 WAN Speed .................................................................... |
29 |
|
1.5 LAN Settings .................................................................. |
30 |
|
1.6 |
DNS Settings ................................................................... |
31 |
1.7 DHCP Server ................................................................. |
32 |
|
1.8 |
DHCP Client List................................................................ |
32 |
2 WIRELESS SETTINGS ........................................................................................................... |
33 |
|
2.1 Wireless Basic Settings......................................................... |
33 |
|

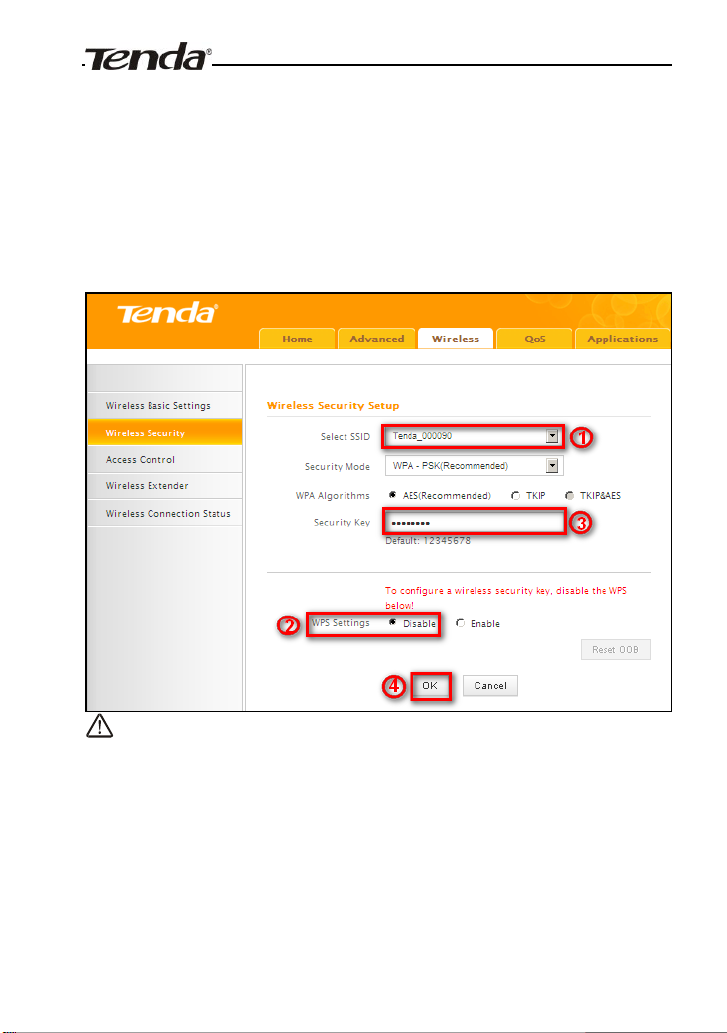

2.2 Wireless Security ............................................................... |
34 |
|

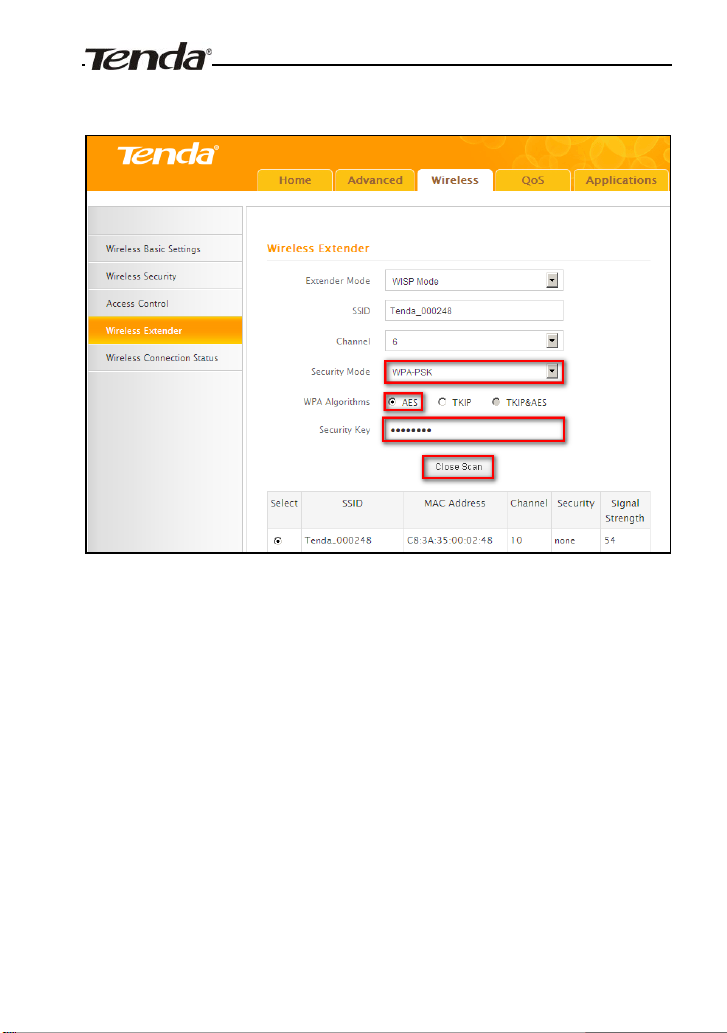

2.3 Wireless Extender ............................................................... |
38 |
|
2.4 |
Wireless Access Control .......................................................... |
54 |
2.5 |
Wireless Client.................................................................. |
55 |
3 BANDWIDTH CONTROL ....................................................................................................... |
56 |
|
3.1 |
Bandwidth Control .............................................................. |
56 |
3.2 Traffic Statistics ................................................................ |
57 |
|
SPECIAL APPLICATIONS .................................................................................................... |
59 |
|
4.1 Port Range Forwarding ......................................................... |
59 |
|
4.2 DMZ Host ..................................................................... |
62 |
|
4.3 DDNS ........................................................................ |
62 |
|
4.4 UPNP ........................................................................ |
64 |
|
4.5 |
Static Routing .................................................................. |
64 |
4.6 |
Routing Table................................................................... |
65 |
SECURITY......................................................................................................................... |
66 |
|
5.1 URL Filter ..................................................................... |
66 |
|
5.2 MAC Filter .................................................................... |
68 |
|
5.3 |
Client Filter .................................................................. |
70 |
6 TOOLS................................................................................................................................. |
73 |
|
6.1 |
Reboot ........................................................................ |
73 |
6.2 |
Restore to Factory Default Settings.................................................. |
73 |
6.3 |
Backup/Restore ................................................................. |
74 |
6.4 |
Syslog ........................................................................ |
76 |
6.5 Remote Web Management......................................................... |
76 |
|
6.6 Time .......................................................................... |
77 |
|
6.7 |
Login Password ................................................................. |
77 |
6.8 |
Firmware Upgrade ............................................................... |
78 |
APPENDIX 1 GLOSSARY...................................................................................................... |
80 |
|
APPENDIX 2 VERIFY THE WDS CONNECTION.............................................................. |
83 |
|
APPENDIX 3 FAQS ................................................................................................................. |
87 |
|
APPENDIX 4 REMOVE WIRELESS NETWORK FROM YOUR PC ............................ |
89 |
|
APPENDIX 5 SAFETY AND EMISSION STATEMENT ..................................................... |
92 |
|
11N Broadband Wireless Router
Chapter 1 Product Overview
1 Package Contents
Unpack the box and verify that the package contains the following:
Wireless Broadband Router
Power Adapter
Quick Install Guide
If any of the above items is incorrect, missing, or damaged, please contact your Tenda reseller for immediate replacement.
2 LEDs and Ports
This part describes this device’s hardware features. The topics include: 1)FH303’s front and back panels 2) LED designations
Front Panel
1.
11N Broadband Wireless Router
Front LED Overview:
LED |
Status |
Description |
|
|
|
|
|
POWER |
Solid |
Indicates a proper connection to the power |
|
|
|
supply |
|
|
|
|
|
SYS |
Blinking |
Indicates system is functioning properly |
|
|
|
|
|
WPS |
Blinking |
Device is performing WPS authentication on |
|
|
|
a client device |
|
|
|
|
|
Wi-Fi |
Solid |
Wireless is enabled |
|
|
|
||
Blinking |
Transferring data |
||
|
|||
|
|
|
|
LAN 1/2/3 |
Solid |
LAN port connected correctly |
|
|
|
||
Blinking |
LAN port is transferring data |
||
|
|||
|
|
|
|
WAN |
Solid |
WAN port connected correctly |
|
|
|
||
Blinking |
WAN port is transferring data |
||
|
|||
|
|
|
|
S |
Solid |
Indicates the wireless signal is strong |
|
|
|
|
|
G |
Solid |
Indicates the wireless signal is good |
|
|
|
|
Back Panel
2.
11N Broadband Wireless Router
Back LED Overview:
Port |
Function Description |
|
|
|
|
WAN |
Usually for connecting DSL MODEM CABLE MODEM |
|
|
||
|
ISP to the Internet. |
|
|
|
|
LAN(1/2/3) |
Usually for connecting computers, switches .etc. |
|
|
|
|
TX |
Usually for wireless power regulation. |
|
|
|
|
|
When you press this button for 7 seconds, files set by the |
|
WPS/ RESET |
router will be deleted and restored to default factory; for 1 |
|
second, WPS will be enabled and the WPS LED will be |
||
|
||
|
blinking accordingly. |
|
|
|
|
POWER |
The power adapter is connected and you can use the |
|
|
provided adapter to supply power. |
|
|
|
3.
11N Broadband Wireless Router
Chapter 2 Installation and Quick Setup Guide
1 Physical Installation
1.1 Preparation
Before connecting Ethernet cables, please verify the following items:
Item |
Description |
FH303 |
Used with the provided power supply |
PC |
Installed with IE8 or other better web browsers. |
Ethenet Cable |
Used for linking the PC to the router |
Broadband Service |
Provided by ISP |
|
If you connect to the Internet using a broadband |
|
connection that requires a username and a |
|
password provided by your ISP, please select |
|
PPPoE; |
If your ISP provides all the needed information: IP
Internet Connection |
address, subnet mask, gateway address, and DNS |
|
|
Setup |
address(es), please select Static IP; |
|
If you can access Internet as soon as your computer directly connects to an Internet-enabled ADSL/Cable modem, please select DHCP;
If your ISP uses a PPTP connection, please select PPTP;
If your ISP uses an L2TP connection, please select L2TP;
PPPoE Dual Access (only supported in special Area e.g.Russia.).
4.
11N Broadband Wireless Router
1.2 Physical installation
1. Connect one end of the included power adapter to the device and plug the other end into a wall outlet nearby.(Using a power adapter with a different voltage rating than the one included with the device will cause damage to the device)
2. Connect one of the LAN ports on the Device to the NIC port on your PC using an Ethernet cable.
5.
11N Broadband Wireless Router
3. Connect the Ethernet cable from Internet side to the WAN port on the device. If it is connected to the telephone line, please link the telephone line to the MODEM and connect the MODEM to the WAN port on the device.
4. When connected, log in to Web manager to set up Internet connection.
2 Internet Connection Setup
2.1 Log in to Web Manager
1.Launch a web browser, such as IE Web browser;
2.In the address bar, input 192.168.0.1 and press Enter;
6.
11N Broadband Wireless Router
3.Enter admin in the password field on the appearing login window and then click OK.
4. Now you may access the device’s home page for quickly setting up Internet connection and wireless security.
5. If you fail to log in to it, please refer to Appendix 3 FAQs.
7.
11N Broadband Wireless Router
2.2 Internet Connection Setup
Common Internet connection types are available on the home page: PPPoE and DHCP.
DHCP
Select DHCP (Dynamic IP) if you can access Internet as soon as your computer directly connects to an Internet-enabled ADSL/Cable modem; configure a security key (8-63 characters) to secure your wireless network and then click OK.
PPPoE
Select PPPoE (Point to Point Protocol over Ethernet) if you used to connect to the Internet using a broadband connection that requires a username and a password. Enter the user name and password provided by your ISP; configure a security key to secure your wireless network and then click OK.
8.
11N Broadband Wireless Router
Note:
1.DHCP is the default Internet connection type;
2.If you are not sure about your PPPoE username and password, contact your Internet service provider (ISP) for help. For other Internet connection types, please go to section 1.2: Internet Connection Setup.
9.
11N Broadband Wireless Router
3 Verify Internet Connection Settings
System automatically skips to the status page when you finish all needed settings on the home page. Here you can see the system status and WAN connection status of the device.
1. If you find "Connected" and a WAN IP address displayed there (as shown below), you have got a wired internet access now.
10.
11N Broadband Wireless Router
2.If connection status displays "Disconnected" and there is no WAN IP
address displayed (as seen below), connection between the Internet-enabled modem and your device may have failed. Please double check or re-connect all involved devices and cables properly and then refresh the page. If nothing is wrong, "Connecting" or "Connected" will be displayed.
3.If "Connecting" is displayed and no WAN IP address is seen, try
refreshing the page five times. And if it still displays "Connecting" try steps below:
1). Contact your ISP for assistance if you are using the DHCP connection type. 2). Read the connection diagnostic info on WAN status.
11.
11N Broadband Wireless Router
Note:
Below diagnostic info will be displayed on particular occasions for your reference:
1). You have connected to Internet successfully.
2). You might have entered a wrong user name and/or a wrong password. Please contact your ISP for the correct user name and password and enter them again.
3). Ethernet cable is not connected or not properly connected to the WAN port on the device. Please reconnect it properly.
4). No response is received from your ISP. Please verify that you can access Internet when you directly connect your PC to an Internet-enabled modem. If not, contact your local ISP for help.
12.
11N Broadband Wireless Router
4 Connect to Device Wirelessly
Having finished above settings, you can search the device's wireless network (SSID) from your wireless devices (notebook, iPad, iPhone, etc) and enter a security key to connect to it wirelessly.
WIN7 Operation
1. If you are using Windows 7 OS, do as follows:
1)Click Start and select Control Panel.
13.
11N Broadband Wireless Router
2)Click Network and Internet.
3)Click Network and Sharing Center.
14.
11N Broadband Wireless Router
4)Click Change adapter settings.
5)Select a desired wireless connection and click Connect/Disconnect.
15.
11N Broadband Wireless Router
6)Select the wireless network you wish to connect and click Connect.
7)Enter the security key and click OK.
16.
11N Broadband Wireless Router
8) You can access Internet via the device when "Connected" appears next to the wireless network name you selected.
17.
11N Broadband Wireless Router
Windows XP Operation
2. If you are using Windows XP OS, do as follows:
1)Click Start and select Control Panel.
18.
11N Broadband Wireless Router
2)Click Network Connections.
3) Right click Wireless Network Connection and then select View Available Wireless Networks.
19.
11N Broadband Wireless Router
4) Select the desired wireless network, click Connect, enter the security key and then click OK.
5) You can access Internet via the device when "Connected" appears next to the wireless network name you selected.
20.
11N Broadband Wireless Router
Chapter 3 Advanced Settings
1 Advanced
1.1 Status
Here you can see at a glance the operating status of the device. If WAN port displays Disconnected, please refer to 3 Verify Internet Connection Settings.
21.
11N Broadband Wireless Router
1.2 Internet Connection Setup
PPPoE
Select PPPoE (Point to Point Protocol over Ethernet) if you used to connect to the Internet using a broadband connection that requires a username and a password and enter the user name and password provided by your ISP.
Static IP
Select Static IP if your ISP provides all the needed info. You will need to enter the provided IP address, subnet mask, gateway address, and DNS address(es) in corresponding fields.
22.
11N Broadband Wireless Router
1.Click Advanced.
2.Click Internet Connection Setup.
3.Internet connection Type: Select Static IP.
4.IP Address: Enter the IP address provided by your ISP. Consult your ISP if you are not clear.Consult your ISP if you are not clear.
5.Subnet mask: Enter the subnet mask provided by your ISP.
6.Gateway: Enter the WAN Gateway provided by your ISP.
7.DNS Server: Enter the DNS address provided by your ISP.
8.OK: Click it to save all your settings.
DHCP
Select DHCP (Dynamic IP) if you can access Internet as soon as your computer directly connects to an Internet-enabled ADSL/Cable modem.
23.
11N Broadband Wireless Router
1.Internet connection Type: Select DHCP.
2.MTU: Maximum Transmission Unit. DO NOT change it from the factory default of 1500 unless instructed by your ISP. You may need to change it for optimal performance with some specific websites or application software that cannot be opened or enabled; in this case, try 1450, 1400, etc.
3.OK: Click it to save your settings.
PPTP
Select PPTP (Point-to-Point-Tunneling Protocol) if your ISP uses a PPTP connection. The PPTP allows you to connect a router to a VPN server.
For example
A corporate branch and headquarter can use this connection type to implement mutual and secure access to each other’s resources.
24.
11N Broadband Wireless Router
a)Internet connection Type: Displays the current Internet connection type.
b)PPTP Server Address: Enter the IP address of a PPTP server.
c)User Name: Enter your PPTP User Name.
d)Password: Enter the password.
e)MTU: Maximum Transmission Unit. DO NOT change it from the factory default of 1492 unless instructed by your ISP. You may need to change it for optimal performance with some specific websites or application software that cannot be opened or enabled; in this case, try 1450, 1400, etc.
f)Address Mode: Select "Dynamic" if you don’t get any IP info from your
ISP, otherwise select "Static". Consult your ISP if you are not clear.
g)IP Address: Enter the IP address provided by your ISP. Consult your ISP if you are not clear.
h)Subnet mask: Enter the subnet mask provided by your ISP.
i)Gateway: Enter the WAN Gateway provided by your ISP. Consult your ISP if you are not clear.
25.
11N Broadband Wireless Router
L2TP
Select L2TP (Layer 2 Tunneling Protocol) if your ISP uses an L2TP connection. The L2TP connects your router to a L2TP server.
For Example
A corporate branch and headquarter can use this connection type to implement mutual and secure access to each other’s resources.
a)Internet connection Type: Displays the current Internet connection type.
b)L2TP Server Address: Enter the IP address of a L2TP server.
c)User Name: Enter your L2TP username.
d)Password: Enter the password.
e)MTU: Maximum Transmission Unit. DO NOT change it from the factory default of 1492 unless instructed by your ISP. You may need to change it for optimal performance with some specific websites or application software that cannot be opened or enabled; in this case, try 1450, 1400, etc.
f)Address Mode: Select "Dynamic" if you don’t get any IP info from your
26.
Loading...
