Tenda D303 User Manual

Always-On Connectivity

Provides ADSL, 3G, and Ethernet WAN for broadband connection,
ensuring an uninterrupted connection

All-in-One Device

3G router, ADSL2+ modem, WiFi router, switch and USB storage
sharing in one device provides you a one-stop solution

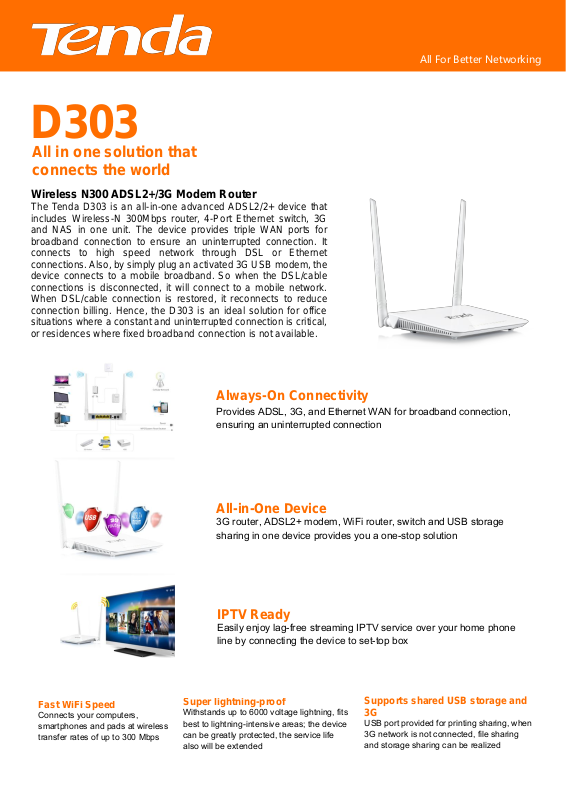

D303

All in one solution that
connects the world

All For Better Networking

Wireless N300 ADSL2+/3G Modem Router

The Tenda D303 is an all-in-one advanced ADSL2/2+ device that
includes Wireless-N 300Mbps router, 4-Port Ethernet switch, 3G
and NAS in one unit. The device provides triple WAN ports for
broadband connection to ensure an uninterrupted connection. It
connects to high speed network through DSL or Ethernet
connections. Also, by simply plug an activated 3G USB modem, the
device connects to a mobile broadband. So when the DSL/cable
connections is disconnected, it will connect to a mobile network.
When DSL/cable connection is restored, it reconnects to reduce
connection billing. Hence, the D303 is an ideal solution for office
situations where a constant and uninterrupted connection is critical,
or residences where fixed broadband connection is not available.

IPTV Ready

Easily enjoy lag-free streaming IPTV service over your home phone
line by connecting the device to set-top box

Fast WiFi Speed

Connects your computers,
smartphones and pads at wireless
transfer rates of up to 300 Mbps

Super lightning-proof

Withstands up to 6000 voltage lightning, fits
best to lightning-intensive areas; the device
can be greatly protected, the service life
also will be extended

Supports shared USB storage and
3G

USB port provided for printing sharing, when
3G network is not connected, file sharing
and storage sharing can be realized

Specifications

Technical Specs

Standard&Protocol

IEEE 802.11n、IEEE 802.11g、IEEE 802.11b

IEEE 802.3、IEEE 802.3u

ANSI T1.413、ITU G.992.1、ITU G.992.2、ITU G.992.3、ITU G.992.5

CDMA2000、WCDMA

Interface

3*10/100Mbps auto-negotiation (Auto MDI/MDIX) LAN ports;

1*10/100Mbps auto-negotiation WAN/LAN Interchangeable port (Auto MDI/MDIX)

1* RJ11 port

1* USB V2.0

Antennas

2* external omni-directional antennas

Button

1*Reset/WPS，

1*Power

Power

Input： 100-240V 50/60MHz

Output：9V DC-1A

Temperature

Operating Temperature：:0℃ ~ 40℃

Storage Temperature：:-40℃ ~70℃

Humidity

Operating Humidity：10% ~ 90% RH Non-condensing Storage

Storage Humidity：5% ~ 90% RH Non-condensing Storage

Dimensions(L×W×H )

171.61mm*111.16mm*34.47mm

Transmission Media

Cat.5

Cat.5e

Cat.6

Phone Cable

LED

Power/SYS/Internet/DSL/WLAN/LAN/WPS/USB

Wireless Features

Wireless Speed

300Mbps

Frequency

2.4GHz

Basic Features

Wireless Radio: On/Off

SSID Broadcast: On/Off;

WDS: On/Off

SSID setup

Channel: Auto, 1-13

Network Mode：11b only、11g only、11n only、11bg mixed、11bgn mixed

Channel Bandwidth：Auto, 20MHz, 40MHz

Security

Wireless Access Control (Wireless MAC filter);

Wireless Security:
Enable/Disable;

64-/128-bit WEP;

WPA-PSK/WPA2-PSK

Operating Mode

Wireless ADSL/ADSL2+ Modem Router、WDS
