Tenda D302 User Manual
Wireless Modem Router User Guide
-1 -
Wireless Modem Router User Guide
Copyright Statement
is the registered trademark o f Shenzhen Tenda Technology Co., Ltd. All the products and p roduct names
mentioned herein are the trademarks or registered trademarks of their respective holders. Copyright of the whole product
as integration, including its accessories and software, belongs to Shenzhen Tenda Technology Co., Ltd. No part of this
publication can be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in
any form or by any means without the prior written permission of Shenzhen Tenda Technology Co., Ltd.
All photos and product specifications mentioned in this manual are for references only. Upgrades of software and
hardware may occur; Tenda reserves the right to revise this publication and to make changes in the content hereof
without obligation to notify any person or o rganization of such revisions or changes. If you would like to know more
about our product information, please visit our website at http://www.tendacn.com
.
-2 -
Wireless Modem Router User Guide
Table of Contents
COPYRIGHT STATEMENT ........................................................................................................................................ - 2 -
ABOUT THIS MANUAL .............................................................................................................................................. - 5 -
CHAPTER1 GET TO KNOW YOUR WIRELESS ROUTER ................................................................................. - 6 -
P
RODUCT FEATURES ..................................................................................................................................................... - 6 -
P
ACKAGE CONTENTS .................................................................................................................................................... - 7 -
CHAPTER 2 HARDWARE INSTALL ....................................................................................................................... - 8 -
Front Panel ............................................................................................................................................................... - 8 -
Back Panel ............................................................................................................................................................... - 9 -
CHAPTER 3 QUICK INTERNET SETUP ............................................................................................................... - 10 -
LOG IN TO WEB MANAGER ................................................................................................................................... - 10 -
3.1
Using Setup Wizard ............................................................................................................................................... - 10 -
Using Browser ....................................................................................................................................................... - 11 -
2.2
INTERNET SETUP ................................................................................................................................................... - 12 -
2.3
QUICK WIRELESS SECURITY SETUP ...................................................................................................................... - 13 -
CHAPTER 4 ADVANCED SETTINGS ..................................................................................................................... - 14 -
DEVICE INFO ......................................................................................................................................................... - 15 -
4.1
4.2
ADVANCED SETUP ................................................................................................................................................. - 18 -
4.2.1 Layer2 Interface ............................................................................................................................................ - 19 -
4.2.2 WAN Service ................................................................................................................................................. - 21 -
4.2.3 LAN Setup .................................................................................................................................................... - 54 -
4.2.4 NAT ............................................................................................................................................................... - 56 -
4.2.5 Security ......................................................................................................................................................... - 61 -
4.2.6 Parental Control ............................................................................................................................................ - 64 -
4.2.7 Quality of Service ......................................................................................................................................... - 66 -
4.2.8 Routing .......................................................................................................................................................... - 69 -
4.2.9 DNS ............................................................................................................................................................... - 71 -
4.2.10 DSL ............................................................................................................................................................. - 73 -
4.2.11 UPnP ........................................................................................................................................................... - 75 -
4.1.12 Interface Grouping ...................................................................................................................................... - 75 -
4.1.13 IP T unnel ..................................................................................................................................................... - 77 -
4.1.14 Certificate .................................................................................................................................................... - 78 -
4.1.15 Multicast ..................................................................................................................................................... - 81 -
4.1.16 IPTV ............................................................................................................................................................ - 83 -
4.3
WIRELESS ............................................................................................................................................................. - 84 -
4.3.1 Basic .............................................................................................................................................................. - 84 -
4.3.2 Security ......................................................................................................................................................... - 85 -
4.3.3 MAC Filter .................................................................................................................................................... - 86 -
4.3.4 Wireless Bridge ............................................................................................................................................. - 87 -
4.3.5 Station Info .................................................................................................................................................... - 88 -
4.4
DIAGNOSTICS ........................................................................................................................................................ - 88 -
-3 -
Wireless Modem Router User Guide
4.5 MANAGEMENT ...................................................................................................................................................... - 89 -
4.5.1 Settings .......................................................................................................................................................... - 89 -
4.5.2 System Logs .................................................................................................................................................. - 91 -
4.5.3 Security Log .................................................................................................................................................. - 92 -
4.5.4 SNMP Agent ................................................................................................................................................. - 92 -
4.5.5 TR-069 Client ............................................................................................................................................... - 93 -
4.5.6 Internet Time ................................................................................................................................................. - 94 -
4.5.7 Access Control .............................................................................................................................................. - 94 -
4.5.8 Update Software ............................................................................................................................................ - 96 -
4.5.9 Reboot ........................................................................................................................................................... - 97 -
APPENDIX 1 CONFIGURE YOUR PC .................................................................................................................... - 98 -
W
INDOWS 7 ................................................................................................................................................................ - 98 -
MAC .......................................................................................................................................................................... -
99 -
APPENDIX 2 JOIN YOUR WIRELESS NETWORK ........................................................................................... - 102 -
INDOWS XP ........................................................................................................................................................... - 102 -
W
W
INDOWS 7 .............................................................................................................................................................. - 103 -
MAC ........................................................................................................................................................................ -
IPHONE/IPAD............................................................................................................................................................. - 107 -
105 -
APPENDIX 3 FA QS ................................................................................................................................................... - 110 -
APPENDIX 4 VPI/VCI LIST .................................................................................................................................... - 112 -
APPENDIX 5 REGULATORY COMPLIANCE INFORMATION ................................................................... - 118 -
-4 -
Wireless Modem Router User Guide
About This Manual
This user manual describes how to install, configure, operate, and troubleshoot the modem router in a simple and
easy-to-understand way.
-5 -
Wireless Modem Router User Guide
Chapter 1 Get to Know Your Wireless Router
This user guide applies to the following four models: D302 and D152. The D302 is used as an example throughout
this user guide.
The differences between the two products are listed below:
Model Wireless Speed RJ45 Ports
D302 300M 2
D152 150M 2
What it does
The Wireless ADSL2+ Modem Router provides you with an easy and secure way to set up a wireless home network with
fast access to the Internet over a high-speed digital subscriber line (DSL). Complete with a built-in ADSL modem, it is
compatible with all major ADSL Internet service providers. It offers wireless speeds of up to 300 Mbps needed for
demanding applications, such as large file transfers, streaming HD video, and multiplayer gaming. The unit comes with a
wide range of premium features and applications such as IPv6, TR069, SNMP, Multicast, IP tunnel, IPTV service and
parental controls, etc. Plus, with the router, you can access Internet via the ATM interface or Ethernet interface.
Product Features
¾ Wireless N speeds up to 300 Mbps for streaming HD videos and online gaming in addition to basic Internet
applications.
¾ All-in-one device combines a Built-in ADSL2+ modem, wired router, wireless router and switch
¾ Advanced QoS helps prioritize media streaming and gaming applications for best entertainment experience
¾ Paren tal Control keeps your kids Internet experience safe using flexible and customizable filter settings
¾ One-touch WPS ensures a quick and secure network connection
¾ WEP and WPA/WPA2 are supported for advanced encryptions
¾ Compatibility: Works with all major ADSL Internet service providers (ISPs); Backward compatible with 802.11b/g
WiFi devices
-6 -
Wireless Modem Router User Guide
¾ Interchangeable LAN/WAN ports to schedule the Ethernet port to function either as a LAN or a WAN port
¾ Interchangeable LAN/IPTV to schedule the Ethernet port to function either as a LAN or an IPTV port
¾ Optional Ethernet and ADSL Uplinks: Access Internet via ADSL2+ Broadband Internet Service or an
interchangeable LAN/WAN RJ-45 port
¾ Multiple Internet Connection Types: Bridging, PPPoE, IPoE, PPPoA, IPoA, dynamic IP and static IP
¾ IPTV Service lets your surf Internet while watching online TV
¾ 6000V lightning－proof design fits into lightni ng-intensive environment
¾ Strong driving capability up to 6.5Km transmission distance
¾ High speed ADSL speed up to 24Mbps downstream 1Mbps upstream
¾ Built-in firewall prevents hacker attacks
¾ Channel auto-select for optimum performance
¾ FDM technology enables telephoning, faxing and surfing activities to proceed simultaneously without mutual
interference
¾ Other Advanced Features: IPv6, DDNS, virtual server, DMZ, port triggering, IP filter, MAC filter and UPnP, etc
¾ Tenda Setup Wizard for easy and fast installation and configuration
¾ Tenda Green: Use hardware Power On/Off and software WiFi On/Off buttons to turn on and off power and WiFi to
save energy when not in use
Package Contents
Your box should contain the following items:
¾ Wireless Modem Router
¾ Phone cable
¾ Ethernet cable
¾ ADSL2+ filter
¾ Quick install guide
¾ Power adapter
¾ Resource CD
If any of the parts are incorrect, missing, or damaged, keep the carton, including the original packing materials and
contact your Tenda dealer for immediate replacement.
-7 -
Wireless Modem Router User Guide
Chapter 2 Hardware Install
If you have not already set up your new router using the Quick Install Guide that comes in the box, this chapter walks
you through the hardware install. To set up your Internet connection, see Chapter 2 Quick Internet Setup
Front Panel
.
The LEDs on the device are described below:
LED Status Description
Power
SYS
WLAN
ADSL
Solid Power is supplied to the device.
Off Power is not supplied to the device.
Blinking System is functioning correctly.
Solid/Off System is functioning incorrectly.
Blinking Transferring data
Off Wireless is disabled.
Solid Wireless is enabled.
Slow Blink Physical connection failure.
Fast Blink Synchronizing...
Solid ADSL connection is established.
LAN
Off No connection established.
Blinking Transferring data
Solid Connection is established.
-8 -
Solid Client connected successfully.
Wireless Modem Router User Guide
Blinking
The WPS LED starts blinking if you pressed the WPS button on the
WPS
device or interface.
If there is no wireless clients connected, the WPS LED turns off after
Off
blinking for 2 minutes.
Back Panel
¾ ON/OFF: Power switch to turn the router on or off.
_________________________________________________________________________________________________
Note:
Please use the included power adapter. Use of a power adapter with different voltage rating may damage the device.
_________________________________________________________________________________________________
¾ WPS/RESET: Press it for 1-3 seconds to enable WPS connection or 7 seconds to restore all configurations to
factory defaults.
¾ LAN: Ethernet RJ-45 LAN ports to cable the device to the local network devices such as computers.LAN:
Ethernet RJ-45 LAN ports to cable the device to the local network devices such as computers.
¾ DSL: RJ-11 Asynchronous DSL (ADSL) port for connecting the device to a DSL line.
Follow the diagram below to install the device.
-9 -
Wireless Modem Router User Guide
Chapter 3 Quick Internet Setup
This chapter instructs you to quickly set up your Internet connection.
The Quick Internet Setup applies only to ADSL Uplink mode. If you are not directly connecting to the ADSL line via a
phone cable, please click the Advanced button on the home page and then select Advanced Setup -> Layer2 Interface
-> ETH Interface. For more information, see To set up the ETH interface
Interface.
3.1 Log in to Web Manager
You can log in to the modem router’s web manager with the Setup Wizard on the included CD automatically or using a
web browser manually. The Setup Wizard on the auto-run CD can automatically configure your PC’s TCP/IP properties
and direct you to the web login window without requi ring the IP address.
and To setup WAN Service for ETH
Using Setup Wizard
1. Insert the included resource CD into your computer’s drive and the CD automatically runs. If the CD does not run
automatically, double click
2. Click Run and it will automatically configure your PC’s TCP/IP properties. If your PC is successfully configured, the
login window below will display.
. You will see the screen below.
- 10 -
Wireless Modem Router User Guide
Using Browser
1. Set your PC to Obtain an IP address automatically. For more information, see Appendix 1 Configure Your PC.
2. Launch a web browser and enter 192.168.1.1 to display the login window.
3. Enter admin in both the login User Name and Password boxes if you first time access the router and then click the
Login button to enter the screen below.
_________________________________________________________________________________________________
Tip:
If you changed the login user name and password and forget them, press the Reset button on the device and then enter
the default settings of admin.
_________________________________________________________________________________________________
-11 -
Wireless Modem Router User Guide
3.2 Internet Setup
a. Select your country.
b. Select your ISP.
c. VPI and VCI fields will be populated automatically if you select a correct country and ISP.
d. Select your Internet connection type.
Depending on the type of connection, you are prompted to enter your ISP settings, as shown in the following table:
Internet Connection Type ISP Information
PPPoE
PPPoA
IPoE Dynamic IP No entries are needed.
IPoA
Enter the ISP login user name and password. If you cannot locate this
information, ask your ISP to provide it.
Static (Fixed)
IP
Static (Fixed)
IP
Enter the assigned IP address, subnet mask, and the IP address of your ISP’s
primary DNS server. This information should have been provided to you by
your ISP. If a secondary DNS server address is available, enter it also.
Enter the assigned IP address, subnet mask, and the IP address of your ISP’s
primary DNS server. This information should have been provided to you by
your ISP. If a secondary DNS server address is available, enter it also.
- 12 -
Wireless Modem Router User Guide
_________________________________________________________________________________________________
Note:
If your country and/or your ISP are not covered on the home page, please click the
home page and then select Advanced Setup -> Layer2 Interface -> ATM Interface and then click Add there to manually
configure the VPI and VCI. If you cannot locate this information, refer to Appendix 4 VPI/VCI List
provide it. For more information, see To set up the ATM interface
_________________________________________________________________________________________________
e. After you configure all the above settings, click OK to save and apply them.
f. Test Internet Connectivity
Launch a web browser and enter www.tendacn.com
. If the webpage is opened, you are connected to Internet.
and To setup WAN Service for ATM Interface.
button on the
or ask your ISP to
3.3 Quick Wireless Security Setup
For security purpose, we strongly recommend you to customize a new security key. Simply enter 8-63 ASCII or 64 hex
characters.
_________________________________________________________________________________________________
Tip:
1. If you customize a new security key, write it on a sticky label and attach it to the bottom of the unit. You will need the
new security key if you wish to connect to the device wirelessly in the future.
2. To join your secured wireless network, see Appendix 2 Join Your Wireless Network
_________________________________________________________________________________________________
.
- 13 -
Wireless Modem Router User Guide
Chapter 4 Advanced Settings
This chapter describes the advanced features of your router.
The information is for users with a solid understanding of networking concepts who want to configure the router for
unique situations.
This chapter includes the following sections:
• Device Info
• Advanced Setup
• Wireless
• Diagnostics
• Management
Click Advanced on the home page to enter the screen below.
- 14 -
4.1 Device Info
This section includes the following information:
Wireless Modem Router User Guide
• Summary
• WAN
• Statistics
• Route
• ARP
• DHCP
Summary
Here you can view system information and current status of your WAN connection as seen in the screenshot.
- 15 -
Wireless Modem Router User Guide
WAN
Here you can view the WAN Information including Interface, Description, Type, IGMP, NAT, Firewall, Status, IPv4
Address and VLAN ID as seen in the screenshot.
Statistics
Here you can view the packets received and transmitted on LAN/WAN ports.
Statistics--LAN: Displays the packets received and transmitted on the LAN ports as seen in the screenshot below.
_________________________________________________________________________________________________
Tip:
eth0, eth1, eth3 and eth3 respectively represent the LAN port1, LAN port2, LAN port3 and LAN port4 of the device.
_________________________________________________________________________________________________
Statistics--WAN: Displays the packets received and transmitted on the WAN ports as seen in the screenshot below.
- 16 -
Wireless Modem Router User Guide
Route
Here you can view the route table as seen in the screenshot:
ARP
Here you can view the IP and MAC addresses of the PCs that attach to the device either via a wired or wireless
connection as seen in the screenshot:
- 17 -
Wireless Modem Router User Guide
DHCP
Here you can view the DHCP leases, including IP and MAC addresses of the PCs, hostnames and remaining lease time
as seen in the screenshot:
4.2 Advanced Setup
This section explains the following information:
• Layer2 Interface
• WAN Service
• LAN
- 18 -
• NAT
• Security
• Parental Control
• Quality of Service
• Routing
• DNS
• DSL
• UPnP
• Print Server
• Storage Service
• Interface Grouping
• IP Tunnel
• Certificate
• Multicast
• IPTV
4.2.1 Layer2 Interface
Wireless Modem Router User Guide
Click Advanced Setup -> Layer2 Interface to enter the Layer2 Interface screen.
This router provides two Layer2 Interfaces:
- A TM Interface for ADSL broadband Internet service
- ETH Interface for connecting to Internet via an Ethernet cable.
By default, system applies the ATM Interface (ADSL uplink).
If you directly connect to the ADSL line via a phone cable, first refer to To set up the ATM interface
To setup WAN Service for ATM Interface .
Or if you connect to Internet via a fiber/cable modem using an Ethernet cable, first refer to To set up the ETH interface
and then skip to To setup WAN Service for ETH Interface
.
and then skip to
To set up the ATM interface
Select ATM Interface and click Add to configure it.
- 19 -
Wireless Modem Router User Guide
Enter the VPI and VCI values, Select a DSL Link Type (Internet connection type): EoA (EoA is for PPPoE, IPoE, and
Bridge.), PPPoA or IPoA, leave other options unchanged from factory defaults and click Apply/Save and then refer to
To setup WAN Service for ATM Interface
to configure the WAN service for Internet access.
_________________________________________________________________________________________________
Tip:
If you are unsure about the VPI/VCI parameters, see Appendix 4 VPI/VCI List
. Or if your ISP and the VPI/VCI
information is not covered there, ask your ISP to provide it.
_________________________________________________________________________________________________
To set up the ETH interface
Select ETH Interface and click Add to configure it.
- 20 -
Wireless Modem Router User Guide
The Ethernet port configured here is to function as a WAN port. Only one LAN port can be configured as the WAN port
at a time. After you finish your settings, click the Apply/Save button and then refer to To setup WAN Service for ETH
Interface to configure the WAN service for Internet access.
_________________________________________________________________________________________________
Tip:
eth0, eth1, eth3 and eth3 respectively represent the LAN port1, LAN port2, LAN port3 and LAN port4 of the device.
_________________________________________________________________________________________________
4.2.2 WAN Service
This router provides two WAN services:
- WAN Service for ATM Interface (ADSL uplink)
- WAN Service for ETH Interface (Ethernet uplink)
To setup WAN Service for ATM Interface
If you configured the ATM Interface (ADSL uplink), follow steps below to configure the WAN service:
Click Advanced Setup -> WAN Service and then click the Add button. Select the interface you have configured
Depending on the type of connection, you will come to different screens and be prompted to enter your ISP settings
accordingly. Select one connection type from the five Internet connection types as shown in the following table (If you
are unsure, consult your ISP.):
Internet Connection Type ISP Information
PPPoE
PPPoA
Enter the ISP login user name and password. If you
cannot locate this information, ask your ISP to
provide it.
- 21 -
Wireless Modem Router User Guide
IPoE
(If your ISP uses DHCP to assign
your IP address or if your ISP assigns
you a static (fixed) IP address, IP
Dynamic IP No entries are needed.
Static (Fixed) IP Enter the assigned IP address, subnet mask, and the
IP address of your ISP’s primary DNS server. This
information should have been provided to you by
your ISP. If a secondary DNS server address is
subnet mask and the gateway IP
available, enter it also .
address, you need to select the IP
over Ethernet (IPoE).
IPoA
Static (Fixed) IP Enter the assigned IP address, subnet mask, and the
IP address of your ISP’s primary DNS server. This
information should have been provided to you by
your ISP. If a secondary DNS server address is
available, enter it also .
Bridging If you wish to iniate a dialup directly fro m your PC
for Internet access or enjoy the entire Internet
connection (instead of sharing it with others), you
can select the Bridging and then click Next.
_________________________________________________________________________________________________
Tip:
For PPPoE, IPoE, and Bridging Internet connection types, you must first select EoA on the ATM Interface Screen, for
more information, see To set up the ATM inte rface
.
_________________________________________________________________________________________________
PPP over Ethernet (PPPoE)
If you have selected the EoA from the ATM Interface screen in Layer2 Interface, you will see the screen below when
you click the WAN Service tab, select the configured interface and click Next.
- 22 -
Wireless Modem Router User Guide
1. Select PPPoE.
2. Edit the Enter Service Description. This field is optional. We recommend that you keep the default.
3. Select a network protocol: IPv4, IPv6 or IPv4 & IPv6 (dual stack).
4. Click Next.
_________________________________________________________________________________________________
Note:
If you select IPv6 or IPv4 & IPv6 (dual stack), skip to IPv6
.
_________________________________________________________________________________________________

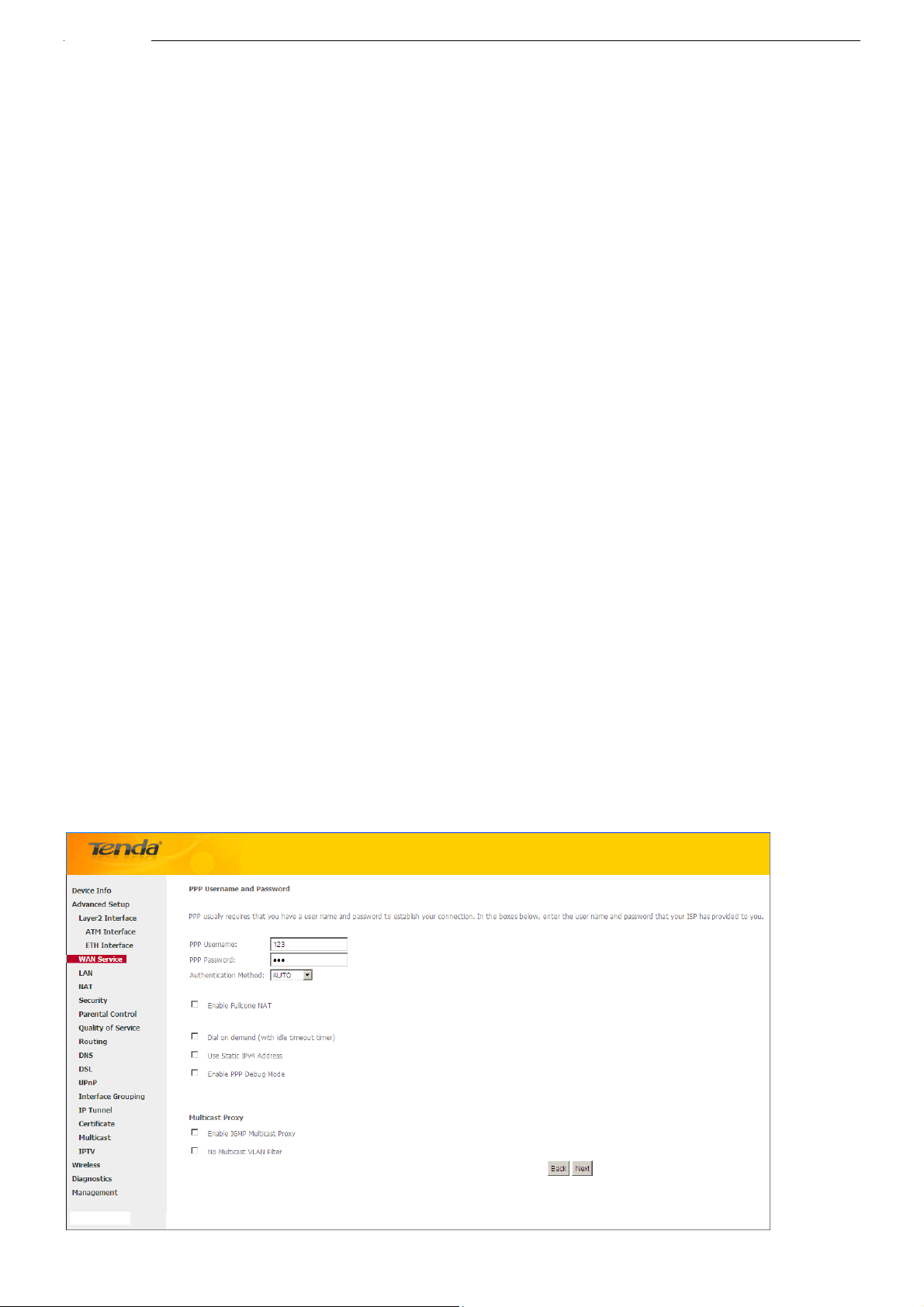

¾ PPP User Name: This is for logging in to your ISP. If you cannot locate this information, ask your ISP to provide
it.
¾ PPP Password: This is for logging in to your ISP. If you cannot locate this information, ask your ISP to provide it.
¾ PPPoE Service Name: This information is provided by your ISP. Only enter it if instructed by your ISP.
¾ Authentication Method: This is used by ISP to authenticate the client that attempts to connect. If you are not sure,
consult your ISP or select Auto.
¾ Clone MAC: Clicking this button copies the MAC address of your PC to the router. Many broadband ISPs restrict
access by allowing traffic only from the MAC address of your broadband modem, but some ISPs additionally
register the MAC address of the network interface card in your computer when your account is first opened. They
then accept traffic only from the MAC address of that computer. If so, configure your router to “clone” the MAC
address from the authorized computer.
¾ Dial on demand: Connect to ISP only when there is traffic transmission. This saves your broadband Internet
service bill.
¾ PPP IP extension: If enabled, all the IP addresses in outgoing packets including management packets on the WAN
port will be changed to the device's WAN IP address. Only change the default settings if necessary.
¾ Enable PPP Debug Mode: Only enable this feature if supported by your ISP.
¾ Bridge PPPoE Frames Between WAN and Local Ports: If enabled, PPPoE dialup frame from LAN side will
directly egress the WAN port without modification.
-23-
¾ Multicast Proxy: If enabled, the router will use multicast proxy.
IPv6
If you select IPv4 as the network protocol, skip this section.
Wireless Modem Router User Guide
1. Check Launch Dhcp6c for Prefix Delegation (IAPD).
2. If your ISP is using stateful DHCPv6, check Launch Dhcp6c for Address Assignment (IANA) also. Or configure
a static IP address.
3. Click Next -> Next -> Apply/Save.
WAN Gateway
Here you can configure the WAN gateway address. After you configure it click Next. The default setting is
recommended.
- 24 -
Wireless Modem Router User Guide
_________________________________________________________________________________________________
Note:
Default gateway interface list can have multiple WAN interfaces served as system default gateways but only one will be
used according to the priority with the first being the higest and the last one the lowest priority if the WAN interface is
connected. Priority order can be changed by removing all and adding them back in again.
_________________________________________________________________________________________________
WAN DNS
Here you can configure the WAN DNS address:
-Click the Select DNS Server Interface fr om av ai labl e WAN interfaces option
-OR select the Use the following Static DNS IP address option and enter static DNS server IP addresses for the system
And then click Next.
_________________________________________________________________________________________________
Note:
1. DNS Server Interfaces can have multiple WAN interfaces served as system dns servers but only one will be used
according to the priority with the first being the higest and the last one the lowest priority if the WAN interface is
connected. Priority order can be changed by removing all and adding them back in again.
2. In ATM mode, if only a single PVC with IPoA or static IPoE protocol is configured, Static DNS server IP addresses
must be entered.
3. If you cannot locate the static DNS server IP information, ask your ISP to provide it.
_________________________________________________________________________________________________
- 25 -
Wireless Modem Router User Guide
Here you can view your configurations. Click Apply/Save to save your settings if everything is correctly set.
When the PPPoE connection is successful, you can access Internet.
IP over Ethernet (IPoE)
If your ISP uses DHCP to assign your IP address or if your ISP assigns you a static (fixed) IP address, IP subnet mask
and the gateway IP address, you need to select the IP over Ethernet (IPoE).
If you have selected the EoA from the ATM Interface screen in Layer2 Interface, you will see the screen below when
you click the WAN Service tab, select the configured interface and click Next.
- 26 -
Wireless Modem Router User Guide
1. Select IPoE.
2. Edit the Enter Service Description. This field is optional. We recommend that you keep the default.
3. Select a network protocol: IPv4, IPv6 or IPv4 & IPv6 (dual stack).
4. Click Next.
_________________________________________________________________________________________________
Note:
If you select IPv6 or IPv4 & IPv6 (dual stack), skip to IPv6
.
_________________________________________________________________________________________________
- 27 -
Wireless Modem Router User Guide
¾ Obtain an IP address automatically: This allows the router to automatically acquire IP information from your ISP
or your existing networking equipment.
¾ Use the following Static IP address: This allows you to specify the Static IP information provided by your ISP or
that corresponds with your existing net working equipment.
¾ WAN IP Address: The Internet IP address provided by your ISP for accessing Internet.
¾ WAN Subnet Mask: The subnet mask address provided by your ISP for accessing Internet.
¾ WAN gateway IP Address: The gateway IP address provided by your ISP for accessing Internet.
IPv6
If you select IPv4 as the network protocol, skip this section.
To obtain an IP address automatically:
1. Select Obtain an IP address automatically.
2. Check Launch Dhcp6c for Prefix Delegation (IAPD).
3. If your ISP is using stateful DHCPv6, check Launch Dhcp6c for Address Assignment (IANA) also.
4. Click Next -> Next -> Apply/Save.
- 28 -
Wireless Modem Router User Guide
To configure a static IPv6 address
1. Select Use the following Static IPv6 address.
2. Configure WAN IPv6 Address/Prefix Length and WAN Next-Hop IPv6 Address.
3. Click Next -> Next to enter the screen below.
- 29 -
Wireless Modem Router User Guide
4. Select Use the following Static IPv6 DNS address and manually enter the DNS server address. If you have two
DNS server addresses, enter the second also.
5. Click Next -> Apply/Save.
_________________________________________________________________________________________________
Note:
If "Obtain an IP address automatically" is chosen, DHCP will be enabled for PVC in IPoE mode.
_________________________________________________________________________________________________
- 30 -
Loading...
