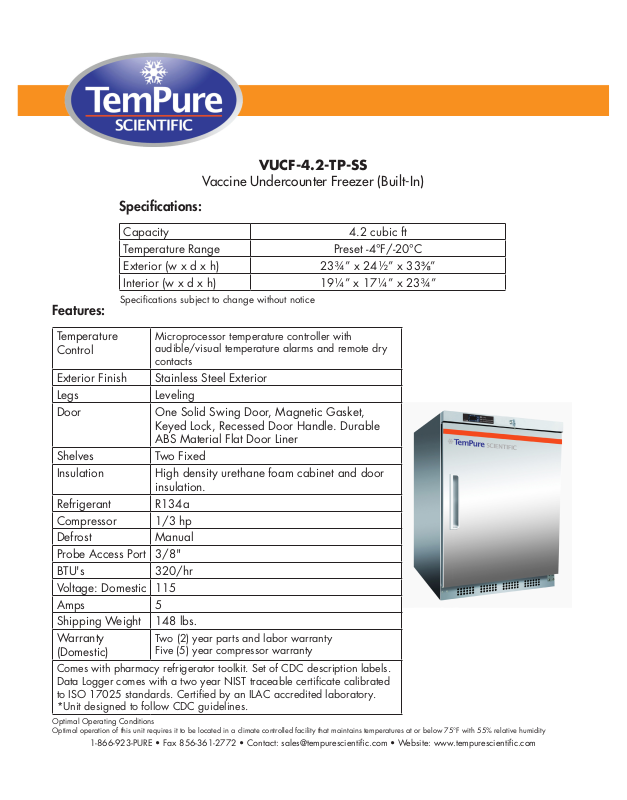

Tempure Scientific VUCF-4.2-TP-SS User Manual

Features:

VUCF-4.2-TP-SS

Vaccine Undercounter Freezer (Built-In)

Specifications:

Capacity 4.2 cubic ft
Temperature Range Preset -4°F/-20°C
Exterior (w x d x h) 23¾” x 24½” x 33⅜”
Interior (w x d x h) 19¼” x 17¼” x 23¾”

Specifications subject to change without notice

Temperature
Control

Microprocessor temperature controller with
audible/visual temperature alarms and remote dry
contacts

Exterior Finish Stainless Steel Exterior
Legs Leveling
Door One Solid Swing Door, Magnetic Gasket,

Keyed Lock, Recessed Door Handle. Durable

ABS Material Flat Door Liner
Shelves Two Fixed
Insulation High density urethane foam cabinet and door

insulation.
Refrigerant R134a
Compressor 1/3 hp
Defrost Manual
Probe Access Port 3/8"
BTU's 320/hr
Voltage: Domestic 115
Amps 5
Shipping Weight 148 lbs.
Warranty

(Domestic)

Comes with pharmacy refrigerator toolkit. Set of CDC description labels.
Data Logger comes with a two year NIST traceable certificate calibrated
to ISO 17025 standards. Certified by an ILAC accredited laboratory.
*Unit designed to follow CDC guidelines.

Optimal Operating Conditions

Optimal operation of this unit requires it to be located in a climate controlled facility that maintains temperatures at or below 75°F with 55% relative humidity

1-866-923-PURE • Fax [phone] • Contact: sales@tempurescientic.com • Website: www.tempurescientic.com

Two (2) year parts and labor warranty

Five (5) year compressor warranty

Exterior Vaccine

Vaccine Undercounter Feezer

VUCF-4.2-TP-SS

23¾”

46½”

22¼”

115VAC/60Hz/1PH

NEMA-5-15R

Unit Weight

W” D” H”

23¾ 333/824½

Front View Side View Top View

24½”

23¾”

3/8”

33

2 Fixed

0 5 108 lbs.1/3

1

(Reversible)

Manual

4.2

CUTSHEET

VUCF-4.2-TP-SS

Model Defrost Door Int Door Shelves H.P. AmpsCu. Ft
