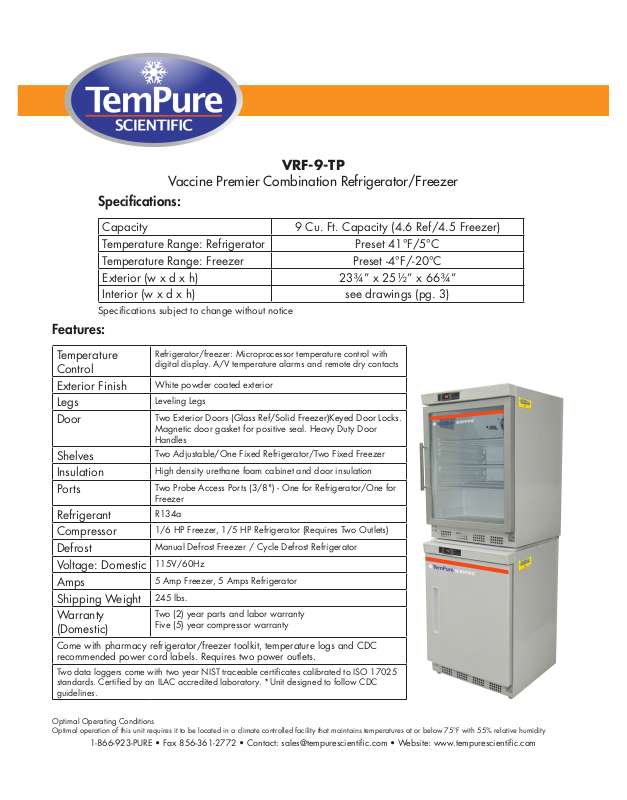

Tempure Scientific VRF-9-TP User Manual

Features:

VRF-9-TP

Vaccine Premier Combination Refrigerator/Freezer

Specifications:

Capacity 9 Cu. Ft. Capacity (4.6 Ref/4.5 Freezer)
Temperature Range: Refrigerator Preset 41°F/5°C
Temperature Range: Freezer Preset -4°F/-20°C
Exterior (w x d x h) 23¾” x 25½” x 66¾”
Interior (w x d x h) see drawings (pg. 3)

Specifications subject to change without notice

Temperature
Control

Exterior Finish
Legs
Door

Shelves
Insulation
Ports

Refrigerant
Compressor
Defrost
Voltage: Domestic
Amps
Shipping Weight
Warranty

(Domestic)

Come with pharmacy refrigerator/freezer toolkit, temperature logs and CDC
recommended power cord labels. Requires two power outlets.

Two data loggers come with two year NIST traceable certificates calibrated to ISO 17025
standards. Certified by an ILAC accredited laboratory. *Unit designed to follow CDC
guidelines.

Refrigerator/freezer: Microprocessor temperature control with
digital display. A/V temperature alarms and remote dry contacts

White powder coated exterior

Leveling Legs

Two Exterior Doors (Glass Ref/Solid Freezer)Keyed Door Locks.
Magnetic door gasket for positive seal. Heavy Duty Door
Handles

Two Adjustable/One Fixed Refrigerator/Two Fixed Freezer

High density urethane foam cabinet and door insulation

Two Probe Access Ports (3/8") - One for Refrigerator/One for
Freezer

R134a

1/6 HP Freezer, 1/5 HP Refrigerator (Requires Two Outlets)

Manual Defrost Freezer / Cycle Defrost Refrigerator

115V/60Hz

5 Amp Freezer, 5 Amps Refrigerator

245 lbs.

Two (2) year parts and labor warranty
Five (5) year compressor warranty

Optimal Operating Conditions

Optimal operation of this unit requires it to be located in a climate controlled facility that maintains temperatures at or below 75°F with 55% relative humidity

1-866-923-PURE • Fax [phone] • Contact: sales@tempurescientic.com • Website: www.tempurescientic.com

Exterior Premier

46½”

22¾”

115VAC/60Hz/1PH

NEMA-5-15R

205 lbs.

Unit Weight

5

Pharmacy/Vaccine Refrigerator & Freezer

VRF-9-TP

23¾”

24½”

W” D” H”

1/3

25½ 66¾

23¾

0 2 Fixed

0 2 Adj/1 Fixed 1/3 5

11/9/2012

66¾”

Defrost Door Int Door Shelves H.P. AmpsCu. Ft

23¾” 25½”

Front View Side View Top View

4.5 Manual 1 Solid

4.6 Cycle 1 Glass

CUTSHEET

Refrigerator

Compartment

Freezer
