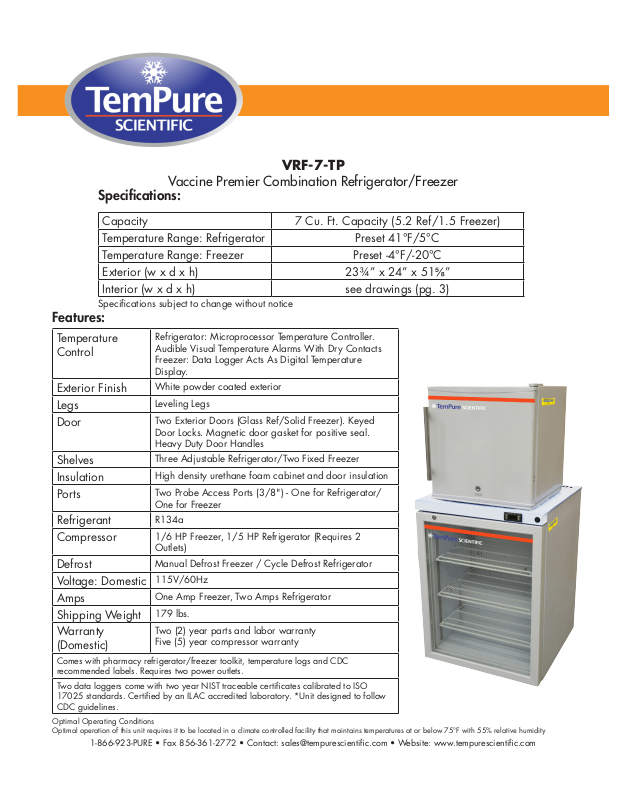

Tempure Scientific VRF-7-TP User Manual
Features:
VRF-7-TP
Vaccine Premier Combination Refrigerator/Freezer
Specifications:
Capacity 7 Cu. Ft. Capacity (5.2 Ref/1.5 Freezer)
Temperature Range: Refrigerator Preset 41°F/5°C
Temperature Range: Freezer Preset -4°F/-20°C
Exterior (w x d x h) 23¾” x 24” x 51⅝”
Interior (w x d x h) see drawings (pg. 3)
Specifications subject to change without notice
Temperature
Control
Exterior Finish
Legs
Door
Shelves
Insulation
Ports
Refrigerant
Compressor
Defrost
Voltage: Domestic
Amps
Shipping Weight
Warranty
(Domestic)
Comes with pharmacy refrigerator/freezer toolkit, temperature logs and CDC
recommended labels. Requires two power outlets.
Two data loggers come with two year NIST traceable certificates calibrated to ISO
17025 standards. Certified by an ILAC accredited laboratory. *Unit designed to follow
CDC guidelines.
Optimal Operating Conditions
Optimal operation of this unit requires it to be located in a climate controlled facility that maintains temperatures at or below 75°F with 55% relative humidity
1-866-923-PURE • Fax 856-361-2772 • Contact: sales@tempurescientic.com • Website: www.tempurescientic.com
Refrigerator: Microprocessor Temperature Controller.
Audible Visual Temperature Alarms With Dry Contacts
Freezer: Data Logger Acts As Digital Temperature
Display.
White powder coated exterior
Leveling Legs
Two Exterior Doors (Glass Ref/Solid Freezer). Keyed
Door Locks. Magnetic door gasket for positive seal.
Heavy Duty Door Handles
Three Adjustable Refrigerator/Two Fixed Freezer
High density urethane foam cabinet and door insulation
Two Probe Access Ports (3/8") - One for Refrigerator/
One for Freezer
R134a
1/6 HP Freezer, 1/5 HP Refrigerator (Requires 2
Outlets)
Manual Defrost Freezer / Cycle Defrost Refrigerator
115V/60Hz
One Amp Freezer, Two Amps Refrigerator
179 lbs.
Two (2) year parts and labor warranty
Five (5) year compressor warranty
Exterior Premier
45½”
22”
115VAC/60Hz/1PH
NEMA-5-15R
139 lbs.
Unit Weight
1.1
Pharmacy/Vaccine Refrigerator & Freezer
VRF-7-TP
23¾”
24”
1/10
24 515/8
W” D” H”
23¾
24”
0 1 Fixed
0 3 Adjustable 1/5 2
11/9/2012
515/8”
SET
Manual 1 Solid
23¾”
Front View Side View Top View
CUTSHEET
Defrost Door Int Door Shelves H.P. AmpsCu. Ft
1.5
5.2 Cycle 1 Glass
Freezer
Refrigerator
Compartment
