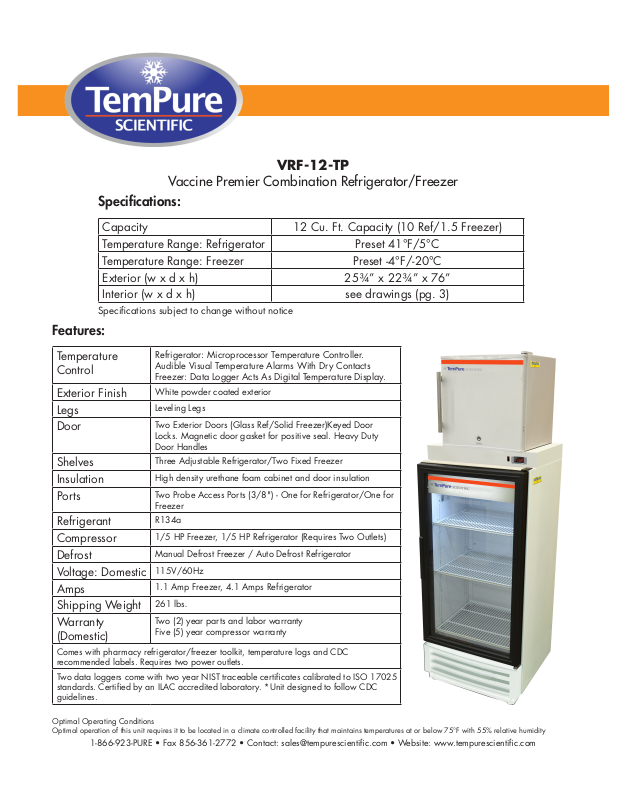

Tempure Scientific VRF-12-TP User Manual
Features:
VRF-12-TP
Vaccine Premier Combination Refrigerator/Freezer
Specifications:
Capacity 12 Cu. Ft. Capacity (10 Ref/1.5 Freezer)
Temperature Range: Refrigerator Preset 41°F/5°C
Temperature Range: Freezer Preset -4°F/-20°C
Exterior (w x d x h) 25¾” x 22¾” x 76”
Interior (w x d x h) see drawings (pg. 3)
Specifications subject to change without notice
Temperature
Control
Exterior Finish
Legs
Door
Shelves
Insulation
Ports
Refrigerant
Compressor
Defrost
Voltage: Domestic
Amps
Shipping Weight
Warranty
(Domestic)
Comes with pharmacy refrigerator/freezer toolkit, temperature logs and CDC
recommended labels. Requires two power outlets.
Two data loggers come with two year NIST traceable certificates calibrated to ISO 17025
standards. Certified by an ILAC accredited laboratory. *Unit designed to follow CDC
guidelines.
Refrigerator: Microprocessor Temperature Controller.
Audible Visual Temperature Alarms With Dry Contacts
Freezer: Data Logger Acts As Digital Temperature Display.
White powder coated exterior
Leveling Legs
Two Exterior Doors (Glass Ref/Solid Freezer)Keyed Door
Locks. Magnetic door gasket for positive seal. Heavy Duty
Door Handles
Three Adjustable Refrigerator/Two Fixed Freezer
High density urethane foam cabinet and door insulation
Two Probe Access Ports (3/8") - One for Refrigerator/One for
Freezer
R134a
1/5 HP Freezer, 1/5 HP Refrigerator (Requires Two Outlets)
Manual Defrost Freezer / Auto Defrost Refrigerator
115V/60Hz
1.1 Amp Freezer, 4.1 Amps Refrigerator
261 lbs.
Two (2) year parts and labor warranty
Five (5) year compressor warranty
Optimal Operating Conditions
Optimal operation of this unit requires it to be located in a climate controlled facility that maintains temperatures at or below 75°F with 55% relative humidity
1-866-923-PURE • Fax 856-361-2772 • Contact: sales@tempurescientic.com • Website: www.tempurescientic.com
Exterior Premier
47 ¼”
221 lbs.
115VAC/60Hz/1PH
237/16”
NEMA-5-15R
Unit Weight
1.1
Pharmacy/Vaccine Refrigerator & Freezer
VRF-12-TP
24¼”
1”
241/32”
24¼”
W” D” H”
1/10
24¼ 75¾
25
0 1 Fixed
0 3 Adjustable 1/5 4.1
75¾”
Manual 1 Solid
Defrost Door Int Door Shelves H.P. AmpsCu. Ft
1.5
Freezer
10 Auto 1 Glass
Refrigerator
25”
Front View Side View Top View
CUTSHEET
Compartment
