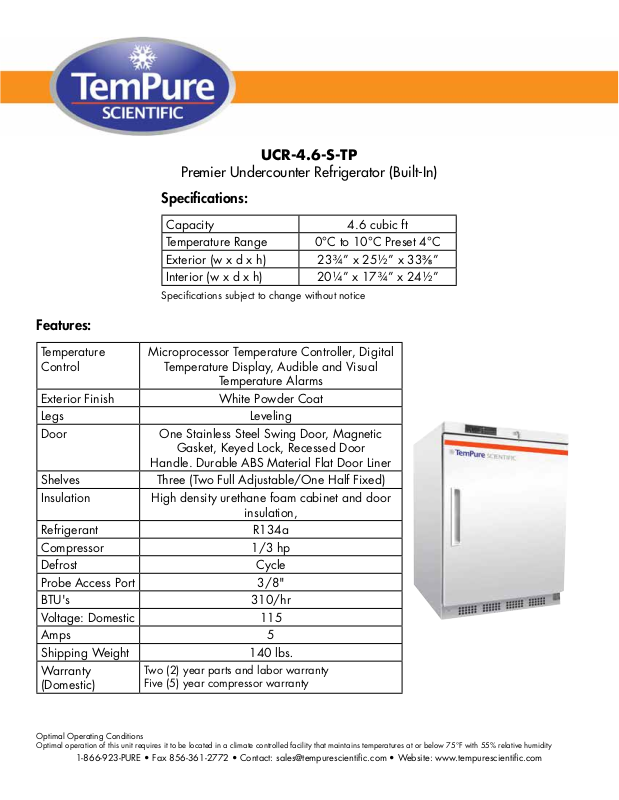

Tempure Scientific UCR-4.6-S-TP User Manual

Features:

UCR-4.6-S-TP

Premier Undercounter Refrigerator (Built-In)

Specifications:

Capacity 4.6 cubic ft
Temperature Range 0°C to 10°C Preset 4°C
Exterior (w x d x h) 23¾” x 25½” x 33⅜”
Interior (w x d x h) 20¼” x 17¾” x 24½”

Specifications subject to change without notice

Temperature
Control

Microprocessor Temperature Controller, Digital

Temperature Display, Audible and Visual

Temperature Alarms
Exterior Finish White Powder Coat
Legs Leveling
Door One Stainless Steel Swing Door, Magnetic

Gasket, Keyed Lock, Recessed Door

Handle. Durable ABS Material Flat Door Liner
Shelves Three (Two Full Adjustable/One Half Fixed)
Insulation High density urethane foam cabinet and door

insulation,
Refrigerant R134a
Compressor 1/3 hp
Defrost Cycle
Probe Access Port 3/8"
BTU's 310/hr
Voltage: Domestic 115
Amps 5
Shipping Weight 140 lbs.
Warranty

(Domestic)

Optimal Operating Conditions

Optimal operation of this unit requires it to be located in a climate controlled facility that maintains temperatures at or below 75°F with 55% relative humidity

1-866-923-PURE • Fax [phone] • Contact: sales@tempurescientic.com • Website: www.tempurescientic.com

Two (2) year parts and labor warranty
Five (5) year compressor warranty

Exterior

Premier Undercounter Refrigerator

UCR-4.6-S-TP

23¾”

46½”

22¼”

115VAC/60Hz/1PH

NEMA-5-15R

Unit Weight

W” D” H”

23¾ 333/824½

Front View Side View Top View

24½”

2 Adj/1 Fixed

0 5 100 lbs.1/3

3/8”

33

1

(Reversible)

Cycle

23¾”

4.6

CUTSHEET

UCR-4.6-S-TP

Model Defrost Door Int Door Shelves H.P. AmpsCu. Ft
