Tempure Scientific UCF-5-ADA User Manual

Features:

BB-22-HG-TP BB-48-HG-TP BB-75-HG-TP

Blood Bank Refrigerators-Hinged Glass

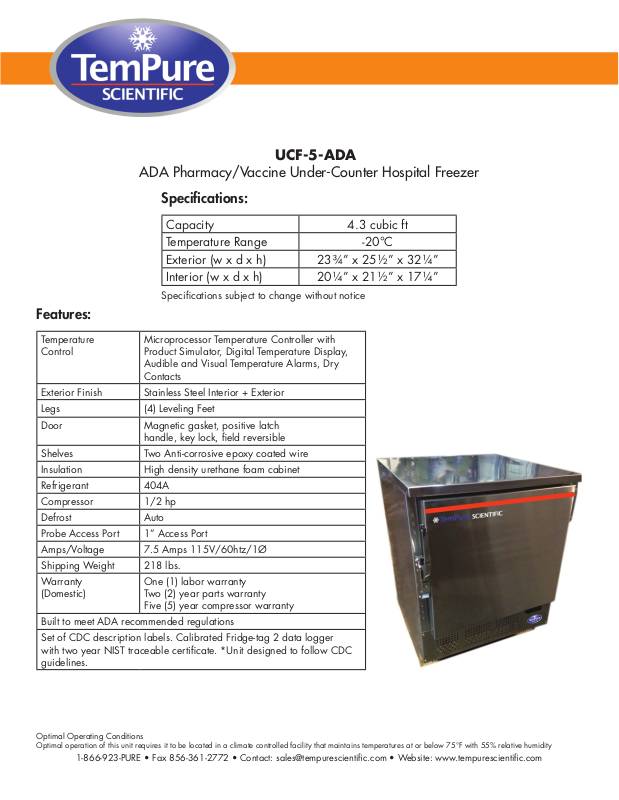

UCF-5-ADA

ADA Pharmacy/Vaccine Under-Counter Hospital Freezer

Specifications:

Capacity 4.3 cubic ft
Temperature Range -20°C

Exterior (w x d x h) 23¾” x 25½” x 32¼”
Interior (w x d x h) 20¼” x 21½” x 17¼”

Specications subject to change without notice

Temperature
Control

Exterior Finish Stainless Steel Interior + Exterior

Legs (4) Leveling Feet

Door Magnetic gasket, positive latch

Shelves Two Anti-corrosive epoxy coated wire
Insulation High density urethane foam cabinet
Refrigerant 404A
Compressor 1/2 hp
Defrost Auto
Probe Access Port 1” Access Port
Amps/Voltage 7.5 Amps 115V/60htz/1Ø

Shipping Weight 218 lbs.
Warranty

(Domestic)

Built to meet ADA recommended regulations

Set of CDC description labels. Calibrated Fridge-tag 2 data logger
with two year NIST traceable certicate. *Unit designed to follow CDC
guidelines.

Microprocessor Temperature Controller with
Product Simulator, Digital Temperature Display,
Audible and Visual Temperature Alarms, Dry
Contacts

handle, key lock, eld reversible

One (1) labor warranty
Two (2) year parts warranty
Five (5) year compressor warranty

Optimal Operating Conditions

Optimal operation of this unit requires it to be located in a climate controlled facility that maintains temperatures at or below 75°F with 55% relative humidity

1-866-923-PURE • Fax [phone] • Contact: sales@tempurescientic.com • Website: www.tempurescientic.com

Exterior ADA Pharmacy/Vaccine

Under-Counter Hospital Freezer

UCF-5-ADA

Side View Top View

115VAC/60Hz/1PH

NEMA-5-15R

23¾”

23¾” 25½ 32¼ 7.5 218 lbs.½

25½”

Front View

2

¼”

32

SET

1 Solid 0

23¾”

4.3 Auto

CUTSHEET

Model Defrost Door Int Door Shelves W” D” H” H.P. Amps Ship WeightCu. Ft

UCF-5-ADA
