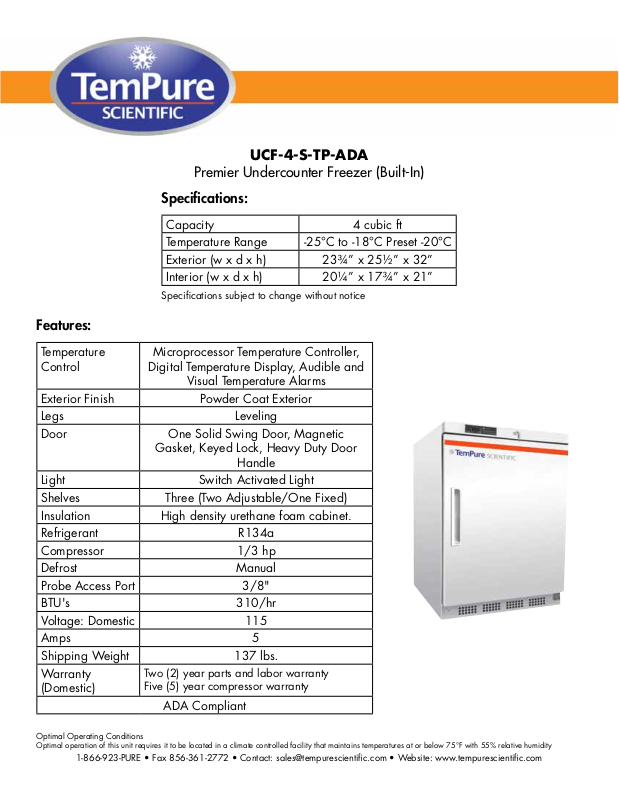

Tempure Scientific UCF-4-S-TP-ADA User Manual
Features:
UCF-4-S-TP-ADA
Premier Undercounter Freezer (Built-In)
Specifications:
Capacity 4 cubic ft
Temperature Range -25°C to -18°C Preset -20°C
Exterior (w x d x h) 23¾” x 25½” x 32”
Interior (w x d x h) 20¼” x 17¾” x 21”
Specifications subject to change without notice
Temperature
Control
Microprocessor Temperature Controller,
Digital Temperature Display, Audible and
Visual Temperature Alarms
Exterior Finish Powder Coat Exterior
Legs Leveling
Door One Solid Swing Door, Magnetic
Gasket, Keyed Lock, Heavy Duty Door
Handle
Light Switch Activated Light
Shelves Three (Two Adjustable/One Fixed)
Insulation High density urethane foam cabinet.
Refrigerant R134a
Compressor 1/3 hp
Defrost Manual
Probe Access Port 3/8"
BTU's 310/hr
Voltage: Domestic 115
Amps 5
Shipping Weight 137 lbs.
Warranty
(Domestic)
Two (2) year parts and labor warranty
Five (5) year compressor warranty
ADA Compliant
Optimal Operating Conditions
Optimal operation of this unit requires it to be located in a climate controlled facility that maintains temperatures at or below 75°F with 55% relative humidity
1-866-923-PURE • Fax 856-361-2772 • Contact: sales@tempurescientic.com • Website: www.tempurescientic.com
Exterior
Premier Undercounter Freezer
UCF-4-S-TP-ADA
23¾”
46½”
22¼”
115VAC/60Hz/1PH
NEMA-5-15R
115VAC/60Hz/1PH
NEMA-5-15R
Unit Weight
W” D” H”
Front View Side View Top View
24½”
23¾”
32”
2 Adj/1 Fixed
0 23¾ 25½ 32 5 97 lbs.1/3
1 Solid
(Reversible)
Manual
4
CUTSHEET
UCF-4-S-TP-ADA
Model Defrost Door Int Door Shelves H.P. AmpsCu. Ft
