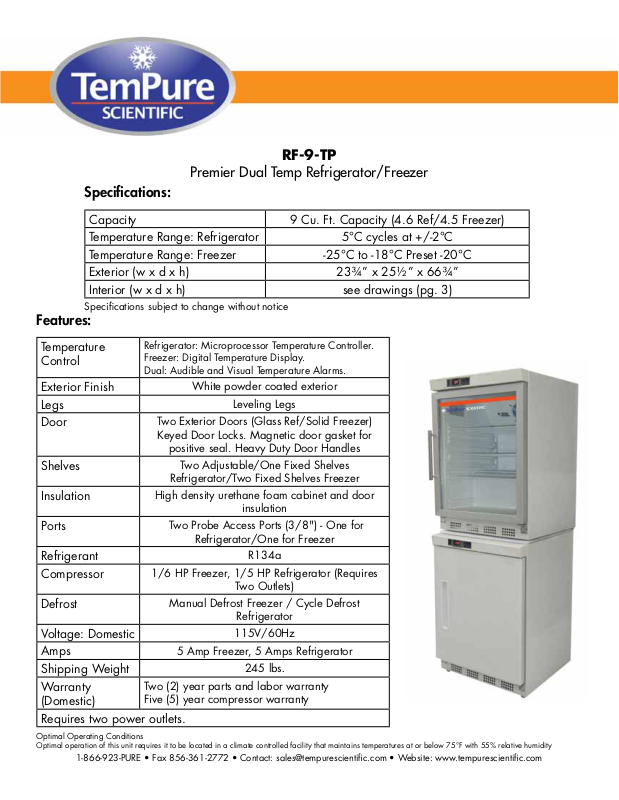

Tempure Scientific RF-9-TP User Manual
Features:
RF-9-TP
Premier Dual Temp Refrigerator/Freezer
Specifications:
Capacity 9 Cu. Ft. Capacity (4.6 Ref/4.5 Freezer)
Temperature Range: Refrigerator 5°C cycles at +/-2°C
Temperature Range: Freezer -25°C to -18°C Preset -20°C
Exterior (w x d x h) 23¾” x 25½” x 66¾”
Interior (w x d x h) see drawings (pg. 3)
Specifications subject to change without notice
Temperature
Control
Exterior Finish
Legs
Door
Shelves
Insulation
Ports
Refrigerant
Compressor
Defrost
Voltage: Domestic
Amps
Shipping Weight
Warranty
(Domestic)
Refrigerator: Microprocessor Temperature Controller.
Freezer: Digital Temperature Display.
Dual: Audible and Visual Temperature Alarms.
White powder coated exterior
Leveling Legs
Two Exterior Doors (Glass Ref/Solid Freezer)
Keyed Door Locks. Magnetic door gasket for
positive seal. Heavy Duty Door Handles
Two Adjustable/One Fixed Shelves
Refrigerator/Two Fixed Shelves Freezer
High density urethane foam cabinet and door
insulation
Two Probe Access Ports (3/8") - One for
Refrigerator/One for Freezer
R134a
1/6 HP Freezer, 1/5 HP Refrigerator (Requires
Two Outlets)
Manual Defrost Freezer / Cycle Defrost
Refrigerator
115V/60Hz
5 Amp Freezer, 5 Amps Refrigerator
245 lbs.
Two (2) year parts and labor warranty
Five (5) year compressor warranty
Requires two power outlets.
Optimal Operating Conditions
Optimal operation of this unit requires it to be located in a climate controlled facility that maintains temperatures at or below 75°F with 55% relative humidity
1-866-923-PURE • Fax 856-361-2772 • Contact: sales@tempurescientic.com • Website: www.tempurescientic.com
Exterior Premier
46½”
22¾”
115VAC/60Hz/1PH
NEMA-5-15R
205 lbs.
Unit Weight
5
Refrigerator & Freezer
RF-9-TP
23¾”
24½”
W” D” H”
1/3
25½ 66¾
23¾
0 2 Fixed
0 2 Adj/1 Fixed 1/3 5
11/9/2012
66¾”
Defrost Door Int Door Shelves H.P. AmpsCu. Ft
23¾” 25½”
Front View Side View Top View
4.5 Manual 1 Solid
4.6 Cycle 1 Glass
CUTSHEET
Refrigerator
Compartment
Freezer
