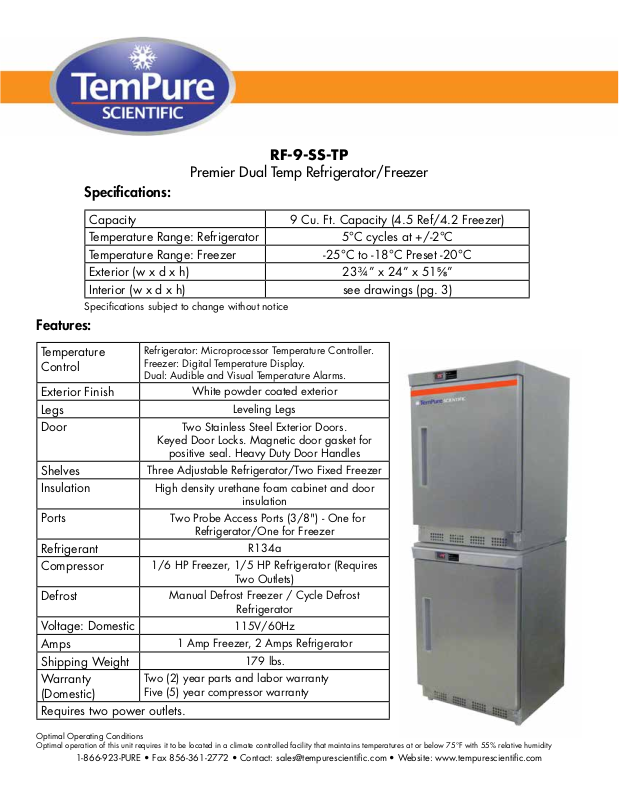

Page 1
Features:
RF-9-SS-TP
Premier Dual Temp Refrigerator/Freezer
Specifications:
Capacity 9 Cu. Ft. Capacity (4.5 Ref/4.2 Freezer)
Temperature Range: Refrigerator 5°C cycles at +/-2°C
Temperature Range: Freezer -25°C to -18°C Preset -20°C
Exterior (w x d x h) 23¾” x 24” x 51⅝”
Interior (w x d x h) see drawings (pg. 3)
Specifications subject to change without notice
Temperature
Control
Exterior Finish
Legs
Door
Shelves
Insulation
Ports
Refrigerant
Compressor
Defrost
Voltage: Domestic
Amps
Shipping Weight
Warranty
(Domestic)
Refrigerator: Microprocessor Temperature Controller.
Freezer: Digital Temperature Display.
Dual: Audible and Visual Temperature Alarms.
White powder coated exterior
Leveling Legs
Two Stainless Steel Exterior Doors.
Keyed Door Locks. Magnetic door gasket for
positive seal. Heavy Duty Door Handles
Three Adjustable Refrigerator/Two Fixed Freezer
High density urethane foam cabinet and door
insulation
Two Probe Access Ports (3/8") - One for
Refrigerator/One for Freezer
R134a
1/6 HP Freezer, 1/5 HP Refrigerator (Requires
Two Outlets)
Manual Defrost Freezer / Cycle Defrost
Refrigerator
115V/60Hz
1 Amp Freezer, 2 Amps Refrigerator
179 lbs.
Two (2) year parts and labor warranty
Five (5) year compressor warranty
Requires two power outlets.
Optimal Operating Conditions
Optimal operation of this unit requires it to be located in a climate controlled facility that maintains temperatures at or below 75°F with 55% relative humidity
1-866-923-PURE • Fax 856-361-2772 • Contact: sales@tempurescientic.com • Website: www.tempurescientic.com
Page 2
Exterior Premier
46½”
22¼”
115VAC/60Hz/1PH
NEMA-5-15R
200 lbs.
Unit Weight
5
Refrigerator & Freezer
RF-9-TP-SS
23¾”
24½”
W” D” H”
1/3
24½ 66¾
23¾
0 2 Fixed
0 2 Adj/1 Fixed 1/3 5
11/9/2012
66¾”
Defrost Door Int Door Shelves H.P. AmpsCu. Ft
23¾” 24½”
Front View Side View Top View
4.2 Manual 1 Solid
4.5 Cycle 1 Solid
CUTSHEET
Refrigerator
Compartment
Freezer
Page 3
Interior Premier
RF-9-TP-SS
Interior Refrigerator Dim.
W” D” H”
24½
20¼ 17¾
Interior Freezer Dim.
W” D” H”
24¼
17¼
19¼
115VAC/60Hz/1PH
NEMA-5-15R
Unit Weight
Refrigerator & Freezer
Side View Front View
16¼”
12½”
8¼”
9¾”
17¾”
6 ¼”
17 ¼”
6 ½”
9”
8 ½”
D” H”
Interior Dim.
See Above 200 lbs.
W”
2 Fixed 1/3 5
0 2 Adj/1 Fixed 1/3 5
24½”
24¼”
11/9/2012
11¾”
Probe
Hole
20”
20¼”
14”
CUTSHEET
19¼”
Probe
Hole
4”
Defrost Door Int Door Shelves H.P. AmpsCu. Ft
4.2 Manual 1 Solid
4.5 Cycle 1 Solid
Refrigerator
Freezer
Compartment
