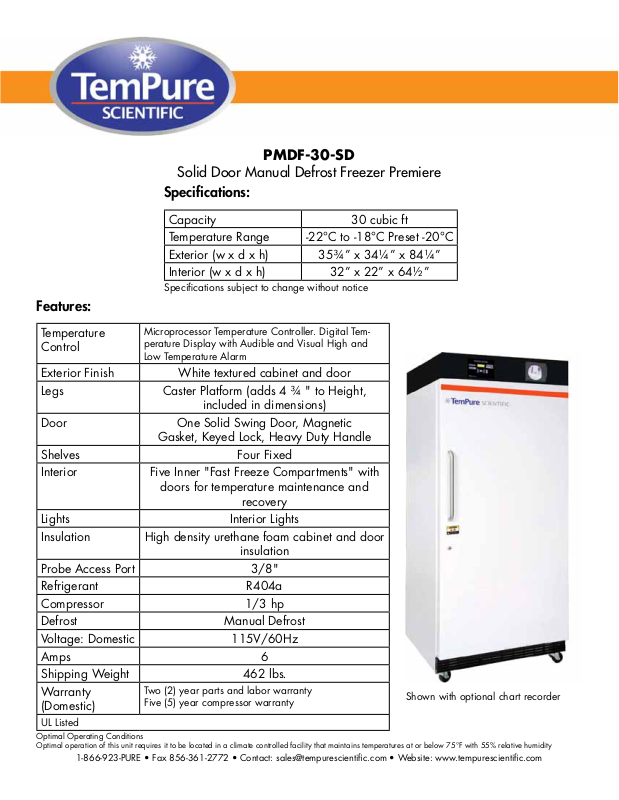

Tempure Scientific PMDF-30-SD User Manual

Features:

PMDF-30-SD

Solid Door Manual Defrost Freezer Premiere

Specifications:

Capacity 30 cubic ft
Temperature Range -22°C to -18°C Preset -20°C
Exterior (w x d x h) 35¾” x 34¼” x 84¼”
Interior (w x d x h) 32” x 22” x 64½”

Specifications subject to change without notice

Temperature
Control

Microprocessor Temperature Controller. Digital Tem­perature Display with Audible and Visual High and
Low Temperature Alarm

Exterior Finish White textured cabinet and door
Legs Caster Platform (adds 4 ¾ " to Height,

included in dimensions)

Door One Solid Swing Door, Magnetic

Gasket, Keyed Lock, Heavy Duty Handle
Shelves Four Fixed
Interior Five Inner "Fast Freeze Compartments" with

doors for temperature maintenance and

recovery
Lights Interior Lights
Insulation High density urethane foam cabinet and door

insulation
Probe Access Port 3/8"
Refrigerant R404a
Compressor 1/3 hp
Defrost Manual Defrost
Voltage: Domestic 115V/60Hz
Amps 6
Shipping Weight 462 lbs.
Warranty

(Domestic)

UL Listed

Optimal Operating Conditions

Optimal operation of this unit requires it to be located in a climate controlled facility that maintains temperatures at or below 75°F with 55% relative humidity

1-866-923-PURE • Fax [phone] • Contact: sales@tempurescientic.com • Website: www.tempurescientic.com

Two (2) year parts and labor warranty
Five (5) year compressor warranty

Shown with optional chart recorder

Exterior

64¾”

PMDF-30-SD

Premier Manual Defrost Freezer

35”

28½”

5¾ ”

115VAC/60Hz/1PH

NEMA-5-15R

Front View Side View Top View

34¼”

35¾”

4 Fixed

79½”

4¾”

1 Solid 5 35¾ 34¼ 84¼ 6 422 lbs.1/3

84¼”

30 Manual

CUTSHEET

Model Defrost Door Int Door Shelves W” D” H” H.P. AmpsCu. Ft Unit Weight

PMDF-30-SD
